Chapter 1 Introduction

ank you for purchasing ASRock X370 Pro4 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock ’s commitment to quality

and endurance.

In this manual, Chapter 1 and 2 contains the introduction of the motherboard

and step-by-step installation guides. Chapter 3 contains the operation guide of the

soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.

Becau se the motherboard specications and the BIOS soware might be updated, the
content of this manual will be subject to change without notice. In ca se any modica­tions of this manual occur, the updated version will be available on ASRock’s website
without further notice. If you require technical suppor t related to this motherboard,
please visit our website for spe cic information about the model you are using. You
may nd the l atest VGA cards and CPU support list on ASRock ’s website a s well.
ASRock website http://www.a srock .com.

1.1 Package Contents

ASRock X370 Pro4 Motherboard (ATX Form Factor)

•

ASRock X370 Pro4 Quick Installation Guide

•

ASRock X370 Pro4 Support CD

•

1 x I/O Panel Shield

•

2 x Serial ATA (SATA) Data Cables (Optional)

•

2 x Screws for M.2 Sockets (Optional)

•

X370 Pro4

English

1

English

1.2 Specications

Platform

CPU

Chipset

Memory

•

•

•

•

•

•

•

•

•

•

•

•

•

•

* For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only

supported with PRO CPUs.

* Please refer to Memory Support List on ASRock’s website for

more information. (http://www.asrock.com/)

* Please refer to page 22 for the table for AMD non-XMP mem-

ory frequency support. For more details, please refer to the QVL

on ASRock’s website.

•

•

ATX Form Factor

Solid Capacitor design

Supports AMD Socket AM4 A-Series APUs (Bristol Ridge)

and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge,

Raven Ridge and Pinnacle Ridge)

Digi Power design

9 Power Phase design

AMD Promontory X370

Dual Channel DDR4 Memory Technology

4 x DDR4 DIMM Slots

AMD Ryzen series CPUs (Matisse) support DDR4

3200/2933/2667/2400/2133 ECC & non-ECC, un-buered

memory*

AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4

3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-

buered memory*

AMD Ryzen series CPUs (Picasso) support DDR4

2933/2667/2400/2133 non-ECC, un-buered memory*

AMD Ryzen series CPUs (Summit Ridge) support DDR4

3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-

buered memory*

AMD Ryzen series CPUs (Raven Ridge) support DDR4

3200+(OC)/2933/2667/2400/2133 non-ECC, un-buered

memory*

AMD 7th Gen A-Series APUs support DDR4 2400/2133 non-

ECC, un-buered memory*

Max. capacity of system memory: 64GB

15μ Gold Contact in DIMM Slots

2

X370 Pro4

Expansion
Slot

Graphics

AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle

Ridge)

2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at

•

x16 (PCIE2) / x4 (PCIE4))*

AMD 7th A-Series APUs

2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE2); dual at x8

•

(PCIE2) / x2 (PCIE4))*

AMD Ryzen series CPUs (Picasso, Raven Ridge)

2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE2); dual at x8

•

(PCIE2) / x4 (PCIE4))*

AMD Athlon series CPUs

2 x PCI Express 3.0 x16 Slots (single at x4 (PCIE2); dual at x4

•

(PCIE2) / x2 (PCIE4))*

* Supports NVMe SSD as boot disks

* If M2_1 is occupied, PCIE4 will be disabled.

4 x PCI Express 2.0 x1 Slots

•

Supports AMD Quad CrossFireXTM and CrossFireXTM**

•

** is feature is only supported with Ryzen Series CPUs

(Matisse, Summit Ridge, Pinnacle Ridge, Picasso and Raven

Ridge).

Integrated AMD RadeonTM Vega Series Graphics in Ryzen

•

Series APU*

Integrated AMD RadeonTM R-Series Graphics in A-series

•

APU*

* Actual support may vary by CPU

DirectX 12, Pixel Shader 5.0

•

Shared memory default 2GB. Max Shared memory supports

•

up to 16GB.

* e Max shared memory 16GB requires 32GB system memory

installed.

ree graphics output options: D-Sub, DVI-D and HDMI

•

Supports Triple Monitor

•

Supports HDMI 1.4 with max. resolution up to 4K x 2K

•

(4096x2160) @ 24Hz / (3840x2160) @ 30Hz

Supports DVI-D with ma x. resolution up to 1920x1200 @

•

60Hz

Supports D-Sub with max. resolution up to 1920x1200 @

•

60Hz

English

3

Audio

LAN

Rear Panel
I/O

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

•

HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant

HDMI monitor is required)

Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports

•

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

•

and HDMI 1.4 Ports

7.1 CH HD Audio with Content Protection (Realtek ALC892

•

Audio Codec)

Premium Blu-ray Audio support

•

Supports Surge Protection

•

ELNA Audio Caps

•

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

•

Realtek RTL8111GR

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports LAN Cable Detection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

1 x PS/2 Mouse/Keyboard Port

•

1 x D-Sub Port

•

1 x DVI-D Port

•

1 x HDMI Port

•

2 x USB 2.0 Ports (Supports ESD Protection)

•

1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)

•

5 x USB 3.2 Gen1 Ports (Supports ESD Protection (Supports

•

ESD Protection)

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

•

English

4

Storage

4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

•

RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*

2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, sup-

•

port NCQ, AHCI and Hot Plug

* M2_ 2 and SATA3_3 share lanes. If either one of them is in use,

the other one will be disabled.

Connector

1 x Ultra M.2 Socket (M2_1), supports M Key type

•

2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32

Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and

Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and

Athlon series APU)**

** If M2_1 is occupied, PCIE4 will be disabled.

** Supports NVMe SSD as boot disks

** Supports ASRock U.2 Kit

1 x M.2 Socket (M2_2), supports M Key type

•

2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module

1 x COM Port Header

•

1 x TPM Header

•

1 x Power LED and Speaker Header

•

1 x RGB LED Header

•

* Supports up to 12V/3A, 36W LED Strip

1 x AMD Fan LED Header

•

1 x CPU Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of ma ximum

1A (12W) fan power.

3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed

•

Control)

* CHA_FAN2 and CHA_FAN3 can auto detect if 3-pin or 4-pin

fan is in use.

1 x 24 pin ATX Power Connector

•

1 x 8 pin 12V Power Connector

•

1 x Front Panel Audio Connector

•

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD

•

Protection)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

•

(Supports ESD Protection)

X370 Pro4

BIOS
Feature

AMI UEFI Legal BIOS with multilingual GUI support

•

Supports “Plug and Play”

•

ACPI 5.1 compliance wake up events

•

Supports jumperfree

•

SMBIOS 2.3 support

•

DRAM Voltage multi-adjustment

•

English

5

CPU/Chassis temperature sensing

Hardware
Monitor

OS

Certica­tions

* For detailed product information, please visit our website: http://ww w.asrock.com

Please realize that the re is a certain r isk involved with overclo cking, including adju st­ing the setting in the BIOS, applying Untied Ove rclocking Technology, or using third­party o verclocking tools. Overclocking may aect your system’s stability, or even c ause
damage to the components and dev ices of your system. It should be done at your own
risk and expense. We are not responsible for possible damage cau sed by overclocking.

•

CPU/Chassis Fan Tachometer

•

CPU/Chassis Quiet Fan

•

CPU/Chassis Fan multi-speed control

•

Voltage monitoring: +12V, +5V, +3.3V, Vcore

•

Microso® Windows® 10 64-bit

•

FCC, CE

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

English

6

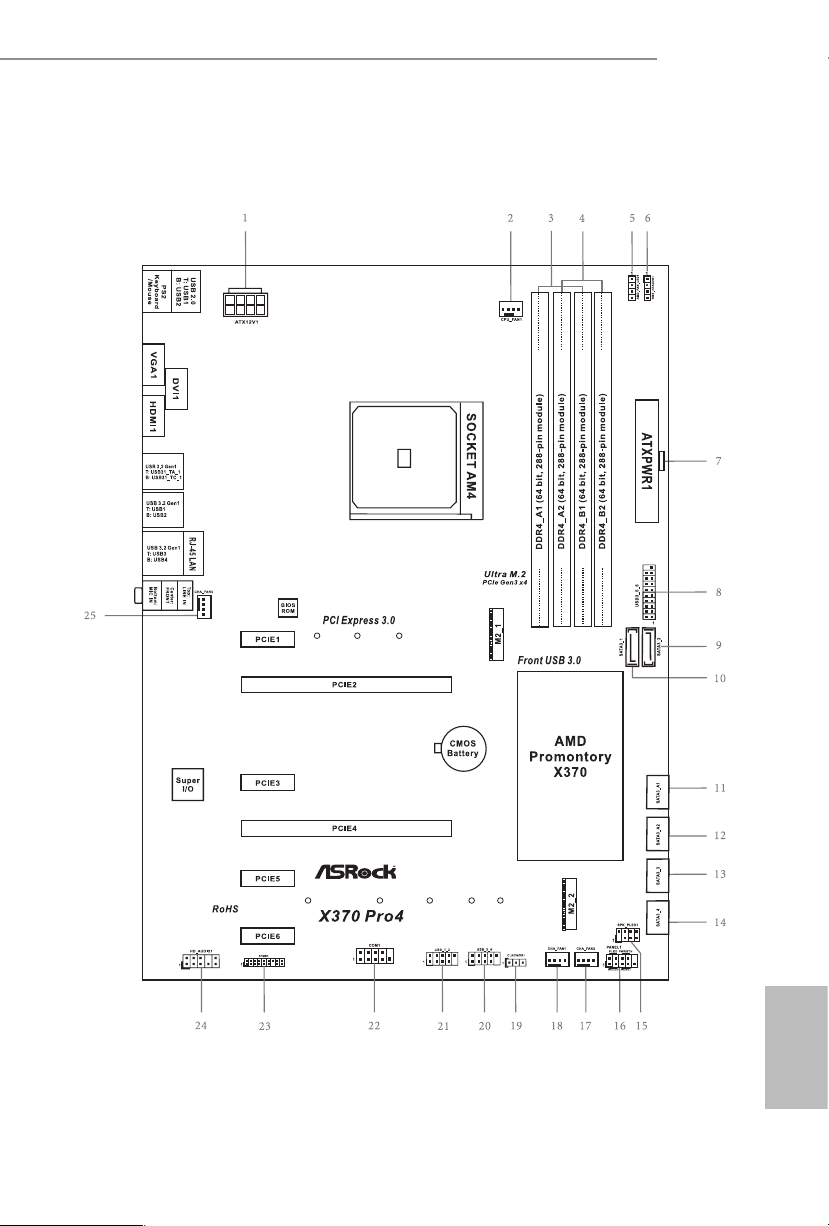

1.3 Motherboard Layout

X370 Pro4

English

7

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

5 AMD Fan LED Header (AMD_FAN_LED1)

6 RGB LED Header (RGB_HEADER1)

7 ATX Power Connector (ATXPWR1)

8 USB 3.2 Gen1 Header (USB3_ 5_6)

9 SATA3 Connector (SATA3_2)

10 SATA3 Connector (SATA3_1)

11 SATA3 Connector (SATA3_A1)

12 SATA3 Connector (SATA3_A2)

13 SATA3 Connector (SATA3_3)

14 SATA3 Connector (SATA3_4)

15 Power LED and Speaker Header (SPK_PLED1)

16 System Panel Header (PANEL1)

17 Chassis Fan Connector (CHA_FAN2)

18 Chassis Fan Connector (CHA_FAN1)

19 Clear CMOS Jumper (CLRCMOS1)

20 USB 2.0 Header (USB_3_4)

21 USB 2.0 Header (USB_1_2)

22 COM Port Header (COM1)

23 TPM Header (TPMS1)

24 Front Panel Audio Header (HD_ AUDIO1)

25 Chassis Fan Connector (CHA_FAN3)

English

8

1.4 I/O Panel

1

X370 Pro4

4

2

3

5

12

8 791113

6

10

No. Description No. Description

1 USB 2.0 Ports (USB12) 8 USB 3.2 Gen1 Ports (USB3_12)

2 DVI-D Port 9 USB 3.2 Gen1 Port (USB31_TA_1)

3 LAN RJ-45 Port* 10 USB 3.2 Gen1 Type-C Port (USB31_TC_1)

4 Line In (Light Blue)** 11 HDMI Port

5 Front Speaker (Lime)** 12 D-Sub Port

6 Microphone (Pink)** 13 PS/2 Mouse/Keyboard Port

7 USB 3.2 Gen1 Ports (USB3_34)

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications .

ACT/LINK L ED

SPEED LE D

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection

** Function of the Au dio Ports in 7.1-channel Con guration:

Port Function

Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

English

9

Chapter 2 Installation

is is an ATX form factor motherboard. Before you install the motherboard, study

the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard.

•

Failure to do so may cause physical injuries to you and damages to motherboard

components.

In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded

wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

English

10

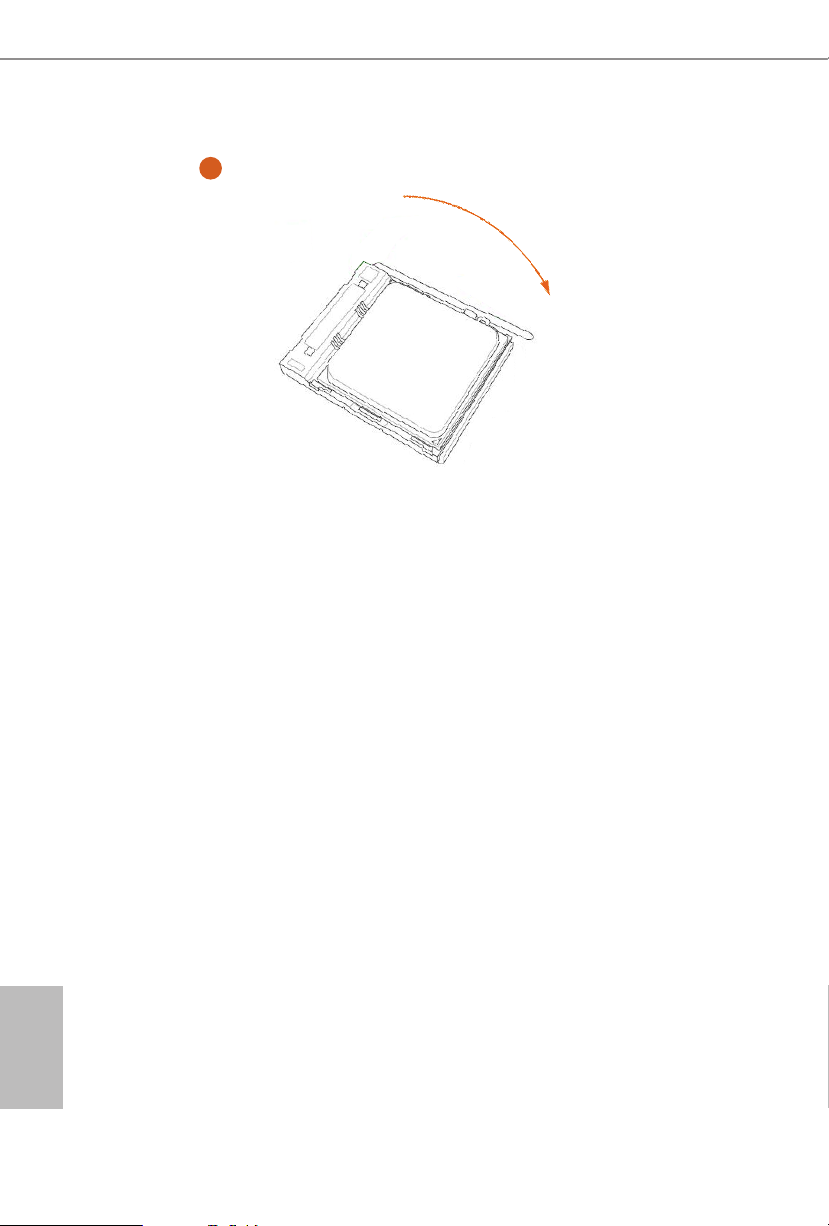

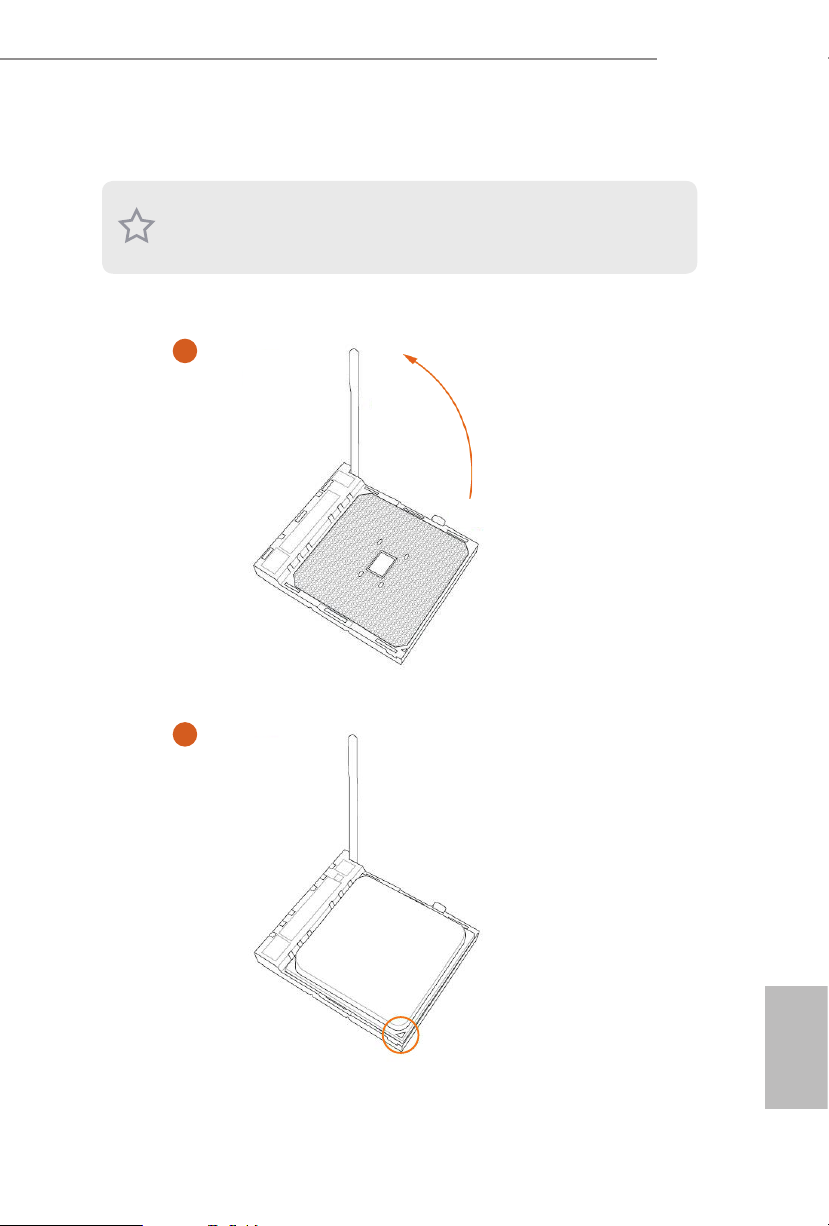

2.1 Installing the CPU

Unplug all power cables be fore installing the CPU.

1

X370 Pro4

2

English

11

3

English

12

2.2 Installing the CPU Fan and Heatsink

Aer you install the CPU into this motherboard, it is necessary to install a larger

heatsink and cooling fan to dissipate heat. You also need to spray thermal grease

between the CPU and the heatsink to improve heat dissipation. Ma ke sure that the

CPU and the heatsink are securely fastened and in good contact with each other.

Please turn o the power or remove the power cord before changing a CPU or heatsink.

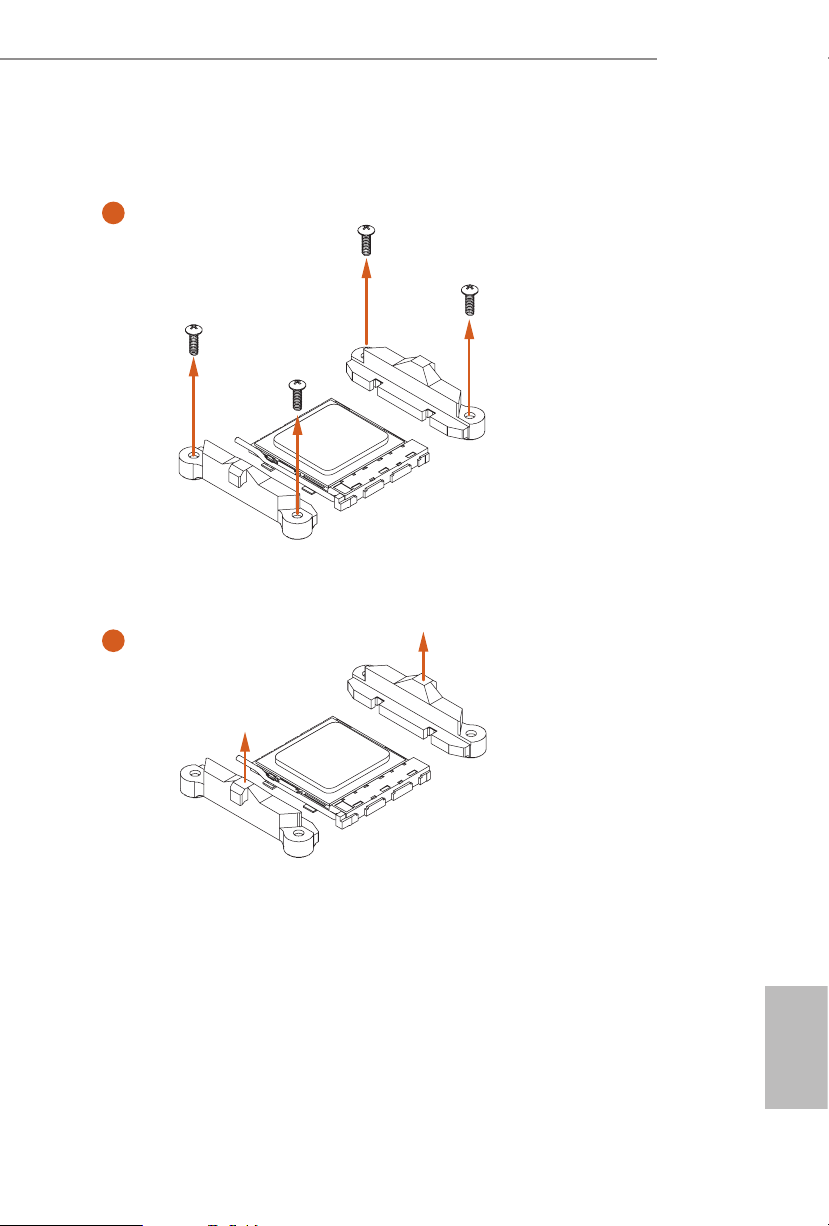

Installing the CPU Box Cooler SR1

1

X370 Pro4

2

English

13

3

English

14

4

1

N

FA

_

U

P

C

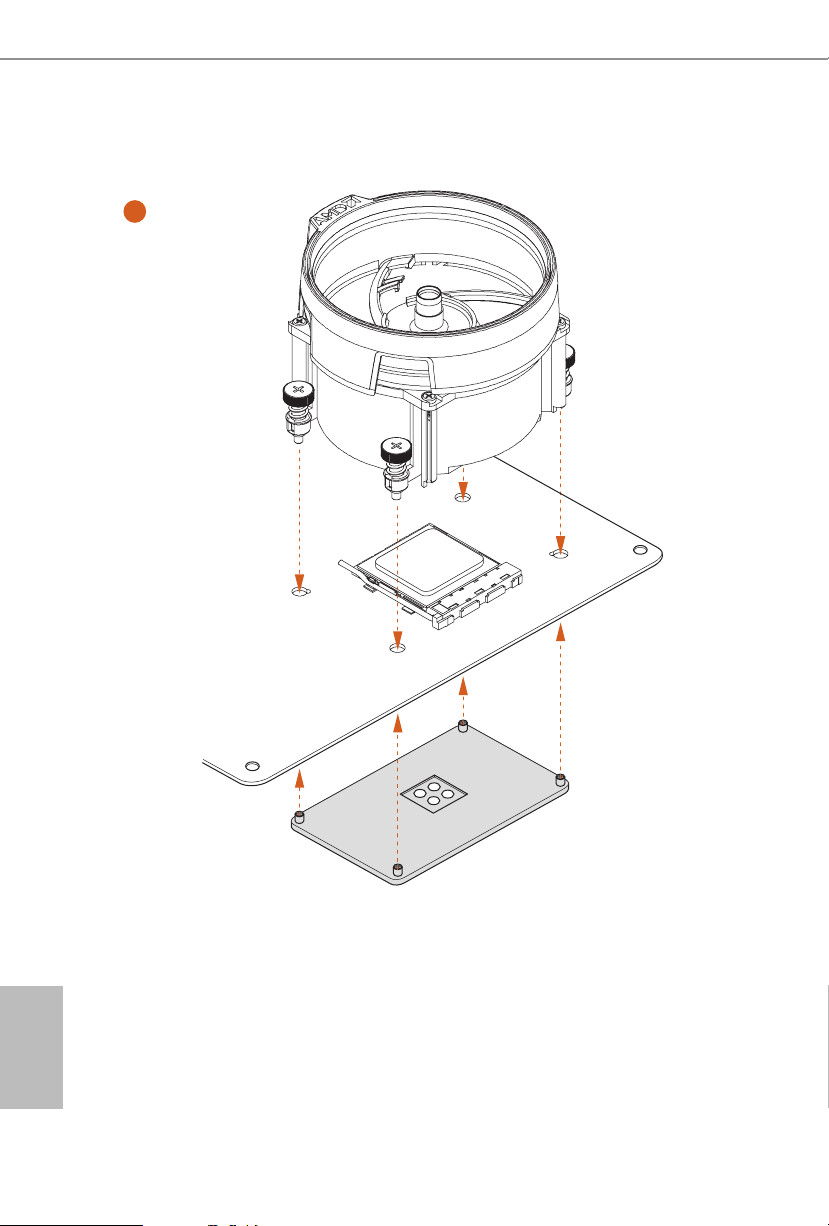

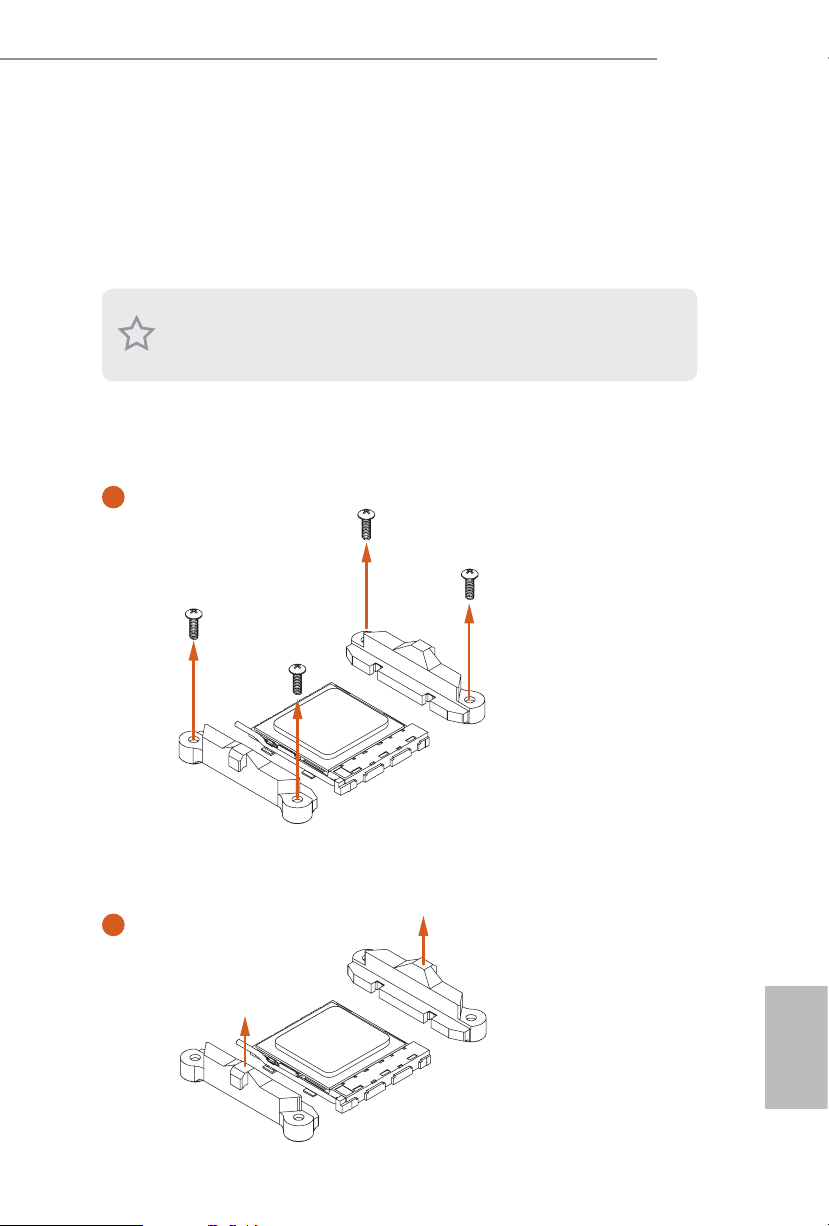

Installing the AM4 Box Cooler SR2

1

X370 Pro4

2

English

15

3

English

16

X370 Pro4

4

1

N

FA

_

U

P

C

5

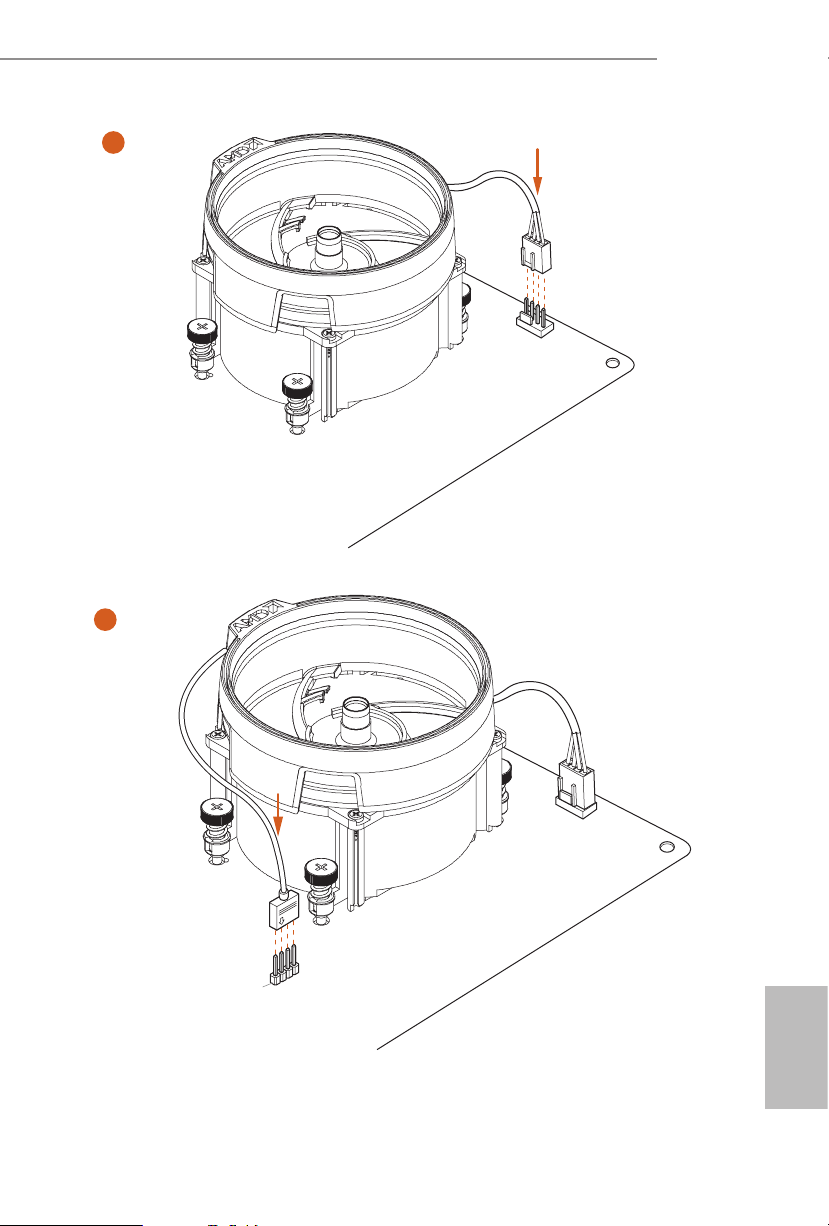

4-pin FAN cable

RGB LED Cable

1

N

FA

CPU_

1
D

E

L

_

N

FA

_

D

AM

+12V

*e diagram shown here are for reference only. Please refer to page 32 for the orientation of

AMD Fan LED Header (AMD_FAN_LED1).

English

17

Installing the AM4 Box Cooler SR3

1

English

18

2
