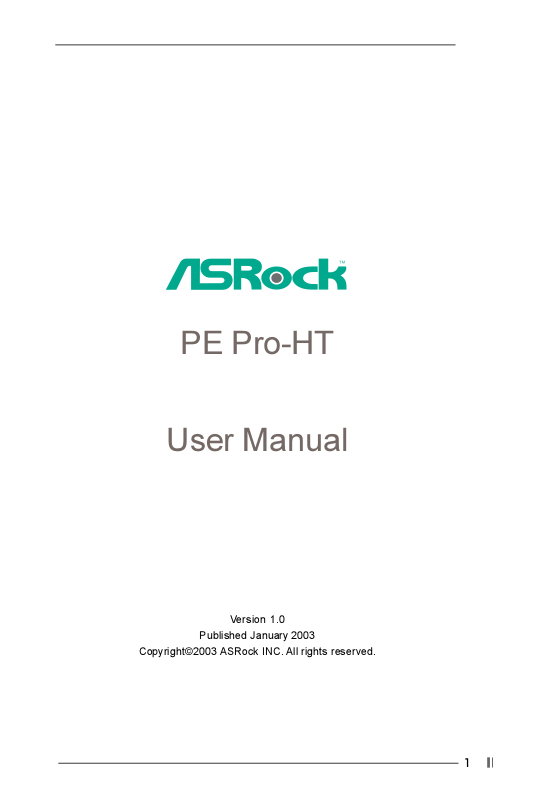

PE Pro-HT
User Manual
Version 1.0
Published January 2003
Copyright©2003 ASRock INC. All rights reserved.
1
Page 2
Copyright Notice:
No part of this manual may be reproduced, transcribed, transmitted, or translated in
any language, in any form or by any means, except duplication of documentation by
the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for
identification or explanation and to the owners’ benefit, without intent to infringe.
Disclaimer:
Specifications and information contained in this manual are furnished for informational use only and subject to change without notice, and should not be constructed
as a commitment by ASRock. ASRock assumes no responsibility for any errors or
omissions that may appear in this manual.
With respect to the contents of this manual, ASRock does not provide warranty of
any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of profits, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from
any defect or error in the manual or product.
ASRock Website: http://www.asrock.com
2
Page 3
Contents
1 Introduction ................................................... 4
1.1 Package Contents ......................................................... 4
1.2 Specifications ................................................................ 4
1.3 Motherboard Layout ...................................................... 6
1.4 ASRock I/OTM.................................................................. 7
2 Installation...................................................... 8
2.1 Screw Holes ................................................................. 8
2.2 Pre-installation Precautions ........................................... 8
2.3 CPU Installation .............................................................. 8
2.4 Installation of Heatsink and CPU fan ............................. 9
2.5 Installation of Memory Modules (DIMM)......................... 9
2.6 Expansion Slots ............................................................. 10
2.7 Jumpers Setup .............................................................. 10
2.8 Connectors .................................................................... 11
3 BIOS Setup ...................................................... 14
3.1 BIOS Setup Utility ........................................................... 14
3.1.1 BIOS Menu Bar ....................................................... 14
3.1.2 Legend Bar ............................................................. 14
3.2 Main Menu...................................................................... 15
3.3 Advanced, Security, Power, Boot, and Exit Menus ..... 17
4 Software Support ........................................... 18
4.1 Installing Operating System ........................................... 18
4.2 Support CD Information ................................................. 18
4.2.1 Running Support CD ............................................... 18
4.2.2 Drivers Menu .......................................................... 18
4.2.3 Utilities Menu ........................................................... 18
4.2.4 ASRock PC-DIY Live Demo Program ...................... 18
4.2.5 Contact Information ................................................ 18
Appendix: Advanced BIOS Setup ................... 19
1. Advanced Menu ............................................................... 19
2. Security Menu................................................................... 22
3. Power Menu ..................................................................... 23
4. Boot Menu ......................................................................... 24
5. Exit Menu .......................................................................... 24
3
Page 4
Chapter 1 Introduction
Thank you for purchasing ASRock PE Pro-HT motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock’s commitment to quality and
endurance.
Chapter 1 and 2 of this manual contain introduction of the motherboard and step-bystep installation guide for new DIY system builders. Chapter 3 and 4 contain basic
BIOS setup and Support CD information.
For advanced users’ reference, the Appendix appearing on page 19 offers more
advanced BIOS setup information.
1.1 Package Contents
ASRock PE Pro-HT motherboard (ATX form factor: 12" x 9.6", 30.5 x 24.4 cm)
ASRock PE Pro-HT Quick Installation Guide
ASRock Intel-SiS Series Support CD
1 cable for IDE devices (1 x ATA 66/100/133)
1 cable for floppy drive (1 x ribbon cable)
1 ASRock I/O shield
1.2 Specifications
Platform: ATX form factor (12" x 9.6", 30.5 x 24.4 cm)
CPU: Socket 478 for Intel® Pentium® 4/ Celeron® processor
Chipsets: North Bridge: SiS 645DXHT chipsets, standard FSB 533 MHz,
supports Hyper-Threading Technology (see CAUTION 1);
South Bridge: Supports USB 2.0, ATA 133
Clock Generator:100 MHz - 200MHz
Memory: 2 slots for DDR: DIMM1 and DIMM2, Max. 2GB
(PC1600 / PC2100 / PC2700);
2 slots for SDR: DIMM3 and DIMM4, Max. 2GB (PC100/ PC133)
IDE: IDE1: ATA 133 / Ultra DMA Mode 6;
IDE2: ATA 133 / Ultra DMA Mode 6;
Can connect up to 4 IDE devices
Floppy Port: Supports floppy disk drive
Audio: 5.1 channels AC’97 Audio
LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN
Hardware Monitor: CPU temperature sensing (ASRock U-COP);
CPU overheat shutdown to protect CPU life (ASRock U-COP)
(see CAUTION 2); Chassis temperature sensing;
Voltage monitoring: +12V, +5V, +3V, Vcore;
CPU fan tachometer; Chassis fan tachometer
4
Page 5
PCI slots: 6 slots with PCI Specification 2.2
AGP slot: 1 universal AGP slot, supports 3.3v / 1.5v, 4X / 2X / 1X AGP card
USB 2.0: 4 default USB 2.0 ports and one extra set of header for 2
additional USB 2.0 ports upgrade (see CAUTION 3)
ASRock I/OTM: PS/2: 1 keyboard port / 1 mouse port;
1 RJ 45 port;
4 rear default USB 2.0 ports;
1 serial port: COM1;
1 parallel port: ECP/EPP support;
Audio Jack: Line Out/ Line In/ Microphone + 1 Game port
BIOS: AMI legal BIOS;
Supports “Plug and Play”;
ACPI 1.1 compliance wake up events;
Supports jumperfree;
SMBIOS 2.3.1 support;
OS: Microsoft® Windows® 98SE / ME / 2000 / XP compliant
CAUTION!
1. About the setting of “Hyper-Threading Technology”, please check
page 19.
2. While CPU overheat is detected, the system will automatically
shutdown. Please check if the CPU fan on the motherboard
functions properly before you resume the system. To improve heat
dissipation, remember to spray thermal grease between the CPU
and the heatsink when you install the PC system.
3. Power Management for USB 2.0 works fine under Microsoft
Windows® XP. It may not work properly under Microsoft
Windows® 98/ME/2000. Please refer to Microsoft® official
document at
http://www.microsoft.com/HWDEV/BUS/usb/USB2support.asp
®
®
5
Page 6
1.3 Motherboard Layout
22
24.4cm (9.6 in)
CPU_FAN1
PS/2
Mouse
1
PS2_USB_PWR1
PS/2
Keyboard
1 234
5
6
SiS
mPGA478B
HT
PE PRO-HT
ATA133
USB2.0
5.1CH
SiS
South
Bridge
DDR DIMM1(64/72 bit, 184-pinmodule)
10
DDR DIMM2(64/72 bit, 184-pinmodule)
32
CLRCMOS1
01
FLOPPY1
SDR DIMM1(64 bit, 168-pinmodule)
CMOS
Battery
SDR DIMM2(64 bit, 168-pinmodule)
32
IDE2
CHA_FAN1
1
SPEAKER1
1
USB45
PANEL1
PLED PWRBTN
1
HDLED RST
8
7
30.5cm (12.0 in)
IDE1
25
9
16
10
1
14
IR1
15
13
17
12
COM1
PARALLEL PORT
LAN
USB01
USB23
21
Lineout
LAN
PHY
Line
Linein
In
Mic
GAME AUDIO1
Micin
GAME AUDIO1
In
23
24
20
19
11
AudioCODEC
AUX1
1
2MB
BIOS
Audio1
Super
I/O
CD1
645DX
Chipset
Accelerated GraphicsPort
PCI 1
PCI 2
PCI 3
PCI 4
18
PCI 5
PCI 6
1 ATX power connector (ATXPWR1) 14 Infrared module connector (IR1)
2 CPU socket 15 External speaker connector (SPEAKER1)
3 CPU fan connector (CPU_FAN1) 16 South Bridge controller
4 North Bridge controller 17 Clear CMOS (CLRCMOS1)
5 184-pin DDR DIMM slots (DDR1-2, Blue) 18 PCI slots (PCI 1- 6)
6 168-pin SDRAM DIMM slots (SDR1-2, Black) 19 Audio CODEC
7 Primary IDE connector (IDE1, Blue) 20 Front panel audio connector (AUDIO1)
8 Secondary IDE connector (IDE2, Black) 21 LAN PHY
9 Chassis fan connector (CHA_FAN1) 22 PS2_USB_PWR1 jumper
10 Floppy connector (FLOPPY1) 23 Internal audio connectors: AUX1 (White)
11 Flash Memory 24 Internal audio connectors: CD1 (Black)
12 System panel connector (PANEL1) 25 AGP slot
13 USB 2.0 header (USB45)
6
Page 7
1.4 ASRock I/O
TM
12
910
1 Parallel port 6 Line Out (Lime)
2 RJ-45 port 7 USB 2.0 ports
3 Game port 8 Serial port (COM1)
4 Microphone (Pink) 9 PS/2 keyboard port (Purple)
5 Line In (Light Blue) 10 PS/2 mouse port (Green)
8
3
4567
7
Page 8
Chapter 2 Installation
PE Pro-HT is an ATX form factor (12" x 9.6", 30.5 x 24.4 cm) motherboard. Before
you install the motherboard, study the configuration of your chassis to ensure that
the motherboard fits into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you
and damages to motherboard components.
2.1 Screw Holes
Place screws into the holes indicated by circles to secure the motherboard
to the chassis.
Do not over-tighten the screws! Doing so may damage the
motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity, NEVER
place your motherboard directly on the carpet or the like. Also remember to use
a grounded wrist strap or touch a safety grounded object before you handle
components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is switched
off or the power cord is detached from the power supply. Failure to do so may cause
severe damage to the motherboard, peripherals, and/or components.
2.3 CPU Installation

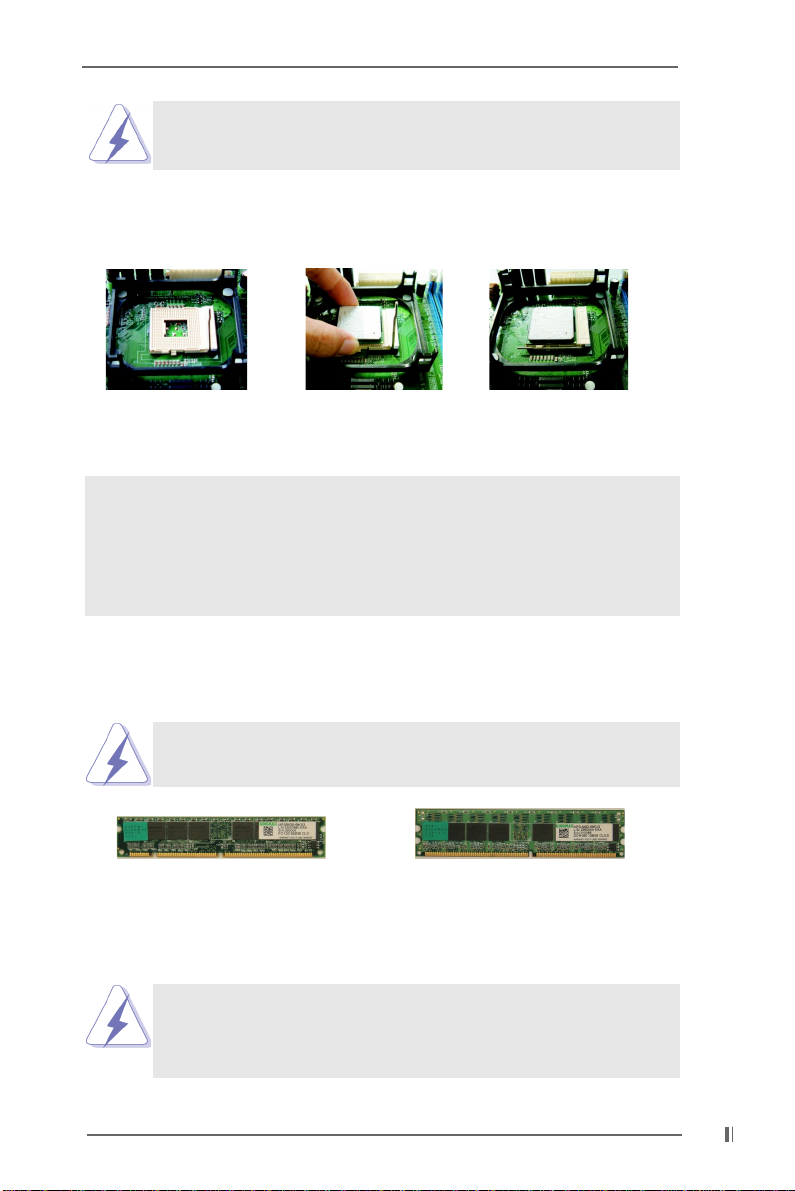

Step 1. Unlock the socket by lifting the lever up to a 90 angle.
Step 2. Position the CPU directly above the socket such that its marked corner
matches the base of the socket lever.
Step 3. Carefully insert the CPU into the socket until it fits in place.
8
Page 9
The CPU fits only in one correct orientation. DO NOT force the
CPU into the socket to avoid bending of the pins.
Step 4. When the CPU is in place, press it firmly on the socket while you push down
the socket lever to secure the CPU. The lever clicks on the side tab to
indicate that it is locked.
Step 1 Step 2, 3 Step 4
2.4 Installation of CPU Fan and Heatsink
Intel® Pentium® 4 CPU requires larger heatsink and cooling fan. Thermal
grease between the CPU and the heatsink is also needed to improve heat
transfer. Make sure that the CPU and the heatsink are securely fastened and
in good contact with each other. For proper installation, please kindly
refer to the instruction manuals of vendors of CPU fan and heatsink.
2.5 Installation of Memory Modules (DIMM)
SDRAM (Synchronous DRAM) DIMM (Dual In-line Memory Module) has 168 pins
and DDR (Double Data Rate) SDRAM DIMM has 184 pins.
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
168-pin RAM
The 168-pin SDRAM DIMM slot (black) and 184-pin DDR DIMM slot (blue) can be easily
distinguished by the fool-proof design.
Please do not use both 168-pin SDRAM DIMM and 184-pin DDR DIMM
at the same time. To optimize the compatibility, it is not recommended
to use two different models of the DIMMs at the same time.
184-pin RAM
9
Page 10

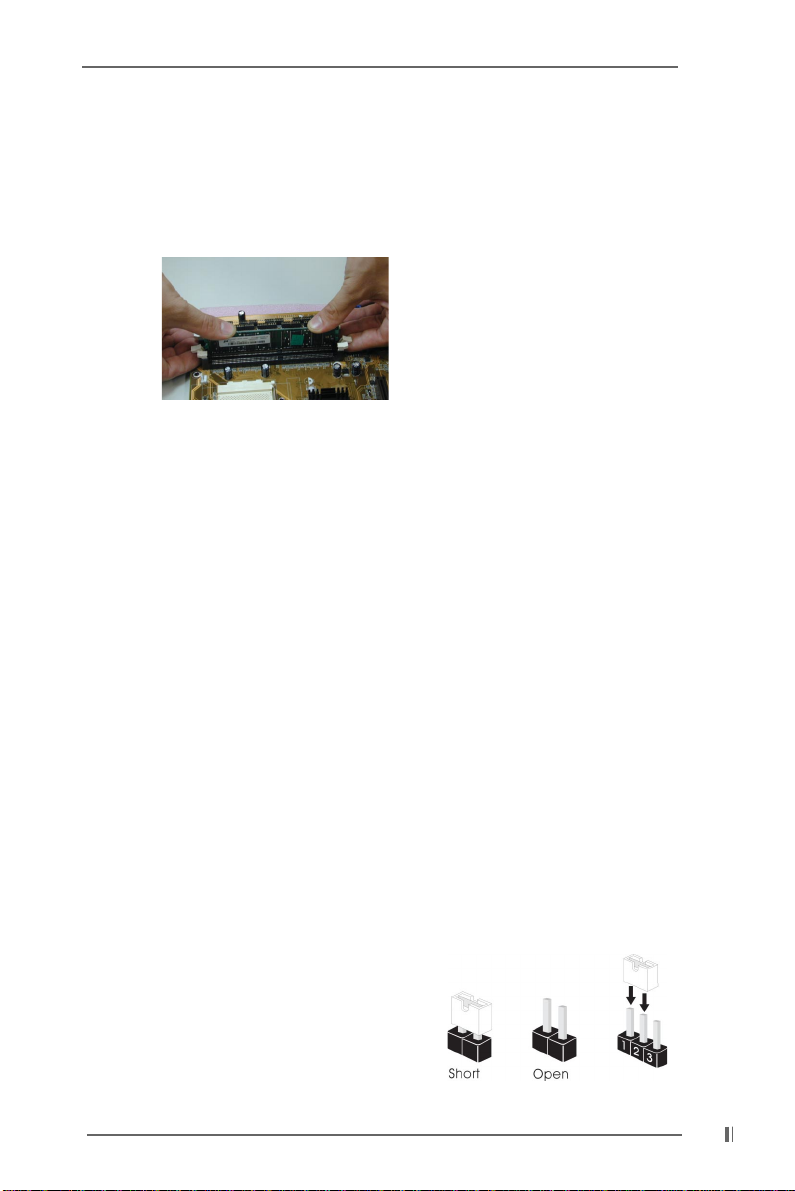

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break
on the slot.
Step 3. Firmly insert the DIMM into the slot until the retaining clip snap back in place
and the DIMM is properly seated.
2.6 Expansion Slots (PCI and AGP Slots)
There are 6 PCI slots and 1 AGP slot on PE Pro-HT motherboard.
PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI
interface.
AGP slot: The AGP slot is used to install a graphics card.
The ASRock AGP slot has a special locking mechanism which
can securely fasten the graphics card inserted.
Installing an expansion card
Step 1. Before installing the expansion card, read the documentation of the
expansion card and make necessary hardware settings for the card.
Step 2. Remove the system unit cover (if your motherboard is already installed in a
chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the screw
for later use.
Step 4. Align the card connector with the slot and press firmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.
2.7 Jumpers Setup
The illustration shows how jumpers are setup.
When the jumper cap is placed on pins, the jumper
is “SHORT”. If no jumper cap is placed on pins,
the jumper is “OPEN”. The illustration shows a
3-pin jumper whose pin1 and pin2 are “SHORT”
when jumper cap is placed on these 2 pins.
10
Page 11

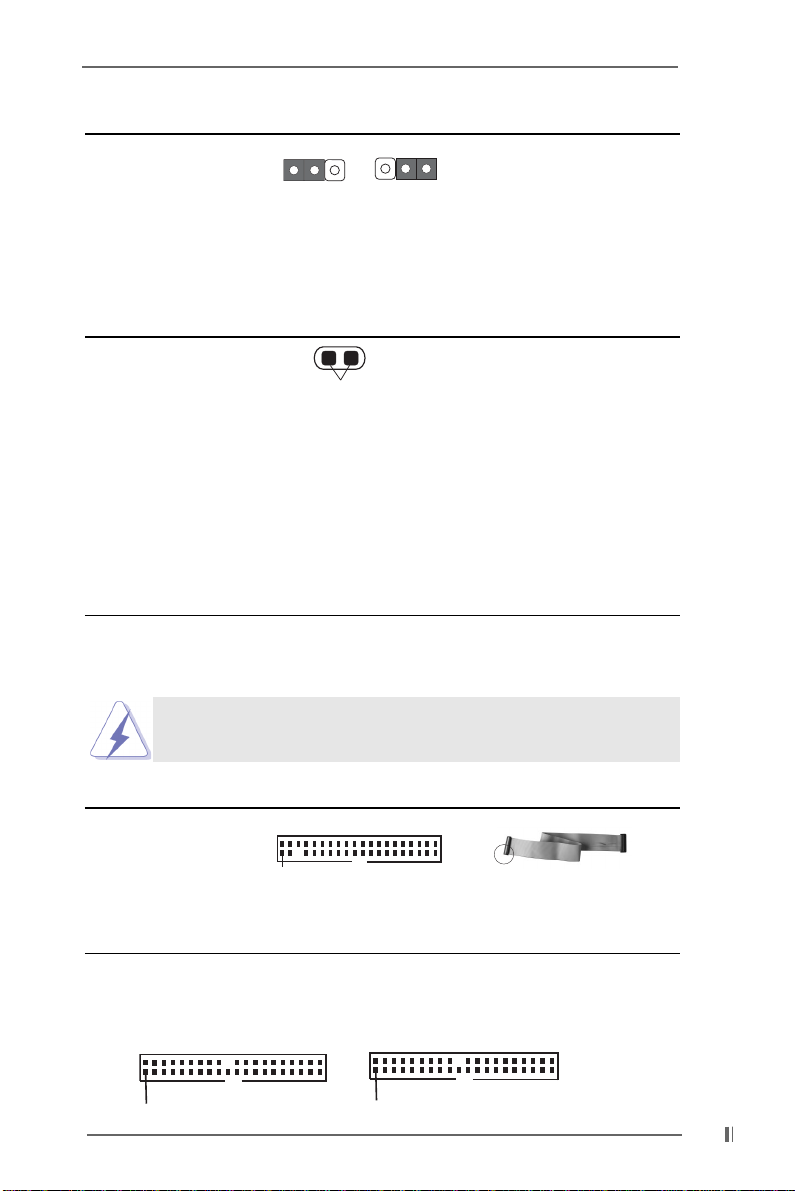

Jumper Setting Description
PS2_USB_PWR1 Short pin2, pin3 to enable
1_2
2_3
(see p.6 item 22) +5VSB (standby) for PS/2 or
+5V
+5VSB
USB wake up events.
Note: To select +5VSB, it requires 2 Amp and higher standby current provided
by power supply.
Clear CMOS Description
CLRCMOS1 To clear and reset the system
(see p.6 item 17) parameters to default setup,
solder points
please turn off the computer and
unplug the power cord, then
short the solder points for more
than 3 seconds by using metal
material, e.g., a paper clip.
Note:These solder points allow you to clear the data in CMOS. The data in CMOS
includes system setup information such as system password, date, time,
and system setup parameters.
2.8 Connectors
Connectors are NOT jumpers. DO NOT place jumper caps over
these connectors.
Connector Figure Description

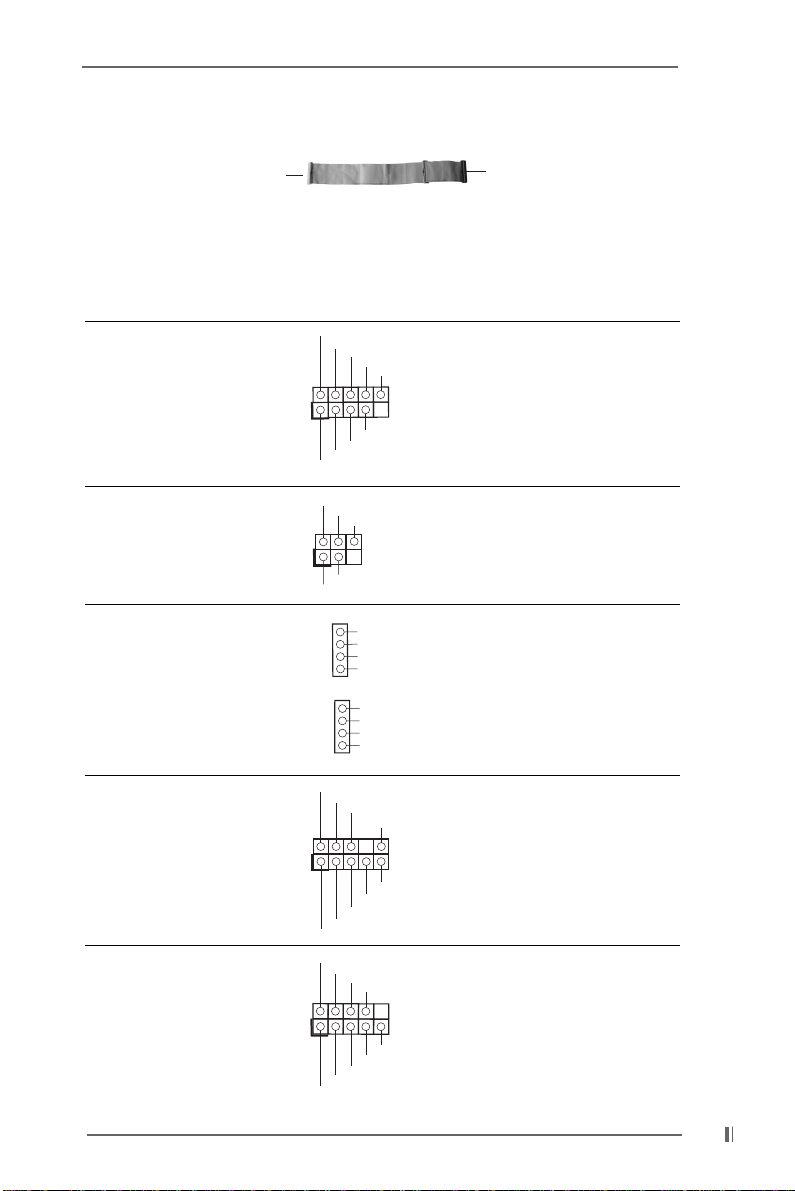

FDD connector
(33-pin FLOPPY1)
(see p.6 item 10)
Pin1
FLOPPY1
Red marking
Note: Match the red marking on the floppy ribbon cable with Pin1.
Primary IDE connector (Blue) Secondary IDE connector (Black)
(39-pin IDE1) (39-pin IDE2)
(see p.6 item 7) (see p.6 item 8)
PIN1
IDE1
PIN1
IDE2
11
Page 12
BlackBlue
Connect to the motherboard
Connect to the IDE devices
80-Pin ATA 100/133 cable
Note: To optimize compatibility and performance, please connect your hard
disk drive to the primary IDE connector (IDE1, blue) and CD-ROM to the
secondary IDE connector (IDE2, black).
USB header ASRock I/OTM already
(9-pin USB45) provided 4 default USB ports.
(see p.6 item 13) If the 4 USB ports on the rear
Infrared module connector This connector supports an
(5-pin IR1) optional wireless transmitting
(see p.6 item 14) and receiving infrared module.
Internal audio connectors These connectors allow you
(4-pin CD1, 4-pin AUX1) CD1 to receive stereo audio input
(CD1: see p.6 item 24) from sound sources such as
(AUX1: see p.6 item 23) a CD-ROM, DVD-ROM, TV
Front panel audio connector This is an interface for front
(9-pin AUDIO1) panel audio cable that allows
USB_PWR
P-5
P+5
GND
DUMMY
1
1
AUX1 tuner card, or MPEG card.
P-4
USB_PWR
IRTX
+5V
GND
IRRX
GND
+5VA
GND
P+4
DUMMY
CD-R
GND
GND
CD-L
AUX-R
GND
GND
AUX-L
BACKOUT-R
BACKOUT-L
panel are not sufficient, an
USB header is available for 2
additional USB ports.
(see p.6 item 20) convenient connection and
1
MIC
System panel connector This connector accommo-
PLED+
(9-pin PANEL1) dates several system front
(see p.6 item 12) panel functions.
1
HDLED+
DUMMY
AUD-OUT-R
MIC-POWER
PLED-
PWRBTN#
GND
RESET#
GND
HDLED-
AUD-OUT-L
DUMMY
control of audio devices.
12
Page 13
Speaker connector This connector allows you to
(4-pin SPEAKER 1) attach to an external speaker.
(see p.6 item 15)
1
SPEAKER
DUMMY
DUMMY
+5V

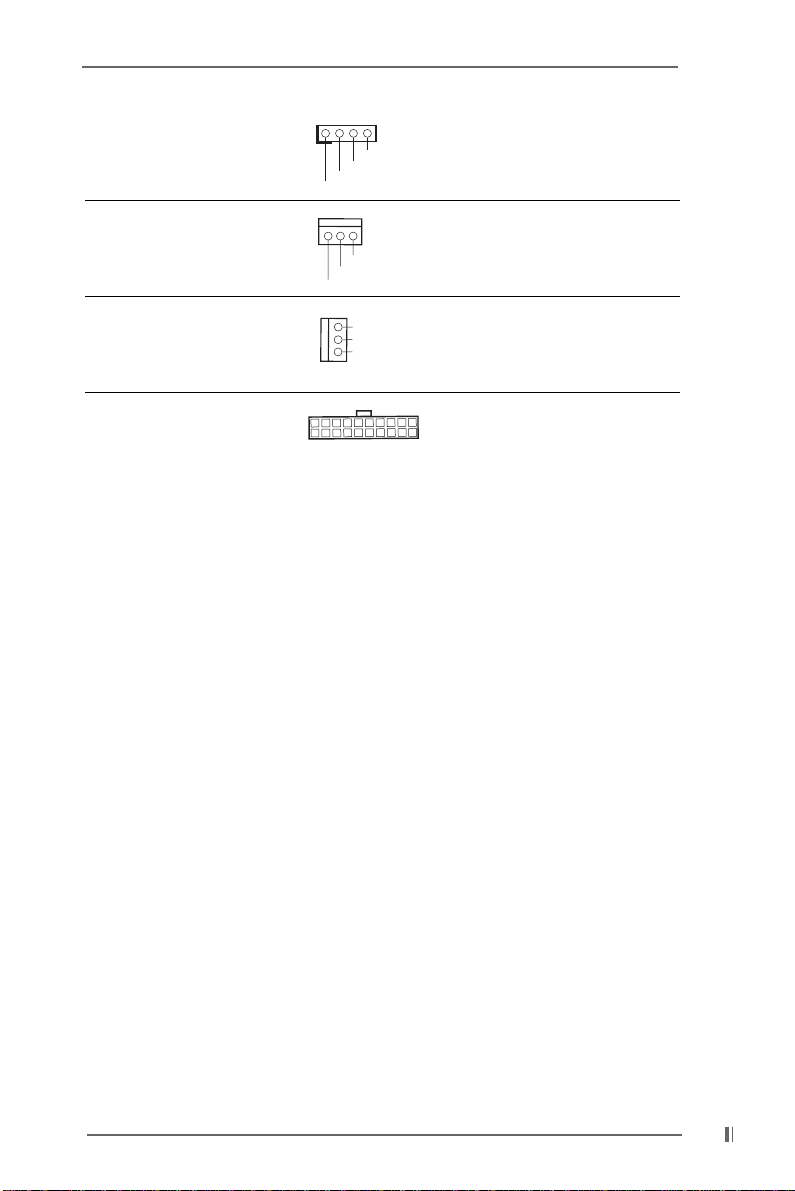

Chassis fan connector Connect the fan cable to the
(3-pin CHA_FAN1) connector matching the black
(see p.6 item 9) wire to the ground pin.
GND
+12V
CHA_FAN_SPEED
CPU fan connector Connect the fan cable to the
(3-pin CPU_FAN1) connector matching the black
(see p.6 item 3) wire to the ground pin.
GND
+12V
CPU_FAN_SPEED
ATX power connector Connect an ATX power
(20-pin ATXPWR1) supply to the connector.
(see p.6 item 1)
13
Page 14
Chapter 3 BIOS Setup
3.1 BIOS Setup Utility
This section explains how to configure your system using the BIOS Setup Utility. The
Flash Memory on the motherboard stores the BIOS Setup Utility. When you start up
the computer, there is a chance for you to run the BIOS Setup. Press <F2> during the
Power-On-Self-Test (POST) to enter the BIOS Setup Utility, otherwise, POST
continues with its test routines.
If you wish to enter the BIOS Setup after POST, restart the system by pressing
<Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system chassis. You
can also restart by turning the system off and then back on.
The BIOS Setup Utility is designed to be user-friendly. It is a menu-driven program,
which allows you to scroll through its various sub-menus and select among the
predetermined choices.
Because the BIOS software is constantly being updated, the
following BIOS setup screens and descriptions are for reference
purpose only, and may not exactly match what you see on your
screen.
3.1.1 BIOS Menu Bar
The top of the screen has a menu bar with the following selections:
MAIN Sets up the basic system configuration
ADVANCED Sets up the advanced features
SECURITY Sets up the security features
POWER Configures Power Management features
BOOT Configures the default system device that is used
to locate and load the Operating System
EXIT Exits the current menu or the BIOS Setup
To access the menu bar items, press the right or left arrow key on the keyboard
until the desired item is highlighted.
3.1.2 Legend Bar
At the bottom of the Setup Screen is a legend bar. The following table lists the keys
in the legend bar with their corresponding functions.
14
Page 15
Navigation Key(s) Function Description
<F1> Displays the General Help Screen
<ESC> Jumps to the Exit menu or returns to the upper menu
from the current menu
/ Moves cursor up or down between fields
/ Selects menu to the left or right
+ / - Increases or decreases values
<Enter> Brings up a selected menu for a highlighted field
<F9> Resets the current screen to its Setup Defaults
<F10> Saves changes and exits Setup
3.2 Main Menu
When you enter the BIOS Setup Utility, the following screen appears.
Advanced
Main
System Date
System Time
Floppy Drives
IDE Devices
BIOS Version
Processor Type
Processor Speed
Cache Size
Microcode Update
TotalMemory
DDR1
DDR2
SDR1
SDR2
F1:Help
Esc:Exit
AMIBIOS SETUPUTILITY -VERSION 3.31a
Security
Dec
14:07:40
PE Pro-HTBIOS P1.00
Pentium (R)4 Family CPU
2100 MHz
512 KB
F23/08
256 MB
256 MB/ 333 MHz
None
None
None
:Select Item
:Select Menu
Power
25 2002Wed
+/-:Change Values
Enter:Select
Boot
Exit
Sub-Menu
[ Setup Help ]
Month: Jan -Dec
Day: 01 -31
Year:1980-2099
F9:Setup Defaults
F10:Save &Exit
System Date [Month/Day/Year]
Set the system date that you specify. Valid values for month, day, and year are
Month: (Jan to Dec), Day: (1 to 31), Year: (up to 2099). Use keys to move
between the Month, Day and Year fields.
System Time [Hour:Minute:Second]
Set the system to the time that you specify. Use keys to move between
the Hour, Minute and Second fields.
Floppy Drives
Use this to set the type of floppy drives installed.
IDE Devices
Use this to configure IDE devices.
15
Page 16
Main
Primary IDEMaster:
Type
Cylinders
Heads
Write Precompensation
Sectors
Maximum Capacity
LBA Mode
Block Mode
Fast ProgrammedI/O Modes
32 BitTransfer Mode
Ultra DMAMode
AMIBIOS SETUPUTILITY -VERSION 3.31a
Auto
0Mb
Off
Off
Auto
Off
Auto
[ Setup Help ]
Select howto set the
parameters ofdrive,
Or
Select [AUTO]to set
all HDDparameters
automatically.
F1:Help
Esc:Previous Menu
:Select Item
+/-:Change Values
Enter:Select
Sub-Menu
F9:Setup Defaults
F10:Save &Exit
TYPE
It allows user to select the type of the IDE Drive. Below are the
configuration options. After making your selections on this sub-menu,
press <ESC> key to return to the upper menu, in which the hard disk drive
field will display the size for the hard disk drive that you configured.
[USER]: It allows user to manually enter the number of cylinders,
heads, and sectors per track for the drive.
Before attempting to configure a hard disk drive, make sure you
have the correct configuration information supplied by the drive
manufacturer. Incorrect settings may cause the system to fail to
recognize the installed hard disk.
[Auto]: Select [Auto] to automatically detect hard disk drive. If
auto-detection is successful, the BIOS Setup automatically fills in the
correct values for the remaining fields on this sub-menu. If the autodetection fails, it may due to that the hard disk is too old or too new.
If the hard disk was already formatted on an older system, the BIOS
Setup may detect incorrect parameters. In these cases, select [User]
to manually enter the IDE hard disk drive parameters.
After entering the hard disk information into BIOS, use a disk utility,
such as FDISK, to partition and format new IDE hard disk drives. This
is necessary so that you can write or read data from the hard disk.
Make sure to set the partition of the Primary IDE hard disk drives to
active.
16
Page 17
[CD/DVD]: This is used for IDE CD/DVD drives.
[ARMD]: This is used for IDE ARMD (Accelerated RemovableMedia
Device), such as MO.
Cylinders
This is used to configure the number of cylinders. Refer to the drive
documentation to determine the correct value.
Heads
This is used to configure the number of read/write heads. Refer to
the drive documentation to determine the correct values.
Write Pre-compensation
Enter Write Pre-compensation sector. Refer to the drive documentation to
determine the correct value.
Sectors
This is used to configure the number of sectors per track. Refer to the
drive documentation to determine the correct value.
Maximum Capacity
This field shows the drive’s maximum capacity as calculated by the BIOS
based on the drive information you entered.
LBA Mode
This allows user to select the LBA mode for a hard disk > 512 MB under
DOS and Windows; for Netware and UNIX user, select [Off] to disable the
LBA mode.
Block Mode
Set the block mode to [On] will enhance hard disk performance by reading
or writing more data during each transfer.
Fast Programmed I/O Modes
This allows user to set the PIO mode to enhance hard disk performance by
optimizing the hard disk timing.
32 Bit Transfer Mode
It allows user to enable 32-bit access to maximize the IDE hard disk data
transfer rate.
Ultra DMA Mode
Ultra DMA capability allows improved transfer speeds and data integrity
for compatible IDE devices. Set to [Disabled] to suppress Ultra DMA
capability.
3.3 Advanced, Security, Power, Boot, and Exit Menus
Detailed descriptions of these menus are listed in the Appendix. See page 19.
17
Page 18
Chapter 4 Software Support
4.1 Install Operating System
This motherboard supports various Windows operating systems (98SE/ ME/ 2000/
XP). Because motherboard settings and hardware options vary, use the setup
procedures in this chapter for general reference only. Refer to your OS documentation for more information.
4.2 Support CD Information
The Support CD that came with the motherboard contains necessary drivers and
useful utilities that enhance the motherboard features.
4.2.1 Running The Support CD
To begin using the support CD, insert the CD into your CD-ROM drive. The CD
automatically displays the Main Menu if “AUTORUN” is enabled in your computer.
If the Main Menu did not appear automatically, locate and double click on the file
ASSETUP.EXE from the BIN folder in the Support CD to display the menus.
4.2.2 Drivers Menu
The Drivers Menu shows the available devices drivers if the system detects
installed devices. Install the necessary drivers to activate the devices.
4.2.3 Utilities Menu
The Utilities Menu shows the applications software that the motherboard
supports. Click on a specific item then follow the installation wizard to install it.
4.2.4 ASRock PC-DIY Live Demo Program
ASRock presents you a multimedia PC-DIY live demo, which shows you how to
install your own PC system step by step. You can find the file through the
following path:
..\ MPEGAV \ AVSEQ01.DAT
To see this demo program, you can run Microsoft Media Player to play the file.
4.2.5 Contact Information
If you need to contact ASRock or want to know more about ASRock, welcome
to visit ASRock’s website at http://www.asrock.com; or you may contact your
dealer for further information.
18
Page 19
Appendix: Advanced BIOS Setup
This section will introduce you the following BIOS Setup menus: “Advanced,”
“Security,” “Power,” “Boot,” and “Exit.”
1. Advanced BIOS Setup Menu
Advanced
Main
Spread Spectrum
CPU HostFrequency
Actual Frequency
CPU RatioSelection
SDRAM Frequency
Hyper ThreadingTechnology
Chipset Configuration
Resource
Configuration
Peripheral
System HardwareMonitor
AMIBIOS SETUPUTILITY -VERSION 3.31a
Security
Configuration
Power
Disabled
Auto
133MHz
Locked
Auto
Auto
Boot
Exit
[ Setup Help ]
<Enter> toenable or
disable thefeature of
spread spectrum
F1:Help
Esc:Exit
:Select Item
:Select Menu
+/-:Change Values
Enter:Select
Sub-Menu
F9:Setup Defaults
F10:Save &Exit
Spread Spectrum:
This field should always be [Disabled] for better system stability.
CPU Host Frequency:
This shows current CPU host frequency of the installed motherboard.
CPU Ratio Selection:
CPU Ratio is the multiple that times the frontside bus frequency will equal
the core speed of the installed processor. Whether the option is open or locked
is determined by the installed processor.
SDRAM Frequency:
If [Auto] is selected, the motherboard detects the memory module(s) inserted
and automatically assigns appropriate frequency. You can also select other
value as operating frequency: [200MHz], [266MHz], [333MHz].
Hyper-Threading Technology:
To enable this feature, it requires a computer system with an Intel Pentium®4
processor at 3.06 GHz or higher and an operating system that includes
optimization for this technology, such as Microsoft® Windows® XP. Set to [Auto]
if using Microsoft® Windows® XP, or Linux kernel version 2.4.18 or higher.
This option will be hidden if the current CPU does not support Hyper-Threading
Technology.
19
Page 20
Chipset Configuration:
Advanced
Chipset Configuration
AGPAperture Size
USB Controller
USB DeviceLegacy Support
AMIBIOS SETUPUTILITY -VERSION 3.31a
32MB
Disabled
Disabled
[ Setup Help ]
<Enter> to select the
size of mapped memory
for graphics data.
F1:Help
Esc:Previous Menu
:Select Item
+/-:Change Values
Enter:Select
Sub-Menu
F9:Setup Defaults
F10:Save &Exit
AGP Aperture Size: It refers to a section of the PCI memory address range
used for graphics memory. We recommend that you leave this field at the
default value unless your AGP card requires other sizes.
USB Controller: Use this to enable or disable the use of USB controller.
USB Device Legacy Support: Use this to enable or disable support to emulate
legacy I/O devices such as mouse, keyboard,... etc.
Resource Configuration:
Advanced
Resource Configuration
PCI Latency Timer (PCI Clocks)
Primary GraphicsAdapter
F1:Help
Esc:Previous Menu
AMIBIOS SETUPUTILITY -VERSION 3.31a
32
AGP
:Select Item
+/-:Change Values
Enter:Select
Sub-Menu
[ Setup Help ]
F9:Setup Defaults
F10:Save &Exit
PCI Latency Timer (PCI Clocks): The default is 32. We recommend you to
keep the default value unless your PCI expansion cards’ specifications
require other settings.
Primary Graphics Adapter: This allows you to select [PCI] or [AGP] as the
primary graphics adapter.
20
Page 21
Peripheral Configuration:
Advanced
Peripheral Configuration
OnBoard FDC
OnBoard Serial Port
OnBoard Infrared Port
OnBoard Parallel Port
Parallel Port Mode
EPP Version
Parallel Port IRQ
Parallel Port DMA Channel
OnBoard Midi Port
Midi IRQ Select
OnBoard Game Port
OnBoard IDE
OnBoard LAN
OnBoard AC'9 7 Audio
OnBoard MC' 97 Modem
F1:Help
Esc:Previous Menu
AMIBIOS SETUPUTILITY -VERSION 3.31a
Auto
Auto
Auto
Auto
Normal
N/A
Auto
N/A
Disabled
5
Disabled
Disabled
Disabled
Auto
Disabled
:Select Item
+/-:Change Values
Enter:Select
Sub-Menu
[ Setup Help ]
<Enter> to enable or
disable the floppy
drive controller.
F9:Setup Defaults
F10:Save &Exit
OnBoard FDC: Use this to enable or disable floppy drive controller.
OnBoard Serial Port: Use this to set addresses for the onboard serial
ports or disable serial ports. Configuration options: [Auto], [Disabled],
[3F8 / IRQ4 / COM1], [2F8 / IRQ3 / COM2], [3E8 / IRQ4 / COM3],
[2E8 / IRQ3 / COM4].
OnBoard Infrared Port: This allows you to enable or disable the
onboard infrared port feature. Select [Auto] will enable this feature if
the infrared module is installed.
OnBoard Parallel Port: Select Parallel Port address or disable Parallel
Port. Configuration options: [Auto], [Disabled], [378], [278].
Parallel Port Mode: Set the operation mode of the parallel port.
OnBoard Midi Port: Select address for Midi Port or disable Midi Port.
Configuration options: [Disabled], [330], [300], [290], [292].
Midi IRQ Select: Use this to select Midi IRQ. Configuration options:
[5], [10], [11]. The default is 5.
OnBoard Game Port: Select address for Game Port or disable Game
Port. Configuration options: [200h], [208h], [Disabled].
OnBoard IDE: To enable either the primary IDE channel or the secondary
IDE channel, set to [Disabled] will disable the both. Configuration
options: [both], [Disabled], [Primary], [Secondary].
OnBoard LAN: Enable or disable onboard LAN feature.
OnBoard AC’97 Audio: Enable or disable onboard AC’97 audio feature.
OnBoard MC’97 Modem: Enable or disable onboard MC’97 modem feature.
System Hardware Monitor: You can check the status of the hardware on
your system. It allows you to monitor the parameters for CPU temperature,
Motherboard temperature, CPU fan speed, and critical voltage.
21
Page 22
Advanced
System Hardware Monitor
AMIBIOS SETUPUTILITY - VERSION3.31a
[ Setup Help ]
CPU Temperature
M/B
Temperature
CPU FanSpeed
Chassis FanSpeed
Vcore
+ 3.30V
+ 5.00V
+12.00V
F1:Help
Esc:Previous Menu
:Select Item
55C/131F
27C/ 82F
3110 RPM
0RPM
1.728 V
3.312 V
4.975 V
12.167 V
+/-:Change Values
Enter:Select
Sub-Menu
F9:Setup Defaults
F10:Save &Exit
2. Security Setup Menu
Advanced
Main
Supervisor Password
User Password
Set SupervisorPassword
Set UserPassword
Password Check
F1:Help
Esc:Exit
AMIBIOS SETUPUTILITY -VERSION 3.31a
Security
Clear
Clear
[ Enter ]
[ Enter ]
Setup
:Select Item
:Select Menu
Supervisor Password: This field shows the status of the Supervisor Password.
[Clear]: No password has been set.
[Set]: Supervisor password has been set.
User Password: This field shows the status of the User Password.
[Clear]: No password has been set.
[Set]: User password has been set.
Set Supervisor Password: Press <Enter> to set Supervisor Password. Valid
password can be a 1 to 6 alphanumeric characters combination. If you already
have a password, you must enter your current password first in order to
create a new password.
Set User Password: Press <Enter> to set User Password. Valid password can
be a 1 to 6 alphanumeric characters combination. If you already have a
password, you must enter your current password first in order to create a new
password.
Power
+/-:Change Values
Enter:Select
Boot
Exit
Sub-Menu
[ Setup Help ]
<Enter> toenable or
disable thequick boot
mode.
F9:Setup Defaults
F10:Save &Exit
22
Page 23
Password Check: Select the check point for “Password Check”. Configuration
options: [Setup], [Always]. If [Setup] option is selected, the “Password Check”
is performed before BIOS setup. If [Always] option is selected, the “Password
Check” is performed before both boot-up and BIOS Setup.
3. Power Setup Menu
Advanced
Main
Suspend To RAM <S3>
Repost Video on S3 Resume
Restore on AC / Power Loss
Ring-In Power On
PCI Devices Power On
PS /2 keyboard Power On
RTC Alarm Power On
RTC Alarm Date
RTC Alarm Hour
RTC Alarm Minute
RTC Alarm Second
AMIBIOS SETUPUTILITY -VERSION 3.31a
Security
Power
Boot
Disabled
Disabled
Power Off
Disabled
Disabled
Disabled
Disabled
Every Day
00
00
00
Exit
[ Setup Help ]
Set the power state
after an unexpected
AC /Power loss.
F1:Help
Esc:Exit
:Select Item
:Select Menu
+/-:Change Values
Enter:Select
Sub-Menu
F9:Setup Defaults
F10:Save &Exit
Suspend to RAM (S3): This field allows you to select whether to auto-detect or
disable the ACPI Suspend-to-RAM feature. Select [Auto] will enable this feature
if the system supports it.
Repost Video on S3 Resume: This feature allows you to repost video on S3
resume. It is recommended to enable this feature under Microsoft® Windows
98 / ME.
Restore on AC/Power Loss: This allows you to set the power state after an
unexpected AC power loss. If [Power Off] is selected, the AC power remains
off when the power recovers. If [Power On] is selected, the AC power
resumes and the system starts to boot up when the power recovers.
Ring-In Power On: Use this to enable or disable Ring-in signals to turn on the
system from the power-soft-off mode.
PCI Devices Power On: Use this to enable or disable PCI devices to turn on the
system from the power-soft-off mode.
PS/2 Keyboard Power On: Use this to enable or disable PS/2 keyboard to turn on
the system from the power-soft-off mode.
RTC Alarm Power On: Use this to enable or disable RTC(Real Time Clock) to power
on the system. If [Enable] is selected, you must fill the RTC Alarm Date / Hour /
Minute / Second sub-fields with the actual wake up time you desire.
®
23
Page 24
4. Boot Setup Menu
Advanced
Main
Quick BootMode
Boot UpNum-Lock
Boot To OS/2
Boot DevicePriority
Security
AMIBIOS SETUPUTILITY -VERSION 3.31a
Disabled
Off
No
Power
Boot
Exit
[ Setup Help ]
<Enter> toenable or
disable thequick boot
mode.
F1:Help
Esc:Exit
:Select Item
:Select Menu
+/-:Change Values
Enter:Select
Sub-Menu
F9:Setup Defaults
F10:Save &Exit
Quick Boot Mode: This mode speeds up the boot-up routine by skipping memory
retestings.
Boot Up Num-Lock: This automatically activates the Numeric Lock function after
boot up.
Boot to OS/2: This enables boot up to OS/2 operating system.
Boot Device Priority: This allows you to set the boot device priority.
5. Exit Menu
Advanced
Main
Exit Saving Changes
Exit Discarding Changes
Load Default Settings
Discard Changes
F1:Help
Esc:Exit
AMIBIOS SETUPUTILITY -VERSION 3.31a
Security
[ Enter ]
[ Enter ]
[ Enter ]
[ Enter ]
:Select Item
:Select Menu
Power
+/-:Change Values
Enter:Select
Boot
Exit
Sub-Menu
[ Setup Help ]
Exits and saves the
changesinCMOSRAM
F9:Setup Defaults
F10:Save &Exit
Exit Saving Changes: After you enter the sub-menu, the message “Save current
settings and exit” will appear. If you press <ENTER>, it will save the current
settings and exit the BIOS SETUP Uutility.
24
Page 25
Exit Discarding Changes: After you enter the submenu, the message “Quit
without saving changes” will appear. If you press <ENTER>, you will exit the
BIOS Setup Utility without making any changes to the settings.
Load Default Settings: After you enter the submenu, the message “Load Default
Settings” will appear. If you press <Enter>, it will load the default values for all
the setup configuration.
Discard Changes: After you enter the sub-menu, the message “Load setup
original values” will appear. If you press <ENTER>, original values will be restored.
All changes are discarded.
25
Loading...
