Page 1
PE Pro / GE Pro / G Pro A
User Manual
Published October 2002
Copyright©2002 ASRock INC. All rights reserved.
11
1
11
Page 2
Copyright Notice:Copyright Notice:
Copyright Notice:
Copyright Notice:Copyright Notice:
No part of this manual may be reproduced, transcribed, transmitted, or translated in
any language, in any form or by any means, except duplication of documentation by
the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this manual may or may not be regis-
tered trademarks or copyrights of their respective companies, and are used only for
identification or explanation and to the owners’ benefit, without intent to infringe.
Disclaimer:Disclaimer:
Disclaimer:
Disclaimer:Disclaimer:
Specifications and information contained in this manual are furnished for informa-
tional use only and subject to change without notice, and should not be constructed
as a commitment by ASRock. ASRock assumes no responsibility for any errors or
omissions that may appear in this manual.
With respect to the contents of this manual, ASRock does not provide warranty of
any kind, either expressed or implied, including but not limited to the implied warran-
ties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of profits, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from
any defect or error in the manual or product.
ASRock Website: http://www.asrock.com
22
2
22
Page 3
ContentsContents
Contents
ContentsContents
1 Introduction1 Introduction
1 Introduction
1 Introduction1 Introduction
1.1 Package Contents ......................................................... 4
1.2 Specifications ................................................................ 4
1.3 Motherboard Layout (PE Pro) ........................................ 6
1.4 Motherboard Layout (GE Pro) ....................................... 7
1.5 Motherboard Layout (G Pro A) ..................................... 8
1.6 ASRock I/OTM (PE Pro / GE Pro / G Pro A) ..................... 9
2 Installation2 Installation
2 Installation
2 Installation2 Installation
2.1 Screw Holes ................................................................. 10
2.2 Pre-installation Precautions ........................................... 10
2.3 CPU Installation .............................................................. 10
2.4 Installation of Heatsink and CPU fan ............................. 11
2.5 Installation of Memory Modules (DIMM) ......................... 11
2.6 Expansion Slots ............................................................. 12
2.7 Jumpers Setup .............................................................. 12
2.8 Connectors .................................................................... 13
3 BIOS Setup3 BIOS Setup
3 BIOS Setup
3 BIOS Setup3 BIOS Setup
3.1 BIOS Setup Utility ........................................................... 16
3.1.1 BIOS Menu Bar ....................................................... 16

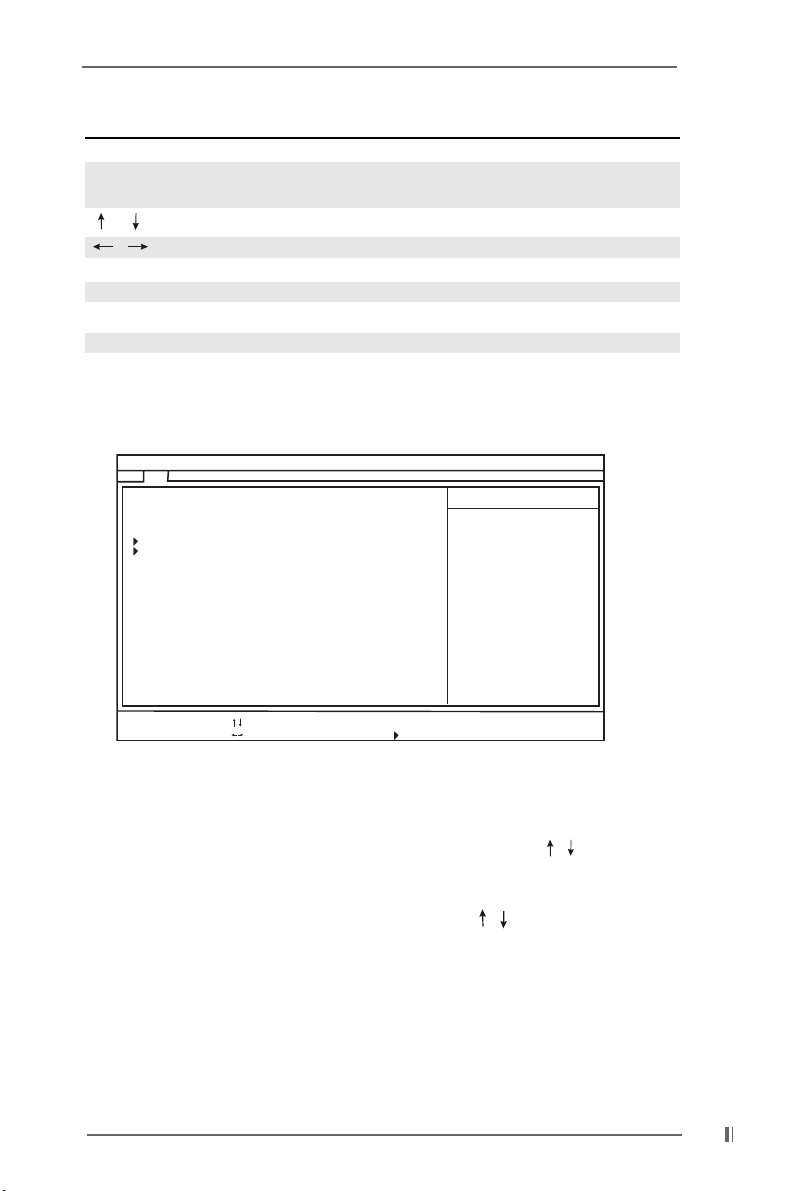

3.1.2 Legend Bar ............................................................. 16

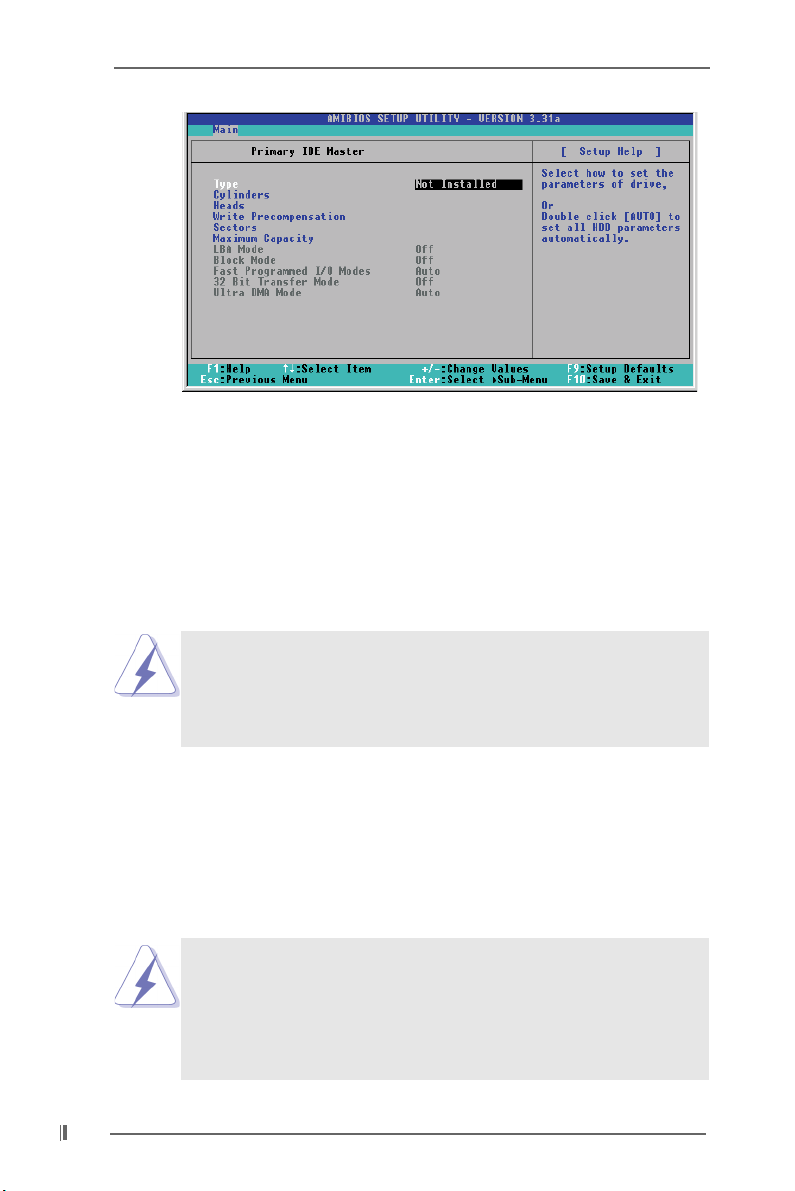

3.2 Main Menu ...................................................................... 17
3.3 Advanced, Security, Power, Boot, and Exit Menus ..... 19
4 Software Support4 Software Support
4 Software Support
4 Software Support4 Software Support
4.1 Installing Operating System ........................................... 20
4.2 Support CD Information ................................................. 20
4.2.1 Running Support CD ............................................... 20
4.2.2 Drivers Menu .......................................................... 20
4.2.3 Utilities Menu ........................................................... 20
4.2.4 ASRock Live Demo Program .................................. 20
4.2.5 Contact Information ................................................ 20
Appendix: Advanced BIOS SetupAppendix: Advanced BIOS Setup
Appendix: Advanced BIOS Setup
Appendix: Advanced BIOS SetupAppendix: Advanced BIOS Setup
1. Advanced Menu ............................................................... 21

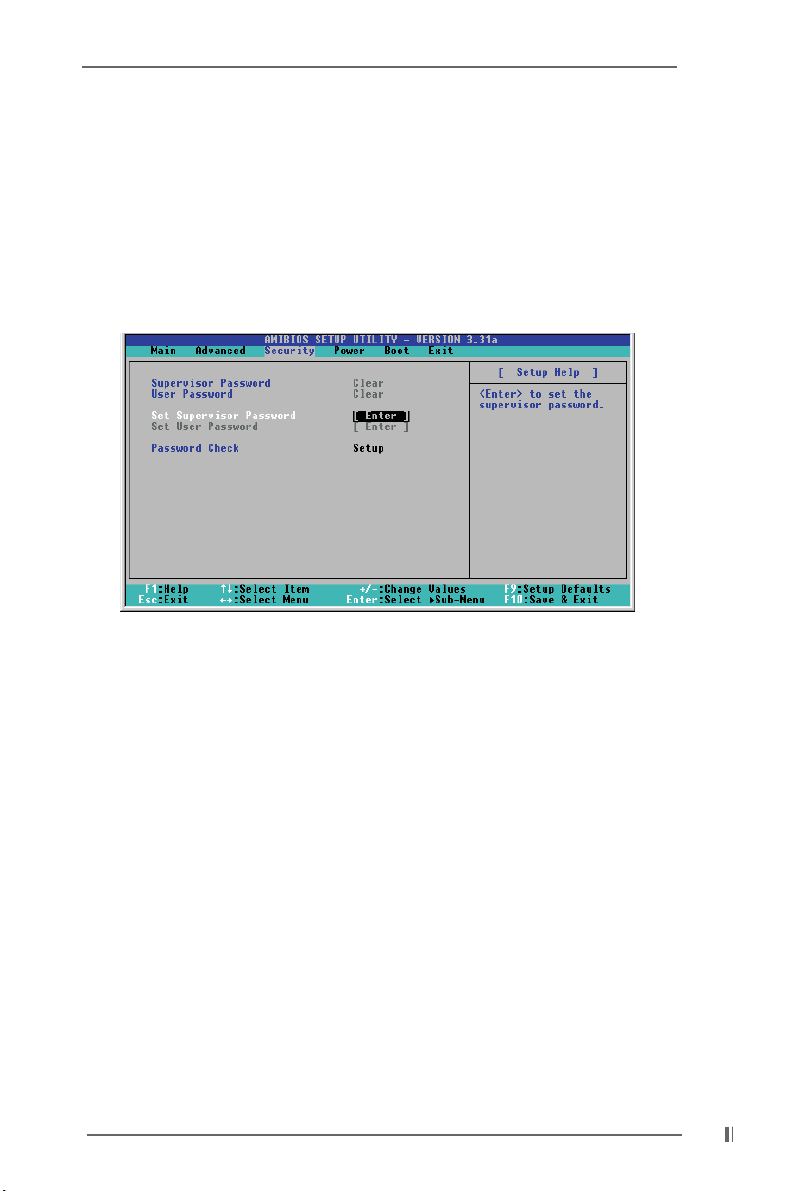

2. Security Menu ................................................................... 23

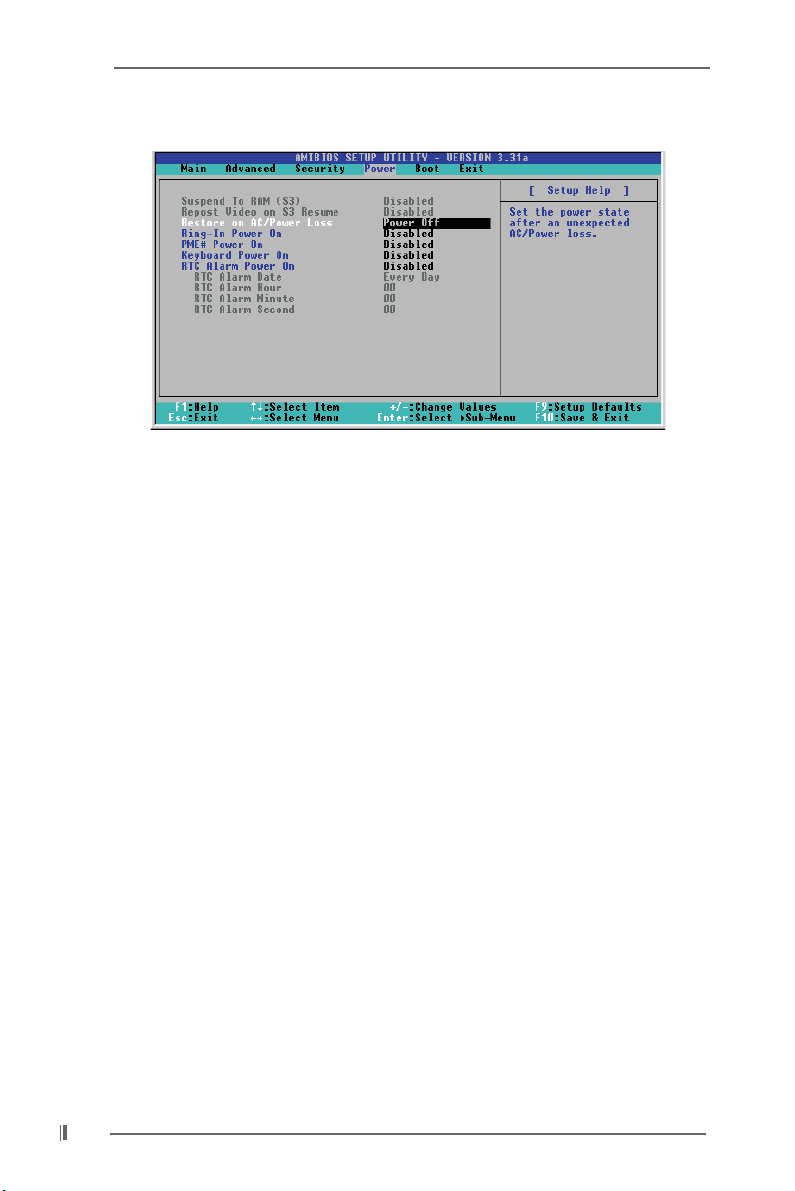

3. Power Menu ..................................................................... 24

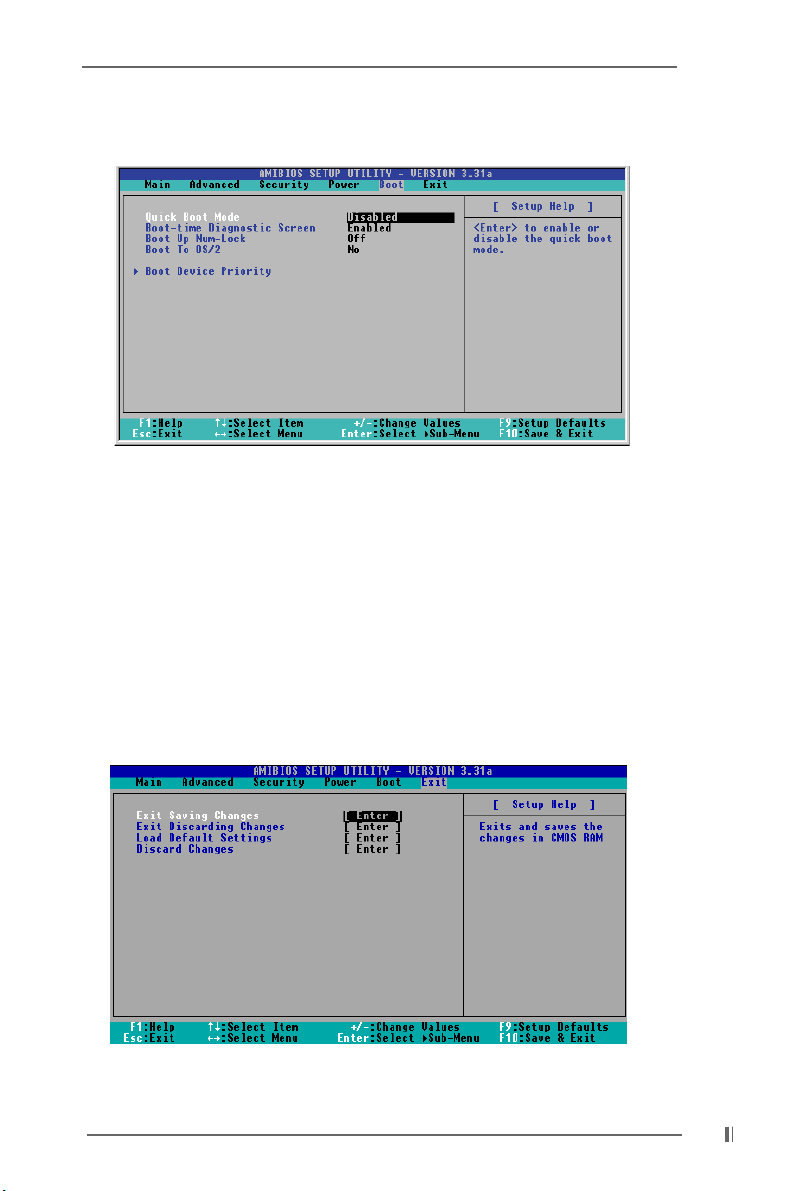

4. Boot Menu ......................................................................... 25
5. Exit Menu .......................................................................... 25
......................................................................................................
...................................................
......................................................................................................
..........................................................................................................
.....................................................
..........................................................................................................
..........................................................................................................
.....................................................
..........................................................................................................
......................................................................................
...........................................
......................................................................................
......................................
...................
......................................
4 4
4
4 4
10 10
10
10 10
16 16
16
16 16
20 20
20
20 20
21 21
21
21 21
33
3
33
Page 4
Chapter 1 IntroductionChapter 1 Introduction
Chapter 1 Introduction
Chapter 1 IntroductionChapter 1 Introduction
Thank you for purchasing ASRock PE Pro / GE Pro / G Pro A motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control. It de-
livers excellent performance with robust design conforming to ASRock’s commit-
ment to quality and endurance.
Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-
step installation guide for new DIY system builders. Chapter 3 and 4 contain basic
BIOS setup and Support CD information.
For advanced users’ reference, the Appendix offers more advanced BIOS setup
information.
1.1 Package Contents1.1 Package Contents
1.1 Package Contents
1.1 Package Contents1.1 Package Contents
ASRock PE Pro, GE Pro, or G Pro A motherboard (ATX form factor: 12" x 9.6")
ASRock PE Pro / GE Pro / G Pro A Quick Installation Guide
ASRock Intel-SiS Series Support CD
1 Cable for IDE devices (1 x ATA 66/100/133)
1 Cable for floppy drive (1 x ribbon cable)
1 ASRock I/O shield
1 VGA Port bracket (Only for GE Pro and G Pro A)
1.2 Specifications1.2 Specifications
1.2 Specifications
1.2 Specifications1.2 Specifications
Platform: ATX form factor (12" x 9.6")
CPU: Socket 478 for Intel® Pentium® 4/ Celeron® processor
Chipsets: North Bridge on PE Pro motherboard: SiS 645 chipsets,
standard FSB 400 MHz, Max. 533 MHz;
North Bridge on GE Pro motherboard: SiS 651 chipsets,
FSB 533 MHz;
North Bridge on G Pro A motherboard: SiS 650 series chipsets,
standard FSB 400 MHz, Max. 533 MHz;
South Bridge: Supports USB 2.0, ATA 133
Clock Generator:100 MHz - 200MHz
Memory: 2 slots for DDR: DIMM1 and DIMM2, Max. 2GB (PC1600 / PC2100
/ PC2700 for PE Pro and GE Pro, PC1600 / PC2100 for G Pro A);
2 slots for SDR: DIMM3 and DIMM4, Max. 2GB (PC100/ PC133)
IDE: IDE1: ATA 133 / Ultra DMA Mode 6;
IDE2: ATA 133 / Ultra DMA Mode 6;
Can connect up to 4 IDE devices
Floppy Port: Supports floppy disk drive
44
4
44
Page 5
Audio: 5.1 channels AC’97 Audio
LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN
Hardware Monitor: CPU temperature sensing (ASRock U-COP);
CPU overheat shutdown to protect CPU life (ASRock U-COP);
Chassis temperature sensing;
Voltage monitoring: +12V, +5V, +3V, Vcore;
CPU fan tachometer;
Chassis fan tachometer
PCI slots: 6 slots with PCI Specification 2.2
AGP slot: 1 universal AGP slot, supports 3.3v / 1.5v, 4X / 2X / 1X AGP
card
VGA Header (only on GE Pro and G Pro A Motherboards):
for connecting VGA bracket
USB 2.0: 4 default USB ports and one extra set of header for two
additional USB ports upgrade

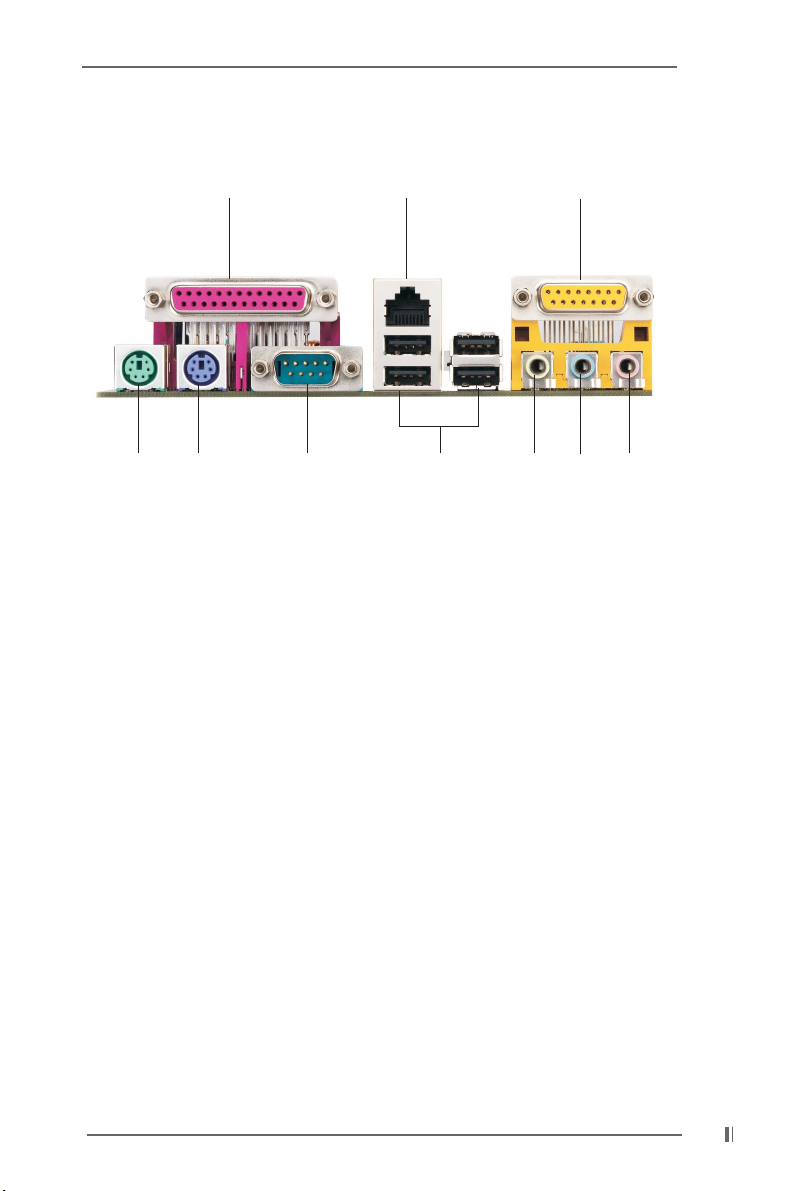

ASRock I/OTM: PS/2: 1 keyboard port / 1 mouse port;
1 RJ 45 port;
4 rear default USB ports (USB 2.0);
1 serial port: COM1;
1 parallel port: ECP/EPP support;
Audio Jack: Line Out/ Line In/ Microphone + 1 Game port
BIOS: AMI legal BIOS;
Supports “Plug and Play”;
ACPI 1.1 compliance wake up events;
Supports jumperfree;
SMBIOS 2.3.1 support;
CPU frequency stepless control
(only for advanced users’ reference)
OS: Windows 98SE / ME / 2000 / XP compliant
1. While CPU overheat is detected, the system will automatically
shutdown. Please check if the CPU fan on the motherboard
functions properly before you resume the system.
2. Although PE Pro/GE Pro/ G Pro A offers stepless control, it is not
recommended to perform over clocking. Frequencies other than
the recommended CPU bus frequency may cause the instability
of the system or damage the CPU.
55
5
55
Page 6
1.3 Motherboard Layout (PE Pro1.3 Motherboard Layout (PE Pro
1.3 Motherboard Layout (PE Pro)
1.3 Motherboard Layout (PE Pro1.3 Motherboard Layout (PE Pro
22
1 234
24.4cm (9.6 in)
5
6
LAN
USB01
Lineout
Line
Line in
In
Mic
GAME AUDIO1
Mic in
GAME AUDIO1
In
1
PS2_USB_PWR1
PARALLEL PORT
AUX1
1
Audio1
Super
I/O
2MB
BIOS
CPU_FAN1
LAN
PHY
CD1
SiS
645
Chipset
Accelerated GraphicsPort
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
mPGA478B
PE PRO
SiS
South
Bridge
DDR DIMM1(64/72 bit, 184-pinmodule)
10
DDR DIMM2(64/72 bit, 184-pinmodule)
32
CLRCMOS1
01
FLOPPY1
SDR DIMM1(64 bit, 168-pinmodule)
32
CMOS
Battery
SDR DIMM2(64 bit, 168-pinmodule)
IDE2
CHA_FAN1
1
SPEAKER1
1
USB45
8
7
30.5cm (12.0 in)
IDE1
25
9
16
10
1
14
IR1
15
13
17
PS/2
Mouse
PS/2
Keyboard
COM1
USB23
21
23
24
20
19
AudioCODEC
11
18
PCI 6
ATA13 3
USB2.0
5.1CH
PANEL1
PLED PWRBTN
1
HDLED RST
1 ATX power connector (ATXPWR1) 14 Infrared module connector (IR1)
2 CPU socket 15 Speaker connector (SPEAKER1)
3 CPU fan connector (CPU_FAN1) 16 South Bridge controller
4 North Bridge controller 17 CLRCMOS1
5 184-pin DDR DIMM slots (blue) 18 PCI slots
6 168-pin SDRAM DIMM slots (black) 19 Audio CODEC
7 Primary IDE connector (IDE1, blue) 20 Front panel audio connector (AUDIO1)
8 Secondary IDE connector (IDE2, black) 21 LAN PHY
9 Chassis fan connector (CHA_FAN1) 22 PS2_USB_PWR1 jumper
10 Floppy connector (FLOPPY1) 23 Internal audio connectors: AUX1 (white)
11 Flash Memory 24 Internal audio connectors: CD1 (black)
12 System panel connector (PANEL1) 25 AGP slot
13 USB header (USB45)
66
6
66
12
Page 7
1.4 Motherboard Layout (GE Pro1.4 Motherboard Layout (GE Pro
1.4 Motherboard Layout (GE Pro)
1.4 Motherboard Layout (GE Pro1.4 Motherboard Layout (GE Pro
22
1 234
24.4cm (9.6 in)
5
6
LAN
USB01
Lineout
Line
Line in
In
Mic
GAME AUDIO1
Mic in
GAME AUDIO1
In
1
PS2_USB_PWR1
PARALLEL PORT
AUX1
1
Audio1
Super
I/O
2MB
BIOS
CPU_FAN1
LAN
PHY
CD1
VGA1
1
SiS
651
Chipset
Accelerated GraphicsPort
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
mPGA478B
GE PRO
SiS
South
Bridge
DDR DIMM1(64/72 bit, 184-pinmodule)
10
DDR DIMM2(64/72 bit, 184-pinmodule)
32
CLRCMOS1
01
FLOPPY1
SDR DIMM1(64 bit, 168-pinmodule)
32
CMOS
Battery
SDR DIMM2(64 bit, 168-pinmodule)
IDE2
CHA_FAN1
1
SPEAKER1
1
USB45
8
7
30.5cm (12.0 in)
IDE1
25
9
16
10
1
14
IR1
15
13
17
PS/2
Mouse
PS/2
Keyboard
COM1
26
USB23
21
23
24
20
19
AudioCODEC
11
18
PCI 6
ATA13 3
USB2.0
5.1CH
PANEL1
PLED PWRBTN
1
HDLED RST
12
1 ATX power connector (ATXPWR1) 14 Infrared module connector (IR1)
2 CPU socket 15 Speaker connector (SPEAKER1)
3 CPU fan connector (CPU_FAN1) 16 South Bridge controller
4 North Bridge controller 17 CLRCMOS1
5 184-pin DDR DIMM slots (blue) 18 PCI slots
6 168-pin SDRAM DIMM slots (black) 19 Audio CODEC
7 Primary IDE connector (IDE1, blue) 20 Front panel audio connector (AUDIO1)
8 Secondary IDE connector (IDE2, black) 21 LAN PHY
9 Chassis fan connector (CHA_FAN1) 22 PS2_USB_PWR1 jumper
10 Floppy connector (FLOPPY1) 23 Internal audio connectors: AUX1 (white)
11 Flash Memory 24 Internal audio connectors: CD1 (black)
12 System panel connector (PANEL1) 25 AGP slot
13 USB header (USB45) 26 VGA header (VGA1)
77
7
77
Page 8
1.5 Motherboard Layout (G Pro A1.5 Motherboard Layout (G Pro A
1.5 Motherboard Layout (G Pro A)
1.5 Motherboard Layout (G Pro A1.5 Motherboard Layout (G Pro A
22
1 234
24.4cm (9.6 in)
5
6
LAN
USB01
Lineout
Line
Line in
In
Mic
Mic in
GAME AUDIO1
In
1
PS2_USB_PWR1
PARALLEL PORT
AUX1
1
Audio1
Super
I/O
2MB
BIOS
CPU_FAN1
LAN
PHY
CD1
mPGA478B
8
7
VGA1
1
SiS
650
DDR DIMM1(64/72 bit, 184-pinmodule)
DDR DIMM2(64/72 bit, 184-pinmodule)
SDR DIMM1(64 bit, 168-pinmodule)
SDR DIMM2(64 bit, 168-pinmodule)
Series
01
Accelerated GraphicsPort
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
GPROA
SiS
South
Bridge
10
32
CLRCMOS1
FLOPPY1
CMOS
Battery
32
IDE2
1
IDE1
CHA_FAN1
1
IR1
1
SPEAKER1
USB45
30.5cm (12.0 in)
25
9
16
10
14
15
13
17
PS/2
Mouse
PS/2
Keyboard
COM1
26
USB23
21
GAME AUDIO1
23
24
20
19
Audio CODEC
11
18
PCI 6
ATA13 3
USB2.0
5.1CH
1 ATX power connector (ATXPWR1) 14 Infrared module connector (IR1)
2 CPU socket 15 Speaker connector (SPEAKER1)
3 CPU fan connector (CPU_FAN1) 16 South Bridge controller
4 North Bridge controller 17 CLRCMOS1
5 184-pin DDR DIMM slots (blue) 18 PCI slots
6 168-pin SDRAM DIMM slots (black) 19 Audio CODEC
7 Primary IDE connector (IDE1, blue) 20 Front panel audio connector (AUDIO1)
8 Secondary IDE connector (IDE2, black) 21 LAN PHY
9 Chassis fan connector (CHA_FAN1) 22 PS2_USB_PWR1 jumper
10 Floppy connector (FLOPPY1) 23 Internal audio connectors: AUX1 (white)
11 Flash Memory 24 Internal audio connectors: CD1 (black)
12 System panel connector (PANEL1) 25 AGP slot
13 USB header (USB45) 26 VGA header (VGA1)
88
8
88
PANEL1
PLED PWRBTN
1
HDLED RST
12
Page 9
1.6 ASRock I/O1.6 ASRock I/O
1.6 ASRock I/O
1.6 ASRock I/O1.6 ASRock I/O
TM TM
TM
TM TM
(PE Pro / GE Pro / G Pro A)(PE Pro / GE Pro / G Pro A)
(PE Pro / GE Pro / G Pro A)
(PE Pro / GE Pro / G Pro A)(PE Pro / GE Pro / G Pro A)
12
910
1 Parallel port 6 Line Out (Lime)
2 RJ-45 port 7 USB 2.0 ports
3 Game port 8 Serial port (COM1)
4 Microphone (Pink) 9 PS/2 keyboard port (Purple)
5 Line In (Light Blue) 10 PS/2 mouse port (Green)
8
3
4567
99
9
99
Page 10
Chapter 2 InstallationChapter 2 Installation
Chapter 2 Installation
Chapter 2 InstallationChapter 2 Installation
PE Pro / GE Pro / G Pro A is an ATX form factor (12" x 9.6") motherboard. Before you
install the motherboard, study the configuration of your chassis to ensure that the
motherboard fits into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you
and damages to motherboard components.
2.1 Screw Holes2.1 Screw Holes
2.1 Screw Holes
2.1 Screw Holes2.1 Screw Holes
Place screws into the holes indicated by circles to secure the motherboard
to the chassis.
Do not over-tighten the screws! Doing so may damage the
motherboard.
2.2 Pre-installation Precautions2.2 Pre-installation Precautions
2.2 Pre-installation Precautions
2.2 Pre-installation Precautions2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity, NEVER
place your motherboard directly on the carpet or the like. Also remember to use
a grounded wrist strap or touch a safety grounded object before you handle
components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is switched
off or the power cord is detached from the power supply. Failure to do so may
cause severe damage to the motherboard, peripherals, and/or components.
2.3 CPU Installation2.3 CPU Installation
2.3 CPU Installation
2.3 CPU Installation2.3 CPU Installation
Step 1. Unlock the socket by lifting the lever up to a 90 to 100 angle.
Step 2. Position the CPU directly above the socket such that its marked corner
matches the base of the socket lever.
Step 3. Carefully insert the CPU into the socket until it fits in place.
The CPU fits only in one correct orientation. DO NOT force the
CPU into the socket to avoid bending of the pins.
1010
10
1010
Page 11

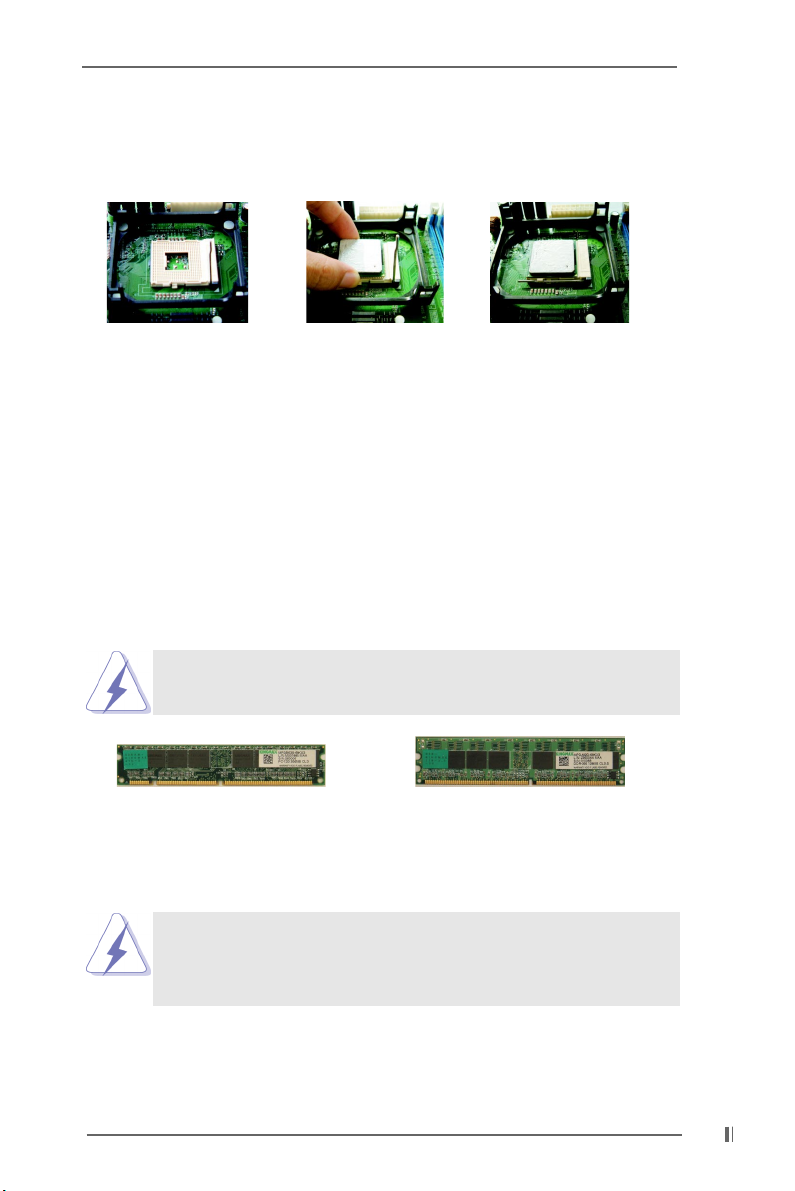

Step 4. When the CPU is in place, press it firmly on the socket while you push down
the socket lever to secure the CPU. The lever clicks on the side tab to
indicate that it is locked.
Step 1 Step 2, 3 Step 4
2.4 Installation of CPU Fan and Heatsink2.4 Installation of CPU Fan and Heatsink
2.4 Installation of CPU Fan and Heatsink
2.4 Installation of CPU Fan and Heatsink2.4 Installation of CPU Fan and Heatsink
Intel® Pentium®4 CPU requires larger heatsink and cooling fan. Thermal grease be-
tween the CPU and the heatsink is also needed to improve heat transfer. Make sure
that the CPU and the heatsink are securely fastened and in good contact with each
other. For proper installation, please kindly refer to the instruction manuals of the
CPU fan and heatsink vendors.
2.5 Installation of Memory Modules (DIMM)2.5 Installation of Memory Modules (DIMM)
2.5 Installation of Memory Modules (DIMM)
2.5 Installation of Memory Modules (DIMM)2.5 Installation of Memory Modules (DIMM)
SDRAM (Synchronous DRAM) DIMM (Dual In-line Memory Module) has 168 pins
and DDR (Double Data Rate) SDRAM DIMM has 184 pins.
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
168-pin RAM
The 168-pin SDRAM DIMM (black) and 184-pin DDR DIMM (blue) can be easily
distinguished by the fool-proof design.
Please do not use both 168-pin SDRAM DIMM and 184-pin DDR DIMM
at the same time. To optimize the compatibility, it is not recommended
to use two different models of the DIMMs at the same time.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break
on the slot.
184-pin RAM
1111
11
1111
Page 12

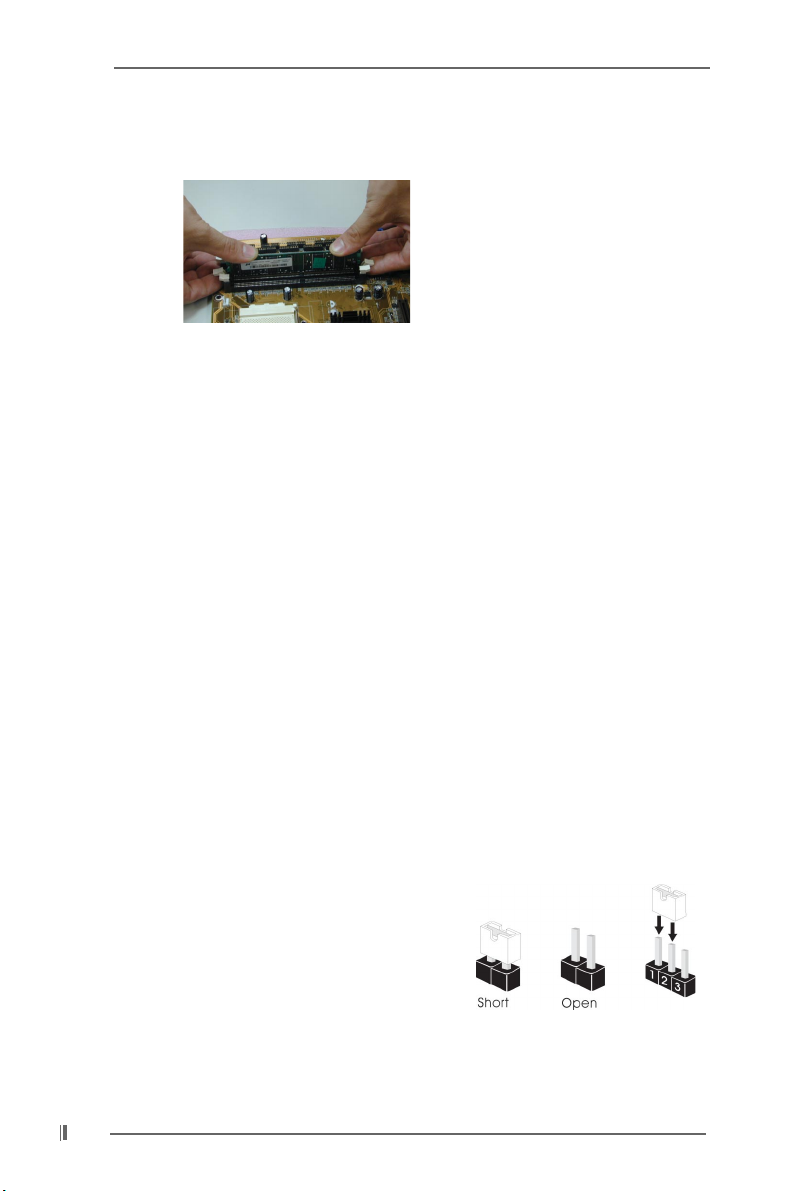

Step 3. Firmly insert the DIMM into the slot until the retaining clip snap back in place
and the DIMM is properly seated.
2.6 Expansion Slots (PCI and AGP Slots)2.6 Expansion Slots (PCI and AGP Slots)
2.6 Expansion Slots (PCI and AGP Slots)
2.6 Expansion Slots (PCI and AGP Slots)2.6 Expansion Slots (PCI and AGP Slots)
There are 6 PCI slots and 1 AGP slot on both PE Pro and GE Pro motherboards.
PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI
interface.
AGP slot: The AGP slot is used to install a graphics card.
The ASRock AGP slot has a special locking mechanism which
can securely fasten the graphics card inserted.
Installing an expansion cardInstalling an expansion card
Installing an expansion card
Installing an expansion cardInstalling an expansion card
Step 1. Before installing the expansion card, read the documentation of the
expansion card and make necessary hardware settings for the card.
Step 2. Remove the system unit cover (if your motherboard is already installed in a
chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the screw
for later use.
Step 4. Align the card connector with the slot and press firmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.
2.7 Jumpers Setup2.7 Jumpers Setup
2.7 Jumpers Setup
2.7 Jumpers Setup2.7 Jumpers Setup
The illustration shows how jumpers are setup.
When the jumper cap is placed on pins, the jumper
is “SHORT”. If no jumper cap is placed on pins,
the jumper is “OPEN”. The illustration shows a
3-pin jumper whose pin1 and pin2 are “SHORT”
when jumper cap is placed on these 2 pins.
1212
12
1212
Page 13

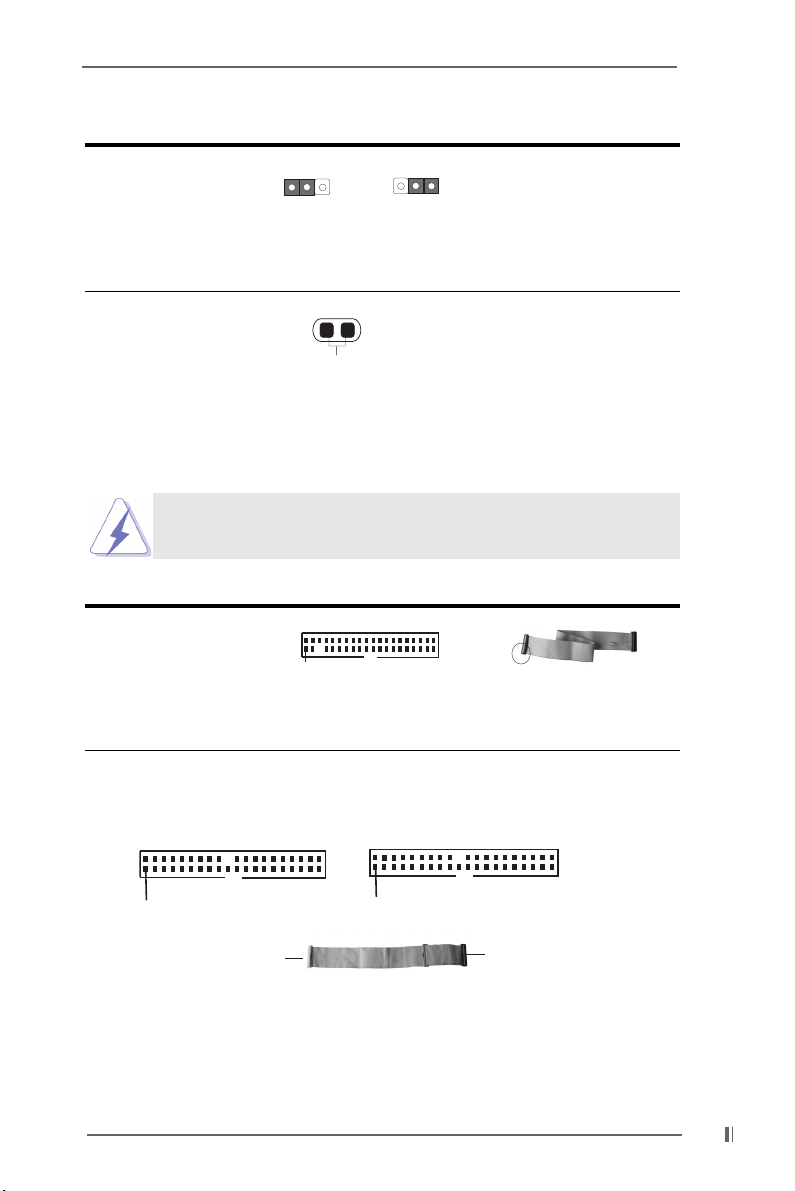

Jumper Setting Description
Red marking
1
PS2_USB_PWR1 Short pin2, pin3 to enable
2
23
(see p.6/p.7/p.8 item 22) +5VSB (standby) for PS/2 or
+5V +5VSB USB wake up events.
Note: To select +5VSB, it requires 2 Amp and higher standby current.
CLRCMOS1 Disconnect the power cord,
(see p.6/p.7/p.8 item 17) then short the solder points
solder points to clear CMOS by using
metal material, e.g., a paper
clip.
2.8 Connectors2.8 Connectors
2.8 Connectors
2.8 Connectors2.8 Connectors
Connectors are NOT jumpers. DO NOT place jumper caps over
these connectors.
Connector Figure Description
FDD connector
(33-pin FLOPPY1)
(see p.6/p.7/p.8 item 10)
Pin1
FLOPPY1
Note: Match the red marking on the floppy ribbon cable with Pin1.
Primary IDE connector (Blue) Secondary IDE connector (Black)
(39-pin IDE1) (39-pin IDE2)
(see p.6/p.7/p.8 item 7) (see p.6/p.7/p.8 item 8)
PIN1
Connect to the motherboard
IDE1
PIN1
Blue
IDE2
Black
Connect to the IDE devices
80-Pin ATA 100/133 cable
Note: To optimize compatibility and performance, please connect your hard
disk drive to the primary IDE connector (IDE1, blue) and CD-ROM to the
secondary IDE connector (IDE2, black).
1313
13
1313
Page 14

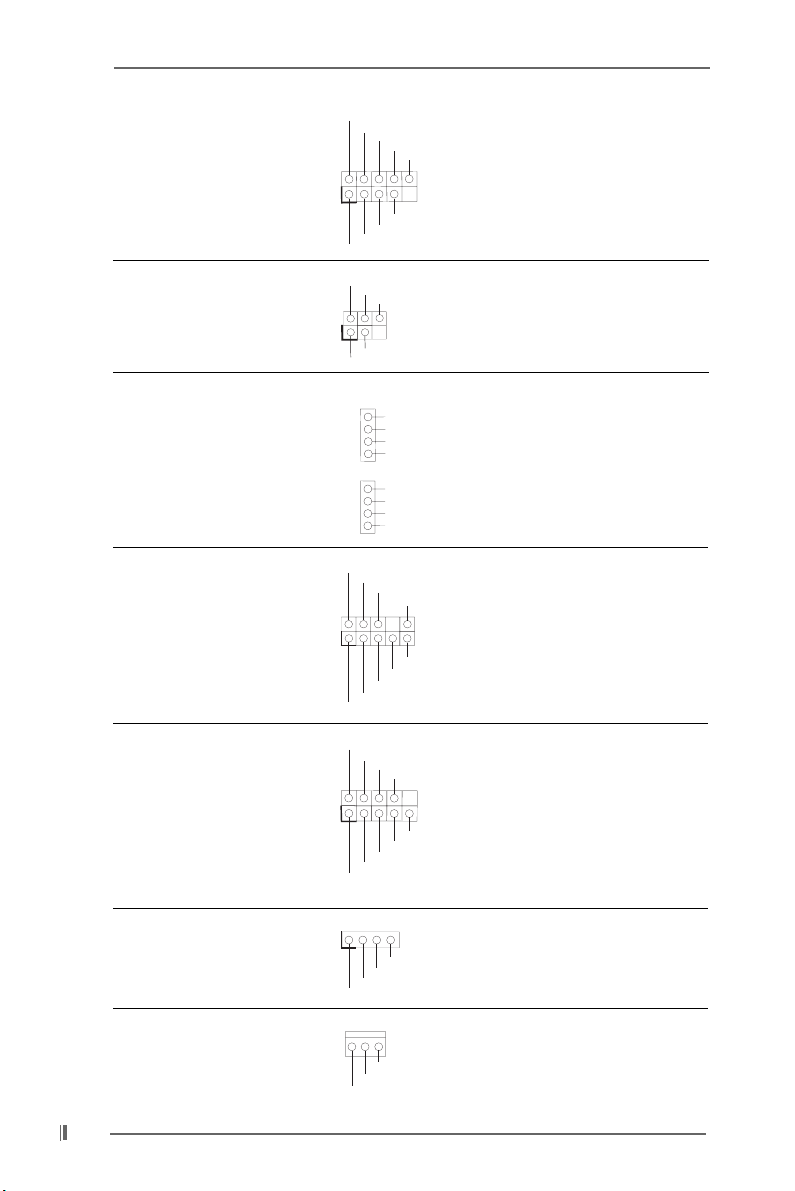

1
USB_PWR
P-5
P-4
USB_PWR
P+5
P+4
GND
GND
DUMMY
panel are not sufficient, an
USB header is available for 2
additional USB ports.
USB header ASRock I/OTM already
(9-pin USB45) provided 4 default USB ports.
(see p.6/p.7/p.8 item 13) If the 4 USB ports on the rear
Infrared module connector This connector supports an
(5-pin IR1) optional wireless transmitting
(see p.6/p.7/p.8 item 14) and receiving infrared module.
Internal audio connectors These connectors allow you
(4-pin CD1, 4-pin AUX1) CD1 to receive stereo audio input
(CD1: see p.6/p.7/p.8 item 24) from sound sources such as
(AUX1: see p.6/p.7/p.8 item 23) a CD-ROM, DVD-ROM, TV
Front panel audio connector This is an interface for front
(9-pin AUDIO1) panel audio cable that allows
(see p.6/p.7/p.8 item 20) convenient connection and
System panel connector This connector accommo-
(9-pin PANEL1) dates several system front
IRTX
+5V
DUMMY
1
GND
IRRX
CD-R
GND
GND
CD-L
AUX-R
1
GND
+5VA
MIC-POWER
MIC
PLED+
PLED-
GND
GND
AUX-L
BACKOUT-R
BACKOUT-L
AUD-OUT-L
DUMMY
AUD-OUT-R
PWRBTN#
GND
control of audio devices.
AUX1 tuner card, or MPEG card.
(see p.6/p.7/p.8 item 12) panel functions.
1
HDLED+
GND
HDLED-
DUMMY
RESET#
Speaker connector This connector allows you to
(4-pin SPEAKER 1) attach to an external speaker.
(see p.6/p.7/p.8 item 15)
1
+5V
DUMMY
DUMMY
SPEAKER
Chassis fan connector Connect the fan cable to the
(3-pin CHA_FAN1) connector matching the black
(see p.6/p.7/p.8 item 9) wire to the ground pin.
1414
14
1414
GND
+12V
CHA_FAN_SPEED
Page 15

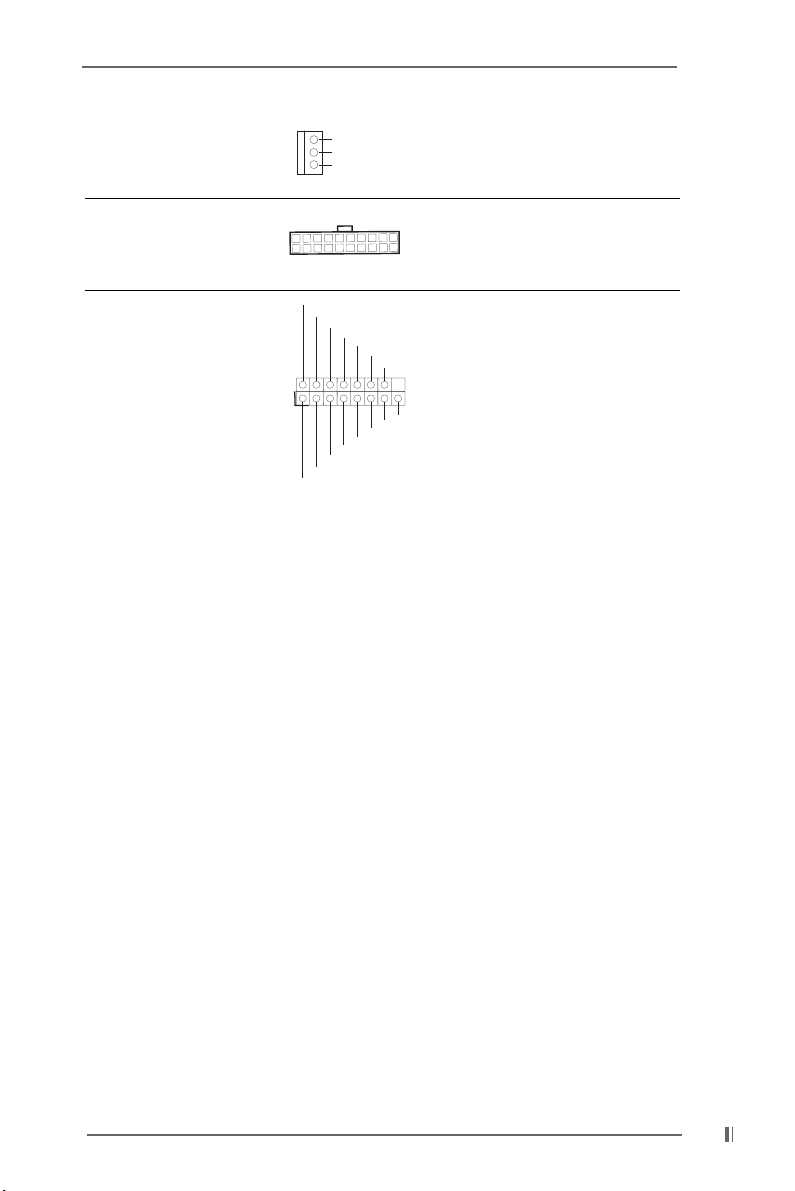

CPU fan connector Connect the fan cable to the
(3-pin CPU_FAN1) connector matching the black
(see p.6/p.7/p.8 item 3) wire to the ground pin.
GND
+12V
CPU_FAN_SPEED
ATX power connector Connect an ATX power
(20-pin ATXPWR1) supply to the connector.
(see p.6/p.7/p.8 item 1)
VGA header Connect VGA bracket.
(15-pin VGA1)
(see p.7/p.8 item 26)
G
NC
GND
GND
GND
DDCDATA
VSYNC
1
GND
B
R
GND
GND
NC
DDCCLK
HSYNC
1515
15
1515
Page 16
Chapter 3 BIOS SetupChapter 3 BIOS Setup
Chapter 3 BIOS Setup
Chapter 3 BIOS SetupChapter 3 BIOS Setup
3.1 BIOS Setup Utility3.1 BIOS Setup Utility
3.1 BIOS Setup Utility
3.1 BIOS Setup Utility3.1 BIOS Setup Utility
This section explains how to configure your system using the BIOS Setup Utility. The
Flash Memory on the motherboard stores the BIOS Setup Utility. When you start up
the computer, there is a chance for you to run the BIOS Setup. Press <F2> during the
Power-On-Self-Test (POST) to enter the BIOS Setup Utility, otherwise, POST
continues with its test routines.
If you wish to enter the BIOS Setup after POST, restart the system by pressing
<Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system chassis. You
can also restart by turning the system off and then back on.
The BIOS Setup Utility is designed to be user-friendly. It is a menu-driven program,
which allows you to scroll through its various sub-menus and select among the
predetermined choices.
Because the BIOS software is constantly being updated, the
following BIOS setup screens and descriptions are for reference
purpose only, and may not exactly match what you see on your
screen.
3.1.1 BIOS Menu Bar3.1.1 BIOS Menu Bar
3.1.1 BIOS Menu Bar
3.1.1 BIOS Menu Bar3.1.1 BIOS Menu Bar
The top of the screen has a menu bar with the following selections:
MAIN Sets up the basic system configuration
ADVANCED Sets up the advanced features
SECURITY Sets up the security features
POWER Configures Power Management features
BOOT Configures the default system device that is used
to locate and load the Operating System
EXIT Exits the current menu or the BIOS Setup
To access the menu bar items, press the right or left arrow key on the keyboard
until the desired item is highlighted.
3.1.2 Legend Bar3.1.2 Legend Bar
3.1.2 Legend Bar
3.1.2 Legend Bar3.1.2 Legend Bar
At the bottom of the Setup Screen is a legend bar. The following table lists the keys
in the legend bar with their corresponding functions.
1616
16
1616
Page 17
Navigation Key(s) Function Description
<F1> Displays the General Help Screen
<ESC> Jumps to the Exit menu or returns to the upper menu
from the current menu
/ Moves cursor up or down between fields
/ Selects menu to the left or right
+ / - Increases or decreases values
<Enter> Brings up a selected menu for a highlighted field
<F9> Resets the current screen to its Setup Defaults
<F10> Saves changes and exits Setup
3.2 Main Menu3.2 Main Menu
3.2 Main Menu
3.2 Main Menu3.2 Main Menu
When you enter the BIOS Setup Utility, the following screen appears.
Advanced
Main
System Date
System Time
Floppy Drives
IDE Devices
BIOS Version
Processor Type
Processor Speed
Cache Size
Microcode Update
TotalMemory
DDR1
DDR2
SDR1
SDR2
F1:Help
Esc:Exit
AMIBIOS SETUPUTILITY - VERSION3.31a
Security
Oct 142002 Mon
17:07:40
GE-PRO BIOSL0.10
Generic-X86
2000 MHz
512 KB
F23/08
224 MB+ 32 MBShare Memory
None
None
256 MB/ 133 Mhz
None
:Select Item
:Select Menu
Power
+/-:Change Values
Enter:Select
Boot
Exit
Sub-Menu
[ SetupHelp ]
Month: Jan - Dec
Day: 01-31
Year:1980-2099
F9:Setup Defaults
F10:Save &Exit
System Date [Month/Day/Year]
Set the system date that you specify. Valid values for month, day, and year are
Month: (Jan to Dec), Day: (1 to 31), Year: (up to 2099). Use keys to move
between the Month, Day and Year fields.
System Time [Hour:Minute:Second]
Set the system to the time that you specify. Use keys to move between
the Hour, Minute and Second fields.
Floppy Drives
Use this to set the type of floppy drives installed.
IDE Devices
Use this to configure IDE devices.
1717
17
1717
Page 18
TYPE
It allows user to select the type of the IDE Drive. Below are the
configuration options. After making your selections on this sub-menu,
press <ESC> key to return to the upper menu, in which the hard disk drive
field will display the size for the hard disk drive that you configured.
[USER]: It allows user to manually enter the number of cylinders,
heads, and sectors per track for the drive.
Before attempting to configure a hard disk drive, make sure you
have the correct configuration information supplied by the drive
manufacturer. Incorrect settings may cause the system to fail to
recognize the installed hard disk.
[Auto]: Select [Auto] to automatically detect hard disk drive. If
auto-detection is successful, the BIOS Setup automatically fills in the
correct values for the remaining fields on this sub-menu. If the auto-
detection fails, it may due to that the hard disk is too old or too new.
If the hard disk was already formatted on an older system, the BIOS
Setup may detect incorrect parameters. In these cases, select [User]
to manually enter the IDE hard disk drive parameters.
After entering the hard disk information into BIOS, use a disk utility,
such as FDISK, to partition and format new IDE hard disk drives. This
is necessary so that you can write or read data from the hard disk.
Make sure to set the partition of the Primary IDE hard disk drives to
active.
1818
18
1818
Page 19
[CD/DVD]: This is used for IDE CD/DVD drives.
[ARMD]: This is used for IDE ARMD (Accelerated RemovableMedia
Device), such as MO.
Cylinders
This is used to configure the number of cylinders. Refer to the drive
documentation to determine the correct value.
Heads
This is used to configure the number of read/write heads. Refer to
the drive documentation to determine the correct values.
Write Pre-compensation
Enter Write Pre-compensation sector. Refer to the drive documentation to
determine the correct value.
Sector
This is used to configure the number of sectors per track. Refer to the
drive documentation to determine the correct value.
Maximum Capacity
This field shows the drive’s maximum capacity as calculated by the BIOS
based on the drive information you entered.
LBA Mode
This allows user to select the LBA mode for a hard disk > 512 MB under
DOS and Windows; for Netware and UNIX user, select [Off] to disable the
LBA mode.
Block Mode
Set the block mode to [On] will enhance hard disk performance by reading
or writing more data during each transfer.
Fast Programmed I/O Modes
This allows user to set the PIO mode to enhance hard disk performance by
optimizing the hard disk timing.
32 Bit Transfer Mode
It allows user to enable 32-bit access to maximize the IDE hard disk data
transfer rate.
Ultra DMA Mode
Ultra DMA capability allows improved transfer speeds and data integrity
for compatible IDE devices. Set to [Disabled] to suppress Ultra DMA
capability.
3.3 Advanced, Security, Power, Boot, and Exit Menus3.3 Advanced, Security, Power, Boot, and Exit Menus
3.3 Advanced, Security, Power, Boot, and Exit Menus
3.3 Advanced, Security, Power, Boot, and Exit Menus3.3 Advanced, Security, Power, Boot, and Exit Menus
Detailed descriptions of these menus are listed in the Appendix, see p.21.
1919
19
1919
Page 20
Chapter 4 Software SupporChapter 4 Software Suppor
Chapter 4 Software Suppor
Chapter 4 Software SupporChapter 4 Software Suppor
4.1 Install Operating System4.1 Install Operating System
4.1 Install Operating System
4.1 Install Operating System4.1 Install Operating System
This motherboard supports various Windows operating systems (98SE/ ME/ 2000/
XP). Because motherboard settings and hardware options vary, use the setup
procedures in this chapter for general reference only. Refer to your OS documen-
tation for more information.
4.2 Support CD Information4.2 Support CD Information
4.2 Support CD Information
4.2 Support CD Information4.2 Support CD Information
The Support CD that came with the motherboard contains necessary drivers and
useful utilities that enhance the motherboard features.
4.2.1 Running The Support CD4.2.1 Running The Support CD
4.2.1 Running The Support CD
4.2.1 Running The Support CD4.2.1 Running The Support CD
To begin using the support CD, insert the CD into your CD-ROM drive. The CD
automatically displays the Main Menu if “AUTORUN” is enabled in your computer.
If the Main Menu did not appear automatically, locate and double click on the file
ASSETUP.EXE from the BIN folder in the Support CD to display the menus.
4.2.2 Drivers Menu4.2.2 Drivers Menu
4.2.2 Drivers Menu
4.2.2 Drivers Menu4.2.2 Drivers Menu
The Drivers Menu shows the available devices drivers if the system detects
installed devices. Install the necessary drivers to activate the devices.
tt
t
tt
2020
20
2020
4.2.3 Utilities Menu4.2.3 Utilities Menu
4.2.3 Utilities Menu
4.2.3 Utilities Menu4.2.3 Utilities Menu
The Utilities Menu shows the applications software that the motherboard
supports. Click on a specific item then follow the installation wizard to install it.
4.2.4 ASRock PC-DIY Live Demo Program4.2.4 ASRock PC-DIY Live Demo Program
4.2.4 ASRock PC-DIY Live Demo Program
4.2.4 ASRock PC-DIY Live Demo Program4.2.4 ASRock PC-DIY Live Demo Program
ASRock presents you a multimedia PC-DIY live demo, which shows you how to
install your own PC system step by step. You can find the file through the
following path:
..\ MPEGAV \ AVSEQ01.DAT
To see this demo program, you can run Microsoft Media Player to play the file.
4.2.54.2.5
4.2.5
4.2.54.2.5
If you need to contact ASRock or want to know more about ASRock, welcome
to ASRock’s website: http://www.asrock.com; or you may contact your
dealer for further information.
Contact InformationContact Information
Contact Information
Contact InformationContact Information
Page 21
Appendix: Advanced BIOS SetupAppendix: Advanced BIOS Setup
Appendix: Advanced BIOS Setup
Appendix: Advanced BIOS SetupAppendix: Advanced BIOS Setup
This section will introduce you the following BIOS Setup menus: “Advanced”,
“Security”, “Power”, “Boot”, and “Exit”.

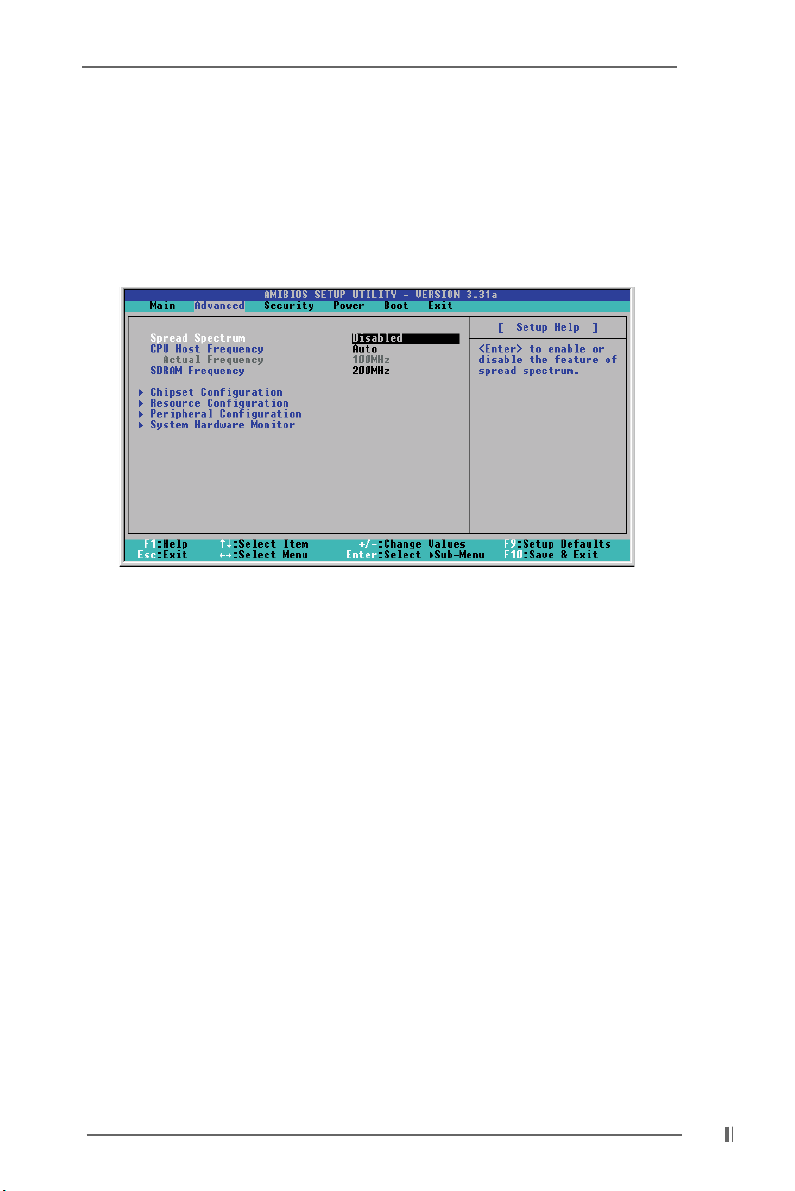

1. Advanced BIOS Setup Menu1. Advanced BIOS Setup Menu
1. Advanced BIOS Setup Menu
1. Advanced BIOS Setup Menu1. Advanced BIOS Setup Menu
Spread Spectrum:
This field should always be “Disabled” for better system stability.
CPU Host Frequency:
[Auto]: The motherboard detects the jumper setup and sets the CPU host
frequency automatically.
[Manual]: This allows user to set CPU host frequency manually. However,
this is not recommended unless user thoroughly knows the feature.
Wrong setup may cause problems during operation.
SDRAM Frequency:
[Auto]: The motherboard detects the memory module(s) inserted and
automatically assigns appropriate frequency.
[Other values]: This allows user to select the value as operating frequency.
Chipset Configuration:
AGP Aperture Size: It refers to a section of the PCI memory address range
used for graphics memory. We recommend that you leave this field at the
default value unless your AGP card requires other sizes.
OnBoard VGA Share Memory: This allows you to select the size of share
memory for onboard VGA. Onboard VGA will get better resolution if larger
size of share memory is selected. Please do not select [None] if AGP or PCI
graphics card is not inserted.
USB Controller: Use this to enable or disable the use of USB controller.
2121
21
2121
Page 22
USB Device Legacy Support: Use this to enable or disable support to emulate
legacy I/O devices such as mouse, keyboard,... etc.
Resource Configuration:
PCI Latency Timer (PCI Clocks): The default is 32. We recommend you to
keep the default value unless your PCI expansion cards’ specifications
require other settings.
Primary Graphics Adapter: Select AGP or PCI as the primary graphics adapter.

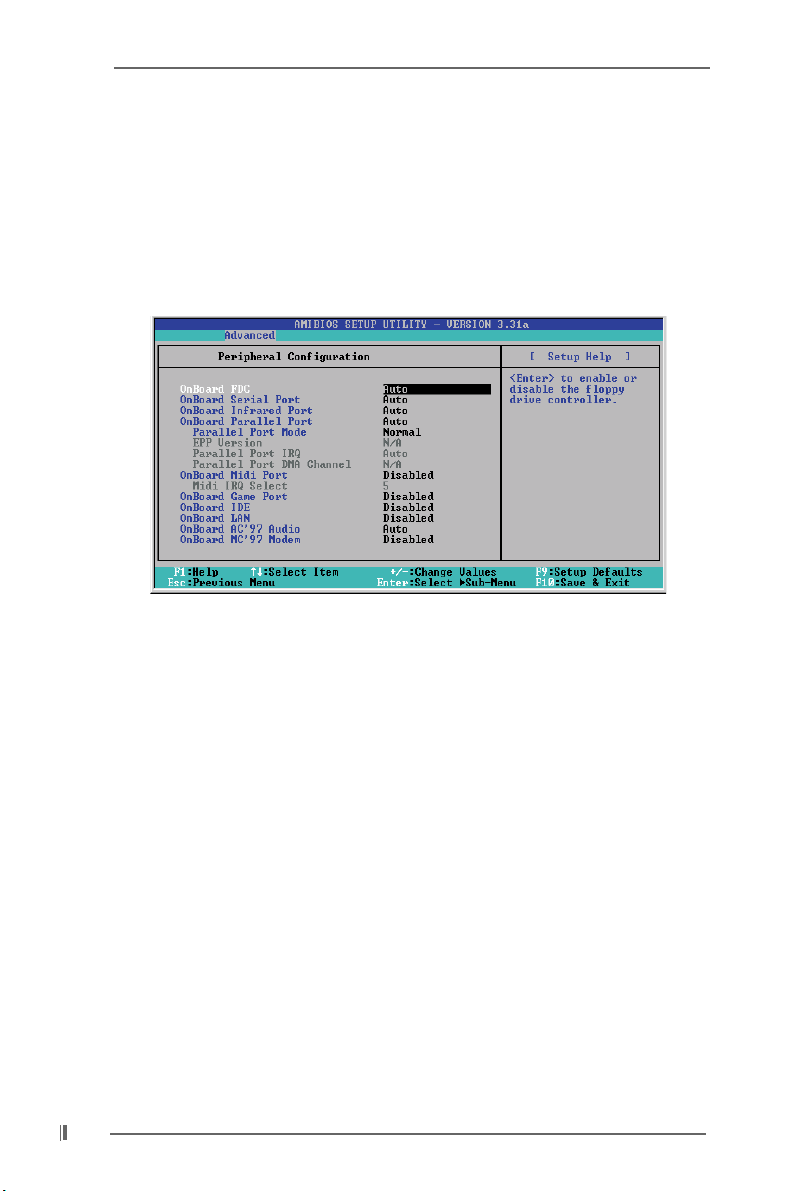

Peripheral Configuration:
OnBoard FDC: Use this to enable or disable floppy drive controller.
OnBoard Serial Port: Use this to set addresses for the onboard serial
ports or disable serial ports. Configuration options: [Auto], [Disabled],
[3F8 / IRQ4 / COM1], [2F8 / IRQ3 / COM2], [3E8 / IRQ4 / COM3],
[2E8 / IRQ3 / COM4].
OnBoard Infrared Port: This allows you to enable or disable the
onboard infrared port feature. Select [Auto] will enable this feature if
the infrared module is installed.
OnBoard Parallel Port: Select Parallel Port address or disable Parallel
Port. Configuration options: [Auto], [Disabled], [378], [278].
Parallel Port Mode: Set the operation mode of the parallel port.
OnBoard Midi Port: Select address for Midi Port or disable Midi Port.
Configuration options: [Disabled], [330], [300], [290], [292].
Midi IRQ Select: Use this to select Midi IRQ. Configuration options:
[5], [10], [11]. The default is 5.
OnBoard Game Port: Select address for Game Port or disable Game
Port. Configuration options: [200h], [208h], [Disabled].
OnBoard IDE: To enable either the primary IDE channel or the secondary
IDE channel, set to [Disabled] will disable the both. Configuration
options: [both], [Disabled], [Primary], [Secondary].
2222
22
2222
Page 23
OnBoard LAN: Enable or disable onboard LAN feature.
OnBoard AC’97 Audio: Enable or disable onboard AC’97 audio feature.
OnBoard MC’97 Modem: Enable or disable onboard MC’97 modem feature.
System Hardware Monitor: You can check the status of the hardware on
your system. It allows you to monitor the parameters for CPU temperature,
Motherboard temperature, CPU fan speed, and critical voltage.
2. Security Setup Menu2. Security Setup Menu
2. Security Setup Menu
2. Security Setup Menu2. Security Setup Menu
Supervisor Password: This field shows the status of the Supervisor Password.
[Clear]: No password has been set.
[Set]: Supervisor password has been set.
User Password: This field shows the status of the User Password.
[Clear]: No password has been set.
[Set]: User password has been set.
Set Supervisor Password: Press <Enter> to set Supervisor Password. Valid
password can be a 1 to 6 alphanumeric characters combination. If you already
have a password, you must enter your current password first in order to
create a new password.
Set User Password: Press <Enter> to set User Password. Valid password can
be a 1 to 6 alphanumeric characters combination. If you already have a
password, you must enter your current password first in order to create a new
password.
Password Check: Select the check point for “Password Check”. Configuration
options: [Setup], [Always]. If [Setup] option is selected, the “Password Check”
is performed before BIOS setup. If [Always] option is selected, the “Password
Check” is performed before both boot-up and BIOS Setup.
2323
23
2323
Page 24
3. Power Setup Menu3. Power Setup Menu
3. Power Setup Menu
3. Power Setup Menu3. Power Setup Menu
Suspend to RAM (S3): This field allows you to select whether to auto-detect or
disable the ACPI Suspend-to-RAM feature. Select [Auto] will enable this feature
if the system supports it.
Repost Video on S3 Resume: This allows you to repost video on S3 resume.
Restore on AC/Power Loss: This allows you to set the power state after an
unexpected AC power loss. If [Power Off] is selected, the AC power remains
off when the power recovers. If [Power On] is selected, the AC power
resumes and the system starts to boot up when the power recovers.
Ring-In Power On: Use this to enable or disable Ring-in signals to turn on the
system from the power-soft-off mode.
PME# Power On: Use this to enable or disable PCI PME# to turn on the system from
the power-soft-off mode.
Keyboard Power On: Use this to enable or disable keyboard to turn on the system
from the power-soft-off mode.
RTC Alarm Power On: Use this to enable or disable RTC(Real Time Clock) to power
on the system. If [Enable] is selected, you must fill the RTC Alarm Date / Hour /
Minute / Second sub-fields with the actual wake up time you desire.
2424
24
2424
Page 25
4. Boot Setup Menu4. Boot Setup Menu
4. Boot Setup Menu
4. Boot Setup Menu4. Boot Setup Menu
Quick Boot Mode: This mode speeds up the boot-up routine by skipping memory
retestings.
Boot-time Diagnostic Screen: This screen shows CPU and hardware
information during Power-On-Self-Test (POST) routine. If this screen is disabled,
only ASRock logo is shown during the boot up process.
Boot Up Num-Lock: This automatically activates the Numeric Lock function after
boot up.
Boot to OS/2: This enables boot up to OS/2 operating system.
Boot Device Priority: This allows you to set the boot device priority.
5. Exit Menu5. Exit Menu
5. Exit Menu
5. Exit Menu5. Exit Menu
2525
25
2525
Page 26
Exit Saving Changes: After you enter the sub-menu, the message “Save current
settings and exit” will appear. If you press <ENTER>, it will save the current
settings and exit the BIOS SETUP Uutility.
Exit Discarding Changes: After you enter the submenu, the message “Quit
without saving changes” will appear. If you press <ENTER>, you will exit the
BIOS Setup Utility without making any changes to the settings.
Load Default Settings: This loads the default values for all the setup configuration.
Discard Changes: After you enter the sub-menu, the message “Load setup
original values” will appear. If you press <ENTER>, original values will be restored.
All changes are discarded.
2626
26
2626
Loading...
