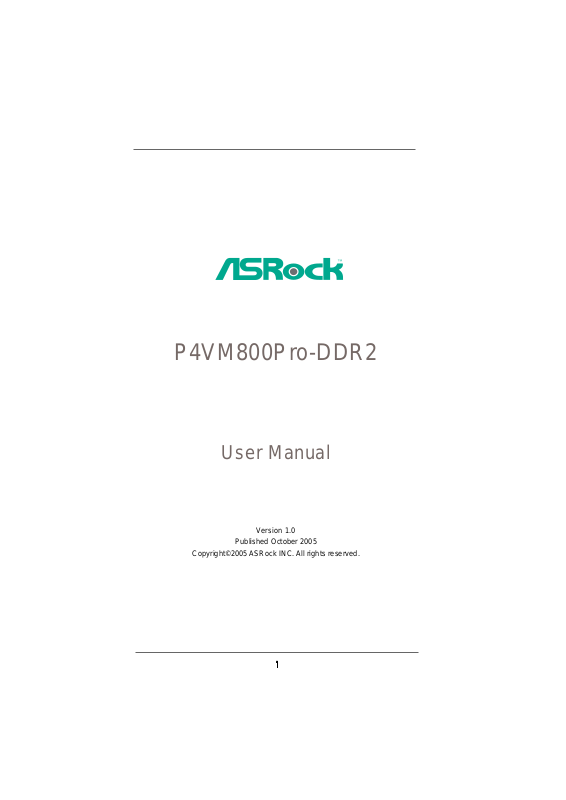

ASRock P4VM800Pro-DDR2 User Manual

P4VM800Pro-DDR2

User Manual

Version 1.0

Published October 2005

Copyright©2005 ASRock INC. All rights reserved.

11

1

11

Copyright Notice:Copyright Notice:

Copyright Notice:

Copyright Notice:Copyright Notice:

No part of this manual may be reproduced, transcribed, transmitted, or translated in
any language, in any form or by any means, except duplication of documentation by
the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this manual may or may not be regis­tered trademarks or copyrights of their respective companies, and are used only for
identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Disclaimer:Disclaimer:

Specifications and information contained in this manual are furnished for informa­tional use only and subject to change without notice, and should not be constructed
as a commitment by ASRock. ASRock assumes no responsibility for any errors or
omissions that may appear in this manual.
With respect to the contents of this manual, ASRock does not provide warranty of
any kind, either expressed or implied, including but not limited to the implied warran­ties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of profits, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

22

2

22

ContentsContents

Contents

ContentsContents

1. Introduction1. Introduction

1. Introduction

1. Introduction1. Introduction

1.1 Package Contents.......................................................... 5

1.2 Spec if ic at io ns ................................................................ 6

1.3 Motherboard Layout ...................................................... 9

1.4 ASRock I/O Plus

2. Installation2. Installation

2. Installation

2. Installation2. Installation

Pre-installation Precautions ................................................... 11

2.1 CPU Installation .............................................................. 12

2.2 Installation of CPU Fan and Heatsink ............................ 12

2.3 Installation of Memory Modules (DIMM)......................... 13

2.4 Expansion Slots (PCI, AMR, and AGP Slots) ................. 14

2.5 Jumpers Setup .............................................................. 15

2.6 Onboard Headers and Connectors .............................. 16

2.7 Serial ATA (SATA) Hard Disks Installation ..................... 19

2.8 Hot Plug and Hot Swap Functions for SATA HDDs....... 1 9

2.9 Installing Windows 2000 / Windows XP With RAID

Functions ....................................................................... 20

2.10 Installing Windows 98 / ME / 2000 / XP Without

RAID Functions ............................................................ 21

3. BIOS S3. BIOS S

3. BIOS S

3. BIOS S3. BIOS S

3.1 Introduction .................................................................... 2 2

3.2 Main Screen................................................................... 23

3.3 Advanced Screen ......................................................... 23

3.4 Hardware Health Event Monitoring Screen .................. 36

3.5 Boot Screen................................................................... 36

3.6 Security Screen ............................................................ 38

3.7 Exit Screen .................................................................... 39

ETUP UTILITYETUP UTILITY

ETUP UTILITY

ETUP UTILITYETUP UTILITY

3.1.1 BIOS Menu Bar .................................................... 22

3.1.2 Navigation Keys................................................... 23

3.3.1 CPU Configuration................................................ 24

3.3.2 Chipset Configuration .......................................... 26

3.3.3 ACPI Configuration............................................... 30

3.3.4 IDE Configuration ................................................. 3 1

3.3.5 PCIPnP Configuration ........................................... 33

3.3.6 Floppy Configuration ........................................... 33

3.3.7 Super IO Configuration ........................................ 34

3.3.8 USB Configuration ............................................... 35

3.5.1 Boot Settings Configuration.................................. 37

....................................................................................................

..................................................

....................................................................................................

TM

.................................................................................................

........................................................................................................

....................................................

........................................................................................................

..................................................................................

.........................................

..................................................................................

5 5

5

5 5

10

11 11

11

11 11

22 22

22

22 22

33

3

33

4. Software Support4. Software Support

4. Software Support

4. Software Support4. Software Support

4.1 Install Operating System ............................................... 40

4.2 Support CD Information ................................................. 40

4.2.1 Running Support CD ............................................ 40

4.2.2 Drivers Menu........................................................ 40

4.2.3 Utilities Menu ........................................................ 40

4.2.4 Contact Information.............................................. 40

....................................................................................

..........................................

....................................................................................

40 40

40

40 40

44

4

44

1.1.

IntroductionIntroduction

1.

Introduction

1.1.

IntroductionIntroduction

Thank you for purchasing ASRock P4VM800Pro-DDR2 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control. It de­livers excellent performance with robust design conforming to ASRock’s commit­ment to quality and endura nce. In this manual, chapter 1 a nd 2 contain introduction of
the motherboard and step-by-step guide to the hardware installation. Chapter 3 and
4 contain the configuration guide to BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might be
updated, the content of this manual will be subject to change without
notice. In case any modifications of this manual occur, the updated
version will be available on ASRock website without further notice. You
may find the latest memory and CPU support lists on ASRock website as
well. ASRock website

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

1.1 Package Contents1.1 Package Contents

ASRock P4VM800Pro-DDR2 Motherboard

(Micro ATX Form Factor: 9.6-in x 8.2-in, 24.4 cm x 20.8 cm)
ASRock P4VM800Pro-DDR2 Quick Installation Guide
ASRock P4VM800Pro-DDR2 Support CD
One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable
One Ribbon Cable for a 3.5-in Floppy Drive
One Serial ATA (SATA) Cable
One Serial ATA (SATA) HDD Power Cable(Optional)
One ASRock I/O PlusTM Shield
One COM Port Bracket

http://www.asrock.com

55

5

55

1.21.2

SpecificationsSpecifications

1.2

Specifications

1.21.2

SpecificationsSpecifications

Platform - Micro ATX Form Factor: 9.6-in x 8.2-in, 24.4 cm x 20.8 cm
CPU - Socket 478 for Intel® Pentium® 4 / Celeron® D (Prescott,

Northwood, Willamate) processor

- Chipset capable to FSB 1066 MHz

- Supports Hyper-Threading Technology (see CAUTION 1)

Chipset - Northbridge: VIA® P4M800Pro chipset

- Southbridge: VIA® VT8237R Plus

Memory - 2 x DDRII DIMM slots

- Support DDRII533

- Max. capacity: 2GB

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 2)

- ASRock U-COP (see CAUTION 3)

- Boot Failure Guard (B.F.G.)

Expansion Slot - 3 x PCI slots

- 1 x AGP slot for 1.5V 8X/4X AGP card (see CAUTION 4)

- 1 x AMR slot

Graphics - VIA® UniChrome Pro 3D/2D

- DirectX 7.0 VGA

- Max. VGA shared memory 64MB

Audio - Cmedia 5.1 channel audio codec
LAN - VIA® PHY VT6103

- Speed: 10/100Mb Ethernet

- Supports Wake-On-LAN

Rear Panel I/O ASRock I/O Plus

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 1 x Parallel Port (ECP/EPP Support)

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 Port

- Audio Jack: Line In / Line Out / Microphone

TM

66

6

66

Connector - 2 x Serial ATA 1.5Gb/s connectors

(Supports RAID 0, 1, JBOD and “Hot Plug” functions)

- 2 x ATA133 IDE connector (supports 4 x IDE devices)

- 1 x Floppy connector

- 1 x COM port header

- 1 x IR header

- CPU/Chassis FAN connector

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- AUX in header

- Front panel audio header

- 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are
shared with USB4_5) (see CAUTION 5)

BIOS Feature - 4Mb AMI BIOS

- AMI Legal BIOS

- Supports “Plug and Play”

- ACPI 1.1 Compli ance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support
Support CD - Drivers, Utilities, AntiVirus Software
Hardware - CPU Temperature Sensing
Monitor - Chassis Temperature Sensing

- CPU Overheat Shutdown to Protect CPU Life

- CPU Fan Tachometer

- Chassis Fan Tachometer

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 98SE/ME/2000/XP compliant
Certifications - FCC, CE, WHQL

77

7

77

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page 25.

2. Although this motherboard offers stepless control, it is not recommended
to perform over-clocking. Frequencies other than the recommended CPU
bus frequencies may cause the instability of the system or damage the
CPU.

3. While CPU overheat is detected, the system will automatically shutdown.
Before you resume the system, please check if the CPU fan on the
motherboard functions properly and unplug the power cord, then plug it
back again. To improve heat dissipation, remember to spray thermal
grease between the CPU and the heatsink when you install the PC system.

4. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!
It may cause permanent damage!

5. Power Management for USB 2.0 works fine under Microsoft® Windows® XP
SP1 / 2000 SP4. It may not work properly under Microsoft
ME.

®

Windows® 98 /

88

8

88

1.3 Motherboard Layout1.3 Motherboard Layout

1.3 Motherboard Layout

1.3 Motherboard Layout1.3 Motherboard Layout

3

1

2

5

4

8

6

7

20.8cm (8.2in)

1

PS2_USB_PWR1

PS2

Mouse

Keyboard

PS2

VGA1

PARALLEL PORT

ATX12V1

CPU_FAN1

PGA478

Prescott 800

CMOS

Battery

CLRCMOS1

IDE2

ATA133

SATA1

SATA2

24.4cm (9.6in)

9

10

11

12
13

14

15

USB2.0
T: US B2
B:USB3

USB2.0

Top:

T: US B0

RJ-45

30

29

28

27

26

25

24
23

B:USB1

USB2.0
T:USB4
B:USB5

MicIn

1

USB4_5

ATXPWR1

1

LineOut

1

Bottom:

Center:

LineIn

Top:

IR1

COM1

I/O

Super

LAN
PHY

4Mb

BIOS

AUX1

CD1

Audio
CODEC

1

AUDIO1

JR1

JL1

22

PCI 1

P4VM800Pro-DDR2

PCI 2

PCI 3

5.1CH

AMR1

FLOPPY1

21

P4M800 Pro

AGP 8X

1.5V_AGP1

20

VIA

Chipset

USB2.0

SATA

1

USB67

VT8237R

CHA_FAN1

18

DDRII_2 (64/72bit, 240-pin module)

DDRII_1 (64/72bit, 240-pin module)

DDRII533

VIA

Plus

PANEL 1

PLEDPWRBTN

1

1

HDLED RESET

SPEAKER1

1719

IDE1

16

1 PS2_USB_PWR1 Jumper 16 System Panel Hea der (P ANEL1)
2 A TX 12V Connector (A TX12V1) 17 Chassis Speaker Header (SPEAKER 1)
3 A TX Power Conne ctor (A TXPW R1) 18 Chassis Fan Connector (CHA_FAN1)
4 CPU Socket 19 USB 2.0 Header (USB67, Blue)
5 CPU Heatsink Retention Module 20 Floppy Connector (FLOPPY1)
6 North Bridge Controller 21 AMR Slot (AMR1)
7 CPU Fan Connector (CPU_FAN1) 2 2 JR1 / JL1 Jumpers
8 2 x 240-pin DDRII DIMM Slots 23 Front Panel Audio Header (AUDIO1)

(DDRII_1, DDRII_2; Yellow) 24 Internal Audio Connector: CD1 (Black)
9 Primary IDE Connector (IDE1, Blue) 25 Internal Audio Connector: AUX1 (White)
10 Secondary IDE Connector (IDE2, Black) 26 3 x PCI Slots (PCI1- 3)
11 AGP Slot (1.5V_AGP1) 27 Flash Memory
12 Clear CMOS Jumper (CLRCMOS1) 28 Serial Port Connector (COM1)
13 South Bridge Controller 29 Infrared Module Header (IR1)
14 Primary Serial A TA Connector (SATA1) 30 Shared USB 2.0 Header (USB4_5, Blue)
15 Secondary Serial A TA Connector (SA T A 2)

99

9

99

1.4 ASRock I/O Plus1.4 ASRock I/O Plus

1.4 ASRock I/O Plus

1.4 ASRock I/O Plus1.4 ASRock I/O Plus

TMTM

TM

TMTM

1

11

1 Parallel Port 7 USB 2.0 Ports (USB01)
2 RJ-45 Port 8 USB 2.0 Ports (USB23)
3 Line In (Light Blue) 9 VGA Port
4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)
5 Microphone (Pink) 11 PS/2 Mouse Port (Green)
6 Shared USB 2.0 Ports (USB45)

2

8910

7

6

3

4

5

1010

10

1010

2.2.

InstallationInstallation

2.

Installation

2.2.

InstallationInstallation

P4VM800Pro-DDR2 is a Micro ATX form factor (9.6-in x 8.2-in, 24.4 cm x 20.8 cm)
motherboard. Before you install the motherboard, study the configuration of your
chassis to ensure that the motherboard fits into it.

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Pre-installation PrecautionsPre-installation Precautions

Take note of the following precautions before you install motherboard com­ponents or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any
component.

2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded
object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti­static pad or in the bag that comes with the component.

Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard,

peripherals, and/or components.

1111

11

1111

2.1 CPU Installation2.1 CPU Installation

2.1 CPU Installation

2.1 CPU Installation2.1 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90° angle.
Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the
CPU into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push down

the socket lever to secure the CPU. The lever clicks on the side tab to
indicate that it is locked.

CPU Marked Corner

Lift Lever Up to 90°

Socket Marked Corner

STEP 1:
Lift The Socket Lever Up to 90°

2.2 Installation of CPU Fan and Heatsink2.2 Installation of CPU Fan and Heatsink

2.2 Installation of CPU Fan and Heatsink

2.2 Installation of CPU Fan and Heatsink2.2 Installation of CPU Fan and Heatsink

STEP 2/STEP 3:
Match The CPU Marked Corner
to The Socket Marked Corner

STEP 4:
Push Down And Lock
The Socket Lever

This motherboard adopts 478-pin CPU socket to support Intel® Pentium® 4 /
Celeron® CPU. It requires larger heatsink and cooling fan to dissipate heat.
You also need to spray thermal grease between the CPU and the heatsink to
improve heat dissipation. Make sure that the CPU and the heatsink are se­curely fastened and in good contact with each other. Then connect the CPU
fan to the CPU_FAN connector (CPU_FAN1, see p.9 No. 7). For proper
installation, please kindly refer to the instruction manuals of the CPU fan and
the heatsink.

1212

12

1212
