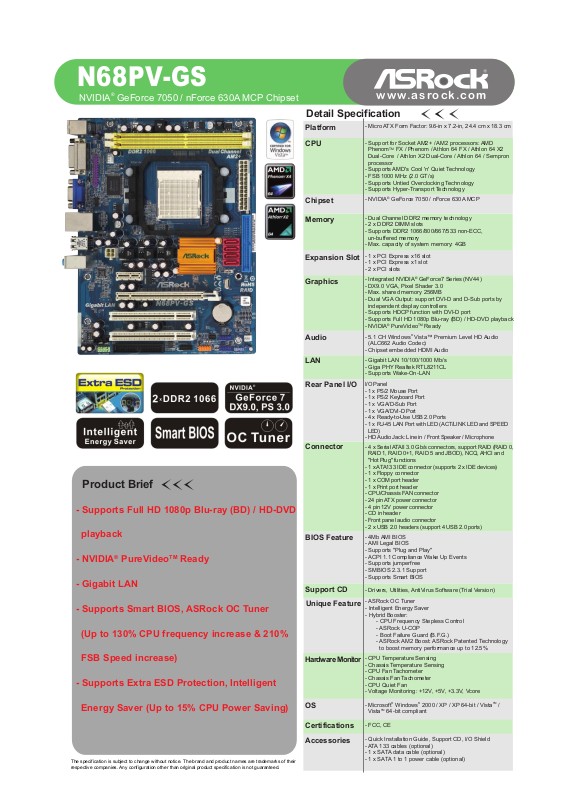

Asrock N68PV-GS User Manual

N68PV-GS

NVIDIA® GeForce 7050 / nForce 630A MCP Chipset

w w w. a s r ock .c om

Detail Specification

Platform

CPU

Chipset

- Micro ATX Form Factor: 9.6-in x 7.2-in, 24.4 cm x 18.3 cm

- Support for Socket AM2+ / AM2 processors: AMD
PhenomTM FX / Phenom / Athlon 64 FX / Athlon 64 X2
Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron
processor

- Supports AMD's Cool 'n' Quiet Technology

- FSB 1000 MHz (2.0 GT/s)

- Supports Untied Overclocking Technology

- Supports Hyper-Transport Technology

- NVIDIA® GeForce 7050 / nForce 630A MCP

Product Brief

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD

playback

- NVIDIA® PureVideoTM Ready

- Gigabit LAN

- Supports Smart BIOS, ASRock OC Tuner

(Up to 130% CPU frequency increase & 210%

FSB Speed increase)

- Supports Extra ESD Protection, Intelligent

Energy Saver (Up to 15% CPU Power Saving)

The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.

Memory

Expansion Slot

Graphics

Audio

LAN

Rear Panel I/O

Connector

BIOS Feature

Support CD

Unique Feature

Hardware Monitor

OS

Certifications

Accessories

- Dual Channel DDR2 memory technology

- 2 x DDR2 DIMM slots

- Supports DDR2 1066/800/667/533 non-ECC,
un-buffered memory

- Max. capacity of system memory: 4GB

- 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 2 x PCI slots

- Integrated NVIDIA® GeForce7 Series (NV44)

- DX9.0 VGA, Pixel Shader 3.0

- Max. shared memory 256MB

- Dual VGA Output: support DVI-D and D-Sub ports by
independent display controllers

- Supports HDCP function with DVI-D port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

- NVIDIA® PureVideoTM Ready

- 5.1 CH Windows® Vista™ Premium Level HD Audio
(ALC662 Audio Codec)

- Chipset embedded HDMI Audio

- Gigabit LAN 10/100/1000 Mb/s

- Giga PHY Realtek RTL8211CL

- Supports Wake-On-LAN

I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA/D-Sub Port

- 1 x VGA/DVI-D Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)

- HD Audio Jack: Line in / Front Speaker / Microphone

- 4 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ, AHCI and
"Hot Plug" functions

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x COM port header

- 1 x Print port header

- CPU/Chassis FAN connector

- 24 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

- 4Mb AMI BIOS

- AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- Supports Smart BIOS

- Drivers, Utilities, AntiVirus Software (Trial Version)

- ASRock OC Tuner

- Intelligent Energy Saver

- Hybrid Booster:

- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

- ASRock AM2 Boost: ASRock Patented Technology
to boost memory performance up to 12.5%

- CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

- Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /

TM

Vista

64-bit compliant

- FCC, CE

- Quick Installation Guide, Support CD, I/O Shield

- ATA 133 cables (optional)

- 1 x SATA data cable (optional)

- 1 x SATA 1 to 1 power cable (optional)

N68PV-GS

NVIDIA® GeForce 7050 / nForce 630A MCP Chipset

Overclocking Design

ASRock OC Tuner:

ASRock OC Tuner is a user-friendly
and untied tool which allows you
to guard your system by hardware
monitor function and overclock
your hardware devices to get the
best system performance

CPU Frequency (Overclocking):

ASRock OC Tuner allows you to overclock
CPU to get the best system performance.
By OC Tuner, you may overclock the
frequency of FSB 1000MHz CPU from

2.6GHz to 3.37GHz, up to 130%
performance boost; FSB speed can also
be overclocked from 200MHz to 420MHz,
up to 210% speed increase.

System Health
Hardware Monitor

Overclocking
Voltage Control

w w w. a s r ock .c om

Energy Saving :

Supports ASRock Intelligent Energy Saver (I.E.S)

Power Saving

CPU power
information

ASRock Extra ESD Protection Design :

The exclusive design of ASRock ESD (Electrostatic
discharge) Protection gives extra antistatic protection
of I/O panel, connector and other components on your
motherboard. This function can help prevent static build
up and reduce the damage to the motherboards

Smart BIOS:

CPU Power saving up to 15%

The Smart BIOS function can be found in the BIOS
Setup Utility when you are setting up the optimal
configuration for your system. It can facilitate the
setting things by some default BIOS settings. Users
may just select the BIOS mode that is most suitable
to them.
