Chapter 1 Introduction
ank you for purchasing ASRock J3710M / J3160M / J3060M motherboard, a
reliable motherboard produced under ASRock’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRock’s commitment to quality and endurance.
In this manual, Chapter 1 and 2 contains the introduction of the motherboard
and step-by-step installation guides. Chapter 3 contains the operation guide of the
soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.
Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website w ithout f urther notice. If you require technical support relate d to
this motherboard, please vi sit our website for s pecic information about the model
you are using. You may nd the l atest VGA cards and CPU suppor t list on ASRock’s
website a s well. ASRock website ht tp://www.a srock.com.
1.1 Package Contents
ASRock J3710M / J3160M / J3060M Motherboard (Micro ATX Form Factor)
•
ASRock J3710M / J3160M / J3060M Quick Installation Guide
•
ASRock J3710M / J3160M / J3060M Support CD
•
2 x Serial ATA (SATA) Data Cables (Optional)
•
1 x I/O Panel Shield
•
J3710M
J3160M
J3060M
English
1
1.2 Specications
Platform
CPU
Memory
•
•
•
•
•
•
•
•
•
* If only one DIMM module is installed, please install it into
DDR3_A1.
J3710M
J3160M
J3060M
Micro ATX Form Factor
Solid Capacitor design
Intel® Quad-Core Pentium® Processor J3710 (up to 2.64 GHz)
(for J3710M)
Intel® Quad-Core Processor J3160 (up to 2.24 GHz)
(for J3160M)
Intel® Dual-Core Processor J3060 (up to 2.48 GHz)
(for J3060M)
Dual Channel DDR3/DDR3L Memory Technology
2 x DDR3/DDR3L DIMM Slots
Supports DDR3/DDR3L 1600/1066 non-ECC, un-buered
memory
Max. capacity of system memory: 16GB
(see CAUTION)
Expansion
Slot
Graphics
1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode)
•
2 x PCI Express 2.0 x1 Slots
•
• Integrated Intel® HD Graphics 405: 16 EUs inside (Up to
740MHz) (for J3710M)
• Integrated Intel® HD Graphics 400: 12 EUs inside (Up to
700MHz) (for J3160M / J3060M)
• DirectX 11.1, Pixel Shader 5.0
• ree graphics output options: D-Sub, DVI-D and HDMI
• Supports Triple Monitor
• Supports HDMI with max. resolution up to 4K x 2K
(3840x2160) @ 30Hz or 2560x1600 @ 60Hz
• Supports DVI-D with max. resolution up to 1920x1200 @
60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
• Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate
Audio) with HDMI Port (Compliant HDMI monitor is
required)
• Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/
HEVC @ level 5 (GPU accelerated), JPEG, VP8
English
2
Audio
LAN
Rear Panel
I/O
• Supports HDCP with DVI-D and HDMI Ports
• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D
and HDMI Ports
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
•
* To congure 7.1 CH HD Audio, it is required to use an HD
front panel audio module and enable the multi-channel audio
feature through the audio driver.
Supports Surge Protection (ASRock Full Spike Protection)
•
ELNA Audio Caps
•
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
•
Realtek RTL8111GR
•
Supports Wake-On-WAN
•
Supports Wake-On-LAN
•
Supports Lightning/ESD Protection (ASRock Full Spike
•
Protection)
Supports LAN Cable Detection
•
Supports Energy Ecient Ethernet 802.3az
•
Supports PXE
•
1 x PS/2 Mouse Port
•
1 x PS/2 Keyboard Port
•
1 x D-Sub Port
•
1 x DVI-D Port
•
1 x HDMI Port
•
2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full
•
Spike Protection))
2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full
•
Spike Protection))
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
•
LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
•
English
3
Storage
Connector
2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and
•
Hot Plug
1 x Print Port Header
•
2 x COM Port Headers
•
1 x TPM Header
•
1 x Chassis Intrusion Header
•
BIOS
Feature
Hardware
Monitor
1 x CPU Fan Connector (3-pin)
•
1 x Chassis Fan Connector (3-pin)
•
1 x 24 pin ATX Power Connector
•
1 x Front Panel Audio Connector
•
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD
•
Protection (ASRock Full Spike Protection))
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD
•
Protection (ASRock Full Spike Protection))
* USB3_2_3 is shared with USB_45.
AMI UEFI Legal BIOS with GUI support
•
Supports Plug and Play
•
ACPI 5.0 compliant wa ke up events
•
Supports jumperfree
•
SMBIOS 2.7 support
•
CPU/Chassis temperature sensing
•
CPU/Chassis Fan Tachometer
•
CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by
•
CPU temperature)
CPU/Chassis Fan multi-speed control
•
CASE OPEN detection
•
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
•
J3710M
J3160M
J3060M
Microso® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-
OS
Certications
* For detailed product information, please visit our website: http://ww w.asrock.com
Due to limitation, the actual memory size may be less than 4GB for the reservation
for system usage under Windows® 32- bit operating systems . Windows® 64-bit operating systems do not have such limitations. You can use ASRock XFast RAM to utilize
the memory that Windows® cannot use.
•
bit / 7 32-bit / 7 64-bit
* To install Windows® 7 64-bit OS, a modied installation disk
with xHCI drivers packed into the ISO le is required. Please
refer to page 25 for more detailed instructions.
* For the updated Windows® 10 driver, please visit ASRock 's
website for details: http://ww w.asrock.com
FCC, CE, WHQL
•
ErP/EuP ready (ErP/EuP ready power supply is required)
•
English
4
1.3 Motherboard Layout
PCIE 1
ATXP WR 1
AUDIO
CODEC
1
TPMS1
Sup er
I/O
PS2
Key boa rd
PS2
Mou se
CPU_FAN 1
1
USB_23
HDLED RESET
PLED PW RBTN
PANEL1
1
1
SPEAKE R1
COM2
1
CI1
1
SATA3_1
CMO S
Bat te ry
Ro HS
1
HD_AU DIO1
BIOS
ROM
Fr on t US B 3 .0
LAN
CLRMOS1
1
USB3_ 2_3
SATA3_2
Top:
RJ-4 5
USB 2.0
T: US B0
B: USB1
Top:
LINE IN
Cente r:
FRONT
Botto m:
MIC IN
1
USB_45
USB 3.0
T: USB 0
B: U SB1
HDM I1
PCIE 2
PCIE 3
DVI 1
VGA 1
COM1
1
DDR 3_ B1 (6 4 bit, 24 0- pin mo du le )
DDR 3_ A1 (6 4 bit, 24 0- pin mo du le )
1
LPT1
English
5
No. Description
1 USB 3.0 Header (USB3_2_3)
2 USB 2.0 Header (USB_45)
3 CPU Fan Connector (CPU_FAN1)
4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)
5 ATX Power Connector (ATXPWR1)
6 Chassis Fan Connector (CHA_FAN1)
7 Clear CMOS Jumper (CLRMOS1)
8 Chassis Speaker Header (SPEAKER1)
9 System Panel Header (PANEL1)
10 USB 2.0 Header (USB_23)
11 Print Port Header (LPT1)
12 COM Port Header (COM1)
13 COM Port Header (COM2)
14 TPM Header (TPMS1)
15 Front Panel Audio Header (HD_AUDIO1)
16 Chassis Intrusion Header (CI1)
17 SATA3 Connector (SATA3_2)
18 SATA3 Connector (SATA3_1)
J3710M
J3160M
J3060M
English
6
1.4 I/O Panel
1 2 4
3
English
10 9
No. Description No. Description
1 PS/2 Mouse Port 7 USB 3.0 Ports (USB3_0_1)
2 LAN RJ-45 Port* 8 HDMI Port
3 Line In (Light Blue)** 9 DVI-D Port
4 Front Speaker (Lime)** 10 D-Sub Port
5 Microphone (Pink)** 11 PS/2 Keyboard Port
6 USB 2.0 Ports (USB01)
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK L ED
SPEED LE D
LAN Por t
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
567811
7
J3710M
J3160M
J3060M
** To congure 7.1 CH HD Audio, it i s required to use an HD front panel audio module and enable the multichannel audio feature through the audio driver.
Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.
Function of the Audio Por ts in 7.1-channel Con guration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
English
8
Chapter 2 Installation
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
Make sure to unplug the power cord before installing or removing the motherboard.
•
Failure to do so may cause physical injuries to you and damages to motherboard
components.
In order to avoid damage from static electricity to the motherboard’s components,
•
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.
•
Whenever you uninstall any components, place them on a grounded anti-static pad or
•
in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-
•
tighten the screws! Doing so may damage the motherboard.
English
9

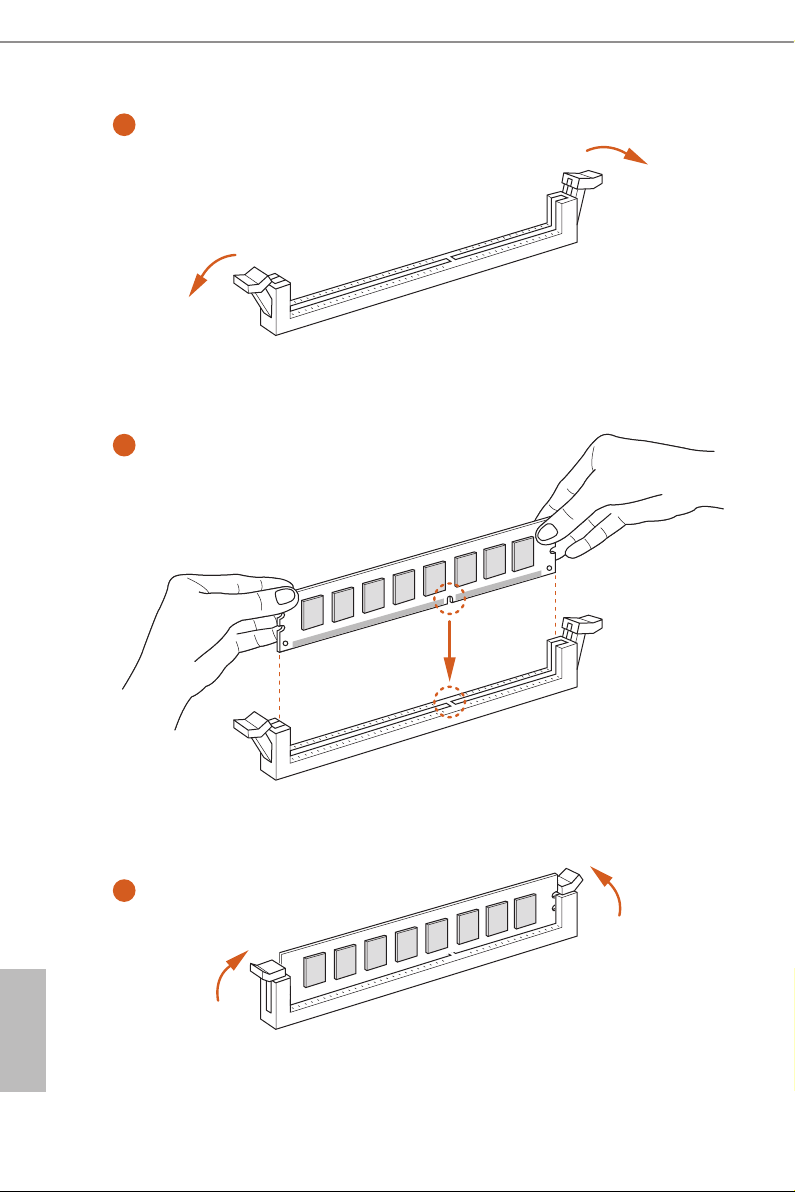

2.1 Installing Memory Modules (DIMM)
is motherboard provides two 240-pin DDR3/DDR3L (Double Data Rate 3)
DIMM slots. If only one DIMM module is installed, please install it into DDR3_A1.
It is not allowed to install a DDR or DDR2 memory module into a DDR3/DDR3L
slot; otherwise, this motherboard and DIMM may be damaged.
e DIMM only ts in one correct orientation. It will cause permanent dam age to
the mothe rboard and the DIMM if you force the DIMM into the slot at incor rect
orientation .
J3710M
J3160M
J3060M
10
English
1
2
English
11
3
2.2 Expansion Slots (PCI Express Slots)
ere are 3 PCI Express slots on the motherboard.
Before installing an ex pansion card, please make sure that the power supply is
switched o or the power cord is unplugged. Plea se read the documentation of the
expan sion card and mak e necessary hardware settings for the card before you start the
installation.
PCIe slots:
PCIE1 (PCIe 2.0 x1 slot) is used for PCI Express cards with x1 lane width cards.
PCIE2 (PCIe 2.0 x16 slot) is used for PCI Express x1 lane width cards.
PCIE3 (PCIe 2.0 x1 slot) is used for PCI Express cards with x1 lane width cards.
J3710M
J3160M
J3060M
12
English
Loading...
