RAID Installation Guide
1. NVIDIA BIOS RAID Installation Guide ……………………............ 2
1.1 Introduction to RAID ……………………………………......... 2
1.2 RAID Configurations Precautions ………………………....... 3
1.3 Create Disk Array ....................………………………......… 4
2. NVIDIA Windows RAID In stallation Guide ……………………....... 8
2.1 Introduction to RAID ……………………………………......... 8
2.2 RAID Configurations Precautions ………………………....... 9
2.3 Create Disk Array ....................………………………....... 10
11
1
11
1. NVIDIA BIOS RAID Installation Guide
NVIDIA BIOS RAID Installation Guide is an instruction for you to configure RAID
functions by using NVIDIA RAID Utility under BIOS environment. After you make a
SATA / SATAII driver diskette, press <F2> to enter BIOS setup to set the option to
RAID mode by following the detailed instruction of the “User Manual” in our
support CD, then you can start to use NVIDIA RAID Utility to configure RAID.
This section includes examples of using NVRAID RAID Utility for creating RAID
arrays.You may choose to use RAID 0 or RAID 1 function on this motherboard.
This motherboard supports RAID / AHCI function under Windows® 7 /
7 64-bit / Vista
64-bit, RAID / AHCI function is not available.
TM
/ VistaTM 64-bit only. If you install Windows® XP / XP
1.1 Introduction to RAID
The term “RAID” stands for “Redundant Array of Independent Disks”, which
is a method combining two or more hard disk drives into one logical unit. For
optimal performance, please install identical drives of the same model and
capacity when creating a RAID set.
RAID 0 (Data Striping)
RAID 0 is called data striping that optimizes two identical hard disk drives to read
and write data in parallel, interleaved stacks. It will improve data access and
storage since it will double the data transfer rate of a single disk alone while the
two hard disks perform the same work as a single drive but at a sustained data
transfer rate.
Although RAID 0 function can improve the access performance, it
does not provide any fault tolerance. Hot-Plug any HDDs of the
RAID 0 Disk will cause data damage or data loss.
RAID 1 (Data Mirroring)
RAID 1 is called data mirroring that copies and maintains an identical image of
data from one drive to a second drive. It provides data protection and increases fault tolerance to the entire system since the disk array management
software will direct all applications to the surviving drive as it contains a
complete copy of the data in the other drive if one drive fails.
22
2
22
1.2 RAID Configurations Precautions
1. Please use two new drives if you are creating a RAID 0 (striping) array
for performance. It is recommended to use two SATA drives of the same
size. If you use two drives of different sizes, the smaller cap acity hard
disk will be the base storage size for each drive. For example, if one
hard disk has an 80GB storage capacity and the other hard disk has
60GB, the maximum storage capacity for the 80GB-drive becomes 60GB,
and the total storage capacity for this RAID 0 set is 120GB.
2. You may use two new drives, or use an existing drive and a new drive
to create a RAID 1 (mirroring) array for data protection (the new drive
must be of the same size or larger than the existing drive). If you use
two drives of different sizes, the smaller capacity hard disk will be the
base storage size. For example, if one hard disk has an 80GB storage
capacity and the other hard disk has 60GB, the maximum storage
capacity for the RAID 1 set is 60GB.
3. Please verify the status of your hard disks before you set up your new
RAID array.
Please backup your data first before you create RAID functions. In the
process you create RAID, the system will ask if you want to “Clear Disk Data”
or not. It is recommended to select “Yes”, and then your future data building will
operate under a clean environment.
33
3
33
1.3 Create Disk Array
After the system powers on, press <F2> key to enter BIOS setup utility.
Highlight Advanced and press <Enter>, then the main inter-face of BIOS setup
utility will appear. Please set the option “SATA Option Mode” to [RAID].
Advanced
SATA Configuration
Onboard SATA Controller
SATA Operation Mode [RAID]
SATAII_1
SATAII_2
SATAII_3
ESATA
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
[Enabled]
[ATAPI CDROM]
[Hard Disk]
[Not Detected]
[Not Detected]
Options
Enabled
Disabled
Select Screen
Select Screen
Select Item
Select Item
+- Change Option
+- Change Option
F1 General Help
F1 General Help
F9 Load Defaults
F9 Load Defaults
F10 Save and Exit
F10 Save and Exit
ESC Exit
ESC Exit
After adjusting the system BIOS to RAID mode, reboot your system. Wait until you
see the RAID software prompting you to press <F10>. The RAID prompt appears as
a part of the system POST and boot process prior to loading the OS. You have a few
seconds to press <F10> before the window disappears.
MediaShield ROM BIOS 10.0.0.35
Copyright (C) 2008 NVIDIA Corp.
Detectingstoragedevices...
1 SATA_2 Slimtype DVD A DS8A3S
Press F10 to enter RAID setup utility.
-
After you press <F10>, the MediaShield BIOS - Define a New Array window
appears. By default, RAID Mode is set to Mirrored, but please set it to Striped if you
want to create RAID 0. And the Stripe Block is set to Optimal as default. We take
RAID 0 for example to show you how to use MediaShield BIOS to create
RAID 0 (Striped). If you plan to use MediaShield BIOS to create other RAID array,
the Stripe block size is given in kilobytes, and affect how data is arranged on the
disk. It is recommended to leave this value at the default Optimal, which is 64KB,
but the values can be between 8KB and 128KB (8, 16, 32, 64, and 128KB). Then,
you have to assign the disks. The disks that you enabled from the RAID
Configuration BIOS setup page appear in the Free Disks block. These are the
drives that are available for use as RAID array disk, the operation procedures are
similar to the steps of creating RAID 0.
44
4
44
MediaShield BIOS Aug 18 2008
- Define a New Array -
RAID Mode:
Free Disks
Port Disk Model Capacity
SATA_3 Hitachi HTS545 465.76GB
SATA_1 Hitachi HTS545 465.76GB
[ESC] Quit[F6] Back [F7]Finish [TAB]Navigate [ ]Select [ENTER] Popup
Striped
Stripimg Block:
Array Disks
Port Disk Model Capacity
[]Add
[]Del
Optimal
A. Tab to the Free Disks section. The first disk in the list is selected.
B. Move it from the Free Disks block to the Array Disks block by pressing
the right-arrow key.
C. Continue pressing the right-arrow key until all the disks that you want
to use as RAID array disks appear in the Array Disks block.
MediaShield BIOS Aug 18 2008
- Define a New Array -
RAID Mode:
Free Disks
Port Disk Model Capacity
Striped
Stripimg Block:
Array Disks
Port Disk Model Capacity
SATA_3 Hitachi HTS545 465.76GB
SATA_1 Hitachi HTS545 465.76GB
[]Add
Optimal
[]Del
[ESC] Quit[F6] Back [F7]Finish [TAB]Navigate [ ]Select [ENTER] Popup
After assigning your RAID array disks, press <F7> to save your changes of RAID
array disks.
55
5
55
Depending on the platform used, the system can have one or more channels. In a
typical system there is usually one adapter and multiple channels, and each
channel has a slave and a master. The adapter / channel / master / slave status of
each hard disk is given in the Loc (location) columns of the Free Disks and Array
Disks lists. For example:
1 . 0 . M
1: Channel - Typically, channel 0 is used for Parallel ATA drives while channel 1 is
used for Serial ATA drives.
0: Controller
M: M means Master, S means Slave
Serial ATA
1 . 0 . M Channel 1, controller 0, Master
1 . 1 . M Channel 1, controller 1, Master
Finally, the Array List window appears, where you can review the RAID arrays
that you have set up.
MediaShield BIOS Aug 18 2008
- Array List -
Boot Status Vendor Array Size
Healthy NVIDIA STRIPE 931.52G
[Ctrl-X]Exit [ ]Select [B]Set Boot [N]NewArray [ENTER]Detail
66
6
66

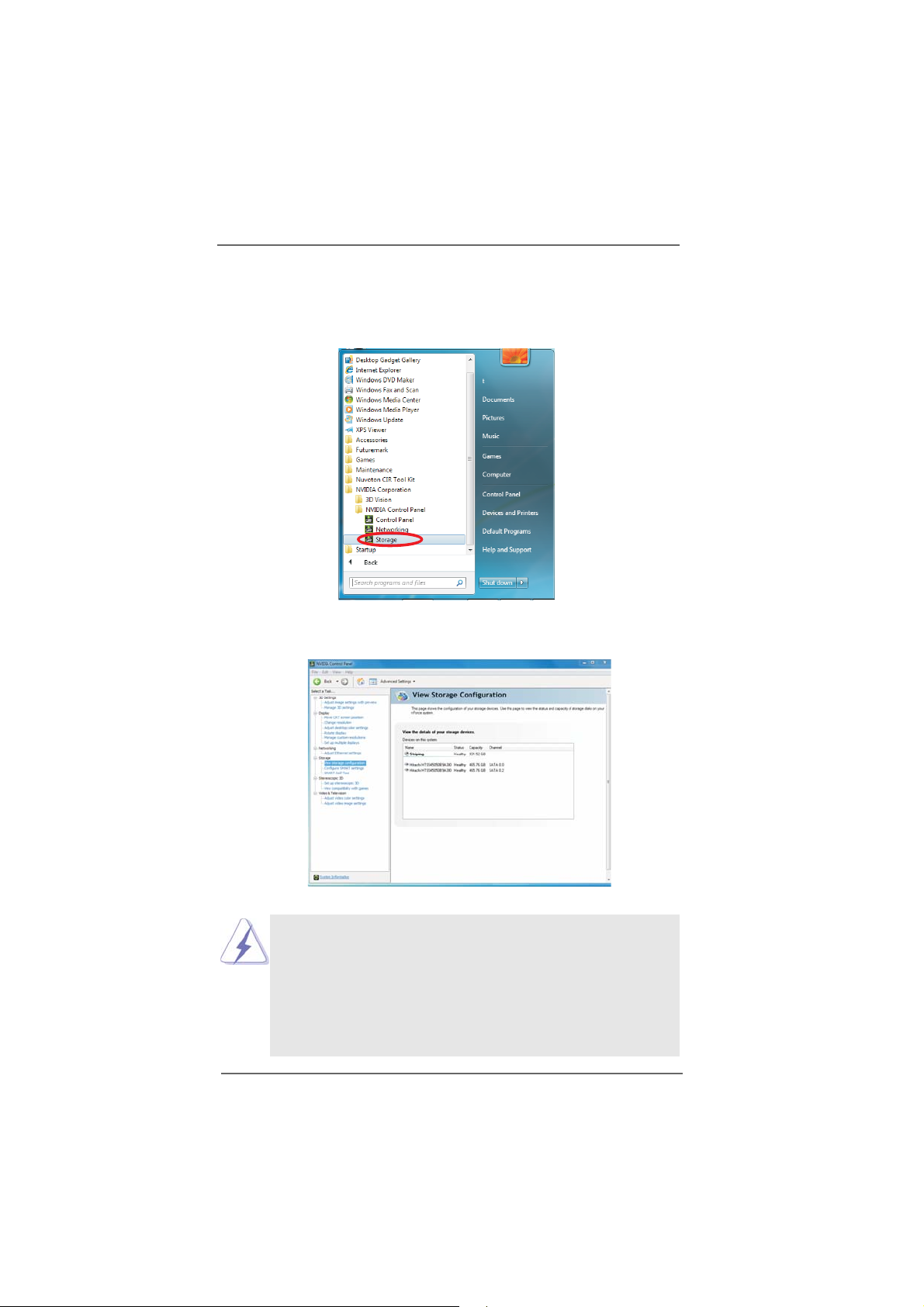

You can also find RAID array information after you boot into Windows®. Please
click “Start” button. Click “All Programs”, “NVIDIA Corporation”, “NVIDIA Control
Panel”, and then “Storage”.
You can review the RAID arrays that you have set up and start to use RAID
function.
If you want to install Windows® VistaTM / VistaTM 64-bit OS in RAID
mode, please copy the RAID driver from our support CD to your
USB flash. Therefore, your system is able to load the RAID driver
and install it in the process of OS installation. The RAID drivers are
located in the following path of our support CD:
\..i386 (for 32bit OS)
\..AMD64 (for 64bit OS)
For Windows
®
7 / 7 64-bit, there is no such limitation.
77
7
77
2. NVIDIA Windows RAID Installation Guide
NVIDIA Windows RAID Installation Guide is an instruction for you to configure RAID
functions under Windows environment. Please read this guide carefully and
follow the instructions below to configure and manage RAID functions.
This motherboard supports RAID / AHCI function under Windows® 7 /
7 64-bit / Vista
64-bit, RAID / AHCI function is not available.
TM
/ VistaTM 64-bit only. If you install Windows® XP / XP
2.1 Introduction to RAID
The term “RAID” stands for “Redundant Array of Independent Disks”, which
is a method combining two or more hard disk drives into one logical unit. For
optimal performance, please install identical drives of the same model and
capacity when creating a RAID set.
RAID 0 (Data Striping)
RAID 0 is called data striping that optimizes two identical hard disk drives to read
and write data in parallel, interleaved stacks. It will improve data access and
storage since it will double the data transfer rate of a single disk alone while the
two hard disks perform the same work as a single drive but at a sustained data
transfer rate.
Although RAID 0 function can improve the access performance, it
does not provide any fault tolerance. Hot-Plug any HDDs of the
RAID 0 Disk will cause data damage or data loss.
RAID 1 (Data Mirroring)
RAID 1 is called data mirroring that copies and maintains an identical image of
data from one drive to a second drive. It provides data protection and increases fault tolerance to the entire system since the disk array management
software will direct all applications to the surviving drive as it contains a
complete copy of the data in the other drive if one drive fails.
88
8
88
2.2 RAID Configurations Precautions
1. Please use two new drives if you are creating a RAID 0 (striping) array
for performance. It is recommended to use two SATA drives of the same
size. If you use two drives of different sizes, the smaller cap acity hard
disk will be the base storage size for each drive. For example, if one
hard disk has an 80GB storage capacity and the other hard disk has
60GB, the maximum storage capacity for the 80GB-drive becomes 60GB,
and the total storage capacity for this RAID 0 set is 120GB.
2. You may use two new drives, or use an existing drive and a new drive
to create a RAID 1 (mirroring) array for data protection (the new drive
must be of the same size or larger than the existing drive). If you use
two drives of different sizes, the smaller capacity hard disk will be the
base storage size. For example, if one hard disk has an 80GB storage
capacity and the other hard disk has 60GB, the maximum storage
capacity for the RAID 1 set is 60GB.
3. Please verify the status of your hard disks before you set up your new
RAID array.
Please backup your data first before you create RAID functions. In the
process you create RAID, the system will ask if you want to “Clear Disk Data”
or not. It is recommended to select “Yes”, and then your future data building will
operate under a clean environment.
99
9
99
2.3 Create Disk Array
After the system powers on, press <F2> key to enter BIOS setup utility.
Highlight Advanced and press <Enter>, then the main inter-face of BIOS setup
utility will appear. Please set the option “SATA Option Mode” to [RAID].
Advanced
SATA Configuration
Onboard SATA Controller
SATA Operation Mode [RAID]
SATAII_1
SATAII_2
SATAII_3
ESATA
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
[Enabled]
[ATAPI CDROM]
[Hard Disk]
[Not Detected]
[Not Detected]
Options
Enabled
Disabled
Select Screen
Select Screen
Select Item
Select Item
+- Change Option
+- Change Option
F1 General Help
F1 General Help
F9 Load Defaults
F9 Load Defaults
F10 Save and Exit
F10 Save and Exit
ESC Exit
ESC Exit
After adjusting the system BIOS to RAID mode, reboot your system. RAID driver is
built in NVIDIA ALL in one driver provided in our support CD. After you finish the driver
installation, you can create, delete, or rebuild any RAID array. Please enter Storage
by clicking on Start Programs NVIDIA Corporation NVIDIA Control
Panel Storage. (There is also a “Storage” shortcut on the desktop.)
1010
10
1010

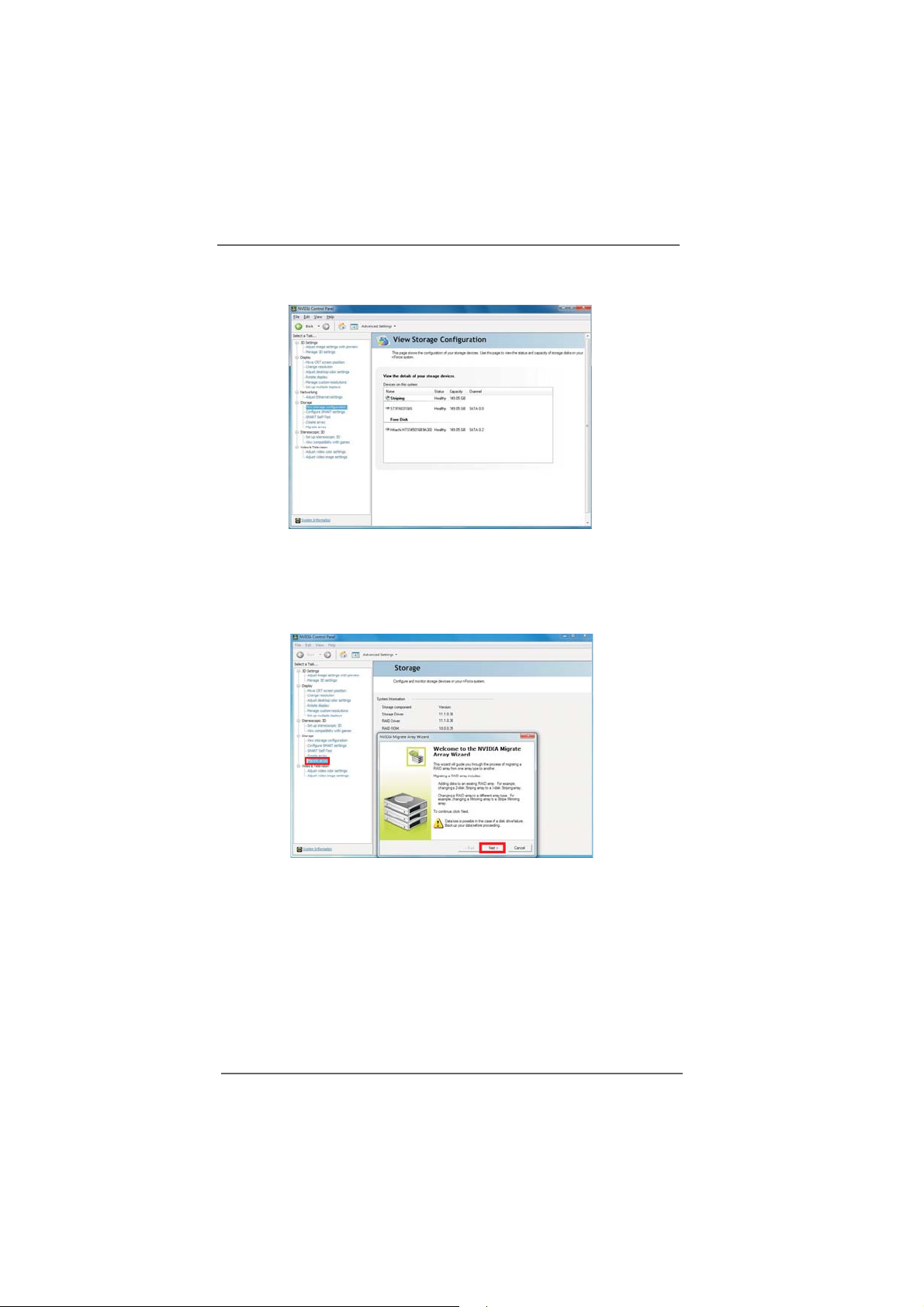

Then, below screen appears.
Migrate Array Wizard
If you plan to install one more HDD, and build RAID 0 (Striping) or RAID 1 (Mirror)
on the two HDDs you install. Please click “Migrate arry” to enter “NVIDIA Migrate
Array Wizard” to set up the function. Click “Next” to continue.
1111
11
1111
The following screen shot will appear. Select the RAID array from the list to migrate.
And click “Next” to confirm.
Select the RAID mode to migrate the array. You may select Striping (RAID 0) or
Mirroring (RAID 1). Click “Next”.
1212
12
1212
Below screen appears so that you can view the details of your storage devices.
Striping (RAID 0) Mirroring (RAID 1)
1313
13
1313
Rebuild Array Wizard
Rebuilding is the process of restoring data to a hard drive from other drive in the
array. This applies only to fault tolerant arrays. For example, assuming you have a
free disk RAID 0 array, and one of the drives fail, then you need to replace the
failed drive with a new one, and rebuild the array to re-generate the lost data on
the newly added drive. To rebuild an array, please click “Rebuild arry” to enter
“NVIDIA Rebuild Array Wizard”, and follow the instructions on the screen to
configure the function.
1414
14
1414

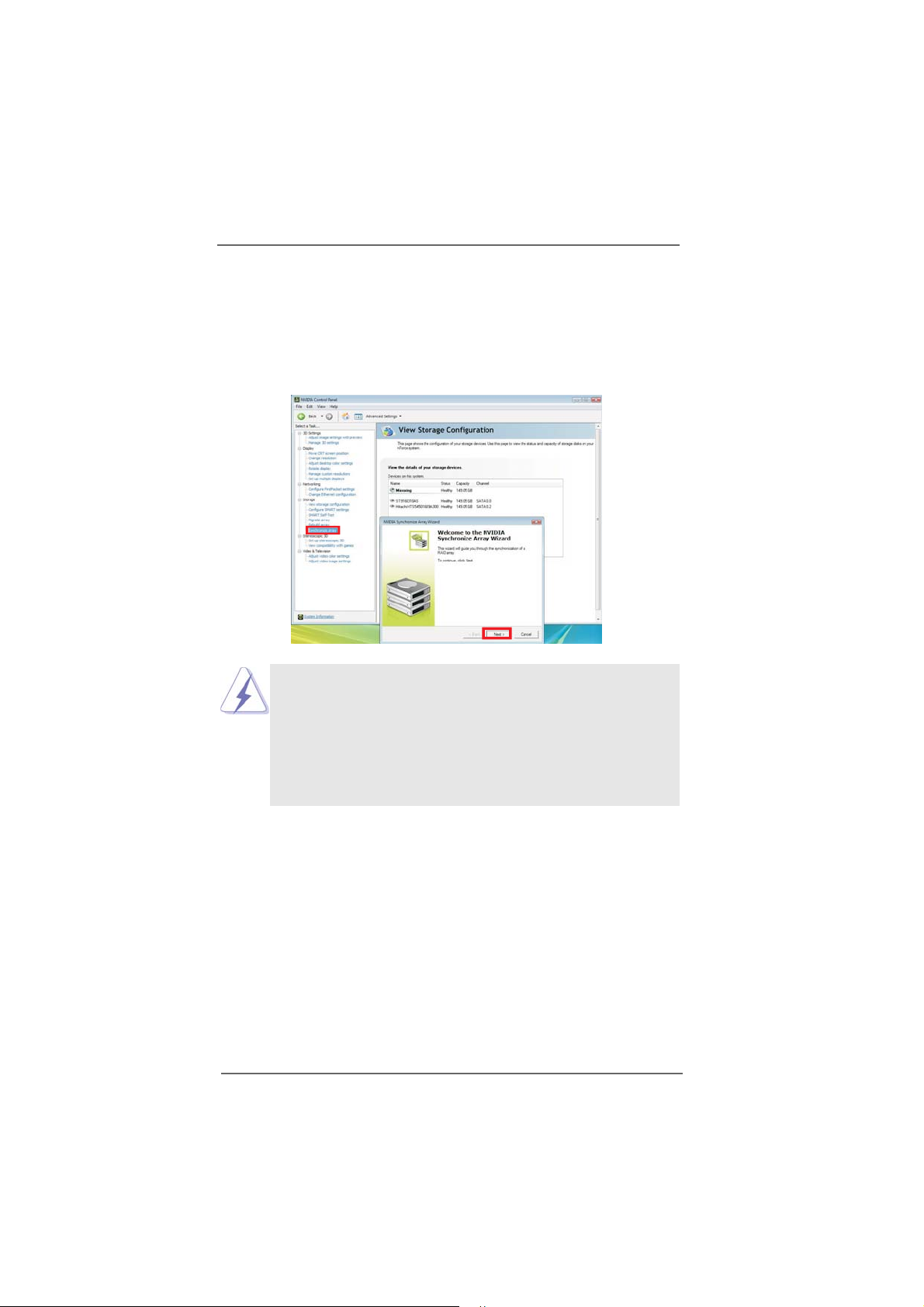

Synchronize Array Wizard
Synchronizing an array will force a rebuild of redundancy or parity. The operation
is applicable to any fault tolerant array. For RAID1, “sync” results in copying the
data to the redundancy disk. To sync an array, please click “Synchronize arry” to
enter “NVIDIA Synchronize Array Wizard”, and follow the instructions on the
screen to configure the function.
If you want to install Windows® VistaTM / VistaTM 64-bit OS in RAID
mode, please copy the RAID driver from our support CD to your
USB flash. Therefore, your system is able to load the RAID driver
and install it in the process of OS installation. The RAID drivers are
located in the following path of our support CD:
\..i386 (for 32bit OS)
\..AMD64 (for 64bit OS)
For Windows
®
7 / 7 64-bit, there is no such limitation.
1515
15
1515
Loading...
