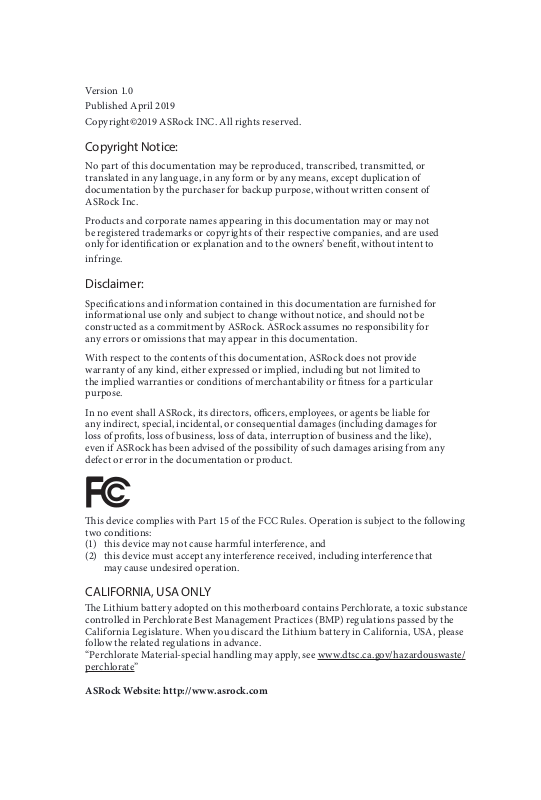

Asrock H310CM-HG4 Quick Installation Guide

Version 1.0
Published April 2019
Copyright©2019 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.

Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
compensation for any other reasonably foreseeable loss or damage caused by our
goods. You are also entitled to have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not amount to a major failure. If
you require assistance please call ASRock Tel : [phone] ext.123 (Standard
International call charges apply)

e terms HDMI® and HDMI High-Denition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.

Intel

H310

DDR 4_B1 (6 4 bit, 28 8-pin m odule )

DDR 4_A1 (6 4 bit, 28 8-pin m odule )

ATXPWR1

PCIE2

Top:
RJ-45

1

SPK_CI1

H3 1 0CM- H G4

10

8

9

USB 2.0
T: USB3
B: USB4

1

3

2

CMOS

Battery

5

CPU_FAN1

11

1

TPMS1

Top:

LINE I N

Cent er:

FRON T

Bott om:

MIC IN

PANEL1

HDLED RESET

PLED PWRBTN

1

VGA1

SATA3_0

SATA3_1

SATA3_2

SATA3_3

HDMI1

BIOS
ROM

13

RoHS

ATX12V1

6

PCIE1

4

1

HD_AUDIO1

16

USB 3.2 Gen1
T: USB1
B: USB2

AUDIO
CODEC

USB 2. 0

T: USB1

B: USB 2

PS2

Keyb oard

/Mou se

USB_5 _6

1

7

1214

USB3_3 _4

1

CLRCMOS1

15

LAN

CHA_FAN1/WP

Motherboard Layout

H310CM-HG4

English

1

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

4 Chassis/Water Pump Fan (CHA_FAN1/WP)

5 ATX Power Connector (ATXPWR1)

6 USB 3.2 Gen1 Header (USB3_3_4)

7 USB 2.0 Header (USB_5_6)

8 SATA3 Connector (SATA3_2)

9 SATA3 Connector (SATA3_3)

10 SATA3 Connector (SATA3_0)

11 SATA3 Connector (SATA3_1)

12 System Panel Header (PANEL1)

13 TPM Header (TPMS1)

14 Chassis Intrusion and Speaker Header (SPK_CI1)

15 Clear CMOS Pad (CLRMOS1)

16 Front Panel Audio Header (HD_AUDIO1)

English

2

I/O Panel

1 2 4

H310CM-HG4

3

10 6 589

No. Description No. Description

1 USB 2.0 Ports (USB12) 6 USB 2.0 Ports (USB_34)

2 LAN RJ-45 Port* 7 USB 3.2 Gen1 Ports (USB3_12)

3 Line In (Light Blue)** 8 HDMI Port

4 Front Speaker (Lime)** 9 D-Sub Port

5 Microphone (Pink)** 10 PS/2 Keyboard/Mouse Port

7

English

3

** To congure 7.1 CH HD Audio, it i s required to use an HD front panel audio module and enable the multi­channel audio feature through the audio driver.

Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.

Function of the Audio Ports in 7.1-channel Conguration:

English

4

Port Function

Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

Chapter 1 Introduction

ank you for purchasing ASRock H310CM-HG4 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.

Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In ca se any modi­cations of this documentation occur, the updated version will be available on ASRock ’s
website w ithout further notice. If you require technical support related to this mother­board, please visit our website for specic information about the model you are using. You
may nd the l atest VGA cards and CPU suppor t list on ASRock’s website a s well. ASRock
website http://www.asrock.com.

1.1 Package Contents

ASRock H310CM-HG4 Motherboard (Micro ATX Form Factor)

•

ASRock H310CM-HG4 Quick Installation Guide

•

ASRock H310CM-HG4 Support CD

•

1 x I/O Panel Shield

•

2 x Serial ATA (SATA) Data Cables (Optional)

•

H310CM-HG4

English

5

1.2 Specications

Platform

CPU

Chipset

Memory

Expansion
Slot

* Supports NVMe SSD as boot disks

Micro ATX Form Factor

•

Solid Capacitor design

•

Supports 9th and 8th Gen Intel® CoreTM Processors (Socket

•

1151)
4 Power Phase design

•

Supports Intel® Turbo Boost 2.0 Technology

•

Intel® H310

•

Dual Channel DDR4 Memory Technology

•

2 x DDR4 DIMM Slots

•

Supports DDR4 2666/2400/2133 non-ECC, un-buered

•

memory
Max. capacity of system memory: 32GB

•

Supports Intel® Extreme Memory Prole (XMP) 2.0

•

15μ Gold Contact in DIMM Slots

•

1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*

•

1 x PCI Express 2.0 x1 Slot

•

English

6

Graphics

Intel® UHD Graphics Built-in Visuals and the VGA outputs

•

can be supported only with processors which are GPU
integrated.
Supports Intel® UHD Graphics Built-in Visuals : Intel®

•

Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full
HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® UHD Graphics
DirectX 12

•

HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit,

•

HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode
only), MPEG2, MJPEG, VC-1 (Decode only)

Audio

LAN

H310CM-HG4

Dual graphics output: Support D-Sub and HDMI by

•

independent display controllers
Supports HDMI 1.4 with max. resolution up to 4K x 2K

•

(4096x2160) @ 30Hz
Supports D-Sub with max. resolution up to 1920x1200 @

•

60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

•

HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant
HDMI monitor is required)
Supports HDCP 2.2 with HDMI 1.4 Port

•

Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

•

7.1 CH HD Audio (Realtek ALC887 Audio Codec)

•

* To congure 7.1 CH HD Audio, it is required to use an HD
front panel audio module and enable the multi-channel audio
feature through the audio driver.

Supports Surge Protection

•

ELNA Audio Caps

•

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

•

1 x Realtek RTL8111H

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

Rear Panel
I/O

Storage

1 x PS/2 Mouse/Keyboard Port

•

1 x D-Sub Port

•

1 x HDMI Port

•

4 x USB 2.0 Ports (Supports ESD Protection)

•

2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

•

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

•

4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

•

Hot Plug

English

7

Connector

BIOS
Feature

Hardware
Monitor

1 x TPM Header

•

1 x Chassis Intrusion and Speaker Header

•

1 x CPU Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.

1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan

•

Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

1 x 24 pin ATX Power Connector

•

1 x 8 pin 12V Power Connector

•

1 x Front Panel Audio Connector

•

1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports

•

ESD Protection)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

•

(Supports ESD Protection)

AMI UEFI Legal BIOS with multilingual GUI support

•

ACPI 6.0 Compliant wake up events

•

SMBIOS 2.7 Support

•

DRAM, PCH 1.05V Voltage Multi-adjustment

•

Temperature Sensing: CPU, Chassis/Water Pump Fans

•

Fan Tachometer: CPU, Chassis/Water Pump Fans

•

Quiet Fan (Auto adjust chassis fan speed by CPU

•

temperature): CPU, Chassis/Water Pump Fans

Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans

•

CASE OPEN detection

•

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

•

English

8

OS

Certica­tions

Microso® Windows® 10 64-bit

•

FCC, CE

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

* For detailed product information, please visit our website: http://www.asrock .com

Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-par ty
overclocking tools. Overclocking may aect your syste m’s stability, or even cause damage to
the components and devices of your syste m. It should be done at your own risk and expe nse.
We are not responsible for possible damage caused by overclocking.

H310CM-HG4

English

9

Chapter 2 Installation

is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components
or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard

•

components. Failure to do so may cause physical injuries and damages to motherboard
components.
In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

English

10

2.1 Installing the CPU

1. Before you insert the 1151-Pin CPU into the socket, please check if the Pn P cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to in sert the CPU into the socket if above situation is found . Otherwise, the CPU
will be seriously damaged.

2. Unplug all power cables before in stalling the CPU.

1

H310CM-HG4

A

B

2

English

11

3

4

English

12

5

Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer se rvice.

2.2 Installing the CPU Fan and Heatsink

1 2

H310CM-HG4

FAN

CPU_

English

13

2.3 Installing Memory Modules (DIMM)

is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.

1. For dual channel conguration , you always need to in stall identical (the same
brand, speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Dual Channel Memory Technology with only one memory
module installed.

3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.

e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incor rect
orientation.

1

English

14

2

3

2.4 Expansion Slots (PCI Express Slots)

ere are 2 PCI Express slots on the motherboard.

Before installing an ex pansion card, please make sure that the power supply is
switched o or the power cord is unplugged . Please read the documentation of the
expan sion card and make necessary hardware settings for the card before you start
the installation.

PCIe slots:

PCIE1 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

H310CM-HG4

15

English

2.5 Onboard Headers and Connectors

PWRBTN

HDLED+

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over
these headers and connectors. Placing jumper caps over the hea ders and connectors
will cause permanent damage to the motherboard.

System Panel Header
(9-pi n PANEL1)
(see p.1, No. 12)

PWRBTN (Power Button):

Connec t to the power button on the chassi s front panel. You may congure the way to tur n
o your system using the power button.

RESET (Reset B utton):
Connec t to the reset button on the chassis front panel. Press the reset button to restart the
computer if the computer f reezes and fails to per form a normal restart.

PLED (Syste m Power LED):
Connec t to the power status indicator on the chassis front panel . e LED is on when the
system is operating. e LED k eeps blinking when the system is in S1/S3 sleep state. e
LED is o when the system is in S4 slee p state or powered o (S5).

HDLED (Ha rd Drive Activity LED):
Connec t to the hard drive activity LED on the chassis front panel. e LED is on when the
hard drive is reading or writing data.

e front panel design may dier by chassis. A front panel module mainly con sists of power
button, reset button , power LED, hard dr ive activity LED, speaker and etc. When connect­ing your chassi s front panel module to this header, make sure the wire a ssignments and the
pin assignments are matched correctly.

GND RESET#

#

PLED-

PLED+

1

GND

GND

HDLED-

Connect the power
button, reset button and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.

English

16

H310CM-HG4

IntA_P3_SSTX+

IntA_P3_SSRX+

IntA_P3_SSRX-

IntA_P2_SSRX+

IntA_P2_SSTX+

DUMMY

GNDGND

P+

P-

P+

P-

USB_PWR

USB_PWR

1

1

+5V

SIGNAL

GND

DUMMY

DUMMY

SPEAKER

DUMMY

Chassis Intrusion and
Speaker Header
(7-pi n SPK_CI1)
(see p.1, No. 14)

Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 10)
(SATA3_1:
see p.1, No. 11)
(SATA3_2:
see p.1, No. 8)
(SATA3_3:
see p.1, No. 9)

USB 2.0 Header
(9-pin USB_5_6)
(see p.1, No. 7)

SATA3_2

SATA3_0

Please connect the
chassis intrusion and the
chassis speaker to this
header.

ese four SATA3
connectors support SATA
data cables for internal

SATA3_3

storage devices with up to

6.0 Gb/s data transfer rate.

SATA3_1

ere is one USB

2.0 header on this
motherboard. is USB

2.0 header can support
two ports.

USB 3.2 Gen1 Header
(19-pin USB3_3_4)
(see p.1, No. 6)

Vbus

IntA_P2_SSRX-

GND

IntA_P2_SSTX-

GND

IntA_P2_D-

IntA_P2_D+

VbusVbus

GND

IntA_P3_SSTX-

GND

IntA_P3_D-

IntA_P3_D+

ID

1

ere is one header on
this motherboard. is
USB 3.2 Gen1 header can
support two ports.

English

17

Front Panel Audio Header

J_SENSE

OUT2_L

1

MIC_RED

OUT_RET

OUT2_R

MIC2_R

MIC2_L

GND

PRESENCE#

FAN_SPEED_CONTROL

1 2 3 4

GND

1 2 3 4

(9-pin HD_AUDIO1)
(see p.1, No. 16)

1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis
must support HDA to function cor rectly. Please follow the instr uctions in our
manual and chassis manual to in stall your system.

2. If you use an AC’97 audio panel , please install it to the front panel audio header by
the steps below:
A. Connect Mic_ IN (MIC) to MIC2_ L.
B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to
connec t them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adjust “Recording Volume”.

is header is for
connecting audio devices
to the front audio panel.

English

18

Chassis/Water Pump Fan
Connector
(4-pin CHA_FAN1/WP)
(see p.1, No. 4)

CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1, No. 2)

ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 5)

FAN_VOLTAGE

FAN_SPEED

FAN_SPEED_CONTROL

CPU_FAN_SPEED

FAN_VOLTAGE

GND

12

1

is motherboard
provides a 4-Pin water
cooling

chassis

fan
connectors. If you plan to
connect a 3-Pin

chassis
water cooler fan, please
connect it to Pin 1-3.

is motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.

24

is motherboard
provides a 24-pin ATX
power connector. To use a
20-pin ATX power supply,
please plug it along Pin 1

13

and Pin 13.

H310CM-HG4

1

#

5

1

8

ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 1)

TPM Header
(17-pi n TPMS1)
(see p.1, No. 13)

Clear CMOS Pad
(CLRMOS1)
(see p.1, No. 15)

is motherboard
provides an 8-pin ATX
12V power connector. To
use a 4-pin ATX power
supply, please plug it along
Pin 1 and Pin 5.

is connector supports Trusted

GN D

LAD 0

+3V S B

PC ICL K

LAD 3

+3 V

PC IRS T

FRA M E

Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,

D

GN

GN D

SER IRQ #

S_P WRDW N #

GN D

LAD 1

LAD 2

and data. A TPM system also
helps enhance network security,

SMB _CLK _MA IN

SMB _DAT A_M AIN

protects digital identities, and
ensures platform integrity.

CLRMOS1 allows you to
clear the data in CMOS. To
clear CMOS, take out the
CMOS battery and short the
Clear CMOS Pad.

English

19

Português

Capítulo 1 Introdução

Obrigado por adquirir a placa mãe ASRock H310CM-HG4, uma conável placa mãe
ASRock produzida sob rigoroso controle de qualidade consistente. Esta placa principal
oferece um excelente desempenho com um design robusto em conformidade com o
compromisso da ASRock em fabricar produtos de qualidade e resistentes.

Como as especicações da placa principal e o soware do BIOS poderão ser atualizados, o
conteúdo deste manual estará sujeito a alterações sem aviso prévio. No caso de ocorrerem
modicações neste manual, a versão atualizada estará disponível no site da ASRock sem
aviso prévio. Se precisar de assistência técnica relacionada a esta placa principal, visite o
nosso site para obter informações especícas sobre o modelo que estiver utilizando. Você
também poderá encontrar a lista de placas VGA e CPU mais recentes suportadas no site da
ASRock. Site da ASRock http://www.asrock.com.

1.1 Conteúdo da embalagem

Placa-mãe ASRock H310CM-HG4 (Micro ATX Form Factor)

•

Guia de Instalação Rápida ASRock H310CM-HG4

•

CD de Suporte do ASRock H310CM-HG4

•

1 x Painel de E/S

•

2 x Cabos de dados Serial ATA (SATA) (Opcional)

•

20

1.2 Especicações

Plataforma

CPU

Chipset

Memória

•

•

•

•

•

•

•

•

•

•

•

•

H310CM-HG4

Micro ATX Form Factor
Design de condensador sólido

Suporta 8ª Ger. e 9ª Geraão de Processadores Intel® CoreTM
(Soquete 1151)
Design com 4 fases de alimentação
Suporta a tecnologia Intel® Turbo Boost 2.0

Intel® H310

Tecnologia de memória DDR4 de dois canais
2 x Slots DIMM DDR4
Suporta memória DDR4 2666/2400/2133, não ECC, sem
memória intermédia
Capacidade máxima da memória do sistema: 32GB
Suporta Extreme Memory Prole (XMP) 2.0 da Intel®
Contato em Ouro 15μ nos slots DIMM

Slot de
expansão

Grácos

1 x Slot PCI Express 3.0 x16 (PCIE2:modo x16)*

•

* Suporta NVMe SSD nos discos de inicialização

1 x Slot PCI Express 2.0 x1

•

Os grácos incorporados Intel® UHD e as saídas VGA só

•

podem ser suportados com processadores com GPU integrada.
Suporta grácos incorporados Intel® UHD: Intel® Quick Sync

•

Video com AVC, MVC (S3D) e MPEG-2 Full HW Encode1,
Intel® InTruTM 3D, Tecnologia Intel® Clear Video HD, Intel®
InsiderTM, Grácos Intel® UHD
DirectX 12

•

HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/

•

H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decodicar apenas),
MPEG2, MJPEG, VC-1 (Decodicar apenas)
Saída gráca dupla: Suporta portas D-Sub e HDMIpor

•

controladores de vídeo independentes

Português

21

Português

Áudio

LAN

Suporta HDMI 1.4 com resolução máx. até 4K x 2K (4096x2160)

•

@ 30Hz
Suporta D-Sub com resolução máxima de até 1920x1200 @

•

60Hz
Suporta Auto sincronização labial, Deep Color (12bpc), xvYCC

•

e HBR (High Bit Rate Audio) com porta HDMI (É necessário
um monitor compatível com HDMI)
Suporta HDCP 2.2 com Portas HDMI 1.4

•

Suporta reprodução HD Ultra (UHD) 4K com Porta HDMI 1.4

•

Áudio 7.1 CH HD com proteção de conteúdo (Codec de áudio

•

Realtek ALC887)
*Para congurar Áudio 7.1 CH HD, é necessário usar um módulo
de áudio de painel frontal HD e habilitar o recurso de áudio multi­canal pelo driver de áudio.

Suporta Proteção de Sobretensão

•

Fones de Áudio ELNA

•

LAN Gigabit 10/100/1000 Mb/s PCIE x1

•

1 x Realtek RTL8111H

•

Suporta Wake-On-LAN

•

Oferece Suporte à Proteção de Relâmpago/ESD

•

Suporta Energy Ecient Ethernet 802.3az

•

Suporta PXE

•

22

E/S do painel
posterior

Armazena­mento

1 x Porta PS/2 para mouse/teclado

•

1 x Porta D-Sub

•

1 x Porta HDMI

•

4 x Portas USB 2.0 (Suporta Proteção ESD)

•

2 x Portas USB 3.2 Gen1 (Suporta Proteção ESD)

•

1 x Porta LAN RJ-45 com LED (LED ACT/LINK e LED DE

•

VELOCIDADE)

Fichas de áudio HD: Entrada de Linha / Autofalante Frontal /

•

Microfone

4 x Conectores SATA3 6,0 Gb/s, suporte NCQ, AHCI, Conec-

•

tor a Quente

Conector

H310CM-HG4

1 x Plataforma TPM

•

1 x Intrusão do Chassi e Cabeçote de Autofalante

•

1 x Conector da ventoinha da CPU (4 pinos)

•

* O Conector do Ventilador de CPU suporta o ventilador de CPU
de alimentação máxima 1A do ventilador (12W).

1 x Conector do ventilador do chassi/Ventilador da Bomba de

•

Água (4 pinos) (Controle de Velocidade de Ventoinha Inteli-

gente)
* O Ventilador de Chassi Ventilador da Bomba de Água
suporta o ventilador de refrigerador a água de 2A máximo (24W)
potência do ventilador.
* CHA_FAN1/WP podem detectar automaticamente se ventoinha
de 3 pinos ou 4 pinos está em uso.

1 x Conector alimentação ATX 24 pinos

•

1 x Conector de energia 8-pinos 12V

•

1 x Conector de áudio do painel frontal

•

1 x Plataforma USB 2.0 (Suporta 2 portas USB 2.0) (Suporta

•

Proteção ESD)

1 x Plataforma USB 3.2 Gen1 (Suporta 2 portas USB 3.2 Gen1)

•

(Suporta Proteção ESD)

Microso® Windows® 10 64-bit

SO

* Para obter informações detalhadas sobre o produto, por favor, visite o nosso site: http://www.asrock.com

Por favor, observe que existe um certo risco envolvendo overclocking, incluindo o ajuste das
denições na BIOS, a aplicação de tecnologia Untied Overclocking ou a utilização de ferra­mentas de overclocking de terceiros. O overclocking poderá afetar a estabilidade do sistema ou
mesmo causar danos nos componentes e dispositivos do seu sistema. Ele deve ser realizado por
sua conta e risco. Não nos responsabilizamos por possíveis danos causados pelo overclocking.

•

Português

23

1.3 Suportes e conectores onboard

PWRBTN

HDLED+

Os conectores e suportes onboard NÃO são jumpers. NÃO coloque tampas de jumpers sobre
estes terminais e conectores Colocar tampas de jumpers sobre os terminais e conectores irá
causar danos permanentes à placa-mãe.

Português

Suporte do painel de siste­ma
(PAINEL1 de 9 pinos)
(ver p.1, N.º 12)

PWRBTN (Botão de alimentação):

Conecte o botão de alimentação no painel frontal do chassi. Você pode congurar a forma
para desligar o seu sistema através do botão de alimentação.

RESET (Botão de reinicialização):
Conecte o botão de reinicialização no painel frontal do chassi. Pressione o botão de
reinicialização para reiniciar o computador, se ele congela e falha ao realizar um reinício
normal.

PLED (LED de alimentação do sistema):
Conecte o indicador do estado da alimentação no painel frontal do chassi. O LED cará ac­eso quando o sistema estiver em funcionamento. O LED cará piscando quando o sistema
estiver nos estados de suspensão S3. O LED cará desligado quando o sistema estiver no
estado de suspensão S4 ou desligado (S5).

HDLED (LED de atividade do disco rígido):
Conecte o LED de atividade do disco rígido no painel frontal do chassi. O LED cará aceso
quando o disco rígido estiver lendo ou registrando dados.

O design do painel frontal poderá variar dependendo do chassi. Um módulo de painel
frontal consiste principalmente em um botão de alimentação, um botão de reinicialização,
um LED de alimentação, um LED de atividade do disco rígido, um alto-falante, etc. Ao
conectar seu módulo de painel frontal do chassi a este conector, certique-se de que os os e
os pinos correspondem de forma correta.

GND RESET#

#

PLED-

PLED+

1

GND

GND

HDLED-

Ligue o botão de
alimentação, o botão
de reinicialização e o
indicador do estado do
sistema no chassi deste
suporte, de acordo com a
descrição abaixo. Observe
os pinos positivos e
negativos antes de
conectar os cabos.

24

H310CM-HG4

1

+5V

SIGNAL

GND

DUMMY

DUMMY

SPEAKER

DUMMY

DUMMY

GNDGND

P+

P-

P+

P-

USB_PWR

USB_PWR

1

J_SENSE

OUT2_L

1

MIC_RED

OUT_RET

OUT2_R

MIC2_R

MIC2_L

GND

PRESENCE#

Intrusão do Chassi e
Cabeçote de Autofalante
(SPK_CI1 de 7 pinos)
(ver p.1, N.º 14)

Conectores série ATA3
(SATA3_0:
ver p.1, N.º 10)
(SATA3_1:
ver p.1, N.º 11)
(SATA3_2:
ver p.1, N.º 8)
(SATA3_3:
ver p.1, N.º 9)

Suporte USB 2.0
(USB_5_6 de 9 pinos)
(ver p.1, N.º 7)

SATA3_2

SATA3_0

SATA3_3

SATA3_1

Conecte a instrusão do
chassi e autofalante do
chassia este cabeçote.

Estes quatro conectores
SATA3 suportam
cabos de dados SATA
para dispositivos de
armazenamento interno
com uma taxa de
transferência de dados de
até 6,0 Gb/s.

Para além das quatro
portas USB 2.0 no painel
de E/S, existem uns
terminais nesta placa
principal. Cada terminal
USB 2.0 é capaz de
suportar duas portas.

Português

Suporte USB 3.1 Gen1
(USB3_3_4 de 19 pinos)
(ver p.1, N.º 6)

Suporte de áudio do painel
frontal
(HD_AUDIO1 de 9 pinos)
(ver p.1, N.º 16)

IntA_PA_SSRX-

IntA_PA_SSRX+

IntA_PA_SSTX-

IntA_PA_SSTX+

IntA_PA_D-

IntA_PA_D+

Vbus

GND

GND

VbusV bus

IntA_PB_SSRX-

IntA_PB_SSRX+

GND

IntA_PB_SSTX-

IntA_PB_SSTX+

GND

IntA_PB_D-

IntA_PB_D+

Dummy

1

Além das quatro portas
USB 3.1 Gen1 no painel
de E/S, existe um suporte
nesta placa principal.
Cada suporte USB 3.1
Gen1 pode suportar duas
portas.

Este suporte destina-se à
conexão dos dispositivos
de áudio no painel de
áudio frontal.

25

1. O Áudio de alta denição suporta Sensor de Adaptador, mas o o do painel no chassi de-

FAN_SPEED_CONTROL

1 2 3 4

GND

1 2 3 4

verá suportar HDA para funcionar corretamente. Por favor, siga as instruções no nosso
manual e no manual do chassi para instalar o seu sistema.

2. Se utilizar um painel de áudio AC’97, instale-o no terminal de áudio do painel frontal de
acordo com os passos abaixo:
A. Ligue Mic_IN (MIC) a MIC2_L.
B. Conecte o Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L.
C. Conecte a ligação Terra (GND) à Terra (GND).
D. MIC_RET e OUT_RET destinam-se apenas ao painel de áudio HD. Você não precisa
ligá-los ao painel de áudio AC’97.
E. Para ativar o microfone frontal, vá à guia “Microfone Frontal” no painel de controle
Realtek e ajuste o “Volume de gravação”.

Português

Chassis / Conectores da
ventoinha de bomba de
água
(CHA_FAN1/WP de 4
pinos)
(ver p.1, N.º 4)

Conector da Ventoinha
da CPU
(CPU_FAN1 de 4 pinos)
(ver p.1, N.º 2)

Conector de alimentação
ATX
(ATXPWR1 de 24 pinos)
(ver p.1, N.º 5)

FAN_VOLTAGE

FAN_SPEED

FAN_SPEED_CONTROL

CPU_FAN_SPEED

FAN_VOLTAGE

GND

12

1

Por favor, conecte os
cabos do ventilador aos
conectores do ventilador
e corresponda o o preto
no pino terra.

Esta placa mãe inclui um
conector de ventilador da
CPU (Ventilador silenci­oso) de 4 pinos. Se você
pretende conectar um
ventilador da CPU de 3
pinos, por favor, conecte-o
ao Pino 1-3.

24

Esta placa-mãe inclui um
conector de alimentação
ATX de 24 pinos. Para
utilizar uma fonte de
alimentação ATX de 20

13

pinos, introduza-a no
Pino 1 e Pino 13.

26

H310CM-HG4

4 1

8 5

1

#

Conector de alimentação
de 12V ATX
(ATX12V1 de 8 pinos)
(ver p.1, N.º 1)

Suporte TPM
(TPMS1 de 17 pinos)
(ver p.1, N.º 13)

Teclado CMOS Limpo
(CLRCMOS1)
(ver p.1, N.º 15)

Esta placa-mãe inclui um
conector de alimentação
de 12V ATX de 8 pinos.
Para utilizar uma fonte
de alimentação ATX de
4 pinos, introduza-a no
Pino 1 e Pino 5.

Este conector suporta

GN D

LAD 0

+3V S B

PC ICL K

LAD 3

+3 V

PC IRS T

FRA M E

um sistema com Módulo
de Plataforma Conável

D

GN

GN D

SER IRQ #

S_P WRDW N #

GN D

LAD 1

LAD 2

SMB _CLK _MA IN

SMB _DAT A_M AIN

(TPM), que pode
armazenar com segurança
chaves, certicados
digitais, senhas e dados.
Um sistema TPM
também ajuda a melhorar
a segurança de rede, a
proteger identidades
digitais e a garantir a
integridade da plataforma.

O teclado CMOS Limpo permite
que você apague os dados no
CMOS.

Para limpar o CMOS,

Português

retire a bateria do CMOS e cause
curto no Teclado CMOS Limpo.

27

Contact Information

If you need to contact ASRock or want to know more about ASRock, you’re welcome
to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer
for further information. For technical questions, please submit a support request
form at https://event.asrock.com/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

e Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name: ASRock Incorporation

Address:

Phone/FaxNo:

hereby declares that the product

Product Name : Motherboard

13848 Magnolia Ave, Chino, CA91710

[phone]/[phone]

Model Number :

Conforms to the following specications:

FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

H310CM-HG4

is device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) is device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

James

Representative Person’s Name:

Signature :

Date :

May 12, 2017

EU Declaration of Conformity

EMC —Directive 2014/30/EU (from April 20th, 2016)

ڛ

☐

For the following equipment:

Motherboard

(Product Name)

H310CM-HG4 / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

☐ EN 55022:2010/AC:2011 Class B EN 55024:2010/A1:2015

ڛ EN 55032:2012+AC:2013 Class B ڛڛ EN 61000-3-3:2013
ڛ EN 61000-3-2:2014

☐

LVD —Directive 2014/35/EU (from April 20th, 2016)

EN 60950-1 : 2011+ A2: 2013 ☐

ڛ RoHS — Directive 2011/65/EU
ڛ CE marking

EN 60950-1 : 2006/A12: 2011

(EU conformity marking)

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 1111 6546 AR Nijmegen e Netherlands

(Company Address)

Person responsible for making this declaration:

(Name, Surname)

A.V.P

(Position / Title)

April 16, 2019

(Date)

P/N: 15G0621500M0AK V1.0
