ASRock FM2A75M-ITX User Manual [en, ru, de, es, fr, it]

No part of this installation guide may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this guide may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specications and information contained in this guide are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose. In no event shall ASRock, its directors, ofcers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published September 2012

ASRock FM2A75M-ITX Motherboard

English

Motherboard Layout

DDR 3_B 1 (6 4 bit , 24 0-p in m odul e)

DDR 3_A 1 (6 4 bit , 24 0-p in m odul e)

SOCKE T F M2

PCI E1

AMD

A75 FCH

(Hu dso n -D3 )

Chi pse t

CPU_FAN1

CPU_FAN2

DDR 3 2 600 +

Dua l Gra phi cs

Fas t R AM

DX11

Fro nt USB 3. 0

USB 2.0 T:USB 0 B:U SB1

Ps2

Keyboar d

Top:

CTR BASS

Cente r:

REAR SPK

Botto m:

Optic al

SPDIF

Top:

LINE IN

Cente r:

FRONT

Botto m:

MIC IN

Top: RJ-4 5

USB 3.0 T: USB2 B: USB3

USB 2.0 T: USB2 B: USB3

eSATA3_ 1

HDM I1

VGA 1

HD_AUD IO1

CLRCMOS 1

64Mb BIOS

RoH S

FM2A75M-ITX

SPEAKER 1

HDLED RESET

PLED PWRBTN

PANEL 1

CHA_FAN1

SATA3_2

SATA3_4

SATA3_1

SATA3_3

CIR1

USB_67

USB_45

AUDIO CODEC

HDMI_SP DIF1

CMOS

Batt ery

ATX12V1

USB3_0_ 1

10 11

CI1

ATXP WR1

English

1 CPU Fan Connector (CPU_FAN1) 13 SATA3 Connector (SATA3_4) 2 CPU Fan Connector (CPU_FAN2) 14 SATA3 Connector (SATA3_1) 3 ATX Power Connector (ATXPWR1) 15 SATA3 Connector (SATA3_2) 4 Chassis Speaker Header (SPEAKER1) 16 Southbridge Controller 5 2 x 240-pin DDR3 DIMM Slots 17 SPI Flash Memory (64Mb) (Dual Channel: DDR3_A1, DDR3_B1) 18 PCI Express 2.0 x16 Slot (PCIE1) 6 Chassis Fan Connector (CHA_FAN1) 19 USB 3.0 Header (USB3_0_1) 7 CPU Socket 20 ATX 12V Power Connector (ATX12V1) 8 System Panel Header (PANEL1) 21 Front Panel Audio Header (HD_AUDIO1) 9 USB 2.0 Header (USB_45) 22 HDMI_SPDIF Header (HDMI_SPDIF1) 10 USB 2.0 Header (USB_67) 23 Clear CMOS Jumper (CLRCMOS1) 11 Consumer Infrared Module Header (CIR1) 24 CPU Heatsink Retention Module 12 SATA3 Connector (SATA3_3) 25 Chassis Intrusion Header (CI1)

ASRock FM2A75M-ITX Motherboard

I/O Panel

* 1 USB 2.0 Ports (USB01) 8 Line In (Light Blue) * 2 USB 2.0 Ports (USB23) *** 9 Front Speaker (Lime) ** 3 LAN RJ-45 Port 10 Microphone (Pink) 4 D-Sub Port (VGA1) 11 HDMI Port (HDMI1) 5 Central / Bass (Orange) 12 USB 3.0 Ports (USB3_23) 6 Rear Speaker (Black) **** 13 eSATA3 Connector (eSATA3_1) 7 Optical SPDIF Out Port 14 PS/2 Keyboard Port (Purple)

* It is recommended to install the USB Keyboard/Mouse cable to USB 2.0 ports (USB01 or USB23) instead of USB 3.0 ports.

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications.

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection

LAN Port LED Indications

ACT/LINK LED

SPEED LED

LAN Port

If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

***

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or (No. 9) (No. 6) (No. 5) Side Speaker (No. 8)

2 V -- -- -4 V V -- -6 V V V -8 V V V V

ASRock FM2A75M-ITX Motherboard

English

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will nd “Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”.

Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio.

**** eSATA3 connector supports SATA Gen3 in cable 1M.

English

ASRock FM2A75M-ITX Motherboard

1. Introduction

Thank you for purchasing ASRock FM2A75M-ITX motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. This Quick Installation Guide contains introduction of the motherboard and step-bystep installation guide. More detailed information of the motherboard can be found in the user manual presented in the Support CD.

Because the motherboard specications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modications of this manual occur, the updated version will be available on ASRock website without further notice. You may nd the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specic information about the model you are using. www.asrock.com/support/index.asp

1.1 Package Contents

ASRock FM2A75M-ITX Motherboard (Mini-ITX Form Factor) ASRock FM2A75M-ITX Quick Installation Guide ASRock FM2A75M-ITX Support CD 2 x Serial ATA (SATA) Data Cables (Optional) 1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista VistaTM 64-bit, it is recommended to set the BIOS option in Storage Conguration to AHCI mode. For the BIOS setup, please refer to the “User Manual” in our support CD for details.

ASRock FM2A75M-ITX Motherboard

English

1.2 Specications

Platform - Mini-ITX Form Factor

- All Solid Capacitor design CPU - Support for Socket FM2 100W processors

- Supports AMD’s Cool ‘n’ QuietTM Technology

- UMI-Link GEN2

Chipset - AMD A75 FCH (Hudson-D3) Memory - Dual Channel DDR3 Memory Technology

- 2 x DDR3 DIMM slots

- Support DDR3 2600+(OC)/2400(OC)/2133(OC)/1866/1600/ 1333/1066/800 non-ECC, un-buffered memory (see CAUTION 1)

- Max. capacity of system memory: 32GB (see CAUTION 2)

- Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

- Supports AMD Memory Prole (AMP) Expansion Slot - 1 x PCI Express 2.0 x16 slot

- Supports AMD Dual Graphics Graphics - AMD Radeon HD 7000 graphics

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 2GB

- Dual VGA Output: support HDMI and D-Sub ports by independent display controllers

- Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1600 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) (see CAUTION 3)

- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a

- Supports AMD Steady VideoTM 2.0: New video post processing capability for automatic jutter reduction on home/ online video

- Supports HDCP function with HDMI port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI port Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

- Supports THX TruStudio

ASRock FM2A75M-ITX Motherboard

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efcient Ethernet 802.3az

- Supports PXE Rear Panel I/O I/O Panel

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x eSATA3 Connector

- 2 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front Speaker/Microphone SATA3 - 4 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and “Hot Plug” functions USB 3.0 - 2 x Rear USB 3.0 ports, support USB 1.1/2.0/3.0 up to 5Gb/s

- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports), supports USB 1.1/2.0/3.0 up to 5Gb/s Connector - 4 x SATA3 6.0Gb/s connectors

- 1 x CIR header

- 1 x HDMI_SPDIF header

- 1 x Chassis Intrusion header

- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)

- 1 x Chassis Fan connector (4-pin)

- 24 pin ATX power connector

- 4 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

- 1 x USB 3.0 header (supports 2 USB 3.0 ports) BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- DRAM, APU PCIE VDDP, SB, CPU and CPU NB/GFX Voltage Multi-adjustment

ASRock FM2A75M-ITX Motherboard

English

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar Hardware - CPU Temperature Sensing Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- CASE OPEN detection

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore OS - Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista

VistaTM 64-bit compliant Certications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system’s stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

English

ASRock FM2A75M-ITX Motherboard

CAUTION!

1. Whether 2600/2400/2133/1866/1600MHz memory speed is supported depends on the CPU you adopt. If you want to adopt DDR3 2600/2400/2133/1866/1600 memory module on this motherboard, please refer to the memory support list on our website for the compatible memory modules.

ASRock website http://www.asrock.com

2. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 8 / 7 / VistaTM. For Windows® 64-bit OS with 64bit CPU, there is no such limitation. You can use ASRock XFast RAM to utilize the memory that Windows® cannot use.

3. xvYCC and Deep Color are only supported under Windows® 8 64-bit / 8 / 7 64-bit / 7. Deep Color mode will be enabled only if the display supports 12bpc in EDID. HBR is supported under Windows® 8 64-bit / 8 / 7 64-bit / 7 / VistaTM 64-bit / VistaTM.

ASRock FM2A75M-ITX Motherboard

English

1.3 Unique Features

ASRock Extreme Tuning Utility (AXTU)

ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to

ne-tune different system functions in a user-friendly interface, which includes Hardware Monitor, Fan Control, Overclocking, OC DNA, IES and XFast RAM. In Hardware Monitor, it shows the major readings of your system. In Fan Control, it shows the fan speed and temperature for you to adjust. In Overclocking, you are allowed to overclock CPU frequency for optimal system performance. In OC DNA, you can save your OC settings as a prole and share it with your friends. Your friends then can load the OC prole to their own system to get the same OC settings. In IES (Intelligent Energy Saver), the voltage regulator can reduce the number of output phases to improve efciency when the CPU cores are idle without sacricing computing performance. In XFast RAM, it fully utilizes the memory space that cannot be used under Windows® OS 32-bit CPU.

ASRock Instant Boot

ASRock Instant Boot allows you to turn on your PC in just a few

seconds, provides a much more efcient way to save energy, time, money, and improves system running speed for your system. It leverages the S3 and S4 ACPI features which normally enable the Sleep/Standby and Hibernation modes in Windows® to shorten boot up time. By calling S3 and S4 at specic timing during the shutdown and startup process, Instant Boot allows you to enter your Windows® desktop in a few seconds.

English

ASRock Instant Flash

ASRock Instant Flash is a BIOS ash utility embedded in Flash

ROM. This convenient BIOS update tool allows you to update system BIOS without entering operating systems rst like MSDOS or Windows®. With this utility, you can press the <F6> key during the POST or the <F2> key to enter into the BIOS setup menu to access ASRock Instant Flash. Just launch this tool and save the new BIOS le to your USB ash drive, oppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional oppy diskette or other complicated ash utility. Please be noted that the USB ash drive or hard drive must use FAT32/16/12 le system.

ASRock FM2A75M-ITX Motherboard

ASRock APP Charger

If you desire a faster, less restricted way of charging your

Apple devices, such as iPhone/iPad/iPod Touch, ASRock has prepared a wonderful solution for you - ASRock APP Charger. Simply install the APP Charger driver, it makes your iPhone charge much quickly from your computer and up to 40% faster than before. ASRock APP Charger allows you to quickly charge many Apple devices simultaneously and even supports continuous charging when your PC enters into Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). With APP Charger driver installed, you can easily enjoy the marvelous charging experience.

ASRock XFast USB

ASRock XFast USB can boost USB storage device perfor-

mance. The performance may depend on the properties of the device.

ASRock XFast LAN

ASRock XFast LAN provides a faster internet access, which

includes the benefits listed below. LAN Application Prioritization: You can congure your application’s priority ideally and/or add new programs. Lower Latency in Game: After setting online game’s priority higher, it can lower the latency in games. Trafc Shaping: You can watch Youtube HD videos and download simultaneously. Real-Time Analysis of Your Data: With the status window, you can easily recognize which data streams you are transferring currently.

ASRock XFast RAM

ASRock XFast RAM is a new function that is included into AS-

Rock Extreme Tuning Utility (AXTU). It fully utilizes the memory space that cannot be used under Windows® OS 32-bit CPU. ASRock XFast RAM shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

ASRock FM2A75M-ITX Motherboard

English

ASRock Crashless BIOS

ASRock Crashless BIOS allows users to update their BIOS

without fear of failing. If power loss occurs during the BIOS update process, ASRock Crashless BIOS will automatically nish the BIOS update procedure after regaining power. Please note that BIOS les need to be placed in the root directory of your USB disk. Only USB2.0 ports support this feature.

ASRock OMG (Online Management Guard)

Administrators are able to establish an internet curfew or restrict

internet access at specied times via OMG. You may schedule the starting and ending hours of internet access granted to other users. In order to prevent users from bypassing OMG, guest accounts without permission to modify the system time are required.

ASRock Internet Flash

ASRock Internet Flash searches for available UEFI firmware

updates from our servers. In other words, the system can autodetect the latest UEFI from our servers and ash them without entering Windows® OS. Please note that you must be running on a DHCP congured computer in order to enable this function.

ASRock UEFI System Browser

ASRock UEFI system browser is a useful tool included in

graphical UEFI. It can detect the devices and configurations that users are currently using in their PC. With the UEFI system browser, you can easily examine the current system conguration in UEFI setup.

English

ASRock On/Off Play Technology

ASRock On/Off Play Technology allows users to enjoy the great

audio experience from the portable audio devices, such like MP3 player or mobile phone to your PC, even when the PC is turned off (or in ACPI S5 mode)! This motherboard also provides a free 3.5mm audio cable (optional) that ensures users the most convenient computing environment.

ASRock FM2A75M-ITX Motherboard

ASRock Dehumidier Function

Users may prevent motherboard damages due to dampness by

enabling “Dehumidier Function”. When enabling Dehumidier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.

ASRock Easy RAID Installer

ASRock Easy RAID Installer can help you to copy the RAID

driver from a support CD to your USB storage device. After copying the RAID driver to your USB storage device, please change “SATA Mode” to “RAID”, then you can start installing the OS in RAID mode.

ASRock Interactive UEFI

ASRock Interactive UEFI is a blend of system configuration

tools, cool sound effects and stunning visuals. The unprecedented UEFI provides a more attractive interface and brings a lot more amusement.

ASRock Fast Boot

With ASRock’s exclusive Fast Boot technology, it takes less

than 1.5 seconds to logon to Windows® 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.

ASRock X-Boost

Brilliantly designed for combo overclocking, ASRock X-Boost

Technology is able to unleash the hidden power of your CPUs. Simply press “X” when turning on the PC, X-Boost will automatically overclock the relative components to get up to 15.77% performance boost! With the smart X-Boost, overclocking CPU can become a near one-button process.

ASRock Restart to UEFI

Windows® 8 brings the ultimate boot up experience. The light-

ning boot up speed makes it hard to access the UEFI setup. ASRock Restart to UEFI technology is designed for those requiring frequent UEFI access. It is included in ASRock’s exclusive allin-one AXTU tuning program that allows users to easily enter the UEFI automatically when turning on the PC next time. Just simply enable this function; the PC will be assured to access the UEFI directly in the very beginning.

ASRock FM2A75M-ITX Motherboard

English

2. Installation

This is a Mini-ITX form factor motherboard. Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

Before you install or remove any component, ensure that the power is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER place your motherboard directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

English

ASRock FM2A75M-ITX Motherboard

2.1 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90

angle. Step 2. Position the CPU directly above the socket such that the CPU corner with the golden triangle matches the socket corner with a small triangle. Step 3. Carefully insert the CPU into the socket until it ts in place.

The CPU ts only in one correct orientation. DO NOT force the CPU into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it rmly on the socket while you push down the socket lever to secure the CPU. The lever clicks on the side tab to indicate that it is locked.

Lever 90° Up

CPU Golden Triangle

STEP 1: Lift Up The Socket Lever

STEP 2 / STEP 3: Match The CPU Golden Triangle To The Socket Corner Small Triangle

Socket Corner Small Triangle

STEP 4: Push Down And Lock The Socket Lever

2.2 Installation of CPU Fan and Heatsink

After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other. Then connect the CPU fan to the CPU FAN connector (CPU_FAN1, see Page 2, No. 1 or CPU_FAN2, see Page 2, No. 2). For proper installation, please kindly refer to the instruction manuals of the CPU fan and the heatsink.

ASRock FM2A75M-ITX Motherboard

English

2.3 Installation of Memory Modules (DIMM)

This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install two identical (the same brand, speed, size and chiptype) memory modules in the DDR3 DIMM slots to activate Dual Channel Memory Technology. Otherwise, it will operate at single channel mode.

1. It is not allowed to install a DDR or DDR2 memory module into DDR3 slot;otherwise, this motherboard and DIMM may be damaged.

2. If you install only one memory module or two non-identical memory modules, it is unable to activate the Dual Channel Memory Technology.

Installing a DIMM

Please make sure to disconnect power supply before adding or removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.

English

not ch bre ak

not ch

bre ak

The DIMM only ts in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully snap back in place and the DIMM is properly seated.

ASRock FM2A75M-ITX Motherboard

2.4 Expansion Slot (PCI Express Slot)

There is 1 PCI Express slot on this motherboard. PCIE Slot: PCIE1 (PCIE x16 slot) is used for PCI Express x16 lane width graphics

cards.

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware settings for the card before you start the installation. Step 2. Remove the system unit cover (if your motherboard is already installed

in a chassis). Step 3. Remove the bracket facing the slot that you intend to use. Keep the

screws for later use. Step 4. Align the card connector with the slot and press rmly until the card is

completely seated on the slot. Step 5. Fasten the card to the chassis with screws. Step 6. Replace the system cover.

ASRock FM2A75M-ITX Motherboard

English

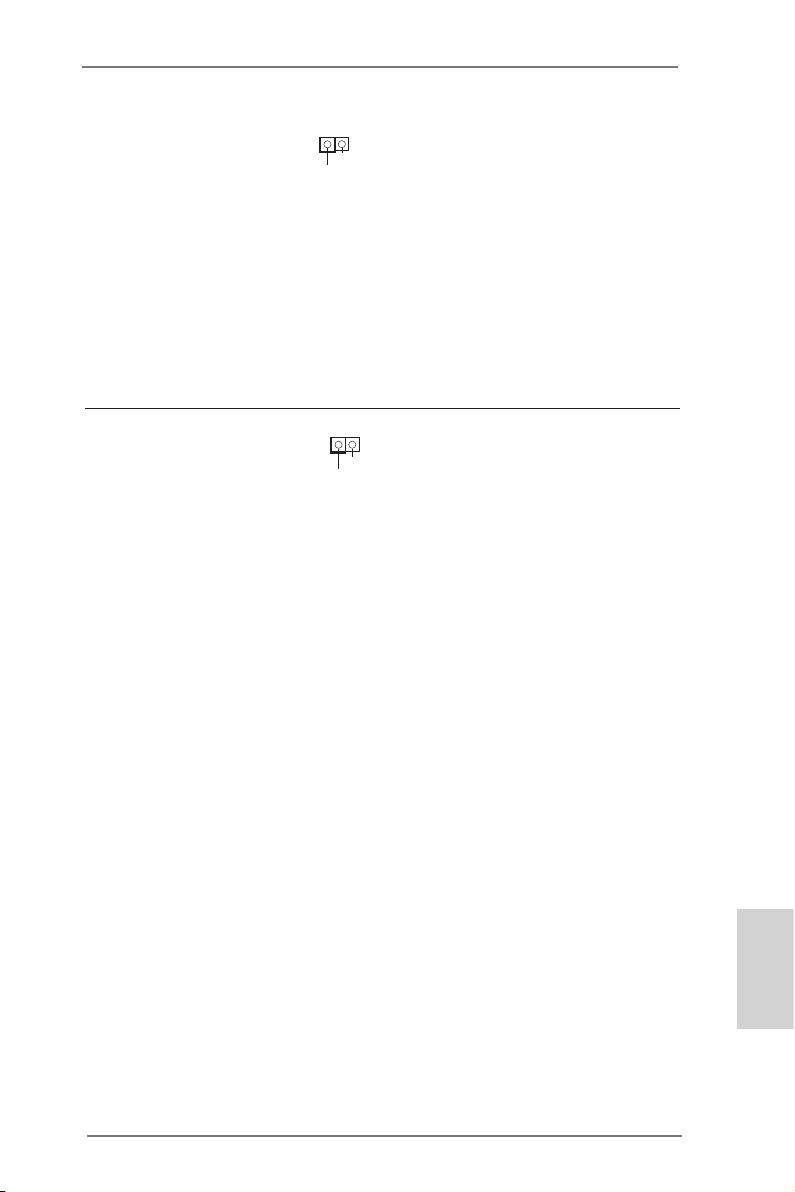

2.5 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when jumper cap is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1) (see p.2, No. 23)

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just nish updating the BIOS, you must boot up the system rst, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, user default prole, 1394 GUID and MAC address will be cleared only if the CMOS battery is removed.

Clear CMOSDefault

English

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option “Clear Status” to clear the record of previous chassis intrusion status.

ASRock FM2A75M-ITX Motherboard

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard!

Serial ATA3 Connectors These four Serial ATA3

(SATA3_1: see p.2, No. 14)

(SATA3_2: see p.2, No. 15)

(SATA3_3: see p.2, No. 12)

(SATA3_4: see p.2, No. 13)

6.0 Gb/s data transfer rate.

Serial ATA (SATA) Ei ther end of the SATA data Data Cable cable can be connected to the

(Optional)

SATA3 hard disk or the SATA3

connector on this motherboard.

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB_45)

(see p.2 No. 9)

ports on the I/O panel, there

are two USB 2.0 headers on this motherboard. Each USB 2.0 header can support two USB

(9-pin USB_67)

(see p.2 No. 10)

2.0 ports.

(SATA3) connectors support SATA data cables for internal storage devices. The current SATA3 interface allows up to

SATA3_2 SATA3_4

SATA3_1 SATA3_3

USB 3.0 Header Besides two default USB 3.0

(19-pin USB3_0_1)

(see p.2, No. 19)

ports on the I/O panel, there is

one USB 3.0 header on this

motherboard. This USB 3.0

Int A _P_D +

Int A _P_D -

GND

Int A _P_S STX+

Int A _P_S STX-

GND

Int A _P_S SRX+

Int A _P_S SRX-

Vbu s

header can support two USB 3.0 ports.

Int A _P_D +

Int A _P_S STX+

GND

Int A _P_D -

Int A _P_S SRX+

GND

Int A _P_S STX-

Vbu s

Int A _P_S SRX-

ASRock FM2A75M-ITX Motherboard

English

Consumer Infrared Module Header This header can be used to

(4-pin CIR1)

(see p.2 No. 11)

connect the remote

controller receiver.

Front Panel Audio Header This is an interface for the front

(9-pin HD_AUDIO1)

(see p.2 No. 21)

panel audio cable that allows

convenient connection and

control of audio devices.

GND

PRE SENC E#

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio header as below:

A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. To activate the front mic. For Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS: Go to the “FrontMic” Tab in the Realtek Control panel. Adjust

“Recording Volume”.

System Panel Header This header accommodates

(9-pin PANEL1)

(see p.2 No. 8)

several system front panel

functions.

English

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may congure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

ASRock FM2A75M-ITX Motherboard

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the sys-tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assign-ments are matched correctly.

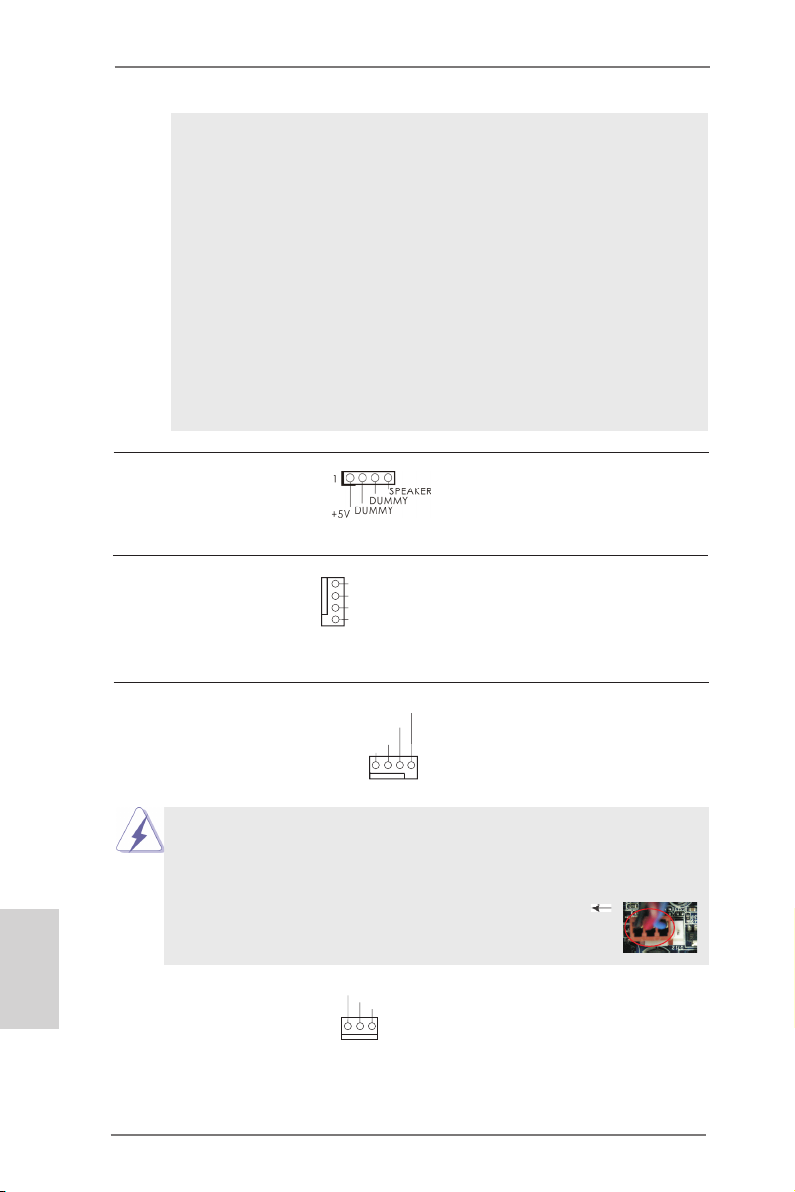

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1)

(see p.2 No. 4)

speaker to this header.

Chassis Fan Connector Please connect the fan cable

(4-pin CHA_FAN1)

(see p.2 No. 6)

match the black wire to the

to the fan connector and

GND +12 V CHA _FAN _SPE ED FAN _SPE ED_C ONTR OL

ground pin.

CPU Fan Connectors Please connect the CPU fan

(4-pin CPU_FAN1)

(see p.2 No. 1)

cable to the connector and

match the black wire to the

ground pin.

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3.

(3-pin CPU_FAN2)

(see p.2 No. 2)

FAN_ SPEE D_CO NTRO L

CPU _FAN_ SPEE D

+12 V

GND

1 2 3 4

GND

+12 V

Pin 1-3 Connected

3-Pin Fan Installation

CPU _FAN_ SPEE D

ASRock FM2A75M-ITX Motherboard

English

ATX Power Connector Please connect an ATX power

(24-pin ATXPWR1)

(see p.2 No. 3)

supply to this connector.

24 13

12 1

Though this motherboard provides 24-pin ATX power connector, it can still work if you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 13.

24 13

20-Pin ATX Power Supply Installation

12 1

ATX 12V Power Connector Please connect an ATX 12V

(4-pin ATX12V1)

(see p.2, No. 20)

power supply to this connector.

HDMI_SPDIF Header HDMI_SPDIF header, providing

(2-pin HDMI_SPDIF1)

see p.2 No. 22)

(

VGA card, allows the system to

SPDIF audio output to HDMI

SPD I FOUT

GND

connect HDMI Digital TV/ projector/LCD devices. Please connect the HDMI_SPDIF connector of HDMI VGA card to this header.

Chassis Intrusion Header This motherboard supports

(2-pin CI1)

CASE OPEN detection feature

(see p.2, No. 25)

that detects if the chassis cover

Sig n al

GND

has been removed. This feature requires a chassis with chassis intrusion detection design.

English

ASRock FM2A75M-ITX Motherboard

2.7 Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical drive rst. Then, the drivers compatible to your system can be auto-detected and listed on the support CD driver page. Please follow the order from up to bottom side to install those required drivers. Therefore, the drivers you install can work properly.

2.8 Installing Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit With RAID Functions

If you want to install Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit on a RAID disk composed of 2 or more SATA3 HDDs with RAID functions, please follow below steps.

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration. B. Set the “SATA Mode” option to [RAID].

STEP 2: Use “RAID Installation Guide” to set RAID conguration.

Before you start to congure RAID function, you need to check the RAID installation guide in the Support CD for proper conguration. Please refer to the BIOS RAID installation guide part of the document in the following path in the Support CD:

.. \ RAID Installation Guide STEP 3: Install Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS on

your system.

Use the option “Easy RAID Installer“ in UEFI setup utility to copy the RAID drivers to your USB ash disk. Insert the Windows® OS optical disk into the optical drive to boot your system, and follow the instruction to install OS on your system. When you see “Where do you want to install Windows?” page, please insert your USB ash disk to your system, and click the “Load Driver” button to load the RAID drivers. After that, you can continue the OS installation.

2.9 Installing Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit Without RAID Functions

If you want to install Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit on your SATA3 HDDs without RAID functions, please follow below steps.

ASRock FM2A75M-ITX Motherboard

English

Using SATA3 HDDs without NCQ and Hot Plug functions (IDE mode)

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration. B. Set the “SATA Mode” option to [IDE].

STEP 2: Install Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS on

your system.

Using SATA3 HDDs with NCQ and Hot Plug functions (AHCI mode)

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration. B. Set the “SATA Mode” option to [AHCI].

STEP 2: Install Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS on

your system.

3. BIOS Information

The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up the computer, please press <F2> or <Del> during the Power-On-Self-Test (POST) to enter BIOS Setup utility; otherwise, POST continues with its test routines. If you wish to enter BIOS Setup after POST, please restart the system by pressing <Ctl> + <Alt> + <Delete>, or pressing the reset button on the system chassis. The BIOS Setup program is designed to be user-friendly. It is a menu-driven program, which allows you to scroll through its various sub-menus and to select among the predetermined choices. For the detailed information about BIOS Setup, please refer to the User Manual (PDF le) contained in the Support CD.

English

4. Software Support CD information

This motherboard supports various Microsoft 8 64-bit / 7 / 7 64-bit / VistaTM / Vista motherboard contains necessary drivers and useful utilities that will enhance motherboard features. To begin using the Support CD, insert the CD into your CD-ROM drive. It will display the Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and double-click on the le “ASSETUP.EXE” from the BIN folder in the Support CD to display the menus.

ASRock FM2A75M-ITX Motherboard

Windows® operating systems: 8 /

64-bit. The Support CD that came with the

1. Einführung

Wir danken Ihnen für den Kauf des ASRock FM2A75M-ITX Motherboard, ein zuverlässiges Produkt, welches unter den ständigen, strengen Qualitätskontrollen von ASRock gefertigt wurde. Es bietet Ihnen exzellente Leistung und robustes Design, gemäß der Verpflichtung von ASRock zu Qualität und Halbarkeit. Diese Schnellinstallationsanleitung führt in das Motherboard und die schrittweise Installation ein. Details über das Motherboard nden Sie in der Bedienungsanleitung auf der Support-CD.

Da sich Motherboard-Spezikationen und BIOS-Software verändern können, kann der Inhalt dieses Handbuches ebenfalls jederzeit geändert werden. Für den Fall, dass sich Änderungen an diesem Handbuch ergeben, wird eine neue Version auf der ASRock-Website, ohne weitere Ankündigung, verfügbar sein. Die neuesten Grakkarten und unterstützten CPUs sind auch auf der ASRock-Website aufgelistet. ASRock-Website: http://www.asrock.com Wenn Sie technische Unterstützung zu Ihrem Motherboard oder spezische Informationen zu Ihrem Modell benötigen, besuchen Sie bitte unsere Webseite: www.asrock.com/support/index.asp

1.1 Kartoninhalt

ASRock FM2A75M-ITX Motherboard (Mini-ITX-Formfaktor) ASRock FM2A75M-ITX Schnellinstallationsanleitung ASRock FM2A75M-ITX Support-CD Zwei Serial ATA (SATA) -Datenkabel (optional) Ein I/O Shield

ASRock erinnert...

Zur besseren Leistung unter Windows® 8 / 8 64 Bit / 7 / 7 64 Bit / Vista VistaTM 64 Bit empfehlen wir, die Speicherkonguration im BIOS auf den AHCI-Modus einzustellen. Hinweise zu den BIOS-Einstellungen nden Sie in der Bedienungsanleitung auf der mitgelieferten CD.

ASRock FM2A75M-ITX Motherboard

Deutsch

1.2 Spezikationen

Plattform - Mini-ITX-Formfaktor

- Alle Feste Kondensatordesign CPU - Unterstützt Sockel-FM2-100-W-Prozessoren

- Unterstützt Cool ‘n’ QuietTM-Technologie von AMD

- UMI-Link-GEN2

Chipsatz - AMD A75 FCH (Hudson-D3) Speicher - Unterstützung von Dual-Kanal-Speichertechnologie

- 2 x Steckplätze für DDR3

- Unterstützt DDR3 2600+(OC)/2400(OC)/2133(OC)/1866/ 1600/1333/1066/800 non-ECC, ungepufferter Speicher

- Max. Kapazität des Systemspeichers: 32GB

- Unterstützt Intel® Extreme Memory Prole (XMP)1.3/1.2

- Unterstützt AMD Memory Prole (AMP) Erweiterungs- - 1 x PCI-Express-2.0-x16-Steckplätze steckplätze - Unterstützt AMD duale Grakkarten Onboard-VGA - AMD Radeon HD 7000-Grak

- DirectX 11, Pixel Shader 5.0

- Maximal gemeinsam genutzter Speicher 2GB

- Doppel-VGA Ausgabe: unterstützt HDMI und D-Sub Ports durch unabhängige Bildschirmanzeige Kontrolleure

- Unterstützt HDMI 1.4a mit einer maximalen Auösung von 1920 x 1200 bei 60 Hz

- Unterstützt D-Sub mit einer maximalen Auösung von 1920 x 1600 bei 60 Hz

- Unterstützt Auto Lip Sync, Deep Color (12bpc), xvYCC und HBR (High Bit Rate-Audio) mit HDMI (kompatibler HDMI- Bildschirm erforderlich)

- Unterstützt stereoskopisches 3D per Blu-ray mit HDMI 1.4a

- Unterstützt AMD Steady VideoTM 2.0: Neuartige Funktion der Videonachbearbeitung für automatische Reduzierung von Bildschwankungen bei Heim-/Online-Videos

- Unterstützt HDCP-Funktion mit HDMI-Port

- Unterstutzt 1080p Blu-ray (BD) / HD-DVD-Wiedergabe mit HDMI-Port Audio - 7.1 CH HD Audio mit dem Inhalt Schutz (Realtek ALC892 Audio Codec)

- Premium Blu-ray-Audio-Unterstützung

- Unterstützt THX TruStudio LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

ASRock FM2A75M-ITX Motherboard

- Realtek RTL8111E

- Unterstützt Wake-On-LAN

- Unterstützt LAN-Kabelerkennung

- Unterstützt energieefzientes Ethernet 802.3az

- Unterstützt PXE E/A-Anschlüsse I/O Panel an der - 1 x PS/2-Tastaturanschluss Rückseite - 1 x D-Sub port

- 1 x HDMI port

- 1 x optischer SPDIF-Ausgang

- 4 x Standard-USB 2.0-Anschlüsse

- 1 x eSATA3-Anschluss

- 2 x Standard-USB 3.0-Anschlüsse

- 1 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED)

- HD Audiobuchse: Lautsprecher hinten / Mitte/Bass / Audioeingang / Lautsprecher vorne / Mikrofon SATA3 - 4 x SATA 3-Anschluss mit 6,0 Gb/s, unterstützt RAID (RAID 0, RAID 1 und RAID 10), NCQ-, AHCI- und „Hot Plugging“-Funktionen USB3.0 - 2 x USB 3.0-Ports an der Rückseite, unterstützt USB

1.1/2.0/3.0 mit bis zu 5 Gb/s

- 1 x USB 3.0-Header (unterstützt zwei USB 3.0-Ports) an der Vorderseite, unterstützt USB 1.1/2.0/3.0 mit bis zu 5 Gb/s Anschlüsse - 4 x SATA3 6,0 GB/s-Anschlüsse

- 1 x Consumer Infrarot-Modul-Header

- 1 x HDMI_SPDIF-Anschluss

- 1 x Verteiler für Gehäuseeindringversuche

- 2 x CPUlüfter-Anschluss (1 x 4-pin, 1 x 3-pin)

- 1 x Gehäuselüfter-Anschluss (4-pin)

- 24-pin ATX-Netz-Header

- 4-pin anschluss für 12V-ATX-Netzteil

- Anschluss für Audio auf der Gehäusevorderseite

- 2 x USB 2.0-Anschlüsse (Unterstützung 4 zusätzlicher USB 2.0-Anschlüsse)

- 1 x USB 3.0-Anschlüsse (Unterstützung 2 zusätzlicher USB 3.0-Anschlüsse) BIOS - 64Mb AMIs Legal BIOS UEFI mit GUI-Unterstützung

- Unterstützung für “Plug and Play”

- ACPI 1.1-Weckfunktionen

- JumperFree-Modus

- SMBIOS 2.3.1

ASRock FM2A75M-ITX Motherboard

Deutsch

- DRAM, APU PCIE VDDP, SB, CPU und CPU NB/GFX Stromspannung Multianpassung Support-CD - Treiber, Dienstprogramme, Antivirussoftware (Probeversion), CyberLink MediaEspresso 6.5-Testversion, Google Chrome Browser und Toolbar Hardware Monitor - CPU-Temperatursensor

- Motherboardtemperaturerkennung

- Drehzahlmessung für CPUlüfter

- Drehzahlmessung für Gehäuselüfter

- Geräuscharmer CPUlüfter

- Mehrstuge Geschwindigkeitsteuerung für CPU-/ Gehäuselüfter

- GEHÄUSE OFFEN-Erkennung

- Spannungsüberwachung: +12V, +5V, +3.3V, Vcore

Betriebssysteme - Unterstützt Microsoft VistaTM / Vista

Windows® 8 / 8 64-Bit / 7 / 7 64-Bit /

64-Bit

Zertizierungen - FCC, CE, WHQL

- Gemäß Ökodesign-Richtlinie (ErP/EuP) (Stromversorgung gemäß Ökodesign-Richtlinie (ErP/EuP) erforderlich)

* Für die ausführliche Produktinformation, besuchen Sie bitte unsere Website: http://www.asrock.com

Deutsch

ASRock FM2A75M-ITX Motherboard

1.3 Einstellung der Jumper

Die Abbildung verdeutlicht, wie Jumper gesetzt werden. Werden Pins durch Jumperkappen verdeckt, ist der Jumper “Gebrückt”. Werden keine Pins durch Jumperkappen verdeckt, ist der Jumper “Offen”. Die Abbildung zeigt einen 3-Pin Jumper dessen Pin1 und Pin2 “Gebrückt” sind, bzw. es bendet sich eine Jumper-Kappe auf diesen beiden Pins.

Jumper Einstellun Beschreibung

CMOS löschen

(CLRCMOS1, 3-Pin jumper) (siehe S.2, No. 23)

Hinweis:

CLRCMOS1 ermöglicht Ihnen die Löschung der Daten im CMOS. Zum Löschen und Zurücksetzen der Systemparameter auf die Standardeinrichtung schalten Sie den Computer bitte aus und trennen das Netzkabel von der Stromversorgung. Warten Sie 15 Sekunden, schließen Sie dann Pin2 und Pin3 am CLRCMOS1 über einen Jumper fünf Sekunden lang kurz. Sie sollten das CMOS allerdings nicht direkt nach der BIOS-Aktualisierung löschen. Wenn Sie das CMOS nach Abschluss der BIOS-Aktualisierung löschen müssen, fahren Sie zuerst das System hoch. Fahren Sie es dann vor der CMOS-Löschung herunter. Bitte beachten Sie, dass Kennwort, Datum, Uhrzeit, benutzerdeniertes Prol, 1394 GUID und MAC-Adresse

nur gelöscht werden, wenn die CMOS-Batterie entfernt wird.

DefaultEinstellung

CMOS löschen

Durch Löschen des CMOS kann erkannt werden, wenn das Gehäuseoffen ist. Bitte stellen Sie zum Löschen der Aufzeichnung des vorherigenGehäuseindringungsstatus die BIOS-Option “Status leeren” ein.

ASRock FM2A75M-ITX Motherboard

Deutsch

1.4 Anschlüsse

Anschlussleisten sind KEINE Jumper. Setzen Sie KEINE Jumperkappen auf die Pins der Anschlussleisten. Wenn Sie die Jumperkappen auf die Anschlüsse setzen, wird das Motherboard permanent beschädigt!

Anschluss Beschreibung

Seriell-ATA3-Anschlüsse Diese vier Serial ATA3-

(SATA3_1: siehe S.2 - No. 14)

(SATA3_2: siehe S.2 - No. 15)

(SATA3_3: siehe S.2 - No. 12)

(SATA3_4: siehe S.2 - No. 13)

aktuelle SATA3- Schnittstelle ermöglicht eine

Datenübertragungsrate bis

6,0 Gb/s.

Serial ATA- (SATA-) SJedes Ende des SATA Datenkabel Datenkabels kann an die

(Option)

SATA3 Festplatte oder das SATA3 Verbindungsstück auf dieser Hauptplatine angeschlossen werden.

(SATA3-)Verbínder unterstützten SATA-Datenkabel für interne

Massenspeichergeräte. Die

SATA3_2 SATA3_4

SATA3_1 SATA3_3

Deutsch

USB 2.0-Header Zusätzlich zu den vier

(9-pol. USB_45)

(siehe S.2 - No. 9)

üblichen USB 2.0-Ports an den

I/O-Anschlüssen benden sich zwei USB 2.0- Anschlussleisten am Motherboard. Pro USB 2.0-

(9-pol. USB_67)

(siehe S.2 - No. 10)

Anschlussleiste werden zwei

USB 2.0-Ports unterstützt.

ASRock FM2A75M-ITX Motherboard

USB 3.0-Header Neben zwei Standard-USB

(19-pol. USB3_0_1)

(siehe S.2 - No. 19)

3.0-Ports am E/A-Panel

bendet sich ein USB 3.0-

Header an diesem

Int A _P_D +

Int A _P_D -

GND

Int A _P_S STX+

Int A _P_S STX-

GND

Int A _P_S SRX+

Int A _P_S SRX-

Vbu s

Motherboard. Dieser USB 3.0 Header kann zwei USB 3.0 Ports unterstützen.

Int A _P_D +

GND

Int A _P_D -

GND

Int A _P_S STX-

Int A _P_S STX+

Vbu s

Int A _P_S SRX-

Int A _P_S SRX+

Consumer Infrared-Modul-Header Dieser Header kann zum

(4-pin CIR1)

(siehe S.2 - No. 11)

Anschließen Remote-

Empfänger.

Anschluss für Audio auf Dieses Interface zu einem der Gehäusevorderseite Audio-Panel auf der Vorder

(9-Pin HD_AUDIO1)

(siehe S.2 - No. 21)

seite Ihres Gehäuses,

ermöglicht Ihnen eine bequeme Anschlussmöglichkeit und Kontrolle über Audio-Geräte.

GND

PRE SENC E#

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. High Denition Audio unterstützt Jack Sensing (automatische Erkennung falsch angeschlossener Geräte), wobei jedoch die Bildschirmverdrahtung am Gehäuse HDA unterstützen muss, um richtig zu funktionieren. Beachten Sie bei der Installation im System die Anweisungen in unserem Handbuch und im Gehäusehandbuch.

2. Wenn Sie die AC’97-Audioleiste verwenden, installieren Sie diese wie nachstehend beschrieben an der Front-Audioanschlussleiste: A. Schließen Sie Mic_IN (MIC) an MIC2_L an. B. Schließen Sie Audio_R (RIN) an OUT2_R und Audio_L (LIN) an OUT2_L an. C. Schließen Sie Ground (GND) an Ground (GND) an.

D. MIC_RET und OUT_RET sind nur für den HD-Audioanschluss gedacht. Diese

Anschlüsse müssen nicht an die AC’97-Audioleiste angeschlossen werden.

E. So aktivieren Sie das Mikrofon an der Vorderseite. Bei den Betriebssystemen Windows® 8 / 8 64 Bit / 7 / 7 64 Bit / VistaTM / VistaTM 64 Bit: Wählen Sie im Realtek-Bedienfeld die „FrontMic“ (Vorderes Mikrofon)- Registerkarte. Passen Sie die „Recording Volume“ (Aufnahmelautstärke) an.

Deutsch

ASRock FM2A75M-ITX Motherboard

System Panel-Header Dieser Header unterstützt

(9-pin PANEL1)

(siehe S.2 - No. 8)

Schließen Sie die Ein-/Austaste, die Reset-Taste und die Systemstatusanzeige am Gehäuse an diesen Header an; befolgen Sie dabei die nachstehenden Hinweise zur Pinbelegung. Beachten Sie die positiven und negativen Pins, bevor Sie die Kabel anschließen.

PWRBTN (Ein-/Ausschalter):

RESET (Reset-Taste):

PLED (Systembetriebs-LED):

HDLED (Festplattenaktivitäts-LED):

mehrere Funktion der

Systemvorderseite.

Zum Anschließen des Ein-/Ausschalters an der Frontblende des Gehäu ses. Sie können kongurieren, wie das System mit Hilfe des Ein-/Ausschalters ausgeschaltet werden können soll.

Zum Anschließen der Reset-Taste an der Frontblende des Gehäuses. Mit der Reset-Taste können Sie den Computer im Falle eines Absturzes neu starten.

Zum Anschließen der Betriebsstatusanzeige an der Frontblende des Gehäuses. Die LED leuchtet, wenn das System in Betrieb ist. Die LED blinkt, wenn sich das System im Ruhezustand S1 bendet. Die LED schaltet sich aus, wenn sich das System in den Modi S3/S4 bendet oder ausgeschaltet ist (S5).

Zum Anschließen der Festplattenaktivitäts-LED an der Frontblende des Gehäuses. Die LED leuchtet, wenn die Festplatte Daten liest oder schreibt.

Deutsch

Das Design der Frontblende kann je nach Gehäuse variiere. Ein Frontblendenmodul besteht hauptsächlich aus einer Ein-/Austaste, einer Reset-Taste, einer Betriebs-LED, einer Festplattenaktivitäts-LED, Lautsprechern, etc. Stellen Sie beim Anschließen des Frontblendenmoduls Ihres Gehäuses an diesem Header sicher, dass die Kabel- und Pinbelegung korrekt übereinstimmen.

Gehäuselautsprecher-Header Schließen Sie den

(4-pin SPEAKER1)

(siehe S.2 - No. 4)

Gehäuselautsprecher an

diesen Header an.

ASRock FM2A75M-ITX Motherboard

Gehäuselüfteranschlüsse Verbinden Sie die Lüfterkabel

(4-pin CHA_FAN1)

(siehe S.2, No. 6)

den Schutzleiterstift

mit den Lüfteranschlüssen,

wobei der schwarze Draht an

GND +12 V CHA _FAN _SPE ED FAN _SPE ED_C ONTR OL

angeschlossenwird.

CPU-Lüfteranschluss Verbinden Sie das CPU -

(4-pin CPU_FAN1)

(siehe S.2 - No. 1)

Lüfterkabel mit diesem

Anschluss und passen Sie den schwarzen Draht dem Erdungsstift an.

FAN_ SPEE D_CO NTRO L

CPU _FAN_ SPEE D

+12 V

GND

1 2 3 4

Obwohl dieses Motherboard einen vierpoligen CPU-Lüfteranschluss (Quiet Fan) bietet, können auch CPU-Lüfter mit dreipoligem Anschluss angeschlossen werden; auch ohne Geschwindigkeitsregulierung. Wenn Sie einen dreipoligen CPU-Lüfter an den CPU-Lüferanschluss dieses Motherboards anschließen möchten, verbinden Sie ihn bitte mit den Pins 1 – 3.

Pins 1–3 anschließen

Lüfter mit dreipoligem Anschluss installieren

(3-pin CPU_FAN2)

(siehe S.2 - No. 2)

ATX-Netz-Header Verbinden Sie die ATX-

(24-pin ATXPWR1)

(siehe S.2 - No. 3)

Stromversorgung mit diesem

Header.

GND

+12 V

CPU _FAN_ SPEE D

24 13

12 1

Obwohl dieses Motherboard einen 24-pol. ATX-Stromanschluss bietet, kann es auch mit einem modizierten traditionellen 20-pol. ATX-Netzteil verwendet werden. Um ein 20-pol. ATX-Netzteil zu verwenden, stecken Sie den Stecker mit Pin 1 und Pin 13 ein.

24 13

Installation eines 20-pol. ATX-Netzteils

12 1

ATX 12V Anschluss Bitte schließen Sie an diesen

(4-pin ATX12V1)

(siehe S.2 - No. 20)

Anschluss die ATX 12V

Stromversorgung an.

ASRock FM2A75M-ITX Motherboard

Deutsch

HDMI_SPDIF-Anschluss Der HDMI_SPDIF-Anschluss

(2-pin HDMI_SPDIF1)

(siehe S.2 - No. 22)

stellt einen SPDIF-

Audioausgang für eine HDMI-

GND

SPD I FOUT

VGA-Karte zur Verfügung und ermöglicht den Anschluss von HDMI-Digitalgeräten wie Fernsehgeräten, Projektoren, LCD-Geräten an das System. Bitte verbinden Sie den HDMI_SPDIF-Anschluss der HDMI-VGA-Karte mit diesem Anschluss.

Verteiler für Gehäuseeindringversuche Dieses Motherboard unterstützt

(2-pin CI1)

die GEHÄUSE OFFEN-

(siehe S.2 - No. 25)

Erkennungsfunktion,die

feststellt, ob dieGehäuseab-

Sig n al

GND

deckung entferntwurde. Für diese Funktion istein Ge häuse erforderlich, dasmit ei nem Design zur Erkennung von Gehäuseeindringver suchenausgestattet ist.

Deutsch

ASRock FM2A75M-ITX Motherboard

2. BIOS-Information

Das Flash Memory dieses Motherboards speichert das Setup-Utility. Drücken Sie <F2> oder <Del> während des POST (Power-On-Self-Test) um ins Setup zu gelangen, ansonsten werden die Testroutinen weiter abgearbeitet. Wenn Sie ins Setup gelangen wollen, nachdem der POST durchgeführt wurde, müssen Sie das System über die Tastenkombination <Ctrl> + <Alt> + <Delete> oder den Reset-Knopf auf der Gehäusevorderseite, neu starten. Natürlich können Sie einen Neustart auch durchführen, indem Sie das System kurz ab- und danach wieder anschalten. Das Setup-Programm ist für eine bequeme Bedienung entwickelt worden. Es ist ein menügesteuertes Programm, in dem Sie durch unterschiedliche Untermenüs scrollen und die vorab festgelegten Optionen auswählen können. Für detaillierte Informationen zum BIOS-Setup, siehe bitte das Benutzerhandbuch (PDF Datei) auf der Support CD.

3. Software Support CD information

Dieses Motherboard unterstützt eine Reiche von Microsoft® Windows® Betriebssystemen: 8 / 8 64-Bit / 7 / 7 64-Bit / VistaTM / VistaTM 64-Bit. Die Ihrem Motherboard beigefügte Support-CD enthält hilfreiche Software, Treiber und Hilfsprogramme, mit denen Sie die Funktionen Ihres Motherboards verbessern können Legen Sie die Support-CD zunächst in Ihr CD-ROM-Laufwerk ein. Der Willkommensbildschirm mit den Installationsmenüs der CD wird automatisch aufgerufen, wenn Sie die “Autorun”-Funktion Ihres Systems aktiviert haben. Erscheint der Wilkommensbildschirm nicht, so “doppelklicken” Sie bitte auf das File ASSETUP.EXE im BIN-Verzeichnis der Support-CD, um die Menüs aufzurufen. Das Setup-Programm soll es Ihnen so leicht wie möglich machen. Es ist menügesteuert, d.h. Sie können in den verschiedenen Untermenüs Ihre Auswahl treffen und die Programme werden dann automatisch installiert.

ASRock FM2A75M-ITX Motherboard

Deutsch

1. Introduction

Merci pour votre achat d’une carte mère ASRock FM2A75M-ITX, une carte mère très able produite selon les critères de qualité rigoureux de ASRock. Elle offre des performances excellentes et une conception robuste conformément à l’engagement d’ASRock sur la qualité et la abilité au long terme. Ce Guide d’installation rapide présente la carte mère et constitue un guide d’installation pas à pas. Des informations plus détaillées concernant la carte mère pourront être trouvées dans le manuel l’utilisateur qui se trouve sur le CD d’assistance.

Les spécications de la carte mère et le BIOS ayant pu être mis à jour, le contenu de ce manuel est sujet à des changements sans notication. Au cas où n’importe qu’elle modication intervenait sur ce manuel, la version mise à jour serait disponible sur le site web ASRock sans nouvel avis. Vous trouverez les listes de prise en charge des cartes VGA et CPU également sur le site Web ASRock. Site web ASRock, http://www.asrock.com Si vous avez besoin de support technique en relation avec cette carte mère, veuillez consulter notre site Web pour de plus amples informations particulières au modèle que vous utilisez. www.asrock.com/support/index.asp

1.1 Contenu du paquet

Carte mère ASRock FM2A75M-ITX (Facteur de forme Mini-ITX) Guide d’installation rapide ASRock FM2A75M-ITX CD de soutien ASRock FM2A75M-ITX Deux câbles de données de série ATA (SATA) (en option) Un I/O Panel Shield

Français

ASRock vous rappelle...

Pour bénécier des meilleures performances sous Windows® 8 / 8 64 bits / 7 / 7 64 bits / Vista l'option BIOS dans Conguration de stockage en mode AHCI. Pour plus de détails sur l'installation BIOS, référez-vous au "Mode d'emploi" sur votre CD de support.

/ VistaTM 64 bits, il est recommandé de paramétrer

ASRock FM2A75M-ITX Motherboard

1.2 Spécications

Format - Facteur de forme Mini-ITX

- Accessoires de Carte mère CPU - Support des unités centrales Socket FM2 100W

- Supporte la technologie Cool ‘n’ QuietTM d’AMD

- UMI-Link GEN2

Chipsets - AMD A75 FCH (Hudson-D3) Mémoire - Compatible avec la Technologie de Mémoire à Canal

Double

- 2 x slots DIMM DDR3

- Supporter DDR3 2600(OC)+/2400(OC)/2133(OC)/1866/ 1600/1333/1066/800 non-ECC, sans amortissement mémoire

- Capacité maxi de mémoire système: 32GB

- Prend en charge le prol de mémoire extrême Intel® (XMP)

1.3/1.2

- Prend en charge le prol de mémoire AMD (AMP) Slot d’extension - 1 x slot PCI Express 2.0 x16

- Support de AMD Dual Graphics VGA sur carte - Graphiques à l’AMD Radeon HD 7000

- DirectX 11, nuanceur de pixels 5.0

- mémoire partagée max 2GB

- Output de VGA Duel: supporter HDMI et D-Sub ports par les controleurs de display independents

- Prend en charge le HDMI 1.4a avec une résolution maximale jusqu’à 1920x1200 @ 60Hz

- Prend en charge le D-Sub avec une résolution maximale jusqu’à 1920x1600 @ 60Hz

- Prend en charge Lip Sync, Deep Color (12bpc), xvYCC et HBR (High Bit Rate Audio: Audio à haut débit binaire) avec HDMI (Moniteur compatible HDMI requis)

- Prend en charge la 3D stéréoscopique Blu-ray avec HDMI 1.4a

- Supporte AMD Steady VideoTM 2.0: Nouvelle fonctionnalité de traitement post-vidéo pour réduction automatique des tremblements dans les clips vidéo en ligne/maison

- Prise en charge de la fonction HDCP avec ports HDMI

- Supporter 1080p Blu-ray(BD)/ lecteur de HD-DVD avec ports HDMI

Audio - 7,1 CH HD Audio avec protection de contenu

Français

ASRock FM2A75M-ITX Motherboard

Français

(Realtek ALC892 Audio Codec)

- Prise en charge de l’audio Premium Blu-ray

- Prend en charge THX TruStudio

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supporte du Wake-On-LAN

- Prise en charge de la détection de câble LAN

- Prend en charge la norme Energy Efcient Ethernet (Ethernet à efcacité énergétique) 802.3az

- Supporte PXE

Panneau arrière I/O Panel

- 1 x port clavier PS/2

- 1 x port D-Sub

- 1 x port HDMI

- 1 x Port de sortie optique SPDIF

- 4 x ports USB 2.0 par défaut

- 1 x Connecteur eSATA3

- 2 x ports USB 3.0 par défaut

- 1 x port LAN RJ-45 avec LED (ACT/LED CLIGNOTANTE et LED VITESSE)

- Prise HD Audio: Haut-parleur arrière / Central /Basses / Entrée Ligne / Haut-parleur frontal / Microphone SATA3 - 4 x connecteurs 6,0 Gb/s SATA3, prise en charge des fonctions RAID (RAID 0, RAID 1 et RAID 10), NCQ, AHCI et « Connexion à chaud » USB 3.0 - 2 x ports USB3.0 à l’arrière, prennent en charge USB

1.1/2.0/3.0 jusqu’à 5 Gb/s

- 1 x barrette USB3.0 en façade (prend en charge 2 ports USB 3.0), prend en charge USB 1.1/2.0/3.0 jusqu’à 5 Gb/s Connecteurs - 4 x connecteurs SATA3, prennent en charge un taux de transfert de données pouvant aller jusqu’à 6.0Go/s

- 1 x Barrette pour module à infrarouges grand public

- 1 x Connecteur HDMI_SPDIF

- 1 x Embase d’intrusion châssis

- 2 x Connecteur pour ventilateur de CPU (1 x br. 4, 1 x br. 3)

- 1 x Connecteur pour ventilateur de Châssis (br. 4)

- br. 24 connecteur d’alimentation ATX

- br. 4 connecteur d’alimentation 12V ATX

- Connecteur audio panneau avant

- 2 x En-tête USB 2.0 (prendre en charge 4 ports USB 2.0 supplémentaires)

ASRock FM2A75M-ITX Motherboard

- 1 x En-tête USB 3.0 (prendre en charge 2 ports USB 3.0 supplémentaires) BIOS - 64Mb AMI UEFI Legal BIOS avec support GUI

- Support du “Plug and Play”

- Compatible pour événements de réveil ACPI 1.1

- Gestion jumperless

- Support SMBIOS 2.3.1

- DRAM, APU PCIE VDDP, SB, CPU et CPU NB/GFX Tension Multi-ajustement CD d’assistance - Pilotes, utilitaires, logiciel anti-virus (Version d’essai), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser et Toolbar Surveillance - Détection de la température de l’UC système - Mesure de température de la carte mère

- Tachéomètre ventilateur CPU Ventilateur

- Tachéomètre ventilateur Châssis Ventilateur

- Ventilateur silencieux pour unité CPU

- Commande de ventilateur CPU/Châssis à plusieurs vitesses

- Détection d’OUVERTURE DE BOÎTIER

- Monitoring de la tension: +12V, +5V, +3.3V, Vcore OS - Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista

VistaTM 64-bit Certications - FCC, CE, WHQL

- Prêt pour ErP/EuP (alimentation Prêt pour ErP/EuP requise)

* Pour de plus amples informations sur les produits, s’il vous plaît visitez notre site web: http://www.asrock.com

ASRock FM2A75M-ITX Motherboard

Français

1.3 Réglage des cavaliers

L’illustration explique le réglage des cavaliers. Quand un capuchon est placé sur les broches, le cavalier est « FERME ». Si aucun capuchon ne relie les broches,le cavalier est « OUVERT ». L’illustration montre un cavalier à 3 broches dont les broches 1 et 2 sont « FERMEES » quand le capuchon est placé sur ces 2 broches.

Le cavalier Description

Effacer la CMOS

(CLRCMOS1) (voir p.2 g. 23)

Remarque :

Paramètres par défaut

CLRCMOS1 vous permet d’effacer les données du CMOS. Pour effacer et réinitialiser les paramètres du système à la conguration originale, veuillez éteindre l’ordinateur et débrancher le cordon d’alimentation de la prise de courant. Après 15 secondes, utilisez un couvercle de jumper pour court-circuiter les broches pin2 et pin3 de CLRCMOS1 pendant secondes. Veuillez cependant ne pas effacer le CMOS immédiatement a

près avoir mis à jour le BIOS. Si vous avez besoin d’effacer le CMOS après avoir mis à jour le BIOS, vous devez allumer en premier le système, puis l’éteindre avant de continuer avec l’opération d’effacement du CMOS. Veuillez noter que le mot de passe, la date, l’heure, le prol par défaut de l’utilisateur, 1394 GUID et l’adresse MAC seront effacés seulement si la batterie du CMOS est enlevée.

Effacer la CMOS

Français

Si vous effacez la CMOS, il se peut qu’une ouverture du boîtier

soitdétectée. Veuillez ajuster l’option du BIOS “Clear Status”

(Effacerl’état) pour effacer la mention d’état d’intrusion dans le

châssis.

ASRock FM2A75M-ITX Motherboard

1.4 En-têtes et Connecteurs sur Carte

Connecteurs Série ATA3 Ces quatre connecteurs Série

(SATA3_1: voir p.2 No. 14)

(SATA3_2: voir p.2 No. 15)

(SATA3_3 voir p.2 No. 12)

(SATA3_4 voir p.2 No. 13)

actuelle permet des taux transferts de données pouvant aller jusqu’à 6,0 Gb/s.

Câble de données Toute cote du cable de data Série ATA (SATA) SATA peut etre connecte au

(en option)

connecteur SATA3 sur la carte mere.

En-tête USB 2.0 A côté des quatre ports USB

(USB_45 br.9)

(voir p.2 No. 9)

2.0 sur cette carte mère. Chaque embase USB 2.0 peut

(USB_67 br.9)

(voir p.2 No. 10)

Les en-têtes et connecteurs sur carte NE SONT PAS des cavaliers. NE PAS placer les capuchons de cavalier sur ces en-têtes et connecteurs. Le fait de placer les capuchons de cavalier sur les entêtes et connecteurs causera à la carte mère des dommages irréversibles!

ATA3 (SATA3) prennent en

charge les câbles SATA pour les périphériques de stockage internes. L’interface SATA3

SATA3_2 SATA3_4

SATA3_1 SATA3_3

disque dur SATA3 ou au

2.0 par défaut sur le panneau E/S, il y a deux embases USB

prendre en charge 2 ports USB

2.0.

ASRock FM2A75M-ITX Motherboard

Français

En-tête USB 3.0 En plus des deux ports USB

(USB3_0_1 br. 19)

(voir p.2 No. 19)

3.0 par défaut sur le panneau

E/S, il y a une barrette USB 3.0

sur la carte mère. Cette barrette

Int A _P_D +

Int A _P_D -

GND

Int A _P_S STX+

Int A _P_S STX-

GND

Int A _P_S SRX+

Int A _P_S SRX-

Vbu s

USB 3.0 peut prendre en charge deux ports USB 3.0.

Int A _P_D +

Int A _P_S STX+

GND

Int A _P_D -

Int A _P_S SRX+

GND

Int A _P_S STX-

Vbu s

Int A _P_S SRX-

Barrette pour module à infrarouges grand public Cette barrette peut être utilisée

(CIR1 br.4)

(voir p.2 No. 11)

pour connecter des récepteur

Français

GND

PRE SENC E#

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

Connecteur audio panneau C’est une interface pour

(HD_AUDIO1 br. 9)

(voir p.2 No. 21)

un câble avant audio en façade

qui permet le branchement et le contrôle commodes de périphériques audio.

1. L’audio à haute dénition (HDA) prend en charge la détection de che, mais le l de panneau sur le châssis doit prendre en charge le HDA pour fonctionner correctement. Veuillez suivre les instructions dans notre manuel et le manuel de châssis an installer votre système.

2. Si vous utilisez le panneau audio AC’97, installez-le sur l’adaptateur audio du panneau avant conformément à la procédure ci-dessous : A. Connectez Mic_IN (MIC) à MIC2_L. B. Connectez Audio_R (RIN) à OUT2_R et Audio_L (LIN) à OUT2_L. C. Connectez Ground (GND) à Ground (GND). D. MIC_RET et OUT_RET sont réservés au panneau audio HD. Vous n’avez pas besoin de les connecter pour le panneau audio AC’97. E. Pour activer le micro avant. Pour les systèmes d’exploitation Windows® 8 / 8 64 bits / 7 / 7 64 bits / VistaTM / VistaTM 64 bits : Allez sur l’onglet “FrontMic” (Micro avant) sur le Panneau de contrôle Realtek. Ajustez “Recording Volume” (Volume d’enregistrement).

ASRock FM2A75M-ITX Motherboard

En-tête du panneau système Cet en-tête permet d’utiliser

(PANEL1 br.9)

(voir p.2 No. 8)

Connectez l’interrupteur d’alimentation, l’interrupteur de réinitialisation et l’indicateur d’état du système du châssis sur cette barrette en respectant l’affectation des broches décrite ci-dessous. Faites attention aux broches positives et négatives avant de connecter les câbles.

PWRBTN (Interrupteur d’alimentation):

RESET (Interrupteur de réinitialisation):

PLED (DEL alimentation système):

HDLED (DEL activité du disque dur):

plusieurs fonctions du

panneau système frontal.

Connectez ici le connecteur d’alimentation sur le panneau avant du châssis. Vous pouvez congurer la façon de mettre votre système hors tension avec l’interrupteur d’alimentation.

Connectez ici le connecteur de réinitialisation sur le panneau avant du châssis. Appuyez sur l’interrupteur de réinitialisation pour redémarrer l’ordinateur s’il se bloque ou s’il n’arrive pas à redémarrer normalement.

Connectez ici l’indicateur d’état de l’alimentation sur le panneau avant du châssis. Ce voyant DEL est allumé lorsque le système est en marche. Le voyant DEL clignote lorsque le système est en mode veille S1. Le voyant DEL est éteint lorsque le système est en mode veille S3/ S4 ou lorsqu’il est éteint (S5).

Connectez ici le voyant DEL d’activité du disque dur sur le panneau avant du châssis. Ce voyant DEL est allumé lorsque le disque dur est en train de lire ou d’écrire des données.

Le design du panneau avant peut varier en fonction du châssis. Un module de panneau avant consiste principalement en : interrupteur d’alimentation, interrupteur de réinitialisation, voyant DEL d’alimentation, voyant DEL d’activité du disque dur, haut-parleur, etc. Lorsque vous connectez le panneau avant de votre châssis sur cette barrette, vériez bien à faire correspondre les ls et les broches.

En-tête du haut-parleur Veuillez connecter le de châssis haut-parleur de châssis sur

(SPEAKER1 br. 4)

(voir p.2 No. 4)

cet en-tête.

ASRock FM2A75M-ITX Motherboard

Français

Connecteur pour châssis ventilateur

(CHA_FAN1 br. 4)

(voir p.2 No. 6)

GND +12 V CHA _FAN _SPE ED FAN _SPE ED_C ONTR OL

Branchez les câbles du ventilateur aux connecteurs pour ventilateur et faites correspondre le l noir à la broche de terre.

Connecteur du ventilateur Veuillez connecter le câble de de l’UC ventilateur d’UC sur ce

(CPU_FAN1 br. 4)

(voir p.2 No. 1)

connecteur et brancher le l

noir sur la broche de terre.

FAN_ SPEE D_CO NTRO L

CPU _FAN_ SPEE D

+12 V

GND

1 2 3 4

Bien que cette carte mère offre un support de (Ventilateur silencieux ventilateur de CPU à 4 broches , le ventilateur de CPU à 3 broches peut bien fonctionner même sans la fonction de commande de vitesse du ventilateur. Si vous prévoyez de connecter le ventilateur de CPU à 3 broches au connecteur du ventilateur de CPU sur cette carte mère, veuillez le connecter aux broches 1-3.

Installation de ventilateur à 3 broches

Broches 1-3 connectées

(CPU_FAN2 br. 3)

(voir p.2 No. 2)

GND

+12 V

CPU _FAN_ SPEE D

En-tête d’alimentation ATX Veuillez connecter l’unité

(ATXPWR1 br. 24)

(voir p.2 No. 3)

d’alimentation ATX sur cet en-

tête.

Bien que cette carte mère fournisse un connecteur de courant ATX 24 broches, elle peut encore fonctionner si vous adopter une alimentation traditionnelle ATX 20 broches. Pour utiliser une alimentation ATX 20 broches, branchez à l’alimentation électrique ainsi qu’aux broches 1 et

13.

24 13

12 1

24 13

Français

20-Installation de l’alimentation électrique ATX

12 1

Connecteur ATX 12V Veuillez connecter une unité

(ATX12V1 br.4)

(voir p.2 No. 20)

d’alimentation électrique ATX

12V sur ce connecteur.

ASRock FM2A75M-ITX Motherboard

Connecteur HDMI_SPDIF Connecteur HDMI_SPDIF,

(HDMI_SPDIF1 2-pin)

(voir p.2 No. 22)

SPDIF vers la carte VGA HDMI,

fournissant une sortie audio

GND

SPD I FOUT

et permettant au système de se connecter au un téléviseur numérique HDMI /un projecteur / un périphérique LCD. Veuillez brancher le connecteur HDMI_SPDIF de la carte VGA HDMI sur ce connecteur.

Embase d’intrusion châssis Cette carte-mère prend

(CI1 br.2)

en charge la détection

(voir p.2 No. 25)

d’OUVERTURE DE BOÎTIER,

Sig n al

GND

quidétecte tout retrait du capot duchâssis. Cette fonction nécessite un châssis qui a été conçu pour la détectiond’intrusion dans le châssis.

ASRock FM2A75M-ITX Motherboard

Français

2. Informations sur le BIOS

La puce Flash Memory sur la carte mère stocke le Setup du BIOS. Lorsque vous démarrez l’ordinateur, veuillez presser <F2> ou <Del> pendant le POST (Power-OnSelf-Test) pour entrer dans le BIOS; sinon, le POST continue ses tests de routine. Si vous désirez entrer dans le BIOS après le POST, veuillez redémarrer le système en pressant <Ctl> + <Alt> + <Suppr>, ou en pressant le bouton de reset sur le boîtier du système. Vous pouvez également redémarrer en éteignant le système et en le rallumant. L’utilitaire d’installation du BIOS est conçu pour être convivial. C’est un programme piloté par menu, qui vous permet de faire déler par ses divers sousmenus et de choisir parmi les choix prédéterminés. Pour des informations détaillées sur le BIOS, veuillez consulter le Guide de l’utilisateur (chier PDF) dans le CD technique.

3. Informations sur le CD de support

Cette carte mère supporte divers systèmes d’exploitation Microsoft® Windows®: 8 / 8 64 bits / 7 / 7 64 bits / VistaTM / Vista carte mère contient les pilotes et les utilitaires nécessaires pour améliorer les fonctions de la carte mère. Pour utiliser le CD technique, insérez-le dans le lecteur de CD-ROM. Le Menu principal s’afche automatiquement si “AUTORUN” est activé dans votre ordinateur. Si le Menu principal n’apparaît pas automatiquement, localisez dans le CD technique le chier “ASSETUP.EXE” dans le dossier BIN et doublecliquez dessus pour afcher les menus.

64 bits. Le CD technique livré avec cette

Français

ASRock FM2A75M-ITX Motherboard

1. Introduzione

Grazie per aver scelto una scheda madre ASRock FM2A75M-ITX, una scheda madre afdabile prodotta secondo i severi criteri di qualità ASRock. Le prestazioni eccellenti e il design robusto si conformano all’impegno di ASRock nella ricerca della qualità e della resistenza. Questa Guida Rapida all’Installazione contiene l’introduzione alla motherboard e la guida passo-passo all’installazione. Informazioni più dettagliate sulla motherboard si possono trovare nel manuale per l’utente presente nel CD di supporto.

Le speciche della scheda madre e il software del BIOS possono essere aggiornati, pertanto il contenuto di questo manuale può subire variazioni senza preavviso. Nel caso in cui questo manuale sia modicato, la versione aggiornata sarà disponibile sul sito di ASRock senza altro avviso. Sul sito ASRock si possono anche trovare le più recenti schede VGA e gli elenchi di CPU supportate. ASRock website http://www.asrock.com Se si necessita dell’assistenza tecnica per questa scheda madre, visitare il nostro sito per informazioni speciche sul modello che si sta usando. www.asrock.com/support/index.asp

1.1 Contenuto della confezione

Scheda madre ASRock FM2A75M-ITX (Mini-ITX Form Factor) Guida di installazione rapida ASRock FM2A75M-ITX CD di supporto ASRock FM2A75M-ITX Due cavi dati Serial ATA (SATA) (opzionali) Un I/O Shield

ASRock vi ricorda...

Per ottenere migliori prestazioni in Windows® 8 / 8 64-bit / 7 / 7 64-bit /

Vista

/ VistaTM 64-bit, si consiglia di impostare l'opzione BIOS in Storage Conguration (Congurazione di archiviazione) sulla modalità AHCI. Per l'impostazione BIOS, fare riferimento a “User Manual” (Manuale dell'utente) nel CD di supporto per dettagli.

ASRock FM2A75M-ITX Motherboard

Italiano

1.2 Speciche

Piattaforma - Mini-ITX Form Factor

- Design condensatore compatto Processore - Supporto per processori socket FM2 100W

- Supporto tecnologia AMD Cool ‘n’ Quiet

- UMI-Link GEN2 Chipset - AMD A75 FCH (Hudson-D3) Memoria - Supporto tecnologia Dual Channel Memory

- 2 x slot DDR3 DIMM

- Supporto DDR3 2600+(OC)/2400(OC)/2133(OC)/1866/1600/ 1333/1066/800 non-ECC, momoria senza buffer

- Capacità massima della memoria di sistema: 32GB

- Supporto di Intel® XMP (Extreme Memory Prole)1.3/1.2

- Supporto di AMD AMP (AMD Memory Prole) Slot di - 1 x slot PCI Express 2.0 x16 espansione - Supporta AMD Dual Graphics VGA su scheda - Graca AMD Radeon HD 7000

- DirectX 11, Pixel Shader 5.0

- Memoria massima condivisa 2GB

- Uscita VGA Doppia: supporto porte HDMI e D-Sub tramite vericatore display indipendente

- Supporta HDMI 1.4a con risoluzione massima no a 1920x1200 @ 60Hz

- Supporta D-Sub con risoluzione massima no a 1920x1600 @ 60Hz

- Supporto delle funzioni Auto Lip Sync, Deep Color (12bpc), xvYCC e HBR (High Bit Rate Audio) con HDMI (è necessario un monitor compatibile HDMI)

- Supporta Blu-ray Stereoscopico in 3D con HDMI 1.4a

- Supporta AMD Steady VideoTM 2.0: Nuova capacità di post-elab orazione video per la riduzione automatica delle vibrazioni nei video a casa/on-line

- Supporto della funzione HDCP con le porte HDMI

- Supporto 1080p Blu-ray (BD) / HD-DVD riproduzione con le porte HDMI Audio - 7.1 CH HD Audio con protezioni contenuti (Realtek ALC892 Audio Codec)

- Supporto audio Blu-ray Premium

- Supporto THX TruStudio

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

ASRock FM2A75M-ITX Motherboard

- Realtek RTL8111E

- Supporta Wake-On-LAN

- Supporta il rilevamento cavo LAN

- Supporto di Energy Efcient Ethernet 802.3az

- Supporta PXE Pannello I/O Panel posteriore - 1 x porta PS/2 per tastiera I/O - 1 x Porta D-Sub

- 1 x Porta HDMI

- 1 x Porta ottica SPDIF Out

- 4 x porte USB 2.0 già integrate

- 1 x Connettore eSATA3

- 2 x porte USB 3.0 già integrate

- 1 x porte LAN RJ-45 con LED (LED azione/collegamento e LED velocità)

- Connettore HD Audio: cassa posteriore / cassa centrale / bassi / ingresso linea / cassa frontale / microfono SATA3 - 4 x connettori SATA3 6,0 Gb/s, supporto di RAID (RAID 0, RAID 1 e RAID 10) e delle funzioni NCQ, AHCI e “Hot Plug” USB 3.0 - 2 x porte USB 3.0 posteriori amministrate dal controller, supporto di USB 1.1/2.0/3.0 no a 5Gb/s

- 1 x header USB 3.0 frontale (supporta 4 porte USB 3.0) amministrato dal controller, supporto di USB 1.1/2.0/3.0 no a 5Gb/s Connettori - 4 x connettori SATA3 6.0Go/s

- 1 x Connettore modulo infrarosso consumer

- 1 x Header HDMI_SPDIF

- 1 x header di intrusione dello chassis

- 2 x Connettore CPU ventola (1 x 4-pin, 1 x 3-pin)

- 1 x Connettore Chassis ventola (4-pin)

- 24-pin collettore alimentazione ATX

- 4-pin connettore ATX 12V

- Connettore audio sul pannello frontale

- 2 x Collettore USB 2.0 (supporta 4 porte USB 2.0)

- 1 x Collettore USB 3.0 (supporta 2 porte USB 3.0) BIOS - 64Mb AMI UEFI Legal BIOS con interfaccia di supporto

- Supporta “Plug and Play”

- Compatibile con ACPI 1.1 wake up events

- Supporta jumperfree

- Supporta SMBIOS 2.3.1

- Regolazione multi-voltaggio DRAM, APU PCIE VDDP, SB, CPU e CPU NB/GFX

ASRock FM2A75M-ITX Motherboard

Italiano

CD di - Driver, utilità, software antivirus (Versione dimostrativa), supporto CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser

e Toolbar Monitoraggio - Sensore per la temperatura del processore Hardware - Sensore temperatura scheda madre

- Indicatore di velocita per la ventola del CPU

- Indicatore di velocita per la ventola del chassis

- Ventola CPU silenziosa

- Ventola CPU/chassis con controllo di varie velocità

- Rilevamento CASE APERTO

- Voltaggio: +12V, +5V, +3.3V, Vcore Compatibi- - Microsoft® Windows® 8 / 8 64 bit / 7 / 7 64 bit / VistaTM / Vista

lità SO

64 bit

Certicazioni - FCC, CE, WHQL

- Predisposto ErP/EuP (è necessaria l’alimentazione predis posta per il sistema ErP/EuP)

* Per ulteriori informazioni, prego visitare il nostro sito internet: http://www.asrock.com

Italiano

ASRock FM2A75M-ITX Motherboard

1.3 Setup dei Jumpers

L’illustrazione mostra come sono settati i jumper. Quando il ponticello è posizionato sui pin, il jumper è “CORTOCIRCUITATO”. Se sui pin non ci sono ponticelli, il jumper è “APERTO”. L’illustrazione mostra un jumper a 3 pin in cui il pin1 e il pin2 sono “CORTOCIRCUITATI” quando il ponticello è posizionato su questi pin.

Jumper Settaggio del Jumper

Resettare la CMOS

(CLRCMOS1) (vedi p.2 item 23)

Nota:

CLRCMOS1 permette si azzerare i dati nella CMOS. Per cancellare e ripristinare i

parametri del sistema sulla congurazione iniziale, spegnere il computer e

Impostazione

predenita

scollegare il cavo d’alimentazione dalla presa di corrente. Attendere 15 secondi, poi usare un cappuccio jumper per cortocircuitare il pin 2 ed il pin 3 su CLRCMOS1 per 5 secondi. Tuttavia, si consiglia di non cancellare la CMOS subito dopo avere aggiornato il BIOS. Se si deve azzerare la CMOS quando si è completato l’aggiornamento del BIOS, è necessario per prima cosa avviare il sistema e poi spegnerlo prima di eseguire l’azzeramento della CMOS. Notare che password, data, ore, prolo utente predenito, 1394 GUID e indirizzo MAC saranno cancellati solo se è rimossa la batteria della CMOS.

Azzeramen-

to CMOS

Se si cancella la CMOS, potrebbe essere rilevata l’apertura del case. Regolare l’opzione del BIOS “Clear Status” (Cancella stato) per cancellarela registrazione del precedente stato d’intrusione chassis.

ASRock FM2A75M-ITX Motherboard

Italiano

1.4 Collettori e Connettori su Scheda

Connettori Serial ATA3 Questi quattro connettori Serial

(SATA3_1: vedi p.2 Nr. 14)

(SATA3_2: vedi p.2 Nr. 15)

(SATA3_3: vedi p.2 Nr. 12)

(SATA3_4: vedi p.2 Nr. 13)

SATA per dispositivi di memoria interni. L’interfaccia SATA3 attuale permette velocità di trasferimento dati no a

6.0 Gb/s.

Cavi dati Serial ATA (SATA) Una o altra estremità del cavo

(Opzionale)

collegata al disco rigido SATA3 o al connettore di SATA3 su questa cartolina base.

I collettori ed i connettori su scheda NON sono dei jumper. NON instal-

lare cappucci per jumper su questi collettori e connettori. L’installazione

di cappucci per jumper su questi collettori e connettori provocherà

danni permanenti alla scheda madre!

ATA3 (SATA3) supportano cavi

dati SATA per dispositivi di immagazzinamento interni. ATA3 (SATA3) supportano cavi

SATA3_2 SATA3_4

SATA3_1 SATA3_3

di dati SATA può essere

Italiano

Collettore USB 2.0 Oltre alle quattro porte USB 2.0

(9-pin USB_45)

(vedi p.2 Nr. 9)

predenite nel pannello I/O, la

scheda madre dispone di due intestazioni USB 2.0. Ciascuna intestazione USB 2.0 supporta due porte USB 2.0.

(9-pin USB_67) (vedi p.2 Nr. 10)

ASRock FM2A75M-ITX Motherboard

Collettore USB 3.0 Oltre alle due porte USB 3.0

(19-pin USB3_0_1)

(vedi p.2 Nr. 19)

standard del pannello I/O,

questa scheda madre è dotata

di un header USB 3.0 che

Int A _P_D +

Int A _P_D -

GND

Int A _P_S STX+

Int A _P_S STX-

GND

Int A _P_S SRX+

Int A _P_S SRX-

Vbu s

supporta due porte USB 3.0.

Int A _P_D +

Int A _P_S STX+

GND

Int A _P_D -

Int A _P_S SRX+

GND

Int A _P_S STX-

Vbu s

Int A _P_S SRX-

Connettore modulo infrarosso consumer Questo connettore può essere

(4-pin CIR1)

(vedi p.2 Nr. 11)

utilizzato per collegare

ricevitore remoto.

Connettore audio sul È un’interfaccia per il cavo del pannello frontale pannello audio. Che consente

(9-pin HD_AUDIO1)

(vedi p.2 Nr. 21)

connessione facile e controllo

dei dispositivi audio.

GND

PRE SENC E#

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. La caratteristica HDA (High Denition Audio) supporta il rilevamento dei connettori, però il pannello dei cavi sul telaio deve supportare la funzione HDA (High Denition Audio) per far sì che questa operi in modo corretto. Attenersi alle istruzioni del nostro manuale e del manuale del telaio per installare il sistema.

2. Se si utilizza un pannello audio AC’97, installarlo nell’intestazione audio del pannello anteriore, come indicato di seguito:

A. Collegare Mic_IN (MIC) a MIC2_L. B. Collegare Audio_R (RIN) a OUT2_R e Audio_L (LIN) ad OUT2_L. C. Collegare Ground (GND) a Ground (GND).

D. MIC_RET e OUT_RET sono solo per il pannello audio HD. Non è

necessario collegarli per il pannello audio AC’97.

E. Per attivare il microfono frontale. Sistema operativo Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit: Andare alla scheda “FrontMic” (Microfono frontale) del pannello di controllo Realtek. Regolare la voce “Recording Volume” (Volume registrazione).

Italiano

ASRock FM2A75M-ITX Motherboard

Collettore pannello di sistema Questo collettore accomoda

(9-pin PANEL1)

(vedi p.2 Nr. 8)

Collegare l’interruttore d’alimentazione, l’interruttore di ripristino, l’indicatore di stato del sistema del pannello frontale del telaio a questo header in base all’assegnazione dei pin denita di seguito. Determinare i pin positivi e negativi prima di collegare i cavi.

PWRBTN (interruttore d’alimentazione):

RESET (interruttore di ripristino):

PLED (LED alimentazione del sistema):

HDLED (LED attività disco rigido):

diverse funzioni di sistema

pannello frontale.

Va collegato all’interruttore d’alimentazione del pannello frontale del telaio. Usando l’interruttore d’alimentazione si può congurare il modo in cui si spegne il sistema.

Va collegato all’interruttore di ripristino del pannello frontale del telaio. Premere l’interruttore di ripristino per riavviare il sistema se il computer si blocca e non riesce ad eseguire un normale riavvio.

Va collegato all’indicatore di stato d’alimentazione del pannello frontale del telaio. Il LED è acceso quando il sistema è operativo. Il LED continua a lampeggiare quando il sistema è in stato di standby S1. Il LED è spento quando il sistema è in stato di sospensione /ibernazione S3/S4 oppure spento (S5).

Va collegato al LED attività disco rigido del pannello frontale del telaio. Il LED è acceso quando disco rigido legge e scrive i dati.

Italiano

Il design del pannello frontale può variare in base ai telai. Il modulo di un pannello frontale può consistere di: interruttore d’alimentazione, interruttore di ripristino, LED d’alimentazione, LED attività disco rigido, casse, eccetera. Quando si collega il modulo del pannello frontale a questo header, assicurarsi che l’assegnazione dei li e dei pin sia fatta corrispondere in modo appropriato.

Collettore casse telaio Collegare le casse del telaio a

(4-pin SPEAKER1)

(vedi p.2 Nr. 4)

questo collettore.

ASRock FM2A75M-ITX Motherboard

Collettori Chassis ventola Collegare i cavi della ventola ai

(4-pin CHA_FAN1)

(vedi p.2 Nr. 6)

facendo combaciare il cavo

corrispondenti connettori

GND +12 V CHA _FAN _SPE ED FAN _SPE ED_C ONTR OL

nero col pin di terra.

Connettore ventolina CPU Collegare il cavo della ventolina

(4-pin CPU_FAN1)

(vedi p.2 Nr. 1)

CPU a questo connettore e far

combaciare il lo nero al pin

terra.

FAN_ SPEE D_CO NTRO L

CPU _FAN_ SPEE D

+12 V

GND

1 2 3 4

Sebbene la presente scheda madre disponga di un supporto per ventola CPU a 4 piedini (ventola silenziosa), la ventola CPU a 3 piedini è in grado di funzionare anche senza la funzione di controllo della velocità della ventola. Se si intende collegare la ventola CPU a 3 piedini al connettore della ventola CPU su questa scheda madre, collegarla ai piedini 1-3.

Piedini 1-3 collegati

Installazione della ventola a 3 piedini

(3-pin CPU_FAN2)

(vedi p.2 Nr. 2)

Connettore alimentazione ATX Collegare la sorgente

(24-pin ATXPWR1)

(vedi p.2 Nr. 3)

d’alimentazione ATX a questo

connettore.

GND

+12 V

CPU _FAN_ SPEE D

24 13

12 1

Con questa scheda madre, c’è in dotazione un connettore elettrico ATX a 24 pin, ma può funzionare lo stesso se si adotta un alimentatore ATX a 20 pin. Per usare l’alimentatore ATX a 20 pin, collegare l’alimentatore con il Pin 1 e il Pin 13.

24 13

Installazione dell’alimentatore ATX a 20 pin

12 1

Connettore ATX 12 V Collegare un alimentatore ATX

(4-pin ATX12V1)

(vedi p.2 Nr. 20)

12 V a questo connettore.

ASRock FM2A75M-ITX Motherboard

Italiano

Header HDMI_SPDIF Header HDMI_SPDIF, con

(2-pin HDMI_SPDIF1)

(vedi p.2 Nr. 22)

uscita audio SPDIF su scheda

HDMI VGA, consente al

SPD I FOUT

GND

sistema di collegare dispositivi per TV digitale HDMI/proiettori/ LCD . Collegare il connettore HDMI_SPDIF della scheda VGA HDMI a questo header.

Header di intrusione dello chassis Questa scheda madre supporta

(2-pin CI1)

la funzione di rilevamento del

(vedi p.2 Nr. 25)

CASE APERTOche rileva che

Sig n al

GND

il coperchio dellochassis è stato rimosso.Questa funzione richiede unochassis con struttura dirilevamento di intrusione dellochassis.

2. Informazioni sul BIOS

La Flash Memory sulla scheda madre contiene le Setup Utility. Quando si avvia il computer, premi <F2> o <Del> durante il Power-On-Self-Test (POST) della Setup utility del BIOS; altrimenti, POST continua con i suoi test di routine. Per entrare il BIOS Setup dopo il POST, riavvia il sistema premendo <Ctl> + <Alt> + <Delete>, o premi il tasto di reset sullo chassis del sistema. Per informazioni più dettagliate circa il Setup del BIOS, fare riferimento al Manuale dell’Utente (PDF le) contenuto nel cd di supporto.

Italiano

3. Software di supporto e informazioni su

Questa scheda madre supporta vari sistemi operativi Microsoft® Windows®: 8 / 8 64bit / 7 / 7 64-bit / VistaTM / Vista madre contiene i driver e utilità necessari a potenziare le caratteristiche della scheda. Inserire il CD di supporto nel lettore CD-ROM. Se la funzione “AUTORUN” è attivata nel computer, apparirà automaticamente il Menù principale. Se il Menù principale non appare automaticamente, posizionarsi sul le “ASSETUP.EXE” nel CESTINO del CD di supporto e cliccare due volte per visualizzare i menù.

ASRock FM2A75M-ITX Motherboard

64-bit. Il CD di supporto a corredo della scheda

1. Introducción

Gracias por su compra de ASRock FM2A75M-ITX placa madre, una placa de conanza producida bajo el control de calidad estricto y persistente. La placa madre provee realización excelente con un diseño robusto conforme al compromiso de calidad y resistencia de ASRock. Esta Guía rápida de instalación contiene una introducción a la placa base y una guía de instalación paso a paso. Puede encontrar una información más detallada sobre la placa base en el manual de usuario incluido en el CD de soporte.

Porque las especicaciones de la placa madre y el software de BIOS podrían ser actualizados, el contenido de este manual puede ser cambiado sin aviso. En caso de cualquier modicación de este manual, la versión actualizada estará disponible en el website de ASRock sin previo aviso. También encontrará las listas de las últimas tarjetas VGA y CPU soportadas en la página web de ASRock. Website de ASRock http://www.asrock.com Si necesita asistencia técnica en relación con esta placa base, visite nuestra página web con el número de modelo especíco de su placa. www.asrock.com/support/index.asp

1.1 Contenido de la caja

Placa base ASRock FM2A75M-ITX (Factor forma Mini-ITX) Guía de instalación rápida de ASRock FM2A75M-ITX CD de soporte de ASRock FM2A75M-ITX Dos cables de datos Serial ATA (SATA) (Opcional) Una protección I/O

ASRock le recuerda...

Para mejorar el rendimiento en Windows® 8 / 8 64 bits / 7 / 7 64 bits / Vis-

/ VistaTM 64 bits, es recomendable establecer la opción del BIOS de la conguración de almacenamiento en el modo AHCI. Para obtener detalles sobre la conguración del BIOS, consulte el “Manual del usuario” que se encuentra en nuestro CD de soporte.

ASRock FM2A75M-ITX Motherboard

Español

1.2 Especicación

Plataforma - Factor forma Mini-ITX

- Todo diseño de Capacitor Sólido Procesador - Admite procesadores de 100 W para zócalo FM2

- Con soporte para tecnología Cool ‘n’ QuietTM de AMD

- UMI-Link GEN2

Chipset - AMD A75 FCH (Hudson-D3) Memoria - Soporte de Tecnología de Memoria de Doble Canal

- 2 x DDR3 DIMM slots

- Apoya DDR3 2600+(OC)/2400(OC)/2133(OC)/1866/1600/ 1333/1066/800 non-ECC, memoria de un-buffered

- Máxima capacidad de la memoria del sistema: 32GB

- Compatible con Intel® Extreme Memory Prole (XMP)1.3/1.2

- Compatible con AMD Memory Prole (AMP) Ranuras de - 1 x ranura PCI Express 2.0 x16 Expansión - Admite AMD Dual Graphics VGA OnBoard - Tarjeta gráca AMD Radeon HD 7000

- DirectX 11, Pixel Shader 5.0

- 2GB de Memoria máxima compartida

- Salida de VGA dual: apoya los puertos de HDMI y de D-Sub por los reguladores independientes de la exhibición

- Admite HDMI 1.4a con una resolución máxima de 1920x1200 a 60 Hz

- Admite D-Sub con una resolución máxima de 1920x1600 a 60 Hz

- Admite Sincronización automática entre audio y vídeo, Deep Color (12 bpc), xvYCC y HBR (audio de alta tasa de bits) con HDMI (se necesita un monitor compatible con HDMI)

- Admite la función 3D estereoscópica Blu-ray con HDMI 1.4a

- Admite AMD Steady VideoTM 2.0: Nueva capacidad de pospro cesamiento de vídeo para reducción automática de oscila ciones en vídeo doméstico y en línea

- Admite la función HDCP con puertos HDMI

- Apoya la reproducción de Blu-rayo de 1080p (BD) / HD-DVD con puertos HDMI Audio - 7.1 CH HD Audio con Protección de Contenido (Realtek ALC892 Audio Codec)

- Compatible con audio Blu-ray de alta calidad

- Compatible con THX TruStudioTM

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

ASRock FM2A75M-ITX Motherboard

- Realtek RTL8111E

- Soporta Wake-On-LAN

- Admite detección de conexión de cable LAN

- Compatible con Ethernet 802.3az de bajo consumo energético

- Compatible con PXE Entrada/Salida I/O Panel de Panel - 1 x puerto de teclado PS/2 Trasero - 1 x Puerto D-Sub

- 1 x Puerto HDMI

- 1 x puerto de salida óptica SPDIF

- 4 x puertos USB 2.0 predeterminados

- 1 x Conector eSATA3

- 2 x puertos USB 3.0 predeterminados

- 1 x Puerto LAN RJ-45 con LED (LED de ACCIÓN/ ENLACE y LED de VELOCIDAD)

- Conexión de audio: Altavoz trasero / Central/Bajos / Entrada de línea / Altavoz frontal / Micrófono SATA3 - 4 x conectores SATA3 de 6,0 Gb/s compatibles con funciones RAID (RAID 0, RAID 1 y RAID 10), NCQ, AHCI y de “conexión en caliente” compatibles con funciones NCQ, AHCI y de “conexión en caliente” USB 3.0 - 2 x puertos USB 3.0 traseros, compatible con USB 1.1/2.0/3.0 de hasta 5 GB/s

- 1 x cabecera USB 3.0 delantera (compatible con 2 puertos USB 3.0), compatible con USB 1.1/2.0/3.0 de hasta 5 GB/s Conectores - 4 x conexiones SATA3, admiten una velocidad de transferencia de datos de hasta 6,0Gb/s

- 1 x Base de conexiones del módulo de infrarrojos para el consumidor

- 1 x cabecera HDMI_SPDIF

- 1 x Conector de detección de intrusión en el chasis

- 2 x Conector de ventilador de CPU (1 x 4-pin, 1 x 3-pin)

- 1 x Conector de ventilador de chasis (4-pin)

- 24-pin cabezal de alimentación ATX

- 4-pin conector de ATX 12V power

- Conector de audio de panel frontal

- 2 x Cabezal USB 2.0 (admite 4 puertos USB 2.0 adicionales)

- 1 x Cabezal USB 3.0 (admite 2 puertos USB 3.0 adicionales)

ASRock FM2A75M-ITX Motherboard

Español

BIOS - 64Mb AMI BIOS legal UEFI AMI compatible con GUI

- Soporta “Plug and Play”

- ACPI 1.1 compliance wake up events

- Soporta “jumper free setup”

- Soporta SMBIOS 2.3.1

- Múltiple ajuste deDRAM, APU PCIE VDDP, SB, CPU y CPU NB/GFX Voltage CD de soport - Controladores, Utilerías, Software de Anti Virus (Versión de prueba), Prueba de CyberLink MediaEspresso 6.5, Google Chrome Browser y Toolbar Monitor Hardware - Sensibilidad a la temperatura del procesador

- Sensibilidad a la temperatura de la placa madre

- Taquimetros de los ventiladores del procesador y del CPU

- Taquimetros de los ventiladores del procesador y del chasis

- Ventilador silencioso del CPU

- Control de ajuste de la velocidad del ventilador de la CPU y el chasis

- Control de APERTURA DE CARCASA

- Monitor de Voltaje: +12V, +5V, +3.3V, Vcore OS - En conformidad con Microsoft® Windows® 8 / 8 64 bits / 7 / 7 64 bits / VistaTM / VistaTM 64 bits Certicaciones - FCC, CE, WHQL

- Cumple con la directiva ErP/EuP (se requiere una fuente de alimentación que cumpla con la directiva ErP/EuP)

* Para más información sobre los productos, por favor visite nuestro sitio web: http://www.asrock.com

Español

ASRock FM2A75M-ITX Motherboard

1.3 Setup de Jumpers

La ilustración muestra como los jumpers son congurados. Cuando haya un jumpercap sobre los pins, se dice gue el jumper está “Short”. No habiendo jumper cap sobre los pins, el jumper está “Open”. La ilustración muesta un jumper de 3 pins cuyo pin 1 y pin 2 están “Short”.

Jumper Setting

Limpiar CMOS

(CLRCMOS1, jumper de 3 pins) (ver p.2, No. 23)

Nota:

Valor predeterminado

Restablecimiento de

la CMOS

CLRCMOS1 permite borrar los datos de la memoria CMOS. Para borrar los parámetros del sistema y restablecer la conguración predeterminada de los mismos, apague el equipo y desenchufe el cable de alimentación de la toma de corriente eléctrica. Deje que transcurran 15 segundos y, después, utilice un puente cortocircuitar los contactos 2 y 3 de CLRCMOS1 durante 5 segundos. No borre la memoria CMOS justamente después de actualizar el BIOS. Si necesita borrar la memoria CMOS justamente después de actualizar el BIOS, debe iniciar primero el sistema y, a continuación, cerrarlo antes de llevar a cabo el borrado de dicha memoria. Tenga en cuenta que la contraseña, la fecha, la hora, el perl predeterminado del usuario, el GUID 1394 y la dirección MAC solamente se borrará si la batería CMOS se quita.

para

Si borra la memoria CMOS, se puede detectar un caso de abertura. Ajuste la opción del BIOS “Clear Status” (Borrar estado) para borrar elregistro del estado de intrusión anterior del chasis.

ASRock FM2A75M-ITX Motherboard

Español

1.4 Cabezales y Conectores en Placas

Los conectores y cabezales en placa NO son puentes. NO coloque las cubiertas de los puentes sobre estos cabezales y conectores. El colocar cubiertas de puentes sobre los conectores y cabezales provocará un daño permanente en la placa base.

Conexiones de serie ATA3 Estas cuatro conexiones de

(SATA3_1: vea p.2, N. 14)

(SATA3_2: vea p.2, N. 15)

(SATA3_3: vea p.2, N. 12)

(SATA3_4: vea p.2, N. 13)

una velocidad de transferencia de 6.0 Gb/s.

Cable de datos de Cualquier extremo del cable de serie ATA (SATA) los datos de SATA puede ser

(Opcional)

conectado con el disco duro de SATA3 o el conectador de SATA3 en esta placa base.

Cabezal USB 2.0 Además de cuatro puertos

(9-pin USB_45)

(vea p.2, N. 9)

USB 2.0 predeterminados en el

panel de E/S, hay dos bases de conexiones USB 2.0 en esta placa base. Cada una de estas bases de conexiones

(9-pin USB_67)

(vea p.2, N. 10)

admite dos puertos USB 2.0.

serie ATA3 (SATA3) admiten cables SATA para dispositivos de almacenamiento internos. La interfaz SATA3 actual permite

SATA3_2 SATA3_4

SATA3_1 SATA3_3

Español

Cabezal USB 3.0 Además de dos puertos 3.0

(19-pin USB3_0_1)

(vea p.2, N. 19)

predeterminados situados en el

panel E/S, encontrará una

cabecera USB 3.0 en esta

Int A _P_D +

Int A _P_D -

GND

Int A _P_S STX+

Int A _P_S STX-

GND

Int A _P_S SRX+

Int A _P_S SRX-

Vbu s

placa base. Esta cabecera USB

3.0 admiten dos puertos USB

3.0.

Int A _P_D +

Int A _P_S STX+

GND

Int A _P_D -

Int A _P_S SRX+

GND

Int A _P_S STX-

Vbu s

Int A _P_S SRX-

ASRock FM2A75M-ITX Motherboard

Base de conexiones del módulo de Esta base de conexiones se infrarrojos para el consumidor puede utilizar para conectar

(4-pin CIR1)

(vea p.2, N. 11)

receptor remoto.

Conector de audio de Este es una interface para panel frontal cable de audio de panel frontal

(9-pin HD_AUDIO1)

(vea p.2, N. 21)

que permite conexión y control

conveniente de apparatos de

Audio.

GND

PRE SENC E#

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. El Audio de Alta Denición soporta la detección de conector, pero el cable de panel en el chasis debe soportar HDA para operar correctamente. Por favor, siga las instrucciones en nuestro manual y en el manual de chasis para instalar su sistema.

2. Si utiliza el panel de sonido AC’97, instálelo en la cabecera de sonido del panel frontal de la siguiente manera: A. Conecte Mic_IN (MIC) a MIC2_L. B. Conecte Audio_R (RIN) a OUT2_R y Audio_L (LIN) en OUT2_L. C. Conecte Ground (GND) a Ground (GND).

D. MIC_RET y OUT_RET son sólo para el panel de sonido HD. No

necesitará conectarlos al panel de sonido AC’97. E. Activación del micrófono frontal. En sistemas operativos Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit: Acceda a la cha “FrontMic” (Micrófono frontal) del panel de control Realtek. Ajuste la posición del control deslizante “Recording Volume” (Volumen de grabación).

Cabezal de panel de sistema Este cabezar acomoda varias

(9-pin PANEL1)

(vea p.2, N. 8)

dunciones de panel frontal de

sistema.

Conecte el interruptor de alimentación, el interruptor de restablecimiento y el indicador de estado del sistema situados en el chasis con esta cabecera en función de las siguientes asignaciones de contacto. Preste atención a los contactos positivos y negativos antes de conectar los cables.

PWRBTN (interruptor de alimentación):

Conecte el interruptor de encendido situado en el panel frontal del

ASRock FM2A75M-ITX Motherboard

Español

chasis. Puede congurar la forma de apagar su sistema mediante el interruptor de alimentación.

RESTABLECER (interruptor de restablecimiento):

Conecte el interruptor de restablecimiento situado en el panel frontal del chasis. Pulse el interruptor de restablecimiento para restablecer el equipo si se bloquea y no se reinicia con normalidad.

PLED (LED de alimentación del sistema):

Conecte el indicador de estado de alimentación situado en el panel frontal del chasis. El LED se enciende cuando el sistema esté en funcionamiento. El LED parpadea cuando el sistema se encuentre en estado de suspensión S1. El LED se apaga cuando el sistema se encuentre en estado de suspensión S3/S4 o se apaga (S5).

HDLED (LED de actividad del disco duro):

Conecte el LED de actividad de disco duro situado en el panel frontal del chasis. El LED se enciende cuando el disco duro esté leyendo o escribiendo datos.

Es posible que el diseño del panel frontal varíe en función del chasis. Un módulo del panel frontal consiste principalmente de interruptor de alimentación, interruptor de restablecimiento, LED de alimentación, LED de actividad del disco duro, altavoz, etc. Al conectar el módulo del panel frontal del chasis a esta cabecera, asegúrese de que las asignaciones de cables y las asignaciones de contactos coincidan correctamente.

Cabezal del altavoz del chasis Conecte el altavoz del chasis a

(4-pin SPEAKER1)

(vea p.2, N. 4)

su cabezal.

Español

Conectores de ventilador de chasis

(4-pin CHA_FAN1)

(vea p.2, N. 6)

GND +12 V CHA _FAN _SPE ED FAN _SPE ED_C ONTR OL

Por favor, conecte los cables del ventilador a los conectores de ventilador, haciendo coincidir el cable negro con la patilla de masa.

Conector del ventilador Conecte el cable del ventilador de la CPU de la CPU a este conector y

(4-pin CPU_FAN1)

(vea p.2, N. 1)

haga coincidir el cable negro

con el conector de tierra.

FAN_ SPEE D_CO NTRO L

CPU _FAN_ SPEE D

+12 V

GND

1 2 3 4

ASRock FM2A75M-ITX Motherboard

Aunque esta placa base proporciona compatibilidad para un ventilador (silencioso) de procesador de 4 contactos, el ventilador de procesador de 3 contactos seguirá funcionando correctamente incluso sin la función de control de velocidad del ventilador. Si pretende enchufar el ventilador de procesador de 3 contactos en el conector del ventilador de procesador de esta placa base, conéctelo al contacto 1-3.

Contacto 1-3 conectado

Instalación del ventilador de 3 contactos

(3-pin CPU_FAN2)

(vea p.2, N. 2)

Cabezal de alimentación ATX Conecte la fuente de

(24-pin ATXPWR1)

(vea p.2, N. 3)

alimentación ATX a su cabezal.

GND

+12 V

CPU _FAN_ SPEE D

24 13

12 1

A pesar de que esta placa base incluye in conector de alimentación ATX de 24 pins, ésta puede funcionar incluso si utiliza una fuente de alimentación ATX de 20 pins tradicional. Para usar una fuente de alimentación ATX de 20 pins, por favor, conecte su fuente de alimentación usando los Pins 1 y 13.

24 13

Instalación de una Fuente de Alimentación ATX de 20 Pins

12 1

Conector de ATX 12V power Tenga en cuenta que es

(4-pin ATX12V1)

(vea p.2, N. 20)

necesario conectar este

conector a una toma de corriente con el enchufe ATX 12V, de modo que proporcione suciente electricidad. De lo contrario no se podrá encender.

Cabecera HDMI_SPDIF Cabecera HDMI_SPDIF. Ofrece

(HDMI_SPDIF1 de 2 pin)

(vea p.2, N. 22)

VGA HDMI, permite al sistema

una salida SPDIF la tarjeta

SPD I FOUT

GND

conectarse a dispositivos de TV Digital HDMI / proyectores / Dispositivos LCD. Conecte el conector HDMI_SPDIF de la tarjeta VGA HDMI a esta cabecera.

ASRock FM2A75M-ITX Motherboard

Español

Conector de detección de intrusión en el chasis Esta placa base admite la

(2-pin CI1)

función de control de

(vea p.2, N. 25)

APERTURA DE CARCASA,

quepermite detectar si se

Sig n al

GND

haretirado la cubierta del chasis.Dicha función requiere unchasis con diseño especícopara la detección de intrusiónen el chasis.

2. BIOS Información

El Flash Memory de la placa madre deposita SETUP Utility. Durante el Power-Up (POST) apriete <F2> o <Del> para entrar en la BIOS. Sí usted no oprime ninguna tecla, el POST continúa con sus rutinas de prueba. Si usted desea entrar en la BIOS después del POST, por favor reinicie el sistema apretando <Ctl> + <Alt> + <Borrar>, o apretando el botón Reset en el panel del ordenador. Para información detallada sobre como congurar la BIOS, por favor reérase al Manual del Usuario (archivo PDF) contenido en el CD.

3. Información de Software Support CD

Esta placa-base soporta diversos tipos de sistema operativo Windows®: 8 / 8 64 bits / 7 / 7 64 bits / VistaTM / Vista base trae todos los drivers y programas utilitarios para instalar y congurar la placabase. Para iniciar la instalación, ponga el CD en el lector de CD y se desplegará el Menú Principal automáticamente si «AUTORUN» está habilitado en su computadora. Si el Menú Principal no aparece automáticamente, localice y doble-pulse en el archivo “ASSETUP.EXE” para iniciar la instalación.

64 bits. El CD de instalación que acompaña la placa-

Español

ASRock FM2A75M-ITX Motherboard

1. Введение

Благодарим вас за покупку материнской платы ASRock FM2A75M-ITX надежной материнской платы, изготовленной в соответствии с постоянно предъявляемыми ASRock жесткими требованиями к качеству. Она обеспечивает превосходную производительность и отличается отличной конструкцией, которые отражают приверженность ASRock качеству и долговечности. Данное руководство по быстрой установке включает вводную информацию о материнской плате и пошаговые инструкции по ее установке. Более подробные сведения о плате можно найти в руководстве пользователя на компакт-диске поддержки.

Спецификации материнской платы и программное обеспечение BIOS иногда изменяются, поэтому содержание этого руководства может обновляться без уведомления. В случае любых модификаций руководства его новая версия будет размещена на веб-сайте ASRock без специального уведомления. Кроме того, самые свежие списки поддерживаемых модулей памяти и процессоров можно найти на сайте ASRock. Адрес веб-сайта ASRock http://www.asrock.com При необходимости технической поддержки по вопросам данной материнской платы посетите наш веб-сайт для получения информации об используемой модели. www.asrock.com/support/index.asp

1.1 Комплектность

Материнская плата ASRock FM2A75M-ITX (форм-фактор Mini-ITX) Руководство по быстрой установке ASRock FM2A75M-ITX Компакт-диск поддержки ASRock FM2A75M-ITX 2 x кабель данных Serial ATA (SATA) (дополнительно) 1 x I/O Щит Группы ввода / вывода

ASRock напоминает...

Для обеспечения максимальной производительности ОС Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista BIOS выбрать для параметра Storage Conguration (Конфигурация запоминающего устройства) режим AHCI. Подробные сведения о настройке BIOS см. в руководстве пользователя на прилагаемом компакт-диске.

/ VistaTM 64-bit рекомендуется в

ASRock FM2A75M-ITX Motherboard

Русский

1.2 Спецификации

Платформа - форм-фактор Mini-ITX

- Весь Твердый Конденсаторный проект Процессор - Поддерживаются процессоры для гнезда Socket FM2 с потребляемой мощностью до 100 Вт

- Поддержка технологии AMD Cool ‘n’ Quiet

- UMI-Link GEN2 Набор микросхем - AMD A75 FCH (Hudson-D3) Память - Поддержка технологии Dual Channel DDR3 Memory Technology (см. ОСТОРОЖНО, пункт 1)

- 2 x гнезда DDR3 DIMM

- Поддержите DDR3 2600+(OC)/2400(OC)/2133(OC)/1866/ 1600/1333/1066/800 не- ECC, безбуферная память

- Mакс. 32 Гб

- поддержка профиля Intel® Extreme Memory Prole (XMP)1.3/1.2

- поддержка профиля AMD Memory Prole (AMP)

Гнезда - 1 x гнезда PCI Express 2.0 x16 расширения - Поддерживаются режимы AMD двойные видеокарты

Графика - Видеоадаптер AMD Radeon HD 7000

- Поддержка DirectX 11, Pixel Shader 5.0

- Макс. объем разделяемой памяти 2GB

- Двойственное VGA выходное устройство: поддерживает HDMI и D-Sub порты через независимый контроллер дисплея

- Поддержка HDMI 1.4a с максимальным разрешением до 1920х1200 @ 60 Гц

- Поддержка D-Sub с максимальным разрешением до 1920х1600 @ 60 Гц

- Поддержка Auto Lip Sync, Deep Color (12 бит на цветовой канал), xvYCC и HBR (High Bit Rate Audio) через HDMI (необходим монитор с разъемом HDMI)

- Поддержка стандарта Blu-ray Stereoscopic 3D со спецификацией HDMI 1.4a

- Поддержка технологии AMD Steady VideoTM 2.0: новая функция постобработки видеоизображения для автоматического устранения дрожания при просмотре домашних и онлайновых видеозаписей

- Поддержка функции HDCP через разъемы HDMI

- Подержат Blu-луч 1080p (КОММУТАЦИОННАЯ ДОСКА) / воспроизведение HD-DVD через разъемы HDMI Аудиосистема - 7.1 CH HD Аудио HD с Довольной Защитой (Кодер-декодер Аудио Realtek ALC892)

- Поддержка Premium Blu-ray audio

- Поддержка технологии THX TruStudio ЛВС - PCIE x 1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- поддержка Wake-On-LAN

- Поддержка определения кабеля ЛВС

ASRock FM2A75M-ITX Motherboard

- Поддержка энергосберегающего интерфейса Ethernet 802.3az

- Поддержка PXE Разъемы ввода- I/O Panel вывода на задней - 1 x порт клавиатуры PS/2 панели - 1 x D-Sub порт

- 1 x HDMI порт

- 1 x порт Optical SPDIF Out

- 4 x порта USB 2.0 на задней панели в стандартной конфигурации

- 1 x eSATA3 порт

- 2 x порта USB 3.0 на задней панели в стандартной конфигурации

- Разъем 1 x RJ-45 LAN с светодиодным индикатором (индикатор ACT/LINK и индикатор SPEED)

- Соединитель звуковой подсистемы: тыльная колонка / центральная / субвуфер / линейный вход / передняя колонка / микрофон SATA3 - 4 x разъема SATA3 6,0 Гбит/с, поддержка функций RAID (RAID 0, RAID 1 и RAID 10), NCQ, AHCI и «горячего подключения» USB 3.0 - 2 x задних порта USB 3.0 на контроллере с поддержкой интерфейсов USB 1.1/2.0/3.0 и скорости передачи данных до 5 Гбит/с

- 1 x передний разъем USB 3.0 (поддерживает 2 порта USB 3.0) с поддержкой интерфейсов USB 1.1/2.0/3.0 и скорости передачи данных до 5 Гбит/с

Колодки и - 4 x разъема SATA3 6,0 Гбит/с плате - 1 x Датчик пользовательского инфракрасного модуля

- 1 x Колодка HDMI_SPDIF

- 1 x разъем датчика открытой крышки

- 2 x соединитель CPU FAN (1 x 4-контактный, 1 x 3-контактный)

- 1 x соединитель Chassis FAN (4-контактный)

- 24-контактный Колодка питания ATX

- 4-контактный Разъем ATX 12 В

- Аудиоразъем передней панели

- 2 x Колодка USB 2.0 (одна колодка для поддержки 4 дополнительных портов USB 2.0

- 1 x Колодка USB 3.0 (одна колодка для поддержки 2 дополнительных портов USB 3.0) BIOS - 64Mb AMI UEFI Legal BIOS с поддержкой rpaфичеckoro интеpфeйca поль зователя

- поддержка “Plug and Play”

- ACPI 1.1, включение по событиям

- поддержка режима настройки без перемычек

- поддержка SMBIOS 2.3.1

- Регулировка напряжений DRAM, APU PCIE VDDP, SB, CPU и CPU NB/GFX Компактдиск - Драйверы, Утилиты, Антивирус (пробная версия), Пробная версия поддержки программы CyberLink MediaEspresso 6.5, Google Chrome Browser и Toolbar

ASRock FM2A75M-ITX Motherboard

Русский

Контроль - Датчики температуры процессора оборудования - Датчики температуры корпуса

- Тахометры вентиляторов ЦП FAN

- Тахометры вентиляторов Шасси FAN

- Бесшумный вентилятор ЦП блока

- Мультиконтроль скорости вентилятора ЦП/Шасси

- Определение открытой крышки

- Контроль напряжения: +12V, +5V, +3.3V, Vcore Операцион - Совместимость с Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista ные системы - FCC, CE, WHQL Сертификаты - Совместимость с ErP/EuP Ready (требуется блок питания совместимый с ErP/EuP) * Для детальной информации продукта, пожалуйста посетите наш вебсайт: http://www.asrock.com

/ Поддержка 64-разрядной версии VistaTM

Русский

ASRock FM2A75M-ITX Motherboard

1.3 Установка перемычек

Конфигурация перемычек иллюстрируется на рисунке. Когда перемычка надета на контакты, они называются “замкнутыми” (short). Если на контактах перемычки нет, то они называются “разомкнутыми” (open). На иллюстрации показана 3-контактная перемычка, у которой контакты 1 и 2 замкнуты.

Перемычка Установка Описание

Очистка CMOS

(CLRCMOS1, 3-контактная перемычка) (см. стр. 2, п. 23)

Стандартные Очистка CMOS

Примечание.

Контактная колодк а CLRCMOS1 позволяет очистить данн ые CMOS . Для очистки данных и восстановления заводских системных параметров сначала вы кл ючите компьютер и отсоедините сетевую вилку кабел я пи та ни я от электророзетки. Выждите не менее 15 секунд и колпачковой перемычкой на 5 секунд перемкните штырьки 2 и 3 контактной колодки CLRCMOS1. Однако не производите очистку CMOS непосредственно после обновления BIOS. Если необходимо очистить CMOS сразу же после окончания обновления BIOS, то, перед очисткой CMOS, необходимо сначала выполнить загрузку системы, а затем завершить ее работу. Примите во внимание, что пароль, дата, время, профиль пользователя по умолчанию, идентификатор 1394 GUID и MAC-адрес будут очищены только тогда, когда будет извлечена из своего гнезда батарейка CMOS.

Очистка CMOS может вызвать срабатывание датчика открытой крышки. Измените опцию «Clear Status» в BIOS, чтобы очистить записи о предыдущих срабатываниях датчика.

Русский

ASRock FM2A75M-ITX Motherboard

1.4 Колодки и разъемы на плате

Имеющиеся на плате колодки и разъемы НЕ ЯВЛЯЮТСЯ контактами для перемычек. НЕ УСТАНАВЛИВАЙТЕ перемычки на эти колодки и разъемы – это приведет к необратимому повреждению материнской платы!

Разъемы Serial ATA3 четыре соединителя Serial ATA3

(SATA3_1, см. стр. 2, п. 14) (SATA3_2, см. стр. 2, п. 15) (SATA3_3, см. стр. 2, п. 12) (SATA3_4, см. стр. 2, п. 13)

кабелей SATA3. В настоящее

время интерфейс SATA допускает скорость передачи данных до \ 6,0 Гбит/с.

Информационный Информационный кабель кабель Serial ATA (SATA) интерфейса SATA3 не является

(дополнительно)

направленным. Любой из его соединителей может быть подключен либо к жесткому диску интерфейса SATA3 либо к материнской плате.

Колодка USB 2.0 Помимо четыре стандартных

(9-контактный USB_45) (см. стр. 2, п. 9)

вывода, на данной материнской плате предусмотрено два разъема USB 2.0. Каждый разъем USB 2.0 поддерживает два порта

(9-контактный USB_67) (см. стр. 2, п. 10)

предназначаются для подключения внутренних устройств хранения с

использованием нтерфейсных

SATA3_2 SATA3_4

SATA3_1 SATA3_3

портов USB 2.0 на панели ввода-

USB 2.0.

Русский

ASRock FM2A75M-ITX Motherboard

Колодка USB 3.0 Помимо два стандартных

(19-контактный USB3_0_1) (см. стр. 2, п. 19)

плате предусмотрен один разъем USB 3.0. Этот разъем USB 3.0 поддерживает два порта USB 3.0.

Int A _P_D +

Int A _P_D -

GND

портов USB 3.0 на панели ввода-

Int A _P_D +

Int A _P_S STX+

Int A _P_S STX-

Int A _P_S STX+

GND

Int A _P_D -

GND

Int A _P_S SRX+

Int A _P_S SRX-

Int A _P_S SRX+

GND

Int A _P_S STX-

Vbu s

Int A _P_S SRX-

вывода, на данной материнской

Датчик пользовательского инфракрасного модуля Датчик можно использовать для

(4-контактный CIR1) (см. стр. 2, п. 11)

подключения дистанционный

приемник.

Аудиоразъем передней Этот интерфейс предназначен панели для присоединения

(9-контактный HD_AUDIO1) (см. cтр. 2, п. 21)

обеспечивающего удобное

аудиокабеля передней панели,

подключение аудиоустройств и управление ими.

GND

PRE SENC E#

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. Система High Denition Audio поддерживает функцию автоматического обнаружения разъемов (Jack Sensing), однако для ее правильной pаботы кабель панели в корпусе должен поддерживать HDA. При сборке системы следуйте инструкциям, приведенным в нашем руководстве и руководстве пользователя для корпуса.

2. Если вы используете аудиопанель AC’97, подключите ее к колодке аудиоинтерфейса передней панели следующим образом: A. Подключите выводы Mic_IN (MIC) к контактам MIC2_L. B. Подключите выводы Audio_R (RIN) к контактам OUT2_R, а выводы Audio_L (LIN) к контактам OUT2_L. C. Подключите выводы Ground (GND) к контактам Ground (GND).

D. Контакты MIC_RET и OUT_RET предназначены только для аудиопанели HD. При использовании аудиопанели AC’97

подключать их не нужно.

E. Процедура активации микрофона приведена ниже. Для ОС Windows® 8 / 8 64-бита / 7 / 7 64-бита, VistaTM / VistaTM 64-бита: Перейдите к вкладке «FrontMic» (Передний микрофон) в панели управления Realtek. Отрегулируйте уровень «Recording Volume» (Громкость записи).

Русский

ASRock FM2A75M-ITX Motherboard

Колодка системной панели Данная колодка обеспечивает

(9-контактный PANEL1) (см. стр. 2, п. 8)

работу нескольких функций

передней панели системы.

Подключите к этому разъему кнопку питания, кнопку сброса и индикатор состояния системы на корпусе в соответствии с указанным ниже назначением контактов. При подключении кабелей необходимо соблюдать полярность положительных и отрицательных контактов.

PWRBTN (кнопка питания):

Подключите к этим контактам кнопку питания на передней панели корпуса. Способ выключения системы с помощью кнопки питания можно настроить.

RESET (кнопка сброса):

Подключите к этим контактам кнопку сброса на передней панели корпуса. Нажмите кнопку сброса для перезагрузки компьютера, если компьютер «завис» и нормальную перезагрузку выполнить не удается.

PLED (индикатор питания системы):

Подключите к этим контактам индикатор состояния питания на передней панели корпуса. Этот индикатор светится, когда система работает. Индикатор мигает, когда система находится в режиме ожидания S1. Этот индикатор не светится, когда система находится в режиме ожидания S3 или S4, либо выключена (S5).

HDLED (индикатор активности жесткого диска):

Подключите к этим контактам индикатор активности жесткого диска на передней панели корпуса. Этот индикатор светится, когда осуществляется считывание или запись данных на жестком диске.

Русский

Конструкция передней панели может различаться в зависимости от корпуса. Модуль передней панели в основном состоит из кнопки питания, кнопки сброса, индикатора питания, индикатора активности жесткого диска, динамика и т.п. При подключении к этому разъему модуля передней панели корпуса удостоверьтесь, что провода подключаются к соответствующим контактам.

Колодка динамика корпуса Подключите к этой колодке

(4-контактный SPEAKER1) (см. стр. 2, п. 4)

компьютера.

Chassis Fan-соединители

(4-контактный CHA_FAN1) (см. стр. 2, п. 6)

кабель от динамика на корпусе

GND +12 V CHA _FAN _SPE ED FAN _SPE ED_C ONTR OL

Подключите кабели вентилятора к соединителям и присоедините черный шнур к штырю заземления.

ASRock FM2A75M-ITX Motherboard

Разъем вентилятора Подключите к этому разъему процессора кабель вентилятора процессора

(4-контактный CPU_FAN1) (см. стр. 2, п. 1)

так, чтобы черный провод

соответствовал контакту земли.

FAN_ SPEE D_CO NTRO L

CPU _FAN_ SPEE D

+12 V

GND

1 2 3 4

Данная материнская плата поддерживает вентиляторы процессора с 4-контактным разъемом (функция тихого режима вентилятора), однако вентиляторы с 3-контактным разъемом также будут успешно работать, хотя функция управления скоростью вращения вентилятора окажется недоступной. Если вы хотите подключить вентилятор процессора с 3-контактным разъемом к разъему вентилятора процессора на данной материнской плате, для этого следует использовать контакты 1-3.

Контакты 1-3 подключены

Установка вентилятора с 3-контактным разъемом

(3-контактный CPU_FAN2) (см. стр. 2, п. 2)

Колодка питания ATX Подключите к этой колодке

(24-контактный ATXPWR1) (см. стр. 2, п. 3)

кабель питания ATX.

GND

+12 V

CPU _FAN_ SPEE D

24 13

12 1

Несмотря на то, что эта материнская плата предусматривает 24-штыревой разъем питания ATX, работа будет продолжаться, даже если адаптируется традиционный 20-штыревой разъем питания ATX. Для использования 20-штыревого разъема питания ATX вставьте источник питания вместе со штекером 1 и штекером

13.

Установка 20-штыревого разъема питания ATX

24 13

12 1

Колодка питания 12V-ATX Обратите внимание, что к этому

(4-контактный ATX12V1) (см. стр. 2, п. 20)

разъему необходимо

подключить вилку блока питания ATX 12 В, чтобы обеспечить достаточную мощность электропитания. В противном случае включение системы будет невозможно.

Русский

ASRock FM2A75M-ITX Motherboard

Колодка HDMI_SPDIF Колодка HDMI_SPDIF

(2-контактный HDMI_SPDIF1) (см. стр. 2, п. 22)

HDMI, что позволяет подключать к системе цифровые телевизоры, проекторы или жидкокристаллические панели HDMI. Соедините эту колодку с разъемом HDMI_SPDIF на VGA карте HDMI.

аудиосигнала на VGA-карту

обеспечивает подачу выходного

GND

SPD I FOUT

Русский

Датчик открытой крышки Эта материнская плата

(2-контактный CI1) (см. стр. 2, п. 25)

которая позволяет определить, была ли снята крышка корпуса. Функция требует поддержку со стороны корпуса.

поддерживает функцию

определения открытой крышки,

Sig n al

GND

2. Информация о BIOS

Утилита настройки BIOS (BIOS Setup) хранится во флэш-памяти на материнской плате. Чтобы войти в программу настройки BIOS Setup, при запуске компьютера нажмите <F2> или <Del> во время самопроверки при включении питания (Power-On-Self-Test – POST). Если этого не сделать, то процедуры тестирования POST будут продолжаться обычным образом. Если вы захотите вызвать BIOS Setup уже после POST, перезапустите систему с помощью клавиш <Ctrl> + <Alt> + <Delete> или нажатия кнопки сброса на корпусе системы. Подробную информацию о программе BIOS Setup вы найдете в Руководстве пользователя (в формате PDF) на компакт-диске поддержки.

3. Информация о компакт-диске поддержки с программным обеспечением

Данная материнская плата поддерживает различные операционные системы Microsoft Windows®: 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit. Поставляемый вместе с ней компакт-диск поддержки содержит необходимые драйверы и полезные утилиты, которые расширяют возможности материнской платы. Чтобы начать работу с компакт-диском поддержки, вставьте его в дисковод CD-ROM. Если в вашем компьютере включена функция автозапуска (AUTORUN), то на экране автоматически появится главное меню компакт-диска (Main Menu). Если этого не произошло, найдите в папке BIN на компакт-диске поддержки файл ASSETUP.EXE и дважды щелкните на нем, чтобы открыть меню.

ASRock FM2A75M-ITX Motherboard

1. Introdução

Gratos por comprar nossa placa–mãe FM2A75M-ITX um produto confiável feito com ASRock um estrito controle de qualidade consistente. Com um excelente desempenho, essa placa é dotada de um projeto robusto que atende a ASRock de compromisso com a qualidade e durabilidade. Este Guia de Instalação Rápida apresenta a placa-mãe e o guia de instalação passo a passo. Mais informações detalhadas sobre a placa-mãe podem ser encontradas no manual do usuário do CD de suporte.

ser atualizados, o conteúdo deste manual pode ser cambiado sem aviso. Em caso de qualquer modicação deste manual, a versão atualizada estará disponível no website de ASRock sem prévio aviso. Pode também encontrar as listas das mais recentes placas VGA e das CPUs suportadas no site da web da ASRock. Website de ASRock http://www.asrock.com Se precisar de apoio técnico em relação a este placa-mãe, por favor visite o nosso sítio da internet para informação especíca acerca do modelo que está a utilizar. www.asrock.com/support/index.asp

Porque as especicações da placa mãe e o software de BIOS poderiam

1.1 Este pacote contém

Placa-mãe ASRock FM2A75M-ITX (Formato Mini-ITX) Guia de instalação rápida da ASRock FM2A75M-ITX CD de suporte da placa ASRock FM2A75M-ITX Dois cabo de dados ATA Serial (SATA) (Opcional) Uma proteção I/O

A ASRock recorda-lhe...

Para obter melhor desempenho em Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit, recomendamos que dena a opção Conguração de Armazenamento na BIOS para o modo AHCI. Para mais detalhes acerca da conguração da BIOS consulte o “Manual de utilizador” no nosso CD de suporte.

ASRock FM2A75M-ITX Motherboard

Português

1.2 Especicações

Plataforma - Formato Mini-ITX

- Design de condensadores banhados a ouro de alta qualidade CPU - Suporte para processadores com Socket FM2 de 100W

- Suporta a tecnologia Cool ‘n’ Quiet da AMD

- UMI-Link GEN2 Chipsets - AMD A75 FCH (Hudson-D3) Memória - Suporte à tecnologia de memória de duplo canal

- 2 x slots de DDR3 DIMM

- Suporta memória DDR3 2600+(OC)/2400(OC)/2133(OC)/1866 /1600/1333/1066/800, não ECC, sem tampão

- Capacidade máxima de memória do sistema: 32GB

- Suporta Extreme Memory Prole (XMP)1.3/1.2 da Intel

- Suporta Perl de Memória AMD (AMP)

Slots de - 1 x slot de PCI Express 2.0 x16 Expansão - Suporta Dual Graphics da AMD VGA integrado - Placa gráca AMD Radeon HD Série 7000

- DirectX 11, Pixel Shader 5.0

- Memória partilhada máxima 2GB

- Porta de saída VGA dupla: suporta portas HDMI e D-Sub

através de controladores de visualização independentes

- Suporta HDMI 1.4a Tecnologia com resolução máxima até 1920x1200 @ 60Hz

- Suporta D-Sub com resolução máxima até 1920x1600 @ 60Hz

- Suporta as funções Auto Lip Sync (Sincronização automática do som), Deep Color (Profundidade da cor) (12bpc), xvYCC e HBR (áudio de taxa de bits elevada) com HDMI (é necessário um monitor compatível com a norma HDMI)

- Suporta 3D Estereoscópico Blu-ray com HDMI 1.4a

- Suporta AMD Steady VideoTM 2.0: Nova capacidade de pós-processamento de vídeo para redução automática de vibrações em vídeo local/online

- Suporta função HDCP com portas HDMI

- Suporta a norma Blu-ray de alta denição 1080p (BD) / e a

reprodução de DVDs de alta denição com portas HDMI Áudio - Áudio HD de 7.1 canais com protecção de conteúdo

(Realtek ALC892 Audio Codec)

- Suporte áudio Blu-ray superior

- Suporta TruStudioTM da THX

ASRock FM2A75M-ITX Motherboard

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Suporta Wake-On-LAN

- Suporta Detecção de cabo LAN

- Suporta Ethernet com Eciência Energética 802.3az

- Suporta PXE Entrada/Saída I/O Panel pelo painel - 1 x porta para mouse PS/2

- 1 x porta D-Sub

- 1 x porta HDMI

- 1 x Porta de saída SPDIF óptica

- 4 x portas USB 2.0 padrão

- 1 x Conector eSATA3

- 2 x portas USB 3.0 padrão

- 1 x porta LAN RJ-45 com LED (LED ACT/LIG e LED VELOCIDADE)

- Ficha de áudio HD: Altifalante traseiro/Central/Baixos/Entrada

de linha/Altifalante frontal/Microfone SATA3 - 4 x conectores SATA3 a 6,0 Gb/s, com suporte para RAID (RAID 0, RAID 1 e RAID 10), NCQ, AHCI e funções Hot Plug USB3.0 - 2 x Portas USB 3.0 traseiras, com suporte para USB 1.1/2.0/3.0 até 5Gb/s

- 1 x Conector USB 3.0 frontal (suporta 2 portas USB 3.0), com suporte para USB 1.1/2.0/3.0 até 5Gb/s

Conectores - 4 x conectores SATA3, suporte a taxa de transferência de

dados de até 6,0 Gb/s

- 1 x Conector CIR

- 1 x Conector HDMI_SPDIF

- 1 x Conector de intrusão no chassis

- 2 x Conector do ventilador da CPU (1 x 4 pinos, 1 x 3 pinos)

- 1 x Conector do ventilador da chassis (1 x 4 pinos)

- Conector de força do ATX de 24 pinos

- Conector ATX 12 V de 4 pinos

- Conector Áudio do painel frontal

- 2 x cabezal USB 2.0 (suporta 4 portas USB 2.0)

- 1 x cabezal USB 3.0 (suporta 2 portas USB 3.0) BIOS - 64Mb BIOS UEFI ocial da AMI com suporte para GUI

- Suporta dispositivos “Plug and Play”

- ACPI 1.1 atendendo a eventos de “wake up”

- Suporta dispositivos sem jumper

- Suporte para SMBIOS 2.3.1

Português

ASRock FM2A75M-ITX Motherboard

- DRAM, APU PCIE VDDP, SB, CPU e CPU NB/GFX Voltage Multi-adjustment CD de suporte - Controladores, utilitários, software antivírus (Experimentacao Versao), CyberLink MediaEspresso 6.5 versão de demonstração, Navegador Google Chrome e Barra de Ferramentas Monitor do HW - Sensores de temperature do procesador

- Medição de temperatura da placa-mãe

- Tacômetros de ventilador do Processador

- Tacômetros de ventilador do chassis

- Ventoinha silenciosa para a CPU

- CPU/Chassis Fan Controle Multi-Velocidade

- Detecção de CAIXA ABERTA

- Monitoramento de voltagem : +12 V, +5 V, +3.3 V, Vcore Sistema - Microsoft® Windows® 8 / 8 de 64 bits / 7 / 7 de 64 bits / Vista Operacional / Vista

de 64 bits

Certicações - FCC, CE, WHQL

- “ErP/EuP Ready” (é necessária alimentação eléctrica “ErP/ EuP Ready”)

* Para informações mais detalhadas por favor visite o nosso sítio Web: http://www.asrock.com

Português

ASRock FM2A75M-ITX Motherboard

1.3 Conguração dos Jumpers

A ilustração mostra como os jumpers são congurados. Quando há uma capa de jumpers sobre os pinos, diz–se que o jumper está “curto”. Não havendo capa sobre os pinos, o jumper está “aberto”. A ilustração mostra um jumper de 3 pinos em que os pinos 1 e 2 están “curtos” quando a capa de jumper estiver colocada sobre esses 2 pinos.

Jumper Conguração

Restaurar CMOS

(CLRCMOS1, jumper de 3 pinos) (veja a folha 2, No. 23)

Nota: CLRCMOS1 permite você limpar os dados em CMOS. Os dados em CMOS

incluem informações da conguração do sistema como: por exemplo a senha do sistema, data, tempo, e os parámetros da conguração do sistema. Para limpar e recongurar os parámetros do sistema a conguração inicial da fábrica, por favor desligue o cabo de força, ponha em curto–circuito os pin 2 e pin 3 de CLRCMOS1 por mais de 5 segundos para limpar o CMOS usando um jumper. Por favor lembrese de remover o jumper depois de limpar o COMS. Se precisar limpar o CMOS ao concluir a atualização do BIOS, deverá reiniciar o sistema primeiro e, em seguida, desligá-lo antes de executar a ação de limpeza o CMOS. Tenha em atenção que a palavra-passe, data, hora, perfil predefinido de utilizador, 1394 GUID e endereço MAC apenas serão limpos se a bateria do CMOS for retirada.

Conguração-padrão Limpar o CMOS

Se limpar o CMOS, poderá ser detectada a abertura da caixa. Ajuste aopção do BIOS “Clear Status” (Limpar estado) para limpar o registo anterior de estado de intrusão no chassis.

ASRock FM2A75M-ITX Motherboard

Português

1.4 Conectores

Os conectores NÃO SÃO jumpers. NÃO coloque capas de jumper sobre estes conectores. A colocação de pontos de jumper sobre os conectores causará danos irreversíveis à placa-mãe.

Conectores ATA3 Serial Estes quatro conectores Serial

(SATA3_1: veja a folha 2, No. 14)

(SATA3_2: veja a folha 2, No. 15)

(SATA3_3: veja a folha 2, No. 12)

(SATA3_4: veja a folha 2, No. 13)

atual interface SATA3 permite uma taxa de transferência de dados de até 6.0 Gb/s.

Cabo de dados Tanto a saída do cabo de Serial ATA (SATA) dados SATA pode ser

(opcional)

conectado ao disco rígido SATA3 quanto o conector SATA3 na placa mãe.

Cabezal USB 2.0 Além das quatro portas USB 2.0

(USB_45 de 9 pinos)

(veja a folha 2, No. 9)

por defeito no painel de

entrada/saída, há dois ligações USB 2.0 nesta placa-mãe. Cada ligação USB 2.0 pode

(USB_67 de 9 pinos)

(veja a folha 2, No. 10)

suportar dois portas USB 2.0.

ATA (SATA3) suportam unidades de disco rígido SATA ou SATA3 como dispositivos de armazenamento internos. A

SATA3_2 SATA3_4

SATA3_1 SATA3_3

Português

Cabezal USB 3.0 Além das dois portas USB 3.0

(USB3_0_1 de 19 pinos)

(veja a folha 2, No. 19)

USB 3.0 nesta placa-mãe.

Int A _P_D +

Int A _P_D -

por defeito no painel de

entrada/saída, há uns ligações

GND

Int A _P_S STX+

Int A _P_S STX-

GND

Int A _P_S SRX+

Int A _P_S SRX-

Vbu s

Cada ligação USB 3.0 pode suportar dois portas USB 3.0.

Int A _P_D -

Int A _P_D +

Int A _P_S STX-

Int A _P_S STX+

GND

Int A _P_S SRX+

GND

Vbu s

Int A _P_S SRX-

ASRock FM2A75M-ITX Motherboard

Conector do módulo de Este conector pode ser utilizado infravermelhos para ligar o receptor do controlo

(CIR1 de 4 pinos)

(veja a folha 2, No. 11)

remoto.

ATX +5VSB

IRR X

IRT X

GND

Conector Áudio do painel Esta é uma interface para o frontal cabo de áudio no painel frontal,

(HD_AUDIO1 de 9 pinos)

(veja a folha 2, No. 21)

que permite uma conexão e

controle convenientes dos

dispositivos de áudio.

GND

PRE SENC E#

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. Áudio de elevada denição que suporta a sensibilidade da tomada, mas o o do painel existente no chassis tem de suportar HDA para funcionar correctamente. Siga s instruções que aparecem no manual e no manual do chassis para instalar o sistema.

2. Se utilizar o painel de áudio AC’97, instale-o no cabeçalho de áudio do painel frontal, como a gura abaixo mostra: A. Ligue o Mic_IN (MIC) ao MIC2_L. B. Ligue o Audio_R (RIN) ao OUT2_R e o Audio_L (LIN) ao OUT2_L. C. Ligue o Ground (GND) ao Ground (GND). D. MIC_RET e OUT_RET são apenas para o painel de áudio HD. Não necessita de os ligar para o painel de áudio AC’97. E. Para activar o microfone frontal.

Para os Sistemas Operativos Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit: Aceda ao separador “Microfone frontal” no painel de Controlo Realtek. Ajuste o “Volume de gravação”.

Conector do painel do sistema Este conector acomoda várias

(PANEL1 de 9 pinos)

(veja a folha 2, No. 8)

funções do painel frontal do

sistema.

Ligue o botão de alimentação, o botão de reposição e o indicador do

estado do sistema no chassis a este conector de acordo com a descrição abaixo. Tenha em atenção os pinos positivos e negativos antes de ligar os cabos.

PWRBTN (Botão de alimentação): Ligue ao botão de alimentação no painel frontal do chassis. Pode congu-

rar a forma para desligar o seu sistema através do botão de alimentação.

ASRock FM2A75M-ITX Motherboard

Português

RESET (Botão de reposição):

Ligue ao botão de reposição no painel frontal do chassis. Prima o botão

de reposição para reiniciar o computador caso este bloqueie e não seja possível reiniciar normalmente.

PLED (LED de alimentação do sistema): Ligue ao indicador do estado da alimentação no painel frontal do chassis.

O LED cará acesso quando o sistema estiver em funcionamento. O LED cará intermitente quando o sistema estiver no estado de suspensão S1. O LED cará desligado quando o sistema estiver nos estados de suspensão S3/S4 ou desligado (S5).

HDLED (LED de actividade do disco rígido): Ligue ao LED de actividade do disco rígido no painel frontal do chassis. O

LED cará acesso quando o disco rígido estiver a ler ou a escrever dados.

O design do painel frontal poderá variar dependendo do chassis. Um

módulo de painel frontal consiste principalmente em um botão de alimentação, um botão de reposição, um LED de alimentação, um LED de actividade do disco rígido, um altifalante, etc. Ao ligar o seu módulo de painel frontal do chassis a este conector, certique-se que os os e os pinos têm uma correspondência exacta.

Conector do alto-falante Ligue o alto-falante do chassi do chassi neste conector.

(SPEAKER1 de 4 pinos) (veja a folha 2, No. 4)

Conector do ventilador do chassis Ligue o cabo do ventilador

(CHA_FAN1 de 4 pinos)

(veja a folha 2, No. 6)

to.

neste conector, coincidindo o o

preto com o pino de aterramen

GND +12 V CHA _FAN _SPE ED FAN _SPE ED_C ONTR OL

Português

Conector do ventilador da Ligue o cabo do ventilador da CPU CPU, coincidindo o o preto

(CPU_FAN1 de 4 pinos)

(veja a folha 2, No. 1)

com o pino de aterramento.

FAN_ SPEE D_CO NTRO L

CPU _FAN_ SPEE D

+12 V

GND

1 2 3 4

Apesar de esta placa-mãe possuir 4 apoios para uma ventoinha de CPU (Ventoinha silenciosa), uma ventoinha de 3 pinos para CPU poderá funcionar mesmo sem a função de controlo de velocidade da ventoinha. Se pretender ligar uma ventoinha de 3 pinos para CPU ao conector de ventoinha do CPU nesta placa-mãe, por favor, ligue-a aos pinos 1-3.

Pinos 1-3 ligados

Instalação de Ventoinha de 3 pinos

ASRock FM2A75M-ITX Motherboard

(CPU_FAN2 de 3 pinos) (veja a folha 2, No. 2)

GND

+12 V

CPU _FAN_ SPEE D

Conector de força do ATX Ligue a fonte de alimentação

(ATXPWR1 de 24 pinos)

(veja a folha 2, No. 3)

ATX neste conector.

24 13

12 1

Embora esta placa-mãe providencie um conector de energia ATX de 24 pinos, pode apesar disso funcionar com a adapta-ção de uma fonte de energia tradicional de 20 pinos. Para usar a fonte de alimentação de 20 pinos, por favor ligue a sua fonte de alimentação com o Pino 1 e o Pino

13.

Instalação da Fonte de alimentação ATX de 20 Pinos

24 13

12 1

Conector de força do ATX 12V Ligue a fonte de alimentação

(ATX12V1 de 4 pinos)

(veja a folha 2, No. 20)

ATX 12V neste conector.

Conector HDMI_SPDIF O conector HDMI_SPDIF, que

(HDMI_SPDIF1 de 2 pinos)

(veja a folha 2, No. 22)

oferece saída de áudio SPDIF

para placas VGA HDMI, permite

GND

SPD I FOUT

ligar televisores digitais/ projectores/LCD com entrada HDMI ao sistema. Ligue o conector HDMI_SPDIF da placa VGA HDMI a este conector.

Conector de intrusão no chassis Esta placa principal suporta a

(CI1 de 2 pinos)

(veja a folha 2, No. 25)

função de detecção de

ABERTURA da CAIXA

Sig n al

GND

quedetecta se a tampa do chassisfoi removida. Esta funçãorequer um chassis com designde detecção de intrusão.

ASRock FM2A75M-ITX Motherboard

Português

2. Informações da BIOS

O Utilitário de Conguração do BIOS está armazenado no chip FWH do BIOS. Ao iniciar o computador, pressione <F2> ou <Del> durante o Autoteste de iniciação (POST) para acessar o Utilitário de Conguração do BIOS; caso contrário, o POST continuará com as rotinas de teste. Se desejar acessar o Utilitário de Conguração do BIOS depois do POST, reinicie o sistema pressionando <Ctl> + <Alt> + <Del>, ou pressionando o botão de reinício no chassi do sistema. Para as informações detalhadas sobre o Utilitário de Conguração do BIOS, consulte o Manual do Usuário (arquivo PDF) no CD de suporte.

3. Informações do CD de Suporte

Esta placa Mãe suporta vários sistemas operacionais: Microsoft® Windows®: 8 / 8 de 64 bits / 7 / 7 de 64 bits / VistaTM / VistaTM de 64 bits. O CD de instalação que acompanha a placa Mãe contem: drivers e utilitários necessários para um melhor desempenho da placa Mãe. Para começar a usar o CD de instalação, introduza o CD na leitora de CD-ROM do computador. Automaticamente iniciará o menu principal, casa o AUTORUN esteja ativado. Se o menu principal não aparecer automaticamente, explore o CD e execute o “ASSETUP.EXE” localizado na pasta BIN.

Português

ASRock FM2A75M-ITX Motherboard

1. Giriş

ASRock’ın kesintisiz titiz kalite denetimi altında üretilen güvenilir bir anakart olan ASRock FM2A75M-ITX anakartını satın aldığınız için teşekkür ederiz. ASRock’ın kalite ve dayanıklılık konusundaki kararlılığına uygun güçlü tasarımıyla mükemmel bir performans sunar.

Bu Hızlı Takma Kılavuzu anakarta giriş ve adım adım takma kılavuzu içerir. Anakart hakkında daha ayrıntılı bilgiyi Destek CD’sinde sunulan kullanıcı kılavuzunda bulabilirsiniz.

Anakart özellikleri ve BIOS yazılımı güncelleştirilebileceğinden bu kılavuzun içeriği önceden haber verilmeksizin değişebilir. Bu belgede değişiklik yapılması durumun

-da, güncelleştirilmiş sürüm ayrıca haber verilmeksizin ASRock web sitesinde sunulur. En son VGA kartlarını ve CPU destek listelerini de ASRock web sitesinde bulabilirsiniz. ASRock web sitesi http://www.asrock.com

Bu anakartla ilgili teknik desteğe ihtiyacınız olursa, kullandığınız modele özel bilgiler için lütfen web sitemizi ziyaret edin. www.asrock.com/support/index.asp

1.1 Paket İçindekiler

ASRock FM2A75M-ITX Anakart (Mini-ITX Form Faktörü) ASRock FM2A75M-ITX Hızlı Takma Kılavuzu ASRock FM2A75M-ITX Destek CD’si 2 x Seri ATA (SATA) Veri Kablosu (İsteğe Bağlı) 1 x G/Ç Panel Kalkanı

ASRock Size Şunu Hatırlatır...

Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista performans elde etmek için, Depolama Konfigürasyonundaki BIOS se çe ne ği ni AH CI mod un a ayarlamanız tavsiye edilir. BIOS ayarı için, ayrıntıları öğrenmek üzere lütfen destek CD'mizdeki "Kullanıcı Kılavuzu"na bakın.

/ VistaTM 64-bit ile daha iyi

ASRock FM2A75M-ITX Motherboard

Türkçe

1.2 Özellikler

Platform - Mini-ITX Form Faktörü



- Tüm Katı Kapasitör tasarımı CPU - Yuva Tipi FM2 100W İşlemcileri destekler

- AMD’nin Cool ‘n’ QuietTM Teknolojisini Destekler

- UMI-Bağlantısı GEN2 Yonga seti - AMD A75 FCH (Hudson-D3) Bellek - Çift Kanallı DDR3 Belleği Teknolojisi

- 2 x DDR3 DIMM yuva

- DDR3 2600+(OC)/2400(OC)/2133(OC)/1866/1600/1333/1066/ 800 ECC olmayan, ara belleksiz bellek

- Sistem belleğinin maks. kapasitesi: 32 GB

- Intel® Extreme Bellek Prolini (XMP)1.3/1.2 destekler

- AMD Bellek Prolini (AMP) destekler Genişletme - 1 x PCI Express 2.0 x16 yuva Yuvası - AMD Dual Graphics’i destekler Grakler - AMD Radeon HD 7000 grak

- DirectX 11, Pixel Shader 5.0

- Maks. paylaюэlan bellek 2GB

- Çift VGA Çıkış: desteği HDMI ve bağımsız görüntü denetleyiciler tarafından D-Sub bağlantı noktaları

- 60Hz’de 1920x1200’e kadar maks. зцzьnьrlьkle HDMI 1.4a Teknolojisini destekler

- 60Hz’de 1920x1600’ya kadar maks. зцzьnьrlьkle D-Sub’э destekler

- Auto Lip Sync, Deep Color (12bpc), HDMI ile xvYCC ve HBR’yi (Yьksek Bit Hэzlэ Ses) destekler (Uyumlu HDMI

monitцr gerekir)

- HDMI 1.4a bulunan Blu-Ray stereoskopik 3D’yi desteklemektedir

- AMD Steady VideoTM 2.0’yu destekler: Ev/çevrimiçi videoda otomatik titreşim azaltma için yeni video işleme sonrası özelliği

- HDMI portlarэyla HDCP iюlevini destekler

- HDMI portlarэyla Tam HD 1080p Blu-ray (BD) / HD-DVD oynatэmэnэ destekler Ses - İçerik Korumalı (Realtek ALC892 Ses Codec’i) 7,1 Kanal HD Ses

- Premium Blu-ray ses desteği

- THX TruStudioTM desteği

ASRock FM2A75M-ITX Motherboard

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/sn

- Realtek RTL8111E

- LAN’da Uyan özelliğini destekler

- LAN Kablo Algılama’yı destekler

- Enerji Verimli Ethernet 802.3az desteği

- PXE’yi destekler Arka Panel G/З Paneli G/З - 1 x PS/2 Klavye Portu

- 1 x D-Sub Portu

- 1 x HDMI Portu

- 1 x Optik SPDIF Çıkışı Portu

- 4 x Kullanıma Hazır USB 2.0 Portu

- 1 x eSATA3 Portu

- 2 x Kullanıma Hazır USB 3.0 Portu

- 1 x RJ-45 LAN Portu, LED’li (AKT/LЭNK LED’i ve HIZ LED)

- HD Ses Jakı: Arka Hoparlör/Orta/Bas/Hat Girişi/Ön Hoparlör/ Mikrofon SATA3 - 4 x SATA3 6,0Gb/sn konektör, donanım RAID (RAID 0, RAID 1 ve RAID 10), NCQ, AHCI ve “Sistem Aзэkken Bileюen Takma” işlevlerini USB 3.0 - 2 x Arka USB 3.0 bağlantı noktası, 5Gb/s’ye kadar USB

1.1/2.0/3.0

- 1 x Ön USB 3.0 bağlantısı (2 USB 3.0 bağlantı noktasını destekler), 5Gb/s’ye kadar USB 1.1/2.0/3.0 Konektör - 4 x SATA3 6.0 Gb/sn konektör

- 1 x Kullanıcı Kızılötesi Modül Bağlantısı

- 1 x HDMI_SPDIF şi

- 1 x Kasaya Yetkisiz Erişim şi

- 2 x Conector do ventilador da CPU (1 x 4 pinos, 1 x 3 pinos)

- 1 x Conector do ventilador da chassis (4 pinos)

- 24 pin ATX güç konektörü

- 4 pin 12V güç konektörü

- Ön panel ses konektörü

- 2 x USB 2.0 ş (4 USB 2.0 portu destekler)

- 1 x USB 3.0 ş (2 USB 3.0 portu destekler) BIOS Özelliği - 64 Mb AMI BIOS

- GUI destekli AMI UEFI Geçerli BIOS

- “Tak Çalıştır”ı destekler

- ACPI 1.1 Uyumlu Uyandırma Olayları

- Jumpersız ayarlamayı destekler

- AMBIOS 2.3.1 Desteği

Türkçe

ASRock FM2A75M-ITX Motherboard

- DRAM, APU PCIE VDDP, SB, CPU ve CPU NB/GFX Voltaj Çoklu ayarı Destek CD’si - Sürücüler, Yardımcı Programlar, AntiVirüs Yazılımı (Deneme Sürümü), CyberLink MediaEspresso 6.5 Deneme Sürümü, Google Chrome Browser ve Toolbar Donanım - CPU Sıcaklık Duyarlılığı Monitör - Kasa Sıcaklık Duyarlılığı

- CPU Fan Takometresi

- Kasa Fan Takometresi

- CPU Sessiz Fanı

- CPU/Kasa Fan Çoklu-Hız Kontrolü

- KASA AÇIK algılaması

- Voltaj İzleme: +12V, +5V, +3,3V, CPU Vcore İS - Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit uyumlu Sertikalar - FCC, CE, WHQL

- ErP/EuP Hazır (ErP/EuP hazır güç kaynağı gerekli)

* Ayrıntılı ürün bilgileri için lütfen web sitemizi ziyaret edin: http://www.asrock.com

Türkçe

ASRock FM2A75M-ITX Motherboard

1.3 Jumper'ların Ayarı

Şekilde jumper'ların nasıl ayarlandıkları gösterilmektedir. Jumper kapağı pinler üzerine yerleştirildiğinde jumper "Kapalı" dır. Jumper kapağı pinler üzerindeyken jumper "Açık" tır. Şekilde pin1 ve pin2'si "Kapalı" olan jumper kapağı bu 2 pine yerleştirilmiş 3-pinli jumper gösterilmektedir.

Jumper Ayar

CMOS’u temizleme

(CLRCMOS1, 3-pinli jumper) (bkz. s.2 No. 23)

Not:

CLRCMOS1, CMOS’daki verilerinizi temizlemenize olanak sağlar. Sistem parametrelerini temizlemek ve varsayılan ayara sıfırlamak için lütfen bilgisayarı kapatın ve güç kablosunun şini güç kaynağından çekin. 15 saniye bekledikten sonra, pin2 ve pin3‘ü CLRCMOS1’de 5 saniye kısaltmak için bir atlatıcı şapkası kullanın. Ancak, BIOS’u güncelledikten hemen sonra lütfen CMOS’u temizlemeyin. BIOS’u güncellemeyi tamamladığınızda CMOS’u temizlemeniz gerekirse, ilk ol arak siste mi başl atma nız ve a rdın dan CMOS te miz l eme işl e min i gerçekleştirmeden önce kapatmanız gereklidir. Parola, tarih, saat, kullanıcı varsayılan proli, 1394 GUID ve MAC adresinin yalnızca CMOS pili çıkarıldığında temizleneceğini lütfen aklınızda bulundurunuz.

Clear CMOSDefault

CMOS’u temizlerseniz, kasa açma algılanabilir. Lütfen “Temizleme Durumu” BIOS seçeneğini önceki kasaya yetkisiz erişim durumunun kaydı için ayarlayın.

ASRock FM2A75M-ITX Motherboard

Türkçe

1.4 Yerleşik Fişler ve Konektörler

Yerleşik şler ve konektörler jumper DEĞİLDİR. Bu şlerin ve konektörlerin üzerine jumper kapakları YERLEŞTİRMEYİN. Fişlerin ve konektörlerin üzerine jumper kapakları yerleştirmek anakartın kalıcı olarak zarar görmesine neden olabilir!

Seri ATA3 Konektörler Bu dört Seri ATA3 (SATA3)

(SATA3_1: bkz. s.2, No. 14)

(SATA3_2: bkz. s.2, No. 15)

(SATA3_3: bkz. s.2, No. 12)

(SATA3_4: bkz. s.2, No. 13)

aktarım hızına izin verir.

Seri ATA (SATA) SATA veri kablosunu her iki ucu Veri Kablosu da SATA3 sabit diskine veya

(İsteğe bağlı)

anakarttaki SATA3 konektörüne

bağlanabilir.

USB 2.0 Fişleri G/Ç panelindeki varsayılan dört

(9-pinli USB_45)

(bkz. s.2 No. 9)

USB 2.0 portundan başka, bu

anakartta iki USB 2.0 şi bulunur. Her USB 2.0 şi iki USB 2.0 portunu destekler.

konektör, dahili depolama

cihazları için SATA veri

kablolarını destekler. Geçerli

SATA3 arayüzü 6,0 Gb/sn veri

SATA3_2 SATA3_4

SATA3_1 SATA3_3

Türkçe

(9-pinli USB_67) (bkz. s.2 No. 10)

USB 3.0 Fişleri I/O panelinde bulunan iki adet

(19-pinli USB3_0_1)

(bkz. s.2 No. 19)

varsayılan USB 3.0 bağlantı

noktasının yanı sıra, bu ana

kart üzerinde bir adet USB 3.0

Int A _P_D +

Int A _P_D -

GND

Int A _P_S STX+

Int A _P_S STX-

GND

Int A _P_S SRX+

Int A _P_S SRX-

Vbu s

bağlantısı bulunur. Bu USB 3.0 bağlantısı iki adet USB 3.0 bağlantı noktasını destekleyebilir.

Int A _P_D -

Int A _P_D +

Int A _P_S STX-

Int A _P_S STX+

GND

Int A _P_S SRX+

GND

Vbu s

Int A _P_S SRX-

ASRock FM2A75M-ITX Motherboard

Kullanıcı Kızılötesi Modül Bağlantısı Bu ş, uzaktan kumanda alıcısı

(4-pinli CIR1)

(bkz. s.2 No. 11)

destekler.

Ön Panel Ses Fişi Bu, panel ses kablosu için

(9-pinli HD_SES1)

(bkz. s.2 No. 21)

uygun bağlantı sağlayan ve

ses cihazlarını kontrol

etmeyi sağlayan bir arayüzdür.

GND

PRE SENC E#

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. Yükse Tanımlı Ses Jak Duyarlılığını destekler, ancak kasadaki panel kablosunun HDA'nın düzgün çalışmasını desteklemesi gerekir. Lütfen sisteminizi yüklemek için kılavuzumuzdaki ve kasa kılavuzundaki talimatları izleyin.

2. AC'97 ses paneli kullanıyorsanız, lütfen ön panel ses şine aşağıdaki gibi takın:

A. Mic_IN'i (MIC) MIC2_L'ye bağlayın. B. Audio_R'yi (RIN) OUT2_R'ye ve Audio_L'yi (LIN) OUT2_L'ye bağlayın. C. Ground’u (GND) Ground’a (GND) bağlayın. D. MIC_RET ve OUT_RET yalnızca HD ses paneli içindir. Bunları AC’97 ses

paneli için bağlamanız gerekmez.

E. Ön mikrofonu etkinleştirmek için

Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit İS için: Realtek Kontrol panelinde “Ön Mikrofon” Sekmesine gidin. “Kayıt Ses Seviyesi”ni ayarlayın.

Sistem Paneli Fişi Bu ş, birçok sistem ön paneli

(9-pinli PANEL1)

(bkz. s.2 No. 8)

işlevini barındırır.

Kasa üzerindeki güç anahtarını, sıfırlama anahtarını ve sistem durumu göstergesini aşağıdaki pin atamalarına göre bu bağlantıya bağlayın. Kabloları bağlamadan önce pozitif ve negatif pinlere dikkat edin.

PWRBTN (Güç Anahtarı):

Kasa üzerindeki güç anahtarını ön panele bağlayın. Güç anahtarını kullanarak sisteminizi kapatma şeklinizi yapılandırabilirsiniz.

RESET (Sıfırlama Anahtarı):

Kasa üzerindeki sıfırlama anahtarını ön panele bağlayın. Bilgisayar donarsa veya normal bir yeniden başlatma gerçekleştirilemezse, bilgisayarı yeniden başlatmak için sıfırlama anahtarına basın.

ASRock FM2A75M-ITX Motherboard

Türkçe

PLED (Sistem Gücü LED’i):

Kasa üzerindeki güç durumu göstergesini ön panele bağlayın. Sistem çalışırken LED yanar. Sistem S1 uyku modunda iken LED yanıp sön meye devam eder. Sistem S3/S4 uyku modunda veya kapalı (S5) iken LED söner.

HDLED (Sabit Disk Çalışma LED’i):

Kasa üzerindeki sabit disk çalışma LED'ini ön panele bağlayın. Sabit disk veri okurken veya yazarken LED yanar.

Ön panel tasarımı kasaya göre değişiklik gösterebilir. Ön panel modülünde temel olarak güç anahtarı, sıfırlama anahtarı, güç LED’i, sabit disk çalışma LED’i, hoparlör vb. bulunur. Kasa ön panel modülünüzü bu bağlantıya bağlarken, kablo atamalarının ve pin atamalarının doğru biçimde eşleştirildiğinden emin olun.

Kasa Hoparlörü Fişi Lütfen kasa hoparlörünü bu şe

(4-pinli SPEAKER1)

(bkz. s.2 No. 4)

bağlayın.

Türkçe

Kasa Fan Konektörü Lütfen kasa fan kablolarını

(4-pinli CHA_FAN1)

(bkz. s.2 No. 6)

fanına bu konektöre bağlayın

ve siyah kabloyu toprak pinine

GND +12 V CHA _FAN _SPE ED FAN _SPE ED_C ONTR OL

bağlayın.

CPU Fan Konektörü Lütfen fan kablolarını CPU

(4-pinli CPU_FAN1)

(bkz. s.2 No. 1)

fanına bu konektöre bağlayın

ve siyah kabloyu toprak pinine

bağlayın.

Bu anakart 4-Pinli CPU fan (Sessiz Fan) desteği sağlasa da, 3-Pinli CPU fan hızı kontrol işlevi olmadan bile hala başarılı bir şekilde çalışabilir. 3-Pinli CPU fanı bu konektördeki CPU fan konektörüne bağlamayı planlıyorsanız, lütfen Pin 1-3'e bağlayın.

(3-pinli CPU_FAN2) (bkz. s.2 No. 2)

FAN_ SPEE D_CO NTRO L

CPU _FAN_ SPEE D

+12 V

GND

1 2 3 4

GND

+12 V

CPU _FAN_ SPEE D

Pin 1-3 Bağlı

3-Pinli Fanı Takma

ASRock FM2A75M-ITX Motherboard

ATX Güç Konektörü Lütfen bir ATX güç kaynağını

(24-pinli ATXPWR1)

(bkz. s.2 No. 3)

bu konektöre bağlayın.

24 13

12 1

Bu anakart 24-pinli ATX güç konektörü sağlasa da geleneksel bir 20-pinli ATX güç kaynağı bağlarsanız da çalışabilir. 20-pinli ATX güç kaynağını kullanmak için, lütfen güç kaynağınızı Pin 1 ve Pin 13'le birlikte takın.

24 13

20-Pinli ATX Güç Kaynağını Takma

12 1

ATX 12V Güç Konektörü Lütfen bir ATX 12V güç

(4-pinli ATX12V1)

(bkz. s.2 No. 20)

HDMI_SPDIF Fişi HDMI_SPDIF şi, SPDIF ses

(2-pinli HDMI_SPDIF1)

(bkz. s.2 No. 22)

kaynağını bu konektöre

bağlayın.

çıkışını HDMI VGA kartına

sağlar, sistemin HDMI Dijital

GND

SPD I FOUT

TV/projektör/LCD cihazlarını bağlamasına izin verir. Lütfen HDMI VGA kartının HDMI_SPDIF konektörünü bu şe bağlayın.

Kasaya Yetkisiz Erişim Fişi Bu anakart, kasa kapağının

(2-pinli CI1)

(bkz. s.2 No. 25)

çıkarılıp çıkarılmadığını

algılayan KASA AÇIK algılama

Sig n al

GND

özelliğini destekler. Bu özellik, kasaya yetkisiz erişim tasarımına sahip bir kasa gerektirir.

ASRock FM2A75M-ITX Motherboard

Türkçe

2. BIOS Bilgileri

Anakarttaki Flash Bellek BIOS Ayarları Yardımcı Programını içerir. Bilgisayarı başlattığınızda, lütfen Otomatik Güç Sınaması (POST) sırasında BIOS Ayarları yardımcı programına girmek için <F2> veya <Del> tuşuna basın; aksi halde, POST test rutinlerine devam eder. BIOS Ayarlarına POST'tan sonra girmek istiyorsanız, lütfen <Ctl> + <Alt> + <Delete> tuşlarına basarak veya sistem kasasındaki sıfırlama düğmesine basarak sistemi yeniden başlatın. BIOS Ayarları programı kullanıcı dostu olacak şekilde tasarlanmıştır. Çeşitli alt menüler arasında dolaşmanıza ve önceden belirlenen seçenekler arasından seçim yapmanıza izin veren menü tabanlı bir programdır. BIOS Ayarları hakkında ayrıntılı bilgi için, lütfen Destek CD'sinde bulunan Kullanıcı Kılavuzu'na (PDF dosyası) başvurun.

3. Yazılım Destek CD’si bilgileri

Bu anakart çeşitli Microsoft® Windows® işletim sistemleri destekler: 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit. Anakartla birlikte gelen Destek CD'si anakart özelliklerini genişleten gerekli sürücüleri ve kullanışlı yardımcı programları içerir. Destek CD'sini kullanmaya başlamak için, CD'yi CDROM sürücünüze takın. Bilgisayarınızda "OTOMATİK KULLAN" özelliği etkinleştirilmişse, Ana Menüyü otomatik olarak görüntüler. Ana Menü otomatik olarak görüntülenmezse, menüleri görüntülemek için Destek CD'sinin “BIN” klasöründeki "ASSETUP.EXE" dosyasını bulun ve çift tıklatın.

Türkçe

ASRock FM2A75M-ITX Motherboard

1. 제품소개

ASRock 의 이 메인보드는 엄격한 품질관리 하에 생산되어진 신뢰성 있는 메인보드 입니다 . 이 제품은 고 품격 디자인과 함께 ASRock 의 우수한 품질과 최고의 안정성을 자랑하고 있습니다 . 이 빠른 설치 안내서에는 마더보드에 대한 설명과 단계별 설치 방법이 실 려 있습니다 . 마더보드에 대한 보다 자세한 내용은 지원 CD 의 사용 설명서에서 확인 할 수 있습니다 .

메인보드의 사양이나 바이오스가 업 데이트 되기 때문에 이 사용자 설명서의 내용은 예고 없이 변경되거나 바뀔 수가 있습니다 . 만일을 생각해서 이 사용자 설명서의 어떤 변경이 있으면 ASRock 의 웹 사이트에서 언제든지 업 데이트를 하실 수 있습니다 . 웹사 이트에서 최신 VGA 카드와 CPU 지원 목록을 확인할 수 있습니다 . ASRock 의 웹사이트 주소는 http://www.asrock.com 입니다 . 본 머더보드와 관련하여 기술 지원이 필요한 경우 당사 웹 사이트를 방문하 여 사용 중인 모델에 대한 특정 정보를 얻으십시오 .

1.1 패키지 내용

ASRock ASRock ASRock 시리얼 ATA (SATA) 데이터 케이블 2 개 ( 선택 사양 ) I/O 차폐 1 개

FM2A75M-ITX

www.asrock.com/support/index.asp

FM2A75M-ITX

메인 보드를 구매하여 주신것에 대하여 감사 드립니다 .

마더보드 (Mini-ITX 폼 팩터 ) 퀵 설치 가이드 지원 CD

ASRock은사용자에게 알립니다

Windows 성능을 향상시키기 위해서 Storage C onf iguration(스토리지 구성)에서 BIOS 옵션을 AHCI 모드로 설정하는 것이 좋습니다. BIOS 설정과 관련하 여 자세한 내용은 지원 CD에 포함된 “사용 설명서”를 참조하십시오.

8 / 8 64-비트 / 7 / 7 64-비트 / Vista

...

/ VistaTM 64-비트의

ASRock FM2A75M-ITX Motherboard

한 국 어

1.2 설명서

플랫폼 - Mini-ITX 폼 팩터

- 완전 고체 축전지 디자인 CPU - 소켓 FM2 100W 프로세서 지원

- AMD 의 Cool ‘n’ QuietTM 기술 지원

- UMI-Link GEN2 칩셋 - AMD A75 FCH (Hudson-D3) 메모리 - 듀얼 채널 메모리 기술 지원

- DDR3 DIMM 슬롯 2 개

- DDR3 2600+(OC)/2400(OC)/2133(OC)/1866/1600/1333/1066/ 800 비 -ECC, 언버퍼드 메모리를 지원

- 최대 시스템 메모리 용량 : 32GB

- Intel® 익스트림 메모리 프로파일 (XMP)1.3/1.2 지원

- AMD 메모리 프로파일 (AMP) 지원 확장 슬롯 - 1 개의 PCI Express 2.0 x16 슬롯

- AMD 듀얼 그래픽 지원 온보드 VGA - AMD 의 라데온 HD 7000 그래픽

- DirectX 11, Pixel Shader 5.0

- 최대 공유 메모리 2GB

- 더블 VGA 수출 : HDMI 와 D-Sub 포트 독립 디스플레이 컨 트롤러를 지원

- 최대 해상도 1920x1200 @ 60Hz 까지 HDMI 1.4a 지원

- 최대 해상도 1920x1600 @ 60Hz 까지 D-Sub 지원

- 자동 립 싱크 (Auto Lip Sync), 딥 컬러 (Deep Color)(12bpc), xvYCC, HBR( 고비트율 오디오 ), HDMI 지원 (HDMI 호환 모니터 필요 )

- HDMI 1.4a 로 블루레이 스테레오스코픽 3D 를 지원합니다

- AMD Steady VideoTM 2.0 지원 : 홈 / 온라인 비디오의 자동 떨 림감소를 위한 새로운 비디오 포스트 프로세싱 능력

- HDMI 포트를 이용한 HDCP 기능 지원

- HDMI 포트를 이용한 1080p Blu-ray (BD) / HD-DVD 재생을 지원 오디오 - 7.1 CH HD Audio 목록 보호 (Realtek ALC892 Audio Codec)

- Premium Blu-ray 오디오 지원

- THX TruStudioTM지원 랜 - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- 웨이크 - 온 - 랜 지원

- LAN 케이블 감지 지원

- 절전형 이더넷 802.3az 지원

ASRock FM2A75M-ITX Motherboard

- PXE 지원 후면판 I/O I/O Panel

- 1 개 PS/2 키보드 포트

- 1 개의 D-Sub 포트

- 1 개의 HDMI 포트

- 1 개광학 SPDIF 출력 포트

- 4 개디폴트 USB 2.0 포트

- 1 개 eSATA3 커넥터

- 2 개디폴트 USB 3.0 포트

- 1 개 LED(ACT/LINK LED 및 SPEED LED) 가 있는 RJ-45 LAN 포트

- 오디오 잭 : 후방 스피커 / 중앙 / 저음 / 라인 인 / 전방 스피커 / 마이크 SATA3 - 4 개 의 SATA3 6.0Gb/s 커넥터 , RAID (RAID 0, RAID 1 및 RAID 10), NCQ, AHCI 및 “핫 플러그” 기능 지원 USB 3.0 - 에 의한 후면 패널 USB 3.0 포트 2 개 , 최고 5Gb/s 의 USB

1.1/2.0/3.0 지원

- 에 의한 전면 패널 USB 3.0 헤더 1 개 (USB 3.0 포트 2 개 지원 ), 최고 5Gb/s 의 USB 1.1/2.0/3.0 지원 온보드 헤더 - 4 개 의 SATA3 6.0Gb/s 커넥터 및 커넥터 - 소비자용 적외선 모듈 헤더 1 개

- HDMI_SPDIF 헤더 1 개

- 섀시 침입 헤더 1 개

- CPU 팬 커넥터 2 개 (4 핀 1 개 , 3 핀 1 개 )

- 섀시 팬 커넥터 1 개 (4 핀 )

- 24 핀 ATX 전원 헤더

- 4 핀 ATX 12V 파워 콘넥터

- 전면부 오디오 콘넥터

- USB 2.0 헤더 2 개 (4 개의 추가 USB 2.0 포트를 지원하는 헤더 2 개 )

- USB 3.0 헤더 1 개 (2 개의 추가 USB 3.0 포트를 지원하는헤더 2 개 ) BIOS - 64Mb GUI 지원을 제공하는 AMI UEFI 적합형 BIOS

-“플러그 앤 플레이”지원

- ACPI 1.1 웨이크 - 업 이벤트와의 호환

- 점퍼 프리 지원

- 점퍼 프리 지원 ; SMBIOS 2.3.1 지원

- DRAM, APU PCIE VDDP, SB, CPU 및 CPU NB/GFX 전압 멀티조절 지원 CD - 드라이버 , 유틸리티 , 안티바이러스 소프트웨어 ( 시험판 ), CyberLink MediaEspresso 6.5 평가판 , Google Chrome Browser 및 Toolbar

ASRock FM2A75M-ITX Motherboard

한 국 어

하드웨어 모니터 - CPU 온도 감지

- 마더보드 온도 감지

- CPU 회전 속도계 : 샤시 ( 케이스 ) 팬 회전 속도계

- 섀시 회전 속도계 : 샤시 ( 케이스 ) 팬 회전 속도계

- CPU 저소음 팬

- CPU/ 섀시 팬 멀티스피드 컨트롤

- 케이스 열림 감지

- 전압 감시 기능 : +12V,+5V,+3.3V,Vcore OS - 마이크로 소프트 Windows® 8/8 64 비트 /7/7 64 비트 /VistaTM/ Vista

64 비트 와 호환

인증서 - FCC, CE, WHQL

- ErP/EuP 지원 (ErP/EuP 지원 전원 공급기가 요구됨 )

* 상세한 제품정보는 당사의 웹사이트를 방문할수있습니다 . http://www.asrock.com

1.3 점퍼 셋팅

그림은 점퍼를 어떻게 셋업 하는지를 보여줍니다 . 점퍼 캡이 핀 위에 있을 때 , 점퍼는 “쇼트”입니다 . 점퍼 캡이 핀 위에 없을 때 점퍼는 “오픈” 입니다 . 그림은 3 개의 핀 중 1-2 번 핀이 “쇼트”임을 보여주는 것이며 , 점퍼 캡이 이 두 핀 위에 있음을 보여주는 것입니다 .

점퍼 세팅

CMOS 초기화

(CLRCMOS1, 3 핀 점퍼 ) (2 페이지 , 23 번 항목 참조 )

CMOS 삭제기본 설정

한 국 어

100

참고 :

CLRCMOS1 을 사용하여 CMOS 에 들어 있는 데이터를 삭제할 수 있습니다 . 시스템 매개변수를 삭제하고 기본 설정으로 복원하려면 , 컴퓨터를 끄고 전원 공급장치에서 플러그를 뽑으십시오 . 15 초를 기다린 다음 점퍼 캡을 사용하여 CLRCMOS1 의 핀 2 와 핀 3 을 5 초 동안 단락하십시오 . 그러나 BIOS 업데이트 직후에는 CMOS 를 삭제하지 마십시오 . BIOS 를 업데이트하자마자 CMOS 를 삭제해야 하는 경우 먼저 시스템을 부팅하고 CMOS 를 종료하고 삭제 작업을 해 야 합니다 . CMOS 배터리를 제거할 경우에만 암호 , 날짜 , 시간 , 사용자 기본 프 로파일 , 1394 GUID, MAC 주소가 삭제됩니다 .

CMOS를 지울 경우 케이스 열림이 감지됩니다. BIOS 옵션 Clear Status (상태지우기) 를 조정해 이전의 섀시 침입 상태에 대한 기록을 지우십시오.

ASRock FM2A75M-ITX Motherboard

ASRock FM2A75M-ITX User Manual [en, ru, de, es, fr, it]

Specifications and Main Features

Frequently Asked Questions

User Manual

English
