Chapter 1 Introduction
ank you for purchasing ASRock E3V5 WS motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock ’s commitment to quality
and endurance.
In this documentation, Chapter 1 and 2 contains the introduction of the
motherboard and step-by-step installation guides. Chapter 3 contains the operation
guide of the soware and utilities. Chapter 4 contains the conguration guide of
the BIOS setup.
Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website w ithout f urther notice. If you require technical support relate d to
this motherboard, please vi sit our website for s pecic information about the model
you are using. You may nd the l atest VGA cards and CPU suppor t list on ASRock’s
website a s well. ASRock website ht tp://www.a srock.com.
E3V5 WS
1.1 Package Contents
ASRock E3V5 WS Motherboard (ATX Form Factor)
•
ASRock E3V5 WS Quick Installation Guide
•
ASRock E3V5 WS Support CD
•
2 x Serial ATA (SATA) Data Cables (Optional)
•
1 x I/O Panel Shield
•
English
1
1.2 Specications
Platform
CPU
Chipset
Memory
•
•
•
•
•
•
•
•
•
•
* ECC memory modules are supported with Intel® E3/CoreTM
i3/Pentium®/Celeron® CPU only. With Intel® CoreTM i7/i5 CPU,
ECC function is not supported.
•
•
•
ATX Form Factor
Solid Capacitor design
Supports the Intel® Xeon® E3-1200 v5 Processor and 6th
Generation Intel® CoreTM i7/i5/i3/Pentium®/Celeron®
Processors (Socket 1151)
5 Power Phase design
Supports Intel® Turbo Boost 2.0 Technology
Intel® C232
Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
Supports DDR4 2133 non-ECC, un-buered memory
Supports ECC UDIMM memory modules
Max. capacity of system memory: 64GB
Supports Intel® Extreme Memory Prole (XMP) 2.0
15μ Gold Contact in DIMM Slots
English
2
Expansion
Slot
Audio
2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4
•
mode)*
* Supports NVMe SSD as boot disks
3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
•
Supports AMD Quad CrossFireXTM and CrossFireXTM
•
15μ Gold Contact in VGA PCIe Slot (PCIE2)
•
7.1 CH HD Audio with Content Protection (Realtek ALC892
•
Audio Codec)
* To congure 7.1 CH HD Audio, it is required to use an HD
front panel audio module and enable the multi-channel audio
feature through the audio driver.
Premium Blu-ray Audio support
•
Supports Surge Protection (ASRock Full Spike Protection)
•
ELNA Audio Caps
•
LAN
Rear Panel
I/O
Storage
Gigabit LAN 10/100/1000 Mb/s
•
Giga PHY Intel® I219LM
•
Supports Wake-On-LAN
•
Supports Lightning/ESD Protection (ASRock Full Spike
•
Protection)
Supports Energy Ecient Ethernet 802.3az
•
Supports PXE
•
1 x PS/2 Mouse Port
•
1 x PS/2 Keyboard Port
•
2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full
•
Spike Protection))
4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full
•
Spike Protection))
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
•
LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
•
6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,
•
RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology
enterprise), NCQ, AHCI and Hot Plug
E3V5 WS
Connector
BIOS
Feature
1 x TPM Header
•
1 x Power LED and Speaker Header
•
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
•
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Con-
•
trol)
1 x 24 pin ATX Power Connector
•
1 x 8 pin 12V Power Connector
•
1 x Front Panel Audio Connector
•
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports
•
ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports
•
ESD Protection (ASRock Full Spike Protection))
AMI UEFI Legal BIOS with multilingual GUI support
•
ACPI 5.0 Compliant wake up events
•
SMBIOS 2.7 Support
•
CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA Voltage
•
Multi-adjustment
English
3
CPU/Chassis temperature sensing
Hardware
Monitor
•
CPU/Chassis Fan Tachometer
•
CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by
•
CPU temperature)
CPU/Chassis Fan multi-speed control
•
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
•
Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-
OS
•
bit / Server 2012 R2 64-bit / Server 2012 64-bit / Server 2008
R2 64-bit
* To install Windows® 7 OS, a modied installation disk with
xHCI drivers packed into the ISO le is required. Please refer to
page 36 for more detailed instructions.
* For the updated Windows® 10 driver, please visit ASRock ’s
website for details: http://ww w.asrock.com
FCC, CE, WHQL
Certications
* For detailed product information, please visit our website: http://ww w.asrock.com
Please realize that the re is a certain r isk involved with overclo cking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technol ogy, or using
third-party overclocking tool s. Overclocking may aect your system’s stability, or
even cause dam age to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for poss ible damage caused by
overclocking.
•
ErP/EuP Ready (ErP/EuP ready power supply is required)
•
English
4
Intel
C232
DDR 4_A2 (64 bit, 288- pin modu le)
DDR 4_A1 (64 bit, 288- pin modu le)
DDR 4_B2 (64 bit, 288- pin modu le)
DDR 4_B1 (64 bit, 288- pin modu le)
ATX12V1
ATXP WR 1
PCIE 2
Top:
RJ-4 5
USB 2.0
T: USB 0
B: U SB1
PCIE 4
HDLED RESET
PLED PWRB TN
PANEL1
1
USB4_5
1
1
SPK_PL ED1
1
HD_AUD IO1
PCIE 1
CPU_FAN 1
RoH S
E3V5 WS
CMO S
Bat ter y
CLRMOS1
1
PCIE 3
USB3_4 _5
1
CHA_FAN 1
CHA_FAN 2
SATA3_2SATA3_4 SATA3_0
SATA3_3SATA3_5 SATA3_1
USB2_3
1
1
TPMS1
PCIE 5
Fro nt U SB 3. 0
PCI Ex pre ss 3.0
BIOS
USB 3 .0
T: USB0
B: US B1
USB 3 .0
T: USB2
B: US B3
Top:
LINE IN
Center :
FRONT
Bottom :
MIC IN
PS2
Keyb oard
PS2
Mous e
LAN
AUDIO
CODEC
1.3 Motherboard Layout
E3V5 WS
English
5
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
4 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
5 ATX Power Connector (ATXPWR1)
6 USB 3.0 Header (USB3_4_5)
7 Chassis Fan Connector (CHA_FAN1)
8 Clear CMOS Jumper (CLRMOS1)
9 SATA3 Connector (SATA3_2)
10 Chassis Fan Connector (CHA_FAN2)
11 Power LED and Speaker Header (SPK_PLED1)
12 SATA3 Connector (SATA3_0)
13 System Panel Header (PANEL1)
14 SATA3 Connector (SATA3_1)
15 SATA3 Connector (SATA3_3)
16 SATA3 Connector (SATA3_5)
17 SATA3 Connector (SATA3_4)
18 USB 2.0 Header (USB2_3)
19 USB 2.0 Header (USB4_ 5)
20 TPM Header (TPMS1)
21 Front Panel Audio Header (HD_AUDIO1)
English
6
1.4 I/O Panel
E3V5 WS
1
9
2
678
No. Description No. Description
1 PS/2 Mouse Port 6 USB 2.0 Ports (USB_01)
2 LAN RJ-45 Port* 7 USB 3.0 Ports (USB3_23)
3 Line In (Light Blue) 8 USB 3.0 Ports (USB3_01)
4 Front Speaker (Lime)** 9 PS/2 Keyboard Port
5 Microphone (Pink)
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK L ED
SPEED LE D
3
4
5
LAN Por t
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
English
7
** To congure 7.1 CH HD Audio, it i s required to use an HD front panel audio module and enable the multichannel audio feature through the audio driver.
Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.
Function of the Audio Por ts in 7.1-channel Con guration:
English
8
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
Chapter 2 Installation
is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
Make sure to unplug the power cord before installing or removing the motherboard
•
components. Failure to do so may cause physical injuries and damages to motherboard
components.
In order to avoid damage from static electricity to the motherboard’s components,
•
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.
•
Whenever you uninstall any components, place them on a grounded anti-static pad or
•
in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-
•
tighten the screws! Doing so may damage the motherboard.
E3V5 WS
English
9
2.1 Installing the CPU
1. Before you inser t the 1151-Pin CPU into the socket, please check if the PnP ca p
is on the socket, if the CPU sur face is unclean, or if th ere are any b ent pins in the
socket. Do not force to insert the CPU into the socket if above situ ation is found.
Other wise, the CPU wil l be seriously d amaged.
2. Unplug all power cables before installing the CPU.
1
2
A
B
English
10
E3V5 WS
3
4
5
English
11
Please save and replace the cover if the processor i s removed. e cover must be
placed if you wish to return the motherboard for aer service.
English
12
2.2 Installing the CPU Fan and Heatsink
1 2
E3V5 WS
FAN
CPU_
English
13
2.3 Installing Memory Modules (DIMM)
is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
1. For dual channel conguration, you always need to install identical (the same
brand, speed , size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three
memor y module installed.
3. It is not allowed to install a DDR , DDR2 or DDR3 memor y module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.
Dual Channel Memory Conguration
Priority DDR4_ A1 DDR4_ A2 DDR4_B1 DDR4_B2
1 Populated Populated
2 Populated Populated
3 Populated Populated Populated Populated
e DIMM only ts in one correct orientation. It will cause permanent dam age to
the mothe rboard and the DIMM if you force the DIMM into the slot at incor rect
orientation .
English
14
E3V5 WS

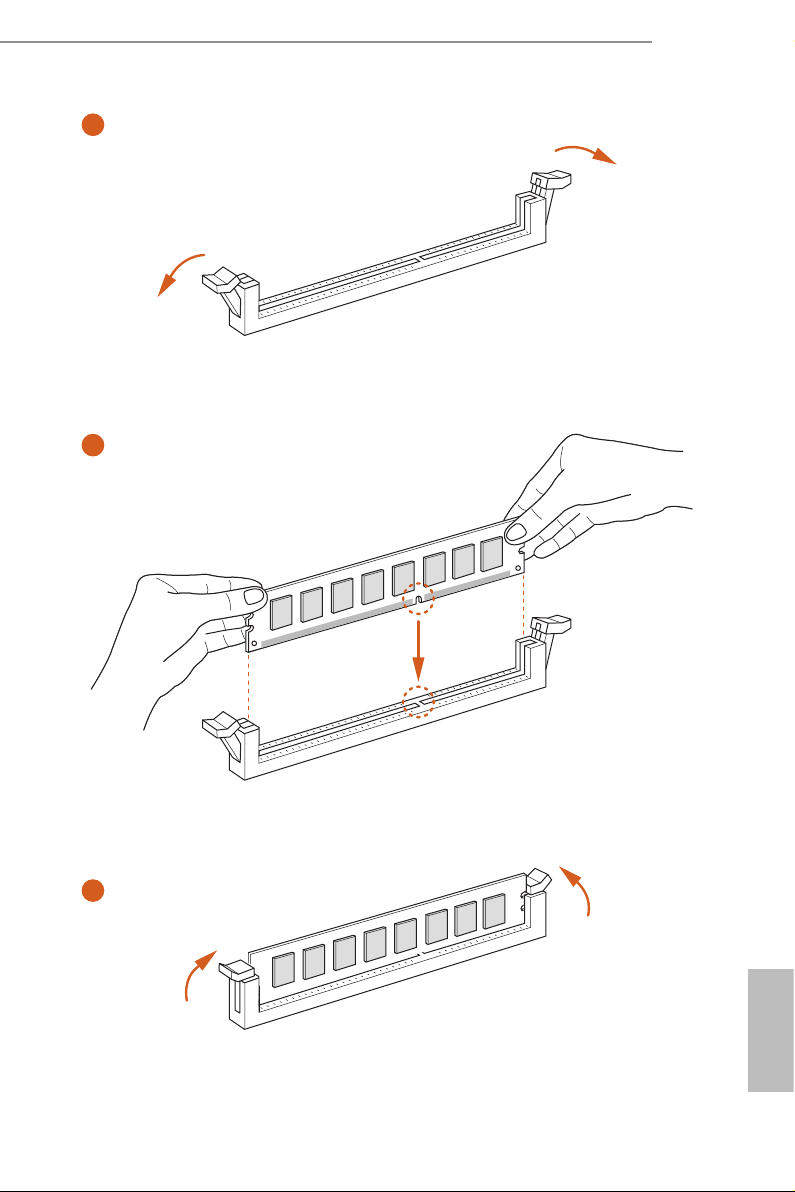

1
2
3
English
15
2.4 Expansion Slots (PCI Express Slots)
ere are 5 PCI Express slots on the motherboard.
Before installing an ex pansion card, please make sure that the power supply is
switched o or the power cord is unplugged. Plea se read the documentation of the
expan sion card and mak e necessary hardware settings for the card before you start
the installation.
PCIe slots:
PCIE1 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE4 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.
PCIE5 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIe Slot Congurations
PCIE2 PCIE4
Single Graphics Card x16 N/A
English
16
Two Graphics Cards in
CrossFireXTM Mode
For a better ther mal environment, ple ase connect a ch assi s fan to the motherboard’s
chassis fan connector (CHA_ FAN1 or CHA_ FAN2) when using multiple graphics
cards.
x16 x4
2.5 Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
Clear CMOS Jumper
(CLRMOS1)
(see p.5, No. 8)
CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the
CMOS right aer you update the BIOS. If you need to clear the CMOS when you
just nish updating the BIOS, you must boot up the system rst, and then shut it
down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed.
Clear CMOSDefault
E3V5 WS
17
English
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over
these header s and connectors. Placing jumper caps over the headers and connectors
will cause permanent damage to the motherboard.
System Panel Header
(9-pin PANEL1)
(see p.5, No. 13)
PWRBTN (Power Switch):
Connec t to the power switch on the chassi s front panel. You may congure the way to
turn o your system using the power switch.
RESET (Reset Switch):
Connec t to the reset switch on the chassi s front panel. P ress the reset sw itch to restart
the computer if the compute r freezes and fails to perform a normal restart.
PLED (Syste m Power LED):
Connec t to the power status indicator on the chassis front panel. e LED i s on when
the system is ope rating. e LED keeps blinking when the system i s in S1/S3 sleep
state. e LED is o when the system is in S4 sleep state or powered o (S5).
HDLED (Ha rd Drive Activity LED):
Connec t to the hard drive ac tivity LED on the chassis front panel. e LED is on
when the hard drive i s reading or writing data.
e front panel de sign may dier by chassis. A front pane l module mainly consists
of power switch , reset switch, power LED, hard dr ive activity LED, speak er and etc.
When connecting your chassis front panel module to this head er, make sure the wire
assig nments and the pin assig nments are matched correctly.
1
PLE D+
PLE D-
HDL ED-
HDL ED+
PWR BTN #
GND
RES ET#
GND
GND
Connect the power
switch, reset switch and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.
English
18
E3V5 WS
PLE D-
SPE AK ER
Power LED and Speaker
Header
(7-pin SPK_PLED1)
(see p.5, No. 11)
Serial ATA3 Connectors
(SATA3_0:
see p.5, No. 12)
(SATA3_1:
see p.5, No. 14)
(SATA3_2:
see p.5, No. 9)
(SATA3_3:
see p.5, No. 15)
(SATA3_4:
see p.5, No. 17)
(SATA3_5:
see p.5, No. 16)
USB 2.0 Headers
(9-pin USB2_3)
(see p.5, No. 18)
(9-pin USB4_ 5)
(see p.5, No. 19)
DUM MY
+5V
1
SATA3_2SATA3_4
SATA3_3SATA3_5
USB _PW R
1
USB _PW R
DUM MY
PLE D+
PLE D+
P-
P+
P+
P-
GND
GND
DUM MY
SATA3_0
SATA3_1
Please connect the
chassis power LED and
the chassis speaker to this
header.
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
ere are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
USB 3.0 Header
(19-pin USB3_4_5)
(see p.5, No. 6)
IntA _P_ D+
1
ID
IntA _P_ D-
GND
IntA _P_ D-
IntA _P_ D+
IntA _P_ SSTX +
IntA _P_ SSTX -
GND
IntA _P_ SSTX -
IntA _P_ SSTX +
GND
IntA _P_ SSRX +
IntA _P_ SSR X-
Vbus
IntA _P_ SSR X-
IntA _P_ SSRX +
GND
Besides four USB 3.0
ports on the I/O panel,
there is one header on this
motherboard. Each USB
3.0 header can support
two ports.
Vbus
English
19
Front Panel Audio Header
GND
4 3 2 1
(9-pin HD_AUDIO1)
(see p.5, No. 21)
1. Hig h Denition Audio suppor ts Jack Sensing, but the panel wire on the ch assi s
must support HDA to function correctly. Please follow the instructions in our
manual and chassis manual to install your system.
2. If you use an AC’97 audio panel, please install it to the front pane l audio header by
the steps below:
A. Connect Mic_IN (MIC) to MIC2_ L.
B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to
connec t them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adju st “Recording Volume”.
1
GND
PRE SEN CE#
MIC 2_R
MIC 2_L
MIC _RE T
J_S ENS E
OUT 2_R
OUT _RE T
OUT 2_L
is header is for
connecting audio devices
to the front audio panel.
English
20
Chassis Fan Connectors
(4-pin CHA_FAN1)
(see p.5, No. 7)
(4-pin CHA_FAN2)
(see p.5, No. 10)
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.5, No. 2)
ATX Power Connector
(24-pin ATXPWR1)
(see p.5, No. 5)
FAN _VO LTA GE
CHA _FA N_S PEE D
FAN _SP EED _CO NTR OL
GND
FAN _VOLT AGE
CPU _F
AN_ SPEED
FAN_ SPEED _CONT ROL
12
24
1
13
Please connect fan cables
to the fan connectors and
match the black wire to
the ground pin.
is motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
Loading...
