ASRock ALIVE NFG-DVI User Manual

ALiveNF6G-DVI

ALiveNF6G-VSTA

User Manual

Version 1.0

Published July 2006

Copyright©2006 ASRock INC. All rights reserved.

11

1

11

Copyright Notice:Copyright Notice:

Copyright Notice:

Copyright Notice:Copyright Notice:

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Disclaimer:Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

22

2

22

ContentsContents

Contents

ContentsContents

1.1.

IntroductionIntroduction

1.

Introduction

1.1.

IntroductionIntroduction

1.1 Package Contents ..................................................................... 5

1.2 Specifications ........................................................................... 6

1.3 Minimum Hardware Requirement Table for Windows® Vista

Premium and Basic Logo .......................................................... 9

1.4 Motherboard Layout (ALiveNF6G-DVI) .................................... 10

1.5 Motherboard Layout (ALiveNF6G-VSTA) ................................ 11

1.6 HD 8CH I/O (ALiveNF6G-DVI / ALiveNF6G-VSTA) ................... 12

2.2.

InstallationInstallation

2.

Installation

2.2.

InstallationInstallation

Pre-installation Precautions ............................................................... 13

2.1 CPU Installation ......................................................................... 14

2.2 Installation of CPU Fan and Heatsink ....................................... 14

2.3 Installation of Memory Modules (DIMM) .................................... 15

2.4 Expansion Slots (PCI Express, PCI, and HDMR Slots) .................... 17

2.5 Easy Dual Monitor Feature (ALiveNF6G-DVI)........................... 18

2.6 Easy Multi Monitor Feature (ALiveNF6G-DVI /

ALiveNF6G-VSTA) ................................................................... 20

2.7 Jumpers Setup .......................................................................... 21

2.8 Onboard Headers and Connectors.......................................... 22

2.9 HDMI_SPDIF Header Connection Guide .................................... 26

2.10 SATAII Hard Disk Setup Guide .................................................. 27

2.11 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks

Installation ................................................................................. 28

2.12 Hot Plug and Hot Swap Functions for SATA / SATAII HDDs .... 28

2.13 Driver Installation Guide ............................................................ 28

2.14 HDMR Card and Driver Installation............................................ 29

2.15 Installing Windows® 2000 / XP / XP 64-bit / VistaTM Without RAID

Functions .................................................................................. 29

2.16 Installing Windows® 2000 / XP / XP 64-bit / VistaTM With RAID

Functions. ................................................................................. 29

2.17 Untied Overclocking Technology .............................................. 30

3.3.

BIOS SBIOS S

3.

BIOS S

3.3.

BIOS SBIOS S

3.1 Introduction ............................................................................... 31

3.2 Main Screen .............................................................................. 32

3.3 Advanced Screen .................................................................... 33

ETUP UTILITYETUP UTILITY

ETUP UTILITY

ETUP UTILITYETUP UTILITY

3.1.1 BIOS Menu Bar ............................................................... 31

3.1.2 Navigation Keys ............................................................. 31

3.3.1 CPU Configuration .......................................................... 34

3.3.2 Chipset Configuration ..................................................... 37

........................................................................................................................

............................................................

........................................................................................................................

............................................................................................................................

..............................................................

............................................................................................................................

......................................................................................................

...................................................

......................................................................................................

5 5

5

5 5

TM

13 13

13

13 13

31 31

31

31 31

33

3

33

3.3.3 ACPI Configuration ......................................................... 38

3.3.4 IDE Configuration ............................................................ 39

3.3.5 PCIPnP Configuration ...................................................... 41

3.3.6 Floppy Configuration ...................................................... 42

3.3.7 Super IO Configuration ................................................... 42

3.3.8 USB Configuration .......................................................... 43

3.4 Hardware Health Event Monitoring Screen ............................. 44

3.5 Boot Screen.............................................................................. 45

3.5.1 Boot Settings Configuration ........................................... 45

3.6 Security Screen........................................................................ 46

3.7 Exit Screen ............................................................................... 47

4.4.

Software SupportSoftware Support

4.

Software Support

4.4.

Software SupportSoftware Support

4.1 Install Operating System ........................................................... 48

4.2 Support CD Information ............................................................. 48

4.2.1 Running Support CD ....................................................... 48

4.2.2 Drivers Menu .................................................................. 48

4.2.3 Utilities Menu ................................................................... 48

4.2.4 Contact Information ........................................................ 48

APPENDIX: AMD’s Cool ‘n’ QuietAPPENDIX: AMD’s Cool ‘n’ Quiet

APPENDIX: AMD’s Cool ‘n’ Quiet

APPENDIX: AMD’s Cool ‘n’ QuietAPPENDIX: AMD’s Cool ‘n’ Quiet

......................................................................................................

...................................................

......................................................................................................

TMTM

TM

TMTM

T T

echnologyechnology

T

echnology

T T

echnologyechnology

............

......

............

48 48

48

48 48

49 49

49

49 49

44

4

44

1.1.

IntroductionIntroduction

1.

Introduction

1.1.

IntroductionIntroduction

Thank you for purchasing ASRock ALiveNF6G-D VI / ALiveNF6G-VSTA motherboard,

a reliable motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s com-

mitment to quality and endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-

step guide to the hardware installation. Chapter 3 and 4 contain the configuration

guide to BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website

1.11.1

Package ContentsPackage Contents

1.1

Package Contents

1.11.1

Package ContentsPackage Contents

1 x ASRock ALiveNF6G-DVI / ALiveNF6G-VSTA Motherboard

(Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

1 x ASRock ALiveNF6G-DVI / ALiveNF6G-VSTA Quick Installation Guide
1 x ASRock ALiveNF6G-DVI / ALiveNF6G-VSTA Support CD

1 x Ultra ATA 66/100/133 IDE Ribbon Cable (80-conductor)

1 x 3.5-in Floppy Drive Ribbon Cable

1 x Serial ATA (SATA) Data Cable (Optional)

1 x Serial ATA (SATA) HDD Power Cable (Optional)

1 x HDMI_SPDIF Cable (Optional)

1 x HD 8CH I/O Shield

1 x COM Port Bracket

1 x HDMR Card (Optional)
1 x DVI Graphics-SI Card (only for ALiveNF6G-DVI)

http://www.asrock.com

55

5

55

1.21.2

SpecificationsSpecifications

1.2

Specifications

1.21.2

SpecificationsSpecifications

Platform - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
CPU - Socket AM2 for AMD Athlon

Processors

- AMD LIVE!TM Ready

- Supports AMD’s Cool ‘n’ QuietTM Technology
(see CAUTION 1)

- FSB 1000 MHz (2.0 GT/s)

- Supports Untied Overclocking Technology (see CAUTION 2)

- Supports Hyper-Transport Technology

Chipset - NVIDIA
Memory - Dual Channel DDRII Memory Technology (see CAUTION 3)

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 4)

Expansion Slot - 2 x PCI slots

Graphics - Integrated NVIDIA

Audio - Realtek ALC888 7.1 channel audio CODEC with High

LAN - Gigabit LAN 10/100/1000 Mb/s (ALiveNF6G-DVI)

Rear Panel I/O HD 8CH I/O

®

NF-6100-430

- 4 x DDRII DIMM slots

- Support DDRII800/667/533

- Max. capacity: 8GB

- ASRock U-COP (see CAUTION 5)

- Boot Failure Guard (B.F.G.)

- ASRock AM2 Boost: ASRock Patented Technology to boost
memory performance up to 12.5% (see CAUTION 6)

- 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 1 x HDMR slot

- Pixel Shader 3.0

- Max. shared memory 256MB

- Dual VGA Output: support DVI-D and D-Sub ports with DVI

Graphics-SI card by independent display controllers
(ALiveNF6G-DVI)

Definition audio

- Giga PHY Realtek RTL8211B (ALiveNF6G-DVI)

- Realtek PHY RTL8201CL (ALiveNF6G-VSTA)

- Speed: 10/100 Ethernet (ALiveNF6G-VSTA )

- Supports Wake-On-LAN

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

®

TM

64FX / 64X2 / 64 and Sempron

GeForce6-class graphics DX9.0 VGA

66

6

66

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 Port

- HD Audio Jack: Side Speaker/Rear Speaker/Central/Bass/
Line in/Front Speaker/Microphone (see CAUTION 7)

Connector - 4 x Serial ATAII 3.0Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, and “Hot Plug”
functions (see CAUTION 8)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Game header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- CPU/Chassis FAN connector

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
(see CAUTION 9)

BIOS Feature - 4Mb AMI BIOS

- AMI Legal BIOS

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Hardware - CPU Internal Temperature Sensing
Monitor - CPU Ambient Temperature Sensing

- Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft

Vista

Certifications - FCC, CE, Microsoft

®

Windows® 2000/XP/XP Media Center/XP 64-bit/

TM

compliant (see CAUTION 10)

®

WHQL Certificated

77

7

77

CAUTION!

1. For power-saving’s sake, it is strongly recommended to enable AMD’s Cool ‘n’

2. This motherboard supports Untied Overclocking Technology. Please read “Un-

3. This motherboard supports Dual Channel Memory Technology. Before you

4. Although this motherboard offers stepless control, it is not recommended to

5. While CPU overheat is detected, the system will automatically shutdown.

6. This motherboard supports ASRock AM2 Boost overclocking technology. If

7. For microphone input, this motherboard supports both stereo and mono modes.

8. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

9. Power Management for USB 2.0 works fine under Microsoft

10. Microsoft

TM

Quiet

technology under Windows system. See APPENDIX on page 49 to

enable AMD’s Cool ‘n’ Quiet

TM

technology.

tied Overclocking Technology” on page 30 for details.

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 15 for proper installation.

perform over-clocking. Frequencies other than the recommended CPU bus

frequencies may cause the instability of the system or damage the CPU.

Before you resume the system, please check if the CPU fan on the motherboard

functions properly and unplug the power cord, then plug it back again. To

improve heat dissipation, remember to spray thermal grease between the

CPU and the heatsink when you install the PC system.

you enable this function in the BIOS setup, the memory performance will

improve up to 12.5%, but the effect still depends on the AM2 CPU you adopt.

Enabling this function will overclock the chipset/CPU reference clock. However,

we can not guarantee the system stability for all CPU/DRAM configurations.

If your system is unstable after AM2 Boost function is enabled, it may not be

applicative to your system. You may choose to disable this function for

keeping the stability of your system.

For audio output, this motherboard supports 2-channel, 4-channel, 6-channel,

and 8-channel modes. Please check the table on page 12 for proper connection.

Hard Disk Setup Guide” on page 27 to adjust your SATAII hard disk drive to

SATAII mode. You can also connect SATA hard disk to SATAII connector

directly.

®

Windows

®

VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

®

Windows® VistaTM driver is not ready yet. We will update it to our

website in the future. Please visit our website for Microsoft

®

Windows® Vista

driver and related information.

ASRock website

http://www.asrock.com

TM

88

8

88

1.31.3

Minimum Hardware RMinimum Hardware R

1.3

Minimum Hardware R

1.31.3

Minimum Hardware RMinimum Hardware R

TMTM

TM

TMTM

VistaVista

Vista

VistaVista

For system integrators and users who purchase this motherboard and

plan to submit Windows® VistaTM Premium and Basic logo, please follow the

below table for minimum hardware requirement. Please adopt the CPU,

memory, and VGA that we suggest.

CPU Sempron 2800+

Memory 512MB x 2 Dual Channel (Premium)

* If you use onboard VGA with total system memory size 512MB and plan to

submit Windows® VistaTM Basic logo, please adjust the shared memory size of onboard

VGA to 64MB. If you use onboard VGA with total system memory size above 512MB

and plan to submit Windows® VistaTM Premium or Basic logo, please adjust the shared

memory size of onboard VGA to 128MB or above.

* If you plan to use external graphics card on this motherboard, please refer to Premium

Discrete requirement at

Premium and Basic Logo Premium and Basic Logo

Premium and Basic Logo

Premium and Basic Logo Premium and Basic Logo

512MB Single Channel (Basic)

256MB x 2 Dual Channel (Basic)

equirement Tequirement T

equirement T

equirement Tequirement T

http://www.asrock.com

able for Wable for W

able for W

able for Wable for W

indowsindows

indows

indowsindows

®®

®

®®

99

9

99

1.4 Motherboard Layout (ALiveNF6G-DVI)1.4 Motherboard Layout (ALiveNF6G-DVI)

1.4 Motherboard Layout (ALiveNF6G-DVI)

1.4 Motherboard Layout (ALiveNF6G-DVI)1.4 Motherboard Layout (ALiveNF6G-DVI)

243

1

5

6

24.4cm (9.6-in)

1

PS2

33

32

30

29
28

27

31

Mouse

Keyboard

VGA1

USB2.0
T: US B2
B:USB3

USB2.0
T: US B0
B:USB1

Bottom:

CTR BASS

MIC IN

PS2_USB_PW1

PARALLEL PORT

SIDE SPK

FRONT

Center:

Center:

AUDIO
CODEC

Top:
RJ-45

Top:

REAR SPK

Top:

LINE IN

1

HD_AUDIO1

LAN
PHY

1

CD1

HDMI_SPDIF1

ATX12V1

COM1

1

ATXPWR1

PCIE1

ALiveNF6G-DVI

PCI1

PCI2

PCIE2

CMOS

BATTERY

7.1CH HD

HDMR1

PS2

Bottom:

CLRCMOS1

1

CPU_FAN1

PCI

EXPRESS

SOCKET AM2

`

RAID

NVIDIA

NF-6100-430

Chipset

Dual CoreCPU

Dual Channel

FSB800

DDRII_2(64/72 bit, 240-pinmodule)

DDRII_1(64/72 bit, 240-pinmodule)

FSB1GHz

DDRII800

SATAII

RoHS

7

FSB800

DDRII_3(64/72 bit, 240-pinmodule)

SATAII_4

SATAII_2

1

SPEAKER1

1

DDRII_4(64/72 bit, 240-pinmodule)

USB4_5

SATAII_3

SATAII_1

8

IR1

1

I/O

Super

GAME1

IDE1

ATA133

FLOPPY1

4Mb

BIOS

CHA_FAN1

USB8_9

1

USB6_7

1

PLEDPWRBTN

1

HDLED RESET

1

PANEL1

USB2.0

24.4cm (9.6-in)

10

11
12
13
14
15

16

17

9

26

25

24

23

22

21

20

19

18

1 PS2_USB_PW1 Jumper 17 USB 2.0 Header (USB6_7, Blue)
2 A TX 12V Power Connector (A TX12V1) 18 System Panel Header (PANEL1)
3 CPU Heatsink Retention Module 19 USB 2.0 Header (USB8_9, Blue)
4 AM2 940-Pin CPU Socket 20 USB 2.0 Header (USB4_5, Blue)
5 CPU Fan Connector (CPU_FAN1) 21 Chassis Speaker Header (SPEAKER 1)
6 2 x 240-pin DDRII DIMM Slots 22 Secondary SA TAII Connector (SA TAII_2, Red)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 23 NVIDIA NF-6100-430 Single Chip

7 2 x 240-pin DDRII DIMM Slots 24 Clear CMOS Jumper (CLRCMOS1)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 25 HDMR Slot (HDMR1)
8 Infrared Module Header (IR1) 26 Front Panel Audio Header (HD_AUDIO1)
9 Game Port Header (GAME1) 27 HDMI_SPDIF Header (HDMI_SPDIF1)
10 Floppy Connector (FLOPPY1) 28 PCI Express x1 Slot (PCIE2)
11 Primary IDE Connector (IDE1, Blue) 29 Internal Audio Connector: CD1 (Black)
12 Flash Memory 30 PCI Slots (PCI1- 2)
13 Fourth SAT AII Connector (SATAII_4, Red) 31 PCI Express x16 Slot (PCIE1)
14 Third SAT AII Connector (SA TAII_3, Red) 32 ATX Power Connector (A TXPWR1)
15 Chassis Fan Connector (CHA_FAN1) 33 Serial Port Connector (COM1)
16 Primary SATAII Conne ctor (SA T AII_1, Red)

1010

10

1010

1.5 Motherboard L1.5 Motherboard L

1.5 Motherboard L

1.5 Motherboard L1.5 Motherboard L

2

1

1

PS2

PS2_USB_PW1

Mouse

Keyboard

PARALLEL PORT

ATX12V1

COM1

1

Top:
RJ-45

Top:

REAR SPK

Center:

SIDE SPK

Top:

LINE IN

Center:

FRONT

33

32

VGA1

USB2.0
T: US B2
B:USB3

USB2.0
T: US B0
B:USB1

Bottom:

CTR BASS

MIC IN

PS2

Bottom:

31

30

29
28

27

AUDIO
CODEC

LAN
PHY

CD1

HDMI_SPDIF1

1

1

HD_AUDIO1

PCIE2

7.1CH HD

HDMR1

ayout (ALiveNF6Gayout (ALiveNF6G

ayout (ALiveNF6G

ayout (ALiveNF6Gayout (ALiveNF6G

3

4

24.4cm (9.6-in)

CPU_FAN1

SOCKET AM2

ATXPWR1

PCIE1

ALiveNF6G-VSTA

PCI1

PCI2

CMOS

BATTERY

CLRCMOS1

1

PCI

EXPRESS

NF-6100-430

5

`

RAID

NVIDIA

Chipset

--

VSTVST

-

VST

--

VSTVST

6

Dual CoreCPU

Dual Channel

FSB800

DDRII_2(64/72 bit, 240-pinmodule)

DDRII_1(64/72 bit, 240-pinmodule)

FSB1GHz

DDRII800

SATAII

RoHS

A)A)

A)

A)A)

7

FSB800

DDRII_3(64/72 bit, 240-pinmodule)

SATAII_4

SATAII_2

1

SPEAKER1

1

DDRII_4(64/72 bit, 240-pinmodule)

USB4_5

SATAII_3

SATAII_1

8

IR1

1

I/O

Super

GAME1

IDE1

ATA133

FLOPPY1

4Mb

BIOS

CHA_FAN1

USB8_9

1

USB6_7

1

PLEDPWRBTN

1

PANEL1

HDLED RESET

1

USB2.0

24.4cm (9.6-in)

10

11
12
13
14
15

16

17

9

26

25

24

23

22

21

20

19

18

1 PS2_USB_PW1 Jumper 17 USB 2.0 Header (USB6_7, Blue)
2 A TX 12V Power Connector (A TX12V1) 18 System Panel Header (P ANEL1)
3 CPU Heatsink Retention Module 19 USB 2.0 Header (USB8_9, Blue)
4 AM2 940-Pin CPU Socket 20 USB 2.0 Header (USB4_5, Blue)
5 CPU Fan Connector (CPU_FAN1) 21 Chassis Speaker Header (SPEAKER 1)
6 2 x 240-pin DDRII DIMM Slots 22 Secondary SA TAII Connector (SA TAII_2, Red)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 2 3 NVIDIA NF-6100-430 Single Chip

7 2 x 240-pin DDRII DIMM Slots 24 Clear CMOS Jumper (CLRCMOS1)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 25 HDMR Slot (HDMR1)
8 Infrared Module Header (IR1) 26 Front Panel Audio Header (HD_AUDIO1)
9 Game Port Header (GAME1) 27 HDMI_SPDIF Header (HDMI_SPDIF1)
10 Floppy Connector (FLOPPY1) 28 PCI Express x1 Slot (PCIE2)
11 Primary IDE Connector (IDE1, Blue) 29 Internal Audio Connector: CD1 (Black)
12 Flash Memory 30 PCI Slots (PCI1- 2)
13 Fourth SAT AII Connector (SATAII_4, Red) 31 PCI Express x16 Slot (PCIE1)
14 Third SAT AII Connector (SA TAII_3, Red) 32 ATX Power Connector (A TXPW R1)
15 Chassis Fan Connector (CHA_FAN1) 33 Serial Port Connector (COM1)
16 Primary SAT AII Connector (SA T AII_1, Red)

1111

11

1111

1.61.6

HD 8CH I/O (ALiveNF6GHD 8CH I/O (ALiveNF6G

1.6

HD 8CH I/O (ALiveNF6G

1.61.6

HD 8CH I/O (ALiveNF6GHD 8CH I/O (ALiveNF6G

-D-D

VI / ALiveNF6GVI / ALiveNF6G

-D

VI / ALiveNF6G

-D-D

VI / ALiveNF6GVI / ALiveNF6G

--

-

--

VSTVST

VST

VSTVST

A)A)

A)

A)A)

1

1213

1 Parallel Port 8 Microphone (Pink)
2 RJ-45 Port 9 USB 2.0 Ports (USB01)
3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)
4 Rear Speaker (Black) 11 V GA Port
5 Central / Bass (Orange) 12 PS/2 Keyboard Port (Purple)
6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

2 V -- -- --

4VV----

6VVV--

8VVVV

11

10

TABLE for Audio Output Connection

(No. 7) (No. 4) (No. 5) (No. 3)

2

3

4

5

6

7

8

9

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

1212

12

1212

2.2.

InstallationInstallation

2.

Installation

2.2.

InstallationInstallation

This is a Micro ATX form factor (9.6-in x 9.6-in, 24.4 cm x 24.4 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to en-

sure that the motherboard fits into it.

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Pre-installation PrecautionsPre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet or

the like. Also remember to use a grounded wrist strap or touch a

safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the motherboard

to the chassis, please do not over-tighten the screws! Doing so may

damage the motherboard.

1313

13

1313

2.12.1

CPU InstallationCPU Installation

2.1

CPU Installation

2.12.1

CPU InstallationCPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90

o

angle.

Step 2. Position the CPU directly above the socket such that the CPU corner with

the golden triangle matches the socket corner with a small triangle.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

Lever 90° Up

STEP 1:
Lift Up The Socket Lever

2.22.2

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

2.2

Installation of CPU Fan and Heatsink

2.22.2

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

CPU Golden Triangle

Socket Corner

STEP 2 / STEP 3:
Match The CPU Golden Triangle
To The Socket Corner

STEP 4:
Push Down And Lock
The Socket Lever

After you install the CPU into this motherboard, it is necessary to install a

larger heatsink and cooling fan to dissipate heat. You also need to spray

thermal grease between the CPU and the heatsink to improve heat

dissipation. Make sure that the CPU and the heatsink are securely fas-

tened and in good contact with each other. Then connect the CPU fan to

the CPU FAN connector (CPU_FAN1, see Page 10 / 11, No. 5). For proper

installation, please kindly refer to the instruction manuals of the CPU fan

and the heatsink.

1414

14

1414

2.3 Installation of Memory Modules (DIMM)2.3 Installation of Memory Modules (DIMM)

2.3 Installation of Memory Modules (DIMM)

2.3 Installation of Memory Modules (DIMM)2.3 Installation of Memory Modules (DIMM)

This motherboard provides four 240-pin DDRII (Double Data Rate II) DIMM slots,

and supports Dual Channel Memory Technology. For dual channel configuration,
you always need to install identical (the same brand, speed, size and chip-

type) DDRII DIMM pair in the slots of the same color. In other words, you have to
install identical DDRII DIMM pair in Dual Channel A (DDRII_1 and DDRII_2;
Yellow slots; see p.10/p.11 No.6) or identical DDRII DIMM pair in Dual Channel
B (DDRII_3 and DDRII_4; Orange slots; see p.10/p.11 No.7), so that Dual Channel

Memory Technology can be activated. This motherboard also allows you to
install four DDRII DIMMs for dual channel configuration, and please install iden-
tical DDRII DIMMs in all four slots. You may refer to the Dual Channel Memory

Configuration Table below.

Dual Channel Memory Configurations

DDRII_1 DDRII_2 DDRII_3 DDRII_4

(Yellow Slot) (Yellow Slot) (Orange Slot) (Orange Slot)

(1) Populated Populated - -

(2) - - Populated Populated

(3)* Populated Populated Populated Populated

* For the configuration (3), please install identical DDRII DIMMs in all four slots.

1. If you want to install two memory modules, for optimal compatibility

and reliability, it is recommended to install them in the slots of the

same color. In other words, install them either in the set of yellow

slots (DDRII_1 and DDRII_2), or in the set of orange slots (DDRII_3

and DDRII_4).

2. If only one memory module or three memory modules are installed

in the DDRII DIMM slots on this motherboard, it is unable to activate

the Dual Channel Memory Technology.

3. If a pair of memory modules is NOT installed in the same Dual

Channel, for example, installing a pair of memory modules in DDRII_1

and DDRII_3, it is unable to activate the Dual Channel Memory

Technology .

4. It is not allowed to install a DDR memory module into DDRII slot;

otherwise, this motherboard and DIMM may be damaged.

1515

15

1515

Installing a DIMMInstalling a DIMM

Installing a DIMM

Installing a DIMMInstalling a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

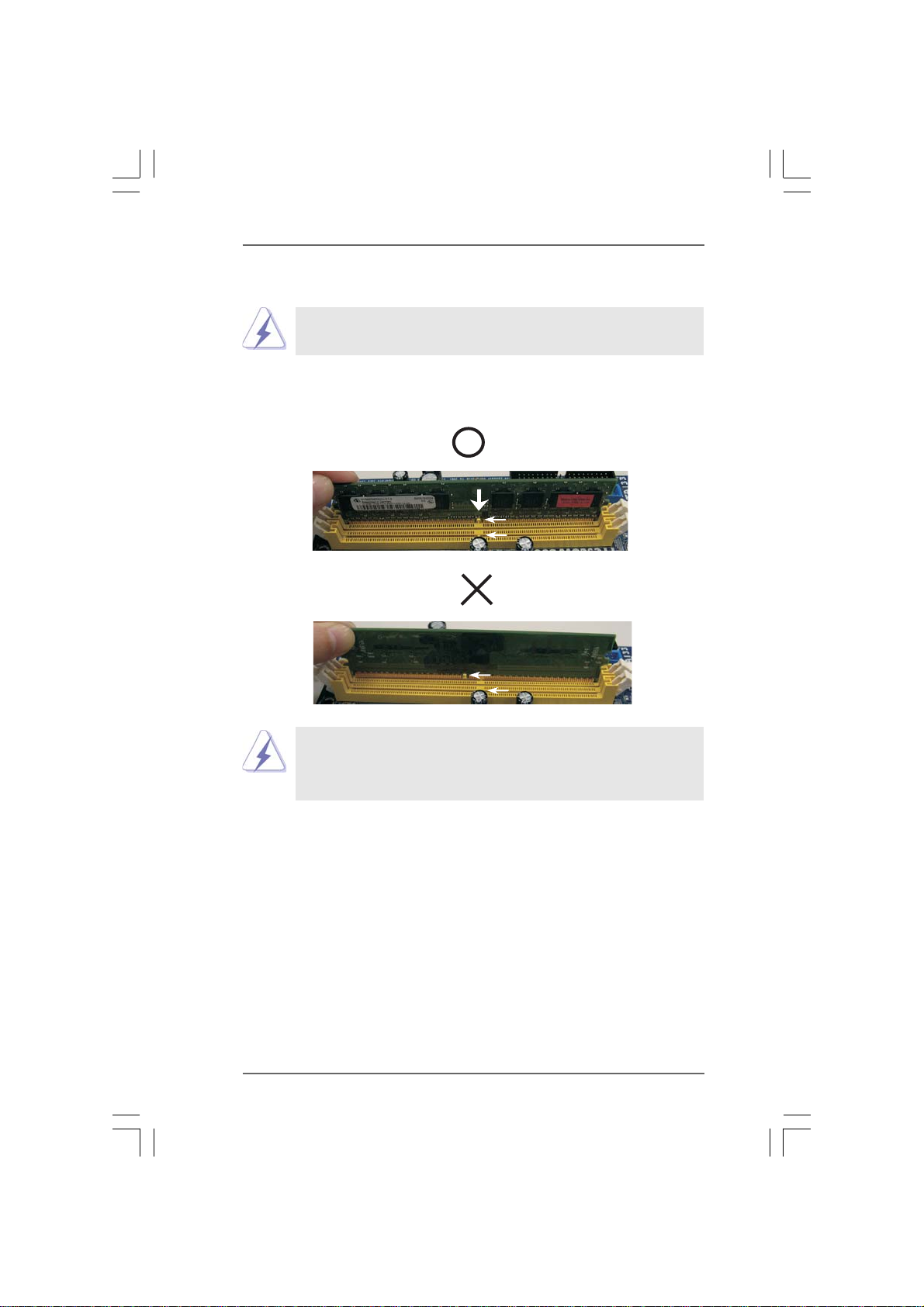

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break

on the slot.

notch

break

notch

break

The DIMM only fits in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into the

slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully

snap back in place and the DIMM is properly seated.

1616

16

1616

2.4 Expansion Slots (PCI, HDMR and PCI Express Slots)2.4 Expansion Slots (PCI, HDMR and PCI Express Slots)

2.4 Expansion Slots (PCI, HDMR and PCI Express Slots)

2.4 Expansion Slots (PCI, HDMR and PCI Express Slots)2.4 Expansion Slots (PCI, HDMR and PCI Express Slots)

There are 2 PCI slots, 1 HDMR slot and 2 PCI Express slots on this motherboard.
PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

HDMR slot: HDMR slot is used to insert a HDMR card (optional) with v.92 Modem

functionality. The HDMR slot is shared with PCIE2 slot; you

can only choose either PCIE2 slot or HDMR slot to use.

PCIE Slots: PCIE1 (PCIE x16 slot) is used for PCI Express cards with x16 lane

width graphics cards or ASRock DVI Graphics-SI card (ALiveNF6G-
DVI).

PCIE2 (PCIE x1 slot) is used for PCI Express cards with x1 lane

width cards, such as Gigabit LAN card, SATA2 card, etc.

You can only choose either PCI Express VGA card or DVI Graphics-SI
card to install to PCIE1 (PCIE x16 slot) on ALiveNF6G-DVI motherboard.

Installing an expansion cardInstalling an expansion card

Installing an expansion card

Installing an expansion cardInstalling an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the bracket facing the slot that you intend to use. Keep the screws

for later use.

Step 3. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 4. Fasten the card to the chassis with screws.

1717

17

1717

2.5 Easy Dual Monitor Feature (ALiveNF6G-DVI)2.5 Easy Dual Monitor Feature (ALiveNF6G-DVI)

2.5 Easy Dual Monitor Feature (ALiveNF6G-DVI)

2.5 Easy Dual Monitor Feature (ALiveNF6G-DVI)2.5 Easy Dual Monitor Feature (ALiveNF6G-DVI)

This motherboard supports Dual Monitor feature. With the onboard VGA/D-Sub output

and the external installation of our DVI Graphics-SI card, this motherboard provides

users with dual VGA output support: DVI-D and D-Sub ports. You can easily enjoy the

benefits of dual VGA output support by connecting the D-Sub input monitor to the

VGA/D-Sub port on the I/O panel and connecting the DVI-D input monitor to our DVI

Graphics-SI card inserted to PCIE1 (PCIE x16 slot) on this motherboard. Besides, this

motherboard provides independent display controllers for DVI-D and D-Sub ports to

support dual VGA output so that DVI-D and D-sub ports can drive same or different

display contents. To enjoy Dual Monitor feature, please refer to the below procedures

for proper installation of DVI Graphics-SI card in advance.

Step 1. Install the DVI Graphics-SI card to PCIE1 (PCIE x16 slot). Please refer to the

expansion card installation procedures on page 17 for details.

DVI Graphics-SI card

Step 2. Connect the DVI-D connector of DVI-D input monitor to the DVI-D output

connector of DVI Graphics-SI card which is inserted to PCIE1 (PCIE x16

slot) on this motherboard.

DVI-D output connec-

DVI-D connector of
DVI-D input monitor

1818

18

1818

tor of DVI Graphics-SI
card

Step 3. Connect the D-Sub input monitor cable to the VGA/D-Sub port on the I/O

panel of this motherboard.

Step 4. If you have installed NVIDIA® VGA driver from our support CD to your

system already, you can freely enjoy the benefits of DVI-D output function

with this motherboard after your system boots. If you haven’t installed

NVIDIA® VGA driver yet, please install NVIDIA® VGA driver from our support

CD to your system and restart your computer. Then you can start to use

DVI-D output function with this motherboard.

Step 5. Righ click the “NVIDIA Settings” icon on on the desktop to adjust the display

mode you plan to use by following the instructions shown on the “NVIDIA

Settings” screen. You are allowed to choose same or different display

contents shown on the two monitors you install.

Independent display controllers for DVI-D and D-Sub ports
to support dual VGA output: DVI-D and D-sub ports can
drive same or different display contents

1919

19

1919

2.6 Easy Multi Monitor Feature2.6 Easy Multi Monitor Feature

2.6 Easy Multi Monitor Feature

2.6 Easy Multi Monitor Feature2.6 Easy Multi Monitor Feature

(ALiveNF6G (ALiveNF6G

(ALiveNF6G

(ALiveNF6G (ALiveNF6G

This motherboard supports Multi Monitor upgrade. With the internal onboard VGA

and the external add-on PCI Express VGA card, you can easily enjoy the benefits

of Multi Monitor feature. Please refer to the following steps to set up a multi

monitor environment:

1. Install the NVIDIA® PCI Express VGA card to PCIE1 (PCIE x16 slot). Please refer

to page 17 for proper expansion card installation procedures for details.

2. Connect the D-Sub input monitor cable to the VGA/D-Sub port on the I/O panel

of this motherboard. Connect another D-Sub input monitor cable to the

VGA/D-Sub connector of the add-on PCI Express VGA card. Connect the DVI-D

input monitor cable to the VGA/DVI-D connector of the add-on PCI Express VGA

card.

3. Boot your system. Press <F2> to enter BIOS setup. Enter “Share Memory”

option to adjust the memory capability to [16MB], [32MB], [64MB], [128MB], or

[256MB] to enable the function of onboard VGA/D-sub. Please make sure that

the value you select is less than the total capability of the system memory. If

you do not adjust the BIOS setup, the default value of “Share Memory”, [Auto],

will disable onboard VGA/D-Sub function when the add-on VGA card is

inserted to this motherboard.

4. Install the onboard VGA driver to your system. If you have installed the

onboard VGA driver already, there is no need to install it again.

5. Set up a multi-monitor display. Right click the desktop, choose “Properties”, and

select the “Settings” tab so that you can adjust the parameters of the multi-

monitor according to the steps below. (The item names and operation

procedures described in this step are under Windows® XP environment. If you

install other Windows® OS, the item names and operation procedures may be

similar.)

A. Click the “Identify” button to display a large number on each monitor.

B. Right-click the display icon in the Display Properties dialog that you wish to

be your primary monitor, and then select “Primary”. When you use multiple

monitors with your card, one monitor will always be Primary, and all

additional monitors will be designated as Secondary.

C. Select the display icon identified by the number 2.

D. Click “Extend my Windows desktop onto this monitor”.

E. Right-click the display icon and select “Attached”, if necessary.

F. Set the “Screen Resolution” and “Color Quality” as appropriate for the

second monitor. Click “Apply” or “OK” to apply these new values.

G. Repeat steps C through E for the diaplay icon identified by the number one,

two, and three.

-D-D

VI / ALiveNF6GVI / ALiveNF6G

-D

VI / ALiveNF6G

-D-D

VI / ALiveNF6GVI / ALiveNF6G

--

VSTVST

-

VST

--

VSTVST

A)A)

A)

A)A)

2020

20

2020

6. Use Multi Monitor feature. Click and drag the display icons to positions

representing the physical setup of your monitors that you would like to use. The

placement of display icons determines how you move items from one monitor to

another.

2.72.7

Jumpers SetupJumpers Setup

2.7

Jumpers Setup

2.72.7

Jumpers SetupJumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose pin1

and pin2 are “Short” when jumper cap is

placed on these 2 pins.

Jumper Setting

PS2_USB_PW1 Short pin2, pin3 to enable

(see p.10/p.11, No. 1) +5VSB (standby) for PS/2 or

1_2

+5V

2_3

+5VSB

USB wake up events.

Note: To select +5VSB, it requires 2 Amp and higher standby current provided by

power supply.

Clear CMOS Jumper

(CLRCMOS1)

(see p.10/p.11, No. 24)

1_2

Default

2_3

Clear CMOS

Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes

system setup information such as system password, date, time, and system

setup parameters. To clear and reset the system parameters to default setup,

please turn off the computer and unplug the power cord from the power

supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3

on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right

after you update the BIOS. If you need to clear the CMOS when you just finish

updating the BIOS, you must boot up the system first, and then shut it down

before you do the clear-CMOS action.

2121

21

2121

2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors

2.8 Onboard Headers and Connectors

2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

•

Floppy Connector

(33-pin FLOPPY1)

(see p.10/p.11 No. 10)

Pin1

FLOPPY1

the red-striped side to Pin1

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE connector (Blue)

(39-pin IDE1, see p.10/p.11 No. 11)

PIN1

connect the blue end

to the motherboard

80-conductor ATA 66/100/133 cable

IDE1

connect the black end

to the IDE devices

Note: Please refer to the instruction of your IDE device vendor for the details.

Serial ATAII Connectors These four Serial ATAII (SATAII)

(SATAII_1: see p.10/p.11, No. 16) connectors support SATAII

(SATAII_2: see p.10/p.11, No. 22) or SATA hard disk for internal

(SATAII_3: see p.10/p.11, No. 14) storage devices. The current

(SATAII_4: see p.10/p.11, No. 13) SATAII interface allows up to

SATAII_4

SATAII_2

SATAII_3

SATAII_1

3.0 Gb/s data transfer rate.

Serial ATA (SATA) Either end of the SATA data cable

Data Cable can be connected to the SATA /

(Optional) SATAII hard disk or the SATAII

connector on the motherboard.

Serial ATA (SATA) Please connect the black end of

Power Cable SATA power cable to the power

(Optional) connector on each drive. Then

connect to the SATA HDD

power connector

connect to the

power supply

connect the white end of SATA

power cable to the power

connector of the power supply.

2222

22

2222

USB 2.0 Headers Besides four default USB 2.0

CD-L

GND

GND

CD-R

(9-pin USB8_9) ports on the I/O panel, there are

(see p.10/p.11 No. 19) three USB 2.0 headers on this

1

USB_PWR

P-9

P-8

USB_PWR

P+9

P+8

GND

GND

DUMMY

motherboard. Each USB 2.0

header can support two USB

2.0 ports.

1

1

USB_PW R

USB_PW R

USB_PWR

USB_PWR

IRTX

1

IRRX

P-7

P-6

P-5

P-4

+5VSB

GND

P+7

P+6

P+5

P+4

DUMMY

GND

GND

GND

GND

DUMMY

DUMMY

(9-pin USB6_7)

(see p.10/p.11 No. 17)

(9-pin USB4_5)

(see p.10/p.11 No. 20)

Infrared Module Header This header supports an

(5-pin IR1) optional wireless transmitting

(see p.10/p.11 No. 8) and receiving infrared module.

Internal Audio Connectors This connector allows you

(4-pin CD1) to receive stereo audio input

(CD1: see p.10/p.11 No. 29) from sound sources such as

CD1

a CD-ROM, DVD-ROM, TV

tuner card, or MPEG card.

1

GND

PRESENCE#

MIC2_R

MIC2_L

MIC_RET

J_SENSE

OUT2_R

OUT_RET

OUT2_L

control of audio devices.

Front Panel Audio Header This is an interface for the front

(9-pin HD_AUDIO1) panel audio cable that allows

(see p.10/p.11, No. 26) convenient connection and

1. High Definition Audio supports Jack Sensing, but the panel wire on the

chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

2323

23

2323

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. Enter BIOS Setup Utility. Enter Advanced Settings, and then select

Chipset Configuration. Set the Front Panel Control option from

[Auto] to [Enabled].

F. Enter Windows system. Click the icon on the lower right hand

taskbar to enter Realtek HD Audio Manager. Click “Audio I/O”, select

“Connector Settings” , choose “Disable front panel jack

detection”, and save the change by clicking “OK”.

1

1

PLED+

HDLED+

DUMMY

+5V

PLED-

PWRBTN#

GND

HDLED-

DUMMY

GND

DUMMY

RESET#

SPEAKER

System Panel Header This header accommodates

(9-pin PANEL1) several system front panel

(see p.10/p.11 No. 18) functions.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1) speaker to this header.

(see p.10/p.11 No. 21)

Chassis Fan Connector Please connect a chassis fan

(3-pin CHA_FAN1) cable to this connector and

(see p.10/p.11 No. 15) match the black wire to the

CHA_FAN_SPEED

+12V

GND

ground pin.

CPU Fan Connector Please connect the CPU fan

(4-pin CPU_FAN1) cable to this connector and

(see p.10/p.11 No. 5) match the black wire to the

FAN_SPEED_CONTROL

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

GND

+12V

CPU_FAN_SPEED

ground pin.

Pin 1-3 Connected

3-Pin Fan Installation

ATX Power Connector Please connect an ATX power

(20-pin ATXPWR1) supply to this connector.

(see p.10/p.11 No. 32)

2424

24

2424

ATX 12V Power Connector Please note that it is necessary

(4-pin ATX12V1) to connect a power supply with

(see p.10/p.11 No. 2) ATX 12V plug to this connector.

Failing to do so will cause power

up failure.

Game Port Header Connect a Game cable to this

(15-pin GAME1) header if the Game port bracket

(see p.10/p.11 No. 9) is installed.

Serial port Header This COM1 header

(9-pin COM1) supports a serial port module.

(see p.10/p.11 No.33)

+5V

JBB1

JBX

MIDI_OUT

JBY

JBB2

MIDI_IN

1

JAX

JAB1

+5V

RRXD1

DDTR#1

1

TTXD1

DDCD#1

GND

GND

DDSR#1

CCTS#1

RRTS#1

GND

JAY

RRI#1

JAB2

+5V

HDMI_SPDIF Header HDMI_SPDIF header, providing

(3-pin HDMI_SPDIF1) SPDIF audio output to HDMI VGA

(see p.10/p.11 No. 27) card, allows the system to

1

GND

SPDIFOUT

+5V

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this header.

HDMI_SPDIF Cable Please connect the black end (A)

(Optional) of HDMI_SPDIF cable to the

C

B

A

HDMI_SPDIF header on the

motherboard. Then connect the

white end (B or C) of

HDMI_SPDIF cable to the

HDMI_SPDIF connector of HDMI

VGA card.

A. black end B. white end (2-pin) C. white end (3-pin)

SPDIFOUT

GND

+5V

blue
black

SPDIFOUT

GND

2525

25

2525

blue
black

SPDIFOUT

GND

blue
black

2.9 HDMI_SPDIF Header Connection Guide2.9 HDMI_SPDIF Header Connection Guide

2.9 HDMI_SPDIF Header Connection Guide

2.9 HDMI_SPDIF Header Connection Guide2.9 HDMI_SPDIF Header Connection Guide

HDMI (High-Definition Multi-media Interface) is an all-digital audio/video specification,

which provides an interface between any compatible digital audio/video source,

such as a set-top box, DVD player, A/V receiver and a compatible digital audio or

video monitor, such as a digital television (DTV). A complete HDMI system requires a

HDMI VGA card and a HDMI ready motherboard with a HDMI_SPDIF header. This

motherboard is equipped with a HDMI_SPDIF header, which provides SPDIF audio

output to HDMI VGA card, allows the system to connect HDMI Digital TV/projector/

LCD devices. To use HDMI function on this motherboard, please carefully follow the

below steps.

•

Step 1. Install the HDMI VGA card to the PCI Express Graphics slot on this

motherboard. For the proper installation of HDMI VGA card, please refer

to the installation guide on page 17.

Step 2. Connect the black end (A) of HDMI_SPDIF cable to the

HDMI_SPDIF header (HDMI_SPDIF1, yellow, see page 10 / 11,

No. 27) on the motherboard.

Make sure to correctly connect the HDMI_SPDIF cable to the motherboard and the

HDMI VGA card according to the same pin definition. For the pin definition of

HDMI_SPDIF header and HDMI_SPDIF cable connectors, please refer to page 25. For

the pin definition of HDMI_SPDIF connectors on HDMI VGA card, please refer to the

user manual of HDMI VGA card vendor. Incorrect connection may cause permanent

damage to this motherboard and the HDMI VGA card.

Step 3. Connect the white end (B or C) of HDMI_SPDIF cable to the HDMI_SPDIF

connector of HDMI VGA card. (There are two white ends (2-pin and 3-pin)

on HDMI_SPDIF cable. Please choose the appropriate white end according

to the HDMI_SPDIF connector of the HDMI VGA card you install.

white end

(2-pin) (B)

Please do not connect the white end of HDMI_SPDIF cable to the wrong connector

of HDMI VGA card or other VGA card. Otherwise, the motherboard and the

VGA card may be damaged. For example, this picture shows the wrong

example of connecting HDMI_SPDIF cable to the fan connector of PCI

Express VGA card. Please refer to the VGA card user manual for

connector usage in advance.

white end

(3-pin) (C)

Step 4. Connect the HDMI output connector on HDMI VGA card to

HDMI device, such as HDTV. Please refer to the user manual

of HDTV and HDMI VGA card vendor for detailed connection

procedures.

Step 5. Install HDMI VGA card driver to your system.

2626

26

2626

2.102.10

SASA

TT

2.10

2.102.10

Before installing SATAII hard disk to your computer, please carefully read below

SATAII hard disk setup guide. Some default setting of SATAII hard disks may not

be at SATAII mode, which operate with the best performance. In order to enable

SATAII function, please follow the below instruction with different vendors to

correctly adjust your SATAII hard disk to SATAII mode in advance; otherwise, your

SATAII hard disk may fail to run at SATAII mode.

Western Digital

If pin 5 and pin 6 are shorted, SATA 1.5Gb/s will be enabled.

On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the

jumpers from pin 5 and pin 6.

SAMSUNG

If pin 3 and pin 4 are shorted, SATA 1.5Gb/s will be enabled.

On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the

jumpers from pin 3 and pin 4.

AII Hard Disk Setup GuideAII Hard Disk Setup Guide

SA

T

AII Hard Disk Setup Guide

SASA

TT

AII Hard Disk Setup GuideAII Hard Disk Setup Guide

1357

2468

1357

2468

HIT ACHI

Please use the Feature Tool, a DOS-bootable tool, for changing various ATA

features. Please visit HITACHI’s website for details:

http://www.hitachigst.com/hdd/support/download.htm

The above examples are just for your reference. For different SATAII hard

disk products of different vendors, the jumper pin setting methods may not

be the same. Please visit the vendors’ website for the updates.

2727

27

2727

2.112.11

2.11

2.112.11

This motherboard adopts NVIDIA® NF-6100-430 chipset that supports Serial ATA

(SATA) / Serial ATAII (SATAII) hard disks and RAID functions. You may install SATA

/ SATAII hard disks on this motherboard for internal storage devices. This section

will guide you to install the SATA / SATAII hard disks.

STEP 1: Install the SATA / SATAII hard disks into the drive bays of your chassis.

STEP 2: Connect the SATA power cable to the SATA / SATAII hard disk.

STEP 3: Connect one end of the SATA data cable to the motherboard’s SATAII

STEP 4: Connect the other end of the SATA data cable to the SATA / SATAII hard

2.122.12

2.12

2.122.12

This motherboard supports Hot Plug and Hot Swap functions for SATA / SATAII

Devices.

Serial ASerial A

Serial A

Serial ASerial A

InstallationInstallation

Installation

InstallationInstallation

connector.

disk.

Hot Plug and Hot Swap FHot Plug and Hot Swap F

Hot Plug and Hot Swap F

Hot Plug and Hot Swap FHot Plug and Hot Swap F

HDDsHDDs

HDDs

HDDsHDDs

TT

A (SAA (SA

TT

A (SA

A (SAA (SA

A) / Serial AA) / Serial A

T

A) / Serial A

TT

A) / Serial AA) / Serial A

T

TT

NOTE

What is Hot Plug Function?

If the SATA / SATAII HDDs are NOT set for RAID configuration, it is

called “Hot Plug” for the action to insert and remove the SATA / SATAII

HDDs while the system is still power-on and in working condition.

However, please note that it cannot perform Hot Plug if the OS has

been installed into the SATA / SATAII HDD.

TT

AII (SAAII (SA

T

AII (SA

TT

AII (SAAII (SA

unctions for SAunctions for SA

unctions for SA

unctions for SAunctions for SA

TT

AII) Hard DisksAII) Hard Disks

T

AII) Hard Disks

TT

AII) Hard DisksAII) Hard Disks

TT

A / SAA / SA

T

A / SA

TT

A / SAA / SA

TT

T

TT

AIIAII

AII

AIIAII

What is Hot Swap Function?

If SATA / SATAII HDDs are built as RAID1 then it is called “Hot Swap”

for the action to insert and remove the SATA / SATAII HDDs while the

system is still power-on and in working condition.

2.132.13

Driver Installation GuideDriver Installation Guide

2.13

Driver Installation Guide

2.132.13

Driver Installation GuideDriver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive first. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from up to bottom

side to install those required drivers. Therefore, the drivers you install can work

properly.

2828

28

2828

2.142.14

HDMR Card and Driver Installation HDMR Card and Driver Installation

2.14

HDMR Card and Driver Installation

2.142.14

HDMR Card and Driver Installation HDMR Card and Driver Installation

If you do not insert HDMR card to this motherboard, and you finish installing all

drivers to your system now, but in the future, you plan to use HDMR card function

on this motherboard, please follow the steps below then.

1. Insert HDMR card to HDMR slot on this motherboard. Please make sure that the

HDMR card is completely seated on the slot.

2. Install HDMR card driver from our support CD to your system.

3. Reboot your system.

2.152.15

Installing WindowsInstalling Windows

2.15

Installing Windows

2.152.15

Installing WindowsInstalling Windows

XP 64-bit / WindowsXP 64-bit / Windows

XP 64-bit / Windows

XP 64-bit / WindowsXP 64-bit / Windows

The installation procedures for Windows® VistaTM are subject to change.

If you just want to install Windows® 2000, Windows® XP or Windows® XP 64-bit on

your SATA / SATAII HDDs without RAID functions, you don’t have to make a SATA /

SATAII driver diskette. Besides, there is no need for you to change the BIOS setting.

You can start to install Windows® 2000, Windows® XP or Windows® XP 64-bit on

your system directly.

2.162.16

Installing WindowsInstalling Windows

2.16

Installing Windows

2.162.16

Installing WindowsInstalling Windows

XP 64-bit / WindowsXP 64-bit / Windows

XP 64-bit / Windows

XP 64-bit / WindowsXP 64-bit / Windows

The installation procedures for Windows® VistaTM are subject to change.

If you want to install Windows® 2000, Windows® XP or Windows® XP 64-bit on your

SATA / SATAII HDDs with RAID functions, please follow the below steps.

Before installing Windows® 2000 to your system, your disk is supposed to

include SP4. If there is no SP4 included in your disk, please visit the below

website for proper procedures of making a SP4 disk:

http://www.microsoft.com/Windows2000/downloads/servicepacks/sp4/

spdeploy.htm#the_integrated_installation_fmay

STEP 1: Make a SATA / SATAII Driver Diskette.

A. Insert the ASRock Support CD into your optical drive to boot your system.

B. During POST at the beginning of system boot-up, press <F11> key, and

then a window for boot devices selection appears. Please select CD-

ROM as the boot device.

C. When you see the message on the screen, “Generate Serial ATA driver

diskette [YN]?”, press <Y>.

D. Then you will see these messages,

Please insert a blank
formatted diskette into floppy

®

2000 / Windows 2000 / Windows

2000 / Windows

2000 / Windows 2000 / Windows

Vista Vista

Vista

Vista Vista

TMTM

TM

TMTM

Without RAID Functions Without RAID Functions

Without RAID Functions

Without RAID Functions Without RAID Functions

TMTM

TM

TMTM

With RAID Functions With RAID Functions

With RAID Functions

With RAID Functions With RAID Functions

®

®

2000 / Windows 2000 / Windows

2000 / Windows

2000 / Windows 2000 / Windows

®

Vista Vista

Vista

Vista Vista

®

XP / Windows XP / Windows

XP / Windows

XP / Windows XP / Windows

®

XP / Windows XP / Windows

XP / Windows

XP / Windows XP / Windows

®

®

2929

29

2929

drive A:
press any key to start

Please insert a floppy diskette into the floppy drive, and press any key.

E. The system will start to format the floppy diskette and copy SATA /

SATAII drivers into the floppy diskette.

STEP 2: Set Up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.

B. Set the “SATAII Operation Mode” option from [non-RAID] to [RAID].

STEP 3: Use “RAID Installation Guide” to set RAID configuration.

Before you start to configure RAID function, you need to check the RAID installation

guide in the Support CD for proper configuration. Please refer to the BIOS RAID

installation guide part of the document in the following path in the Support CD:

.. \ RAID Installation Guide
STEP 4: Install Windows® 2000 / Windows® XP / Windows® XP-64bit OS on

your system.

After step1, 2, 3, you can start to install Windows® 2000 / Windows® XP / Windows

XP 64-bit OS on your system. At the beginning of Windows® setup, press F6 to install

a third-party SCSI or RAID driver. When prompted, insert the SATA / SATAII driver

diskette containing the NVIDIA® RAID driver. After reading the floppy disk, the driver

will be presented. Select the driver to install according to the mode you choose and

the OS you install.

NOTE. If you install Windows® 2000 / Windows® XP / Windows® XP 64-bit on IDE

HDDs and want to manage (create, convert, delete, or rebuild) RAID functions

on SATA / SATAII HDDs, you still need to set up “SATAII Operation Mode” to [RAID]

first. Then, please set the RAID configuration by using the Windows RAID installation

guide part of the document in the following path in the Support CD:

.. \ RAID Installation Guide

®

2.172.17

Untied Overclocking TUntied Overclocking T

2.17

Untied Overclocking T

2.172.17

Untied Overclocking TUntied Overclocking T

This motherboard supports Untied Overclocking Technology, which means during

overclocking, FSB enjoys better margin due to fixed PCI / PCIE buses. Before you

enable Untied Overclocking function, please enter “Overclock Mode” option of BIOS

setup to set the selection from [Auto] to [CPU, PCIE, Async.]. Therefore, CPU FSB is

untied during overclocking, but PCI / PCIE buses are in the fixed mode so that FSB can

operate under a more stable overclocking environment.

echnologyechnology

echnology

echnologyechnology

3030

30

3030

3.3.

BIOS SETUP UTILITYBIOS SETUP UTILITY

3.

BIOS SETUP UTILITY

3.3.

BIOS SETUP UTILITYBIOS SETUP UTILITY

3.1 Introduction3.1 Introduction

3.1 Introduction

3.1 Introduction3.1 Introduction

This section explains how to use the BIOS SETUP UTILITY to configure your system.

The Flash Memory on the motherboard stores the BIOS SETUP UTILITY. You may run

the BIOS SETUP UTILITY when you start up the computer. Please press <F2> during

the Power-On-Self-Test (POST) to enter the BIOS SETUP UTILITY, otherwise, POST

will continue with its test routines.

If you wish to enter the BIOS SETUP UTILITY after POST, restart the system by

pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system

chassis. You may also restart by turning the system off and then back on.

Because the BIOS software is constantly being updated, the following

BIOS setup screens and descriptions are for reference purpose only,

and they may not exactly match what you see on your screen.

3.1.13.1.1

BIOS Menu BarBIOS Menu Bar

3.1.1

BIOS Menu Bar

3.1.13.1.1

BIOS Menu BarBIOS Menu Bar

The top of the screen has a menu bar with the following selections:

Main To set up the system time/date information
Advanced To set up the advanced BIOS features
H/W Monitor To display current hardware status
Boot To set up the default system device to locate and load the

Operating System

Security To set up the security features
Exit To exit the current screen or the BIOS SETUP UTILITY

Use < > key or < > key to choose among the selections on the menu bar,

and then press <Enter> to get into the sub screen.

3131

31

3131

3.1.23.1.2

Navigation KeysNavigation Keys

3.1.2

Navigation Keys

3.1.23.1.2

Navigation KeysNavigation Keys

Please check the following table for the function description of each navigation

key.

Navigation Key(s) Function Description
/ Moves cursor left or right to select Screens
/ Moves cursor up or down to select items
+ / - To change option for the selected items
<Enter> To bring up the selected screen
<F1> To display the General Help Screen
<F9> To load optimal default values for all the settings
<F10> To save changes and exit the BIOS SETUP UTILITY
<ESC> To jump to the Exit Screen or exit the current screen

3.23.2

Main ScreenMain Screen

3.2

Main Screen

3.23.2

Main ScreenMain Screen

When you enter the BIOS SETUP UTILITY, the Main screen will appear and display

the system overview.

ALiveNF6G-DVI

Advanced H/W Monitor Boot Security Exit

Main

System Overview

System Time

System Date

BIOS Version
Processor Type

Processor Speed
Microcode Update
L1 Cache Size
L2 Cache Size

Total Memory

DDRII 1
DDRII 2
DDRII 3
DDRII 4

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

BIOS SETUP UTILITY

[ :00:09]

17

: ALiveNF6G-DVI BIOS P1.0
: AMD Athlon(tm) 64 Processor 3400+

(64bit supported)
: 2200 MHz
:F7A/3A
: 128KB
: 512KB

: 512MB with 64MB shared memory

Dual-Channel MemoryMode
: 256MB/266MHz(DDRII533)
: 256MB/266MHz(DDRII533)
: None
: None

[Wed 07/12/2006]

Use [Enter], [TAB]
or [SHIFT-TAB] to
select a field.

Use [+] or [-] to
configure system Time.

Select Screen

Select Item
+- Change Field
Tab Select Field
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

3232

32

3232

ALiveNF6G-VSTA

Advanced H/W Monitor Boot Security Exit

Main

System Overview

System Time

System Date

BIOS Version
Processor Type

Processor Speed
Microcode Update
L1 Cache Size
L2 Cache Size

Total Memory

DDRII 1
DDRII 2
DDRII 3
DDRII 4

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

BIOS SETUP UTILITY

[ :00:09]

17

: ALiveNF6G-VSTA BIOS P1.0
: AMD Athlon(tm) 64 Processor 3400+

(64bit supported)
: 2200 MHz
:F7A/3A
: 128KB
: 512KB

: 512MB with 64MB shared memory

Dual-Channel MemoryMode
: 256MB/266MHz(DDRII533)
: 256MB/266MHz(DDRII533)
: None
: None

[Wed 07/12/2006]

Use [Enter], [TAB]
or [SHIFT-TAB] to
select a field.

Use [+] or [-] to
configure system Time.

Select Screen

Select Item
+- Change Field
Tab Select Field
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

System Time [Hour:Minute:Second]

Use this item to specify the system time.

System Date [Day Month/Date/Year]

Use this item to specify the system date.

3.33.3

Advanced ScreenAdvanced Screen

3.3

Advanced Screen

3.33.3

Advanced ScreenAdvanced Screen

In this section, you may set the configurations for the following items: CPU

Configuration, Chipset Configuration, ACPI Configuration, IDE Configuration, PCIPnP

Configuration, Floppy Configuration, SuperIO Configuration, and USB Configuration.

BIOS SETUP UTILITY

Main

Advanced Settings

WARNING: Setting wrong values in below sections

CPU Configuration

Chipset Configuration
ACPI Configuration
IDE Configuration
PCIPnP Configuration
Floppy Configuration
SuperIO
USB Configuration

Advanced

may cause system to malfunction.

Configuration

H/W Monitor Boot Security Exit

Options for CPU

Select Screen

Select Item
Enter Go to Sub Screen
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

Setting wrong values in this section may cause

the system to malfunction.

3333

33

3333

3.3.13.3.1

CPU ConfigurationCPU Configuration

3.3.1

CPU Configuration

3.3.13.3.1

CPU ConfigurationCPU Configuration

Advanced

CPU Configuration

AM2 Boost
Overclock Mode

CPU Frequency (MHz)
PCIE Frequency (MHz)

Boot Failure Guard

CPU/LDT Spread Spectrum
PCIE

Spread Spectrum

SATA

Spread Spectrum
Cool'n'Quiet
Dual Core Support

Processor Maximum Multiplier
Processor Maximum Voltage

Multiplier/Voltage Change

Memory Clock
Flexibility Option
CAS Latency
TRAS

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

BIOS SETUP UTILITY

[Disabled]
[Auto]
[200]
[100]
[Enabled]

[0.75% Hershey]
[Enabled]
[Enabled]
[Enabled]
[Enabled]

x11

1.550 V

[Auto]

[Auto]
[Disabled]
[Auto]
[Auto]

If AUTO, multiplier and
voltage will be left at the
rated frequency/voltage. If

multiplier and

Manual,
voltage

will be set based

on User Selection in Setup.

Select Screen

Select Screen
Select Item

Select Item

+- Change Option

+- Change Option
F1 General Help

F1 General Help
F9 Load Defaults

F9 Load Defaults
F10 Save and Exit

F10 Save and Exit
ESC Exit

ESC Exit

AM2 Boost

If you set this option to [Enabled], you will enable ASRock AM2 Boost

function, which will improve the memory performance. The default value is

[Disabled]. Please refer to caution 6 on page 8 for details.

Overclock Mode

Use this to select Overclock Mode. The default value is [Auto]. Configura-

tion options: [Auto], [CPU, PCIE, Sync.] and [CPU, PCIE, Async.].

CPU Frequency (MHz)
Use this option to adjust CPU frequency. The default value is [200].

PCIE Frequency (MHz)

Use this option to adjust PCIE frequency. The default value is [100].

3434

34

3434

Boot Failure Guard

Enable or disable the feature of Boot Failure Guard.

CPU/LDT Spread Spectrum

This feature will be set to [0.75% Hershey] as default. Configuration

options: [Disabled], [0.5% Hershey], [0.75% Hershey], [0.5% Triangular],

and [0.75% Triangular].

PCIE Spread Spectrum

This feature will be set to [Enabled] as default. Configuration

options: [Disabled], and [Enabled].

SATA Spread Spectrum

This feature will be set to [Enabled] as default. Configuration

options: [Disabled], and [Enabled].

Cool ‘n’ Quiet

Use this item to enable or disable AMD’s Cool ‘n’ QuietTM technology.

Dual Core Support

This item will show if you use Dual Core CPU. Configuration optiona: [Enabled],

[Disabled]. The default value is [Enabled].

Processor Maximum Multiplier

It will display Processor Maximum Multiplier for reference.

Processor Maximum Voltage

It will display Processor Maximum Voltage for reference.

Multiplier/Voltage Change

This item is set to [Auto] by default. If it is set to [Manual], you may adjust the

value of Processor Multiplier and Processor Voltage. However, it is recom-

mended to keep the default value for system stability.

Advanced

CPU Configuration

AM2 Boost
Overclock Mode

CPU Frequency (MHz)
PCIE Frequency (MHz)

Boot Failure Guard

CPU/LDT Spread Spectrum
PCIE

Spread Spectrum

SATA

Spread Spectrum
Cool'n'Quiet
Dual Core Support

Processor Maximum Multiplier
Processor Maximum Voltage

Multiplier/Voltage Change

Processor Multiplier
Processor Voltage

BIOS SETUP UTILITY

[Disabled]
[Auto]
[200]
[100]
[Enabled]

[0.75% Hershey]
[Enabled]
[Enabled]
[Enabled]
[Enabled]

x11

1.550 V

[Manual]

[x8]
[1.500V]

If AUTO, multiplier and
voltage will be left at the
rated frequency/voltage. If

multiplier and

Manual,
voltage

will be set based

on User Selection in Setup.

Select Screen

Select Screen
Select Item

Select Item

+- Change Option

+- Change Option
F1 General Help

F1 General Help
F9 Load Defaults

F9 Load Defaults
F10 Save and Exit

F10 Save and Exit
ESC Exit

ESC Exit

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

Processor Multiplier

This item will show when “Multiplier/Voltage Change” is set to [Manual];

otherwise, it will be hidden. You may set the value from [x8] up to [x25] but

no higher than the value of “Processor Maximum Multiplier”. For example, if

the value of “Processor Maximum Multiplier” is [x11], the actual value of

3535

35

3535

multiplier will be [x11] even if you set this item to a value higher than [x11].

However, for system stability, it is not recommended to adjust the value of

this item.

Processor Voltage

This item will show when “Multiplier/Voltage Change” is set to [Manual];

otherwise, it will be hidden. You may set the value from [1.550V] down to

[0.800V]. However, for safety and system stability, it is not recommended

to adjust the value of this item.

Memory Clock

This item can be set by the code using [Auto]. You can set one of the

standard values as listed: [200 MHz (DDRII 400)], [266 MHz (DDRII 533)],

[333 MHz (DDRII 667)], and [400MHz (DDRII 800)].

Flexibility Option

The default value of this option is [Disabled]. It will allow better tolerance for

memory compatibility when it is set to [Enabled].

CAS Latency

Use this item to adjust the means of memory accessing. Configuration

options: [Auto], [2.0], [3.0], and [2.5]. The default value is [Auto].

TRAS

Use this to adjust TRAS values. Configuration options: [Auto], [5CLK], [6CLK],

[7CLK], [8CLK], [9CLK], [10CLK], [11CLK], [12CLK], [13CLK], [14CLK], and

[15CLK]. The default value is [Auto].

TRP

Use this to adjust TRP values. Configuration options: [Auto], [2CLK], [3CLK],

[4CLK], [5CLK], and [6CLK]. The default value is [Auto].

TRCD

Use this to adjust TRCD values. Configuration options: [Auto], [2CLK], [3CLK],

[4CLK], [5CLK], and [6CLK]. The default value is [Auto].

TRRD

Use this to adjust TRRD values. Configuration options: [Auto], [2T], [3T], and

[4T]. The default value is [Auto].

TRC

Use this to adjust TRC values. Configuration options: [7T] to [22T]. The

default value is [Auto].

MA Timing

Use this to adjust values for MA timing. Configuration options: [Auto], [2T],

[1T]. The default value is [Auto].

Burst Length

Burst length can be set to 8, 4 or 2 beats. 64 Bit Dq must use the 4 beats.

Bank Interleaving

Interleaving allows memory accesses to be spread out over banks on the

same node, or accross nodes, decreasing access contention.

3636

36

3636

Memory Hole

Use this item to enable or disable memory hole. The Default value is

[Disabled].

DDRII Initialization Mode

Configuration options: [Auto] and [Compatible]. The default value is [Auto].

3.3.23.3.2

3.3.2

3.3.23.3.2

Chipset ConfigurationChipset Configuration

Chipset Configuration

Chipset ConfigurationChipset Configuration

Advanced

Chipset Settings

Onboard LAN
Onboard HD Audio

Front Panel Controller

Share Memory

Graphics Adapter

Primary

CPU-NB Link Speed
CPU-NB Kink Width

DRAM Voltage

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

BIOS SETUP UTILITY

[Enabled]
[Auto]
[Auto]
[Auto]
[PCI]

[Auto]
[Auto]

[Auto]

To set DRAM Voltage.

Select Screen

Select Item
+ - Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

OnBoard LAN

This allows you to enable or disable the onboard LAN feature.

OnBoard HD Audio

Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If

you select [Auto], the onboard HD Audio will be disabled when PCI Sound

Card is plugged.

Front Panel Control

Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio Front Panel.

Share Memory

This allows you to set share memory feature. The default value is [Auto].

Configuration options: [Auto], [16MB], [32MB], [64MB], [128MB], and [256MB].

Primary Graphics Adapter

This item will switch the PCI Bus scanning order while searching for video

card. It allows you to select the type of Primary VGA in case of multiple

video controllers. The default value of this feature is [PCI]. Configuration

options: [PCI], [Onboard] and [PCI Express].

CPU - NB Link Speed

This feature allows you selecting CPU to NB link frequency. Configuration

options: [Auto], [200 MHz], [400 MHz], [600 MHz], [800 MHz], and [1000

MHz].

CPU - NB Link Width

This feature allows you selecting CPU to NB link width. Configuration options:

[Auto], [8 bit], and [16 bit].

3737

37

3737

DRAM Voltage

Use this to select DRAM voltage. Configuration options: [Auto], [Ultra High],

[High], [Normal], and [Low]. The default value is [Auto].

3.3.33.3.3

3.3.3

3.3.33.3.3

ACPI ConfigurationACPI Configuration

ACPI Configuration

ACPI ConfigurationACPI Configuration

Advanced

ACPI Settings

Suspend To RAM

Repost Video on STR Resume
Away Mode Support

Restore on AC /Power Loss
Ring-In Power On
PCI Devices Power On
PS /2 Keyboard Power On
RTC Alarm Power On

ACPI HPET Table

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

BIOS SETUP UTILITY

[Auto]

[No]
[Disabled]

[Power Off]
[Disabled]
[Disabled]
[Disabled]
[Disabled]

[Disabled]

Select auto-detect or
disable the STR
feature.

Select Screen

Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

Suspend to RAM

Use this item to select whether to auto-detect or disable the Suspend-to-

RAM feature. Select [Auto] will enable this feature if the OS supports it. If

you set this item to [Disabled], the function “Repost Video on STR Resume”

will be hidden.

Repost Video on STR Resume
This feature allows you to repost video on STR resume. (STR refers to

suspend to RAM.)

Away Mode Support

Use this item to enable or disable Away Mode support under Windows® XP

Media Center OS. The default value is [Disabled].

Restore on AC/Power Loss

This allows you to set the power state after an unexpected AC/power

loss. If [Power Off] is selected, the AC/power remains off when the

power recovers. If [Power On] is selected, the AC/power resumes

and the system starts to boot up when the power recovers.

Ring-In Power On

Use this item to enable or disable Ring-In signals to turn on the system from

the power-soft-off mode.

PCI Devices Power On

Use this item to enable or disable PCI devices to turn on the system from the

power-soft-off mode.

PS/2 Keyboard Power On

Use this item to enable or disable PS/2 keyboard to turn on the system from

the power-soft-off mode.

3838

38

3838

RTC Alarm Power On

Use this item to enable or disable RTC (Real Time Clock) to power on the

system.

ACPI HPET Table

Use this item to enable or disable ACPI HPET Table. The default value is

[Disabled]. Please set this option to [Enabled] if you plan to use this

motherboard to submit Windows® VistaTM certification.

3.3.43.3.4

IDE ConfigurationIDE Configuration

3.3.4

IDE Configuration

3.3.43.3.4

IDE ConfigurationIDE Configuration

Advanced

IDE Configuration

OnBoard IDE Controller

OnBoard SATAII Controller

SATAII Operation Mode

IDE Master
IDE Slave
SATAII 1
SATAII 2
SATAII 3
SATAII 4

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

BIOS SETUP UTILITY

OnBoard IDE Controller

Use this item to enable or disable the “OnBoard IDE Controller” feature.

OnBoard SATAII Controller

Use this item to enable or disable the “OnBoard SATAII Controller” feature.

SATAII Operation Mode

Use this item to adjust SATAII Operation Mode. The default value of this

option is [non-RAID]. If you want to operate RAID function on SATA / SATAII

HDDs, please select [RAID].

* If you select [RAID] mode, SATA / SATAII HDDs can not be accessed until you finish

configuring RAID functions in NVIDIA BIOS / Windows RAID Utility.

IDE Device Configuration

You may set the IDE configuration for the device that you specify. We will

use the “IDE Master” as the example in the following instruction, which can

be applied to the configurations of “IDE Slave” as well.

[Enabled]

[Enabled]
[non-RAID]

[Hard Disk]
[Not Detected]
[Not Detected]
[Not Detected]
[Not Detected]
[Not Detected]

ENABLED: enables the
integrated IDE
Controller.
DISABLED: disables the
integrated IDE
Controller.

Select Screen

Select Screen
Select Item

Select Item

+- Change Option

+- Change Option
F1 General Help

F1 General Help
F9 Load Defaults

F9 Load Defaults
F10 Save and Exit

F10 Save and Exit
ESC Exit

ESC Exit

3939

39

3939

Advanced

IDE Master

:Hard Disk

Device

:MAXTOR 6L080J4

Vendor

:80.0 GB

Size

:Supported

LBA Mode

:16Sectors

Block Mode

:4

PIO Mode

:MultiWord DMA-2

Async DMA

:Ultra DMA-6

Ultra DMA

:Supported

S.M.A.R.T.

Type

LBA/Large Mode
Block (Multi-Sector Transfer)
PIO Mode
DMA Mode
S.M.A.R.T.
32Bit Data Transfer

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

BIOS SETUP UTILITY

[Auto]

[Auto]
[Auto]
[Auto]
[Auto]
[Disabled]
[Disabled]

Select the type
of device connected
to the system.

Select Screen

Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

TYPE

Use this item to configure the type of the IDE device that you specify.

Configuration options: [Not Installed], [Auto], [CD/DVD], and [ARMD].

[Not Installed]: Select [Not Installed] to disable the use of IDE device.
[Auto]: Select [Auto] to automatically detect the hard disk drive.

After selecting the hard disk information into BIOS, use a disk

utility, such as FDISK, to partition and format the new IDE hard

disk drives. This is necessary so that you can write or read data

from the hard disk. Make sure to set the partition of the Primary

IDE hard disk drives to active.

[CD/DVD]:This is used for IDE CD/DVD drives.
[ARMD]: This is used for IDE ARMD (ATAPI Removable Media Device),

such as MO.

LBA/Large Mode

Use this item to select the LBA/Large mode for a hard disk > 512 MB under

DOS and Windows; for Netware and UNIX user, select [Disabled] to

disable the LBA/Large mode.

Block (Multi-Sector Transfer)

The default value of this item is [Auto]. If this feature is enabled, it will

enhance hard disk performance by reading or writing more data during

each transfer.

PIO Mode

Use this item to set the PIO mode to enhance hard disk performance by

optimizing the hard disk timing.

DMA Mode

DMA capability allows the improved transfer-speed and data-integrity for

compatible IDE devices.

4040

40

4040

S.M.A.R.T.

Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analysis,

and Reporting Technology) feature. Configuration options: [Disabled], [Auto],

[Enabled].

32Bit Data Transfer

Use this item to enable 32-bit access to maximize the IDE hard disk data

transfer rate.

3.3.53.3.5

PCIPnP ConfigurationPCIPnP Configuration

3.3.5

PCIPnP Configuration

3.3.53.3.5

PCIPnP ConfigurationPCIPnP Configuration

Advanced

Advanced PCI /PnP Settings

WARNING: Setting wrong values in below sections

PCI Latency Timer

PCI IDE BusMaster

may cause system to malfunction.

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

BIOS SETUP UTILITY

[64]

[Enabled]

Value in units of PCI
clocks for PCI device
latency timer
register.

Select Screen

Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

Setting wrong values in this section may cause

the system to malfunction.

PCI Latency Timer

The default value is 32. It is recommended to keep the default value unless

the installed PCI expansion cards’ specifications require other settings.

PCI IDE BusMaster

Use this item to enable or disable the PCI IDE BusMaster feature.

4141

41

4141

3.3.63.3.6

Floppy ConfigurationFloppy Configuration

3.3.6

Floppy Configuration

3.3.63.3.6

Floppy ConfigurationFloppy Configuration

In this section, you may configure the type of your floppy drive.

Advanced

Floppy Configuration

Floppy A

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

3.3.73.3.7

Super IO ConfigurationSuper IO Configuration

3.3.7

Super IO Configuration

3.3.73.3.7

Super IO ConfigurationSuper IO Configuration

BIOS SETUP UTILITY

1

[1.44 MB 3 "]

2

Select the type of
floppy drive
connected to the
system.

Select Screen

Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

Advanced

Configure Super IO Chipset

OnBoard Floppy Controller

Serial Port Address
Infrared Port Address
Parallel Port Address

Parallel Port Mode

EPP Version
ECP Mode DMA Channel

Parallel Port IRQ
OnBoard Game Port
OnBoard MIDI Port

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

BIOS SETUP UTILITY

[Enabled]

[3F8 /IRQ4]
[Disabled]
[378]
[ECP + EPP]
[1.9]
[DMA3]
[IRQ7]
[Enabled]
[Disabled]

Allow BIOS to Enable
or Disable Floppy
Controller.

Select Screen

Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

OnBoard Floppy Controller

Use this item to enable or disable floppy drive controller.

Serial Port Address

Use this item to set the address for the onboard serial port or disable it.

Configuration options: [Disabled], [3F8 / IRQ4], [2F8 / IRQ3], [3E8 / IRQ4],

[2E8 / IRQ3].

Infrared Port Address

Use this item to set the address for the onboard infrared port or disable it.

Configuration options: [Disabled], [2F8 / IRQ3], and [2E8 / IRQ3].

4242

42

4242

Parallel Port Address

Use this item to set the address for the onboard parallel port or disable it.

Configuration options: [Disabled], [378], and [278].

Parallel Port Mode

Use this item to set the operation mode of the parallel port. The default

value is [ECP+EPP]. If this option is set to [ECP+EPP], it will show the EPP

version in the following item, “EPP Version”. Configuration options:

[Normal], [Bi-Directional], and [ECP+EPP].

EPP Version

Use this item to set the EPP version. Configuration options: [1.9]

and [1.7].

ECP Mode DMA Channel

Use this item to set the ECP mode DMA channel. Configuration

options: [DMA0], [DMA1], and [DMA3].

Parallel Port IRQ

Use this item to set the IRQ for the parallel port. Configuration options:

[IRQ5] and [IRQ7].

OnBoard Game Port

Use this item to enable the Game Port or disable it.

OnBoard MIDI Port

Use this itme to select the address for the MIDI Port or disable it. Configura-

tion options: [Disabled], [300], and [330].

3.3.83.3.8

USB ConfigurationUSB Configuration

3.3.8

USB Configuration

3.3.83.3.8

USB ConfigurationUSB Configuration

Advanced

USB Configuration

USB Controller

USB 2.0 Support
Legacy USB Support

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

BIOS SETUP UTILITY

[Enabled]

[Enabled]
[Disabled]

To enable or disable
the onboard USB
controllers.

Select Screen

Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

USB Controller

Use this item to enable or disable the use of USB controller.

USB 2.0 Support

Use this item to enable or disable the USB 2.0 support.

4343

43

4343

Legacy USB Support

Use this item to enable or disable the support to emulate the I/O devices

of legacy OS (DOS) such as mouse, keyboard, USB flash... etc. Or you

may select [Auto] so that the system will start to auto-detect; if there is

no USB device connected, “Auto” option will disable the legacy USB

support.

3.43.4

Hardware Health Event Monitoring ScreenHardware Health Event Monitoring Screen

3.4

Hardware Health Event Monitoring Screen

3.43.4

Hardware Health Event Monitoring ScreenHardware Health Event Monitoring Screen

In this section, it allows you to monitor the status of the hardware on your system,

including the parameters of the CPU temperature, motherboard temperature, CPU fan

speed, chassis fan speed, and the critical voltage.

Main Advanced

Hardware Health Event Monitoring

CPU Ambient Temperature
CPU Internal Temperature
M /B Temperature

CPU Fan Speed
Chassis Fan Speed

Vcore
+ 3.30V
+ 5.00V
+ 12.00V

CPU Quiet Fan

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

BIOS SETUP UTILITY

H/W Monitor

: 42C/107F
: 52C/125F
: 31C/87F

: 2833 RPM
:N/A

: 1.532 V
: 3.129 V
: 4.877 V
: 11.741 V

[Disabled]

Boot Security Exit

Select Screen

Select Item
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

CPU Ambient Temperature

This item shows the temperature sensed by thermistor near CPU.

CPU Internal Temperature

This item shows the temperature sensed by dual current source

CPU.

CPU Quiet Fan

This item allows you to identify the temperature of CPU fan. Configuration

options: [Disabled] and [Enabled]. The default value is [Disabled].

4444

44

4444

3.53.5

Boot ScreenBoot Screen

3.5

Boot Screen

3.53.5

Boot ScreenBoot Screen

In this section, it will display the available devices on your system for you to config-

ure the boot settings and the boot priority.

Main Advanced H/W Monitor

Boot Settings

Boot Settings Configuration

1st Boot Device

Boot Device

2nd
3rd Boot Device
Hard Disk Drives
Removable Drives
CD/DVD Drives

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

3.5.13.5.1

3.5.1

3.5.13.5.1

Boot Settings ConfigurationBoot Settings Configuration

Boot Settings Configuration

Boot Settings ConfigurationBoot Settings Configuration

Boot Settings Configuration

Boot From Network

Bootup Num-Lock

BIOS SETUP UTILITY

[1st Floppy Device]
[HDD: PM-MAXTOR 6L08]
[CD/DVD: SM-CD-ROM]

BIOS SETUP UTILITY

[Disabled]

[On]

Boot

Boot

Security Exit

Configure Settings
during System Boot.

Select Screen

Select Item
Enter Go to Sub Screen
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

To enable or disable the
boot from network feature.

Select Screen

Select Item
+ - Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

Boot From Network

Use this item to enable or disable the Boot From Network feature.

Boot Up Num-Lock

If this item is set to [On], it will automatically activate the Numeric Lock

function after boot-up.

4545

45

4545

3.63.6

Security ScreenSecurity Screen

3.6

Security Screen

3.63.6

Security ScreenSecurity Screen

In this section, you may set or change the supervisor/user password for the system.

For the user password, you may also clear it.

Main Advanced H/W Monitor Boot

Security Settings

Supervisor Password : Not Installed
User Password : Not Installed

Change Supervisor Password

Change User Password

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

BIOS SETUP UTILITY

Security

Install or Change the
password.

Select Screen

Select Item
Enter Change
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

Exit

4646

46

4646

3.73.7

Exit ScreenExit Screen

3.7

Exit Screen

3.73.7

Exit ScreenExit Screen

Main Advanced H/W Monitro Boot Security

Exit Options

Save Changes and Exit

Discard Changes and Exit
Discard Changes

Load Optimal Defaults

v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.

Save Changes and Exit

When you select this option, it will pop-out the following message, “Save

configuration changes and exit setup?” Select [OK] to save the changes

and exit the BIOS SETUP UTILITY.

Discard Changes and Exit

When you select this option, it will pop-out the following message, “Dis-

card changes and exit setup?” Select [OK] to exit the BIOS SETUP UTILITY

without saving any changes.

Discard Changes

When you select this option, it will pop-out the following message, “Dis-

card changes?” Select [OK] to discard all changes.

Load Optimal Defaults

When you select this option, it will pop-out the following message, “Load

optimal defaults?” Select [OK] to load the default values for all the setup

configurations.

BIOS SETUP UTILITY

Exit

Exit system setup
after saving the
changes.

F10 key can be used
for this operation.

Select Screen

Select Item
Enter Go to Sub Screen
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit

4747

47

4747

4.4.

Software SupporSoftware Suppor

4.

Software Suppor

4.4.

Software SupporSoftware Suppor

4.1 Install Operating System4.1 Install Operating System

4.1 Install Operating System

4.1 Install Operating System4.1 Install Operating System

This motherboard supports various Microsoft® Windows® operating systems:

2000 / XP / XP Media Center / XP 64-bit / VistaTM. Because motherboard settings and

hardware options vary, use the setup procedures in this chapter for general refer-

ence only. Refer to your OS documentation for more information.

4.2 Support CD Information4.2 Support CD Information

4.2 Support CD Information

4.2 Support CD Information4.2 Support CD Information

The Support CD that came with the motherboard contains necessary drivers and

useful utilities that enhance the motherboard features.

4.2.1 Running The Support CD4.2.1 Running The Support CD

4.2.1 Running The Support CD

4.2.1 Running The Support CD4.2.1 Running The Support CD

To begin using the support CD, insert the CD into your CD-ROM drive. The CD

automatically displays the Main Menu if “AUTORUN” is enabled in your computer.

If the Main Menu did not appear automatically, locate and double click on the file

“ASSETUP.EXE” from the BIN folder in the Support CD to display the menus.

4.2.2 Drivers Menu4.2.2 Drivers Menu

4.2.2 Drivers Menu

4.2.2 Drivers Menu4.2.2 Drivers Menu

The Drivers Menu shows the available devices drivers including ASRock Ex-

press GbL PCI Express LAN card driver if the system detects the installed

devices. Please install the necessary drivers to activate the devices.

4.2.3 Utilities Menu4.2.3 Utilities Menu

4.2.3 Utilities Menu

4.2.3 Utilities Menu4.2.3 Utilities Menu

The Utilities Menu shows the applications software that the motherboard supports.

Click on a specific item then follow the installation wizard to install it.

tt

t

tt

4.2.44.2.4

4.2.4

4.2.44.2.4

If you need to contact ASRock or want to know more about ASRock, welcome

to visit ASRock’s website at http://www.asrock.com; or you may contact your

dealer for further information.

Contact InformationContact Information

Contact Information

Contact InformationContact Information

4848

48

4848

APPENDIX:APPENDIX:

APPENDIX:

APPENDIX:APPENDIX:

AMD’s Cool ‘n’ QuietAMD’s Cool ‘n’ Quiet

AMD’s Cool ‘n’ Quiet

AMD’s Cool ‘n’ QuietAMD’s Cool ‘n’ Quiet

TMTM

TM

TMTM

T T

echnologyechnology

T

echnology

T T

echnologyechnology

For power-saving sake, it is strongly recommended to enable AMD’s Cool ‘n’ Quiet

technology under Windows® system. When using this feature, please make sure to

install “AMD Processor Driver” from the “Support CD” first.

If you are using Windows® 2000/XP operating system, please follow the instruction

below to enable AMD’s Cool ‘n’ QuietTM technology:

1. From the Windows® 2000/XP operating system, click the Start button.

Select Settings, then Control Panel.

2. Switch to Classic View. (for Windows® XP only)

3. Double-click the Display icon in the Control Panel then select the Screen

Saver tab.

4. Click the “Power…” button. The following dialog box appears.

5. From the Power schemes combo list box, select Minimal Power
Management.

6. Click OK to implement settings.

TM

4949

49

4949
