ASRock A75 Pro4-MVP User Manual [en, ru, de, es, fr, it]

No part of this installation guide may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this guide may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specications and information contained in this guide are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose. In no event shall ASRock, its directors, ofcers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published February 2012

ASRock A75 Pro4/MVP Motherboard

English

ATXPW R1

AMD

A75 F CH

(Hud son- D3)

Chip set

COM1

PCIE1

PCI1

LAN

AUDIO CODEC

CLRCMOS1

CPU_FAN1

HDLED RESET

PLEDPWR BTN

PANEL1

CHA_FAN1

SPEAKER1

HD_AUDIO1

30.5 c m (12.0- in)

22.4c m (8.8-i n)

12 13 14

16 17 18

222324

2627

32Mb BIOS

IR1

PCIE2

HDMI1

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

USB6_7

CPU_FAN2

A75 Pro 4/M VP

ErP/ EuP Ready

RoHS

DDR3 2 400+

USB3.0 T:USB4 B:USB5

CIR1

SATA3 6Gb /s

ATX12V1

HDMI 1 .4a

Ps2

Keyboard /

Mouse

SOC KET FM1

PCIE4

Dr.

Debug

PWRBTN

RSTBTN

PLED1

SATA3_1

SATA3_2

SATA3_3

SATA3_4

DDR3_ A1( 64b it, 240-pi nmo dule)

DDR3_ A2( 64b it, 240-pi nmo dule)

DDR3_ B1( 64b it, 240-pi nmo dule)

DDR3_ B2( 64b it, 240-pi nmo dule)

PWR_FAN1

FRONT_1394

HDMI_SPDIF1

USB8_9

USB10_11

VGA1

DVI_CO N1

Clr

CMOS

USB 2.0 T:USB 2 B:U SB3

IEEE1 394

eSATA1

Top: RJ-45

USB 3.0 T:USB 0 B:U SB1

CHA_FAN3

CHA_FAN2

USB 3. 0

1394 a

303132

PCIE3

PCI2

PCI3

SATA3_5

DX11

Fast US B

Design edi nTai pei

Dual G raphic s

English

Motherboard Layout

CMOS

BATTERY

Super

I/O

1 Power Fan Connector (PWR_FAN1) 22 Chassis Fan Connector (CHA_FAN1) 2 ATX 12V Power Connector (ATX12V1) 23 Infrared Module Header (IR1) 3 CPU Heatsink Retention Module 24 Power LED Header (PLED1) 4 CPU Socket 25 USB 2.0 Header (USB10_11, Black) 5 CPU Fan Connector (CPU_FAN1) 26 SPI Flash Memory (32Mb) 6 CPU Fan Connector (CPU_FAN2) 27 USB 2.0 Header (USB8_9, Black) 7 2 x 240-pin DDR3 DIMM Slots 28 USB 2.0 Header (USB6_7, Black) (Dual Channel A: DDR3_A1, DDR3_B1; Black) 29 Consumer Infrared Module Header (CIR1) 8 2 x 240-pin DDR3 DIMM Slots 30 COM Port Header (COM1) (Dual Channel B: DDR3_A2, DDR3_B2; Black) 31 HDMI_SPDIF Header (HDMI_SPDIF1, Black) 9 ATX Power Connector (ATXPWR1) 32 Front Panel IEEE 1394 Header 10 Clear CMOS Jumper (CLRCMOS1) (FRONT_1394, Black) 11 Southbridge Controller 33 Front Panel Audio Header (HD_AUDIO1, Black) 12 SATA3 Connector (SATA3_5, Gray) 34 PCI Slot (PCI3) 13 SATA3 Connector (SATA3_4, Gray) 35 PCI Slot (PCI2) 14 SATA3 Connector (SATA3_3, Gray) 36 PCI Express 2.0 x16 Slot (PCIE4; Black) 15 SATA3 Connector (SATA3_1, Gray) 37 PCI Slot (PCI1) 16 SATA3 Connector (SATA3_2, Gray) 38 PCI Express 2.0 x1 Slot (PCIE3; Black) 17 Dr. Debug (LED) 39 PCI Express 2.0 x16 Slot (PCIE2; Black) 18 Power Switch (PWRBTN) 40 PCI Express 2.0 x1 Slot (PCIE1; Black) 19 Reset Switch (RSTBTN) 41 Chassis Fan Connector (CHA_FAN2) 20 System Panel Header (PANEL1, Black) 42 Chassis Fan Connector (CHA_FAN3) 21 Chassis Speaker Header (SPEAKER 1, Black)

ASRock A75 Pro4/MVP Motherboard

I/O Panel

1 PS/2 Mouse/Keyboard Port (Green/Purple) 10 Microphone (Pink) 2 D-Sub Port 11 USB 3.0 Ports (USB01) * 3 USB 2.0 Ports (USB23) 12 IEEE 1394 Port (IEEE 1394) ** 4 LAN RJ-45 Port **** 13 eSATA3 Connector 5 Central / Bass (Orange) 14 Clear CMOS Switch (CLRCBTN) 6 Rear Speaker (Black) 15 HDMI Port 7 Optical SPDIF Out Port 16 DVI-D Port 8 Line In (Light Blue) 17 USB 3.0 Ports (USB45) *** 9 Front Speaker (Lime)

* It is recommended to install the USB Keyboard/Mouse cable to USB 2.0 ports (USB23) instead of USB 3.0 ports.

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications.

Activity/Link LED SPEED LED

Status Description Status Description

LAN Port LED Indications

ACT/LINK LED

SPEED LED

Off No Link Off 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection

If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

***

See the table below for connection details in accordance with the type of speaker you use.

LAN Port

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or (No. 9) (No. 6) (No. 5) Side Speaker (No. 8)

2 V -- -- -4 V V -- -6 V V V -8 V V V V

English

ASRock A75 Pro4/MVP Motherboard

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will nd “Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”.

Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio.

**** eSATA3 connector supports SATA Gen3 in cable 1M.

English

ASRock A75 Pro4/MVP Motherboard

1. Introduction

Thank you for purchasing ASRock A75 Pro4/MVP motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. This Quick Installation Guide contains introduction of the motherboard and step-bystep installation guide. More detailed information of the motherboard can be found in the user manual presented in the Support CD.

Because the motherboard specications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modications of this manual occur, the updated version will be available on ASRock website without further notice. You may nd the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specic information about the model you are using. www.asrock.com/support/index.asp

1.1 Package Contents

ASRock A75 Pro4/MVP Motherboard (ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm) ASRock A75 Pro4/MVP Quick Installation Guide ASRock A75 Pro4/MVP Support CD 4 x Serial ATA (SATA) Data Cables (Optional) 1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / Vista bit, it is recommended to set the BIOS option in Storage Conguration to AHCI mode. For the BIOS setup, please refer to the “User Manual” in our support CD for details.

/ VistaTM 64-

ASRock A75 Pro4/MVP Motherboard

English

1.2 Specifications

Platform - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm

- All Solid Capacitor design CPU - Support for Socket FM1 100W processors

- 4 + 1 Power Phase Design

- Supports AMD’s Cool ‘n’ QuietTM Technology

- UMI-Link GEN2

Chipset - AMD A75 FCH (Hudson-D3) Memory - Dual Channel DDR3 Memory Technology (see CAUTION 1)

- 4 x DDR3 DIMM slots

- Support DDR3 2400+(OC)/1866/1600/1333/1066/ 800 non-ECC, un-buffered memory (see CAUTION 2)

- Max. capacity of system memory: 32GB (see CAUTION 3) Expansion Slot - 2 x PCI Express 2.0 x16 slots (PCIE2 @ x16 mode; PCIE4 @ x4 mode)

- 2 x PCI Express 2.0 x1 slots

- 3 x PCI slots

- Supports AMD Quad CrossFireXTM, CrossFireXTM and Dual Graphics Graphics - AMD Radeon HD 65XX/64XX graphics

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 512MB (see CAUTION 4)

- Three VGA Output options: D-Sub, DVI-D and HDMI (see CAUTION 5)

- Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz

- Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz

- Supports D-Sub with max. resolution up to 1920x1600 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) (see CAUTION 6)

- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a

- Supports AMD Steady VideoTM: New video post processing capability for automatic jutter reduction on home/online video

- Supports HDCP function with DVI and HDMI ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports

ASRock A75 Pro4/MVP Motherboard

Audio - 7.1 CH HD Audio with Content Protection

(Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

- Supports THX TruStudio

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efcient Ethernet 802.3az

- Supports PXE Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse/Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 2 x Ready-to-Use USB 2.0 Ports

- 1 x eSATA3 Connector

- 4 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- 1 x IEEE 1394 Port

- 1 x Clear CMOS Switch with LED

- HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front Speaker/Microphone (see CAUTION 7) SATA3 - 5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and “Hot Plug” functions USB 3.0 - 4 x USB 3.0 ports, support USB 1.0/2.0/3.0 up to 5Gb/s Connector - 5 x SATA3 6.0Gb/s connectors

- 1 x IR header

- 1 x CIR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x IEEE 1394 header

- 1 x Power LED header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

- 1 x Dr. Debug (7-Segment Debug LED)

English

ASRock A75 Pro4/MVP Motherboard

English

Smart Switch - 1 x Clear CMOS Switch with LED

- 1 x Power Switch with LED

- 1 x Reset Switch with LED BIOS Feature - 32Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- DRAM, VDDP, VDDR, SB Voltage Multi-adjustment Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 8)

- ASRock Instant Boot

- ASRock Instant Flash (see CAUTION 9)

- ASRock APP Charger (see CAUTION 10)

- ASRock XFast USB (see CAUTION 11)

- ASRock XFast LAN (see CAUTION 12)

- ASRock XFast RAM (see CAUTION 13)

- Lucid Virtu Universal MVP (see CAUTION 14) * Lucid Virtu Universal MVP can be supported only with processors which are GPU integrated.

- ASRock On/Off Play Technology (see CAUTION 15)

- Hybrid Booster:

- ASRock U-COP (see CAUTION 16) Hardware - CPU Temperature Sensing Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU/Chassis Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore OS - Microsoft® Windows® 7 / 7 64-bit / Vista

/ VistaTM 64-bit / XP

SP3 / XP 64-bit compliant Certications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required) (see CAUTION 17)

* For detailed product information, please visit our website: http://www.asrock.com

ASRock A75 Pro4/MVP Motherboard

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

CAUTION!

1. This motherboard supports Dual Channel Memory Technology. Before you implement Dual Channel Memory Technology, make sure to read the installation guide of memory modules on page 14 for proper installation.

2. Whether 2400/1866/1600MHz memory speed is supported depends on the CPU you adopt. If you want to adopt DDR3 2400/1866/1600 memory module on this motherboard, please refer to the memory support list on our website for the compatible memory modules.

ASRock website http://www.asrock.com

3. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 7 / VistaTM / XP. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

4. The maximum shared memory size is dened by the chipset vendor and is subject to change. Please check AMD website for the latest information.

5. You can choose to use two of the three monitors only. D-Sub, DVI-D and HDMI monitors cannot be enabled at the same time. Besides, with the DVI-to-HDMI adapter, the DVI-D port can support the same features as HDMIport.

6. xvYCC and Deep Color are only supported under Windows® 7 64-bit /

7. Deep Color mode will be enabled only if the display supports 12bpc in EDID. HBR is supported under Windows® 7 64-bit / 7 / VistaTM 64-bit / VistaTM.

7. For microphone input, this motherboard supports both stereo and mono modes. For audio output, this motherboard supports 2-channel, 4-channel, 6-channel, and 8-channel modes. Please check the table on page 3 for proper connection.

8. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ne-tune different system functions in a user-friendly interface, which is including Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hardware Monitor, it shows the major readings of your system. In Fan Control, it shows the fan speed and temperature for you to adjust. In Overclocking, you are allowed to overclock CPU frequency for optimal system performance. In OC DNA, you can save your OC settings as a prole and share with your friends. Your friends then can load the OC prole to

English

ASRock A75 Pro4/MVP Motherboard

English

their own system to get the same OC settings. In IES (Intelligent Energy

Saver), the voltage regulator can reduce the number of output phases to

improve efciency when the CPU cores are idle without sacricing com-

puting performance. Please visit our website for the operation procedures of ASRock Extreme Tuning Utility (AXTU).

ASRock website: http://www.asrock.com

9. ASRock Instant Flash is a BIOS ash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS without entering operating systems rst like MS-DOS or Windows®. With this utility, you can press <F6> key during the POST or press <F2> key to BIOS setup menu to access ASRock Instant Flash. Just launch this tool and save the new BIOS le to your USB ash drive, oppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional oppy diskette or other complicated ash utility. Please be noted that the USB ash drive or hard drive must use FAT32/16/12 le system.

10. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful solution for you - ASRock APP Charger. Simply installing the APP Charger driver, it makes your iPhone charged much quickly from your computer and up to 40% faster than before. ASRock APP Charger allows you to quickly charge many Apple devices simultaneously and even supports continuous charging when your PC enters into Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). With APP Charger driver installed, you can easily enjoy the marvelous charging experience than ever.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

11. ASRock XFast USB can boost USB storage device performance. The

performance may depend on the property of the device.

12. ASRock XFast LAN provides a faster internet access, which includes

the benets listed below. LAN Application Prioritization: You can congure your application’s priority ideally and/or add new programs. Lower Latency in Game: After setting online game’s priority higher, it can lower the latency in games. Trafc Shaping: You can watch Youtube HD videos and download simultaneously. Real-Time Analysis of Your Data: With the status window, you can easily recognize which data streams you are transferring currently.

13. ASRock XFast RAM is a new function that is included into ASRock Ex-

treme Tuning Utility (AXTU). It fully utilizes the memory space that cannot be used under Windows® OS 32-bit CPU. ASRock XFast RAM shortens the loading time of previously visited websites, making web surng faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

ASRock A75 Pro4/MVP Motherboard

14. VIRTU Universal MVP includes the base features of Virtu Universal technology, which virtualizes integrated GPU and discrete GPU for best of breed functionality. It also features Virtual Vsync™ for no-compromise visual quality. With the added benefits of HyperFormance technology, VIRTU Universal MVP improves game performance by intelligently reducing redundant rendering tasks in the ow between the CPU, GPU and the display.

15. ASRock On/Off Play Technology allows users to enjoy the great audio experience from the portable audio devices, such like MP3 player or mobile phone to your PC, even when the PC is turned off (or in ACPI S5 mode)! This motherboard also provides a free 3.5mm audio cable (optional) that ensures users the most convenient computing environment.

16. While CPU overheat is detected, the system will automatically shutdown. Before you resume the system, please check if the CPU fan on the motherboard functions properly and unplug the power cord, then plug it back again. To improve heat dissipation, remember to spray thermal grease between the CPU and the heatsink when you install the PC system.

17. EuP, stands for Energy Using Product, was a provision regulated by European Union to dene the power consumption for the completed system. According to EuP, the total AC power of the completed system shall be under 1.00W in off mode condition. To meet EuP standard, an EuP ready motherboard and an EuP ready power supply are required. According to Intel’s suggestion, the EuP ready power supply must meet the standard of 5v standby power efciency is higher than 50% under 100 mA current consumption. For EuP ready power supply selection, we recommend you checking with the power supply manufacturer for more details. Besides, please be noted that if you enable ASRock On/Off Play Technology, your system will not meet EuP standard. To meet EuP standard, please disable ASRock On/Off Play Technology rst.

ASRock A75 Pro4/MVP Motherboard

English

2. Installation

This is an ATX form factor (12.0-in x 8.8-in, 30.5 cm x 22.4 cm) motherboard. Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

Before you install or remove any component, ensure that the power is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER place your motherboard directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

English

ASRock A75 Pro4/MVP Motherboard

2.1 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90

angle. Step 2. Position the CPU directly above the socket such that the CPU corner with the golden triangle matches the socket corner with a small triangle. Step 3. Carefully insert the CPU into the socket until it ts in place.

The CPU ts only in one correct orientation. DO NOT force the CPU into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it rmly on the socket while you push down the socket lever to secure the CPU. The lever clicks on the side tab to indicate that it is locked.

Lever 90° Up

CPU Golden Triangle

Socket Corner Small Triangle

STEP 1: Lift Up The Socket Lever

STEP 2 / STEP 3: Match The CPU Golden Triangle To The Socket Corner Small Triangle

STEP 4: Push Down And Lock The Socket Lever

2.2 Installation of CPU Fan and Heatsink

After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other. Then connect the CPU fan to the CPU FAN connector (CPU_FAN1, see Page 2, No. 5 or CPU_FAN2, see Page 2, No. 6). For proper installation, please kindly refer to the instruction manuals of the CPU fan and the heatsink.

English

ASRock A75 Pro4/MVP Motherboard

English

2.3 Installation of Memory Modules (DIMM)

This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. For dual channel conguration, you always need to install identical (the same brand, speed, size and chip-type) DDR3 DIMM pair in the slots: You have to install identical DDR3 DIMM pair in Dual Channel A (DDR3_A1 and DDR3_B1; Black slots; see p.2 No.7) or identical DDR3 DIMM pair in Dual Channel B (DDR3_A2 and DDR3_ B2; Black slots; see p.2 No.8), so that Dual Channel Memory Technology can be activated. This motherboard also allows you to install four DDR3 DIMMs for dual channel conguration, and please install identical DDR3 DIMMs in all four slots. You may refer to the Dual Channel Memory Conguration Table below.

Dual Channel Memory Congurations

DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2 (Black Slot) (Black Slot) (Black Slot) (Black Slot) (1) Populated - Populated (2) - Populated - Populated (3)* Populated Populated Populated Populated

For the conguration (3), please install identical DDR3 DIMMs in all four

slots.

1. If you want to install two memory modules, for optimal compatibility and reliability, it is recommended to install them in the slots: DDR3_ A1 and DDR3_B1, or DDR3_A2 and DDR3_B2.

2. If only one memory module or three memory modules are installed in the DDR3 DIMM slots on this motherboard, it is unable to activate the Dual Channel Memory Technology.

3. If a pair of memory modules is NOT installed in the same Dual Channel, for example, installing a pair of memory modules in DDR3_A1 and DDR3_A2, it is unable to activate the Dual Channel Memory Technology .

4. It is not allowed to install a DDR or DDR2 memory module into DDR3 slot; otherwise, this motherboard and DIMM may be damaged.

5. If you adopt DDR3 2400/ 1866/1600 memory modules on this motherboard, it is recommended to install them on DDR3_A2 and DDR3_B2 slots.

ASRock A75 Pro4/MVP Motherboard

Installing a DIMM

Please make sure to disconnect power supply before adding or removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.

notch break

notch

break

damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

The DIMM only ts in one correct orientation. It will cause permanent

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully snap back in place and the DIMM is properly seated.

ASRock A75 Pro4/MVP Motherboard

English

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 3 PCI slots and 4 PCI Express slots on this motherboard. PCI Slots: PCI slots are used to install expansion cards that have the 32-bit PCI interface.

PCIE Slots:

PCIE1 / PCIE3 (PCIE x1 slot) is used for PCI Express cards with x1

lane width cards, such as Gigabit LAN card and SATA2 card.

PCIE2 (PCIE x16 slot) is used for PCI Express x16 lane width graphics

cards, or used to install PCI Express graphics cards to support CrossFireXTM function.

PCIE4 (PCIE x16 slot) is used for PCI Express x4 lane width cards, or

used to install PCI Express graphics cards to support

CrossFireXTM function.

1. In single VGA card mode, it is recommended to install a PCI Express x16 graphics card on PCIE2 slot.

2. In CrossFireXTM mode, please install PCI Express x16 graphics cards on PCIE2 and PCIE4 slots.

3. Please connect a chassis fan to motherboard chassis fan connector (CHA_FAN1, CHA_FAN2 or CHA_FAN3) when using multiple graphics cards for better thermal environment.

English

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware settings for the card before you start the installation. Step 2. Remove the system unit cover (if your motherboard is already installed

in a chassis). Step 3. Remove the bracket facing the slot that you intend to use. Keep the

screws for later use. Step 4. Align the card connector with the slot and press rmly until the card is

completely seated on the slot. Step 5. Fasten the card to the chassis with screws. Step 6. Replace the system cover.

ASRock A75 Pro4/MVP Motherboard

2.5 CrossFireXTM and Quad CrossFireXTM Operation Guide

Th is moth erboard sup ports Cross FireXTM and Qua d Cross FireXTM feature . CrossFireXTM technology offers the most advantageous means available of combining multiple high performance Graphics Processing Units (GPU) in a single PC. Combining a range of different operating modes with intelligent software design and an innovative interconnect mechanism, CrossFireXTM enables the highest possible level of performance and image quality in any 3D application. Currently CrossFireXTM feature is supported with Windows® XP with Service Pack 2 / VistaTM / 7 OS. Quad CrossFireX

feature are supported with Windows® VistaTM / 7 OS only.

Please check AMD website for AMD CrossFireXTM driver updates.

1. If a custome r in correctly con fi gures their sys tem they will not see the performance benets of CrossFireXTM. All three CrossFireXTM components, a CrossFireXTM Ready graphics card, a CrossFireXTM Ready motherboard and a CrossFireXTM Edition co-processor graphics card, must be installed correctly to benet from the CrossFireXTM multi-GPU platform.

2. If you pair a 12-pipe CrossFireXTM Edition card with a 16-pipe card, both cards will operate as 12-pipe cards while in CrossFireXTM mode.

2.5.1 Graphics Card Setup

Different CrossFireXTM cards may require different methods to enable CrossFi-

reXTM feature. For other CrossFireXTM cards that AMD has released or will release in the future, please refer to AMD graphics card manuals for detailed installation guide.

Step 1. Insert one Radeon graphics card into PCIE2 slot and the other Radeon

graphics card to PCIE4 slot. Make sure that the cards are properly seated on the slots.

ASRock A75 Pro4/MVP Motherboard

English

Step 2. Connect two Radeon graphics cards by installing CrossFire Bridge on

CrossFire Bridge Interconnects on the top of Radeon graphics cards. (CrossFire Bridge is provided with the graphics card you purchase, not bundled with this motherboard. Please refer to your graphics card vendor for details.)

CrossFire Bridge

Step 3. Connect the DVI monitor cable to the DVI connector on the Radeon graph-

ics card on PCIE2 slot. (You may use the DVI to D-Sub adapter to convert the DVI connector to D-Sub interface, and then connect the D-Sub monitor cable to the DVI to D-Sub adapter.)

English

ASRock A75 Pro4/MVP Motherboard

2.5.2 Driver Installation and Setup

Step 1. Power on your computer and boot into OS. Step 2. Remove the AMD driver if you have any VGA driver installed in your sys-

tem.

The Catalyst Uninstaller is an optional download. We recommend using this

utility to uninstall any previously installed Catalyst drivers prior to installation.

Please check AMD website for AMD driver updates.

Step 3. Install the required drivers to your system. For Windows® XP OS: A. AMD recommends Windows® XP Service Pack 2 or higher to be

installed (If you have Windows® XP Service Pack 2 or higher installed

in your system, there is no need to download it again): http://www.microsoft.com/windowsxp/sp2/default.mspx B. You must have Microsoft .NET Framework installed prior to

downloading and installing the CATALYST Control Center. Please

check Microsoft website for details.

For Windows® 7 / VistaTM OS:

Install the CATALYST Control Center. Please check AMD website for de-

tails. Step 4. Restart your computer. Step 5. Install the VGA card drivers to your system, and restart your computer. Then you will nd “ATI Catalyst Control Center” on your Windows® taskbar.

ATI Catalyst Control Center

Step 6. Double-click “ATI Catalyst Control Center”. Click “View”, select “CrossFi-

reXTM”, and then check the item “Enable CrossFireXTM”. Select “2 GPUs”

and click “Apply” (if you install two Radeon graphics cards).

ASRock A75 Pro4/MVP Motherboard

English

Although you have selected the option “Enable CrossFireTM”, the Cross-

FireXTM function may not work actually. Your computer will automatically reboot. After restarting your computer, please conrm whether the option “Enable CrossFireTM” in “ATI Catalyst Control Center” is selected or not; if not, please select it again, and then you are able to enjoy the benet of CrossFireX

feature.

Step 7. You can freely enjoy the benet of CrossFireXTM or Quad CrossFireXTM

feature.

* CrossFireXTM appearing here is a registered trademark of AMD Technologies Inc., and is used only for identication or explanation and to the owners’ benet, without intent to infringe. * For further information of AMD CrossFireXTM technology, please check AMD website for updates and details.

English

ASRock A75 Pro4/MVP Motherboard

2.6 AMD Dual Graphics Operation Guide

This motherboard supports AMD Dual Graphics feature. AMD Dual Graphics brings multi-GPU performance capabilities by enabling an AMD A75 FCH (Hudson-D3) integrated graphics processor and a discrete graphics processor to operate simultaneously with combined output to a single display for blisteringly-fast frame rates. Currently, AMD Dual Graphics Technology is only supported with Windows® 7 OS, and is not available with Windows® VistaTM / XP OS.

What does an AMD Dual Graphics system include?

An AMD Dual Graphics system includes an AMD Radeon HD 65XX/64XX graphics processor and a motherboard based on an AMD A75 FCH (Hudson-D3) integrated chipset, all operating in a Windows® 7 environment. Please refer to below PCI Express graphics card support list for AMD Dual Graphics. For the future update of more compatible PCI Express graphics cards, please visit AMD website for further information.

Chipset Model Driver

AMD RADEON HD6670 ASUS DIS-PCIE2.1-ASUS-HDMI-EAH6670-DI-1GD3/1G-DDR3 8.86 AMD RADEON HD6570 MSI DIS-PCIE2.1-MSI-HDMI-R6570-MD1GD3-LP/1G-DDR3 8.86 AMD RADEON HD6450 MSI DIS-PCIE2.1-MSI-HDMI-R6450-MD1GD3-LP/1G-DDR3 8.86

Enjoy the benefit of AMD Dual Graphics

Step 1. Please keep the default UEFI setting of “Dual Graphics“ option on [Auto]. Step 2. Install one AMD RADEON HD6670 / 6570 / 6450 PCI Express graphics

card to PCIE2 slot. Step 3. Connect the monitor cable to the onboard VGA port. Please be noted that

the current VGA driver / VBIOS can allow Dual Graphics output from on-

board display only. For any future update, please refer to our website for

further information. Step 4. Boot into OS. Please remove the AMD driver if you have any VGA driver installed in your system. Step 5. Install the onboard VGA driver from our support CD to your system for

both the onboard VGA and the discrete graphics card. Step 6. Restart your computer. Right-click the desktop. Click “AMD VISION Engine Control Center” to enter AMD VISION Engine Control Center.

ASRock A75 Pro4/MVP Motherboard

English

Step 7. You can also click “AMD VISION Engine Control Center” on your Windows® taskbar to enter AMD VISION Engine Control Center.

AMD VISION Engine Control Center

Step 8. In AMD VISION Engine Control Center, please choose “Performance”.

Click “AMD CrossFireTM”.

Step 9. Click “Enable CrossFireTM” and click “Apply“ to save your change.

English

Step 10. Reboot your system. Then you can freely enjoy the benet of Dual Graphics feature.

* Dual Graphics appearing here is a registered trademark of AMD Technologies Inc., and is used only for identication or explanation and to the owners’ benet, without intent to infringe. * For further information of AMD Dual Graphics technology, please check AMD website for up dates and details.

ASRock A75 Pro4/MVP Motherboard

2.7 Dual Monitor and Surround Display Features

Dual Monitor Feature

This motherboard supports dual monitor feature. With the internal VGA output support (DVI-D, D-Sub and HDMI), you can easily enjoy the benets of dual monitor feature without installing any add-on VGA card to this motherboard. This motherboard also provides independent display controllers for DVI-D, D-Sub and HDMI to support dual VGA output so that DVI-D, D-sub and HDMI can drive same or different display contents. To enable dual monitor feature, please follow the below steps:

1. Connect DVI-D monitor cable to DVI-D port on the I/O panel, connect D-Sub monitor cable to D-Sub port on the I/O panel, or connect HDMI monitor cable to HDMI port on the I/O panel.

D-Sub port

DVI-D port

HDMI port

2. If you have installed onboard VGA driver from our support CD to your system already, you can freely enjoy the benets of dual monitor function after your system boots. If you haven’t installed onboard VGA driver yet, please install onboard VGA driver from our support CD to your system and restart your computer.

1. D-Sub, DVI-D and HDMI monitors cannot be enabled at the same time. You can only choose the combination: DVI-D + HDMI, or HDMI + D-Sub.

2. When you playback HDCP-protected video from Blu-ray (BD) or HD-DVD disc, the content will be displayed only in one of the two monitors instead of both monitors.

3. To support Dual-link DVI monitor, please do not use D-Sub and HDMI ports. Please connect the DVI monitor cable to the DVI port only.

ASRock A75 Pro4/MVP Motherboard

English

Surround Display Feature

This motherboard supports surround display upgrade. With the internal VGA output support (DVI-D, D-Sub and HDMI) and external add-on PCI Express VGA cards, you can easily enjoy the benets of surround display feature. Please refer to the following steps to set up a surround display environment:

1. Install the PCI Express VGA cards on PCIE2 and PCIE4 slots. Please refer to page 16 for proper expansion card installation procedures for details.

2. Connect DVI-D monitor cable to DVI-D port on the I/O panel, connect D-Sub monitor cable to D-Sub port on the I/O panel, or connect HDMI monitor cable to HDMI port on the I/O panel. Then connect other monitor cables to the corresponding connectors of the add-on PCI Express VGA cards on PCIE2 and PCIE4 slots.

3. Boot your system. Press <F2> or <Del> to enter UEFI setup. Enter “Share Memory” option to adjust the memory capability to [32MB], [64MB], [128MB], [256MB] or [512MB] to enable the function of D-sub. Please make sure that the value you select is less than the total capability of the system memory. If you do not adjust the UEFI setup, the default value of “Share Memory”, [Auto], will disable D-Sub function when the add-on VGA card is inserted to this motherboard.

4. Install the onboard VGA driver and the add-on PCI Express VGA card driver to your system. If you have installed the drivers already, there is no need to install them again.

5. Set up a multi-monitor display.

English

For Windows® XP / XP 64-bit OS:

Right click the desktop, choose “Properties”, and select the “Settings” tab so that you can adjust the parameters of the multi-monitor according to the steps below. A. Click the “Identify” button to display a large number on each monitor. B. Right-click the display icon in the Display Properties dialog that you wish to be your primary monitor, and then select “Primary”. When you use multiple monitors with your card, one monitor will always be Primary, and all additional monitors will be designated as Secondary. C. Select the display icon identied by the number 2. D. Click “Extend my Windows desktop onto this monitor”. E. Right-click the display icon and select “Attached”, if necessary. F. Set the “Screen Resolution” and “Color Quality” as appropriate for the second monitor. Click “Apply” or “OK” to apply these new values. G. Repeat steps C through E for the diaplay icon identied by the number one to six.

ASRock A75 Pro4/MVP Motherboard

For Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS:

Right click the desktop, choose “Personalize”, and select the “Display Settings” tab so that you can adjust the parameters of the multi-monitor according to the steps below. A. Click the number ”2” icon. B. Click the items “This is my main monitor” and “Extend the desktop onto this monitor”. C. Click “OK” to save your change. D. Repeat steps A through C for the display icon identied by the number three to six.

6. Use Surround Display. Click and drag the display icons to positions representing the physical setup of your monitors that you would like to use. The placement of display icons determines how you move items from one monitor to another.

HDCP Function HDCP function is supported on this motherboard. To use HDCP function with this motherboard, you need to adopt the monitor that supports HDCP function as well. Therefore, you can enjoy the superior display quality with high-denition HDCP encryption contents. Please refer to below instruction for more details about HDCP function.

What is HDCP?

HDCP stands for High-Bandwidth Digital Content Protection, a specication developed by Intel® for protecting digital entertainment content that uses the DVI interface. HDCP is a copy protection scheme to eliminate the possibility of intercepting digital data midstream between the video source, or transmitter - such as a computer, DVD player or set-top box and the digital display, or receiver - such as a monitor, television or projector. In other words, HDCP specication is designed to protect the integrity of content as it is being transmitted.

Products compatible with the HDCP scheme such as DVD players, satellite and cable HDTV set-top-boxes, as well as few entertainment PCs requires a secure connection to a compliant display. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that the HDTV or LCD monitor you purchase is compatible.

ASRock A75 Pro4/MVP Motherboard

English

2.8 ASRock Smart Remote Installation Guide

ASRock Smart Remote is only used for ASRock motherboard with CIR header. Please refer to below procedures for the quick installation and usage of ASRock Smart Remote.

Step1. Find the CIR header located next to the USB 2.0 header on ASRock motherboard.

USB 2.0 header (9-pin, black)

CIR header (4-pin, gray)

English

Step2. Connect the front USB cable to the USB 2.0 header (as below, pin 1-5) and the CIR header. Please make

USB_PWR

P-

P+

GND

DUMMY

sure the wire assignments and the pin assignments are matched correctly.

ATX+5VSB

IRRX

IRTX

GND

Step3. Install Multi-Angle CIR Receiver to the front USB port. If Multi-Angle CIR Receiver cannot successfully receive the infrared signals from MCE Remote Controller, please try to install it to the other front USB port.

3 CIR sensors in different angles

1. Only one of the front USB port can support CIR function. When the CIR function is enabled, the other port will remain USB function.

2. Multi-Angle CIR Receiver is used for front USB only. Please do not use the rear USB bracket to connect it on the rear panel. Multi-Angle CIR Receiver can receive the multi-direction infrared signals (top, down and front), which is compatible with most of the chassis on the market.

3. The Multi-Angle CIR Receiver does not support Hot-Plug function. Please install it before you boot the system.

* ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to ASRock website for the motherboard support list: http://www.asrock.com

ASRock A75 Pro4/MVP Motherboard

2.9 Jumpers Setup

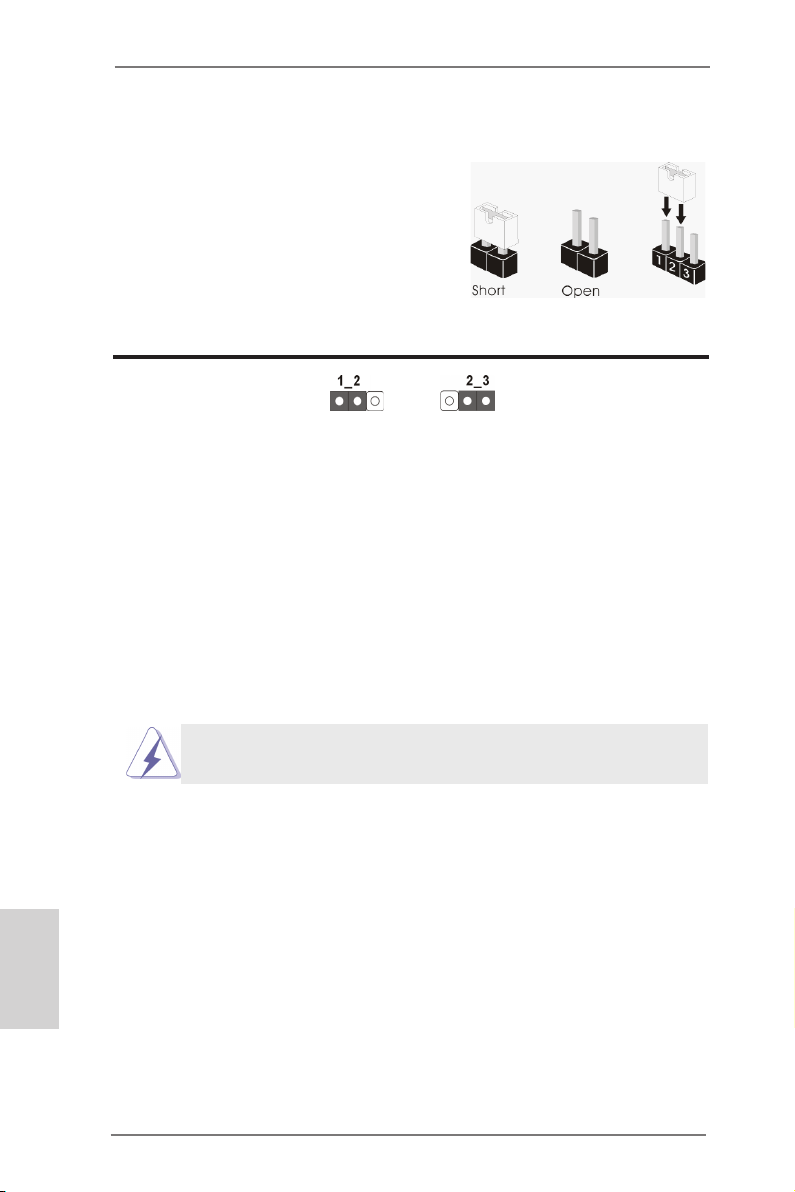

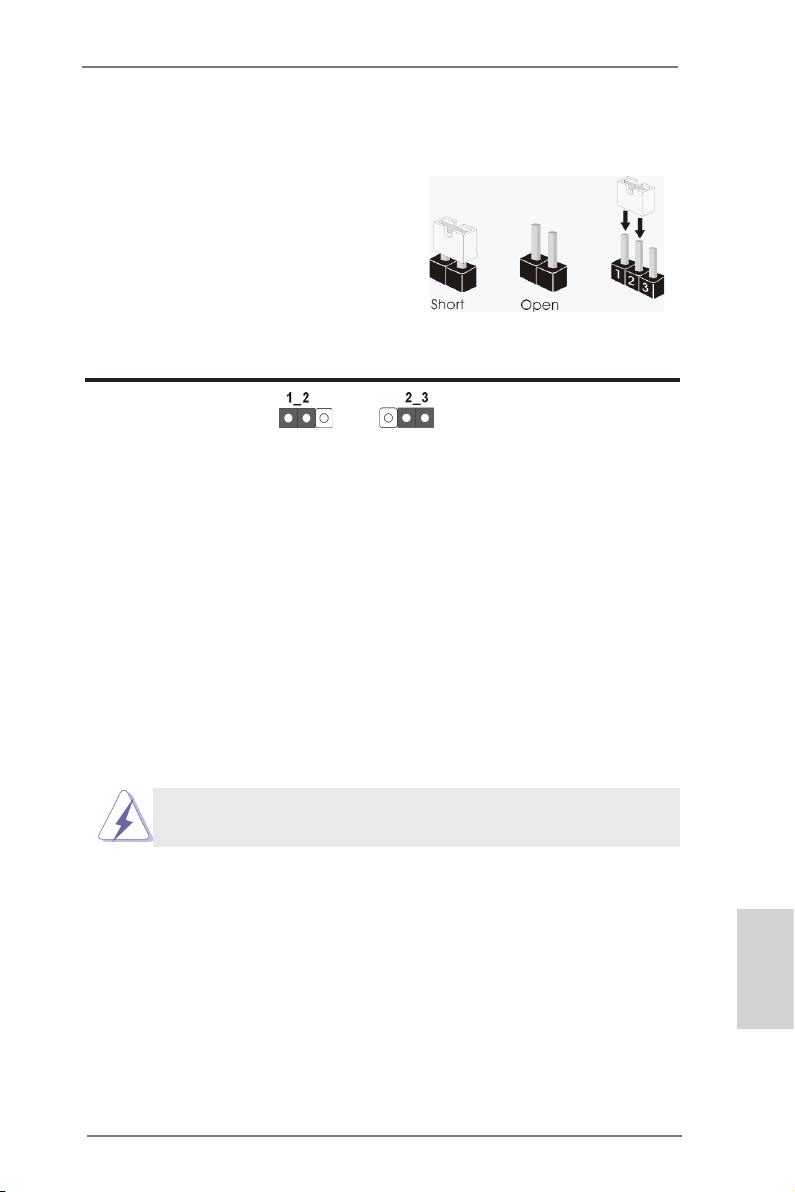

The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when jumper cap is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1) (see p.2, No. 10)

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just nish updating the BIOS, you must boot up the system rst, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, user default prole, 1394 GUID and MAC address will be cleared only if the CMOS battery is removed.

The Clear CMOS Switch has the same function as the Clear CMOS jumper.

Clear CMOSDefault

ASRock A75 Pro4/MVP Motherboard

English

2.10 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard!

English

Serial ATA3 Connectors These ve Serial ATA3

(SATA3_1: see p.2, No. 15)

(SATA3_2: see p.2, No. 16)

(SATA3_3: see p.2, No. 14)

(SATA3_4: see p.2, No. 13)

(SATA3_5: see p.2, No. 12)

(SATA3) connectors support SATA data cables for internal storage devices. The current SATA3 interface allows up to

6.0 Gb/s data transfer rate.

SATA3_5

SATA3_2 SATA3_4

SATA3_1 SATA3_3

Serial ATA (SATA) Ei ther end of the SATA data Data Cable cable can be connected to the

(Optional)

SATA3 hard disk or the SATA3

connector on this motherboard.

USB 2.0 Headers Besides two default USB 2.0

(9-pin USB6_7)

(see p.2 No. 28)

ports on the I/O panel, there

are three USB 2.0 headers on this motherboard. Each USB 2.0 header can support two USB

2.0 ports.

(9-pin USB8_9) (see p.2 No. 27)

(9-pin USB10_11) (see p.2 No. 25)

USB _PWR

P-9

P-8

USB _PWR

P-11

P-10

USB _PWR

P+9

P+8

P+1 1

P+1 0

GND

DUM MY

ASRock A75 Pro4/MVP Motherboard

Infrared Module Header This header supports an

IRTX

+5VS B

DUMM Y

IRRX

GND

(5-pin IR1)

optional wireless transmitting

(see p.2 No. 23)

and receiving infrared module.

Consumer Infrared Module Header This header can be used to

(4-pin CIR1)

(see p.2 No. 29)

connect the remote

controller receiver.

GND

PRE SENC E#

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

Front Panel Audio Header This is an interface for the front

(9-pin HD_AUDIO1)

(see p.2 No. 33)

panel audio cable that allows

convenient connection and

control of audio devices.

1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio header as below:

A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. To activate the front mic. For Windows® XP / XP 64-bit OS: Select “Mixer”. Select “Recorder”. Then click “FrontMic”. For Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS: Go to the "FrontMic" Tab in the Realtek Control panel. Adjust

“Recording Volume”.

System Panel Header This header accommodates

(9-pin PANEL1)

(see p.2 No. 20)

several system front panel

functions.

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below.

English

Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may congure the way to turn off your system using the power switch.

ASRock A75 Pro4/MVP Motherboard

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the sys-tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assign-ments are matched correctly.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1)

(see p.2 No. 21)

speaker to this header.

English

Power LED Header Please connect the chassis

(3-pin PLED1)

(see p.2 No. 24)

power LED to this header to

indicate system power status.

PLE D+

PLE D-

The LED is on when the system is operating. The LED keeps blinking in S1 state. The LED is off in S3/S4 state or S5 state (power off).

Chassis and Power Fan Connectors Please connect the fan cables

(4-pin CHA_FAN1)

(see p.2 No. 22)

to the fan connectors and

match the black wire to the

ground pin. CHA_FAN1/2/3 fan

(3-pin CHA_FAN2)

(see p.2 No. 41)

(3-pin CHA_FAN3) (see p.2 No. 42)

(3-pin PWR_FAN1) (see p.2 No. 1)

speed can be controlled through UEFI or AXTU.

ASRock A75 Pro4/MVP Motherboard

CPU Fan Connectors Please connect the CPU fan

(4-pin CPU_FAN1)

(see p.2 No. 5)

cable to the connector and

match the black wire to the

ground pin.

FAN_ SPEE D_CO NTRO L

CPU _FAN_ SPEE D

+12 V

GND

1 2 3 4

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3.

Pin 1-3 Connected

3-Pin Fan Installation

(3-pin CPU_FAN2)

(see p.2 No. 6)

GND

+12 V

CPU _FAN_ SPEE D

ATX Power Connector Please connect an ATX power

(24-pin ATXPWR1)

(see p.2 No. 9)

Though this motherboard provides 24-pin ATX power connector, it can still work if you adopt a traditional 20-pin ATX power supply.

supply to this connector.

To use the 20-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 13.

20-Pin ATX Power Supply Installation

ATX 12V Power Connector Please connect an ATX 12V

(8-pin ATX12V1)

(see p.2 No. 2)

power supply to this connector.

4 8

1 5

Though this motherboard provides 8-pin ATX 12V power connector, it can still work if you adopt a traditional 4-pin ATX 12V power supply. To use the

4 8

4-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 5.

4-Pin ATX 12V Power Supply Installation

IEEE 1394 Header Besides one default IEEE 1394

(9-pin FRONT_1394)

(see p.2 No. 32)

port on the I/O panel, there is

one IEEE 1394 header (FRONT_1394) on this motherboard. This IEEE 1394 header can support one IEEE

RXT PAM_0

GND

RXT PBM_ 0

RXT PBP_ 0

GND

RXT PAP_0

+12 V

GND

1 5

1394 port.

ASRock A75 Pro4/MVP Motherboard

English

Serial port Header This COM1 header supports a

(9-pin COM1)

(see p.2 No.30)

serial port module.

HDMI_SPDIF Header HDMI_SPDIF header, providing

(2-pin HDMI_SPDIF1)

see p.2 No. 31)

(

SPDIF audio output to HDMI

VGA card, allows the system to connect HDMI Digital TV/ projector/LCD devices. Please connect the HDMI_SPDIF connector of HDMI VGA card to this header.

2.11 Smart Switches

This motherboard has three smart switches: power switch, reset switch and clear CMOS switch, allowing users to quickly turn on/off or reset the system or clear the CMOS values.

Power Switch Power Switch is a smart switch,

(PWRBTN)

(see p.2 No. 18)

allowing users to quickly turn

on/off the system.

English

Reset Switch Reset Switch is a smart switch,

(RSTBTN)

allowing users to quickly reset

(see p.2 No. 19)

the system.

Clear CMOS Switch Clear CMOS Switch is a smart

(CLRCBTN)

(see p.3 No. 14)

switch, allowing users to quickly

clear the CMOS values

ASRock A75 Pro4/MVP Motherboard

2.12 Dr. Debug

Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes.

Status Code Description 0x00 Not used 0x01 Power on. Reset type detection (soft/hard) 0x02 AP initialization before microcode loading 0x03 North Bridge initialization before microcode loading 0x04 South Bridge initialization before microcode loading 0x05 OEM initialization before microcode loading 0x06 Microcode loading 0x07 AP initialization after microcode loading 0x08 North Bridge initialization after microcode loading 0x09 South Bridge initialization after microcode loading 0x0A OEM initialization after microcode loading 0x0B Cache initialization 0x0C – 0x0D Reserved for future AMI SEC error codes 0x0E Microcode not found 0x0F Microcode not loaded 0x10 PEI Core is started 0x11 Pre-memory CPU initialization is started 0x12 Pre-memory CPU initialization (CPU module specic) 0x13 Pre-memory CPU initialization (CPU module specic) 0x14 Pre-memory CPU initialization (CPU module specic) 0x15 Pre-memory North Bridge initialization is started 0x16 Pre-Memory North Bridge initialization (North Bridge module specic) 0x17 Pre-Memory North Bridge initialization (North Bridge module specic) 0x18 Pre-Memory North Bridge initialization (North Bridge module specic) 0x19 Pre-memory South Bridge initialization is started 0x1A Pre-memory South Bridge initialization (South Bridge module specic) 0x1B Pre-memory South Bridge initialization (South Bridge module specic) 0x1C Pre-memory South Bridge initialization (South Bridge module specic) 0x1D – 0x2A OEM pre-memory initialization codes 0x2B Memory initialization. Serial Presence Detect (SPD) data reading 0x2C Memory initialization. Memory presence detection 0x2D Memory initialization. Programming memory timing information 0x2E Memory initialization. Conguring memory 0x2F Memory initialization (other) 0x30 Reserved for ASL 0x31 Memory Installed 0x32 CPU post-memory initialization is started 0x33 CPU post-memory initialization. Cache initialization 0x34 CPU post-memory initialization. Application Processor(s) (AP) initialization 0x35 CPU post-memory initialization. Boot Strap Processor (BSP) selection 0x36 CPU post-memory initialization. System Management Mode (SMM) initialization

ASRock A75 Pro4/MVP Motherboard

English

0x37 Post-Memory North Bridge initialization is started 0x38 Post-Memory North Bridge initialization (North Bridge module specic) 0x39 Post-Memory North Bridge initialization (North Bridge module specic) 0x3A Post-Memory North Bridge initialization (North Bridge module specic) 0x3B Post-Memory South Bridge initialization is started 0x3C Post-Memory South Bridge initialization (South Bridge module specic) 0x3D Post-Memory South Bridge initialization (South Bridge module specic) 0x3E Post-Memory South Bridge initialization (South Bridge module specic) 0x3F-0x4E OEM post memory initialization codes 0x4F DXE IPL is started 0x50 Memory initialization error. Invalid memory type or incompatible memory speed 0x51 Memory initialization error. SPD reading has failed 0x52 Memory initialization error. Invalid memory size or memory modules do not match 0x53 Memory initialization error. No usable memory detected 0x54 Unspecied memory initialization error 0x55 Memory not installed 0x56 Invalid CPU type or Speed 0x57 CPU mismatch 0x58 CPU self test failed or possible CPU cache error 0x59 CPU micro-code is not found or micro-code update is failed 0x5A Internal CPU error 0x5B reset PPI is not available 0x5C-0x5F Reserved for future AMI error codes 0xE0 S3 Resume is stared (S3 Resume PPI is called by the DXE IPL) 0xE1 S3 Boot Script execution 0xE2 Video repost 0xE3 OS S3 wake vector call 0xE4-0xE7 Reserved for future AMI progress codes 0xE8 S3 Resume Failed 0xE9 S3 Resume PPI not Found 0xEA S3 Resume Boot Script Error 0xEB S3 OS Wake Error 0xEC-0xEF Reserved for future AMI error codes 0xF0 Recovery condition triggered by rmware (Auto recovery) 0xF1 Recovery condition triggered by user (Forced recovery) 0xF2 Recovery process started 0xF3 Recovery rmware image is found 0xF4 Recovery rmware image is loaded 0xF5-0xF7 Reserved for future AMI progress codes 0xF8 Recovery PPI is not available 0xF9 Recovery capsule is not found 0xFA Invalid recovery capsule 0xFB – 0xFF Reserved for future AMI error codes 0x60 DXE Core is started 0X61 NVRAM initialization

ASRock A75 Pro4/MVP Motherboard

0x62 Installation of the South Bridge Runtime Services 0x63 CPU DXE initialization is started 0x64 CPU DXE initialization (CPU module specic) 0x65 CPU DXE initialization (CPU module specic) 0x66 CPU DXE initialization (CPU module specic) 0x67 CPU DXE initialization (CPU module specic) 0x68 PCI host bridge initialization 0x69 North Bridge DXE initialization is started 0x6A North Bridge DXE SMM initialization is started 0x6B North Bridge DXE initialization (North Bridge module specic) 0x6C North Bridge DXE initialization (North Bridge module specic) 0x6D North Bridge DXE initialization (North Bridge module specic) 0x6E North Bridge DXE initialization (North Bridge module specic) 0x6F North Bridge DXE initialization (North Bridge module specic) 0x70 South Bridge DXE initialization is started 0x71 South Bridge DXE SMM initialization is started 0x72 South Bridge devices initialization 0x73 South Bridge DXE Initialization (South Bridge module specic) 0x74 South Bridge DXE Initialization (South Bridge module specic) 0x75 South Bridge DXE Initialization (South Bridge module specic) 0x76 South Bridge DXE Initialization (South Bridge module specic) 0x77 South Bridge DXE Initialization (South Bridge module specic) 0x78 ACPI module initialization 0x79 CSM initialization 0x7A – 0x7F Reserved for future AMI DXE codes 0x80 – 0x8F OEM DXE initialization codes 0x90 Boot Device Selection (BDS) phase is started 0x91 Driver connecting is started 0x92 PCI Bus initialization is started 0x93 PCI Bus Hot Plug Controller Initialization 0x94 PCI Bus Enumeration 0x95 PCI Bus Request Resources 0x96 PCI Bus Assign Resources 0x97 Console Output devices connect 0x98 Console input devices connect 0x99 Super IO Initialization 0x9A USB initialization is started 0x9B USB Reset 0x9C USB Detect 0x9D USB Enable 0x9E – 0x9F Reserved for future AMI codes 0xA0 IDE initialization is started 0xA1 IDE Reset 0xA2 IDE Detect 0xA3 IDE Enable 0xA4 SCSI initialization is started 0xA5 SCSI Reset

English

ASRock A75 Pro4/MVP Motherboard

0xA6 SCSI Detect 0xA7 SCSI Enable 0xA8 Setup Verifying Password 0xA9 Start of Setup 0xAA Reserved for ASL (see ASL Status Codes section below) 0xAB Setup Input Wait 0xAC Reserved for ASL (see ASL Status Codes section below) 0xAD Ready To Boot event 0xAE Legacy Boot event 0xAF Exit Boot Services event 0xB0 Runtime Set Virtual Address MAP Begin 0xB1 Runtime Set Virtual Address MAP End 0xB2 Legacy Option ROM Initialization 0xB3 System Reset 0xB4 USB hot plug 0xB5 PCI bus hot plug 0xB6 Clean-up of NVRAM 0xB7 Conguration Reset (reset of NVRAM settings) 0xB8 – 0xBF Reserved for future AMI codes 0xC0 – 0xCF OEM BDS initialization codes 0xD0 CPU initialization error 0xD1 North Bridge initialization error 0xD2 South Bridge initialization error 0xD3 Some of the Architectural Protocols are not available 0xD4 PCI resource allocation error. Out of Resources 0xD5 No Space for Legacy Option ROM 0xD6 No Console Output Devices are found 0xD7 No Console Input Devices are found 0xD8 Invalid password 0xD9 Error loading Boot Option (LoadImage returned error) 0xDA Boot Option is failed (StartImage returned error) 0xDB Flash update is failed 0xDC Reset protocol is not available

English

ASRock A75 Pro4/MVP Motherboard

2.13 Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical drive rst. Then, the drivers compatible to your system can be auto-detected and listed on the support CD driver page. Please follow the order from up to bottom side to install those required drivers. Therefore, the drivers you install can work properly.

2.14 Installing Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP 64-bit With RAID Functions

If you want to install Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP 64bit on your SATA3 HDDs with RAID functions, please refer to the document at the following path in the Support CD for detailed procedures:

..\ RAID Installation Guide

2.15 Installing Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP 64-bit Without RAID Functions

If you want to install Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP 64-bit OS on your SATA3 HDDs without RAID functions, please follow below procedures according to the OS you install.

2.15.1 Installing Windows® XP / XP 64-bit Without RAID Functions

If you want to install Windows® XP / XP 64-bit on your SATA3 HDDs without RAID functions, please follow below steps.

Using SATA3 HDDs without NCQ and Hot Plug functions (IDE mode)

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration. B. Set the “SATA Mode” option to [IDE].

STEP 2: Install Windows® XP / XP 64-bit OS on your system.

ASRock A75 Pro4/MVP Motherboard

English

2.15.2 Installing Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit Without RAID Functions

If you want to install Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit on your SATA3 HDDs without RAID functions, please follow below steps.

Using SATA3 HDDs without NCQ and Hot Plug functions (IDE mode)

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration. B. Set the “SATA Mode” option to [IDE].

STEP 2: Install Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS on your system.

Using SATA3 HDDs with NCQ and Hot Plug functions (AHCI mode)

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration. B. Set the “SATA Mode” option to [AHCI].

STEP 2: Install Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS on your system.

English

ASRock A75 Pro4/MVP Motherboard

3. BIOS Information

The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up the computer, please press <F2> or <Del> during the Power-On-Self-Test (POST) to enter BIOS Setup utility; otherwise, POST continues with its test routines. If you wish to enter BIOS Setup after POST, please restart the system by pressing <Ctl> + <Alt> + <Delete>, or pressing the reset button on the system chassis. The BIOS Setup program is designed to be user-friendly. It is a menu-driven program, which allows you to scroll through its various sub-menus and to select among the predetermined choices. For the detailed information about BIOS Setup, please refer to the User Manual (PDF le) contained in the Support CD.

4. Software Support CD information

This motherboard supports various Microsoft 64-bit / VistaTM / Vista the motherboard contains necessary drivers and useful utilities that will enhance motherboard features. To begin using the Support CD, insert the CD into your CDROM drive. It will display the Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and doubleclick on the le “ASSETUP.EXE” from the BIN folder in the Support CD to display the menus.

64-bit / XP SP3 / XP 64-bit. The Support CD that came with

Windows® operating systems: 7 / 7

ASRock A75 Pro4/MVP Motherboard

English

1. Einführung

Wir danken Ihnen für den Kauf des ASRock A75 Pro4/MVP Motherboard, ein zuverlässiges Produkt, welches unter den ständigen, strengen Qualitätskontrollen von ASRock gefertigt wurde. Es bietet Ihnen exzellente Leistung und robustes Design, gemäß der Verpflichtung von ASRock zu Qualität und Halbarkeit. Diese Schnellinstallationsanleitung führt in das Motherboard und die schrittweise Installation ein. Details über das Motherboard nden Sie in der Bedienungsanleitung auf der Support-CD.

Da sich Motherboard-Spezikationen und BIOS-Software verändern können, kann der Inhalt dieses Handbuches ebenfalls jederzeit geändert werden. Für den Fall, dass sich Änderungen an diesem Handbuch ergeben, wird eine neue Version auf der ASRock-Website, ohne weitere Ankündigung, verfügbar sein. Die neuesten Grakkarten und unterstützten CPUs sind auch auf der ASRock-Website aufgelistet. ASRock-Website: http://www.asrock.com Wenn Sie technische Unterstützung zu Ihrem Motherboard oder spezische Informationen zu Ihrem Modell benötigen, besuchen Sie bitte unsere Webseite: www.asrock.com/support/index.asp

1.1 Kartoninhalt

ASRock A75 Pro4/MVP Motherboard (ATX-Formfaktor: 30.5 cm x 22.4 cm; 12.0 Zoll x 8.8 Zoll) ASRock A75 Pro4/MVP Schnellinstallationsanleitung ASRock A75 Pro4/MVP Support-CD Vier Serial ATA (SATA) -Datenkabel (optional) Ein I/O Shield

Deutsch

ASRock erinnert...

Zur besseren Leistung unter Windows® 7 / 7, 64 Bit / Vista 64 Bit empfehlen wir, die Speicherkonguration im BIOS auf den AHCIModus einzustellen. Hinweise zu den BIOS-Einstellungen nden Sie in der Bedienungsanleitung auf der mitgelieferten CD.

/ VistaTM

ASRock A75 Pro4/MVP Motherboard

1.2 Spezifikationen

Plattform - ATX-Formfaktor: 30.5 cm x 22.4 cm; 12.0 Zoll x 8.8 Zoll

- Alle Feste Kondensatordesign CPU - Unterstützt Sockel-FM1-100-W-Prozessoren

- 4 + 1-Stromphasendesign

- Unterstützt Cool ‘n’ QuietTM-Technologie von AMD

- UMI-Link-GEN2

Chipsatz - AMD A75 FCH (Hudson-D3) Speicher - Unterstützung von Dual-Kanal-Speichertechnologie

(siehe VORSICHT 1)

- 4 x Steckplätze für DDR3

- Unterstützt DDR3 2400+(OC)/1866/1600/1333/ 1066/800 non-ECC, ungepufferter Speicher (siehe VORSICHT 2)

- Max. Kapazität des Systemspeichers: 32GB (siehe VORSICHT 3) Erweiterungs- - 2 x PCI-Express-2.0-x16-Steckplätze steckplätze (PCIE2: x16-Modus; PCIE4: x4-Modus)

- 2 x PCI Express 2.0 x1-Steckplätze

- 3 x PCI -Steckplätze

- Unterstützt AMD Quad CrossFireXTM, CrossFireXTM und duale Grakkarten Onboard-VGA - AMD Radeon HD 65XX/64XX-Grak

- DirectX 11, Pixel Shader 5.0

- Maximal gemeinsam genutzter Speicher 512MB (siehe VORSICHT 4)

- Drei VGA-Ausgangsoptionen: D-Sub, DVI-D sowie HDMI (siehe VORSICHT 5)

- Unterstützt HDMI 1.4a mit einer maximalen Auösung von 1920 x 1200 bei 60 Hz

- Unterstützt Dual-link DVI mit einer maximalen Auösung von 2560 x 1600 bei 75 Hz

- Unterstützt D-Sub mit einer maximalen Auösung von 1920 x 1600 bei 60 Hz

- Unterstützt Auto Lip Sync, Deep Color (12bpc), xvYCC und HBR (High Bit Rate-Audio) mit HDMI (kompatibler HDMI- Bildschirm erforderlich) (siehe VORSICHT 6)

- Unterstützt stereoskopisches 3D per Blu-ray mit HDMI 1.4a

- Unterstützt AMD Steady VideoTM: Neuartige Funktion der Videonachbearbeitung für automatische Reduzierung von Bildschwankungen bei Heim-/Online-Videos

ASRock A75 Pro4/MVP Motherboard

Deutsch

- Unterstützt HDCP-Funktion mit DVI- und HDMI-Ports

- Unterstutzt 1080p Blu-ray (BD) / HD-DVD-Wiedergabe mit DVI- und HDMI-Ports Audio - 7.1 CH HD Audio mit dem Inhalt Schutz (Realtek ALC892 Audio Codec)

- Premium Blu-ray-Audio-Unterstützung

- Unterstützt THX TruStudio

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Unterstützt Wake-On-LAN

- Unterstützt LAN-Kabelerkennung

- Unterstützt energieefzientes Ethernet 802.3az

- Unterstützt PXE E/A-Anschlüsse I/O Panel an der - 1 x PS/2-Maus/Tastaturanschluss Rückseite - 1 x D-Sub port

- 1 x DVI-D port

- 1 x HDMI port

- 1 x optischer SPDIF-Ausgang

- 2 x Standard-USB 2.0-Anschlüsse

- 1 x eSATA3-Anschluss

- 4 x Standard-USB 3.0-Anschlüsse

- 1 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED)

- 1 x IEEE 1394 Port

- 1 x CMOS löschen-Schalter

- HD Audiobuchse: Lautsprecher hinten / Mitte/Bass / Audioeingang / Lautsprecher vorne / Mikrofon (siehe VORSICHT 7) SATA3 - 5 x SATA 3-Anschluss mit 6,0 Gb/s, unterstützt RAID (RAID 0, RAID 1 und RAID 10), NCQ-, AHCI- und „Hot Plugging“-Funktionen USB3.0 - 4 x USB 3.0-Ports, unterstützt USB 1.0/2.0/3.0 mit bis zu 5 Gb/s Anschlüsse - 5 x SATA3 6,0 GB/s-Anschlüsse

- 1 x Infrarot-Modul-Header

- 1 x Consumer Infrarot-Modul-Header

- 1 x COM-Anschluss-Header

- 1 x HDMI_SPDIF-Anschluss

- 1 x IEEE 1394-Anschluss

- 1 x Betriebs-LED-Header

- CPU/Gehäuse/Stromlüfter-Anschluss

ASRock A75 Pro4/MVP Motherboard

- 24-pin ATX-Netz-Header

- 8-pin anschluss für 12V-ATX-Netzteil

- Anschluss für Audio auf der Gehäusevorderseite

- 3 x USB 2.0-Anschlüsse (Unterstützung 6 zusätzlicher USB 2.0-Anschlüsse)

- 1 x Dr. Debug (Debug-LED mit 7 Segmenten) Schnellschalter - 1 x CMOS löschen-Schalter mit LED

- 1 x Netzschalter mit LED

- 1 x Rücksetzschalter (Reset) mit LED BIOS - 32Mb AMIs Legal BIOS UEFI mit GUI-Unterstützung

- Unterstützung für “Plug and Play”

- ACPI 1.1-Weckfunktionen

- JumperFree-Modus

- SMBIOS 2.3.1

- DRAM, VDDP, VDDR, SB Stromspannung Multianpassung Support-CD - Treiber, Dienstprogramme, Antivirussoftware (Probeversion), CyberLink MediaEspresso 6.5-Testversion

Einzigartige - ASRock Extreme Tuning Utility (AXTU) Eigenschaft (siehe VORSICHT 8)

- ASRock Sofortstart

- ASRock Instant Flash (siehe VORSICHT 9)

- ASRock APP Charger (siehe VORSICHT 10)

- ASRock XFast USB (siehe VORSICHT 11)

- ASRock XFast LAN (siehe VORSICHT 12)

- ASRock XFast RAM (siehe VORSICHT 13)

- Lucid Virtu Universal MVP (siehe VORSICHT 14) * Lucid Virtu Universal MVP kann nur durch GPU-integrierte Prozessoren unterstützt werden.

- ASRock ein/aus-Wiedergabetechnologie (siehe VORSICHT 15)

- Hybrid Booster:

- ASRock U-COP (siehe VORSICHT 16) Hardware Monitor - CPU-Temperatursensor

- Motherboardtemperaturerkennung

- Drehzahlmessung für CPU/Gehäuse/Stromlüfter

- Geräuscharmer CPU-/Gehäuselüfter

- Mehrstuge Geschwindigkeitsteuerung für CPU-/ Gehäuselüfter

- Spannungsüberwachung: +12V, +5V, +3.3V, Vcore

Deutsch

ASRock A75 Pro4/MVP Motherboard

Deutsch

Betriebssysteme - Unterstützt Microsoft Vista

64-Bit / XP SP3 / XP 64-Bit

Windows® 7 / 7 64-Bit / VistaTM /

Zertizierungen - FCC, CE, WHQL

- Gemäß Ökodesign-Richtlinie (ErP/EuP) (Stromversorgung gemäß Ökodesign-Richtlinie (ErP/EuP) erforderlich) (siehe VORSICHT 17)

* Für die ausführliche Produktinformation, besuchen Sie bitte unsere Website: http://www.asrock.com

WARNUNG

Beachten Sie bitte, dass Overclocking, einschließlich der Einstellung im BIOS, Anwenden der Untied Overclocking-Technologie oder Verwenden von Overclocking-Werkzeugen von Dritten, mit einem gewissen Risiko behaftet ist. Overclocking kann sich nachteilig auf die Stabilität Ihres Systems auswirken oder sogar Komponenten und Geräte Ihres Systems beschädigen. Es geschieht dann auf eigene Gefahr und auf Ihre Kosten. Wir übernehmen keine Verantwortung für mögliche Schäden, die aufgrund von Overclocking verursacht wurden.

VORSICHT!

Dieses Motherboard unterstützt Dual-Kanal-Speichertechnologie. Vor

Implementierung der Dual-Kanal-Speichertechnologie müssen Sie die Installationsanleitung für die Speichermodule auf Seite 14 zwecks richtiger Installation gelesen haben.

2. Ob die Speichergeschwindigkeit 2400/1866/1600 MHz unterstützt wird, hängt von der von Ihnen eingesetzten CPU ab. Schauen Sie bitte auf unseren Internetseiten in der Liste mit unterstützten Speichermodulen nach, wenn Sie DDR3 2400/1866/1600-Speichermodule einsetzen möchten.

ASRock-Internetseite: http://www.asrock.com

3. Durch Betriebssystem-Einschränkungen kann die tatsächliche Speichergröße weniger als 4 GB betragen, da unter Windows® 7 / VistaTM / XP etwas Speicher zur Nutzung durch das System reserviert wird. Unter Windows® OS mit 64-Bit-CPU besteht diese Einschränkung nicht.

4. Die Maximalspeichergröße ist von den Chipshändler deniert und umgetauscht. Bitte überprüfen Sie AMD website für die neuliche Information.

5. Sie können nur die Nutzung von zwei von drei Bildschirmen auswählen. Die D-Sub-, DVI-D- und HDMI-Bildschirme können nicht gleichzeitig aktiviert werden. Zudem kann der DVI-D-Port mit DVI-zu-HDMI-Adapter dieselben Funktionen wie der HDMI-Port unterstützen.

6. xvYCC und Deep Color werden nur unter Windows® 7 64-Bit / 7 unterstützt. Der Deep Color-Modus wird nur aktiviert, wenn der Bildschirm 12bpc in EDID unterstützt. HBR wird unter Windows® 7 64 Bit / 7 / VistaTM 64 Bit / VistaTM unterstützt.

ASRock A75 Pro4/MVP Motherboard

7. Der Mikrofoneingang dieses Motherboards unterstützt Stereo- und MonoModi. Der Audioausgang dieses Motherboards unterstützt 2-Kanal-, 4-Kanal-, 6-Kanal- und 8-Kanal-Modi. Stellen Sie die richtige Verbindung anhand der Tabelle auf Seite 3 her.

8. ASRock Extreme Tuning Utility (AXTU) ist ein Alles-in-einem-

Werkzeug zur Feineinstellung verschiedener Systemfunktionen an einer benutzerfreundlichen Schnittstelle; diese beinhaltet HardwareÜberwachung, Lüftersteuerung, Übertaktung, OC DNA und

IES. Über die Hardware-Überwachung können Sie die Hauptsystemdaten einsehen. Die Lüftersteuerung zeigt Ihnen zur Anpassung Lüftergeschwindigkeit und Temperatur an. Bei der Übertaktung können Sie die CPU-Frequenz zur Erzielung optimaler Systemleistung übertakten. OC DNA ermöglicht Ihnen die Speicherung Ihrer OC-

Einstellungen als Pro l, welches Sie mit Freunden teilen können. Ihre

Freunde können das OC-Pro l dann in ihrem System laden und so die gleichen OC-Einstellungen erzielen. Per IES (Intelligent Energy Saver) kann der Spannungsregulator bei Inaktivität der CPU-Kerne die Anzahl an Ausgangsphasen zur Steigerung der Ef zienz reduzieren – ohne die Rechenleistung zu beeinträchtigen. Hinweise zur Bedienung der ASRock Extreme Tuning Utility (AXTU)  nden Sie auf unserer Webseite. ASRockWebseite: http://www.asrock.com

9. ASRock Instant Flash ist ein im Flash-ROM eingebettetes BIOS-FlashProgramm. Mithilfe dieses praktischen BIOS-Aktualisierungswerkzeugs können Sie das System-BIOS aktualisieren, ohne dafür zuerst Betriebssysteme wie MS-DOS oder Windows® aufrufen zu müssen. Mit diesem Programm bekommen Sie durch Drücken der <F6>-Taste während des POST-Vorgangs oder durch Drücken der <F2>-Taste im BIOS-SetupMenü Zugang zu ASRock Instant Flash. Sie brauchen dieses Werkzeug einfach nur zu starten und die neue BIOS-Datei auf Ihrem USB-FlashLaufwerk, Diskettenlaufwerk oder der Festplatte zu

speichern, und schon können Sie Ihr BIOS mit nur wenigen Klickvorgän-

gen ohne Bereitstellung einer zusätzlichen Diskette oder eines anderen komplizierten Flash-Programms aktualisieren. Achten Sie darauf, dass das USB-Flash-Laufwerk oder die Festplatte das Dateisystem FAT32/16/12 benutzen muss.

10. Wenn Sie nach einer schnelleren, weniger eingeschränkten Möglichkeit zur Auadung Ihrer Apple-Geräte (z. B. iPhone/iPad/iPod touch) suchen, bietet ASRock Ihnen eine wunderbare Lösung – den ASRock APP Charger. Installieren Sie einfach den ASRock APP Charger-Treiber; dadurch lädt sich Ihr iPhone wesentlich schneller über einen Computer auf – genaugenommen bis zu 40 % schneller als zuvor. Der ASRock APP Charger ermöglicht Ihnen die schnelle Auadung mehrerer Apple-Geräte gleichzeitig; der Ladevorgang wird sogar dann fortgesetzt, wenn der PC den Ruhezustand (S1), Suspend to RAM-Modus (S3) oder Tiefschlafmodus (S4) aufruft oder ausgeschaltet wird (S5). Nach der

Installation des APP Charger-Treibers können Sie im Handumdrehen das

großartigste Ladeerlebnis überhaupt genießen.

Deutsch

ASRock A75 Pro4/MVP Motherboard

Deutsch

ASRock-Webseite: http://www.asrock.com/Feature/AppCharger/index.

asp

11. ASRocks XFast USB dient der Steigerung der Leistungsfähigkeit Ihrer

USB-Speichergeräte. Die Leistung kann je nach Eigenschaften des Gerätes variieren.

12. ASRock XFast LAN bietet einen schnelleren Internetzugang mit den nachfolgenden Vorteilen. LAN-Anwendungspriorisierung: Hiermit kon-

gurieren Sie auf ideale Weise Ihre Anwendungspriorität und/oder fügen neue Programme hinzu. Niedrigere Latenzzeit bei Spielen: Nach Einstel lung einer höheren Online-Gamepriorität kann hiermit die Latenzzeit bei Spielen herabgesetzt werden. Datenverkehrsgestaltung: Sie können Youtube-Videos in HD anzeigen und gleichzeitig Dateien herunterladen. Echtzeitanalyse Ihrer Daten: Über das Statusfenster können Sie schnell ermitteln, welche Datenströme zur Zeit übertragen werden.

13. ASRock XFast RAM ist eine neue Funktion, die beim ASRock Extreme

Tuning Utility (AXTU) integriert ist. Sie ermöglicht die vollständige Nutzung des Speicherplatzes, der unter Windows®-Betriebssystemen mit 32-Bit-CPU nicht verwendet werden kann. ASRock XFast RAM verkürzt die Ladezeit zuvor besuchter Webseiten, was das Surfen im Internet mehr denn je beschleunigt. Auch die Arbeit mit Adobe Photoshop erfolgt

fünfmal schneller. Ein weiterer Vorteil von ASRock XFast RAM liegt in der

Reduzierung der Häugkeit des Zugriffs auf SSDs bzw. HDDs zur Verlän gerung deren Lebenszeit.

14. Virtu Universal MVP beinhaltet die Basisfunktionen der Virtu UniversalTechnologie, die integrierte GPU und separate GPU zur Erzielung optimaler Funktionalität virtualisiert. Verfügt zudem über Virtual VsyncTM für kompromisslose visuelle Qualität. Dank der zusätzlichen Vorzüge der HyperFormance-Technologie verbessert Virtu Universal MVP die Spielleistung durch intelligente Reduzierung redundanter Rendering-Aufgaben im Fluss zwischen CPU, GPU und Anzeigegerät.

15. Durch die ASRock ein/aus-Wiedergabetechnologie können Sie großartige Klangerlebnisse von portablen Audiogeräten, wie z. B. MP3-Playern oder Mobiltelefonen, an Ihrem PC genießen – selbst wenn der PC ausgeschaltet ist (oder sich im ACPI S5-Modus bendet)! Dieses Motherboard wird zudem mit einem kostenlosen Audiokabel (3,5 mm, Klinke) (optional) geliefert, was eine IT-Umgebung von höchster Benutzerfreundlichkeit gewährleistet.

16. Wird eine Überhitzung der CPU registriert, führt das System einen automatischen Shutdown durch. Bevor Sie das System neu starten, prüfen Sie bitte, ob der CPU-Lüfter am Motherboard richtig funktioniert, und stecken Sie bitte den Stromkabelstecker aus und dann wieder ein. Um die Wärmeableitung zu verbessern, bitte nicht vergessen, etwas Wärmeleitpaste zwischen CPU und Kühlkörper zu sprühen.

ASRock A75 Pro4/MVP Motherboard

17. EuP steht für Energy Using Product und kennzeichnet die ÖkodesignRichtlinie, die von der Europäischen Gemeinschaft zur Festlegung des Energieverbrauchs von vollständigen Systemen in Kraft gesetzt wurde. Gemäß dieser Ökodesign-Richtlinie (EuP) muss der gesamte Netzstromverbrauch von vollständigen Systemen unter 1,00 Watt liegen, wenn sie ausgeschaltet sind. Um dem EuP-Standard zu entsprechen, sind ein EuPfähiges Motherboard und eine EuP-fähige Stromversorgung erforderlich. Gemäß einer Empfehlung von Intel muss eine EuP-fähige Stromversorgung dem Standard entsprechen, was bedeutet, dass bei einem Stromverbrauch von 100 mA die 5-Volt-Standby-Energieefzienz höher als 50% sein sollte. Für die Wahl einer EuP-fähigen Stromversorgung empfehlen wir Ihnen, weitere Details beim Hersteller der Stromversorgung abzufragen. Beachten Sie bitte überdies, dass bei Aktivierung der ASRock On/Off Play-Technologie Ihrerseits, Ihr System den EuP-Standard nicht erfüllt. Zur Übereinstimmung mit dem EuP-Standard deaktivieren Sie bitte zuerst die ASRock On/Off PlayTechnologie.

ASRock A75 Pro4/MVP Motherboard

Deutsch

1.3 Einstellung der Jumper

Die Abbildung verdeutlicht, wie Jumper gesetzt werden. Werden Pins durch Jumperkappen verdeckt, ist der Jumper “Gebrückt”. Werden keine Pins durch Jumperkappen verdeckt, ist der Jumper “Offen”. Die Abbildung zeigt einen 3-Pin Jumper dessen Pin1 und Pin2 “Gebrückt” sind, bzw. es bendet sich eine Jumper-Kappe auf diesen beiden Pins.

Jumper Einstellun Beschreibung

CMOS löschen

(CLRCMOS1, 3-Pin jumper) (siehe S.2, No. 10)

Hinweis:

CLRCMOS1 ermöglicht Ihnen die Löschung der Daten im CMOS. Zum Löschen und Zurücksetzen der Systemparameter auf die Standardeinrichtung schalten Sie den Computer bitte aus und trennen das Netzkabel von der Stromversorgung. Warten Sie 15 Sekunden, schließen Sie dann Pin2 und Pin3 am CLRCMOS1 über einen Jumper fünf Sekunden lang kurz. Sie sollten das CMOS allerdings nicht direkt nach der BIOS-Aktualisierung löschen. Wenn Sie das CMOS nach Abschluss der BIOS-Aktualisierung löschen müssen, fahren Sie zuerst das System hoch. Fahren Sie es dann vor der CMOS-Löschung herunter. Bitte beachten Sie, dass Kennwort, Datum, Uhrzeit, benutzerdeniertes Prol, 1394 GUID und MAC-Adresse

nur gelöscht werden, wenn die CMOS-Batterie entfernt wird.

DefaultEinstellung

CMOS löschen

Deutsch

Der CMOS löschen-Schalter hat dieselbe Funktion wie der CMOS löschen-Jumper.

ASRock A75 Pro4/MVP Motherboard

1.4 Anschlüsse

Anschlussleisten sind KEINE Jumper. Setzen Sie KEINE Jumperkappen auf die Pins der Anschlussleisten. Wenn Sie die Jumperkappen auf die Anschlüsse setzen, wird das Motherboard permanent beschädigt!

Anschluss Beschreibung

Seriell-ATA3-Anschlüsse Diese fünf Serial ATA3-

(SATA3_1: siehe S.2 - No. 15)

(SATA3_2: siehe S.2 - No. 16)

(SATA3_3: siehe S.2 - No. 14)

(SATA3_4: siehe S.2 - No. 13)

(SATA3_5: siehe S.2 - No. 12)

ermöglicht eine

(SATA3-)Verbínder unterstützten SATA-Datenkabel für interne

Massenspeichergeräte. Die aktuelle SATA3- Schnittstelle

Datenübertragungsrate bis

6,0 Gb/s.

Serial ATA- (SATA-) SJedes Ende des SATA Datenkabel Datenkabels kann an die

(Option)

SATA3 Festplatte oder das SATA3 Verbindungsstück auf dieser Hauptplatine angeschlossen werden.

SATA3_5

SATA3_2 SATA3_4

SATA3_1 SATA3_3

USB 2.0-Header Zusätzlich zu den zwei

(9-pol. USB6_7)

(siehe S.2 - No. 28)

üblichen USB 2.0-Ports an den

I/O-Anschlüssen benden sich drei USB 2.0- Anschlussleisten am Motherboard. Pro USB 2.0-

USB _PWR

P-9

P-8

USB _PWR

P-11

P-10

USB _PWR

P+9

P+8

P+1 1

P+1 0

GND

DUM MY

(9-pol. USB8_9)

(siehe S.2 - No. 27)

(9-pol. USB10_11) (siehe S.2 - No. 25)

Anschlussleiste werden zwei

USB 2.0-Ports unterstützt.

ASRock A75 Pro4/MVP Motherboard

Deutsch

Infrarot-Modul-Header Dieser Header unterstützt ein

IRTX

+5VS B

DUMM Y

IRRX

GND

(5-pin IR1)

optionales, drahtloses Sende-

(siehe S.2 - No. 23)

und Empfangs-Infrarotmodul.

Consumer Infrared-Modul-Header Dieser Header kann zum

(4-pin CIR1)

(siehe S.2 - No. 29)

Anschließen Remote-

Empfänger.

Deutsch

Anschluss für Audio auf Dieses Interface zu einem der Gehäusevorderseite Audio-Panel auf der Vorder

(9-Pin HD_AUDIO1)

(siehe S.2 - No. 33)

seite Ihres Gehäuses,

ermöglicht Ihnen eine bequeme Anschlussmöglichkeit und Kontrolle über Audio-Geräte.

GND

PRE SENC E#

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. High Denition Audio unterstützt Jack Sensing (automatische Erkennung falsch angeschlossener Geräte), wobei jedoch die Bildschirmverdrahtung am Gehäuse HDA unterstützen muss, um richtig zu funktionieren. Beachten Sie bei der Installation im System die Anweisungen in unserem Handbuch und im Gehäusehandbuch.

2. Wenn Sie die AC’97-Audioleiste verwenden, installieren Sie diese wie nachstehend beschrieben an der Front-Audioanschlussleiste: A. Schließen Sie Mic_IN (MIC) an MIC2_L an. B. Schließen Sie Audio_R (RIN) an OUT2_R und Audio_L (LIN) an OUT2_L an. C. Schließen Sie Ground (GND) an Ground (GND) an.

D. MIC_RET und OUT_RET sind nur für den HD-Audioanschluss gedacht. Diese

Anschlüsse müssen nicht an die AC’97-Audioleiste angeschlossen werden. E. So aktivieren Sie das Mikrofon an der Vorderseite. Bei den Betriebssystemen Windows® XP / XP 64 Bit:

Wählen Sie „Mixer“. Wählen Sie „Recorder“ (Rekorder). Klicken Sie dann auf „FrontMic“ (Vorderes Mikrofon). Bei den Betriebssystemen Windows® 7 / 7 64 Bit / VistaTM / VistaTM 64 Bit: Wählen Sie im Realtek-Bedienfeld die „FrontMic“ (Vorderes Mikrofon)- Registerkarte. Passen Sie die „Recording Volume“ (Aufnahmelautstärke) an.

System Panel-Header Dieser Header unterstützt

(9-pin PANEL1)

(siehe S.2 - No. 20)

mehrere Funktion der

Systemvorderseite.

ASRock A75 Pro4/MVP Motherboard

Schließen Sie die Ein-/Austaste, die Reset-Taste und die Systemstatusanzeige am Gehäuse an diesen Header an; befolgen Sie dabei die nachstehenden Hinweise zur Pinbelegung. Beachten Sie die positiven und negativen Pins, bevor Sie die Kabel anschließen.

PWRBTN (Ein-/Ausschalter):

Zum Anschließen des Ein-/Ausschalters an der Frontblende des Gehäu ses. Sie können kongurieren, wie das System mit Hilfe des Ein-/Ausschalters ausgeschaltet werden können soll.

RESET (Reset-Taste):

Zum Anschließen der Reset-Taste an der Frontblende des Gehäuses. Mit der Reset-Taste können Sie den Computer im Falle eines Absturzes neu starten.

PLED (Systembetriebs-LED):

Zum Anschließen der Betriebsstatusanzeige an der Frontblende des Gehäuses. Die LED leuchtet, wenn das System in Betrieb ist. Die LED blinkt, wenn sich das System im Ruhezustand S1 bendet. Die LED schaltet sich aus, wenn sich das System in den Modi S3/S4 bendet oder ausgeschaltet ist (S5).

HDLED (Festplattenaktivitäts-LED):

Zum Anschließen der Festplattenaktivitäts-LED an der Frontblende des Gehäuses. Die LED leuchtet, wenn die Festplatte Daten liest oder schreibt.

Das Design der Frontblende kann je nach Gehäuse variiere. Ein Frontblendenmodul besteht hauptsächlich aus einer Ein-/Austaste, einer Reset-Taste, einer Betriebs-LED, einer Festplattenaktivitäts-LED, Lautsprechern, etc. Stellen Sie beim Anschließen des Frontblendenmoduls Ihres Gehäuses an diesem Header sicher, dass die Kabel- und Pinbelegung korrekt übereinstimmen.

Gehäuselautsprecher-Header Schließen Sie den

(4-pin SPEAKER1)

(siehe S.2 - No. 21)

Gehäuselautsprecher an

diesen Header an.

ASRock A75 Pro4/MVP Motherboard

Deutsch

Betriebs-LED-Header Bitte schließen Sie die

(3-pin PLED1)

(siehe S.2 - No. 24)

Betriebs-LED des Gehäuses

zur Anzeige des

PLE D+

PLE D-

Systembetriebsstatus an diesem Header an. Die LED leuchtet, wenn das System in Betrieb ist. Die LED blinkt im S1-Zustand. Im S3-/S4- oder S5-Zustand (ausgeschaltet) leuchtet die LED nicht.

Gehäuse- und Stromlüfteranschlüsse Verbinden Sie die Lüfterkabel

(4-pin CHA_FAN1)

(siehe S.2, No. 22)

mit den Lüfteranschlüssen,

wobei der schwarze Draht an

den Schutzleiterstift

(3-pin CHA_FAN2)

(siehe S.2 - No. 41)

angeschlossenwird.

Deutsch

(3-pin CHA_FAN3)

(siehe S.2 - No. 42)

(3-pin PWR_FAN1)

(siehe S.2 - No. 1)

CPU-Lüfteranschluss Verbinden Sie das CPU -

(4-pin CPU_FAN1)

(siehe S.2 - No. 5)

schwarzen Draht dem Erdungsstift an.

FAN_ SPEE D_CO NTRO L

Lüfterkabel mit diesem

Anschluss und passen Sie den

CPU _FAN_ SPEE D

+12 V

GND

1 2 3 4

Obwohl dieses Motherboard einen vierpoligen CPU-Lüfteranschluss (Quiet Fan) bietet, können auch CPU-Lüfter mit dreipoligem Anschluss angeschlossen werden; auch ohne Geschwindigkeitsregulierung. Wenn Sie einen dreipoligen CPU-Lüfter an den CPU-Lüferanschluss dieses Motherboards anschließen möchten, verbinden Sie ihn bitte mit den Pins 1 – 3.

Pins 1–3 anschließen

Lüfter mit dreipoligem Anschluss installieren

(3-pin CPU_FAN2)

(siehe S.2 - No. 6)

GND

+12 V

CPU _FAN_ SPEE D

ASRock A75 Pro4/MVP Motherboard

ATX-Netz-Header Verbinden Sie die ATX-

(24-pin ATXPWR1)

(siehe S.2 - No. 9)

Stromversorgung mit diesem

Header.

12 124

Obwohl dieses Motherboard einen 24-pol. ATX-

Stromanschluss bietet, kann es auch mit einem modizierten traditionellen 20-pol. ATX-Netzteil verwendet werden. Um ein 20-pol. ATX-Netzteil zu verwenden, stecken Sie den Stecker mit Pin 1 und Pin 13 ein.

ATX 12V Anschluss Bitte schließen Sie an diesen

(8-pin ATX12V1)

(siehe S.2 - No. 2)

Anschluss die ATX 12V

Stromversorgung an.

Installation eines 20-pol. ATX-Netzteils

4 8

1 5

Obwohl diese Hauptplatine 8-Pin ATX 12V Stromanschluss zur Verfügung stellt, kann sie noch arbeiten, wenn Sie einen traditionellen 4-Pin ATX 12V Energieversorgung adoptieren. Um die 4-Pin ATX Energieversorgung zu verwenden, stecken Sie bitte Ihre Energieversorgung zusammen mit dem Pin 1 und Pin 5 ein.

4 8

Installation der 4-Pin ATX 12V Energieversorgung

1 5

IEEE-1394 Header Außer einem vorgegebenem

(9-pin FRONT_1394)

(siehe S.2 - No. 32)

IEEE-1394 Port auf dem Ein-/

Ausgabe Paneel, gibt es einen IEEE-1394 Header (FRONT_1394) auf dieser Hauptplatine. Dieser IEEE-1394

RXT PAM_0

GND

RXT PBM_ 0

RXT PBP_ 0

GND

RXT PAP_0

+12 V

GND

Header kann einen IEEE-1394 Port unterstützen.

ASRock A75 Pro4/MVP Motherboard

Deutsch

COM-Anschluss-Header Dieser COM-Anschluss-

(9-pin COM1)

(siehe S.2 - No. 30)

Header wird verwendet, um

ein COM-Anschlussmodul zu

unterstützen.

HDMI_SPDIF-Anschluss Der HDMI_SPDIF-Anschluss

(2-pin HDMI_SPDIF1)

(siehe S.2 - No. 31)

stellt einen SPDIF-

Audioausgang für eine HDMI VGA-Karte zur Verfügung und ermöglicht den Anschluss von HDMI-Digitalgeräten wie Fernsehgeräten, Projektoren, LCD-Geräten an das System. Bitte verbinden Sie den HDMI_SPDIF-Anschluss der HDMI-VGA-Karte mit diesem Anschluss.

Deutsch

ASRock A75 Pro4/MVP Motherboard

1.5 Schnellschalter

Dieses Motherboard besitzt drei Schnellschalter: Netzschalter, Rücksetzschalter (Reset) und CMOS löschen-Schalter, mit denen Benutzer das System schnell ein-/ ausschalten oder zurücksetzen oder die CMOS-Werte löschen können.

Netzschalter Der Netzschalter ist ein

(PWRBTN)

Schnellschalter, mit dem

(siehe S.2 - No. 18)

ein-/ausschalten können. Rücksetzschalter (Reset) Der Rücksetzschalter (Reset)

(RSTBTN)

(siehe S.2 - No. 19)

zurücksetzen können. CMOS löschen-Schalter Der CMOS löschen-Schalter ist

(CLRCBTN)

(siehe S.3 - No. 14)

schnell löschen können.

Benutzer das System schnell

ist ein Schnellschalter, mit dem

Benutzer das System schnell

ein Schnellschalter, mit dem

Benutzer die CMOS-Werte

ASRock A75 Pro4/MVP Motherboard

Deutsch

2. BIOS-Information

Das Flash Memory dieses Motherboards speichert das Setup-Utility. Drücken Sie <F2> oder <Del> während des POST (Power-On-Self-Test) um ins Setup zu gelangen, ansonsten werden die Testroutinen weiter abgearbeitet. Wenn Sie ins Setup gelangen wollen, nachdem der POST durchgeführt wurde, müssen Sie das System über die Tastenkombination <Ctrl> + <Alt> + <Delete> oder den Reset-Knopf auf der Gehäusevorderseite, neu starten. Natürlich können Sie einen Neustart auch durchführen, indem Sie das System kurz ab- und danach wieder anschalten. Das Setup-Programm ist für eine bequeme Bedienung entwickelt worden. Es ist ein menügesteuertes Programm, in dem Sie durch unterschiedliche Untermenüs scrollen und die vorab festgelegten Optionen auswählen können. Für detaillierte Informationen zum BIOS-Setup, siehe bitte das Benutzerhandbuch (PDF Datei) auf der Support CD.

3. Software Support CD information

Dieses Motherboard unterstützt eine Reiche von Microsoft® Windows® Betriebssystemen: 7 / 7 64-Bit / VistaTM / VistaTM 64-Bit / XP SP3 / XP 64-Bit. Die Ihrem Motherboard beigefügte Support-CD enthält hilfreiche Software, Treiber und Hilfsprogramme, mit denen Sie die Funktionen Ihres Motherboards verbessern können Legen Sie die Support-CD zunächst in Ihr CD-ROM-Laufwerk ein. Der Willkommensbildschirm mit den Installationsmenüs der CD wird automatisch aufgerufen, wenn Sie die “Autorun”-Funktion Ihres Systems aktiviert haben. Erscheint der Wilkommensbildschirm nicht, so “doppelklicken” Sie bitte auf das File ASSETUP.EXE im BIN-Verzeichnis der Support-CD, um die Menüs aufzurufen. Das Setup-Programm soll es Ihnen so leicht wie möglich machen. Es ist menügesteuert, d.h. Sie können in den verschiedenen Untermenüs Ihre Auswahl treffen und die Programme werden dann automatisch installiert.

Deutsch

ASRock A75 Pro4/MVP Motherboard

1. Introduction

Merci pour votre achat d’une carte mère ASRock A75 Pro4/MVP, une carte mère très able produite selon les critères de qualité rigoureux de ASRock. Elle offre des performances excellentes et une conception robuste conformément à l’engagement d’ASRock sur la qualité et la abilité au long terme. Ce Guide d’installation rapide présente la carte mère et constitue un guide d’installation pas à pas. Des informations plus détaillées concernant la carte mère pourront être trouvées dans le manuel l’utilisateur qui se trouve sur le CD d’assistance.

Les spécications de la carte mère et le BIOS ayant pu être mis à jour, le contenu de ce manuel est sujet à des changements sans notication. Au cas où n’importe qu’elle modication intervenait sur ce manuel, la version mise à jour serait disponible sur le site web ASRock sans nouvel avis. Vous trouverez les listes de prise en charge des cartes VGA et CPU également sur le site Web ASRock. Site web ASRock, http://www.asrock.com Si vous avez besoin de support technique en relation avec cette carte mère, veuillez consulter notre site Web pour de plus amples informations particulières au modèle que vous utilisez. www.asrock.com/support/index.asp

1.1 Contenu du paquet

Carte mère ASRock A75 Pro4/MVP (Facteur de forme ATX: 12.0 pouces x 8.8 pouces, 30.5 cm x 22.4 cm) Guide d’installation rapide ASRock A75 Pro4/MVP CD de soutien ASRock A75 Pro4/MVP Quatre câbles de données de série ATA (SATA) (en option) Un I/O Panel Shield

ASRock vous rappelle...

Pour bénécier des meilleures performances sous Windows® 7 / 7 64 bits

/ Vista

/ VistaTM 64 bits, il est recommandé de paramétrer l'option BIOS dans Conguration de stockage en mode AHCI. Pour plus de détails sur l'installation BIOS, référez-vous au "Mode d'emploi" sur votre CD de support.

ASRock A75 Pro4/MVP Motherboard

Français

1.2 Spécifications

Format - Facteur de forme ATX:

12.0 pouces x 8.8 pouces, 30.5 cm x 22.4 cm

- Accessoires de Carte mère CPU - Support des unités centrales Socket FM1 100W

- Conception 4 + 1 Power Phase

- Supporte la technologie Cool ‘n’ QuietTM d’AMD

- UMI-Link GEN2

Chipsets - AMD A75 FCH (Hudson-D3) Mémoire - Compatible avec la Technologie de Mémoire à Canal

Double (voir ATTENTION 1)

- 4 x slots DIMM DDR3

- Supporter DDR3 2400+(OC)/1866/1600/1333/ 1066/800 non-ECC, sans amortissement mémoire (voir ATTENTION 2)

- Capacité maxi de mémoire système: 32GB (voir ATTENTION 3) Slot d’extension - 2 x fentes PCI Express 2.0 x16 (PCIE2 à mode x16; PCIE4 à mode x4)

- 2 x slots PCI Express 2.0 x1

- 3 x slots PCI

- Support de AMD Quad CrossFireXTM, CrossFireXTM et Dual Graphics VGA sur carte - Graphiques à l’AMD Radeon HD 65XX/64XX

- DirectX 11, nuanceur de pixels 5.0

- mémoire partagée max 512MB (voir ATTENTION 4)

- Trois options de sortie VGA: D-Sub, DVI-D et HDMI (voir ATTENTION 5)

- Prend en charge le HDMI 1.4a avec une résolution maximale jusqu’à 1920x1200 @ 60Hz

- Prend en charge le Dual-link DVI avec une résolution maximale jusqu’à 2560x1600 @ 75Hz

- Prend en charge le D-Sub avec une résolution maximale jusqu’à 1920x1600 @ 60Hz

- Prend en charge Lip Sync, Deep Color (12bpc), xvYCC et HBR (High Bit Rate Audio: Audio à haut débit binaire) avec HDMI (Moniteur compatible HDMI requis) (voir ATTENTION 6)

- Prend en charge la 3D stéréoscopique Blu-ray avec HDMI 1.4a

ASRock A75 Pro4/MVP Motherboard

- Supporte AMD Steady VideoTM: Nouvelle fonctionnalité de traitement post-vidéo pour réduction automatique des tremblements dans les clips vidéo en ligne/maison

- Prise en charge de la fonction HDCP avec ports DVI et HDMI

- Supporter 1080p Blu-ray(BD)/ lecteur de HD-DVD avec ports DVI et HDMI Audio - 7,1 CH HD Audio avec protection de contenu (Realtek ALC892 Audio Codec)

- Prise en charge de l’audio Premium Blu-ray

- Prend en charge THX TruStudio

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supporte du Wake-On-LAN

- Prise en charge de la détection de câble LAN

- Prend en charge la norme Energy Efcient Ethernet (Ethernet à efcacité énergétique) 802.3az

- Supporte PXE

Panneau arrière I/O Panel

- 1 x port souris/clavier PS/2

- 1 x port D-Sub

- 1 x port DVI-D

- 1 x port HDMI

- 1 x Port de sortie optique SPDIF

- 2 x ports USB 2.0 par défaut

- 1 x Connecteur eSATA3

- 4 x ports USB 3.0 par défaut

- 1 x port LAN RJ-45 avec LED (ACT/LED CLIGNOTANTE et LED VITESSE)

- 1 x port IEEE 1394

- 1 x interrupteur d’effacement du CMOS

- Prise HD Audio: Haut-parleur arrière / Central /Basses / Entrée Ligne / Haut-parleur frontal / Microphone (voir ATTENTION 7) SATA3 - 5 x connecteurs 6,0 Gb/s SATA3, prise en charge des fonctions RAID (RAID 0, RAID 1 et RAID 10), NCQ, AHCI et « Connexion à chaud » USB 3.0 - 4 x ports USB3.0, prennent en charge USB 1.0/2.0/3.0 jusqu’à 5 Gb/s Connecteurs - 5 x connecteurs SATA3, prennent en charge un taux de transfert de données pouvant aller jusqu’à 6.0Go/s

- 1 x En-tête du module infrarouge

ASRock A75 Pro4/MVP Motherboard

Français

- 1 x Barrette pour module à infrarouges grand public

- 1 x En-tête de port COM

- 1 x Connecteur HDMI_SPDIF

- 1 x Connecteur IEEE 1394

- 1 x LED di accensione

- Connecteur pour ventilateur de CPU/Châssis/Ventilateur

- br. 24 connecteur d’alimentation ATX

- br. 8 connecteur d’alimentation 12V ATX

- Connecteur audio panneau avant

- 3 x En-tête USB 2.0 (prendre en charge 6 ports USB 2.0 supplémentaires)

- 1 x Dr. Debug (LED de débogage à 7 segments) Interrupteur - 1 x interrupteur d’effacement du CMOS avec LED rapide - 1 x interrupteur d’alimentation avec LED

- 1 x interrupteur de réinitialisation avec LED BIOS - 32Mb AMI UEFI Legal BIOS avec support GUI

- Support du “Plug and Play”

- Compatible pour événements de réveil ACPI 1.1

- Gestion jumperless

- Support SMBIOS 2.3.1

- DRAM, VDDP, VDDR, SB Tension Multi-ajustement CD d’assistance - Pilotes, utilitaires, logiciel anti-virus (Version d’essai), CyberLink MediaEspresso 6.5 Trial Caractéristique - Utilitaire ASRock Extreme Tuning (AXTU) Caractéristique (voir ATTENTION 8) unique - ASRock l'Instant Boot

- ASRock Instant Flash (voir ATTENTION 9)

- Chargeur ASRock APP (voir ATTENTION 10)

- ASRock XFast USB (voir ATTENTION 11)

- ASRock XFast LAN (voir ATTENTION 12)

- ASRock XFast RAM (voir ATTENTION 13)

- Lucid Virtu Universal MVP (voir ATTENTION 14) * Lucid Virtu Universal MVP est uniquement pris en charge par les processeurs à GPU intégré.

- Technologie Lecture Marche/Arrêt ASRock (voir ATTENTION 15)

- L’accélérateur hybride:

- ASRock U-COP (voir ATTENTION 16) Surveillance - Détection de la température de l’UC système - Mesure de température de la carte mère

ASRock A75 Pro4/MVP Motherboard

- Tachéomètre ventilateur CPU/Châssis/Ventilateur

- Ventilateur silencieux pour unité centrale/châssis

- Commande de ventilateur CPU/boîtier à plusieurs vitesses

- Monitoring de la tension: +12V, +5V, +3.3V, Vcore OS - Microsoft® Windows® 7 / 7 64-bit / Vista

/ VistaTM 64-bit /

XP SP3 / XP 64-bit Certications - FCC, CE, WHQL

- Prêt pour ErP/EuP (alimentation Prêt pour ErP/EuP requise) (voir ATTENTION 17)

* Pour de plus amples informations sur les produits, s’il vous plaît visitez notre site web: http://www.asrock.com

ATTENTION

Il est important que vous réalisiez qu’il y a un certain risque à effectuer l’overclocking, y compris ajuster les réglages du BIOS, appliquer la technologie Untied Overclocking, ou utiliser des outils de tiers pour l’overclocking. L’overclocking peut affecter la stabilité de votre système, ou même causer des dommages aux composants et dispositifs de votre système. Si vous le faites, c’est à vos frais et vos propres risques. Nous ne sommes pas responsables des dommages possibles causés par l’overclocking.

ATTENTION!

1. Cette carte mère supporte la Technologie de Mémoire à Canal Double. Avant d’intégrer la Technologie de Mémoire à Canal Double, assurezvous de bien lire le guide d’installation des modules mémoire en page 14 pour réaliser une installation correcte.

2. La prise en charge de fréquences de mémoire de 2400/1866/1600MHz dépend du CPU que vous choisissez. Si vous choisissez des barrettes de mémoire DDR3 2400/1866/1600 sur cette carte mère, veuillez vous référer à la liste des mémoires prises en charge sur notre site Web pour connaître barrettes de mémoire compatibles.

Site Web ASRock http://www.asrock.com

3. Du fait des limites du système d’exploitation, la taille mémoire réelle réservée au système pourra être inférieure à 4 Go sous Windows® 7 / VistaTM / XP. Avec Windows® OS avec CPU 64 bits, il n’y a pas ce genre de limitation.

4. La dimension maximum du memoire partage est denie par le vendeur de jeu de puces et est sujet de changer. Veuillez verier la AMD website pour les informations recentes SVP.

5. Vous pouvez choisir de n’utiliser que deux moniteurs sur trois. Les moniteurs D-Sub, DVI-D et HDMI ne peuvent pas être activés en même temps. En outre, avec l’adaptateur DVI-HDMI, le port DVI-D peut prendre en charge les mêmes fonctions que le port HDMI.

ASRock A75 Pro4/MVP Motherboard

Français

6. xvYCC et Deep Color ne sont pris en charge que sous Windows® 7 64bit / 7. Le mode Deep Color ne sera activé que si le moniteur prend en charge 12bpc en EDID. HBR est pris en charge sous Windows® 7 64-bit / 7 / VistaTM 64-bit / VistaTM.

7. Pour l’entrée microphone, cette carte mère supporte les deux modes stéréo et mono. Pour la sortie audio, cette carte mère supporte les

modes 2-canaux, 4-canaux, 6-canaux et 8-canaux. Veuillez vous référer

au tableau en page 3 pour effectuer la bonne connexion.

8. ASRock Extreme Tuning Utility (AXTU) est un utilitaire tout-en-un qui

permet de régler précisément différentes fonctions du système, via une

interface facile à utiliser, incluant Moniteur de périphériques, Contrôle du ventilateur, Overclocking, OC DNA et IES. Dans Moniteur de périphériques, il af che les valeurs principales de votre système.

Dans Contrôle du ventilateur, il af che la vitesse du ventilateur et la

température, que vous pouvez ajuster. Dans Overclocking, vous pouvez overclocker la fréquence du CPU pour améliorer les performances du système. Dans OC DNA, vous pouvez enregistrer vos réglages OC dans un pro l et les partager avec vos amis. Vos amis pourront alors installer le pro l OC sur leur système pour utiliser les mêmes réglages OC. Dans IES (Intelligent Energy Saver – Fonction intelligente d’économie d’énergie), le contrôleur de la tension peut réduire le nombre de phases de sortie pour améliorer le fonctionnement lorsque les cores du CPU ne sont pas utilisées, sans diminuer les performances de l’ordinateur. Veuillez visiter notre site Web pour plus d’informations sur l’utilisation des fonctions de l’utilitaire ASRock Extreme Tuning Utility (AXTU). Site Web de ASRock : http://www.asrock.com

9. O ASRock Instant Flash é um utilitário de ash do BIOS incorporado na memória Flash ROM. Esta prática ferramenta de actualização do BIOS permite-lhe actualizar o BIOS do sistema sem necessitar de entrar nos sistemas operativos, como o MS-DOS ou o Windows®. Com este

utilitário, poderá premir a tecla <F6> durante o teste de arranque POST

ou premir a tecla <F2> para exibir o menu de conguração do BIOS para aceder ao ASRock Instant Flash. Execute esta ferramenta para guardar o novo cheiro de BIOS numa unidade ash USB, numa disquete ou num disco rígido, em seguida, poderá actualizar o BIOS com apenas alguns cliques sem ter de utilizar outra disquete ou outro complicado utilitário de ash. Note que a unidade ash USB ou a unidade de disco rígido devem utilizar o sistema de cheiros FAT32/16/12.

10. Si vous désirez un moyen plus rapide et moins contraignant de recharger vos appareils Apple tels que iPhone/iPod/iPad Touch, ASRock a préparé pour vous la solution idéale - le chargeur ASRock APP. Il suft d’installer le pilote du chargeur APP, et vous pourrez recharger rapidement votre iPhone à partir de votre ordinateur, jusqu’à 40% plus vite qu’avant. Le chargeur ASRock APP vous permet de charger rapidement et simultanément plusieurs appareils Apple, et le chargement continu est même pris en charge lorsque le PC passe en mode Veille (S1), Suspension à la RAM (S3), hibernation (S4) ou hors tension (S5). Lorsque le pilote du

ASRock A75 Pro4/MVP Motherboard

chargeur APP est installé, vous découvrez un mode de mise en charge tout à fait inédit.

Site web ASRock : http://www.asrock.com/Feature/AppCharger/index.asp

11. ASRock XFast USB permet d’améliorer les performances de votre périphérique de stockage USB. Les performances réelles dépendent des propriétés du périphérique.

12. ASRock XFast LAN fournit un accès Internet plus rapide, avec les avantages suivants. Priorisation d’application LAN : Vous pouvez congurer votre priorité d’application idéalement et/ou ajouter des nouveaux programmes. Latence plus basse dans les jeux : Après avoir réglé la priorité de jeux en ligne plus haute, cela peut réduire la latence dans les jeux.

Forme du trac : Vous pouvez regarder des vidéos HD YouTube et té-

lécharger simultanément des chiers. Analyse en temps réel de vos données : Avec la fenêtre d’état, vous pouvez facilement reconnaître les ux de données que vous êtes en train de transférer.

13. ASRock XFast RAM est une nouvelle fonction intégrée à l’utilitaire ASRock Extreme Tuning Utility (AXTU). Il utilise à sa pleine capacité l’espace mémoire que les processeurs du système d’exploitation Windows OS 32-bit ne peuvent pas utiliser. ASRock XFast RAM diminue le temps de chargement des sites Internet précédemment visités, rendant la navigation sur le web plus rapide que jamais. Il rend également l’utilisation de Adobe Photoshop 5 fois plus rapide. Un autre avantage indéniable de ASRock XFast RAM est qu’il réduit la fréquence d’accès à vos SSD ou HDD an d’accroitre leur durée de vie utile.

14. VIRTU Universal MVP intègre toutes les fonctionnalités de base de la technologie Virtu Universal, qui virtualise GPU intégrée et GPU discrète pour des fonctionnalités optimales. Il est également doté de la fonction Virtual VsyncTM pour une qualité visuelle sans compromis. Ajoutez à cela

les avantages de la technologie HyperFormance, et VIRTU Universal

MVP vous permettra d’obtenir des performances de jeu inégalées en réduisant intelligemment les tâches redondantes du rendu lors du ux entre le CPU, le GPU de la carte graphique et l’écran.

15. La Technologie Lecture Marche/Arrêt ASRock permet aux utilisateurs d’expériencer l’audio incroyable à partir d’appareils audio portables comme un lecteur MP3 ou un téléphone portable, sur votre PC, même lorsque le PC est éteint (ou en mode ACPI S5)! Cette carte mère fournie aussi un câble audio 3,5mm gratuit (optionnel) qui facilite beaucoup dans les environnements informatiques.

16. Lorsqu’une surchauffe du CPU est détectée, le système s’arrête automatiquement. Avant de redémarrer le système, veuillez vérier que le ventilateur d’UC sur la carte mère fonctionne correctement et

débranchez le cordon d’alimentation, puis rebranchez-le. Pour améliorer

la dissipation de la chaleur, n’oubliez pas de mettre de la pâte thermique entre le CPU le dissipateur lors de l’installation du PC.

Français

ASRock A75 Pro4/MVP Motherboard

17. EuP, qui signie Energy Using Product (Produit Utilisant de l’Energie), est une disposition établie par l’Union Européenne pour dénir la consommation de courant pour le système entier. Conformément à la norme EuP, le courant CA total du système entier doit être inférieur à 1 W en mode d’arrêt. Pour être conforme à la norme EuP, une carte mère EuP et une alimentation EuP sont requises. Selon les suggestions d’Intel’, l’alimentation électrique EuP doit correspondre à la norme, qui est que l’efcacité électrique de 5v en mode de veille doit être supérieure à 50% pour 100 mA de consommation de courant. Pour choisir une alimentation électrique conforme à la norme EuP, nous vous recommandons de consulter votre fournisseur de courant pour plus de détails. De plus, veuillez noter que si vous activez la technologie Lecture Marche/Arrêt ASRock, votre système de rencontrera pas le standard EuP. Pour rencontrer le standard EuP, veuillez désactiver la technologie Lecture Marche/Arrêt ASRock.

Français

ASRock A75 Pro4/MVP Motherboard

1.3 Réglage des cavaliers

L’illustration explique le réglage des cavaliers. Quand un capuchon est placé sur les broches, le cavalier est « FERME ». Si aucun capuchon ne relie les broches,le cavalier est « OUVERT ». L’illustration montre un cavalier à 3 broches dont les broches 1 et 2 sont « FERMEES » quand le capuchon est placé sur ces 2 broches.

Le cavalier Description

Effacer la CMOS

(CLRCMOS1) (voir p.2 g. 10)

Remarque :

Paramètres par défaut

CLRCMOS1 vous permet d’effacer les données du CMOS. Pour effacer et réinitialiser les paramètres du système à la conguration originale, veuillez éteindre l’ordinateur et débrancher le cordon d’alimentation de la prise de courant. Après 15 secondes, utilisez un couvercle de jumper pour court-circuiter les broches pin2 et pin3 de CLRCMOS1 pendant secondes. Veuillez cependant ne pas effacer le CMOS immédiatement a

près avoir mis à jour le BIOS. Si vous avez besoin d’effacer le CMOS après avoir mis à jour le BIOS, vous devez allumer en premier le système, puis l’éteindre avant de continuer avec l’opération d’effacement du CMOS. Veuillez noter que le mot de passe, la date, l’heure, le prol par défaut de l’utilisateur, 1394 GUID et l’adresse MAC seront effacés seulement si la batterie du CMOS est enlevée.

Effacer la CMOS

Le commutateur Effacer CMOS présente la même fonction que le cavalier Effacer CMOS.

ASRock A75 Pro4/MVP Motherboard

Français

1.4 En-têtes et Connecteurs sur Carte

Les en-têtes et connecteurs sur carte NE SONT PAS des cavaliers. NE PAS placer les capuchons de cavalier sur ces en-têtes et connecteurs. Le fait de placer les capuchons de cavalier sur les entêtes et connecteurs causera à la carte mère des dommages irréversibles!

Français

Connecteurs Série ATA3 Ces cinq connecteurs Série

(SATA3_1: voir p.2 No. 15)

(SATA3_2: voir p.2 No. 16)

(SATA3_3 voir p.2 No. 14)

(SATA3_4 voir p.2 No. 13)

(SATA3_5 voir p.2 No. 12)

ATA3 (SATA3) prennent en

charge les câbles SATA pour les périphériques de stockage internes. L’interface SATA3 actuelle permet des taux

SATA3_5

transferts de données pouvant aller jusqu’à 6,0 Gb/s.

SATA3_2 SATA3_4

SATA3_1 SATA3_3

Câble de données Toute cote du cable de data Série ATA (SATA) SATA peut etre connecte au

(en option)

disque dur SATA3 ou au connecteur SATA3 sur la carte mere.

En-tête USB 2.0 A côté des deux ports USB

(USB6_7 br.9)

(voir p.2 No. 28)

2.0 par défaut sur le panneau E/S, il y a trois embases USB

2.0 sur cette carte mère. Chaque embase USB 2.0 peut prendre en charge 2 ports USB

USB _PWR

P-9

P-8

USB _PWR

P-11

P-10

USB _PWR

P+9

P+8

P+1 1

P+1 0

GND

DUM MY

2.0.

(USB8_9 br.9) (voir p.2 No. 27)

(USB10_11 br.9) (voir p.2 No. 25)

ASRock A75 Pro4/MVP Motherboard

En-tête du module infrarouge Cet en-tête supporte un module

IRTX

+5VS B

DUMM Y

IRRX

GND

(IR1 br.5)

infrarouge optionnel de

(voir p.2 No. 23)

transfert et de réception sans

l.

Barrette pour module à infrarouges grand public Cette barrette peut être utilisée

(CIR1 br.4)

(voir p.2 No. 29)

pour connecter des récepteur

Connecteur audio panneau C’est une interface pour

(HD_AUDIO1 br. 9)

(voir p.2 No. 33)

un câble avant audio en façade

qui permet le branchement et le contrôle commodes de périphériques audio.

GND

PRE SENC E#

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. L’audio à haute dénition (HDA) prend en charge la détection de che, mais le l de panneau sur le châssis doit prendre en charge le HDA pour fonctionner correctement. Veuillez suivre les instructions dans notre manuel et le manuel de châssis an installer votre système.

2. Si vous utilisez le panneau audio AC’97, installez-le sur l’adaptateur audio du panneau avant conformément à la procédure ci-dessous : A. Connectez Mic_IN (MIC) à MIC2_L. B. Connectez Audio_R (RIN) à OUT2_R et Audio_L (LIN) à OUT2_L. C. Connectez Ground (GND) à Ground (GND). D. MIC_RET et OUT_RET sont réservés au panneau audio HD. Vous n’avez pas besoin de les connecter pour le panneau audio AC’97. E. Pour activer le micro avant. Pour les systèmes d’exploitation Windows® XP / XP 64 bits : Sélectionnez “Mixer”. Sélectionnez “Recorder” (Enregistreur). Puis cliquez sur “FrontMic” (Micro avant). Pour les systèmes d’exploitation Windows® 7 / 7 64 bits / VistaTM / VistaTM 64 bits : Allez sur l’onglet “FrontMic” (Micro avant) sur le Panneau de contrôle Realtek. Ajustez “Recording Volume” (Volume d’enregistrement).

Français

ASRock A75 Pro4/MVP Motherboard

En-tête du panneau système Cet en-tête permet d’utiliser

(PANEL1 br.9)

(voir p.2 No. 20)

Connectez l’interrupteur d’alimentation, l’interrupteur de réinitialisation et l’indicateur d’état du système du châssis sur cette barrette en respectant l’affectation des broches décrite ci-dessous. Faites attention aux broches positives et négatives avant de connecter les câbles.

PWRBTN (Interrupteur d’alimentation):

RESET (Interrupteur de réinitialisation):

PLED (DEL alimentation système):

HDLED (DEL activité du disque dur):

plusieurs fonctions du

panneau système frontal.

Connectez ici le connecteur d’alimentation sur le panneau avant du châssis. Vous pouvez congurer la façon de mettre votre système hors tension avec l’interrupteur d’alimentation.

Connectez ici le connecteur de réinitialisation sur le panneau avant du châssis. Appuyez sur l’interrupteur de réinitialisation pour redémarrer l’ordinateur s’il se bloque ou s’il n’arrive pas à redémarrer normalement.

Connectez ici l’indicateur d’état de l’alimentation sur le panneau avant du châssis. Ce voyant DEL est allumé lorsque le système est en marche. Le voyant DEL clignote lorsque le système est en mode veille S1. Le voyant DEL est éteint lorsque le système est en mode veille S3/ S4 ou lorsqu’il est éteint (S5).

Connectez ici le voyant DEL d’activité du disque dur sur le panneau avant du châssis. Ce voyant DEL est allumé lorsque le disque dur est en train de lire ou d’écrire des données.

Français

Le design du panneau avant peut varier en fonction du châssis. Un module de panneau avant consiste principalement en : interrupteur d’alimentation, interrupteur de réinitialisation, voyant DEL d’alimentation, voyant DEL d’activité du disque dur, haut-parleur, etc. Lorsque vous connectez le panneau avant de votre châssis sur cette barrette, vériez bien à faire correspondre les ls et les broches.

En-tête du haut-parleur Veuillez connecter le de châssis haut-parleur de châssis sur

(SPEAKER1 br. 4)

(voir p.2 No. 21)

cet en-tête.

ASRock A75 Pro4/MVP Motherboard

LED di accensione Collegare il LED di accensione

(3-pin PLED1)

(vedi p.2 Nr. 24)

chassi per indicare lo stato di

alimentazione del sistema. Il

PLE D+

PLE D-

LED è acceso quando il sistema è in funzione. Il LED continua a lampeggiare in stato S1. Il LED è spento in stato S3/S4 o S5 (spegnimento).

Connecteur pour châssis et ventilateur

(CHA_FAN1 br. 4)

(voir p.2 No. 22)

Branchez les câbles du ventilateur aux connecteurs pour ventilateur et faites correspondre le l noir à la broche de terre.

(CHA_FAN2 br. 3) (voir p.2 No. 41)

(CHA_FAN3 br. 3) (voir p.2 No. 42)

(PWR_FAN1 br. 3)

(voir p.2 No. 1)

Connecteur du ventilateur Veuillez connecter le câble de de l’UC ventilateur d’UC sur ce

(CPU_FAN1 br. 4)

(voir p.2 No. 5)

Bien que cette carte mère offre un support de (Ventilateur silencieux ventilateur de CPU à 4 broches , le ventilateur de CPU à 3 broches peut bien fonctionner même sans la fonction de commande de vitesse du ventilateur. Si vous prévoyez de connecter le ventilateur de CPU à 3 broches au connecteur du ventilateur de CPU sur cette carte mère, veuillez le connecter aux broches 1-3.

FAN_ SPEE D_CO NTRO L

CPU _FAN_ SPEE D

connecteur et brancher le l

GND

+12 V

noir sur la broche de terre.

1 2 3 4

Installation de ventilateur à 3 broches

Broches 1-3 connectées

(CPU_FAN2 br. 3)

(voir p.2 No. 6)

GND

+12 V

CPU _FAN_ SPEE D

Français

ASRock A75 Pro4/MVP Motherboard

En-tête d’alimentation ATX Veuillez connecter l’unité

(ATXPWR1 br. 24)

(voir p.2 No. 9)

d’alimentation ATX sur cet en-

tête.

12 124

Français

Bien que cette carte mère fournisse un connecteur de courant ATX 24 broches, elle peut encore fonctionner

si vous adopter une alimentation traditionnelle ATX 20 broches. Pour utiliser une alimentation ATX 20 broches, branchez à l’alimentation électrique ainsi qu’aux broches 1 et 13.

20-Installation de l’alimentation électrique ATX

Connecteur ATX 12V Veuillez connecter une unité

(ATX12V1 br.8)

(voir p.2 No. 2)

d’alimentation électrique ATX 12V sur ce connecteur.

4 8

1 5

Bien que cette carte mère possède 8 broches connecteur d’alimentation ATX 12V, il peut toujours travailler si vous adoptez une approche traditionnelle à 4 broches ATX 12V alimentation. Pour utiliser l’alimentation des 4 broches ATX, branchez votre alimentation avec la broche 1 et la broche 5.

4-Installation d’alimentation à 4 broches ATX 12V

Header de IEEE 1394 Sauf un port de default IEEE

(FRONT_1394 br. 9)

(voir p.2 No. 32)

1394 sur le panel I/O, il y a un

header de IEEE1394 (FRONT_1394) sur cette carte mere. Le header de IEEE 1394 peut supporter un port de IEEE

RXT PAM_0

RXT PAP_0

GND

RXT PBM_ 0

+12 V

RXT PBP_ 0

GND

1394.

4 8

1 5

En-tête de port COM Cette en-tête de port COM est

(COM1 br.9)

(voir p.2 No. 30)

utilisée pour prendre en charge

un module de port COM.

ASRock A75 Pro4/MVP Motherboard

Connecteur HDMI_SPDIF Connecteur HDMI_SPDIF,

(HDMI_SPDIF1 2-pin)

(voir p.2 No. 31)

fournissant une sortie audio

SPDIF vers la carte VGA HDMI, et permettant au système de se connecter au un téléviseur numérique HDMI /un projecteur / un périphérique LCD. Veuillez brancher le connecteur HDMI_SPDIF de la carte VGA HDMI sur ce connecteur.

ASRock A75 Pro4/MVP Motherboard

Français

1.5 Interrupteur rapides

Cette carte mère dispose de trois interrupteurs rapides : un interrupteur d’alimentation, un interrupteur de réinitialisation et un interrupteur d’effacement de CMOS, permettant aux utilisateurs de rapidement allumer/éteindre ou réinitialiser le système, ainsi que d’effacer les valeurs du CMOS.

Interrupteur d’alimentation

(PWRBTN) (voir p.2 No. 18)

Interrupteur de réinitialisation

(RSTBTN) (voir p.2 No. 19)

Interrupteur d’effacement de CMOS

(CLRCBTN) (voir p.3 No. 14)

L’interrupteur d’alimentation est un interrupteur rapide, qui permet à l’utilisateur d’allumer/éteindre rapidement le système.

L’interrupteur de réinitialisation est un interrupteur rapide, qui permet à l’utilisateur de réinitialiser rapidement le système.

L’interrupteur d’effacement de CMOS est un interrupteur rapide qui permet à l’utilisateur d’effacer rapidement les valeurs du CMOS.

Français

ASRock A75 Pro4/MVP Motherboard

2. Informations sur le BIOS

La puce Flash Memory sur la carte mère stocke le Setup du BIOS. Lorsque vous démarrez l’ordinateur, veuillez presser <F2> ou <Del> pendant le POST (Power-OnSelf-Test) pour entrer dans le BIOS; sinon, le POST continue ses tests de routine. Si vous désirez entrer dans le BIOS après le POST, veuillez redémarrer le système en pressant <Ctl> + <Alt> + <Suppr>, ou en pressant le bouton de reset sur le boîtier du système. Vous pouvez également redémarrer en éteignant le système et en le rallumant. L’utilitaire d’installation du BIOS est conçu pour être convivial. C’est un programme piloté par menu, qui vous permet de faire déler par ses divers sousmenus et de choisir parmi les choix prédéterminés. Pour des informations détaillées sur le BIOS, veuillez consulter le Guide de l’utilisateur (chier PDF) dans le CD technique.

3. Informations sur le CD de support

Cette carte mère supporte divers systèmes d’exploitation Microsoft® Windows®: 7 / 7 64 bits / VistaTM / Vista avec cette carte mère contient les pilotes et les utilitaires nécessaires pour améliorer les fonctions de la carte mère. Pour utiliser le CD technique, insérez-le dans le lecteur de CD-ROM. Le Menu principal s’afche automatiquement si “AUTORUN” est activé dans votre ordinateur. Si le Menu principal n’apparaît pas automatiquement, localisez dans le CD technique le chier “ASSETUP.EXE” dans le dossier BIN et double-cliquez dessus pour afcher les menus.

64 bits / XP SP3 / XP 64 bits. Le CD technique livré

ASRock A75 Pro4/MVP Motherboard

Français

1. Introduzione

Grazie per aver scelto una scheda madre ASRock A75 Pro4/MVP, una scheda madre afdabile prodotta secondo i severi criteri di qualità ASRock. Le prestazioni eccellenti e il design robusto si conformano all’impegno di ASRock nella ricerca della qualità e della resistenza. Questa Guida Rapida all’Installazione contiene l’introduzione alla motherboard e la guida passo-passo all’installazione. Informazioni più dettagliate sulla motherboard si possono trovare nel manuale per l’utente presente nel CD di supporto.

Le speciche della scheda madre e il software del BIOS possono essere aggiornati, pertanto il contenuto di questo manuale può subire variazioni senza preavviso. Nel caso in cui questo manuale sia modicato, la versione aggiornata sarà disponibile sul sito di ASRock senza altro avviso. Sul sito ASRock si possono anche trovare le più recenti schede VGA e gli elenchi di CPU supportate. ASRock website http://www.asrock.com Se si necessita dell’assistenza tecnica per questa scheda madre, visitare il nostro sito per informazioni speciche sul modello che si sta usando. www.asrock.com/support/index.asp

1.1 Contenuto della confezione

Scheda madre ASRock A75 Pro4/MVP (ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm) Guida di installazione rapida ASRock A75 Pro4/MVP CD di supporto ASRock A75 Pro4/MVP Quattro cavi dati Serial ATA (SATA) (opzionali) Un I/O Shield

Italiano

ASRock vi ricorda...

Per ottenere migliori prestazioni in Windows® 7 / 7 64-bit / Vista 64-bit, si consiglia di impostare l'opzione BIOS in Storage Conguration (Congurazione di archiviazione) sulla modalità AHCI. Per l'impostazione BIOS, fare riferimento a “User Manual” (Manuale dell'utente) nel CD di supporto per dettagli.

/ VistaTM

ASRock A75 Pro4/MVP Motherboard

1.2 Specifiche

Piattaforma - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm

- Design condensatore compatto Processore - Supporto per processori socket FM1 100W

- Struttura di fase con alimentazione 4 + 1

- Supporto tecnologia AMD Cool ‘n’ Quiet

- UMI-Link GEN2 Chipset - AMD A75 FCH (Hudson-D3) Memoria - Supporto tecnologia Dual Channel Memory (vedi ATTENZIONE 1)

- 4 x slot DDR3 DIMM

- Supporto DDR3 2400+(OC)/1866/1600/1333/1066/ 800 non-ECC, momoria senza buffer (vedi ATTENZIONE 2)

- Capacità massima della memoria di sistema: 32GB (vedi ATTENZIONE 3) Slot di - 2 x alloggiamenti PCI Express 2.0 x16 espansione (PCIE2: modalità x16; PCIE4: modalità x4)

- 2 x slot PCI Express 2.0 x1

- 3 x slot PCI

- Supporta AMD Quad CrossFireXTM, CrossFireXTM e Dual Graphics VGA su scheda - Graca AMD Radeon HD 65XX/64XX

- DirectX 11, Pixel Shader 5.0

- Memoria massima condivisa 512MB (vedi ATTENZIONE 4)

- Tre opzioni d’output VGA: D-Sub, DVI-D e HDMI (vedi ATTENZIONE 5)

- Supporta HDMI 1.4a con risoluzione massima no a 1920x1200 @ 60Hz

- Supporta Dual-link DVI con risoluzione massima no a 2560x1600 @ 75Hz

- Supporta D-Sub con risoluzione massima no a 1920x1600 @ 60Hz

- Supporto delle funzioni Auto Lip Sync, Deep Color (12bpc), xvYCC e HBR (High Bit Rate Audio) con HDMI (è necessario un monitor compatibile HDMI) (vedi ATTENZIONE 6)

- Supporta Blu-ray Stereoscopico in 3D con HDMI 1.4a

- Supporta AMD Steady VideoTM: Nuova capacità di post-elab orazione video per la riduzione automatica delle vibrazioni nei video a casa/on-line

- Supporto della funzione HDCP con le porte DVI e HDMI

Italiano

ASRock A75 Pro4/MVP Motherboard

Italiano

- Supporto 1080p Blu-ray (BD) / HD-DVD riproduzione con le porte DVI e HDMI Audio - 7.1 CH HD Audio con protezioni contenuti (Realtek ALC892 Audio Codec)

- Supporto audio Blu-ray Premium

- Supporto THX TruStudio

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supporta Wake-On-LAN

- Supporta il rilevamento cavo LAN

- Supporto di Energy Efcient Ethernet 802.3az

- Supporta PXE Pannello I/O Panel posteriore - 1 x porta PS/2 per mouse/tastiera I/O - 1 x Porta D-Sub

- 1 x Porta DVI-D

- 1 x Porta HDMI

- 1 x Porta ottica SPDIF Out

- 2 x porte USB 2.0 già integrate

- 1 x Connettore eSATA3

- 4 x porte USB 3.0 già integrate

- 1 x porte LAN RJ-45 con LED (LED azione/collegamento e LED velocità)

- 1 x porte IEEE 1394

- 1 x interruttore di pulizia CMOS

- Connettore HD Audio: cassa posteriore / cassa centrale / bassi / ingresso linea / cassa frontale / microfono (vedi ATTENZIONE 7) SATA3 - 5 x connettori SATA3 6,0 Gb/s, supporto di RAID (RAID 0, RAID 1 e RAID 10) e delle funzioni NCQ, AHCI e “Hot Plug” USB 3.0 - 4 x porte USB 3.0, supporto di USB 1.0/2.0/3.0 no a 5Gb/s Connettori - 5 x connettori SATA3 6.0Go/s

- 1 x Collettore modulo infrarossi

- 1 x Connettore modulo infrarosso consumer

- 1 x collettore porta COM

- 1 x Header HDMI_SPDIF

- 1 x collettore IEEE 1394

- 1 x LED di accensione

- Connettore CPU/Chassis/Alimentazione ventola

- 24-pin collettore alimentazione ATX

- 8-pin connettore ATX 12V

ASRock A75 Pro4/MVP Motherboard

- Connettore audio sul pannello frontale

- 3 x Collettore USB 2.0 (supporta 6 porte USB 2.0)

- 1 x Dr. Debug (LED debug con 7 segmenti) Interruttore - 1 x interruttore pulizia CMOS con LED rapido - 1 x interruttore di alimentazione con LED

- 1 x interruttore di reset con LED BIOS - 32Mb AMI UEFI Legal BIOS con interfaccia di supporto

- Supporta “Plug and Play”

- Compatibile con ACPI 1.1 wake up events

- Supporta jumperfree

- Supporta SMBIOS 2.3.1

- Regolazione multi-voltaggio DRAM, VDDP, VDDR, SB CD di - Driver, utilità, software antivirus (Versione dimostrativa),

supporto CyberLink MediaEspresso 6.5 Trial Caratteristi- - ASRock Extreme Tuning Utility (AXTU)

ca speciale (vedi ATTENZIONE 8)

- ASRock Instant Boot

- ASRock Instant Flash (vedi ATTENZIONE 9)

- Caricatore ASRock APP Charger (vedi ATTENZIONE 10)

- ASRock XFast USB (vedi ATTENZIONE 11)

- ASRock XFast LAN (vedi ATTENZIONE 12)

- ASRock XFast RAM (vedi ATTENZIONE 13)

- Lucid Virtu Universal MVP (vedi ATTENZIONE 14) * Lucid Virtu Universal MVP può essere supportato solo con processori dotati di GPU integrata.

- Tecnologia ASRock On/Off Play (vedi ATTENZIONE 15)

- Booster ibrido:

- ASRock U-COP (vedi ATTENZIONE 16) Monitoraggio - Sensore per la temperatura del processore Hardware - Sensore temperatura scheda madre

- Indicatore di velocita per la ventola del CPU/Chassis/ Alimentazione

- Ventola CPU/Chassis silenziosa

- Ventola CPU/chassis con controllo di varie velocità

- Voltaggio: +12V, +5V, +3.3V, Vcore Compatibi- - Microsoft® Windows® 7 / 7 64 bit / VistaTM / Vista

64 bit

lità SO / XP SP3 / XP 64 bit Certicazioni - FCC, CE, WHQL

- Predisposto ErP/EuP (è necessaria l’alimentazione predis posta per il sistema ErP/EuP) (vedi ATTENZIONE 17)

* Per ulteriori informazioni, prego visitare il nostro sito internet: http://www.asrock.com

Italiano

ASRock A75 Pro4/MVP Motherboard

Italiano

AVVISO

Si prega di prendere atto che la procedura di overclocking implica dei rischi, come anche la regolazione delle impostazioni del BIOS, l’applicazione della tecnologia Untied Overclocking Technology, oppure l’uso di strumenti di overclocking forniti da terzi. L’overclocking può inuenzare la stabilità del sistema, ed anche provocare danni ai componenti ed alle periferiche del sistema. La procedura è eseguita a proprio rischio ed a proprie spese. Noi non possiamo essere ritenuti responsabili per possibili danni provocati dall’overclocking.

ATTENZIONE!

1. Questa scheda madre supporta la tecnologia Dual Channel Memory. Prima di implementare la tecnologia Dual Channel Memory, assicurarsi di leggere la guida all’installazione dei moduli di memoria, a pagina 14, per seguire un’installazione appropriata.

2. Il fatto che la velocità della memoria da 2400/1866/1600MHz sia supportata o meno, dipende dagli CPU utilizzati. Se si desidera adottare il modulo di memoria DDR3 2400/1866/1600 su questa scheda madre, fare riferimento all’elenco delle memorie supportate nel nostro sito web per scoprire quali sono i moduli compatibili.

Sito web ASRock http://www.asrock.com

3. A causa delle limitazioni del sistema operativo, le dimensioni effettive della memoria possono essere inferiori a 4GB per l’accantonamento riservato all’uso del sistema sotto Windows® 7 / VistaTM / XP. Per Windows® OS con CPU 64-bit, non c’è tale limitazione.

4. La dimensione massima della memoria condivisa viene stabilita dal venditore del chipset ed e‘ soggetta a modicazioni. Prego fare riferimento al sito internet AMD per le ultime informazioni.

5. Si può solo scegliere di usare due dei tre monitor. I monitor D-Sub, DVID e HDMI non possono essere abilitati contemporaneamente. Inoltre, usando l’adattatore DVI a HDMI la porta DVI-D può supportare le stesse funzioni della porta HDMI.

6. Le funzioni xvYCC e Deep Color sono supportate solo sotto Windows® 7 64-bit / 7. La modalità Deep Color sarà abilitata solo se lo schermo supporta la funzione 12bpc in EDID. La funzione HBR è supportata sotto Windows® 7 64-bit / 7 / VistaTM 64-bit / VistaTM.

7. Questa scheda madre supporta l’ingresso stereo e mono per il microfono. Questa scheda madre supporta le modalità 2 canali, 4 canali, 6 canali e 8 canali per l’uscita audio. Controllare la tavola a pagina 3 per eseguire il collegamento appropriato.

ASRock A75 Pro4/MVP Motherboard

8. L’utilità AXTU (ASRock Extreme Tuning Utility) è uno strumento tutto in uno per regolare varie funzioni del sistema in un’interfaccia

facile da usare che include monitoraggio hardware, controllo ventola,

overclocking, OC DNA ed IES. Hardware Monitor (Monitoraggio hardware) mostra le letture principali del sistema. Fan Control (Controllo ventola) mostra la velocità e la temperatura che possono essere regolate. Overclocking permette di eseguire l’overclocking della frequenza della CPU per ottenere le prestazioni ottimali del sistema. OC

DNA permette di salvare le impostazioni OC come un pro lo da condividere con gli amici! Gli amici possono scaricare il pro lo OC sul

loro sistema operativo per ottenere le stesse impostazioni OC Il regolatore di tensione di IES (Intelligent Energy Saver) può ridurre il numero di fasi d’uscita per migliorare l’ef cienza quando i core CPU sono inattivi senza sacri care le prestazioni di computazione. Vistare il nostro per informazioni sulle procedure operative dell’utilità AXT

(ASRock Extreme Tuning Utility). Sito ASRock: http://www.asrock.com

9. ASRock Instant Flash è una utilità Flash BIOS integrata nella Flash ROM. Questo comodo strumento d’aggiornamento del BIOS permette di aggiornare il sistema BIOS senza accedere a sistemi operativi come MS-DOS or Windows®. Con questa utilità, si può premere il tasto <F6> durante il POST, oppure il tasto <F2> nel menu BIOS per accedere ad ASRock Instant Flash. Avviare questo strumento e salvare il nuovo le BIOS nell’unità Flash USB, dischetto (disco oppy) o disco rigido; poi si può aggiornare il BIOS con pochi clic, senza preparare altri dischetti (dischi oppy) o altre complicate utilità Flash. Si prega di notare che l’unità Flash USB o il disco rigido devono usare il File System FAT32/16/12.

10. Se vuoi un modo rapido e indipendente per caricare i dispositivi Apple, come iPhone/iPod/iPad Touch, ASRock ha preparato una soluzione meravigliosa: ASRock APP Charger. Basta installare il driver APP Charger per caricare l’iPhone più rapidamente rispetto al computer, con una velocità maggiore del 40%. ASRock APP Charger permette di caricare simultaneamente molti dispositivi Apple in modo rapido e supporta anche il caricamento continuato quando il PC accede alla modalità di Standby (S1), Sospensione su RAM (S3), Ibernazione (S4) o Spegnimento (S5). Una volta installato il driver APP Charger si otterranno prodigi e comodità mai avuti prima.

Sito ASRock: http://www.asrock.com/Feature/AppCharger/index.asp

ASRock A75 Pro4/MVP Motherboard

Italiano

11. ASRock XFast USB può accelerare le prestazioni del dispositivo d’archi-

viazione USB. Le prestazioni dipendono dalle proprietà del dispositivo.

12. ASRock XFast LAN offre un accesso a Internet più veloce, che compren-

de i seguenti beneci. Priorità alle applicazioni LAN: è possibile congurare la priorità assegnata alle applicazioni in modo ideale e/o aggiungere

nuovi programmi. Minore latenza nei giochi: dopo avere impostato la priorità dei giochi su un livello più alto, la latenza dei giochi può essere minore. Congurazione del trafco: è possibile seguire video HD su

Youtube e scaricare le contemporaneamente. Analisi in tempo reale dei

dati: grazie alla nestra di stato, è possibile riconoscere con facilità quali

dati si stanno trasferendo in streaming.

13. ASRock XFast RAM è una nuova funzione inclusa in AXTU (ASRock

Extreme Tuning Utility). Utilizza completamente lo spazio che non può

essere utilizzato da CPU Windows® 32-bit. ASRock XFast RAM accorcia

i tempi di caricamento dei siti visitati in precedenza, rendendo la naviga-

zione più veloce che mai. Inoltre accelera di 5 volte la velocità di Adobe

Photoshop. Un altro vantaggio di ASRock XFast RAM è che riduce la

frequenza d’accesso alle unità SSD o HDD per allungare la loro durata.

14. VIRTU Universal MVP include le funzioni base della tecnologia Virtu Universal, che virtualizza GPU integrata e GPU discreta per funzionalità ottimali. È inoltre dotato di Virtual VsyncTM per una qualità visiva perfetta. Con i vantaggi supplementari della tecnologia HyperFormance, VIRTU Universal MVP migliora le prestazioni nei giochi riducendo in modo intelligente le ridondanti attività di rendering nel usso tra CPU, GPU e display.

15. La tecnologia ASRock On/Off Play consente agli utenti di godere di una esperienza audio eccezionale tramite i dispositivi audio portatili come i lettori MP3 o il cellulare sul proprio PC, anche quando il PC è spento (oppure in modalità ACPI S5)! Questa scheda madre fornisce inoltre un cavo audio libero da 3,5 mm (opzionale) che garantisce agli utenti l’ambiente di elaborazione più comodo.

16. Se il processore si surriscalda, il sistema si chiude automaticamente. Prima di riavviare il sistema, assicurarsi che la ventolina CPU della scheda madre funzioni correttamente; scollegare e ricollegare il cavo d’alimentazione. Per migliorare la dissipazione del calore, ricordare di applicare l’apposita pasta siliconica tra il processore e il dissipatore quando si installa il sistema.

Italiano

ASRock A75 Pro4/MVP Motherboard

17. EuP, che sta per Energy Using Product (Prodotto che consuma energia) , era una normativa emanata dall’Unione Europea che deniva il consumo energetico del sistema completo. In base all’EuP, l’alimentazione totale del sistema completo deve essere inferiore a 1,00 W quando è spento. Per soddisfare la norma EuP sono necessari un alimentatore e una scheda elettrica predisposti EuP. In base ai suggerimenti Intel l’alimentatore predisposto EuP deve soddisfare lo standard secondo cui l’efcienza energetica in standby di 5 v è più alta del 50% con un consumo di corrente di 100 mA. Per la scelta di un’alimentatore predisposto EuP consigliamo di vericare ulteriori dettagli con il produttore. Inoltre, se viene abilitata la tecnologia On/Off Play di ASRock, il sistema non sarà conforme alla norma EuP. Per la conformità alla norma EuP, disabilitare prima la tecnologia On/Off Play di ASRock.

ASRock A75 Pro4/MVP Motherboard

Italiano

1.3 Setup dei Jumpers

L’illustrazione mostra come sono settati i jumper. Quando il ponticello è posizionato sui pin, il jumper è “CORTOCIRCUITATO”. Se sui pin non ci sono ponticelli, il jumper è “APERTO”. L’illustrazione mostra un jumper a 3 pin in cui il pin1 e il pin2 sono “CORTOCIRCUITATI” quando il ponticello è posizionato su questi pin.

Jumper Settaggio del Jumper

Resettare la CMOS

(CLRCMOS1) (vedi p.2 Nr. 10)

Nota:

CLRCMOS1 permette si azzerare i dati nella CMOS. Per cancellare e ripristinare i

parametri del sistema sulla congurazione iniziale, spegnere il computer e

Impostazione

predenita

scollegare il cavo d’alimentazione dalla presa di corrente. Attendere 15 secondi, poi usare un cappuccio jumper per cortocircuitare il pin 2 ed il pin 3 su CLRCMOS1 per 5 secondi. Tuttavia, si consiglia di non cancellare la CMOS subito dopo avere aggiornato il BIOS. Se si deve azzerare la CMOS quando si è completato l’aggiornamento del BIOS, è necessario per prima cosa avviare il sistema e poi spegnerlo prima di eseguire l’azzeramento della CMOS. Notare che password, data, ore, prolo utente predenito, 1394 GUID e indirizzo MAC saranno cancellati solo se è rimossa la batteria della CMOS.

Azzeramen-

to CMOS

Italiano

L’interruttore Clear CMOS (Cancella CMOS) ha la stessa funzione del jumper Clear CMOS.

ASRock A75 Pro4/MVP Motherboard

1.4 Collettori e Connettori su Scheda

I collettori ed i connettori su scheda NON sono dei jumper. NON installare cappucci per jumper su questi collettori e connettori. L’installazione di cappucci per jumper su questi collettori e connettori provocherà danni permanenti alla scheda madre!

Connettori Serial ATA3 Questi cinque connettori Serial

(SATA3_1: vedi p.2 Nr. 15)

(SATA3_2: vedi p.2 Nr. 16)

(SATA3_3: vedi p.2 Nr. 14)

(SATA3_4: vedi p.2 Nr. 13)

(SATA3_5: vedi p.2 Nr. 12)

ATA3 (SATA3) supportano cavi

dati SATA per dispositivi di immagazzinamento interni. ATA3 (SATA3) supportano cavi SATA per dispositivi di memoria

SATA3_5

interni. L’interfaccia SATA3 attuale permette velocità di trasferimento dati no a

SATA3_2 SATA3_4

SATA3_1 SATA3_3

6.0 Gb/s.

Cavi dati Serial ATA (SATA) Una o altra estremità del cavo

(Opzionale)

di dati SATA può essere collegata al disco rigido SATA3 o al connettore di SATA3 su questa cartolina base.

Collettore USB 2.0 Oltre alle due porte USB 2.0

(9-pin USB6_7)

(vedi p.2 Nr. 28)

predenite nel pannello I/O, la

scheda madre dispone di tre intestazioni USB 2.0. Ciascuna intestazione USB 2.0 supporta due porte USB 2.0.

USB _PWR

P-9

P-8

USB _PWR

P-11

P-10

USB _PWR

P+9

P+8

P+1 1

P+1 0

GND

DUM MY

(9-pin USB8_9) (vedi p.2 Nr. 27)

(9-pin USB10_11) (vedi p.2 Nr. 25)

Italiano

ASRock A75 Pro4/MVP Motherboard

Collettore modulo infrarossi Questo collettore supporta

IRTX

+5VS B

DUMM Y

IRRX

GND

(5-pin IR1)

moduli ad infrarossi optional

(vedi p.2 Nr. 23)

per la trasmissione e la

ricezione senza li.

Connettore modulo infrarosso consumer Questo connettore può essere

(4-pin CIR1)

(vedi p.2 Nr. 29)

utilizzato per collegare

ricevitore remoto.

Italiano

Connettore audio sul È un’interfaccia per il cavo del pannello frontale pannello audio. Che consente

(9-pin HD_AUDIO1)

(vedi p.2 Nr. 33)

connessione facile e controllo

dei dispositivi audio.

GND

PRE SENC E#

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. La caratteristica HDA (High Denition Audio) supporta il rilevamento dei connettori, però il pannello dei cavi sul telaio deve supportare la funzione HDA (High Denition Audio) per far sì che questa operi in modo corretto. Attenersi alle istruzioni del nostro manuale e del manuale del telaio per installare il sistema.

2. Se si utilizza un pannello audio AC’97, installarlo nell’intestazione audio del pannello anteriore, come indicato di seguito:

A. Collegare Mic_IN (MIC) a MIC2_L. B. Collegare Audio_R (RIN) a OUT2_R e Audio_L (LIN) ad OUT2_L. C. Collegare Ground (GND) a Ground (GND).

D. MIC_RET e OUT_RET sono solo per il pannello audio HD. Non è necessario collegarli per il pannello audio AC’97.

E. Per attivare il microfono frontale. Sistema operativo Windows® XP / XP 64-bit: Selezionare “Mixer”. Selezionare “Recorder” (Registratore). Poi, fare clic su “FrontMic” (Microfono frontale). Sistema operativo Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit: Andare alla scheda “FrontMic” (Microfono frontale) del pannello di controllo Realtek. Regolare la voce “Recording Volume” (Volume registrazione).

Collettore pannello di sistema Questo collettore accomoda

(9-pin PANEL1)

(vedi p.2 Nr. 20)

diverse funzioni di sistema

pannello frontale.

ASRock A75 Pro4/MVP Motherboard

Collegare l’interruttore d’alimentazione, l’interruttore di ripristino, l’indicatore di stato del sistema del pannello frontale del telaio a questo header in base all’assegnazione dei pin denita di seguito. Determinare i pin positivi e negativi prima di collegare i cavi.

PWRBTN (interruttore d’alimentazione):

Va collegato all’interruttore d’alimentazione del pannello frontale del telaio. Usando l’interruttore d’alimentazione si può congurare il modo in cui si spegne il sistema.

RESET (interruttore di ripristino):

Va collegato all’interruttore di ripristino del pannello frontale del telaio. Premere l’interruttore di ripristino per riavviare il sistema se il computer si blocca e non riesce ad eseguire un normale riavvio.

PLED (LED alimentazione del sistema):

Va collegato all’indicatore di stato d’alimentazione del pannello frontale del telaio. Il LED è acceso quando il sistema è operativo. Il LED continua a lampeggiare quando il sistema è in stato di standby S1. Il LED è spento quando il sistema è in stato di sospensione /ibernazione S3/S4 oppure spento (S5).

HDLED (LED attività disco rigido):

Va collegato al LED attività disco rigido del pannello frontale del telaio. Il LED è acceso quando disco rigido legge e scrive i dati.

Il design del pannello frontale può variare in base ai telai. Il modulo di un pannello frontale può consistere di: interruttore d’alimentazione, interruttore di ripristino, LED d’alimentazione, LED attività disco rigido, casse, eccetera. Quando si collega il modulo del pannello frontale a questo header, assicurarsi che l’assegnazione dei li e dei pin sia fatta corrispondere in modo appropriato.

Collettore casse telaio Collegare le casse del telaio a

(4-pin SPEAKER1)

(vedi p.2 Nr. 21)

LED di accensione Collegare il LED di accensione

(3-pin PLED1)

(vedi p.2 Nr. 24)

questo collettore.

chassi per indicare lo stato di

alimentazione del sistema. Il

PLE D+

PLE D-

LED è acceso quando il sistema è in funzione. Il LED continua a lampeggiare in stato S1. Il LED è spento in stato S3/S4 o S5 (spegnimento).

ASRock A75 Pro4/MVP Motherboard

Italiano

Collettori Chassis ed alimentazione ventola Collegare i cavi della ventola ai

(4-pin CHA_FAN1)

(vedi p.2 Nr. 22)

corrispondenti connettori

facendo combaciare il cavo

nero col pin di terra.

(3-pin CHA_FAN2)

(vedi p.2 Nr. 41)

Italiano

(3-pin CHA_FAN3)

(vedi p.2 Nr. 42)

(3-pin PWR_FAN1)

(vedi p.2 Nr. 1)

Connettore ventolina CPU Collegare il cavo della ventolina

(4-pin CPU_FAN1)

(vedi p.2 Nr. 5)

terra.

FAN_ SPEE D_CO NTRO L

CPU a questo connettore e far

combaciare il lo nero al pin

CPU _FAN_ SPEE D

+12 V

GND

1 2 3 4

Sebbene la presente scheda madre disponga di un supporto per ventola CPU a 4 piedini (ventola silenziosa), la ventola CPU a 3 piedini è in grado di funzionare anche senza la funzione di controllo della velocità della ventola. Se si intende collegare la ventola CPU a 3 piedini al connettore della ventola CPU su questa scheda madre, collegarla ai piedini 1-3.

Piedini 1-3 collegati

Installazione della ventola a 3 piedini

(3-pin CPU_FAN2)

(vedi p.2 Nr. 6)

Connettore alimentazione ATX Collegare la sorgente

(24-pin ATXPWR1)

(vedi p.2 Nr. 9)

d’alimentazione ATX a questo

connettore.

GND

+12 V

CPU _FAN_ SPEE D

12 124

ASRock A75 Pro4/MVP Motherboard

Con questa scheda madre, c’è in dotazione un connettore elettrico ATX a 24 pin, ma può funzionare lo stesso se si adotta un alimentatore ATX a 20 pin. Per usare l’alimentatore ATX a 20 pin, collegare l’alimentatore con il Pin 1 e il Pin 13.

Installazione dell’alimentatore ATX a 20 pin

Connettore ATX 12 V Collegare un alimentatore ATX

(8-pin ATX12V1)

(vedi p.2 Nr. 2)

12 V a questo connettore.

4 8

1 5

Sebbene questa schedamadre fornisca un connettore elettrico 8-pin ATX 12V, l‘unita‘ puo‘ ancora essere funzionante se viene utilizzata una fornitura elettrica tradizionale a 4-pin ATX 12V. Per usare tale fornitura elettrica 4-pin ATX 12V, prego collegare la presa elettrica

4 8

al Pin 1 e Pin 5.

Installazione elettrica 4-Pin ATX 12V

Intestazione IEEE 1394 Accanto alla porta di default

(9-pin FRONT_1394)

(vedi p.2 Nr. 32)

IEEE 1394 sul pannello I/O, e‘

presente un‘intestazione IEEE 1394 (FRONT_1394) sulla scheda madre. Questa intestazione IEEE 1394 puo‘

RXT PAM_0

GND

RXT PBM_ 0

RXT PBP_ 0

GND

RXT PAP_0

+12 V

GND

1 5

supportare una porta IEEE

1394.

Collettore porta COM Questo collettore porta COM è

(9-pin COM1)

(vedi p.2 Nr. 30)

utilizzato per supportare il

modulo porta COM.

Header HDMI_SPDIF Header HDMI_SPDIF, con

(2-pin HDMI_SPDIF1)

(vedi p.2 Nr. 31)

uscita audio SPDIF su scheda

HDMI VGA, consente al sistema di collegare dispositivi per TV digitale HDMI/proiettori/ LCD . Collegare il connettore HDMI_SPDIF della scheda VGA HDMI a questo header.

ASRock A75 Pro4/MVP Motherboard

Italiano

1.5 Interruttori rapidi

Questa scheda madre ha tre interruttori rapidi: Interruttore di alimentazione, interruttore di reset e interruttore pulizia CMOS, che consentono agli utenti di accendere / spegnere rapidamente o cancellare i valori CMOS.

Interruttore

(PWRBTN) (vedi p.2 Nr. 18)

Interruttore di reset

(RSTBTN) (vedi p.2 Nr. 19)

Interruttore pulizia CMOS

(CLRCBTN) (vedi p.3 Nr. 14)

L’interruttore di alimentazione è un interruttore rapido che consente agli utenti di accendere/spegnere rapidamente il sistema.

L’interruttore di reset è un interruttore rapido che consente agli utenti di resettare rapidamente il sistema.

L’interruttore di pulizia CMOS è un interruttore rapido che consente agli utenti di cancellare velocemente i valori CMOS.

Italiano

ASRock A75 Pro4/MVP Motherboard

2. Informazioni sul BIOS

La Flash Memory sulla scheda madre contiene le Setup Utility. Quando si avvia il computer, premi <F2> o <Del> durante il Power-On-Self-Test (POST) della Setup utility del BIOS; altrimenti, POST continua con i suoi test di routine. Per entrare il BIOS Setup dopo il POST, riavvia il sistema premendo <Ctl> + <Alt> + <Delete>, o premi il tasto di reset sullo chassis del sistema. Per informazioni più dettagliate circa il Setup del BIOS, fare riferimento al Manuale dell’Utente (PDF le) contenuto nel cd di supporto.

3. Software di supporto e informazioni su CD

Questa scheda madre supporta vari sistemi operativi Microsoft® Windows®: 7 / 7 64-bit / VistaTM / Vista della scheda madre contiene i driver e utilità necessari a potenziare le caratteristiche della scheda. Inserire il CD di supporto nel lettore CD-ROM. Se la funzione “AUTORUN” è attivata nel computer, apparirà automaticamente il Menù principale. Se il Menù principale non appare automaticamente, posizionarsi sul le “ASSETUP.EXE” nel CESTINO del CD di supporto e cliccare due volte per visualizzare i menù.

64-bit / XP SP3 / XP 64-bit. Il CD di supporto a corredo

ASRock A75 Pro4/MVP Motherboard

Italiano

1. Introducción

Gracias por su compra de ASRock A75 Pro4/MVP placa madre, una placa de conanza producida bajo el control de calidad estricto y persistente. La placa madre provee realización excelente con un diseño robusto conforme al compromiso de calidad y resistencia de ASRock. Esta Guía rápida de instalación contiene una introducción a la placa base y una guía de instalación paso a paso. Puede encontrar una información más detallada sobre la placa base en el manual de usuario incluido en el CD de soporte.

Porque las especicaciones de la placa madre y el software de BIOS podrían ser actualizados, el contenido de este manual puede ser cambiado sin aviso. En caso de cualquier modicación de este manual, la versión actualizada estará disponible en el website de ASRock sin previo aviso. También encontrará las listas de las últimas tarjetas VGA y CPU soportadas en la página web de ASRock. Website de ASRock http://www.asrock.com Si necesita asistencia técnica en relación con esta placa base, visite nuestra página web con el número de modelo especíco de su placa. www.asrock.com/support/index.asp

1.1 Contenido de la caja

Placa base ASRock A75 Pro4/MVP (Factor forma ATX: 30,5 cm x 22,4 cm, 12,0” x 8,8”) Guía de instalación rápida de ASRock A75 Pro4/MVP CD de soporte de ASRock A75 Pro4/MVP Cuatro cables de datos Serial ATA (SATA) (Opcional) Una protección I/O

Español

ASRock le recuerda...

Para mejorar el rendimiento en Windows® 7 / 7 64 bits / Vista 64 bits, es recomendable establecer la opción del BIOS de la conguración de almacenamiento en el modo AHCI. Para obtener detalles sobre la conguración del BIOS, consulte el “Manual del usuario” que se encuentra en nuestro CD de soporte.

/ VistaTM

ASRock A75 Pro4/MVP Motherboard

1.2 Especificación

Plataforma - Factor forma ATX: 30,5 cm x 22,4 cm, 12,0” x 8,8”

- Todo diseño de Capacitor Sólido Procesador - Admite procesadores de 100 W para zócalo FM1

- Diseño de fases de potencia 4 + 1

- Con soporte para tecnología Cool ‘n’ QuietTM de AMD

- UMI-Link GEN2

Chipset - AMD A75 FCH (Hudson-D3) Memoria - Soporte de Tecnología de Memoria de Doble Canal

(ver ATENCIÓN 1)

- 4 x DDR3 DIMM slots

- Apoya DDR3 2400+(OC)/1866/1600/1333/1066/ 800 non-ECC, memoria de un-buffered (vea ATENCIÓN 2)

- Máxima capacidad de la memoria del sistema: 32GB (vea ATENCIÓN 3) Ranuras de - 2 x ranuras PCI Express 2.0 x16 Expansión (PCIE2: modo x16; PCIE4: modo x4)

- 2 x ranuras PCI Express 2.0 x1

- 3 x ranuras PCI

- Admite CrossFireXTM cuádruple de AMD, CrossFireXTM y tarjeta gráca dual VGA OnBoard - Tarjeta gráca AMD Radeon HD 65XX/64XX

- DirectX 11, Pixel Shader 5.0

- 512MB de Memoria máxima compartida (vea ATENCIÓN 4)

- Tres opciones de salida VGA: D-Sub, DVI-D y HDMI (ver ATENCIÓN 5)

- Admite HDMI 1.4a con una resolución máxima de 1920x1200 a 60 Hz

- Admite Dual-link DVI con una resolución máxima de 2560x1600 a 75 Hz

- Admite D-Sub con una resolución máxima de 1920x1600 a 60 Hz

- Admite Sincronización automática entre audio y vídeo, Deep Color (12 bpc), xvYCC y HBR (audio de alta tasa de bits) con HDMI (se necesita un monitor compatible con HDMI) (ver ATENCIÓN 6)

- Admite la función 3D estereoscópica Blu-ray con HDMI 1.4a

- Admite AMD Steady VideoTM: Nueva capacidad de pospro cesamiento de vídeo para reducción automática de oscila ciones en vídeo doméstico y en línea

- Admite la función HDCP con puertos DVI y HDMI

ASRock A75 Pro4/MVP Motherboard

Español

- Apoya la reproducción de Blu-rayo de 1080p (BD) / HD-DVD con puertos DVI y HDMI Audio - 7.1 CH HD Audio con Protección de Contenido (Realtek ALC892 Audio Codec)

- Compatible con audio Blu-ray de alta calidad

- Compatible con THX TruStudioTM LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Soporta Wake-On-LAN

- Admite detección de conexión de cable LAN

- Compatible con Ethernet 802.3az de bajo consumo energético

- Compatible con PXE Entrada/Salida I/O Panel de Panel - 1 x puerto de ratón/teclado PS/2 Trasero - 1 x Puerto D-Sub

- 1 x Puerto DVI-D

- 1 x puerto HDMI

- 1 x puerto de salida óptica SPDIF

- 2 x puertos USB 2.0 predeterminados

- 1 x Conector eSATA3

- 4 x puertos USB 3.0 predeterminados

- 1 x Puerto LAN RJ-45 con LED (LED de ACCIÓN/ ENLACE y LED de VELOCIDAD)

- 1 x puerto IEEE 1394

- 1 x conmutador de borrado de memoria CMOS

- Conexión de audio: Altavoz trasero / Central/Bajos / Entrada de línea / Altavoz frontal / Micrófono (ver ATENCIÓN 7) SATA3 - 5 x conectores SATA3 de 6,0 Gb/s compatibles con funciones RAID (RAID 0, RAID 1 y RAID 10), NCQ, AHCI y de “conexión en caliente” compatibles con funciones NCQ, AHCI y de “conexión en caliente” USB 3.0 - 4 x puertos USB 3.0, compatible con USB 1.0/2.0/3.0 de hasta 5 GB/s Conectores - 5 x conexiones SATA3, admiten una velocidad de transferencia de datos de hasta 6,0Gb/s

- 1 x Cabezal de Módulo Infrarrojos

- 1 x Base de conexiones del módulo de infrarrojos para el consumidor

- 1 x En-tête de port COM

ASRock A75 Pro4/MVP Motherboard

- 1 x cabecera HDMI_SPDIF

- 1 x cabecera IEEE 1394

- 1 x cabecera de indicador LED de encendido

- Conector de ventilador de CPU / chasis / alimentacion

- 24-pin cabezal de alimentación ATX

- 8-pin conector de ATX 12V power

- Conector de audio de panel frontal

- 3 x Cabezal USB 2.0 (admite 6 puertos USB 2.0 adicionales)

- 1 x Dr. Debug (indicador LED de avería de 7 segmentos)

Conmutador - 1 x conmutador de borrado de memoria CMOS con rápido indicador LED

- 1 x conmutador de encendido con indicador LED

- 1 x conmutador de reinicio con indicador LED BIOS - 32Mb AMI BIOS legal UEFI AMI compatible con GUI

- Soporta “Plug and Play”

- ACPI 1.1 compliance wake up events

- Soporta “jumper free setup”

- Soporta SMBIOS 2.3.1

- Múltiple ajuste de DRAM, VDDP, VDDR, SB Voltage CD de soport - Controladores, Utilerías, Software de Anti Virus (Versión de prueba), Prueba de CyberLink MediaEspresso 6.5

Característica - ASRock Extreme Tuning Utility (AXTU) (vea ATENCIÓN 8) Única - ASRock Instant Boot

- ASRock Instant Flash (vea ATENCIÓN 9)

- ASRock APP Charger (vea ATENCIÓN 10)

- ASRock XFast USB (vea ATENCIÓN 11)

- ASRock XFast LAN (vea ATENCIÓN 12)

- ASRock XFast RAM (vea ATENCIÓN 13)

- Lucid Virtu Universal MVP (vea ATENCIÓN 14) * Lucid Virtu Universal MVP sólo se soporta con procesadores con GPU integrada.

- Tecnología de activación y desactivación de la reproducción de ASRock (vea ATENCIÓN 15)

- Amplicador Híbrido:

- ASRock U-COP (vea ATENCIÓN 16) Monitor Hardware - Sensibilidad a la temperatura del procesador

- Sensibilidad a la temperatura de la placa madre

- Taquimetros de los ventiladores del procesador y del CPU / chasis / alimentacion

- Ventilador silencioso del procesador y el chasis

Español

ASRock A75 Pro4/MVP Motherboard

Español

- Control de ajuste de la velocidad del ventilador de la CPU y el chasis

- Monitor de Voltaje: +12V, +5V, +3.3V, Vcore OS - En conformidad con Microsoft® Windows® 7 / 7 64 bits / VistaTM / VistaTM 64 bits / XP SP3 / XP 64 bits Certicaciones - FCC, CE, WHQL

- Cumple con la directiva ErP/EuP (se requiere una fuente de alimentación que cumpla con la directiva ErP/EuP) (vea ATENCIÓN 17)

* Para más información sobre los productos, por favor visite nuestro sitio web: http://www.asrock.com

ADVERTENCIA

Tenga en cuenta que hay un cierto riesgo implícito en las operaciones de aumento de la velocidad del reloj, incluido el ajuste del BIOS, aplicando la tecnología de aumento de velocidad liberada o utilizando las herramientas de aumento de velocidad de otros fabricantes. El aumento de la velocidad puede afectar a la estabilidad del sistema e, incluso, dañar los componentes y dispositivos del sistema. Esta operación se debe realizar bajo su propia responsabilidad y Ud. debe asumir los costos. No asumimos ninguna responsabilidad por los posibles daños causados por el aumento de la velocidad del reloj.

ATENCIÓN!

1. Esta placa base soporta Tecnología de Memoria de Doble Canal. Antes de implementar la Tecnología de Memoria de Doble Canal, asegúrese de leer la guía de instalación de módulos de memoria en la página 14 para su correcta instalación.

2. Que la velocidad de memoria de 2400/1866/1600 MHz se admita o no se admita, depende de la conguración Procesador que adopte. Si desea adoptar el módulo de memoria DDR3 2400/1866/1600 en esta placa base, consulte la lista de compatibilidad de memorias en nuestro sitio Web para obtener los módulos de memoria compatibles.

Sitio Web de ASRock: http://www.asrock.com

3. Debido a las limitaciones del sistema, el tamaño real de la memoria debe ser inferior a 4GB para que el sistema pueda funcionar bajo Windows® 7 / VistaTM / XP. Para equipos con Windows® OS con CPU de 64-bit, no existe dicha limitación.

4. El tamaño de la memoria compartido máximo es denido por el vendedor del chipset y está conforme al cambio. Por favor compruebe el Web site de AMD para la información más última.

5. Puede elegir entre dos de los tres monitores solamente. Los monitores D-Sub, DVI-D y HDMI no se pueden habilitar al mismo tiempo. Además, con el adaptador DVI a HDMI, el puerto DVI-D puede admitir las mismas funciones que el puerto HDMI.

ASRock A75 Pro4/MVP Motherboard

6. Las funciones xvYCC y Deep Color solamente se admiten con el sistema operativo Windows® 7 de 64 bits/ 7. El modo Deep Color solamente se habilitará si la pantalla admite 12 bpc en EDID. HBR se admite en Windows® 7 64 bits / 7 / VistaTM 64 bits / VistaTM.

7. Para la entrada de micrófono, esta placa madre ofrece soporte para modos estéreo y mono. Para salida de audio, este placa madre ofrece soporte para modos de 2 canales, 4 canales, 6 canales y 8 canales. Consulte la tabla en la página 3 para una conexión correcta.

8. ASRock Extreme Tuning Utility (AXTU) es una herramienta todo en uno que permite realizar ajustes precisos en diferentes funciones del sistema mediante una interfaz sencilla, que incluye supervisión de hardware, control de ventiladores, función de aumento de la velocidad del reloj, DNA OC y IES. La función de supervisión de hardware, muestra las principales lecturas del sistema. La función de control de los ventiladores, muestra la velocidad y la temperatura de los ventiladores y permite ajustarlas. La función de aumento de la velocidad del reloj, permite aumentar la frecuencia de la CPU para conseguir un rendimiento óptimo del sistema. La función DNA OC permite guardar la con guración OC como un per l y compartirla con sus amigos. Después, sus amistados pueden cargar el perfi l OC en sus propios sistemas para obtener la misma con guración OC. En el protector de energía inteligente (IES, Intelligent Energy Saver), el regulador de voltaje puede reducir el número de fases de salida para mejorar la e ciencia cuando los núcleos de la CPU están inactivos sin que el rendimiento de cálculo disminuya. Visite nuestro sitio Web para obtener los procedimientos de funcionamiento de ASRock Extreme Tuning Utility (AXTU).

Sitio Web de ASRock: http://www.asrock.com

9. ASRock Instant Flash es una utilidad de programación del BIOS que se encuentra almacenada en la memoria Flash ROM. Esta sencilla herramienta de actualización de BIOS le permitirá actualizar el BIOS del sistema sin necesidad de acceder a ningún sistema operativo, como MSDOS o Windows®. Gracias a esta utilidad, sólo necesitará pulsar <F6> durante la fase POST o pulsar <F2> para acceder al menú de conguración del BIOS y a la utilidad ASRock Instant Flash. Ejecute esta herramienta y guarde el archivo correspondiente al sistema BIOS nuevo en su unidad ash USB, unidad de disco exible o disco duro para poder

actualizar el BIOS con sólo pulsar un par de botones, sin necesidad de

preparar un disco exible adicional ni utilizar complicadas utilidades de programación. Recuerde que la unidad ash USB o disco duro utilizado debe disponer del sistema de archivos FAT32/16/12.

10. Si desea una forma más rápida y menos limitada de cargar sus dispositivos de Apple; como por ejemplo iPhone, iPod o iPad Touch, ASRock ha creado una fantástica solución para usted: ASRock APP Charger. Simplemente mediante la instalación del controlador de APP Charger, podrá cargar su iPhone de forma mucho más rápida que antes, hasta un 40%, desde su equipo. ASRock APP Charger le permite cargar de forma

Español

ASRock A75 Pro4/MVP Motherboard

Español

rápida muchos dispositivos de Apple simultáneamente e incluso podrá

continuar la carga cuando su PC entre en modo de espera (S1), suspendido en RAM (S3), modo de hibernación (S4) o se apague (S5). Una vez instalado el controlador de APP Charger, podrá disfrutar fácilmente de una fantástica carga sin precedentes. Sitio web de ASRock: http://www. asrock.com/Feature/AppCharger/index.asp

11. ASRock XFast USB puede aumentar el rendimiento de los dispositivos

de almacenamiento USB. El rendimiento depende de las propiedades del dispositivo.

12. ASRock XFast LAN proporciona un acceso a Internet más rápido, que

incluye las ventajas que se indican a continuación. Priorización de

aplicaciones LAN: Puede congurar la prioridad de las aplicaciones de

forma ideal y/o agregar nuevos programas. Menor latencia en los juegos:

Después de aumentar la prioridad de los juegos en línea, se puede re-

ducir la latencia en los mismos. Gestionar el tráco: Puede ver vídeo en alta denición de Youtube y descargar archivos simultáneamente. Análisis de sus datos en tiempo real: Con la ventana de estado, puede reconocer fácilmente qué transmisiones en secuencias se están transriendo actualmente.

13. ASRock XFast RAM es una nueva función incluida en ASRock Extreme

Tuning Utility (AXTU). Utiliza completamente el espacio de memoria que no se puede utilizar con procesadores de 32 bits en sistemas operativos

Windows®. ASRock XFast RAM acorta el tiempo de carga de los sitios

Web visitados con anterioridad, lo que permite navegar por Internet mucho más rápido que nunca. Además, también aumenta la velocidad

de Adobe Photoshop 5 veces. Otra ventaja de ASRock XFast RAM es

que reduce la frecuencia de acceso a las unidades de estado sólido (SSD) o las unidades de disco duro (HDD), lo que prolonga el período de vida útil de las mismas.

14. VIRTU Universal MVP incluye las funciones básicas de la tecnología Virtu Universal, que virtualiza la GPU integrada y la GPU discreta para obtener las mejores de las funcionalidades. También incluye Virtual VsyncTM, que proporciona una calidad visual sin concesiones. Con las ventajas añadidas de la tecnología HyperFormance, VIRTU Universal MVP mejora el rendimiento de los juegos reduciendo inteligentemente las tareas de representación redundantes en el flujo entre la CPU, la GPU y la pantalla.

15. La tecnología de activación y desactivación de la reproducción de ASRock permite a los usuarios disfrutar de una excelente experiencia de audio de los dispositivos de audio portátiles, como por ejemplo reproductores MP3 o teléfonos móviles, en su PC, ¡incluso cuando su PC está apagado (o en el modo ACPI S5)! Esta placa base también proporciona un cable de audio de 3,5 mm (opcional) que garantiza a los usuarios el entorno de cálculo más práctico.

ASRock A75 Pro4/MVP Motherboard

16. Cuando la temperatura de CPU está sobre-elevada, el sistema va a apagarse automaticamente. Antes de reanudar el sistema, compruebe

si el ventilador de la CPU de la placa base funciona apropiadamente y

desconecte el cable de alimentación, a continuación, vuelva a conectarlo. Para mejorar la disipación de calor, acuérdese de aplicar thermal grease entre el procesador y el disipador de calor cuando usted instala el sistema de PC.

17. EuP, siglas de Energy Using Product (Producto que Utiliza Energía), es una disposición regulada por la Unión Europea para establecer el consumo total de energía de un sistema. Según la disposición EuP, la alimentación de CA total para el sistema completo ha de ser inferior a

1,00W en modo apagado. Para cumplir con el estándar EuP, se requi-

eren una placa base y una fuente de alimentación que cumplan con la directiva EuP. Según las directrices de Intel, una fuente de alimentación que cumpla con la directiva EuP debe satisfacer el estándar, es decir, la eciencia de energía de 5v en modo de espera debería ser mayor del 50% con un consumo de corriente de 100mA. Para seleccionar una fuente de alimentación que cumpla la directiva EuP, le recomendamos que consulte con el fabricante de la fuente de alimentación para obtener más detalles. Además, tenga en cuenta que si habilita la función Tecnología de activación y desactivación de la reproducción de ASRocK, el sistema no cumplirá el estándar EuP. Para cumplir el estándar EuP, deshabilite primero la función Tecnología de activación y desactivación de la reproducción de ASRocK.

ASRock A75 Pro4/MVP Motherboard

Español

1.3 Setup de Jumpers

La ilustración muestra como los jumpers son congurados. Cuando haya un jumpercap sobre los pins, se dice gue el jumper está “Short”. No habiendo jumper cap sobre los pins, el jumper está “Open”. La ilustración muesta un jumper de 3 pins cuyo pin 1 y pin 2 están “Short”.

Jumper Setting

Limpiar CMOS

(CLRCMOS1, jumper de 3 pins) (ver p.2, No. 10)

Nota:

Valor predeterminado

Restablecimiento de

la CMOS

CLRCMOS1 permite borrar los datos de la memoria CMOS. Para borrar los parámetros del sistema y restablecer la conguración predeterminada de los mismos, apague el equipo y desenchufe el cable de alimentación de la toma de corriente eléctrica. Deje que transcurran 15 segundos y, después, utilice un puente cortocircuitar los contactos 2 y 3 de CLRCMOS1 durante 5 segundos. No borre la memoria CMOS justamente después de actualizar el BIOS. Si necesita borrar la memoria CMOS justamente después de actualizar el BIOS, debe iniciar primero el sistema y, a continuación, cerrarlo antes de llevar a cabo el borrado de dicha memoria. Tenga en cuenta que la contraseña, la fecha, la hora, el perl predeterminado del usuario, el GUID 1394 y la dirección MAC solamente se borrará si la batería CMOS se quita.

para

Español

El conmutador Borrar CMOS tiene la misma función que el puente Borrar CMOS.

ASRock A75 Pro4/MVP Motherboard

1.4 Cabezales y Conectores en Placas

Los conectores y cabezales en placa NO son puentes. NO coloque las cubiertas de los puentes sobre estos cabezales y conectores. El colocar cubiertas de puentes sobre los conectores y cabezales provocará un daño permanente en la placa base.

Conexiones de serie ATA3 Estas cinco conexiones de

(SATA3_1: vea p.2, N. 15)

(SATA3_2: vea p.2, N. 16)

(SATA3_3: vea p.2, N. 14)

(SATA3_4: vea p.2, N. 13)

(SATA3_5: vea p.2, N. 12)

serie ATA3 (SATA3) admiten cables SATA para dispositivos de almacenamiento internos. La interfaz SATA3 actual permite una velocidad de transferencia

SATA3_5

de 6.0 Gb/s.

SATA3_2 SATA3_4

SATA3_1 SATA3_3

Cable de datos de Cualquier extremo del cable de serie ATA (SATA) los datos de SATA puede ser

(Opcional)

conectado con el disco duro de SATA3 o el conectador de SATA3 en esta placa base.

Cabezal USB 2.0 Además de dos puertos

(9-pin USB6_7)

(vea p.2, N. 28)

USB 2.0 predeterminados en el

panel de E/S, hay tres bases de conexiones USB 2.0 en esta placa base. Cada una de estas bases de conexiones

USB _PWR

P-9

P-8

USB _PWR

P-11

P-10

USB _PWR

P+9

P+8

P+1 1

P+1 0

GND

DUM MY

admite dos puertos USB 2.0.

(9-pin USB8_9) (vea p.2, N. 27)

(9-pin USB10_11) (vea p.2, N. 25)

Español

ASRock A75 Pro4/MVP Motherboard

Cabezal de Módulo Infrarrojos Este cabezal soporta un

IRTX

+5VS B

DUMM Y

IRRX

GND

(5-pin IR1)

módulo infrarrojos de

(vea p.2, N. 23)

transmisión y recepción

wireless opcional.

Base de conexiones del módulo de Esta base de conexiones se infrarrojos para el consumidor puede utilizar para conectar

(4-pin CIR1)

(vea p.2, N. 29)

receptor remoto.

Español

Conector de audio de Este es una interface para panel frontal cable de audio de panel frontal

(9-pin HD_AUDIO1)

(vea p.2, N. 33)

que permite conexión y control

conveniente de apparatos de

Audio.

GND

PRE SENC E#

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. El Audio de Alta Denición soporta la detección de conector, pero el cable de panel en el chasis debe soportar HDA para operar correctamente. Por favor, siga las instrucciones en nuestro manual y en el manual de chasis para instalar su sistema.

2. Si utiliza el panel de sonido AC’97, instálelo en la cabecera de sonido del panel frontal de la siguiente manera: A. Conecte Mic_IN (MIC) a MIC2_L. B. Conecte Audio_R (RIN) a OUT2_R y Audio_L (LIN) en OUT2_L. C. Conecte Ground (GND) a Ground (GND).

D. MIC_RET y OUT_RET son sólo para el panel de sonido HD. No

necesitará conectarlos al panel de sonido AC’97. E. Activación del micrófono frontal. En sistemas operativos Windows® XP / XP 64-bit: Seleccione “Mixer” (Mezclador). Seleccione “Recorder” (Grabadora). A continuación, haga clic en “FrontMic” (Micrófono frontal). En sistemas operativos Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit: Acceda a la cha “FrontMic” (Micrófono frontal) del panel de control Realtek. Ajuste la posición del control deslizante “Recording Volume” (Volumen de grabación).

100

ASRock A75 Pro4/MVP Motherboard

ASRock A75 Pro4-MVP User Manual [en, ru, de, es, fr, it]

Specifications and Main Features

Frequently Asked Questions

User Manual

English
