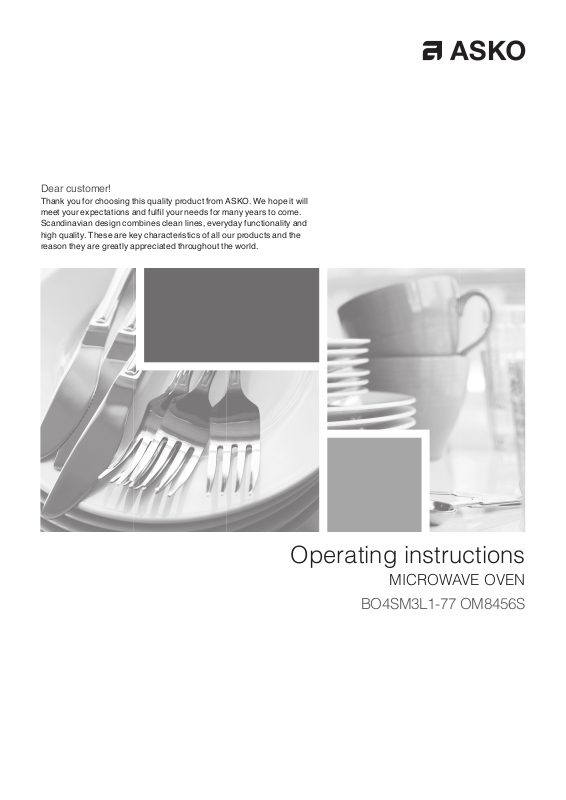

ASKO OM8456S User Manual

Dear customer!

Thank you for choosing this quality product from ASKO. We hope it will
meet your expectations and fulfi l your needs for many years to come.
Scandinavian design combines clean lines, everyday functionality and
high quality. These are key characteristics of all our products and the
reason they are greatly appreciated throughout the world.

Operating instructions

MICROWAVE OVEN

BO4SM3L1-77 OM8456S

We thank you for your trust and the

purchase of our appliance.

This detailed instruction manual is supplied to make the
use of this product easier. The instructions should allow
you to learn about your new appliance as quickly as
possible.

Make sure you have received an undamaged appliance.
If you do fi nd transport damage, please contact the
seller from which you purchased the appliance, or the
regional warehouse from which it was supplied. The
telephone number can be found on the invoice or on the
delivery note.

Instructions for installation and connection are supplied
on a separate sheet.

Instructions for use are also available at our website:

www.asko.com / < http://www.asko.com />

Important information

Tip, note

2

CONTENTS

MICROWAVE OVEN 4

TECHNICAL SPECIFICATIONS 4

CONTROL UNIT 6

IMPORTANT SAFETY INSTRUCTIONS 7

BEFORE CONNECTING THE OVEN: 8

BEFORE USING THE APPLIANCE FOR
THE FIRST TIME 9

SWITCHING ON THE APPLIANCE FOR
THE FIRST TIME 10

STEPS OF THE COOKING
PROCESS (1–7) 11

STEP 1: CHOOSING THE BASIC COOKING
MENUS AND SETTINGS 11

STEP 2: TIMER FUNCTIONS – DURATION 14

STEP 3: STEP COOKING 15

STEP 4: START THE COOKING PROCESS 16

STEP 5: END OF COOKING AND SWITCHING
OFF THE OVEN 16

STEP 6: SELECTING ADDITIONAL FUNCTIONS 17

STEP 7: CHOOSING THE GENERAL SETTINGS 19

DESCRIPTIONS OF SYSTEMS (COOKING
MODES) AND COOKING TABLES 20

MAINTENANCE & CLEANING 25

CONVENTIONAL OVEN CLEANING 25

USING THE AQUA CLEAN FUNCTION TO
CLEAN THE OVEN 26

REMOVING AND CLEANING THE WIRE GUIDES 27

REPLACING THE BULB 28

TROUBLESHOOTING TABLE 29
DISPOSAL 30
COOKING TEST 31

3

MICROWAVE OVEN

(DESCRIPTION OF THE OVEN AND EQUIPMENT – DEPENDING ON THE MODEL)

The fi gure represents one of the built-in appliance models. Since the appliances for which these instructions were drawn
up may have diff erent equipment, some functions or equipment may be described in the manual that may not be present
in your appliances.

Control unit

4
3

TECHNICAL SPECIFICATIONS

(DEPENDING ON THE MODEL)

2

- Cooking levels

1

Oven handle

Guides

Oven door

The rating plate indicating the basic information about
the appliance is located at the edge of the oven and it is
visible when the oven door is opened.

A Serial number
B Code/ID
C Type
D Brand
E Model
F Technical data
G Compliance symbols

4

WIRE GUIDES

The wire guides allow preparation of the food on four
levels (please note that the levels/guides are counted
from the bottom up).

OVEN DOOR SWITCH

The switches deactivate the microwave heating when
the oven door is opened during the cooking process.
When the door is closed, the switches turn the
microwaves back on.

COOLING FAN

The appliance is fi tted with a cooling fan that cools the
housing and the appliance control panel.

EXTENDED OPERATION OF THE COOLING FAN

After the oven is switched off , the cooling fan continues
to operate for a short while in order to provide additional
cooling for the oven. (Extended operation of the cooling
fan depends on microwave operation time.)

OVEN EQUIPMENT AND ACCESSORIES

GLASS BAKING DISH is used for cooking with all oven

systems and for cooking with microwaves. It can also be
used as a serving tray.

The grid or the tray should always be inserted into the
groove between the two wire profi les.

Never use the grid, the shallow baking sheet or the
deep baking tray or any other metal part or accessory
when operating a system with microwaves!

5

CONTROL UNIT

MICROWAVES

MY RECIPES

AUTOMATIC

QUICKIES

EXTRA
FUNCTIONS

GENERAL
SETTINGS

ON/OFF KEY

1

NOTE:
The keys will respond better if you touch them with a larger area of your fi ngertip. Each time you press a key, this will be
acknowledged by a short acoustic signal.

OVEN
LIGHTING

2

ON/OFF KEY

BACK KEY

3

Touc h b riefl y to
return to previous
menu.

Touch and hold
to return to main
menu.

Selection and
CONFIRMA-

4

TION KNOB

Select the setting

by rotating the knob.

Confi rm your
selection by

pressing the knob.

MINUTE
MINDER/

5

ALARM

CHILD LOCK
KEY

6

Locking the
control unit

START/STOP
KEY

7

Long touch: START

Long touch during
operation: STOP

DISPLAY –
displays all

8

settings

6

IMPORTANT SAFETY INSTRUCTIONS

CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM FOR FUTURE REFERENCE.

This appliance may only be used by children aged 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if supervision or instructions are provided to them concerning use of the appliance in a
safe way and if they understand the hazards involved. Do not let the children play with
the appliance. Cleaning and user maintenance shall not be made by children without
supervision.

WARNING: The appliance and some of its accessible parts may become very hot during
use. Be careful not to touch the heaters. Children younger than 8 years should be constantly
supervised.

The appliance becomes very hot during use. Be careful not to touch the oven heaters.

WARNING: The accessible parts of the appliance may become hot during use. Children
should be kept away from the oven.

WARNING: Accessible parts will become hot when in use. To avoid burns and scalds
children should be kept away.

Only use the temperature probe recommended for use in this oven.

WARNING: Before replacing the light bulb, make sure the appliance has been disconnected
from the power mains, in order to prevent the hazard of an electric shock.

Do not use abrasive cleaners or sharp metal scrapers to clean the oven as they may damage the
fi nish or the protective enamel coating. Such damages may lead to cracking of the glass.

Do not use steam cleaners or high pressure cleaners to clean the appliance as this may
result in an electric shock.
The appliance is not intended to be controlled with external timers or special control
systems.

The appliance is intended for household use. Do
not use it for any other purpose, such as room heating,
drying of pets or other animals, paper, fabrics, herbs etc.
as this may lead to injury or fi re hazard.

The appliance may only be connected to the power
mains by an authorized service technician or expert.
Tampering with the appliance or non-professional repair
thereof may result in risk of severe injury or damage to
the product.

If the power cords of other appliances located near
this appliance are caught in the oven door, they may
be damaged, which may in turn result in a short circuit.
Therefore, keep the power cords of other appliances at a
safe distance.

If the power cord is damaged, it should be replaced by
the manufacturer or an authorized service technician, in
order to avoid hazard.

Do not line the oven walls with aluminium foil and do
not place baking trays or other cookware on the oven
bottom. Aluminium foil would prevent air circulation
in the oven, hinder the cooking process, and ruin the
enamel coating.
Oven door become very hot during operation. A
third glass is installed for extra protection, reducing
the temperature of the outside surface (only with some
models).

Oven door hinges may be damaged when under
excessive load. Do not place heavy pans on open oven
door and do not lean against open oven door when
cleaning the oven cavity. Never stand on the open oven
door and do not let children to sit on it.

Make sure the vents are never covered or obstructed in
any other way.

7

Safe use of the microwave oven

WARNING: If your oven allows combined operation (microwaves combined with other cooking
modes), do not allow the children to use the oven without supervision of an adult person since the
oven will reach very high temperatures in such operation modes.

WARNING: If the door or door sealing is damaged, do not use the oven until it is repaired by an
adequately trained service technician.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or
repair operation which involves removal of the cover that protects against exposure to microwave
radiation.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable
to explode.

Heed the minimum distance between the upper edge of the
oven and the nearest object above it.

The appliance is intended for use in households and similar
environments, such as:

- staff pantries in stores and other working environments;

- family farms;

- accommodation units for guests at hotels, motels, and other
accommodation or lodging establishments;

- bed and breakfast establishments.

The microwave oven is intended for heating food and
beverages. Drying food or clothing and heating of hot packs
or pads, slippers, sponges, moist cloths etc. may result in
injury, ignition, or fi re.

Only use utensils suitable for use in microwave ovens.

When heating food in plastic or paper containers, keep an

eye on the oven as such packaging may ignite.
Microwave heating of beverages can result in delayed
eruptive boiling; therefore take care when handling the
container with the heated beverage.

The contents of baby bottles and baby food jars should
be shaken or stirred and their temperature checked before
feeding in order to avoid burns.

Make sure to only use the cookware that is suitable for use
in a microwave oven. Do not use cookware made of steel or
cookware with golden or sliver rims.

Do not leave any accessories or utensils in your oven
when it is off . To avoid damage, do not switch on an empty
oven.

Do not use receptacles made of porcelain, ceramics, or clay,
if there are pores in the material or if the inside is not glazed.
Once heated up, the moisture that would penetrate these
pores could cause cracking. Only use the cookware intended
for use in a microwave oven.

Always read and observe the instructions for heating in a
microwave oven, specifi ed on the food packaging.

Be careful when heating alcohol-containing food, as a
combustible mixture of alcohol and air may form inside the
oven. Open the door carefully.

When using the microwave or the combined microwave
and convection functions, use of metallic cookware, forks,
spoons, knives or metal clips/fasteners for frozen food is not
recommended.
After heating, stir the food or leave it to rest until the heat is
evenly distributed.

Eggs in their shell should not be heated in microwave ovens
since they may explode even after microwave heating has
ended.

If you observe smoke, switch off or unplug the appliance and
keep the oven door closed in order to stifl e any fl ames.

Regularly clean the oven and remove any food residues.
Failure to maintain cleanliness in the oven may result in
deterioration of its surfaces. This can negatively aff ect the
useful life of the appliance and lead to potentially dangerous
situations.

BEFORE CONNECTING THE OVEN:

Always use oven mitts to remove dishes from the oven.
Some pots, pans, or trays absorb the heat of foods and
therefore become very hot.

Carefully read the instructions for use before
connecting the appliance. Repair or any warranty
claim resulting from incorrect connection or use of the
appliance shall not be covered by the warranty.

8

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Remove all equipment, accessories, and utensils from
the oven and clean them with warm water and regular
detergent. Do not use any abrasive cleaners.

Before using the oven for the fi rst time, heat it with
the upper and lower heater system at 200 °C for
approximately one hour. The characteristic »new
appliance« scent will be released; make sure the room is
well ventilated.

MICROWAVE FUNCTION

Microwaves are used for cooking, roasting, and
defrosting of food. They allow quick and effi cient cooking
without changing the colour or shape of the food.

Microwaves are used for cooking, roasting, and
defrosting of food. They allow quick and effi cient cooking
without changing the colour or shape of the food.

1

Their behaviour:

– They are refl ected by metals.
– They travel through all other materials.
– They are absorbed by water, fat and sugar molecules.

When food is exposed to microwaves, the molecules
begin to move rapidly, thereby generating heat.The
microwaves penetrate approximately 2.5 centimeters
deep into the food. If the food is thicker, the core of the
food will be cooked by conduction, as in conventional
cooking.

Never use or activate a microwave system if the oven
is empty.

9

SWITCHING ON THE APPLIANCE FOR THE FIRST TIME

SETTING THE CLOCK

After connecting your appliance or after an extended power outage, 12:00 will fl ash on the display. Set the time of day.

Confi rm each setting by pressing the KNOB.

Press the KNOB to set the time.

Turn the KNOB and fi rst set the TICK.

The oven will also work if the clock is not set. However, timer functions are not available in this case (see chapter

SETTING THE TIMER FUNCTIONS). After a few minutes of idling, the appliance will switch to standby mode.

CHANGING THE CLOCK SETTING

Clock settings may be changed when no timer function is activated (see chapter CHOOSING THE GENERAL
SETTINGS).

SELECTING THE LANGUAGE

If you are not happy with the language in which the messages on the display are presented, select another one. English
is the preset language.

Rotate the KNOB and select your language from
the list. CONFIRM the selection.
The main menu will appear.

10

STEPS OF THE COOKING PROCESS (1–7)

STEP 1: CHOOSING THE BASIC COOKING MENUS AND SETTINGS

The process of preparing food in your oven can be controlled in several ways:

Rotate the KNOB and select the symbol. The
symbol will turn white. The NAME of the selected
menu will appear at the top.

Confi rm each setting by pressing the KNOB.

Automatic mode

In this mode, fi rst select the type of food and the desired dish. This is followed by automatic setting of
the quantity and level of doneness. The program off ers a large choice of preset recipes reviewed by
professional chefs and nutrition experts.

Quickies

This mode off ers a selection of preset cooking procedures for particular dishes. The cooking procedures
can also be changed.

Microwaves

This mode is suitable for cooking, roasting, and defrosting of food.

11

A) COOKING BY SELECTING THE TYPE OF FOOD (Auto mode)

Confi rm each setting by pressing the KNOB.

Rotate the KNOB and select the Auto mode.
Confi rm the setting by pressing on the KNOB.

Select the type of food and the dish. Confi rm the
selection.

Preset values will appear. Rotate the KNOB and
confi rm by pressing the KNOB to change these
settings.

1234 5

1 Amount
2 Doneness
3 Delayed start
4 Cooking duration
5 Cooking system and recommended level

When in the Auto and Rapid mode, choose the duration or system symbol to open the Professional mode (see

section on COOKING BY SELECTING THE OPERATING MODE).

Touch the START/STOP key to start oven operation.
All selected settings are indicated on the display.

12

B) COOKING WITH MICROWAVES

Confi rm each setting by pressing the KNOB.

Rotate the KNOB and select Microwaves. Confi rm
the setting by pressing on the KNOB.

Select the settings by rotating the KNOB and
pressing it to confi rm.

1234 5

1 Microwave system
2 Cooking power
3 Cooking duration
4 Delayed start
5 Step mode (see section STEP COOKING)

In microwave systems, the timer function – delayed start is not available.

Touch the START/STOP key to start oven operation.
Selected settings and the time counting down will be displayed on the display unit.

POWER LEVEL USE

1000 W

750 W

600 W

360 W

180 W

90 W • Defrosting cream-fi lled pastry.

• Quickly reheating beverages, water and dishes containing a large volume of liquid.

• Cooking dishes with high water content (soups, sauces etc.).

• Cooking fresh or frozen vegetables.

• Melting chocolate.

• Cooking fi sh and seafood; reheating on two levels.

• Cooking dried beans at low heat.

• Reheating and cooking of delicate egg-based dishes.

• Low-heat cooking of dairy products or jams.

• Manual defrosting; softening butter or ice cream.

13

STEP 2: TIMER FUNCTIONS – DURATION

The »Duration« setting can be selected in the basic
Microwave mode.

Setting the cooking time

In this mode, you can defi ne the duration of oven operation (cooking time). Set the desired cooking time
and confi rm the setting. (Maximum operating time is 10 hours.)
Cooking end time is adjusted accordingly.
Press START to start the cooking process. All selected settings are indicated on the display.
All timer functions can be cancelled by setting the time to ”0”.

After the set time expires, the oven will automatically stop operating (end of cooking). An acoustic signal will be
heard which you may turn off by pressing the ALARM key. After one minute, the acoustic signal will be switched off
automatically.

After a few minutes of idling, the appliance will switch to standby mode. The time of day will appear.

14

STEP 3: STEP COOKING

This mode allows you to combine three diff erent cooking modes successively in a single cooking process.
Choose diff erent settings to cook your food just the way you want it.

The »Step Cook« setting can be selected in the basic
Microwave mode. Confi rm the setting by pressing on
the KNOB.

Select: Step 2, Step 3
Confi rm the settings by pressing on the KNOB.

The fi rst step is already selected.

Set the cooking power and time. Confi rm the
selection with the check mark by pressing the
KNOB.

Total cooking time – end..

Current step

Cooking power and duration of
the selected step

Touch the START symbol to turn on the oven. The oven starts operating immediately, with the settings defi ned in Step 1.
(A strip at the bottom of the display indicates the cooking step currently in progress.) After the set cooking time elapses,
Step 2 and then Step 3 are activated, if specifi ed.

If you wish to delete a step during operation, turn the KNOB, choose the step and cancel it by confi rming the X mark.
This can only be done with steps that have not started yet.

15

STEP 4: START THE COOKING PROCESS

The START/STOP key will fl ash before the start of the cooking process.

Start the cooking process by briefl y touching the START/STOP key.

Rotate the KNOB to change the current settings during cooking.

STEP 5: END OF COOKING AND SWITCHING OFF THE OVEN

Start the cooking process by pressing the START/STOP key and holding it for a while.

Turn the KNOB to display the End menu with a
display of symbols.

End!

Select the icon and complete the cooking process. Main menu will appear on the display.

Extend the cooking time

Cooking time can be extended by selecting the icon. New cooking end time can be selected (see chapter
Timer Functions).

Add to my recipes

This mode allows you to save the selected settings into the oven memory and use them again at a later
time.

16

SAVING USER-DEFINED PROGRAMS (MY RECIPES)

Choose the symbol and enter the name by
rotating the KNOB and confi rming respective
letters. If necessary, delete a character using the
arrow; use the check mark or touch the START/
STOP key to confi rm the name. Select the type of
food.

Select the type of food. Press the KNOB to save
your settings.

Your favourite recipes that you have previously stored in the memory can be retrieved and used at any time. Choose
the process and the settings in the main menu by selecting the

Up to 10 recipes can be stored in the memory.

DELETING A RECIPE

Select the recipe to be deleted. Press and hold the KNOB to delete the recipe; an acoustic signal will be sounded.

symbol.

Preset values will appear which you can still
change.

STEP 6: SELECTING ADDITIONAL FUNCTIONS

Choose Extra in the main menu to display the
extra/additional function menu.

Some functions are not available with some
systems; an acoustic signal will indicate such
cases.

Aqua clean

Use it to remove stains. Pour 0.6 l water into the deep baking tray and place it in the lower guide. After
4 minutes, food residues on the enamel surfaces will have softened and they will be easy to wipe off
with a damp cloth. Use this function when the oven has fully cooled down! (See chapter CLEANING AND
MAINTENANCE.)

Defrosting

In this mode, the air will circulate without any heaters operating. Only the fan will be activated. Use this function to
slowly defrost frozen food (cakes, pastry, bread, rolls, and deep-frozen fruit).By selecting the relevant symbol you
may specify the type of food, weight, or defrosting start and end time.Halfway through the defrost time, the pieces
should be turned over, stirred and separated if they were frozen together.

When the cooking process is complete, the display will read: ”Program complete. Bon appétit!”

Turn the KNOB to display the End menu with a
display of symbols.

17

CHILD LOCK

Activate it by touching the LOCK key (key symbol). The following message will appear on the display:
»Child lock activated.« Touch the key again to deactivate the child lock.

If the child lock is activated with no timer function engaged (only clock is displayed), then the oven
will not operate.If the child lock is activated after a timer function has been set, then the oven will operate
normally; however, it will not be possible to change the settings.
When the child lock is activated, systems (cooking modes) or additional functions cannot be changed. Only
the cooking/baking/roasting process can be stopped or switched off .
Child lock remains active after the oven is switched off . To select a new system, the child lock must fi rst be
deactivated.

OVEN LIGHTING

Oven lighting is switched on automatically when the door is opened or when the oven is switched on.
After the end of the cooking process or when the door is closed, the light will remain on for another minute.
The light inside the oven can be switched on or off by pressing the LIGHT key.

SETTING THE MINUTE MINDER

The minute minder can be used independently of the oven operation. Activate it by pressing the key. The
longest possible setting is 10 hours. When the time expires, an acoustic signal will be heard which you
may turn off by touching any key. After one minute, the acoustic signal will be switched off automatically.

18

STEP 7: CHOOSING THE GENERAL SETTINGS

Choose Settings in the main menu to display
the menu for various settings.

Rotate the KNOB to navigate the menu.Confi rm
each setting by pressing the KNOB.

Language

Select the language for the text on the display.

Time

Set the time of day after the appliance is connected to the power mains for the fi rst time or after being disconnected
from the power mains for a longer period of time (more than one week). Set the CLOCK – time. Set the display mode in
the ”Time Design” fi eld: digital or analogue.

Sound

Loudness of the acoustic signal can be set when no timer function is activated (only the time of day is displayed). In this
menu, you can set the following: loudness.

Display

In this menu, you can set the following:

Lighting
Night mode - set the time by which you wish the display to be dimmed.

Setting during the cooking process

In this menu, you can set the following:

Oven lighting during operation - oven lighting is switched off when oven door is opened during operation.

Other settings

Factory setting

After a power outage or after switching off the appliance, all extra
user settings are restored.

19

DESCRIPTIONS OF SYSTEMS (COOKING MODES) AND COOKING
TABLES

If your desired food cannot be found in the cooking table,
fi nd information for similar food.

The information displayed applies to cooking in a single
level.

Cooking times are rough estimates and may vary subject
to some conditions.

When cooking larger chunks of meat, vegetables, or
pastry, a lot of steam will be generated inside the oven,
which in turn may condense on the oven door. This is a
normal phenomenon which will not aff ect the operation
of the appliance. After the cooking process, wipe the
door and the door glass dry.

20

MICROWAVE SYSTEMS

MICROWAVES

Microwaves are used for cooking and defrosting.

Power levels: 90, 180, 360, 600, 750, 100 W.

Place the glass baking dish into the 1st guide.

Defrosting

1

Type of food Weight

(g)

MEAT

Minced meat ** 500 90 35-45
Meat in pieces ** 500 90 20-30
Steaks ** 500 90 20-30
Whole pieces of meat ** 1000 90 70-80
Poultry portions ** 500 90 25-35
Whole fish ** 200 90 15-20

PAST RY

Bread ** 1000 90 20-25
Bread rolls ** 500 90 10-15
Walnut cake ** 500 90 15-25
Fruit cake ** 500 90 15-25

FRUIT AND VEGETABLE

Fruit 500 90 15-25
Vegetable 500 90 20-30

** Turn halfway through the cooking process.
Separate individual pieces. After the end of the process, leave the food at room temperature for 10 to 20 minutes to allow
the heat to be evenly distributed in the food.

Power

(W)

Defrosting time

(min)

21

Reheating

Type of food Weight

(g)

FOOD

Steaks 300 g 600 3-5
Whole fish 200 g 600 3-5
Mixed vegetable * 500 g 600 3-5
Side dishes * 500 g 600 3-5
Sauces * 500 g 600 2-4
Soups/stews * 5 dl 750 2-4
Pizza 500 g 600 2-4
Chicken medallions 500 g 600 2-4
Open sandwiches / 600 2-4
Popcorn 90 g 1000 2-4
Melting chocolate 100 g 600 2-4
Butter softening 250 g 180 2-4
Baby bottle 2 dl 360 3-4
Baby food 4 dl 180 2-3

BEVERAGE

Water 2 dl 1000 1-2
Coffee 2 dl 1000 1-2
Mulled wine 2 dl 1000 1-2
Milk 2 dl 1000 1-2

Power

(W)

Defrosting time

(min)

* Stir the food several times during reheating.

Cooking

Type of food Weight

(g)

MEAT

Chicken thighs ** 1000 600 20-30
Chicken wings ** 1000 600 15-25
Chicken braised in sauce * 500 1000 15-25
Chicken – whole ** 1500 600 45-60
Pork roast ** 1000 600 45-60
Pork chops ** 500 750 25-35
Steaks ** 500 1000 10-20
Meat loaf 700 600 25-35
Meatballs * 1000 1000 10-20
Fish ** 200 600 15-20

DESSERTS

Chocolate soufflé 6 360 12-17
Cheese soufflé glass baking dish 750 15-20
Fruit purée glass baking dish 750 12-17
Custard creams glass baking dish 360 23-28

Power

(W)

Cooking time

(min)

22

Type of food Weight

(g)

VEGETABLE

Potatoe 500 1 tablespoons/100 g 1000 13-18
Eggplant / aubergines 500 1 tablespoons/100 g 600 13-18
Courgettes 500 1 tablespoons/100 g 360 10-15
Carrots 500 1 tablespoons/100 g 1000 10-15
Onions 200 1 tablespoons/100 g 1000 5-10
String beans 500 1 tablespoons/100 g 750 10-15
Broccoli 1000 1 tablespoons/100 g 750 10-15
Bell peppers 500 1 tablespoons/100 g 1000 8-13
Caulifl ower 1000 1 tablespoons/100 g 750 18-23
Leeks 200 1 tablespoons/100 g 1000 10-15
Brussels sprout 500 1 tablespoons/100 g 1000 10-15
Button mushrooms /

Champignons
Asparagus 500 1 tablespoons/100 g 750 5-10
Peas 500 1 tablespoons/100 g 750 25-30
Cabbage 500 1 tablespoons/100 g 750 15-20

SIDE DISHES

Rice 200 Ratio food to liquit 1:2 750 15-20
Pasta 200 Ratio food to liquit 1:2 750 10-15
Whole grain pasta 200 Ratio food to liquit 1:2 1000 10-15
Oatmeal 500 Ratio food to liquit 1:2 1000 5-10
Brown rice 200 Ratio food to liquit 1:2 750 25-30
Risotto 500 Ratio food to liquit 1:2 750 20-25
Couscous 250 Ratio food to liquit 1:2 1000 3-8
Polenta 250 Ratio food to liquit 1:3 1000 5-10
Millet 250 Ratio food to liquit 1:3 1000 10-15

500 1 tablespoons/100 g 1000 10-15

Water addition Power

(W)

Cooking time

(min)

Type of food Weight

(g)

FROZEN PRODUCTS

Meat loaf 700 600 35-45
Chicken - whole ** 1500 600 55-65
Pork roast ** 1000 600 50-60
Chicken medallions ** 500 750 10-15
Mixed vegetable * 500 750 10-20
Fish ** 200 600 10-15

* Stir the food several times during reheating.
** Turn halfway through the cooking process.

Power

(W)

Cooking time

(min)

23

Degrees of doneness for meat

TYPE OF MEAT Core temperature

(°C)

BEEF

Raw 40-45
Rare 55-60
Medium 65-70
Well done 75-80

VEAL

Well done 75-85

PORK

Medium 65-70
Well done 75-85

LAMB

Well done 79

MUTTON

Raw 45

Rare 55-60

Medium 65-70

Well done 80

GOAT MEAT

Medium 70

Well done 82

POULTRY

Well done 82

FISH

Well done 65-70

24

MAINTENANCE & CLEANING

Be sure to unplug the appliance from the power supply
and wait for the appliance to cool down.

Children should not clean the appliance or perform
maintenance tasks without proper supervision.

Aluminium fi nish

Clean the aluminium fi nish with non-abrasive liquid
cleaners intended for such surfaces. Apply the cleaner
onto a wet cloth and clean the surface. Then, rinse the
surface with water. Do not apply the cleaner directly onto
the aluminium fi nish.
Do not use abrasive cleaners or sponges.
Note: The surface should not come into contact with
oven cleaning sprays as this may result in visible and
permanent damage.

Stainless steel sheet front side of the
housing

(depending on the model)
Clean this surface only with a mild detergent (soapsuds)
and a soft sponge that will not scratch the fi nish. Do not
use abrasive cleaners or cleaners containing solvents as
they may damage the housing fi nish.

CONVENTIONAL OVEN CLEANING

You may use the standard cleaning procedure to clean
stubborn dirt in the oven (using cleaners or an oven
spray). After such cleaning, rinse the cleaner residues
thoroughly.

Clean the oven and the accessories after each use
to prevent the dirt from burning into the surface. The
easiest way to remove fat is by using warm soapsuds
while the oven is still warm.

With stubborn dirt and grime, use conventional oven
cleaners. Rinse the oven thoroughly with clean water to
remove all cleaner residue.
Never use aggressive cleaners, abrasive cleaners,
abrasive sponges, stain and rust removers etc.

Clean the accessories (baking sheets) with hot water
and detergent.

The oven, the oven cavity and the baking trays are lined
with a special enamel coating for a smooth and resistant
surface. This special coating makes cleaning at room
temperature easier.

Lacquer-coated surfaces and plastic parts

(depending on the model)
Do not clean the knobs and buttons, door handles,
stickers, and rating/type plates with abrasive cleaners or
abrasive cleaning materials, alcohol-based cleaners, or
with alcohol.
Immediately remove any stains with a soft non-abrasive
cloth and some water, in order to avoid damaging the
surface.
You may also use cleaners and cleaning materials
intended for such surfaces as instructed by their
respective manufacturers.

Appliance door

The door is attached to the appliance and may not be
removed. Also, the door may not be disassembled or
otherwise tapered with.

The aluminium-coated surfaces should not come
into contact with oven cleaning sprays as this may result
in visible and permanent damage.

25

USING THE AQUA CLEAN FUNCTION TO CLEAN THE OVEN

Pour 0.6 l water into the deep baking tray and place it in the lower guide.

Choose ”Extra/Additional Functions” in the main
menu and select the Aqua Clean symbol.

Press the START key.

After 4 minutes, food residues on the oven enamel walls will have softened and they will be easy to clean with a
damp cloth.

Use the Aqua Clean function when the oven has fully cooled down.

26

REMOVING AND CLEANING THE WIRE GUIDES

Only use conventional cleaners to clean the guides.

Undo the screw. Use a screwdriver.

1

Remove the guides from the holes in the back wall.

2

After cleaning, re-tighten the screws on the guides with a
screwdriver
When replacing the wire guides, make sure you mount them
on the same side they were installed on prior to removal.

Take care not to lose the spacers fi tted on the wire
guides. Replace the spacers after cleaning; otherwise,
sparks may appear.

27

REPLACING THE BULB

The bulb is a consumable and therefore not covered by warranty. Before changing the bulb, remove the trays, the grid,
and the guides.
Use a Phillips (cross) screwdriver.
(Halogen lamp: G9, 230 V, 25 W)

Undo the four screws on the cover. Remove the cover
and the glass.

1

Remove the halogen light bulb and replace it with a
new one.

2

Firmly re-tighten the screws on the cover using a
screwdriver; otherwise, sparks may appear.

Use protection to avoid burs.

There is a gasket on the cover which should not be
removed. Do not allow the gasket to be detached from
the cover. The gasket should fi t correctly onto the oven
cavity wall.

28

TROUBLESHOOTING TABLE

Problem/error Solution
There is no response of the

sensors; the display is frozen.
The main fuse in your home trips
often.
The oven lighting does not work. The process of changing the light bulb is described in the chapter.

The pastry is underdone. Did you choose the right temperature and heating system?

Error code is displayed: ERRXX ...
* XX denotes the number/code of
the error.

Sparks appear in the oven. Make sure all covers of the lights are fastened and that all spacers are fi tted on

If the problems persist despite observing the advice
above, call an authorized service technician. Repair or
any warranty claim resulting from incorrect connection
or use of the appliance shall not be covered by the
warranty. In this case, the user will cover the cost of
repair.

Disconnect the appliance from the power mains for a few minutes (undo the fuse
or switch off the main switch); then, reconnect the appliance and switch it on.
Call a service technician.

Cleaning and Maintenance.

Is the oven door closed?
There is an error in the electronic module operation. Disconnect the appliance
from the power mains for a few minutes. Then, reconnect it and set the time of
day.

If the error is still indicated, call a service technician.

the wire guides.

Make sure the guides are correctly placed in the appliance.

Before the repair, disconnect the appliance from the
power mains (by removing the fuse or by removing the
plug from the wall outlet).

29

DISPOSAL

Packaging is made of environmentally
friendly materials that can be recycled,
disposed of, or destroyed without any
hazard to the environment. To this end,

packaging materials are labelled appropriately.

The symbol on the product or its packaging indicates
that the product should not be treated as normal
household waste. The product should be taken to an
authorized collection center for waste electric and
electronic equipment processing.

Correct disposal of the product will help prevent any
negative eff ects on the environment and health of people
which could occur in case of incorrect product removal.
For detailed information on removal and processing of
the product, please contact the relevant municipal body
in charge of waste management, your waste disposal
service, or the store where you bought the product.

30

We reserve the right to any changes and errors in the instructions for use.

COOKING TEST

Food tested in compliance with the EN 60350-1 standard.

Microwave cooking

Dish Equipment Guide

(from the
bottom)

Glass container,
dimension 25x25

Egg custard, 1000 g

Sponge cake

Meatloaf, 900 g

Defrost meat (minced
meat), 500 g

Defrosting raspberries,
250 g

cm, uncovered
+ glass baking
dish

Round glass
container,
diameter 22
cm, uncovered
+ glass baking
dish

Glass container,
dimensions
25x 12.5 cm,
uncovered +
glass baking
dish

Glass baking
dish

Glass container,
uncovered +
glass baking
dish

1 360 23-28

1 360 22-25

1 600 10

1 360 12-15

1

1 180 7-7.30

Power
(W)

180 8

90 15-17

Cooking time
(min)

System

* Preheat for 10 minutes. Do not use fast preheat function

Combined microwave cooking

Dish Equipment Guide

(from the
bottom)

Round glass
container,
diameter

Potato gratin

Cake

Chicken (1,2 kg)*

22 cm,
uncovered +
glass baking
dish

Round glass
container,
diameter
22 cm,
uncovered +
glass baking
dish

Glass
container,
uncovered +
glass baking
dish

1 190 600 25-30

1 180 180 22-25

1 210-220 360 45-55

Temperature
(°C)

Power
(W)

Cooking time
(min)

System

31

SOLO MW_DM_45

en (09-16)
