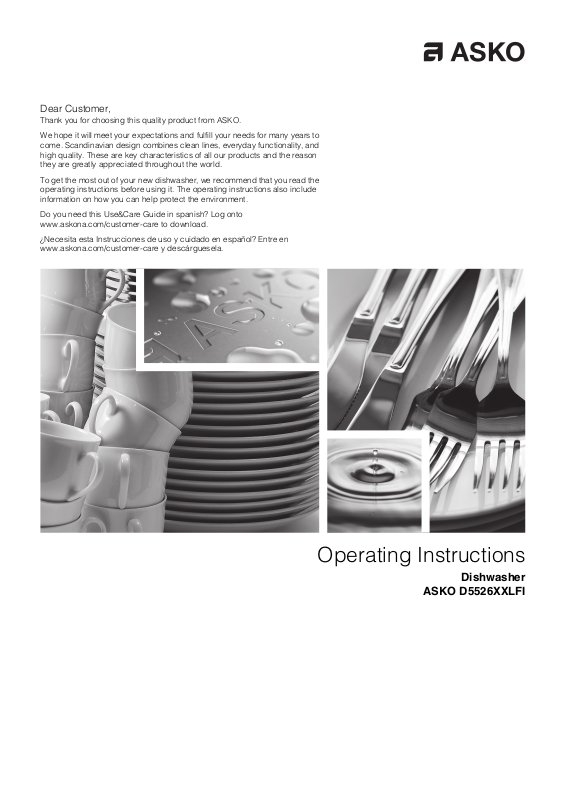

Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfill your needs for many years to
come. Scandinavian design combines clean lines, everyday functionality, and
high quality. These are key characteristics of all our products and the reason
they are greatly appreciated throughout the world.
To get the most out of your new dishwasher, we recommend that you read the
operating instructions before using it. The operating instructions also include
information on how you can help protect the environment.
Do you need this Use&Care Guide in spanish? Log onto
www.askona.com/customer-care to download.
¿Necesita esta Instrucciones de uso y cuidado en español? Entre en
www.askona.com/customer-care y descárguesela.
Operating Instructions
Dishwasher
ASKO D5526XXLFI
Contents
41 32 5
6 7 8
9
Front panel
2Front panel
3Important safety instructions
4Before washing for the first time
5Loading the dishwasher
7Using the dishwasher
9Settings
11Care and maintenance instructions
13Troubleshooting
15Technical information
16Service
17Program chart
18Notes
1 On/Left-on mode
2 Program selector
3 Program symbol
The panel is fitted with touch buttons with audible feedback (see the chapter Settings).
4 Display
5 Rinse aid indicator
6 Child lock (button lock)
7 High temperature
8 Long dry
9 Start/Stop
NOTE!
• Two minutes after the last button press, the panel backlight enters energy saving mode. Close and reopen the door, or press the
On/Left-on mode button, to reactivate the panel.
2
Important safety instructions
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARNING!
When using your dishwasher, follow basic precautions, including the following:
• Read all instructions before using the dishwasher.
• Use the dishwasher only for its intended function.
• Use only detergents or wetting agents recommended for
use in a dishwasher and keep them out of the reach of
children.
• When loading items to be washed:
– locate sharp items so that they are not likely to damage
the door seal, and
– load sharp knives with the handles up to reduce the risk
of cut-type injuries.
• Do not wash plastic items unless they are marked “dishwash-
er safe” or the equivalent. For plastic items not so marked,
check the manufacturer’s recommendations.
• Do not operate the dishwasher unless all enclosure panels
are properly in place.
• Do not tamper with controls.
• Do not abuse, sit on, or stand on the door or dish rack of
the dishwasher.
• To reduce the risk of injury, do not allow children to play in
or on a dishwasher.
• Under certain conditions, hydrogen gas may be produced
in a hot water system that has not been used for two weeks
or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water
system has not been used for two weeks, before using the
dishwasher turn on all hot water faucets and let the water
flow from each for several minutes. This will release any
accumulated hydrogen gas. As the gas is flammable, do
not smoke or use an open flame during this time.
• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
• Read the grounding instructions in the installation instructions.
• Should a child swallow dishwasher detergent or rinse aid,
give plenty to drink immediately, i.e., one or two glasses of
milk or water. Do not try to induce vomiting. Seek medical
advice immediately: Call the National Capital Poison Center
at 1-800-222-1222.
• Always close the door and start the dishwasher as soon as
you put in the detergent.
• Always keep small children away from the machine when it is
open. There may be some detergent residue left inside the
machine.
• If dishwasher detergent gets in someone’s eyes, rinse them
with plenty of water for at least 15 minutes.
Activate child lock (Kid Safe™)
You can activate the child lock (button lock) to prevent children
from starting the dishwasher (see the section Settings).
Winter storage/Transport
• Store the dishwasher where the temperature remains above
freezing.
• Avoid long transport distances in very cold weather.
• Transport the dishwasher upright or laying on its back.
Overflow guard function
The overflow protection starts pumping out the machine and turns
off the water supply if the water level in the dishwasher exceeds
the normal level. If the overflow protection is triggered, turn off
the water supply and call the Customer Care Center.
Care and maintenance instructions
When cleaning the edge around the door, use only a slightly
damp cloth. Do not spray water around the edge! Moisture can
make its way into the lock, which contains electrical components.
Packing material
Please sort waste materials in accordance with local guidelines.
General
• Do not run the dishwasher while you are out of the home.
• Do not store or use combustible materials, gasoline, or other
flammable vapors and liquids in the vicinity of this or any
other appliance.
• Disconnect electrical power to dishwasher before servicing.
• Repairs should be done by a qualified technician.
WARNING!
This product may contain chemicals known to the state of California to cause cancer or reproductive harm.
Child safety
TIP!
Dishwasher detergents and rinse aids are corrosive, so always
keep them out of reach of children.
Disposal
• When the machine has reached the end of its service life and
is to be disposed of, it should immediately be made unusable.
Pull out the power cable and cut it as short as possible.
• The dishwasher is manufactured and labeled for recycling.
• Contact your municipality for information about where and
how your dishwasher can be recycled correctly.
3
Before washing for the first time
Water supply
The machine can be connected to either a hot (max. 160 °F, 70
°C) or cold water supply. We recommend a cold water supply.
The water pressure should be 4.2-140 psi. See also the section
Economic dishwashing in the chapter Loading the dishwasher.
Program key
Some dishwashers include program keys in different languages.
Attach the program key in the appropriate language to the top
of the door.
Checking water hardness
Contact the local water utility to check the water hardness in your
area. This is important to determine how much detergent and
rinse aid to use.
Fill with rinse aid
Use rinse aid to improve wash and dry times. Also use rinse aid
to achieve clear and spotless results.
1 Open the rinse aid compartment lid.
2 Carefully top up with rinse aid. Only add rinse aid to the level
marked max.
3 Wipe up any spilled rinse aid around the compartment.
4 Close the lid firmly.
Setting the rinse aid dosage
The section Settings describes how to set rinse aid amount. The
rinse aid amount can be set from (Off) to (High dose).
(Factory settings: )
Increase the rinse aid dosage:
• If the dishes have water marks.
Reduce the rinse aid dosage:
• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Heavy foaming. If you have very soft water, the rinse aid can
be diluted 50:50 with water.
Refill rinse aid indicator
When the rinse aid needs topping up, the above symbol lights
on the display.
NOTE!
After topping up, it may take a while before the symbol goes
out.
4
Loading the dishwasher
Economic dishwashing
Run programs only with a full load
Wait until the dishwasher is fully loaded before running a program,
this way you save energy. Use the Rinse & Hold program to rinse
the dishes if there are any unpleasant odors while you wait for
the dishwasher to become fully loaded.
Run programs at a lower temperature
If the dishes are only lightly soiled, you can select a lower temperature with certain programs. See also the section Selecting
Options in the chapter Using the dishwasher.
Select a program with the option Short dry
To save energy, use Short dry. The drying result will be better if,
once the program is finished, you leave the door slightly open.
Do not rinse under running water
Simply scrape off large food particles before loading the dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Connect to cold water...
If you use oil or electricity to heat your home.
Connect to hot water (max. 160 °F (70 °C))...
If you use district heating, solar power, or geothermal power to
heat your home. Choosing a hot water connection cuts program
times and reduces the dishwasher's electricity consumption.
Typical load for 10 place settings
Upper basket with 10 place settings AHAM DW-1
Fragile dishes
Some cookware is not dishwasher safe. This can be for several
reasons. Some materials cannot withstand high temperatures,
others can be damaged by dishwasher detergent.
Fragile decoration
Porcelain with decoration on top of the glazing (the items feel
rough) should not be washed in a dishwasher.
Crystal/Glass
Position items so they do not touch during operation. Use a short
program with the lowest possible wash temperature. Select Short
dry. Do not wash fragile items in the dishwasher.
Glass washed at high temperatures can develop a gray film that
cannot be removed. Wash fragile glasses at a low temperature
with a small amount of detergent.
Silver
Silver and stainless steel items should not come into contact, as
the silver can become discolored.
Cutlery with glued handles
Some types of glue are not dishwasher safe. In such cases, the
handles may loosen.
Wood
Wooden items should only be washed in a dishwasher if marked
dishwasher safe.
Aluminum
Aluminum can lose its shine if washed in a dishwasher. However,
good quality aluminum pans can be washed in a dishwasher,
even if some of the shine will be lost.
Plastic items
Avoid washing plastic items that cannot withstand high temperatures.
Lower basket with 10 place settings AHAM DW-1
The baskets
The dishwasher includes an upper, a lower, and a cutlery basket.
The basket appearance may differ depending on the configuration.
Upper basket
Place glasses, cups, bowls, side plates, and saucers in the upper
basket. Place all soiled surfaces down! Place wine glasses on
the wine shelf. Place knives on the knife stand, if applicable.
5
Lower basket
a
c
b
Place plates, side plates, serving dishes, pots, and cutlery (in
the cutlery basket) in the lower basket.
Place pots and pans in the rear right of the lower basket to best
utilize dishwashing performance from the rear spray nozzle
(WideSpray™), which is intended for these types of dishes.
Fold-down section for small items
The cutlery basket has a fold-down section in the middle for small
items, or small shafts, such as electric whisk attachments.
NOTE!
Check that the spray arms can rotate freely.
Cutlery basket
Place cutlery with the handles facing down, except for knives,
and spread them out as much as possible. Ensure that spoons
do not stack inside each other.
The cutlery basket is best placed in the middle at the front of the
lower basket to best utilize dishwashing performance from the
unique spray nozzle (Power Zone Cutlery™), which is intended
for the cutlery basket.
WARNING!
6
Knives and other pointed items must be placed with the points
down in the cutlery basket or horizontally in other baskets.
