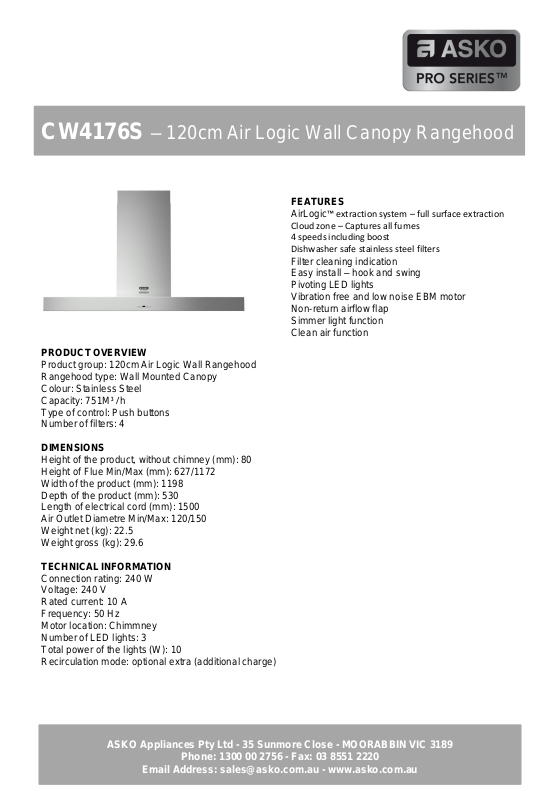

ASKO CW4176S Specifications Sheet

CW4176S – 120cm Air Logic Wall Canopy Rangehood

FEATURES

AirLogic™ extraction system – full surface extraction

Cloud zone – Captures all fumes
4 speeds including boost
Dishwasher safe stainless steel filters

Filter cleaning indication
Easy install – hook and swing
Pivoting LED lights
Vibration free and low noise EBM motor
Non-return airflow flap
Simmer light function
Clean air function

PRODUCT OVERVIEW

Product group: 120cm Air Logic Wall Rangehood
Rangehood type: Wall Mounted Canopy
Colour: Stainless Steel
Capacity: 751M³/h
Type of control: Push buttons
Number of filters: 4

DIMENSIONS

Height of the product, without chimney (mm): 80
Height of Flue Min/Max (mm): 627/1172
Width of the product (mm): 1198
Depth of the product (mm): 530
Length of electrical cord (mm): 1500
Air Outlet Diametre Min/Max: 120/150
Weight net (kg): 22.5
Weight gross (kg): 29.6

TECHNICAL INFORMATION

Connection rating: 240 W
Voltage: 240 V
Rated current: 10 A
Frequency: 50 Hz
Motor location: Chimmney
Number of LED lights: 3
Total power of the lights (W): 10
Recirculation mode: optional extra (additional charge)

ASKO Appliances Pty Ltd - 35 Sunmore Close - MOORABBIN VIC 3189

Phone: [phone] - Fax: [phone]

Email Address: [e-mail] - www.asko.com.au
