ARM Electronics JDVR User Manual

Download

Best picture quality DVR

JPEG2000 Stand-alone DVR

Installation & Safeguards

Ver 1.1

INSTALLATION & SAFEGUARDS

All the safety and operating instructions should be read before the unit is operated.

Environment Condition for Installation

- To prevent electric shock or other hazard, do not expose units to rain, moisture, or dust.

- This unit should be located in an area with low humidity and a minimum of dust..

- Place this unit in a well-ventilated place and do not place heat-generating objects on this unit.

- This unit should not be located in an area where it is likely to be subjected to mechanical shocks.

Before You Start

- Ensure the power switch is in the OFF position prior to starting.

- Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards.

- Installation should be performed by qualified service personnel only.

- This unit should be operated only from the type of power source indicated on the manufacturer’s label and with the power supply included with the unit.

Notice

- Before initial configuration or operation you must first set the TIME/DATE, followed by

setting the unit to the FACTORY DEFAULT settings, lastly clearing the HDD. Please follow these steps in order.

- Before installing a second HDD, ensure that the drive conforms to the specifications

listed on the specifications page at the end of this manual. Pull the unit out of record mode prior to cutting power to the unit. Do this by entering the setup menu, followed by switching the unit off. Powering off the unit while writing to the disks can cause critical malfunctions. (ex: Recording Error, Playback Error, System Error)

- When you set the record type, you have to set the Record Configuration and also

Schedule Setup. This unit records as per the Record type & Schedule setup.

- The [REC] button on the front panel is for emergency record using highest image quality.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the

user of this equipment that there are dangerous voltages within the enclosure which may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to presence of important operating and maintenance(Servicing) instructions in the literature accompanying the appliance.

Best picture quality DVR

JPEG2000 Stand-alone DVR

Contents

3----------------------------------------------------------------Features & Package ContentsCHAP. 1

3----------------------------------------------------------------Features1-1.

4----------------------------------------------------------------Package Contents1-2.

5----------------------------------------------------------------Function of Each ButtonCHAP. 2

5----------------------------------------------------------------Front2-1.

7----------------------------------------------------------------Rear2-2.

8----------------------------------------------------------------InstallationCHAP. 3

8----------------------------------------------------------------Installation Configuration3-1.

9----------------------------------------------------------------Detailed Installation3-2.

9----------------------------------------------------------------HDD(Hard Disk Drive)1)

10----------------------------------------------------------------Camera2)

10----------------------------------------------------------------Monitor3)

10----------------------------------------------------------------Power4)

11----------------------------------------------------------------VCR, Video Printer5)

11----------------------------------------------------------------Other External Device6)

12----------------------------------------------------------------Connector Pin Assignment7)

12----------------------------------------------------------------RS-232C ASCII-code8)

13----------------------------------------------------------------OperationCHAP. 4

13----------------------------------------------------------------Start-up DVR4-1.

13----------------------------------------------------------------System Log-in4-2.

14----------------------------------------------------------------Factory Default4-3.

14----------------------------------------------------------------Display Configuration4-4.

15----------------------------------------------------------------Live View Setup4-5.

15----------------------------------------------------------------Full / Multiple View1)

15----------------------------------------------------------------Sequencing Cameras2)

15----------------------------------------------------------------PIP View3)

15----------------------------------------------------------------Freeze View4)

15----------------------------------------------------------------Zoom View5)

16----------------------------------------------------------------Record4-6.

16----------------------------------------------------------------Playback4-7.

17----------------------------------------------------------------Search4-8.

Best picture quality DVR

JPEG2000 Stand-alone DVR

Contents

18----------------------------------------------------------------PTZ Camera Operation4-9.

18----------------------------------------------------------------Data Back-Up4-10.

19----------------------------------------------------------------Set UpCHAP. 5

19----------------------------------------------------------------Entering the Menu5-1.

20----------------------------------------------------------------Display Setup5-2.

20----------------------------------------------------------------Screen Display1)

20----------------------------------------------------------------Monitor Setup2)

21----------------------------------------------------------------Configuration5-3.

21----------------------------------------------------------------HDD Management1.

22----------------------------------------------------------------TIME/DATE Setup2.

22----------------------------------------------------------------Camera Setup3.

24----------------------------------------------------------------Interval Setup4.

24----------------------------------------------------------------Alarm Setup5.

25----------------------------------------------------------------Buzzer Setup6.

25----------------------------------------------------------------Password Setup7.

25----------------------------------------------------------------System Information8.

26----------------------------------------------------------------Record Setup5-4.

26----------------------------------------------------------------Record Configuration1.

27----------------------------------------------------------------Schedule Setup2.

27----------------------------------------------------------------Holiday Setup3.

28----------------------------------------------------------------Back-Up5-5.

28----------------------------------------------------------------External Device5-6.

29----------------------------------------------------------------TCP/IP Setup1.

29----------------------------------------------------------------RS-232C Setup2.

29----------------------------------------------------------------Pan Tilt Zoom Setup3.

30----------------------------------------------------------------FACTORY Default5-7.

30----------------------------------------------------------------Language Setup5-8.

6-2. 6-3. 6-4.

Remote Viewer Program Back-Up CD Player FAQ

----------------------------------------------------------------

31----------------------------------------------------------------Network SetupCHAP. 6

31----------------------------------------------------------------DVR Network Configuration6-1.

38 43 45

50----------------------------------------------------------------SpecificationsCHAP. 7

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 1 Features & Package Contents

1-1. Features

Live View

Real time display per camera Auto Sequence PIP (Picture in picture) Digital Zoom Display Freeze Simple Playback mode Simple PTZ camera control

Record

Variable Record resolution (For higher picture quality or higher recording speed) Efficient Image Quality setup in 5 steps Schedule Record / Holiday Record Event Record (Alarm / Motion) Emergency Record

Network

View Live and Playback images across IP network Copy images across the network

Playback

Search & Playback by Date/Time, Event, Camera Outstanding picture quality by JPEG 2000 compression algorithm (No mosaic effect) Suitable for recording not only images but also text Various steps in Forward Playback Speed (X1/16, X1/8, X1/4, X1/2, X2, X4, X16, X32, X64) Various steps in Backward Playback Speed (X1/16, X1/8, X1/4, X1/2, X2, X4, X16, X32, X64)

Data Back-Up

Simple Back-Up using built-in CD Writer (Back-up CD Player included in the package) Network Back-Up using Remote Viewer program(Remote Viewer included in the package) Supports bigger capacity of HDD (400GB or bigger)

Others

Multi-Language (English, Spanish, Portuguese, German, French, Italy, Japan, Chinese) VGA support both TFT LCD monitor and CRT monitor (option) Lock the system by Password PAL/NTSC Auto detection Control the unit by using Remote Controller

Best picture quality DVR

JPEG2000 Stand-alone DVR

1-2. Package Contents

CHAP. 1 Features & Package Contents

3. Power Cable

1. DVR Main Unit

4. Power Adapter 5. User’s Manual

7. Battery for remote controller 8. Bolts

DescriptionPackage Contents

STAND-ALONE DIGITAL VIDEO RECORDER1. DVR Main Unit

DVR control 2. Remote Controller

2. Remote Controller

6. Software CD

AC power supply to adapters for 12 V DC power3. Power Cable

12 V DC power supply to DVR main board4. Power Adapter User’s Manual5. User’s Manual

Remote Viewer Software & Back up CD player6. Software CD

Battery for remote controller7. Battery

For attaching Hard Disk Drive into DVR8. Bolts

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 2 Function of Each Button

Shows status of operation① LED Lamps

IR receiver② IR

1. Pressing this button will display a full screen image of that camera③ Camera

selection & PTZ camera control

2. Control PTZ camera (Each button is assigned for each PTZ command)

• ON : LIGHT ON

• OFF : LIGHT OFF

2-1 FRONT

FunctionName

• SET : SET PRESET

• CLEAR : CLEAR PRESET

Playback

• OPEN : IRIS OPEN

• CLOSE: IRIS CLOSE

• NEAR : FOCUS NEAR

• FAR : FOCUS FAR

• WIDE : ZOOM IN

• TELE : ZOOM OUT

REC④ Record /

STOP

PLAY

MENU⑤ SETUP

ENTER

▲▼◀▶

Emergency Record at continuous, 60ips, SUPER FINE size

Record Stop, Playback Stop, or Return to Schedule Record from Emergency Record

Playback of recorded data on HDD

Search recorded data on HDD

Set up for SYSTEM MENU or Use to exit the menu

Selects each menu option

Move to next step

Navigate in the menu

• GOTO : GOTO PRESET

• AUTO : AUTO SCAN

• F1 : USER 1

• F2 : USER 2

• F3 : USER 3

• F4 : USER 4

+ -

Reduce or increase the option value in the menu

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 2 Function of Each Button

FunctionName

Control

⑦ CD-RW

PTZ⑥ LIVE View

On/Off for PAN/TILT/ZOOM control mode Press this button first to control PTZ camera connected to

DVR unit via RS-485

ZOOM

FREEZE

MODE

Zooming an image

Freezing an Image

Switch to split display MODE button changes screen-division from (to) full screen

to (from) 4-split screen.

PIP

SEQ

K.LOCK

Display in PIP (Picture in Picture) mode

Auto camera image sequencing in full screen mode

Lock the key function

Data Back-up using built-in CD writer

Best picture quality DVR

JPEG2000 Stand-alone DVR

4 Channel

8 Channel

CHAP. 2 Function of Each Button

2-2. REAR

16 Channel

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 3 Installation

FunctionName

RS 485

SENSOR Input

VGA

ETHERNET

RS-232C

CAMERA Input

LOOP Output

MONITOR

Output

VCR Output

DC Power

SWITCH

USB Device

Connection with PTZ Camera or other external device using RS 485 interface (Pin 1: D- / Pin 2: D+)

Relay out terminalRELAY Output

Sensor input terminal

Connection to VGA Monitor (CRT type or TFT LCD monitor)

Connection to ETHERNET device

Connection to external device as PC using RS-232C to control the DVR

Connection with camera

Camera loop out

Connection with Composite Monitor

Connection with VCR for analog backup

DC power input (DC12V, 10A )

Power ON/OFFPOWER

Firmware upgrade by connecting PC with latest firmware to USB port

CHAP.3 Installation

3-1. Installation Configuration

Best picture quality DVR

JPEG2000 Stand-alone DVR

3-2. Detailed Installation

1) HDD

CHAP. 3 Installation

1. Connect Main Board and HDD using IDE cable and HDD power cable.

2. The jumper setting of HDD should be on Master if you install only one HDD.

3. The jumper setting of HDD1 should be on Master

4. Stick the HDD absorber (included in package) on the bottom of case and then install the HDD on top of them by using the bolts (included in package).

5. Screws must be inserted from outside of the case bottom.

Best picture quality DVR

JPEG2000 Stand-alone DVR

2) Camera

Connect cameras to the camera input on rear panel of DVR marked CAMERA IN.

3) Monitor

CHAP. 3 Installation

Connect the video output marked MONITOR to Video In of Main monitor.

4) Power

Insert the ADAPTER to the rear power socket of DVR. ADAPTER specification: Input AC 110~240V / Output DC12V 10A

Best picture quality DVR

JPEG2000 Stand-alone DVR

5) VCR

Connect VCR or VIDEO Printer to VCR out on the rear panel of DVR.

6) Other External Device

CHAP. 3 Installation

VGA

MONITOR

PAN/TILT CAMERA

SIREN

SENSOR

RS-232C : Control DVR through RS-232C port by using PC. RS-485 : Control external device like PTZ Camera (Pin 1, 2 at Terminal Block). RELAY Output : Relay Output (Pin 3 ~5 at Terminal Block). SENSOR Input : SENSOR Input (Alarm connection) ETHERNET : Connection to LAN, WAN, Internet. VGA : Connection with VGA monitor(CRT,TFT LCD).

Select VGA in DISPLAY SETUP menu before connection to VGA monitor. Setting VGA option board (For both CRT type PC monitor or TFT LCD monitor)

Best picture quality DVR

JPEG2000 Stand-alone DVR

7) Connector Pin Assignment

CHAP. 3 Installation

DescriptionNODescriptionNo

Data Set ReadyDSR6Data Carrier DetectDCD1

RS232C: Rx/Tx dataRTS7Receive dataRxD2

RS232C: Rx/Tx dataCTS8Transmit dataTxD3

9Data Terminal dataDTR4

Signal GroundGND5

Com m Port

1 5

6 9

8) RS-232C ASCII-code

RS-232C

Following ASCII-Codes(Hexa-Code) are for programmers who want to control DVR unit via the RS232C Port using keyboard of PC.

All ASCII-Code is 1 Byte.

REC

STOP

PLAY

SERCH

DOWN

‘R’

‘S’

‘P’

‘E’

‘M’

‘U’

‘J’

LEFT

RIGHT

PTZ

‘H’ ‘K’

‘N’

‘<‘

‘>’

‘T’

ZOOM

FRZ

MODE

PIP0x0dENTER

SEQ

J.SHU

KLOCK

‘Z’ ‘F’

‘D’

‘I’

‘Q’

‘L’

‘C’

QPLAY

CH1

CH2

CH3

CH4

CH5

CH6

‘Y’ ‘1’

‘2’

‘3’

‘4’

‘5’

‘6’

CH7

CH8

CH9

CH10

CH11

CH12

CH13

‘7’ ‘8’

‘9’

’0’

’!’

’@’

’#’

CH14

CH15

CH16

’$’

’%’

’^’

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP.4 Operation

4-1. Start-up DVR

Before turning on the DVR be sure that everything is firmly connected. Turn on the DVR and g o to the Menu using the relevant Login Password and you will then see the System Setup Screen. You may proceed by referring to the related chapters describing the various functions.

CHAP. 4 Operation

DVR LOG-IN

4-2. System Log-In

ENTER PASSWORD : _ _ _ _ _ _ _ _

INPUT YOUR OWN PASSWORD

1) To enter into the setup menu, press the [MENU] button.

TO EXIT, PRESS [MENU]

2) Enter password with channel number button from No.1 to No.10 on the front of the DVR unit. (Maximum of 8 digits are available)

3) After inputting the password, press the [ENTER] button.

Administrator : If the password entered matches previously set password, “ LOGIN ADMIN” message appears and you can enter into SYSTEM SETUP. If the password entered does not match previously set password, the DVR unit goes back to live display mode.

Factory default password is blank. For log-in, just press [MENU] button, followed by the [ENTER] button.

-Factory default password ADMIN : (NULL) MANAGER : ‘ 1 ’ USER 1~USER8 : ‘ 2 ’ ~ ’ 9 ’

※ We recommend configuring a unique password as per the procedure in

SYSTEM MENU - CONFIGURATION - PASSWORD SETUP.

※ For security reasons, be sure to make note of your own password.

Best picture quality DVR

JPEG2000 Stand-alone DVR

4-3. Factory Default

Before initial configuring or operation you must first set Time/Date, followed by setting the unit to the FACTORY DEFAULT settings, lastly clearing the HDD. Please follow these steps in order. Improper operation may result if this action is not taken.

CHAP 4. Operation

1. HDD CLEAR

DISPLAY SETUP

CONFIGURATION

REOCRD SETUP BACK-UP EXTERNAL DEVICE FACTORY DEFAULT LANGUAGE

Refer to page 22.

4-4. Display Configuration

1. Current Time & Date

2. FACTORY DEFAULT

HDD MANAGEMENT

TIME/DATE SETUP CAMERA SETUP INTERVAL SETUP ALARM SETUP BUZZER SETUP PASSWORD SETUP SYSTEM IMFORMATION

HDD Status In live mode : Amount of data recorded In Playback mode : Amount of data played

2005/JUN/03 pm 08:05:18

CAM-01 CAM-03 CAM-04

CAM-02

DISPLAY SETUP CONFIGURATION REOCRD SETUP BACK-UP EXTERNAL DEVICE

FACTORY DEFAULT

LANGUAGE

Refer to page 31.

ETHERNET status

3. Status of DVR system Emergency Record (Red) Schedule Record (Green) Temporary Stop (White) Stop Forward Playback Backward Playback Pause 1/16~1/2x forward playback 1/16~1/2x backward playback 2~16x forward playback 2~16x backward playback 16~64x forward playback 16~64x backward playback

ALARM Record

MOTION Record

CONTINUOUS Record

4 Channel

50/60 IPS @ 720x240

100/120 IPS @ 360x240

8/16 Channel

100/120 IPS @ 720x240

200/240 IPS @ 360x240

LIVE Display

2. Camera Title

BASIC

NORMAL

ENHANCED

FINE

SUPER FINE

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 4 Operation

4-5. Live View Setup

1) Full / Multiple View

Switch to multi-screen display by pressing [MODE]. For full image display, just press the channel button which you want or [MODE] button again.

Full screen

Multi-screen

[MODE]

[MODE] or Channel button

2) View in Sequence

Press [SEQ] button. It automatically displays full screen images in sequence.

CH16

CH15

CH02

CH01

●

3) Picture in Picture(PIP View)

When it is in full screen display mode, you can see other camera in a small window by pressingping [PIP].The other camera in small window is rotating in sequence to next number of camera and you can set the rotating time interval as per the procedure in SYSTEM MENU-CONFIGURATIONINTERVAL SETUP.

CAM-01

4) Freeze View

Full display mode : If you press the [FREEZE] button, the “F” character will be shown beside

camera title, and live image will be frozen.

Split display mode : If you press the [FREEZE] button, press the channel button which you

want to freeze.To release frozen image, press channel number of frozen image again and press [FREEZE] button to exit FRZ mode.

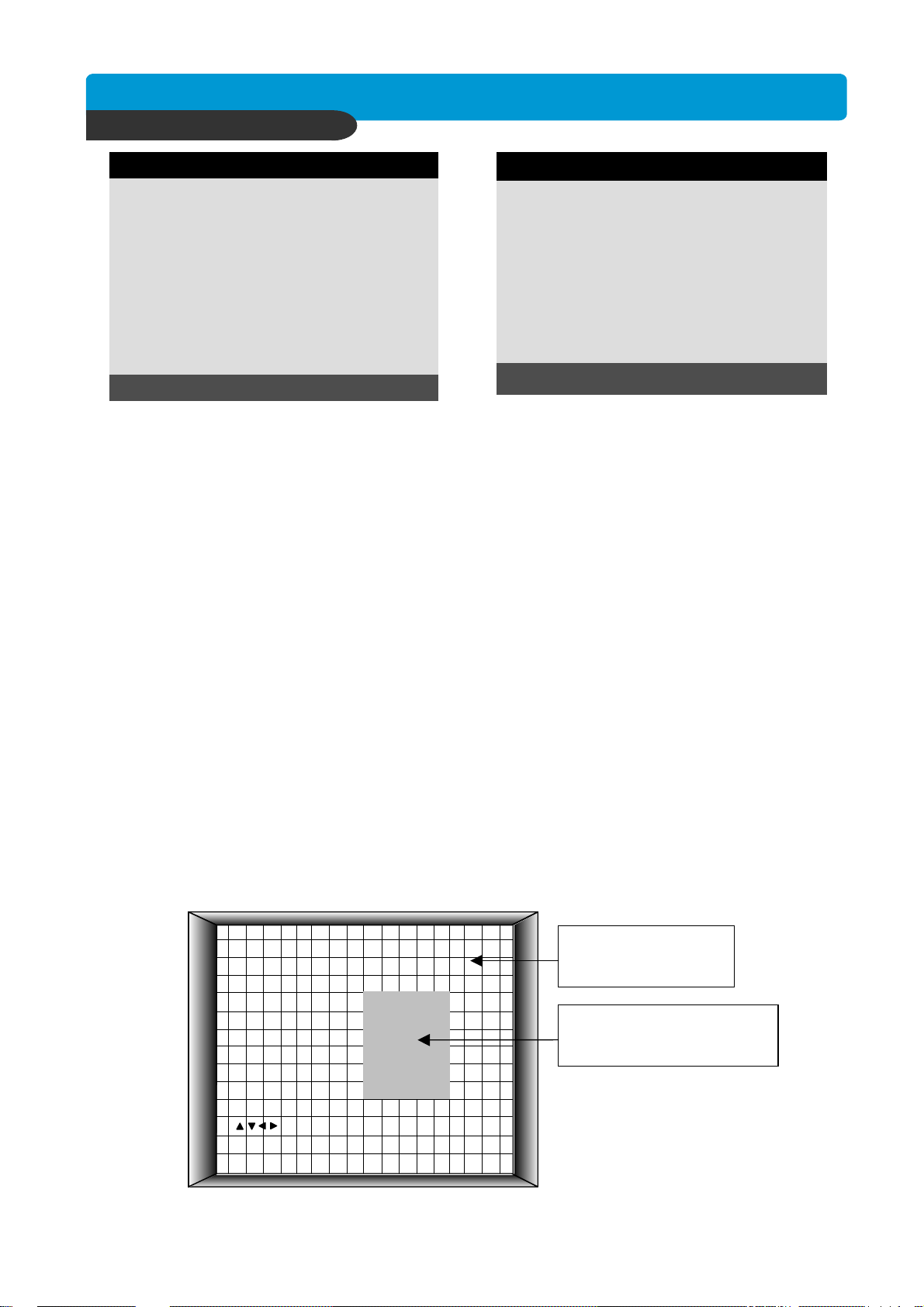

5) Zoom View

In full screen, press the [ZOOM] button and move the Selection Frame using direction keys to the area which you want to enlarge. And then press the [ENTER] button for 2-times enlarged picture. To exit Zoom mode, just press [ZOOM] button again.

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 4 Operation

4-6. Record

Recording mode set before delivery by manufacturer (Default recording mode) is Schedule Recording. In this default recording mode, it records 24 hours/day continuously in weekday and on the weekend. Once you press the [REC] button while you see live view, the record type is changed to Emergency Record mode.

- Emergency Record Record type : CONTINUOUS, SUPER FINE quality,

Emergency Record [RED]

60 (50) ips at 720X240 (720x288)

- Schedule Record

Schedule Record [GREEN]

Record and stop as set (time interval and record type) in RECORD-SCHEDULE SETUP menu.

Temporary Stop [WHITE]

- Temporary Stop Temporary Record stop as set in RECORD-SCHEDULE SETUP menu.

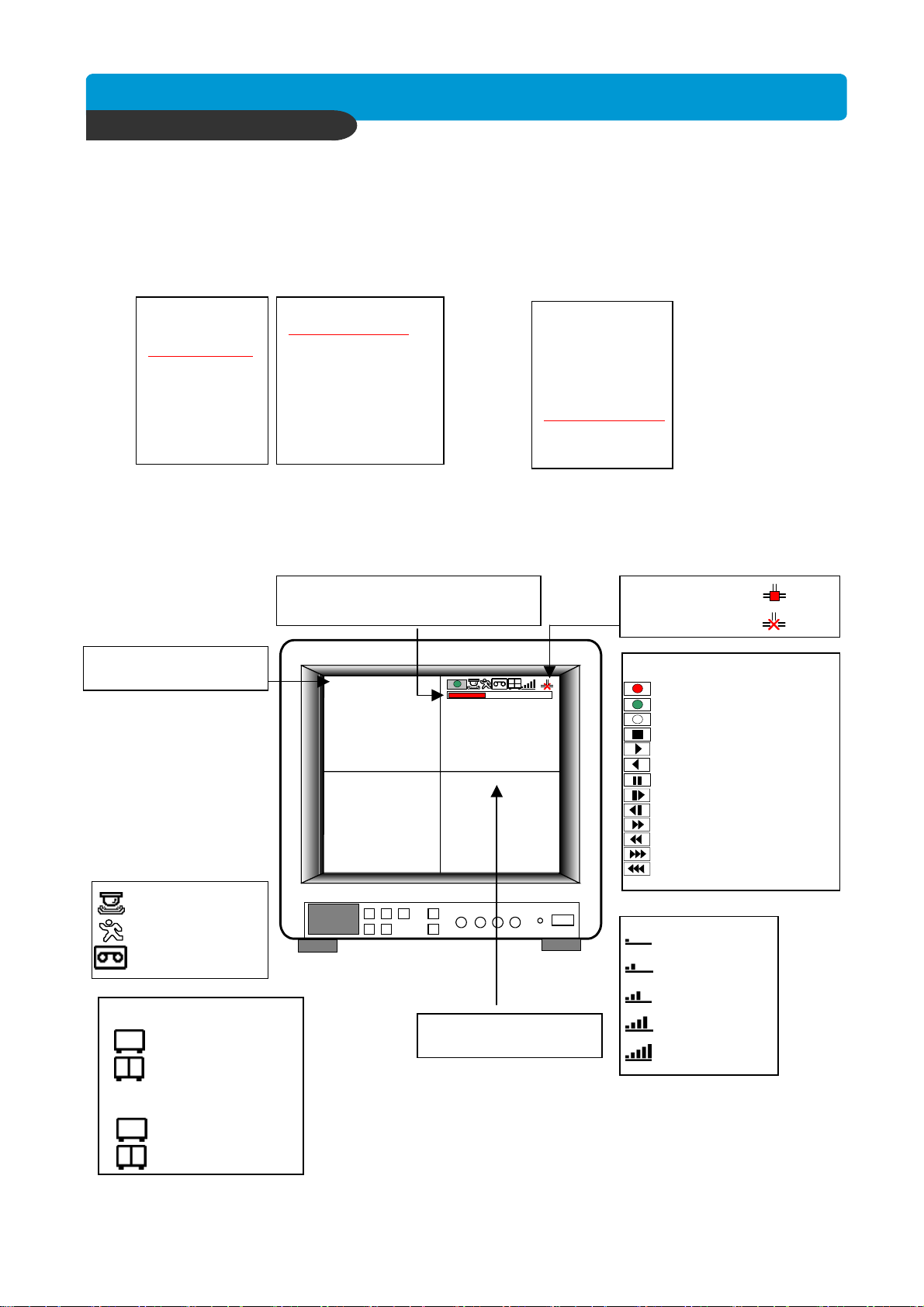

On the screen

2005/JUN/03 pm 08:05:18

- Emergency Record : Red Record Icon ( ) and Record LED is lit

- Schedule Record : Green Record Icon ( ) and Record LED is lit

- Temporary Stop

CAM-01 CAM-03 CAM-04

CAM-02

: White Icon ( ) and Record LED is off

- Motion Record : Record standby LED blinks : Record LED is lit

※ While in Emergency Record mode, press [STOP],

[PLAY], [MENU], or [SEARCH] button to exit from Emergency Recording mode and return to Schedule Record mode.

※ For details, refer to the SYSTEM MENU – RECORD

SETUP (Page 27)

- This DVR unit does not record in following conditions ;

※ In Simplex mode, this unit does not record while entered in the menu or while it is in Playback mode. ※ No camera is connected ※ HDD is full and Overwriting is off in the Record Setup menu.

4-7. Playback

On record mode or stop mode, press [PLAY] button to play the recorded data in 1x speed. For backward playback, press [PLAY] button again. Use [up] and [down] to control playback speed. To stop playback, press the [STOP] button. Press [Freeze] to pause playback.

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 4 Operation

4-8. Search

Press [SEARCH] button, and 3 different methods for searching recorded data are available as shown in following SEARCH window. For selecting searching method, use direction key or Jog/Shuttle. After selecting each search method, press [ENTER] button for playback.

1) SEARCH BAR Search by percentage of total recorded data. It starts from image corresponding to set % of data on the search bar.

2) TIME/DATE Search by time & date. Playback starts from the time & date selected.

3) EVENT LIST

Search by event list (Motion, Alarm, Video Loss).

SEARCH BAR

TIME/DATE

EVENT LIST

SELECT MENU : ▲▼, & [ENTER]

SEARCH page SEARCH BAR page

TIME/DATE

[START] 2005/JUN/20 AM04:04:12

[ END ] 2005/JUN/20 PM08:12:23

INPUT DATE/TIME

2005/JUN/07 AM04:04:12

SEARCH : [ENTER] , EXIT : [MENU]

RECORD SERCH BAR

[TARGET DATE/TIME]

020 %

SELECT : JOG SHUTTLE

SEARCH : [ENTER] , EXIT : [MENU]

EVENT LIST

----

---SELECT : ef, EDIT : + -

SEARCH : [ENTER] , EXIT : [MENU]

TIME/DATEEVEN

---- / - -/ --

001/000CH

-- : -- : --

TIME/DATE page EVENT LIST page

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 4 Operation

4-9. PAN/TILT/ZOOM Camera Operation

Press [PTZ] button first for PTZ control mode. Numeric buttons from 1 to 16 and direction buttons are assigned for each PTZ command, and user can control PTZ camera connected to DVR unit by pressing any one of those 20 buttons, one after the other, as needed, and it is just like control by separate PTZ controller.

PTZ commandButton

PRESET CLEAR

PRESET GOTO

PRESET AUTO

FUNCTION

TILT UP

TILT DOWN

PAN LEFT

5/NEAR

6/FAR

7/WIDE

8/TELE

9/SET

PTZ commandButton

LIGHT ON1/ON

LIGHT OFF2/OFF

IRIS OPEN3/OPEN

IRIS CLOSE4/CLOSE

FOCUS NEAR

FOCUS FAR

ZOOM IN

ZOOM OUT

PRESET SET

10/CLEAR

11/GOTO

12/AUTO

13/F1 ~ 16/F4

UP BUTTON

DOWN BUTTON

LEFT BUTTON

RIGHT BUTTON

4-10. Data Back-Up

Enter into SYSTEM MENU-BACKUP-CDR SETUP.

1) Insert empty CD-R media into CD writer and select the start time & date from which you want to back up.

※ The START & END time / date in HDD sub-menu only shows start and end of recording.

This is not selectable and editable.

※ 700MB on CD-R sub-menu represent size of CD-R media inserted.

2) To set start time of back-up and back-up data size, press the [ENTER] button first on [START] or [SIZE] sub-menu and adjust using [+] or [-] button and move using [LEFT] and [RIGHT] button for next change. After setting the time & date and back-up data size, press the [ENTER] button again to exit.

※ End of back-up time will be calculated automatically as per start time & date and the back-up

data size you set.

※ User can select the back-up data size (size of back-up data from start of back-up) on [SIZE] item but

END of back-up time is automatically determined by DVR system.

3) Press [ENTER] button on BURN sub-menu. DVR system starts burning CD.

4) When burning is completed, CD-R media will come out automatically. In the next CD back-up, start

time of CD-R shall be the end time of previous CD-back-up, and you can back-up from that for continuous data back-up. If you need another backup, repeat the above procedure. To stop backup, press the [MENU] button.

※ During burning CD, it’s impossible to cancel burning process.

5) User can verify the back-up CD on PC with BACK-UP CD PLAYER (Included in Package).

CD-R SETUP

HDD

[START] 2005/AUG/07 AM04:04:12 [ END ] 2005/AUG/08 PM08:12:23

CD-R

[START] 2005/AUG/07 AM04:04:12 [ END ] 2005/AUG/08 PM08:12:23 [ SIZE ] 000MB

BURN

SELECT MENU :cd, & [ENTER]

CD-R SETUP

HDD

[START] 2005/AUG/07 AM04:04:12 [ END ] 2005/AUG/08 PM08:12:23

CD-R 700 MB

[START] 2005/AUG/07 AM04:04:12 [ END ] 2005/AUG/08 PM08:12:23 [ SIZE ] 700 MB - > 700MB

BURN

CD-RW BURNING : IMAGE DATA.

SELECT MENU :cd, & [ENTER]

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 5 Set Up

5-1. Entering into the Menu

Enter into SYSTEM MENU by pressping [MENU] button.

CHAP. 5 Set Up

FunctionButton

ENTER

DOWN

LEFT

RIGHT

MINUS [-]

Enter into SYSTEM MENU, Move to previous menu, ESC

Selection key, Move to sub-menu, change status (ON or OFF)

Move to next page

Move to upper side

Move down side

Move to the left

Move to the right

Reduce the option value

Increase the option valuePLUS [+]

SCREEN DISPLAY MONITOR SETUP

HDD MANAGEMENT TIME/DATE SETUP CAMERA SETUP INTERVAL SETUP ALARM SETUP BUZZER SETUP PASSWORD SETUP SYSTEM INFORMATION

SYSTEM MENU

DISPLAY SETUP

CONFIGURATION

RECORD SETUP

BACK-UP

EXTERNAL DEVICE

FACTORY DEFAULT

LANGUAGE ENGLISH

SELECT MENU : ▲▼, & [ENTER]

SYSTEM MENU

RECORD CONFIGURATION SCHEDULE SETUP HOLIDAY SETUP

TCP/IP SETUP RS-232C SETUP PAN/TILT SETUP

Best picture quality DVR

JPEG2000 Stand-alone DVR

5-2. DIPLAY SETUP

Setting up parameters for monitor and display on screen. Enter into SYSTEM MENU-DIPLAY SETUP.

DISPLAY SETUP

CHAP. 5 Set Up

SCREEN DISPLAY MONITOR SETUP

SELECT MENU : ▲▼, & [ENTER]

LIVE PLAYBACK

VGA SETUP COLOR BAR TEST

1) SCREEN DISPLAY Setting up the screen display in LIVE mode and PLAYBACK mode.

2005/JUN/03 pm 08:05:18

Select the sub-menu which you would like to set using direction buttons and then change ON/OFF with [ENTER] button.

CAM-01 CAM-03 CAM-04

CAM-02

1. TIME/DATE : Display time & date

2. DVR STATUS : Display system setting status

3. REC/PLAY BAR : Display record / playback status

4. CAMERA TITLE : Display camera title

2) MONITOR SETUP

VGA SETUP : User have to select one the below option to optimize with the monitor using [+] [

button. After setting the below option, press [ENTER] button then the DVR unit will be rebooted automatically.

- 800-600 / 60Hz : set when the VGA monitor(800x600 / 60Hz) is connected to DVR unit

- 640-480 / 60Hz : set when the VGA monitor(640x480 / 60Hz) is connected to DVR unit

- 800-600 / 75Hz : set when the VGA monitor(800x600 / 75Hz) is connected to DVR unit

- 640-480 / 75Hz : set when the VGA monitor(640x480 / 75Hz) is connected to DVR unit

COLOR BAR TEST : Necessary to adjust color tone of monitor.

※ NOTICE : In the very first operation of this DVR unit which has VGA card in it, when the user

turn on the DVR, it takes a few second to boot up for initialization of VGA.

−

]

Best picture quality DVR

JPEG2000 Stand-alone DVR

5-3. CONFIGURATION

Various parameters for system can be set in CONFIGURATION menu. Enter into SYSTEM MENU-CONFIGURATION and press the [ENTER] button.

CONFIGURATION

CHAP. 5 Set Up

HDD MANAGEMENT TIME/DATE SETUP CAMERA SETUP INTERVAL SETUP ALARM SETUP BUZZER SETUP PASSWORD SETUP SYSTEM INFORMATION

SELECT MENU : ▲▼, & [ENTER]

HDD SETUP HDD INFORMATION

CAMERA TITLE CAMERA SETTING CAMERA ACTIVE SETUP MOTION SETUP

1) HDD MANAGEMENT

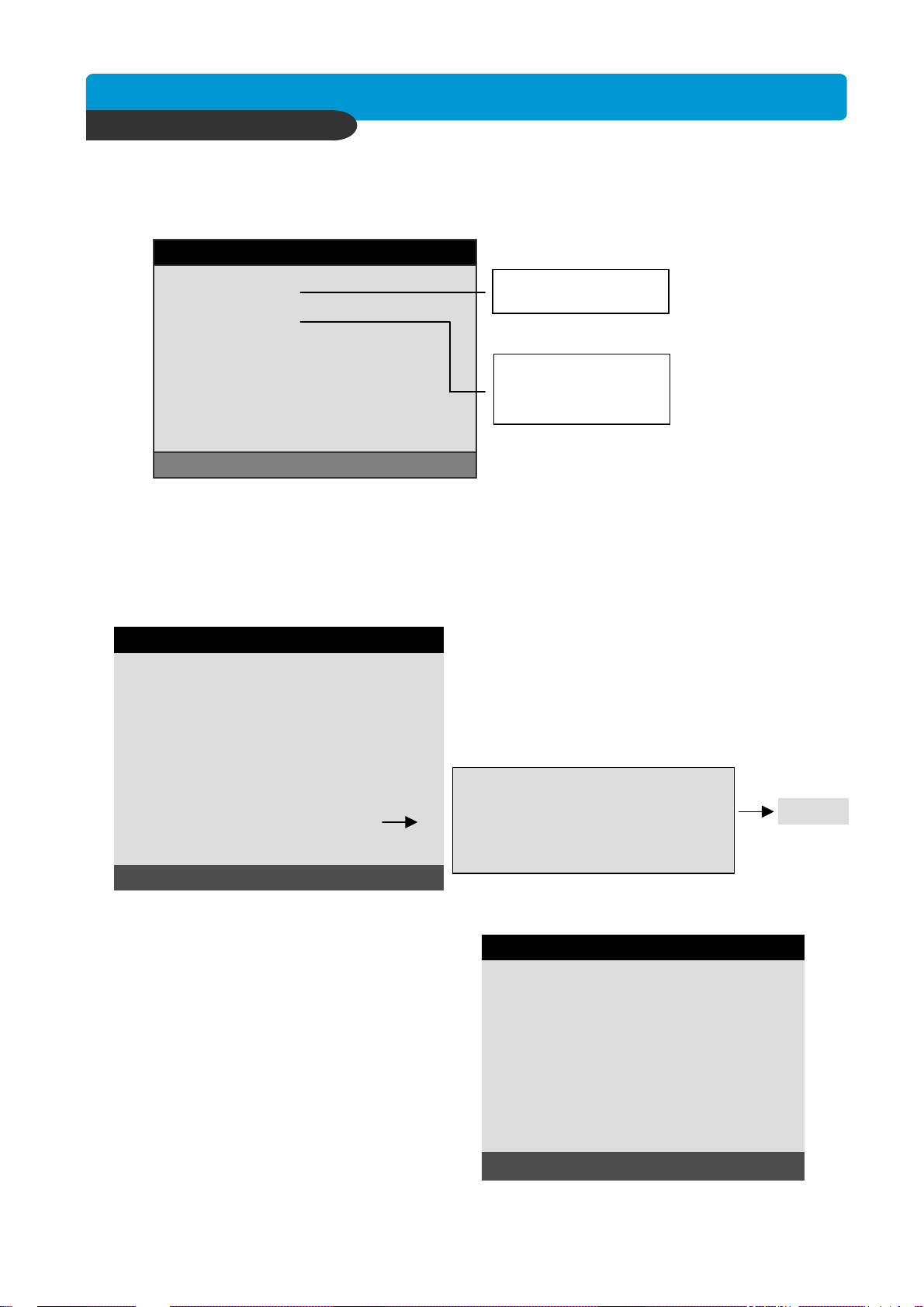

Enter into SYSTEM MENU-CONFIGURATION-HDD MANAGEMENT and press the [ENTER] button.

(1) HDD SETUP

This page includes information about start and end of recording, location of recorded data, or location of last playback on HDD. In addition, users can delete all the data on HDD.

HDD SETUP

On the [HDD CLEAR] sub-menu, press the [ENTER] button to delete all image data on HDD.

STATUS HDD DATE/TIME

---------------------------------------------------------------------BEGIN MASTER 2005/04/08

12:12:05

RECORD MASTER 2005/04/09

15:09:58

PLAY MASTER 2005/04/08

19:44:31

HDD STATUS NORMAL HDD CLEAR IN USE

The system will ask password for verification. After you clear all data on HDD, status of HDD CLEAR changes from IN USE to EMPTY. ※ When you clear HDD, event list is deleted, too.

ENTER PASSWORD : ________

INPUT YOUR OWN PASSWORD.

TO EXIT, PRESS [MENU]

EMPTY

HDD CLEAR [ENTER], EXIT [MENU]

(2) HDD INFORMATION

This menu will show the physical information of HDD in DVR.

[MASTER]

MODEL SPEED SIZE START END

[SLAVE]

MODEL SPEED SIZE START END

HDD INFORMATION

: Maxtor 6Y080L0 : PIO-4 : 76GB : 2005/04/08 12:08:56 : 2005/04/08 12:08:56

: AT5520026DT : 240/120nsec : 80GB : 2005/04/08 12:08:56 : 2005/04/08 12:08:56

TO EXIT, PRESS [MENU]

Best picture quality DVR

JPEG2000 Stand-alone DVR

2) TIME/DATE SETUP

CHAP. 5 Set Up

Set time and date of DVR system which is very important for search with time and date of the event. Time and date set by manufacturer is different from local time of user, and user must set time and date exactly in first operation. Set time & date using direction buttons and [-][+] button or Jog shuttle

3) CAMERA SETUP

CAMERA SETUP

CAMERA TITLE CAMERA SETUP CAMERA ACTIVE SETUP MOTION SETUP

TIME/DATE SETUP

YEAR

MONTH

DAY

HOUR

MINUTE

SECOND

SELECT : ▲▼, CHANE VALUE : - +

CAMERA TITLE SETUP

0123456789 .ABCDEFGHIJKLMNOPQ RSTUVWXYZ ! #-[ ]*+ -,./ :<=>?@▶◀

CAMERA01 CAM -1 CAMERA02 CAM -2 CAMERA03 CAM -3 CAMERA04 CAM -4

2005 / JUN /11

PM14:06:45

[ENTER] :SELECT MODE

SELECT MENU : ▲▼, & [ENTER]

[◀ / ▶ / + / - ] : EDIT CAMERA TITLE

(1) TITLE : Input Title of each camera. Move to channel you want to change using [LEFT] or [RIGHT]

direction button and then change the title using [-] [+] button. When modification is finished, press the [ENTER] button. To exit to previous menu, press the [MENU] button.

(2) COLOR : Adjust image color

CAMERA SETUP

Move to each element using [UP][DOWN] button and adjust using

[

] [+] button or Jog shuttle.

CHANNEL BRIGHTNESS CONTRAST SATURATION HUE

+0 +0 +0 +0

CHANNEL : Select camera to modify BRIGHTNESS : Adjust image brightness (-32~ 31) CONTRAST : Adjust color contrast ( -32 ~ 31) SATURATION : Adjust color saturation ( -32 ~ 31) HUE : Adjust color hue ( -32 ~ 31)

SELECT : ▲▼, CHANE VALUE : ◀▶

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 5 Set Up

CAMERA ACTIVE SETUP

---------------------------------------------------------------------------

01 02 03 04

ACTIVE ACTIVE

LOSS

ACTIVE

SELECT : ▲▼, CHANGE VALUE : ◀▶

ON ON

OFF

RECLIVESTATUS

ON OFF OFF

CHANNEL

SENSITIVITY GRADE

MOTION DISPLAY TYPE

RECORD DURATION

MOTION SETUP

OFF

05 SEC

SELECT ▲▼, PRESS ◀▶

(3) CAMERA ACTIVE SETUP : With direction button, move to option to be changed, and press [ENTER]

button to select [ON/OFF]. If it is set at LIVE [OFF] and REC [ON], DVR system records, but does not show live image of set channel.

- STATUS : Shows if image from a specific channel is coming for live display and recording. In normal camera condition, it is ACTIVE, but LOSS is displayed when the cable is disconnected or camera is not working.

- LIVE : Decides whether to show LIVE screen image or not.

- REC : Decides whether to record relevant channel or not.

(4) MOTION SETUP: You can set sensitive of motion detection in 4 steps, detection window number, motion

detection area and others in relation to motion recording in this menu.

(4)-1. MOTION SETUP

- SENSITIVITY GRADE : Adjusts motion detection sensitivity. 4(LOW) ~ 1(VERY HIGH)

- MOTION DISPLAY TYPE : Showing cells with motion detected differently from cells with no motion .

- RECORD DURATION : Whenever motion is detected and it is set at Motion Recording mode, DVR system records for RECORD DURATION from time motion is detected. (1sec. ~ 99 sec.) (Default duration : 5 sec.)

(4)-2. MOTION MASK SETUP: Set motion detection area. Direction button is for moving and [ENTER]

button is for selection, and [MODE] button is for changing mode of MASK SETUP.

- CELL : Move to the location which you want to detect and then press the [ENTER] button.

Highlighted cell area means motion detection area.

- ALL ON : Set all cells as detection area. Use [ENTER] button to set.

- ALL OFF : Set all cells as no-detection area. Use [ENTER] button to set.

- BLOCK ON : Select detection area by block. Use [MODE] button and press [ENTER] button to set ON.

- BLOCK OFF : Select un-detection area by block. Use [MODE] button and press [ENTER] button to set ON.

BLOCK ON [ 1 ]

Highlighted Area

(Motion Detection Area)

Non-highlighted Area

(No Motion Detection Area)

[1/2/3/4] CHANGE CHA NNEL [ ] MOVE CURSOR [MODE] CHANGE EDIT MODE [ENTER] EDIT, [MENU] E XIT

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 5 Set Up

INTERVAL SETUP

4) INTERVAL SETUP

Set the switching time interval for SEQ or PIP

SWICHING INTERVAL

FULL SCREEN

PIP SCREEN

function.(1 sec. ~ 99 sec.)

EVENT RECORD

FULL SCREEN : set the sequencing switch time interval

in live full screen.

PIP SCREEN : set the sequencing switch time interval

of PIP window.

SELECT ▲▼◀▶, & CHANGE : + -

EVENT UPDATE TIME : Set the minimum time interval of event to be listed in EVENT LIST.

If EVENT UPDATE TIME is set at 20 sec, only following event happened 20 sec or more than 20 sec later previous event shall be listed in EVENT LIST.

5) ALARM SETUP

Set type of alarm sensors connected to DVR unit. N.O represents Normal Open type and N.C Normal Close type.

ALARM SETUP

CHANNEL

ALARM INPUT

DURATION

CH1

N.O

005

: 01 SEC

: 01 SECEVENT UPDATE TIME

N.O ................................ NORMAL OPEN

N.C ................................ NORMAL CLOSE

....................................... DISABLE

SELECT : ▲▼, CHANE VALUE : + -

1) ALARM INPUT : Select type of alarm sensor connected to DVR unit (N.O or N.C). Use direction button and [-] [+] button to set. DISABLE represent not to use alarm sensor connected to DVR.

2) DURATION : Set the duration of alarm when an ALARM is activated. (0 sec. ~ 300 sec.)

Best picture quality DVR

JPEG2000 Stand-alone DVR

6) BUZZER SETUP

Set parameters for buzzer (On or Off). Use direction button and [ENTER] button.

KEY BEEP : buzz when button is pressed. VIDEO LOSS : buzz when video signal is lost. ALARM ACTIVE : buzz when alarm is activated. MOTION DETECT : buzz when motion is detected.

User can set all buzzers at On/Off at once by set ALL at ON.

7) PASSWORD SETUP

Set user ID and password.

-Use [UP] and [DOWN] button to move to option

and [LEFT] and [RIGHT] button to set user ID.

BUZZER SETUP

ALL

KEY BEEP

VIDEO LOSS

ALARM ACTIVE

MOTION DETECT

SELECT : ▲▼, CHANGE VALUE : ◀▶

CHAP. 5 Set Up

The password must be consist of 1 to 8 digit number. Just use numbers button from 1 to 10 on the front panel of DVR unit.

-To change password, user must input current

password and then input new password.

USER I D

USER PW

NEW PW

CONFIRM

PASSWORD SETUP

ADMIN

---------------------

And input again new password to confirm.

- Default value

ADMIN : ‘ ‘ (NULL) MANAGER : ‘1’ USER 1 : ‘2”

[◀- ▶] CHANGE USER ID

[K1-K10] INPUT PASSWORD

[ENTER] CHANGE PASSWORD

: :

TO EXIT, PRESS [MENU]　

USER 8 : ‘9’

※ Change the user PASSWORD in the first operation is recommended. ※ In case you forgot PASSWORD, contact dealer of DVR to get instruction to enter into menu to

set new PASSWORD.

SYSTEM INFORMATION

8) SYSTEM INFORMATION

DVR system information including model number, firmware version, hardware version, etc.

MODEL ID DVRJ-04CH S/W VERSION VER 1.02 H/W VERSION VER 1.0 PRODUCT ID

01S-2039-001008-KR-01

MASTER

Maxtor 6Y060L0 SLAVE CD-R

SAMSUNG CD-R/RW SW-256B

TO EXIT, PRESS [MENU]

Best picture quality DVR

JPEG2000 Stand-alone DVR

5-4. RECORD SETUP

This is the most important configuration of the DVR. Enter into SYSTEM MENU-RECORD SETUP and press the [ENTER] button.

1) RECORD CONFIGURATION

Use direction button to move and [-] [+] button to set value.

(1)OVERWRITE : Set overwrite or stop recording when the

HDD is full.

(2) MULTIPLEX : Set DUPLEX. Or TRIPLEX

- DUPLEX : Playback and Record (Recording during playback)

- TRIPLEX : Triplex - Record/Playback/Remote playback

simultaneously.Under triplex mode, the record and playback speed will decrease

50% of frame rate.

(3) QUALITY : Set record quality. Actually it is fixing data

size of image for each picture quality level

BASIC / NORMAL / ENHANCED / FINE / SUPER FINE

(4) RESOLUTION : Set recording resolution.

- 120 ips at 720x240 (720x288)

- 240 ips at 360x240 (360x288)

※ Images recorded in 360x240(360x288)

It is not possible to see those images in full screen mode in playback.Recording in half or quad resolution is recommended for higher recoding speed.

RECORD SETUP

RECORD CONFIGURATION SCHEDULE SETUP HOLIDAY SETUP

SELECT MENU : ▲▼, & [ENTER]

RECORD CONFIGURATION

OVERWRITE

MULTIPLEX

QUALITY

RESOLUTION

RECORD IN ALARM

RECORD IN MOTION

CONTINUOUS RECORD

SELECT MENU : ▲▼, & [ENTER]

CHAP. 5 Set Up

TRIPLEX

ENHANCED

120IPS 720*240

1/1X

(5) RECORD SPEED : Set record speed of alarm/ motion/ continuous mode(or skip rate)

- 1/1x, 1/2x, ………. 1/999x record speed

- ex: 1/2x ) R->S->R->S… - ex: 1/3x ) R->S->S->R->S->S->R…

- ex: 1/4x ) R->S->S->S->R->S->S… ( R : RECORD S : SKIP )

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 5 Set Up

2) SCHEDULE SETUP

Unless you selected other recording mode, DVR system records in Schedule Recording mode. In SCHEDULE REC SETUP, you set type of recording for every time interval of 2 hours in each day of the week. Schedule Recording set by manufacturer is recording continuously at its full recording speed, and it means DVR system record continuously at 120 ips in total at 720x240 resolution. To set Schedule Recording parameters, enter into SYSTEM MENU-RECORD SETUP-SCHEDULE SETUP

and Press the [ENTER] button.

(1) SCHEDULE SETUP

Set recording type for each recording time interval for a day of the week (2 hours interval).

SCHEDULE REC SETUP

Use [MODE] button to select edit type and move to the time interval of a day of the week you want to change. Press [ENTER] button to select and use [+] or [

−

] button, to change the record type. To go next page, use [NEXT] button.

00-02

02-04

04-06

SUN

-M-

-M -

MON AM -

AM -

AM-

TUE

--C

WED

--C-

--C

THU

--C-

--C

FRI

--C

SAT

--C

06-08

08-10

10-12

-M -

---

-- -

AM-

-- C

--C-

--C

-- C

--C

-- C

--C

-- C

※ MODE (Edit type)

--C

-- C

CELL BY CELL : Set each time interval of a day of

DAY OF THE WEEK : Set a day of the week at once

the week

TIME SLOT : Set a time slot at once

MODE: CELL BY CELL

SELECT: ▲▼◀▶ & [NEXT],EDIT [+ -]&[MODE]

A:ALARM M:MOTION C:CONTINUES

1 / 2

ALL : Set page by page at once CLEAR ALL: Clear page by page

※ Except when EMERGENCY record is enable, the DVR system records based upon the SCHEDULE

Record Setup.

※ DEFAULT record mode for each time interval of a day of the week set by manufacturer is

CONTINUOUS recording.

※ Record type :

After power on Schedule record Exit from menu Schedule record End of search or playback Schedule record After pressing [STOP] button Schedule record After pressing [REC] button Emergency record (Continuous recording at full recording speed)

(120(100) ips at 720x240(720x288))

3) HOLIDAY SETUP

HOLIDAY SETUP

Users can set national holiday or holidays on calendar to record just as setting for Sunday in Schedule recording.

Use [MODE] button to select a month and direction button to move to a day, and press [ENTER] button to set a holiday. Then color of date shall be changed to red, as Sunday.

※ The maximum holidays is 100 days.

< AUG > 000/100

SUN MON TUE WED THU FRI SAT

01 02

03 04 05 06 07 08 09

10 11 12 13 14 15 16

17 18 19 20 21 22 23

24 25 26 27 28 29 30　

MODE : MONTH

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 5 Set Up

5-5. BACK-UP

User can back up the recorded data to CD using CD writer installed in DVR. Refer to [START] and [END] of data on HDD and set copy from time, [START], and size of data copied, [SIZE], and move to BURN and press [ENTER] button to start copy.

CD-R SETUP

HDD

[START] 2005/AUG/07 AM04:04:12 [ END ] 2005/AUG/08 PM08:12:23

CD-R

[START] 2005/AUG/07 AM04:04:12 [ END ] 2005/AUG/08 PM08:12:23 [ SIZE ] 000MB

BURN

SELECT MENU: ▲▼ & [ENTER]

HDD

[START] 2005/AUG/07 AM04:04:12 [ END ] 2005/AUG/08 PM08:12:23

CD-R 700 MB

[START] 2005/AUG/07 AM04:04:12 [ END ] 2005/AUG/08 PM08:12:23 [ SIZE ] 700 MB - > 700MB

BURN

CD-RW BURNING : IMAGE DATA.

SELECT MENU: ▲▼ & [ENTER]

CD-R SETUP

System Status Messages :

- CD-RW DOOR CLOSE. CHECKING CD-R : Blank CD check

- INPUT BLANK CD : CD writer has no blank CD.

- CD-RW DOOR OPEN : Open CD-RW and insert blank CD –R media into CD drive.

- CD-R MEDIA IS DETECTED : Blank CD-R media has been inserted and detected. DVR system will display size of blank CD-R.

After you set [START] time and [SIZE] in CD-R sub-menu and then select BURN, DVR system starts copying images to CD and shows following message.

CD-RW BURINING START CD-RW BURNING : LEAD-IN CD-RW BURNING : IMAGE DATA CD-RW BURING : CLOSE TRACK CD-RW DOOR OPEN

When burning is completed, CD-R media will eject automatically. To copy more images, repeat above process. In next process, [START] time in CD-R sub-menu shall be [END] time in previous back-up, and you can copy images in series to many CDs as many as you want.

5-6. EXTERNAL DEVICE

Set parameters of external devices connected to DVR, like Ethernet, PTZ camera, RS-232C, etc. Use direction button to move to sub-menu and Press [ENTER] button to set.

EXTERNAL DEVICE

TCP/IP SETUP

RS-232C SETUP

PAN/TILT SETUP

SELECT MENU : ▲▼, & [ENTER]

Best picture quality DVR

JPEG2000 Stand-alone DVR

1) TCP/IP SETUP

CHAP. 5 Set Up

TCP/IP function enables user to see live pictures and recorded pictures via the internet. To use the TCP/IP option, user must assign IP ADDRESS & GATEWAY & SUBNETMASK into DVR in TCP/IP SETUP MENU. Also, user must install the Remote viewer program to PC from which user want to access to DVR unit Via IP network. For detail procedure of Remote viewer program installation, refer to CHAP. 6 Software program.(Remote viewer software).

Move to sub-menu you want to change and press [ENTER] button to set value. Press direction button to move and [+] and [-] button to set value.

2) RS-232C SETUP

User can control the DVR via RS-232C port. Connect DVR to PC via RS-232C port and user can control DVR using keyboard of PC. This function is mainly for programmer who wants to control DVR as part of many devices connected to PC system, as in SI project.

MAC ADDRESS IP ADDRESS IP PORT GATEWAY SUBNET MASK DHCP SETUP

SELECT MENU : ▲▼, & [ENTER]

SPEED

LENGTH

STOP BIT

PARITY

TCP/IP SETUP

00-0A-A2-00-00-00

192.168.001.160 08000

192.168.001.001

255.255.255.000

MANUAL

RS-232C SETUP

576000

NONE

3) PAN/TILT SETUP

SELECT : ▲▼, CHANGE VALUE : ◀▶

It is to set parameters for PTZ camera connected to DVR unit. DVR unit already includes all protocols of well-known PTZ cameras like PELCO D type PTZ camera, and user just select MODEL and set other parameters to control this PTZ cameras, using operation buttons on the front panel of DVR. If PTZ camera whose protocol is not incorporated into this DVR unit, user must input protocol of this PTZ camera by himself. Using USB device port, user can upgrade protocol for PTZ camera.

PAN/TILT SETUP

COMMAND SETTING Å PTZ camera set

SPEED SETTING Å PTZ speed set

SELECT : ▲▼, CHANGE VALUE : ◀▶

CHANNEL

MODEL PTZ ID BAUDRATE CMD DELAY

COMMAND

LENGTH CODE

SELECT : ▲▼, CHANGE VALUE : ◀▶

COMMAND SETTING

01 PELCO-D 000 2400 BPS 1 MSEC

PAN/TILT STOP

0.7 FF 00 00 00 00 00 00 00

1) CHANNEL : Select channel

2) MODEL : Select camera model (protocol type)

3) PTZ ID : Select ID

4) BAUDRATE : Select data transmission speed

5) CMD DELAY : Select command delay time

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 5 Set Up

5-7. FACTORY DEFAULT

Set the all system parameters as manufacturer first set before delivery. It is a kind of system initialization, and manufacturer recommend to do it when you add new HDD or other changes in system to make all system ready for normal operation. Use direction button to move and Press [ENTER] button to change parameters. After move to RUN, Press [ENTER] button for actual Factory Default setting.

5-8. LANGUAGE SETUP

Press [+] / [-] button to select your language.

SYSTEM MENU

DISPLAY SETUP

FACTORY DEFAULT

ALL SCREEN DISPLAY CAMERA COLOR SETUP MOTION SETUP PANTILT SERUP SCHEDULE SETUP CONFIGURATION

RUN

SELECT MENU : ▲▼, & [ENTER]

OFF OFF OFF OFF OFF OFF OFF

CONFIGURATION

RECORD SETUP

EXTERNAL DEVICE

FACTORY DEFAULT

LANGUAGE ENGLISH

SELECT MENU : ▲▼, & [ENTER]

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 6 Network Setup

6-1. DVR Network Configuration

Now that you are familiar with the equipment and should be able to identify a router from a modem and a Cat5 network cable from a telephone cable, we will proceed to determine the network scenario that fits your current network.

Please call your provider to identify what type of service they are providing you. You will need to know following ;

Upload speed – For your own knowledge for expected frame rates Download speed – For your own knowledge for expected frame rates Addressing – For determining what scenario you should follow Router On Site or Just a Modem – For determining what scenario you should follow

※NOTE : If your provider is using PPPoE(usually DSL providers), you MUST have a router

installed on site and follow CASE C for DVR setup and access.

※PLEASE verify Internet access after installing any new equipment(routers, switches, modems, etc.).

If possible, use a PC on the network to verify that an Internet connection can be made and that all current configurations on any equipment are up and working properly. Do this before doing ANY configurations with the DVR. We are assuming that your current equipment is configured properly for Internet access.

PC’s TCP/IP Setting

Before configuring the DVR, please fill out the information below if applicable ;

Choose any PC on your network and determine its TCP/IP settings;

IP Address :

Subnet Mask :

Default Gateway :

(ex.192.168.1.5)

(ex. 255.255.255.0)

(ex.192.168.1.1)

* For information on how to determine this information, please consult the FAQ page.

Next pages are several network scenarios. Each one is labeled with a letter. Please identify which scenario your current network falls within and follow the instructions for configuring and accessing your DVR via TCP/IP.

The box below represents an area that you can’t control. If you are unable or do not have access to your router for port forwarding. Please contact your provider and request them to forward a port to the corresponding DVR IP address :

Best picture quality DVR

JPEG2000 Stand-alone DVR

Case A : Single Static IP w/Personal Router

Phone line

Internet

(ISP)

Configure the DVR as follows :

1. Set the DVR to MANUAL for the TCP/IP settings. Do not use DHCP SETUP for this application or verify that DHCP SETUP is set to MANUAL.

2. IP ADDRESS : assign it a private IP address(ex : 192.168.0.105) a. You need to assign the DVR an IP address just as you would a PC. b. The IP address you assign must be unique to your local network as well as “match”

your local network. For information on how to choose a unique IP that matches your network, consult the FAQ.

c. The IP address you assign must be a private IP address. For information on what a

private IP address is, consult the FAQ.

d. When configuring the DVR’s IP address information, the version of firmware within

the units may display the IP addresses differently. For simplicity sake,

192.168.1.105 may have to be configured as 192.168.001.105

3. PORT NUMBER : 8000 a. 4 channel, 8 channel & 16 channel : This number is stated explicitly. b. For most situations, please use the default 8000 for simplicity.

4. SUBNET MASK : 255.255.255.0 (example) a. Assign the DVR the same exact subnet mask as your PC.

5. GATEWAY : 192.168.0.1(example) a. Assign the DVR the same exact gateway(or default gateway) as your PC.

6. Please DO NOT configure MAC ADDRESS or DHCP SETUP.

7. You will need to forward port 8000 through your router. Please forward port 8000 to the IP ADDRESS you have assigned the DVR.

8. Your DVR is now ready for access.

Or CATV

modem

Personal

Router

w/switch

CHAP. 6 Network Setup

DVR

* For detail information on the above, please consult the FAQ.

Accessing the DVR using the Remote Software for CASE A

LOCALLY :

To access the DVR locally, that is from your local network on site from where the DVR is installed. Open the remote viewing software and click on the “Settings” button. As far as TCP/IP connectivity is concerned only 4 entries need to be made :

1. IP address : Input the IP address that you assigned the DVR. As in the above example I would input the private IP address of 192.168.0.105

2. Port : 8000(this has to match what is configured in the router and in the DVR)

3. User ID : (always leave the default “ admin “)

4. Password : this must match what is configured in the DVR

a) 4,8,16 channel default : null(NO PASSWORD)

Best picture quality DVR

JPEG2000 Stand-alone DVR

REMOTELY :

To access the DVR remotely, that is from outside your local network, follow the above directions for accessing locally, except for the IP address. For CASE A, you have received a static IP from your Internet provider. That static IP address is what you must enter into the software for connectivity to take place(NOT the IP of the DVR). Contact your provider if you have misplaced the forms stating your static IP address. Since you are accessing the DVR via a router, you must enter the router’s WAN IP address which is the exactly the same as the static IP that you have received from your Internet provider.

Case B : Single Static IP Directly Connected to the DVR

Phone line

Or CATV

Internet

(ISP)

Modem

CHAP. 6 Network Setup

DVR

Configure the DVR as follows :

1. Set the DVR to MANUAL for the TCP/IP settings. Do not use DHCP SETUP for this application or verify that DHCP SETUP is set to MANUAL.

2. IP ADDRESS : assign it a public IP address(ex : 24.106.1.195) a. You need to assign the DVR an IP address just as you would a PC. b. The static IP address that you received from your Internet provider is the address

that you will assign this DVR, if you do not know this IP address please contact your provider.

c. When configuring the DVR’s IP address information, the version of firmware within

the units may display the IP addresses differently. For simplicity sake,

24.106.1.195 may have to be configured as 24.106.001.195

3. PORT NUMBER : 8000 a. 4 channel, 8 channel & 16 channel : This number is stated explicitly. b. For most situations, please use the default 8000 for simplicity.

4. SUBNET MASK : 255.255.255.240 (example) a. Along with your static IP address you should have received your subnet mask from

your Internet provider. Please use that subnet mask when configuring the DVR. If you did not receive this information contact your service provider.

5. GATEWAY : 24.106.1.193(example) a. Along with your static IP address you should have received your gateway or default

gateway from your Internet provider. Please use that gateway when configuring the DVR. If you did not receive this information contact your service provider.

6. Please DO NOT configure MAC ADDRESS or DHCP SETUP.

7. Your DVR is now ready for access.

Accessing the DVR using the Remote Software for CASE A LOCALLY :

You cannot physically access the unit locally since a router was not used in this case.

Best picture quality DVR

JPEG2000 Stand-alone DVR

REMOTELY :

To access the DVR remotely, open the remote viewing software and click on the “Settings”

button. As far as TCP/IP connectivity is concerned only 4 entries need to be made :

For CASE A, you have received a static IP from your Internet provider. That static IP address is what you must enter into the software for connectivity to take place(this should be the same IP address configured in the DVR). Contact your provider if you have misplaced the forms stating your static IP address. As in the above example I would input the :

1. Public IP address of 24.106.1.195

2. Port : 8000(this has to match what is configured in the DVR)

3. User ID : (always leave the default “ admin “)

4. Password : this must match what is configured in the DVR a) 4,8,16 channel default : null(NO PASSWORD)

Case C : Dynamic or PPPoE IP w/Personal Router

CHAP. 6 Network Setup

Phone line

Or CATV

Internet

(ISP)

modem

Personal

Router

w/switch

Configure the DVR as follows :

DVR

1. Set the DVR to MANUAL for the TCP/IP settings. Do not use DHCP SETUP for this application or verify that DHCP SETUP is set to MANUAL.

your local network. For information on how to choose a unique IP that matches your network, consult the FAQ.

c. The IP address you assign must be a private IP address. For information on what a

private IP address is, consult the FAQ.

d. When configuring the DVR’s IP address information, the version of firmware within

the units may display the IP addresses differently. For simplicity sake,

192.168.1.105 may have to be configured as 192.168.001.105

3. PORT NUMBER : 8000 a. 4 channel, 8 channel & 16 channel : This number is stated explicitly. b. For most situations, please use the default 8000 for simplicity.

4. SUBNET MASK : 255.255.255.0 (example) a. Assign the DVR the same exact subnet mask as your PC.

5. GATEWAY : 192.168.0.1(example) a. Assign the DVR the same exact gateway(or default gateway) as your PC.

6. Please DO NOT configure MAC ADDRESS or DHCP SETUP.

7. You will need to forward port 8000 through your router. Please forward port 8000 to the IP ADDRESS you have assigned the DVR.

8. Your DVR is now ready for access.

* For detail information on the above, please consult the FAQ.

Best picture quality DVR

JPEG2000 Stand-alone DVR

Accessing the DVR using the Remote Software for CASE C LOCALLY :

1. IP address : Input the IP address that you assigned the DVR. As in the above example I would input the private IP address of 192.168.0.105

2. Port : 8000(this has to match what is configured in the router and in the DVR)

3. User ID : (always leave the default “ admin “)

4. Password : this must match what is configured in the DVR

REMOTELY :

To access the DVR remotely, that is from outside your local network, follow the above directions for accessing locally, except for the IP address. For CASE C, you have received a

dynamic or PPPoE IP from your Internet provider. That static IP address is what you must enter into the software for connectivity to take place(NOT the IP of the DVR). You may be able to contact your provider to determine your current IP address. You can also try accessing your router and locating the status page that should list the WAN or Internet IP address. Since you are accessing the DVR via a router, you must enter the router’s WAN IP address which is the exactly the same as the IP that you have dynamically received from your Internet provider. Take into consideration that this scenario is not recommended, due to

the nature of dynamic addressing. Dynamic address may change randomly or on power

failures. If you are unable to connect suddenly, first verify that your dynamic IP address has

not changed.

CHAP. 6 Network Setup

a) 4,8,16 channel default : null(NO PASSWORD)

Case D : Multiple Static IPs w/Personal Router

Phone line

Or CATV

Internet

(ISP)

modem

Configure the DVR as follows :

1. Set the DVR to MANUAL for the TCP/IP settings. Do not use DHCP SETUP for this

application or verify that DHCP SETUP is set to MANUAL.

2. IP ADDRESS : assign it a public IP address(ex : 24.106.1.195)

a. You need to assign the DVR an IP address just as you would a PC.

b. For this case you must have received several available static IP addresses. Of those, choose one that is not in use to which you can assign the DVR, if you do not know your available IP addresses please contact your provider.

c. When configuring the DVR’s IP address information, the version of firmware within

the units may display the IP addresses differently. For simplicity sake,

24.106.1.195 may have to be configured as 24.106.001.195

3. PORT NUMBER : 8000

a. 4 channel, 8 channel & 16 channel : This number is stated explicitly.

b. For most situations, please use the default 8000 for simplicity.

Personal

Router

w/switch

DVR

Best picture quality DVR

JPEG2000 Stand-alone DVR

4. SUBNET MASK : 255.255.255.240 (example)

a. Along with your static IP addresses you should have received your subnet mask

from your Internet provider. Please use that subnet mask when configuring the DVR. If you did not receive this information contact your service provider.

5. GATEWAY : 24.106.1.193(example)

a. Along with your static IP addresses you should have received your gateway or

default gateway from your Internet provider. Please use that gateway when configuring the DVR. If you did not receive this information contact your service provider.

6. Please DO NOT configure MAC ADDRESS or DHCP SETUP.

7. Your DVR is now ready for access.

Accessing the DVR using the Remote Software for CASE D

LOCALLY :

To access the DVR locally, open the remote viewing software and click on the “Settings”

button. As far as TCP/IP connectivity is concerned only 4 entries need to be made.

For CASE D, you have received a static IP from your Internet provider. That static IP address is what you must enter into the software for connectivity to take place(this should be the same IP address configured in the DVR). Contact your provider if you have misplaced the forms stating your static IP address. As in the above example I would input the :

CHAP. 6 Network Setup

1. Public IP address of 24.106.1.195

2. Port : 8000(this has to match what is configured in the DVR)

3. User ID : (always leave the default “ admin “)

4. Password : this must match what is configured in the DVR a) 4,8,16 channel default : null(NO PASSWORD)

REMOTELY :

To access the DVR remotely, just follow the same instructions for local access.

Case E : Dynamic IP Directly Connect to the DVR with High Speed Cable

CATV

Internet

(ISP)

Modem

DVR

Best picture quality DVR

JPEG2000 Stand-alone DVR

Configure the DVR as follows :

For this application you can still use the DVR for remote access, yet you will have to verify the IP address within the DVR on a continuous basis to ensure the IP address hasn’t changed. This setup will not work with most Dynamic DSLDKDKD providers. In any instance in which the DVR cannot detect an IP, please use CASE C.

1. Unplug the power from the modem.

2. Turn off the DVR.

3. After waiting 5 minutes, power on the modem followed by the DVR.

4. Enter the TCP/IP Setup menu.

5. Enter DHCP Setup.

6. Select IP DETECT MODE.

7. Press ENTER.

8. It should now display DHCP.

9. Cursor down to REQUEST IP and hit ENTER.

10. The Unit will now send a request to a DHCP server asking for IP address information. a. If it is unable to detect an IP address, contact your ISP to reset the modem, before

trying again.

b. After an IP has been received, the lease time listed under IP LEASE TIME is just

notifying you when the DVR will try to renew the IP address. Typically it will try to receive the same IP, but it is a good idea to check your IP on a continuous basis.

11. Exit DHCP SETUP.

12. Select IP ADDRESS to determine the IP address the unit has received.

13. The DVR is now ready for access.

CHAP. 6 Network Setup

Accessing the DVR using the Remote Software for CASE E

LOCALLY :

You cannot physically access the unit locally since a router was not used in this case.

REMOTELY :

To access the DVR remotely, open the remote viewing software and click on the “Settings”

button. As far as TCP/IP connectivity is concerned only 4 entries need to be made.

For CASE E, you have received a dynamic IP from your Internet provider. That dynamic IP address is what you must enter into the software for connectivity to take place(this should be the same IP address configured in the DVR). Check your DVR’s current IP address for access :

1. IP address : 24.106.1.195(example)

2. Port : 8000(this has to match what is configured in the DVR)

3. User ID : (always leave the default “ admin “)

4. Password : this must match what is configured in the DVR a) 4,8,16 channel default : null(NO PASSWORD)

Best picture quality DVR

JPEG2000 Stand-alone DVR

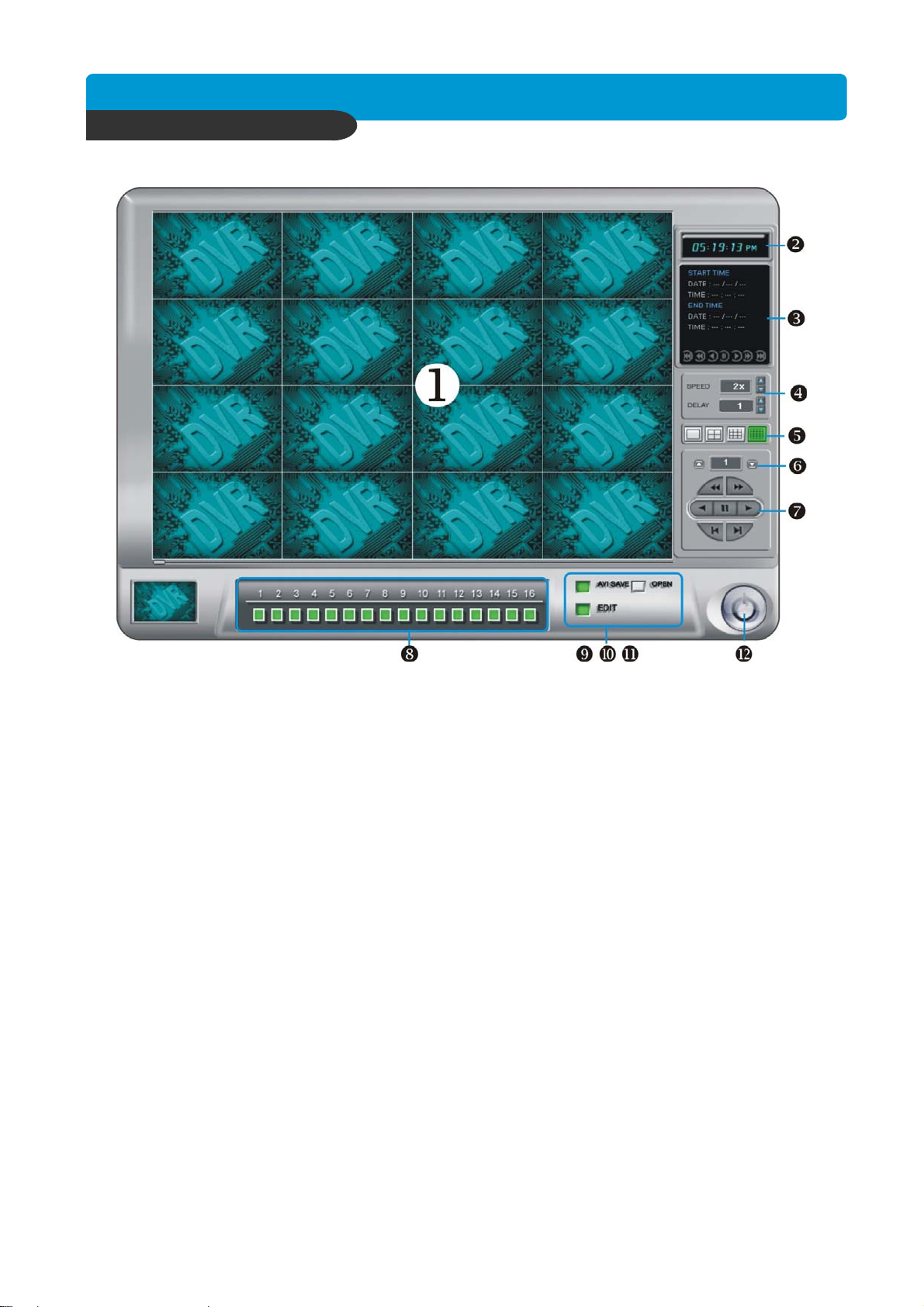

6-2. Remote Viewer program

CHAP. 6 Network Setup

- Power switch : Press the Power switch to exit the program. Please disconnect the live feed before

2 3 8

powering off the software

- Connect button : Press the Connect button to view the live images from the DVR. These are the same

images being displayed on the monitor of the DVR, with a delay depending on your internet connection at both the DVR location and from where you’re currently accessing.

- Disconnect button : Press this button to disconnect from the DVR unit. Then you may power off the

software.

- Screen Division button : Select how many channels to view simultaneously(single,4-split,9-split,

or 16 split). When you select a view you will see the Channel Numbers highlighted which determine what channels are currently being viewed.

- Channel number button : Select the channel that you want to view based on what Screen Division

view is enabled.

-Statuswindow : Display’s the current time and date based. The date is in the format : Year/Month/Day.

You will also see the status of your connection.

- Setup : Enables the software configuration screen.

-Playback : Enables the remote playback screen.

- PTZ control : You can control a PTZ camera via the software with these controls.

a. First, you must input or configure the specific PTZ protocol into the software in

order to communicate with the PTZ device.

b. When you press any of the controls for the PTZ, please press and hold the button

for 1-2 seconds per instance to compensate for the data transmission rate. If you do not and instead simply click the PTZ buttons, you may get undesired results

(having the requested operation transmitted repeatedly, regardless of your intention).

c. The plus and minus buttons send the PTZ commands to the corresponding PTZ

camera ID.

Best picture quality DVR

JPEG2000 Stand-alone DVR

Setting Screen

CHAP. 6 Network Setup

Name: This just identifies your settings. The settings are automatically saved under this label

when you hit ‘OK’.

IP Address : Based on your network scenario and from where you’re accessing, enter the appropriate

IP address.

PORT : Enter the Port Number you assigned the DVR. USER ID : Always enter ‘admin’ Password : This must match the password on the DVR. For simplicity, just use numbers. Circular Monitoring Interval : This determines the speed at which the channels sequence, when the

SEQUENCE button is used from the main interface.

PTZ TYPE : If using PTZ device or camera, select the protocol your PTZ camera is using from the list of

preconfigured protocols.

PTZ Baudrate : Setup PTZ camera buad rate. Set Path to Save Record ed Images : Determines the location and folder on your PC where the saved

video clips are stored. If you do not specify a valid location, then the program will save all files in the default location of C:\Program Files\Remote_J2K

Run in full screen mode : When checked, this will enable the program to re-adjust the interface to

completely fill your computer screen.

Best picture quality DVR

JPEG2000 Stand-alone DVR

PLAYBACK INTERFACE

CHAP. 6 Network Setup

Function of each button in Search window.

Exit : Exit to live window.

Full screen : Select a certain camera to view in full screen.

Quad : To view quad mode (4 channels at the same time)

Time : The recording time & date information of the pictures which is being played.

Channel selection : Select each camera.

Time selection : Select a time from which user want to see. The playback will be started from this

point.(drag the point using mouse)

Start and end time : Indicate record starting time and end time of images on HDD

Other operating button : Refer to the next page description.

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 6 Network Setup

: Play Fast backward

: Play backward(1X)

: Play Forward(1X)

: Play Fast Forward

: Stop playback

* Speed of playback according to scan rate

Scan rate

: Move to the start of recording

: Move to the previous hour

: Move to the end of recording

or or

1x1x1x

2x1x2x

4x1x4x

8x1x8x

16x1x16x

30x1x32x

60x1x64x

Maximum playback speed of DVR is 60x.

: Command button.

a) Save : After pressing the Stop button, you can save the currently viewed channels as an

image(jpg)

b) Print : After pressing the Stop button, you can print the currently viewed channels. c) EVENT : Not available. d) RECORD : Press this button to record the currently viewed channels to the specified location in

the Settings screen. Press the button again to stop recording and allow the video capture to be saved before any other action.

Best picture quality DVR

JPEG2000 Stand-alone DVR

: Calendar

CHAP. 6 Network Setup

Use this to select the date you wish to playback. The filled in square outlines the date that is at the beginning of the hard drives. The outlined square indicates the data at the end of the hard drives. Select the date you wish to view. Verify a filled in square for that particular date. If an invalid date is selected it will default to the beginning of the hard drive(s).

Notice : To see continuous live view, it is recommended to set recording mode of DVR unit

in continuous recording mode. If it is set at motion recording mode, image transmission is done only when motion is detected, and user only see still images for most of cases.

Notice : While user access to DVR unit via IP network to see live view, the DVR unit continues to record.

While user see recorded images, DVR unit shows live images through monitor connected to DVR unit, but recording is stopped, if MULTIPLEX mode in the SETUP menu in DVR is set at SIMPLEX.

Best picture quality DVR

JPEG2000 Stand-alone DVR

6-3. Back-up CD Player

CHAP. 6 Network Setup

DVR units are with a built-in CD-RW, and user can copy images to CD.Using back-up CD player, user can see images on back-up CD, and function of each button inBack-up CD player is as below.

1. Display screen : To display the backup image

2. Time : Current time.

3. Status Window : Start & End of time & date, Status of operating button.

When user play forward/backward, recorded time will appear.

4. Play Speed button : User can adjust play speed by pressing up/down button.

(2X,4X,8X,16X,32X,64X) Delay : (1, 1/2, 1/4, 1/8, 1/16)

5. Screen division : Select Full / 4 / 9 / 16 split screen.

6. Page button : This button is just working when screen-division is 4-split in 8 ch DVR, or 4-split or

8-split in 16 ch DVR. Moves to next page.

7. Operation button : User can search recorded data using these buttons.

a) Move the slide bar to start position b) Play fast backward in preset speed c) Play backward at 1x speed d) Pause e) Play forward at 1x speed f ) Play fast forward in preset speed g) Move the slide bar to end position

8. Channel button : Select channel to see pictures in full screen. 9~11. Function button

a) OPEN : Open the Back-up CD Player. b) EDIT : User can save and print recorded image on Edit mode. This edit button will work when you

selected full screen .

c) AVI SAVE : To save the backup image as AVI format .

12. EXIT : Exit from Back-up CD Player.

Best picture quality DVR

JPEG2000 Stand-alone DVR

Image EDIT

CHAP. 6 Network Setup

1. Image edit status window : Shows record time & date, Image size, Command status.

2. Function button

a) Save : User can save an image in JPEG format. It is saved in the folder where you installed

back-up CD player. b) Print : User can print current image user selected c) EXIT : Return to Back-up CD Player mode.

Best picture quality DVR

JPEG2000 Stand-alone DVR

6-4. Frequently Asked Questions

CHAP. 6 Network Setup

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 6 Network Setup

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 6 Network Setup

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 6 Network Setup

Best picture quality DVR

JPEG2000 Stand-alone DVR

Can I configure my DVMR for remote access using a Dial-Up connection?

Yes, it is possible, but not recommended. With a live video feed, the bandwidth that a dial-up connection provides is very poor. In addition, you will have to install a device that allows your DVMR to connect directly to your dial-up phone line (roughly $200).

Why is my remote video jerky?

The frame rates received via the Internet are all dependent on your connection condition and speed at both the DVMR site and the location from where you are accessing the DVMR. The fastest frame rates are achieved locally.

CHAP. 6 Network Setup

Important Notes Regarding the Remote Viewer and the DVMR

When you are in SCAN MODE and are playing back data, you are actually accessing the DVMR remotely and placing the unit itself in playback mode, which in turn disables recording in simplex mode.

When selecting a date/time to play back. First, ensure that the stop button has been pressed (screen should have no images displayed). Next, select the date you wish to view and verify that it is a valid date on the hard drive and that the selected data is outlined with the box filled in. Then, select the time you wish to access for that particular date. Finally, hit the single-arrow play or double-arrow play button.

To see continuous live view, we recommend NOT setting the DVMR for motion detection. The remote viewer only sends images when there is motion and this motion is not fluid. The remote SCAN MODE option still operates as normal. We recommend only using the remote playback feature if you set the DVMR for Continuous Record.

The DVMR still records while in Live View mode, but recording rates drop by a small amount. Therefore, we recommend accessing the DVMR remotely only when needed.

The remote viewer is only compatible with Windows operating systems.

If the connection is lost during remote playback, exit SCAN MODE, reconnect to the live view, then re-enter SCAN MODE.

Best picture quality DVR

JPEG2000 Stand-alone DVR

CHAP. 7 Specifications

• The best picture quality in Playback(JPEG-2000)

• Real time live display in all channels

• 4/8/16 channel video 240(200)ips recording capability

• Triplex (Recording/Playback/Ethernet)

• Multi-language menu

• Remote monitoring and download through network

• Convenient search function with Jog-shuttle

• VGA option available (Supporting TFT LCD Monitor)

• USB (Device) port for firmware upgrade

• Easy PTZ camera control by pre-assigned buttons

• Password Protection

• Remote Controller

Multiplex function Triplex (Record/Playback/Ethernet)

Storage Internal HDD 1 HDDs with no limitation in capacity

Capacity CD-RW For Backup

Video Inputs Composite 4 CH: 4 Input / 8 CH: 8 Input / 16 CH: 16 Input

Outputs Composite 2Ch (Monitor / VCR)

VGA 1Ch (Supporting TFT LCD Monitor/Option)

Loop out

Compression JPEG-2000

Compression Rate Basic 12 KB/field(720x240/NTSC, 720x288/PAL)

(Image size fixed) Normal 16 KB/field(720x240/NTSC, 720x288/PAL)

Enhanced 20 KB/field(720x240/NTSC, 720x288/PAL)

Fine 24 KB/field(720x240/NTSC, 720x288/PAL)

Super Fine 28 KB/field(720x240/NTSC, 720x288/PAL)

Display Speed Real Time display

Recording Recording Mode Time, Motion, schedule, Alarm

/Search Search Event Search, Date/Time Search, Jog-Shuttle Search

Recording Speed 4CH: 60(Full mode)120(Dual mode); 8/16CH: 120(Full mode),240(Dual mode)

Recording Resolution Full (720x240/720x288), Dual (360x240/360x288)

Multi-language English, Spanish, German, Italy, France, Chinese….etc

Switching Interval 1~99 sec selectable

Live Division Screen 1 / 4 / 6 / 8 / 9 / 13 / 16 Split

Alarm Inputs 4CH: 4 Alarm / 8 CH: 8 Alarm / 16CH : 16 Alarm

Outputs 1 (NO/NC)

Post Alarm Duration of alarm output : 1 sec ~ 59 sec selectable

Motion Detection Area division : 16 x12 / Detection Division : 32 x 24

Network Ethernet(TCP/IP), Remote viewer program included

Backup VCR, CD-RW back-up, Download via IP Network

PTZ Control RS-485, Key Control(Key assigned for each PTZ command)

Firmware upgrade USB port for firmware upgrade, CD-R

Serial I/F RS-485 For PTZ camera control

RS-232C For operation using keyboard of PC

Power Requirements DC 12V 10A SWITCH POWER

Weight 8kg

Dimensions(WXHXD)mm 430mm(W) x 400mm(D) x 92mm(H)

Design and specifications are subjected to changes without notice

4 CH: 4 output / 8 CH: 8 output / 16 CH: 16 output

Digital Zoom, Freeze function available in Live mode, PIP

Best picture quality DVR

JPEG2000 Stand-alone DVR

4CH Record time table

Appendix

HDD

Capacity(GB)

120

160

200

250

300

400

HDD

Capacity(GB)

NTSC

Basic Normal Enhanced Fine Super Fine

12K 16K 20K 24K 28K

8.1Hr 6.1Hr 4.9Hr 4.0Hr 3.5Hr

16.2Hr 12.1Hr 9.7Hr 8.1Hr 6.9Hr

24.3Hr 18.2Hr 14.6Hr 12.1Hr 10.4Hr

32.4Hr 24.3Hr 19.4Hr 16.2Hr 13.9Hr

48.5Hr 36.4Hr 29.1Hr 24.3Hr 20.8Hr

64.7Hr 48.5Hr 38.8Hr 32.4Hr 27.7Hr

80.9Hr 60.7Hr 48.5Hr 40.5Hr 34.7Hr

101.1Hr 75.9Hr 60.7Hr 50.6Hr 43.3Hr

121.4Hr 91.0Hr 72.8Hr 60.7Hr 52.0Hr

161.8Hr 121.4Hr 97.1Hr 80.9Hr 69.4Hr

PAL

Basic Normal Enhanced Fine Super Fine

14K 19K 24K 29K 32K

120

160

200

250

300

400

* Recording time based on continuous recording at full recording speed.

8.3Hr 6.1Hr 4.9Hr 4.0Hr 3.6Hr

16.6Hr 12.3Hr 9.7Hr 8.0Hr 7.3Hr

25.0Hr 18.4Hr 14.6Hr 12.1Hr 10.9Hr

33.3Hr 24.5Hr 19.4Hr 16.1Hr 14.6Hr

49.9Hr 36.8Hr 29.1Hr 24.1Hr 21.8Hr

66.6Hr 49.1Hr 38.8Hr 32.1Hr 29.1Hr

83.2Hr 61.3Hr 48.5Hr 40.2Hr 36.4Hr

104.0Hr 76.7Hr 60.7Hr 50.2Hr 45.5Hr

124.8Hr 92.0Hr 72.8Hr 60.3Hr 54.6Hr

166.4Hr 122.6Hr 97.1Hr 80.4Hr 72.8Hr

Best picture quality DVR

JPEG2000 Stand-alone DVR

8/16CH Record time table

Appendix

HDD

Capacity(GB)

20 4.0Hr

120

160

200

250

300

400

HDD

Capacity(GB)

NTSC

Basic Normal Enhanced Fine Super Fine

12K

16K 20K 24K 28K

3.0Hr 2.4Hr 2.0Hr 1.7Hr

8.1Hr 6.1Hr 4.9Hr 4.0Hr 3.5Hr

12.1Hr 9.1Hr 7.3Hr 6.1Hr 5.2Hr

16.2Hr 12.1Hr 9.7Hr 8.1Hr 6.9Hr

24.3Hr 18.2Hr 14.6Hr 12.1Hr 10.4Hr

32.4Hr 24.3Hr 19.4Hr 16.2Hr 13.9Hr

40.5Hr 30.3Hr 24.3Hr 20.2Hr 17.3Hr

50.6Hr 37.9Hr 30.3Hr 25.3Hr 21.7Hr

60.7Hr 45.5Hr 36.4Hr 30.3Hr 26.0Hr

80.9Hr 60.7Hr 48.5Hr 40.5Hr 34.7Hr

PAL

Basic Normal Enhanced Fine Super Fine

14K

19K 24K 29K 32K

4.2Hr 3.1Hr 2.4Hr 2.0Hr 1.8Hr

120

160

200

250

300

400

8.3Hr 6.1Hr 4.9Hr 4.0Hr 3.6Hr

12.5Hr 9.2Hr 7.3Hr 6.0Hr 5.5Hr

16.6Hr 12.3Hr 9.7Hr 8.0Hr 7.3Hr

25.0Hr 18.4Hr 14.6Hr 12.1Hr 10.9Hr

33.3Hr 24.5Hr 19.4Hr 16.1Hr 14.6Hr

41.6Hr 30.7Hr 24.3Hr 20.1Hr 18.2Hr

52.0Hr 38.3Hr 30.3Hr 25.1Hr 22.8Hr

62.4Hr 46.0Hr 36.4Hr 30.1Hr 27.3Hr

83.2Hr 61.3Hr 48.5Hr 40.2Hr 36.4Hr

ARM Electronics JDVR User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
