ARM Electronics DVRCD120 User Manual
Full-Featured MPEG-4 DVR
User’s Manual
Ver. 1.5
Version 1.5
00P379216RSEA5
User’s Manual
1
User’s Manual
Caution and Preventive Tips
• Switch the 115/230V selector to your local voltage standard
• Handle with care, do not drop the unit
• Mount the unit in an equipment rack or place it on a solid, stable surface.
• Indoor use only. Do not place the unit in a humid, dusty, oily, or smoky site.
• Do not place it in an area with poor ventilation or in an area close to fire or other sources of
heat. Doing so may damage the unit as well as cause fire or an electric shock.
• When cleaning is necessary, shut down the system and unplug the unit from the outlet
before uncovering the top cover. Do not use liquid cleaners or aerosol cleaners. Use only a
damp cloth for cleaning.
• Always shut down the system prior connecting or disconnecting accessories, with the
exception of USB devices.
• Lithium battery: Danger of explosion if battery is incorrectly replaced. Replace with the
same or equivalent type of batteries recommended by the manufacturer. Dispose used
batteries according to the battery manufacturer’s instructions.
This symbol intends to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the
appliance.
This symbol intends to alert the user to the presence of unprotected “Dangerous
Voltage” within the product’s enclosure that may be strong enough to cause a
risk of electric shock.
2
User’s Manual
Important Information
Before proceeding, please read and observe all instructions and warnings in this manual.
Retain this manual with the original bill of sale for future reference and, if necessary, warranty
service. When unpacking your unit, check for missing or damaged items. If any item is missing,
or if damage is evident, DO NOT INSTALL OR OPERATE THIS PRODUCT. Contact your
dealer for assistance.
Rack Mounting
Consult with the supplier or manufacturer of your equipment rack for the proper hardware and
procedure of mounting this product in a safe fashion. Avoid uneven loading or mechanical
instability when rack-mounting units. Make sure that units are installed to get enough airflow for
safe operation. The maximum temperature for rack-mounted units is 40 °C. Check product
label for power supply requirements to assure that no overloading of supply circuits or over
current protection occurs. Mains grounding must be reliable and uncompromised by any
connections.
3
User’s Manual
Table of Contents
1. Overview .......................................................................................................................6
1.1 Product Key Features ..........................................................................................6
1.2 Product Application Diagram................................................................................7
2. System Setup................................................................................................................8
2.1 Position the Unit...................................................................................................9
2.2 Selecting Video Format........................................................................................9
2.3 Connecting Devices to the Unit............................................................................9
2.4 Rear Panel Connections....................................................................................10
3. General System Setup ...............................................................................................12
3.1 Front Panel Introduction ....................................................................................13
3.1.1 LED Definition ......................................................................................13
3.1.2 Functional Keys....................................................................................14
3.2 Install HDD to the Unit .......................................................................................18
3.3 Power Up / Down the Unit .................................................................................18
3.4 Entering OSD Setup Menu ................................................................................19
3.5 System Date / Time Setting ...............................................................................20
3.5.1 Set Date / Time.....................................................................................21
3.5.2 Daylight Saving Time............................................................................22
3.6 Record Schedule / Quality Setting .....................................................................22
3.6.1 Record Mode........................................................................................23
3.6.2 Schedule Setup....................................................................................23
3.6.3 Preset Record Configuration ................................................................24
3.6.4 Per Camera Configuration....................................................................24
3.6.5 To Record Event Video Only ................................................................25
4. Basic Operation..........................................................................................................25
4.1 Viewing Live / Playback Video ...........................................................................25

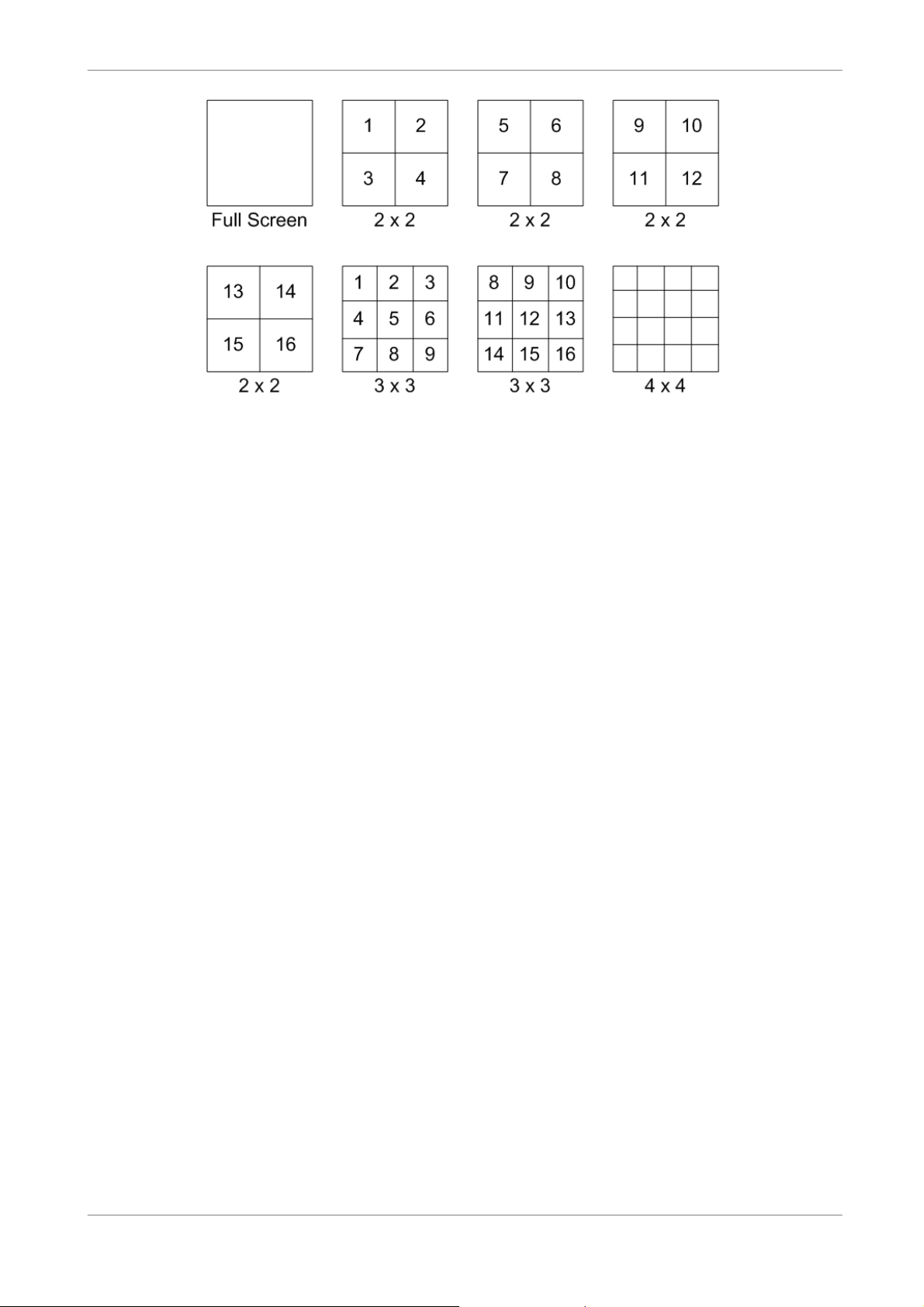

4.1.1 Viewing Modes .....................................................................................25
4.1.2 Digital Zoom .........................................................................................26
4.1.3 Viewing Live Cameras..........................................................................26
To Freeze Live Image ...........................................................................26
4.1.4 Viewing Recorded Video ......................................................................27
Key Usage in Playback ........................................................................27
Pause Playback and Single Step Forward ...........................................28
Viewing Live Image in Playback Mode .................................................28
4.1.5 Dual Main Output (For T Model Only)...................................................28
4.2 Sequence Setup ................................................................................................29
4.2.1 Sequence with Main Monitor ..............................................................29
4.2.2 Sequence with Call Monitor ................................................................30
4
User’s Manual
4.3 Searching Recorded Video................................................................................30
4.3.1 Searching by Time................................................................................31
4.3.2 Searching by Event ..............................................................................31
4.4 Video Export ......................................................................................................32
4.4.1 Export from OSD Setup Menu..............................................................32
4.4.1.1 Select the External Device ......................................................33
4.4.1.2 Select Video for Exporting.......................................................34
4.4.1.3 Digital Signature......................................................................35
4.4.1.4 Erase Disc...............................................................................35
4.4.2 Quick Video Export through Front Panel ..............................................35
4.4.2.1 ezBurn Introduction .................................................................36
4.4.2.2 To Export Normal Video ..........................................................36
4.4.2.3 To Export Event Video.............................................................37
4.5 Deleting Recorded Video...................................................................................37
4.6 Dome Control.....................................................................................................38
4.6.1 Dome Connection.................................................................................38
4.6.2 Dome Protocol Setup ...........................................................................39
4.6.3 RS485 Setup........................................................................................40
4.6.4 Dome Controlling Key ..........................................................................41
4.6.5 Setting Preset Points............................................................................42
4.6.6 Calling Preset Points............................................................................43
Appendix A: Technical Specifications ...........................................................................44
Appendix B: Alarm I/O Definition ...................................................................................46
5
User’s Manual
1. Overview
The Full-featured MPEG-4 DVR is an integrated digital video recorder that
combines the features of a time-lapse audio / video recorder, a multiplexer,
and a video server to create a single security CCTV solution.
Its outstanding triplex+ operation enables users to view live or playback
recorded video, and remote access through network simultaneously, while
recording other video, and to view wanted recorded video instantly by entering
the time and date or selecting recorded video from the event list.
Full-featured MPEG-4 DVR includes DVRRemote, the remote viewing and
configuration software that is a Web-browser plug-in, allows user to view live
or recorded video images and enables remote configuration. The remote
software is stored in Full-featured MPEG-4 DVR and deployed over a LAN,
WAN or Internet connection to remote Windows-based computers. This
simplifies the installation and maintenance of the software components so all
remote users are kept up to date.
NOTE: Use of other power supply may cause overloading.
1.1 Product Key Features
The Full-featured MPEG-4 DVR offers advanced features not typically found
in standard multiplexers; it integrates the full features of a DVR, multiplexer
and video server (by using the software DVRRemote). The key features of
Full-featured MPEG-4 DVR are listed as follows.
• MPEG-4 high quality compression
• 16 channels video input
6
• Triplex+ operation enabling simultaneous viewing live or playback while
continuing to record
• DVRRemote web-based software for remote monitoring and control via
LAN or Internet
• Embedded Linux operating system
• Real-time “live display” for each channel
• Recording frame rate up to 480 pps (NTSC) / 400pps (PAL)
• 2 Channels of audio recording/ playback
User’s Manual
• Three USB2.0 ports for video clip export and/or backup
• Easy software upgrade via USB ThumbDrive®, DVD+RW, or Internet
Remote Application
• Up to 4 internal hard disk drives support up to 3TB capacity
• Hard disk drive full alarm for noticing
• 2X Digital Zoom available in live mode
• Export video (AVI & DRV) with audio and digital Signature
• Exported AVI file can be played in any PC with DivX decoder installed
• Automatic camera detection (Plug & Play)
• Covert camera operation provides enhanced security and administrator
control
• Per camera configuration for camera settings, frame rate, picture bit rate,
alarms, motion detection
• Programmable day/ night/ weekend scheduling
• Programmable main monitor/ call-monitor switching sequence
• Dual video out for monitoring (16CH Model)
• Powerful alarm processor allows flexible alarm trigger and responses,
including alarm, motion, and camera failure
• Text Message (Short Message Service; SMS) sent to your mobile phone
for alarm notice
•
Dome control protocols:
DynaColor, Pelco D, Pelco P,AD422 and Fastrax 2
• Pre-program the OSD menu using a mouse connected to the USB port
• Supports multiple language on-screen menus
• Two levels of password security
• Universal power input, no external power unit
1.2 Product Application Diagram
Connect the unit with other devices as shown in the system diagram to
complete a video surveillance solution. The figure shows also the
expandability and flexibility of this digital recording system.
7
User’s Manual
REC
REW
FF
PLAY
STEP
2. System Setup
The notices and introduction on system installation will be described
particularly in this chapter. Please follow the description to operate the unit.
2 3 4 5 6 71 8
10 11 12 13 14 159
IR
SEQ
FREEZE PLAY/STOP MODESEARCH MENU
/
16
8
In order to prevent the unit from data loss and system damage that caused by
a sudden power fluctuation, use of an Uninterruptible Power Supply (UPS) is
highly recommended
User’s Manual
2.1 Position the Unit
Firstly, note to position / mount the Full-featured MPEG-4 DVR in a proper
place and be sure to power off the unit before making any connections. The
placed location should avoid hindering or blocking the unit from airflow.
Enough airflow is needed to protect the unit from overheating. The maximum
allowable temperature of operating environment is 40°C.
The unit utilizes heat-conducting techniques to transfer internal heat to the
case, especially to the bottom side of the unit.
NOTE: Be sure not to remove the rubber feet, and always leave a
space for air ventilation on the unit’s bottom side.
2.2 Selecting Video Format
The Full-featured MPEG-4 DVR is designed to operate under either NTSC or
PAL video formats. The switch is positioned on the rear panel.
2.3 Connecting Devices to the Unit
This section lists some notices that should be given before making any
connections to the Full-featured MPEG 4 DVR.
NOTE: Connect short-term devices, such as USB ThumbDrive®, USB
CD-RW, USB Hard Disk Drive, etc., only after the unit is successfully
powered up.
Connecting Required Devices
Before power up the unit, you should connect cameras and a main monitor to
the unit for basic operation. If needed, connect a call monitor for displaying full
screen video of all installed cameras in sequence.
9
User’s Manual
Connecting Short-term Device
If you plan to install any short-term devices to the Full-featured MPEG-4 DVR
and use them as part of the unit system, such as USB CD-RW, USB Hard
Disk Drive, etc. Make sure connecting those devices only during the unit is
powered up. Because Full-featured MPEG-4 DVR can recognize the external
devices only after the power-up process is done completely.
2.4 Rear Panel Connections
There are various connectors on the rear panel used for Full-featured
MPEG-4 DVR installations. The following figure shows the connectors by
name; and followed by the detailed description of each connector.
Main Monitor (S-Video / BNC)
Both S-Video and BNC output connectors are offered for connecting to a main
monitor. The main monitor displays live image and playback recorded video in
full-screen or split-window format.
Call Monitor (BNC)
The call monitor is used to display full screen video of all installed cameras in
sequence. The BNC call monitor connector allows user to connect the
Full-featured MPEG-4 DVR with an optional call monitor.
Video Input
16 BNC connectors are offered for video input streams from installed cameras.
The number of connectors is equal to the number of channels.
10
User’s Manual
Camera Looping
Plenty of BNC connectors are positioned on the real panel for looping out the
video input.
LAN Connector (RJ-45)
The Full-featured MPEG-4 DVR is capable of networking. The LAN port
opens the door of Full-featured MPEG-4 DVR to Ethernet where by the
Internet.
Power Jack
The Full-featured MPEG-4 DVR has an adjustable voltage
AC 115 / 230 power connection jack. Before you connect to a
power supply, please note that the switch is set to the
appropriate setting. Please connect the power supply that
ships with the unit.
NOTE: Use of other power supply may cause overloading.
Power Switch
Used to power up and shut down the unit.
Audio In / Out115 /
The Full-featured MPEG-4 DVR provides two channels of audio recording
and playback. Audio In RCA connector is offered for connecting an audio
source device (e.g. external amplified microphone) to the unit; Audio Out RCA
connector is offered for connecting an audio output device (e.g. amplified
speakers) to the unit.
Alarm I/O & RS485
The unit provides an alarm I/O and RS485 port that offers user the flexibility
required to connect the unit to the other device. Refer to Appendix B: Alarm
I/O for pin definitions.
VGA Out
A VGA output connector is offered for connecting to a VGA main monitor. The
source of image of VGA and BNC main monitor are the same.
11
User’s Manual
RS-232C
The unit provides a RS-232C communication port for sending and receiving
signals.
USB Connector (x2)
There are two USB2.0 ports on the rear panel for users to connect external
USB devices to the unit, such as ThumbDrive® or CD-RW.
Full-featured MPEG-4 DVR allows users to preset the OSD settings using a
USB mouse.
3. General System Setup
The Full-featured MPEG-4 DVR allows user to access some general
operations through the front panel easily. The following subsections introduce
the general operations of the unit.
The regular displayed OSD information and its displayed positions are shown
as following figure. The channel title will be displayed on the top-left side of
the window, either in full screen mode or in multiple channel mode. The
current operating mode, including Call mode, Dome-Control mode, Playback
mode. Freeze mode and Sequence mode, will be displayed on the bottom-left
side of the screen. And the date/ time information will be display on the
bottom-right side.
Ch4
Playback
2005/11/09 PM04:31:22
12
User’s Manual
3.1 Front Panel Introduction
The unit’s front panel controls enable user to control the unit and preset the
programmable functions.
3.1.1 LED Definition
The Full-featured MPEG-4 DVR LEDs on the front panel are described as
follows.
Power LED (Green)
The LED lit during the period when the correct power is connected to the unit.
HDD LED (Yellow)
The LED should be lit while the HDD is processing data to or from the
connected HDD.
Alarm LED (Red)
The LED should be lit during an alarm is triggered.
Network LED (Green)
The LED should be lit when Full-featured MPEG-4 DVR is connected to a
network and blink when the data is being transferred.
REC LED (Green)
The LED should blink while the Full-featured MPEG-4 DVR is recording.
13
User’s Manual

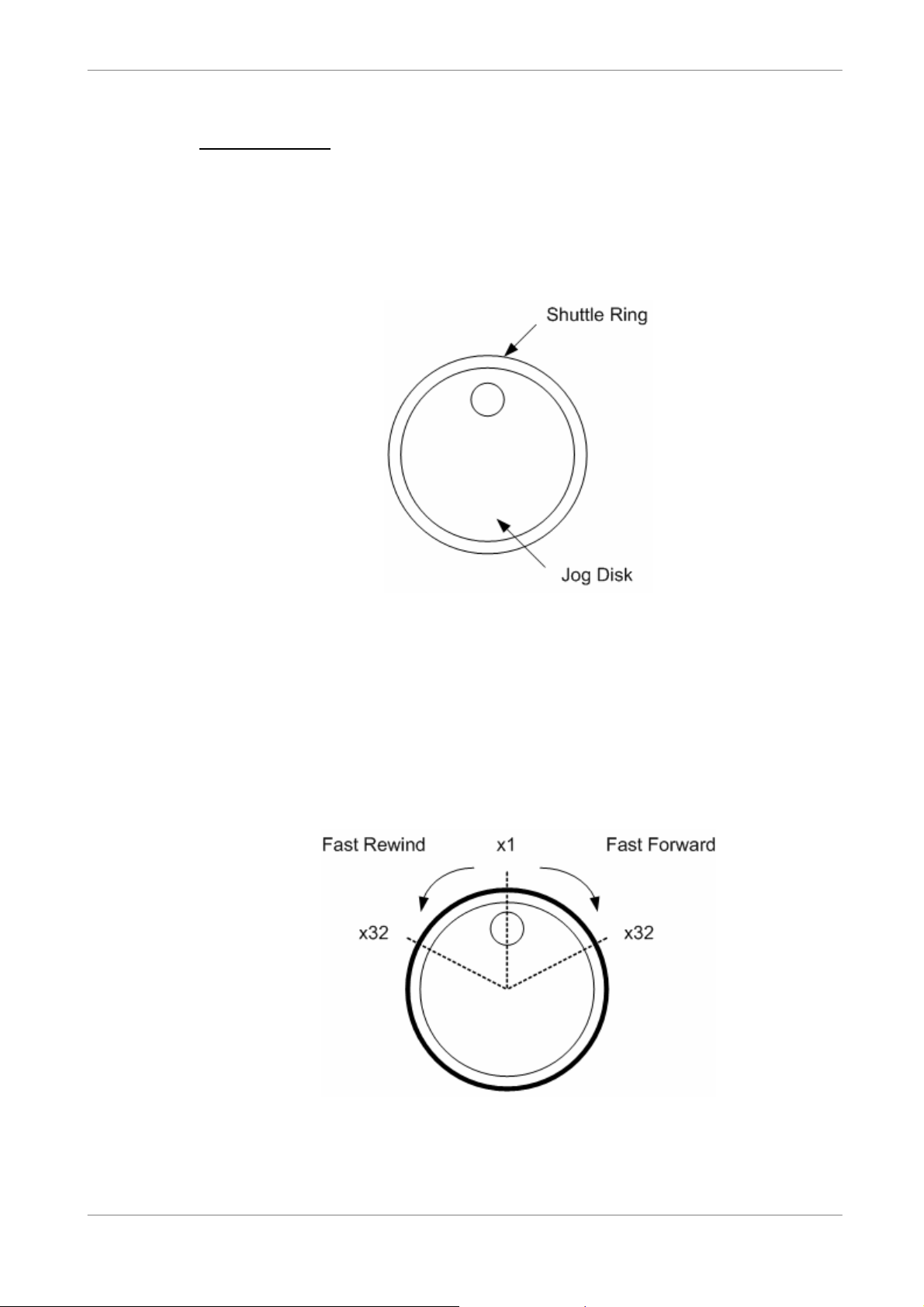

3.1.2 Functional Keys
The Full-featured MPEG-4 DVR functional keys on the front panel for normal
operation are described as follows.
CHANNEL
• When in both Live and Playback modes, press the CHANNEL key to view
the corresponding video in full screen. The number of the CHANNEL keys
corresponds to the number of cameras supported by the unit.
• When in dome control mode, the key named “1” is used to access the
Set/Go preset menu; the key named “2” is used to hide or display the
dome setting parameters.
ZOOM/ENTER
• In OSD menu or selection interface, press the key to make the selection or
save settings.
• In live full screen view mode, press to view a 2× zoom image; press it
again to return.
14
Loading...
