MADE IN
BRITAIN
Dimensions
Width - 100cm
Depth - 45cm
Height - 72cm

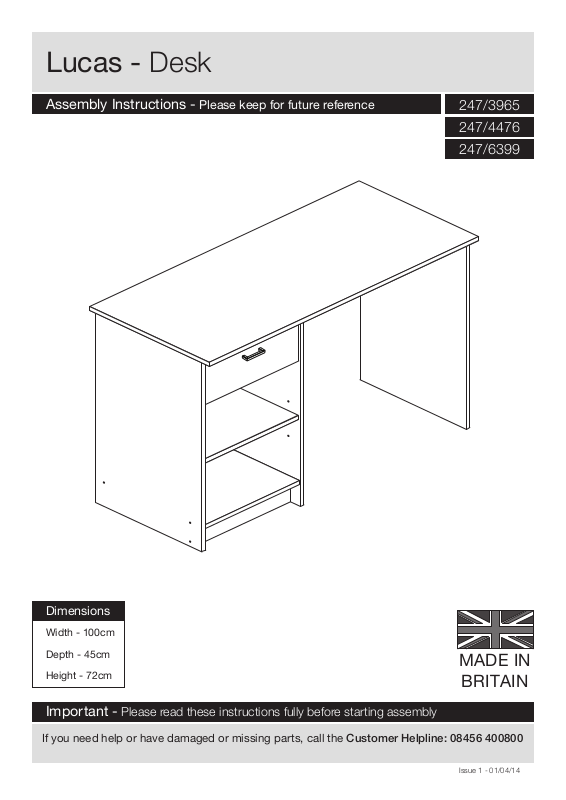

Lucas - Desk
Assembly Instructions - Please keep for future reference
247/3965
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 01/04/14
Important - Please read these instructions fully before starting assembly
247/6399
247/4476
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 19kgs. Please lift
with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Components - Panels
Please check you have all the panels listed below
2
Left Side (D2911A)
(706 x 394mm)
1
Top (D2915A)
(1000 x 444mm)
4
Base (D2916A)
(349 x 392mm)
5
Upright (D2912A)
(706 x 394mm)
2
Right Side (D2913A)
(706 x 394mm)
3
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Shelf (D2919A)
(349 x 373mm)
6
Drawer Base (T161)
(299 x 330mm)
10
Modesty (D2917A)
(602 x 157mm)
7
Drawer Front (D2914A)
(345 x 157mm)
9
Back (X725)
(626 x 373mm)
12
Plinth (D2918A)
(349 x 80mm)
8
Drawer Wrap (W161)
(943 x 95mm)
11
Please check you have all the fittings listed below
Tools required
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 2
B
Metal dowel (F901) x 8 Shelf stud (F110) x 4
C
D
Large locking
nut (F900) x 6
E
Small locking
nut (F3) x 2
F
G
40mm Screw (F910) x 10
H
Rule Scissors Hammer Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
L
R (F601)
L (F600)
F599
F599
Drawer stops (F599) x 2
Runners (F600) x 1 and (F601) x 1
19mm Screw (F461) x 2
Handle (F923) x 1
J
Nail (F51) x 12
I
Wedgefix (F639) x 2
Plastic Nail (F91) x 6
K
Assembly Instructions
4
Prepare the drawer
front and drawer wrap
a: Screw 2 metal dowels
. into the holes shown
on the back of the
drawer front .
Note: Tighten the metal
dowels up fully against
the panel.
b: Insert 2 small locking
nuts into the holes
shown on the drawer
wrap .
Note: The arrows on the
locking nuts must point
towards the hole in the
edge of the panel.
B
9
a:
b:
F
11
B
Assemble the drawer
a: Place the drawer
base into the narrow
slot on the drawer wrap
. . Fold the wrap
around the base.
b: Turn the drawer wrap
assembly over and push
it onto the back of the
drawer front .
Note: Turn the locking
nuts clockwise to
secure the panels - more
than 1/2 a turn.
10
10
11
9
F
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
B
B
B
9
9
9
11
11
11
11
B
B
F
a:
b:
B
F
11
F
F
Step 1
Step 2
Assembly Instructions
5
Attach the drawer
stops
Carefully break off the 2
drawer stops (F599) from
the pair of drawer
runners .
Push the drawer stops
fully through the drawer
wrap from the inside.
L
SNAP!
SNAP!
F599
11
11
Attach the handle
Attach the handle to
the drawer front using 2
screws .
Note: Do not
overtighten the screws.
H
D
H
L
L
F599
L
F599
L
F599
L
Step 3
Step 4
D
D
Step 5
Fit the wedgefixes
Turn the drawer
assemblies over and
slide 4 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
I
I
I
I
Assembly Instructions
6
L
F600
Finished
front edge
Finished
front edge
L
E
E
E
E
L
L
1
2
Prepare the left side
and the upright
Separate the runners .
a: Push fit left runner
marked ‘L’ into the holes
shown on left side .
Note: Runners must be
be fitted flat against the
panel. If necessary
gently tap into final
position.
Insert 2 large locking
nuts into left side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
b: Push fit right
runner marked ‘R’
into the holes shown on
upright .
Insert 2 large locking
nuts into the upright
. .
1
1
L
E
2
2
E
L
R
F601
L
L
a:
b:
Step 6
E
G
G
G
A
A
Assembly Instructions
7
8
8
2
L
Fit the plinth to the
upright
Attach the plinth to
the upright using the
dowel already fitted and
secure with screw .
8
2
G
Fit the base to the
upright
Attach the base to
the upright using 2
screws .
2
5
5
G
Finished front edge
2
Prepare the plinth
Tap 2 wooden dowels
into the plinth .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
A
8
Step 7
Step 8
Step 9
10mm
A
Finished
top edge
7
Assembly Instructions
8
G
G
G
Fit the left side
Attach the left side to
the base and plinth
using 3 screws .
8
1
5
G
8
5
1
3
E
E
3
Prepare the right side
Insert 2 large locking
nuts into the right
side .
E
Finished
front edge
G
G
Fit the modesty
2 people are needed
here
Attach the modesty
to the upright using 2
screws .
Support the modesty
until the right side has
been fitted in the next
step.
7
2
G
2
Step 10
Step 11
Step 12
7
Assembly Instructions
9
L
Fit the right side and
the plastic nails
2 people are needed
here
Attach the right side
to the modesty using
2 screws .
Tap 2 plastic nails
into the bottom edge of
the left side , upright
. and right side .
7
3
3
G
G
G
4
Prepare the top panel
a: Screw 6 metal dowels
. into the holes on the
top .
Note: Tighten the metal
dowels up fully against
the panel.
B
4
B
B
B
B
B
B
B
B
B
B
B
B
Step 13
Step 14
4
K
K
K
1
2 3
K
K
K
K
1
2
Fit the back
2 people are needed
here
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
down onto the unit.
Nail down the
sides and bottom
edge of the back
as shown.
Note: Nails should
be spaced about
150mm apart.
Stand the unit up.
Assembly Instructions
10
B
E
Fit the top
Push the 6 metal
dowels fitted to the
top down into the
holes in the top edge of
the side and upright
panels.
Use a screwdriver to
tighten the 6 large
locking nuts fitted to
the side and upright
panels , and .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
1 32
E
B
E
4
1
2
3
4
x
y
y
y
x
12
12
Warning: The
desk is heavy.
Lift with care.
12
Step 15
Step 16
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
Hole for cables
b:
J
J
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Assembly Instructions
11
L
Insert the drawer
Lift the front of the
drawer whilst inserting to
overcome the ‘stop’
system.
Note: To ensure that
your drawer runs
smoothly, spray a small
amount of furniture
polish into the grooves.
Assembly is complete
Warning: The
desk is heavy.
Lift with care.
Step 17
C
1
2
6
x 4
Fit the shelf
Insert 4 shelf studs ,
at the required height,
into the holes on the left
side and upright .
Slide the shelf in to
rest on top of the 4 shelf
studs.
C
21
6
Step 18
ALR2989
