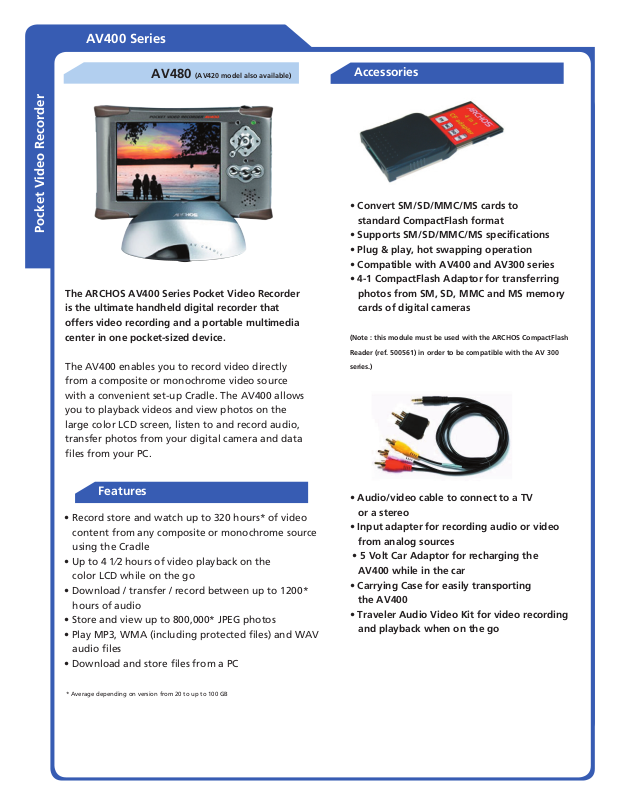

AV400 Series

AV480 (AV420 model also available)

Pocket Video Recorder

The ARCHOS AV400 Series Pocket Video Recorder
is the ultimate handheld digital recorder that
offers video recording and a portable multimedia
center in one pocket-sized device.

The AV400 enables you to record video directly
from a composite or monochrome video source
with a convenient set-up Cradle. The AV400 allows
you to playback videos and view photos on the
large color LCD screen, listen to and record audio,
transfer photos from your digital camera and data
les from your PC.

Accessories

• Convert SM/SD/MMC/MS cards to
standard CompactFlash format

• Supports SM/SD/MMC/MS specications

• Plug & play, hot swapping operation

• Compatible with AV400 and AV300 series

• 4-1 CompactFlash Adaptor for transferring
photos from SM, SD, MMC and MS memory
cards of digital cameras

(Note : this module must be used with the ARCHOS CompactFlash

Reader (ref. 500561) in order to be compatible with the AV 300

series.)

Features

• Record store and watch up to 320 hours* of video
content from any composite or monochrome source
using the Cradle

• Up to 4 1⁄2 hours of video playback on the
color LCD while on the go

• Download / transfer / record between up to 1200*
hours of audio

• Store and view up to 800,000* JPEG photos

• Play MP3, WMA (including protected les) and WAV
audio les

• Download and store les from a PC

* Average depending on version from 20 to up to 100 GB

• Audio/video cable to connect to a TV
or a stereo

• Input adapter for recording audio or video
from analog sources

• 5 Volt Car Adaptor for recharging the
AV400 while in the car

• Carrying Case for easily transporting
the AV400

• Traveler Audio Video Kit for video recording
and playback when on the go

AV400 Series

Specication

Capacity: 80 GB(1)

(1) On average -- 1 GB = 1 billion bytes, formatted capacity is less.

Interfaces: USB 2.0 high-speed, compatible USB 1.1, PC & Mac.Built-in CompactFlash™ Type I slot to accept Compact

Flash™ memory cards and optional 4 in 1 CF adapter for SD, SM, MMC, MS and MS Pro.

Video playback: MPEG-4 SP with MP3 or ADPCM stereo sound, near DVD quality up to 704x480 @ 30 f/s, AVI le format.

Compatible XviD and DivX®* 4.0 & 5.0.

* Files compatible with MPEG4-SP AVI only; MPEG-4: ISO/IEC standard by Moving Picture Experts Group; AVI:

audio/video le container by Microsoft. DivX® is a registered trade mark of DivXNetworks Inc.

Video recording: MPEG-4 SP with ADPCM stereo sound, near SVCD quality (optimised resolution for standard TV through

composite video line-in) with up to 512x384 @ 30 f/s, in AVI format.

Audio playback: Stereo MP3 decoding @ 30-320 kb/s CBR & VBR, WMA (including protected les), WAV (PCM & ADPCM).

Audio recording: From any analog source in stereo sound for WAV (PCM & ADPCM) format.

Voice recording with built-in microphone.

Photo viewer: JPEG (except progressives) or BMP

Display: 3.8’‘ TFT LCD depending on model and availability, (QVGA) 320x240 pixels, 262 000 colours and TV output.

AV Connections: Composite Video/ E Earphone/ Line Out jack. Built-in microphone and speaker. Cradle to connect to video

source with analog audio/video In & Out to RCA jacks, S-video In, and IR receiver for remote and IR emitter

for tuner control, SCART In & Out for European version. Travel audio-video kit in option to record audio and

video analog source on the move.

Battery Life: up to 16 hours for audio or 4 1⁄2 hours for video on built-in LCD.

Scalability: Download rmware updates from www.archos.com

Power source: Internal : rechargeable Li-Ion Batteries. External : AC charger/adapter.

Dimensions: 80 GB model: approx. 125 x 78 x 26 mm (4.9” x 3.1” x 1”).

20 GB model: approx. 125 x 78 x 20 mm (4.9” x 3.1” x 0.8”).

Weight: 320 g (11.29 oz)

System requirements: PC: Pentium® III 800 MHz or higher, Windows 98 SE, ME, 2000 or XP. 64 MB RAM (128 MB recommended)

with USB port and CD-ROM drive.

Mac: 9.2 or X (10.2.4) USB Manager version 1.2 or higher with USB port and CD-ROM drive.

Package includes: AV 400, Cradle with audio/video connections & SCART adapters for European version, Remote Control

with 2 AA batteries, Protective case, USB 2.0 cable, Stereo headphone, Manual, AC adapter/charger with

US/UK/EU plug

(1) On average -- 1 GB = 1 billion bytes, formatted capacity is less

* Average depending on version from 20 to up to 100 GB

Pocket Video Recorder

Includes :

• Audio and video input and output cables

(SCART adapters for European version)

• IR emitter cable to stick to the eyepiece to the infrared receiver of

a VCR , cable box, or satellite receiver

• Remote control

• Power charger/adapter
