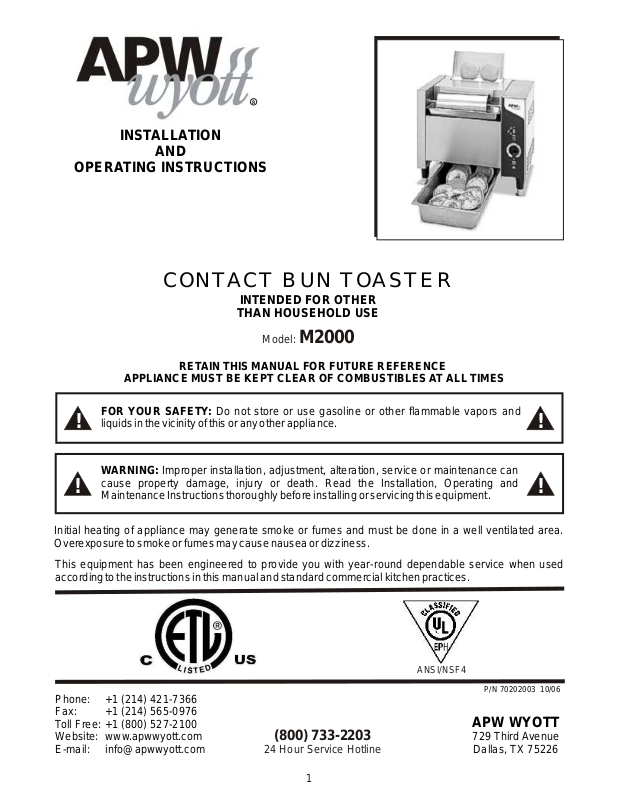

APW Wyott M-2000 Installation Manual

R

INSTALLATION

AND

OPERATING INSTRUCTIONS

CONTACT BUN TOASTER

INTENDED FOR OTHER

THAN HOUSEHOLD USE

Initial heating of appliance may generate smoke or fumes and must be done in a well ventilated area.
Overexposure to smoke or fumes may cause nausea or dizziness.

This equipment has been engineered to provide you with year-round dependable service when used
according to the instructions in this manual and standard commercial kitchen practices.

APPLIANCE MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES

FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death. Read the Installation, Operating and
Maintenance Instructions thoroughly before installing or servicing this equipment.

RETAIN THIS MANUAL FOR FUTURE REFERENCE

Model: M2000

!!

!!

ANSI/NSF4

Phone: [phone]
Fax: [phone]
Toll Free: [phone]
Website: www.apwwyott.com
E-mail: [e-mail]

[phone]

24 Hour Service Hotline

1

P/N 70202003 10/06

APW WYOTT

729 Third Avenue

Dallas, TX 75226

TABLE OF CONTENTS

Safety Precautions 2
General Information 2
Installation 3
Location 4
Operating Instructions 4
Cleaning 5
Troubleshooting Guide 7
Replacement Parts List w/Exploded View 8
Wiring Diagram 10
Warranty 12

WARNING: In Europe, appliance must be connected by an earthing cable to all other units

in the complete installation and thence to an independent earth connection in compliance

!

with EN 60335-1 and/or local codes

WARNING: An earthing cable must connect the appliance to all other units in the complete
installation and from there to an independent earth connection.

!

!

!

SAFETY PRECAUTIONS

APW Wyott toasters are designed, built, and sold for commercial use and should be operated by trained
personnel only. Clearly post all CAUTIONS, WARNINGS and operating instructions near each unit to
insure proper operation and to reduce the chance of personal injury and/or equipment damage.

Always disconnect power before cleaning or servicing the toaster. Surfaces will remain hot after power has
been turned off, allow unit to cool before cleaning or servicing. Never clean the toaster by immersing it in
water. The toaster is not protected against water jets; DO NOT CLEAN TOASTER WITH A WATER JET.
Always clean equipment before first use.

Operating toaster without legs will void the warranty. Insure all accessories and exterior panels are properly
installed and adjusted before applying power and operating.

GENERAL INFORMATION

Check the rating label for your model designation and electrical rating. Rating Label is located on the
bottom front of the control panel.

Overall dimensions with feeder: 23.5"(59.7cm) W x 25.9"(65.8cm) H x 17.5"(44.5cm) D

Electrical Ratings:

M2KA: 208VAC, 2880W, 13.8A, 60Hz
M2KH: 240VAC, 3840W, 16A, 60Hz

Cordset Configuration:

208/250V: NEMA 6-20P Plug, 4 foot, 3 wire grounded cord.

If the supply cord is damaged, the manufacturer or an authorized service agent or a similarly qualified
person must replace it to avoid a hazard or warranty.

Shipping Weight:

94 lbs (42.7 Kg)

2

INSTALLATION

1. Examine carton for damage

The freight carrier has assumed responsibility for its safe transit and delivery. If equipment is
received damaged, either apparent or concealed, a claim must be made with delivering carrier.

a. Apparent damage or loss must be noted on the freight bill at the time of delivery.

The carrier representative (Driver) must sign the freight bill. If this is not done, the
carrier may refuse the claim. The carrier can supply the necessary forms.

b. Concealed damage or loss if not apparent until after the toaster is removed from

carton, a request for inspection must be made to the carrier within 15 days. The carrier
should arrange an inspection. Be sure to save all contents and packaging material.

2. Verify Parts

After removing unit from the shipping carton, unwrapping loose parts and remove any packing tape,
plastic wrap and nylon tie-down. Verify the following parts:

Item Packaging Qty

Legs In plastic bag 4
Feeder/Bun Chute Wrapped, loose in top of carton 1
Conveyor In individual carton 1
Instruction Manual Loose in carton 1
Teflon Sheet Kit (optional) Loose in carton Optional

NOTE: PRIOR TO INITIAL START-UP, ALL REMOVABLE PARTS AND THE GRILL SURFACE SHOULD
BE CLEANED WITH WARM SOAPY WATER TO REMOVE MANUFACTURING OILS, THEN RINSED
AND DRIED THOROUGHLY. Apply oil (vegetable oil) to the conveyor chain after washing. (Bun oil can be
used if it contains no animal fats, salts or dairy products).

3. Assemble Legs

Lay the toaster on its back and install the four adjustable legs into the threaded holes on the bottom
of the toaster sides. Hand tighten the legs by gripping the black shank and turning until it is seated
firmly against the bottom of the toaster. Set the toaster upright on a flat surface. Unscrewing the
lower, chrome insert of each leg levels the unit. Flats are provided on two sides of the insert to allow
use of a wrench. “Precise” leveling is not required for proper operation.

4. Conveyor Installation

Remove the front panel by lifting it
straight up. (See Figure 1) Lift
conveyor assembly by using “U”
shaped handles on each conveyor
side bracket. Lower the conveyor
into the two conveyor hanger
brackets above the grill plate on
each side, so the four spacers on
the sides of the conveyor rest on
the bottom flange and the bottom
spacers are against the adjustment
screws. The conveyor hanger
brackets are factory adjusted.
However, before reinstalling the
front panels apply power to the unit
and run the conveyor to insure
proper gear engagement. If gears
are not properly engaged, adjust
the conveyor by loosening the jam
nuts on the conveyor hanger
brackets and adjusting the screw
(see Figure 2) to set the conveyor to
the correct height. Retighten lock
nuts after adjustment is complete.

FIGURE 1. M2000 ASSEMBLY DRAWING

Butter Roller

Top Front Panel

Butter Pan

Bottom

Front

Panel

Conveyor
Assembly

Feeder

Conveyor

Hanger

Main Power

Switch

3

a. To adjust the conveyor up into the drive gear, turn the conveyor adjustment screw

clockwise. Use a 7/16-end wrench to tighten the jam nut.

b. To adjust the conveyor away from the drive gear, turn the conveyor adjustment screw

counterclockwise. Use a 7/16-end wrench to tighten the lock nut.

5. Replace front panel.

6. Feeder Assembly

Install Feeder by fitting slots on back of feeder

onto back panel studs located at top rear of

unit.

7. Install Teflon Sheet (Optional)

Remove Feeder. Allow one end of the Teflon
sheet to overlap the top of the rear panel to
the rear studs. Align the holes in the sheet
with the stud heads and push the sheet over
the stud heads. Balance of the sheet will fit
over the grill surface. Reinstall Feeder
capturin g Teflon Sheet be tween
the feeder and the top of the toaster.

FIGURE 2

Jam Nut

Screw

LOCATION

Place the toaster on a flat surface. This toaster is tested and approved for zero clearances against non­heated surfaces. Locate the toaster near a wall receptacle of the proper configuration. DO NOT USE AN
EXTENSION CORD. Plug the power cord into an outlet (receptacle) of the specified voltage on the rating

label. Outlets must be properly grounded.

OPERATING INSTRUCTIONS

Choose Dry or Wet operation.

1. Dry operation. (no oil) Insure Teflon sheet, 86298 is properly installed.
a. Turn Main Power Switch on. Set Temperature Control knob to desired temperature. Allow Pilot

Light to cycle at least two times (on/off). When the light is on, the grill is heating. Heat up time is

about 15-20 minutes.
b. Turn on motor switch. Conveyor should start to turn.
c. Place bun halves on feeder cut side down (facing grill surface). Toast time is approximately 210

sec. depending on bun height and diameter. Increase or decrease temperature setting to

achieve desired brownness and temperature.

2. Wet operation. (using oil) Apply a light coating of oil to grill surface. (Fry oil can be used) When
toasting using oil, any high-quality cooking oil may be used with this toaster (do not use oils that
contain dairy products such as butter). The Teflon sheet may be used, but it is not required. Fill the
Butter Pan 2/3 full of warmed cooking oil. The oil should spread evenly over the surface of the roller.
a. Turn Main Power Switch on. Set Temperature Control knob to desired temperature. Allow Pilot

Light to cycle at least two times (on/off). When the light is on, the grill is heating. Heat up time is

about 15-20 minutes.
b. Turn on motor switch. Conveyor should start to turn.
c. Hold bun half in the palm of the hand, slap the face (cut side) of the bun on the turning Butter

Roller surface.
d. Place bun halves on feeder cut side down (facing grill surface). Try several buns to determine

the correct pressure and time to achieve the desired browning and temperature of bun. Using

too little oil will cause the bun surface to be cool and uneven in color. It will also cause the bun to

stick to the grill. Using too much oil will give the bun a yellow un-toasted look. Toast time is

approximately 22 sec. depending on bun height and diameter. Increase or decrease the

temperature setting to achieve desired brownness and temperature.

4
