American Power Conversion SMT1000RM2UC Operation Guide

Operation Manual

™

Smart-UPS

Uninterruptible Power Supply

750/1000/1500/2200/3000 VA

Tower / Rack-Mount 2U

120 Vac/230 Vac

Important Safety Messages

SAVE THESE INSTRUCTIONS - This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries.

Read the instructions carefully. Become familiar with the device before trying to install, operate, service or maintain it. The following special messages may appear throughout this document or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.

The addition of this symbol to a Danger or Warning product safety label indicates that an electrical hazard exists that will result in personal injury if the instructions are not followed.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to physical injury.

Product Handling Guidelines

<18 kg <40 lb

18-32 kg 40-70 lb

32-55 kg 70-120 lb

>55 kg >120 lb

Smart-UPS 750/1000/1500/2200/3000 VA 120/230 Vac Tower / Rack-Mount 2U 1

Safety and General Information

Inspect the package contents upon receipt. Notify the carrier and dealer if there is any damage.

• Adhere to all national and local electrical codes.

• All wiring must be performed by a qualified electrician.

• Changes and modifications to this unit not expressly approved by APC by Schneider Electric could void the warranty.

• This UPS is intended for indoor use only.

• Do not operate this unit in direct sunlight, in contact with fluids, or where there is excessive dust or humidity.

• Be sure the air vents on the UPS are not blocked. Allow adequate space for proper ventilation.

• For a UPS with a factory installed power cord, connect the UPS power cable directly to a wall outlet. Do not use surge protectors or extension cords.

• The equipment is heavy. Always practice safe lifting techniques adequate for the weight of the equipment.

Deenergizing safety

The UPS contains internal batteries and may present a shock hazard even when disconnected from the branch circuit (mains). Before installing or servicing the equipment check that the:

• Input circuit breaker is in the OFF position.

• Internal UPS batteries are removed.

Electrical safety

• Use tools with insulated handles.

• Do not handle any metallic connector before power has been disconnected.

• For models with a hardwired input, the connection to the branch circuit (mains) must be performed by a qualified electrician.

• 230 V models only: In order to maintain compliance with the EMC directive for products sold in Europe, output cords attached to the UPS must not exceed 10 meters in length.

• The protective earth conductor for the UPS carries the leakage current from the load devices (computer equipment). An insulated ground conductor is to be installed as part of the branch circuit that supplies the UPS. The conductor must have the same size and insulation material as the grounded and ungrounded branch circuit supply conductors. The conductor will typically be green, with or without a yellow stripe.

• Leakage current for a pluggable, Type A UPS may exceed 3.5 mA when a separate ground terminal is used.

• The UPS input ground conductor must be properly bonded to protective earth at the service panel.

• If the UPS input power is supplied by a separately derived system, the ground conductor must be properly bonded at the supply transformer or motor generator set.

Smart-UPS 750/1000/1500/2200/3000 VA 120/230 Vac Tower / Rack-Mount 2U2

Hardwire safety

• Check that all branch circuit (mains) and low voltage (control) circuits are deenergized, and locked out before installing cables or making connections, whether in the junction box or to the UPS.

• Wiring by a qualified electrician is required.

• Check national and local codes before wiring.

• Strain relief is required for all hardwiring (supplied with select products). Snap in type strain reliefs are recommended.

• All openings that allow access to UPS hardwire terminals must be covered. Failure to do so may result in personal injury or equipment damage.

• Select wire size and connectors according to national and local codes.

Battery safety

• When replacing batteries, replace with the same number and type.

• The batteries typically last for two to five years. Environmental factors impact battery life. Elevated ambient temperatures, poor quality utility power, and frequent short duration discharges will shorten battery life. The battery should be replaced before end of life.

• Replace the batteries immediately when the unit indicates battery replacement is necessary.

• APC by Schneider Electric uses sealed lead acid batteries. Under normal use and handling, there is no contact with the internal components of the battery. Over charging, over heating or other misuse of batteries can result in a discharge of battery electrolyte. Released electrolyte is toxic and may be harmful to the skin and eyes.

• CAUTION: Before installing or replacing the batteries, remove jewelry such as wristwatches and rings. High short circuit current through conductive materials could cause severe burns.

• CAUTION: Do not dispose of batteries in a fire. The batteries may explode.

• CAUTION: Do not open or mutilate batteries. Released material is harmful to the skin and eyes and may be toxic.

General information

• The model and serial numbers are located on a small, rear panel label. For some models, an additional label is located on the chassis under the front bezel.

• Always recycle used batteries.

• Recycle the package materials or save them for reuse.

FCC Class A radio frequency warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are intended to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

WARNING: This is a category C2 UPS product. In a residential environment, this product may cause radio interference, in which case the user may be required to take additional measures.

Smart-UPS 750/1000/1500/2200/3000 VA 120/230 Vac Tower / Rack-Mount 2U 3

SMT750RM2UC and SMT750RMI2UC Rack-Mount SMT750C and SMT750IC Tower

SMT1000RM2UC, SMT1000RMI2UC, SMT1500RM2UC and SMT1500RMI2UC Rack-Mount

SMT2200RM2UC, SMT2200RMI2UC. SMT3000RM2UC and SMT3000RMI2UC Rack-Mount

SMT1000C, SMT1000IC, SMT1500C and SMT1500IC Tower

SMT2200C, SMT2200IC, SMT3000C and SMT3000IC Tower

Specifications

For additional specifications, refer to the APC Web site at www.apc.com.

Environmental specifications

Operating 0° to 40° C (32° to 104° F)

Temperature

Maximum Elevation

Humidity

Storage

Operating 3,000 m (10,000 ft)

Storage

0% to 95% relative humidity, non-condensing

-15° to 45° C (5° to 113° F) charge UPS battery every six months

15,000 m (50,000 ft)

Smart-UPS 750/1000/1500/2200/3000 VA 120/230 Vac Tower / Rack-Mount 2U4

Product Overview

u0989

   

Display (more information below)

Bezel

Battery

Internal battery connector

=SMT750RM2UC and SMT750RMI2UC Rack-Mount SMT750C and SMT750IC Tower

SMT1000RM2UC, SMT1000RMI2UC,

SMT1000C and SMT1000IC Tower

SMT1500RM2UC and SMT1500RMI2UC Rack-Mount

SMT1500C and SMT1500IC Tower SMT2200C, SMT2200IC, SMT3000C and SMT3000IC

Tow er

SMT2200RM2UC, SMT2200RMI2UC, SMT3000RM2UC and SMT3000RMI2UC Rack-Mount

Smart-UPS 750/1000/1500/2200/3000 VA 120/230 Vac Tower / Rack-Mount 2U 5

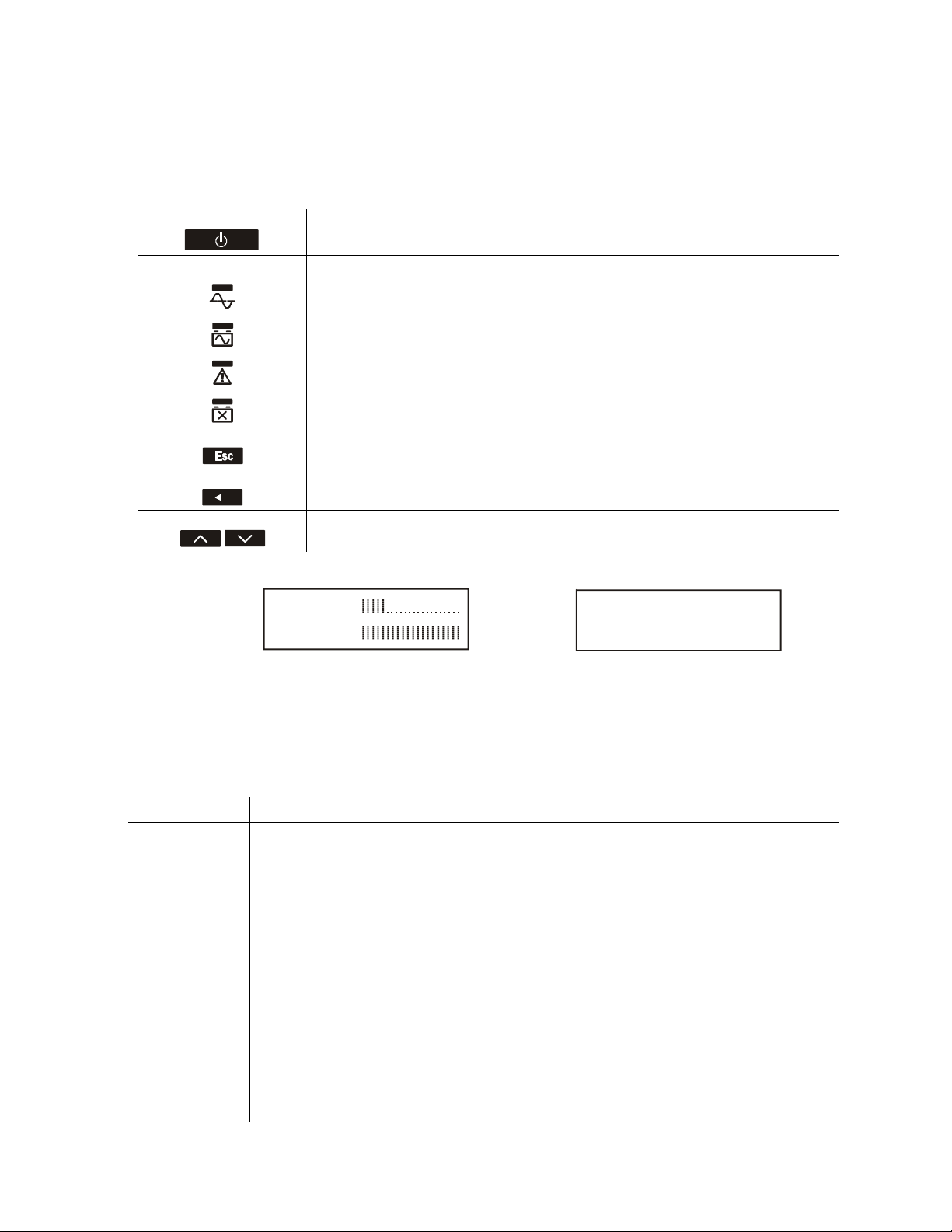

Front panel display features

su0343a

Electric

     

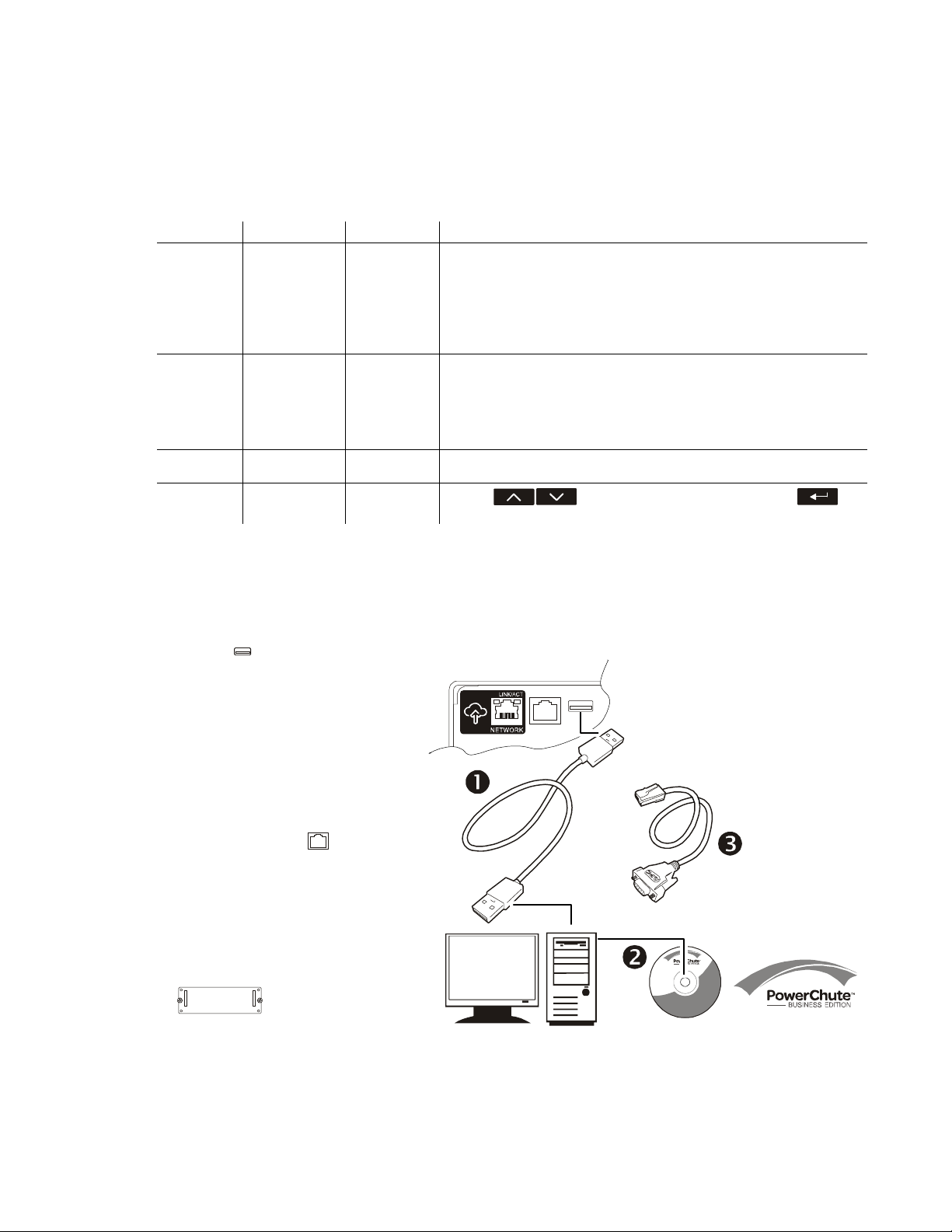

APC™ SmartConnect port

Serial port

USB port

Chassis ground connection screw

Smart Slot

Output circuit breaker/overload protection

     

Controlled outlet group

Outlets

UPS input

Battery connector (located on the front panel of rack-mount models)

Input circuit breaker

EPO connector

LINK/ACT

NETWORK

LINK/ACT

NETWORK

APC By Schneider

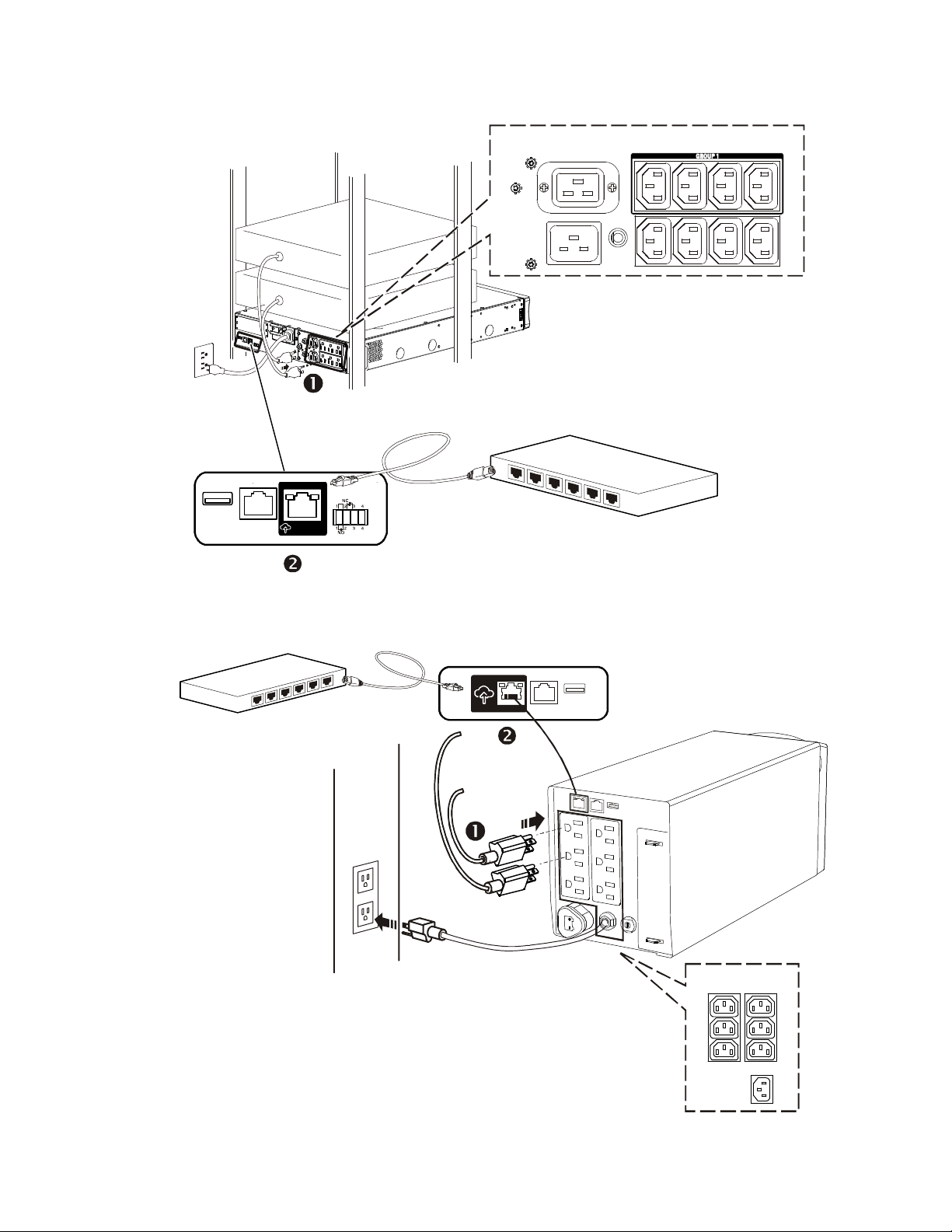

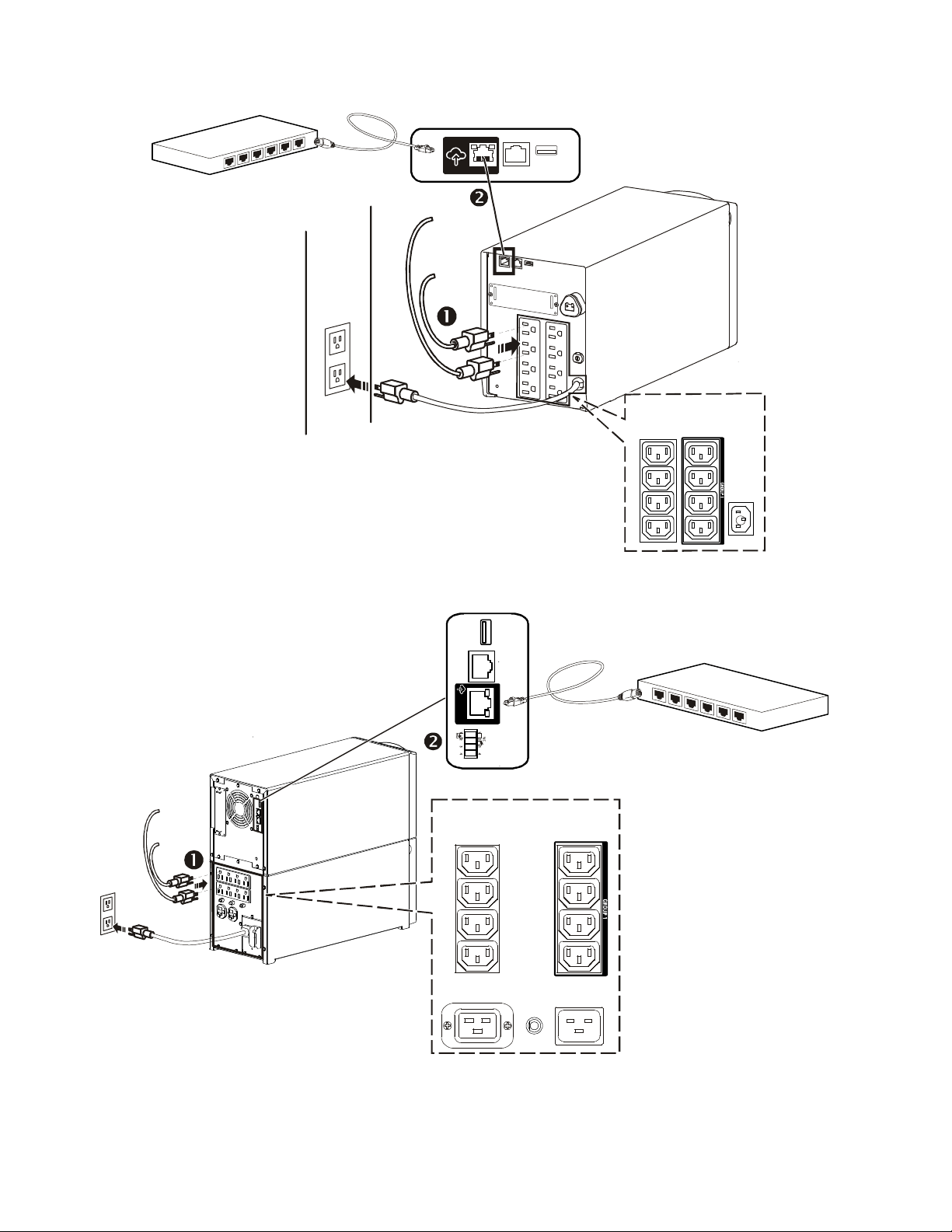

Rear panel features

Online LED



UPS ON/OFF



On Battery LED



Error Detected LED



Replace Battery LED



Multi-lingual display screen



UP/DOWN Selection arrows



ENTER



ESCAPE



SMT750RM2UC Rack-Mount

SMT750RMI2UC Rack-Mount

Smart-UPS 750/1000/1500/2200/3000 VA 120/230 Vac Tower / Rack-Mount 2U6

su0985b

su0985c

SMT1000RM2UC and SMT1500RM2UC Rack-Mount

LINK/ACT

NETWORK

LINK/ACT

NETWORK

SMT3000RM2UC

SMT1000RMI2UC and SMT1500RMI2UC Rack-Mount

su0963b

su0963c

SMT2200RM2UC and SMT3000RM2UC Rack-Mount

SMT2200RMI2UC and SMT3000RMI2UC Rack-Mount

su1010b

su1010c

Smart-UPS 750/1000/1500/2200/3000 VA 120/230 Vac Tower / Rack-Mount 2U 7
