AOC L22BH83 Schematic

维 修 手 册

www.ma163.com 电子技术资料网

客户

机种名

销售地区

AOC L22BH83

中国大陆

L22BH83 E228CANDW1A4NN

首次发布日期：

2008/11

LCD TV

1

目录

www.ma163.com 电子技术资料网

1. 安全与注意事项 ----------------------------------------------------------------------------------------------------- 03

2. 技术规格 -------------------------------------------------------------------------------------------------------------- 05

3. 操作说明 -------------------------------------------------------------------------------------------------------------- 06

4. 工厂模式调整 -------------------------------------------------------------------------------------------------------- 13

5. 故障处理流程 -------------------------------------------------------------------------------------------------------- 14

6. 线路图 ----------------------------------------------------------------------------------------------------------------- 18

7. 电气方框图 ----------------------------------------------------------------------------------------------------------- 32

8. 爆炸图 ----------------------------------------------------------------------------------------------------------------- 33

9. BOM -------------------------------------------------------------------------------------------------------------------- 35

2

www.ma163.com 电子技术资料网

1. 安全与注意事项

为了您的安全
在操作本电视之前，请先仔细阅读本手册，并将本手册保存起来以备将来参考。

重要安全说明
操作设备之前应阅读

1. 阅读这些说明。

2. 遵守这些说明。

3. 注意所有警告信息。

4. 按照所有说明进行操作。

5. 不要在靠近水的地方使用本设备。

6. 只使用干布进行清洁。

7. 不要堵塞任何通风孔，按照制造商说明进行安装。

8. 不要安装在电暖器、散热器、炉子或其它散热设备（包括扩音器）等热源附近。

9. 请务必使用正负极或接地类型的插头，正负极插头带有宽窄两个插脚，接地类型插头带有两个插脚和第

三个接地针脚，宽插脚和第三个针脚均用于安全用途。当提供的插头不能插入您的电源插座时，请找电
工换一个新的插座。

10. 电源线不可被踩到或挤压，特别是在插头、连接插座及设备的出口位置。

11. 只使用制造商指定的附件。

12. 仅与制造商指定或随设备一起销售的推车、底座、三脚架、支架或桌子一同使用。当使用推车时，应小
心移动推车/设备的组合，以避免因翻倒而造成伤害。

13. 应使用标签上标示的电源类型供电给电视。如果您不确定自己家里所使用的电源类型，请向经销商或当
地电力公司咨询。

14. 在雷雨期间或长时间不使用时，请拔下电视的电源插头。

15. 所有维修工作必须由专业维修人员执行。当电视已经损坏时，如电源线或插头损坏，电视内溅入了液体
或异物，电视遭到了雨淋或受潮，不能正常作业，或已经摔坏，则需要进行维修。

16. 本产品可能包含有铅或汞元素，处理这些材料要考虑环境因素。要了解处理或回收的信息，请与当地有
关部门或电子工业联盟（Electronic Industries Alliance）联系：www.eiae.org

17. 需要维修的损坏情况 – 当出现以下情况时应请专业的维修人员进行维修：

A. 电源线或插头损坏。
B. 电视内溅入了异物或液体。

。

C. 电视遭到雨淋。
D. 电视疑似不正常或性能发生明显变化。
E. 电视摔坏或外壳损坏。

3

倾斜度/稳定性 – 所有电视在机壳设计倾斜度和稳定性方面都必须符合建议的全球国际标准。

www.ma163.com 电子技术资料网

y 请不要在机壳的前面或顶部用强力来检查这些设计标准，这样做可能会使电视翻倒。
y 另外，不要将电子设备/玩具放在机壳上，以免对自己或孩子造成伤害。这些对象可能会意外从电

视机上掉下来，从而造成产品损坏或人身伤害。

18. 墙壁或天花板安装 – 将此设备安装到墙壁或天花板上时，必须遵循制造商的建议。

19. 电力线路 – 室外天线应远离电力线路。

20. 室外天线接地 – 如果外部天线连接到接收器，确定该天线系统已接地，可以提供保护，能防止电涌和
静电聚集。
National Electric Code 的 810 节， ANSI/NFPA No. 70-1984 提供了以下方面的信息：线网正确接

地，天线引入线到天线放电装置的支撑结构接地，接地接头的大小，天线充电装置的位置，接地电极的
连接，以及接地电极的要求。请参阅下图。

按照国家电力法规天线接地的实例

CATV 系统安装者注意：CATV 系统安装者应注意 NEC 的第 820-40 条款，它规定了正确接地的原则，
特别是规定了电缆接地应连接到建筑物的接地系统，并且尽可能靠近天线接入点。
将电源插头连接到墙上插座，请确保电视有电源输入！

21. 异物和液体进入 – 应特别注意不要使异物或液体通过槽孔进入到机壳内。

22. 该设备为 I 类设备，必须使用有保护接地的插头和电网连接。

4

2.技术规格

www.ma163.com 电子技术资料网

功能 22"W 屏幕

PC 输入功能

支持电视、视频、HDMI 信号输入功能

项目

可视尺寸 548mm 对角

电视功能

视频输入

PC 功能

音频输出 音频输出：L / R

电视标准 PAL B/G、D/K、I、NTSC M

声音系统 NICAM、FM-MONO

视频 AV

S-VIDEO

分量输入

YPbPr/YCbCr

HDMI X 1

HDMI 及分量输入支

持模式

输入支持分辨率 推荐使用：1680*1050/60Hz (22”W)

声音输入 用于立体声的耳机迷你型插孔 (3.5ø)

L22BH83

音频 L / R x 1

音频 L / R x 1

480i、576i、480p、576p、720p、1080i

扬声器（内置）：两个 2W 扬声器

用于立体声的耳机迷你型插孔 (3.5ø)

预设显示模式

OSD 语言 简体中文 / 英文 (出厂设定为简体中文)

桌台支架 包括

墙壁装配件

电源

使用环境

宽 x 高 x 厚

尺

寸

（含底座）

VESA 100 x 100 mm

电源

功率消耗

温度

储存温度

湿度

512x400x144(mm)

显示方式

VESA

AC100V~240V, 50/60Hz

≤75W

+ 5 °C ~ + 35 °C

- 25 °C ~ + 60 °C

10% ~ 85%

VGA 640x480 31.469 59.940

SVGA 800x600 37.879 60.317

XGA 1024x768 48.363 60.004

水平频率

(kHz)

垂直频率

(Hz)

1360x768 63.981 60.020

VGA TEXT 720x400 31.469 70.087

1680X1050 64.674 59.884

5

3.操作说明

www.ma163.com 电子技术资料网

使用遥控器

6

控制面板

www.ma163.com 电子技术资料网

电源:

信号源: 按此键可以变换不同的输入信号源，按此键屏幕可以显示输出信号源菜单。

菜单: 按此键可以进入或退出菜单。

频道:

音量:

按此键可以打开或使电视进入待机状态，如果电视处在待机状态，则前面的指
示灯会亮显示红色。

在屏幕出现菜单时，按此两键
菜单时，为 TV 模式时可以换台。

在屏幕出现菜单时，按此两键+ 或 –可以确认所选择之选项，在屏幕无 OSD
菜单时，为音量之调整。

或 可以选择所要执行选项，在屏幕无 OSD

7

背板信源接口

www.ma163.com 电子技术资料网

天线输入:
将天线接头插入电视机的天线插孔，本接口为 75Ω 同轴电缆输入。

视频/S 端子输入：
将视频信号源或 S 端子连接线连接至 DVD、激光影碟机、录像机或摄像机等设备上。
音频输入：把音频信号源(计算机、DVD、激光影碟机、录像机或摄像机等)连接至音频输入端口。
友情提示：S 端子音频与视频音频共享。

分量输入：
将分量信号源声音及影像(DVD、激光影碟机、录像机或摄像机等)连接至分量信号输入端口。

电脑信号与电脑音频输入：
将电脑主机的信号用 VGA 信号连接线连接到电视后面的电脑输入接口本机输入。
使用 PC 音频连接线接到电视的 PC 音频输入，另一接线接至 PC 主机音频线接口。

侧边信源接口

HDMI：
即为“高清晰多媒体接口”，将 HDMI 信号连接线连接至 DVD 等设备上。
耳机插孔:
使用者可通过耳机插孔使用耳机。
有多种信源设备可以连接到您的电视，下面说明各种设备如何进行连接

8

。

菜单操作

www.ma163.com 电子技术资料网

1. 按菜单按钮可以显示菜单。

2. 使用上或下光标可以选择所要调整之功能选项。

3. 使用左或右光标或“OK”按钮可以进入子菜单或启用或调整所选择之功能。

4. 按“退出”按钮可以退出菜单，按“菜单”按钮可以退出子菜单。

信号源菜单

按“信源”按钮选择输入信源：包括 TV、AV、S-Video、component、HDMI、PC。
按菜单按钮进入 OSD 主 菜单。

电视模式时可调节项目包括：图像、声音、高级、电视、系统。

AV、S-Video、component、HDMI 输入时可调节项目包括：图像、声音、高级、系统。
PC 模式时可调节项目包括：图像、声音、PC、系统。

一、 图像设定

1. 预设：可提供个人设定、鲜艳、标准、柔和四种图像设定模式选择。

2. 亮度、对比度调整范围为 0～100，通过调整亮度、对比度可以设定画面亮度。

3. 色饱和度：调整范围为 0～100，通过调整此项可以对画面的彩色浓度做调整。（PC, HDMI 模式无该
选项）

4. 色调：调整范围从-50 至 50，通过调整此项可以改变画面颜色。

(COMPONENT，PC, HDMI 模式无该选项及彩色制式为 PAL 时该选项不可调）

5. 锐利度：调整范围为 0～100，通过调整此项改变画面清晰锐利程度。（PC, HDMI 模式无该选项）

6. 色温：此选项为用户提供了三种色温选项：正常、暖色、冷色。PC 模式下多“个人设定”选项，可调节
R, G, B 三色。

7. 复位：用于恢复图像设定中内容为出厂模式。

9

二、 声音设定

www.ma163.com 电子技术资料网

1. 预设：为设计好供您不同输出声音模式，其中有对白、音乐、剧场三种模式为预先设定无法调整高低
音，而个人模式则可以根据自己喜好调整低音、高音、平衡器来设定声音输出模式。

2. 低音、高音调整范围是从-10～10。

3. 平衡：调整范围是从-10～10。从 0~10 调整时，左声道声音 慢慢减小直至消失，从 0~-10 调整时，右
声道声音慢慢减小直至消失。

4. 音效： 有丽音台时可以切换声音效果。（只有电视模式下才有此选项）

5. 复位：可以将声音设定内容恢复为出厂预设值。

三,高级设定（PC 模式无高级设定）

1. 噪点消减：可以选择关、低、正常、高四种选项，画面出现严重噪点时选择消除噪点的高低，高低选

择请用户根据实际画面判定，建议有轻微噪点时无需使用。

2. 高级对比度：打开以后用于增强颜色饱和度，提升色彩效果。

3. 画面比例：wide、Normal、14：9 Zoom、Zoom，16：9 Zoom-Up,Cinema 六种模式来选择画面所占

屏幕比例（HDMI，Component 模式下只有“wide”，“Normal”，“Zoom”，“Cinema”四种模式）

4. 复位：可以将高级设定内容恢复为出厂预设值。

四、电视设定（以下菜单只有在电视模式才出现）

10

www.ma163.com 电子技术资料网

1. 自动搜台：用于给用户自动搜索并存储节目功能,按“菜单”键可以退出

自动搜台模式。

2. 手动搜台： 按左右按钮进入子菜单，见下图

(1) 频道号：显示当前电视频道号
(2) 频道名称：显示当前电视频道名
(3) 频率：显示当前电视频道频率
手动微调方法：按上下建选择频率选项，频率选项变为黄色，然后通过左右键
调整频率或直接按遥控器上的数字键输入固定频率来选择您需要收看的节目。

半自动搜台方法：当按住左或右键 3 秒以上时，会进入半自动搜台状态，当搜索到有信号的节目时自动退

出半自动搜台并将当前节目存储与当前节目号中。

(4) 彩色制式：显示当前电视信号彩色制式。
(5) 声音制式：显示当前电视信号声音制式。
(6) 微调：对频道频率进行微调，调整范围：-50～50.
(7) AFC：可以被设定为开和关，当设定为开时，电视会对电视信号自动侦测，在一定频率范围内当信号有

偏移时会自动调整频道到正确位置。

(8) 保存：保存手动搜台的各个设定值。

3. 频道列表：按左右按钮进入子菜单，见下图

11

www.ma163.com 电子技术资料网

可以按照菜单最下方的指示，对频道列表进行编辑。

五、系统设定

1．菜单语言：设定 OSD 语言功能，提供英文、简体中文两种语言选择。

2. 菜单显示时间：有 10，20，30，40，50，60s 的时间可供选择，来设置菜单

的显示时间。
3．睡眠时间： 设定电视自动进入待机状态的时间。(PC 模式无该项功能)

当睡眠时间设定完成后，开始计时；

4. 菜单透明度：调整范围 0～15，调整菜单的透明程度。

5. 复位：可以将系统设定内容恢复为出厂预设值。

6. 系统重置：可以将各个调整项目设定内容恢复为出厂预设值。

六、PC 设定（以下菜单只有在 PC 模式才出现）

1. 自动调节：将 PC 画面调整到最佳位置

2. 水平位置，垂直位置：调整范围-50～50，手动调整 PC 画面位置

3. 时钟，相位：调整范围-50～50，手动调整 PC 画面。

12

4.工厂模式调整

www.ma163.com 电子技术资料网

此机种无需做白平衡调整，只需要做 “Auto Color”。
1、进入工厂模式

按 MENU 键，出现 User OSD 菜单，再依次按数字键 1 9 9 9，就会出现工厂 OSD 菜单，即进入工
厂模式。

2、点击“Auto Color”在 PC 模式和 COMPONENT 模式如下：
PC 模式：TIM= 137 ;
COMPONENT 模式：TIM= 311 ;

PAT= 185

PAT=185

13

5.故障处理流程

检

,

www.ma163.com 电子技术资料网

5.1 死机

检查电源线和主板接口

检查 F901, BD901, C905

检查 IC901, Q901

检查T901

查D904

D906

NG

检查ZD920

NG

NG

NG

更换T901

NG

更换 ZD920

NG

更换 F901 or BD901 or C905

更换IC901 or Q901

更换 D904 or D906

插上电源线和接口

5.2 无显示（LED 黄色）

无显示

检查KEY板或按键板

检查 U701, U702, U703

检查 U400

OK

检查 I2C 总线

NG

NG

NG

更换U400

更换U701, U702, U703

修复KEY板或按键板

14

5.3 无显示（LED 绿灯）

检查 信号源

www.ma163.com 电子技术资料网

检测有无背光

NG

OK

检测LVD S 接口和线材

OK

检测UH200

OK

NG

更换UH200

检测U202

OK

检测Panel

5.4 画异

检测24V供电

OK

检测BL-ON/OFF信号

更换U202

NG

NG

NG

检测Q705、Q706

更换Panel

检测PS信号

NG

NG

OK

检测电源板

更换Q705、Q706

检查 信号滤波电路

检查 输入

-

检查 U400

OK

，

OK

检查 LVD S 线

，

NG

NG

NG

重接信号源

TV 信号

换 U400

换LVDS cable

换 滤波电容，电阻

检查 TV 制式

OK

检查TU101

NG

换TU101

NG

检查panel

换 panel

15

5.5 无声

,

G

www.ma163.com 电子技术资料网

检测信号源

检测信号滤波电路

检测耳机接口

检测输入信号

检测 U600

检测U602

U603

NG

NG

NG

重新设置信

更换滤波电容或电感

更换耳机接口

中频信号

更换 U600

更换U602 or U603

检测 TV 制式设置

检测 TU101

更换TU101

检测喇叭

N

更换喇叭

16

www.ma163.com 电子技术资料网

5.6 按键板

OSD 不稳定或无法正常工作

按键板连接正常吗？

OK

按键正常吗？

OK

按键板有无故障？

OK

检查主板

NG

NG

NG

接好按键板

更换按键

更换按键板

17

6.线路图

www.ma163.com 电子技术资料网

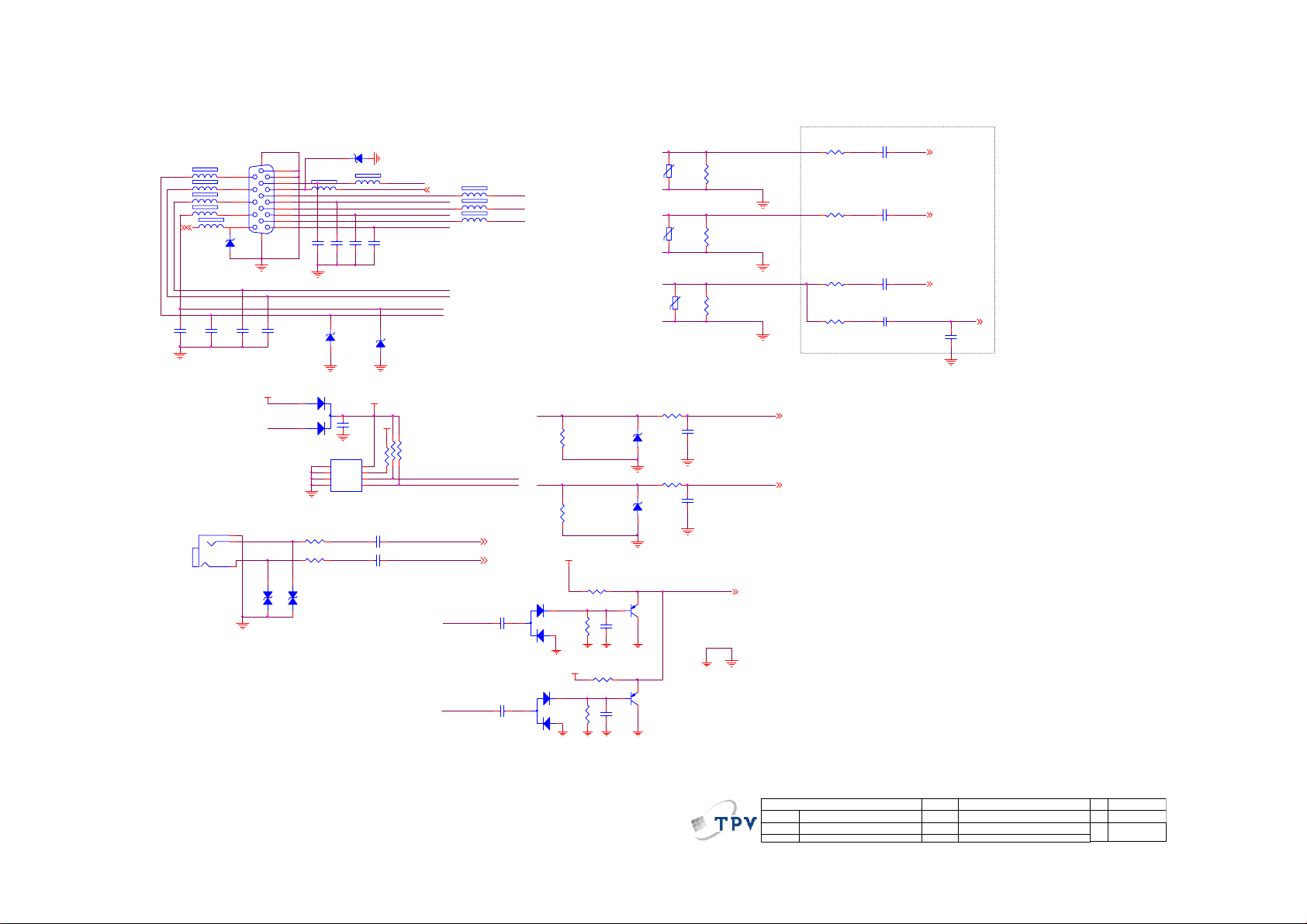

6.1 主板 715T2899 1 3

7

33PF 50V

FB103 120 OHM
FB104 120 OHM
FB105 120 OHM
FB106 120 OHM
FB107 120 OHM

1 2

1 2

1 2

1 2

RS_RXD

C100

AGND

1 2

ZD124

UDZS5.6B

C109

33PF 50V

CN100

PHONEJ ACK

CN104 DB15

15

14

13

12

11

1 2

C110

33PF 50V

1
2

3

AGND

AGND

C111

AUDIO_P_L

AUDIO_P_R

FB109 120 OHM

10
5
9
4
8
3
7
2
6
1

17 16

33PF 50V

MCU5V

VGA_5V

FOR VGA DDC

ZD105

ZD104

1 2

1 2

VPORT0603100KV05

VGA INTERFACE

ZD123

UDZS5.6B

1 2

C104

C103

NC

NC

AGND

ZD100
UDZS5.6B

1 2

D100

BAT54C

1

3

2

AGND

U100

1

A0

2

A1

3

A2
VSS4SDA

AGND

M24C02-WMN6TP

R100

R115
33K OHM 1/10W

33K OHM 1/10W

VPORT0603100KV05

FB108 120 OHM

1 2

C106

C105

NC

NC

VGA_5V_S

C113
1uF/25V

8

VCC

7

WP

6

SCL

5

12

AGND

VGA_5V

B_GND

G_GND

R_GND

for EMI change 0Ohm
resistor to 60 OHM
bead 4/1'08

VGA_H

VGA_V

VGA_SDA
VGA_SCL

ZD101
UDZS5.6B

1 2

AGNDAGND

MCU 5V

R125
R112
R113

4.7K OHM 1/ 10W

4.7K OHM 1/ 10W

4.7K OHM 1/ 10W

VGA_SCL
VGA_SDA

C125

10uF/25V

C126

10uF/25V

RS_TXD 7

1 2 FB102

1 2 FB101

1 2 FB100

VGA_V

VGA_H

VGA_BVGA_B

VGA_GVGA_G

VGA_RVGA_R

PC_L 4

PC_R 4

C167

0.47uF

C168

0.0047uF

3

D123

BAT54S

3

VGA_H

VGA_V

D124

BAT54S

60 OHM

60 OHM

60 OHM

MCU 5V

2

1

MCU5V

2

1

R103

2.2K OHM 1/10W

R106

2.2K OHM 1/10W

R189

220K OHM 1/10W

R187

820K OHM 1/10W

R190

180K OHM 1/10W

R175

100K OHM 1/10W

1

C169

0.47uF/25V

1

C170

0.47uF/25V

33 OHM 1/16W

ZD102
UDZS5.6B

1 2

AGND

ZD103
UDZS5.6B

1 2

AGND

23

Q108

PMBS3906

23

PMBS3906

Q109

VGA_R

VGA_R

12

RV100

PESD0603-140

R_GND

R_GND

VGA_B

VGA_B

12

RV101

PESD0603-140

B_GND

B_GND

VGA_G

12

RV102

PESD0603-140

G_GND

R111

33PF 50V

AGND

R114

33 OHM 1/16W

C115

33PF 50V

AGND

R102

75 OHM 1/16W

R105

75 OHM 1/16W

75 OHM 1/16W

R108

C114

AGND

AGND

AGND

AGND

SYNC_DETECT 7

100 OHM 1/16W

100 OHM 1/16W

Near to HX6203(UH1)

HS_M2 3

VS_M2 3

R101

R104

R107

100 OHM 1/16W

1000pF

R110

100 OHM 1/16W

C108

1 2

C101

0.047UF 25V

C102

0.047UF 25V

C107

0.047UF 25V

R_M2 3

B_M2 3

G_M2 3

AGND

C112

NC

SOG_VGA_M2 3

18

T P V ( Top Vic tory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

01)VGA_INPUT

Date

OEM MOD EL

TPV MO DEL

PCB NAME

Sheet

715T2899-1

111Monday, April 21, 2008

of

A3

Size

Rev

0.13

称爹

>

<

称爹

10uF/25V

www.ma163.com 电子技术资料网

10uF/25V

R118

33K OHM 1/10W

R120

33K OHM 1/10W

C118

AV1_L4

C120

AV1_R4

AV1/L

VPORT0603100KV05

12

D101

AGND

AV1/R

VPORT0603100KV05

12

D103

AGND

CN105

2

1

4

3

JACK

HD/L

D102

HD/R

D104

12

AGND

12

R119

VPORT0603100KV05

33K OHM 1/10W

R121

VPORT0603100KV05

33K OHM 1/10W

C119

10uF/25V

C121

10uF/25V

HD_L 4

HD_R 4

JACK
CN103

AGND

AV1

SVIDEO_C

SVIDEO_Y

3

HD_Y 3

HD_PB 3

HD_PR 3

D108

D109

D110

AGND

12

12

12

AV1

7

AGND

5

6

4

2

1 3

8

HD_SOY

33 OHM 1/16W

R131

33 OHM 1/16W

R134

33 OHM 1/16W

R128

AGNDAGND

AGND

AGNDAGND

100 OHM 1/16W

R130

43 OHM +-5% 1/16W

R132

100 OHM 1/16W

R133

43 OHM +-5% 1/16W

R135

100 OHM 1/16W

R136

43 OHM +-5% 1/16W

R129

C128

0.047UF 25V

Video1 3

C129

0.047UF 25V

C130

0.047UF 25V

S-Video_C 3

S-Video_Y 3

AGND

Y

PB

PR

12

12

D105

D106

C163

C162

C156

33pF

33pF

33pF

Y

PB

PR

AGND

AGND

100 OHM 1/10W

R172
R171

R170

75 OHM 1/10W
75 OHM 1/10W
75 OHM 1/10W

R166

R122

R123

R124

1
2

3
4 5

6
7 8

12

AGND

D107

C154

1000PF 50V

C122

0.047UF 25V

C123

0.047UF 25V

C124

0.047UF 25V

100 OHM 1/16W
100 OHM 1/16W
100 OHM 1/16W

CN102

HD/L

HD/R

JACK

19

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

02)VIDEO_IO

Date

OEM MODEL

TPV MODEL

PCB NAME

Sheet

715T2899-1

211Friday, April 18, 2008

of

A3

Size

Rev

0.1

<

称爹

称爹

>

5VS

www.ma163.com 电子技术资料网

+

C236

10uF/16V

3

VIN

A_1.8

U200

AP1117E33LA

VOUT

VSS

1

FB200

1 2

300 OHM

FB203

1 2

300 OHM

AGND

2

4

4

10uF/16V

CLOSE
PIN190

AGND

V3D3_M1_HDMI

+

C230

0.1uF25V

C237

AGNDAGND

C200

0.1uF25V

C212

0.1uF25V

C239

0.1uF25V

C207

100pF

C206

0.1uF25V

VCCP_HDMI

VCCP_HDMI

C214

100pF

C213

GNDP_HDMI

0.1uF25V

FB206

1 2

300 OHM

FB207

1 2

300 OHM

PVCCG

PVCCG

PGNDG

VCCP_HDMI

CLOSE
PIN188

CLOSE
PIN196,202

C231

0.1uF25V
AGND

CLOSE PIN194

C240

0.1uF25V

AGNDAGND

C232

0.1uF25V

VSSP_DV

VDDA_DV

VSSA_DV

VDDP_DV

VDDA_DV

DDCSCL_M29

DDCSDA_M29

PVCCG

PVCCG

VCCP_HDMI

VCCP_HDMI

VDDA_DV

VDDA_DV

VDDP_DV

VDDP_DV

RX0+9
RX0-9
RX1+9
RX1-9
RX2+9
RX2-9
RXC+9
RXC-9

R202

390 OHM 1% 1/10W

3.3K OHM 1/16W

PVCCG

R204

C235

4.7uF

C235,R204,C228

DDCSCL_M2
DDCSDA_M2

PGNDG

GNDP_HDMI

VSSA_DV

VSSP_DV

REXT

C228

0.47uF

EXTC AP

要靠近

UH200

190
192

188
189

196
202
199
205
208

194
193

201
200
204
203
207
206
198
197

195

187
186

184
183

191

UH200A

HX6203-A

PVCCG(1. 8V)
PGND

VCCP(1.8V)
GNDP

VDDA_D V(3.3V)
VDDA_D V(3.3V)
VSSA_DV
VSSA_DV
VSSA_DV

VDDP_D V(3.3V)
VSSP_DV

RX0P
RX0N
RX1P
RX1N
RX2P
RX2N
RXCKP
RXCKN

REXT

DDCSCL
DDCSDA

MSC L
MSD A

EXTC AP

FB214 300 OHM
FB213 300 OHM
FB212 300 OHM

PLL POWER

VDDDP

VDDP_AD

VSSP_AD

241

243

VSSP_AD

VDDP_AD(3. 3V)

HDMI/DVI

VSSA_AD

226

AGND

C2030.1uF25V
C2040.1uF25V
C2050.1uF25V

VSSDP

245

244

VSSDP_AD

VDDDP_AD (3.3V)

VSSA_AD

VSSA_AD

236

215

BVDDA

209

220

1 2

BVSSA

212

BVDDA_VD(3. 3V)

VDDA_AD(3.3V)

231

1 2

AGND

237

240

VSSD_AD

BVSSA_VD

VDDD_AD (3.3V)

- RGB/YPbPr/Video -

Analog Input / Output

VREF(1. 25V)

VMIDS(0.5v )

VDDA_AD(3.3V)

VDDA_AD(3.3V)

225

1 2

VDDA_AD

AOUT1
AOUT2

VSYN C

HSYNC

AI11(RIN1)
AI21(GIN 1)
AI31(BIN 1)
AI41(Y IN1)

AI12(RIN2)
AI22(GIN 2)
AI32(BIN 2)
AI42(Y IN2)

AI13(RIN3)
AI23(GIN 3)
AI33(BIN 3)
AI43(Y IN3)

AI14(RIN4)
AI24(GIN 4)
AI34(BIN 4)
AI44(Y IN4)

FILT

VDDA_AD

C217

0.1uF25V

211
210

239
238

216
217
218
219

FB208

221
222

1 2

223

300 OHM
224

227
228
229
230

232
233
234
235

FILT

242

VREF

214

VMID

213

C229

0.1uF25V

AGND AGND

FB216

1 2

300 OHM

AGND

Change the sequency
of Component input
2/14'08

VS_M2 1
HS_M2 1

HD_PB 2
HD_PR 2
HD_Y 2
HD_SOY 2

C216

0.1uF25V

Video1 2

AGND

SOG_VGA_M2 1
G_M2 1
B_M2 1
R_M2 1

S-Video_Y 2
S-Video_C 2
TV_CVBS 11
KEY1 7

1.6KOHM + -5% 1/16W

0.01UF 50V

C234

C233

4.7uF

0.1uF25V

4.7uF

C238

VDDP_AD

R203

0.1uF25V

VDDP_AD

C227

C227,R203,C226

C208

0.1uF25V

C226

UH200

FB201

1 2

300 OHM

C201

10uF/16V

FB202

AGND

C218

0.1uF25V

AGND

C223

0.1uF25V

AGND

CLOSE
PIN220,231,225,237

+

C202

CLOSE PIN209

1 2

300 OHM

1 2

300 OHM

1 2

FB204

0.1uF25V

FB205

300 OHM

C209

10uF/16V

CLOSE PIN241,242

C219

CLOSE PIN245

+

C210

0.1uF25V

0.1uF25V

C224

0.1uF25V

VDDP_AD

C220

100pF

AGND

BVDDA

C211

100pF

VSSP_AD

VDDDP

C225

VSSDP

BVSSA

V33ADC VDDA_AD

要靠近

20

AGND

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

03)HX6203_AD_ INPUT

OEM MO DE L

TPV MODEL

PCB NAME

Sheet

715T2899-F

of

3

Size

Rev

11Friday , April 18, 2008

称爹

0.1

称爹

<

Custom

>

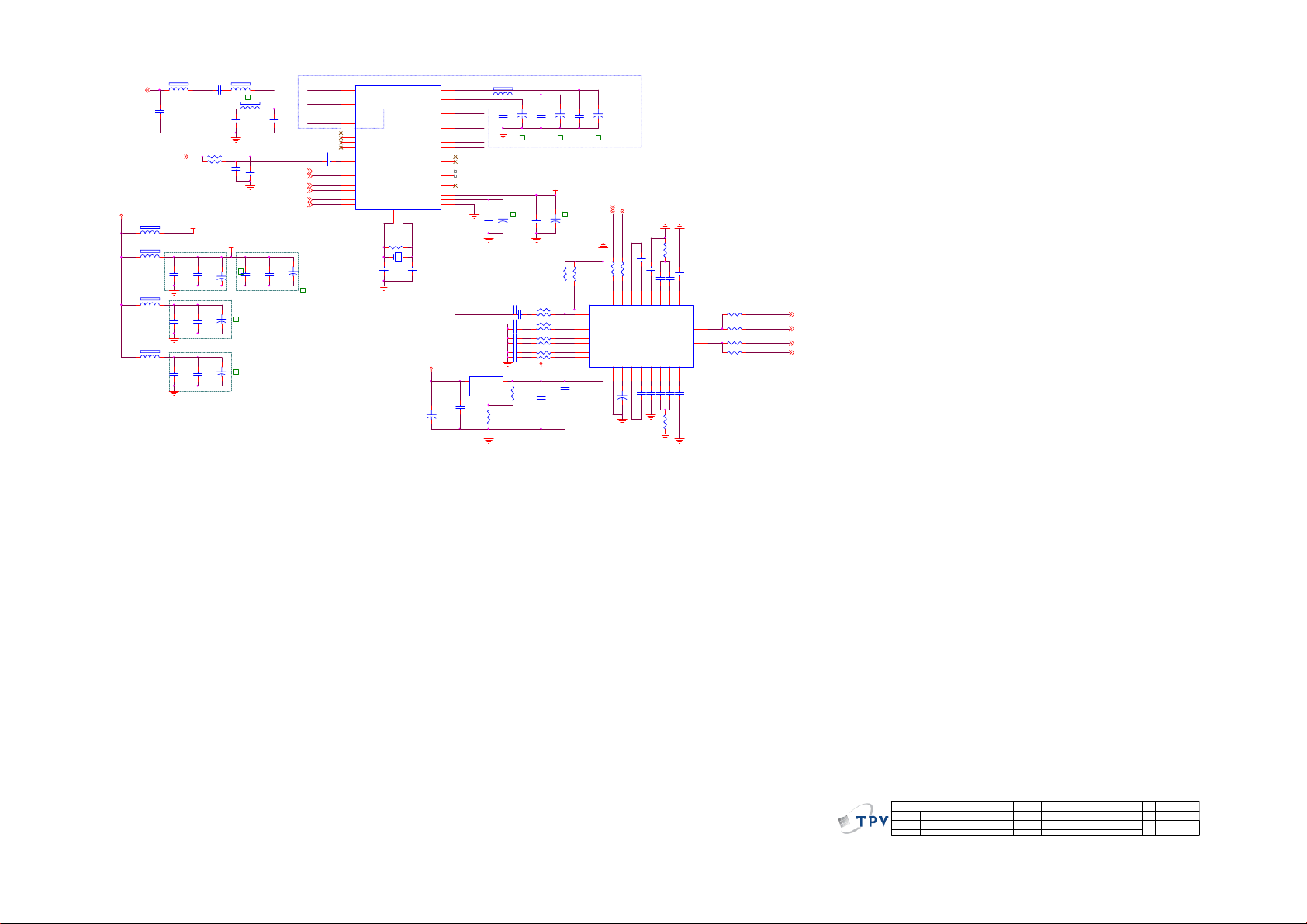

TUNER_SIF11

www.ma163.com 电子技术资料网

VDD_AUD

FB710

TV_SIF R

1 2

300 OHM

C746

NC

TUNER_MONO11

27K OHM 1/10W
27K OHM 1/10W

FB600

1 2

1 2

1 2

1 2

300 OHM

VRP

300 OHM

FB601

CLOSE PIN246 CLOSE PIN253

300 OHM

C620

C618

0.1uF25V

100pF

FB602

20mA

AGND

AGND

AGND

VDDD_AU

C628

C629

VSSD_AU

100pF

0.1uF25V

VDDA_AU

C639

C638

VSSA_AU

100pF

0.1uF25V

300 OHM

FB603

R602

R603

300 OHM

C600

1 2

0.1uF25V

AGND

C668

470pF

VDD_SIF

+

C621

10uF/16V

CLOSE PIN63

+

C630

10uF/16V

CLOSE PIN58

+

C640

10uF/16V

FB712

1 2

FB713

300 OHM

C601

0.1uF25V

AGND

C622

100pF

SIF1+

SIF1-

C674

0.1uF25V

AV1_L2

C669

AV1_R2

470pF

HD_L2
HD_R2

PC_L1
PC_R1

+

C616

C615

10uF/16V

VSS_SIF

0.1uF25V

VSS_SIF

VDD_SIF
VSS_SIF

SIF1+
SIF1-

C608 10uF/25V

C609 10uF/25V

UH200C

246

VDDA_SIF

247

VSSA_SIF

253

VDDD_SIF

256

VSSD_SIF

251

SIFP

252

SIFN

38

I2SREFCK

39

I2SCKI

40

I2SWSI

41

I2SDTI

44

AUIL1

45

AUIR1

46

AUIL2

47

AUIR2

48

AUIL3

49

AUIR3

50

AUIL4

51

AUIR4

HX6203-A

X60 0

C614

33PF 50V

. Audio
Analog
I2S / S PD IF
SIF MUX
In / Out

XTAL_IN

24.576MHz

254

R604

XTAL_IN

1M OHM 1/10W

24.576MHz

AGND

255

XTAL_OUT

XTAL_O

100uF/25V

VDDD_AU
VSSD_AU

VDDA_AU
VSSA_AU

C617

33PF 50V

C650

VREFP

VCMG

VREFN

AUOL1
AUOR1

AUOL2
AUOR2

AUOL3
AUOR3

SPDIF

VCM
VRN

0.1uF25V

0.1uF25V

+12VA

+

VRP

248
249
250

VDDD_AU

63

VSSD_AU

64

VDDA_AU

58

VSSA_AU

59

AOUT1_L

53

AOUT1_R

52

55
54

57
56

65

VRP

60

VCM

62

VRN

61

AOUT1_R
AOUT1_L

330 OHM 1/10W
330 OHM 1/10W

330 OHM 1/10W
330 OHM 1/10W

0.1uF25V

VREFPVDD_SIF
VCMG

1 2

VREFN

FB711

C610

AGND

0.1uF25V

AGND AGND

C6310.1uF25V
C6330.1uF25V

C6340.1uF25V
C6350.1uF25V

C636
C637

U601

AZ1117H-ADJ-E1

3

VIN

VOUT

ADJ

1

C649

1.2K OHM 1/10W

C602

0.1uF25V

AGND

+

C611

10uF/16V

prepare for
adjusting
audio power
2/18'08

C6271uF/25V
C6321uF/25V

AGND

2

R620

220 OHM 1/10W

R621

3000 OHM

+

C603

C604

10uF/16V

0.1uF25V

VRP

+

C612

10uF/16V

0.1uF25V

R601NCR600

R608 2.4K OHM 1/10W
R609

2.4K OHM 1/10W
R611
R612

R614
R615

R617330 OHM 1/10W
R619330 OHM 1/10W

9VDD

9VDD

C642

10uF/16V

+

C605

10uF/16V

C613

0.1uF25V

C641

0.1UF16 V

C606

NC

11
16

10
15

14

13

PT2314

+

C607

10uF/16V

M_SDA7,11

S_SCL_PT2314 7

AGND AGND

AGND

R607

0 OHM 1/10W

U600

25

26

RIN1
LIN1

DATA

DGND
RIN2
LIN2

9

RIN3
LIN3

8

RIN4
LIN4

AGND

VDD

2

1

C643

22uF/16V

AGND

C6192.2uF/16V

R606

0 OHM 1/10W

18

27

LIN

CLK

LOUT

REF28RIN

ROUT

6

+

C644

2.2uF/ 16V

5.6K OHM 1/10W

17

5

AGND

C6230.1uF

12

LOUT_L

LOUT_R

7

C6450.1uF

R622

AGND

R605

5.6K OHM 1/10W

C6240.1uF

C6250.1uF

19

20

BIN_L

TREB_L

BOUT_L

OUT_R

OUT_L

BIN_R

BOUT_R

TREB_R

21

22

C6460.1uF

C6470.1uF

AGNDAGND

C626
2700pF50V

3

4

C648
2700pF50V

AUDIO_R

R610

100 OHM 1/10W

R613

23

1K OHM 1/10W

R616

24

100 OHM 1/10W

R618

1K OHM 1/10W

HP_R

AUDIO_L

HP_L

AUDIO_R 8

HP_R 8

AUDIO_L 8

HP_L 8

21

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

04)HX6203_Audio

Date

OEM MOD EL

TPV MODE L

PCB NAME

Sheet

715T2899-F

of

4

A2

Size

Rev

0.1

<

称爹

>

11Friday , April 18, 2008

称爹

VCC3IO

www.ma163.com 电子技术资料网

AGND

5VS

R216

4.7K OHM 1/10W

DBUS0

R227

NC

4.7K OHM 1/10W

4.7K OHM 1/10W

R207

R206

R210

R209

NC

NC

4.7K OHM 1/10W

4.7K OHM 1/10W

R724

R208

R211

NC

CE7
SO7
SI7
SCK7

TSTMD1
TSTMD2
TSTMD3

R212

2007-10-31

SPI_FLASHM_WE

R217 68 OHM 1/10W
R218 0 OHM 1/10W
R219 68 OHM 1/10W
R220 68 OHM 1/10W

S_SDA7

S_SCL7

INTO_N7

IR_DATA7

RESET#7

R245 22 OHM 1/10W

R213

R247 22 OHM 1/10W

BL_ADJ10

4.7K OHM 1/10W

4.7K OHM 1/10W

R221

0 OHM 1/10W

R226

0 OHM 1/10W

R228

NC

R229

22 OHM 1/10W

AGND

CE

SO

SPI_FLASHM_WE

R235

4.7K OHM 1/10W

BUSTYPE_R

DBUS0

DBUS3_1
DBUS4_1
DBUS5_1
DBUS6_1
DBUS7

INTO_N

IRDAT

RST_N

C215

1UF/25V

U202
M25P40-VMN6TP/X

1

CE#

2

SO

3

WP#

VSS4SI

VDD

HOLD#

SCK

176
177
179

180
181
182

67

71

72

73

76
77
78
79
80
82
83
84

85

70

68

66

UH200B

PWMB
PWMC
PWMD

TSTMD 1
TSTMD 2
TSTMD 3/ PD

BUSTYP

ALE

RDZ

WRZ

DBUS0
DBUS1
DBUS2
DBUS3
DBUS4
DBUS5
DBUS6
DBUS7/SDA

SCL/CS

INTO_N

IRDAT

RST_N

HX6203-A

3.3V

8

7

6

5

SCK

SI

VCC3IO

160

178

PWM Outpu t, Dire ct Bus, I2 C Control & MIS C

VCCK(1.8V)20VCCK(1.8V)43VCCK(1.8V)87VCCK(1.8V)75VCCK(1.8V)

VCC3IO(3.3V)5VCC3IO(3.3V)25VCC3IO(3.3V)69VCC3IO(3.3V)

VCC3IO(3.3V)

GNDIO

GNDIO

GNDIO81GNDIO34GNDIO14GNDK

185

170

166

150

AGND AGND

C242
1uF/25V

AGNDAGND

GNDK

GNDK

116

VCCK

117

149

165

VCCK(1.8V)

VCCK(1.8V)

TTL Input

GNDK86GNDK74GNDK42GNDK

19

P_A0
P_A1
P_A2
P_A3
P_A4
P_A5
P_A6
P_A7

P_B0
P_B1
P_B2
P_B3
P_B4
P_B5
P_B6
P_B7

P_C0
P_C1
P_C2
P_C3
P_C4
P_C5
P_C6
P_C7

CLK_A

SYN C1
SYN C2
SYN C3
SYN C4
SYN C5

CLK_B

1
2
3
4
6
7
8
9

10
11
12
13
15
16
17
18

21
22
23
24
26
27
28
29

30

31
32
33
35
36

37

1K OHM 1/10W

R230

R234

1K OHM 1/10W

R222

NC

VCC3IO

R223

NC

R231

NC

AGND

R224

NC

R232

NC

R225

NC

R233

NC

AGND

22

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

05)HX6203_CTRLBUS

Date

OEM MO DEL

TPV MODEL

PCB NAME

Sheet

715T2899-F

of

5

A3

Size

Rev

0.1

<

称爹

11Friday , April 18, 2008

称爹

>

VCCLV

www.ma163.com 电子技术资料网

GNDLVP
VCCLVP

VDD_AU D

D200

（

1N4148

）

NC

CANCEL FB210,CA:C747 U704,D200

5VS

U704

3

C747

+

10uF/16V

AP1117E25LA

VIN

AGND

2

VOUT

VSS

4

C246

10uF/16V

1

4

UH200D

156

BRSB3N/ OR0/B2POL20

155

BRSB3P/OR1/ B2BITST

154

BRSB2N/ OR2/B2CLK

153

BRSB2P/OR3/ B2RSR2

152

BRSB1N/OR 4/B2RSR1

151

BRSB1P/OR5/ B2RSR0

146

BRSB0N/OR 6/B2RSG2

145

BRSB0P/OR7/ B2RSG1

144

BRSG3N/OG0/ B2RSG0

143

BRSG3P/OG1/B2RSB2

142

BRSG2N/OG2/ B2RSB1

141

BRSG2P/OG3/B2RSB0

140

BRSG1N/OG4/ B1RSB0

139

BRSG1P/OG5/B1RSB1

138

BRSG0N/OG6/ B1RSB2

137

BRSG0P/OG7/B1RSG0

136

BRSCLKN

135

BRSCLKP

134

BRSR3N/ OB0/B1RSG1

133

BRSR3P/OB1/ B1RSG2

130

BRSR2N/ OB2/B1RSR0

129

BRSR2P/OB3/ B1RSR1

128

BRSR1N/ OB4/B1RSR2

127

BRSR1P/OB5/ B1CLK

126

BRSR0N/OB6/B1BITST

125

BRSR0P/ OB7/B1POL20

HX6203-A

AGND AGND

+

AGNDAGND

AGND

C245

NC

13K OHM 1/10W

CLOSE
PIN88,100,114,132,148

PI

124

R237

C247

0.1uF25V

147

115

103

89

GNDLV

GNDLV

GNDLV

BSTH1

BSTH2

BTP

157

158

159

162

C248

0.1uF25V

148

114

132

100

88

131

GNDLV

GNDLV

VCCLV(3. 3V)

VCCLV(3. 3V)

VCCLV(3. 3V)

VCCLV(3. 3V)

VCCLV(3. 3V)

FRSR 0P/LVB3P/EB7/ F1POL20
FRSR0N/LVB3N/EB6/F1BITST
FRSR 1P/LVBCKP/ EB5/F1CL K

FRSR1N /LVBCKN/EB4/F 1RSR2

FRSR2P/ LVB2P/EB3/F1RSR1

RSDS/Turbo RS DS/TTL /

LVDS/CMDI MUX I/O

FRSR2N/LVB2N/EB2/F1RSR0

FRSR3P/ LVB1P/EB1/F1RSG2

FRSR3N/LVB1N/EB0/F1RSG1

FRSG0P/ LVA3P/EG7/ F1RSG0
FRSG0N/LVA3N/EG6/F2RSB2

FRSG1P/ LVACKP/EG5/ F1RSB1

FRSG1N/ LVACKN/EG4/F1RSB0

FRSG2P/LVA2P/EG3/ F2RSB0

FRSG2N/LVA2N/EG2/F2RSB1

FRSG3P/LVA1P/EG1/ F2RSB2

FRSG3N /LVA1N/EG0/F 2RSG0

FRSB0P/LVA0P/ER 7/F2RSG1

FRSB0N /LVA0N/ER6/ F2RSG2

FSTH1

FSTH2

FTP

STV1

CPV

STV2

161

163

167

168

169

C249

0.1uF25V

101

102

GNDLVP

VCCLVP(1.8V)

FRSCLKP/ LVB0P

FRSC LKN/LVB0N

FRSB1P/E R5/F2RSR 0
FRSB1N/ ER4/F2R SR1
FRSB2P/E R3/F2RSR 2

FRSB2N/ER2/F2CLK

FRSB3P/E R1/F2BITST

FRSB3N/ ER0/F2POL20

POL/CL K

OEV

GVOF/H S

GVON/D EN

164

171

173

172

C250

0.1uF25V

VCCLV

UDC/VS

RLC

175

174

C251

0.1uF25V

90
91
92
93
94
95
96
97

98
99

104
105
106
107
108
109
110
111

112
113
118
119
120
121
122
123

VCCK

22" panel RSDS
interface

Pin 1

4
3
2
1
4
3
2
1

4
3
2
1

4
3
2
1
4
3
2
1

1 2

FB209

300 OHM

AGNDAGND

+5V

GND

Pin 1

5
6
7
8
5
6
7
8

5
6
7
8

5
6
7
8
5
6
7
8

+

C252

10uF/16V

VCCLVP

C253

0.1uF25V

TX0AP

TX3BP
TX3BN
TXC KBP
TXC KBN

TX0BP

TX3AP
TX3AN

TXC KAP
TXC KAN
TX2AP
TX2AN
TX1AP
TX1AN

TX0AN

GNDLVP

TX2BP
TX2BN
TX1BP
TX1BN

TX0BN

CLOSE
PIN101

RP200

RP201

RP205

RP202

RP203

PANEL_PW7

PANEL_VCC

+

C259

470uF/16V

AGND

R182

4.7K O HM 1/10W

TX0AP
TX1AP
TX2AP

TXCKAP

TX3AP

TX0BP

TX1BP

TX2BP

TXCKBP

TX3BP

C258

0.1uF25V

5Vstb

3.3V

23
21
19
17
15
13
11

9
7
5
3
1

5Vstb

AGND

CN402

CONN

FB217

NC

1 2

FB218

0 OHM 1/4W

4.7K OHM 1/10W

R184

4.7K OHM 1/10W

4.7K OHM 1/10W

Q107

PMBS3904

24
22
20
18
16
14
12
10
8
6
4
2

R185

R186

AGND

TX0AN
TX1AN
TX2AN
TXCKA N
TX3AN
TX0BN
TX1BN
TX2BN
TXCKB N
TX3BN

22K OHM 1/10W

Q106

PMBS3904

AGND

5VS

R242

NC

R250

NC

R183

C166

0.1UF 16V

FB215

NC

1 2

Q105

AO4411

1

S

2

S

3

S

4

G

D
D
D
D

8
7
6
5

2007-10-31

FB219

0 OHM 1/4W

PANEL_VCC

+5V

GND

Control Board

23

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

06)HX6203_PANEL INTERFA CE

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

715T2899-F

of

6

Size

Rev

11Friday , April 18, 2008

称爹

A3

0.1

<

称爹

>

5Vstb

www.ma163.com 电子技术资料网

10KΩ 1/10W

AGND

1 2

FB400

300 OHM

R430

HDMI_5V9

U402

1

E0

2

E1

3

E2

4

VSS

M24C 32- WMN 6 TP

MCU5 V

+

INTO_N5

AGND

VCC

WC
SCL
SDA

MCU5 V

C400

0.1uF25V

AGND AGND

3

1 2

D403
BAV99

R459
1KΩ 1/10W

C406
10uF/16V

R431
10KΩ 1/10W

MCU5V

C414
1uF/25V

8
7
6
5

CLOSE
PIN44

+

C401

100uF/16V

1

INTO_N
IR_DATA

HDMI_5V

HDMI_HOTPLUG9

R415

4.7K OHM 1/10W

75 OHM 1/10W
75 OHM 1/10W

0.1UF16V

0.1UF16V

Q400
3906

R427

3 2

SYS_RST

100Ω 1/10W

7

10KOHM +-5% 1/16W
10KOHM +-5% 1/16W

MCU_EPROM_WE

R424
R425

+

0.1UF16V

C405
47UF/16 V

PS_ON/OF F10

SPI_MUX_1

C402
C403
C404

10KOHM +-5% 1/16W
10KOHM +-5% 1/16W
10KOHM +-5% 1/16W
10KOHM +-5% 1/16W

C407
100pF

RS_RXD

1

RS_TXD
1

RP404
RP405

M_SCL

2007-10-31

M_SDA

AGND

2007-10-31

RS_RXD
ISP_EN#
RS_TXD

4

5

2007-10-31

RP403

4

123

5

876

MCU5 V

Power

K7

CH Up

K3

CH Down

K4

ZD400UDZS5.6B
ZD401UDZS5.6B
ZD402UDZS5.6B

1 2

1 2

1 2

MCU5V

4

123

4

123

4

123

4

RP402

5

876

5

LED_OR
LED_GR
K3
K4

U400

X400

22.1184MHz

7
8

9
10
11
12
13
14
15
16
17

P1.5
P1.6
P1.7
RST
RXD,P3.0
P4.3
TXD,P3. 1
INT0,P3.2
INT1,P3.3
T0,P3. 4
T1,P3. 5

1 2

AGND

P1.46P1.35P1.2

P3.6,WR18P3.7,RD19XTAL220XTAL121VSS22P4.023P2.0,A824P2.1,A925P2.2,A1026P2.3,A1127P2.4,A12

R419

C415
22pF

K7

W79E632X40PX

123

876

876

3

4

1

2

P1.0,T2

P1.1,T2EX

AGND

1M OHM 1/10W

C416
22pF

5

44

P4.2

VDD

P0.0,AD043P0.1,AD142P0.2,AD241P0.3,AD3

10K OHM 1/10W

876

40

P0.4,AD4
P0.5,AD5
P0.6,AD6
P0.7,AD7

P2.7,A15
P2.6,A14
P2.5,A13

28

RP401

RP400

5

39
38
37
36
35

EA

34

P4.1

33

ALE

32

PSEN

31
30
29

R438

10K OHM 1/10W

123

R407

R408

876

M_SD A
M_SC L
RESET#_R

R246 22 OHM 1/10W

2007-10-31

SPI_SCK
SPI_CS#
SPI_SDI
SPI_SDO

PANEL_PW
6

10KOHM +-5% 1/16W

RP406

1.8K OHM 1/10W

RESET#_R

10K OHM 1/10 W
NC

R412

NC

0 OHM 1/10W

AMP_MUTE 8
MUTE_H PHO NE 8

AMP_STB 8

876

5

123

4

MCU5 V

MCU5 V

R405

Power sel

ON_PBACK 10

R413

MCU_EPROM_WE

SYNC_DETECT 1

R435

10K OHM 1/10W

R404

Q403

1

PMBS3904

2 3

CEC 9

HEADPHONE 8

TUN ER_ ON 10,11

K7

K3

K4

R406

NC

AGNDAGND

BAT54C

1

2

BAT54C

1

2

RESET# 5

LED_OR LED_ORANGE

4.7K OHM 1/10W

LED_GR

4.7K OHM 1/10W

M_SDA

M_SDA4, 11

MCU5 V

R402

10K OHM 1/10W

R401

D401

3

D402

R403

3

R409

R418

MCU5 V

1

MCU5 V

1

R422

0 OHM 1/10W

10K OHM 1/10W

ISP_EN#

1

Q401

1

Q402

PMBS3904

2 3

PMBS3904

2 3

AGND

10K OHM 1/10W

1 2 FB402 300 OHM

KEY1

K4

1 2 FB403 300 OHM

K3

1 2 FB407 300 OHM

K7

23

23

PMBS3906
Q404

PMBS3906
Q408

R410

10K OHM 1/16 W

R423

10K OHM 1/16 W

IR_DATA5

LED_ORANGE

C410

100pF

AGND

LED_GREEN

C412

100pF

AGND

S_SDA 5

MCU5 V

RS_TXD TXD

AGND

IR_DATA

LED_GREEN

MCU 5V

R420
R421

NC
NC 0 OHM 1/10W

RS-232

1 2 FB408 300 OHM

1 2 FB401300 OH M
1 2 FB404300 OH M
1 2 FB405300 OH M
1 2 FB406300 OH M

NC

1

RXDRS_RXD

2
3
4

CN401

2007-10-31

AGND

S_SCL
S_SDA

V33ADC

R411

10K OHM 1/10 W

C409

100pF

AGND

Master IIC

AGND

R436
R437

NC 0 OHM 1/10W
NC 0 OHM 1/10W

R434

100 OHM 1/10W

CN400

1
2
3
4
5
6
7
8
9

10

CONN

NC

1
2
3
4

CN404

R428

22 OHM 1/10W

M_SCL M_SC L1

R432

S_SCL_PT23144

M_SCL 1

22 OHM 1/10W

AGND

MCU5 V

R417

4.7K OHM 1/10W

SPI_MUX

SPI_MUX_1

SPI_MUX_15

4.7K OHM 1/10W

Q407

PMBS3904

1

R416

2 3

AGND

VCC3IO

C160

0.1uF25V
AGND

SO5

SPI_SDI

SPI_MUX

2 3

AGND

SPI_MUX

5 6

U405A

1

4

SI 5

74HC126D

U405B

SPI_SDO

74HC126D

SPI_CS#

SPI_SCK

1

A1

2

Y1

3

A2

4

Y2

5

A3

6

Y3
GND7Y4

MM74HC 14MX

24

U403

VCC

A6

Y6

A5

Y5

A4

SPI_MUX

9 8

SPI_MUX

12 11

MCU 5V

14
13
12
11
10
9
8

10

13

S_SCL_tuner

R429

22 OHM 1/10W

R426

22 OHM 1/10W

NC 3K OHM 1/10W

U405C

74HC126D

U405D

74HC126D

S_SCL5

AGND

CE 5

SCK 5

11

R414

T P V ( Top Victory Electronic s Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

07)MCU

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

715T2899-F

of

7

11Frid ay, April 18, 2008

A2

Size

Rev

0.1

<

称爹

>

称爹

+12V

www.ma163.com 电子技术资料网

the voltage of AMP standby
pin is too high, change from

ZD600

5.1V to 6.8V 2/18'08

RLZ6.8C

1 2

R630

C654

0.1UF16V

R675

MUTE_ EAR
HP_L

HP_R

NC

R634

100K OHM 1/ 10W

C664

1uF/25V

C667

AGND

1uF/25V

AMP_STB7

HP_L4

HP_R4

4.7K OHM 1/10W

AUDIO_L4

AUDIO_R4

AMP_MUTE7

1
2
3

R631

47K OHM 1/10W

R633

10K OHM 1/10W

Q602

PMBS3904

AUDI O_L

AUDI O_R

U603

OUT1
MUTE
IN1
GND4IN2

PT2309

V_PHONE

AGND

VDD

OUT2

BIAS

C661

0.1UF16V

8
7
6
5

C666

47uF/16V

5VM

R629

47K OHM 1/10W

Q600

PMBS3904

C656

0.01uF

C659

0.01uF

R640

10K OHM 1/10W

C662 100uF /16V

+

C665 100uF /16V

+

+

AGND

R639

47K OHM 1/10W

R642

R641

4.7K OHM 1 /10W

4.7K OHM 1 /10W

改善

R632

10K OHM 1/ 10W

C655

1uF/25V

C657
1uF/16V

R635

10K OHM 1/ 10W

C658
1uF/16V

R636

10K OHM 1/ 10W

5VM

Q603

PMBS3904

AGND

HP_LO

HP_RO

HEADPHONE7

6.8 OHM 3W

AC OFF PP声 1/18'08

1
7
6
2
3
4
5

ZD601
UDZS5.6B

1 2

AGND

R623

6.8 OHM 3W

R626

PW_GND

C660
1uF

CN602

PHONEJACK

R624

6.8 OHM 3W

R627

6.8 OHM 3W

U602

4

7

9

12

6

8

5
10
11

2007-10-31

IN1

ST_BY

S_GND

IN2

MUTE

PW_GND
NC
NC
NC

13

VCC3VCC

TDA7297SA

C651

0.1uF25V

OUT1+

OUT1-

OUT2+

OUT2-

1

2

15

14

+

PW_GND

C670

470pF

C652
1000UF25V

MUTE_ HPH ONE7

C671

470pF

AGND

C672

470pF

R628

10K OHM 1/10W

2007-11-02

C673

470pF

CN600

4
3
2
1

CONN

V_PHONE

R625

47K OHM 1/ 10W

AGND

R637

R638

PW_GND

5VS

1 2

Q601

PMBS3904

FB604

300 OHM

MUTE _EAR

AGND

0 OHM 1/4W
0 OHM 1/10W

AGND

C663

C653
1uF

V_PHONE

AGND

100uF/16V

+

25

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

08)AudioAMP

Date

OEM MOD EL

TPV MO DEL

PCB NAME

Sheet

715T2899-F

of

8

A3

Size

Rev

0.1

称爹

>

<

11F riday, April 18 , 2008

称爹

HDMI

www.ma163.com 电子技术资料网

TMDS D2+

TMDS D2-

TMDS D1+

TMDSD1-

TMDS D0+

TMDS D0-

TMDS C+

TMDS C-

SCL

SDA
CEC
HPD

VCC5

NC

DSHLD0
DSHLD1
DSHLD2
CSHLD0

DDC_GND

SHLD1
SHLD2
SHLD3
SHLD4
SHLD5

CN500

HMDI_5V

AGND

5

IN4

4

IN3

2

IN2

1

IN1

RClam p0524P.TCT

U500

RX0+

5

IN4

RX0-

4

IN3

2

IN2

1

IN1

RClam p0524P.TCT

U501

R500

U500,U501

C500
1uF/25V

AGND

R511
R510

8

OUT4
OUT3

GND

GND

OUT2
OUT1

3

8

GND

GND

AGND

OUT4
OUT3

OUT2
OUT1

D501

靠近

AGND

RX2+_M2

6

RX2-_M2

7

RX1+_M2

9

RX1-_M2

10

RX0+_M2

6

RX0-_M2

7

RXC+_M2

9

RXC-_M2

10

CN500

R507

4.7K O HM 1/10W

1 2

1 2

VPORT0603100KV05

AGND

RX2+ 3
RX2- 3

RX1+ 3
RX1- 3

RX0+ 3
RX0- 3

RXC+ 3
RXC- 3

MCU 5V

1

D500

BAT54C

2

R508

4.7K O HM 1/10W

HDMI_SCL_I
HDMI_SDA_I

D502

VPORT0603100KV05

RX2+

RX2­RX1+

RX1-

3L503

90 ohm

4

RXC-

HDMI_CEC

HPD

1K OHM 1/10W

HMDI_5V

MCU 5V

8
7

4.7K O HM 1/10W
6
5

RXC+

R514

0 OHM 1/10W
0 OHM 1/10W

L500

L501

AGND

2

1
2

1
2

1

L502

HDMI_5VIN

1
3

4
6

7
9

10
12

15
16
13
19

18

14

2
5
8
11
17

20
21
22
23
24

3

4
3

4
3

4

2

1

HDMI_SCL_I

HDMI_SD A_I

U502

1

A0

2

A1

3

A2
VSS4SDA

M24C02-WMN6TP

AGND

90 ohm

90 ohm

90 ohm

VCC

WP

SCL

3

HPD

PMBS3904

HMDI_5V

3

HDMI_5VI N

1

Q500

10K OHM 1/10W

2 3

AGND

10K OHM 1/10W

R512
R513

0 OHM 1/10W
0 OHM 1/10W

R501

R506

DDCSCL_M2 3
DDCSDA_M2 3

MCU5V

R505

10K OHM 1/10W

1

Q502

PMBS3904

2 3

AGND

HDMI_HOTPLUG 7

HDMI_CEC

NC/ 2N7002 SOT-23

HDMI_5V 7

R502

NC

Q501

V3D3_M1_HDMI

R503

NC

R504

NC

CEC 7

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

09)HDMI

26

OEM MODEL

TPV MO DE L

PCB NAME

Sheet

715T2899-F

of

9

Size

Rev

11Friday , April 18, 2008

称爹

A4

0.1

<

称爹

>

CN700

www.ma163.com 电子技术资料网

CONN

3.3V

3.3V

C731

0.1uF25V

1
2
3
4
5
6
7
8
9
10
11
12

+

10uF/16V

C716

5Vstb5Vs tb

R701

1K OHM 1/10W

R700

1K OHM 1/10W

C700

NC 2.2 UF 16V

5Vstb

5Vstb

1K OHM 1/10W NC

+12V

C704

0.1UF 16V NC

5Vstb

C711

0.1UF16V

AGND

1 2

FB700

300 OHM

C717

0.1uF25V

AGND

AIC1084-18PM

3

IN

+

C732

100uF/16V

AGNDAGND

AGND

PS_ON/OF F7

PMBS3904 NC

R708

1K OHM 1/10W

Q703

PMBS3904

C718

10uF/16V

U702

OUT

GND

1

Q702

AGND

R709

4.7K OHM 1/10W

+

A_1.8

2

4.7K OHM 1/10W

C719

0.1uF25V

PMBS3904

AGND

R706

R707

4.7K OHM 1/10W NC

Q708

PMBS3904 NC

5Vstb

R718

NC

Q707
NC

AGND

CLOSE
PIN5,25,69,160,178

C720

0.1uF25V

1 2

FB704

300 OHM

10uF/16V

5Vstb

1 2

120 OHM

5Vstb

R714

C745

0.1UF16V

R712

10K OHM 1/10W

4.7K OHM 1/10W

Q700

AGND

5Vstb

R721

1K OHM 1/10W NC

4.7K OHM 1/10W NC

ADD

AGND

R720

0 OHM 1/10W

R719

NC

VCC3I O

C721

0.1uF25V

+

C733

AGND

FB706

10K OHM 1/10W

4.7K OHM 1/10W

R716

NC

AGND

R725

R703

R722

C722

0.1uF25V

AGND

Q706

PMBS3904

NC

Q701

PMBS3904

R723
NC

一级回路

VCC3I O

C734

0.1uF25V

C742

0.1UF16V

R713

R702

1K OHM 1/10W

4.7K OHM 1/10W

AGND

C723

0.1uF25V

C735

0.1uF25V

R710

R705

TUNER_ON 7,11

ON_PBACK 7

C736

0.1uF25V

R711

22K OHM 1/10W

Q705

PMBS3904

AGND

R704
NC

C737

0.1uF25V

BL_ADJ 5

5Vstb

+12V

C738

C739

0.1uF25V

0.1uF25V

Q704
AO4411

1

S

D

2

S

D

3

S

D

4

G

C743

0.1UF 16V

D

如

PANEL-VCC为3.3V时，Q401改为AO4403

PH1

Photo point

5Vstb

+

C702
470UF16V

C703

0.1UF 16V

+12V

C706
470UF25V

C707

0.1uF25V

+

VCCK

VCCK

C741

C740

0.1uF25V

0.1uF25V

AGND

5VS

8
7
6
5

C744
10uF/16V

AGND

5VS

1 2

FB701

300 OHM

5VS

U701

3

+

C724

10uF/16V

AGND AGN D AGND

5VS

3

+

C726

10uF/16V

V167T 305102 4
JGK

1

1

2

2

3

3
445

9

T P V ( Top Victory Elec tronics Co . , Lt d. )

絬 隔 瓜 絪 腹

Key Component

Date

8
7
6

9

10)POWER

V2
JGK

8

1

8

1

7
6
5

8

2

7

2

7

3

6

3

6

5

445

9

9

AGNDAGND

3

+

C708

10uF/16V

AIC1084-33PM

VIN

VOUT

1

U703

AP1117E33LA

VIN

1

V3
JGK

1

1

2

2

3

3
445

AP1117E33LA

VIN

ADJ

VOUT

VSS

4

4

8
7
6

9

9

U700

VOUT

VSS

1

2

C715

10uF/16V

2

C727

10uF/16V

8
7
6
5

OEM MODEL

TPV MODEL

PCB NAME

Sheet

4

4

10uF/16V

+

V4

JGK

1
2
3

C709

+

1
2
3
445

2

+

1 2

300 OHM

V33ADC

C728

0.1uF25V

AGNDAGND

8

8

7

7

6

6

5

9

9

715T2899-F

of

10

FB703

11Friday , April 18, 2008

C729

0.1uF25V

1
2
3

VDD_AU D

C710

0.1uF25V

AGND

3.3V

C725

0.1uF25V

V5
JGK

1
2
3
445

9

9

AGNDAGNDAGND

C730

0.1uF25V

8

8

7

7

6

6

5

PH2

Photo point

PH3

Photo point

Size

Rev

称爹

A3

0.1

称爹

>

<

27

Tuner_GND

www.ma163.com 电子技术资料网

C138

0.1UF16V

TUNER_MONO4

TUNER_VCC

Tuner_GNDTuner_GND

15

16

17

18

TH1

TH2

TH3

TH4

C141

+

100uF/16V

TU10 1

ANT IN

AS_IF

10

1K OHM 1/10W

R152

8NC9

R715

NC

NC

NC

7

Tuner_GND

6

C142
10pF

AS

Tuner_GND

2nd IF Sound

CVBS

Vcc(Bif )13AUDI O Out

11

12

14

L101
300 OHM

TUNER_VCC

Vcc(Bt u)3SCL4SDA

NC

L102
300 OHM

2

NC

1

+

C139

100uF/16V

Tuner _GN D

C140

0.1UF16V

R144

10 OHM 1/10W

R145
10 OHM 1/10W

TUNER_ON7,10

TUNER_SIF 4

R143

TUNER_ON

4.7K OHM 1/10W

S_SCL_tuner 7

M_SD A 4,7

5

C143

10pF

R717

NC

5Vstb

R140

4.7K OHM 1/10W

4.7K OHM 1/10W

Q100

PMBS3904

AGND

+12V

R139

4.7K OHM 1/10W

R142

AGND

R141

22K OHM 1/10W

Q102

PMBS3904

C131

0.1uF25V

1
2
3
4

Q101

AO4411

S
S
S
G

D
D
D
D

C134

0.1uF25 V

8
7
6
5

C132

470uF/25V

+12VA

+

2007-10-31

47Ω 1/2W

R137

+

C133

100uF/25V

5VS

22Ω 1/2W

R138

U102

AZ1117D -5.0-E1

3

INPUT

0.1UF16V

C137

AGNDAGND

FB110

1 2

NC

OUTPUT

1

ADJ/ GND

2

+

C136

100uF/16V

TUN ER_ VCC

C135

0.1UF16V

TUNER_VCC

Tuner _GN D

L100
0R

C145

NC

AGND AGND

R149
0 OHM 1/8W
R150
0 OHM 1/8W
R151
0 OHM 1/8W

AGND

R146

33 OHM 1/16W

C146

NC

100 OHM 1/16W

R148

43 OHM +-5% 1/16W

AGND

R147

C144

0.047uF

TV_C VBS 3

28

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

11)TUNER

OEM MODEL

TPV MODEL

PCB NAME

Sheet

715T2899-F

of

11 11Friday , April 18, 2008

Size

Rev

称爹

A3

0.1

<

称爹

>

6.2 电源板 715T2783 1 5

www.ma163.com 电子技术资料网

BD901

1

GBU408

+

2

!

R900

680K OHM 1/4W

NR901
NTCR

C901

0.001uF/ 250V

!

4.0A/250V

680K OHM 1/4W

VAR901

4

3

R902

3

-

4

NC

1

2

C903

0.47uF/ 275V

0.001uF/ 250V

CN901

3

!

L902

L

!

R901

680KOHM +-5% 1/4W

C902

!

12

SOCKET

FG

F901
FUSE

1 2

NC

ZD903

R941
100K OHM 1% 1/8W

C923
470pF/25V

+

1 2

C905
120uF450V

ZD901
NC

IC901

1

RT

HV

2

COMP

NC

3

CS

VCC

4 5

GNDOUT

LD7575A

C924
220pF

C925

NC

HS1
HEAT SINK(Q901)

1
2

8
7
6

HS3
HEAT SINK(D 906)

1
2

R904

8.2K OHM 1/4W

R905

8.2K OHM 1/4W

D910

NC

R931

NC

D909

LL4148

R907

10 OHM 1/8W

C919

100N 50V

R912

22 OHM 1/8W

R922

200 OHM 1/8W

HS2
HEAT SINK (D 904)

1
2

+

FR103

C908
22uF/50V

R938
10K 1/8W

C906
2200pF

D902

R908
100K OHM 2W

D901
FR107

R909

12

3.3 OHM 1/4W

FB901
JUMP

!

Q901
STP10NK70ZFP

R914

0.39 OHM +-5% 2WS

C931

0.001uF/ 250V

NC

NC

!

T901

80TL19T 33 S

4

5

6
2

3

POWER X'FMR

100 OHM 1/4W

100 OHM 1/4W

100 OHM 1/4W

IC903

PC123X2YFZ OF

C907

FG

C900

FG

R918

100 OHM 1/4W

R919

100 OHM 1/4W

R920

100 OHM 1/4W

8

9
10

7

11
12

R935

R903

R934

43

R937

NC

R936
1K 1/4W

C927

0.1uF

JUMP

10
11

F902

JUMP

F903

1
2
3
4
5
6
7
8
9

+12V

+5V

CN902

CONN

C921

0.001uF

+

C914

1000uF M 16V

+

C917
1000uF25V

+

IC902

KIA431

C930
1000uF M 16V

D906

1

SP20150R

2

3

D904

1

SP10100

2

3

C929

0.001uF

12

ZD902

NC

+

C918
1000uF25V

*2

L903

3.5uH

R924
NC

R925
150R 1/8W

C912

0.022uF/ 25V

L904

3.5uH

C920

0.1uF

R927

3.6K OHM 1% 1/8W

R928

0OHM 1/8W

C922

+

470uF/25V

Q903

PMBS3904

C915

+

470uF/16V

R929
33K OHM 1% 1/8W

R930

2.43KOHM +-1% 1/8W

R940

150 OHM 2W

C916

0.1uF

+5V

ZD920
RLZ13B

R943
470 OHM +-5% 1/4W

C932

0.001uF

DIM

ON/OFF

+12V

29

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

02.POWER

Date

OEM MO DEL Size

TPV MODEL

715T2783 1B 2

PCB NAME

Sheet

of

23Thursday, February 28, 2008

A3

Rev

1B

称爹

>

<

称爹

+12V

www.ma163.com 电子技术资料网

5V

ON/OF F

DIM

R813
470K 1/10W 5%

C803
NC

R815
NC

R814
NC

R816

10K 1/10W 5%

C805

C804

0.01uF

2.2uF/16V

C806

1uF/16V

R817
1M 1/10W 5%

R802
22R 1/8W

75K 1/10W 5%

ZD802
RLZ5.6B

5K1 1/10W

1 2

R818

R819

100K 1/10W 5 %

C813

33NF 50V

R803

C801

0.047uF

IC801

1

DRV1

PGND

2

VDDA

DRV2

3

TIMER

GNDA

4

DIM

5

ISEN

SSTCMP

6

VSEN

7
8 9

LCT

OVPT

ENA

NC1 NC2

OZ9938GN

R823

390R 1/10 W 1%

20".22W

PT802

6

NC

2
5

R805
100R 1/10 W 5%

D801

R806 100 R 1/10W 5%

ZD803
RLZ5.6B

R804 5K1 1/10W

1 2

16
15
14
13

CT

12
11
10

R825
510R 1/10W

R824

6.2K 1/10 W

SST

Q802

RK7002

R807 10 0R 1/10W 5%

D803

C802

0.047uF

R808 100R 1/ 10W 5%

D804

R820
10K 1/10W 5%

1M 1/10W 5%

C808

C807

180K 1/10W

0.01uF

CT

C814
390P 50V

Q803
RK7002

1M 1/10W 5%

R821

R826

C815

0.047uF

D802

1000uF 25V

R822
20K OHM 1% 1/8W

CT
SST

C810

C809

0.047uF

560pF50V

D805

C811

+

C812

0.1uF

D806

3

D807

3

D808

3

Q805

4

G

3

S

2

G

1

S

AM4502C-T1-PF

Q806

4

G

3

S

2

G

1

S

AM4502C-T1-PF

BAV70

1

2

BAV70

1

2

BAV70

1

2

R842

10K 1/10W 5%

D
D
D
D

D
D
D
D

10K 1/10W 5%

1

PT801

5
6
7
8

5
6
7
8

R829

6K8 1/8W

R843

絬 隔 瓜 絪 腹

Key Component

10K 1/10W 5%

POWER X'FMR

6

2
5

R830
NC

R844

T P V ( Top Victory Electronics Co . , Ltd. )

03.INVERTER

Date

ㄏノ

8

9

8

C816

27pF/6KV

C824

27pF/6KV

91

R828

6.2M OHM 1/2W

C818
220pF

R837
6K8 1/10W

R838 1M 1/ 10W 5%

R839 1M 1/ 10W 5%

R840 1M 1/ 10W 5%

R841 1M 1/ 10W 5%

R845

10K 1/10W 5%

LV1

LV2

LV3

LV4

R827
NC

C817
2pF/6KV

R836

51K 1/10W 5%

C819
56pF3KV

LV1

C820
56pF3KV

LV2

L801

124

3

L

L802

124

3

L

C821
56pF3KV

LV3

C822

56pF3KV

R846

0R05 1/10 W 5%

R848
NC

C823
NC

2

Q804
NC

OEM MODEL Size

TPV MODEL

PCB NAME

Sheet

CN801
CONN

1
2

1
2

CN803

1
2

CONN

CN804

1
2

CONN

R847
NC

3

D809
BAV99

1

R849
0R05 1/10W 5%

715T2783 1B 2

13Thursday , February 28, 2008

of

LV4

CN802
CONN

Rev

称爹

B

1B

<

称爹

>

30

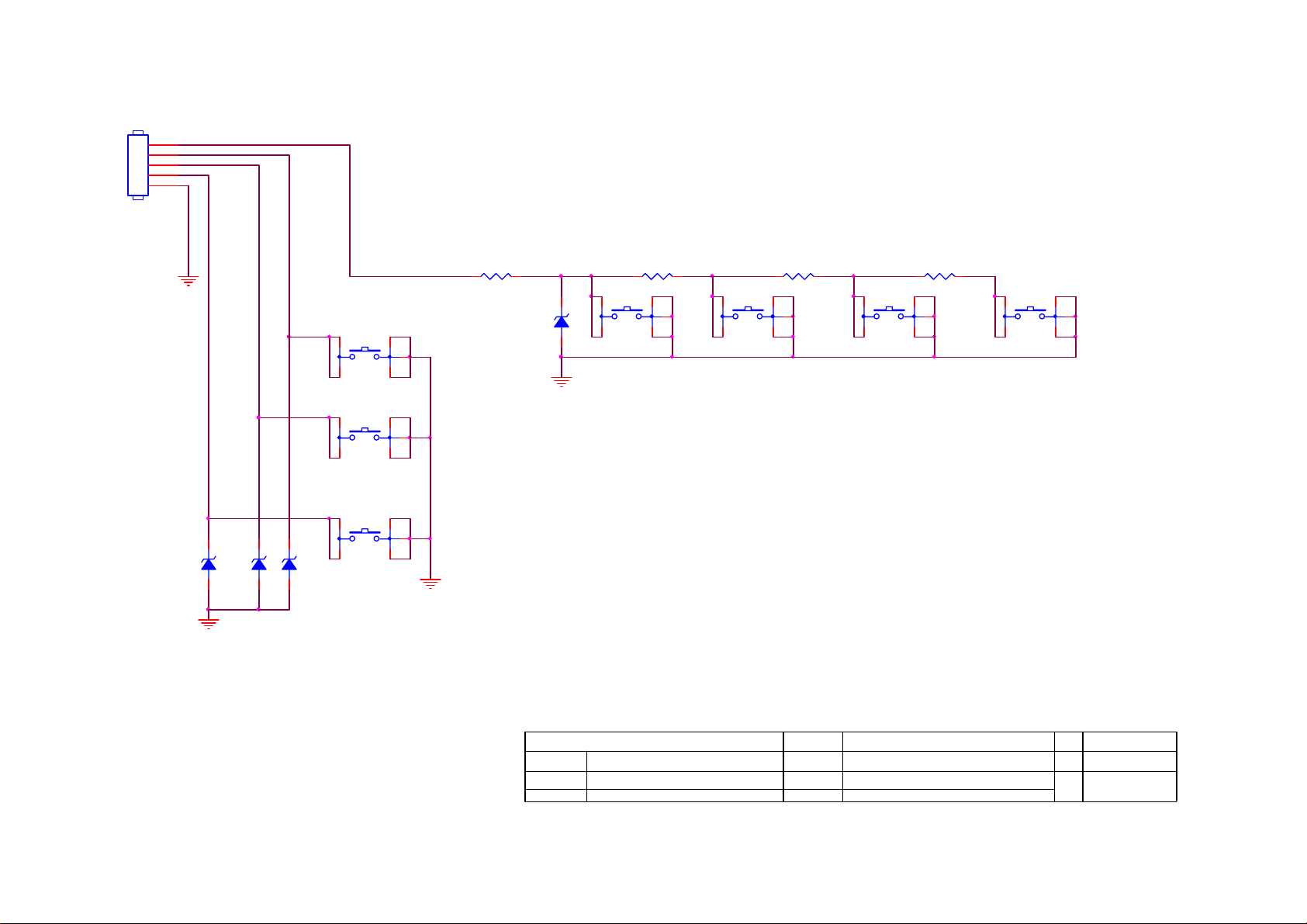

6.3 按键板 715T2927 2

www.ma163.com 电子技术资料网

CN01

1

KEY1

2

CH_DOWN

3

CH_UP
PWR

4
5

CONN

ZD05

5.6V

1 2

ZD06

5.6V

1 2

ZD08

5.6V

1 2

2

SW07

1 3

SW

CH_DOWN

2

SW04

1 3

SW

CH_UP

2

SW01

1 3

SW

POWER

4

SW03

R07

6.8K OH M 1% 1/10W

5

2

SW05

1 3

SW

R05

0Ω 1/10W

ZD07

5.6V

4

5

4

5

4

5

1 2

R06

3.3K OH M 1% 1/10W

2

SW02

1 3

SW

4

5

2

1 3

SW

MENU

R08

22K OHM 1% 1/10W

4

5

VOL_DOWNMODEL_SEL

2

SW06

1 3

SW

VOL_UP

4

5

T P V ( Top Victory Electronic s C o . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

2.Key

31

OEM MO D EL Size

TPV MOD EL

PCB NAME

Sheet

715T2927

22Wednes day , January 02, 2008

of

Rev

称爹

A4

1.0

称爹

>

<

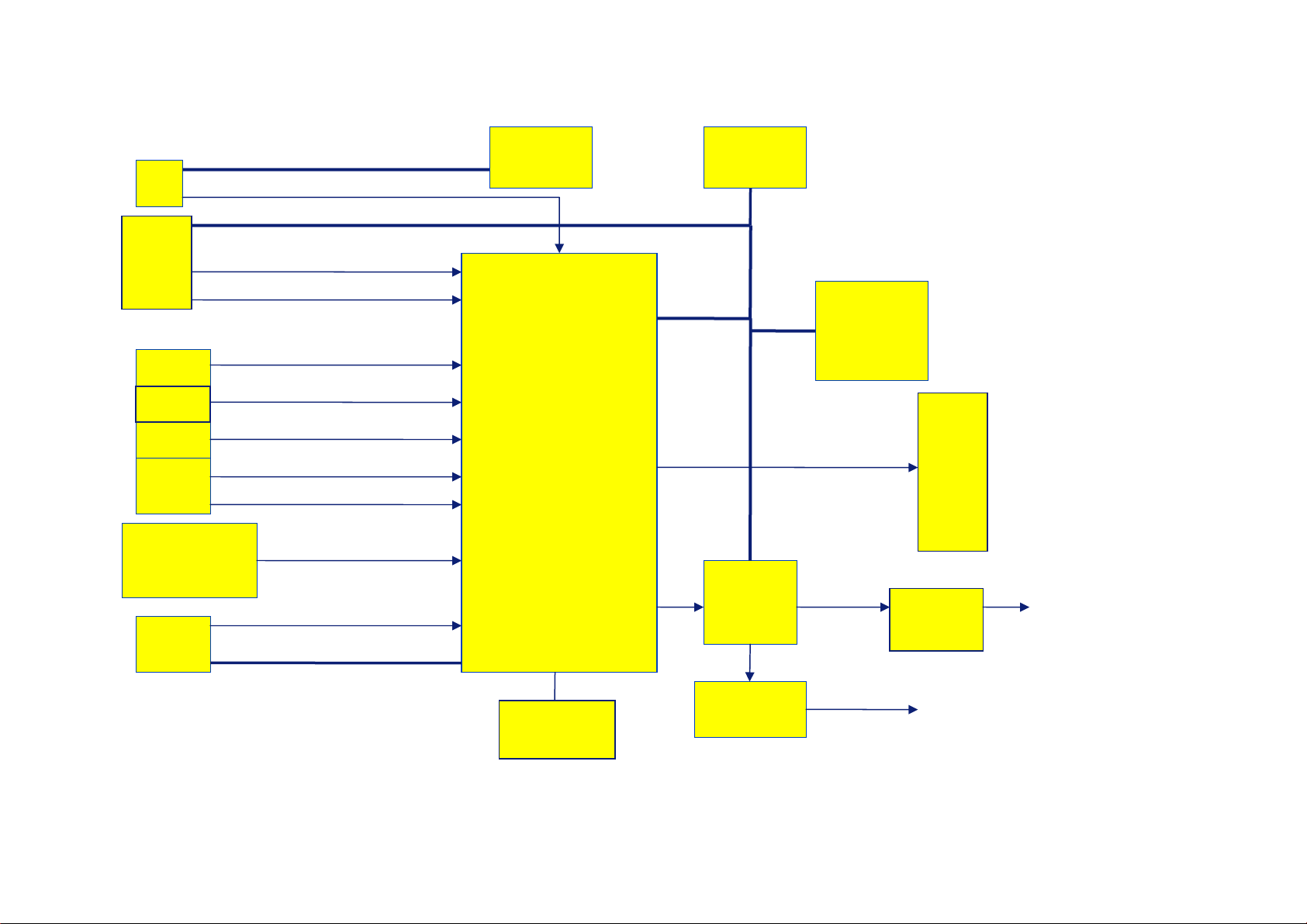

7．电气方框图

www.ma163.com 电子技术资料网

PC

TUNER

SV

JACK

AV1

AV2

COMPONENT

HDMI

VGA-SCL & VGA-SDA

SV Y&C

SV&AV1 –R/L

YPBPR

VGA DDC

U100

S-SCL & M-SDA

VIDEO

DECODER

&

AUDIO DECODER

&

SCALER

HX6203

UH200

EEPROM

U402

PT2314

U600

MCU

W79E632

U400

HP R&L

Panel

PT2309

U603

M25P40

U202

TDA7297

U602

32

8. 爆炸图

www.ma163.com 电子技术资料网

33

序列号 料号

www.ma163.com 电子技术资料网

1 A34T0526 GMA1L0130 BEZEL TV216-8A1 1

2 A34T0527 GM 3L0100 REAR COVER 22 1

3 A33T0309 GMA1L0100 COVER_FUNC 1

4 A33T0305 GM 1L0200 BUTTON_FUNC 1

5 A33T0310 ED 1C0100 IR LENS 1

6 A33T0306 1 1C0100 POWER LENS 1

7 A34T0524 GM 1L0100 STAND 1

8 A34T0525 GM 1L0133 BASE_S1 1

9 A15T0309101 MAINFRAME 1

10 A15T0354201 SIDE BKT 1

11 A15T0315101 VESA BKT 2

12 NA NA 1

13 A37T0056013 HINGE ASS'Y 1

14 0M1G1730 6120 SCREW,42-D020523 4

15 0M1G1730 8120 SCREW 4

16 0M1G1730 8120 SCREW 2

17 NA NA NA

18 0M1G1730 8120 SCREW 5

19 0Q1G 930 6120 SCREW 3X6MM 2

20 0D1T 930 6120 SCREW 1

21 0Q1G 930 6120 SCREW 3X6MM 2

22 0Q1G1030 6120 SCREW 4

23 0Q1G 930 8 47 CR3 SCREW 1

24 NA NA NA

25 0D1G 930 8 47 CR3 SCREW 2

26 0Q1T 940 10 47 CR3 SCREW 2

27 AM1G1740 10225 CR3 SCREW 3

28 AM1G1740 10225 CR3 SCREW 3

29 Q12G6600 6 FOOT 4

对象描述

数量

34

9. BOM

www.ma163.com 电子技术资料网

L22BH83 E228CANDW1A4NN

点位 组件 对象描述 备注

E017 017T DW RF501 TV RF BUFFER 2ND SOURCE
E017 017T DW RF502 RF BUFFER CD

E017 017T DW RF503 RF BUFFER 2ND SOURCE

036T 600 18109 NONWOVEN FABRTC
040G 581689 4A BARCODE LABEL FOR 1
041G 68508 A CONTROL CARD
044G9003214 CORNER PAPER
044GH600 1 HANDLE 2
044T3121510509 GASKET
049T 51 1A ERADICATOR
050G 600 4 HANDLE 1
052G 1150 C INSULATING TAPE
052G 1186 SMALL TAPE
052G 1210 A ALUMINIUM TAPE

052G 1211 B
052G 2191 A PAPER TAPE

E078 078T 494511 K SPK 8 OHM 3.5W 25X80 150 150MM KUAIDA 2ND SOURCE
E078 078T 494511 Y SPK 8 OHM 3.5W 25X80 150 150MM SUNLINK

089G 725GAA DB D-SUB CABLE
089T414A15NYHA POWER CORD
092TB1JX1A3WGM BATTERY FOR ALL EXPORT MODE LR03

E09502 095T801410D597 WIRE HARNESS 10P-5P+5P(A1253HA HR) 2ND SOURCE
E09502 095T801410W597 WIRE HARNESS 10P-5P+5P(A1253HA HR)

095T8018 3X698 LVDS CABLE
098TRABD2NCACC REMOTE CONTROL RL57C
0D1G 930 6120 SCREW
0D1G 930 8 47 CR3 SCREW
0M1G1730 6120 SCREW,42-D020523
0M1G1730 8120 SCREW
0M1G1730 8120 SCREW
0M1G1730 10120 SCREW 42A9930016
0Q1G 930 6120 SCREW 3X6MM
0Q1G 930 8 47 CR3 SCREW
0Q1G1030 6120 SCREW
0Q1T 940 10 47 CR3 SCREW
705TQ833039 PLASTIC ASS'Y
0Q1G 930 6120 SCREW 3X6MM
A33E0305 QV 1L0200 BUTTON_FUNC
A33E0309 GMB1L0100 COVER_FUNC

KEPF8YA5 KEY BOARD
CN01 033G3802 5B YH W WAFER
SW05 077G 600 1GCJ TACT SWITCH TSPB-2 -NP

CONDUCTIVE TAPE 85MM *40MM *0.09MM (单导)

35

SW06 077G 600 1GCJ TACT SWITCH TSPB-2 -NP

www.ma163.com 电子技术资料网

SW07 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
SW03 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
SW04 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
SW02 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
SW01 077G 600 1GCJ TACT SWITCH TSPB-2 -NP

R05 061G0603000 RST CHIP MAX 0R05 1/10W
R09 061G0603204 RST CHIPR 200 KOHM +-5% 1/10W
R08 061G0603220 2F RST CHIPR 22 KOHM +-1% 1/10W
R06 061G0603330 1F BST CHIPR 3.3KOHM +-1% 1/10W

R07 061G0603680 1F RST CHIPR 6.8 KOHM +-1% 1/10W
ZD05 093G 39S 34 T UDZSNP5.6B ROHM
ZD06 093G 39S 34 T UDZSNP5.6B ROHM
ZD07 093G 39S 34 T UDZSNP5.6B ROHM

715T2927 2 KEY PCB
705TQ834049 BEZEL ASS'Y
A33E0306 1 1C0100 POWER LENS_A1
A33E0310 ED 1C0100 IR LENS
A34E0526 GMA1L0130 BEZEL TV216-8A1
705TQ834051 STAND ASS'Y
A34E0524 GM 1L0100 STAND
A34E0525 GM 1L0133 BASE_S1

M037 A37T0056013 HINGE ASS'Y

AM1G1740 10225 CR3 SCREW

M037 SA37T0056013 HINGE ASS’Y 2ND SOURCE

705TQ834105 REAR COVER ASS'Y
036T 600 18115 HIMELON
A15T0315101 VESA BKT
A34E0527 GM 3L0100 REAR_COVER ACER
Q36T 600 18120 LOTH_GRIDDING
Q36T 600 30 1 NONWOVEN FABRIC
Q36T 600 37 1 NONWOVEN FABRIC

E750 750TVCB6WA133N PANEL CLAA220WA01 032 FZ CPT

A15T0309101 MAINFRAME
A15T0354201 SIDE BKT
AM1G1740 10225 CR3 SCREW
CBPF8A1DY2 MAIN BOARD

040G 45762412B CBPC LABEL
CN402 033G8027 30 WAFER 30P 2.0MM DIP DUAL ROW
CN700 033T327812D WAFER 12P PLUG
CN600 033T3802 4B Y CONNECTOR
CN400 033T380210B Y CONNECTOR

R623 061G153M399 59 3.9 OHM+-5% 3W
R624 061G153M399 59 3.9 OHM+-5% 3W
R626 061G153M399 59 3.9 OHM+-5% 3W
R627 061G153M399 59 3.9 OHM+-5% 3W

36

R138 061G175L22052T RST CFR 22 OHM +-5% 1/2W

www.ma163.com 电子技术资料网

R137 061T175L39052T 39 OHM 5% 1/2W
C652 067G 305102 4 105C 1000UF +-20% 25V

C702 067G215P4713AV

C706 067G215P4714AV

C132 067T 305471 4

CN105 088G 78 1357S RCA JACK 1*1 W+R V/A
CN602 088G 30211K PHONE JACK 5PIN
CN100 088G 30252S PHONE JACK 3.5MM 3P V/A GREEN
CN103 088T 78 13932 S RCA JACK + S JACK Y/B
CN102 088T 78 V5 C RCA JACK 3+2 G/BLU/R+W/R
CN104 088T 35315F VC D-SUB 15PIN VERTICAL CONNECTOR

090T 372 2 HEAT SINK

X600 093G 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ

TU101 094T PALALL 3L TCL TUNER M15WPP-2PN-E

705TQ856001 U602 ASS'Y

U602 056T 616511 ST IC TDA7297SA ST

0M1G1730 10120 SCREW 42A9930016

Q90T0155 1 HEAT SINK

C747 067G 305100 3T 10UF 16V
C406 067G 305100 3T 10UF 16V
C733 067G 305100 3T 10UF 16V
C727 067G 305100 3T 10UF 16V
C726 067G 305100 3T 10UF 16V
C724 067G 305100 3T 10UF 16V
C715 067G 305100 3T 10UF 16V
C709 067G 305100 3T 10UF 16V
C708 067G 305100 3T 10UF 16V
C252 067G 305100 3T 10UF 16V
C246 067G 305100 3T 10UF 16V
C237 067G 305100 3T 10UF 16V
C236 067G 305100 3T 10UF 16V
C718 067G 305100 3T 10UF 16V
C716 067G 305100 3T 10UF 16V
C640 067G 305100 3T 10UF 16V
C630 067G 305100 3T 10UF 16V
C621 067G 305100 3T 10UF 16V
C616 067G 305100 3T 10UF 16V
C613 067G 305100 3T 10UF 16V
C611 067G 305100 3T 10UF 16V
C607 067G 305100 3T 10UF 16V
C605 067G 305100 3T 10UF 16V
C603 067G 305100 3T 10UF 16V
C209 067G 305100 3T 10UF 16V
C201 067G 305100 3T 10UF 16V

C136 067G 305101 3T

CAP 105℃ 470UF M 16V
CAP 105℃ 470UF M 25V
EC 105℃ 470UF M 25V

100UF 16V 105℃

37

C139 067G 305101 3T

www.ma163.com 电子技术资料网

C141 067G 305101 3T

C401 067G 305101 3T

C662 067G 305101 3T

C663 067G 305101 3T

C665 067G 305101 3T

C732 067G 305101 3T
C133 067G 305101 4T 100UF +-20% 25V
C650 067G 305101 4T 100UF +-20% 25V
C643 067G 305220 3T 22UF +-20% 16V
C666 067G 305470 3T 47UF +-20% 16V
C405 067G 305470 3T 47UF +-20% 16V

C259 067G 305471 3T
U601 056G 133 30AAC AZ1117H-ADJ-E1
U701 056G 563 7 IC AIC1084-33PMTR-R AIC
U702 056G 563 34 IC AIC1084-18PMTR-R AIC
U102 056G 585 11 IC AZ1117D-5.0-E1 AAC
U700 056G 585 4A IC AP1117E33L-13
U703 056G 585 4A IC AP1117E33L-13
U200 056G 585 4A IC AP1117E33L-13
U704 056G 585 5A IC AP1117E25L-13
U500 056G 662 10 IC RCLAMP0524P.TCT
U501 056G 662 10 IC RCLAMP0524P.TCT

U400

U100 056G1133 34 M24C02-WMN6TP
U502 056G1133 34 M24C02-WMN6TP
U402 056G113353A IC M24C32-WMN6T SO-8 ST
U403 056G74HC 14 F IC MM74HC14MX SOIC-14
U405 056G74HC126 P IC 74HC126D SO-14 PHILIPS

UH200 056T 562566 IC HX6203-A010QBG

U600 056T 616 4 IC PT2314L SO28 PTC
U603 056T 616507 IC AUDIO PT2309 PTC

U202

Q403 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q500 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q502 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q600 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q601 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q100 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q703 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q705 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q706 057G 417 4 PMBS3904/PHILIPS-SMT(04)

056G1125170 X

(AACDH1C22NQ1)

056T1133527 ST

(AACDH1C22FQ1)

100UF 16V 105℃
100UF 16V 105℃
100UF 16V 105℃
100UF 16V 105℃
100UF 16V 105℃
100UF 16V 105℃
100UF 16V 105℃

105℃ 470UF +-20% 16V

IC W79E632A40PL

IC M25P40-VMN6TP/X ST

38

Q407 057G 417 4 PMBS3904/PHILIPS-SMT(04)

www.ma163.com 电子技术资料网

Q106 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q402 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q401 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q107 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q102 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q109 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q404 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q408 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q400 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q108 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q704 057G 763 3 AO4411 SO-8
Q105 057G 763 3 AO4411 SO-8

Q101 057G 763 3 AO4411 SO-8
RP400 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP401 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP402 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP403 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP404 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP405 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP406 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

R147 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R135 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R132 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R129 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R124 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R123 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R122 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R110 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R107 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R104 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R101 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R423 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R410 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R203 061G0402162 RST CHIP 1K6 1/16W 5%

R111 061G0402330 RST CHIPR 33 OHM +-5% 1/16W

R114 061G0402330 RST CHIPR 33 OHM +-5% 1/16W

R128 061G0402330 RST CHIPR 33 OHM +-5% 1/16W

R131 061G0402330 RST CHIPR 33 OHM +-5% 1/16W

R134 061G0402330 RST CHIPR 33 OHM +-5% 1/16W

R146 061G0402330 RST CHIPR 33 OHM +-5% 1/16W

R204 061G0402332 RST CHIPR 3.3KOHM +-5% 1/16W

R130 061G0402430 RST CHIP 43R 1/16W 5%

R133 061G0402430 RST CHIP 43R 1/16W 5%

R136 061G0402430 RST CHIP 43R 1/16W 5%

R148 061G0402430 RST CHIP 43R 1/16W 5%

39

R108 061G0402750 RST CHIPR 75 OHM +-5% 1/16W

www.ma163.com 电子技术资料网

R105 061G0402750 RST CHIPR 75 OHM +-5% 1/16W

R102 061G0402750 RST CHIPR 75 OHM +-5% 1/16W

R700 061G0603000 RST CHIP MAX 0R05 1/10W

R725 061G0603000 RST CHIP MAX 0R05 1/10W

R704 061G0603000 RST CHIP MAX 0R05 1/10W

R720 061G0603000 RST CHIP MAX 0R05 1/10W

R638 061G0603000 RST CHIP MAX 0R05 1/10W

R607 061G0603000 RST CHIP MAX 0R05 1/10W

R606 061G0603000 RST CHIP MAX 0R05 1/10W

R513 061G0603000 RST CHIP MAX 0R05 1/10W

R512 061G0603000 RST CHIP MAX 0R05 1/10W

R511 061G0603000 RST CHIP MAX 0R05 1/10W

R510 061G0603000 RST CHIP MAX 0R05 1/10W

R437 061G0603000 RST CHIP MAX 0R05 1/10W

R436 061G0603000 RST CHIP MAX 0R05 1/10W

R422 061G0603000 RST CHIP MAX 0R05 1/10W

R421 061G0603000 RST CHIP MAX 0R05 1/10W

R420 061G0603000 RST CHIP MAX 0R05 1/10W

R413 061G0603000 RST CHIP MAX 0R05 1/10W

R226 061G0603000 RST CHIP MAX 0R05 1/10W

R221 061G0603000 RST CHIP MAX 0R05 1/10W

R218 061G0603000 RST CHIP MAX 0R05 1/10W

L100 061G0603000 RST CHIP MAX 0R05 1/10W
R145 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R144 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R610 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R616 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R166 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R434 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R618 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R459 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R613 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R500 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R234 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R230 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R708 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R152 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R640 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R405 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R402 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R712 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R635 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R636 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R633 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

40

R435 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

www.ma163.com 电子技术资料网

R407 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R430 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R431 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R411 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R438 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R506 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R403 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R401 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R710 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R501 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R505 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R628 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R632 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R175 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W
R634 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W
R604 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R419 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R621 061G0603122 RST CHIPR 1.2 KOHM +-5% 1/10W
R237 061G0603133 RST CHIPR 13 KOHM +-5% 1/10W
R404 061G0603182 RST CHIPR 1.8 KOHM +-5% 1/10W
R190 061G0603184 RST CHIPR 180 KOHM +-5% 1/10W
R189 061G0603184 RST CHIPR 180 KOHM +-5% 1/10W
R426 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R432 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R429 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R428 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R247 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R246 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R245 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R229 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R620 061G0603221 RST CHIPR 220 OHM +-5% 1/10W
R103 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R106 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R183 061G0603223 RST CHIPR 22 KOHM +-5% 1/10W
R711 061G0603223 RST CHIPR 22 KOHM +-5% 1/10W
R141 061G0603224 RST CHIPR 220 KOHM +-5% 1/10W
R608 061G0603242 RST CHIPR 2.4 KOHM +-5% 1/10W
R609 061G0603242 RST CHIPR 2.4 KOHM +-5% 1/10W
R118 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W
R119 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W
R120 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W
R121 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W
R100 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W
R115 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W
R612 061G0603331 RST CHIP 330R 1/10W 5%

41

R611 061G0603331 RST CHIP 330R 1/10W 5%

www.ma163.com 电子技术资料网

R619 061G0603331 RST CHIP 330R 1/10W 5%
R617 061G0603331 RST CHIP 330R 1/10W 5%
R615 061G0603331 RST CHIP 330R 1/10W 5%
R614 061G0603331 RST CHIP 330R 1/10W 5%
R202 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W
R603 061G0603393 RST CHIPR 39 KOHM +-5% 1/10W
R602 061G0603393 RST CHIPR 39 KOHM +-5% 1/10W
R216 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R212 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R208 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R207 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R206 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R186 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R185 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R184 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R182 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R143 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R142 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R140 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R139 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R125 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R113 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R112 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R235 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R418 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R213 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R724 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R417 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R416 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R714 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R713 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R709 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R642 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R641 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R630 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R514 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R508 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R507 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R415 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R409 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R639 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W
R631 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W
R629 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W
R625 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W
R187 061G0603474 RST CHIPR 470 KOHM +-5% 1/10W

42

R622 061G0603562 RST CHIPR 5.6 KOHM +-5% 1/10W

www.ma163.com 电子技术资料网

R605 061G0603562 RST CHIPR 5.6 KOHM +-5% 1/10W
R220 061G0603680 RST CHIPR 68 OHM +-5% 1/10W
R219 061G0603680 RST CHIPR 68 OHM +-5% 1/10W
R217 061G0603680 RST CHIPR 68 OHM +-5% 1/10W
R171 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R425 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R424 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R172 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R170 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R151 061G0805000 RST CHIP MAX 0R05 1/8W
R150 061G0805000 RST CHIP MAX 0R05 1/8W
R149 061G0805000 RST CHIP MAX 0R05 1/8W
R637 061G1206000 RST CHIP MAX 0R05 1/4W
C143 065G0402100 31 CAP 0402 10PF J 50V NPO
C142 065G0402100 31 CAP 0402 10PF J 50V NPO
C638 065G0402101 32 100PF +-10% 50V X7R
C628 065G0402101 32 100PF +-10% 50V X7R
C622 065G0402101 32 100PF +-10% 50V X7R
C412 065G0402101 32 100PF +-10% 50V X7R
C407 065G0402101 32 100PF +-10% 50V X7R
C618 065G0402101 32 100PF +-10% 50V X7R
C410 065G0402101 32 100PF +-10% 50V X7R
C409 065G0402101 32 100PF +-10% 50V X7R
C225 065G0402101 32 100PF +-10% 50V X7R
C207 065G0402101 32 100PF +-10% 50V X7R
C211 065G0402101 32 100PF +-10% 50V X7R
C214 065G0402101 32 100PF +-10% 50V X7R
C108 065G0402102 32 1000PF +-10% 50V X7R
C154 065G0402102 32 1000PF +-10% 50V X7R
C227 065G0402103 22 CHIP 0.01UF 25V X7R
C656 065G0402103 32 0.01UF +-10% 16V X7R
C659 065G0402103 32 0.01UF +-10% 16V X7R
C742 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C711 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C703 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C661 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C654 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C651 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C641 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C404 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C403 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C402 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C166 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C140 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C138 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

43

C137 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

www.ma163.com 电子技术资料网

C135 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C743 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C745 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C226 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C134 065G0402104 27 CAP CHIP 0402 100NF Z 25V Y5V
C649 065G0402104 27 CAP CHIP 0402 100NF Z 25V Y5V
C707 065G0402104 27 CAP CHIP 0402 100NF Z 25V Y5V
C653 065G0402105 A5 CAP 0402 1UF K 10V X5R
C660 065G0402105 A5 CAP 0402 1UF K 10V X5R
C416 065G0402200 31 CHIP 20PF 50V NPO
C415 065G0402200 31 CHIP 20PF 50V NPO
C131 065G0402224 17 CAP CER 0.22UF -20%-80%
C626 065G040227232K T CAP CHIP 0402 2700PF 50V X7R
C648 065G040227232K T CAP CHIP 0402 2700PF 50V X7R
C156 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO
C162 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO
C163 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO
C100 065G040233031T CHIP 33PF 50V NPO
C109 065G040233031T CHIP 33PF 50V NPO
C110 065G040233031T CHIP 33PF 50V NPO
C111 065G040233031T CHIP 33PF 50V NPO
C114 065G040233031T CHIP 33PF 50V NPO
C115 065G040233031T CHIP 33PF 50V NPO
C614 065G040233031T CHIP 33PF 50V NPO
C617 065G040233031T CHIP 33PF 50V NPO
C144 065G0402473 12 CHIP 0.047UF 16V X7R
C101 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C102 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C107 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C123 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C128 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C130 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C129 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C124 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C122 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C668 065G040256132K Y CAP CHIP 0402 560P 50V X7R +/-10%
C669 065G040256132K Y CAP CHIP 0402 560P 50V X7R +/-10%
C670 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C671 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C672 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C673 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C647 065G0603104 37 CHIP 0.1UF 50V/Y5V
C646 065G0603104 37 CHIP 0.1UF 50V/Y5V
C645 065G0603104 37 CHIP 0.1UF 50V/Y5V
C625 065G0603104 37 CHIP 0.1UF 50V/Y5V

44

C624 065G0603104 37 CHIP 0.1UF 50V/Y5V

www.ma163.com 电子技术资料网

C623 065G0603104 37 CHIP 0.1UF 50V/Y5V
C657 065G0603105 12 CHIP 1UF 16VX7R 0603
C658 065G0603105 12 CHIP 1UF 16VX7R 0603
C215 065G060310522Y MLCC 0603 1UF K 25V X7R
C228 065G0603474 27 CHIP 0.47UF 25V Y5V
C167 065G0603474 27 CHIP 0.47UF 25V Y5V
C169 065G0603474 27 GP 0603 0.47UF -20%~+80% 25V Y5N
C170 065G0603474 27 GP 0603 0.47UF -20%~+80% 25V Y5N
C168 065G060347427Y MLCC 0603 0.47UF Z 25V Y5V
C655 065G0805105 27 CHIP 1UF Y5V 0805
C642 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C619 065G0805225 17 CHIP 2.2UF 16V Y5V
C644 065G0805225 17 CHIP 2.2UF 16V Y5V
C744 065G1206106 17 MLCC 10 UF Z 16V Y5V
C639 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C606 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C604 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C231 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C232 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C234 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C239 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C240 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C247 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C248 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C249 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C250 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C251 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C253 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C258 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C400 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C600 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C601 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C602 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C637 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C739 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C738 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C737 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C736 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C735 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C734 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C731 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C730 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C729 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C728 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C725 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

45

C723 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

www.ma163.com 电子技术资料网

C610 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C612 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C615 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C620 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C636 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C635 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C634 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C629 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C722 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C721 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C720 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C719 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C717 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C710 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C631 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C633 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C674 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C217 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C741 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C740 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C230 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C160 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C200 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C202 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C203 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C204 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C205 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C206 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C208 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C210 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C229 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C224 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C223 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C220 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C219 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C218 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C216 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C213 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C212 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C667 065T0603105 25 CHIP 1UF 25V X5R
C113 065T0603105 25 CHIP 1UF 25V X5R
C242 065T0603105 25 CHIP 1UF 25V X5R
C414 065T0603105 25 CHIP 1UF 25V X5R
C500 065T0603105 25 CHIP 1UF 25V X5R
C627 065T0603105 25 CHIP 1UF 25V X5R

46

C632 065T0603105 25 CHIP 1UF 25V X5R

www.ma163.com 电子技术资料网

C664 065T0603105 25 CHIP 1UF 25V X5R
C238 065T0805475 17 GP MLCC 0805 4.7UF Z 16V Y5V
C233 065T0805475 17 GP MLCC 0805 4.7UF Z 16V Y5V
C235 065T0805475 17 GP MLCC 0805 4.7UF Z 16V Y5V
C609 065T1206106 25 CHIP 10UF 25V X5R 1206
C608 065T1206106 25 CHIP 10UF 25V X5R 1206
C126 065T1206106 25 CHIP 10UF 25V X5R 1206
C125 065T1206106 25 CHIP 10UF 25V X5R 1206
C121 065T1206106 25 CHIP 10UF 25V X5R 1206
C120 065T1206106 25 CHIP 10UF 25V X5R 1206
C119 065T1206106 25 CHIP 10UF 25V X5R 1206
C118 065T1206106 25 CHIP 10UF 25V X5R 1206

L101 071G 56G301 EA

L102 071G 56G301 EA

FB706 071G 56K121 CHIP BEAD
FB219 071G 57G301 EA CHIP BEAD
FB218 071G 57G301 EA CHIP BEAD
FB216 071G 57G301 EA CHIP BEAD
FB704 071G 57G301 EA CHIP BEAD
FB703 071G 57G301 EA CHIP BEAD
FB701 071G 57G301 EA CHIP BEAD
FB700 071G 57G301 EA CHIP BEAD
FB604 071G 57G301 EA CHIP BEAD
FB603 071G 57G301 EA CHIP BEAD
FB602 071G 57G301 EA CHIP BEAD
FB601 071G 57G301 EA CHIP BEAD
FB600 071G 57G301 EA CHIP BEAD
FB400 071G 57G301 EA CHIP BEAD
FB209 071G 57G301 EA CHIP BEAD
FB207 071G 57G301 EA CHIP BEAD
FB206 071G 57G301 EA CHIP BEAD
FB205 071G 57G301 EA CHIP BEAD
FB204 071G 57G301 EA CHIP BEAD
FB203 071G 57G301 EA CHIP BEAD
FB202 071G 57G301 EA CHIP BEAD
FB201 071G 57G301 EA CHIP BEAD

FB200 071G 57G301 EA CHIP BEAD
RP200 071G 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A
RP201 071G 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A
RP202 071G 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A
RP203 071G 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A
RP205 071G 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

FB109 071G 59B121 TB160808B

FB108 071G 59B121 TB160808B

FB107 071G 59B121 TB160808B

BEAD 300 欧
BEAD 300 欧

47

FB106 071G 59B121 TB160808B

www.ma163.com 电子技术资料网

FB105 071G 59B121 TB160808B

FB104 071G 59B121 TB160808B

FB103 071G 59B121 TB160808B

FB100 071G 59C600 CHIP BEAD

FB101 071G 59C600 CHIP BEAD

FB102 071G 59C600 CHIP BEAD

FB208 071G 59G301 CHIP BEAD 300OHM

FB712 071G 59G301 CHIP BEAD 300OHM

FB711 071G 59G301 CHIP BEAD 300OHM

FB713 071G 59G301 CHIP BEAD 300OHM

FB710 071G 59G301 CHIP BEAD 300OHM

FB401 071G 59G301 CHIP BEAD 300OHM

FB408 071G 59G301 CHIP BEAD 300OHM

FB407 071G 59G301 CHIP BEAD 300OHM

FB406 071G 59G301 CHIP BEAD 300OHM

FB405 071G 59G301 CHIP BEAD 300OHM

FB404 071G 59G301 CHIP BEAD 300OHM

FB403 071G 59G301 CHIP BEAD 300OHM

FB402 071G 59G301 CHIP BEAD 300OHM

FB214 071G 59G301 CHIP BEAD 300OHM

FB213 071G 59G301 CHIP BEAD 300OHM

FB212 071G 59G301 CHIP BEAD 300OHM

L503 073G253S 6 T IND SMD CHOKE 90 OHM TDK
L502 073G253S 6 T IND SMD CHOKE 90 OHM TDK
L501 073G253S 6 T IND SMD CHOKE 90 OHM TDK
L500 073G253S 6 T IND SMD CHOKE 90 OHM TDK

CN500 088T 340 19 VD HDMI HEADER 19P V/A

D500 093G 60230 BAT54C(L43)
D100 093G 60230 BAT54C(L43)
D402 093G 60230 BAT54C(L43)
D401 093G 60230 BAT54C(L43)
D124 093G 60231 BAT54S
D123 093G 60231 BAT54S
D403 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D109 093G 64 37 N VPORT0603100KV05
D110 093G 64 37 N VPORT0603100KV05
D501 093G 64 37 N VPORT0603100KV05

D502 093G 64 37 N VPORT0603100KV05
ZD104 093G 64 37 N VPORT0603100KV05
ZD105 093G 64 37 N VPORT0603100KV05

D101 093G 64 37 N VPORT0603100KV05

D102 093G 64 37 N VPORT0603100KV05

D103 093G 64 37 N VPORT0603100KV05

D108 093G 64 37 N VPORT0603100KV05

D107 093G 64 37 N VPORT0603100KV05

48

D106 093G 64 37 N VPORT0603100KV05

www.ma163.com 电子技术资料网

D105 093G 64 37 N VPORT0603100KV05

D104 093G 64 37 N VPORT0603100KV05

X400 093G 22S 78 J XTL NXE22.1184AC18F HC-49/U-S SMD
ZD103 093G 39S 34 T UDZSNP5.6B ROHM
ZD100 093G 39S 34 T UDZSNP5.6B ROHM
ZD101 093G 39S 34 T UDZSNP5.6B ROHM
ZD102 093G 39S 34 T UDZSNP5.6B ROHM
ZD123 093G 39S 34 T UDZSNP5.6B ROHM
ZD124 093G 39S 34 T UDZSNP5.6B ROHM
ZD400 093G 39S 34 T UDZSNP5.6B ROHM
ZD401 093G 39S 34 T UDZSNP5.6B ROHM
ZD402 093G 39S 34 T UDZSNP5.6B ROHM
ZD601 093G 39S 34 T UDZSNP5.6B ROHM
ZD600 093G 39S106 T DIODE RLZ6.8C TE-11 500MW/6.8V LL-34
RV100 093T 64 65 TY SMD ESD PROTECTER PESD0603-240
RV101 093T 64 65 TY SMD ESD PROTECTER PESD0603-240
RV102 093T 64 65 TY SMD ESD PROTECTER PESD0603-240

715T2899 1 3 MAIN PCB
IRPF8YA7 IR BOARD

U01 056G 627 14 1 IC KSM-2003TN2E 37.9KHZ

CN01 033G8032 5F HR CONNECTOR

LED01 081G 14 6 GP LED GPTD1210RGC GUANGPU

715T2995 1 IR PCB
PWTV7C41CYD1 POWER T2783-1-5-Y-2-080807
040G 45762412B CBPC LABEL

GND 009T6005 1 GROUND TERMINAL

CN803 033G8021 2E U INVERT CONNECTOR
CN804 033G8021 2E U INVERT CONNECTOR
CN802 033G8021 2E U INVERT CONNECTOR
CN801 033G8021 2E U INVERT CONNECTOR

051T 6 4503 GLUE_RTV

IC903 056G 139 3A IC PC123Y22FZ0F

NR901 061G 5810T RST NTCR 8 OHM +-20% 4A 13MM THINKING

C903 063G107K474 6S CAP X2 0.47UF K 275VAC
C822 065G 3J5606ET CAP CER 56PF J 3KV
C819 065G 3J5606ET CAP CER 56PF J 3KV
C821 065G 3J5606ET CAP CER 56PF J 3KV
C820 065G 3J5606ET CAP CER 56PF J 3KV
C817 065G 6J2096ET 2PF 5% SL 6KV
C902 065G305M1022BP Y2 1000PF M 250VAC Y5P
C901 065G305M1022BP Y2 1000PF M 250VAC Y5P
C931 065G306M1022BM Y1.CAP.001UF 250VAC MURATA
C816 065T 6J2706ET 27PF 5% SL 6KV TDK
C824 065T 6J2706ET 27PF 5% SL 6KV TDK
C905 067G 40Z12115A CAP 105C 120UF M 450V

49

C812 067G215H102 4K LOW ESR EC 1000UF 25V EB1E102M

www.ma163.com 电子技术资料网

C930 067G215P1023AV

C914 067G215P1023AV

C918 067G215P1024AV

C917 067G215P1024AV

C915 067G215P4713AV

C922 067G215P4714AV

L801 073G 174 35 HA IND FILTER 200MH+-25% DADON

L802 073G 174 35 HA IND FILTER 200MH+-25% DADON

L903 073G 253 91 H CHOKE COIL

L904 073G 253 91 H CHOKE COIL

L902 073L 174 40 HG GBQM4.778.391

T901 080TL19T 33 S X'FMR POWER 530UH

PT802 080TL22T 4 DN X'FMR 775MH TK.2001Y.101

CN901 087T 501 44 DL AC SOCKET 3PIN + 2 SCREW HOLE V/T

BD901 093G 50460900 BRIDEGE DIODE GBU408 LITEON

CN902 095T 82011W510 WIRE HARNESS 11P(SAN)-12P(PLUG)

705TQ757019 Q901 ASS'Y
051T 200 1 OIL FOR DISAPPEAR

Q901 057G 667 21 STP10NK70ZFP

0M1G1730 8120 SCREW

HS1 Q90T6064 5 GP HEATSINK

705TQ793050 D904 ASS'Y
051T 200 1 OIL FOR DISAPPEAR

HS2 090T6064 1 GP HEAT SINK

D904 093G 60218 SB10100FCT

0M1G1730 8120 SCREW
705TQ793061 D906 ASS'Y
051T 200 1 OIL FOR DISAPPEAR

HS3 090T6273 1 HEAT SINK

D906 093G 60522 DIODE MBR10150FCT PANJIT

0M1G1730 8120 SCREW
IC901 056G 379107 IC LD7575A PS SOP-8
IC801 056G 608 10 IC OZ9938GN-B SOIC-16

Q903 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q802 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
Q803 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
Q805 057T 600517 AO4616 SOIC-8
Q806 057T 600517 AO4616 SOIC-8
R849 061G0603000 RST CHIP MAX 0R05 1/10W
R846 061G0603000 RST CHIP MAX 0R05 1/10W
R805 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R806 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R807 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R808 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R816 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

CAP 105℃ 1000UF M 16V
CAP 105℃ 1000UF M 16V
CAP 105℃ 1000UF M 25V
CAP 105℃ 1000UF M 25V
CAP 105℃ 470UF M 16V
CAP 105℃ 470UF M 25V

50

R844 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

www.ma163.com 电子技术资料网

R845 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R843 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R820 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R842 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R819 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W
R817 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R826 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R839 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R841 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R840 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R838 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R821 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
C808 061G0603184 RST CHIPR 180 KOHM +-5% 1/10W
R823 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W
R813 061G0603474 RST CHIPR 470 KOHM +-5% 1/10W
R825 061G0603511 RST CHIPR 510 OHM +-5% 1/10W
R804 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W
R803 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W
R836 061G0603513 RST CHIPR 51 KOHM +-5% 1/10W
R824 061G0603620 1F RST CHIPR 6.2KOHM +-1% 1/10W
R818 061G0603753 RST CHIPR 75 KOHM +-5% 1/10W
R837 061G0603822 RST CHIPR 8.2 KOHM +-5% 1/10W
R928 061G0805000 RST CHIP MAX 0R05 1/8W
R907 061G0805100 RST CHIPR 10 OHM +-5% 1/8W
R941 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W
R924 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R938 061G0805103 RST CHIPR 10K OHM +-5% 1/8W
R925 061G0805151 RST CHIPR 150 OHM +-5% 1/8W
R822 061G0805200 2F RST CHIPR 20 KOHM +-1% 1/8W
R922 061G0805201 RST CHIPR 200 OHM +-5% 1/8W
R802 061G0805220 RST CHIPR 22 OHM +-5% 1/8W
R912 061G0805220 RST CHIPR 22 OHM +-5% 1/8W
R930 061G0805243 1F RST CHIPR 2.43 KOHM +-1% 1/8W
R929 061G0805330 2F RST CHIPR 33K OHM +-1% 1/8W
R927 061G0805360 1F RST CHIPR 3.6K OHM +-1% 1/8W
R943 061G0805471 RST CHIPR 470 OHM +-5% 1/8W

R829 061G0805682 RST CHIPR 6.8 KOHM +-5% 1/8W
RJ801 061G1206000 RST CHIP MAX 0R05 1/4W
RJ901 061G1206000 RST CHIP MAX 0R05 1/4W
RJ902 061G1206000 RST CHIP MAX 0R05 1/4W
RJ903 061G1206000 RST CHIP MAX 0R05 1/4W
RJ904 061G1206000 RST CHIP MAX 0R05 1/4W
RJ905 061G1206000 RST CHIP MAX 0R05 1/4W

R920 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R935 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

51

R934 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

www.ma163.com 电子技术资料网

R919 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R918 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R903 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R936 061G1206102 RST CHIPR 1K OHM +-5% 1/4W

R909 061G1206339 RST CHIPR 3.3 OHM +-5% 1/4W

R901 061G1206684 RST CHIPR 680K OHM +-5% 1/4W

R902 061G1206684 RST CHIPR 680K OHM +-5% 1/4W

R900 061G1206684 RST CHIPR 680K OHM +-5% 1/4W

R905 061G1206822 RST CHIPR 8.2 KOHM +-5% 1/4W

R904 061G1206822 RST CHIPR 8.2 KOHM +-5% 1/4W

C807 065G0603103 12 CHIP 0.01UF 16V X7R

C805 065G0603103 12 CHIP 0.01UF 16V X7R

C806 065G0603105 12 CHIP 1UF 16VX7R 0603

C818 065G0603221 31 CER1 0603 NP0 50V 220P P

C813 065G0603333 32 CHIP 0.033UF 50V X7R 0603

C815 065G0603473 32 CHIP 0.047UF 50V X7R

C810 065G0603473 32 CHIP 0.047UF 50V X7R

C932 065G0805102 31 CAP CHIP 0805 1000PF J 50V NPO

C920 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C927 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C916 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C919 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C811 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C924 065G0805221 31 CAP CHIP 0805 220PF J 50V NPO

C912 065G0805223 22 CHIP 0.022UF 25V X7R 080

C804 065G0805225 12 CAP CHIP 0805 2.2UF K 16V X7R

C814 065G0805391 31 CHIP 390PF 50V

C923 065G0805471 21 CAP CHIP 0805 470PF J 25V NPO

C801 065G0805473 32 CHIP 0.047UF 50V X7R

C802 065G0805473 32 CHIP 0.047UF 50V X7R

C809 065G080556131G MLCC 0805 560PF G 50V NPO

C929 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R

C921 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R

D809 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D806 093G 64 42 P BAV70 SOT23 BY PAN JIT

D808 093G 64 42 P BAV70 SOT23 BY PAN JIT

D807 093G 64 42 P BAV70 SOT23 BY PAN JIT

D801 093G 6432P LL4148

D804 093G 6432P LL4148

D803 093G 6432P LL4148

D805 093G 6432P LL4148

D909 093G 6432P LL4148

D802 093G 6432P LL4148

ZD803 093G 39S 24 T RLZ 5.6B LLDS
ZD802 093G 39S 24 T RLZ 5.6B LLDS

52

ZD920 093G 39S 40 T RLZ 13B LLDS

www.ma163.com 电子技术资料网

006G 31 4 1.7MM RIVET

CN901 006T 31501 EYELET

IC902 056G 158 12 KIA431A-AT/P TO-92

R908 061G152M10452T RST MOFR 100KOHM +-5% 2WS

R940 061G152M15152T RST MOFR 150 OHM +-5% 2WS

R914 061G152M36852T RST MOF 0R36 5% 2W

R828 061G212Y625 KT MGFR 6.2MOHM +-5% 1/2W

C906 065G 2K222 2T6921 CAP CER 2200PF K 2KV Y5P

C908 067G215Y2207KT

F901 084G 56 4 B FUSE 4A 250V
D901 093G 6026T52T RECTIFIER DIODE FR107
D902 093G 6038T52T FR103

J802 095G 90 23

J803 095G 90 23

J804 095G 90 23

J805 095G 90 23

J806 095G 90 23

J807 095G 90 23

J808 095G 90 23

J905 095G 90 23

J814 095G 90 23

F902 095G 90 23

J903 095G 90 23

J902 095G 90 23

J904 095G 90 23

J816 095G 90 23

J815 095G 90 23

J901 095G 90 23

J809 095G 90 23

J810 095G 90 23

J811 095G 90 23

J812 095G 90 23

J813 095G 90 23

FB901 095G 90 23

F903 095G 90 23

J801 095G 90 23

715T2783 1 5 POWER PCB
Q07G 2 L 70 WOODEN PALLET
Q07G 2 L 71 WOODEN PALLET
Q11T5005 1 WIRE SADDLE

Q12G6300 26 6
Q36T 600 30 1 NONWOVEN FABRIC
Q36T 600 35 2 GP NONWOVEN FABRIC
Q36T 600 35 10 GP NONWOVEN FABRIC
Q36T 600 46 1 NONWOVEN FABRIC

CAP 105℃ 22UF M 50V KINGNICHI

跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线

硅胶垫片

53

Q40G 58169022A QC PASS LABEL

www.ma163.com 电子技术资料网

Q40G0001624 4A PALLET LABEL
Q40T0002615A46 BACK I-O LABEL OF 19&22 TV FOR CCC
Q40T000278641A SIDE LABEL
Q41T7830615 1A WARRANTY CARD
Q44G6002121118 PAPER BOARD
Q44T600260811A PAPER BOARD
Q44TC036102 EPS
Q44TC036202 EPS
Q44TC036615 7A 22 TV AOC CARTON
Q45G 77 5 PE PACKING
Q45G 88609 28 R BASE P.E BAG
Q45G2007M0101A PE BAG
Q45T 99609100 EPE COVER
Q50T 500523 CABLE TIE
Q52G 1185 99 BIG CARTON TAPE FOR AOC
041T780062415A CERTIFICATE CARD
089G 17356X553 AUDIO CABLE
Q41T220261527A MANUAL
Q41T7800954 A MANUAL
Q45G 76 28 RN R PE BAG MANUAL
026G 800700 1A BARCODE LABEL
040G 58162435A P/N LABEL FOR MANUAL PE BAG
Q40T 22061525A RATING LABEL

54
