USER'S MANUAL
Dual Band FM Transceiver
Page 2
Page 3
Nice Housing, Stoutness & Stability, Advanced and Reliable
www.AT-588UV.com
functions, Perfect & Valuable.
mobile radio especially designs for drivers and it pursues company
philosophy of innovation and practicality.
NOTE
A T-588UV Mobile Radio Applicable Software: QPS588UV Model Apply To This Manual: AT-588UV Mobile radio
Approval. AT-588UV
Page 4
Thank you for choosing this mobile transceiver,
www.AT-588UV.com
always provide high quality products, and this
transceiver is no exception AT-588UV is a ruggedly-built, high
quality Dual Band FM transceiver providing 50 Watts of power
output on the VHF band and 40 Watts on the UHF band. It owns
many advanced characters like cross band repeat function,
built with a direct-ow heat sink and thermostatically-controlled
cooling fan maintaining a safe temperature for the transceiver's
circuit.
AT-588UV has four independent receiving bands, consist of
UU, UV,VU,VV for dual receive and dual output, plus receiving
for AM/FM signal of air band, marine band, PMR, etc. also able
to receive FM/TV radio and analogue TV signal. It owns 758
memory channels, full duplex operation with independent volume
and squelch controls, optional compander and builtin CTCSS/
DCS, DTMF, 5TONE,2TONE signaling, detachable front panel
for exible installation.
Though friendly design for user, this transceiver is technically
complicated and some features may be new to you. Consider
this manual to be a personal tutorial from the designers,allow the
manual to guide you through the learning process now, then act
as a reference in the coming years.
Precautions
Please observe the following precautions to prevent fire,
personal injury, or transceiver damage:
Do not attempt to congure your transceiver while driving,it
is dangerous.
This transceiver is designed for a 13.8V DC power supply.
Don't use a 24V battery to power on the transceiver.
Do not place the transceiver in excessively dusty, humid or
wet areas, nor unstable surfaces.
Please keep it away from interferential
devices (such as TV, generator etc.)
Do not expose the transceiver to long
periods of direct sunlight nor place it
close to heating appliances.
If an abnormal odor or smoke is
detected coming from the transceiver,
turn OFF the power immediately.
Contact an Anytone service station or your dealer.
Do not transmit with high output power for extended
periods; the transceiver may overheat.
Page 5
CONTENTS
www.AT-588UV.com
New and Innovative Features ...................................................1
Frequency Range ...................................................................1
Supplied Accessories/Optional Accessories ..........................2
Supplied Accessories ..............................................................2
Optional Accessories ..............................................................2
Initial Installation .......................................................................3
Mobile installation ...................................................................3
DC Power Cable Connection ..................................................4
Antenna Connection ...............................................................6
Accessories Connections ........................................................7
Getting Acquainted ...................................................................8
Front panel ..............................................................................8
Rear panel ..............................................................................9
DISPLAY .................................................................................9
Microphone ...........................................................................10
Basic Operations .....................................................................11
Switching The Power On/Off .................................................11
Adjusting The Volume ..........................................................11
Switch between VFO and Channel mode .............................11
Adjusting Frequency .............................................................11
Adjusting Channel .................................................................11
Switch Between Main Band and Sub band ...........................12
Selecting the frequency band ...............................................12
Receiving ..............................................................................12
Squelch Off/Squelch Off Momentary.....................................12
Transmitting ..........................................................................12
Shortcut Operations ................................................................13
Squelch level Setup ..............................................................13
Transmit DTMF/2TONE/5TONE signaling ............................13
High/Mid/Low Power Switch .................................................13
Frequency Reverse ...............................................................13
Band-width Selection ............................................................13
HOME Channel .....................................................................13
Dual Watch............................................................................14
Emergency Alarm ..................................................................14
Channel/Frequency Scan .....................................................14
Channel Scan Skip ...............................................................14
Channel Edit .........................................................................14
Channel Copy .......................................................................14
Channel Delete .....................................................................14
General Setting ........................................................................15
APO (Autom atic Pow er off) .................................................15
Automatic offset ....................................................................15
Frequency Channel Step Setup ............................................15
VFO Band lockout .................................................................16
Beep Function .......................................................................16
CPU Clock frequency Change ..............................................16
2TONE Encode select ..........................................................16
5TONE Encode select ..........................................................17
Add Optional signaling ..........................................................17
CTCSS encode Setup ..........................................................17
CTCSS decode Setup ...........................................................18
Sub Band Display Setup .......................................................18
DTMF Encode Pre-Loading time ..........................................18
DTMF Encode Transmitting Time .........................................19
DTMF Encode setup .............................................................19
Squelch Mode Setup .............................................................19
Compander ...........................................................................20
Page 6
CONTENTS
www.AT-588UV.com
Scrambler Setup ...................................................................20
Tone Bust (Pilot Frequency) ..................................................20
Keypad Mode Setup .............................................................21
Keypad Lockout ....................................................................22
TX OFF (PTT Lockout) .........................................................22
Squelch Level setup ..............................................................22
TALK AROUND .....................................................................22
Sub band mute setup ............................................................23
Editing Channel Name ..........................................................23
Microphone PA,PB, PC,PD key setup ..................................23
RF Squelch level setup .........................................................24
OFFSET Direction setup .......................................................24
Scan Dwell Time Setup .........................................................24
Priority channel scan .............................................................24
Offset frequency Setup .........................................................25
Display mode Setup ..............................................................25
Busy Channel Lockout ..........................................................25
Radio's DTMF SELF ID ENQUIRY .......................................25
5TONE SELF ID ENQUIR ....................................................26
TOT (Time-out timer) ............................................................26
VFO Frequency Linkage .......................................................26
Wide/Narrow band ................................................................26
Cross Band repeat ................................................................27
LCD backlight ........................................................................27
Keypad backlight brightness .................................................27
Calling Record ......................................................................27
AM Function ..........................................................................28
Automatic AM function ..........................................................28
VHF External speaker port ....................................................28
Password Function ...............................................................28
Microphone Operation ............................................................29
Send DTMF signaling ...........................................................29
Main/Sub band switching ......................................................29
Function operation through PA-PD keys ...............................29
Cable Clone ..............................................................................31
Programming Software Installing and Starting (in windows
XP system) ...............................................................................32
Install USB Cable Driver Programme ...................................32
Maintenance .............................................................................33
Trouble Shooting ...................................................................33
Specications ..........................................................................34
Attached Chart .........................................................................35
50 groups CTCSS Tone Frequency(Hz) ...............................35
1024 groups DCS Code ........................................................35
Page 7
New and Innovative Features
www.AT-588UV.com
AT-588UV Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This amateur mobile radio
especially designs for drivers and it pursues company philosophy of innovation and practicality. More functions as follows:
758 memory channels, full duplex operation with independent volume and squelch controls
50 Watts of power output on the VHF band and 40 Watts on the UHF band with cross band repeater function.
Four independent receiving bands, consist of UU, UV,VU,VV for dual receive and dual output, plus receiving for AM/FM signal of air band,marine
band, PMR, etc; able to receive FM/TV radio and analogue TV signal.
Display on a large LCD with adjustable brightness, convenient for nighttime use. There are Amateur operation mode and Professional operation
mode for option.
Distribute buttons reasonably, convenient for operation. Adopt superior quality material, better technology and direct-ow heat sink to ensure
stable and durable operation.
758 programmable memory channels, identied by editing name.
Programming different CTCSS, DCS, 2Tone, 5Tone in per channel, rejecting extra calling from other radios.
Various scan functions including CTCSS/DCS Scan function.
Using 5Tone to send Message, Emergency alarm, Call all, ANI, Remotely kill, Remotely Waken, etc.
Automatic calling ldentication function by DTMF--ANI or 5Tone--ANI .
Scramble function.
Compander function for decrease the background noise and enhance audio clarity, it can set compander ON/OFF per channel.
Different band width per channel, 25K for wide band, 20K for middle band ,or 12.5K for narrow band.
Theft alarm provides extra safety.
1
Frequency Range
RX: 118~174MHZ(AM/FM) TX: 136~174MHZ
220~260MHZ 400~490MHZ
350~399.995MHZ
400-490 MHZ
49-870 MHZ(Optional)
1
Page 8
2
Supplied Accessories/Optional Accessories
www.AT-588UV.com
2

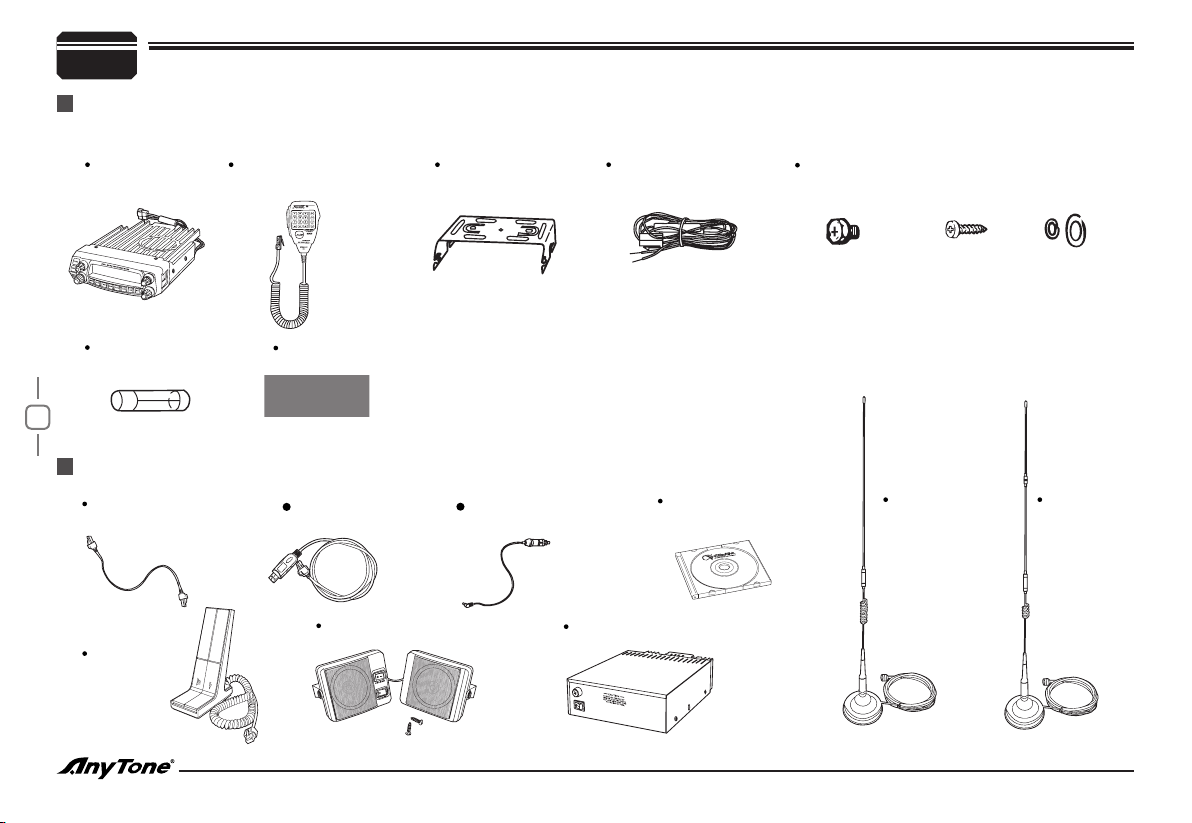

SUPPLIED ACCESSORIES
After carefully unpacking the transceiver, identify the items listed in the table below. We suggest you keep the box and packaging.
Transceiver
Microphone (QHM-04)
(with DTMF keyboard)
Mobile Mounting
Bracket (QMB-01)
DC Power Cable with
Fuse Holder(QPL-01)
Hardware Kit for Bracket
Black screws
(M4X8mm)
4PS(QSS-01A)
Tapping screws
(M5X8mm)
4PS(QSS-01B)
S-Washer
(QSS-01D)
Spare Fuses
(QF-01)
User Manual
OPTIONAL ACCESSORIES
Cloning Cable (CP51)
Desktop
Microphone
(QDM-01)
USB Programming
Cable (PC51)
External Speaker (SP-02)
Cigar-Plug Connection
Line (QCC-01)
Power supply (QRP-01)
Programming Software
(QPS-588UV)
Car Antenna
(QCA-02)
Car Antenna
(QCA-03)
Page 9
3
MOBILE INSTALLATION
www.AT-588UV.com
To install the transceiver, select a safe, convenient location inside your
vehicle that minimizes danger to your passengers and yourself while the
vehicle is in motion. Consider installing the unit at an appropriate position
so that knees or legs will not strike it during sudden braking of your
vehicle. Try to pick a well ventilated location that is shielded from direct
sunlight.
Install the mounting bracket in the vehicle using the supplied self-
1.
tapping screws (4pcs) and at washers (4pcs).
Car body
Washer (M5)
Tapping screw
(M5X20mm)
Initial Installation
Determine the appropriate angle of the transceiver, using the 3
screw hole positions on the side of the mounting bracket.
3
Mounting bracket
Position the transceiver, then insert and tighten the supplied hexagon
2.
SEMS screws.
Double check that all screws are tightened to prevent
vehiclevibration from loosening the bracket or transceiver.
Page 10
4
Initial Installation
www.AT-588UV.com
3
DC POWER CABLE CONNECTION
Locate the power input connector as close to the transceiver as possible.
NOTE
MOBILE OPERATION
The vehicle battery must have a nominal rating of 12V. Never
connect the transceiver to a 24V battery. Be sure to use a 12V
vehicle battery that has sufficient current capacity. If the current
to the transceiver is insufficient, the display may darken during
transmission, or transmitting output power may drop excessively.
Route the DC power cable supplied with the transceiver directly
1.
to the vehicle's battery terminals using the shortest path from the
transceiver.
We recommend you do not use the cigarette lighter socket
as some cigarette lighter sockets introduce an unacceptable
voltage drop.
The entire length of the cable must be dressed so it is isolated
from heat, moisture, and the engine secondary (high voltage)
ignition system/ cables.
After installing cable, in order to avoid the risk of damp, please
2.
use heat-resistant tap to tie together with fuse box. Don't forget
to reinforce whole cable.
In order to avoid the risk of short circuit, please cut down
3.
connection with negative (-) of battery, then connect with radio.
Conrm the correct polarity of the connections, then attach the
4.
power cable to the battery terminals; red connects to the positive
(+) terminal and black connects to the negative (-) terminal.
Use the full length of the cable without cutting off excess even
if the cable is longer than required. In particular, never remove
the fuse holders from the cable.
Reconnect any wiring removed from the negative terminal.
5.
Red
Black
Connect the DC power cable to the transceiver's power
6.
supplyconnector.
Press the connectors rmly together until the locking tab clicks.
If the ignition-key on/off feature is desired(optional feature),use the
DC power cable
Ext. Power jack
optional QCC-01(For Cigar-Plug connection) cable. Connect one
of the cables between the ACC terminal or a Cigar-Plug that operates
with the vehicle ignition or ACC switch on the vehicle and EXT
POWER jack on the rear side of the unit.
In many cars,the cigar-lighter plug is always powered. If this is the case,
NOTE
you cannot use it for the ignition key on/off function.
Page 11
5
When the ignition key is turned to ACC or ON(Start) position
www.AT-588UV.com
7.
with the radio turned off, the power switch illuminates. The
illumination will be turned off when the ignition key is turned
to the off position.To turn on the unit, press the power switch
manually while it is illuminated. (While ignition key is at ACC or
ON position)
When the ignition key is turned to ACC or ON position with the
8.
radio's power switch on, the unit turns on automatically and the
power switch will be lit. Turn the ignition key to OFF position or
manually turn the power switch off to shut down the radio.
9.
Using extra cable,power consumption:5MAH.
10.
Without this function,user can turn on/off radio by Power knob.
ACC terminal
Cigar-Plug connection
Ext. Power jack
FIXED STATION OPERATION
In order to use this transceiver for fixed station operation, you
will need a separate 13.8V DC power supply (not included) , power
supply( QRP-01) as optional accessories. Please contact local
dealer to require.
The recommended current capacity of your power supply is 12A.
Connect the DC power cable to the regulated DC power supply
1.
and ensure that the polarities are correct. (Red: positive,
Black:negative).
Do not directly connect the transceiver to an AC outlet.
Use the supplied DC power cable to connect the transceiver
to a regulated power supply.
Do not substitute a cable with smaller gauge wires.
Regulated power supply (QRP-01)
DC power cable with fuse holder (QPL-01)
Connect the transceiver's DC power connector to the
2.
connector on
Press the connectors rmly together until the locking tab
clicks.
Before connecting the DC power to the transceiver, be sure to
switch the transceiver and the DC power supply OFF.
NOTE
Do not plug the DC power supply into an AC outlet until you
make all connections.
the DC power cable.
Initial Installation
Regulated
power supply
(QRP-01)
Red
Black
3
Page 12
6
Initial Installation
www.AT-588UV.com
3
REPLACING FUSES

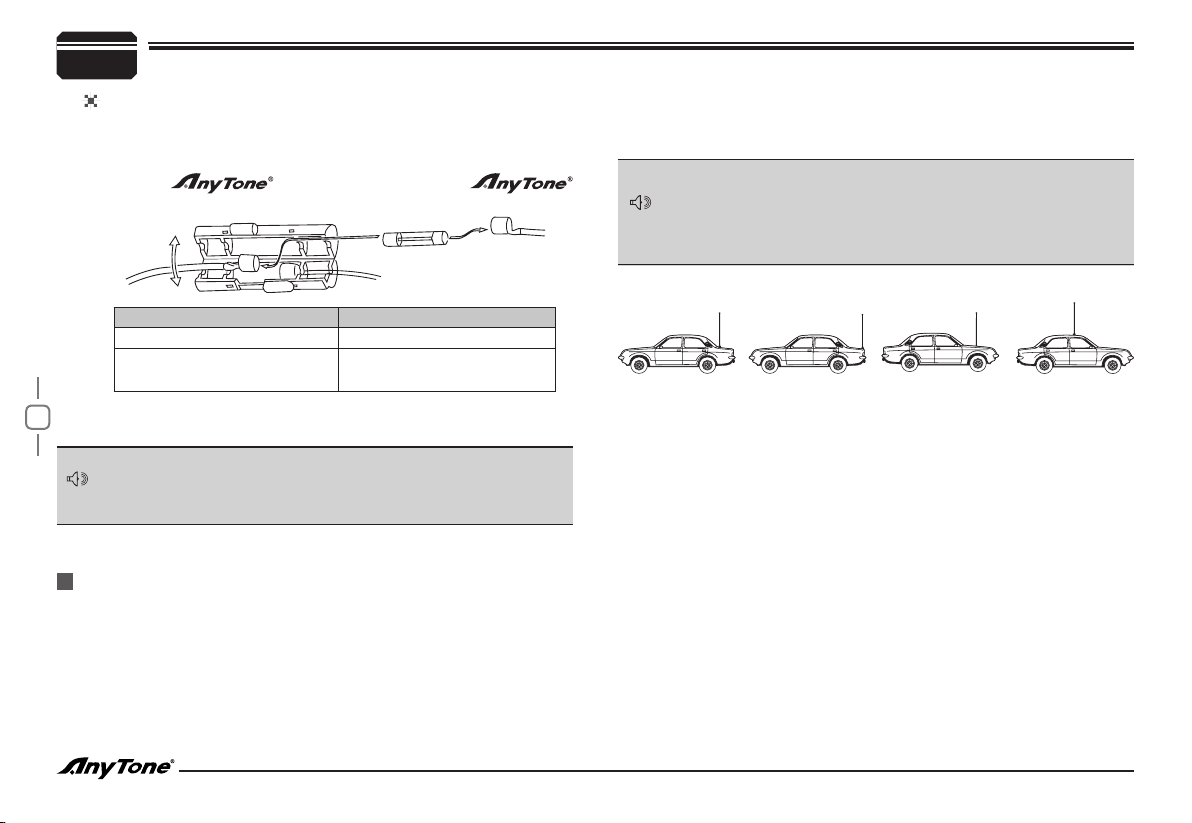

If the fuse blows, determine the cause, then correct the problem.
After the problem is resolved, replace the fuse. If newly installed
fuses continue to blow, disconnect the power cable and contact your
authorized dealer or an authorized
servicecenter for assistance.
Fuse Location Fuse Current Rating
Transceiver 15A
Supplied Accessory DC
power cable
Only use fuses of the specified type and rating, otherwise the
transceiver could be damaged.
If you use the transceiver for a long period when the vehicle battery is
not fully charged, or when the engine is OFF, the battery may become
NOTE
discharged, and will not have sufcient reserves to start the vehicle. Avoid
using the transceiver in these conditions.
20A
ANTENNA CONNECTION
Before operating, install an efcient, well-tuned antenna. The success
of your installation will depend largely on the type of antenna and its
correct installation. The transceiver can give excellent results if the
antenna system and its installation are given careful attention.
Use a 50Ω impedance antenna and low-loss coaxial feed-line that
has a characteristic impedance of 50 Ω, to match the transceiver input
impedance. Coupling the antenna to the transceiver via feed-lines having
an impedance other than 50Ω reduces the efficiency of the antenna
system and can cause interference to nearby broadcast television
receivers, radio receivers, and other electronic equipment.
Transmitting without first connecting an antenna or other
matched load may damage the transceiver. Always connect
the antenna to the transceiver before transmitting.
NOTE
All xed stations should be equipped with a lightning arrester to
reduce the risk of re, electric shock, and transceiver damage.
The possible locations of antenna on a car are shown as following:
Page 13
7
Initial Installation
www.AT-588UV.com
3

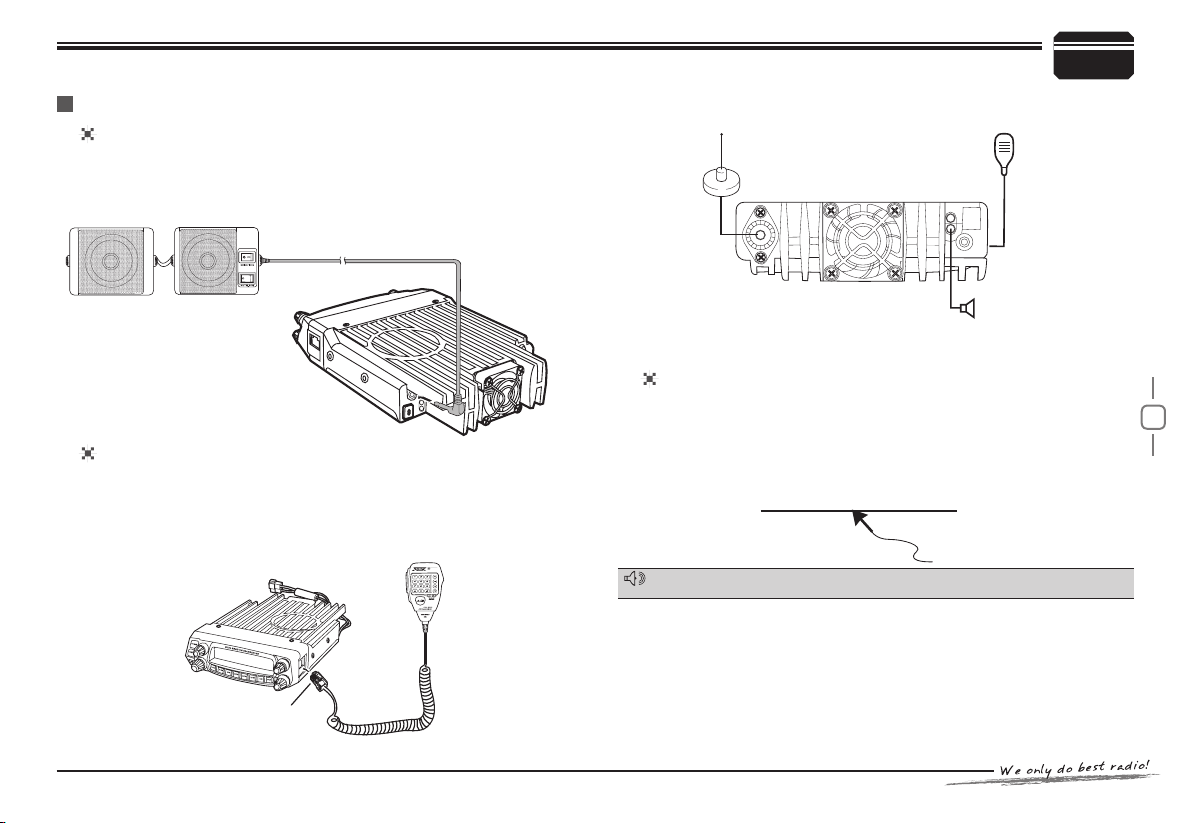

ACCESSORIES CONNECTIONS
EXTERNAL SPEAKER
If you plan to use an external speaker, choose a speaker with an
impedance of 8 Ω. The external speaker jack accepts a 3.5 mm (1/8")
mono (2-conductor) plug.
SP-02
MICROPHONE
For voice communications, connect a microphone equipped with
an 8-pin modular plug into the modular socket on the front of the
main unit. Press rmly on the plug until the locking tab clicks. Attach
the supplied microphone hanger in an appropriate location using the
screws included in the screw set.
Antenna[QCA-02]
Microphone[QHM-04]
External speaker[SP-02]
PC CONNECTING
To untilize the QPS588UV software, you must first connect the
transceiver to your PC then using an optional programming cable
PC50 (via Data socket ).
Please use QPS-588UV software for programming.
http://www.qxdz.cn
Ask your dealer about purchasing a Programming Cable PC51.
NOTE
Microphone
connector
Page 14
8
Getting Acquainted
www.AT-588UV.com
4

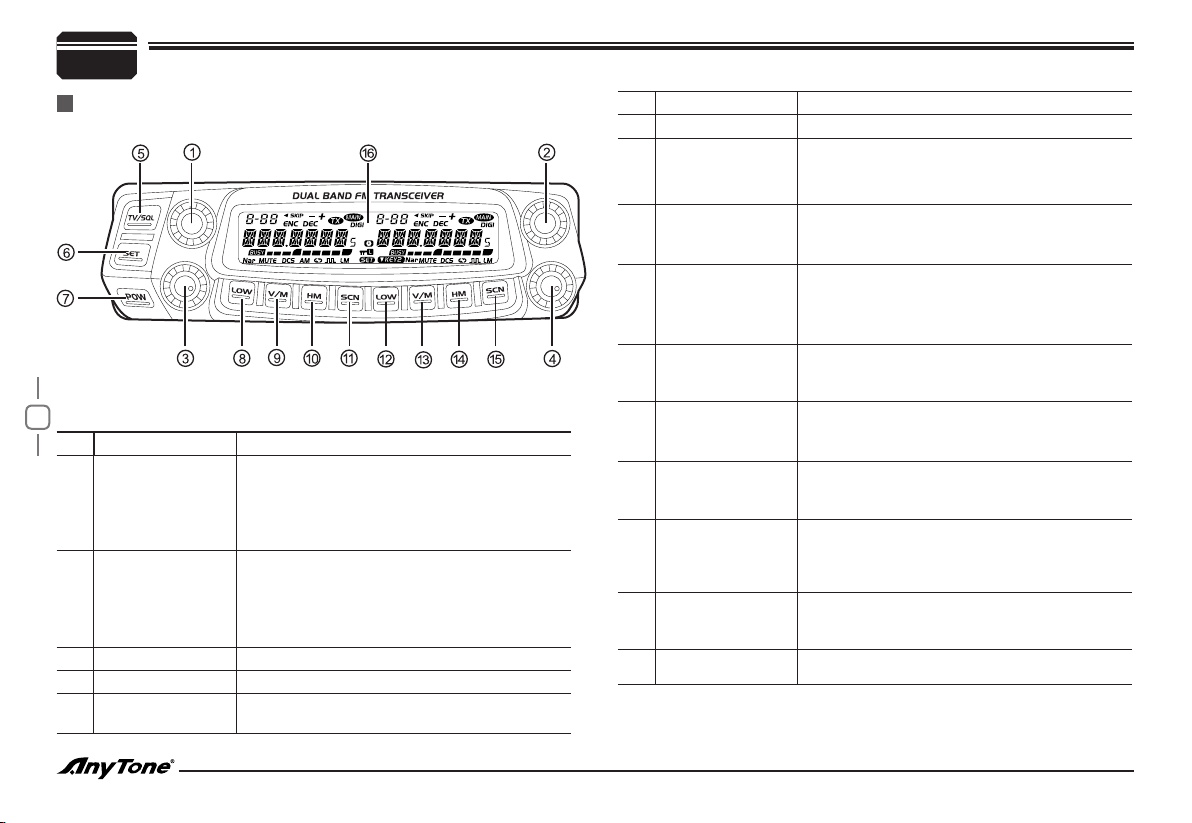

FRONT PANEL
Basic Functions•
NO. KEY FUNCTION
Rotate it to choose frequency /channel. Press
it to set the left band as "Main Band"; In VFO
1 Left Dial Knob
2 Right Dial Knob
3 Left Volume Knob Adjust left band voluem level.
4 Right Volume Knob Adjust right band voluem level.
5
TV/SQL
【
】
mode, press it to choose the frequency band;
In function setup as conrm key; in scan mode,
rotate it to change scan direction
Rotate it to choose frequency /channel. Press
it to set the right band as "Main Band"; In VFO
mode, press it to choose the frequency band;
In function setup as conrm key; in scan mode,
rotate it to change scan direction
In standby. press this key to turn On/Off TV
function.Hold this key to cancel squelch
6 Function set Key In standby , press this key to enter function menu
7 Power Press it to power On /Off the transceiver
【
8 Left
9 Left
10 Left
11 Left
12 Right
13 Righ
14 Righ【HM】Key
15 Righ【SCAN】Key
16 LCD
LOW】Key
【
V/M】Key
【HM】
【
SCAN】Key
【
LOW】Key
【
V/M】Key
Key
In standby press to change H/L power for present
channel.Long press it to turn On/Off Talk Around
Function
n standby, press to switch between channel
mode and VFO mode. Long press it to set Wide/
Narrow band.
In standby, press to switch between HOME
channel and normal channel. Long press it to
enter dual watch of VFO channel and current
channel.
In standby, press to start channel or frequency
scan.In channel mode, hold it to set current
channel scan skip.
In standby press to change H/L power for present
channel.Long press it to turn On/Off Talk Around
Function
In standby, press to switch between channel
mode and VFO mode. Long press it to set Wide/
Narrow band.
In standby, press to switch between HOME
channel and normal channel. Long press it to
enter dual watch of VFO channel and current
channel.
In standby, press to start channel or frequency
scan.In channel mode, hold it to set current
channel scan skip.
For display of channel, frequency and function
setup.
Page 15
9
Getting Acquainted
www.AT-588UV.com
4

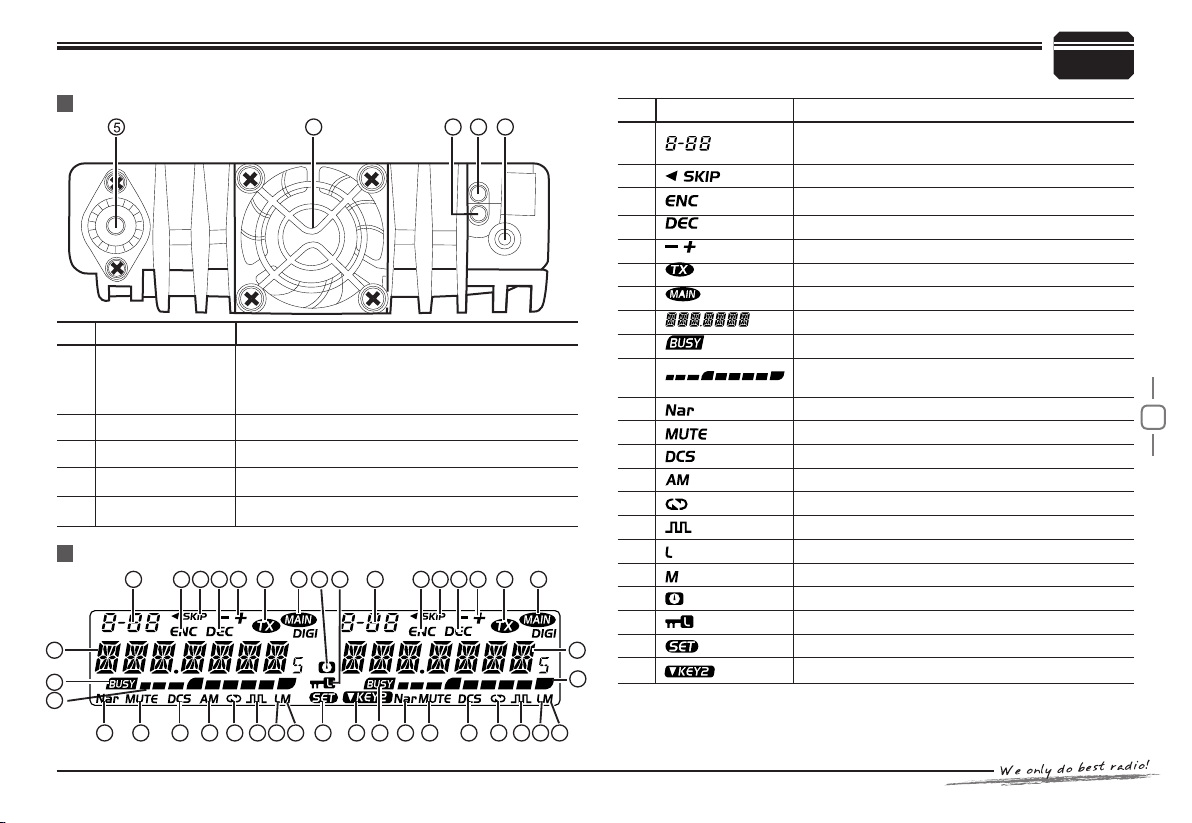

REAR PANEL
4 132
NO. KEY FUNCTION
Terminal for connecting optional cable QCC01 for
1 Ext. Power Jack
2 Ext.Speaker Terminal
3 TV/AV port
4 Heat -sink fan
5 Antenna Connector
use with ignition key On/Off function.The radio will
auto power on when car is driving. The radio will
auto power off when car stops.
Terminal for optional external speaker SP02
Connect to television TV/A V port.
Runs Automatically when radio temperature rise up.
Connect a 50 Ω antenna
DISPLAY
1 1
8 8
9
10
11 1112 1213 1314 15 1516 1621 2217 1718 18
2 25 53 34 46 67
19 20
7
9
NO. INdICATOR FUNCTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
10
Displays the channel number and Menu number.
Appears when current channel is set Scan Skip
Appears when current channel has CTCSS Encode
Appears when current channel has CTCSS Decode
Appears when the Offset function is ON
Appears while transmitting.
Displays the Main channel.
Displays the operating frequency,channel name
Displays when receiving a signal or Monitor is ON
Signal strength for receiving and power level for
transmitting
Appears while in Narrow band.
Appears when mute has been turned ON.
Appears when the DCS function is ON.
Appears while in AM mode
Appears when the Scrambler function is ON
Appears when the Compander function is ON.
Appears while using Low output power
Appears while using Middle output power
Appears while Auto power off function is ON.
Appears when the Key Lock function is ON.
Appears when press SET key.
Appears when choose KEY2 mode.
Page 16
10
Getting Acquainted
www.AT-588UV.com
4

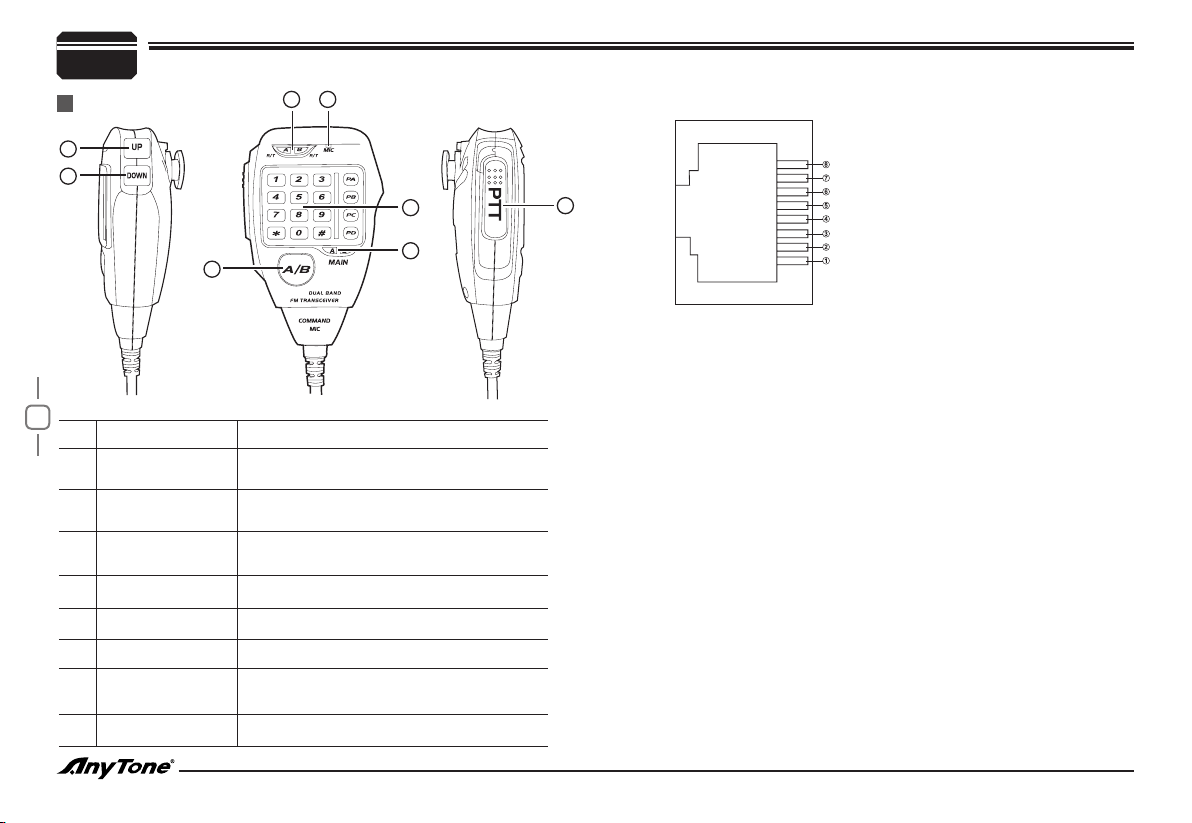

MICROPHONE
7 8
MIC Connector Diagram(in the front view of connector)
1
2
4
5
6
NO. KEY FUNCTION
1 UP
2 DOWN
3 PTT
4 Number Key Input VFO frequency or DTMF dial out etc.
5 A/B band Choose left band or right band as Main band
6 Band Indicator The indicator light on for Main band.
7 TX/RX Indicator
8 MIC Speak here during transmission.
Increase frequency ,channel number or
setting value.
Decrease frequency, channel number or
setting value.
Press the PTT (Push-TO-Talk) key to
transmit.
Light green while receiving, Light red while
transmitting.
Key Pad Serial Data
+5V
DOWN
3
UP
MIC GND
MIC
PTT
GND
Page 17
11
5
www.AT-588UV.com
Basic Operations
5

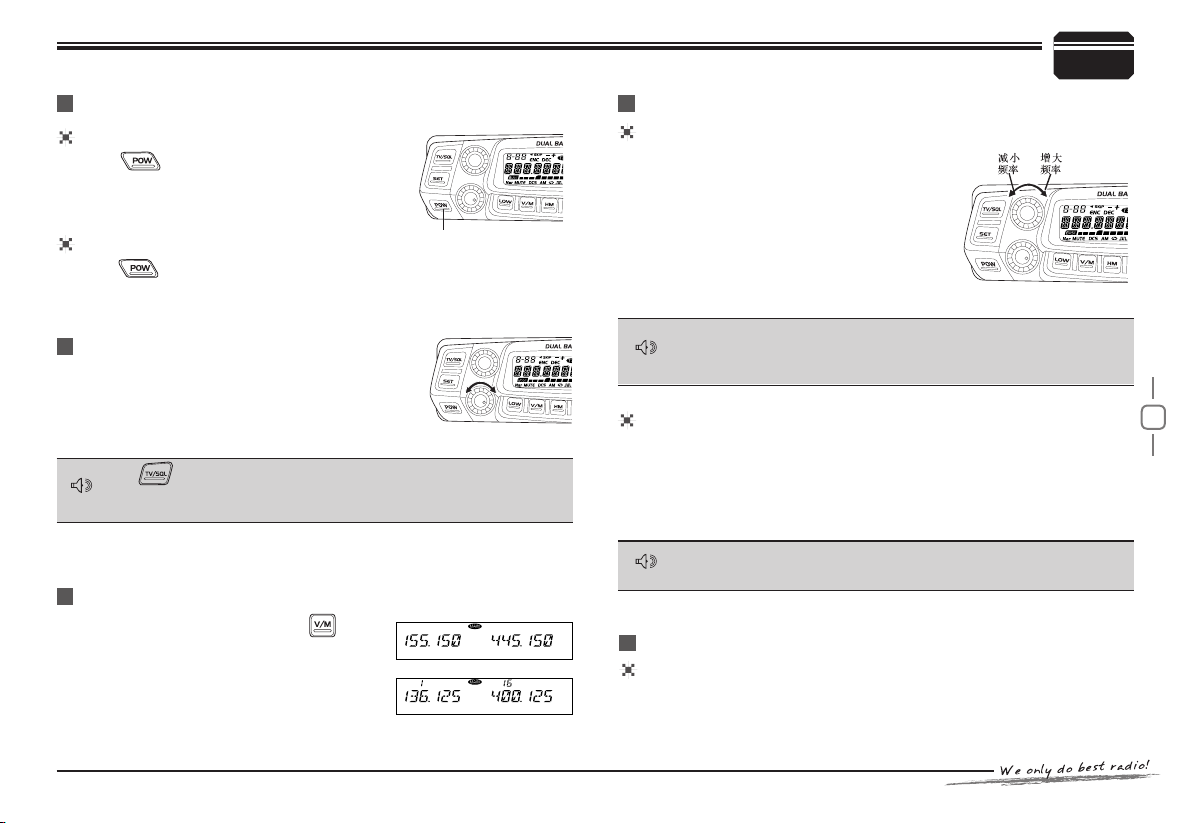

SWITCHING THE POWER ON/OFF
POWER ON
Press key to switch the transceiver ON,
the LCD displays "WELCOME ANYTONE", then
display current frequency or channel.
POWER OFF
Press key for over 0.5 Second to switch the transceiver OFF.
POW
ADJUSTING THE VOLUME
Rotate the [VOLUME] knob of selected
band clockwise to increase the volume,
counterclockwise to decrease the volume.
Hold , keep press Monitor the background noise after the transceiver
emits a DU beep, meanwhile adjust the [VOLUME] knob. During
NOTE
communication, volume can be adjusted more accurate.
Min
Volume
Volume
SWITCH BETWEEN VFO AND CHANNEL MODE
In standby, press correspondent key to
switch between Frequency and channel mode,
when the transceiver is in channel mode, the
LCD will displays current channel.
Max
ADJUSTING FREQUENCY
ADJUSTING FREQUENCY THROUGH SELECTOR KNOB
In frequency (VFO) mode, turn the selector
knob clockwise to increase frequency;
counterclock-wise to decrease frequency. Every
gear will increase or decrease frequency by one
step. To adjust the Main band frequency , press
corre-spondent selector knob, the left side of
decimal point will ash. In this status, turn the
selector knob will increase or decrease frequency quickly by 1MHz step
The microphone [ UP/DOWN ] key also able to adjust frequency.
Press
UP/DOWN ] key will increase(decrease) the frequency by one
NOTE
[
step size. Hold
UP/DOWN ] key will adjust the frequency continuously.
[
INPUT FREQUENCY THROUGH MICROPHONE NUMBER KEY
In VFO mode, you can input the frequency by the microphone numeric
key. It is invalid to input frequency out of the frequency band.
For example:
to input 150.125Mhz, press 1, 5, 0, 1, 2, 5 continuously.
to input 152 MHz, press1, 5, 2, # continuously.
When the Band lockout function is on, the input or adjusting of frequency
NOTE
band. The right band only limited in 136-174Mhz and 400-470Mhz.
ADJUSTING CHANNEL
ADJUSTING CHANNEL THROUGH SELECTOR KNOB
In the channel mode, you can adjust the channel directly by the channel
knob.Turn clockwise to increase one channel; turn counterclockwise
to decrease one channel.To adjust the Main band channel, press
Page 18
12
Basic Operations
www.AT-588UV.com
5
correspondent selector knob, the channel number flashes in this
situation, the channel number will increase 10 channels by each gear of
selector knob. Press microphone [ UP/DOWN ] key also able to adjust
the channel.
If there is any empty channel, the adjustment will ignore it and jump to
NOTE
next channel.
INPUT CHANNEL THROUGH MICROPHONE NUMBER KEY
In channel mode, you can switch to desired channel by press 3 of the
microphone numeric key (001-758). For example input 001 get channel 1;
input 030 is channel 30; input 512 is channel 512. If the input channel is
not programmed with frequency, the transceiver will emit a warning beep
and return to last channel.

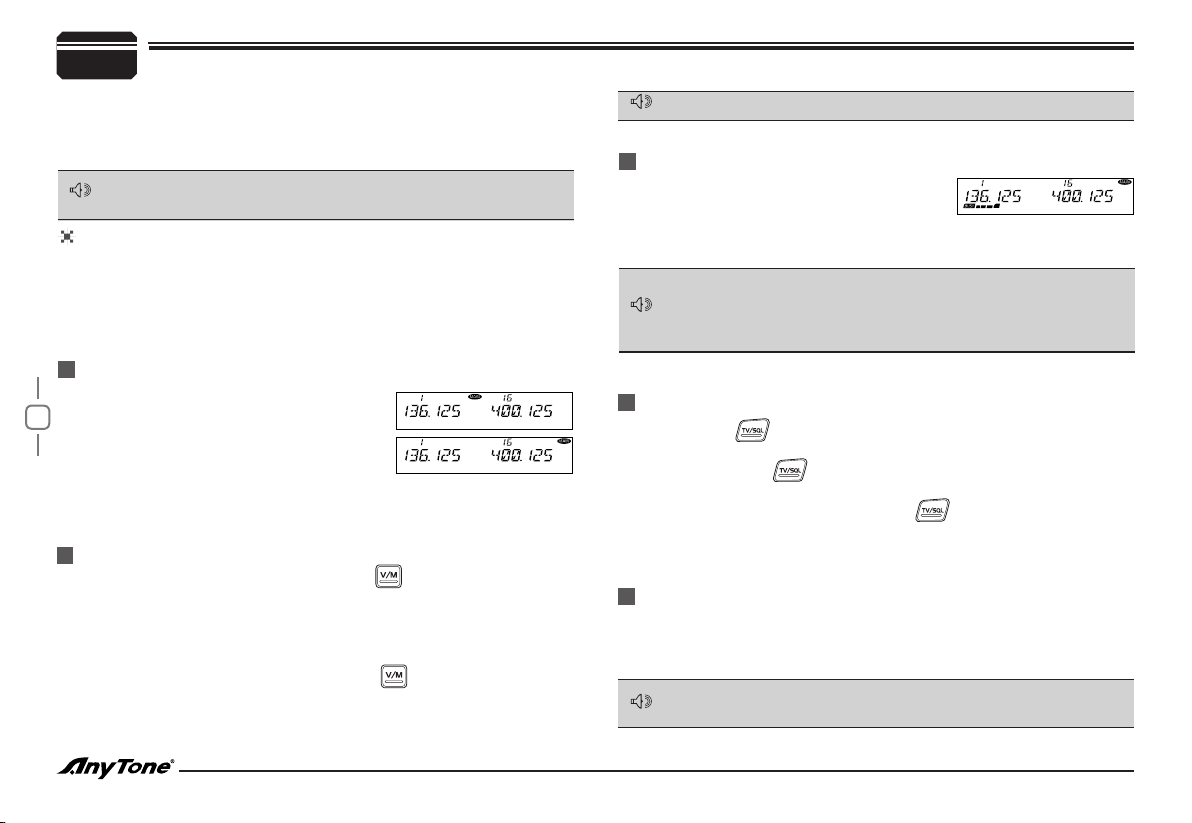

SWITCH BETWEEN MAIN BAND AND SUB BAND
This transceiver is default on dual receive,
a "MAIN" icon will displays in the top right of
the working frequency. The transmitting is only
on the Main band. When the left Band is Main
band, press the right selector knob will switch
the right Band to Main band. Then press the left selector knob will switch
the left Band to Main band.
SELECTING THE FREQUENCY BAND
1. Choose for Left band: press the left side
mode, press the left selector knob over 1 second then repeater above
operation will switch the left band between 118~180Mhz (RX: 118174Mhz, TX: 136-174Mhz), 220~260Mhz (RX only), 350~399Mhz (RX
only) or 400~490Mhz.
2. Choose for right band: press the right side key to switch it to VFO
mode, press the right selector knob over 1 second then repeater
above operation will switch the right band between 136-174Mhz,
400~490Mhz.
key to switch it to VFO
5
This transceiver can be set working on 2 UHF band or 2 VHF band.
NOTE
RECEIVING
In standby, both left band and right band
able To receive. When they receive any signal,
the BUSY icon and signal strength icon will appear
area of the LCD. And you can hear the calling。
If the transceiver has set at higher squelch level, it may fail to hear the
calling. If the Busy and signal strength icon display inleft band or right
NOTE
band, but can not hear the calling, means the signal is with matching
carrier but dis-matching signaling.
SQUELCH OFF/SQUELCH OFF MOMENTARY
Long press of key can be programmed as Squelch Off or Squelch
Off Momentary to monitor the weak signal.
1. Squelch Off: Hold key until hear "Du" beep, the squelch is off,
repeat the above operation to resume squelch.
2. Squelch Off Momentary: Keep hold key to disable squelch,
Release the key to resume squelch.
TRANSMITTING
Hold PTT key, the transceiver change to transmitting. Please hold the
mic-rophone approximately 2.5-5.0cm from your mouth, and then speak
into the microphone in your normal voice to get best timbre.
The transmitting only available on Main band, the TX icon will display in
NOTE
the top right corner of the Main band frequen
in the correspondent
Page 19
13
6
www.AT-588UV.com
SQUELCH LEVEL SETUP
his function is used to setup the strength of receiving signal, when the
stren gth reach a certain level, the calling can be heard, otherwise, the
transceiver will keep mute.
In standby, press and hold
knob to adjust the squelch level of Main band.
1-20: Total 20 squelch levels available.
OFF: turn off squelch. The background noise always on.
The squelch level shall setup separately for right band and left band.
NOTE
key, meanwhile switch the selector
Shortcut Operations
In channel mode, this operation is for temporary use only
NOTE
6
FREQUENCY REVERSE
In standby, hold
reverse function. When reverse function is on, the TX frequency will
change to RX frequency and RX frequency change to TX frequency.
The signaling will also be reversed if CTCSS/DCS signaling existed in
this channel.
This function is valid only when current channel setup with offset frequency
NOTE
and offset direction
key for over 0.5second to turn On/ Of f frequency
TRANSMIT DTMF/2TONE/5TONE SIGNALING
If the current channel is with DTMF/2TONE/5TONE signaling, hold PTT
and [ UP ] key will transmit selected Pre-programmed signaling

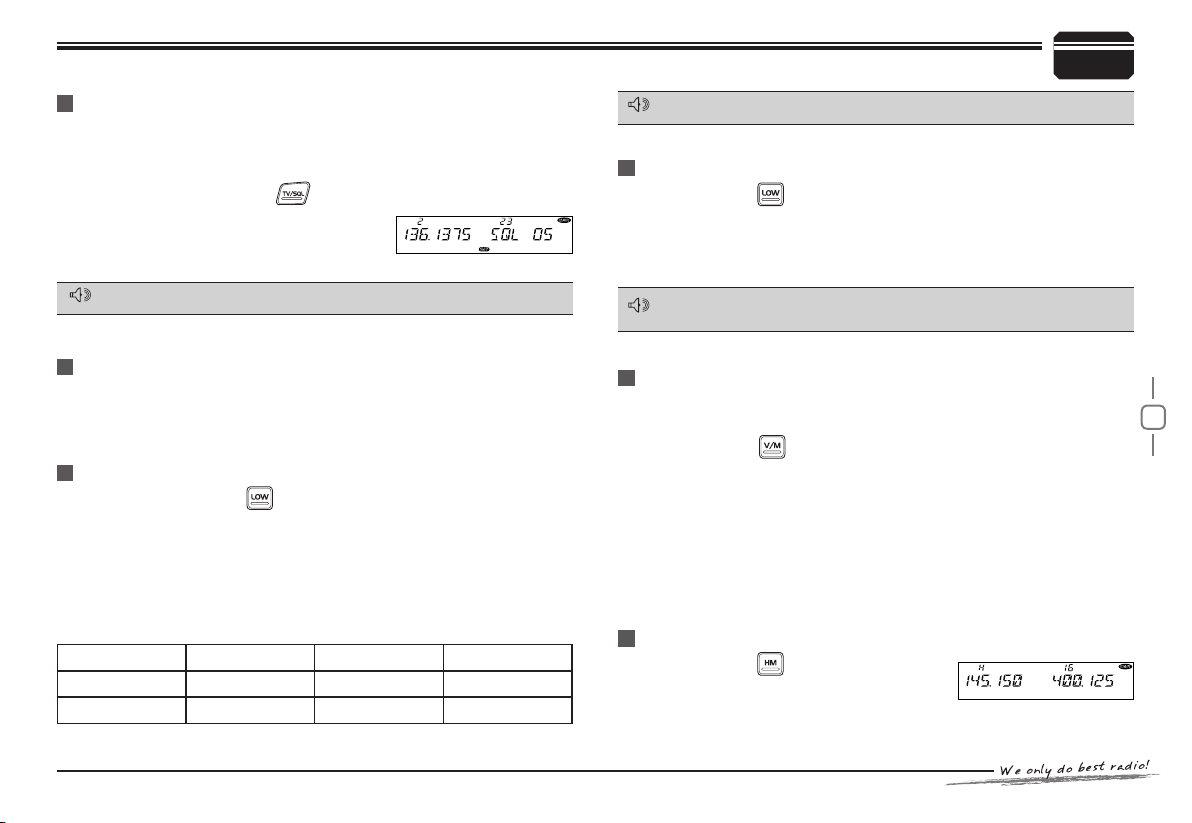

HIGH/MID/LOW POWER SWITCH
In standby, repeat press key to choose power levels as following:
When LCD displays HIGH, the power on current channel is high.
When LCD displays MID1, the power on current channel is middle 1
When LCD displays MID2, the power on current channel is middle 2.
When LCD displays LOW, the power on current channel is low.
Output power for each level:
HIGH MID1 MID2 LOW
VHF（50W） VHF（20W） VHF（10W） VHF（5W）
UHF（40W） UHF（20W） UHF（10W） UHF（5W）
BAND-WIDTH SELECTION
This transceiver has 3 band widths, select suitable band width in
accordance with different local conditions.
In standby, hold key for over 0.5 second to choose the 3 band
widths
When LCD displays WIdE, current channel is work on wide band
25KHz
When LCD displays MIddLE,current channel is work on middle band
20KHz
When LCD displays NARROW, current channel is work on narrow
band 12.5KHz
HOME CHANNEL
In standby, press key to switch to HOME
channel, and commnicatte on HOME channel.
repeat press it to return to last channel.
Page 20
14
Shortcut Operations
www.AT-588UV.com
6
DUAL WATCH
In standby, hold key for over 0.5 second to enter Dual Watch
mode. The radio will scan the channel in every 5 seconds. When the radio
receives match signal, it pause scanning until the signaling disappear.
Repeat
above operation to exit Dual watch.
EMERGENCY ALARM
To start emergency alarm, hold the right volume knob until the trans
-ceiver displays ALARM and emit alarm. Re-power on the transceiver to
exit alarm. This transceiver has 4 kind of alarm which can be setup by
programming software.
CHANNEL/FREQUENCY SCAN
FREQUENCY SCAN
In VFO mode, this function is designed to monitor signal of every
communicative frequency point of "step size" you have set.
In VFO mode, press the Main Band
1.
During the scanning adjust the Main band selector knob or press
2.
microphone [ UP/DOWN ] key will change the scan direction.
3.
Press
key to exit scan.
key to enter channel scan.
CHANNEL SCAN
In channel mode, press the Main Band
1.
During the scanning, adjust the Main band selector knob or press
2.
microphone [ UP/DOWN ] key will change the scan direction.
3.
Press
key to exit scan.
key to enter channel scan.

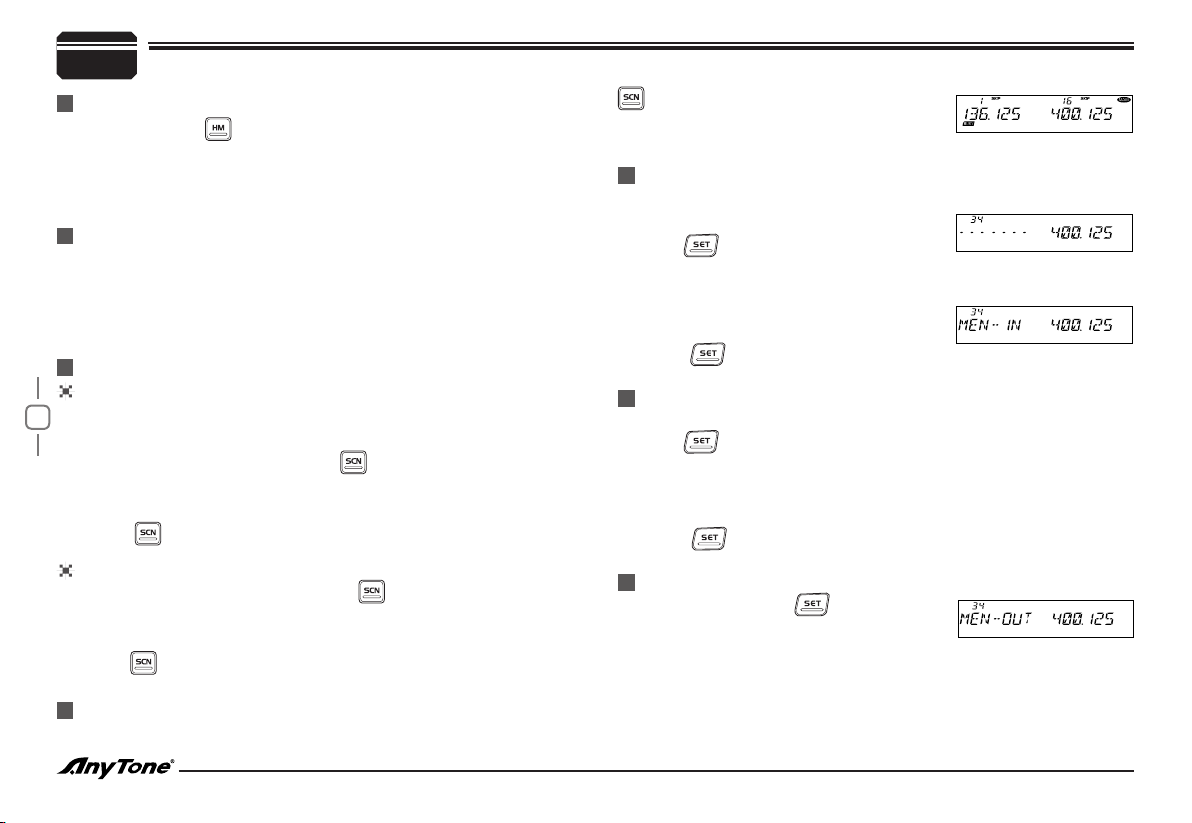

CHANNEL SCAN SKIP
In channel mode, switch selector knob to choose the channel, then hold
for over 0.5 second, the radio prompts
"DU DU", and LCD displays "SKIP", and now
the current channel is Scan Skip.
CHANNEL EDIT
In VFO mode, turn selector knob to select the desired frequency or
1.
input frequency by MIC's numeric keys.
Hold
2.
DU and the display of channel number ashes.
Turn selector knob to select the channel number to store. (If the
3.
storage has data , the LCD will display the
frequency, otherwise will display----------)
Press
4.
key until the transceiver prompt
key, the LCD display MEN- IN, the channel edit completed.
CHANNEL COPY
In channel mode, turn the selector knob to choose the channel.
1.
Hold
2.
display ashes.
Turn selector knob to choose channel number for storage. ( If the
3.
storage has data , the LCD will display the frequency, otherwise will
display----------)
Press
4.
key until the transceiver prompt a Du and channel number
key, the LCD displays MEN-IN, channel copy completed.
CHANNEL DELETE
In standby, hold
1.
transceiver prompt DU, and channel
number ashes.
Turn selector knob to choose channel number for delete. (If the
2.
storage has data, the LCD will display the frequency, otherwise will
display----------)
Hold Main band volume knob, until the transceiver emit DU DU
3.
prompt and LCD displays MEN-OUT, the channel delete completed.
key until the
6
Page 21
15
7
www.AT-588UV.com
operation steps of Function menu
Press
1.
Turn the Main band selector knob to choose wanted function.
2.
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
Press the Main band selector knob to store value and back to
5.
function menu. Press key or hold selector knob for over 0.5
second to store setup and exit.

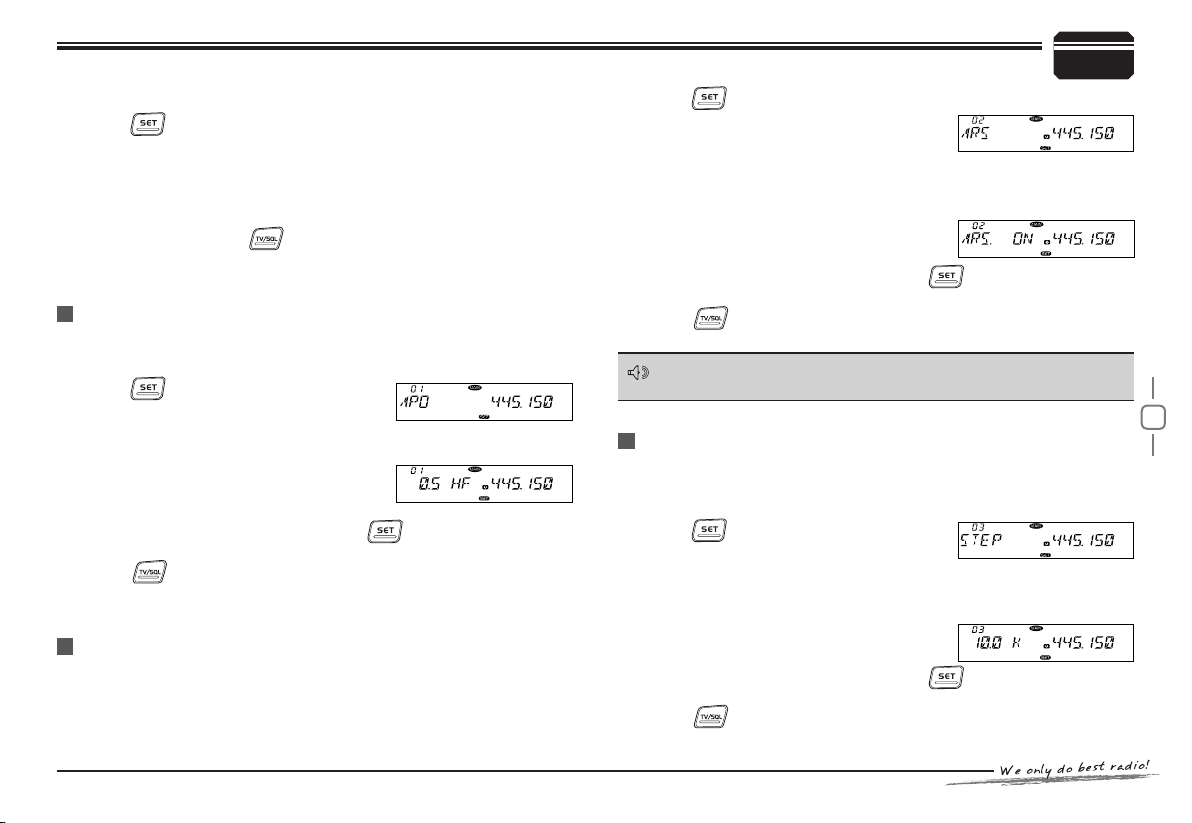

APO (AUTOMATIC POWER OFF)
Once APO is activated, the transceiver will be automatically switched
off when the pre-set timer running out.
Press
1.
Turn the Main band selector knob to
2.
choose No. 01 menu. the LCD displays "APO"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to
4.
choose wanted value.Available Values:
0.5-12 hours, OFF
Press the Main band selector knob or
5.
back to function menu.
Press
setup
AUTOMATIC OFFSET
This transceiver has automatic offset function. When this function is on,
the transceiver will automatically transmitting with RX frequency ± offset
frequency. The operation as following:
key to enter function menu.
key to enter function menu.
key to store value and
key or hold selector knob for over 0.5 second to store
and exit.
General Setting
Press
1.
Turn the Main band selector knob to
2.
choose No. 02 menu. the LCD displays
"ARS"
Press the Main band selector knob to enter function setup
3.
Switch the Main band selector knob to choose wanted value.
4.
ON: Auto Offset function is turned on.
OFF Auto Offset function is turned off.
Press the Main band selector knob or
5.
back to function menu.
Press
setup and exit.
When the Automatic offset is ON, the offset for 136-174Mhz is default on
NOTE
0.6Mhz, and for 400-490 is default on 5Mhz.
key to enter function menu.
key to store value and
key or hold selector knob for over 0.5 second to store
7
FREQUENCY CHANNEL STEP SETUP
Only in frequency (VFO) mode, this function is valid. Turn selector
knob to to select frequency or frequency scanning which is restricted by
frequency step size.
Press
1.
Turn the Main band selector knob to
2.
choose No. 03 menu. the LCD displays "STEP"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
Available Values: 2.5K, 5K, 6.25K, 10K,
12.K, 15K, 20K, 25K, 30K,50K.
Press the Main band selector knob or
5.
back to function menu.
Press
setup and exit.
key to enter function menu.
key to store value and
key or hold selector knob for over 0.5 second to store
Page 22
16
General Setting
www.AT-588UV.com
7
This function is auto-hidden in channel mode
NOTE
VFO BAND LOCKOUT
In VFO mode, when this function is on, the scanning or input of
frequency will restricted within the current VFO frequency band.
Press
1.
Turn the Main band selector knob to
2.
choose No. 04 menu. the LCD displays "BANd"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
ON: Turn on VFO band lockout function
OFF: Turn off VFO band lockout function
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
key to enter function menu.
key to store value and

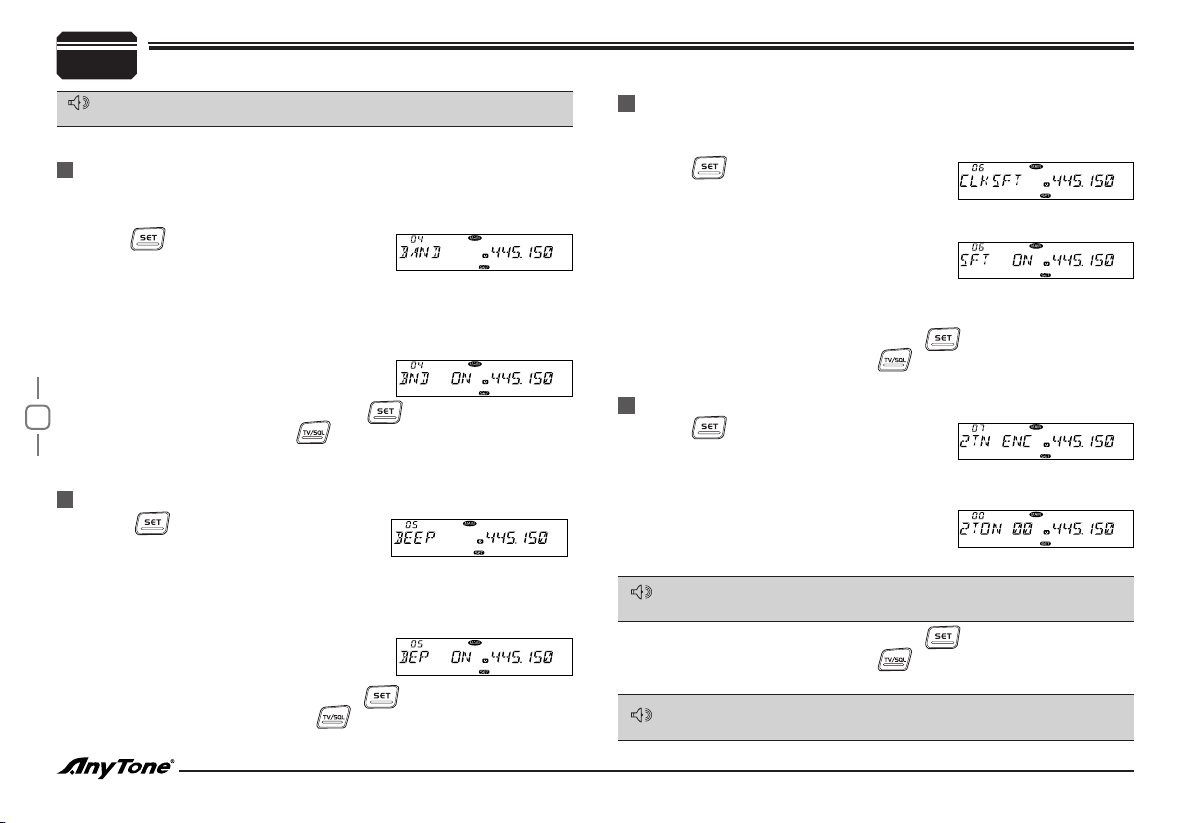

BEEP FUNCTION
Press
1.
Turn the Main band selector knob to
2.
choose No. 05 menu. the LCD displays "BEEP"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
ON: Turn on Beep function.
OFF: Turn off Beep function
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for
over 0.5 second to store setup and exit.
key to enter function menu.
key to store value and
7
CPU CLOCK FREQUENCY CHANGE
When any harmonic or image frequency in the CPU clock disturbs the
working frequency, turn on this function will cut the disturbing
Press
1.
Turn the Main band selector knob to
2.
choose No. 06 menu. the LCD displays "CLK.SFT"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to
4.
choose wanted value.
ON: Turn on CPU Clock frequency Change
OFF: Turn off CPU Clock frequency Change
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for
over 0.5 second to store setup and exit.
2TONE ENCODE SELECT
Press
1.
Turn the Main band selector knob to
2.
choose No. 07 menu. the LCD displays "2TN ENC"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to
4.
choose wanted value.
Available Values: 0-23, total 24 groups.
if the 2TONE encode are programmed with name, the LCD will display
NOTE
correspondent name.
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for
over 0.5 second to store setup and exit.
After choose the 2TONE encode group. Press PTT will transmit selected
NOTE
code.
key to enter function menu.
key to store value and
key to enter function menu.
key to store value and
Page 23
17
7
www.AT-588UV.com

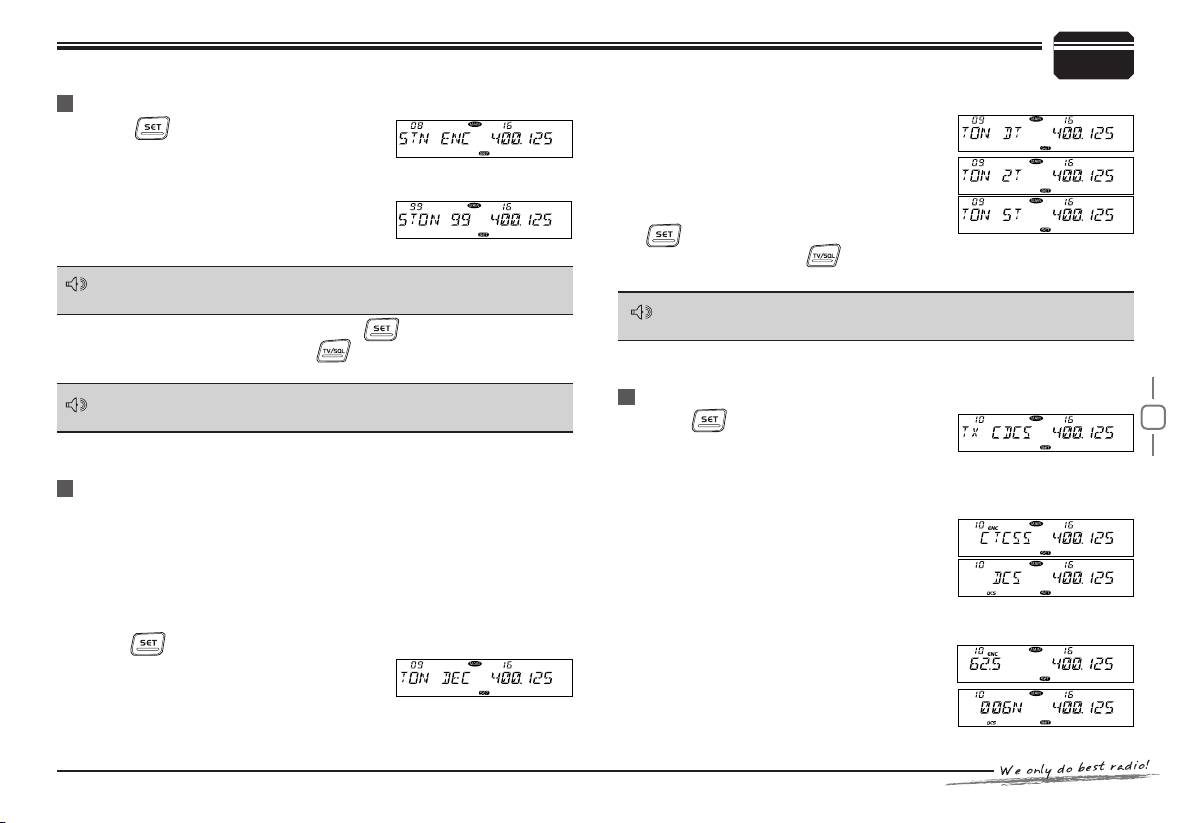

5TONE ENCODE SELECT
Press
1.
Turn the Main band selector knob to
2.
choose No. 08 menu. the LCD displays "5TN ENC"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to
4.
choose wanted value.
Available Values: 0-99, total 100 groups.
if the 5TONE encode are programmed with name, the LCD will display
NOTE
correspondent name.
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for
over 0.5 second to store setup and exit.
After choose the 5TONE encode group. Press PTT will transmit selected
NOTE
code.
ADD OPTIONAL SIGNALING
This transceiver has 3 optional signaling: DTMF/5Tone/2Tone,those
signaling function similar as CTCSS/DCS signaling. When the receiver
adds an optional signaling, the caller shall transmit matching signaling.
DTMF and 5Tone signaling can be applied for other advanced features
such as ANI, PTT ID, group call, select call, remotely stun, remotely kill
waken…etc
Press
1.
Turn the Main band selector knob to
2.
choose No. 09 menu. the LCD displays
"TON dEC"
Press the Main band selector knob to enter function setup.
3.
key to enter function menu.
key to store value and
key to enter function menu.
General Setting
Switch the Main band selector knob to choose wanted value
4.
dTMF: means DTMF signaling is added.
2TONE: means DTMF signaling is added.
5TONE: means DTMF signaling is added.
OFF: Turn off optional signaling
Press the Main band selector knob or
5.
key to store value and back to
function menu.Press key or hold selector knob for over 0.5
second to store setup and exit.
The working of optional signaling shall be work associated with the squelch
NOTE
mode setup. (Refer to Squelch Mode setup in page 19)
CTCSS ENCODE SETUP
Press
1.
Switch the Main band selector knob to
2.
choose No 10 menu, the LCD displays "TX CdCS"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value
4.
OFF: Turn off CTCSS/DCS encode.
CTCSS: Choose CTCSS encode.
dCS: Choose DCS encode.
Press the Main band selector knob to enter the menu.
5.
Switch the Main band selector knob to choose wanted CTCSS, DCS
6.
code.
CTCSS: 62-254.1Hz, and one self-dene
group, total 52 groups
dCS: 000N-777I, total 1024 groups
key to enter function menu.
7
Page 24
18
General Setting
www.AT-588UV.com
7
Press the Main band selector knob or
7.
back to function menu. Press key or hold selector knob for
over 0.5 second to store setup and exit.
key to store value and

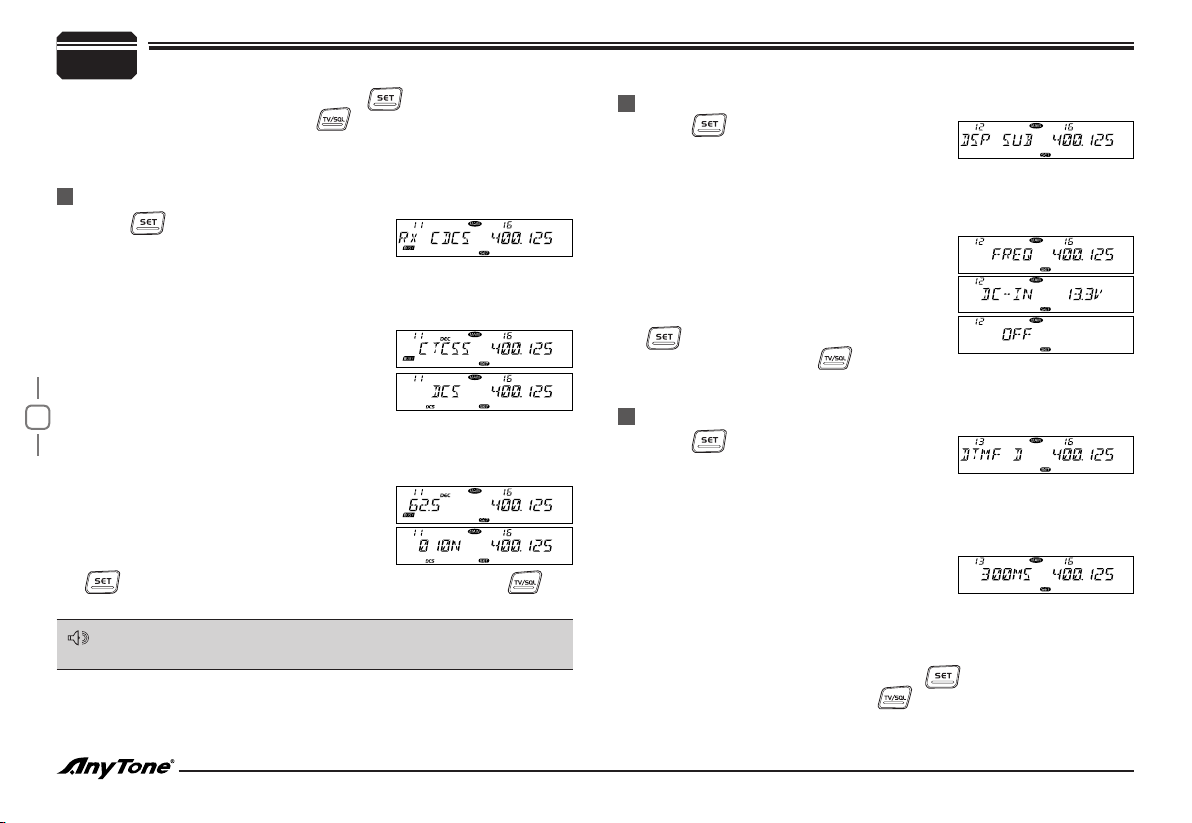

CTCSS DECODE SETUP
Press
1.
Switch the Main band selector knob to
2.
choose No 11 menu, the LCD displays "RX CdCS"
Press the Main band selector knob to enter function setup
3.
Switch the Main band selector knob to choose wanted value
4.
OFF: Turn off CTCSS/DCS decode.
CTCSS: Choose CTCSS decode.
dCS: Choose DCS decode.
Press the Main band selector knob to enter the menu.
5.
Switch the Main band selector knob to choose wanted CTCSS, DCS
6.
code.
CTCSS: 62-254.1Hz, and one self-dene
group, total 52 groups
dCS: 000N-777I, total 1024 groups
Press the Main band selector knob or
7.
or hold selector knob for over 0.5 second to store setup and exit.
The working of CTCSS/DCS decode shall be work associated with the
NOTE
squelch mode setup. (Refer to Squelch Mode setup in page 19)
key to enter function menu.
key to store value and back to function menu. Press key
SUB BAND DISPLAY SETUP
Press
1.
Turn the Main band selector knob to
2.
choose No. 12 menu. the LCD displays "dSP SUB"
Press the Main band selector knob to enter function setup
3.
Switch the Main band selector knob to choose wanted value.
4.
FREQ: display sub band frequency,
dC-IN: display sub bad voltage.
OFF: turn off display for sub Band
Press the Main band selector knob or
5.
function menu. Press key or hold
selector knob for over 0.5 second to store setup and exit.
key to enter function menu.
key to store value and back to
DTMF ENCODE PRE-LOADING TIME
Press
1.
Turn the Main band selector knob to
2.
choose No. 13 menu. the LCD displays "dTMF d"
Press the Main band selector knob to enter function setup
3.
Switch the Main band selector knob to choose wanted value.
4.
100MS: The Pre-Loading time is 100MS
300MS: The Pre-Loading time is 300MS
600MS: The Pre-Loading time is 500MS
800MS: The Pre-Loading time is 800MS
1000MS: The Pre-Loading time is 1000MS
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for
over 0.5 second to store setup and exit.
key to enter function menu.
key to store value and
7
Page 25
19
7
www.AT-588UV.com

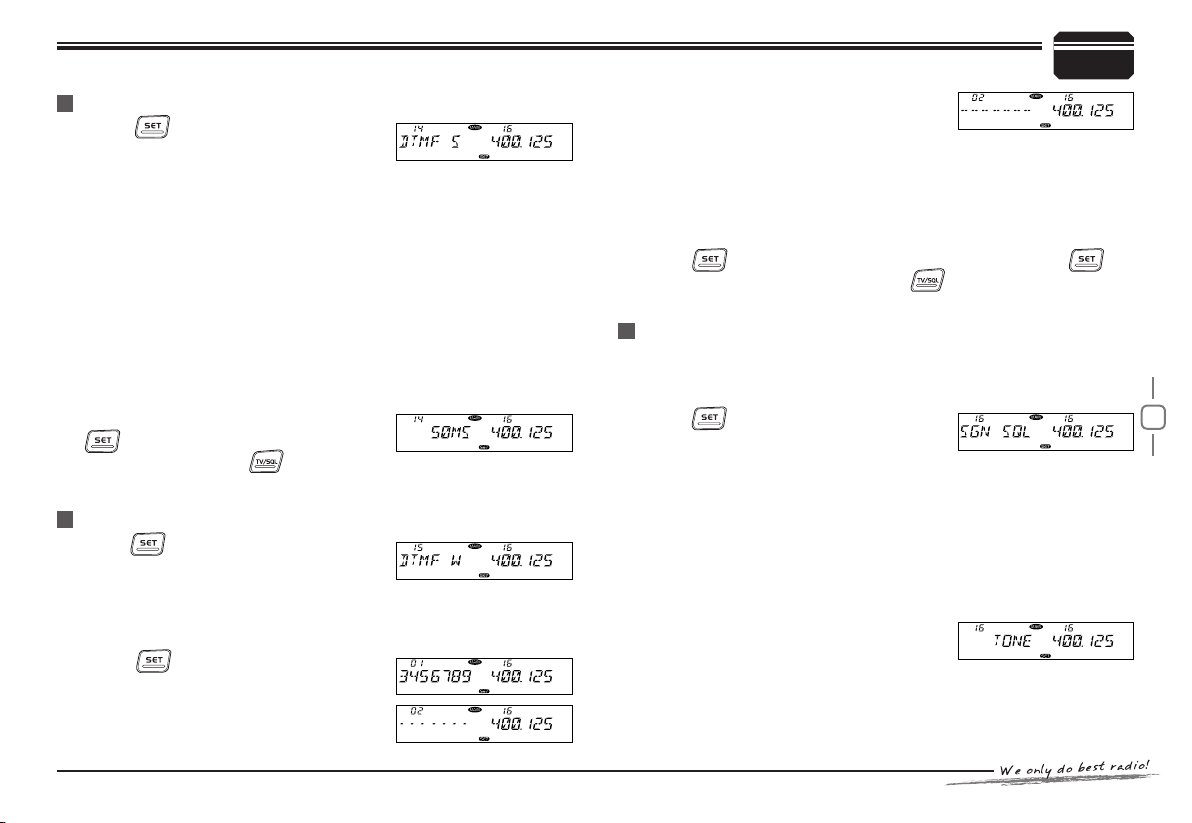

DTMF ENCODE TRANSMITTING TIME
Press
1.
Turn the Main band selector knob to
2.
choose No 14 menu. The LCD displays "dTMF S"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
30MS: The time for transmit a single DTMF encode and the interval is 30MS,
50MS: The time for transmit a single DTMF encode and the interval is 50MS,
80MS: The time for transmit a single DTMF encode and the interval is 80MS,
100MS: The time for transmit a single DTMF encode and the interval is 100MS,
150MS: The time for transmit a single DTMF encode and the interval is 150MS,
200MS: The time for transmit a single DTMF encode and the interval is200MS,
250MS: The time for transmit a single DTMF encode and the interval is 250MS,
Press the Main band selector knob or
5.
function menu. Press key or hold selector knob for over 0.5
second to store setup and exit.
DTMF ENCODE SETUP
Press
1.
Switch the Main band selector knob to
2.
choose No 15 menu, the LCD displays dTMF W
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose DTMF group. Then
4.
press key back to DTMF menu.
Press PTT will transmit with selected
DTMF code.
06-16: total 16 group of DTMF code.
key to enter function menu.
key to store value and back to
to enter function menu
General Setting
When the selected group is empty, the
5.
LCD displays '------"
Press the selector knob to enter the DTMF signaling edit. The LCD
6.
display "-- -- -- -- -- --", the last character ashes.
Switch the selector knob to choose wanted character. Press the
7.
selector knob to confirm selected value and start edit for next
character.
Press
8.
again to store setup and exit. Press key or hold selector knob
for over 0.5 second to store setup and exit.
key to store value and exit code editing. Press key
SQUELCH MODE SETUP
This transceiver has 5 squelch modes available. Squelch function is
used for increase the level of filtering unwanted signal, and free from
disturb.
Press
1.
Turn the Main band selector knob to
2.
choose No 16menu. The LCD displays "SGN SQL"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value
4.
SQ: You can hear the calling once receives matching carrier.
CTSS/dCS: You can hear the calling when receives matching carrier
CT*TO: You can hear the calling when receives matching carrier +
TONE: You can hear the calling when
CT/TO: You can hear the calling when receives any matching carrier
key to enter function menu.
and CTCSS/DCS code.
optional signaling.
receives matching carrier + CTCSS/DCS + optional
signaling.
or CTCSS/DCS or optional signaling.
7
Page 26
20
General Setting
www.AT-588UV.com
7

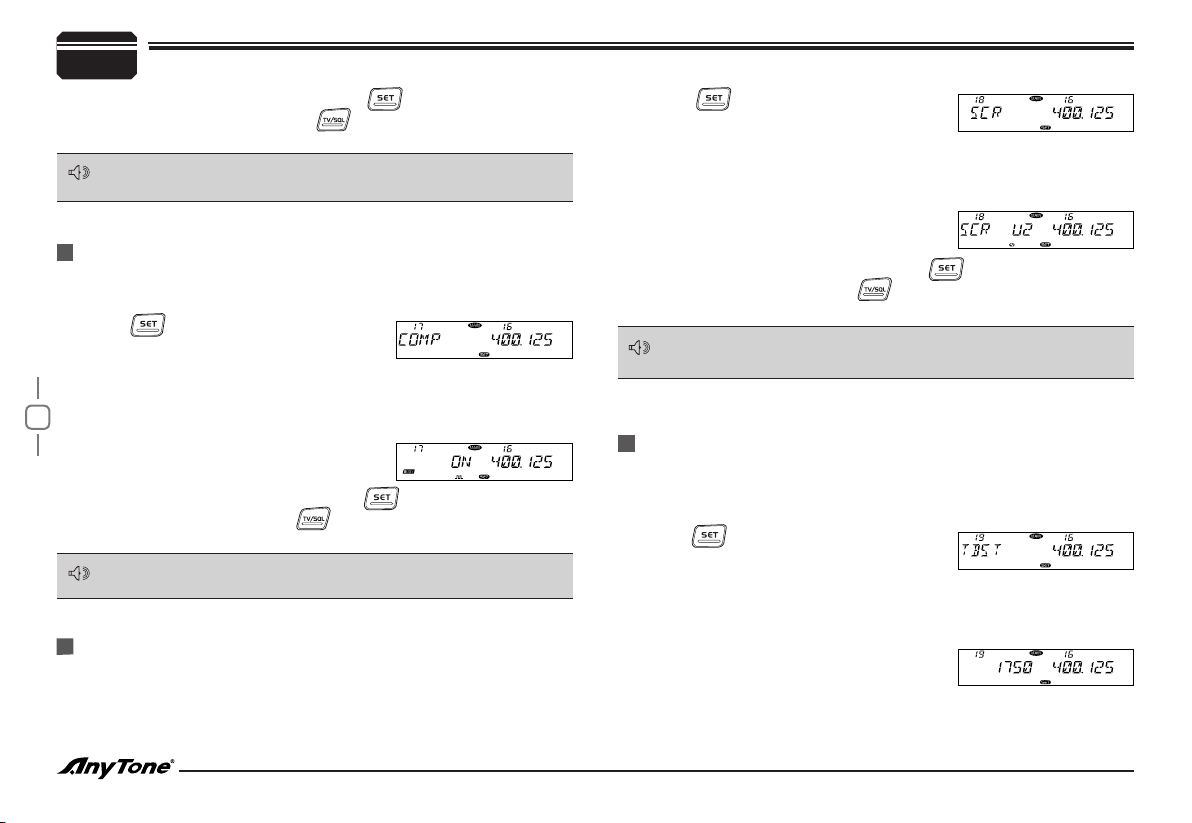

Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for
over 0.5 second to store setup and exit.
Only when the transceiver is set with CTCSS/DCS or optional
NOTE
DTMF/5TONE/TONE signaling, the values will be available.
key to store value and
COMPANDER
Compander function will decrease the background noise and enhance
audio clarity, especially in long range communication.
Press
1.
Turn the Main band selector knob to
2.
choose No 17 menu. The LCD displays "COMP"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
ON: Compander function is turn on
OFF: Compander function is turn off
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
When using compander, to avoid distortion during communications, both
NOTE
radios need turn on this function.
key to enter function menu
key to store value and
SCRAMBLER SETUP
This special audio process can offer a more confidential
communication;other radio with at same frequency will receive only
disordered noises.
7
Press
1.
Turn the Main band selector knob to
2.
choose No 18 menu. The LCD displays "SCR"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted group
4.
1-9 (9 fix groups)U1,U2 (2 self defined
scrambler groups)
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
To enable commutation with scrambler, 2 transceivers shall set with same
NOTE
group.
TONE BUST (PILOT FREQUENCY)
This function uses to start repeater .It needs certain intensity Pilot
Frequency to start a dormant repeater. As usual, no need to send pilot
frequency again once repeater started.
Press
1.
Turn the Main band selector knob to
2.
choose No 19 menu. The LCD displays "TBST"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted frequency.
4.
1000: Pilot Frequency is 1000Hz.
1450: Pilot Frequency is 1450Hz.
1750: Pilot Frequency is 1750Hz.
2100: Pilot Frequency is 2100Hz.
key to enter function menu.
key to store value and
key to enter function menu.
Page 27
21
7
www.AT-588UV.com

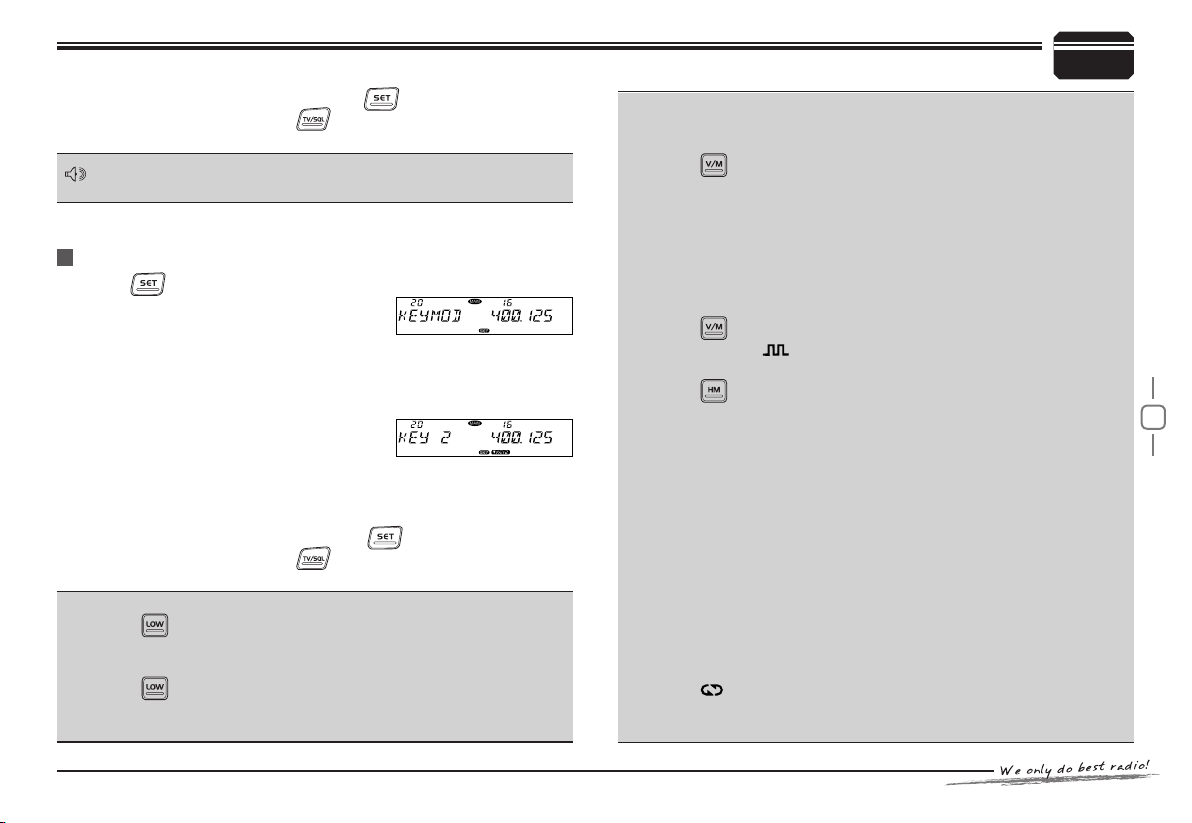

Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
After the above setup, hold microphone PTT key and [ DOWN ] key, the
NOTE
radio will transmit selected tone.
KEYPAD MODE SETUP
Press
1.
Turn the Main band selector knob to
2.
choose No 20 menu. The LCD displays
"KEYMOd"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted mode.
4.
KEY1: key1 mode, Normal mode, the left
KYE2: the left 4 keypads will shared by both band. And the right 4
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
Notice: Denition of 4 Right band Keypad in KEY2 mode:
key to enter function menu.
4 keys have same functions as the
right 4 keys.
key pads will re-dened.
1.
Short press: In VFO mode, short press this key, the
frequency step size changes to 1Mhz,in channel mode,
adjust selector knob will jump 10 channels.
2.
long press: In standby, long press this key to ad/delete
optional signaling, repeat the long press it, will set optional
signaling DTMF,5TONE or 2TONE. When the LCD displays
key to store value and
key to store value and
General Setting
DT means DTMF, displays 5T means 5TONE, displays 2T
means 2TONE. In VFO mode, long press this key, the step
size change to 10Mhz.
short press: Frequency reverse function, when current
3.
channel is setup with offset direction and offset frequency,
press this key will turn on frequency reverse function. When
frequency reverse function the TX frequency turns to RX
frequency & RX frequency changes to TX frequency. The
signaling will also be reversed if CTCSS/DCS signaling
existed in this channel. Repeat shot press it will turn off
Frequency reverse function.
long press: In stand by, hold this key until the LCD
4.
displays , means the compander function is on, repeater
above operation to turn off compander function.
short press: In standby, press this key to set the
5.
CTCSS/DCS code for current channel.
When the LCD displays ENC, the current channel is with
CTCSS encode function.
When the LCD displays ENC and DEC, the current channel
is with CTCSS /DCS code function.
When the LCD displays DCS and DCS icon, the current
channel is with CTCSS code function.
When the LCD displays OFF, the current channel is without
CTCSS /DCS function.
[ SCAN ] short press, shot press this key , the sub band will
6.
display "MAIN" and ashes.
[ SCAN ] ong press, choose scrambler group for Main
7.
band. In standby, hold this key,the LCD displays SCR X and
icon. X stands for the group number, repeater above
operation to choose wanted group.
7
Page 28
22
General Setting
www.AT-588UV.com
7
7

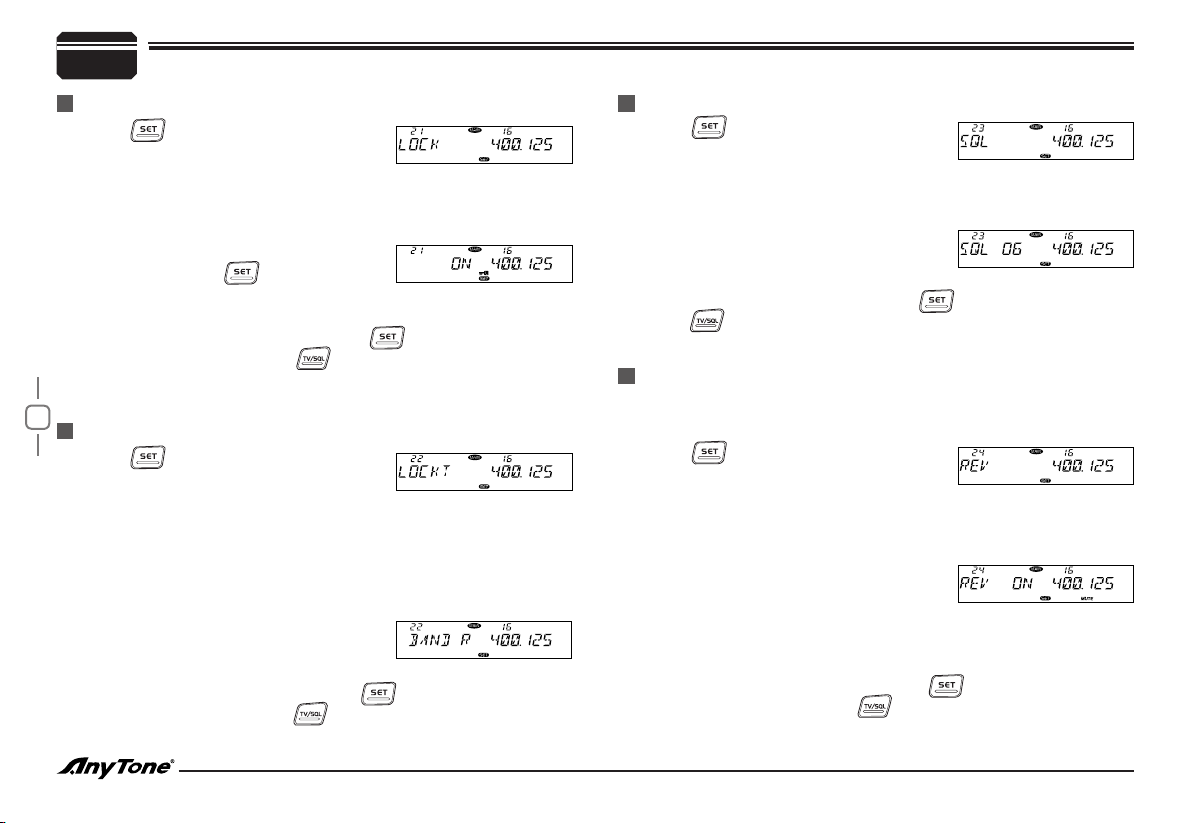

KEYPAD LOCKOUT
Press
1.
Turn the Main band selector knob to
2.
choose No 21 menu. The LCD displays "LOCK"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted mode.
4.
ON: The keypad lockout function is turn
on all keys beside and band switch
knob is valid.
OFF: The keypad lockout function is turn off.
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
key to enter function menu.
key to store value and
TX OFF (PTT LOCKOUT)
Press
1.
Turn the Main band selector knob to
2.
choose No 22 menu. The LCD displays "LOCKT"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted mode.
4.
BANd R, lock the right band PTT. Only able to transmit by left band.
BANd L, lock the left band PTT. Only able to transmit by right band.
BANd BOTH, lock both band PTT. Not
able to transmit by any side.
OFF: PTT no lock.
Press the Main band selector knob or
5.
back to function menu.Press key or hold selector knob for over
0.5 second to store setup and exit.
key to enter function menu.
key to store value and
SQUELCH LEVEL SETUP
Press
1.
Turn the Main band selector knob to
2.
choose No 23 menu. The LCD displays "SQL"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value
4.
1-20: total 20 squelch levels
OFF: Turn of squelch function, the
background noise keep on.
Press the Main band selector knob or
5.
Press key or hold selector knob for over 0.5 second to store setup
and exit.
key to enter function menu.
key to store value and .
TALK AROUND
With this function on, the transceiver will able to communicate with a
trans ceiver in same network without through a repeater.
Press
1.
Turn the Main band selector knob to
2.
choose No 24 menu. The LCD displays "REV"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
ON: Talk Around is turn on, The TX and
OFF: Turn off Talk Around
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
key to enter function menu.
RX frequency will be exchanged,
the CTCSS DCS signaling also will be exchanged if existed in
current channel.
key to store value and
Page 29
23

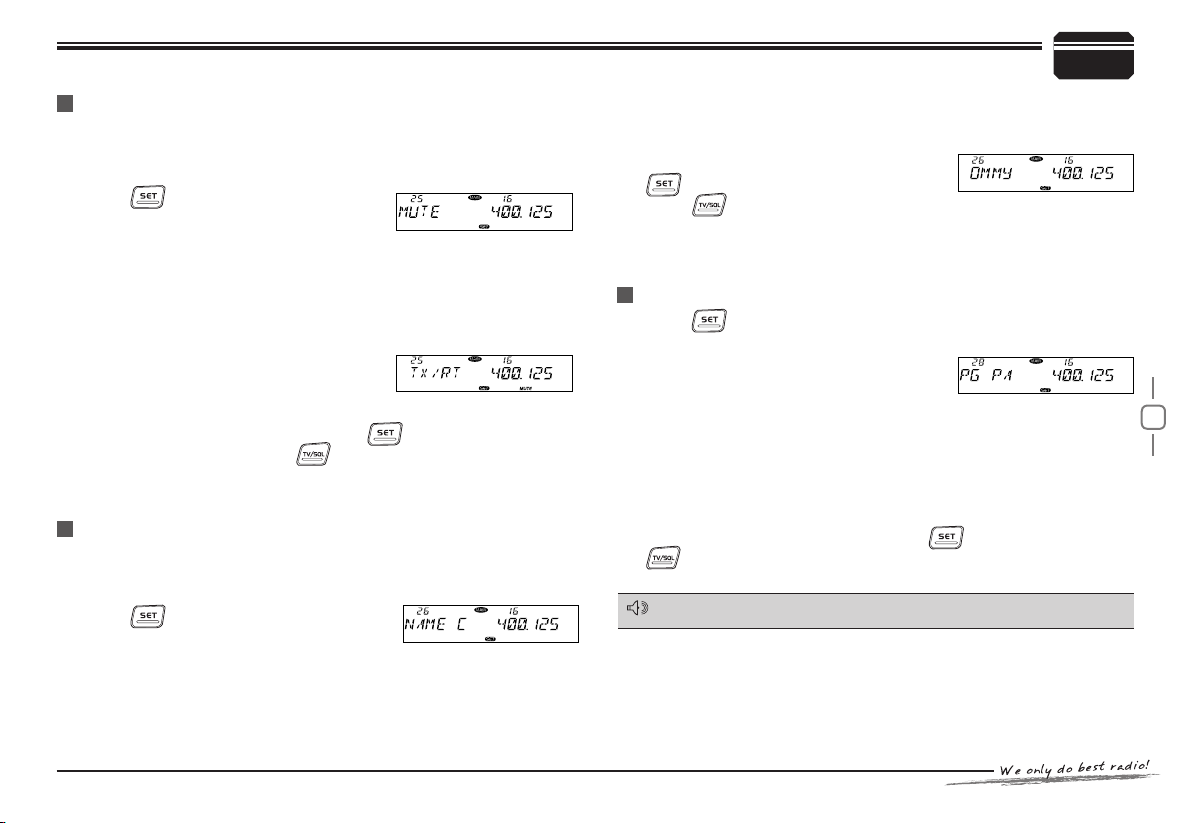

SUB BAND MUTE SETUP
www.AT-588UV.com
To avoid the receiving of sub band disturbing the communication of the
main band, you can turn on this function. The RX of the sub band will be
mute during the RX or TX of the main band.
Press
1.
Turn the Main band selector knob to
2.
choose No 25 menu. The LCD displays "MUTE"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
TX: When the Main band is transmitting, the sub band receiving will
RX: When the Main band is receiving, the
RX/TX: the sub band receiving always mute.
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
key to enter function menu.
be mute.
sub band receiving will be mute.
key to store value and
EDITING CHANNEL NAME
After edit a name for a channel, if the display mode is channel name,
the will displays the name edited in this menu. Otherwise it will display the
frequency.
Press
1.
Switch the selector knob to choose NO 26
2.
function menu, the LCD displays "NAME C".
Press the Main band selector knob to enter function setup.
3.
Switch the selector knob to choose wanted character.
4.
key to enter function menu.
General Setting
Press the selector knob to conrm current character and start edit
5.
next character, after editing all 7 characters, press the selector knob
to edit and back to function menu.
If the editing not reach 7 characters, press
6.
key back to function menu, then
press key or hold selector knob for over 0.5 second to store
setup and exit.
MICROPHONE PA,PB, PC,PD KEY SETUP
Press
1.
Turn the Main band selector knob to choose No 28-31 menu. The
2.
LCD displays "PG PA" PG PB, PG PC,
PG Pd.
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
TX: When the Main band is transmitting, the sub band receiving will mute.
RX: When the Main band is receiving, the sub band receiving will mute.
RX/TX: the sub band receiving always mute.
Press the Main band selector knob or
5.
0.5 second to store setup and exit.
For Menu details, please refer to Page 30-31, Microphone Operation.
NOTE
key to enter function menu.
key to store value and
back to function menu. Press key or hold selector knob for over
7
Page 30
24
General Setting
www.AT-588UV.com
7

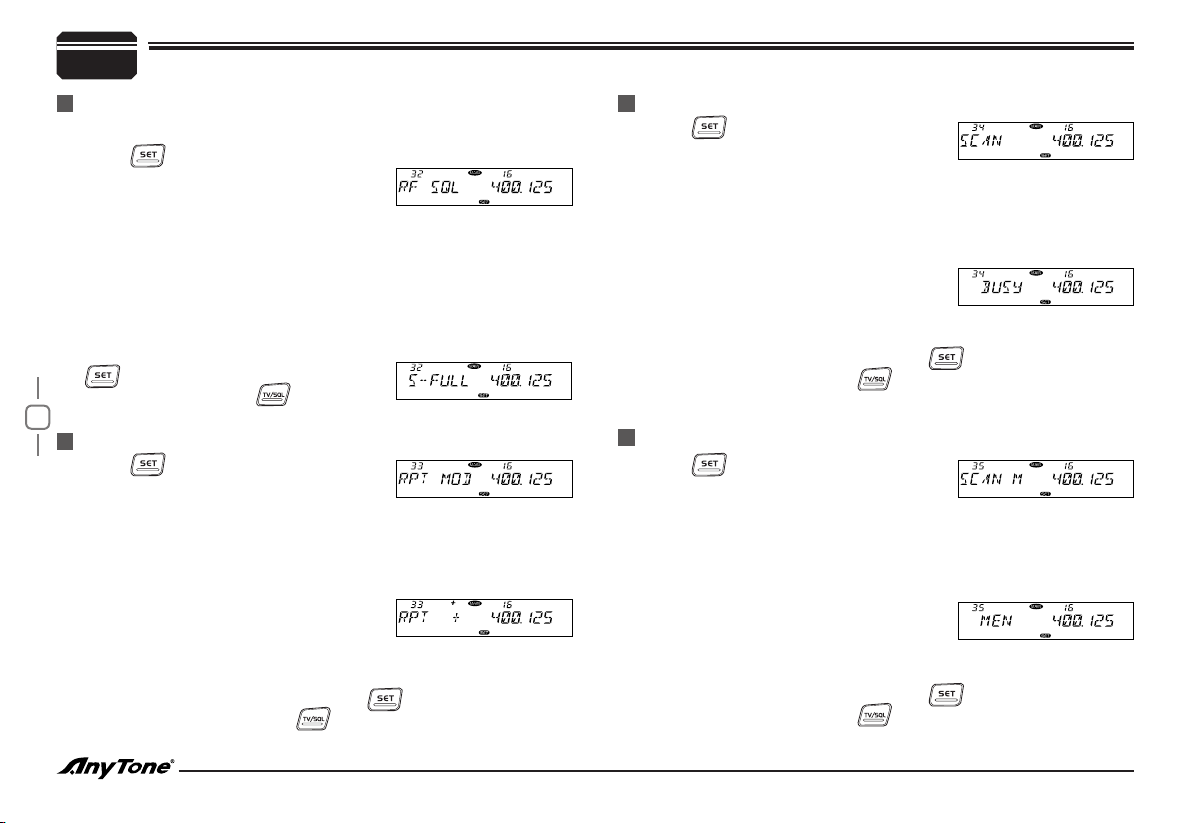

RF SQUELCH LEVEL SETUP
When squelch level function is on, you can cancel squelch only when
the signal strength reach the level setup by users.
Press
1.
Turn the Main band selector knob to
2.
choose No32 menu. The LCD displays
"RF SQL"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
S-2: Able to hear the calling when the power meter reach 1 bar.
S-5: Able to hear the calling when the power meter reach 4 bar.
S-9: Able to hear the calling when the power meter reach 8 bar.
S-FULL: Able to hear the calling when the power meter reach full bar.
Press the Main band selector knob or
5.
function menu. Press key or hold
selector knob for over 0.5 second to store setup and exit.
key to enter function menu.
key to store value and back to
OFFSET DIRECTION SETUP
Press
1.
Turn the Main band selector knob to
2.
choose No33 menu. The LCD displays "RPT MOd"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted Offset direction.
4.
: Minus offset, means transmitting frequency lower than receiving
-
frequency.
: Plus offset, means transmitting
+
frequency higher than receiving frequency.
OFF: OFFSET is turn off. Transmitting frequency is same as receiving
frequency.
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
key to enter function menu.
key to store value and
SCAN DWELL TIME SETUP
Press
1.
Turn the Main band selector knob to
2.
choose No34 menu. The LCD displays "SCAN"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
TIME: it pauses 5s once scanning a matching signal, then resume scan.
BUSY: it pauses once scanning a
matching signal, then resume scan after
the signal disappeared for 2 seconds.
SECEdE: It Stops once scanning a matching signal, and exit scan.
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
key to enter function menu.
key to store value and
PRIORITY CHANNEL SCAN
Press
1.
Turn the Main band selector knob to
2.
choose No35 menu. The LCD displays "SCAN M"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
MEN: Channel Scan, the transceiver will scan all the channel after
enter channel scan.
MSN: Priority Channel Scan, the
transceiver will only scan the priority channel after enter channel
scan.
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
key to enter function menu.
key to store value and
Page 31
25

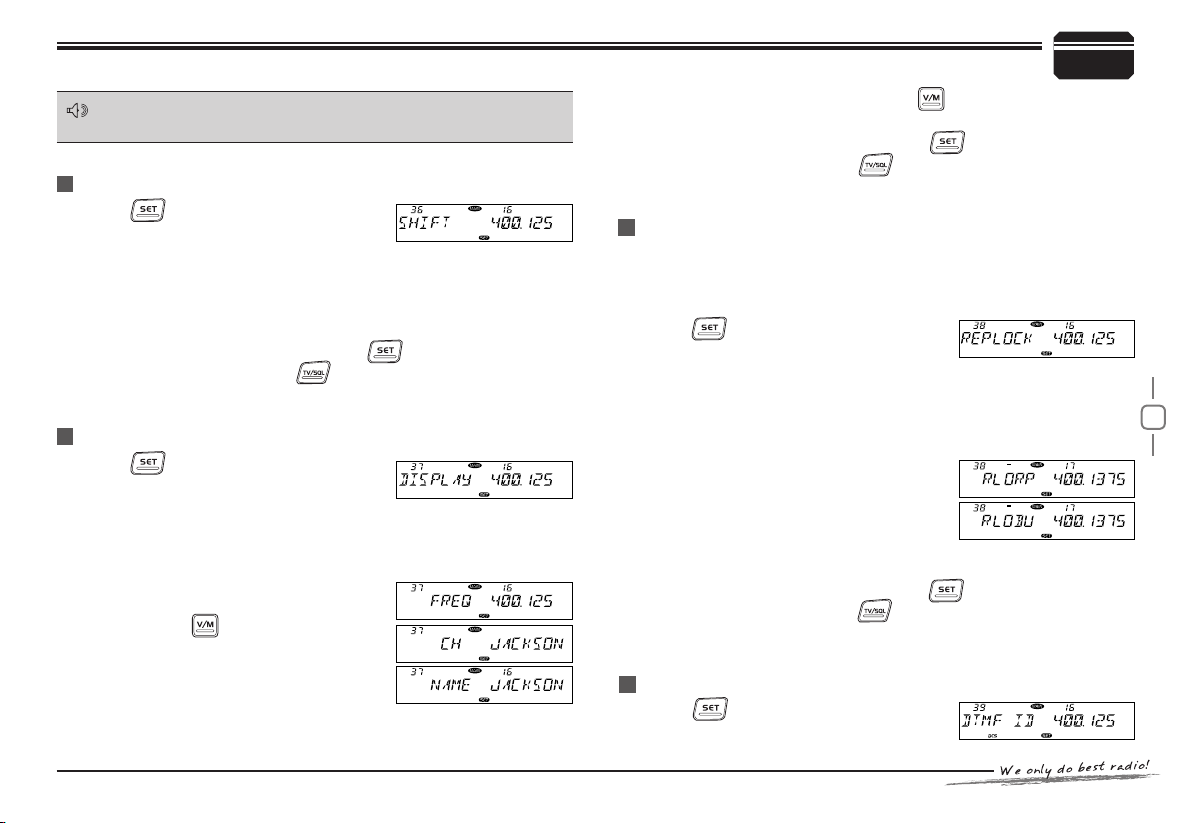

The edited channel shall be programmed as P SCAN before using Priority
www.AT-588UV.com
NOTE
channel scan function.
OFFSET FREQUENCY SETUP
Press
1.
Turn the Main band selector knob to
2.
choose No36 menu. The LCD displays "SHIFT"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
Available Offset frequency for this transceiver is 0-100MHz.
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
key to enter function menu.
key to store value and
DISPLAY MODE SETUP
Press
1.
Turn the Main band selector knob to
2.
choose No37 menu. The LCD displays "dISPLAY"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
FREQ: The radio displays channel number
CH:
NAME:
key to enter function menu.
+ frequency in channel mode, if
press key,it will change to
VFO mode.
isplays only channel number.
D
In channel mode, It displays the
cha nnel number and channel name if the current channel is
programmed with a name. Otherwise, it display the channel
General Setting
7
number and frequency.If press key, it will change to VFO
mode.
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
key to store value and
BUSY CHANNEL LOCKOUT
With this function on, the transceiver will not transmitting on a busy
channel, to avoid disturbing other transceiver using same frequency.
Once the channel is busy and you press PTT, the transceiver will beep as
warning and return to receiving.
Press
1.
Turn the Main band selector knob to
2.
choose No38 menu. The LCD displays "REPLOCK"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
RLORP: Signaling busy channel lockout, transmitting is inhibited when
RLOBU: Channel busy channel lockout, tran
OFF: Busy channel lockout is disabled. Transmitting is allowed in any
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
key to enter function menu.
current channel receives a matching carrier but dis-matching
CTCSS/DCS.
smitting is inhibited when current
channel receives a matching carrier;
receiving status
.
key to store value and
RADIO'S DTMF SELF ID ENQUIRY
Press
1.
Switch the selector knob to choose No 39
2.
key to enter function menu.
Page 32
26
General Setting
www.AT-588UV.com
7

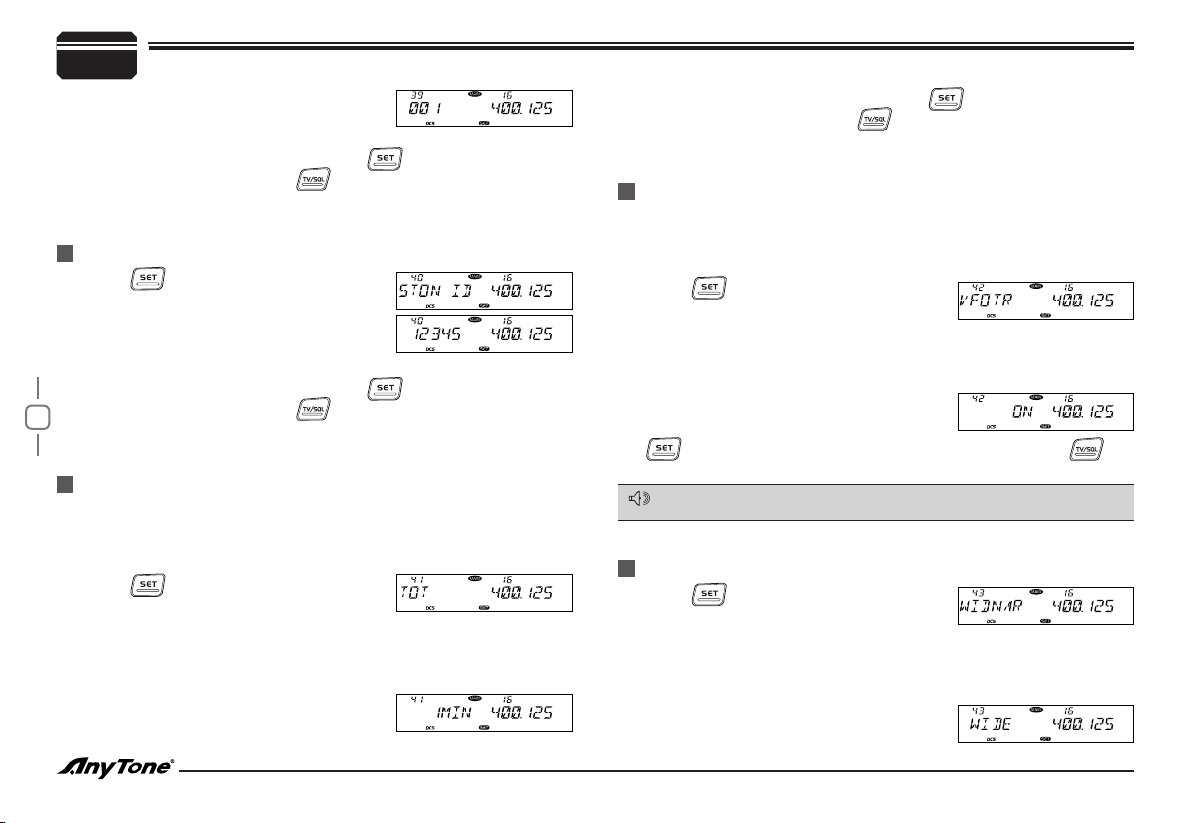

function. The LCD displays "dTMF Id"
Press the Main band selector knob to
3.
enter function setup. The LCD will show the DTMF self ID.
Press the Main band selector knob or
4.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
key to store value and
5TONE SELF ID ENQUIR
Press
1.
Switch the selector knob to choose No40
2.
function. The LCD displays "5TONE Id"
Press the Main band selector knob to
3.
enter function setup. The LCD will show the DTMF self ID.
Press the Main band selector knob or
4.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
key to enter function menu.
key to store value and
TOT (TIME-OUT TIMER)
The time-out timer limits the amount of continuous transmitting time.
When the transmitting reaches the time limit wh ich has been
programmed, the transmission will be cut off and emit warning beep.
Press
1.
Turn the Main band selector knob to
2.
choose No41 menu. The LCD displays "TOT"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
1-30 MIN, total 30 levels,
OFF: TOT is turn off.
key to enter function menu.
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
key to store value and
VFO FREQUENCY LINKAGE
Enable this function, the adjustment any band of VFO frequency,
will bring same frequency change to both bands. Adjust one gear, the
frequency for both band will increase or decrease one step size value.
Press
1.
Turn the Main band selector knob to
2.
choose No42 menu. The LCD displays "VFOTR"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
Available Values: ON, OFF.
Press the Main band selector knob or
5.
or hold selector knob for over 0.5 second to store setup and exit.
This function only valid when both bands work on VFO mode.
NOTE
key to enter function menu.
key to store value and back to function menu. Press key
WIDE/NARROW BAND
Press
1.
Turn the Main band selector knob to
2.
choose No43 menu. The LCD displays "WINNAR"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
WIdE: Wide band (25KHz)

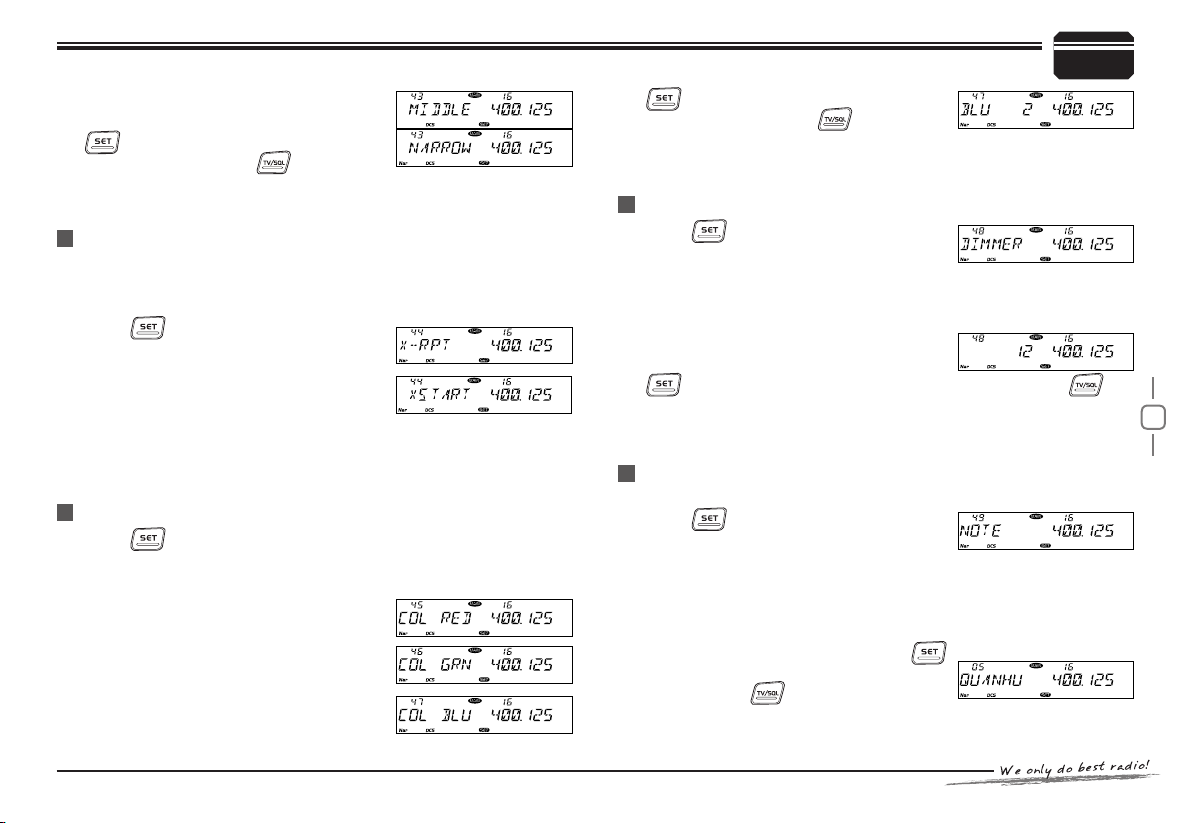

MIddLE: Middle band (20KHz)
key to enter function menu.
Page 33
27
NARROW: Narrow band (12.5KHz)
www.AT-588UV.com
Press the Main band selector knob or
5.
key to store value and back to
function menu. Press key or hold
selector knob for over 0.5 second to store setup and exit.
CROSS BAND REPEAT
Set the left band and right band as VHF (136~174MHz) and
UHF(400~470MHz)then turn of this function will enable Cross Band
repeater function.
Press
1.
Switch the selector knob to choose No 44
2.
function. The LCD displays "X-RPT"
Press the Main band selector knob, the
3.
LCD displays "XSTART".
Press the Main band selector knob, the radio prompt "DU-DU", the
4.
Mix Band repeater function is on.
key to enter function menu.
LCD BACKLIGHT
Press
1.
Turn the Main band selector knob to choose No. 45-47 menu. The
2.
LCD displays "COL REd","COL GRN","COL BLU"
Press the Main band selector knob to
3.
enter function setup.
Switch the Main band selector knob to
4.
choose wanted value.Each color (Red,
blue, Green) with 32 brightness levels.
Press the Main band selector knob or
5.
key to enter function menu.
General Setting
key to store value and back to
function menu. Press key or hold
selector knob for over 0.5 second to store setup and exit.
KEYPAD BACKLIGHT BRIGHTNESS
Press
1.
Turn the Main band selector knob to
2.
choose No. 48 menu. The LCD displays "dIMMER"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
Available value: 32 brightness levels.
Press the Main band selector knob or
5.
or hold selector knob for over 0.5 second to store setup and exit.
key to enter function menu.
key to store value and back to function menu. Press key
CALLING RECORD
The transceiver offers enquiry of calling record.
Press
1.
Turn the Main band selector knob to
2.
choose No. 49 menu. The LCD displays "NOTE"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
This transceiver able to record 16 calling at most.
Press the Main band selector knob or
5.
key to store value and back to function
menu. Press key or hold selector
knob for over 0.5 second to store setup and exit.
key to enter function menu.
7
Page 34
28
General Setting
www.AT-588UV.com
7

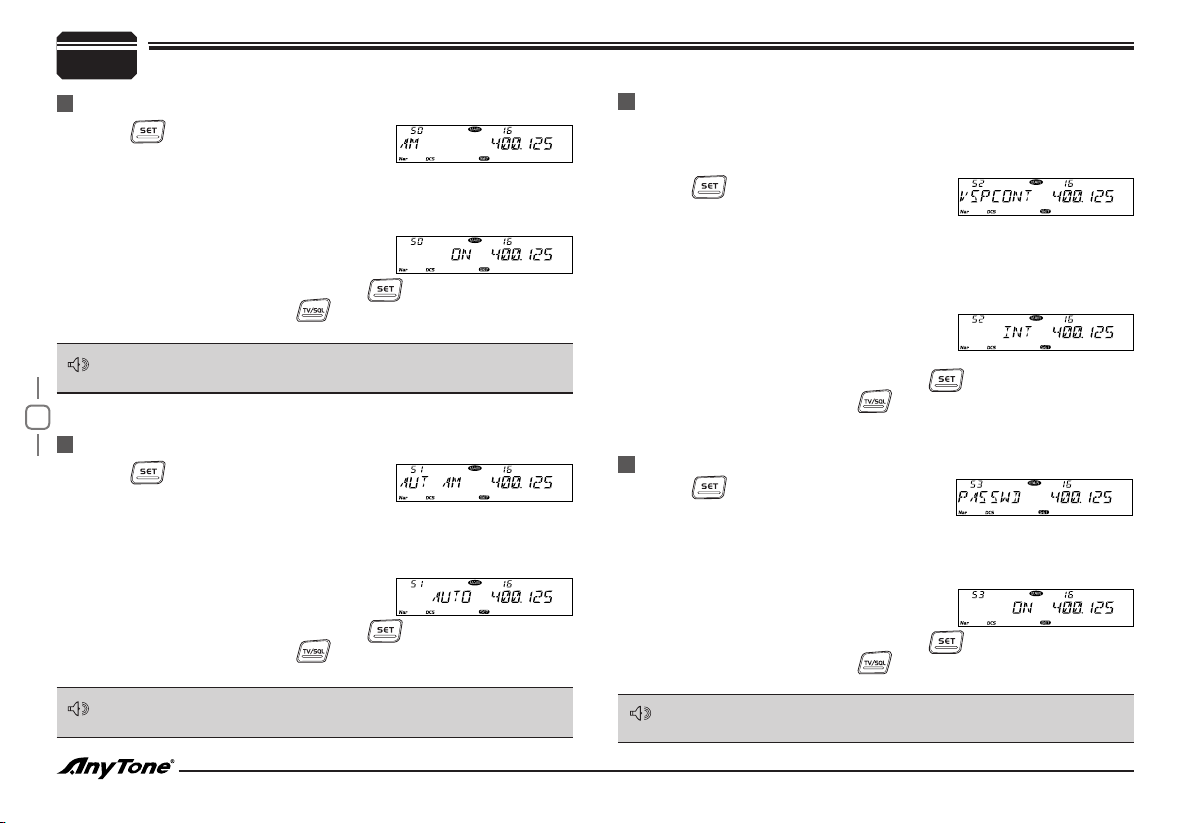

AM FUNCTION
Press
1.
Turn the Main band selector knob to
2.
choose No. 50 menu. The LCD displays "AM"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
ON: turn on AM function.
OFF: turn off AM function.
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
This function is only valid when the Main band frequency is VHF 118-
NOTE
174MHz, the function is invalid when the right band is set as Main band.
key to enter function menu.
key to store value and
AUTOMATIC AM FUNCTION
Press
1.
Turn the Main band selector knob to
2.
choose No. 51 menu. The LCD displays "AUT AM"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
ON: turn on auto AM function.
OFF: turn off auto AM function.
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
The radio will automatically boot AM function when the frequency is under
NOTE
136Mhz.
key to enter function menu.
key to store value and
VHF EXTERNAL SPEAKER PORT
When the function setup as external (EXT), an external Dual Track
speaker (SP-02) must be connected in order to hear the calling on VHF.
The calling from VHF and UHF are separated in 2 tracks.
Press
1.
Turn the Main band selector knob to
2.
choose No. 52 menu. The LCD displays "VSPCONT"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
INT: Internal speaker, VHF and UHF band share one speaker
EXT: External speaker, the calling on VHF
Press the Main band selector knob or
5.
back to function menu. Press
0.5 second to store setup and exit.
key to enter function menu.
only audible through the external
Dual Track speaker.
key to store value and
key or hold selector knob for over
PASSWORD FUNCTION
Press
1.
Turn the Main band selector knob to
2.
choose No. 53 menu. The LCD displays "PASSWd"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value.
4.
ON: Turn on password function.
OFF: Turn off password function.
Press the Main band selector knob or
5.
back to function menu. Press key or hold selector knob for over
0.5 second to store setup and exit.
When password function is on, correct password shall be input after power
NOTE
on The password shall be programmed before using this function.
key to enter function menu.
key to store value and
Page 35
29

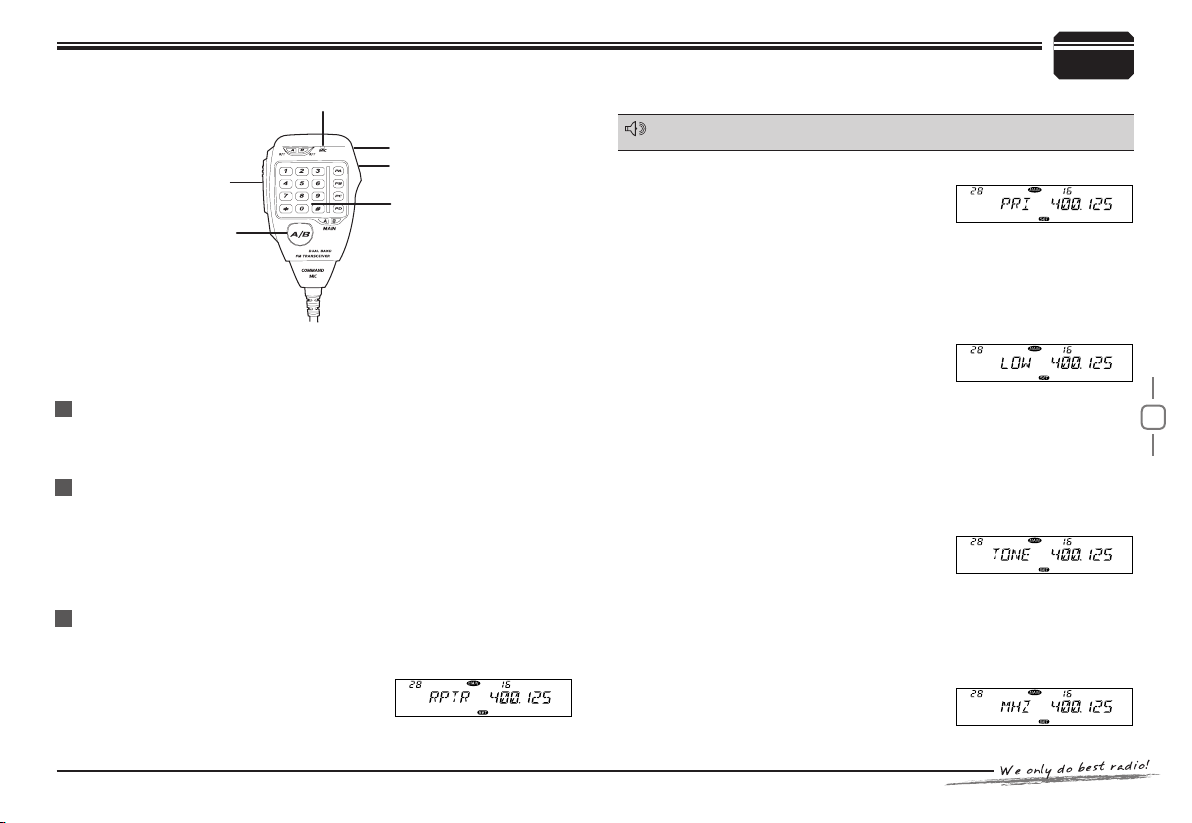

MIC
www.AT-588UV.com
UP
PTT
Main/Sub band switch
You can operate the transceiver by keypad or input desired frequency
and channel through the QHM-04 microphone.
DOWN
Numeric Keys
Microphone Operation
when the LCD displays"-", means minus offset.
This function is valid only when current channel set with offset frequency.
NOTE
PRI
：
LOW: Output power setup, in standby, press the key programmed as
as LOW function will change the lower level.When LCD displays HIGH,
the transmitting power on current channel is high. When LCD displays
MID1, the transmitting power on current channel is middle1, When LCD
displays MID2, the transmitting power on current channel is middle 2.
When LCD displays LOW, the transmitting
power on current channel is low.
8
SEND DTMF SIGNALING
Hold the PTT key; input the desired DTMF signaling by the numeric keys.
MAIN/SUB BAND SWITCHING
This transceiver is defaulted on dual receive, in this status, a
MAIN icon will displayed in the top right corner of the Main band
frequency,transmitting only available on the Main band. In standby, you
can switch Main band and sub band by the A/B key.
FUNCTION OPERATION THROUGH PA-PD KEYS
The PA,PB,PC,PD, keys are programmable, they can be endowed with
the following functions.
RPTR: OFFSET direction setup, in standby,
press the key programmed as RPTR function
will change the offset direction. when LCD displays"+", means plus offset,
TONE: CTCSS/DCS code setup. In standby, press the key
programmed as TONE function will able to setup CTCSS/DCS code.
when the LCD key to choose CTCSS encode. When the LCD displays
"ENC","DEC" and CTCSS frequency,press the microphone
key to choose CTCSS decode. When the LCD displays "DCS" and DCS
code,press microphone displays "ENC" and CTCSS frequency, press the
microphone [ UP/DOWN ] key to choose DCS
code.
MHZ: In VFO mode, press the key programmed as MHZ function,
the megabit digital in the LCD flashes, now turn the channel know or
microphone [ UP/DOWN ] key to adjust frequency by 1Mhz step. In
channel mode, press this key, the channel number ashes, now adjust
selector knob or microphone [ UP/DOWN ] key
to adjust channel.
[ UP/DOWN ]
Page 36
30
8
www.AT-588UV.com

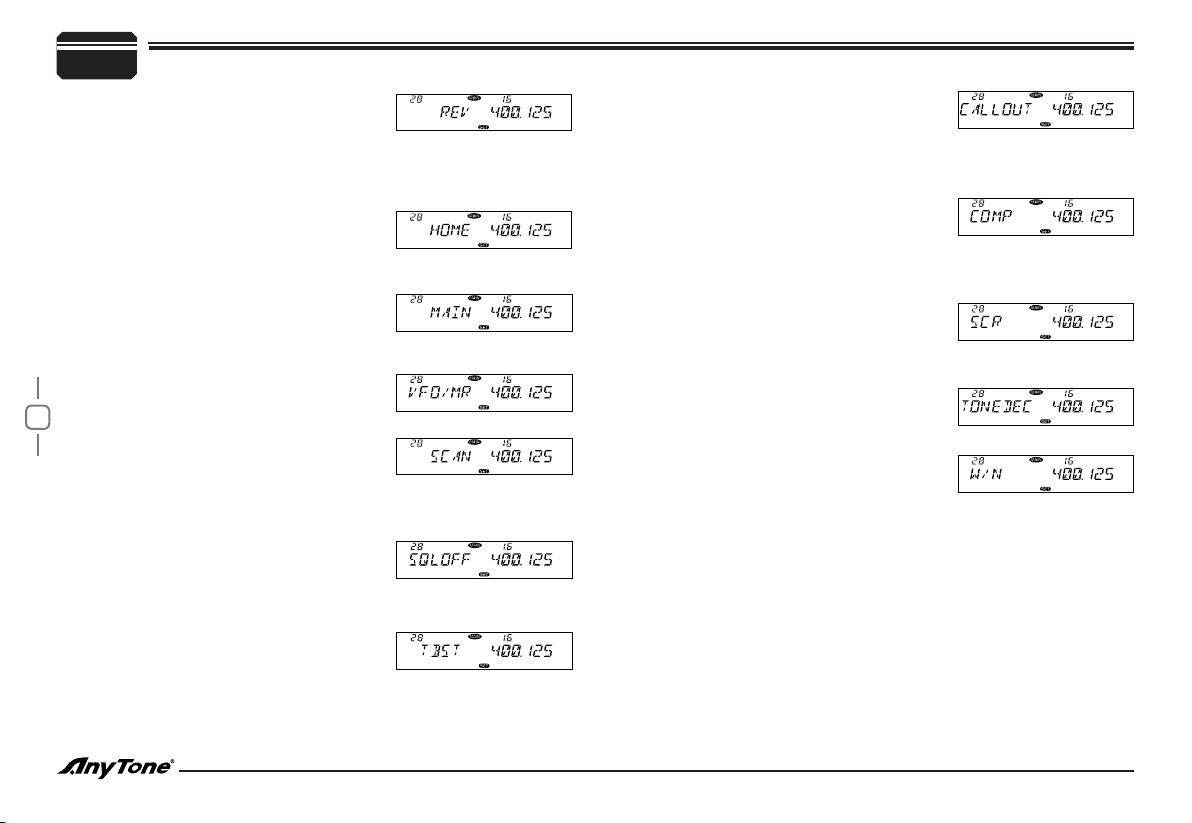

REV: In standby, press the key programmed
as "REV" function to turnon or turn off Talk
Around function.
Microphone Operation
CALL OUT: Calling, in standby, press the
key programmed as "CALL OUT" function to
transmit pre-programmed DTMF, 2TONE, 5TONE code.
HOME: HOME channel switch, in standby press the key programmed
as "HOME" function press the key programmed as HOME function to
switch between HOME channel and current
channel.
MAIN: Main band switch, in standby press the key programmed as
"MAIN" function to cho ose left band or right
band as Main band.
VFO/MR: Working mode switch. in standby, press the key programmed
as "VFO/MR" function to switch between
channel mode and frequency mode.
SCAN: scan function in standby, press the
key programmed as "SCAN" function to start
channel scan or frequency scan.
SQL OFF:Turn off Squelch, in standby, press the key programmed as
"SQL OFF" function to turn off squelch, you
can hear very weak signal, repeat the above
function to turn on squelch.
TBST: Transmit tone burst, in standby;
press the key programmed as "TBST" function
to transmit selected tone burst. This function is use to wake sleeping
repeater.
COMP: Compander function in standby , press the key programmed
as "COMP" to turn on or turn off Compander
function.
SCR: Scrambler function, in standby, press the key programmed as
"SCR" function to turn on or turn off Scrambler function. And choose
optional scrambler groups (from 9 xed groups
and 2 self dened groups).
TONE dEC: Add Optional Signaling, in standby press the key
programmed as"TONE DEC" function to choose
DTMF(DT), 2TONE(2T), 5TONE(5T)or OFF.
W/N: Wide narrow band setup in standby,
press the key programmed as "W/N" function
to choose Wide band, middle and narrow
band.
OFF: No function.
Page 37
31
9
www.AT-588UV.com

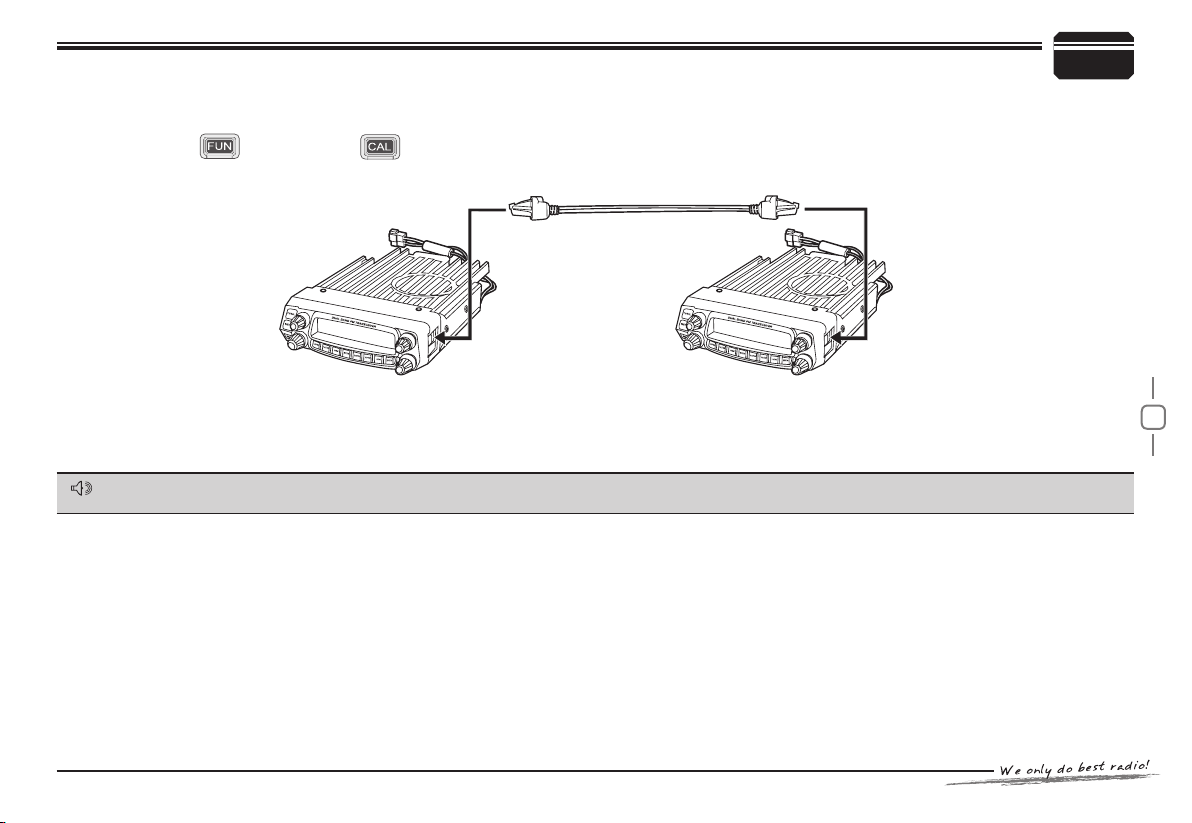

This feature will copy the programmed data and parameters in the master unit to slave units. It copies the parameters and memory program settings.
Use optional CP51 cloning cable, connect the cable between the data jacks on both master and slave.
1.
Press and hold
2.
Press master unit's [PTT] key, LCD displays "SD XXX", "XXX" indicates data volume in transmitting. Slave unit displays "LD XXX", "XXX"
3.
indicates received data volume. When the transmission is successfully nished, the master and slave unit both display "PASS". Turn off the power,
disconnect the cable and repeat step 2 to step 3 operations to clone the next slave unit.
If the data is not successfully transmitted, turn off both units, make sure the cable connection is correct and repeat the entire operation from the beginning.
NOTE
key, then press key to enter into cloning mode, LCD displays "CLONE".
Clone Cable (CP-51)
Cable Clone
9
Page 38
32
10
www.AT-588UV.com
Double click ”QPS588UV setup.exe“, then follow the installing instruction.
Programming Software Installing and Starting (in windows XP system)
10
INSTALL USB CABLE DRIVER PROGRAMME
Click start menu in computer, under “ALL PROGRAMS” menu,
1.
choose and click “USB To Com port” in QPS588UV program, install
“USB To Com port” driver by indication.
Connect the optional PC50 USB Programming cable to USB port in
2.
PC with transceiver.(As pic 1)
Double click QPS588UV shortcut or click QPS588UV in procedure
3.
index of start menu, choose serial com port as indicated then click
OK to start programming software. (As pic 2)
According to instruction,select correct"COM Port"(As pic 3),then click
4.
"OK" to start programming software.
NOTE: Even in same computer,the selective COM Port is different
when USB cable connects with different USB port.
You shall install software before connecting the USB cable line. Switch
on transceiver before writing frequency.You had better not switch on or
off the power supply of transceiver when it is connected with computer,
otherwise, it will make transceiver unable to read or write frequency. In
this case, you have to turn off programming software, pull out USB cable.
then reinsert USB cable and open software, then rechoose COM Port,
it will turn into normal operation. Therefore, please connect transceiver
with computer after switching on the transceiver. Don't restart transceiver
power when it is connected with computer.
图1
图2
图3
This software has product identify system, so when rstly installing the software, you have to connect the transceiver,otherwise you can not start the software.
NOTE
Page 39
33
11
www.AT-588UV.com
Maintenance
TROUBLE SHOOTING
Problem Problem Possible Causes and Potential Solutions
(a) Power is on, nothing
appears on Display.
(b) Fuse is blown.
(c) Display is too dim. Dimmer setting is "LAMP-L". Please make the dimmer setting "LAMP-H".
+ and - polarities of power connection are reversed. Connect red lead to plus
terminal and black lead to minus terminal of DC power supply.
Check and solve problem resulting in blown fuse and replace fuse with new
fuse.
11
(d) No sound comes from
speaker.
(e) Key and Dial do not
function.
(f) Rotating Dial will not
change memory channel.
(g) PTT key is pressed but
transmission does not occur.
• Squelch is muted. Decrease squelch level.
• Tone or CTCSS/DCS squelch is active. Turn CTCSS or DCS squelch off.
Key-lock function is activated. Cancel Key-lock function.
Transceiver is in CALL mode. Press the VFO or memory mode.
• Microphone connection is poor. Connect microphone properly.
• Antenna connection is poor. Connect antenna properly.
Page 40
34
12
www.AT-588UV.com
Specifications
12
General
TX: 144~146MHz (EXP:136~174MHz)
Frequency Range
Number of Channels 758 channels
Channel Spacing
Phase-locked Step
Operating Voltage 13.8V DC ±15%
Squelch Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability ±2.5ppm
Operating Temperature -20~+60
Dimensions(WxHxD) 139(W)x40(H)x212(D)mm
Weight about 1.14kg
430~440MHz (EXP:400~490MHz)
RX: 136~174MHz
400~490MHz
25KHz(Wide band)
20KHz(Middle band)
12.5KHz (Narrow band)
2.5KHz、5KHz、6.25KHz、10KHz
12.5KHz、15KHz、20KHz、25KHz
30KHz、50KHz
℃
Receiver (ETSI EN 300 086)
Wide band Narrow band
Sensitivity
(12dB SINAD)
Adjacent Channel
Selectivity
Spurious Rejection ≥70dB ≥60dB
Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~2.55KHz)
Hum & Noise ≥45dB ≥40dB
、
、
Audio distortion ≤5%
Audio power output
Transmitter (ETSI EN 300 086)
Power Output
Modulation 16KΦF3E 11KΦF3E
Adjacent Channel
Power
Hum & Noise ≥40dB ≥36dB
Spurious Emission ≥70dB ≥70dB
Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~2.55KHz)
Audio Distortion ≤5%
≤0.25μV ≤0.35μV
≥70dB ≥60dB
2W@10%
＞
Wide band Narrow band
50W
/25W/10W/5W(VHF)
≥70dB ≥60dB
40W/25W/10W
/5W(UHF)
Page 41
35
13
www.AT-588UV.com
Attached Chart
13
50 GROUPS CTCSS TONE FREQUENCY(HZ)
62.5 77.0 91.5 107.2 127.3 151.4 167.9 183.5 199.5 225.7 254.1
67.0 79.7 94.8 110.9 131.8 156.7 171.3 186.2 203.5 229.1
69.3 82.5 97.4 114.8 136.5 159.8 173.8 189.9 206.5 233.6
71.9 85.4 100.0 118.8 141.3 162.2 177.3 192.8 210.7 241.8
74.4 88.5 103.5 123.0 146.2 165.5 179.9 196.6 218.1 250.3
自定义
1024 GROUPS DCS CODE
000 001 002 003 004 005 006 007
010 011 012 013 014 015 016 017
020 021 022 023 024 025 026 027
030 031 032 033 034 035 036 037
040 041 042 043 044 045 046 047
050 051 052 053 054 055 056 057
060 061 062 063 064 065 066 067
070 071 072 073 074 075 076 077
100 101 102 103 104 105 106 107
110 111 112 113 114 115 116 117
120 121 122 123 124 125 126 127
130 131 132 133 134 135 136 137
140 141 142 143 144 145 146 147
150 151 152 153 154 155 156 157
160 161 162 163 164 165 166 167
170 171 172 173 174 175 176 177
200 201 202 203 204 205 206 207
210 211 212 213 214 215 216 217
220 221 222 223 224 225 226 227
230 231 232 233 234 235 236 237
240 241 242 243 244 245 246 247
250 251 252 253 254 255 256 257
260 261 262 263 264 265 266 267
270 271 272 273 274 275 276 277
300 301 302 303 304 305 306 307
310 311 312 313 314 315 316 317
320 321 322 323 324 325 326 327
330 331 332 333 334 335 336 337
Page 42
13
www.AT-588UV.com
340 341 342 343 344 345 346 347
350 351 352 353 354 355 356 357
360 361 362 363 364 365 366 367
370 371 372 373 374 375 376 377
400 401 402 403 404 405 406 407
410 411 412 413 414 415 416 417
420 421 422 423 424 425 426 427
430 431 432 433 434 435 436 437
440 441 442 443 444 445 446 447
450 451 452 453 454 455 456 457
460 461 462 463 464 465 466 467
470 471 472 473 474 475 476 477
500 501 502 503 504 505 506 507
510 511 512 513 514 515 516 517
520 521 522 523 524 525 526 527
36
530 531 532 533 534 535 536 537
540 541 542 543 544 545 546 547
550 551 552 553 554 555 556 557
560 561 562 563 564 565 566 567
570 571 572 573 574 575 576 577
600 601 602 603 604 605 606 607
610 611 612 613 614 615 616 617
620 621 622 623 624 625 626 627
630 631 632 633 634 635 636 637
640 641 642 643 644 645 646 347
650 651 652 653 654 655 656 657
660 661 662 663 664 665 666 667
670 671 672 673 674 675 676 677
700 701 702 703 704 705 706 707
710 711 712 713 714 715 716 717
Attached Chart
13
720 721 722 723 724 725 726 727
730 731 732 733 734 735 736 737
740 741 742 743 744 745 746 747
750 751 752 753 754 755 756 757
760 761 762 763 764 765 766 767
770 771 772 773 774 775 776 777
Page 43
A1.0-12/09
www.AT-588UV.com
Loading...
