AT-5555N
10 METER RADIO
Page 3
CONTENTS
FUNCTIONS & FEATURES ..................................................................1
STANDARD ACCESSORIES ................................................................2
INSTALLATION .....................................................................................2
GETTING ACQUAINTED ......................................................................5
HOW TO USE YOUR RADIO ...............................................................7
KEYPAD FUNCTION ............................................................................9
BACKGROUND FUNCTION MENU OPERATION .............................12
SPECIFICATIONS ...............................................................................13
Page 4
FUNCTIONS & FEATURES
Big LCD displays frequency and all kinds of information
◆
FM
◆ 、AM、
Frequency Tuning Step 100Hz
◆ 、
±1.5KHz CLARLFILER Adjustment
◆
Flexible Menu Function and PC Program Software
◆
ECHO Function
◆
SQ, ASQ Function (FM and AM mode only)
◆
RF GAIN Adjustment
◆
RF PWR Adjustment
◆
SCAN Function
◆
Programmable RB Function
◆
NB/ANL Function
◆
DW DUAL-WATCH Function
◆
Offset Frequency Function
◆
BEEP Voice Prompt
◆
+10KHZ Function
◆
SIG
◆ 、
TOT function
◆
HI-CUT Function
◆
EMG Channel Function
◆
SWR Protection
◆
Power Supply Voltage Protection
◆
Key-Lock Function
◆
Six(6) Groups Memory Channel
◆
Model Name Customized Function
◆
CTCSS/DCS Code(Optional)
◆
USB、LSB、PA mode
PWR、SWR Function
1KHz、10KHz、100KHz、1MHz
1
Page 5
2

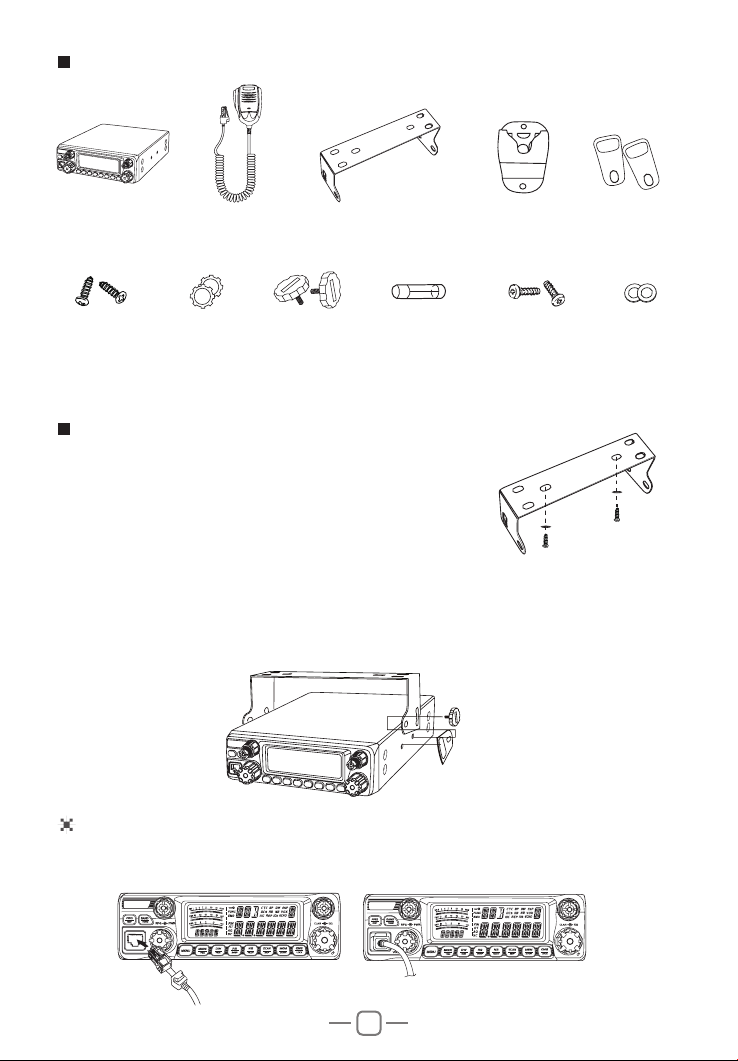

STANDARD ACCESSORIES
10A
Radio
Screws for
bracket
Microphone
Pads for
bracket
Mounting Bracket Non-slip
screws
Spare Fuses
(15A,250V)
Microphone
Hanger
Self-tapping
Screws
INSTALLLATON
Choose the most appropriate setting from a simple and
practical point of view. Your radio should not interfere
with the driver or crash the driver's knee or leg when
rush brake.
Using the self-tapping screws and pads(2 sets) to x 1.
the bracket.
Put the Non-slip mat on the 2 ends of the bracket and put in the radio. Then insert 2.
the adjusting screws and check careful each screws, make sure the screws and
machine will not loose when the car shaking.
Choose suitable angle by the 3 screw holes in the two ends of bracket.3.
Mat
PadsAdjusting

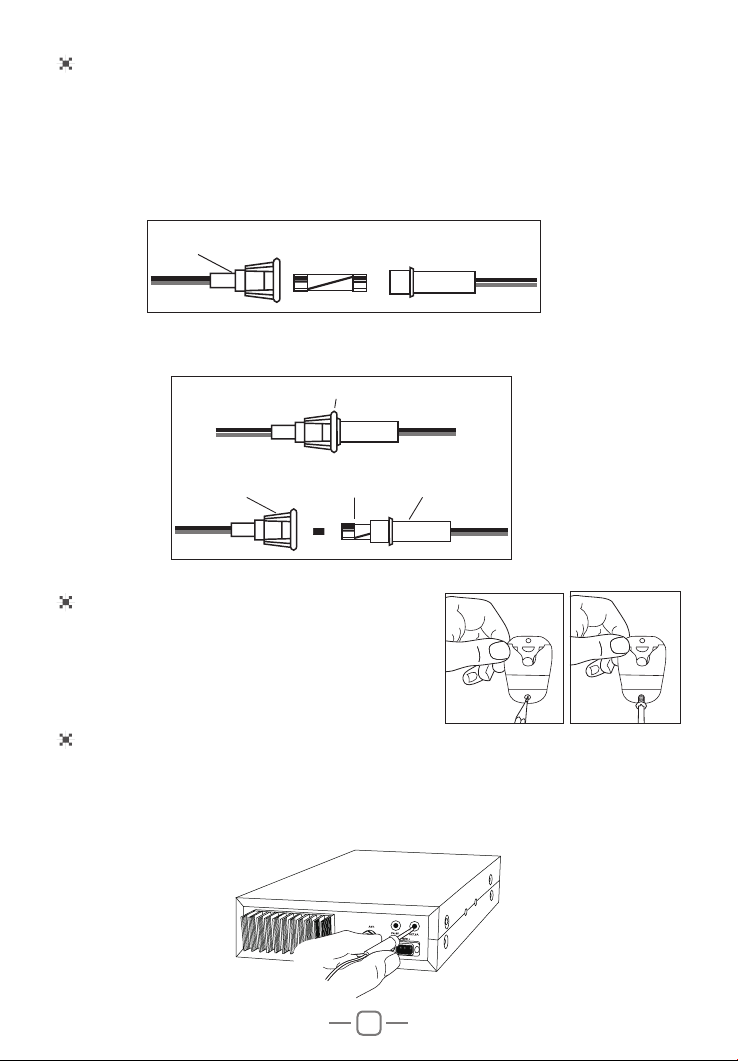

Microphone connection
Plug microphone connector into jack.1.
Pull on the screw for microphone connector.2.
Page 6
3
ANTENNA INSTALLATION
Before usin g this radi o, please instal l a high efficent and harm on ious ad justed
CB antenna, s ui ta bl e antenna type a nd correct installation will bring ex ce ll en t
communication.
To match with the radio, the antenna and cable shall with characteristic impedance of
50ohm, or the antenna system will not efcient enough and will disturb TV, radio or other
electronics.
Screw the antenna connector into the antenna jack.1.
Grounding the antenna system to ensure best performance of this radio.2.
WARNING:
▲ Connect antenna rstly before transmiting, or it might damage the radio.
▲ To avoid the risk of fire, electric shock, radio damage, all base station shall
equip of lightning protector
▲ Be sure choose a matching antenna, you may enquiry our dealers.

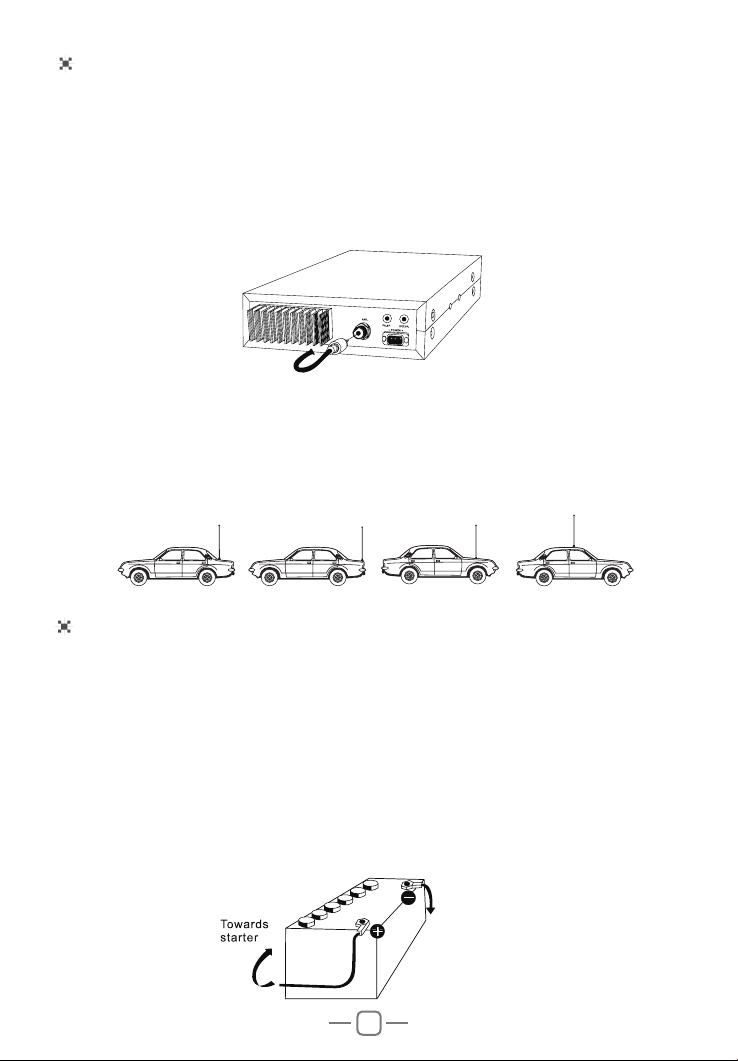

The position of antenna can be put as following example:3.
POWER CONNECTION
This radio adopt 13.8V power supply, never connect it to 24V battery, And the 13.8V car
battery shall with sufcient current, or the LCD will become dark and Transmit power
will drop down.
Connect positive red power cable with the + terminal of the battery.1.
Connect negative black power cable with the - terminal of the battery.2.
Connect the DC power cable to the transceiver's power supply connector.3.
▲ We suggest not use cigar lighter as it often bring down the voltage.
▲ Locate the power cable away from high temperature, moisture, portre and cable
insulator.
▲ Use a full power cable even it is longer than need, do not take off the fuse holder
from the cable.
Connected
to chassis
Page 7
4
Replacing Fuse
This radio adopt 15A, 250V fuse.
If the fuse blows, determine the reason, then correct the problem.
After the problem is resolved, replace the fuse. If newly installed fuses continue to
blow, disconnect the power cable and contact your autho-rized dealer or an authorized
servicecenter:
Pull the two fuse cover in difference direction and open it.1.
,
IN-LINE
FUSE HOLDER
15A 250V FUSE
Replace the broke fuse with good one, and close the fuse holder.2.
Be sure to use suggested fuse, or it might damage the radio.3.
IN-LINE
FUSE HOLDER
IN-LINE
FUSE HOLDER
Install Microphone Hanger
FUSE
IN-LINE
FUSE HOLDER
Choose a id eal location which will no t interfer e
the driver. Using supplied self-tapping screws and
pads(2 sets) to x the hanger.
Install External Speaker
If use an external speaker, please choose 8ohm speaker with 3.50mm mono band
(doulbe cable) plug.
Locate the external speaker in a suitable place.1.
Plug into the speaker jack.2.
Page 8
5
GETTING ACQUAINTED

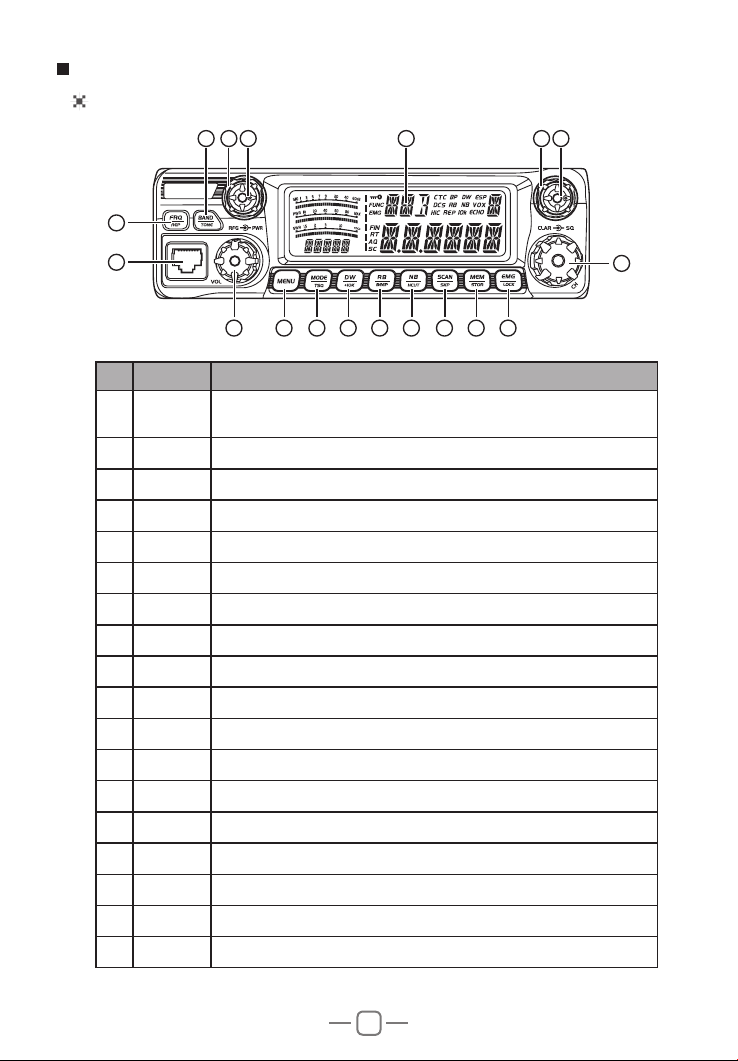

Front Panel
12 1411 13182
1
17
315 4 5 6 7 8 9 10
No. Key Functions
1 FRQ
2 BAND Switch band: A-I、ECHO setup
3 MENU Function Menu key
4 MODE Switch mode(FM、AM、USB、LSB、PA)、TSQ setup
5 DW
6 RB RB function、Beep voice prompt function
7 NB NB function、HI-CUT function
8 SCAN Scan、Scan add、Scan delete
9 MEM Use, store or delete memory channel
10 EMG Emergency Channel; Keypad lock.
11 PWR RF Power Control
12 RFG RF Gain Control
13 SQ Squelch Control
14 CLAR SSB Clarier switch
15 VOL Power On/Off; Volume Control.
16 CH Channel Switch, Push key.
17 Microphone Jack
18 LCD Display
Switch between channel mode and frequency mode、offset
setup
Dual-watch scan、Frequency+10K function
16
Page 9
6

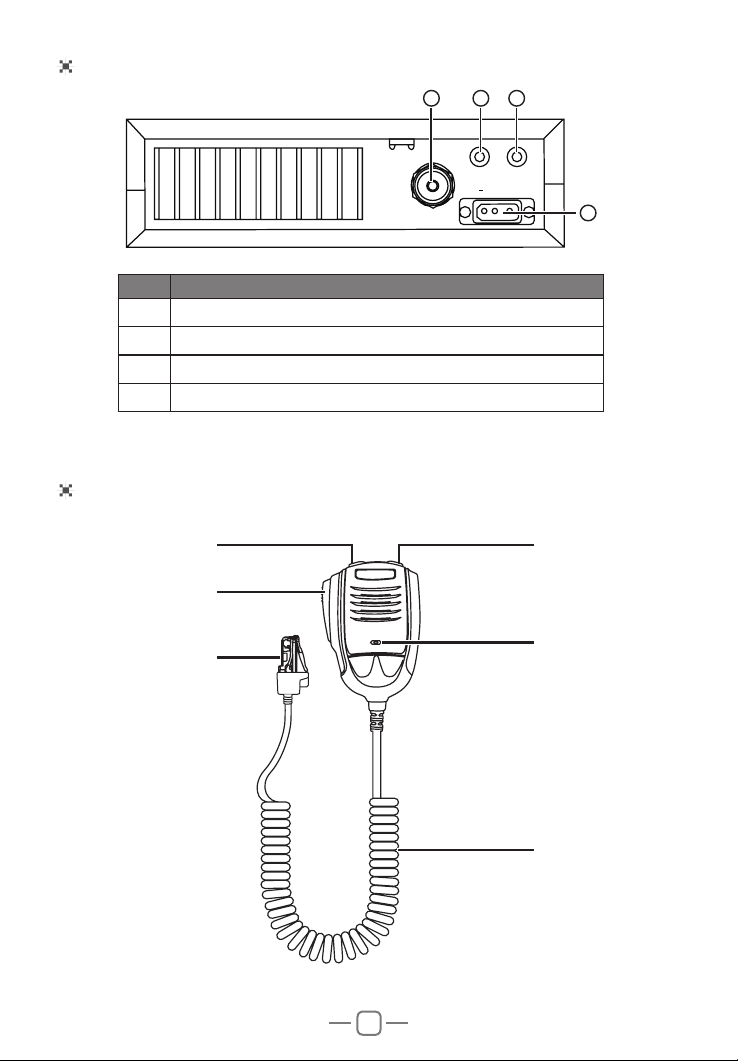

Rear Panel
20
PA.SP.
POWER +
19
EXT.SP.
21
ANT.
No. Functions
19 External SP Jack
20 External PA Jack
21 Antenna Jack
22 Power Supply Jack
Microphone
Channel Down Channel UP
PTT
22
Connector
Mic
Microphone cable
Page 10
7

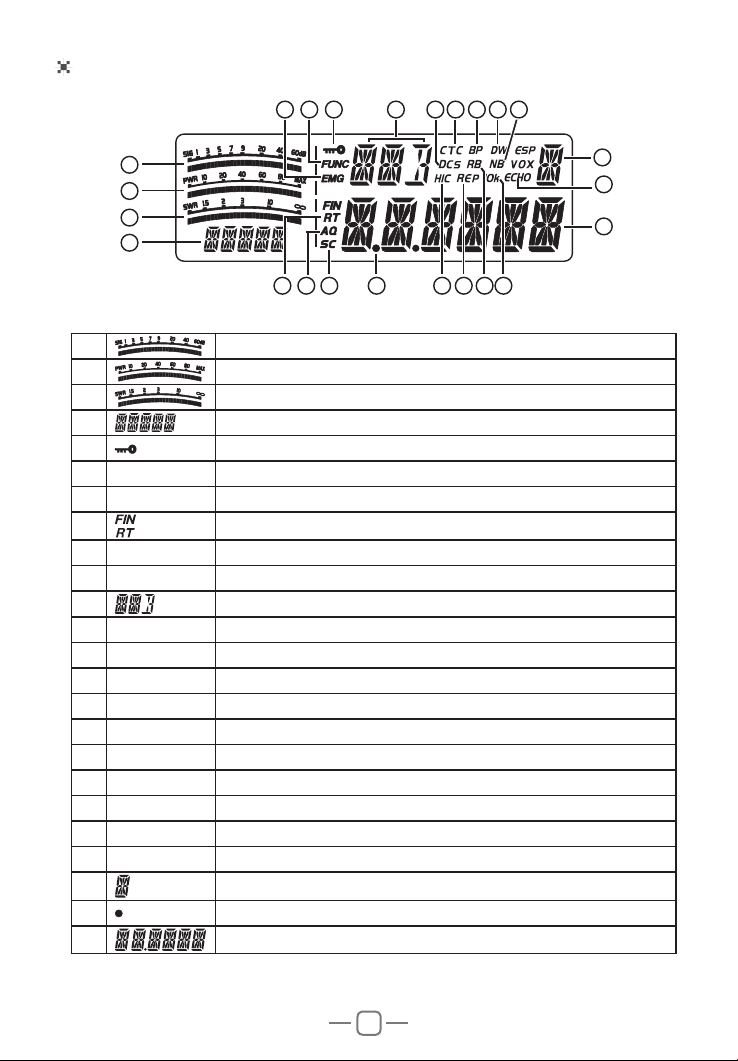

LCD Display
6 5 187 11 13 1912 15
1
2
3
4
1098 23 14 17 16 20
1 RX Signal strength indicator.
10
12
13
14
15
16
17
18
19
20
21
22
23
24
2
3
4
5
FUNC
6
EMG
7
8
AQ
9
SC
11
CTC
DCS
HIC
BP
RB
REP
DW
NB
IOk
ECHO
TX Signal strength indicator.
SWR strength indicator.
Model name Indicator.
Appears when the Keypad lock function is ON.
Appears when press MENU key.
Appears when using Emergency channel.
Appears when adjust SSB clarier frequency.
Appears when use ASQ.
Appears when scan function is ON.
Appears when modulation mode is ON.
Appears when set with CTCSS code.
Appears when set with DCS code.
Appears when Hi-cut function is ON.
Appears when Beep voice is ON.
Appears when RB function is ON.
Appears when repeater function is ON.
Appears when Dual-watch function is ON.
Appears when adjust Noise Blanker is ON.
Appears when add 10k function is ON.
Appears when Echo function is ON.
Working band indicator.
Appears when scan list is ON.
Display of frequency and channel.
22
21
24
Page 11
8
HOW TO USE YOUR RADIO
OFF/ON Radio
Turn VOL clockwise to switch on the radio, the radio emit a beep. When the LCD 1.
displays frequency or channel, the radio is on.
Turn VOL anti-clockwise to switch off the radio, the radio is OFF when hear Ka 2.
Ta from the switch.
Volume Control
When the radio is turned on, turn VOL clockwise will increase the volume, turn VOL
anti-clockwise will reduce the volume. The LCD displays VOL: XX (XX stands for the
volume level, total 1-36 levels).
Note: Adjust the volume during communication to get suitable level.
RF Power Control
When the radio is transmitting, turn P WR outer shaft to adjust power. Turn it
clockwise to increase power, anti-clockwise to reduce power.
RF Gain Control
When the radio is receiving, turn RFG inner shaft to adjust RF gain. Turn it clockwise
to increase gain, anti-clockwise to reduce gain.
SQUELCH Control
When the radio is standby, turn SQ outter shaft clockwise to adjust squelch level.
The LCD displays SQ: XX. (XX stands for the squelch level, total 1-36 levels).
SSB Clarier control
When the radio is transmitting or receiving, turn CLAR inner shaft to adjust USB/
LSB TX or RX frequency. Turn it clockwise to increase frequency, anti-clockwise to
reduce frequency.
Channel Selection
When radio is in channel mode, turn channel knob to select desired channel.
Clockwise to increase, anti-clockwise to reduce channel.
Note: In channel display mode, each press【PUSH】key will increase the
frequency by 10 times of channel step size.
Page 12
9
Frequency control
In frequency mode, press1.
present channel.
When the frequency is ashing, turn CH clockwise to increase frequency, anti-2.
clockwise to reduce frequency.
When the frequency is flashing, press3.
size.
PUSH】key, then you can adjust frequency for
【
PUSH】again to adjust frequency step
【
KEYPAD FUNCTION
FRQ/REP
【
Short press【FRQ】to switch between frequency display mode and channel
display mode.
Offset Direction Function
Long press1.
displays "REP";
Press2.
REPOF: Turn off offset direction function;
REP+: Turn on offset direction function, TX frequency>RX frequency;
REP-: Turn on offset direction function, RX frequency>TX frequency;
Press3.
BAND/TONE
【
Band Selection Function
Short press【BAND】to choose band A-B-C-D-E-F-G-H-I.
Echo Function
Long press1.
"ECHO";
Long press2.
】
FRQ】for 2 seconds to enter of fset direction function, LCD
【
PUSH
【
PUSH】to store and exit.
【
select offset, turn channel switch to select;
】to
】
BAND】for 2 seconds to enter ECHO function, LCD displays
【
BAND】for 2 seconds to turn off ECHO function.
【
MENU
【
【
Modulation Mode
Short press【MODE】to choose mode FM-AM-USB-LSB-PA.
】
Long press【MENU】for 2 seconds to enter menu list.
MODE/TSQ
】
Page 13
10
CTCSS/DCS Function
Long press1.
displays "CTCSS" or "DCS";
Press2.
【
DCS, then Press【PUSH】to store and exit.
OFF: Turn off CTCSS/DCS function;
CTCSS: 67.0~250.3Hz, Total 38 groups;
DCS: D023N~D754N, Total 104 groups;
Note: This function is available only when install Optional CTCSS board.
DW/+10K
【
Dual-Watch function
Short press1.
Short press2.
Frequency+10KHz function
Long press1.
displays "10K";
Long press2.
RB/BEEP
【
RB function
Short press1.
Press2.
PUSH】to select RB frequency, turn on channel switch to select.
【
OFF~5, total 6 groups.
OFF: Turn off RB function;
Press 3.
【
BEEP Voice Prompt function
Long press1.
displays "RB";
Long press2.
MODE】for 2 seconds to enter CTCSS/DCS function, LCD
【
PUSH】to set CTCSS/DCS, turn channel switch to select CTCSS/
】
to turn on Dual watch, LCD displays "DW";
【DW】
again or press PTT to exit DW mode;
【DW】
for 2 seconds to turn on frequency +10KHz function, LCD
【DW】
for 2 seconds again to turn off frequency +10KHz function.
【DW】
】
to turn on RB function, LCD displays "RB";
【RB】
PUSH】 to store and exit.
for 2 seconds to enter BEEP voice prompt function, LCD
【RB】
for 2 seconds again to turn off BEEP voice prompt function.
【RB】
NB/HCUT
【
NB function
Short press1.
Short press2.
HI-CUT function
Long press1.
Long press2.
】
【NB】
【NB】
【NB】
【NB】
to enter NB function, LCD displays "NB";
again to turn off NB function.
for 2 seconds to enter HI-CUT function, LCD displays "HIC";
for 2 seconds again to turn off HI-CUT function
Page 14
11
SCAN/SKP
【
Scan function
Short press1.
In scan mode, Turn channel switch will change scan direction.2.
Short press3.
Add/delete scan list function
Long press1.
scan list;
When LCD displays "●", current channel is not added to scan list; When LCD 2.
does not display "●", current channel is added to scan list.
MEM/STOR
【
Using memory channel:
Short press1.
memory channel. M1-M6, Total 6 memory channels.
Short press2.
Store/Delete memory channel:
Store memory channel1.
When the radio is not in memory channel mode, choose the channel to be
stored, and hold【MEM】enter storage mode, the channel number ashes, Turn
Channel switch to choose the location to be stored (M1-M6), then hold【MEM
until the ashing channel number disappear, the storage is done.
Delete memory channel2.
In channel mode, hold【MEM】for over 2 seconds, t he memor y channel
number ashes, turn the CH switch to choose the memory to be deleted. Then
hold【MEM】until the ashing channel number disappear, the delete is done.
】
SCAN】to enter scan function, LCD displays "SC";
【
SCAN】again to exit.
【
SCAN】for 2 seconds to add or delete the current channel from
【
】
MEM】to enter memory channel, turn channel switch to choose
【
MEM】again to exit memory channel mode.
【
】
EMG/LOCK
【
Choose EMG channel:
Short press【EMG】to use Emergency channel, LCD displays "EMG".
Short press1.
Short press2.
Short press3.
Keypad Lock Function:
Long press1.
Long press2.
Note: When this function is turned on, only PTT button is valid.
】
EMG】once to choose CH9;
【
EMG】again to choose CH19;
【
EMG】thrice to return to last normal channel.
【
EMG】to lock keys, LCD displays "
【
EMG】again to unlock the keys.
【
";
Page 15
12
BACKGROUND FUNCTION MENU OPERATION
Press1.
MENU】for 2 seconds to enter menu list;
【
Turn Channel switch to select menu No.1 to No.10;2.
Press3.
PUSH】to enter the menu setup;
【
Turn channel switch to select wanted setup;4.
Press any other key or wait 5 seconds, the setting will be stored and exit.5.

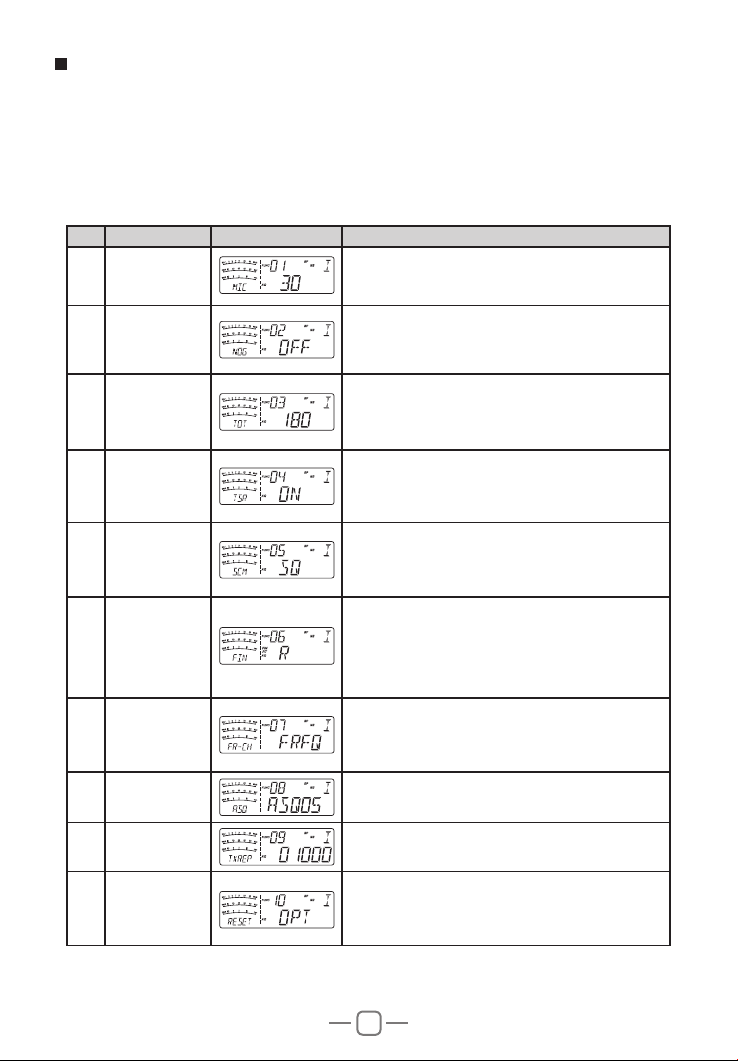

No. Function LCD Display Values and Descriptions
1 Mic Gain
1-36, Total 36 levels available;
Default: 30.
2 Monitor Gain
3 TOT
SWR
4
Protection
5 Scan Type
SSB Clarier
6
switch
Channel
7
Frequency
switch
8
ASQ Control
Offset
9
frequency
10
Reset
1-32, OFF, Total 33 levels available;
Default: OFF. (Shut NOG function)
1-600s, OFF, Total 10minutes available;
Default: 180S. (Shut TOT function)
OFF: Shut SWR function;
ON: Open SWR function;
Default: ON.
SQ: SQ scan function;
TI: Time scan function;
Default: SQ.
OFF: Shut frequency adjustment;
R: Open RX frequency adjustment;
T: Open TX frequency adjustment;
RT: Open TX/RX frequency adjustment;
Default: R.
CHAN: Channel adjust;
FREQ: Frequency adjust;
Default: FREQ.
01~09: Total 9 Levels;
Default: 05.
Frequency range: 100Hz~5MHz;
Default: 100KHz.
OPT: All function setup resume default;
ALL: All channels and setup resume default;
Default: OPT.
Page 16
13
SPECIFICATIONS
± 5.00ppm
GENERAL
Frequency Range 28.000-29.700MHz(Programmable)
Frequency Band A/B/C/D/E/F/G/H/I
Channel 40channels(programmable)in each band
Frequency Control Phase-Locked-Loop Synthesizer
Frequency Step 100Hz、1KHz、10KHz、100KHz、1MHz
Frequency Tolerance 0.005%
Frequency Stability 0.001%
Temperature Range -20℃to +50℃
Microphone with push-to-talk /UP/DN and coiled cord
Input Voltage 13.8V
Dimensions (in mm) 250(W) x 280(L) x 60(H)
Weight 1.5kg
Antenna Connector UHF, SO239
TRANSMITTER
Power Output AM: 12W / FM: 30W / SSB: 30W(PEP)
Drain 8A(with modulation)
Modulation AM/FM/USB/LSB
Inter-modulation Distortion
SSB Carrier Suppression 55dB
Unwanted Sideband 50dB
Frequency Response
Output Impedance 50ohms, unbalanced
SSB: 3rd order, more than -25dB; 5th order,
more than -35dB
AM/FM: 300 to 3000Hz
SSB: 450 to 2500Hz
Page 17
RECEIVER
SSB: 0.25μV for 10dB(S+N)/N at greater than
1/2-watt of audio output
Sensitivity
Adjacent-Channel Selectivity AM/FM: 60dB SSB: 70dB
Image Rejection More than 65dB
IF Frequency
RF Gain Control 45dB adjustable for optimum signal reception
Automatic Gain Control(AGC)
Squelch
Audio Output Power 3 watts into 8 ohms
Frequency Response AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz
Built-in Speaker 8 ohms, round.
External Speaker(Not Supplied)
AM:1.0μV for 10dB(S+N)/N at
greater than 1/2watt of audio output
FM: 1.0μV for 20 dB (S+N)/N at greater than 1/2
watt of audio output
AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF
SSB: 10.695MHz
Less than 10dB change in audio output for inputs
from 10 to 100,000 microvolt.
Adjustable; threshold less than 1.0μV.
Automatic Squelch Control(only AM/FM)1.0μV
8 ohms; disables internal speaker when
connected.
14
Loading...
