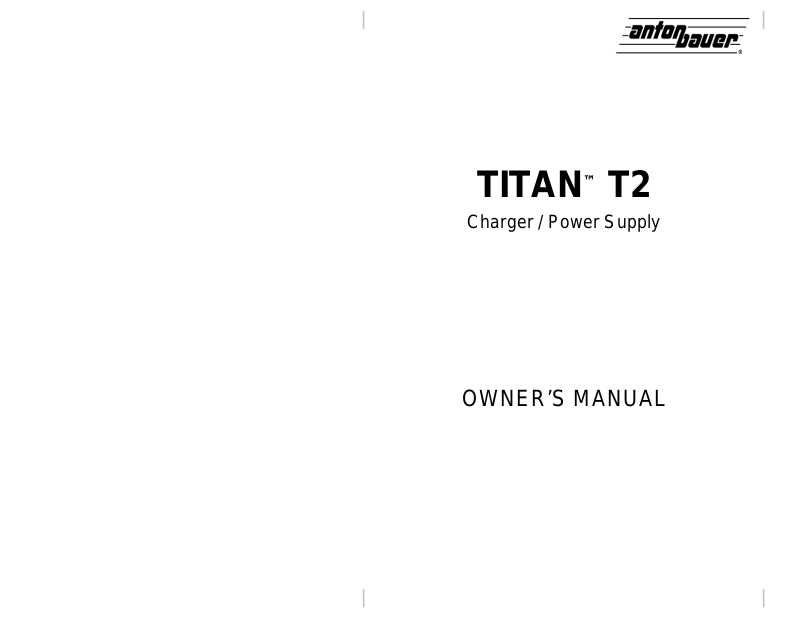

TITAN™ T2

Charger / Power Supply

OWNER’S MANUAL

TABLE OF CONTENTS

INTRODUCTION ..........................................................................................1

FEATURES....................................................................................................1

SAFEGUARDS..............................................................................................2

GROUNDING/EARTHING...........................................................................2

Charging..........................................................................................................3

Applications .....................................................................................................3

Three Stage Charging Methodology ...............................................................4

LED Indications................................................................................................5

OPERATION AS DC CAMERA SUPPLY FROM MAINS.......................6

FCC NOTICE.................................................................................................7

SPECIFICATIONS........................................................................................7

FUSE/TYPE REPLACEMENT....................................................................7

WARRANTY..................................................................................................8

INTRODUCTION

The TITAN T2 is a simultaneous 2 position Interactive fast charger with 70 watt DC
camera power supply. It incorporates all of the Logic Series circuits that are
employed in every Anton/Bauer charger. The InterActive charge programming
provides all charge termination and protection routines for safe, reliable, chemistry
independent charging.

Like all Anton/Bauer chargers, everything is automatic. Once a battery is placed onto
the charger, it will automatically go into one of the Three Stage Charging modes.
When the Titan T2 is being used as a power supply, the battery (right side only)
functions as an automatic backup, just in case AC power is lost.

FEATURES

- Two independent 70 Watt Power Supplies – one for charging or DC power, and one
exclusively for charging.

- Fast Charging. One hour with most batteries (2 hours with HyTRON series and 3
hours with Dionic batteries).

- Wide Range Input (90-250vac 50/60Hz).

- Six (6) Independent Charge Termination Systems.

- Lightweight (2.7lbs.)

1

SAFEGUARDS

Power Sources: This unit was designed to operate at mains voltages from

90 to 250 Volts AC, 50-60 Hz.

Risk of Electrical Shock: Refer servicing to qualified service personnel.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.

GROUNDING/EARTHING

IMPORTANT WARNING: THIS APPARATUS MUST BE EARTHED.

To ensure safe operation, the three pin plug supplied must be inserted only into a
standard three-pin power point which is effectively grounded through the normal
household wiring. Extension cords used with the equipment must be three-conductor
and be correctly wired to provide connection to earth ground. Improperly wired
extension cords are a dangerous electrical hazard.

The fact that the equipment operates satisfactorily does not imply that the power point is
properly grounded and that the installation is completely safe. If any doubt exists about
the correct grounding of the power point, consult a qualified electrician.

IMPORTANT: The wires in this mains lead are colored in accordance with the

following code:

Green and yellow Earth
Blue Neutral
Brown Live
