Anton/Bauer Inc., 14 Progress Drive, Shelton, Connecticut 06484 USA • (203) 929-1100 • Fax (203) 925-4988 • [email protected]
Singapore Office - Anton/Bauer, 6 New Industrial Road, # 02-02 Hoe Huat Ind. Bld., Singapore 536199 • (+65) 62975784 • Fax (+65) 62825235

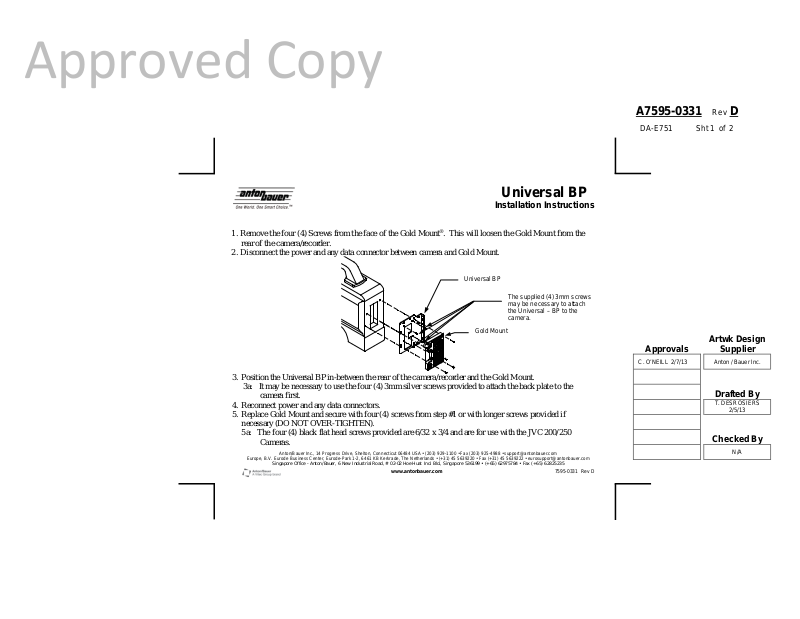

Universal BP
Installation Instructions
1.
2.
3. Position the Universal BP in-between the rear of the ca mera/recorder and the Gold Mount.
4.
5.
Cameras.
Universal BP
Gold Mount
A7595-0331
D
Approvals
Supplier
T. DESROSIERS
2/5/13
Checked By
The supplied (4) 3mm screws
may be necessary to attach
the Universal
camera.
Remove the four (4) Screws from the face of the Gold Mount®. This will loosen the Gold Mount from the
rear of the camera/recorder.
Disconnect the power and any data connector between cam era and Gold Moun t.
3a: It may be necessary to use the four (4) 3mm silver screws provided to attach the back plate to the
camera first.
Reconnect power and any data connectors.
Replace Gold Mount and secure with four (4) screws from step #1 or with longer screws provided if
necessary (DO NOT OVER-TIGHTEN).
5a: The four (4) black flat head screws provided are 6/32 x 3/4 and are for use with the JVC 200/250
Europe, B.V. Eurode Business Center, Eurode-Park 1-2, 6461 KB Kerkrade, The Netherlands • (+31) 45 5639220 • Fax (+31) 45 5639222 • [email protected]
www.antonbauer.com 7595-0331 Rev D
– BP to the
Page 2
Available Separately
WRB-185, WRB-200,
ABWMK-KIT
Universal Mounting Plate for Wireless Receivers
• Allows user to use the same Wireless Receiver Plate for ALL Anton/Bauer Batteries.
• Attaches directly to any Anton/Bauer
A7595-0331
D
• Allows a Receiver to be mounted on either the side of the Battery, behind the Battery,
or both.
• Will accomodate WRB-185 and WRB-200 Wireless Receiver Compartments.
and WRB-201
For Lectrosonics Style
Receivers
Wireless Receiver Plate.
• Able to “Piggy-Back” multiple
Compartments.
WRB-185: Fits CR-175, CR-185, CR-187
WRB-200: Fits UCR-195, UCR-195D,
WRB-201: Fits UCR-201
and UCR-190 style Receivers
UCR-200D, UCR-205D, and
UCR-210D style Receivers
