F-7 SMAZE
User Manual
EnglishFrançaisDeutsch
© 2015 Antari Lighting and Effects Ltd.
User Manual - English
Please read the following safety information carefully before operating the machine. This information includes important safeguards about installation, usage, and maintenance. Pay attention to all warning labels and instructions in this manual and printed on the machine.
If you have questions about how to operate the machine safely, please contact your local Antari dealer for help.
Keep this device dry. Always connect to a grounded circuit to avoid risk of electrocution. Before connecting machine to power, always check voltage indicate on machine
match to your local AC voltage. Do not use the machine if AC power voltage does not match.
Disconnect the machine from AC power before servicing and when not in use. This product is for indoor use only! Do not expose to rain or moisture. If fluid is
spilled, disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts, immediately unplug the machine and contact your local Antari dealer for advice.
No user serviceable and modifiable parts inside. Never try to repair this product,
an unauthorized technician may cause damage or malfunction to the machine.
For adult use only. Never leave the machine running unattended. Installed the machine in a well-ventilated area. Provide at least 50 cm space
around the machine.
Never add flammable liquid of any kind to the machine. Make sure there are no flammable materials close to the machine while operating.
3
Only use Antari fluid. Other fluid may lead to heater clog and malfunction. If the machine fails to work, unplug the machine and stop operation immediately.
Contact your local Antari dealer for advise.
Before transporting the machine, make sure the fluid tank is completely drained. Fog fluid may present health risks if swallowed. Do not drink fog fluid. Store it
securely. In case of eye contact or if fluid is swallowed, immediately look for medical advice.
Unpacking and Inspection
Immediately upon receiving the machine, carefully unpack the carton, check the content to ensure that all parts are present and have been received in good condition. If any parts appear damaged or mishandled from shipping, notify the shipper immediately and retrain the packing material for inspection.
What is included: 1 x F-7 SMAZE Machine 2 x Power Cord (One for Fog Machine, the other for Fan) 2 x Fluid Tank
1 x User Manual

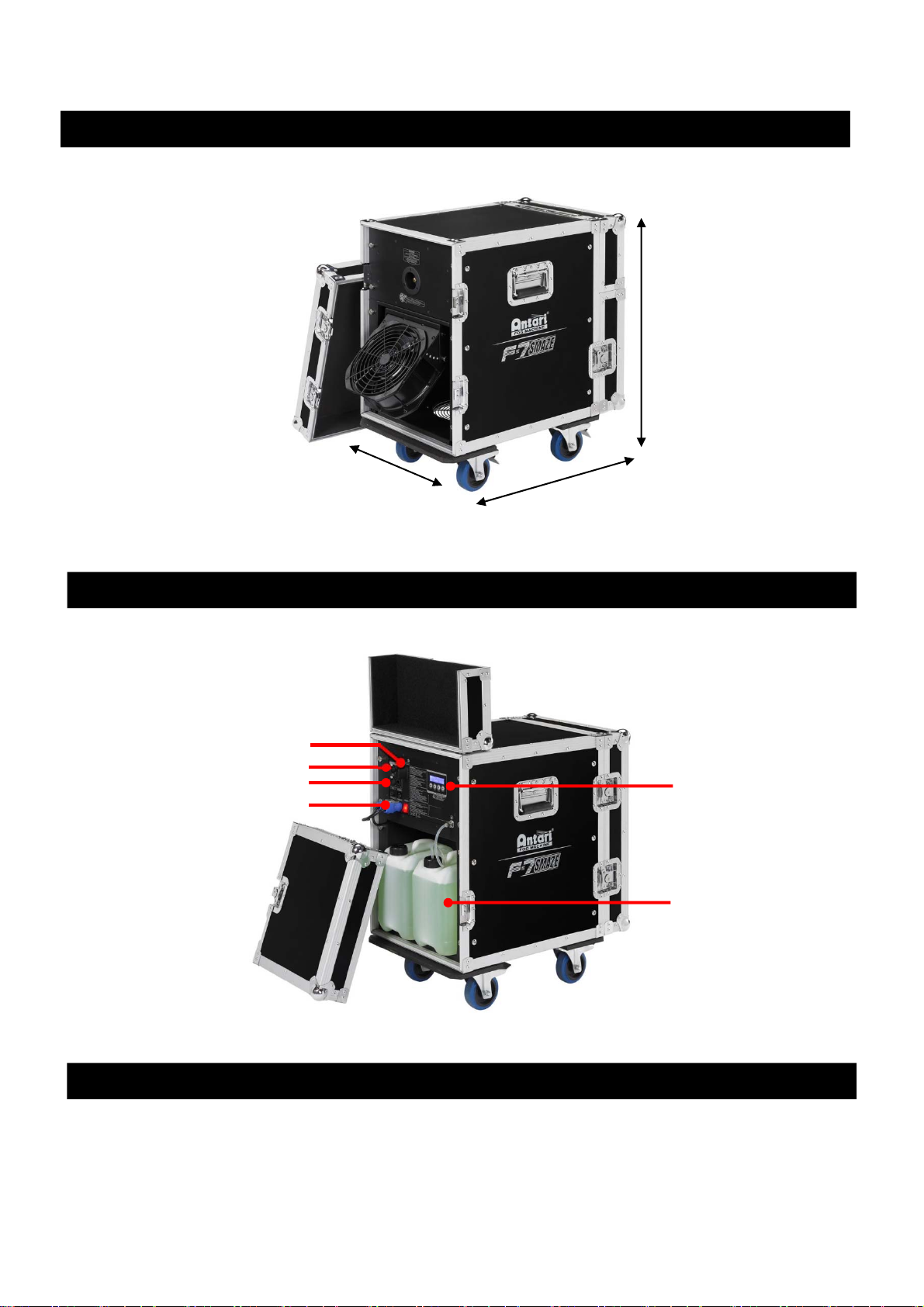

Product Dimensions
710 mm
412 mm
710 mm
4

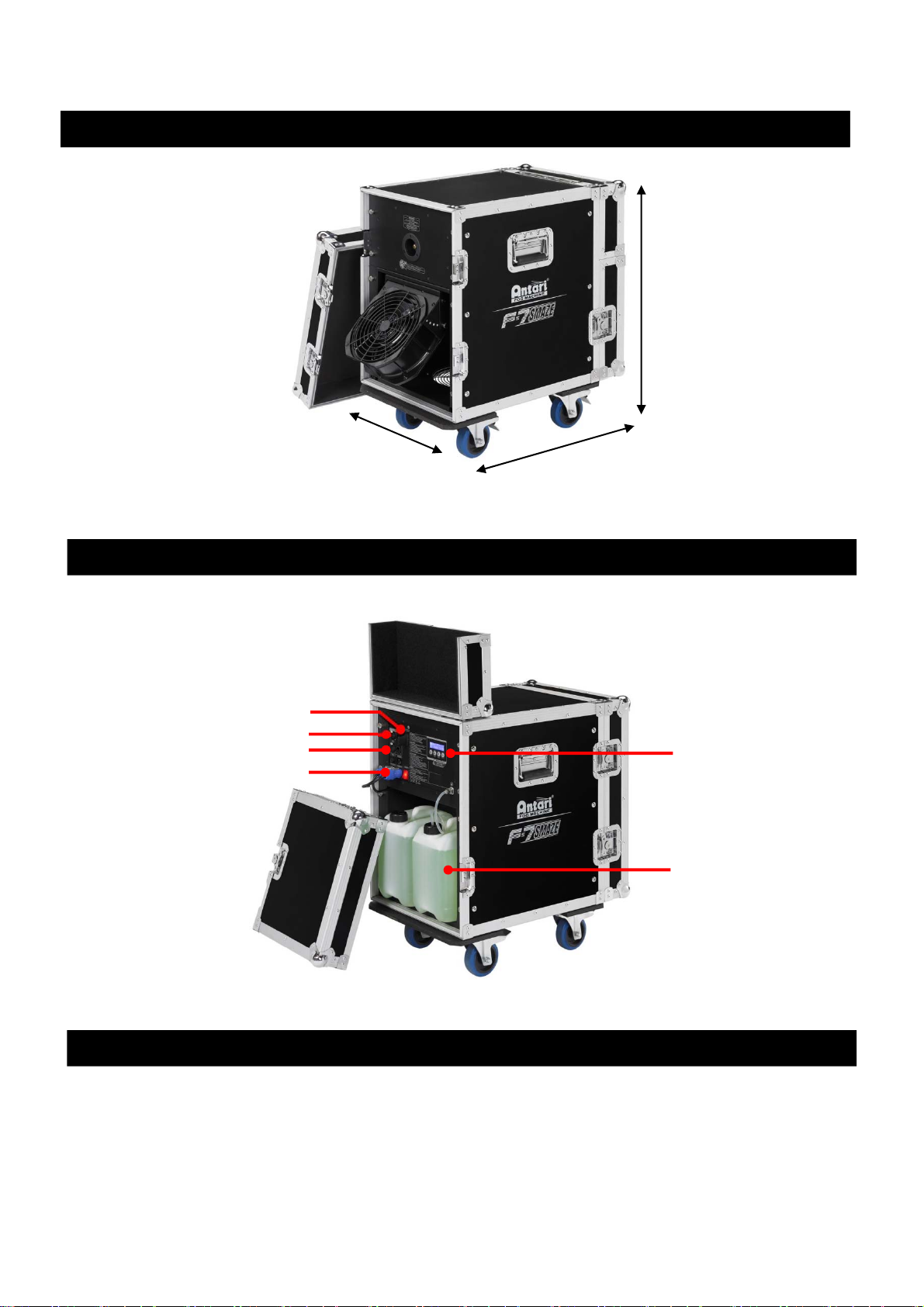

Product Overview
Control Options:DMX、W-DMX
XLR 3-Pin DMX Connector XLR 5-Pin DMX Connector

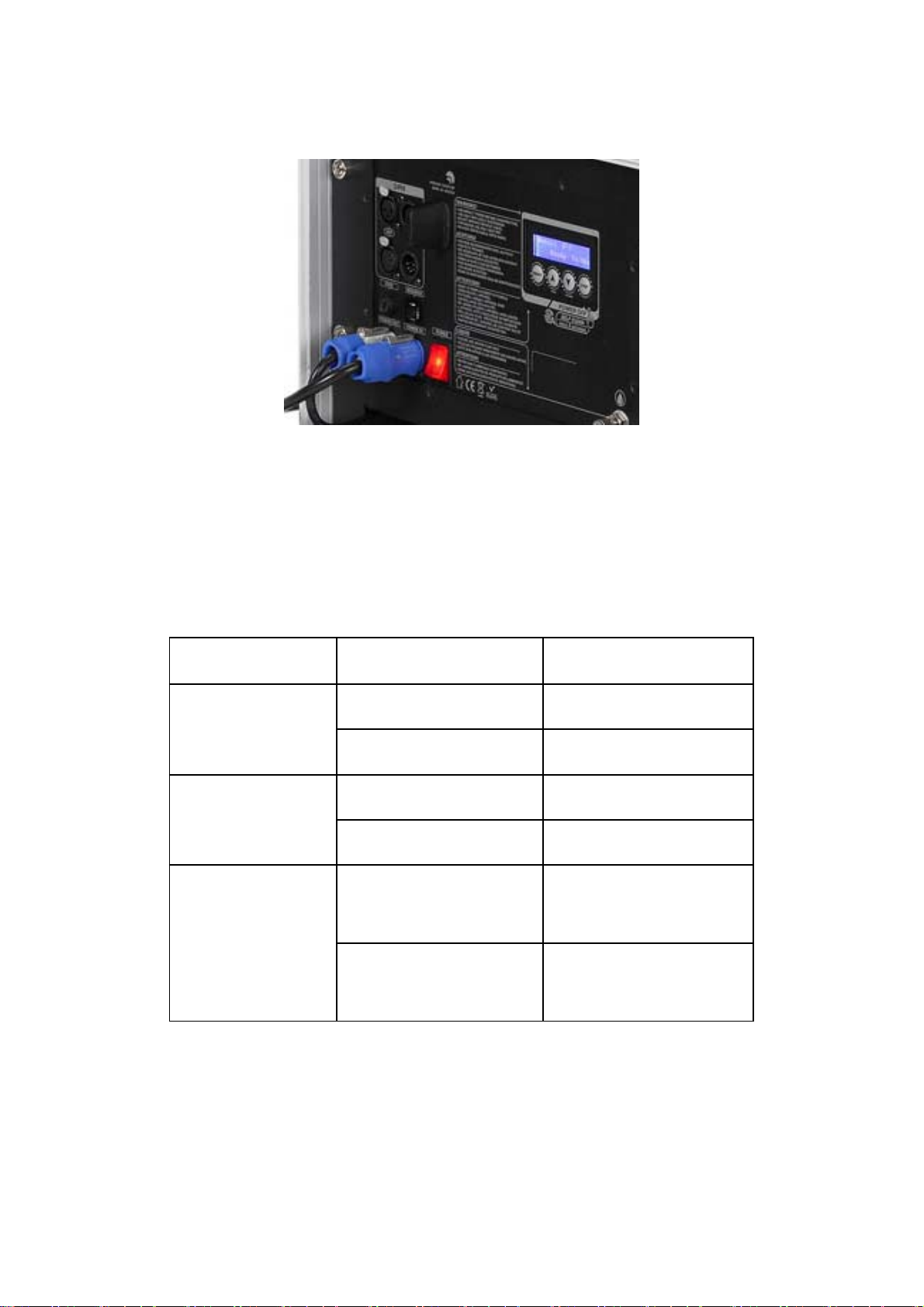

Neutrik PowerCon
Blue LCD screen, Timer mode, Volume mode
Tank Capacity5 liters
Setting Up
Step 1: Place the machine on a flat surface and in a suitable large area with at least 50 cm open space around the machine.
Step 2: Fill the fluid tank with Antari approved fluid.
Step 3: Connect the machine to suitable rated power supply.To determine the power
requirement for the machine refer to the label on the machine.
Always connect the machine to a protected circuit and ensure it is properly grounded to avoid risk of electrocution.
Step 4: Turn on the machine and allow it to heat up. Heat up takes approximatly 6 mintues. Once the machine has reached operating temperature, the display will show Ready to Fog. Now the machine is ready for operation.
Step 5: To start making fog, press the VOLUME button on the control panel.
5
Step 6: To turn off the machine, hold the STOP button for 3 seconds; the machine will automatically run a self-cleaning process and shut down after the self-cleaning process is done.
Operation

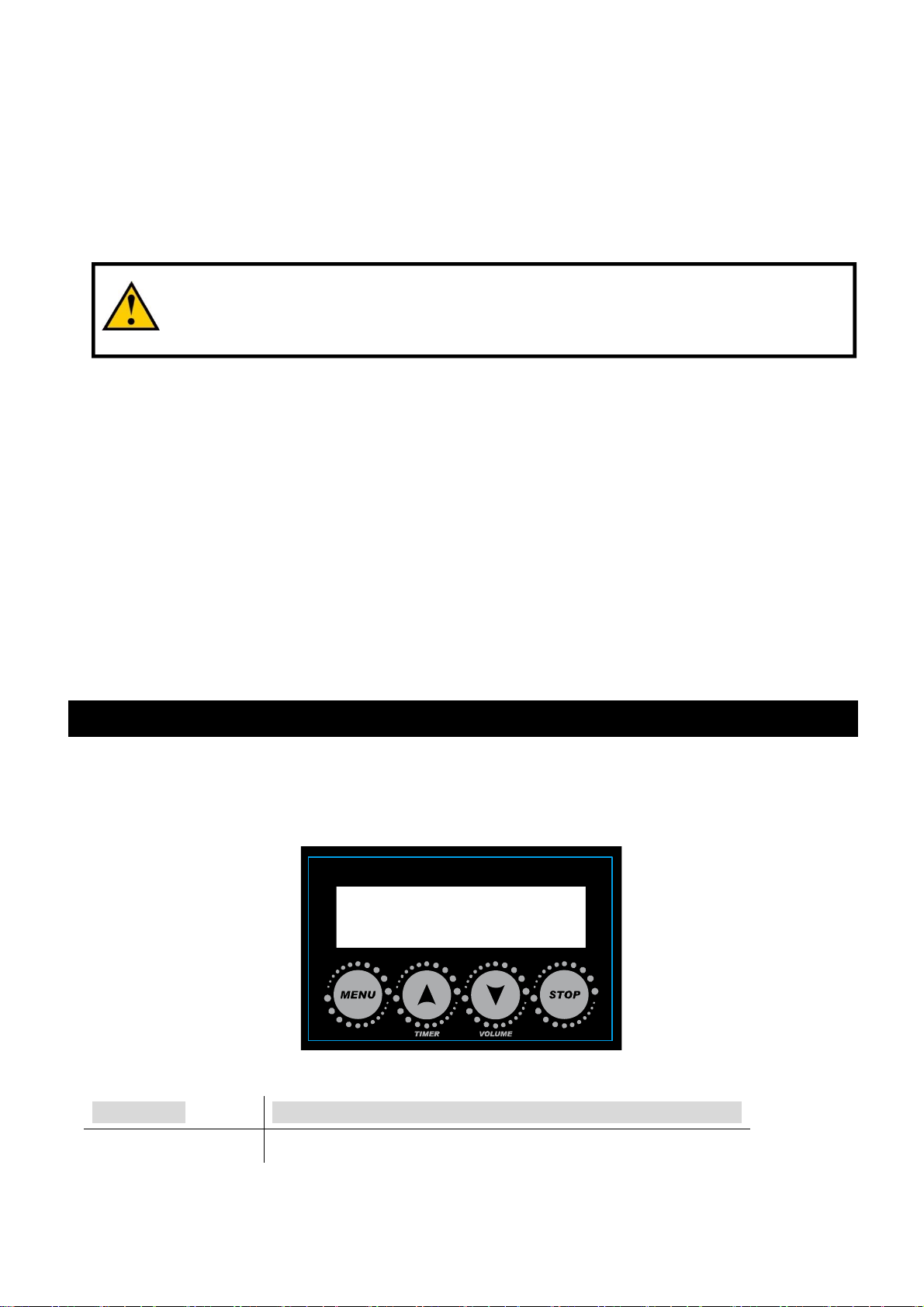

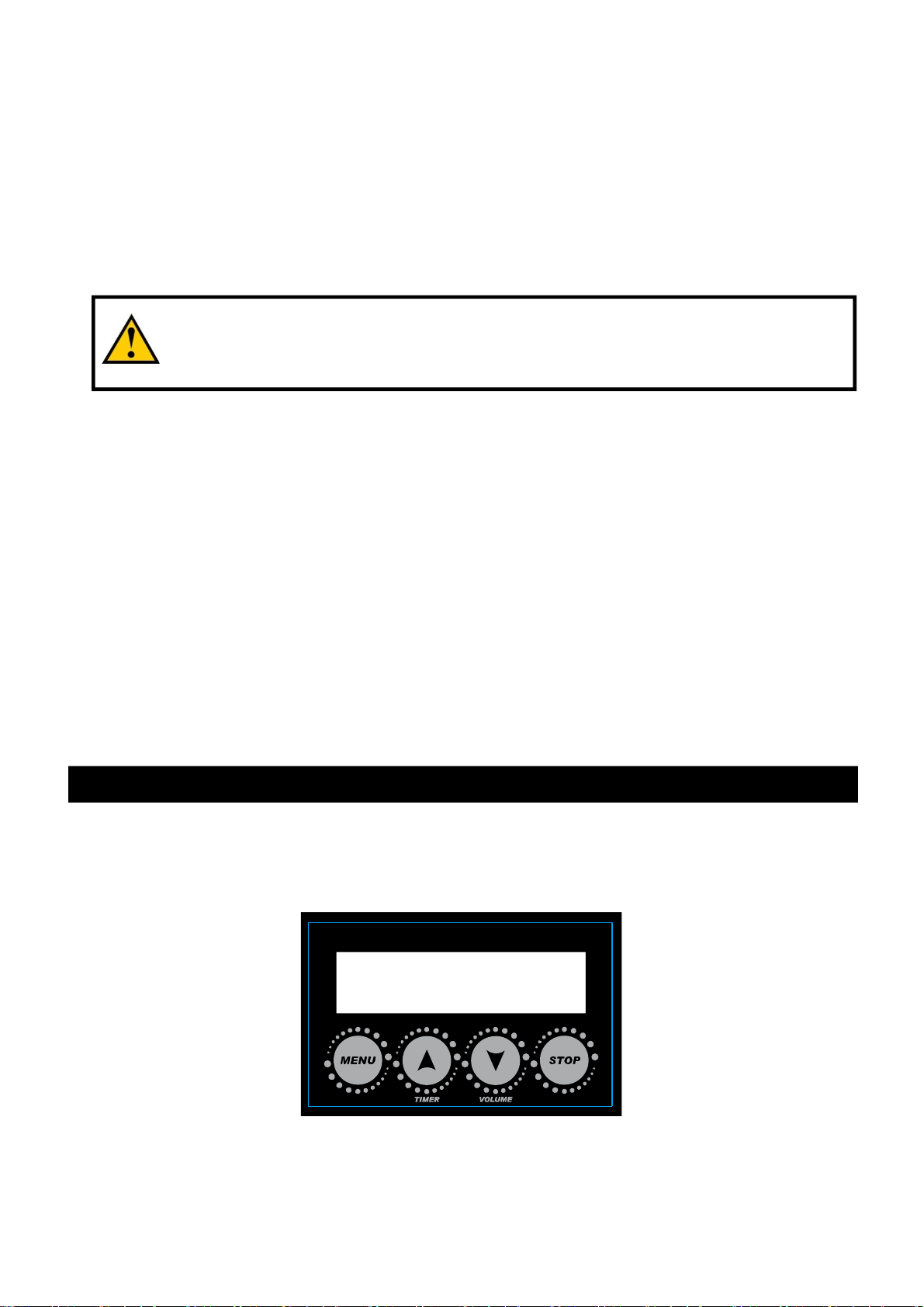

Control Panel Operation
The machine can be operated with the onboard digital control interface.
Antari F-7
Ready to Fog
Button Function
[MENU] Scroll through setting menu [UP]/[TIMER] Up/Activate Timer fucntion [DOWN]/[VOLUME] Down/Activate Volume function [STOP] Deactivate Timer/Volume function.
Or to select and memorize the setting. Hold 3 seconds to start self-cleaning process and shut down the machine
Control Menu
Operation Mode
Select Fog or Faze Mode
XXXX
6
Timer Interval
XXX Sec
Set interval time at Timer mode from 1 to 300 seconds
Timer Duration
XXX Sec
Timer Output
XXX %
Volume Output
XXX %
Fan Speed
XXX %
DMX-512
Address: XXX
Set duration time at Timer mode from 1 to 120 seconds
Set output volume at Timer mode from 20 to 100 %
Set output volume at Volume mode from 20 to 100 % or continuous output
Set fan speed from 20 to 100% or to turn off Fan
Set DMX/W-DMX address from 1 to 510
W-DMX Power
W-DMX Reset
Air Pump Sensor
Run Last Setting
XX
XX
XX
XX
Turn On/Off W-DMX function
Unlink from a W-DMX transmitter
Turn On/Off Air Pump Sensor
Turn On/Off run last setting function
7

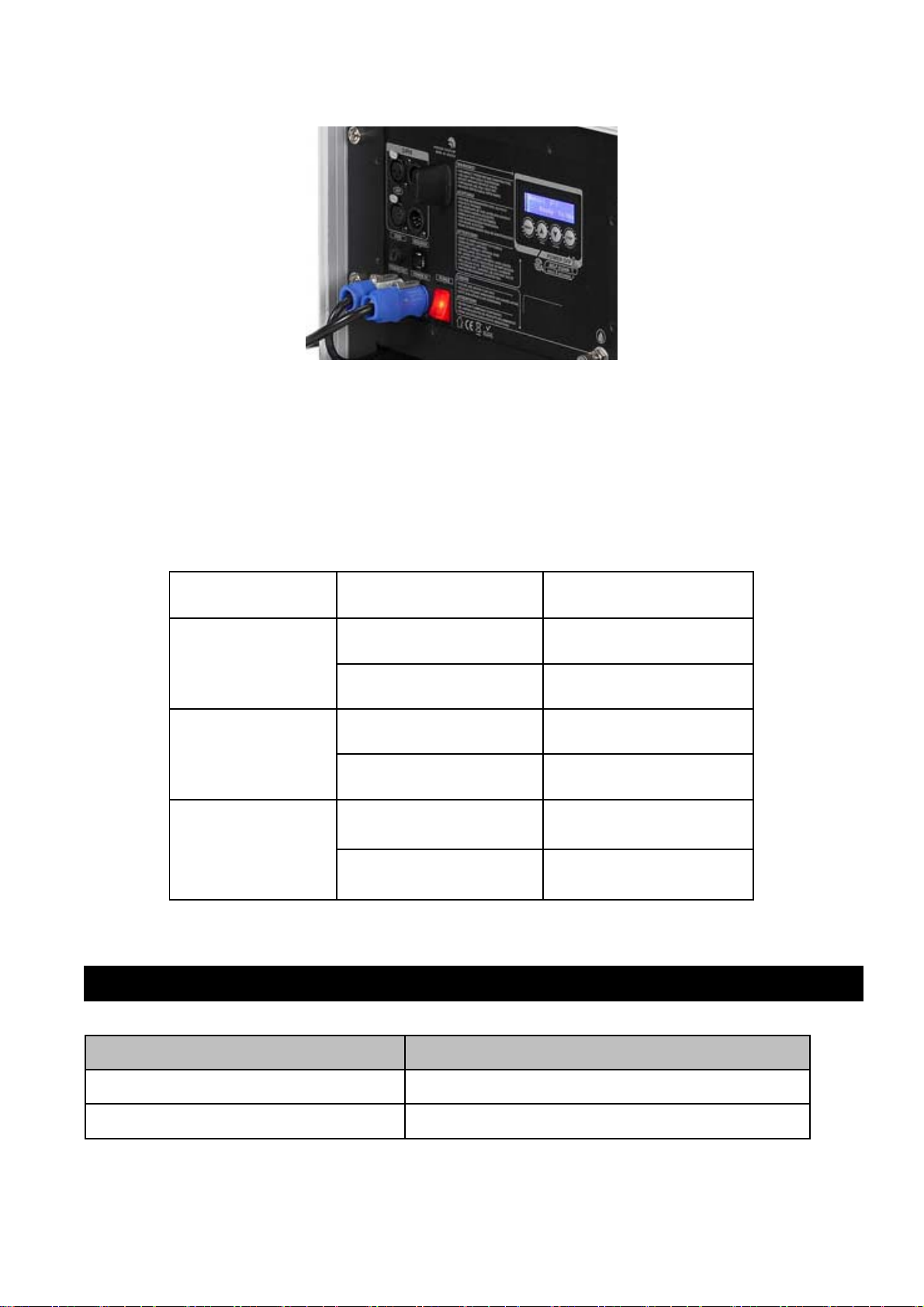

DMX Connector Pin Assignment

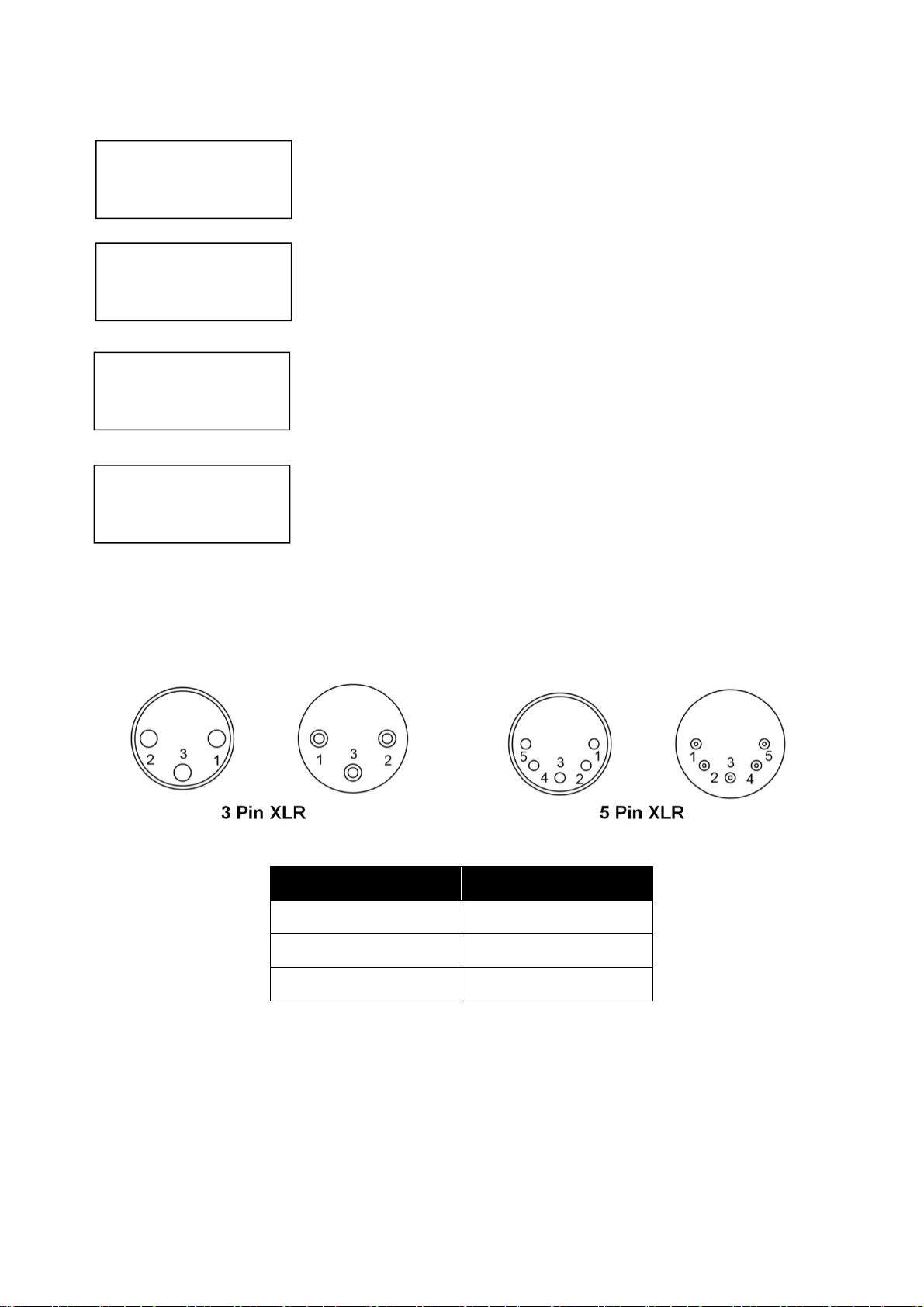

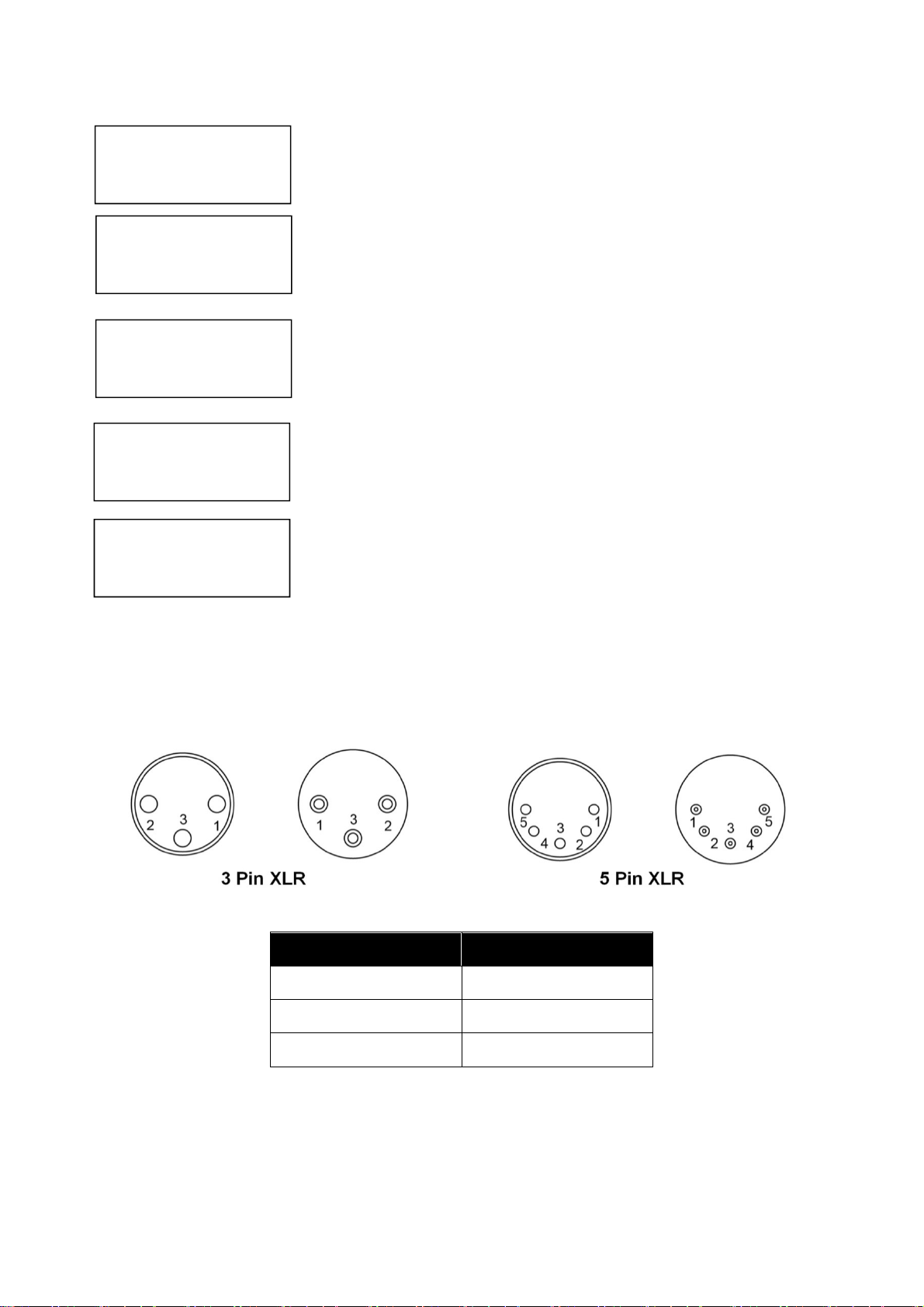

The machine provides a 3- or 5-pin XLR connector for DMX connection. The diagram below indicates pin assignment information.
Pin Function
1 Ground 2 Data­3 Data+
DMX Operation
Making the DMX Connection – Connect the machine to a DMX controller or to one of the machines in the DMX chain. The machine uses a 3-pin or 5-pin XLR connector for DMX connection, the connector is located on the front of the machine.
Address Setup – Use control menu to set DMX address. The machine occupies 3 control channels. The starting address is defined as the first channel from which the machine will respond to the controller. Always double check to make sure there are no overlapping channles in order to control the machine correctly.
8
DMX Channel Function
Channel Value Function
1
2
3
Status of W-DMX connection
0-127 Faze Mode
128-255 Fog Mode
0-5 Output Off
6-255 Output 21-100%
0-5 Fan speed at 20%
6-255 Fan speed 21-100%
Symbol on the Liquid Crystal Display
● ◎ ⊙ ○
Transmitter assigned, DMX signal received
Transmitter link lost or linking to transmitter
Status of W-DMX connection
Transmitter assigned, No DMX signal
Transmitter not assigned
Service and Maintenance
Do not allow the machine and fluid to become contaminated. Regularly fill distilled water to fluid tank and run the machine to clean the system.
After cleaning, refill Antari fog fluids into fluid tank and make sure machine can produce fog properly.
It is recommended to run the machine on a monthly basis in order to achieve best
performance and output condition.
Excessive dust, liquid and dirt built up will degrade performance and cause
overheating.
9
