ANTARES AMM-1 User Guide

©2000 Antares Audio Technologies. All rights reserved.
All trademarks are the property of their respective owners.
All names of microphone manufacturers and microphone model designations appearing in this manual are used solely to identify the microphones analysed in the development of our digital models and do not in any way imply any association with or endorsement by any of the named manufacturers.
Antares Audio Technologies 231 Technology Circle Scotts Valley, California 95066 USA
voice: (831) 461-7800 email: info@antarestech.com web: www.antarestech.com
Printed in USA Rev 1.1-11/2000
Contents
Welcome 5
Technical Support 6
Introducing the AMM-1 Chapter 1
Overview 7 About the Technology 8 So What Exactly Does It Do? 8
Setting Up Chapter 2 9
Panel Controls and Chapter 3 Connectors
The Front Panel 10 The Back Panel 13
Operation Chapter 4
Live or Mixdown? 14 Signal Flow 14 Controls 15
Input Section 15 Source Mic Section 16 Modeled Mic Section 21 Preserve Source 25 Tube Saturation 26 Bypass 27 Output Level 28 System Edit 28
The Microphone Models Chapter 5
Adding New Mic Models 33
Realistic Expectations Chapter 6 36
Get Creative Chapter 7 40
Appendix 41
Acknowledgments 47
AMM-1 Specifications 48
Index 49
Welcome!
On behalf of everyone at Antares Audio Technologies, we’d like to offer both our thanks and congratulations on your decision to purchase the AMM-1 Microphone Modeler.
Before you proceed any farther, we’d like to strongly encourage you to fill out and return the AMM-1 registration card. To make it as easy as possible, we’ve included a sticker with your serial number already attached to the card. It’s probably a good idea also to write it in your manual for future reference.
As an AMM-1 owner, you are entitled to receive notification of any software upgrades, technical support, and advance announcements of upcoming products. But we can’t send you stuff unless we know who and where you are. So please, send that card in.
At Antares, we are committed to excellence in quality, customer service, and technological innovation. With your purchase of the AMM-1, you have created a relationship with Antares which we hope will be long and gratifying. Let us know what you think. You can count on us to listen.
Again, thanks. The Whole Antares Crew
5
Technical Support
In the unlikely event that you experience a problem using your AMM-1, try the following:
1. Make another quick scan through this manual. Who knows? You may have stumbled onto some feature that you didn’t notice the first time through.
2. Check our web page for tips, techniques, or any late-breaking information: www.antarestech.com
3. Call your local Antares dealer.
4. Call us at (831) 461-7814 Monday through Friday between 9am and 5pm USA Pacific Standard Time.
5. Email us at: techsupport@antarestech.com
For options 3, 4 and 5, please be prepared to provide the serial number of your AMM-1.
6
Chapter 1: Introducing the AMM-1
Overview
If you’ve spent any time lately flipping through the pages of pro audio magazines, you have almost certainly noticed the intense focus on microphones. From the proliferation of exotic new mics to the almost cult-like following of certain historical classics, never has the choice been greater. But amassing a substantial collection of high-end mics is financially prohibitive for all but the most well­heeled studios.
Enter the Antares AMM-1. Using our patented Spectral Shaping Tool™ technology, we’ve
created digital models of a wide variety of microphones, from historical classics to modern exotics, as well as a selection of industry-standard workhorses. Simply tell the AMM-1 what microphone you are actually using and what microphone you’d like it to sound like. It’s as simple as that.
With the AMM-1, you can afford to record each track through a model of the specific mic that will best produce that ideal sound you’re looking for. Or use it in live performance to get the sound of mics you’d never consider using on stage. You can even use it during mixdown to effectively change the mic on an already recorded track.
Not only do the models reproduce the sonic characteristics that make each microphone unique, but they also give you control of each mic’s specific options. Does the mic have a low cut filter? If so, it’s in the model. Wind screen on or off? Close or far place­ment? Each option results in the same sonic effect that it would have with the actual modeled mic. And for that final touch of perfection, you can even add some tasty tube saturation.
And with the ability to download new models from our web site, the AMM-1 will always keep you at the forefront of the microphone art.
7
About The Technology
The models employed by the AMM-1 are not derived from theoreti­cal considerations. They are generated by a proprietary analysis process that is applied to each physical mic modeled. Not only the sonic characteristics, but the behavior of other parameters such as low-cut filters or proximity effects accurately reflect the specific performance of each individual microphone we model. The preci­sion of these models allows the AMM-1 to reproduce even the subtle (and sometimes not-so-subtle) sonic variations that one often finds in different samples of the same model of microphone. Conse­quently, for some important mics, we’ve provided multiple models, each based on measurements taken from individual mics.
Another advantage of our model-based approach is that there is essentially no processing delay apart from the natural phase effects of the microphones being modeled.
Finally, the quality and signal-to-noise characteristics of the process­ing are pristine. Because of our commitment to model-based pro­cessing, there are none of the limitations or distortions characteristic of FFT-based algorithms. The quality of the output is limited only by the quality of the input.
So What Exactly Does It Do?
While there is a lot of fairly complicated stuff going on under the hood, the essential functionality of the AMM-1 is really quite simple. Basically, audio originally recorded by a microphone is input to the AMM-1 where it is first processed by a “Source Model” which serves to neutralize the known characteristics of the input mic. The audio is then processed by a second “Modeled Mic” model which imposes the characteristics of the modeled mic onto the previously neutral­ized signal. Finally, the audio is passed through a model of a high­quality tube preamp offering the option of classic tube saturation distortion.
8
Chapter 2: Setting Up the AMM-1
Setting up the AMM-1 is very straightforward.
1. Find a suitable location. The AMM-1 is designed to be mounted in a standard 19-inch equipment rack.
2. Confirm that the included power supply is correct for the elec­tricity in your part of the world. If you are not sure, or the power supply has a plug that is incompatible with your wall sockets, contact your local Antares dealer for help.
Important! Do not attempt to modify the supply or use any other supply that is not specifically intended for the AMM-1.
3. First, connect the power supply’s 7-pin DIN connector to the AC INPUT jack on the rear of the AMM-1. Then plug the power supply into an AC outlet.
4. Connect a balanced or unbalanced audio input to one of the INPUT jacks or a digital input to the AES/EBU digital input connector. (see Chapter 3 for details).
5. Connect a cable to one of the Analog OUTPUT jacks or the AES/ EBU digital output connector and route the output as appropri­ate for your application.
6. If you will be controlling your AMM-1 via MIDI or downloading new mic models via Standard MIDI Files, connect a MIDI cable from your MIDI source to the ATR-1’s MIDI IN jack.
An Important Note About Grounding: The AMM-1 is an ex­tremely quiet piece of gear. When properly connected and grounded, analog noise and hum will be inaudible. However, as you’re no doubt well aware, every studio has its own unique quirks when it comes to connections, grounding and noise. For the absolute best sonic performance, ensure that your analog input and output are fully balanced.
9
Chapter 3: Panel Controls and Connectors
The Front Panel
1 Power Switch As will be immediately obvious, pushing this
button in turns on your AMM-1. It will be left as a exercise for the user to discover how to turn it off.
2 D-in LED This LED lights to indicate the presence of a valid
digital input at the AES/EBU input connector
3 Input Level Adjusts the digital level of the audio. Used in combi-
nation with the Level Meter LEDs to set the optimum input level without clipping. Turning this knob temporarily displays the input level in dBs on the LCD.
4 Input Level Meter These five LEDs light to indicate the level of
the audio as it is being processed by both the Source and Mod­eled mic models. Ideally, you should adjust the input to the highest level that does not consistently cause the top red LED to light. (The red LED lights at a level of -3dB. Digital clipping, which introduces a particularly nasty-sounding distortion, will occur if the input exceeds 0dB.)
10
5 Edit Select Button Press this button to select either the Source
Mic or Modeled Mic for editing. The associated LED lights to indicate the current selection.
6 Preserve Source Buttons Pressing the Treble or Bass Preserve
Source button causes the selected frequency range of of the input signal to be passed through the AMM-1 without process­ing (preserving the sound of your source mic in that range). The associated LEDs light to indicate this state.
7 LCD An easy-to-read 20 character by 2 line display. You can set
the optimum viewing angle in the System menu (See Chapter 4).
8 Data Entry Knob As its name implies, turn it to enter data.
AMM-1 Front Panel
1 3 13 147
2 4 5 6 8 9 10 11 12 15 16
9 Microphone/Cursor Button In normal operation mode, pressing
this button allows you to select your desired source or modeled mic. In System Edit Mode, this button lets you move the cursor in the LCD display from field to field so that you can change each field’s value using the Data Entry knob.
10 Proximity/Page Button In normal operation mode, pressing this
button allows you to control the proximity effect of the source or modeled mic. When in System Edit Mode, press this button to cycle sequentially through the available edit pages. You can only move in one direction, but there are so few pages in System mode that you are never more than a few presses away from where you want to be.
11 Low Cut/Enter Button In normal operation mode, pressing this
button allows you to select any available low cut filters for the source or modeled mic. When in System Edit Mode, press this button to confirm certain operations.
12 Pattern Button In normal operation mode, pressing this button
allows you to select any available response patterns for the source or modeled mic.
13 Tube Saturation Drive This knob (in combination with the Input
Level) controls the amount of tube saturation distortion that is applied to your signal. Turning this knob temporarily displays the drive level in dBs on the LCD.
14 System Button Press this button to set various parameters that
affect the AMM-1’s overall functionality (input format, new model download, LCD contrast, etc.) The accompanying LED lights to remind you that you are in System Edit Mode. When the LED is lit, press the SYSTEM button again to exit the System Edit Mode.
11
AMM-1 Front Panel
15 Bypass Button Press the Bypass button to pass audio through
the AMM-1 without any processing. The AMM-1 can also be placed into Bypass Mode via a footswitch or by MIDI. The accom­panying LED lights to remind you that you are in Bypass Mode, whether the mode was initiated by the Bypass button, the foot switch, or MIDI.
16 Output Level Sets the output level of the processed audio. This
control provides attenuation only; no gain is available. Turning this knob temporarily displays the output attenuation in dBs on the LCD.
12
The Back Panel
AMM-1 Back Panels
3 4 5 6 7 81 2
1 Balanced Line Inputs Inputs can be 1/4-inch TRS (tip-ring-sleeve)
Phone, 1/4-inch TS (tip-sleeve) Phone or female XLR.
Note: The XLR input is NOT a microphone input. A line level signal is required.
Also Note: If you use a 1/4-inch TS plug, the input will of course not be balanced.
Yet Another Note: The two inputs will not mix two signals. Plugging in a phone plug will disconnect the XLR input.
2 Line Outputs Outputs can be 1/4-inch TS (tip-sleeve) Phone
Unbalanced or male XLR Balanced.
3 AES/EBU Digital Input Connect an AES/EBU digital input
signal here.
4 AES/EBU Digital Output Provides AES/EBU digital output
regardless of the input format selection.
5 MIDI In Connect the MIDI Out from a MIDI sequencer, or other
MIDI source in here.
6 MIDI Out Not currently used. 7 Bypass Foot Switch Plug in a foot switch here. A 1/4-inch TS
(tip-sleeve) plug is required. There are two varieties of foot switch: those that are shorted by default and those that are open by default. You should plug in your foot switch and then power on the AMM-1. The AMM-1 will detect which kind of foot switch you have and behave accordingly.
8 AC Power Input Plug the 7-pin DIN connector from the included
power supply in here. Do NOT use a supply which is not ex­pressly intended for the AMM-1 (even if you could find one with that weird plug on it). Bad things could happen.
13
Chapter 4: Operation
Live or Mixdown?
The AMM-1 functions equally well processing audio during its original performance or later during the mixdown process. However, if you have the choice (which you typically will for everything but a live stage performance), we strongly recommend using the AMM-1 as an insert effect during mixdown. This will allow you to experi­ment with mic choice and various mic settings while auditioning their effect in the context of the entire mix.
If you do chose to work this way, it is important that you carefully document all mic data for each recorded track. This should include the mic used, any settings such as low-cut filter and/or response pattern selected, as well as the average distance between the mic and the signal source (singer, instrument, etc.). This information will be required to properly set the Source Mic controls during the mix.
Signal Flow
14
The AMM-1 is divided into a number of discreet functional blocks as follows (in the order of signal flow):
Input
For setting the input level of the audio to be processed
Source Mic
For indicating the mic (and the state of its various parameters) that was actually used to record the audio.
Modeled Mic
For selecting the mic (and the state of its various parameters) whose sound you would like to model.
Tube Saturation
For adding a model of analog tube saturation distortion.
Controls
Input Section
Controls: Input Section
Output
For setting the output level of the processed audio. The use of each of the individual controls is covered below.
The Input Level knob adjusts the digital level of the audio. Turning the Input Level knob will temporarily display the Input Level value on the LCD:
Input gain (dB) +11.3
In most instances, you should start with the Input Level set to 0dB. If you are using an analog input, use your mixer to adjust the level of the input signal such that it doesnt cause the -3dB LED of the Level Meter to light consistently.
The Level Meter displays the level of the audio as it is being pro­cessed by both the Source and Modeled mic models. Because some models (or combinations of models) can result in increased ampli­tude at various frequencies, changing to a different mic model or changing a models settings may require an adjustment of the Input Level to avoid clipping.
If you are using a digital input, you should, again, start with the Input Level set to 0dB. You should typically only increase the Input Level for the purpose of increasing the range of Tube Saturation (see below) or decrease the Input Level setting if the combination of models results in digital clipping. Increasing the Input Level, simply to get the highest Level Meter reading without clipping, will NOT result in the increased dynamic range that would result from such an analog adjustment.
15
Source Mic Section
Press the Edit Select button until the Source LED is lit. This puts the AMM-1 in Source Mic Edit Mode and allows you to specify the mic and the settings that were (or will be) used to capture the input sound. The purpose of these selections is to remove the effect of the source microphone, resulting in the signal that would have been recorded by an ideal instrumentation microphone with no proximity effect.
Source Mic Selection
Pressing the Microphone button while in Source Edit mode brings up the Source Select screen and allows you to use the Data Knob to select your source mic. Repeatedly pressing the Microphone button moves the cursor between the three editable fields:
Controls: Source Mic Section
Src:aaaaaaaaaaaaaaaa x y:bbbbbbbbbbbbbbbb
aaaaaaaaaaaaaaaa Manufacturer Name bbbbbbbbbbbbbbbb Microphone Name x A/B Compare
In addition, if the currently selected mic is stored in FLASH memory (as opposed to EPROM), the y field will contain an “*” to indicate that the model is capable of being deleted (see the System Edit section for more details). Otherwise it will be blank.
When you first press the Microphone button, the cursor will appear in the Manufacturer Name field and turning the Data Knob will scroll through all of the available manufacturers. As each manufac­turer is selected, the Microphone Name field will display the first listed mic from that manufacturer.
Pressing the Microphone button a second time will place the cursor in the Microphone Name field and allow you to use the Data Knob to select the specific mic of your choice.
Note: Once the cursor is in the Microphone Name field, you may continue turning the Data Knob to scroll through all of the mics in the list. Mics are listed alphabetically by manufacturer name.
16
Source Mic Selection
In some cases a mic will have a second listing with -w appended to the mics name. This indicates that the mic we modeled was supplied with a windscreen and this is the model of the mic with the windscreen attached. If your audio was captured using the windscreen, you should select this version of the model.
Some mic names will have as a suffix (m1) or (m2). This indi­cates different examples of the same model of mic, often with some variation or custom modification of the basic model.
Additionally, the list offers a selection called Bypass. When Bypass is selected, the source signal is passed unmodified to the Modeled Mic section. You should select Bypass when your source was not recorded with a microphone (e.g., guitar via direct box, direct synth input, etc.).
If your desired mic is not listed in the menu (nor available as an additional model on our web site), you can try one of the following (in order of preference):
1 Use a different mic that is listed this is, of course, only an
option if youve not yet recorded the audio and do, in fact, have another listed mic.
2 Select another mic on the list whose characteristics are known to
be similar to your mic (a similar model from the same manufac­turer, for example).
3 Select another mic of the same general type as your mic, e.g.,
dynamic, large diaphragm condenser, etc.
4 Select Bypass from the menu
It must be stressed that selecting option 2, 3 or, especially, 4, will compromise the AMM-1’s ability to accurately reproduce the sound of the desired modeled mic. Thats not to say that you won’t be able to get something that sounds great, just that its unlikely to be an accurate simulation of whatever mic you chose in the Modeled Mic section.
In particular, if you choose Bypass as the Source Mic and any mic as the Modeled Mic, the resulting effect is equivalent to having re­corded the audio with the actual physical mic (which you, of course, did) and then having played back that track through a perfect set of speakers and rerecorded it with the Modeled Mic. Again, maybe a great sounding creative effect, but not an accurate representation of the Modeled Mic.
17
A/B Comparison/Proximity
Note: If we dont have a model of your mic and you really, really want to use it as a source mic, you might consider giving us a call and seeing if were interested in modeling it. If so, you’d have to be willing to send it to us and have it out of your possession for about 5 working days.
A/B Comparison
Pressing the Microphone button a third time will move the cursor from the Microphone Name field to the A/B Compare field. This function is used to instantaneously compare the effects of two different Source Mic selections.
Begin by turning the Data Knob until “A” appears in the field (if it doesnt already). Now move the cursor to the Manufacturer or Microphone Name field as desired and select the first mic to com­pare. Move the cursor back to the A/B Compare field and turn the Data Knob to display “B” and then once again move the cursor to select the second mic you wish to compare. Finally, move the cursor back to the Compare field and turn the Data Knob to switch back and forth between the two mics while listening to your audio.
Note: The A/B Compare function switches not only the selected mics, but their associated Proximity, Low Cut, and Pattern settings as well. To take advantage of this, select the “A” mic and set the Proximity, Low Cut, and Pattern as described below. Then return to the Microphone Selection screen and use the Compare field to select the “B” mic and then set its Proximity, Low Cut, and Pattern. Finally, return to the Microphone Selec­tion screen again, move the cursor back to the Compare field and turn the Data Knob to switch back and forth between the two mics (and their respective settings) while listening to your audio.
18
Proximity
Pressing the Proximity button while in Source Mic Edit mode will display something like this:
Source Proximity
6.50 inches
and allow you to use the Data Knob to set the average distance that separated the the mic and the signal source during the recording of the audio.
Source Mic Edit: Low-Cut Menu
The purpose of this control is to allow the model to remove any Proximity Effect that may have been introduced by the source mic.
Note: Proximity Effect is a boost in bass frequencies resulting from placing a directional mic in close proximity to a signal source. The amount of the effect varies from mic to mic, and is inversely proportional to the distance from the mic to the source (i.e., the smaller the distance, the greater the bass boost).
Mics operating in omnidirectional mode do not exhibit a proximity effect. Consequently, if the source mic is an omni mic, or the source mic has selectable patterns and omni is chosen, the Proximity will default to no proximity effect.
Note: Like the Low-Cut control described below, the Source Mic Proximity control may initially seem to be working backwards (i.e., setting a shorter distance will result in an audible bass attenuation). Refer to the explanation down in the Low-Cut section to understand why this is actually how it is supposed to work.
Also note that the effect of the Proximity control is unique for each model of microphone. The AMM-1 does not use a generalized approximation of proximity effect. Each model reflects the specific physical properties that create the proximity effect for that indi­vidual mic.
Low-Cut Menu
Pressing the Low Cut button while in Source Mic Edit mode will display something like this:
Source LowCut 80 Hz
If the mic you select as the Source Mic is equipped with a user­selectable low-cut filter, pressing the Low-Cut button will allow you to use the Data Knob to select from among the actual filter settings available on that mic. (If the selected mic does not have a low-cut filter, the display will default to none..)
If the source mic does include a low-cut filter, select the low-cut setting that was (or will be) used when capturing your audio.
19
Controls: Pattern
Note: It is important to keep in mind that the purpose of this setting is to undo the effect of any low-cut filter that was used to capture your audio. If you play around with this setting, you may initially think that it working backwards. That is, changing the menu selection from OFF to any filter setting will actually cause a bass boost in the monitored audio.
However, once you think about it, you will realize that this is the way its supposed to work. The purpose of all the controls in the Source Mic section is to neutralize the effects of the source mic. So, when you select a low-cut filter, you’re telling the AMM-1 that the source mic recorded the audio with that much bass attenuation and, therefore, the model must now boost the bass an equal amount to remove the source mics sonic coloration. (Trust us, this fried our brains a bit at first, too.)
Pattern
Pressing the Pattern button while in Source Mic Edit mode will display something like this:
Source Pattern Cardioid
20
If the mic you select as the Source Mic menu is equipped with user­selectable pick-up patterns (i.e., omni, cardioid, hypercardioid, etc.), pressing the Pattern button will allow you to use the Data Knob to select from the actual pattern settings available on that mic. (If the source mic does not have selectable patterns, the display will default to none.”)
If the source mic does include multiple patterns, select the pattern that was (or will be) used when capturing your audio.
Note: The purpose of the Pattern selection is to neutralize the varying frequency characteristics that result from each of the available pattern settings, with the assumption that the audio was recorded on axis (i.e., from the front of the microphone). Since the AMM-1 has no way of knowing the actual placement of the signal source, it does not attempt to simulate off-axis performance.
Modeled Mic Section
Heres where the fun really starts. Press the Edit Select button until the Model LED is lit. This puts the AMM-1 in Modeled Mic Edit Mode and allows you to select the mic (and its settings) whose characteris­tics you to want to apply to your audio.
Mod:aaaaaaaaaaaaaaaa x y:bbbbbbbbbbbbbbbb
Pressing the Microphone button while in Model Edit mode brings up the Model Select screen and allows you to use the Data Knob to select your desired modeled mic. Repeatedly pressing the Micro­phone button moves the cursor between the three editable fields:
aaaaaaaaaaaaaaaa Manufacturer Name bbbbbbbbbbbbbbbb Microphone Name x A/B Compare
In addition, if the currently selected mic is stored in FLASH memory (as opposed to EPROM), the y field will contain an “*” to indicate that the model is capable of being deleted (see the System Edit section for more details). Otherwise it will be blank.
Modeled Mic Section
When you first press the Microphone button, the cursor will appear in the Manufacturer Name field and turning the Data Knob will scroll through all of the available manufacturers. As each manufac­turer is selected, the Microphone Name field will display the first listed mic from that manufacturer.
Pressing the Microphone button a second time will place the cursor in the Microphone Name field and allow you to use the Data Knob to select the specific mic of your choice.
Note: Once the cursor is in the Microphone Name field, you may continue turning the Data Knob to scroll through all of the mics in the list. Mics are listed alphabetically by manufacturer name.
In some cases a mic will have a second listing with -w appended to the mics name. This indicates that the mic we modeled was supplied with a windscreen and this is the model of the mic with the windscreen attached. If you want your audio to sound as if it were captured with a windscreen, you should select this version of the model.
21
Modeled Mic Section: A/B Comparison
Some mic names will have as a suffix (m1) or (m2). This indi­cates different examples of the same model of mic, often with some variation or custom modification of the basic model.
Additionally, the list offers a selection called Bypass. When Bypass is selected, no mic model is applied. The net sonic effect of selecting Bypass here depends on the setting of the Source Mic:
If the correct source mic is selected in the Source Mic list and Bypass is selected in the Modeled Mic list, the final output of the AMM-1 will be stripped of the characteristics of the source mic, resulting in the signal that would have been recorded by an ideal instrumentation microphone with no proximity effect.
If Bypass is selected in the Source Mic list and Bypass is selected in the Modeled Mic list, the final output of the AMM-1 will be identical to the original input signal (with the exception of any added tube saturation).
A/B Comparison
Pressing the Microphone button a third time will move the cursor from the Microphone Name field to the A/B Compare field. This function is used to instantaneously compare the effects of two different Model Mic selections.
22
Begin by turning the Data Knob until “A” appears in the field (if it doesnt already). Now move the cursor to the Manufacturer or Microphone Name field as desired and select the first mic to com­pare. Move the cursor back to the A/B Compare field and turn the Data Knob to display “B” and then once again move the cursor to select the second mic you wish to compare. Finally, move the cursor back to the Compare field and turn the Data Knob to switch back and forth between the two mics while listening to your audio.
Note: The A/B Compare function switches not only the selected mics, but their associated Proximity, Low Cut, and Pattern settings as well. To take advantage of this, select the “A” mic and set the Proximity, Low Cut, and Pattern as described below. Then return to the Microphone Selection screen and use the Compare field to select the “B” mic and then set its Proximity, Low Cut, and Pattern. Finally, return to the Microphone Selec­tion screen again, move the cursor back to the Compare field and turn the Data Knob to switch back and forth between the two mics (and their respective settings) while listening to your audio.
Modeled Mic Section: Low-Cut Menu
Proximity
Pressing the Proximity button while in Model Mic Edit mode will display something like this:
Model Proximity
6.50 inches
and allow you to use the Data Knob to select a mic distance for a desired amount of proximity effect.
Note: Proximity Effect is a boost in bass frequencies resulting from placing a directional mic in close proximity to the signal source. The amount of the effect varies from mic to mic, but is generally inversely proportional to the distance from the mic to the source (i.e., the smaller the distance, the greater the bass boost).
Using the Data Knob to set a particular distance will result in the amount of proximity effect that would be produced by the actual modeled mic when placed at that distance from the signal source.
The effect of the Proximity control is unique for each model of microphone. The AMM-1 does not use a generalized approximation of proximity effect. Each model reflects the specific physical proper­ties that create the individual proximity effect for that mic.
Note: A secondary effect of mic-to-source distance is the extent to which environmental ambience is picked up by a mic. For example, as a mic is moved away from the source, the proximity effect decreases, but the amount of room tone increases (assuming that you are not in an anechoic chamber). The AMM-1 does not model this effect. However, judicious use of the Proxim­ity control in combination with some appropriately programmed reverb will allow you to create the same effect, with the addi­tional bonus of being able to control the exact nature of the room tone.
Mics operating in omnidirectional mode to not exhibit a proximity effect. Consequently, if the modeled mic is an omni mic, or the modeled mic has selectable patterns and omni is chosen, the Proxim­ity will default to no proximity effect.”.
23
Modeled Mic Section: Low-Cut Menu
Low-Cut Menu
Pressing the Low Cut button while in Model Mic Edit mode will display something like this:
Model LowCut 80 Hz
If the mic you select as the Model Mic is equipped with a user­selectable low-cut filter, pressing the Low-Cut button will allow you to use the Data Knob to select from among the actual filter settings available on that mic. (If the selected mic does not have a low-cut filter, the display will default to none..)
If the modeled mic does include a low-cut filter, selecting a low-cut setting will reproduce the same effect that selecting that setting would have on the actual modeled mic.
Note: The setting labels that appear in the menu are those that appear on the physical mic. In some cases, the label is the cut-off frequency of the low-cut filter as specified by the mics manufac­turer. However, the AMM-1 does not simply apply a generic low­cut filter at the stated frequency, but instead models the actual filter performance of each modeled mic. In other words, a stated cut-off frequency is only as accurate as the filter on the actual mic.
Another Note: Although its always best to let your ears be your guide, if your audio was recorded with the source mics low-cut filter turned on, in most cases it will be best to turn on the modeled mics low-cut filter as well. (After all, there was pre­sumably some reason that someone chose to use that filter in the first place.)
24
Pattern
Pressing the Pattern button while in Model Mic Edit mode will display something like this:
Model Pattern Cardioid
Preserve Source
Preserve Source
If the mic you select as the Model Mic menu is equipped with user­selectable pick-up patterns (i.e., omni, cardioid, hypercardioid, etc.), pressing the Pattern button will allow you to use the Data Knob to select from the actual pattern settings available on that mic. (If the modeled mic does not have selectable patterns, the display will default to none.”)
If the modeled mic does include multiple patterns, select the pattern whose characteristics produce the effect you desire.
Note: The purpose of the Pattern selection is to model the varying frequency characteristics that result from each of the available pattern settings, with the assumption that the audio was recorded on axis (i.e., from the front of the microphone). Since the AMM-1 has no way of knowing the actual placement of the signal source, it does not attempt to simulate off-axis performance.
The Preserve Source buttons allow you to split your audio into its bass and treble ranges and process each range separately. This lets you create hybrid mics that combine the bass characteristics of one mic and the treble characteristics of another. One of the two mics will be your actual source mic and the other can be selected from any of the available models.
Say, for example, that you have a mic whose bass response is great for a particular track, but whose treble response just doesnt sound right. With this feature you can preserve the bass response of your source mic while replacing its treble characteristics with that of any of the modeled mics.
Heres how it works:
1 Make all the appropriate settings for the Source Mic section. (Do
not select Bypass unless you are going for some special effect, as it will defeat the normal function of this feature.)
2 Choose the other mic for your hybrid and make all the appropri-
ate Modeled Mic settings. (Again, do not select Bypass unless you are going for some special effect.)
3 In the Preserve Source section, press either the Bass or Treble
button (its associated LED will light) depending on whether you want to preserve the bass or treble characteristics of your source mic.
25
Preserve Source/Tube Saturation
There are four possible states of the two Preserve Source buttons. Heres what each does (o =LED lit):
1) Preserve Source: Treble O Bass O With neither button pressed, frequency splitting does not take place
and the AMM-1 operates in its normal manner according to the settings in the Source and Modeled Mic sections.
2) Preserve Source: Treble O Bass o With the Bass button pressed, the source mics bass characteristics
are allowed through unchanged while the treble characteristics are neutralized. Then, at the model end, only the models treble charac­teristics are applied to the signal. The net effect is that you get the source mics bass characteristics and the modeled mic’s treble charac- teristics.
3) Preserve Source: Treble o Bass O This, as youve probably guessed, is the reverse of no. 2. With the
Treble button pressed, the source mics bass characteristics are neutralized while the treble characteristics are allowed through unchanged. Then, at the model end, only the models bass charac­teristics are applied to the signal. The net effect is that you get the source mics treble characteristics and the modeled mic’s bass charac- teristics
Tube Saturation
26
4) Preserve Source: Treble o Bass o With both buttons pressed, both the source’s bass and treble charac-
teristics are allowed through unchanged and no model is applied to either range. This is equivalent to selecting Bypass for both the Source Mic and Modeled Mic, with the exception that the Proximity controls for both the source and modeled mics remain active.
The Tube Saturation section is designed to model the distortion that is typical of a high-quality tube pre-amp.
When tube pre-amps are operated in their linear range, there is virtually no signal distortion and their audio qualities are essentially identical to solid state pre-amps. However, it commonly occurs that transients exceed the linear voltage range, resulting in distortion. The distortion characteristics of a vacuum tube pre-amp is vastly different than that of solid state amplifiers and is often described as adding a certain warmth to a sound (in contrast to what is often described as the brittleness of the solid state sound).
Tube Saturation/Bypass
The amount of tube saturation effect applied to your audio is controlled by the Tube Saturation Drive control in combination with the Input Level control. Turning the Drive knob will temporarily display the Drive Level value on the LCD:
Drive gain (dB) +8.5
The Drive control determines the amplification factor of the mod­eled tube pre-amp with the numeric display indicating the amplifi­cation in dB. At 0 dB , no distortion occurs, even for full amplitude (+1 or -1) signal levels. These levels represent the rails of the amplifier. As the Drive is increased, the amplification is increased. Any regions of the signal that increases beyond the rails generate distortion. (But instead of the usual ugly digital clipping, they are distorted the same way the tube pre-amp would distort the sound.)
Because the maximum drive is limited to +10 dB, using the Tube Saturation model requires the original signal to be at a level greater than -10 dB. If this is not the case, you should adjust the Input Level control to increase the level of the sound. (Be certain that Input Level is not increased so much as to cause digital distortion.) It may be necessary to to go back and forth between Drive and Input Level a few times to get exactly the effect you want.
Bypass
Note: If your audio was recorded at an exceptionally low level, it may be that even maximum Input Level and maximum Drive will still not result in a level high enough to generate distortion. In that case, either re-record your audio at a higher level (if pos­sible) or use an available digital waveform editor to digitally increase the level (keeping in mind that this may negatively affect the signal quality).
If you want to add tube saturation distortion without otherwise affecting your sound, set both the Source Mic and Modeled Mic to Bypass.
Pressing the Bypass button passes audio through the AMM-1 with­out any processing. The AMM-1 can also be placed into Bypass Mode via the Bypass Footswitch or by MIDI.
The MIDI SysEx message to engage Bypass is:
F0 00 01 26 11 02 F7
27
Output Level
Bypass/Output Level/System Edit
The MIDI SysEx message to defeat Bypass is:
F0 00 01 26 11 03 F7
The accompanying LED lights to remind you that you are in Bypass Mode, whether the mode was initiated by the Bypass button, the footswitch, or MIDI.
The Output Level control is used to fine-tune the AMM-1s output level. Turning the Output Level knob will temporarily display the Output Level value on the LCD:
Output Level (dB)
-04.5
This control is strictly an attenuator (i.e., no gain is available). You should always start with it at 0dB (its maximum value) and then reduce level as necessary. It is particularly useful when adding large amounts of tube saturation.
System Edit
28
Pressing the SYSTEM button at any time will place the AMM-1 in System Edit mode. The System Edit pages allow you to set param­eters which affect the AMM-1 globally, as well as to access the FLASH Model Management functions.
When is System Edit mode, the Microphone, Proximity and Low Cut buttons function according to their secondary red labels (i.e., as Cursor, Page and Enter buttons).
Navigation
Press the Page button to cycle sequentially through the available edit pages. You can only move in one direction, but there are so few pages in System mode that you are never more than a few presses away from where you want to be.
If a page includes more than one editable field, Press the Cursor button to move from field to field.
After you have finished making changes, press the SYSTEM button again to return to normal operation.
System Edit: Input/Output Page
Input/Output Page
Input: xxxxxxxxxxxxx SRate: yyyyyyyy zzzz
This page is used to set the format and sample rate of the AMM-1’s input. Use the Cursor button to move between the Input and Sample Rate fields.
In the Input field, xxxxxxxxxxxxx represents one of the following input options:
ANALOG Process the signal appearing at the analog
input. The processed signal will appear at the Analog output. In addition, The AES/EBU output will contain the processed data on the left (channel 1) and the negative (180 degree out of phase) of that data on the right (channel 2).
Ch1, Ch2 THRU Digital Input. AES/EBU channel 1 is processed,
channel 2 is passed through unchanged.
Ch2, Ch1 THRU Digital Input. AES/EBU channel 2 is processed,
channel 1 is passed through unchanged.
Ch1, Ch2 ZERO Digital Input. AES/EBU channel 1 is processed,
channel 2 is zeroed.
Ch2, Ch1 ZERO Digital Input. AES/EBU channel 2 is processed,
channel 1 is zeroed.
In the Sample Rate field, yyyyyy represents one of the following sample rate options:
44100 44.1 kHz 48000 48.0 kHz DIGTL IN Detects the sample rate of the signal at the digital
input and slaves the system clock to that signal.
This field is only editable when ANALOG is selected in the Input field.
The zzzz field displays the sample rate detected at the digital input. If the digital input is not used, the field is blank. When one of the digital input options is selected or DIGTL IN is selected with an analog input, zzzz will display one of the following:
29
System Edit
44.1 44.1 kHz
48.0 48.0 kHz Err Neither 44.1 kHz nor 48.0 kHz or no digital input is
present
Allow Downloads Page
Allow mic downloads? xxx
When the xxx field is set to Yes, the AMM-1 will respond to MIDI downloads of new mic models. When it is set to”No,” it will ignore such downloads. (See Chapter 5 for details on downloading new mic models.)
This page is of primary use to those who have more than one AMM-1 in their system, as it allows you to specify exactly which units will receive any particular download. The more cautious among you might also want to keep this set to No so that there is no chance of any inadvertent downloads.
30
LCD Contrast Page
LCD contrast xx
The LCD Contrast parameter lets you set the optimum display contrast for your viewing angle.
Delete/Restore FLASH Models Page
<Enter> to: xxxxxxx yyy:zzzzzzzzzzzzzzzz
or
<Enter> to: (no models in FLASH)
System Edit
This page allows you to specify for each mic model downloaded into FLASH memory whether or not it will appear in the appropriate mic selection list. It is also the first step in permanently erasing a model from FLASH memory (see the Compress FLASH Page below for more details).
A bit of explanation: When you first take your AMM-1 out of the box, it contains models of approximately 100 mics perma­nently stored in EPROM (more accurately, 200 models, in that each mic model includes both a source version and a model version). In addition, the AMM-1 includes enough FLASH memory to hold approximately 100 more mic models (again, actually 200, counting source and model versions).
Initially the FLASH memory is empty. When you download new models from our web site and load them into your AMM-1 via MIDI they are stored in the FLASH memory. This page and the FLASH management pages that follow let you monitor the FLASH memory and take appropriate action should you ap­proach its maximum capacity.
Accessing this page when there are no mic models stored in FLASH will result in the the message no models in FLASH.
If new models have previously been stored in FLASH, you will see the top screen, where yyy:zzzzzzzzzzzzzzzz shows the currently selected FLASH model. If that model is a Source version,
yyy appears as Src. If that model is a Model version, yyy
appears as Mod.
zzzzzzzzzzzzzzzz is the model name, indicating both the
manufacturer and mic name. The content of the xxxxxxx field depends on the current state
of each particular model. When a new model is loaded into FLASH it is automatically set to be active. That is, it appears in both the Source and Model mic selection lists. When you select a currently active mic on this page, the top line of the display will read:
<Enter> to: delete
Pressing the Enter button at this point will mark the model as deleted. Once a model is marked deleted, it will no longer show up in the appropriate mic selection list. However, note that it is not removed from FLASH. Deleted models are only removed from FLASH using the Compress FLASH Page discussed below.
31
System Edit
When you select a model that has previously been marked as de­leted, the top line of the display will read:
<Enter> to: restore
Pressing the Enter button at this point will restore the model to active status. It will once again appear in the appropriate mic selection list and will not be subject to erasure during the FLASH compression process.
Note: The Source and Model versions of each mic may be indi­vidually set to active or deleted status. For example, if you download a model of a mic that you dont physically own, you might decide to delete the Source version (since you wont be choosing it as a Source mic) but leave the Model version active so that you can choose it as a modeled mic.
FLASH Info Page
Active models: 47% Deleted models: 12%
32
This screen displays the percentage of FLASH that is used by active and deleted models respectively. If these numbers are added, and in turn subtracted from 100, the result is the percentage of FLASH that is unused.
For example, the data in the screen above shows that 59% of the flash is currently used, with 41% available for future downloads.
Compress FLASH Page
Press Enter to erase deleted FLASH models
Heres where the models that you marked Deleted back up in the Delete/Restore FLASH Models Page can be physically removed from FLASH to make room for other models. Simply navigate to this page and press the Enter button. All Deleted models will be removed and the FLASH will be defragmented. Depending on the number of models to be removed, compressing may take as long as 45 seconds. During this time, the message ...working... will appear on the display.
Chapter 5: The Microphone Models
Your AMM-1 comes with a collection of approximately 100 mic models permanently stored in EPROM. (A complete list will be found in the Appendix to this manual.) In addition, we are constantly modeling more mics. Whether new mics that have just come to market, or classics weve just managed to get ahold of, you should find an ever-growing collection to download from our website.
Wed also appreciate any suggestions you have for specific mics to model. Email your suggestions to us at info@antarestech.com with the words Mic Suggestion in the subject line. We cant guarantee that well be able to include every mic suggested, but if we see certain mics getting a lot of votes well do our best to include them.
Adding New Mic Models
To add new models to your AMM-1 you will need a Mac or PC computer equipped with the following:
An internet connection (to download the model files from our web site)
An application capable of opening and playing Standard MIDI Files (pretty much any MIDI sequencer should do the trick)
A MIDI interface (for transferring the data to the AMM-1)
When you download a new mic model file from our web site, what you end up with is a Standard MIDI File. The AMM-1 Standard MIDI files hold System Exclusive messages (SysEx messages), which in turn hold model data for the AMM–1.
Once youve downloaded the file, open it in a MIDI sequencer and simply play it into your AMM-1 (making sure that youve first se­lected Yes on the Allow Downloads page).
33
Adding New Mic Models
When the AMM-1 detects the new mic file, the following message will appear on the LCD:
Busy receiving MIDI model download
The models are written to the FLASH memory as they are received. Once all of the models have been received, the names of the new mics are merged into the mic selection lists. while this is happening, the following message is displayed:
Adding new models to menus
This all happens fairly quickly. In the worst case, 100 microphones (200 models) would take about 60 seconds to download and take about 15 seconds to sort into the menus. In the more likely case of a file containing 4 new models, the entire process would take less than 4 seconds (and the Adding new models screen would go by almost too fast to see).
34
Note: Many MIDI sequencers provide the capability to edit Standard MIDI Files. In the case of AMM-1, you should resist any temptation you may have to use this ability to fool around with the contents of the mic model files. Corruption of the FLASH memory by user-mangled MIDI SysEx messages may cause the AMM-1 to malfunction beyond the ability to operate and totally bizarre events may occur. Really. Were not kidding about this. These problems are usually recoverable, but it will almost certainly require a call to Customer Support.
Another Note: Pausing the flow of MIDI data in the middle of a SysEx message can occur with no lost information. Simply resume playing the file to complete the data transfer. On the other hand, data missing from the middle of a SysEx message will cause the remaining models in that SysEx message to be ignored.
Adding New Mic Models
If FLASH memory becomes full in the middle of a download, the following message is displayed:
Error, FLASH full. Press bypass...
Press the Bypass button to return to normal operation. If necessary, use the Delete/Restore FLASH Models Page and the Compress FLASH Page to erase enough mics from FLASH to make room for the new models.
35
Chapter 6: Realistic Expectations (or, AMM-1 Meets the Space-Time Continuum)
Although the AMM-1 seems in many ways to be almost magic, it is, in fact, simply very clever science. And as such, it remains subject to those pesky laws of physics.
To get the maximum satisfaction out of the AMM-1, it is important to have realistic expectations of exactly what it can and cant do. (Most of what it cant do relates to the physical impossibility of recovering information that wasnt in the original signal to begin with.) Here are the main issues to be aware of:
Choice of Input Microphone Luckily for all of us, the general quality of affordable microphones has reached a remarkably high level. Consequently, if you stick with well-known manufac­turers, most any reasonable quality mic will provide sufficient performance to allow the AMM-1 to do its magic (OK, we said it wasnt magic, but were speaking metaphorically here).
36
On the other hand, you cant expect to go into a large (but unnamed) mass merchandiser of low-cost electronics gear and pick up a $19.95 mic and expect the AMM-1 to make it sound like a U87. If a source mic has massive roll-off in a particular frequency range, there is no way the AMM-1 can produce the signal that would have been captured had the source mic had better response.
Microphone Variations While there are obviously major differ- ences between various models of microphones, there are also often more subtle differences between different samples of the same model of microphone. Whether due to manufacturing variances, age or condition, there is no guarantee that the mic we modeled will be identical to your source mic or to a specific mic you want to model. In the case of some well-known classics, we have even provided multiple models of the same (but soni­cally differing) mic from different sources.
Realistic Expectations
Microphone Technique In getting the best possible recorded sound, mic technique and placement are at least as important (if not more so) that mic choice. A good engineer can record a great track with an SM57 while a poor one can make a U47 sound like doo doo. If your audio is not well-recorded in the first place, the AMM-1 can to do very little to improve it. If you start with a poorly recorded track, all the AMM-1 will do is make it sound like a track that was poorly recorded with a great mic.
Excessive Frequency Boost Although the AMM-1s processing does not itself add noise to your signal, any noise in your origi­nal audio or noise added by intervening processes (e.g., A/D conversion, pre-AMM-1 dynamics processing, etc.) will be accen­tuated by any large amount of frequency boost. This should only be a problem when your source mic has a substantial bass or treble roll-off and the modeled mic has a corresponding boost or, more likely, when your audio was recorded with a low­cut filter on the source mic and you do not use a low-cut on the modeled mic. In both of these cases, the models will apply substantial gain to the affected frequency ranges, raising the level of added noise along with the desired signal. If the result­ing noise level is unacceptable, you should choose a different combination of mics and/or turn on the modeled mics low-cut filter.
Polar Pattern Selection The AMM-1 cant recover information that was not recorded as part of the original signal. For ex­ample, if the original audio was recorded with a highly direc­tional pattern (hence picking up little room tone), you cant set the modeled mic to Omni and expect the room tone that would have been recorded if the original was set to Omni suddenly to appear. You can however, simulate that effect with some judi­cious use of reverb or an environmental simulator.
Conversely, if your source was recorded with an omni mic and it picked up some unwanted audio from the rear, you cant realisti­cally expect to set the modeled mic to hypercardioid and have the unwanted audio disappear.
Off-Axis Response The purpose of the Pattern selection is to model the varying frequency characteristics that result from each of the available pattern settings, with the assumption that the audio was recorded on axis (i.e., from the front of the microphone). Since the AMM-1 has no way of knowing the actual placement of the signal source, it does not attempt to model off-axis performance.
37
Realistic Expectations
Transient Response One of the key characteristics of various types of microphones is their transient response (i.e., the way that their diaphragms respond to extremely rapid amplitude fluctuations, typically during a sounds attack phase).
Intuition would suggest that modeling changes in transient response between mics would be next to impossible - particu­larly changing a source mic with a slow response to a modeled mic with a fast response. Amazingly, that turns out not to be the case. The AMM-1s models do model variations in transient response in both directions.
Rather than explain how this is done (which we are disinclined to do, anyway), we suggest that you demonstrate it to yourself with the following experiment:
1. In a computer-based waveform editor, use the Pencil Tool (or equivalent waveform drawing tool) to create a single high­amplitude spike.
38

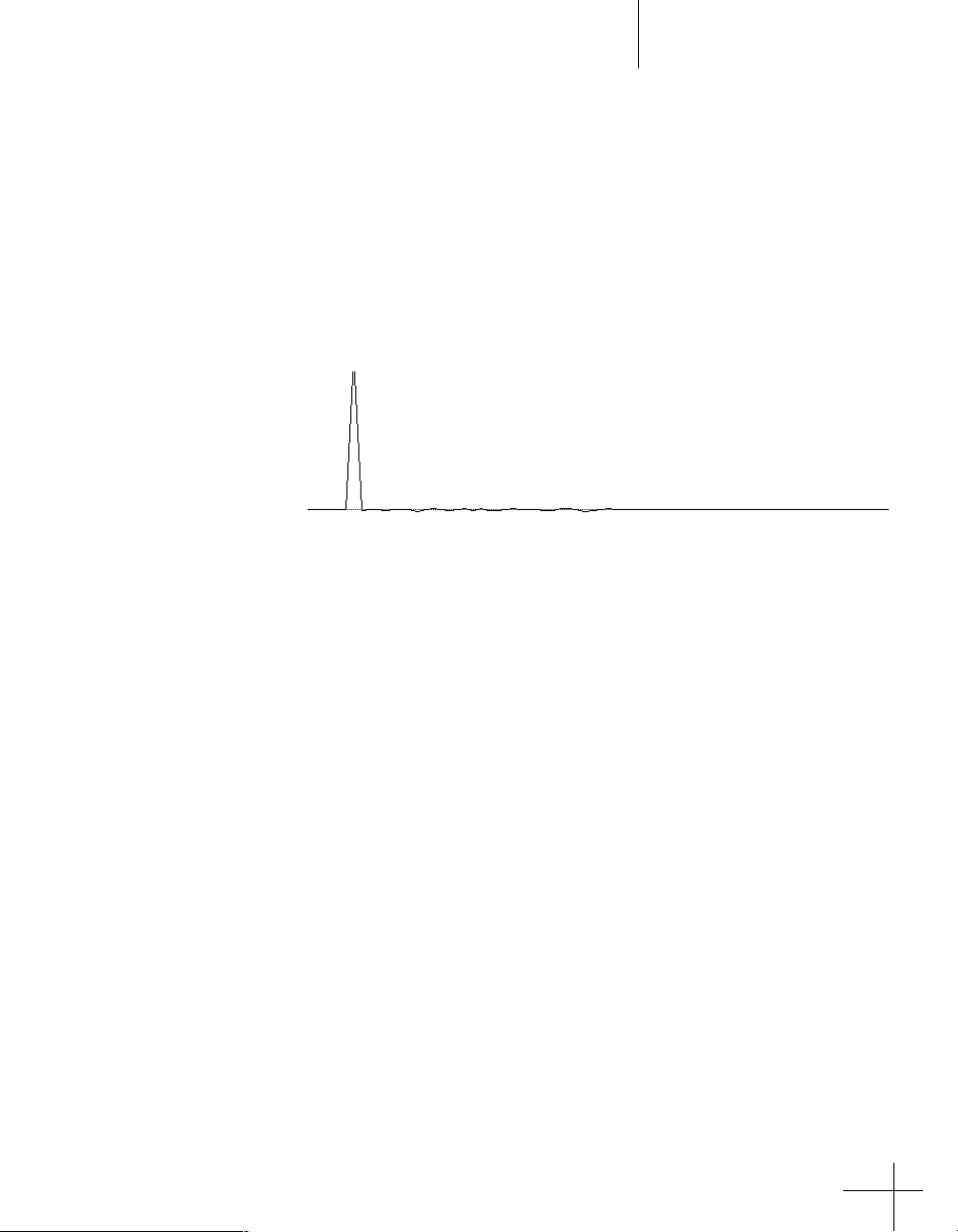

2. Process this file through the AMM-1 with the Source Mic set to Bypass (so the spike is passed through the Source section un­changed) and the Modeled Mic set to the ATM31.
3. Examine the processed signal in the waveform editor. You should see obvious evidence of the smeared transient.
Realistic Expectations
4. Now take that processed file (which is now a model of the spike as it would have been recorded by the ATM31) and send it through the AMM-1 again, this time with the Source Mic set to the ATM31, and the Modeled Mic section set to Bypass. If that Source Mic model is doing its job, it should actually remove the characteristics of the ATM31, including that smeared transient.
5. Once again, examine the processed signal in the waveform editor. The evidence of transient smearing will be gone and the spike restored to its former spikey self. (Frankly, the first time we tried it, we could hardly believe it ourselves. Thanks, Dr. Andy.)
39
Chapter 7: Get Creative
Up to this point, all of the instructions in this manual have focused on how to use the AMM-1 for its primary purpose: making one mic sound as accurately as possible like another. But dont let that limit you. Weve purposely given the controls wide ranges to allow you to move beyond what might be considered useful for strict modeling. Try some of the following:
Select a Source Mic that doesnt match your physical mic. In fact, try one whose characteristics are as different as possible from your physical mic.
Select Bypass for the Source Mic to combine the sound of your physical mic with the sound of the modeled mic.
Create a Hyper version of one of your source mics. To do this, select Bypass for the Source Mic (to pass through the sound of your mic unmodified) and then select your source mic in the Modeled Mic menu. The result will be to accentuate all of the characteristics that give your source mic its unique character, making it sound like itself, only more so.
40
Use the AMM-1 as a mastering tool. Process your entire stereo mix through a mic model (this will, of course, require two AMM-1s). Set the Source Mic to Bypass and try a variety of Modeled Mics. This is basically a trial and error process, but a number of engineers and producers have reported some truly amazing results.
Extreme Proximity settings can give strange, but interesting effects. Try wildly differing settings in the Source and Model sections.
Dynamically change Proximity settings during a performance.
Overdrive the Tube Saturation section for some serious gruzz.
None of the above are likely to give you the sound of any mic that exists in nature, but they can definitely give your recordings unique and striking timbres.
Appendix
Listed below are all of the mics models that are shipped with the AMM-1. (Be sure to check the Antares web site frequently for additional models.)
Please Note: All trademarks appearing below are the property of their respective owners. The following manufacturer names and model designations are used solely to identify the microphones analyzed in the development of our digital models and do not in any way imply any association with or endorsement by any of the named manufacturers
AKG C12A Large Diaphragm Condenser
A classic multipurpose studio mic (this one dates
from the late 60s) C414 C414B/ULS Limited Edition Gold C414B/ULS Modified by Audio Upgrades (m1) C414B/ULS Modified by Jim Williams (m2)
Large Diaphragm Condenser
Multipurpose studio mic 460B/CK61-ULS Small Diaphragm Condenser
Precise, neutral recording mic D1 Dynamic Snare drum, flute D112 Large Diaphragm Dynamic
Classic kick drum and bass guitar mic D 790 Large Diaphragm Dynamic
Hand-held vocal C1000S Small Diaphragm Condenser
With a battery power option, often used for field
recording C 3000 Large Diaphragm Condenser
General purpose C 4000 B Dual-Diaphragm Condenser
Solid state version of the SolidTube, general purpose
41
AKG Solid Tube Large Diaphragm Condenser
Vocals, strings, general purpose
Alesis AM61 Large Diaphragm Condenser w/tube circuitry
A rich warm sound ideal for vocals and instruments
Audio Engineering Associates
R44C Large Diaphragm Boundary - Ribbon
Replica of the classic RCA 44 ribbon mic
Audio-Technica ATM11 Dynamic Drums
ATM31 Small Diaphragm Condenser
General purpose
AT853Rx Electret Condenser
Hanging choir mic
AT3525 Large Diaphragm Condenser
Vocals and general purpose
AT4047/SV Large Diaphragm Condenser
Recreates the sound of vintage F.E.T. condenser mics
AT4033a/SM Large Diaphragm Condenser
General purpose, drum overheads
AT4050 Large Diaphragm Condenser
General purpose
AT4055 Large Diaphragm Condenser
Live vocal mic
AT4060 Large Diaphragm Condenser - Tube Circuitry
Vocals and general purpose
Audix D4 Dynamic
Kick drum, acoustic bass, piano, sax
OM2 Dynamic
Hand held vocal
OM3-xb Dynamic
General purpose
OM5 Dynamic
Vocals
OM6 Dynamic
Handheld vocal
42
Please Note: All trademarks appearing above are the property of their respective owners. The following manufacturer names and model designations are used solely to identify the microphones analyzed in the development of our digital models and do not in any way imply any association with or endorsement by any of the named manufacturers.
Audix CX111 Large Diaphragm Condenser
General purpose SCX1 Small Diaphragm Condenser
Piano, drum overheads
B & K 4007 Large Diaphragm Prepolarized Condenser
Close-micing drums, percussion, brass
Behringer ECM8000 Measurement mic
Ultravoice XM8500
Handheld vocal mic
beyerdynamic M-500 Limited Edition Classic (Silver)
Large Diaphragm Condenser
Vocal, instruments MC-834 Large Diaphragm Condenser
Vocals , piano, strings, brass, voice-overs
Brauner VM1 Large Diaphragm Tube Condenser w/Class A amp
Reference recording Valvet Large Diaphragm Tube Condenser
Reference recording
CAD Equitek E100 Condenser
Vocal, instrument, drum overheads Equitek E200 Condenser
Vocal, orchestra, acoustic guitar, kick drum Equitek E350 Servo Condenser
Vocal, piano, overhead, acoustic guitar, amps C400S Large Diaphragm Condenser
General Studio VSM1 Single Valve Condenser
Vocal, strings, guitar 95Ni Dynamic
Vocal, instrument amps
Coles 4038 Large Diaphragm Boundary - Ribbon
Sax, horns, piano, guitar
Earthworks Z30x Enhanced Cardioid Condenser
Vocal, guitar, drums, general purpose
Please Note: All trademarks appearing above are the property of their respective owners. The following manufacturer names and model designations are used solely to identify the microphones analyzed in the development of our digital models and do not in any way imply any association with or endorsement by any of the named manufacturers.
43
Earthworks TC30K Omni Condenser
Drums, guitar, bass
ElectroVoice PL20 Mid Diaphragm Dynamic
Early predecessor to the RE20 - Bass, drums, vocals, electric guitar
N/D357 Mid Diaphragm Dynamic
Frequency expressly contoured for female vocals
Groove Tubes MD-1 Large Diaphragm Tube Condenser
Studio vocal, general purpose
Lawson L47MP Large Diaphragm Tube Condenser
Vocals, acoustic guitar, strings, piano, choir, orchestra, sax
Manley Labs Reference Gold Large Diaphragm Tube Condenser
Ultra high quality recording
MicroTech Gefell UMT 800 Large Diaphragm Condenser
Close-miced vocals, horns, ensembles
Neumann U 47 Large Diaphragm Tube Condenser
A classic vocal mic. Sinatras first choice. U 87 U 87 70th Anniversary Gold Edition
Large Diaphragm Condenser
Vocals, piano, acoustic bass, drums, acoustic guitar U 89i Large Diaphragm Condenser
5 pattern version of U87 with a slightly larger
capsule; vocals, strings M 149 Large Diaphragm Tube Condenser
The best mic I have EVER used. ~Chuck Surack
(Thanks Chuck!) TLM 103 Large Diaphragm Condenser
Vocals, acoustic guitar, horns, piano TLM 193 Large Diaphragm Condenser
Vocals, acoustic guitar, drum overheads, strings,
sax KM 184 Small Diaphragm Condenser
Acoustic guitar, drum overheads, hi hat, strings,
percussion, piano
44
Please Note: All trademarks appearing above are the property of their respective owners. The following manufacturer names and model designations are used solely to identify the microphones analyzed in the development of our digital models and do not in any way imply any association with or endorsement by any of the named manufacturers.
Oktava MC-012 Small Diaphragm Condenser
General purpose instruments and live performance
MK-219 Large Diaphragm Condenser
General purpose
MK-319 Large Diaphragm Condenser
Vocal, general purpose
RCA BK5A Uniaxial Ribbon
Vocal, general purpose
77dx Classic Ribbon
Try it on everything
Rode NT1 Large Diaphragm Condenser
Vocals, instruments
NT2 Large Diaphragm Condenser
Vocals, acoustic guitar, winds, piano
NTV Large Diaphragm Tube Condenser
Vocal, general studio
Royer R-121 Ribbon
Electric guitar, overhead drums, orchestral, choral, room micing
Sennheiser MD421 Large Diaphragm Dynamic
Drums, vocals guitar, amps
MD441 Large Diaphragm Dynamic
Designed to simulate the sound of a condenser mic for vocal, sax
E609 Large Diaphragm Dynamic
Live performance guitar amp and drum mic
E835S Large Diaphragm Dynamic
Live performance vocal
Shure Beta 52 Large Diaphragm Dynamic
Kick drum, bass amp, acoustic bass
Beta 57A Large Diaphragm Dynamic
Drums, guitar amplifiers, brass, woodwinds, vocals.
Beta 58 Large Diaphragm Dynamic
Handheld vocal mic
Beta 87A Large Diaphragm Condenser
Vocals, live performance
Please Note: All trademarks appearing above are the property of their respective owners. The following manufacturer names and model designations are used solely to identify the microphones analyzed in the development of our digital models and do not in any way imply any association with or endorsement by any of the named manufacturers.
45
Shure Beta 98D/S Mini Condenser
Toms, snares, percussion SM7A Dynamic
Vocals, bass amp SM57 Large Diaphragm Dynamic
Guitar, guitar amp, drums SM58 Large Diaphragm Dynamic
Vocals, general purpose SM81 Large Diaphragm Condenser
Guitar, cymbals, strings, vocals, piano SM98A Large Diaphragm Condenser
Drums, brass, winds KSM32 Large Diaphragm Condenser
Vocals, acoustic guitar, winds, ensembles, and
drum overheads. VP88 Large Diaphragm Condenser - Single Point Stereo
Modeled in MS (mono simulation) mode
Sony C800G Large Diaphragm Tube Condenser
Vocals: studio and post-production C37P Tube Condenser
General purpose C48 Large Diaphragm FET Condenser
Vocals, guitar
Soundelux U95S Large Diaphragm Tube Condenser
Vocals, orchestra
Tannoy Large Vintage Ribbon
Small Vintage Ribbon
Classic ribbon mics from the 50’s
Vocals, brass, guitar cabs
Telefunken U-47 Large Diaphragm Tube Condenser
An extremely rare vintage version of the U-47
from the days when Telefunken distributed mics
for Neumann. This sample is still equipped with
the original tube.
46
Please Note: All trademarks appearing above are the property of their respective owners. The following manufacturer names and model designations are used solely to identify the microphones analyzed in the development of our digital models and do not in any way imply any association with or endorsement by any of the named manufacturers.
Acknowledgments
As you might imagine, sourcing and modeling all of those mics was (and remains) an interesting logistical challenge. Luckily for us, we have had assistance from a variety of interested dealers, manufac­turers, studios and individuals who were all willing to let us subject their precious microphones to our arcane modeling ritual.
Thanks to all those listed below: Rob Actis
Actis Company, San Diego, CA Audio Engineering Associates
Pasadena, CA Audix Corporation
Wilsonville, OR Demien Bannister
Bananas at Large, San Rafael, CA jeramy bassermann
Opus Nine, El Granada, CA Robert Berry
soundtek studios, Campbell, CA Ken Capitanich
Mars Studios, Aptos, CA Eric Chun
Creative Music Services, Auburn, CA
Cutting Edge Audio San Francisco, CA
Guitar Showcase San Jose, CA
Stephen Jarvis San Francisco, CA
Gordon Hull Applaudio, Evans, GA
Manley Laboratories Chino, CA
National Sound Engineering Norcross, GA
Glen Peiser Guitar Center San Jose
Santa Cruz Sound Company Santa Cruz, CA
Paul Savasta Odyssey Pro Sound, Salem, MA
Skips Music Sacramento, CA
David Staats Castro Valley, CA
Studio Tech Supply Dallas, TX
Chuck Surack Sweetwater Sound, Ft. Wayne, IN
Trakworx San Francisco, CA
Wind Over the Earth Boulder, CO
Geoff Wood Welinghton, New Zealand
And, of course, our own Michael Mr. Microphone Logue and mic tester extraordinaire Kelly Miskimen.
47
AMM-1 Specifications
Data format 20-bit linear
56-bit internal processing Sample rates 44.1 kHz, 48 kHz Frequency response 10Hz–20kHz, +0.06dB/-0.23dB Distortion + Noise Less than 0.005% (@1kHz) ADC 20 bit
103 dB Dynamic Range (A weighted)
97 dB S/(N+D) DAC 24 bit
105 dB Dynamic Range (A weighted)
94 dB S/(N+D) Analog Inputs XLR: Balanced, 17.9 dBu, 40kW
1/4 inch Phone: TRS Balanced, 17.9 dBu, 40kW
Unbalanced, 17.9 dBu, 40kW MIDI In and Out 5-Pin DIN Footswitch 1/4 inch Phone Analog Outputs XLR: Balanced, 17.7 dBu, 470W
1/4 inch Phone: Unbalanced, 17.7 dBu, 470W Digital I/O XLR: AES/EBU Displays 2x20 character LCD
Level Indicator (LED x5) Input power 10.5VAC, 17.25 VAC (x 2)
50Hz or 60Hz Power consumption 15 watts Included accessories Power supply, owner’s manual Dimensions Width: 19 inches x height: 1.75 inches x depth
6.125 inches
Weight Rack: 4 lbs.
Power supply: 1.3 lbs.
48
Specifications subject to change without notice
Index
Symbols
* 16
-w 17, 21
A
A/B Comparison 18 about the technology 8 acknowledgements 47 adding new mic models 33
B
back panel connectors 13 Bypass 12, 17, 27
MIDI SysEx message 27
C
Controls 15
Bypass 27 Input Section 15 Modeled Mic Section 21 Output Level 28 Preserve Source 25 Source Mic Section 16 System Edit 28 Tube Saturation 26
creative uses 40
D
D-in LED 10 Data Entry knob 10 Drive control 27
E
Edit Select button 10
F
FLASH memory 21 footswitch 13 front panel controls 10
G
grounding 9
I
Input Level 10 Input Level meter 10
L
LCD 10 line inputs 13 line outputs 13 Low-Cut Menu 19 Low-Cut/Enter button 11
M
m1 17, 22 m2 17, 22 Microphone/Cursor button
11, 16
Modeled Mic Section 21
A/B Comparison 22 Low-Cut Menu 24 Pattern 24 Proximity 23
modeled mics 18, 41
O
Operation 14 Output Level 12, 28 overview 7
P
Pattern button 11 power input plug 13 power switch 10 Preserve Source 25 Preserve Source button 10 Proximity 18
proximity effect 19, 23
Proximity/Page button 11
R
Realistic Expectations 36
choice of input mic 36 excessive frequency boost
37 mic technique 37 mic variations 36 off-axis response 37 polar pattern selection 37 transient response 38
S
setting up 9 signal flow 14 Source Edit 16 Source Mic Section 16
A/B Comparison 18 Low-Cut Menu 19 Pattern 20 Proximity 18 Source Mic Selection 16
Source Mic Selection 16 specifications 48 Spectral Shaping Tool™ 7 System button 11, 28 System Edit 11, 28
Allow Downloads page 30 Compress FLASH page 32 Delete/Restore FLASH
Models page 30 FLASH Info page 32 Input/Output page 29 LCD Contrast page 30
T
technical support 6 transient response 38 Tube Saturation 11, 26
Drive control 27
49
U
URL 6
W
website address 6 Welcome 5 what the AMM-1 does 8
50
Loading...
