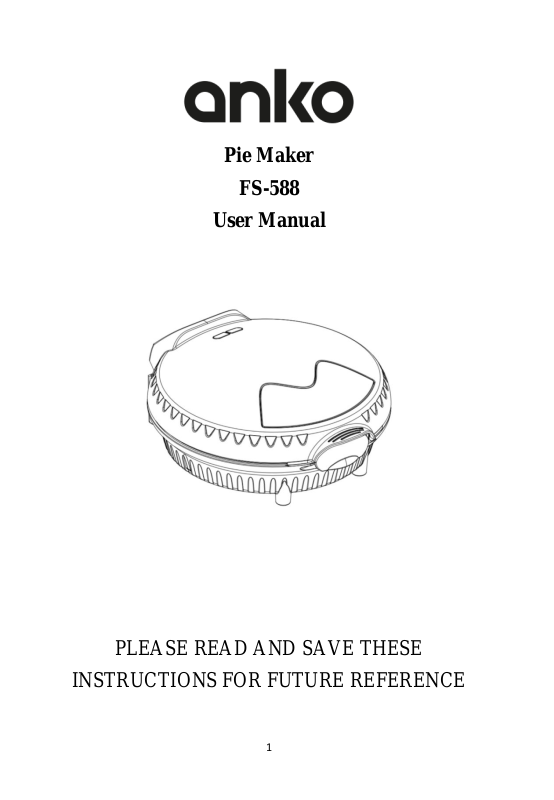

Anko FS-588 User Manual
1
Pie Maker
FS-588
User Manual
PLEASE READ AND SAVE THESE
INSTRUCTIONS FOR FUTURE REFERENCE
2
WARNING
Read and understand all instructions before using this product and follow all
warnings and cautions in the manual.
To protect against risk of electrical hazards, do not immerse the appliance,
power cord or plug in water or any other liquids.
If the supply cord is damaged, it must be replaced by a qualified electrician
in order to avoid a hazard, or the product must be disposed.
Place the cord in such a way that pulling or tripping over it is not possible.
Always place and operate the appliance on a flat, solid, clean, dry and heat-
resistance surface.
The power socket must be readily accessible so that the appliance can be
unplugged in an emergency.
This appliance is intended to be used indoors in household and similar
applications such as: staff kitchen areas in shops, offices and other working
environments, farm houses, by clients in hotels, motels and other residential
type environments, bed and breakfast type environments.
The appliance is intended for household use only. Do not use outdoors or for
commercial purpose. Any other use will void the warranty.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instructions
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Always unplug from the mains supply when not in use and allow the
appliance to cool down before cleaning.
IMPORTANT SAFETY INSTRUCTIONS
3
Do not operate the appliance if damaged or malfunctions.
Do not touch hot surfaces. Only use the handle.
Do not place on or near a hot gas or electric burner, or in a heater oven.
Do not use an extension cord with this appliance.
Do not dismantle and repair the appliance by yourself. DANGER OF AN
ELECTRIC SHOCK AND/OR FIRE!
Do not allow this appliance to touch curtains, wall coverings, clothing, dish
towels or other flammable materials during use.
IMPORTANT! Do not leave the appliance unattended when in use or
when connected to mains power.
Do not operate your appliance inside cabinet or under a wall cabinet. When
storing in a cabinet, always unplug the unit from mains power.
The temperature of accessible surfaces may be high when the appliance is
operating.
This appliance is not intended to be operated by means of an external timer
or separate remote-control system.
Use only heat-proof synthetic or wooden utensils when taking pie out in
order not to damage the non-stick coating of the heating plates. Make sure
that the utensils are not pointed or have sharp edges.
Caution, hot surface. Care must be taken. The surfaces are liable to get
hot during use.
For cleaning cooking surface, please refer to section “Cleaning and
Maintenance”.
4
5
1
2
4 8 10
9
SAVE THESE INSTRUCTIONS
FOR HOUSEHOLD USE ONLY
KNOW YOUR PIE MAKER
3
1. Red power indicator
2. Green working indicator
3. Top baking plate
4. Lid handle
5. Locking latch
7
6
6. Bottom baking plate
7. Pie cover cutter
8. Pie base cutter
9. Pie base pastry mold
10. Rubber feet
5
IMPORTANT! Always place and operate the appliance on a flat, solid, clean,
dry and heat-resistance surface.
Unpack the appliance and check if all parts are there and undamaged. In case
of shipping damage or incomplete package, return the product to Kmart.
Clean the inside and outside of the appliance with a damp cloth or
sponge. Wipe dry with a soft dry cloth.
WARNING! Do not immerse the appliance in water or any other
liquids to clean.
Wash the accessories with soapy water. Dry all components thoroughly
before use.
Place the appliance on a flat, heat resistant stable surface and ensure a
minimum of 10cm free space around the appliance. Do not operate your
appliance inside a cabinet or under a wall cabinet.
Plug the appliance into an electrical power outlet.
Note: Make sure the voltage indicated on the appliance matches the local voltage
before connecting the appliance to mains power. Rated voltage: 220-240V a.c. 5060Hz.
Allow the appliance to heat up for approximately 5 minutes. Apply a thin
coating of cooking oil to the cooking plates and carefully rub it in with a
paper towel. You only need to condition the cooking plates when using your
pie maker for the first time.
WARNING! The cooking plates will get very hot.
NOTE: On first use there may be a small amount of haze and an odor emitted
from the appliance. This is perfectly normal and will subside after few minutes of
use.
Unplug the appliance and now it is ready for use.
BEFORE FIRST USE
6
Roll out your pastry, then use the pie base and cover cutter to prepare your pie
base and cover. Place the pastry base into the pie maker and press it in well with
the pie base pastry mold.
1. Before using the appliance, clean the baking surfaces with a damp cloth. Dry
it with paper towel.
2. Close the appliance and plug it into a mains power outlet socket. Both red
power indicator and green working indicator will light up, indicating that the
pie maker is connected to the mains power and begins preheating. The red
power indicator will remain on until you unplug the appliance.
3. It will take approximately 5 minutes to reach the recommended baking
temperature. The green working indicator will go OFF when the pie maker is
ready for use.
4. Open the appliance and brush the baking plates with a small amount of
vegetable oil.
5. Put the pastry base into the bottom baking plate. Fill the ingredients then
place the pastry cover and press the edges of the pastries together.
NOTE: Your pie filling should be cooked in advance, particularly if using
fresh meat or vegetable ingredients.
WARNING! Do not use the pie cutter or pastry mold in the product when it
is switched on. This may damage the accessories.
6. Close the appliance to begin cooking your pie.
NOTE: Gently close the lid and ensure to lock the appliance with a click sound.
Do not slam the lid down, as it may cause the mixture to come off the mold.
PREPARE PASTRY
OPERATION
