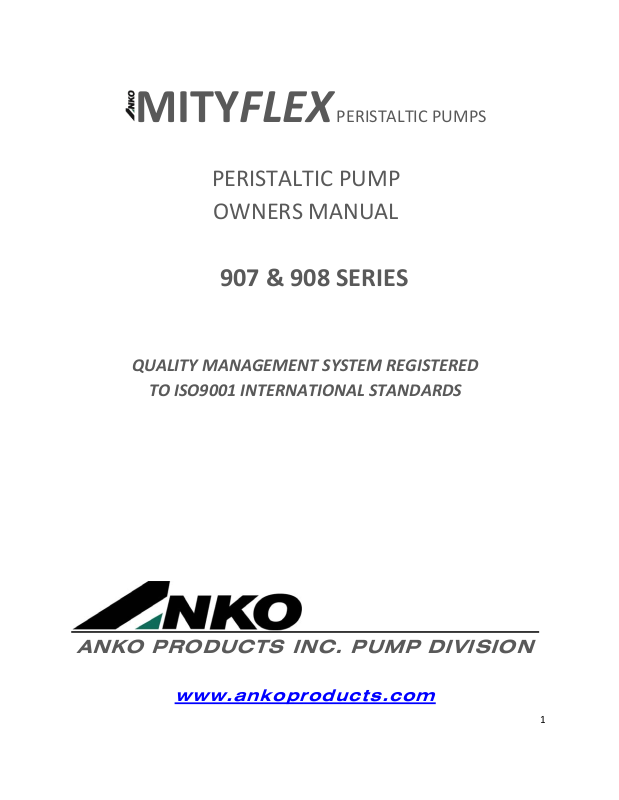

MITYFLEXPERISTALTIC PUMPS
PERISTALTIC PUMP
OWNERS MANUAL
907 & 908 SERIES
QUALITY MANAGEMENT SYSTEM REGISTERED
TO ISO9001 INTERNATIONAL STANDARDS
ANKO PRODUCTS INC. PUMP DIVISION
www.ankoproducts.com
1
Thank you for purchasing an Anko Mityflex® Peristaltic pump. We are sure you will be completely satisfied with its performance. Should you need assistance or have questions regarding the use or installation, please visit our website at www.ankoproducts.com.
TABLE OF CONTENTS |
|
WARRANTY |
3 |
WARNING |
3 |
RETURN AND REPAIR |
3 |
PUMP FEATURES |
4 |
PUMP INSTALLATION |
4 |

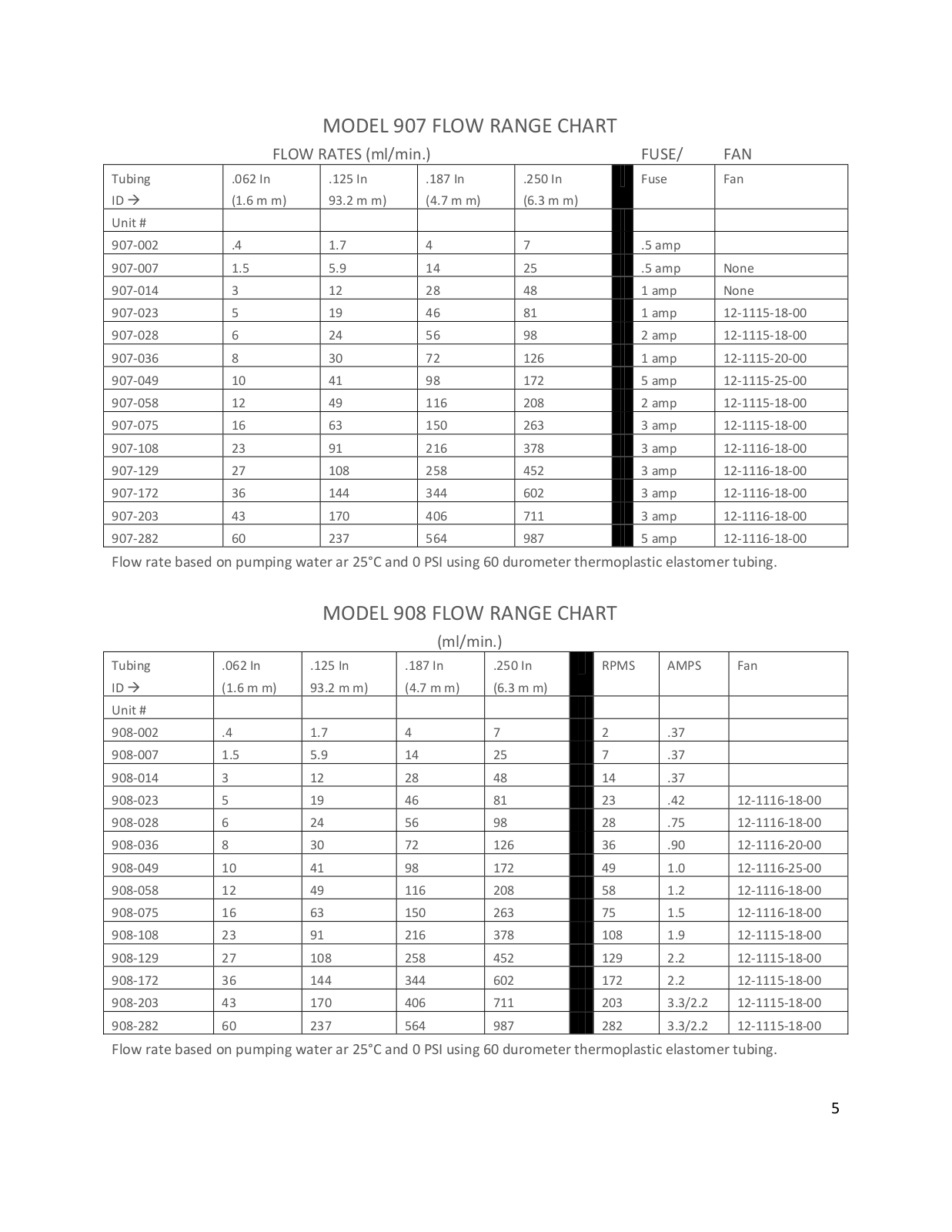

FLOW CHARTS |
5 |

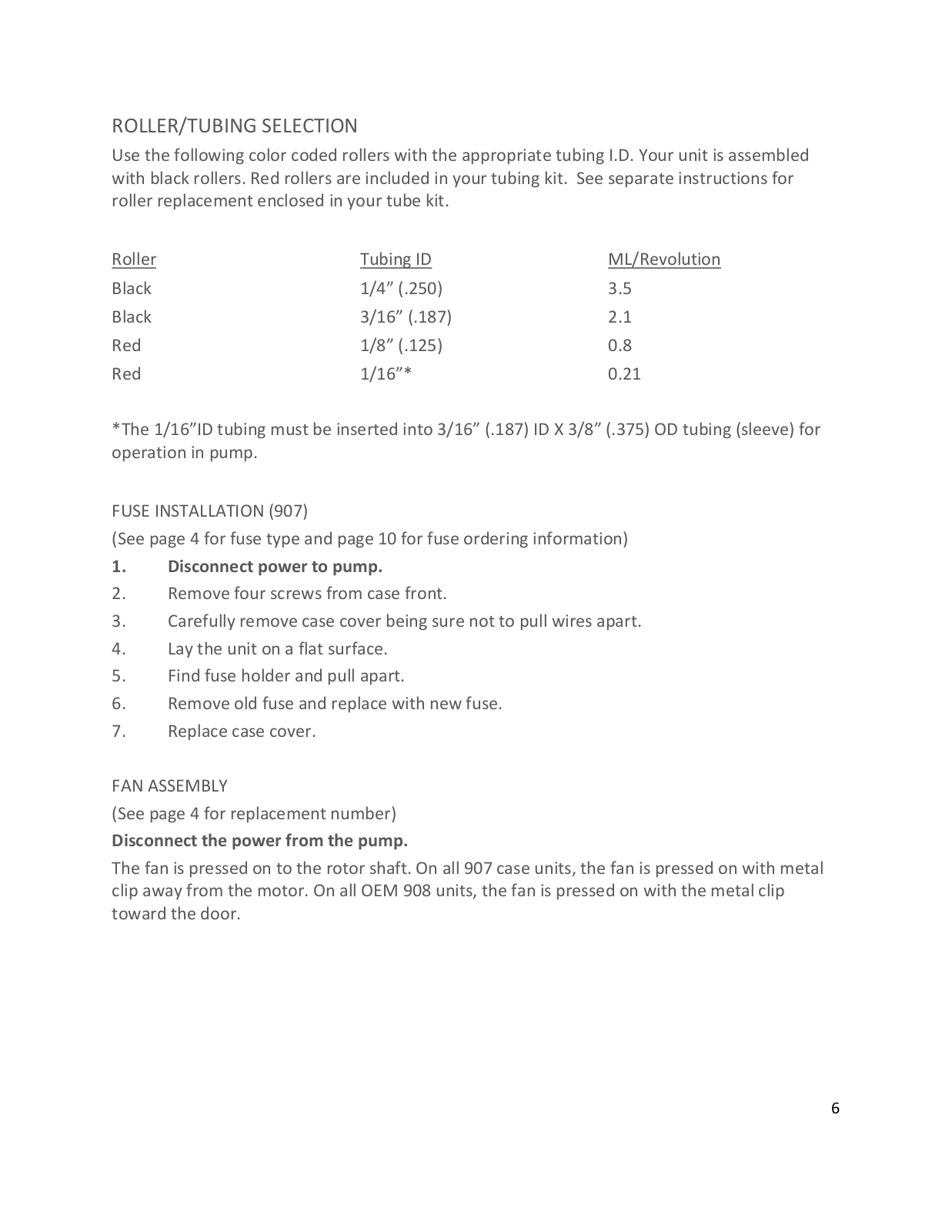

ROLLER SELECTION |
6 |
FUSE INSTALLATION/FAN ASSEMBLY |
6 |

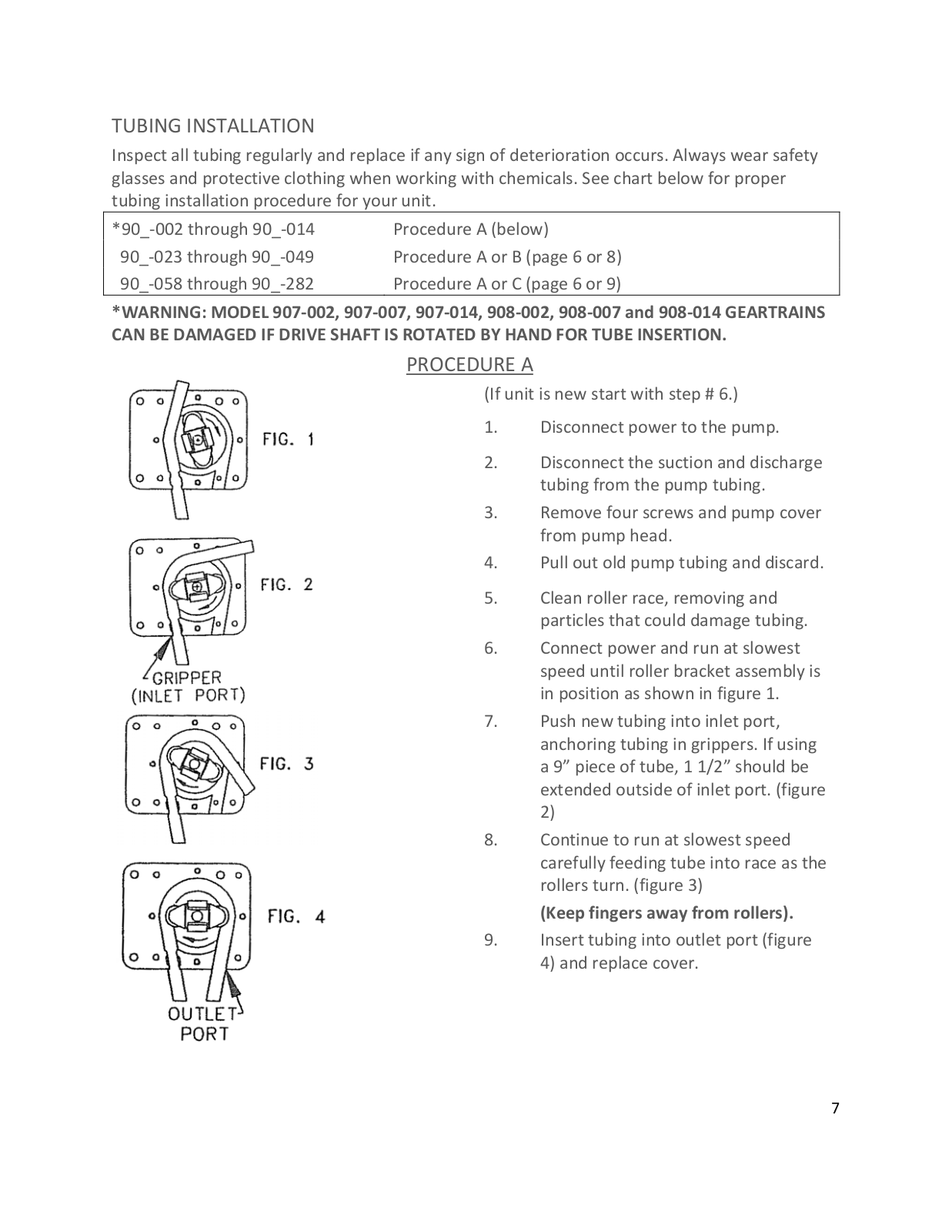

TUBING INSTALLATION |
7 |
TUBING INSTALLATION PROCEDURE A |
7 |

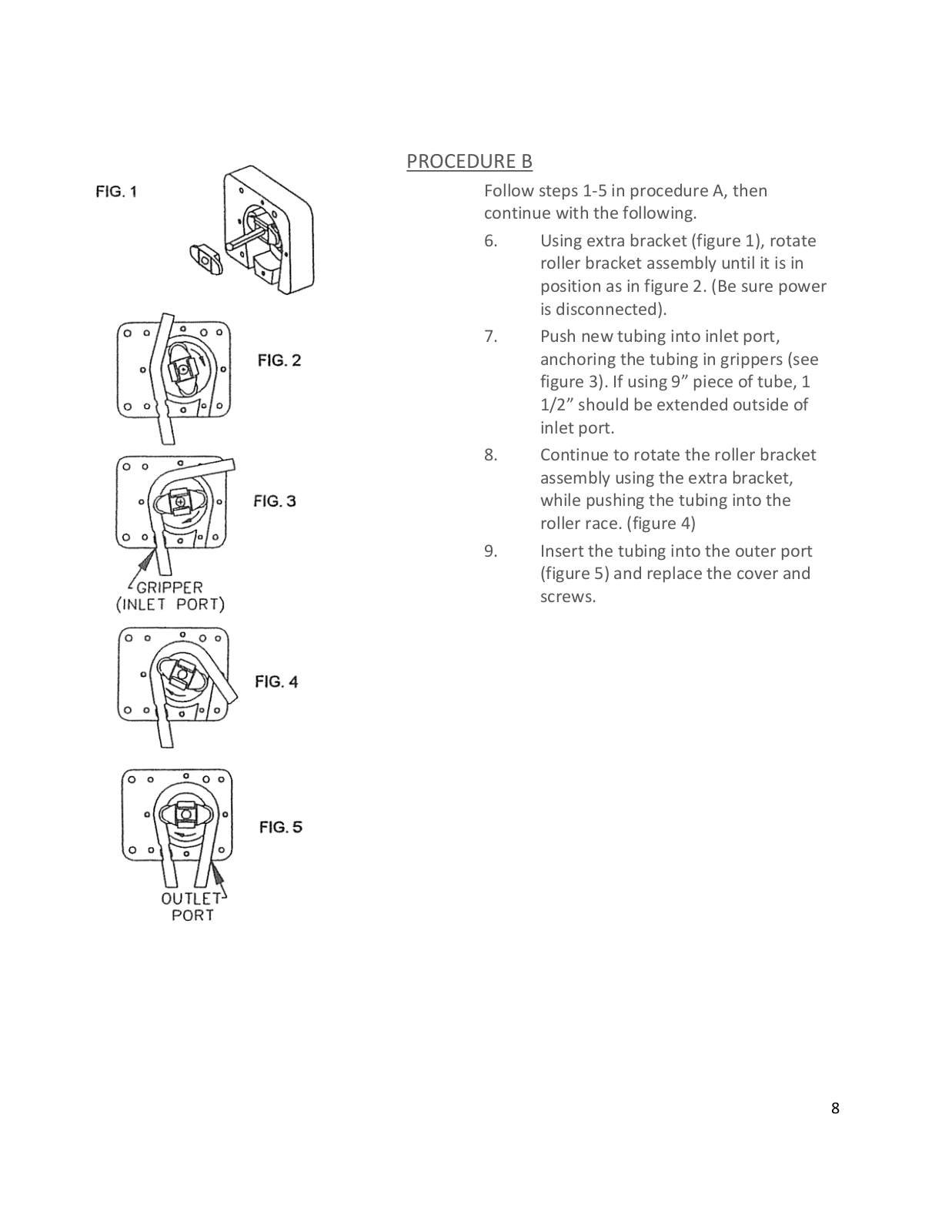

TUBING INSTALLATION PROCEDURE B |
8 |

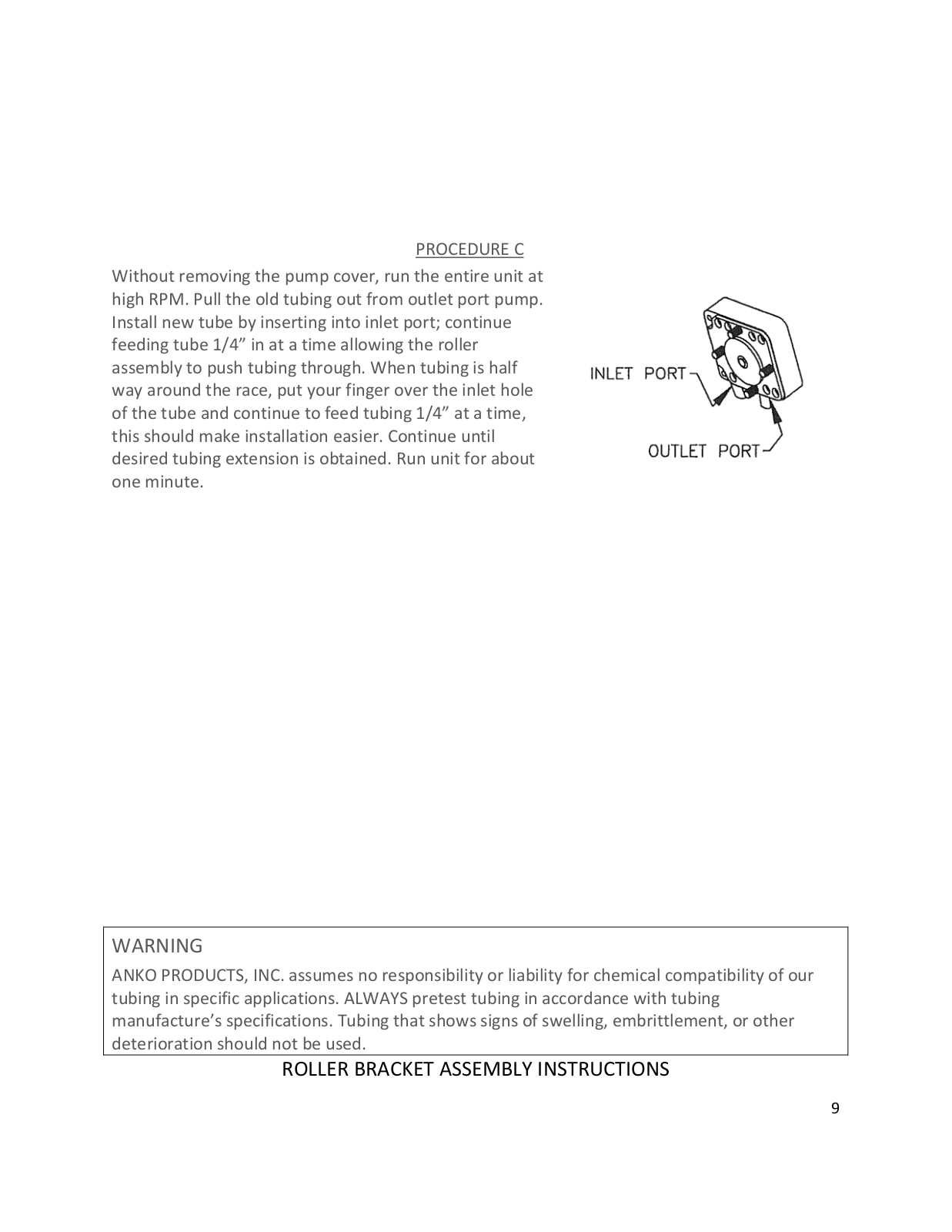

TUBING INSTALLATION PROCEDURE C |
9 |

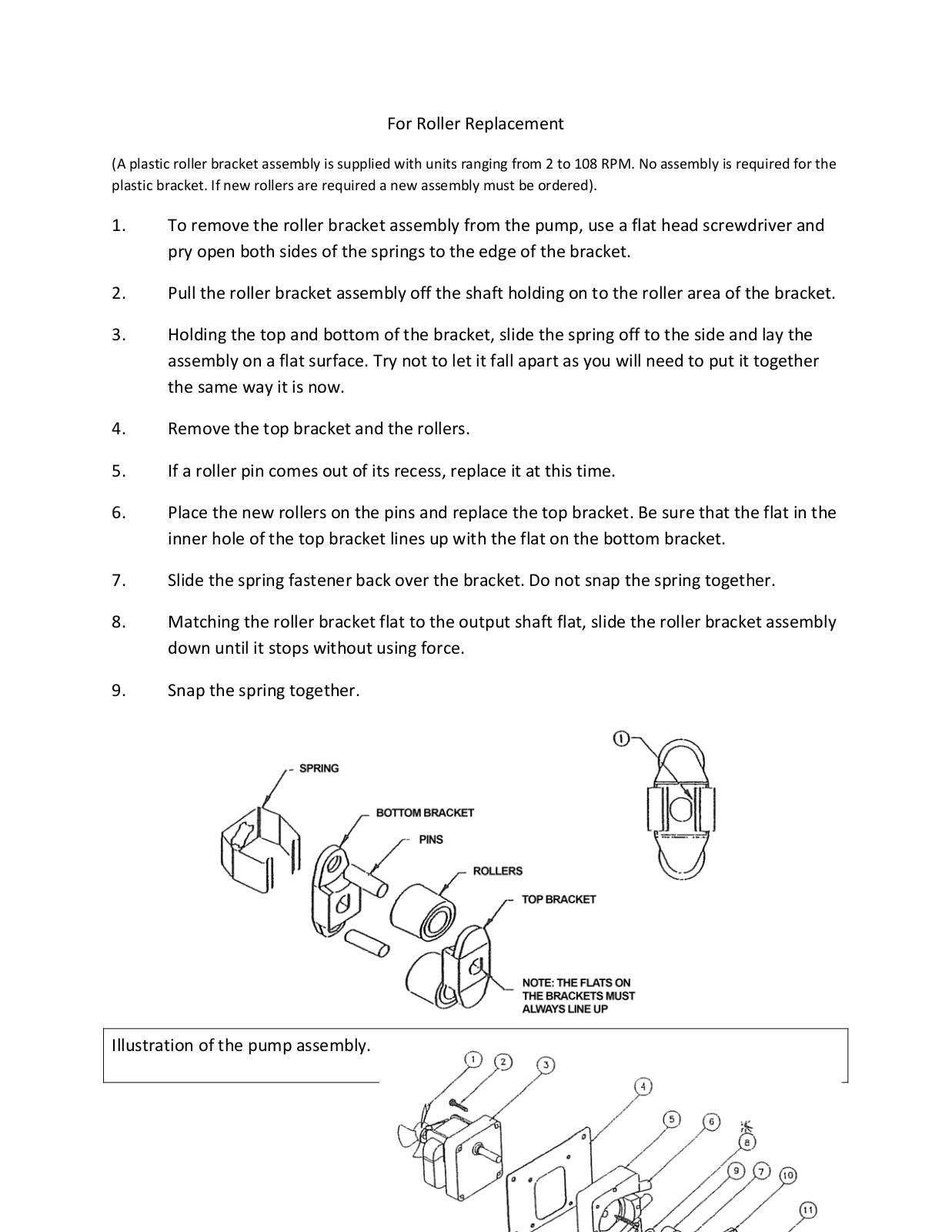

ROLLER BRACKET ASSEMBLY |
10 |
ILLUSTRATION OF PUMP HEAD ASSEMBLY |
11 |

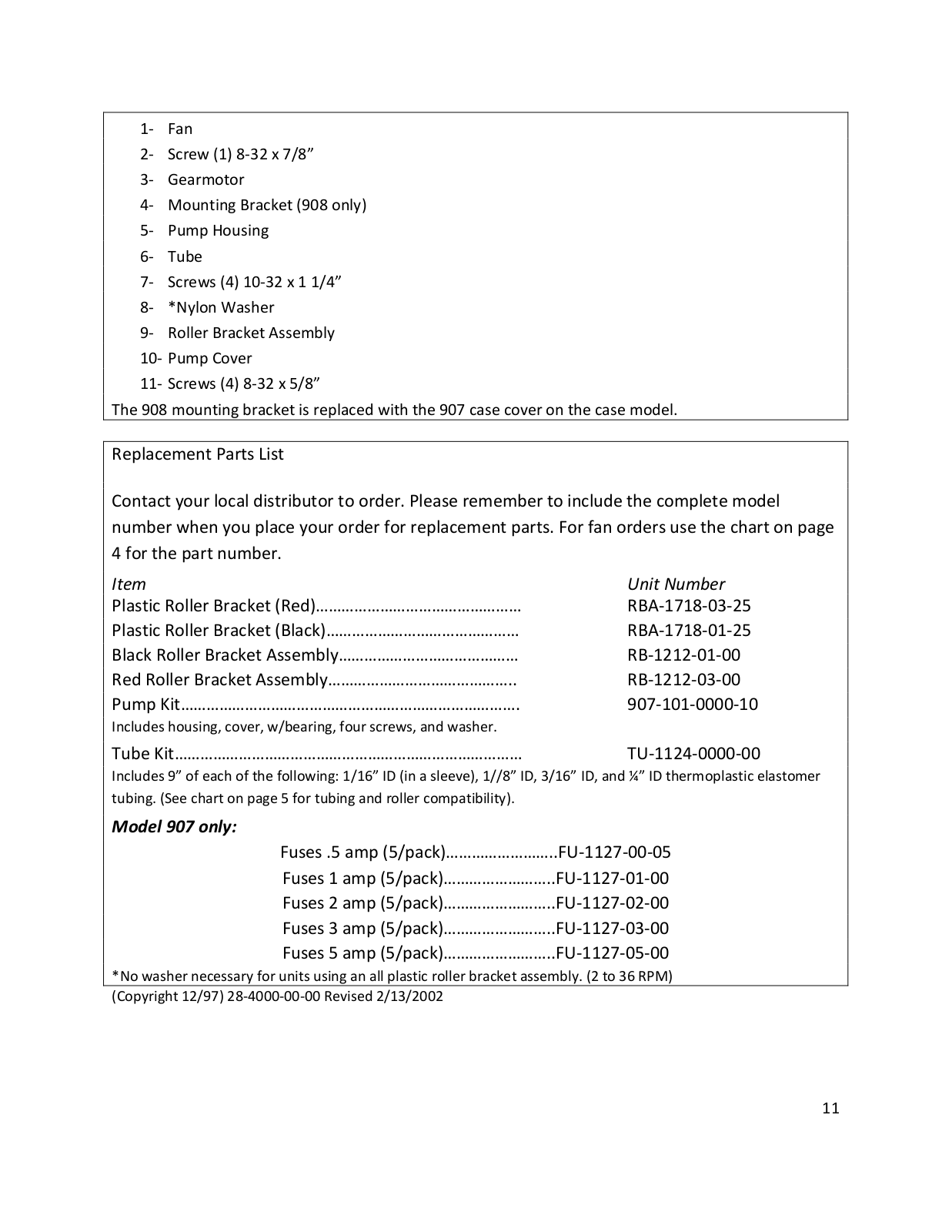

REPLACEMENT PARTS LIST |
11 |
Every precaution for accuracy has been taken in the preparation of this manual, however, ANKO PRODUCTS, INC. neither assumes responsibility for any omissions or errors that may appear nor assumes liability for any damages that result from the use of the products in accordance with the information contained in this manual.
2
LIMITED WARRANTY
ANKO PRODUCTS, INC., warrants equipment of its manufacture and bearing its identification to be free from defects in workmanship and material. ANKO PRODUCTS, INC.’s liability under this warranty extends for a period of one year from the date of delivery from our factory or authorized distributor. It is limited to repairing or replacing any device or part of any device which is returned, transportation prepaid, to the factory within one year of delivery to the original purchaser, and which is proven to be defective upon examination by us. ANKO PRODUCTS, INC. disclaims all liability for consequential damage of whatever nature, damage of equipment during transportation, damage, damage due to improper handling, installation or improper operation or for determining suitability for the particular use intended by a purchaser. Replaceable parts including tubes supplied with the product are not covered by any warranties either expressed or implied. ANKO PRODUCTS, INC., makes no warranties either express or implied, including implied warranty or merchantability, other than those stated above. No representative has authority to change or modify this warranty in any respect. Jurisdiction and venue for enforcement of this warranty may be brought only in the State of Florida. This warrant gives you specific legal rights, and you may also have other rights which vary from state to state.
WARNING
ANKO PRODUCTS, INC. assumes no responsibility or liability for chemical compatibility of our tubing in specific applications. ALWAYS pretest tubing in accordance with tubing manufacturer’s specifications. Tubing that shows signs of swelling, embrittlement, or other deterioration should not be used.
RETURN AND REPAIR REQUESTS
Please direct all warranty requests to the appropriate distributor the product was purchased from.
3
The MITYFLEX ® 907 and 908 models are fixed speed general purpose pumps for dispensing fluid based on products. The 907 is housed in a case and is controlled by a simple on/off switch that activates the pump. The 908 is manufactured with a zinc plated steel bracket and six inch lead wires for convenient assembly to your OEM application.
FEATURES
1.ELECTRICAL: 115 VAC, 60HZ; OPTIONS: 24 to 240 VAC; 50Hz, 60Hz, or 50/60Hz; 12 & 24 VDC. The 907 also includes; On/Off switch; 6 foot power cord.
2.PRIMING: Unit is self priming and will hold vacuum when off.
3.OPERATION: Pump can run dry without damaging the motor or drive unit, however the tubing life will be reduced.
4.CONSTRUCTION: Polypropylene housing and case using stainless steel fasteners.
5.MAX. HEAD PRESSURE: Maximum working pressure 40 PSI.
6.MAX. SUCTION LIFT: 29 feet (8.8m) with H O.
7.RATING: AC Units 100% of continuous operation at 25°C ambient; DC Units 100% continuous operation at 40°C ambient.
8.FLOW RATE: .4 987 ml/min. Depending on the tubing used. (See page 5).
9.FUSE: (907 only) Located on the exterior of the case. (See page 6 for replacement procedure and page 5 for fuse type).
INSTALLATION INSTRUCTIONS
1.POWER REQUIREMENTS: Voltage and frequency of power supply must be the same as shown on unit.
2.WIRING CONNECTIONS: All wiring and electrical connections must comply with local and national electrical codes.
3.MOUNTING: (907) Case enclosed model has rubber feet and mounting flanges. This enables it to be used on a flat surface or wall mounted. Be sure that one of the sets of vent holes has plenty of air for circulation. (908) Mounting brackets for OEM applications. Be sure there is plenty of space for air circulation. Do not allow tubing to be crimped.
4.MOUNTING LOCATION: Pump should be placed in a dry location with adequate cooling provided. The ambient temperature should not exceed 25°C for AC units or 40°C for DC units..
WARNING
This unit should not be used in outdoor or hazardous locations.
4
