AngSi Technology ANGLE3LUS Quick Start Guide

Ultra-Portable Bluetooth Speaker

Quick Start Guide

Designed and Engineered By

Please visit TheOontZ.com

Table of Contents

In the Package
Play Controls
LED Lights and Connectors
Charging the Battery

Turning On and Off

Pairing & Connecting
Pairing & Connecting -- From Your Mobile Device
Pairing & Connecting -- From Your Apple Mac or Windows Computer

Playing From Your Laptop, Computer and Non-Bluetooth Devices Using the 3.5mm Audio Cable

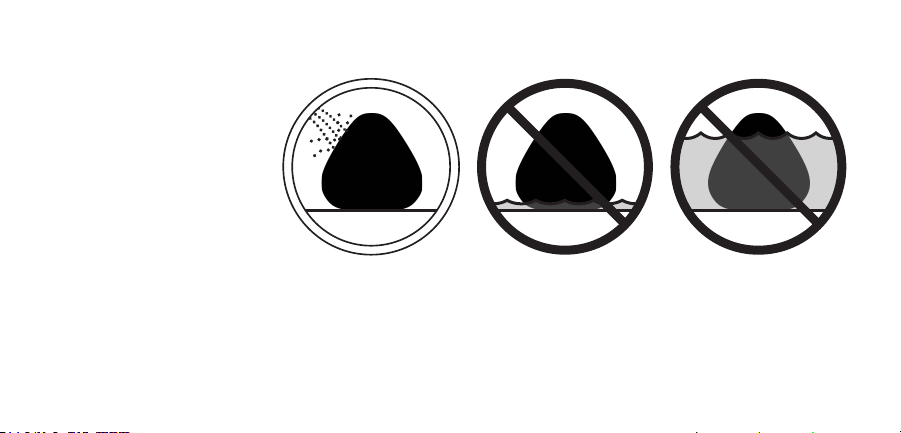

IPX6 Water Resistance
Wireless Hands Free Personal Speakerphone
Troubleshooting & Customer Support

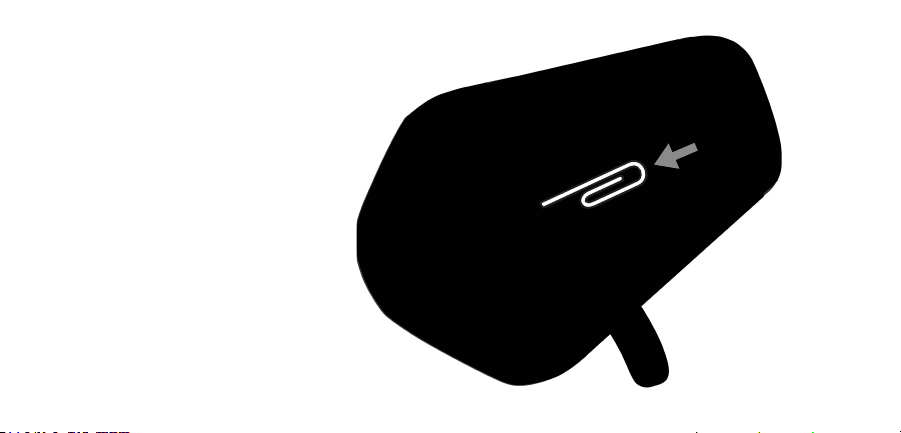

Resetting Your OontZ Angle 3 Plus
Safety and Precautions

Pages

1
2
3
4 - 5
6
7
7
8
9
10
11
12 - 14
15
16

In the Package

USB Micro Charging Cable

3.5mm Audio Cable

OontZ Angle 3 Plus

Speaker

Quick-Start Guide

Page 1

Play Controls

Bluetooth Button (Dual Function)

Button (Dual Function) Button (Dual Function)

Volume Down

Press and Release to decrease volume
one level; continue to press and release
until volume lowers to desired level

Note: Holding the button down will result in track back

Track Back

Press and Hold Down for 2 Seconds

Note: The volume on the OontZ Angle 3 Plus and your source device both need to be set to the highest level for the loudest volume.
The volume controls on your source device and speaker work independently of each other.

Button

Press and Release to Pause/Play

Volume Up

Press and Release to increase volume one
level; continue to press and release until
volume raises to desired level

Note: Holding the button down will result in track advance

Track Advance

Press and Hold Down for 2 Seconds

Power Button

Page 2

LED Lights and Connectors

Built-in Mic for Speakerphone

Bluetooth LED Light (Blue)

(LED is only visible when

speaker is turned on)

Note: Use the smaller end of
the Micro USB Charging Cable

to pry open the rubber flap, if
necessary. The rubber flap

needs to be closed to keep the
speaker water resistant

Charging LED Light (Red)

(LED visible when connected to a
charging source and when

battery charge is low)

Rubber Flap

(lifts up from top)

AUX IN Jack

(located under rubber flap)

Micro USB Charging Connector

(located under rubber flap)

Page 3

Charging the Battery

The lithium ion rechargeable battery
comes with a partial charge and is
ready to play. For maximum
playtime, fully charge the
battery. You can play
while charging.

Charging LED Light (Red)

(slowly flashing when charging)

To charge the battery:
Step 1: Pull down the rubber flap from the

top to access the Micro USB Charging
Connector

Step 2: Insert the smaller end of the Micro
USB Cable into the Micro USB Charging
Connector as shown

Step 3: Insert the larger end of the Micro
USB cable into either a USB wall charger for
a Smartphone or iPhone, or a USB port on
your laptop to charge the battery

Slowly flashing Red when charging

Solid Red when fully charged

Note: Close the rubber flap when not charging. The rubber
flap needs to be closed to keep the speaker water resistant

Page 4
