AngSi Technology ANGLE3 Quick Start Guide

Ultra-Portable Bluetooth Speaker

Quick Start Guide

Designed and Engineered By

Please visit TheOontZ.com

Table of Contents

In the Package
Buttons and Connectors
Charging the Battery

Turning On and Off

Pairing & Connecting
Pairing & Connecting -- From Your Mobile Device
Pairing & Connecting -- From Your Apple Mac or Windows Computer

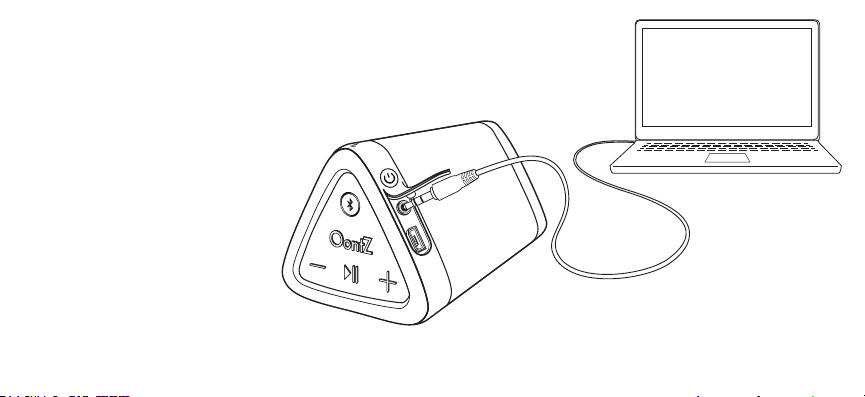

Playing From Your Laptop, Computer and Non-Bluetooth Devices Using the 3.5mm Audio Cable

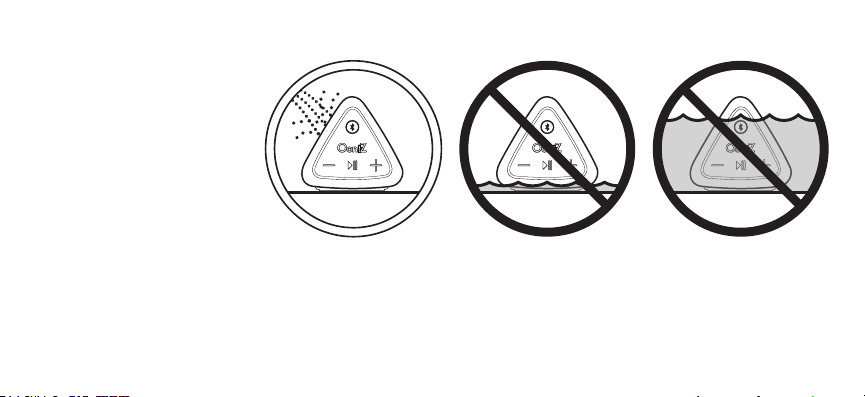

IPX5 Water Resistance
Wireless Hands Free Personal Speakerphone
Troubleshooting & Customer Support
Resetting Your OontZ Angle 3
Safety and Precautions

Pages

1
2
3 - 4
5
6
7
7
8
9
10
11 - 13
14
15

In the Package

OontZ Angle 3

Speaker

USB Micro Charging Cable

3.5mm Audio Cable

Quick-Start Guide

Page 1

Buttons and Connectors

Built-in Mic for Speakerphone

Charging LED Light (Red)

(LED visible when connected to a

charging source)

Bluetooth LED Light (Blue)

(LED is only visible when

speaker is turned on)

Bluetooth Button

(Dual-Function)

Volume Down Button

Play/Pause Button Volume Up Button

Power Button

Rubber Flap

(lifts up from bottom)

AUX IN Jack

(located under rubber flap)

Micro USB Charging Port

(located under rubber flap)

Page 2

Charging the Battery

Charging LED
Light (Red)

The lithium ion rechargeable battery will have a partial
charge and be ready to play. For maximum playtime,
fully charge the battery. You can play while charging.

To charge the battery:

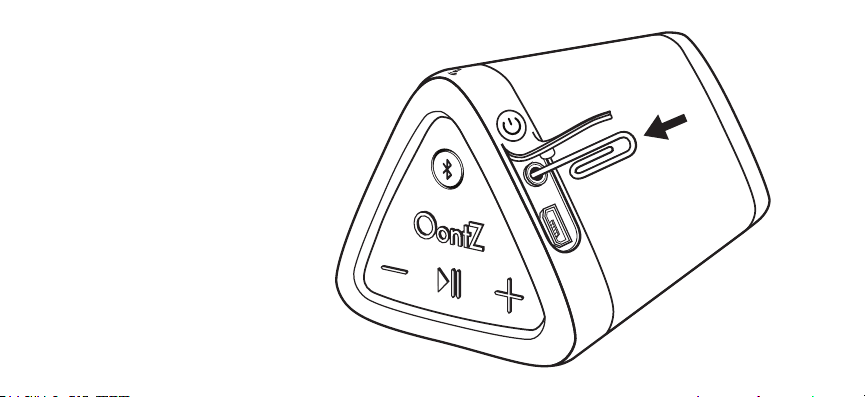

Step 1: Lift up the rubber flap from the bottom to

access the Micro USB Charging Port.

Step 2: Insert the smaller end of the Micro USB Cable
into the Micro USB Charging Port as shown.

Step 3: Insert the other end of the Micro USB cable into
either a USB wall charger for a Smartphone or iPhone,
or a USB port on your laptop to charge the battery.

Charging LED Light (Red)

(LED visible when connected to a charging source)

Slowly flashing Red when charging

Solid Red when fully charged

Note: Close the rubber flap when not charging. The rubber
flap needs to be closed to keep the speaker water resistant

Page 3

Charging the Battery (continued)

Music Play Time

Up to 7 hours on a full charge, with volume at 60%.
Louder volumes will reduce the battery play time.

Play while charging

You can play the OontZ Angle 3 while it is charging.

Power Saving Feature

- When playing from battery power the OontZ

Angle 3 will turn off after 15 minutes of not

playing audio to conserve the battery charge.

- When plugged in to a charging source the
OontZ Angle 3 will remain on until you turn

the power off. You can continue to keep the

speaker plugged in to a charging source even
when it is fully charged.

Low Charge
Remaining Indicator

When the battery charge
is down to about 15% the

Charging LED Light (Red)
will begin flashing Red
and will remain flashing

until the speaker is turned

off. The volume will

decrease to preserve the
remaining battery charge.

Charging Time

It will take about 5 to 6
hours to fully charge a
low battery.

Page 4
