Analog Way Smart MatriX User Manual

USER MANUAL

version 4.00

THANK YOU

Thank you for choosing Analog Way. By following these simple steps, you should be able to operate the powerful Smart MatriX (SMX200).

TABLE OF CONTENTS

INTRODUCTION

1-1. SMART MATRIX OPERATING MODE

1-2. USEFUL TERMS AND DEFINITIONS

HARDWARE INSTALLATION

2-1. SAFETY INSTRUCTION

2-2. UNPACKING AND INSPECTION

2-3. RACKMOUNT INFORMATION

2-4. CABLE & ADAPTOR INFORMATION

2-5. HARDWARE SPECIFICATIONS

Input specications

Output specications

Communication specications

Environmental specications

Pin outs

HDCP compliance

CONNECTING THE Smart MatriX

3-1. CONNECTING THE Smart MatriX

3-2. THE Smart MatriX REAR PANEL

Output #1 and #2

Inputs #1 to #6

DVI Inputs #1 and #2 SD/HD-SDI Inputs #1 and #2 Outputs #1 and #2

OPERATING THE Smart MatriX

4-1. THE Smart MatriX FRONT PANEL

Overview

On/Off button

Menu screen

Menu scroll knob

Control section

4-2. THE Smart MatriX MENU

Menu navigation

Home menu

4-3. WORKING WITH THE Smart MatriX

Operating modes

Reseting default values

Smart MatriX color codes

• Settings in Native Matrix Mode

Source Input selection

Input selection settings

Input Sync. Loss Function

Source Output selection

Output selection settings

Working with Native Matrix Mode

Working with Cut, Fade or Transitions

Working with Layers Functions

Opening transitions & closing Live Layers

Working with PIP

PIP with Transitions & Borders

Working with Mirror Mode

Working with Frames/Logos

Capturing still Frames

Working with Frames

Opening transitions & closing Still Layers

Memorizing Frames

Frame input setup menu

Frames as Layer

Layer transition & effects

Mixer functions

Capturing Logos

Capturing an animated Logo

Memorizing Logos

Logos input setup menu

Working with Logos

Logos as Layer

Working with Presets

Working with Audio

Audio conguration

Special Features

HOME MENU

REMOTE CONTROL SOFTWARE

5-1. THE Smart MatriX RCS

RCS presentation

How to use the RCS

Software installation

Software overview

Serial connection

Ethernet connection

5-2. WORKING WITH THE RCS

Source input conguration

Source output conguration

Working with PIPs

PIP conguration

Working with Frames

Memorizing Frames

Working with Logos

Memorizing Logos

Layer transitions & effects

Creating Presets

Working with Presets

Working with Audio

Audio conguration

OPTIONAL REMOTE CONTROL SYSTEMS

6-1. AXION 2- Ref. ARC200

6-2. ORCHESTRA - Ref. ORC50

6-3. TRK-800 - Ref. TRK-800

6-4. RK-300 - Ref. RK-300

EXAMPLES AND TIPS

7-1. ABOUT EXAMPLES

7-2. EXAMPLES

7-3. EXTERNAL PROGRAMMING

WARRANTY AND SERVICES INFORMATION

8-1. ANALOG WAY LIMITED WARRANTY

8-2. SERVICES AND RMA

CONTACT INFORMATION

HOW TO CONTACT US

INFORMATION ON DISPOSAL

INTRODUCTION

1-1. THE SMART MATRIX OPERATING MODE

Before you start setting up your Smart MatriX (SMX200) for the rst time, be sure you know what you actually want to do with it. The Smart MatriX offers one operating mode, which results in a versatile video production

tool for live event staging and xed installation applications.

* NOTE * : We recommend resetting the device to its default values every time you set up your shows or events (see the “Operating The Smart MatriX” chapter, p28).

Native Matrix Mode

This mode turns your Smart MatriX into a true 12 x 2 High End Scaled Matrix, while preserving seamless switching capabilities. Main and Preview outputs can be set to different resolutions and rates. Switching between any of the inputs can be done with the various effects (Cut, Fade, Slides…) and synchronized on

both outputs.

1-2. USEFUL TERMS AND DEFINITIONS

BACKGROUND: a “Background” is a source, typically originating from a computer. Smart MatriX enables

you to work with live or still (frame) background sources - visually in back of all other sources.

LAYER: a “Layer” is an image display element (such as a PIP window, Key, Logo(s) or Background) that has

an associated visual priority — either in front (or in back) of another layer.

The Smart MatriX can simultaneously view no less than 4 layers (2 video, 1 frame & 1 Logo, per output).

Smart MatriX can insert up to 2 PIPs on a live background, plus 2 logos.

PIP: a “PIP” (Picture In Picture), is a picture, typically of reduced size, which is positioned over another

background image or PIP. PIPs can be reduced, enlarged and bordered. PIPs can overlap, depending on

their visual priority.

Smart MatriX allows for Dynamic PIP on the opening and closing of the sequence, vertically or horizontally. A “Flying” PIP is also possible over the screen with vertical, horizontal or diagonal animation. A PIP is considered

as a live layer.

FRAME: a “Frame” is a full screen image which is selected from one of the eight still frames which you can

capture with the Smart MatriX. A Frame can be ash captured and imported from any video or computer source plugged into the machine.

LOGO: a “Logo” is a part of screen image that can be ash captured and imported from any Video or

Computer source, by keying or image cut-out. Smart MatriX can record up to 8 still logos. They can be positioned anywhere on the screen. An animated logo is also available on the eighth input.

KEYING: a “Key” is an electronic process whereby an image is electronically superimposed over another

source or background, by cutting out either a color (Chroma Key), or its brightness or luminance levels (Luma Key). Keys are typically used for titles, logos and special effects.

Smart MatriX allows to use a live source with green or blue background and to key it over any other live input.

HARDWARE INSTALLATION

2-1. SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

CAUTION:

All of the safety and operating instructions should be read before the product is operated and should be

maintained for further reference. Please follow all of the warnings on this product and its operating instructions.

• WARNING: To prevent the risk of electric shock and re, do not expose this device to rain, humidity,

intense heat sources (such as heaters and direct sunlight). Slots and openings in the device are provided for ventilation and to avoid overheating. Make sure the device is never placed near a textile surface that could block the openings. Also keep away from excessive dust, vibrations and shocks.

• POWER: Only use the power supply indicated on the device of the power source. Devices equipped with

a grounding plug should only be used with a grounding type outlet. In no way should this grounding be modied, avoided or suppressed.

• POWER CORD: The device is equipped with a main switch [On (I) /Off (O)]. The Switch ON and OFF is

initiated by the main switch.

Caution: The power cord constitute the only mean to totaly disconnect the equipment

from the main power.

Apply the following guidelines :

- The equipment connected to the network must have a release system easily

accessible and located outside the unit.

- Unplug the power cord, do not pull on the power cord but always on the plug itself.

- The outlet should always be near the device and easily accessible.

- Power supply cords should be routed so that they are not likely to be walked on or

pinched by items placed upon or against them.

If the power supply cord is damaged, unplug the device. Using the device with a damaged power supply cord may expose your device to electric shocks or other hazards. Verify the condition of the power supply cords

once in a while. Contact your dealer or service center for replacement if damaged.

• CONNECTIONS: All inputs and outputs (except for the power input) are TBTS dened under EN60950.

• SERVICING: Do not attempt to service this product yourself by opening or removing covers and screws

since it may expose your device to electric shocks or other hazards. Refer all problems to qualied

service personnel.

• OPENINGS: Never push objects of any kind into this product through the openings. If liquids have been

spilled or objects have fallen into the device, unplug it immediately and have it checked by a qualied

technician.

INSTRUCTIONS DE SECURITE

An de mieux comprendre le fonctionnement de cet appareil nous vous conseillons de bien lire toutes les consignes de sécurité et de fonctionnement de l’appareil avant utilisation. Conservez les instructions de sécurité et de fonctionnement an de pouvoir les consulter ultérieurement. Respectez toutes les consignes marquées dans la documentation, sur le produit et sur ce document.

• ATTENTION: An de prévenir tout risque de choc électrique et d’incendie, ne pas exposer cet appareil à

la pluie, à l’humidité et aux sources de chaleur intense.

• INSTALLATION: Veillez à assurer une circulation d’air sufsante pour éviter toute surchauffe à l’intérieur

de l’appareil. Ne placez pas l’appareil sur ou à proximité d’une surface textile susceptible d’obstruer les orices de ventilation. N’installez pas l’appareil à proximité de sources de chaleur comme un radiateur ou une poche d’air chaud, ni dans un endroit exposé au rayonnement solaire direct, à des poussières excessives, à des vibrations ou à des chocs mécaniques. Ceci pourrait provoquer un mauvais

fonctionnement et un accident.

• ALIMENTATION: Ne faire fonctionner l’appareil qu’avec la source d’alimentation indiquée sur l’appareil.

Les appareils doivent être obligatoirement connectés sur une source équipée d’une mise à la terre efcace. En aucun cas cette liaison de terre ne devra être modiée, contournée ou supprimée.

• CORDON D’ALIMENTATION: Les appareils sont équipés d’un interrupteur général (Marche I / Arrêt

O), la mise en tension et la mise hors tension se fait en actionnant cet interrupteur général. Attention: le cordon d’alimentation constitue le seul moyen de débrancher l’appareil totalement de l’alimentation

secteur. Pour être certain que l’appareil n’est plus alimenté, ce cordon doit être débranché de la prise

murale.

Appliquer les consignes suivantes :

- Le matériel relié à demeure au réseau, doit avoir un dispositif de sectionnement facilement accessible qui doit être incorporé à l’extérieur de l’appareil.

- Débrancher le cordon d’alimentation de la prise murale si vous prévoyez de ne pas utiliser l’appareil pendant quelques jours ou plus.

- Pour débrancher le cordon, tirez-le par la che. Ne tirez jamais sur le cordon proprement dit.

- La prise d’alimentation doit se trouver à proximité de l’appareil et être aisément accessible.

- Ne laissez pas tomber le cordon d’alimentation et ne posez pas d’objets lourds dessus.

Si le cordon d’alimentation est endommagé, débranchez-le immédiatement de la prise murale. Il est dangereux de faire fonctionner un appareil avec un cordon endommagé; un câble abîmé peut provoquer un risque d’incendie ou un choc électrique. Vériez le câble d’alimentation de temps en temps. Contactez votre

revendeur ou le service après-vente pour un remplacement.

• CONNEXIONS: Toutes les entrées et sorties (exceptée l’entrée secteur) sont de type TBTS (Très Basse

Tension de Sécurité) dénies selon EN 60950.

• RÉPARATION ET MAINTENANCE: L’utilisateur ne doit en aucun cas essayer de procéder aux opérations

de dépannage, car l’ouverture des appareils par retrait des capots ou de toutes autres pièces constituant

les boîtiers ainsi que le dévissage des vis apparentes à l’extérieur, risquent d’exposer l’utilisateur à des chocs électriques ou autres dangers. Contactez le service après-vente, votre revendeur ou s’adresser à un personnel qualié uniquement.

• OUVERTURES ET ORIFICES: Les appareils peuvent comporter des ouvertures (aération, fentes, etc...),

veuillez ne jamais y introduire d’objets et ne jamais obstruer ses ouvertures. Si un liquide ou un objet pénètre à l’intérieur de l’appareil, débranchez immédiatement l’appareil et faites-le contrôler par un personnel qualié avant de le remettre en service.

INSTRUZIONI DI SECUREZZA

Allo scopo di capire meglio il funzionamento di questa apparecchiatura vi consigliamo di leggere bene tutti i consigli di sicurezza e di funzionamento prima dell’utilizzo. Conservare le istruzioni di sicurezza e di funzionamento al ne di poterle consultare ulteriormente. Seguire tutti i consigli indicati su questo manuale

e sull’apparecchiatura.

• ATTENZIONE: Al ne di prevenire qualsiasi rischio di shock elettrico e d’incendio, non esporre

l’apparecchiatura a pioggia, umidità e a sorgenti di eccessivo calore.

• INSTALLAZIONE: Assicuratevi che vi sia una sufciente circolazione d’aria per evitare qualsiasi

surriscaldamento all’interno dell’apparecchiatura. Non collocare l’apparecchiatura in prossimità o su superci tessili suscettibili di ostruire il funzionamento della ventilazione. Non installate l’apparecchiatura in prossimità di sorgenti di calore come un radiatore o una fuoruscita d’aria calda, né in un posto esposto direttamente ai raggi del sole, a polvere eccessiva, a vibrazioni o a shock meccanici. Ció potrebbe provocare un erroneo funzionamento e un incidente.

• ALIMENTAZIONE: Far funzionare l’apparecchiatura solo con la sorgente d’alimentazione indicata

sull’apparecchiatura. Le apparecchiature queste devono essere obbligatoriamente collegate su una sorgente fornita di una efciente messa a terra. In nessun caso questo collegamento potrà essere modicato, sostituito o eliminato.

• CAVO DI ALIMENTAZIONE: Gli apparecchi con un interrutore (commutatore) generale

(Accesso I : Speuto 0), accendere ou spagnere l’apparecchio si fa usando l’interrutore. Attenzione: il cavo di alimentazione è il solo modo di disconnettere l’apparecchio dell’alimentazione. Per assicurarsi che totalemente l’apparecchio non è più collegato, il cavo deve essere disconesso della

presa murale.

Seguire le instruzioni seguenti:

- Il materiale collegato a residenza alla rete, deve avere un dispositivo di sezionamento facile da

raggiongere eche deve essere inserito all’esterno del apparecchio.

- Disconnettere l’apparecchiatura dalla presa murale se si prevede di non utilizzarla per qualche giorno.

- Per disconnettere il cavo tirare facendo forza sul connettore.

- La presa d’alimentazione deve trovarsi in prossimità dell’apparecchiatura ed essere facilmente

accessibile.

- Non far cadere il cavo di alimentazione né appoggiarci sopra degli oggetti pesanti.

Se il cavo di alimentazione é danneggiato, spegnere immediatamente l’apparecchiatura.

E’ pericoloso far funzionare questa apparecchiatura con un cavo di alimentazione danneggiato, un cavo grafato puó provocare un rischio di incendio o uno shock elettrico. Vericare il cavo di alimentazione spesso. Contattare il vostro rivenditore o il servizio assistenza per una sostituzione.

• CONNESSIONE: Tutti gli ingressi e le uscite (eccetto l’alimentazione) sono di tipo TBTS denite secondo

EN 60950.

• RIPARAZIONI E ASSISTENZA: L’utilizzatore non deve in nessun caso cercare di riparare l’apparecchiatura,

poiché con l’apertura del coperchio metallico o di qualsiasi altro pezzo costituente la scatola metallica, nonché svitare le viti che appaiono esteriormente, poiché ció puó provocare all’utilizzatore un rischio di

shock elettrico o altri rischi.

• APERTURE DI VENTILAZIONE: Le apparecchiature possono comportare delle aperture di ventilazione,

si prega di non introdurre mai oggetti o ostruire le sue fessure. Se un liquido o un oggetto penetra all’interno dell’apparecchiatura, disconnetterla e farla controllare da personale qualicato prima di rimetterla in servizio.

SICHERHEITSHINWEISE

Um den Betrieb dieses Geräts zu verstehen, raten wir Ihnen vor der Inbetriebnahme alle Sicherheits und Betriebsanweisungen genau zu lesen. Diese Sicherheits- und Betriebsanweisungen für einen

späteren Gebrauch sicher aufbewahren. Alle in den Unterlagen, an dem Gerät und hier angegebenen

Sicherheitsanweisungen einhalten.

• ACHTUNG: um jegliches Risiko eines Stromschlags oder Feuers zu vermeiden, das Gerät nicht Regen,

Feuchtigkeit oder intensiven Wärmequellen aussetzen.

• EINBAU: Eine ausreichende Luftzufuhr sicherstellen, um jegliche Überhitzung im Gerät zu vermeiden.

Das Gerät nicht auf und in Nähe von Textiloberächen, die Belüftungsöffnungen verschließen können, aufstellen. Das Gerät nicht in Nähe von Wärmequellen, wie z.B. Heizkörper oder Warmluftkappe, aufstellen und es nicht dem direkten Sonnenlicht, übermäßigem Staub, Vibrationen oder mechanischen Stößen aussetzen. Dies kann zu Betriebsstörungen und Unfällen führen.

• STROMVERSORGUNG: Das Gerät nur mit der auf dem Gerät bezeichnete Stromquelle betreiben. Gerät

mit geerdeter Hauptstromversorgung muss an eine Stromquelle mit efzienter Erdung angeschlossen werden. Diese Erdung darf auf keinen Fall geändert, umgangen oder entfernt werden.

• NETZKABEL: Da die Geräte über einen Hauptschalter (An I/ Aus 0) verfügen, erfolgt die Stromversorgung

und -unterbrechung über diesen Hauptschalter.

Achtung: Das Netzkabel stellt die einzige Möglichkeit dar, das Gerät vollständig vom Netzanschluss

zu trennen. Um sicherzustellen, dass das Gerät nicht mehr versorgt wird, muss dieses Kabel aus der Netzsteckdose ausgesteckt werden.

Bitte beachten Sie die folgenden Hinweise:

- Wenn Geräte dauerhaft am Netz bleiben, müssen sie über eine leicht zugängliche Trennvorrichtung

verfügen, die außen am Gerät angebracht sein muss.

- Das Kabel mittels dem Stecker herausziehen. Niemals am Stromkabel selbst ziehen.

- Die Steckdose muß sich in der Nähe des Geräts benden und leicht zugänglich sein.

- Das Stromkabel nicht fallen lassen und keine schweren Gegenstände auf es stellen.

Wenn das Stromkabel beschädigt ist, das Gerät sofort abschalten. Es ist gefährlich das Gerät mit einem

beschädigten Stromkabel zu betreiben; ein abgenutztes Kabel kann zu einem Feuer oder Stromschlag führen. Das Stromkabel regelmäßig untersuchen. Für den Ersatz, wenden Sie sich an Ihren Verkäufer

oder Kundendienststelle.

• ANSCHLÜSSE: Bei allen Ein- und Ausgängen (außer der Stromversorgung) handelt es sich, gemäß EN

60950, um Sicherheits Kleinspannunganschlüsse.

• REPARATUR UND WARTUNG: Der Benutzer darf keinesfalls versuchen das Gerät selbst zu reparieren,

die Öffnung des Geräts durch Abnahme der Abdeckhaube oder jeglichen anderen Teils des Gehäuses sowie die Entfernung von außen sichtbaren Schrauben zu Stromschlägen oder anderen Gefahren für den Benutzer führen kann. Wenden Sie sich an Ihren Verkäufer, Ihre Kundendienststelle oder an qualizierte

Fachkräfte.

• ÖFFNUNGEN UND MUNDUNGEN: Die Geräte können über Öffnungen verfügen (Belüftung, Schlitze,

usw.). Niemals Gegenstände in die Öffnungen einführen oder die Öffnungen verschließen. Wenn eine Flüssigkeit oder ein Gegenstand in das Gerät gelangt, den Stecker herausziehen und es vor einer neuen Inbetriebnahme von qualiziertem Fachpersonal überprüfen lassen.

INSTRUCCIONES DE SEGURIDAD

Para comprender mejor el funcionamiento de este aparato, le recomendamos que le acuidadosamente todas

las consignas de seguridad y de funcionamiento del aparato antes de usarlo. Conserve las instrucciones de

seguridad y de funcionamiento para que pueda consultarlas posteriormente. Respete todas las consignas indicadas en la documentación, relacionadas con el producto y este documento.

• CUIDADO: Para prevenir cualquier riesgo de choque eléctrico y de incendio, no exponga este aparato a

la lluvia, a la humedad ni a fuentes de calorintensas.

• INSTALACIÓN: Cerciórese de que haya una circulación de aire suciente para evitar cualquier

sobrecalentamiento al interior del aparato. No coloque el aparato cerca ni sobre una supercie textil que pudiera obstruir los oricios de ventilación. No instale el aparato cerca de fuentes de calor como radiador o boca de aire caliente, ni en un lugar expuesto a los rayos solares directos o al polvo excesivo, a las vibraciones o a los choques mecánicos. Esto podría provocar su mal funcionamiento o un accidente.

• ALIMENTACIÓN: Ponga a funcionar el aparato únicamente con la fuente de alimentación que se indica

en el aparato. Los aparatos deben estar conectados obligatoriamente a una fuente equipada con una puesta a tierra ecaz. Por ningún motivo este enlace de tierra deberá ser modicado, cambiado o

suprimido.

• CABLE DE ALIMENTACIÓN: Los equipos incluyan interruptor general de alimentación (Encender I /

Apagar 0), la puesta en marcha o desconexión se realiza por medio de este interruptor.

El cable de alimentación constituye el único medio de desconectar el aparato totalmente de la red eléctrica.

Para estar seguro de que el aparato no está más alimentado, este cable debe de ser desconectado de la

toma de corriente.

Aplicar las siguientes consignas:

- El material conectado a residencia a la red informática, debe de tener un dispositivo de seccionamiento

fácilmente accesible que debe de ser incorporado al exterior del aparato.

- Desconectar el aparato del enchufe mural si no piensa utilizarlo durante varios días.

- Para desconectar el cable, tire de la clavija. No tire nunca del cable propiamente dicho.

- El enchufe de alimentación debe estar cerca del aparato y ser de fácil acceso.

- No deje caer el cable de alimentación ni coloque objetos pesados encima de él.

Si el cable de alimentación sufriera algún daño, ponga el aparato inmediatamente fuera de tensión. Es

peligroso hacer funcionar este aparato con un cable averiado, ya que un cable dañado puede provocar un incendio o un choque eléctrico. Verique el estado del cable de alimentación de vez en cuando. Póngase

en contacto con su distribuidor o con el servicio de posventa si necesita cambiarlo.

• CONEXIONES: Todas las entradas y salidas (excepto la entrada del sector) son de tipo TBTS (Muy Baja

Tensión de Seguridad) denidas según EN 60950

• REPARACIÓN Y MANTENIMIENTO: Por ningún motivo, el usuario deberá tratar de efectuar operaciones

de reparación, ya que si abre los aparatos retirando el capó o cualquier otra pieza que forma parte de las cajas o si destornilla los tornillos aparentes exteriores, existe el riesgo de producirse una explosión, choques eléctricos o cualquier otro incidente. Contacte el servicio de posventa, a su distribuidor o dirigirse con personal cualicado únicamente.

• ABERTURAS Y ORIFICIOS: Los aparatos pueden contener aberturas (aireación, ranuras, etc.). No

introduzca allí ningún objeto ni obstruya nunca estas aberturas. Si un líquido o un objeto penetra al interior del aparato, desconéctelo y hágalo revisar por personal cualicado antes de ponerlo nuevamente

en servicio.

2-2. UNPACKING AND INSPECTION

1 x Smart MatriX (SMX200) 1 x Power supply cord. 2 x DVI male to HD15 female and DVI-D female

Breakout Cable

1 x HD15 to 5 BNC cable 1 x Ethernet cross cable (for device update) 1 x Set of 11 audio 5 pin screw terminals

WARNING !

If required, front handles of the device can be dismantled,

but with caution. The original screws removed must not be reintroduced to their location without handles in place.

Substantial damages can occur, including risk of electric shock from the mains voltage.

1 x RCS - Remote Control Software (PC only) * 1 x User Manual (PDF version) *

Only M4x12mm screws can be used.

(They are supplied with the unit)

1 x Quick Start Guide (PDF version) *

* Download on our website: www.analogway.com

2-3. RACKMOUNT INFORMATION

Tabletop mounting: The Smart MatriX can be used directly on a table, the unit is equipped with 4 handy anti- slip rubber feet.

Rack mounting: The Smart MatriX is compatible with a 19” enclosure. Please follow the instructions below to install the device in a 19” rack.

Place the device in your rack. Attach the device to the rack by using 4 screws through the front panel holes

(screws not included).

Rear xing is also recommended, in particular for permanent installations. The Smart MatriX is equipped

with drill holes designed for compatibility with most rackmount braces. Connect all of the cables of the device and attach them to the rack with the help of tie wraps.

IMPORTANT:

- The openings in the side and rear panels of the device are for cooling. Do not cover these openings to

avoid cutting air circulation.

- Be sure that no weight in excess of 2 kg (4.4 Lbs.) is added onto the Smart MatriX.

- The maximum ambient operating temperature should not exceed 40°C (104°F).

- The rack and all mounted equipment in it must be reliably grounded according to national and/or local

electrical standards.

Dismantling front handles of the device could invalidate warranty on after sales services of your

Smart MatriX. It is strongly advised to avoid using front handles as rests for your Smart MatriX,

they are designed for manipulation purposes only.

If required, front handles of the device can be dismantled, but with caution.The original screws removed must not be reintroduced to their location without handles in place. Substancial damages can occur, including risk of electric shock from the main voltage. Only M4x12mm screws can be used. They are

supplied with the unit.

2-4. CABLE AND ADAPTOR INFORMATION

A large choice of cables and adaptors are compatible with the Smart MatriX. To nd which are to be used in your setup, please refer to the Hardware Specications chapter. Please contact your distributor for a list of

available cables and connectors for your Smart MatriX.

2-5. HARDWARE SPECIFICATIONS

Description of the input formats supported by the device.

• SDTV

Standard Size Frame Frequency Line Frequency

NTSC 525/480i 59.94Hz / 60Hz 15.735 KHz PAL 625/576i 50Hz 15.625 KHz SECAM 625/576i 50Hz 15.625 KHz

• EDTV

Standard Size Frame Frequency Line Frequency

480p 525/480i 59.94Hz / 60Hz 31.47 KHz 576p 625/576i 50Hz 31.25 KHz

• HDTV (RGB or YUV)

Standard Size Frame Frequency Standard

720p 1280x720 50Hz / 59.94Hz / 60Hz SMPTE 296M 1035i 1920x1035 59.94Hz / 60Hz SMPTE 260M 1080i 1920x1080 50Hz / 59.94Hz / 60Hz SMPTE 274M 1080p 1920x1080 23.97Hz / 24Hz / 25Hz / 29.97Hz / 30Hz SMPTE 274M 1080sF 1920x1080 50Hz / 59.94Hz/60Hz SMPTE 274M 1080p 1920x1080 50Hz / 60Hz HDTV

• INPUT FEATURES

Inputs Format Signal Connector EDID

1 HD15#1 YES 2 SDTV Analog SDTV HD15#2 YES

3 EDTV Analog EDTV HD15#3 NO 4 HDTV Analog HDTV HD15#4 NO 5 Computer Analog Computer DVI#1: ANALOG PART NO 6 DVI#2: ANALOG PART NO

Digital SDTV (Except SDI)

SDTV EDTV HDTV

Computer

Digital EDTV

Digital HDTV (Except SDI)

Digital Computer

DVI#1: DIGITAL PART YES

DVI#2: DIGITAL PART YES

9 Digital SDTV BNC#1 NO

10 SDTV

11 Digital HDTV BNC#3 NO 12 (SDI only) BNC#4 NO

HDTV

(SDI only) BNC#2 NO

• COMPUTER FORMATS

The SMX200 recognizes the following computer formats (Subsampled formats will be displayed with a degraded quality. For a pixel clock > 165 MHz).

Format Size Reduced Blankings Subsampling

VGA 640x480 800x480 800x480 SVGA 800x600 WVGA 848x480 XGA 1024x768 1152x864 1152x864 1280x600 1280x600 720p RGB 1280x720 WXGA 1280x768 800p RGB 1280x800 960p RGB 1280x960 SXGA 1280x1024 SWXGA 1360x768 1360x1024 1360x1024 1366x768 1366x768 DILA4/3 1364x1024 SWXGA+ 1366x800 SXGA+ 1400x1050 900p RGB 1440x900 1600x900 1600x900 UXGA 1600x1200 WSXGA+ 1680x1050 1080p RGB 1920x1080 YES WUXGA 1920x1200 YES 1920x1440 1920x1440 YES 2K 2048x1080 YES QXGA 2048x1536 YES

• EDID

The EDID is available on inputs #1 & #2 and #7 & #8. The user can modify the EDID choosing from a list of predened formats and frequencies.

SETTINGS AND INPUT FUNCTIONS

Analog DVI-D SDI

Settings / Functions 1 2 3 4 5 6 7 8 9 10 11 12

Auto Settings

Auto Framing

Blanking Settings

Cropping

Optimization Under/Overscan Aspect Ratio Settings Aspect Input Output Color Settings

Advanced settings

2:2 Pulldown 3:2 Pulldown

1/ Analog Computer Input or Analog Video Input (EDTV or HDTV only) 2/ Only Vidéo Input 3/ Only interlaced 50 Hz 4/ Only interlaced 59.94 Hz to 60 Hz

YES YES YES YES YES YES YES YES N/A N/A N/A N/A

YES

YES1YES1YES1YES1YES1NO NO NO NO NO NO YES YES YES YES YES YES NO NO NO NO NO NO YES YES YES YES YES YES YES YES YES YES YES YES

YES YES

YES1YES1YES1YES1YES1NO NO NO NO NO NO

YES2YES2YES2YES2YES2YES2YES2YES2YES

YES2YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES NO NO NO NO NO NO

YES YES

YES3YES3YES3YES3YES3YES3YES3YES

YES4YES4YES4YES4YES4YES4YES4YES

YES YES

YES3YES

YES4YES

Input specications

• ANALOG COMPUTER

Connectors: Inputs #1 to #4: female HD15. Inputs #5-#6: female DVI-I

(analog pins).

Line frequency: Up to 130 kHz (165 MHz Max pixel rate). Resolution: Up to 1600x1200 @ 165Mhz, 1920x1200px (RB, Max V size: 1200px, Max H size 2048px). Sync. types: RGBHV, RGB/S, RGsB (Sync On Green). Levels: R, G, B = 0.7 Vp/p. H & V Sync = TTL. Composite Sync = TTL and 0.3 V (negative). SOG (Sync On Green) = 0.3 V. Impedance: R, G, B = 75 ohms. H = 75 ohms or Hi-Z. V = Hi-Z.

• RGB/S - RGsB VIDEO

Connectors: Inputs #1 to# 4: female HD15. Inputs #5-#6: female DVI-I (analog pins). Frequency: 15.625 kHz - 50 Hz (625 lines).

15.734 kHz - 60 Hz (525 lines). Levels: R, G, B = 0.7 Vp/p. SYNC. = 0.3 Vp/p or TTL (negative). Impedance: RGB = 75 ohms. SYNC. = 75 ohms or Hi-Z.

• COMPONENT

Connectors: Inputs #1 to #4: female HD15. Inputs #5-#6: female DVI-I (analog pins). Input #8: female HD15. Frequency: 15.625 kHz - 50 Hz (625 lines).

15.734 kHz - 60 Hz (525 lines). Levels: Y = 1 Vp/p (0.7 V Luma + 0.3 V Sync.). Cr / Pr & Cb / Pb = 0.7 Vp/p. Impedance: 75 ohms.

• HDTV - HD-YUV

Connectors: Inputs #1 to #4: female HD15. Inputs #5-#6: female DVI-I

(analog pins).

Formats: 720p/576p (60Hz), 1080i (50/60Hz), EDTV, 1080p (50/60Hz Reduce Blanking) Levels: Y = 1 Vp/p (0.7 V + sync.). Cr / Pr & Cb / Pb = 1 Vp/p (0.7 V + sync.). Sync.: Tri-level: ±0.3V (positive/negative). Bi-level: 0.3V (negative). Impedance: 75 ohms.

• S.VIDEO

Connectors: Inputs #1 to #4: female HD15. Inputs #5-#6: female DVI-I

(analog pins).

Standard: PAL/SECAM: 15.625 kHz - 50Hz - 625 lines. NTSC (3.58 - 4.43 MHz): 15.734 kHz/60Hz/525 lines. Levels: Y = 1 Vp/p (0.7 V Luma + 0.3 V Sync.). C = 0.3 Vp/p (Chroma Burst). Impedance: 75 ohms.

• COMPOSITE VIDEO

Connectors: Inputs #1 to #4: female HD15. Inputs #5-#6: female DVI-I

(analog pins).

RCA.Standard: PAL / SECAM: 15.625 kHz - 50 Hz - 625 lines. NTSC (3.58 - 4.43 MHz): 15.734 kHz/60 Hz/525 lines. Level: 1 Vp/p (0.7 V Luma + 0.3 V Sync.). Impedance: 75 ohms.

• DVI (Digital Video Interface)

Connector: DVI Inputs #1-#2: female DVI-I (digital pins). Line frequency: Up to 130 kHz (165 MHz Max pixel rate). Format: Digital Visual Interface (DVI)-TMDS single link. Resolution: Up to 1600x1200 @ 165Mhz / 1920x1200px (RB, Max V size: 1200px, Max H size 2048px).

• SD-SDI

Connector: SDI Inputs #1 to #4: female BNC. Format: SMPTE 259M-C. Data rate: 270 Mbps serial digital. Impedance: 75 ohms.

• HD-SDI

Connector: SDI Inputs #1 to #4: female BNC. Formats: 720p @ 50 / 59.94 & 60 Hz. 1035i @ 50 / 59.94 & 60 Hz. 1080i @ 50 / 59.94 & 60 Hz. 1080p @ 23.97 / 24 / 25 / 29.97 / 30 / 50 / 59.94 & 60 Hz. 1080sF @ 50 / 59.94 & 60 Hz. Data rate: 1.5 Gbps serial digital - SMPTE 292M (Level A).

2.97 Gbps serial digital - SMPTE 425M (Level A). Impedance: 75 ohms.

• AUDIO

Input# Stereo Balanced Audio Connector

AUX

YES

Non applicable (Embedded Audio SDI) Non applicable (Embedded Audio SDI)

YES Connectors Phoenix 5 pins

L+

L-

R+ R-

UNBALANCED

LEFT

RIGHT

GROUND

AUDIO SETTINGS

L+ L-

R+ R-

BALANCED

L+

R+

L-

R-

GROUND(S)

Settings Availability

GAIN

YES: from -

to + 18dB

∞

Balanced Audio YES: Left and Right

• Connector: Balanced or unbalanced mono/stereo inputs

(all pin MCO male connector). 8 audio stereo inputs + 1 auxiliary. (all balanced / unbalanced).

MCO male connectors

Inputs #1 to #6: Balanced & unbalanced connection Inputs DVI #1 to DVI #2: Balanced & unbalanced

connection

Input AUX: Balanced & unbalanced connection

Vi = +15dBV max. Zi = 40Kohms (Balanced).

Output specications

• ANALOG OUTPUTS

Outputs #1 to #2: Balanced & unbalanced connection

Connector: Outputs #1 (Main) & #2 (Preview): female HD15, DVI-I (analog pins).

Resolutions:

FORMAT RATIO Available Refresh Rates Reduced Blanking

640 x 480 4 : 3 50Hz 60Hz 72Hz 75Hz 800 x 600 4 : 3 50Hz 60Hz 72Hz 75Hz 848 x 480 16 : 9 50Hz 60Hz 72Hz 75Hz 1024 x 768 4 : 3 50Hz 60Hz 72Hz 75Hz 1280 x 720 16 : 9 50Hz 60Hz 1280 x 768 15 : 9 50Hz 60Hz 72Hz 75Hz 1280 x 800 16 : 10 50Hz 60Hz 72Hz 75Hz 1280 x 1024 5 : 4 50Hz 60Hz 72Hz 75Hz 1360 x 768 16 : 9 50Hz 60Hz 72Hz 75Hz 1366 x 800 15 : 9 50Hz 60Hz 72Hz 75Hz 1400 x 1050 4 : 3 50Hz 60Hz 72Hz 75Hz 1440 x 900 16 : 10 50Hz 60Hz 72Hz 75Hz 1600 x 1200 4 : 3 50Hz 60Hz 1680 x 1050 16 : 10 50Hz 60Hz 1920 x 1080 16 : 9 50Hz 60Hz 72Hz 75Hz YES 1920 x 1080 B 16 : 9 50Hz 60Hz YES 1920 x 1080 C 16 : 9 50Hz 60Hz YES 1920 x 1080 HD 16 : 9 50Hz 60Hz YES 1920 x 1200 16 : 10 50Hz 60Hz YES 2048 x 1080 19 : 10 50Hz 60Hz YES

Signals: RGBHV, RGBS and RGsB. Levels: R, G, B = 0.7 Vp/p. Sync. : Separate H & V = TTL (negative). Composite = TTL (negative). SOG = 0.3 Vp/p (negative). Impedance: R, G, B = 75 ohms.

• DVI (Digital Video Interface) OUTPUTS

L+ L-

R+ R-

BALANCED

L+

R+

L-

R-

GROUND(S)

Connector: Outputs #1 & #2: female DVI-I (digital pins).

Signal: Digital Visual Interface (DVI)-TMDS single link.

Resolutions:

Format Ratio Refresh Rate Reduced Blanking

• AUDIO OUTPUT

Connector: Output #1 and #2: 2 Balanced or unbalanced mono/stereo outputs (on 5-pin MCO male connector).

Outputs #1 to #2: Balanced & unbalanced connection

Vo max: Unbalanced = +15dBu (at 300Ω load) Balanced = +21dBu (at 600Ω load) Zo = 600Ω balanced Zo = 300Ω unbalanced G = 0 dB nominal

The video output generates a SDI signal in which is embedded only one stereo audio stream.

Settings Availability

Gain Balanced Audio Left and Right

Auxiliary Input Mixing Yes Adjusting Audio Delay Yes: from 0 to 80ms (Automaticaly or Manual)

Yes: from -

to+18dB

∞

• VIDEO OUT

Connector: 1x BNC-F: SD/HD-SDI (with audio embedded). 3x BNC-F: Y_Cb_Cr. 1x Mini Din 4: S. Video. 1x BNC-F: Composition video PAL/NTSC.

Impedance: 75 ohms.

Formats: 720p @ 50 / 59.94 & 60 Hz. 1035i @ 59.94 & 60 Hz. 1080i @ 50 / 59.94 & 60 Hz. 1080p @ 23.97 / 24 / 25 / 29.97 / 30 / 50 & 60 Hz.

Data rate: 270Mbps serial digital - SMPTE 259M-C.

1.54 Gbps serial digital - SMPTE 292M-A.

2.97 Gbps serial digital - SMPTE 425M-A.

Communication specications

• COMMUNICATION PORTS

REMOTE RS-232

Connector: DB 9 female.

Protocol: RS-232. Data Rate: 9600 Bauds, 8 data bits, 1 stop bit, no parity bit, no ow control by

default.

DTR & RTS needed for upgrade.

• LAN

Connector: RJ45. Protocol: TCP (Transmission Control Protocol) or UDP. (User Datagram Protocol). Ethernet: Base 10/100.

Environmental specications

Dimensions: W 480 x D 330 x H 88 mm 19”W x 13”D x 3.50”H Weight: 5.4 kg / 10.90 lbs (Compatible with a Standard 19” rack, Height = 2 U).

Cooling air ow from right side to left side.

Max ambient operating temperature: < +40°C (< 104°F).

Operating temperature: 0 to +40°C / +32°F to +104°F.

Storage temperature: -40 to +70°C / -40°F to +158°F.

Operating humidity: 10 to 80% (non condensing).

Input voltage range: 100-240 VAC, 50/60 Hz.

Typical consumption: 90 W.

CE Compliancy, test following:

- EN 55022: 2006 / A1: 2007,

- EN 55024: 1998 / A1: 2001 / A2: 2003,

- EN 61000-3-2: 2006,

- EN 61000-3-3: 1995 / A1: 2001 / A2: 2005.

Safety, test following:

- IEC 60950-1: 2005,

- UL 60950-1: 2007,

- CAN/CSA-C22.2 NO. 60950-1.

Power supply: IEC/EN/UL/CSA 60950-1, internal, autoswitching.

Mechanical (in carton): Vibration: IEC60068-2-64.

Free fall: IEC60068-2-32.

RoHS, WEEE.

Pin outs

• VGA

STANDARD VGA

1- Red 6- Red Return 11- ID Bit 0 2- Green 7- Green Return 12- ID Bit 1 3- Blue 8- Blue Return 13- H Sync 4- ID Bit 2 9- No Pin 14- V Sync 5- Test (Gnd) 10- Sync Return 15- ID Bit 3

• DIGITAL VISUAL INTERFACE DVI

1- TMDS Data 2- 7- DDC Data 13- Not used 19- TMDS Data 0 Shield 2- TMDS Data 2+ 8- Analog Vertical Sync 14- +5V (Power) 20- Not used 3- TMDS Data 2 Shield 9- TMDS Data 1- 15- Ground for (+5V) 21- Not used 4- Not used 10- TMDS Data 1+ 16- Hot Plug Detect. 22- TMDS Clock Shield 5- Not used 11- TMDS Data 1 Shield 17- TMDS Data 0- 23- TMDS Clock + 6- DDC Clock 12- Not used 18- TMDS Data 0+ 24- TMDS Clock-

C1- Analog Red Video (or Cr/Pr or C) C2- Analog Green Video (or Y or Composite Video) C3- Analog Blue Video (or Cb/Pb) C4- Analog Horizontal Sync (or Composite Sync) C5- Analog Common Ground Return

DDC = Display Data Channel TMDS = Transition Minimized differential signal

• RS-232 CONNECTOR

1- NC 6- NC 2- Transmit data to PC (Tx1) 7- NC 3- Transmit data from PC (Rx1) 8- NC (or +12V. dc) 4- Receive data from display unit (Rx2) 9- Transmit data to display unit (Tx2)

5- Ground

• S-VIDEO (Y/C) CONNECTOR - 4-pin Mini Din

1- Y Ground 2- C Ground

3- Y Signal 4- C Signal

• VESA DDC

1- Red 7- Green Return 13- H Sync 2- Green 8- Blue Return 14- V Sync 3- Blue 9- DDC+5 Volt supply 15- Data Clock (SCL) 4- ID Bit 2 0 10- Sync Return 5- Test 11- ID Bit 6- Red Return 12- Bi-directional data (SDA)

HDCP compliance

If you want to use HDCP content from your sources, be sure pluging HDCP compliant screens or projectors. If it’s not the case, the output image could be disabled. When displaying HDCP protected sources on non HDCP compliant equipment, the following message will be displayed on the device VFD screen:

“Due to HDCP content, non HDCP screens cannot display protected sources”

Your screen will go to black without displaying the HDCP input image, or partially layer out non HDCP content.

Concerning the DVI inputs, a specic feature allows enable/disable the HDCP receiver for the input chosen.

It can be very useful especially when using a Mac:

Input Menu > DVI# > HDCP detection

The output status can provides you all information about the output in real time.

This feature is particularly needed when HDCP is used with long cable to be sure that the communication is

well handled.

Don’t forget that HDCP content can be displayed only through Digital link like DVI.

The SDI and the HD15 output don’t support the HDCP protection.

NOTE : as part of our policy of continuous improvement, Analog Way reserves the right to make

design and specication changes for product improvements without prior notice. The performance specication gures indicated are nominal values of production units. There may be some

deviations from these values in individual units.

CONNECTING THE SMART MATRIX

3-1. CONNECTING THE SMART MATRIX

The Smart MatriX can be set up with up to 12 different sources, and will drive up to 2 digital DVI-D sources, 2 SD-SDI sources and 8 analog computer/video sources simultaneously. The versatility of the Smart MatriX will allow for almost any event conguration and cater for all your projection needs.

The intuitive rear panel of the Smart MatriX will let you set up for the rst time quickly and easily. Here is an example of a typical Smart MatriX setup.

3-2. THE SMART MATRIX REAR PANEL

Outputs #1 and #2

The Smart MatriX rear panel is equipped with 12 universal digital and analog inputs. Inputs #1 through #4 (3) are universal analog inputs. Inputs #5 & #6 share a DVI-D signal and a universal analog signal (plug the included Analog Way DVI/HD15 adaptor cable to use DVI-D and analog signals simultaneously).

The outputs (6) will allow for the Smart MatriX high resolution digital and analog signals to be viewed on

screen and/or on a preview monitor (see also Output Specications in this chapter). The extra Video Out card installed on the Smart MatriX, can be used for recording, broadcasting or previewing purposes in a wide range of formats for maximum compatibility with industry viewing or recording equipment. Finally, the audio in and output card will let users mix audio with any source, accurately balance or tweak

sound sources and outputs.

1 : AC outlet and on/off switch 2 : IP-LAN connector 3 : Universal Computer/TV/HDTV inputs 4 : DVI-D inputs 5 : HD-SDI inputs 6 : Analog and DVI outputs #1 & #2 7 : SD-HD/SDI output 8 : SD/HDTV output

9 : Audio inputs 10 : Audio outputs

11 : RS-232 connector 12 : Serial #

1 3 4 6 1011

212 9 7

Inputs #1 to #6

UNIVERSAL COMPUTER & VIDEO INPUTS:

Universal Inputs accept computer sources (RGBHV, RGBS, and RGsB (SOG) signals), standard TV/VIDEO sources (Composite video, S.VIDEO), Component video (YUV, RGBS & RGsB (SOG)), and HDTV sources (480p, 720p &

1080i).

HD15: 1x Universal Analog input on female HD15 connector.

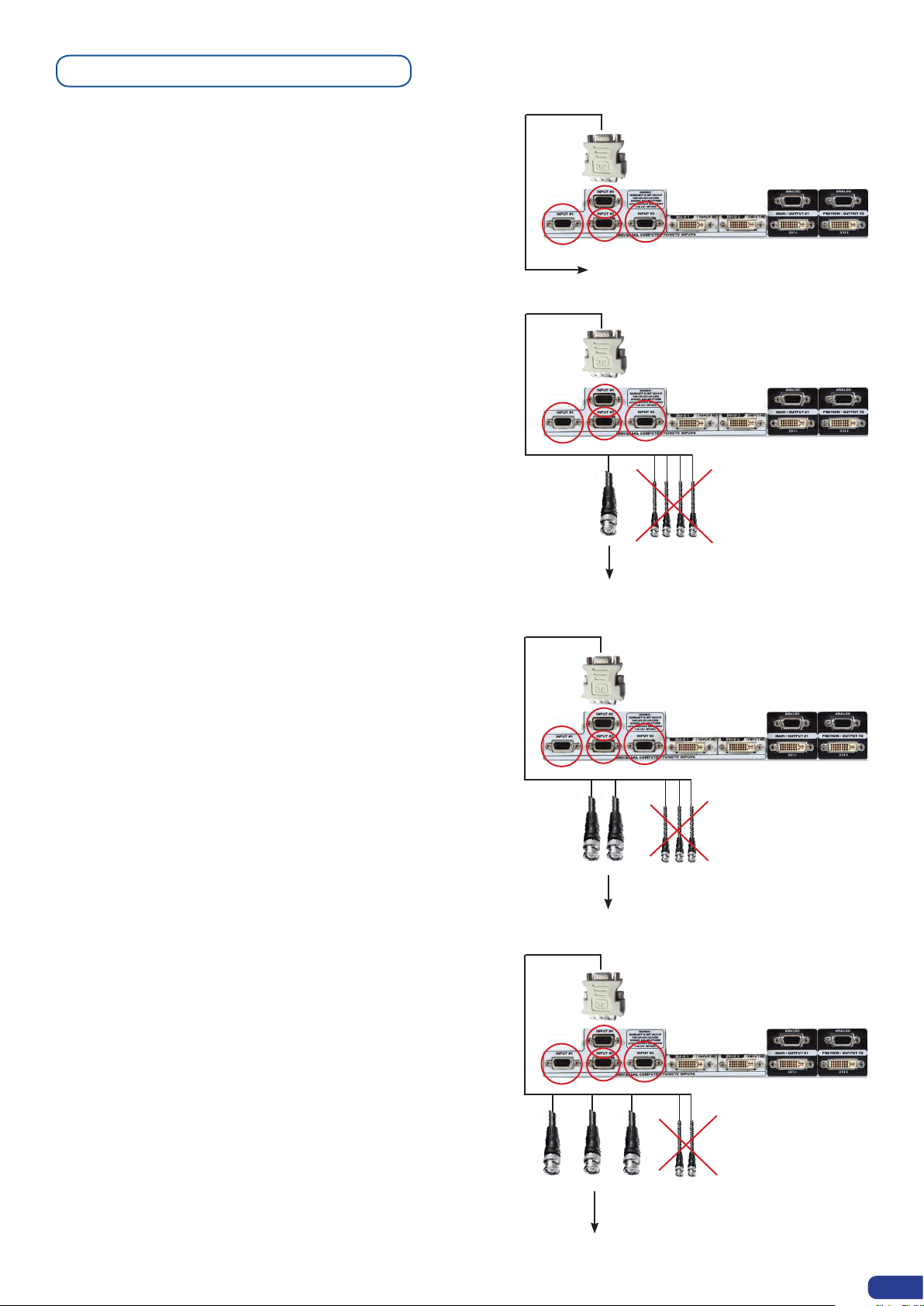

COMPOSITE VIDEO SOURCES:

The Composite Video signal, usually called COMPOSITE or VIDEO, is available on most video equipment (VCR, DVD, CAMCORDER…), but is also the lowest in picture quality. The video standard of this signal can be NTSC, PAL or SECAM. The signal is transmitted on a single coaxial cable, and is connected to the video equipment with an HD15 connector.

For inputs #1 to #4: connect a 1x BNC from your composite source, to the HD15 input of the device.

Analog Computer Sources

S.VIDEO SOURCES:

The S.VIDEO signal, also called Y/C, HI-8™, or S.VHS™, is available on DVD players and high quality VCRs (S.VHS). The S.VIDEO signal in which the Luminance (Y) and

Chrominance (C) information are separately transmitted,

gives a higher quality picture than the Composite video signal. The S.VIDEO connector is usually a 4-pin Mini-DIN connector also called Oshiden™ connector.

For inputs #1 to #4: connect a 2x BNC from your S.VIDEO, Y (G/Y) & C (R/R-Y), to the HD15 input of the device.

COMPONENT VIDEO SOURCES:

The Component Video signal, also called YUV (Y, Pr, Pb) or BETACAM™ is widely used in broadcasting and is available on high-quality DVD players. The COMPONENT signal is transmitted with 3 coaxial cables, and also has a better quality picture than COMPOSITE and S.VIDEO signals. The COMPONENT connectors are usually RCA (x3), or BNC (x3).

Composite Source

S.Video Source

For inputs #1 to #4: connect a HD15 to 3x BNC cable between the HD15 connector of the device and your

Component source.

G BR

Component (YUV) Source

COMPUTER SOURCES:

The device accepts the following computer signals: RGBHV, RGB/S and RGsB on inputs #1 to #6.

RGBS VIDEO SOURCES:

This signal is widely used in broadcasting and is available

on European DVD player. The RGB/S signal is transmitted with 4 coaxial cables, and also has a better picture quality than COMPOSITE and S.VIDEO signals. The RGB/S connectors are usually BNC connectors for Broadcasting equipment, and SCART connector for DVD players.

For inputs #1 to #4: connect a HD15 to 4x BNC cable

G B

between the HD15 connector of the device and your RGB/S source.

RGBS Source

DVI Inputs #1 and #2

DVI & ANALOG SOURCES :

DVI Inputs # 1-#2 on the Smart MatriX accept up to 2 live sources in Digital format. DVI-I: 1x digital (DVI) and 1x analog input on female DVI-I universal connector.

For analog sources, please use the breakout cable supplied.

DVI-D

Analog Computer Sources

SD/HD-SDI Inputs #1 and #2

SD/HD-SDI SOURCES :

SD/HD-SDI Inputs #1- #2 on the Smart MatriX accept up to 2 live sources

in Digital formats.

SD/HD-SDI: 1x digital input on female BNC connector.

Outputs #1 and #2

OUTPUTS #1 and #2:

ANALOG: 1x analog output for the main display device on female HD15 connector. DIGITAL/ANALOG: 1x main output on female DVI-I connector

(simultaneous analog and digital).

BNC

HD/SDI Source

VIDEO OUTPUT:

Video Output card provides SD or HDTV formats in various signals and connectors from Composite Video to HDSDI. This output can be used to record your show by outputting the same content as the Main output in Mixer Mode, or a choice between output 1 or 2 in Matrix Mode (see also Smart MatriX Mode, p.5).

As it’s a video output (Analog & Digital), the video output can not display HDCP content.

AUDIO SWITCHER:

Audio Stereo Switcher card features 12 inputs and 2 outputs. An additional auxiliary input can be mixed with any other input. Master Volume and individual input level can be adjusted. Each input and output offers balanced or unbalanced connections. It should be noted that the management of the audio output follows the selection of video layers. Two modes are available: Top Follow or Breakaway. In Top Follow Mode, the audio follows the topmost video layer (after having pressed TAKE). In Breakaway Mode, it is the selected audio

layer input that is permanently diffused.

Output #1

Video Output

Audio Switcher

Output #2

OPERATING THE SMART MATRIX

4-1. THE SMART MATRIX FRONT PANEL

Overview

The highly intuitive front panel of the Smart MatriX was designed by Analog Way engineers to simply and

quickly meet all of your event needs. Within minutes, you will be able to enjoy its full potential and easily parameter most of its functions, without having to be an expert audio-visual engineer, leaving room for what

is most important to our users: concentrating on their event.

The Smart MatriX front panel is comprised of several sections, each carefully labelled and self explanatory, corresponding to all the machine’s versatile functions.

1 : Standby button 2 : Menu screen 3 : Menu scroll knob

4 : Control section

2 3

1 4

On/Off button

The STANDBY button allows users to put the Smart MatriX into sleep mode, and startup again. The STANDBY button does not replace the ON/OFF switch at the rear of the unit, and is implemented

essentially for ease of use in rackmount situations.

--> Hold for 3 seconds for stand-by mode

Menu screen

The Menu Screen of the Smart MatriX is the visual interface to your Smart MatriX menu. It gives users a constant indication of

available menu options, parameters of any selected object, system

information, and everything you need to know to control the device.

Menu scroll knob

The Menu scroll knob allows users to quickly scroll through menu items and increase or decrease any modiable value in the Smart MatriX menu. Simply scroll to the desired menu item, and press the ENTER button to conrm your choice.

The ENTER Function is also available by pressing the scroll Knob.

Control section

The EXIT/MENU button and the ENTER button in the Control section of the Smart MatriX, allow users to respectively enter and exit the Smart MatriX menu, and conrm selected menu items.

4-2. THE SMART MATRIX MENU

Menu navigation

To access the Smart MatriX Menu, press the EXIT/MENU button in the control section (4). To highlight items in the menu which will appear on the VFD screen (2), turn the scroll knob (3) left or right to the desired menu item. When you have reached the desired menu item, press the ENTER button in the control section (4) to access that menu function. Pressing the ENTER button when a selection has been made sets the value to that selection in the Smart MatriX memory. When all settings have been made, press the EXIT/MENU button to exit sub-menus and return to the main menu.

Simply selecting a menu item will not set it to that value. Be sure to press the ENTER button when

parametering the menu items or to push the scroll knob.

Home menu

Pressing the MENU button in the menu section of the Smart MatriX, will display and give you access to the following items on the menu VFD screen:

- INPUT: select to congure the 12 individual input types and resolutions.

- OUTPUT 1: in Matrix mode, select to set the output types and resolutions of Output #1.

- OUTPUT 2: in Matrix mode, select to set the output types and resolutions of Output #2.

- VIDEO OUT: select to congure Video output card settings.

- PRESET: select to store and use presets.

- AUDIO: select to access all audio input and output parameters.

- CONTROL: select to access device software information, LAN settings, reset factory settings, amongst other user oriented functions.

4-3. WORKING WITH THE SMART MATRIX

Operating modes

The Smart MatriX offers 1 mode to work from: the Native Matrix mode, which turns your Smart MatriX into

a true 12 x 2 scaled matrix with numerous Live effects and PIPs and logos.

Reseting default values

It is strongly recommended that you reset all of the default values of your Smart MatriX unit before setting up your shows and events. To do so, press the EXIT/MENU button and select Control in the menu by rotating the corresponding knob. Then press the ENTER button to enter the Control sub-menu. Select Default Values by rotating the scroll knob, and press the ENTER button to enter your choice to restart your Smart MatriX with its factory settings. This operation should take approximately 30 seconds.

Smart MatriX color codes

Analog Way engineers have developed a handy, user friendly way of identifying machine status on the front

panel, via the use of color codes on the buttons of the machine. All new Analog Way machines use the same

codes, for quick recognition of the status of any device of the range, at any given time.

Solid green: Function available for modication

Dim red: Stand-by button

SETTINGS IN NATIVE MATRIX MODE

The advanced features of SMX200 are available by the external remote control as:

- Remote Control Sofware - Ref. RCS (supplied)

- Remote Control Keypad - Ref. RK-300

- Triple Remote Control Keypad - Ref. TRK-800

- Orcherstra - Ref. ORC50

- Axion2 - Ref. ARC200

Source Input selection

Plug your sources thanks to the 6 universal inputs, 2 DVI-I Inputs or 4 SDI inputs. Don’t forget that the 2 DVI-I inputs can be used with DVI-D computer sources (DVI #1 & DVI #2) but also with a DVI-A adaptor for analog sources too (source #5 & #6) shipped with your unit.

Be sure that all connectors are rmly attached using all available locking screws.

Input selection settings

To set up your inputs:

Input menu → Auto settings

You can also do it manually on each input# using the ENTER and the Knob button and set up the inputs type

one by one.

You can also check your actual input conguration using the cong status:

Input menu → Cong Status

You can nd several settings for each input (some settings are specic to some signal type):

- Type: to set up your input type (Computer, Video etc..)

- Enabled/disabled: to enable/disable input#

- Audio input: to set up the audio regarding the input

- H Sync. load: to change the load of the Sync. signal (Hi-Z, 75 ohms)

- EDID: to set up the EDID in terms of resolution and rate

- Status: to summarize the input status

Concerning the DVI inputs, a specic feature allows enable/disable the HDCP receiver for the input chosen. It can be very useful especially using a Mac:

Input menu → DVI # → HDCP detection

* NOTE * : The input status is available at any time in status input menu and can give you information about format rate and HDCP.

Input Sync. Loss Function

Allows to display a frame or a source in case of sync loss of the selected input. To set up the Sync. Loss

function:

Menu → Control → Sync. Loss → Press Input# or Enabled

The selected input must be activated for being visible in case of sync loss.

Source output selection

Once your inputs all have been congured, the output settings of the Smart MatriX must be set according to the machines plugged on your Smart MatriX main and preview outputs (video projector, preview monitor...).

* NOTE * : If you want to use HDCP content from your sources, be sure to attach HDCP compliant screens or projectors. If it’s not the case, the output image could be disabled.

Output selection settings

To set up the outputs, go in the Output #1 or Output #2 menu and choose rst the appropriate

format/resolution, and then the appropriate rate for your screens by using the knob button and the Enter button.

Output# → Output Format → Output rate

Use the native resolution of your screens/projectors in order to obtain the best image quality.

In the Output #2 menu, you can also synchronise all the changes from the Output #1 to the Out-

put #2 by checking the case Sync. w/Out 1. It allows you to set up both outputs at the same time.

Output 2 → Sync. w/Out 1

Some other settings are available too:

- The Output synch polarity.

- The Gamma: use this feature to set up the output Gamma.

- Flicker Filter (Video Out only): apply a icker lter on your video output.

- Analog type: set up the type of synchronisation of your Analog output.

- DVI type: set up the type of color place of your Digital output.

- HDCP detection: set up to enable/disable the HDCP detection on the output.

- Background colour: add a background colour in place of the default black one.

- Test pattern: use test pattern on Main or Preview screen to congure your projectors.

*All changes have to be validated by pressing the ENTER button in order to be saved*

* NOTE *: The output status can provide you all information about the output in real time. This fea-

ture is particularly needed when HDCP is used thanks to the HDCP status.

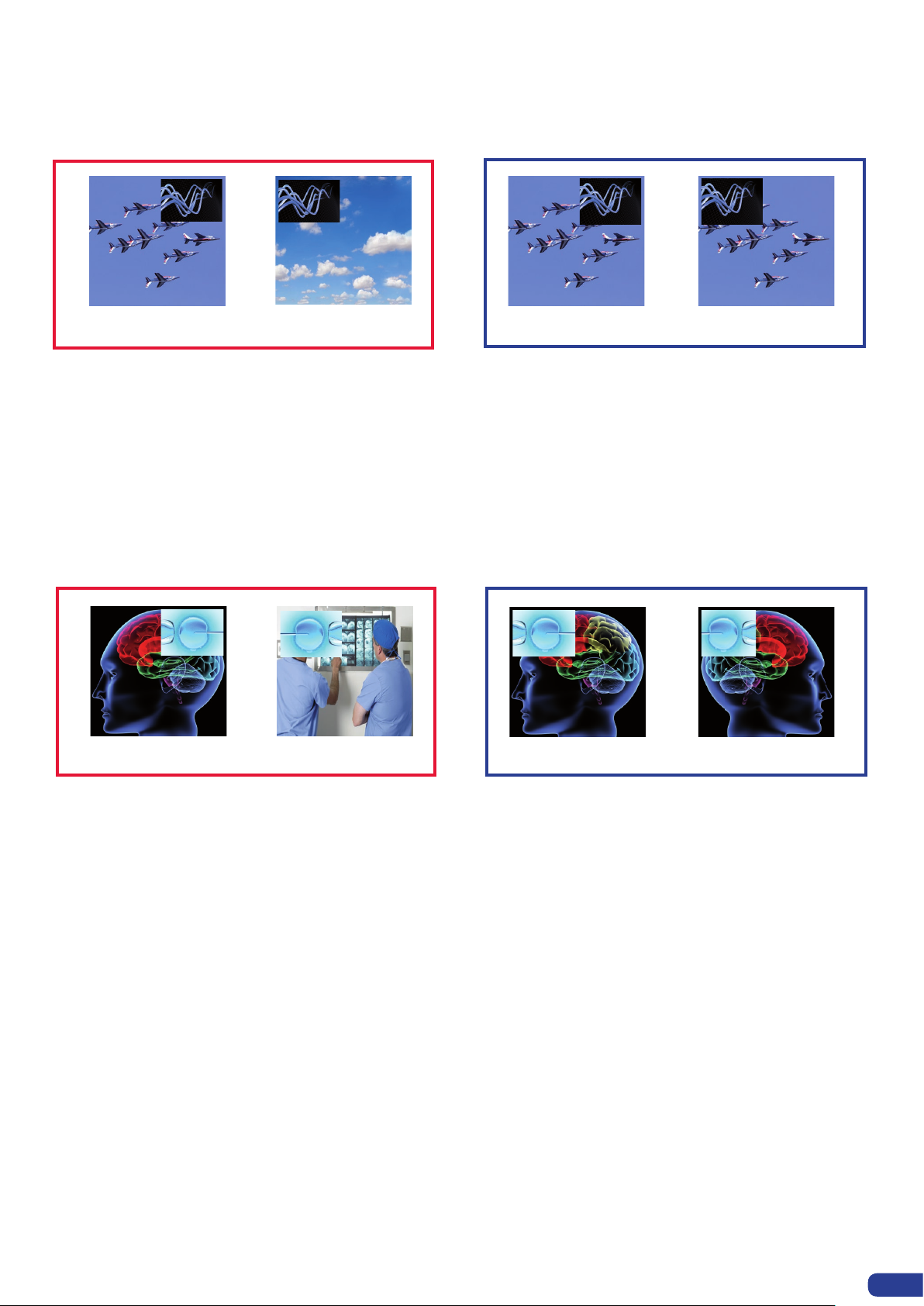

Video Out

In Matrix Mode, the menu “Connection Mode” appears. It allows you to choose recording Output #1 or Output #2.

Display Mode

Output #1

Output #2

Display Mode

Output #1 & #2 side by side

Menu→ Video Out → Connection → Output Titled Horizontally

Presentation

OUT #1

OUT #2

Presentation

OUT #1

Availability

YES

Availability

Matrix Mode only

OUT #2

Output #1 & #2 Top and Bottom

Menu→ Video Out → Connection → Output Titled Vertically

OUT #1

OUT #2

Matrix Mode only

Working with Native Matrix Mode

To activate the Native Matrix Mode:

Mode Menu → Native Matrix Mode Menu

You’ll nd all menus from the Mixer Mode in the Main menu except some specic matrix functions added.

To work with native matrix mode, you have to use the Matrix # buttons rst. For instance, if you want to put the Frame #1 on the Output #1 and the Live source #3 on the Output #2:

Press Matrix #1 button → Press Background Frame button → Press input #1

Press Matrix #2 button → Press background Live button → Press input #3

Press Take to view the result on both screens

Don’t forget to press the correct Matrix # button before pressing the Layer selection button, in order to be sure

doing the manipulation on the correct output.

Working with Cut, Fade or Transitions

All the transitions (Cut, Fade or Transistions) are available in the native Matrix Mode. Although the Matrix Mode is activated, you will be able to perform powerful transition effects seamlessly. It can depend on your conguration.

The Smart MatriX has 4 scalers, to understand how your effect will be performed, you need to know how many scalers are used on your outputs. Don’t forget that you always need one free scaler to perform clean

transition. Example:

1 background live on each output → 2 scalers used → 2 seamless transitions

1 background line on each output + 1 PIP on output #1 → 3 scalers used → 1 seamless

transition available only on output #2 but the output #1 with a background live + 1 PIP will not be seamless transition (ie: Fade through black)

1 background frame on each output + 2 PIP on each outputs → 4 scalers used → NO

seamless transition (ie: fade through black)

The background Frame and the Logos are not considerated as live layers and are not counted as using a scaler.

Working with Layers Functions

Once a source attached to a layer, you will have access to some layer settings in the Layer menu or directly by pressing the layer button.

The settings available depend on the layer selected:

- Layer adjusts: set up layer size and position.

- Layer zoom: set up layer zoom size and position.

- Transparency: adjust the Layer transparency.

- Border: choose the border and adjust its properties.

- Opening and Closing effect: adjust the Open/Close effect type and duration.

- Smooth move: enable/disable smooth move.

- Status: get the selected layer status.

*All changes have to be validated by pressing the OK button in order to be saved*

Press Take to view the result on the main screen.

Settings available:

Settings Background Live / PIP#1 PIP#2 PIP#3

Position YES YES YES Size YES YES YES Zoom YES YES YES

Transparency YES YES YES Border YES YES YES Opening effects YES YES YES Closing effects YES YES YES

Smooth Move YES YES YES H Flip / V Flip YES YES YES

Even the Logo and Frame buttons can access to their own settings, but a source # has to be affected too.

The Main output can displayed simulteaneously up to 6 layers stacked from bottom to top as follows:

- The Background Frame: One stored frame selected from 8 available,

- The Background Live/PIP#1: One source selected from 12 inputs available,

- The PIP#2: One source selected from 12 inputs available,

- The PIP#3: One source selected from 12 inputs available,

- The Logo#1: One stored Logo selected from 8 available,

- The Logo#2: One stored Logo selected from 8 available.

Opening transitions and closing Live Layers

When transitioning live layers, depending on how many scalers are in use, the SMX200 TAKE function will act in one of 3 different ways when transitioning the Next Preset (Preview) to the Current Preset (Main):

• Take 1- shot: Case #1

- There are enough scalers for making a transition

- All inputs are locked on to scalers

- There are no constraints for closing before the Take

- All opening and closing transitions can be performed simultaneously.

• Take 2- shot: Case #2

- There are enough scalers for making a transition

- All inputs are locked on to scalers before the Take

- There are no constraints for closing during the Take

- All the necessary closing transition are performed to free occupied scalers and then the SMX200 performs all

openings.

• Take sequenced- shot: Case #3

- There are not enough scalers for making a transition

- All inputs are not locked on to scalers

- All the necessary closing transitions are performed to free occupied scalers. The SMX200 locks on to new

sources and performs all openings.

Working with PIP

The PIPs are used in the same way as other units. A source has to be selected to activate the PIP settings. Each PIP has its own settings, PIP 1 on output #1 is not linked to PIP 1 on output #2 in terms of settings.

* NOTE * : Take a look at the blinking of the Matrix Mode button to always know on which output you are working on.

All PIP settings are available in the Layer menu once the PIP is selected.

PIPs with Transitions & Borders

Transitions:

All the settings are available in the Layer Menu after pressing the selected PIP. The transition effects have some shortcut on the front panel too. To Use it: Press the selected PIP# → Press the Cut, Fade, User #1 or User #2 button

The effect will be immediately attached to the selected PIP.

Concerning the User 1 and User 2 button, they have to be set up before in the Control menu → Prog. Keys

Fade

- Adjustable pre-timed fades or manual

transition with T-Bar

- Fade between any input, computer or video

- Adjustable cross-fading duration

Slide

- Sliding of video or computer images during the transition

- Horizontal: from/to left, -or- vertical: from/to up, down

Wipe

- Numerous wipes can be selected horizontal and vertical, from the center or outside, in circle, Zoom in and out

- Horizontal: from left, center -or- vertical: from up, down, center

Working with Mirror Modes

The Mirror Matrix Mode is a specic Matrix Mode where the output #2 will be the perfect mirror copy of the output #1. In that way, each settings apply to output #1 will be performed on the output #2 too.

Mode Menu → Native Matrix mode menu → Mirror Mode

To use the Mirror Mode, just perform your setting and operation from the Matrix output #1. Nevertheless, you can do manipulation on the output #2 at any time.

For a perfect use, set up the output format and rate for the output #2 as for the output #1 using the synchronise button:

Output #2 → Sync w/Out 1

Using the Matrix Mode, several conguration are available, the Simple Mode and the Mirror Mode.

Using the Mirror Mode:

To use the Mirror Mode, simply select the Matrix Mode through the Main menu, then the Mirror Mode can be activated layer by layer thanks to the layers menu.

Select the chosen layer and go in the layer menu, then select the “Layer Copy Mode” menu.

There are several mirror positioning options:

For the ❶, ❷, ❸ & ❹ modes:

Red case: Mirror Mode activated only for the PIP layer

Blue case: Mirror Mode activated for PIP layer and Background live Layer

1- No Copy: this mode is the standard matrix mode, output #1 and #2 are independent...

❶

OUTPUT #1

2- Clone mode: The output #1 and #2 will be the same. All changes on the output #1 will be affected to the

output #2. Layers will have the same position and size.

OUTPUT #2

OUTPUT #1

OUTPUT #2

❷

OUTPUT #1 OUTPUT #1OUTPUT #2 OUTPUT #2

3- Copy & H.pos Flip mode: the output #2 will be exactly the same as the output #1 except the fact that the

selected layer will have its H position ipped (standard Mirror mode).

❸

OUTPUT #1 OUTPUT #1OUTPUT #2 OUTPUT #2

4- Copy&H.Flip all modes: the output #2 will be exactly the same as the output #1 except the fact that the

selected layer will have its H position and data ipped.

❹

OUTPUT #1OUTPUT #1 OUTPUT #2 OUTPUT #2

*NOTE*: Remember that to simplify the use of this feature, you need to manipulate the Output #1. While in mirror mode, the Output #2 will follow the desired steps.

*NOTE*: Every change on the Output #2 will have an effect only on the Output #2, but remember that if a change occurs on the Output #1 after that, the Output #2 will update automatically to match output #1 (in mode 2/3/4).

Working with Frames/Logos

The Frame/Logo can be memorized from Output #1 or #2. To record a Frame/Logo, please refers to the chapter “Capturing still Frame/Logo” in the Mixer Mode.

To use a Frame/Logo, refer to “Working with Frame/Logo”. As a source, each frame/logo can be used by both outputs, you just have to select the correct matrix# button

rst.

Capturing still Frames

To capture a frame, display the exact content you want to save on one of your output, at the exact resolution, you can use the freeze button if you want. Then follow this step (choose rst the source to capture in the menu Logos/Frames -->capture sources):

Logos/Frames menu → record Frame menu→ Frame #

Select the frame number you want to save and wait until the unit nish saving. Your frame is now saved and

you can use it through the background frame button.

The capture of frames can be done only under the following conditions:

- The unit can be in Matrix Mode,

- The capture can be done the Main output or the Preview output,

- The disappearance of frames on the Preview and Main output is normal.

A frame captures the state of the specied output at the main output resolution, and must be recalled using the same output resolution. Resizing or other image manipulation of the captured frame is not possible.

The captured output is outlined by a white border and includes the pixels beneath the white border.

Working with Frames

It is possible to store up to 8 frames in the SMX200 non volatile memory. Frames are mainly used as backgrounds in a typical show or event setup, and can be recorded from any of the SMX200’

12 sources and called back at the press of a single button. To use a frame, be sure rst that it is well saved,

then:

Press Background Frame button → Press Frame # button

* NOTE * : Frames may be used only one at a time and cannot be placed in a layer.

Opening transitions & closing Still Layers (Logos or Frames)

When transitioning still layers, depending on how many scalers are in use, the SMX200 TAKE function will act in one of 2 different ways when transitioning the Next Preset (Preview) to the Current Preset (Main):

• Take shot: #1

- All still frames make an opening and closing phase.

- All sources of the same layer are completely different between the Current Preset and the Next Preset. The

opening and closing effects of the Layer are set to Cut.

• Take shot: #2

- One of the Layer makes a change of source which be not in Cut.

- The opening and closing phases can be done with different effects.

- The still frame appears and disappears of the layer with the following effects: Cut, Fade, Slide or Wipe.

Memorizing Frames

The SMX200 can memorize up to 8 frames from any resolution (see Capturing Still Frames).

1. In the Input Selection section, press the source button (#1 to #12) of the source you wish to record as

a frame. The source button will start blinking. Press the TAKE button to display that source on the main

display.

2. Select Logos/Frames in the menu by rotating the scroll knob, then press the ENTER button. Select the

output you want to record in capture source menu.

3. Select Record Frames in the Logo/Frames menu by rotating the scroll knob, then press the ENTER

button. A white rectangle will appear on your main display or your Preview, indicating the frame which will be captured. Select an empty frame memory (empty frames are indicated in the sub-menu) to store the frame into. Press the corresponding ENTER button.

4. The SMX200 will display a progress status bar on the VFD screen. Your frame is stored when the menu

reappears on the VFD screen.

5. Press the BACKGROUND FRAME button, select the frame number (#1 to #8) you just recorded, and press the TAKE button. Your background frame will appear on your preview output.

Frame input setup menu

In the frame input setup menu, you have the possibility to save a frame, and the possibility to erase a stored

frame to:

Logos/Frames menu → save Frame → Frame #

Logos/Frames menu → Erase → Frame #

Frames as Layer

The background frame is considered as a layer and has some settings available:

Transparency, Opening/Closing effect, Smooth move and Status.

Those settings have to be used as Layer settings.

Press background frame button to have access to the Layer menu settings.

You can change frame or delete frame on the preview screen using the same way the layers do:

Delete: Press background frame button → Press Black

Change: Press background frame button → Press another Frame #

Press Take to view the result on the main screen.

Layer transitions & effects

The SMX200 offers a wide variety of transitions between the scenes you create for your shows and

events. It allows for live recall of 4 user presets, each of which you can edit at any given time.

1. Whether catering for complex event setups, or putting together intricate shows, your SMX200

will also deliver some of what you could expect from a dedicated mixer, along with its switcher

and scaler capabilities.

2. In the Layer Selection section, press the PIP1 button. The button will start blinking. On your Preview

screen, PIP1 will appear as a color rectangle. The parameters of the layer will automatically

appear on your SMX200 VFD menu screen.

3. In the Layer Menu, make the position, size, border and transparency settings you like, then select Opening Effect in the layer options, press the ENTER button and select Type. Select Slide

Left - Right for example, and press the ENTER button to conrm. Navigate to Duration in the Opening Effect sub-menu, and set the duration of your effect by rotating the SCROLL knob and

pressing ENTER.

Repeat the procedure in the Closing Effect sub-menu to determine the way your layer will close. Try Slide From Left - Right for the closing type with a duration of 1.5 seconds for example.

Mixer functions

In Multi Layer Mixer Mode, the SMX200 offers a variety of mixer type transitions, including wipes, fades, and cuts. The transitions, transition times and fade/wipe effects can all be setup through the SMX200 Layer menu.

Capturing Logos

To capture a Logo, display the exact content you want to save on the main screen, you can use the freeze

button if you want. Then follow these steps:

Logos/Frames menu → Record Logo menu → Set up your logo →Store menu → logo#

To set up your logo you have several features available:

- Position / Size Adjustment

- Keying type

- Luma / Chroma key

- Cut out color.

Select the logo number you want to save and wait until the unit nish saving. Your logo is now saved and you

can use it through the background logo button.

You can save up to 8 logos with the SMX200.

The capture of logos can be done only with the following conditions:

- The unit can be in Matrix Mode

- The capture can be done on the Main output or the Preview output

- The disappearance of logos on the Preview and Main output is normal.

The logos are captured with the same size that the Main output without any form of adjustment.

A logo captures the state of the dened area on the specied output at the Main output resolution, and must be recalled using the same output resolution. Resizing or other image manipulation of the captured logo is

not possible.

The capture zone is outlined by a white rectangle and includes the pixels beneath the white border. The non-

captured area is reduced in brightness.

Logo capture is limited in the number of pixels being captured. When the logo capture area is resized, extending the horizontal size may reduce the vertical size to compensate.

Logos can also be captured and displayed with transparent areas. By adjusting the keyer in the logo capture

menu, the portions of the captured area can be keyed away and captured as transparent.

The Logo “Cut out color” can help display which portions of the image will be captured as tranparent.

* NOTE *: The cut out color is only a visual tool to help identify the transparent areas of the logo. These colored regions will be captured and later displayed as transparent area.

* NOTE*: Capturing a “Logo” is limited to a small percentage of the output resolution. To capture and display a full screen image, use the still “Frame”.

Capturing an animated Logo

To capture animated Logo, display the exact content you want to save on the main screen, you can use the freeze button. Then follow this step:

Logos/Frames menu → Record Anim menu → Set up your Anim →Store menu → logo#

To set up your anim, you have several features available:

- Position / Size Adjustment

- Keying type

- Luma / Chroma key

- Recording time

- Cut out color

Select the anim logo #8 and wait until the unit nishes saving. Your animation is now saved and you can use

it through the background logo button.

Only one Animated logo can be saved in the SMX200.

Memorizing logos in the SMX200

1. In the Input Selection section, press the source button (#1 to #12) of the source you wish to record as a

logo. The source button will start blinking.

2. Select the Logos/Frames menu by scrolling through the menu with the scroll knob, then pressing the

ENTER button.

3. Select Record Logos in the Logos/Frames menu by rotating the scroll knob, then pressing ENTER. A small

white rectangle will appear on your main display, indicating the logo that will be captured.

4. Adjust logo size, position, and ne tune key attributes by rotating the scroll knob and pressing ENTER to

memorize logo settings.

5. Select an empty logo memory (empty logos are indicated in the sub-menu) to store the logo into. Press

the ENTER button. The SMX200 will display a progress status bar on the VFD screen.

6. In the Layer Selection section, press the LOGO#1 button, and select logo number (#1 to #8) you wish to use. Your logo will appear on the preview screen above any existing layer on screen.

7. Press the TAKE button. Your logo will appear on the main display.

Logos input setup menu

In the Logos/frames menu, the logos can be deleted in the erase menu:

Logos/Frames menu → Erase menu → Select Logo#

Working with Logos

A simple or animated Logo can be manipulated thanks to the front panel. On the front panel, the logo# are associated to the input# respectively. To affect a logo# to the logo layer:

Press Logo1 Layer button → Press Input#

Logos #1 to #6 are available directly by the input # button on the front panel. For logo #7 and #8, you have to use the Shift button rst:

Press Logo1 Layer button → Press Shift button → Press Input#

(for logo #7 or #8 use Shift then Input# button)

You can change logos or delete logos on the preview screen using the same way the layers do:

Delete: Press Logo (#1 or #2) button → Press Black

Change: Press Logo (#1 or #2) button → Press another Input#

Logos as Layer

Logos are under the Layer rules, you will have access to settings directly by pressing the Logo Layer button. You have 2 Layers Logo button available.

You can use the Pos/Size/Zoom adjustment button and the Effect button from the front panel too.

Working with Presets

The four user presets of the SMX200 can be called back at any stage during your show or event.

1. Press the PRESET button, then press one of the four rst Input Selection section buttons to choose which

memory (#1 to #4) you wish to use. The preset will be displayed on your preview screen.

2. Once you have selected your preset, simply press the TAKE button to view the result on your main screen.

Creating Presets

The SMX200 allows the creation of user dened presets very easily. Any setup you have congured on screen, can be stored into one of the 8 available user presets.

1. After having congured Layers, PIP transitions, logos... on your screen (see Working with the SMX200,

p.31), go to the Preset menu by pressing the EXIT/MENU button, and select Preset by rotating the scroll

knob. Then, press the ENTER button to enter the Preset sub-menu. Choose Preset Copy by scrolling with the corresponding knob, and press the ENTER button to access the sub-menu.

2. In the sub-menu, choose Save From Main or Save From Preview to determine which screen you want to memorize the preset from, then set the preset memory (#1 to #8) you wish to use as your “User Preset”

(by default, the SMX200 will choose the next available preset in the SMX200 memory).

3. By pressing the ENTER button, the SMX200 will ask you to conrm. Select Yes, your screen is memorized as a preset.

Working with Audio

The SMX200 allows to work with up to 10 stereo inputs, 1 auxiliary input, and 2 embedded SDI audio inputs (via the SDI BNC connectors), all accessible via the Audio menu of the SMX200, and which can be affected to one or both of the 2 independant symetrical/asymetrical outputs of the device.

Audio conguration

To congure audio settings of the SMX200, plug all audio inputs into the device, and navigate to the Audio menu.

1. Choose the audio mode, Break Away or Top Layer Follow, which you wish the audio to work in.

* NOTE * : the Break Away mode will route the selected audio source, while the Top Layer Follow mode will

route audio from the topmost active layer of the SMX200.

2. Select Source Settings from the Audio Menu to select the audio source you wish to work with, then set

levels and left/right balance for each input.

3. Select Auxiliary Settings to determine level and balance of the auxiliary input.

4. In Matrix Mode, all output parameters can be assigned separately to outputs #1 and #2.

5. In Matrix Mode, select Out1 Prelist or Out2 Prelist from the Audio menu to set audio pre-listen output parameters.

6. Select Delay Mode, to determine how the SMX200 deals with audio delay. Select Auto Adjust to let the

SMX200 determine audio output delay. Select Manual Adjust to determine audio delay manually.

* NOTE * : selecting Manual Adjust will give access to audio delay value (in milliseconds) of the main and

Prelist audio output Menus.

Special Features

Dynamic Fit (automatically activates the Transparent Background)

- Dynamic & Automatic adjustment of the PIP to t the source image borders (Black Stripe).

PIP

- Automatic adjustment of the PIP (Ratio) to t the source image borders during a transition.

Transparent Background

- Transparent Background allows you to remove the black band on the sources in the background live layer in order to display behind a background frame or background color.

Background Frame

Image Live

Smooth Move effect

- Smooth Move (PIP) control the acceleration of the PIP. The time can be different between the opening and closing PIP.

Working with DSK (Chroma / Luma key)

DSK Mode must be used with remote controllers specically designed to control the SMX200.

- SMX200 allows to use a live source with green or blue (or any color) background and to key it over another live

input.

- Background is removed and replaced by another source.

- Title can be keyed (DSK) on Analog or Digital Sources.

+ =

To use Keying, rst select a source in the desired layer:

Layer button -> source number button

Then in the main menu, select the Keying/Titling menu.

You now have several choices to key your sources. The Luma Key and the Chroma Key based on the Luma

pixel values and the Chroma pixel values and for both an additional Titling menu which can be useful to

choose the transparency value of your keying.

Keying/Titling menu -> Type menu -> Select your keying type

Once your keying mode is selected, the Smart MatriX provides you some keying advance setting:

For Luma Key:

Luma Keying is used to key from a particular luminous intensity. It produces a hard edged key based

on intensity, which is most suitable for titling effects. You can choose to key things that are extremely dark or extremely bright and keep everything in between, or invert to key only things that are of a me-

dium intensity.

The black and white levels dene where to begin the keying. In the range 0 to 255, 0 represents no

luminance, or black and 255 represents full luminance, or white.

- Level Black: As the Black Level is changed from 0 to 255, things that are black are rst keyed out,

followed by dark grey, then light grey, and so forth, until the entire picture is keyed out at 255.

- Level White: As the White Level is changed from 255 to 0, things that are white are rst keyed out,

followed by light grey, then dark grey, and so forth, until the entire picture is keyed out at 0.

Non-Inverted Mode

Keyed Away Keyed Away

Visible Picture

White levelBlack level

For Chroma Key:

Chroma Keying is used to key from a particular color. It produces a soft-edged key which is most suitable for

moving images and “weatherman” style applications.

Color grabber:

Select Chroma Key menu -> Select Color grabber menu

Using a crosshair, you can select a particular hue based on what is on screen. Once you have adjusted the crosshairs to a desired position, press set/enter to capture the color value at that instant. You can then adjust the other parameters such as Tolerance to further rene your key.

Manual Setting:

Select Chroma Key menu -> Manual Settings menu

R,G,B:

These controls allow you to manually select a hue, dened by its Red, Green, and Blue values as you

can nd in Windows (Paint software).

Tolerance:

The Tolerance parameter allows you to expand your key color selection to include colors which are

similar to the selected value. A tolerance of 1 will select only the desired hue, whereas a tolerance of 255 will select nearly all hues.

Black Level:

This option permits adjustment of the luminance levels of the keyed hue. The Black Level is the lumi-

nance lower bound. Colors in the selected hue range with a luminance brighter than the Black Level but darker than the White Level will be considered part of the key.

White Level:

This option permits adjustment of the luminance levels of the keyed hue. The White Level is the lumi-

nance lower bound. Colors in the selected hue range with a luminance brighter than the Black Level but darker than the White Level will be considered part of the key.

Titling alpha:

If you have selected one of the two Titling mode, the titling menu appears.

This option places a transparent black backdrop behind the entire layer to which the key is applied. This effect is useful for using bright titles on bright backgrounds, such as clouds.

Invert keying:

By default, this mode is disabled. When this mode is activated, the key selection will remain on screen, and

all other portions of the image will be keyed away. For example, you would see the green screen behind the

actor, while the actor would be keyed away.

HOME MENU

MATRIX MODE

[OUT 1] Format : 1920 x 1080 Rate : 50Hz

Lock : internal

| OUT 1 | OUT 2

---------+--------------+----------

Logo1 | Logo #1 | Logo #8 Live Frame | Frame 1 | Frame 8

Format : 1920 x 1080 Rate : 50Hz

Lock : internal

Input 1 | SDI 4

[OUT 2]

INPUT

Cong status

Autoset all

Synchronized

Input 1 Analog Input 2 Analog Input 3 Analog Input 4 Analog Input 5 Analog Input 6 Analog DVI 1 DVI 2 SDI 1 SDI 2 SDI 3 SDI 4

(i1) displayed when plug is not SDI (i2) displayed when type is analog video (i3) displayed when plug is analog (i4) displayed for input ln1, ln2, ln8, DVI1 & DVI2

Analog Group 1 Analog Group 2 Analog Group 3

(i11)

Type

(i11)

Autoset

Enabled

(i10) displayed when plug is not DVI-D (i11) displayed when plug is analog

Input 1 Input 2 Input 3 Input 4 Input 5 Input 6

SDTV Composite SDTV Y/C SD/ED/HD RGBS SD/ED/HD RGsB SD/ED/HD YUV Computer SOG Computer HV/C Computer RW

Computer 0-255 Computer 16-235

DVI video RGB DVI video YUV

(i11)

(i10)

Auto

NTSC PAL PAL_M

Audio input

VCR Mode

HDCP enable

H sync load

(i4)

EDID

Status

None Audio Input 1 Audio Input 2 Audio Input 3 Audio Input 4 Audio Input 5 Audio Input 6 Audio DVI 1 Audio DVI 2 Audio SDI 1 Audio SDI 2 Audio SDI 3 Audio SDI 4

Left

Right

Group A - Ch 1 Group A - Ch 2 Group A - Ch 3 Group A - Ch 4 Group B - Ch 1 Group B - Ch 2 Group B - Ch 3 Group B - Ch 4 Group C - Ch 1 Group C - Ch 2 Group C - Ch 3 Group C - Ch 4 Group D - Ch 1 Group D - Ch 2 Group D - Ch 3

(i10)

(i3)

Hi-Z

Group D - Ch 4

75 Ohms

Edit EDID

640x480 852x480 800x600 1280x720 1024x768

50Hz 60Hz 72Hz 75Hz 85Hz

1280x768 1360x768 1200x800 1366x800 1440x900 1280x960 1280x1024 1364x1024 1400x1050 1680x1050 1920x1080 2048x1080 1600x1200 1920x1200

OUTPUT 1

Sync w/OUT 1

(o1)

OUTPUT 2

Output status

Output format

Output rate

Out Sync Polarity

Gamma

Flicker lter

(o4)

Analog Type

DVI Type

HDCP Detection

Background color

Test Pattern

640x480 4/3 800x600 4/3 848x480 16/9 1024x768 4/3 1280x720 16/9 1280x768 15/9 1280x800 16/10 1280x1024 5/4 1360x768 16/9 1366x800 15/9 1400x1050 4/3 1440x900 16/10 1600x1200 4/3 1680x1050 16/10 1920x1080 16/9 1920x1080 HD 1920x1080 B 1920x1080 C 1920x1200 16/9 2048x1080 19/10

Internal ref

Follow x 1/2

Follow x1 Follow x2 Follow x3

H-, V H-, V+ H+, V H+, V+

RGB HV RGBS RGsB (SOG) YUV

RGB full (0-255) RGB (16-235) YUV

Disabled Automatic

Predened color Hue Saturation

Luma

OFF

V Grey scale H Grey scale V Color bar H Color bar

Grid

SMPTE

Burst (o3) Centering

(o1) only for Preview out/Output2 (o2) depending on output format (o3) computer & HDTV only (o4) Interlaced output only

23.97 Hz 24 Hz 25 Hz

29.97 Hz 30 Hz 50 Hz

59.94 Hz 60 Hz 72 Hz 75 Hz

(o2)

Frame lock from

Input 1 Analog Input 2 Analog Input 3 Analog Input 4 Analog Input 5 Analog Input 6 Analog DVI 1 DVI 2 SDI 1 SDI 2 SDI 3 SDI 4 Video out

VIDEO OUT

Connection

Output status

Output format

Output 1 Output 2

Output Tiled Horizontally Output Tiled Vertically

SDTV PAL SDTV NTSC EDTV 480p EDTV 576p HDTV 720p HDTV 1035i HDTV 1080i HDTV 1080p HDTV 1080 sF

(o1) available in near future (o2) according to output format

Output rate

Position / Size

adjust

Gamma

Flicker Filter

Sharpness

Under/Overscan

Test Pattern

23.97 Hz

(o2)

24 Hz

(o2)

25 Hz

29.97 Hz

(o2)

30 Hz

(o2)

50 Hz

59.94 Hz

(o2)

60 Hz

H Pos V Pos H Size V Size

OFF

V Grey scale H Grey scale V Color bar

H Color bar

Grid

SMPTE

(o3)

Burst Centering

(o2)

PRESET

Preset mgmt

Step Back

Save Preset

Load Preset

(p1)

Both Outputs Current Output

Output 1 Output 2

Save from

Save to

Save from

Save to

(p1) available only on Matrix Mode

Main Preview

Memory 1 Memory 2 Memory 3 Memory 4 Memory 5 Memory 6 Memory 7 Memory 8

Main Preview

Memory 1 Memory 2 Memory 3 Memory 4 Memory 5 Memory 6 Memory 7 Memory 8

AUDIO

Mode

Breack away

Toplayer follow

Source settings

Aux. setting

Audio Main

Audio Out 1

Audio Out 2

OUT1 Prelist OUT2 Prelist

(m1)

(m2)

Input 1 Input 2 Input 3 Input 4 Input 5 Input 6 DVI 1 DVI 2 SDI 1 SDI 2 SDI 3 SDI 4

Level

Balance

Master Mute

Master Volume

Stereo

Audio Delay

Source

Level

Balance

(m1) Available only on Mixer Mode (m2) Available only on Matrix Mode

None Input 1 Input 2 Input 3 Input 4 Input 5 Input 6 DVI 1 DVI 2 SDI 1 SDI 2 SDI 3 SDI 4

Level Balance

Delay Mode

Auto Adjust Manual Adjust

CONTROL

Versions

(L1) UDP only

(L2) Conrmation asked

(L3) Only for User 1 & User 2 (L4) Visible if Sync. Loss is activated

RS232/LAN

LAN setup

Sync. loss

Auto Lock

Auto TAKE

Preset Toggle

V-TBar enable

Transp Backgr

Dynamic t

Freeze mode

Key locking

Prog. Keys

LCD brightness

Key brightness

Standby

Vers.: 3.00 BETA l1=xxxx l2=xxxx l3=xxxx l4=xxxx 0=xxxx MM K=xxxx MF K=xxxx CA V=xxxx FA V=xxxx TH V=xxxx CS V=xxxx

RS232 LAN

TCP UDP

Enabled

(L4)

Input 1

(L4)

Input 2

(L4)

Input 3

(L4)

Input 4

(L4)

Input 5

(L4)

Input 6

(L4)

DVI 1

(L4)

DVI 2

(L4)

SDI 1

(L4)

SDI 2

(L4)

SDI 3

(L4)

SDI 4

Input freeze Freeze all

All

Menus

Fade User 1 User 2

Baud rate

Set message ON Set message OFF Clear message ON

Clear message OFF

Standby

Device address...

Remote address

Gateway address... Device port...

Remote port Netmask...

Default setup

Type Direction

(L1)

(L2)

(L3)

Effect duration

(L1)

Reset Layers

Erase Memories

Default values

(L3)

REMOTE CONTROL SOFTWARE

5-1. THE SMART MATRIX RCS

RCS presentation

The RCS will give you a powerful tool to exploit all the features of your SMX200 at distance. By LAN, or RS232, you will be able to do exactly the same manipulation as you could do from the front panel. User-friendly and easy-to-use, you will take the hand quickly with it.

How to use the RCS ?

You have to install the software on a Computer and have a LAN board or RS-232 link to use the RCS. After

the installation, launch the program and proceed to the network establishment.

Software installation

1. Connect you on www.analogway.com.

2. In the menu, select [Technical Support] menu, then click on [Remote Control Software], select the name

of your device and click on [Download].

3. Click on [Open with] or [Register the le], select the .exe le.

4. Follow the Windows installation instructions.

Software overview

The RCS software for your Smart MatriX is composed of several easily identied sections. The tabs menu allows you to navigate through the equivalent of the Smart MatriX front panel menu items (see also “The Smart MatriX Menu” p.30). The green window of the RCS represents your Preview window, and can be

used to parameter sources, frames, layers and logos directly by clicking on the corresponding button, then

navigating through the different available tabs. The red window of the RCS represents your Main window, and

can also be used much like the front panel of the Smart MatriX.

Create user presets directly in the RCS main window by clicking on one of the four available Preset icons and setting up your preset in the Preview window. Clear unwanted steps with the clear button, reload a fresh copy of your screen via the Reload Main button, make smooth takes directly with your mouse or trackpad with the virtual T-bar. The Take button will allow you to view any change made to your Preview screen on your main screen. Analog Way engineers have even implemented a Stepback button to quickly move back to your previous setup

in the case of a manipulation error. The status section allows for easy monitoring of the connection status.

The RCS software for your Smart MatriX can be viewed as the software version of the Smart MatriX front panel menu section. It allows you to quickly access all of the Smart MatriX functions via a single page interface, and easily edit your settings directly from your laptop or PC.

Before starting with the RCS software, you must establish a connection from your laptop to the Smart MatriX

you wish to run.

Serial connection

1. Connect a RS-232 cable between the Smart MatriX and your PC, then power on your devices.

2. Click on the RCS program le on your PC to run the software.

3. Click on the “Connections” tab and select RS-232 as the connection type. In the drop-down menu, select

the COM port number corresponding to the connected device (default is Port 1).

4. Click apply, and wait for devices to synchronize. The RCS will display the following connection message:

“Device Connected”.

5. Click on the “Connections” tab to return to the main screen.

Ethernet connection

1. Connect a crossed RJ45 cable between the Smart MatriX and your PC, then power on your devices.

Use straight RJ45 if connecting through a network switcher.

2. Click on the RCS program le on your PC to run the software.

3. Click on the “Connections” tab and select LAN as the connection type.

4. In the “Remote Address” eld, enter the IP address of the Smart MatriX you wish to control (see also “Working with the Smart MatriX”, p.31).

5. In the “Remote Port” eld, enter the remote port number of the Smart MatriX you wish to control (see also “Working with the Smart MatriX”, p. 31).

6. Click Apply, and wait for devices to synchronize. The RCS will display a connection message.

7. Click on the “Connections” tab to return to the main screen.

5-2. WORKING WITH THE RCS

Source input conguration

Once your Smart MatriX is wired up to your PC, the rst step in properly conguring your machine is to individually select and

parameter your inputs.

1. Click on the “Inputs” tab of the RCS.

2. In the Plug column of the “Input” page, select the plug type by

clicking the appropriate eld.

3. Activate the input in the Enabled column if it is not.

4. In the scroll-down menu of the Type column, select the signal type connected to that plug.

5. Repeat steps 2 to 4 for all sources connected to the rear panel of your Smart MatriX.

6. Click on the “Inputs” tab to return to the main screen.

Source output conguration

1. Click on the “Outputs” tab of the RCS.

2. Select the type of plug which is connected to outputs #1 &

#2 of your Smart MatriX by clicking in the appropriate eld in

Analog Type or DVI Type for both Main and Preview outputs.

3. Select the appropriate output format and output rate.

4. Click on the “Outputs” tab to return to the main screen.

The Output menu also allows you to generate test patterns. The test patterns available through the Output

menu let you quickly and reliably setup your projectors.

* NOTE * : Be sure to turn the test pattern off to display your sources again.

Working with PIPs

The Smart MatriX allows users to manipulate 2 PIPs (Picture In Picture) which you can move, size, crop or zoom, apply transparency or transitions to.

PIP conguration

1. Click on the Image tab of the RCS interface. The empty Image screen will appear on screen.

2. By clicking on the drop-down menu in the Preview section,

situated next to the layer you wish to use as a PIP, you will access the image parameters of the PIP source you select

(#1 to #12).

3. Set the desired PIP attributes (size, position, zoom, border, transparency...).

4. Click on the Image tab to return to the main screen.

Working with Frames

It is possible to store up to 8 frames in the Smart MatriX non volatile memory. Frames are mainly used as backgrounds in a typical show

or event setup, and can be recorded from any of the 8 Smart MatriX sources and called back at the click of a single button.

* NOTE * : To memorize a frame, select an input, and take it to the Main screen. Once the frame is displayed on your Main output, it is

then possible to store it to the Smart MatriX non volatile memory.

* NOTE * : Frames may be used only one at a time. A frame may not

be used as a Live Background.

Memorizing Frames

1. In the Input Selection section, click on the source button (#1 to #12) of the source you wish to record as a frame.

2. Click on the Logos/Frames tab of the RCS interface. Then click on the Record Frame button.

3. Click on the eld next to the rst free Frame to select it.

4. Click on the Execute button.

Working with Logos

It is possible to store up to 8 logos in the Smart MatriX non volatile memory. Logos work in much the same way as frames, and can be recorded from any of the Smart MatriX’ 12 sources.

Logos have more attributes than frames. They can be sized, positionned, but also keyed via color cutout

selection or Luma Key.

Memorizing Logos

1. In the Input Selection section, click on the source button (#1 to #12) of the source you wish to record as a logo.

2. In the Logos/Frames tab, click Record Logo, then select an empty logo memory slot (#1 to #8) to record your logo into.

3. Adjust position, size and keying attributes for your logo.

4. Click on Execute to record your logo into the selected memory slot. The Smart MatriX RCS will display a progress bar while recording the logo.

5. In the Input Selection section, click the LOGO1 button, and select logo number (#1 to# 8) you wish to use.

Your logo will appear on the preview screen above any existing layer on screen.

6. Click on the TAKE button. Your logo will appear on the main display.

Layer transitions & effects

The Smart MatriX offers a wide variety of transitions between the scenes you create for your shows and

events. It allows for live recall of 4 user presets, each

of which you can edit at any given time.

1. In the Layer Selection section, click on the PIP1

button. On your Preview screen, PIP1 will appear

as a color rectangle. The parameters of the layer

will automatically appear in the RCS Preview

section.

2. At the bottom of the Preview section, click on the Transition tab, then select the transition type from the left dropdown menu, and the effect behaviour from the right dropdown menu.

3. Determine effect duration by sliding the duration bar left (shorter) or right (longer), or by manually setting

the value in the duration value box.

4. Repeat the procedure in the Closing Effect tab to determine the way your layer will close.

Creating Presets

The Smart MatriX allows the creation of user dened presets very easily. Any setup you have congured

on screen, can be stored into one of the 4 available user presets.

1. After having congured layers, PIP transitions,

logos... on your screen (see “Working with the

RCS” chapter, p. 59), click on one of the four

available Preset buttons.

2. In the dropdown menu, choose Save From Main

or Save From Preview to determine which screen

you want to memorize the preset from.

3. By clicking one of the two options, the RCS will automatically load and preview the selected Preset.

4. Click on the Take button to view your preset on the Main screen.

Working with Presets

The four Smart MatriX user presets can be called back at any stage during your show or event.

1. Click on one of the four available Preset buttons

to choose which memory you wish to use. Select

Load to Preview from the dropdown menu, your

preset will appear on the Preview screen.

2. Once you have selected your preset, simply click

the Take button to view the result on your Main screen.

Working with Audio

The Smart MatriX allows to work with up to 10 stereo inputs, 1 auxiliary input, and 2 embedded SDI audio inputs (via the SDI BNC connectors), all accessible via the Audio menu of the Smart MatriX, and which can be affected to one or both of the 2 independent symetrical/asymetrical outputs of the device.

Audio conguration

To congure audio settings of the Smart MatriX, plug all audio inputs into the device, and click on the

Audio tab of the RCS home page.

1. Set the Main audio output level and delay (accessible only if Delay Mode is set to Manual Adjust), or click on the Mute button to mute Main

audio output.

2. Repeat step 2 for the Prelist audio output.

3. Individual source settings (level and balance) for

each audio input can be congured in the right

hand section of the Audio tab.

OPTIONAL REMOTE CONTROL SYSTEMS

>> Event Controllers

Application Note #5-1

Triple Screen Presentation using the Axion2, 1 Di-VentiX II

(SEB Mode), 1 Smart MatriX and 1 SmartVu LE

6-1. Axion2

Analog Way engineers have designed

several remote controllers specically

made for easy control of the Di-VentiX

II, Eikos, Eikos LE, OPS300, OPS200, Pulse, Pulse LE, SmartVu and SmartVu LE, Smart MatriX, Smart MatriX LE, Smart Edge and Smart

Quad.

Axion2: The Axion2 is an ergonomic

and reliable remote controller for rental

& staging/multi-venues at an optimal price/performance ratio. It controls

simultaneously up to 6 screens in a single

or multiple display conguration.

NOTE: for further information concerning our optional remote controllers, please connect to our website on:

www.analogway.com

6-2. ORCHESTRA

>> Event Controllers

Application Note #4-2

4 Screen Presentation using the Orchestra with 2 Eikos LE

(in Seamless Matrix Mode) and

1 Di-VentiX II (1 in Embedded SEB Mode)

Analog Way engineers have designed

several remote controllers specically

made for easy control of the Di-

VentiX II, Eikos, Eikos LE, OPS300, OPS200, Pulse, Pulse LE, Smart Vu and SmartVu LE, Smart MatriX, Smart MatriX LE, Smart Edge and

Smart Quad.

Orchestra: The Orchestra is an

ergonomic and reliable remote

controller for rental & staging/multivenues at an optimal price/performance ratio. It controls simultaneously up to 6

screens in a single or multiple display

conguration.

NOTE: for further information concerning our optional remote controllers, please connect to our website on:

www.analogway.com

6-3. TRK-800

>> Event Controllers

Application Note #6-1

Triple Screen Presentation using 1 Eikos LE (with Mosaic Pre-

view), 1 SmartVu LE, 1 Smart MatriX LE controlled by

the TRK-800 Remote Keypad

TRK-800: Triple Remote Keypad designed to control up to 3 units.

> Powerful High End Remote Controller > Controls up to 3 switchers > Mini Joystick for easy element control > Ethernet LAN RJ45 connector for easy connection > Double Large VFD display offering high contrast menu and status

Analog Way engineers have designed several remote

controllers specically made

for easy to control the Eikos, Eikos LE, OPS300, OPS200, Pulse, Pulse LE, SmartVu and SmartVu LE, Smart MatriX, Smart MatriX LE, Smart Edge

and Smart Quad.

NOTE: for further information concerning our optional remote controllers, please connect to our website on:

www.analogway.com

6-4. RK-300

Analog Way engineers have designed several remote

controllers specically made

for easy control of the Eikos, Eikos LE, OPS300, OPS200, Pulse, Pulse LE, Smart Vu and Smart Vu LE, Smart MatriX, Smart MatriX LE, Smart Edge

and Smart Quad.

RK-300: Remote Control Keypad designed to control Analog Way’s new Seamless Switchers

> Very User-friendly Remote Control Keypad > Controls different Switchers > Mini Joystick for easy element control > Ethernet LAN RJ45 connector for easy connection > Large VFD display offering high contrast menu

NOTE: for further information concerning our optional remote controllers, please connect to our website on:

www.analogway.com

Preview

Monitor

APPLICATION NOTES AND TIPS

7-1. ABOUT APPLICATION NOTES

Application notes are intended to make the use of the Smart MatriX as easy as possible, by providing visual

help in setting up your equipment. In an effort to make the use of our machines the most pleasant experience

possible, the Analog Way team is constantly aiming to create easy to follow examples, update information, and furnish our website with useful user information.

Please check on www.analogway.com.

7-2. APPLICATION NOTES

7-3. EXTERNAL PROGRAMMING

If you need to use your own Software Control program from a PC or automation, the device allows communication through an ASCII code protocol. All commands can be found on the CD-Rom shipped with

the Smart MatriX in the “External Programming” le.

All Analog Way products equipped with a RS-232 input are

compatible with Crestron, AMX, Medialon, and most major control systems. TCP/IP control ports are also available on most Analog

Way products, as standard or as options.

To control a Smart MatriX with an External Remote Controller (PC

Software Control - Touch Pad Controller…) follow the indications

below:

1. First establish a RS-232 communication between the Remote

Control Software and the Smart MatriX, in order to setup the LAN parameters of the product.

2. In the “Control” - “Smart MatriX LAN Setup” menu, congure the connection of the Smart MatriX in UDP mode and setup the

Local and Remote Addresses as well as the Local and Remote Ports in concordance with your Network.

3. Congure the TCP/IP address of your External Remote Controller.

In example: 192.168.000.001

4. Setup the UDP connection of your External Remote Controller in concordance with your Network.

For example on the Remote Software in the “Control” - “RS232/ LAN Setup” - “LAN/Setup” menu :

5. Setup the LAN parameters in UDP mode in the “Console” - “LAN Setup” menu.

For example: RK Address: 192.168.000.002 Remote Address: 192.168.000.010

Gateway Address: 192.168.000.001

RK Port: 10500 Remote Port: 10500 Netmask: 255.255.255.000

6. Select the LAN communication port in the remote controller console - “RS232/LAN port” menu.

7. You can now control your Smart MatriX with an External Remote Controller.

WARRANTY

8-1. ANALOG WAY LIMITED WARRANTY

All Analog Way products have a 3 year warranty on parts and labor, back to factory. This warranty does not

include faults resulting from user negligence, special modications, electrical surges, abuse (drop/crush), and/or other unusual damage.

8-2. SERVICES AND RMA

In the unlikely event that a product is required to return for repair, please call the regional Maintenance center / Customer Service, and ask to receive a Return Material Authorization number (RMA). Three regional maintenance centers are available depending on your location. See map below for information on which

regional maintenance center you depend on.

RMA Conditions:

1. Prior to returning any item, you must receive a Return Material Authorization (RMA) number.

2. All RMA numbers must appear on the return-shipping label.

3. All shipping and insurance charges on all RMAs must be prepaid by the customer.

CONTACT INFORMATION

HOW TO CONTACT US

Analog Way SAS

33 rue du Saule Trapu Parc du Moulin 91300 Massy

France

Tel.: +33 1 64 47 16 03 Fax: +33 1 64 47 14 73 saleseuro@analogway.com

Analog Way Inc.

299 Broadway, Suite 1620 New York, NY 10007 United States of America Tel.: +1 212 269 1902 Fax. +1 212 269 1943 salesusa@analogway.com

Analog Way Pte Ltd.

No. 10 Ubi Crescent #03-05 Ubi Techpark Lobby A Singapore 408564 Tel.: +65 6292 5800 Fax: +65 6292 5205 sales@analogwayasia.com

For more documentation, general information, or simply to keep up to date with new releases and upcoming Analog Way products, please log on to www.analogway.com.

Before calling your regional maintenance center, please gather the following information :

- Serial number of the unit

- Firmware version (look in : CONTROL MENU/VERSIONS)

- Model reference (SMX200)

- Description of failure

INFORMATION ON UNIT DISPOSAL

In the European Union :

If the product is used for business purposes and you want to discard it :

Please contact your Analog Way dealer who will inform you about take-back of the product. You might be charged for

the costs arising from take-back and recycling.

For Spain :

Please contact the established collection system or your local authority for take-back of your used product.

In other countries outside the EU :

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

Version: 4.00 - 22/06/2012

Designs and specications are subject to change without notice

The illustrations and screens described in this manual may be exaggerated or simplied for easy

recognition and may be slightly different from the actual unit.

ANALOG WAY SAS

33 rue du Saule Trapu

Parc du Moulin

91300 Massy - France

Code: 140122

Analog Way Smart MatriX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
