Amprobe ACD-50NAV, ACD-51NAV, ACDC-52NAV, ACD-53NAV, ACD-54NAV User Manual

ACD-50NAV

600A AC Navigator Clamp

ACD-51NAV

600A AC TRMS
Navigator Clamp

ACDC-52NAV

600A AC / DC TRMS
Navigator Clamp

ACD-53NAV

1000A AC TRMS
Navigator Clamp

ACDC-54NAV

1000A AC / DC TRMS
Navigator Clamp

Users Manual

• Mode d’emploi

• Bedienungshandbuch

• Manual d’Uso

• Manual de uso

1

ACD-50NAV

600A AC Navigator Clamp

ACD-51NAV

600A AC TRMS Navigator Clamp

ACDC-52NAV

600A AC/DC TRMS Navigator Clamp

ACD-53NAV

1000A AC TRMS Navigator Clamp

ACDC-54NAV

1000A AC/DC TRMS Navigator Clamp

Users Manual

December 2010, Rev.1
©2010 Amprobe Test Tools.
All rights reserved. Printed in Taiwan

English

Limited Warranty and Limitation of Liability
Your Amprobe product will be free from defects in material and workmanship for 1
year from the date of purchase. This warranty does not cover fuses, disposable batteries
or damage from accident, neglect, misuse, alteration, contamination, or abnormal
conditions of operation or handling. Resellers are not authorized to extend any other
warranty on Amprobe’s behalf. To obtain service during the warranty period, return the
product with proof of purchase to an authorized Amprobe Test Tools Service Center or
to an Amprobe dealer or distributor. See Repair Section for details. THIS WARRANTY
IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES - WHETHER EXPRESS, IMPLIED OR
STAUTORY - INCLUDING IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE
OR MERCHANTABILITY, ARE HEREBY DISCLAIMED. MANUFACTURER SHALL NOT BE
LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES
OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries
do not allow the exclusion or limitation of an implied warranty or of incidental or
consequential damages, this limitation of liability may not apply to you.

Repair
All test tools returned for warranty or non-warranty repair or for calibration should
be accompanied by the following: your name, company’s name, address, telephone
number, and proof of purchase. Additionally, please include a brief description of
the problem or the service requested and include the test leads with the meter. Non­warranty repair or replacement charges should be remitted in the form of a check, a
money order, credit card with expiration date, or a purchase order made payable to
Amprobe® Test Tools.

In-Warranty Repairs and Replacement – All Countries
Please read the warranty statement and check your battery before requesting repair.
During the warranty period any defective test tool can be returned to your Amprobe®
Test Tools distributor for an exchange for the same or like product. Please check the
“Where to Buy” section on www.amprobe.com for a list of distributors near you.
Additionally, in the United States and Canada In-Warranty repair and replacement units
can also be sent to a Amprobe® Test Tools Service Center (see below for address).

Non-Warranty Repairs and Replacement – US and Canada
Non-warranty repairs in the United States and Canada should be sent to a Amprobe®
Test Tools Service Center. Call Amprobe® Test Tools or inquire at your point of purchase
for current repair and replacement rates.

In USA In Canada
Amprobe Test Tools Amprobe Test Tools
Everett, WA 98203 Mississauga, ON L4Z 1X9
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]

Non-Warranty Repairs and Replacement – Europe
European non-warranty units can be replaced by your Amprobe® Test Tools distributor
for a nominal charge. Please check the “Where to Buy” section on www.amprobe.com
for a list of distributors near you.

Amprobe® Test Tools Europe
In den Engematten 14
79286 Glottertal, Germany
tel: [phone] - 0

*(Correspondence only – no repair or replacement available from this address. European
customers please contact your distributor.)customers please contact your distributor.)

ACD-50 Series CAT IV Navigator Clamps Series

1

2

4

3

5

6

7

Jaw

1

Voltsense Light

2

Trigger

3

Hold / DCA Zero Key

4

Rotary Switch

5

Display

6

Navigator Key

7

V /  /  Input

8

Common Input

9

8

9

CONTENTS

SYMBOLS ........................................................................................................ 1

UNPACKING AND INSPECTION ...................................................................... 2

FEATURES ........................................................................................................ 2

OPERATION ..................................................................................................... 3

Making Basic Measurement ...................................................................... 4

Measuring Voltage ..................................................................................... 5

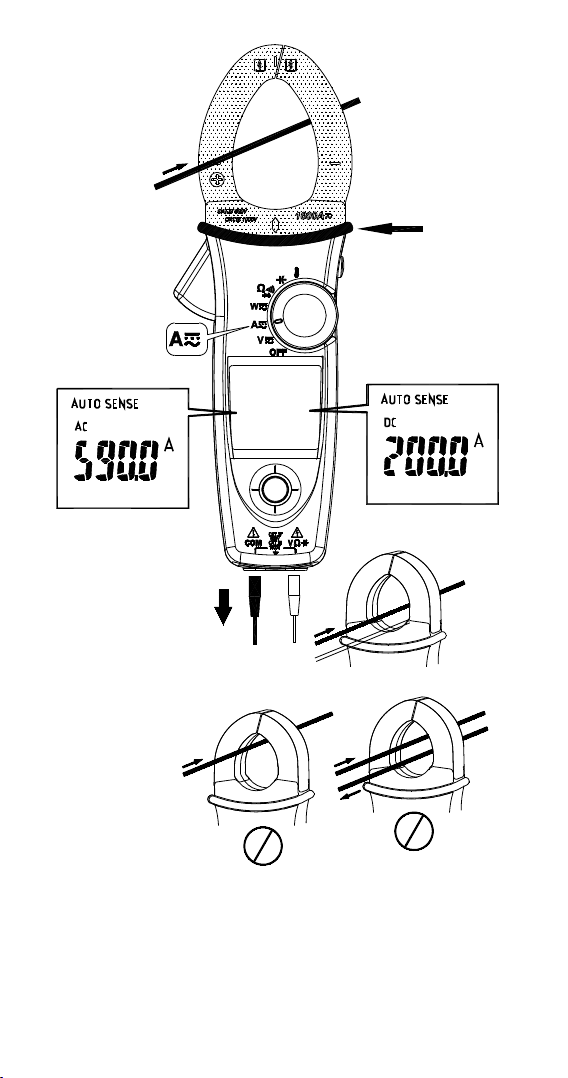

Measuring Current ..................................................................................... 6

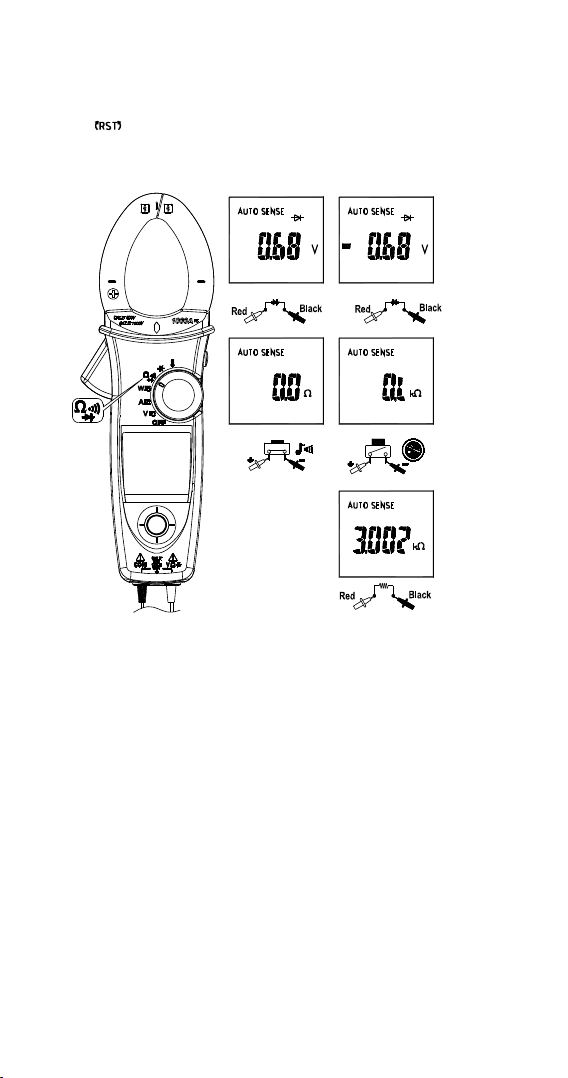

Auto Sense Mode ....................................................................................... 7

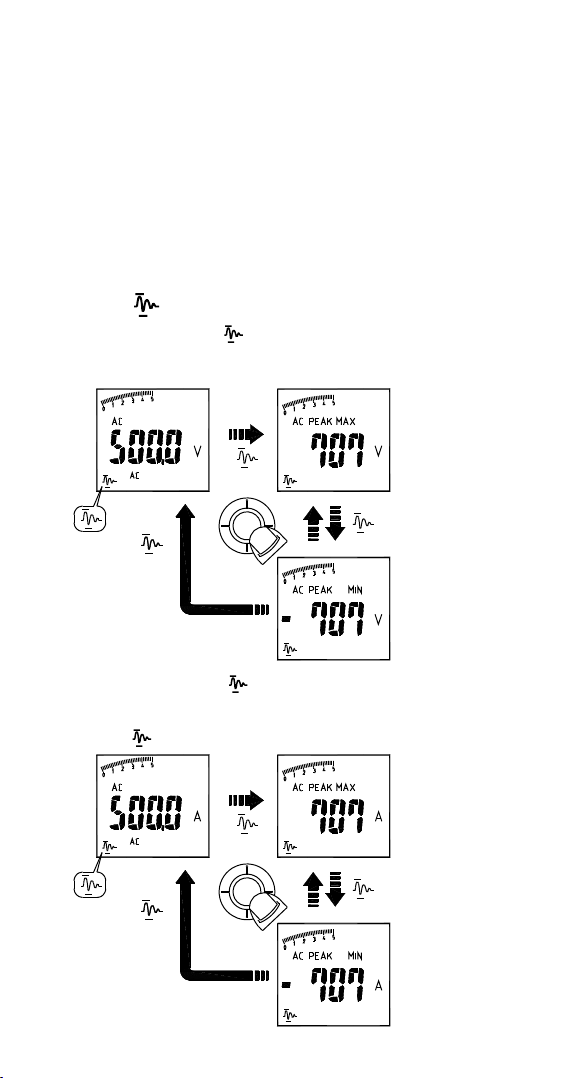

Peak Hold ................................................................................................... 7

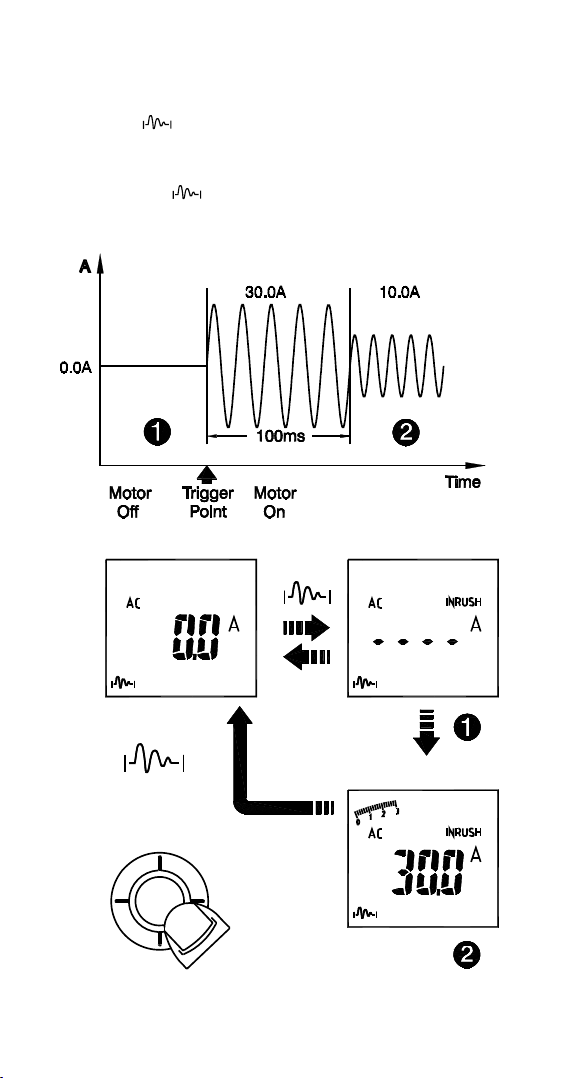

Inrush Current ............................................................................................ 8

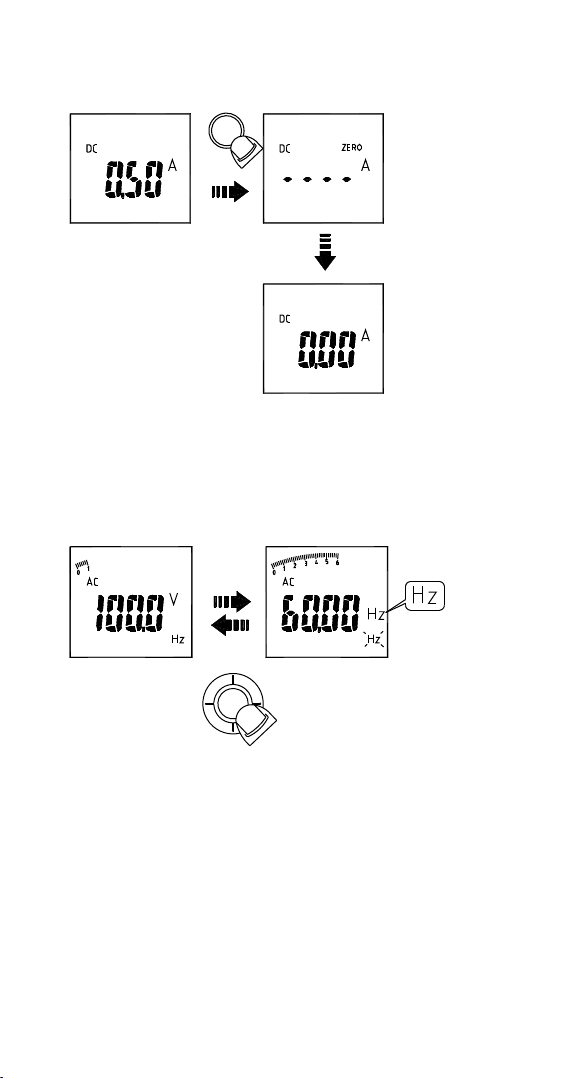

DC A ZERO .................................................................................................. 9

Measuring Frequency ................................................................................ 9

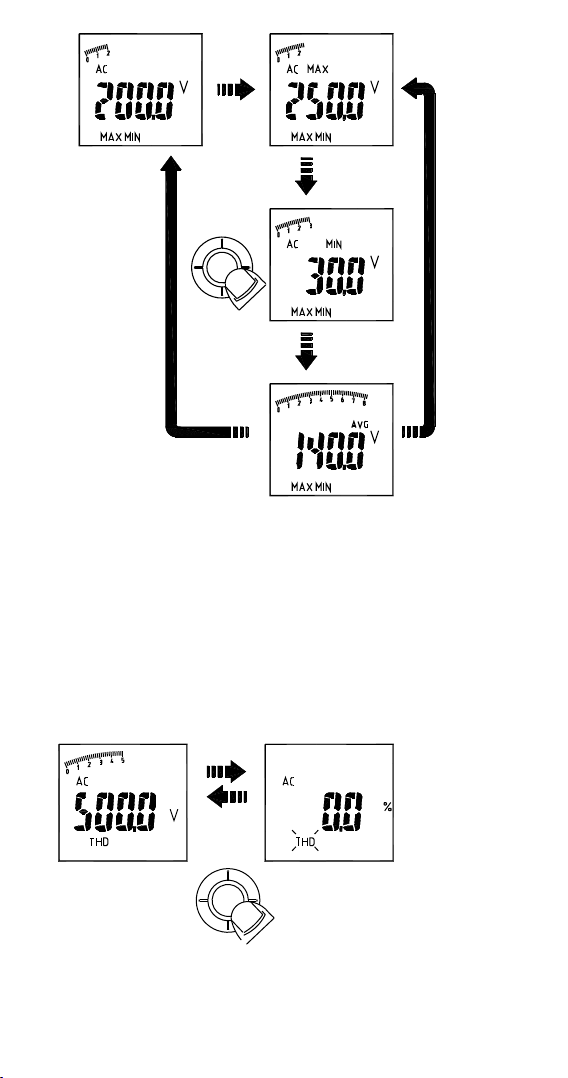

MAX/MIN/AVG ............................................................................................ 9

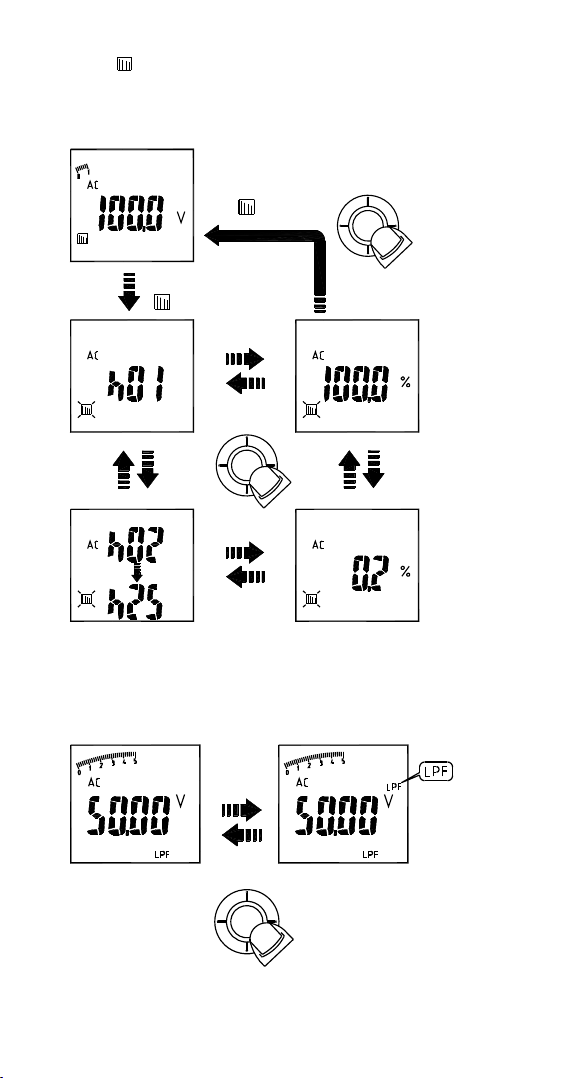

THD Measurement ..................................................................................... 10

LPF ............................................................................................................... 11

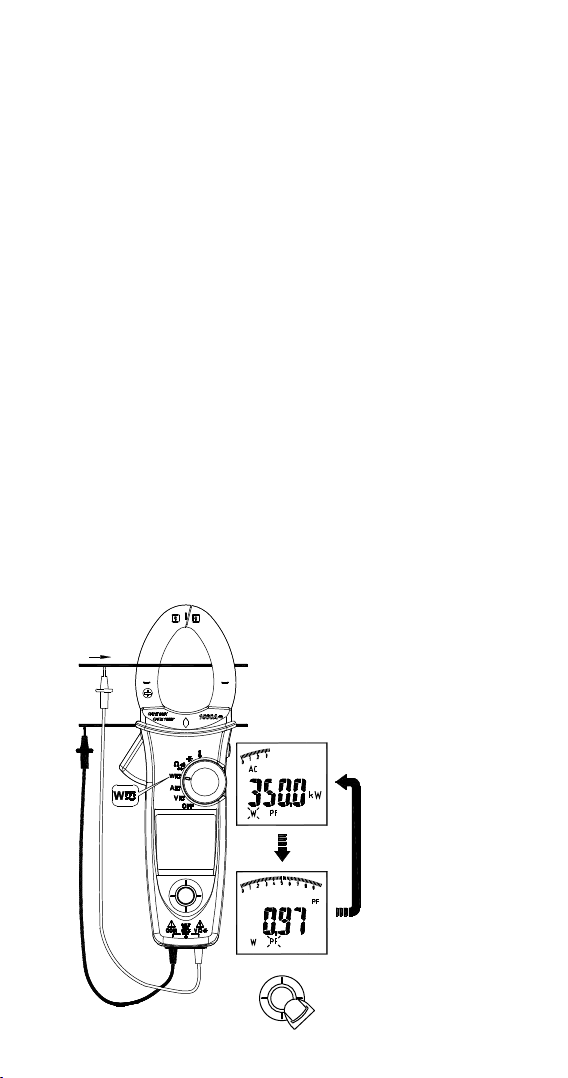

Measuring Active Power (W) / Power factor (PF) ..................................... 12

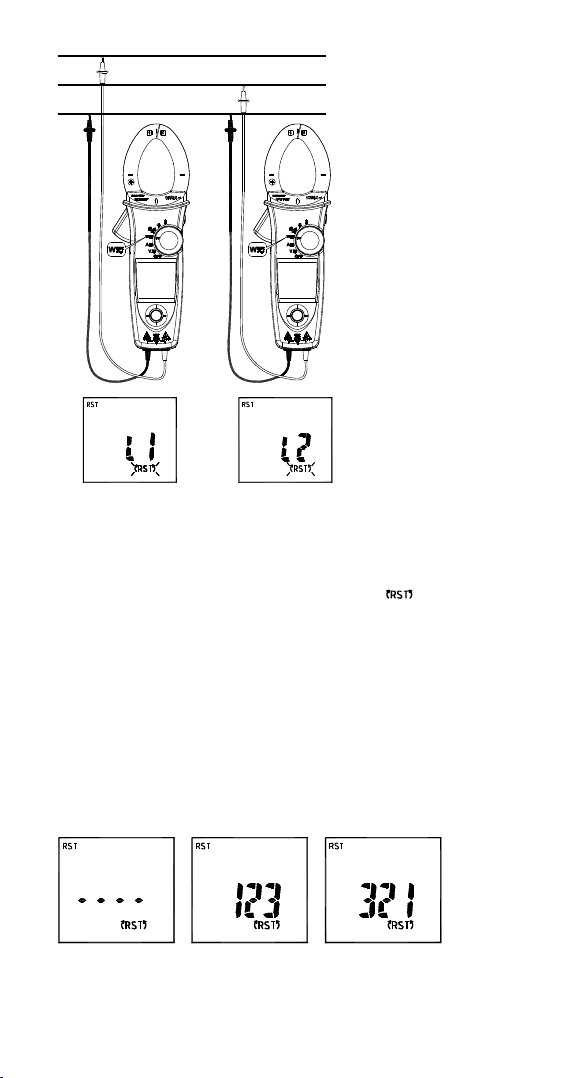

Phase Rotation ........................................................................................... 14

OHM Measurements .................................................................................. 15

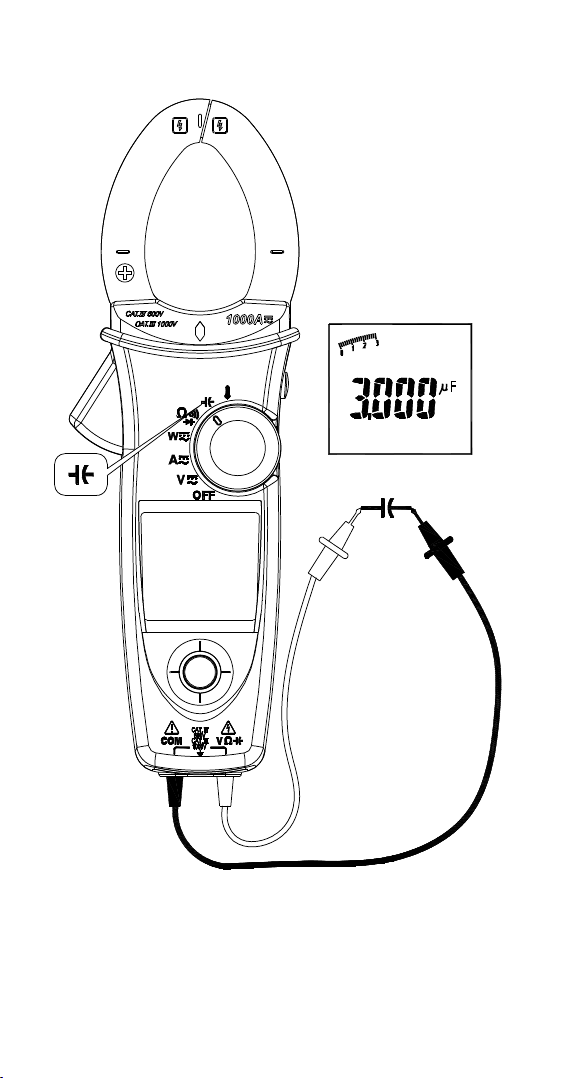

Measuring Capacitance ............................................................................. 16

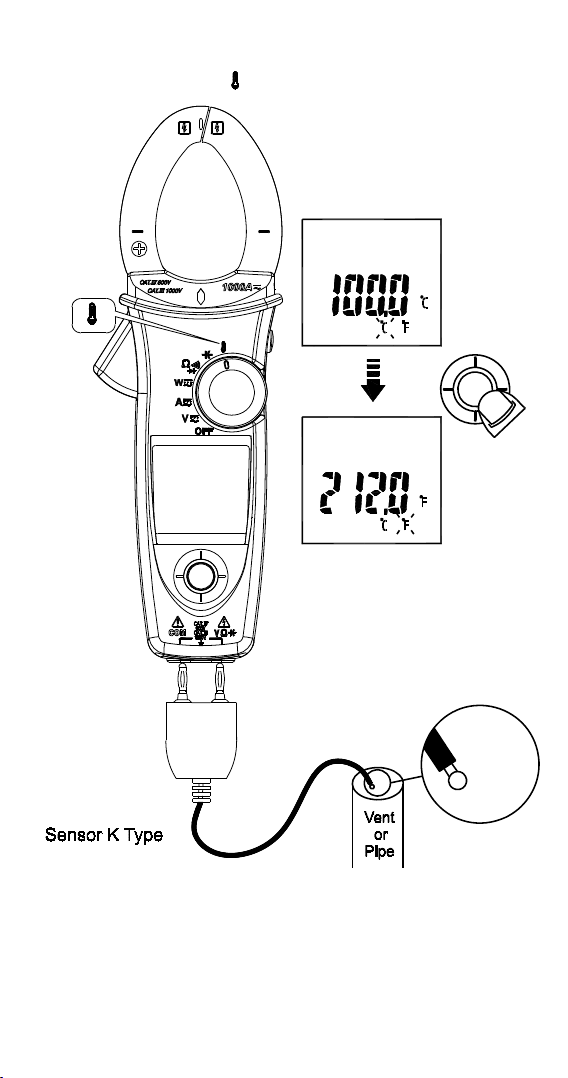

Measuring Temperature °C / °F ................................................................. 17

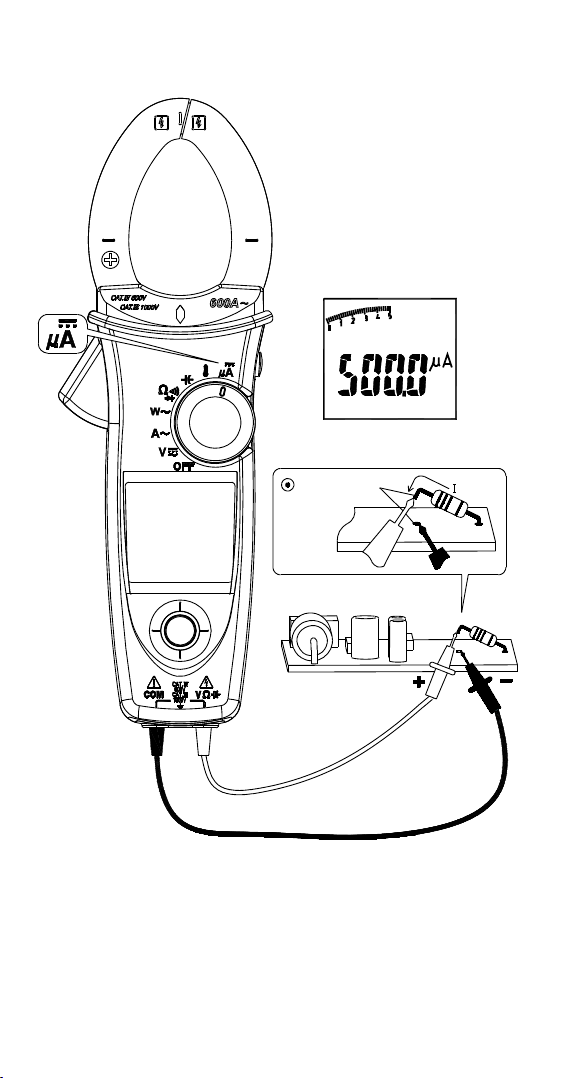

Measuring μA Current ............................................................................... 18

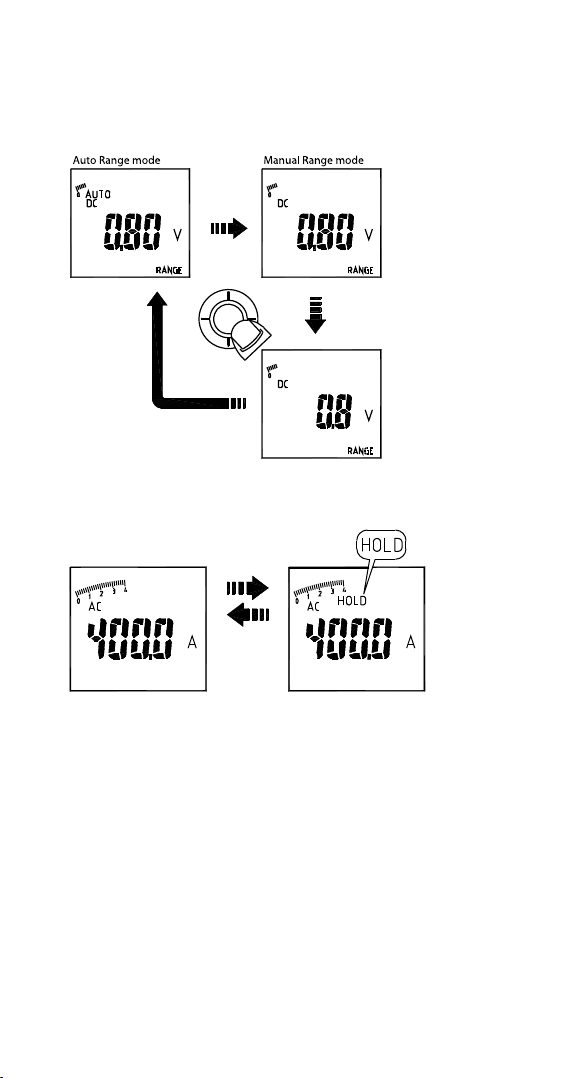

AUTO / Manual Range ............................................................................... 19

HOLD Key ................................................................................................... 19

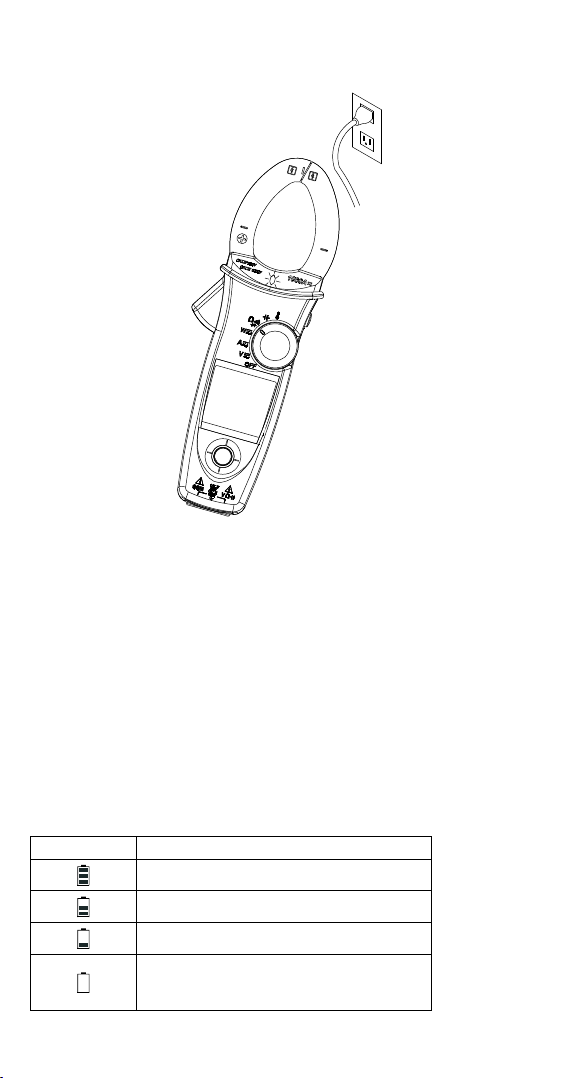

VoltSense .................................................................................................... 20

Buzzer ......................................................................................................... 20

Power-up Option........................................................................................ 20

Battery State Display .................................................................................. 20

SPECIFICATION ................................................................................................ 21

MAINTENANCE AND REPAIR ......................................................................... 27

Trouble Shooting........................................................................................ 27

Cleaning and Storage ................................................................................ 27

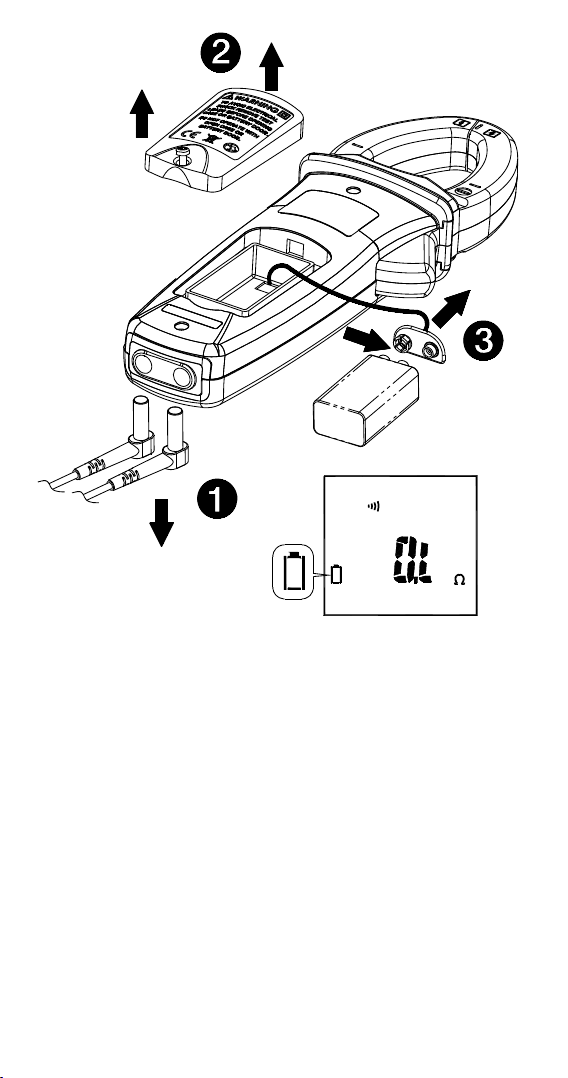

Battery Replacement ................................................................................. 27

SYMBOLS

Caution ! Risk of electric



shock

Application around and
removal from hazardous live



conductors is permitted.

Alternating Current (AC).



Temperature Measurement

Capacitance Measurement



Continuity Beeper



To alert you to the presence
of a potentially hazardous
voltage, when the Meter



detects a voltage ≧30 V or a
voltage overload (OL) in V.
This symbol is displayed.

Conform to relevant



Australian standards

Do not dispose of this product as unsorted municipal waste. Contact



a qualified recycler



Caution ! Refer to the



explanation in this Manual

Equipment protected
by double or reinforced



insulation

Direct Current (DC).



Resistance Measurement



Diode Measurement



Earth (Ground)



Complies with European



Directives

Battery

Safety Information

• This manual contains information and warnings that must be

followed for operating the instrument safely and maintaining the
instrument in a safe operating condition. If the instrument is used in
a manner not specified by the manufacturer, the protection provided
by the instrument may be impaired.

• The meter is intended only for indoor use.

• The meter protection rating, against the users, is double insulation

per IEC 61010-1 2nd Ed., EN 61010-1 2nd Ed., Category III 1000 Volts
AC & DC and Category IV 600 Volts AC & DC.

• Disconnect the test leads from the test points before changing the

position of the function rotary switch.

• Never connect a source of voltage with the function rotary switch in

, , , μA, position.

• Do not expose Meter to extremes in temperature or high humidity.

• Never set the meter in

of a power supply circuit in equipment that could result in damage
the meter and the equipment under test.

, , , μA, function to measure the voltage

1

2

Measurement category:
V : Category III 1000 Volts AC & DC, and Category IV 600 Volts AC & DC.
A : Category III 1000 Volts AC & DC, and Category IV 600 Volts AC & DC.

Per IEC 61010-1 2nd Ed. (2001) Measurement Category

Measurement Category IV (CAT IV) is for measurements performed at the
source of the low-voltage installation. Examples are electricity meters and
measurements on primary overcurrent protection devices and ripple control
units.

Measurement Category III (CAT III) is for measurements performed in
the building installation. Examples are measurements on distribution
boards, circuit- breakers, wiring, including cables, bus-bars, junction
boxes, switches, socket-outlets in the fixed installation, and equipment for
industrial use and some other equipment, for example, stationary motors
with permanent connection to the fixed installation.

WARNING



To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture. To avoid electrical shock hazard, observe the proper
safety precautions when working with voltages above 60 VDC or 30 VAC
rms. These voltage levels pose a potential shock hazard to the user. Do not
touch test lead tips or the circuit being tested while power is applied to the
circuit being measured. Keep your fingers behind the finger guards of the
test leads during measurement. Inspect test leads, connectors,

and probes for damaged insulation or exposed metal before using the
instrument. If any defects are found, replace them immediately. Only use
the accompanied test leads, or replace with the same rating or better.

UNPACKING AND INSPECTION

Your shipping carton should include:

1 Power clamp meter

1 Test leads (1 pair)

1 Temp. adapter and probe (for ACD-51NAV and ACDC-54NAV only)

1 Users Manual

1 Carrying case

1 9V alkaline battery (installed)

If any of the items are damaged or missing, return the complete package to
the place of purchase for an exchange.

FEATURES

• True RMS

• Measurements:

o Voltage up to 1000V AC/DC, Resistance, Frequency, THD (Total

Harmonics Distortion) and Individual Harmonics 1 to 25, Power,
Power Factor

o AC Current

- Up to 600A (ACD-50NAV, ACD-51NAV, ACDC-52NAV)

- Up to 1000A (ACD-53NAV, ACDC-54NAV)

3

o DC Current

Power on

- Up to 600A (ACDC-52NAV)

- Up to 1000A (ACDC-54NAV)

o Capacitance

o Temperature Measurement in °C / °F (ACD-51NAV, ACDC-54NAV

only) - Temp. adapter and probe included

o DC Micro Amps (ACD-51NAV only)

• Phase Rotation Indication

• Non-contact voltage detection

• Inrush Current measurement for motors

• Low Pass Filter for variable frequency drives

• Continuity Beeper

• Min, Max and Smart Data Hold

• Peak Hold

• Auto torch-light when clamping

• Large 10000 count display with active backlight and analog Bar graph

• Auto Power Off

• Maximum Jaw Opening 1.77” (45mm)

• 4 feet Drop Proof

• Deluxe Carrying Case Included

• CAT IV 600V /CAT III 1000V Safety Standard

OPERATION

Power On / Off

4

Auto Power Off

After idle 15 min

RIGHT

LEFT

DOWN

UP

ENTER

The meter can work again by turning it on from the OFF position.

Auto Power Off (APO) disable : Press “Downward” of Navigator key while
tuning meter on from OFF position.

Navigator Key

The Navigator Key has 5 directions of switch on the display, toggle the
navigator key to select the desired feature to activate the feature by a
simple click.

Making Basic Measurements

CAUTION

Before and after hazardous voltage measurements, test the voltage
function on a known source such as line voltage to determine proper meter
functioning.

When connecting the test leads to the EUT (Equipment Under Test) connect
the common test lead before connecting the live lead; when removing the
test leads, remove the test live lead before removing the common test lead.

5

Measuring Voltage

V

WARNING

To avoid electrical shock, hazard or damage to meter, do not attempt to
measurement that might exceed 1000 V DC or AC RMS. Do not apply more
than 1000 V DC or AC RMS to the input terminals.

Note - If the measured voltage is higher than 30 V DC or AC RMS, the
display will show “

” symbol.
