Page 1

No hassle

1000V

600V

warranty

No waiting.

No shipping charges.

Our commitment to high-quality products and customer service is demonstrated by our industry exclusive “No Hassle” warranty. In the unlikely event that an Amprobe Test Tool requires warranty service, any of our local dealers are authorized to replace it, on the spot.

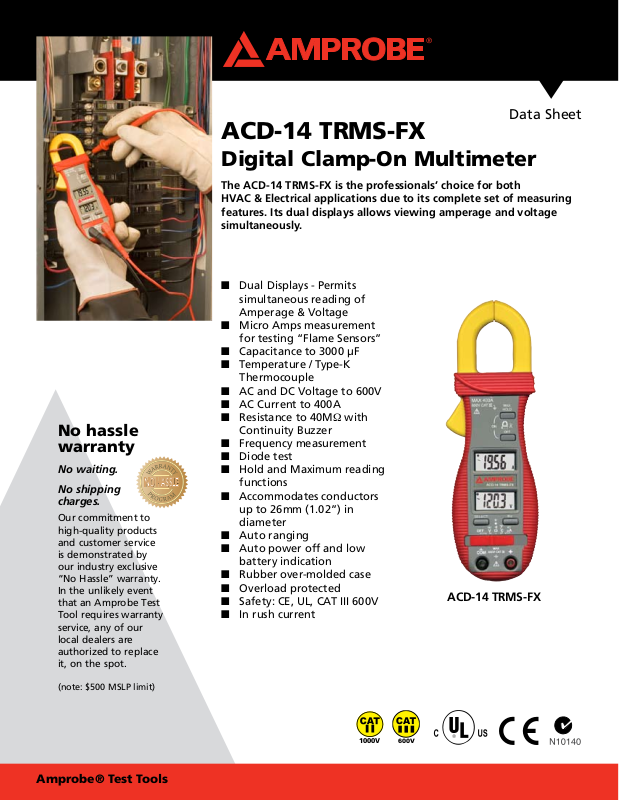

Data Sheet

ACD-14 TRMS-FX

Digital Clamp-On Multimeter

The ACD-14 TRMS-FX is the professionals’ choice for both HVAC & Electrical applications due to its complete set of measuring features. Its dual displays allows viewing amperage and voltage simultaneously.

n Dual Displays - Permits simultaneous reading of Amperage & Voltage n Micro Amps measurement for testing “Flame Sensors”

n Capacitance to 3000 µF n Temperature / Type-K

Thermocouple

n AC and DC Voltage to 600V n AC Current to 400A n Resistance to 40MW with

Continuity Buzzer

n Frequency measurement n Diode test n Hold and Maximum reading

functions n Accommodates conductors up to 26mm (1.02”) in diameter

n Auto ranging n Auto power off and low

battery indication

n Rubber over-molded case n Overload protected n Safety: CE, UL, CAT III 600V n In rush current

ACD-14 TRMS-FX

(note: $500 MSLP limit)

Amprobe® Test Tools

Page 2

ACD-14 TRMS-FX Digital Clamp-On Multimeter

Data Sheet

General Specifications

Display: 3-3/4 digits 4000 counts, dual LCD displays Update Rate: 3 per second nominal Polarity: Automatic Low Battery Indication: Below approx. 2.4V Operating Temperature: 0°C to 40°C (32°F to 104°F) Relative Humidity: Maximum relative humidity 80% for temperatures up to 31°C (88°F) decreasing linearly to 50%

Altitude: Operating below 2000m (6,562 ft) Storage Temperature: -20°C to 60°C (-4°F to 140°F), < 80% R.H. (with battery removed) Temperature Coefﬁcient: Nominal 0.15 x (speciﬁed accuracy)/°F @ 0°C - 18°C or 28°C - 40°C (32°F -64°F or 82°F - 104°F), or

Sensing: Average sensing True RMS for ACD-14 TRMS-FX Power Supply: Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032). Battery Life: 95 hours approx. (in DCV mode) Power Consumption: 2.9mA typical for ACD-14 TRMS-FX Low Battery Indication: Below approx. 2.4V (battery symbol appears in upper right) Auto Power Off: After being idle for 30 minutes APO Consumption: ACD-14 TRMS-FX: 10µA typical except 25µA typical for temperature function Safety: CE EN61010-1, EN61010-2-032 - Pollution Degree 2 Transient Protection: 6.5kV (1.2/50µs surge) for all models E.M.C.: Meets EN61326 Overload Protections: ACA Clamp-on jaws: AC 400A RMS continuous “+” & “COM” terminals (all functions): 600VDC/

Dimension: L190mm X W 63mm X H 32mm (L 7.48” X W 2.48” X H 1.25”) Weight: 204 g (0.450 lb approx.) Jaw opening & Conductor diameter: 26mm (1.02” max) Electrical Speciﬁcations: 23°C ± 5°C (73°F ± 9°F) & less than 75% R.H. True RMS Model ACD-14 TRMS FX ACV, ACmA &

relative humidity at 40°C (104°F)

otherwise speciﬁed

VAC RMS

ACA clamp-on accuracies are speciﬁed from 5% to 100% of range or otherwise speciﬁed. Maximum Crest Factor are < 1.96 at full scale & < 3.92 at half scale, and with frequency spectrums, besides fundamentals, fall within the meter speciﬁed AC bandwidth for non-sinusoidal waveforms.

Specifications

Function Range Accuracy

DC Voltage

400.0 mV ± 0.3% rdg + 4 digits

4.000V, 40.00V, 400.0V ± 0.5% rdg + 3 digits 600V ± 1.0% rdg + 4 digits

NMRR: >50dB @ 50/60Hz CMRR: >120dB @ DC, 50/60Hz, Rs=1kW Input Impedance: 10MW, 30pF nominal (1000MW for 400.0mV range)

AC Voltage 50Hz -- 500Hz

4.000V, 40.00V, 400.0V ± 1.5% rdg + 5 digits 600V ± 2.0% rdg + 5 digits

CMRR: >60dB @ DC to 60Hz, Rs=1kW Input Impedance: 10MW, 30pF nominal

Amprobe® Test Tools

Page 3

ACD-14 TRMS-FX Digital Clamp-On Multimeter

Data Sheet

Specifications, cont.

Function Range Accuracy

ACA Current (Clamp-on) 50Hz / 60Hz

40.00A ± 1.9% rdg + 8 digits

400.0A ± 1.9% rdg + 8 digits* 600A** ± 1.9% rdg + 8 digits

*Accuracy speciﬁed to 350A continuous, and 400A for 60-second max with 5 minutes cool down interval. **Added range to indicate instantaneous over-range current values TRMS model ACD-14 TRMS-FX accuracy is speciﬁed from 10% to 100% of range.

Max Hold (where applicable) Speciﬁed accuracy ± 50 digits for changes > 25ms in duration Audible Continuity Tester Audible threshold: between 10W and 120W.

Ohms

400.0W ± 0.8% rdg + 6 digits

4.000kW, 40.00kW, 400.0kW ± 0.6% rdg + 4 digits

4.000MW ± 1.0% rdg + 4 digits

40.00MW ± 2.0% rdg + 4 digits Open Circuit Voltage: 0.4VDC typical

Capacitance

500.0nF, 5.000µF, 50.00µF, 500.0µF, 3000µF* ± 3.5% rdg *** + 6 digits

*Additional 50.00nF range accuracy is not speciﬁed **Accuracies with ﬁlm capacitor or better ***Speciﬁed with battery voltage above 2.8V (approximately half full battery). Accuracy decreases gradually to 12% at low battery warning voltage of approximately 2.4V

DC µA Range Accuracy Burden Voltage

400.0µA ± 1.5% rdg + 4 digits 2.8mV/µA 2000µA ± 1.2% rdg + 3 digits 2.8mV/µA

AC µA (50Hz -- 500Hz) Range Accuracy Burden Voltage

400.0µA ± 2.0% rdg + 5 digits 2.8mV/µA 2000µA ± 1.5% rdg + 5 digits 2.8mV/µA

Hz Frequency

Volts 400.0mV 10Hz -- 2kHz 300mV ± 0.5% rdg + 4 digits

4.000V 5Hz -- 40kHz 4V ± 0.5% rdg + 4 digits

40.00V 5Hz -- 100kHz 28V ± 0.5% rdg + 4 digits

400.0V 5Hz -- 100kHz 100V ± 0.5% rdg + 4 digits 600V 5Hz -- 5kHz 500V ± 0.5% rdg + 4 digits Amps 400.0µA 10Hz -- 30kHz 500µA ± 0.5% rdg + 4 digits 2000µA 10Hz -- 30kHz 500µA ± 0.5% rdg + 4 digits

Diode Tester Open Circuit Voltage Test Current (Typical)

< 1.6 VDC 0.25mA

Type-K Temperature Range Accuracy*

-20°C to 300°C ± 2% rdg + 3°C

-4°F to 572°F ± 2% rdg + 6°F *Type-K thermocouple range & accuracy not included

Page 4

ACD-14 TRMS-FX Digital Clamp-On Multimeter

Included Accessories

Test Leads, Carrying Case, Bead Type-K Thermocouple, Instruction Manual

Optional Accessories A47L Line splitter (Energizer)

ACF-3000AK 3000A AC Flexible Clamp-On Attachment TMA-K Temperature Adapter VRC-320 Alligator Clips (For test leads)

Data Sheet

Amprobe® Test Tools
