Ametek EPM 2000 Operating Manual
User Manual/Bruger manual
EPM 2000 Series
Digital manometers/digitale manometre
Copyright 2000 AMETEK DENMARK A/S
105806 01 16-10-2000
............................................................ENGLISH
...............................................................DANSK
16-10-2000 105806 01
The EPM 2000 Series
105806 01 16-10-00
List of contents
1.0 Introduction ............................................................................ 2
2.0 Operating the instrument....................................................... 5
2.1 Switch on/Switch off ...................................................................... 5
2.2 Back light.......................................................................................5
2.3 Symbol display .............................................................................. 5
2.4 Overpressure.................................................................................6
2.5 MAX/MIN function .........................................................................6
2.6 Data hold .......................................................................................6
2.7 Selection of pressure units ............................................................6
2.8 Zeroing the EPM-2021 and the EPM-2023 ...................................7
2.9 Correction of ambient pressure EPM-2025...................................7
2.10 Average reading ............................................................................ 7
2.11 Manual selection of measuring range ...........................................8
3.0 Pump system .......................................................................... 9
3.1 General precautions ......................................................................9

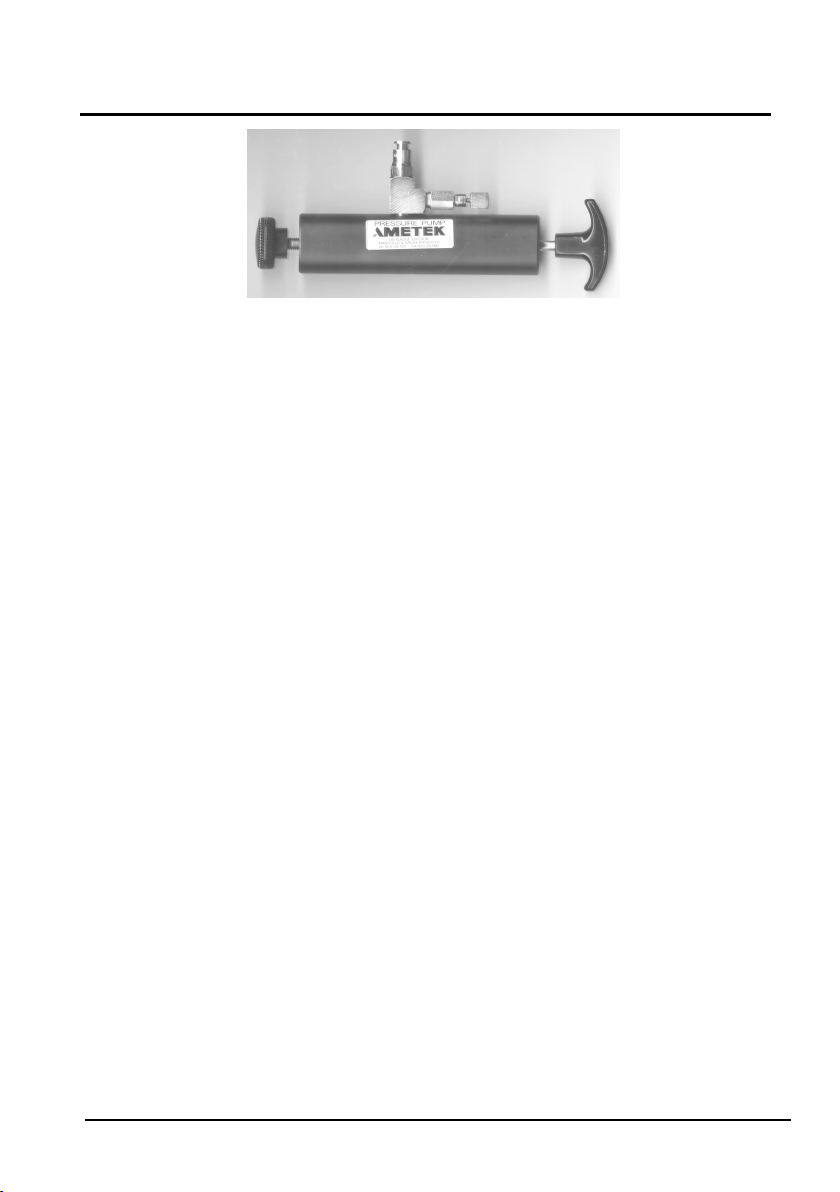

3.2 Fitting of hand pumps and hoses .................................................. 9
3.3 Pressure test process .................................................................10
3.3.1 Preparation of the test .................................................... 10
3.3.2 Increasing pressure ........................................................ 10
3.3.3 Declining pressure..........................................................10
4.0 Electrical specifications....................................................... 11
4.1 EPM-2021, EPM-2023 and EPM-2025 .......................................11
4.2 Batteries ...................................................................................... 11
5.0 Warranty................................................................................ 12
1/12 ENGLISH
1.0 Introduction
These operating instructions cover all models in the EPM 2000 Series.
Therefore, some of the options described may not apply to this
instrument. Please check the functions of the instrument you have
purchased before proceeding. If in doubt, the type designation will
appear on the display when the instrument is switched on.
Table of functions
Model EPM
2021
Differential / absolute Diff. Diff. Absolute
± input Yes Yes
7 different pressure units* Yes Yes Yes
Overpressure indication Yes Yes Yes
Data Hold Yes Yes Yes
Manual range selection Yes Yes Yes
MAX/MIN Yes Yes Yes
Density IP 65 IP 65 IP 65
EPM
2023
EPM
2025
Barometer Yes
* The EPM 2000 series offers the following units of pressure:
mbar, PSI, kPa, inHg, mHg, inH
O, mH2O
2
Table of pressure ranges
Model Operating range Max. overpressure
EPM-2021 130 mbar g / 52 ”H2O 1 bar g / 401 ”H2O
EPM-2023 7 bar g / 101,5 PSI 10 bar g / 145 PSI
EPM-2025 2 bar absolute 4 bar absolute
ENGLISH 2/12
Warning
Particular care should be taken not to overpressure
the instrument as this may damage the pressure
sensor inside the instrument. This is not covered by
the warranty.
NOTE: The differential/gauge instruments will only measure
positive pressures i.e. positive pressure applied to the
positive port, or negative pressure applied to the negative
port.
Instrument application
The range of EPM-2000 instruments is suitable for gauge, differential,
or absolute measurements over a wide range of pressures depending
on the type of instrument you have chosen.
They are not suitable for use with corrosive substances or cylic
hydrocarbons, e.g. motor oil, transmission fluid and freon. To use the
EPM-2000 with these components, isolation must be provided in form
of a separator.
Batteries
Two type AA batteries (Penlight) supplied.
Follow instructions on reverse of instrument for fitting/replacement.
When
Serial No.
The S/N of the EPM instruments is placed under the batteries. This will
secure that the number is not being removed by accident or by wear
and tear.
Table of units (conversion between different pressure units)
If possible, you should always use the pressure units available in the
EPM instrument. This will prevent conversion errors and make the use
easier and faster.
3/12 ENGLISH
symbol appears on display, replace batteries.
Table of units
Units Bar mbar Pa kPa mmHg mH2O mmH2O PSI “H2O“Hg
1 Bar 1 1000 100000 100 750 10.197 10197.2 14.50 401.46 29.53
1 mbar 0.001 1 100 0.1 0.75 0.010197 10.197 0.0145 0.40146 0.02953
1 Pa 0.00001 0.01 1 0.001 0.0075 0.00010197 0.10197 0.000145 0.0040146 0.000295
1 kPa 0.01 10 1000 1 7.50 0.10197 101.97 0.145 4.0146 2.953
1 mmHg 0.001333 1.3332 133.32 0.13332 1 0.01360 13.60 0.019336 0.53524 0.03937
1 mH2O 0.09806 98.06 9806 9.806 73.556 1 1000 1.422 39.37 2.8959
1 mmH2O 0.000098 0.098 9.806 0.009806 0.073556 0.001 1 0.001422 0.03937 0.002895
1 PSI 0.0689 68.947 6894.8 6.8947 51.715 0.703 703.07 1 27.68 2.035
1 “H2O 0.00249 2.49 249 0.249 1.8683 0.0254 25.4 0.03613 1 0.07356
“Hg 0.03386 33.86 3386 3.3864 25.4 0.345316 345.316 0.49115 13.595 1
ENGLISH 4/12
2.0 Operating the instrument
2.1 Switch on/Switch off
Press to switch on and to switch off. The instrument
will automatically switch off after 12 min. unless MIN/MAX function is
activated.
If
function will be disabled.
key is held when unit is switched on, the automatic switch off
2.2 Back light
Press and hold key . Light will be on as long as the key is held.
2.3 Symbol display
5/12 ENGLISH
