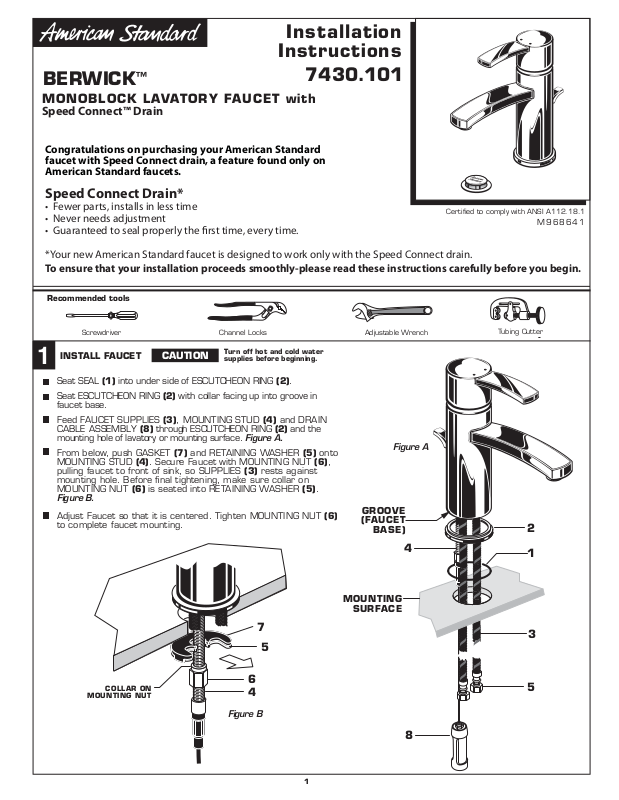

American Standard M968641 User Manual
Installation
Instructions
BERWICK
™
7430.101
MONOBLOCK LAVATORY FAUCET with
Speed Connect™ Drain
Congratulations on purchasing your American Standard
faucet with Speed Connect drain, a feature found only on
American Standard faucets.
Speed Connect Drain*
• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
*Your new American Standard faucet is designed to work only with the Speed Connect drain.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Recommended tools
Adjustable Wrench Screwdriver Channel Locks
INSTALL FAUCET
1
CAUTION
Turn off hot and cold water
supplies before beginning.
Certified to comply with ANSI A112.18.1
M968641
Tubing Cutter
Seat SEAL (1) into under side of ESCUTCHEON RING (2).
Seat ESCUTCHEON RING (2) with collar facing up into groove in
faucet base.
Feed FAUCET SUPPLIES (3), MOUNTING STUD (4) and DRAIN
CABLE ASSEMBLY (8) through ESCUTCHEON RING (2) and the
mounting hole of lavatory or mounting surface. Figure A.
From below, push GASKET (7) and RETAINING WASHER (5) onto
MOUNTING STUD (4). Secure Faucet with MOUNTING NUT (6),
pulling faucet to front of sink, so SUPPLIES (3) rests against
mounting hole. Before final tightening, make sure collar on
MOUNTING NUT (6) is seated into RETAINING WASHER (5).
Figure B.
Adjust Faucet so that it is centered. Tighten MOUNTING NUT (6)
to complete faucet mounting.
7
5
Figure A
GROOVE
(FAUCET
BASE)
MOUNTING
SURFACE
2
4
1
3
COLLAR ON
MOUNTING NUT
6
4
Figure B
5
8
1
POP-UP DRAIN
2
Fig. A. Fig. B.
Remove CLEAR PLASTIC COVER (1).
Remove CARDBOARD SPACER (2) from under
DRAIN POP-UP (3).
Tighten TAILPIECE (4) on DRAIN BODY before
installing DRAIN BODY.
REMOVE FLANGE
3
Thread FLANGE (1) counter-clockwise and remove
FLANGE (1) and FOAM GASKET (2) from drain
body.
Fig. A.
Thread LOCKNUT (3) clock-wise to bottom of
drain body. Push GASKET (4) down against
LOCKNUT (3).
Fig. B.
Fig. B.
1
3
2
Fig. A. Fig. B.
1
2
4
3
DRAIN
BODY
4
INSTALL DRAIN FROM
4
BELOW FIXTURE
From under side of SINK
install DRAIN BODY (1) up
through drain outlet.
Note: No plumber’s putty
or caulk is required.
The CABLE ATTACHMENT
POINT (2) must face towards
the rear of the SINK.
Install FOAM GASKET (3) and
FLANGE (4) onto drain body
from above SINK and tighten
FLANGE (4) firmly.
FLANGE GASKET AND POP-UP KNOB
6
Check DRAIN FLANGE in SINK to ensure that
WHITE FOAM GASKET (3) is fully compressed
and not visible. Fig. A.
POP-UP KNOB (1) must be fully down. Fig. B.
4
3
REAR OF SINK
DRAIN
OUTLET
1
2
Fig. A.
WHITE FOAM
GASKET
NOT VISIBLE
TIGHTEN LOCKNUT
5
Tighten LOCKNUT (1) firmly with Adjustable
Wrench or Channel Locks.
DOWN
DRAIN
FLANGE
1
1
M968641
2
