American Standard R111, R111SS, R110, R110SS, R115 User Manual
...
UPGRADABLE
PRESSURE BALANCE BATH/SHOWER FITTING
TEMPERATURE CONTROL VALVE
Available Trim Kits
Colony® |
Fluent™ |
Tropic® |
Dazzle® |
Hampton® |
|
|
H |
Off |
Cold |
|
|
|
|
Hot |
|
H |
|
|
|
|
C ff O |
|
Hot |
|
|
|
|
|
|
Serin® |
Berwick® Town Square® Times Square® |
|||
R110 Valve Body Shown
GENERAL DESCRIPTION:
Cast brass body, washerless ceramic disc valve cartridge with back-to-back capability, integrated check valves and hot limit safety stop. Cycles from "off" to "cold" to "hot". Pressure balancing cartridge maintains constant output temperature in response to changes in relative hot and cold supply pressure. One-half inch inlets and outlets (choice of universal, direct sweat, threaded, PEX or CPVC). Available with screwdriver stops. Rough-in plaster guard designed for use as thin-wall mounting adaptor. Valve body will accept a variety of decorative Bath/Shower trims.
PRODUCT FEATURES:
Cast Brass Valve Body: Durable - Quality that will last a lifetime. Ideal material for prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of drip-free performance. Allows easy fine tuning of temperature (125˚handle rotation from off to hot).
Pressure Balancing Valve Cartridge: Maintains constant output temperature in response to changes in hot and cold supply pressure. Diaphragm system with integrated check valves engineered to eliminate cross flow. Avoids failure due to mineral deposits - ideal for use in hard water.
MODEL NUMBER:
R111 Pressure Balance Rough Valve Body only
Universal inlets/outlets. LESS trim.
R111SS Pressure Balance Rough Valve Body only with Screwdriver stops
Universal inlets/outlets. Screwdriver stops. LESS trim.
R110 Pressure Balance Rough Valve Body only
Direct sweat inlets/outlets. LESS trim.
R110SS Pressure Balance Rough Valve Body only with Screwdriver stops
Direct sweat inlets/outlets. Screwdriver stops. LESS trim.
R115 Pressure Balance Rough Valve Body only
Female thread inlets/outlets. LESS trim.
R115SS Pressure Balance Rough Valve Body only with Screwdriver stops
Female thread inlets/outlets. Screwdriver stops. LESS trim.
R117 Pressure Balance Rough Valve Body only
PEX inlets/universal outlets for Crimp Ring PEX system (ASTM F1807) LESS trim.
R117SS Pressure Balance Rough Valve Body only with Screwdriver stops
PEX inlets/universal outlets for Crimp Ring PEX system (ASTM F1807) Screwdriver stops. LESS trim.
R118 Pressure Balance Rough Valve Body only
PEX inlets/universal outlets for Cold Expansion PEX system (ASTM F1960) LESS trim.
R118SS Pressure Balance Rough Valve Body only with Screwdriver stops
PEX inlets/universal outlets for Cold Expansion PEX system (ASTM F1960) Screwdriver stops. LESS trim.
R119 Pressure Balance Rough Valve Body only
CPVC inlets/universal outlets. LESS trim.
R119SS Pressure Balance Rough Valve Body only with Screwdriver stops
CPVC inlets/universal outlets. Screwdriver stops. LESS trim.
Back-to-Back Capability: Hot and cold can be reversed quickly and easily.
Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding.
Exclusive Plaster Guard: Plaster guard is designed to protect valve during installation and serve as a mounting plate for thin-wall installations. 2-piece design allows valve to be tested prior to trim installation.
Wide Rough-in Range: From 1-5/8" to 3-1/4".
See reverse side for dimensional valve drawings.
SUGGESTED SPECIFICATION:
Bath/shower fitting shall feature a cast brass body. Shall feature ceramic disc valve cartridge which is capable of back-to-back installation. Fitting shall be equipped with pressure balancing cartridge engineered to eliminate cross flow and avoid failure due to mineral deposits. Shall also feature hot limit safety stop. Fitting shall be: Rough Valve Body - American Standard Model # R11____, Trim Kit - American Standard Model # ____.____.
|
B1 |
|
|
© 2016 AS America Inc. |
Revised 1/16 |
||
|
UPGRADABLE
PRESSURE BALANCE BATH/SHOWER FITTING
TEMPERATURE CONTROL VALVE
1-5/8" TO 3-1/4" |
|
|
(41 mm TO 83 mm) |
|
|
FINISHED |
|
|
WALL |
1/2" |
|
|
NPT |
|
74" |
|
|
(1880 mm) |
|
|
FOR HEAD |
|
|
CLEARANCE |
|
|
18" |
|
|
(457 mm) |
|
|
OPTIONAL |
|
|
1-1/2" |
|
|
(38 mm) |
|
|
4" REF. |
1/2" |
|
(102 mm) |
||
COPPER |
||
|
||
TOP OF |
|
|
TUB RIM |
|
|
BOTTOM |
|
|
OF TUB |
|
ROUGH VALVE OPTIONS
INLETS |
4-1/16" |
INLETS |
5-7/8" |
|
1/2" NOM |
1/2" NOM |
(149 mm) |
||
(103 mm) |
||||
COPPER |
COPPER |
|
||
|
|
|||
SWEAT |
|
SWEAT |
|
|
or 1/2" NPT |
|
or 1/2" NPT |
|
|
OUTLETS |
4-1/16" |
OUTLETS |
4-1/16" |
|
1/2" NOM. |
1/2" NOM. |
|||
COPPER |
(103 mm) |
COPPER |
(103 mm) |
|
SWEAT |
|
SWEAT |
|
|
or 1/2" NPT |
|
or 1/2" NPT |
|
|
|
MOUNTING |
|
MOUNTING |
|
|
|
BRACKET |
||
|
BRACKET |
|
||
|
UNIVERSAL (R111) |
UNIVERSAL WITH STOPS (R111SS) |
||
INLETS |
4-1/16" |
INLETS |
5-7/8" |
|
(103 mm) |
||||
1/2" NOM. |
1/2" NOM. |
|||
|
(149 mm) |
|||
COPPER |
|
COPPER |
||
|
|
|||
SWEAT |
|
SWEAT |
|
|
OUTLETS |
|
OUTLETS |
|
|
1/2" NOM. |
4-1/16" |
1/2" NOM. |
|
|
COPPER |
COPPER |
4-1/16" |
||
(103 mm) |
||||
SWEAT |
SWEAT |
(103 mm) |
||
|
||||
|
|
MOUNTING |
|
|
|
MOUNTING |
BRACKET |
|
|
|
|
|
||
|
BRACKET |
SWEAT WITH STOPS (R110SS) |
||
|
SWEAT (R110) |
|||
INLETS |
3-3/8" |
INLETS |
5-7/8" |
|
1/2" NPT |
(86 mm) |
1/2" NPT |
(149 mm) |
|
OUTLETS |
|
OUTLETS |
|
|
1/2" NPT |
3-3/8" |
1/2" NPT |
3-3/8" |
|
|
|
|||
|
(86 mm) |
|
(86 mm) |
|
|
MOUNTING |
|
MOUNTING |
|
|
BRACKET |
|
BRACKET |
|
|
THREADED (R115) |
THREADED WITH STOPS (R115SS) |
||
INLETS |
4-1/4" |
INLETS |
6-1/2" |
|
(109 mm) |
(165 mm) |
|||
1/2" PEX |
1/2" PEX |
|||
|
|
|||
(ASTM F1807) |
|
(ASTM F1807) |
|
|
OUTLETS |
|
OUTLETS |
|
|
1/2" NOM. |
|
1/2" NOM. |
|
|
COPPER |
4-1/16" |
COPPER |
4-1/16" |
|
SWEAT |
SWEAT |
|||
or 1/2" NPT |
(103 mm) |
or 1/2" NPT |
(103 mm) |
|
MOUNTING |
MOUNTING |
|
||
BRACKET |
BRACKET |
|
||
PEX (R117) ASTM F1807 |
PEX WITH STOPS (R117SS) ASTM F1807 |
|||
INLETS |
4-1/4" |
INLETS |
6-1/2" |
|
1/2" PEX |
(109 mm) |
1/2" PEX |
(165 mm) |
|
(ASTM F1960) |
|
(ASTM F1960) |
|
|
OUTLETS |
|
OUTLETS |
|
1/2" NOM. |
|
1/2" NOM. |
|
COPPER |
4-1/16" |
COPPER |
4-1/16" |
SWEAT |
SWEAT |
||
or 1/2" NPT |
(103 mm) |
or 1/2" NPT |
(103 mm) |
MOUNTING |
|
|
MOUNTING |
|
BRACKET |
|
|
BRACKET |
|
PEX (R118) ASTM F1960 |
|
PEX WITH STOPS (R118SS) ASTM F1960 |
||
INLETS |
6-5/16" |
|
INLETS |
7-15/16" |
1/2" NOM. |
(160 mm) |
|
1/2" NOM. |
(202 mm) |
CPVC |
|
|
CPVC |
|
OUTLETS |
|
|
OUTLETS |
|
1/2" NOM. |
|
|
1/2" NOM. |
|
COPPER |
|
|
COPPER |
|
SWEAT or |
|
4-1/16" |
SWEAT or |
|
1/2" NPT |
|
(103 mm) |
1/2" NPT |
4-1/16" |
|
|
|
||
|
|
|
|
|
MOUNTING |
|
|
MOUNTING |
(103 mm) |
|
|
|
||
BRACKET |
|
|
BRACKET |
|
CPVC (R119) |
|
CPVC WITH STOPS (R119SS) |
||
|
B2 |
© 2016 AS America Inc. |
Revised 1/16 |
UPGRADABLE
PRESSURE BALANCE BATH/SHOWER FITTING
TEMPERATURE CONTROL VALVE
Valve + Trim: Trim Kit & Valve Body Packaged Separately
To order: Specify valve body and trim kit desired
Example: R110 - Direct Sweat Valve Body
T186.502 - Fluent Bath/Shower Trim Kit
|
R111 |
R111SS |
R110 |
R110SS |
R115 |
R115SS |
|
Universal |
Universal |
Diret Sweat |
Diret Sweat |
Female |
Female Thread |
|
Inlets/ |
Inlets/Outlets |
Inlets/ |
Inlets/Outlets |
Thread |
Inlets/Outlets |
VALVES |
Outlets |
w/ Screwdriver |
Outlets |
w/ Screwdriver |
Inlets/ |
w/ Screwdriver |
|
Stops |
|
Stops |
Outlets |
Stops |
|
|
|
|
|
|
|
|
|
R117 |
R117SS |
R118 |
R118SS |
R119 |
R119SS |
|
PEX |
PEX |
PEX |
PEX |
CPVC |
CPVC |
|
Inlets/ |
Inlets/Universal |
Inlets/ |
Inlets/Universal |
Inlets/ |
Inlets/Universal |
|
Universal |
Outlets |
Universal |
Outlets |
Universal |
Outlets |
|
w/ Screwdriver |
w/ Screwdriver |
Outlets |
w/ Screwdriver |
||
|
Outlets |
Stops |
Outlets |
Stops |
|
Stops |
|
(ASTM F1807) |
(ASTM F 1960) |
|
|||
|
(ASTM F1807) |
(ASTM F 1960) |
|
|
||
|
|
|
|
|
FLOW RATE* |
|
Spout |
|
PER MINUTE |
8 |
|
|
|
|
6 |
|
|
|
|
|
4 |
|
|
|
|
|
GALLONS |
|
|
|
|
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
20 |
40 |
60 |
80 |
100 |
|
|
I N L E T P R E S S U R E ( P S I ) |
|||
*Flow rates shown are for mixed hot and cold.
CODES AND STANDARDS
These products meet or exceed the following codes and standards:
ASSE 1016 ASME A112.18.1 CSA B 125

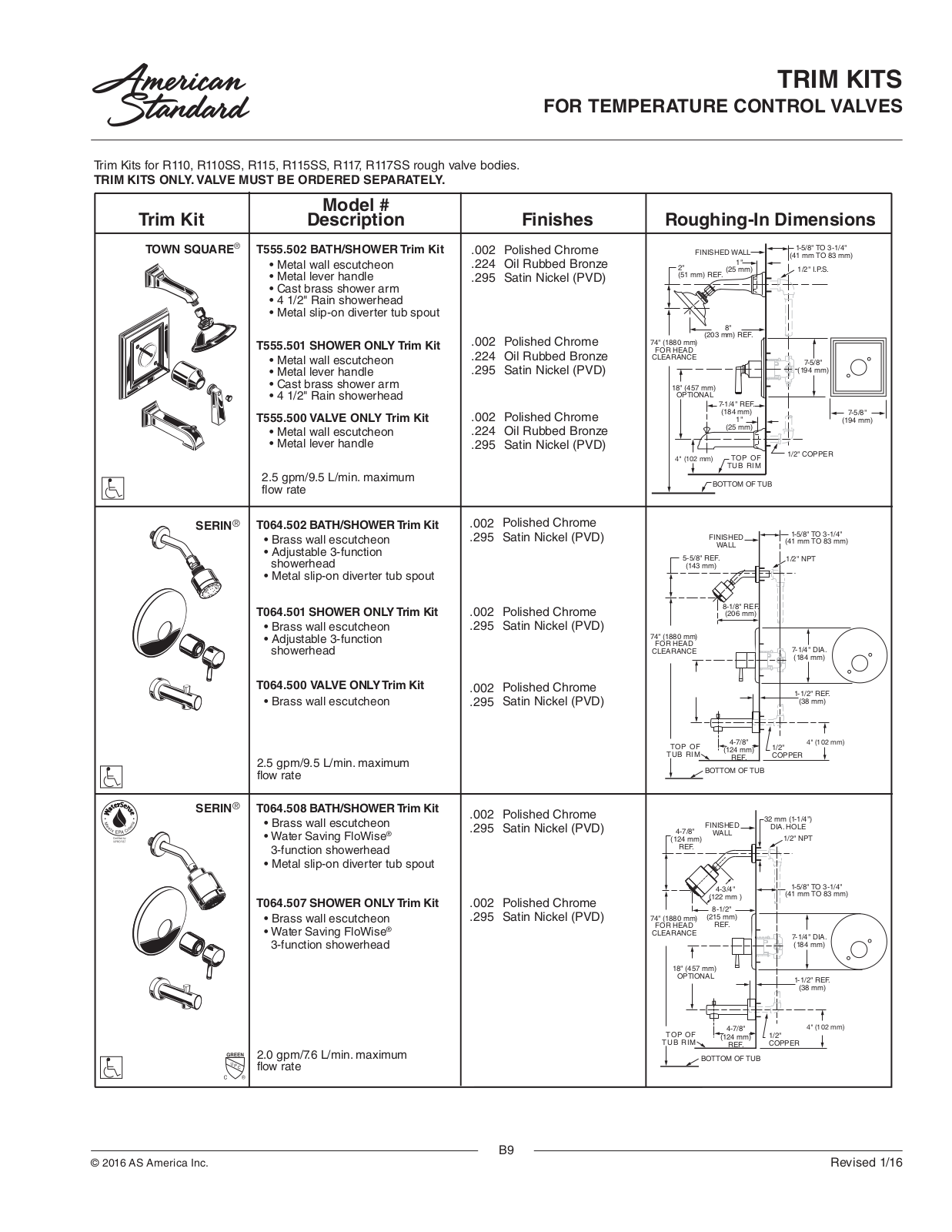

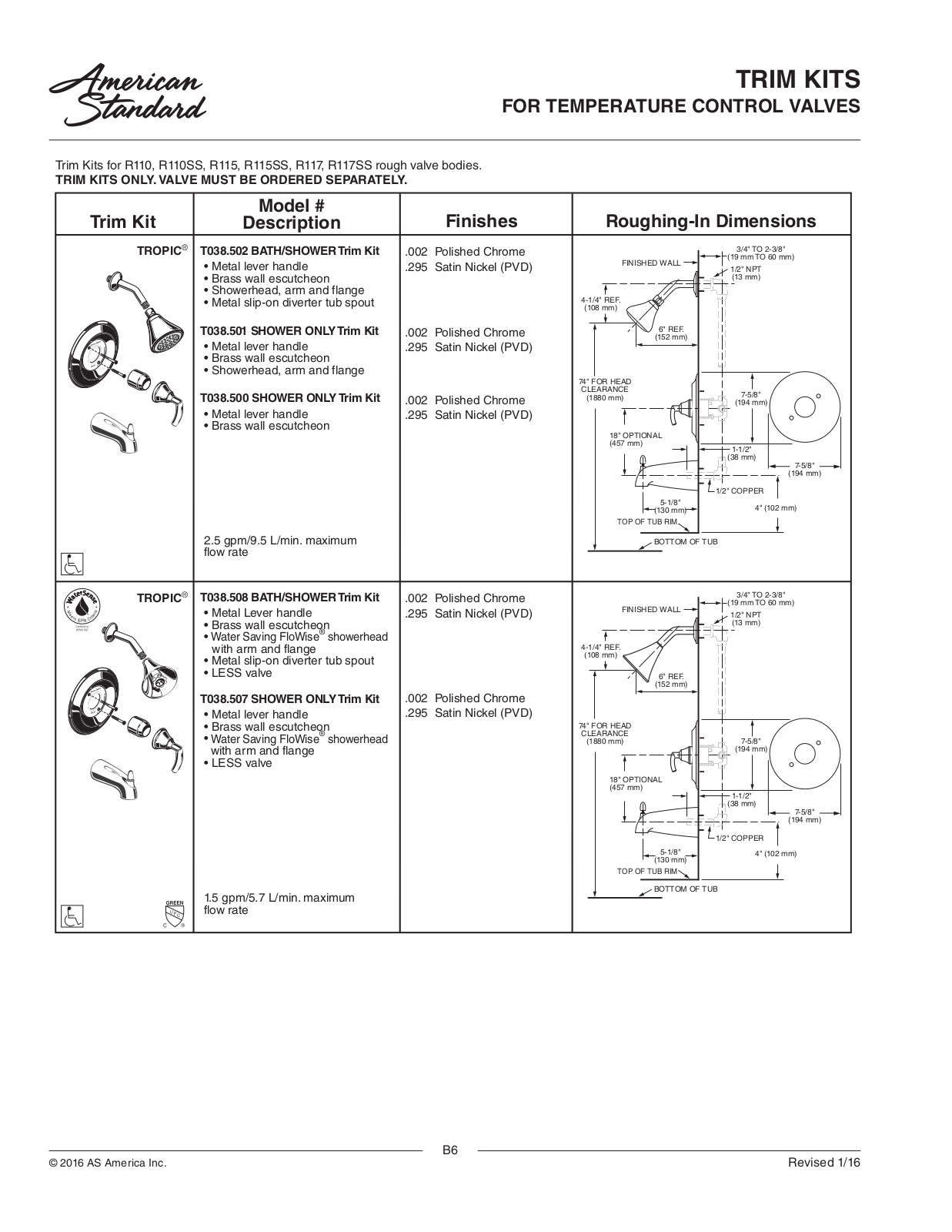

TRIM KITS
Colony®* |
Fluent™ |
Tropic® |
Dazzle® Hampton®** |
Town |
Serin® |
Times |
Berwick® |
Square® |
Square® |
|
Off |
H |
Cold |
|
Hot |
|
Hot |
B/S |
T375.XXX |
T186.502 |
T038.502 |
T028.502 |
T215.7XX |
T555.502 |
T064.502 |
T184.502 |
T430.502 |
Shower |
T372.XXX |
T186.501 |
T038.501 |
T028.501 |
T212.7XX |
T555.501 |
T064.501 |
T184.501 |
T430.501 |
Valve |
T371.XXX |
T186.500 |
T038.500 |
T028.500 |
T211.7XX |
T555.500 |
T064.500 |
T184.500 |
T430.500 |
|
|
|
|
|
|
|
|
Times |
|
|
Colony® |
Fluent™ |
Tropic® |
|
|
|
Serin® |
Square® |
Berwick® |
|
|
|
H |
|
|
|
|
|
|
B/S |
T375.X28 |
T186.508 |
T038.508 |
|
|
|
T064.508 |
T184.508 |
T430.508 |
|
|
|
|
||||||
Shower |
T372.X28 |
T186.507 |
T038.507 |
|
|
|
T064.507 |
T184.507 |
T430.507 |
NOTES: |
|
|
|
* COLONY with 2.5 showerhead |
with FloWise® showerhead |
||
Lever |
Metal |
Lever |
Metal |
Handle |
Lever Handle |
Handle |
Lever Handle |
120 |
240 |
128 |
248 |
** HAMPTON |
|
|
|
available with choice of two handles. |
|
|
|
to order: specify the three digit handle number |
|
||
ex) T211.710 (valve only trim kit w/ porcelain lever handle) |
|||
Porcelain |
Metal |
|
|
Lever |
Lever |
|
|
710 |
730 |
|
|
|
|
|
B3 |
© 2016 AS America Inc. |
|
|
Revised 1/16 |
