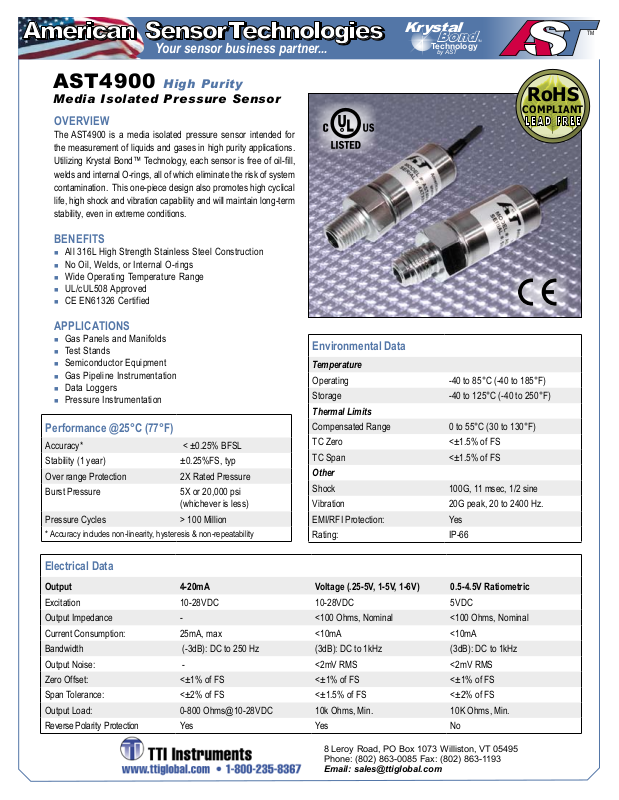

AST4900 High Purity

Media Isolated Pressure Sensor

OVERVIEW

The AST4900 is a media isolated pressure sensor intended for the measurement of liquids and gases in high purity applications.

Utilizing Krystal Bond™ Technology, each sensor is free of oil-ll,

welds and internal O-rings, all of which eliminate the risk of system contamination. This one-piece design also promotes high cyclical life, high shock and vibration capability and will maintain long-term stability, even in extreme conditions.

BENEFITS

n All 316L High Strength Stainless Steel Construction n No Oil, Welds, or Internal O-rings n Wide Operating Temperature Range n UL/cUL508 Approved n CE EN61326 Certified

rystal

Technology

Bond

Technology

Bond

by AST

APPLICATIONS

n Gas Panels and Manifolds n Test Stands n Semiconductor Equipment n Gas Pipeline Instrumentation n Data Loggers n Pressure Instrumentation

Performance @25°C (77°F)

Accuracy* < ±0.25% BFSL

Stability (1 year) ±0.25%FS, typ

Over range Protection 2X Rated Pressure

Burst Pressure 5X or 20,000 psi

(whichever is less)

Pressure Cycles > 100 Million

* Accuracy includes non-linearity, hysteresis & non-repeatability

Electrical Data

Output 4-20mA Voltage (.25-5V, 1-5V, 1-6V) 0.5-4.5V Ratiometric

Excitation 10-28VDC 10-28VDC 5VDC

Output Impedance - <100 Ohms, Nominal <100 Ohms, Nominal

Current Consumption: 25mA, max <10mA <10mA

Bandwidth (-3dB): DC to 250 Hz (3dB): DC to 1kHz (3dB): DC to 1kHz

Output Noise: - <2mV RMS <2mV RMS

Zero Offset: <±1% of FS <±1% of FS <±1% of FS

Span Tolerance: <±2% of FS <±1.5% of FS <±2% of FS

Output Load: 0-800 Ohms@10-28VDC 10k Ohms, Min. 10K Ohms, Min.

Reverse Polarity Protection Yes Yes No

Environmental Data

Temperature

Operating -40 to 85°C (-40 to 185°F)

Storage

Thermal Limits

Compensated Range 0 to 55°C (30 to 130°F)

TC Zero <±1.5% of FS

TC Span <±1.5% of FS

Other

Shock 100G, 11 msec, 1/2 sine

Vibration 20G peak, 20 to 2400 Hz.

EMI/RFI Protection: Yes

Rating:

-40 to 125°C (-40 to 250°F)

IP-66

8 Leroy Road, PO Box 1073 Williston, VT 05495 Phone: (802) 863-0085 Fax: (802) 863-1193

Email: [email protected]

Page 2

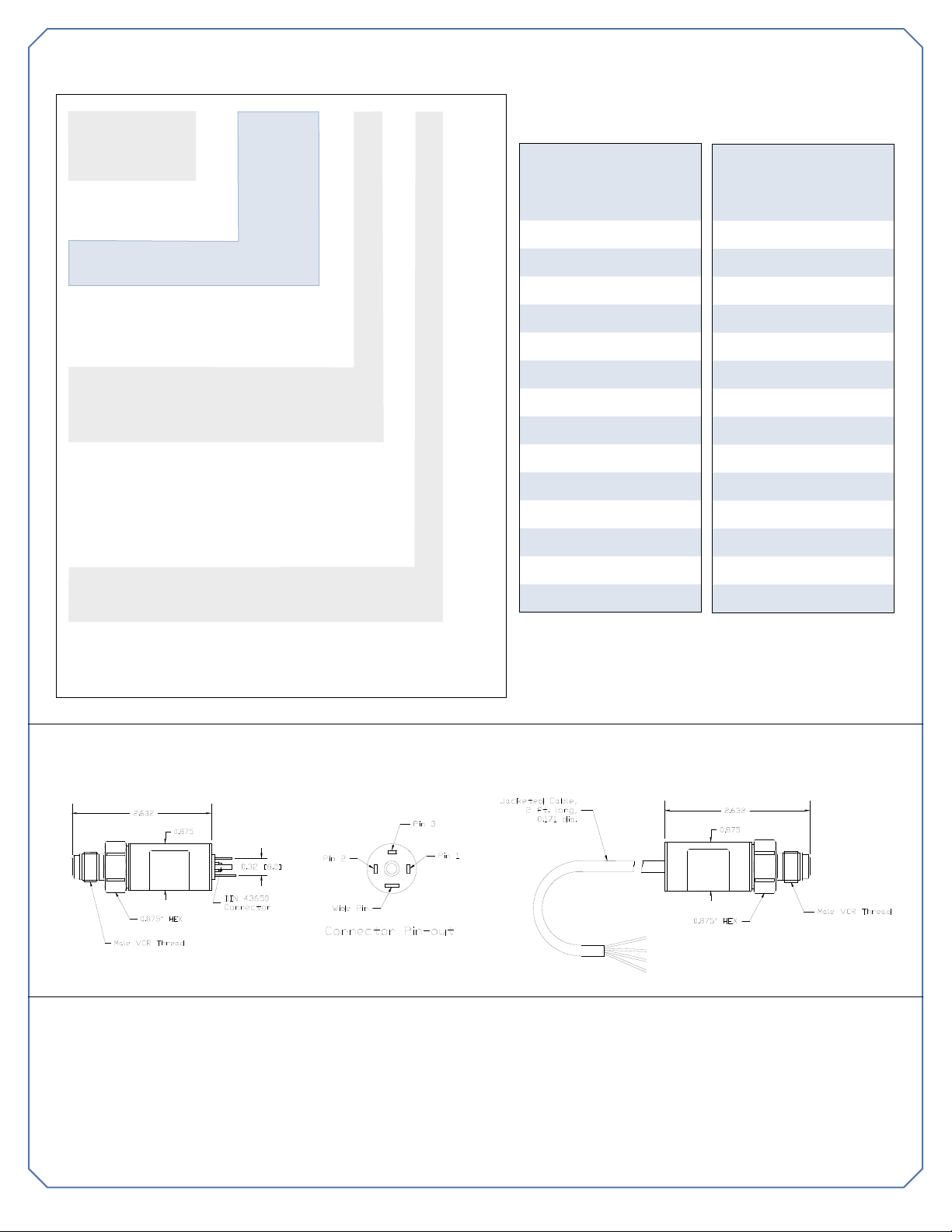

Ordering information

AS T 4 9 0 0 N 0 0 5 0 0 B 3 E 1 0 0 0

Series Type

Process Connection

A=1/4” NPT Male N=1/4” VCR Male

Pressure Range

Insert pressure range from chart

Pressure Unit

B= Bar K= kg/cm2 P= PSI

Outputs

1= 0.5-4.5V ratiometric 6= 1-6V 3= 1-5V A= 10mV/V 4= 4-20mA (2 wire loop powered)

Electrical

A=2Ft.(0.6m) B=4Ft.(1.2m) C=6Ft.(1.8m) D=10Ft.(3.0m) E=Mini DIN 43650 R=6 Pin Bendix Connector

Wetted Material

1=316 L 2=Inconel 718 (Limited Availability)

Options

000= No special options

Pressure Ranges

PSIG

Measurement Range

-14.7 to 25 V0025

-14.7 to 85 V0085

0-25 00025

0-50 00050

0-100 00100

0-150 00150

0-300 00300

0-500 00500

0-1,000 01000

0-2,500 02500

0-3000 03000

0-5,000 05000

0-7,500 07500

0-10,000 10000

Pressure Range Code

BARG

Measurement Range

-1 to 2 V0002

0-2 00002

0-5 00005

0-7 00007

0-10 00010

0-20 00020

0-35 00035

0-50 00050

0-70 00070

0-100 00100

0-250 00250

0-350 00350

0-500 00500

0-700 00700

Pressure Range Code

Dimensional Data

Warranty

Workmanship - AST, Inc. pressure transmitters have a limited one-year warranty to the original purchaser. AST, Inc. will replace or repair, free

of charge, any defective transmitter. This warranty does not apply to any units that have been modied; misused, neglected or installed where

the application exceeds published ratings. Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the transmitter.

AST’s sensors are made with pride in New Jersey, USA. If in the area please feel free to stop by for a visit!
