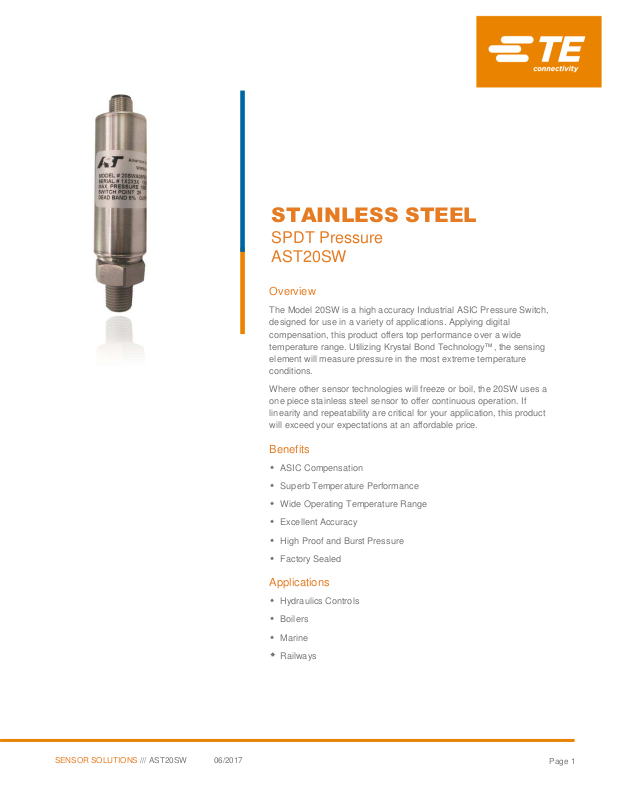

STAINLESS STEEL
SPDT Pressure
AST20SW
Overview
The Model 20SW is a high accuracy Industrial ASIC Pressure Switch,
designed for use in a variety of applications. Applying digital
compensation, this product offers top performance over a wide
temperature range. Utilizing Krystal Bond Technology™, the sensing
element will measure pressure in the most extreme temperature
conditions.
Where other sensor technologies will freeze or boil, the 20SW uses a
one piece stainless steel sensor to offer continuous operation. If
linearity and repeatability are critical for your application, this product
will exceed your expectations at an affordable price.
Benefits
ASIC Compensation
Superb Temperature Performance
Wide Operating Temperature Range
Excellent Accuracy
High Proof and Burst Pressure
Factory Sealed
Applications
Hydraulics Controls
Boilers
Marine
Railways
SENSOR SOLUTIONS /// AST20SW 06/2017
Page 2
STAINLESS STEEL
Page 2
Error Tolerance
< ±0.1% BFSL of line pressure
Over Range
Protection
2X Rated Pressure, standard
(For higher proof pressures, contact factory)
Burst Pressure
5X or 60,000PSI of line pressure, whichever is less
Pressure Cycles
> 100 million full pressure cycle
Operating
-40 to 85°C (-40 to 185°F)
Storage
-50 to 105°C (-58 to 221°F)
0-100% relative humidity, non-condensing
Compensated Range
-20-70°C (-4 to 158°F)
Shock
100G, 11 msec, 1/2 sine
Vibration
10G peak, 20 to 2000 Hz.
EMI/RFI Protection:
Yes
Rating:
IP-66
Excitation
10-28VDC
Current Consumption:
< 10mA
Set Point
See Chart
Output Load:
1 Amp, Resistive
Reverse Polarity
Protection
Yes
AST20SW SPDT Pressure Switch
Performance @ 25°C (77°F)
Environmental Data
Temperature
Thermal Limits
Other
Electrical Data
SENSOR SOLUTIONS /// AST20SW 06/2017
Page 3
STAINLESS STEEL
Page 3

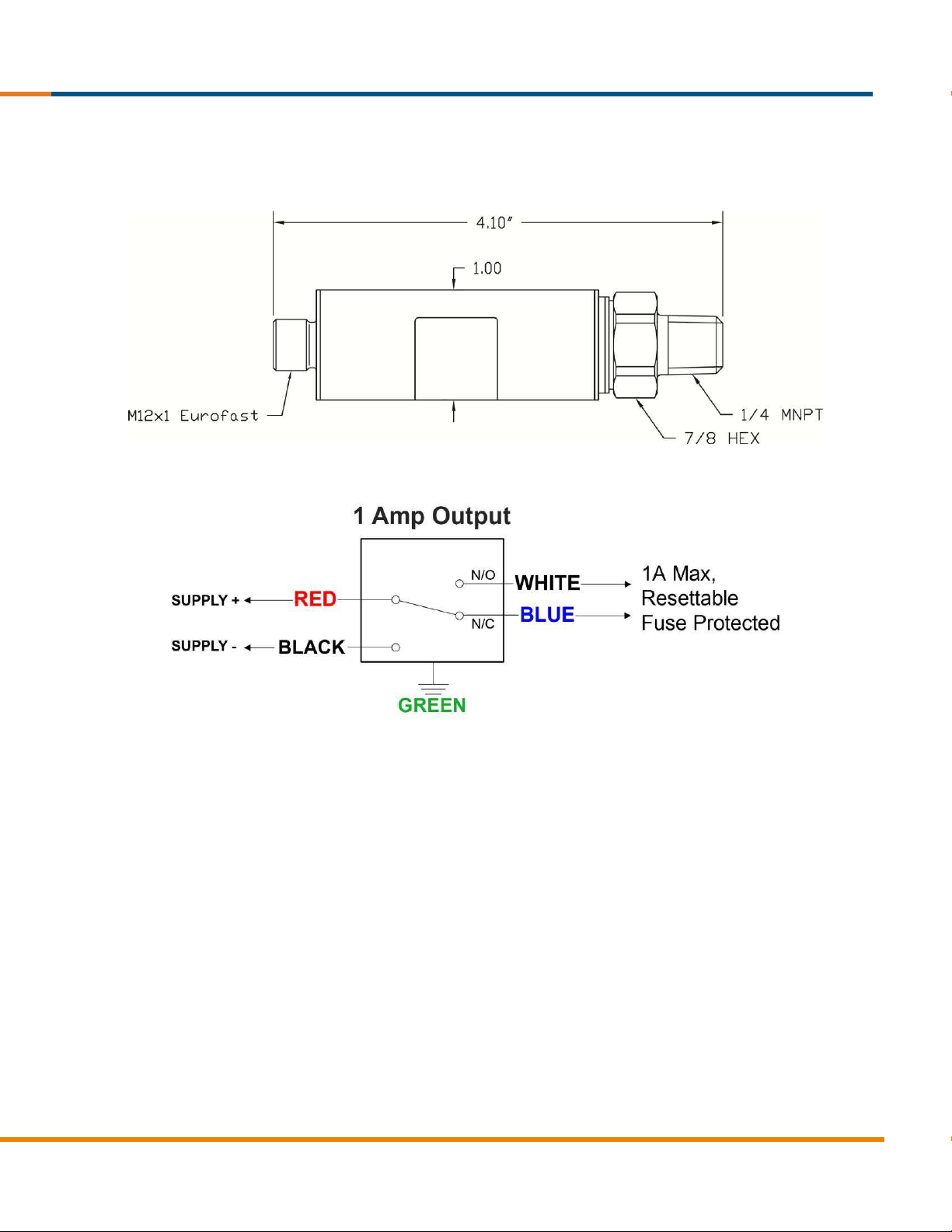

AST20SW SPDT Pressure Switch
Dimensions
SENSOR SOLUTIONS /// AST20SW 06/2017
Page 4
STAINLESS STEEL
Page 4
AST20SW
A
05 P E Y 1 G 00025 F 05
000
Series Type
Process Connection*
A= 1/4"-18 Male NPT C= 1/4"BSPP
B= 1/8"-27 Male NPT W= F250C Female Autoclave
System Pressure
Insert 2 digit code
System Pressure
50
Code
01
100
02
250
03
500
04
1000
05
3000
06
5000
07
7500
08
10,000
09
15,000
10
20,000
11
consult factory for pressures not shown
Pressure Unit
P= PSI
Switch Configurations
E= SPDT [Form C]
Electrical Connection
Y= M12x1
Wetted Material**
0= 17-4PH 1= 316L 2= Inconel 718
Pressure Reference
Number (0, 1, 2)= Sealed Gauge G= Vented Gauge Pressure
Switching Point Pressure
Insert 5 digit code [5-95% of system line pressure]
Switching Pressure
25
Code
00025
50
00050
100
00100
250
00250
500
00500
1,000
01000
2,500
02500
5,000
05000
10,000
10000
consult factory for pressures not shown
Switching Direction
F= Falling R= Rising
Hysteresis: Insert 2 digit code (example: 1% is 01) [1% of line pressure minimum]
Options= 000
*For optional pressure ports and electrica l interfaces please consult factory. 1/8” NPT Male not available under 5 0PSI or with 316L. F250C Female Autoclave is the only option for 10,000 to 20,000PSI, not available in 316L. **316L available up to
10,000 PSI. For Inconel 718 consult factory o n availability.
TE.com/sensorsolutions
