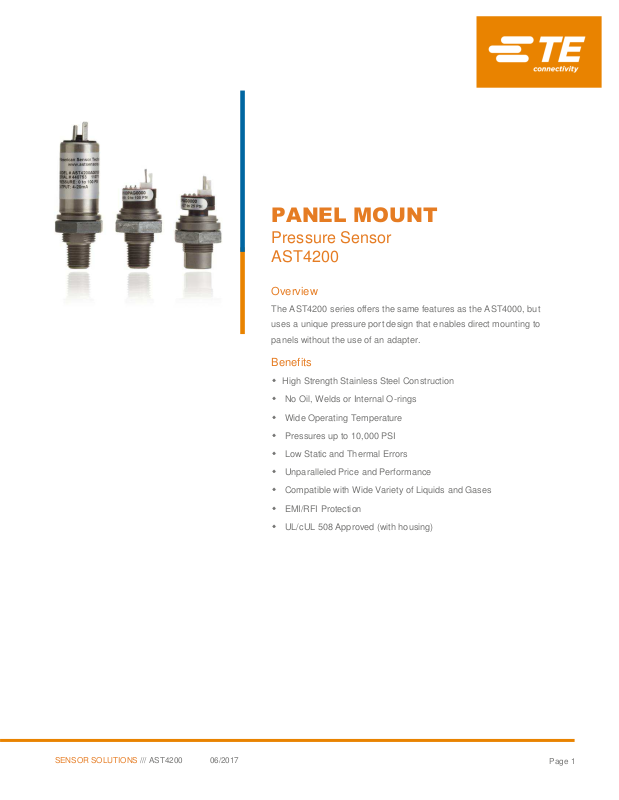

Page 1
Page 1
PANEL MOUNT
Pressure Sensor
AST4200
Overview
The AST4200 series offers the same features as the AST4000, but
uses a unique pressure port design that enables direct mounting to
panels without the use of an adapter.
Benefits
High Strength Stainless Steel Construction
No Oil, Welds or Internal O-rings
Wide Operating Temperature
Pressures up to 10,000 PSI
Low Static and Thermal Errors
Unparalleled Price and Performance
Compatible with Wide Variety of Liquids and Gases
EMI/RFI Protection
UL/cUL 508 Approved (with housing)
SENSOR SOLUTIONS /// AST4200 06/2017
Page 2
PANEL MOUNT
Page 2
Accuracy
< ±0.5% BFSL
Stability (1 year)
±0.25% FS, typical
Over Range
Protection
2X Rated Pressure, Minimum
Burst Pressure
5X or 20,000 PSI (whichever is less)
Pressure Cycles
>100 Million
Operating
-40 to 85°C (-40 to 185°F)
Storage
-40 to 100°C (-40 to 212°F)
Compensated Range
0 to 55°C (32 to 132°F)
TC Zero
<±1.5% of FS
TC Span
<±1.5% of FS
Shock
EN 60068-2-27
Vibration
EN 60068-2-6, 60068-2-64, and IEC 68-2-32
EMI/RFI Protection:
Yes
Rating:
IP-66 (housing only)
AST4200 Pressure Sensor
Applications
Industrial OEM Equipment
Water Management
Pneumatics
Hydrogen Storage
Sub Sea Pressure
HVAC/R Equipment
Control Panels
Hydraulic Systems
Data Loggers
Performance @ 25°C (77°F)
Environmental Data
Temperature
Thermal Limits
Other
SENSOR SOLUTIONS /// AST4200 06/2017
Page 3
PANEL MOUNT
Page 3
Output
4-20mA
1-5VDC, 1-6VDC
0-50mV (10mV/V)
0.5-4.5V Ratiometric
Excitation
10-28VDC
10-28VDC
5VDC, typical
5VDC, regulated
Output
Impedance
>10k Ohms
<100 Ohms, Nominal
1100 Ohms,
Nominal
<100 Ohms, Nominal
Current
Consumption:
20mA, typical
<10mA
<5mA
<10mA
Bandwidth
(-3dB): DC to 250 Hz
(-3dB): DC to 1kHz
(-3dB): DC to 5kHz,
min
(-3dB): DC to 1kHz
Output Noise
-
<2mV RMS
-
<2mV RMS
Zero Offset:
<±1% of FS
<±1% of FS
< ±2% of FS
<±1% of FS
Span Tolerance:
<±1.5% of FS
<±1.5% of FS
< ±2% of FS
<±1.5% of FS
Output Load:
0-800 Ohms@10-28VDC
10k Ohms, min
>1M Ohms
10K Ohms, min
Reverse Polarity
Protection
Yes
Yes - Yes
AST4200 Pressure Sensor
Electrical Data

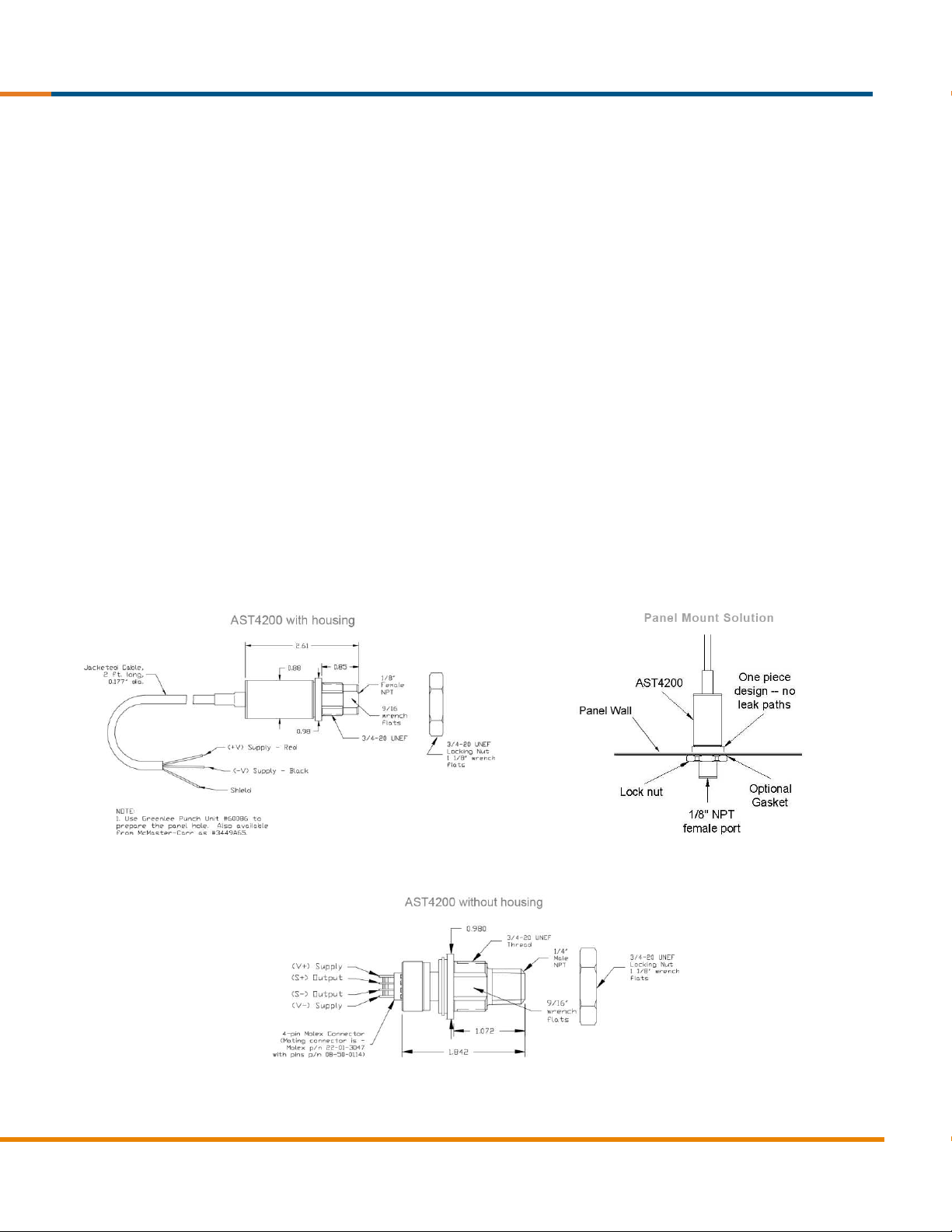

Dimensions
SENSOR SOLUTIONS /// AST4200 06/2017
Page 4
PANEL MOUNT
Page 4
AST4200
J
00100
P 4 A 0 000
Series Type
Process Connection
A= 1/4” NPT Male
J= 1/8” NPT Female
V= 1/8” BSP Female
Pressure Range
Insert 5-digit pressure range code (example: 0-100 PSI = 00100)
Ranges between 0-25 PSI and 0-10,000 PSI available. Compound
pressure up to -14.7 to 500 PSI.
Pressure Unit
B= Bar K= kg/cm2 P= PSI
Outputs
1= 0.5-4.5V ratiometric
3= 1-5V
4= 4-20mA (2 wire loop powered)
6= 1-6V
Electrical
A= 2 ft. (0.6m)
B= 4 ft. (1.2m)
C= 6 ft. (1.8m)
D= 10 ft. (3.0m)
E= Mini DIN 43650
F= Packard Metripack 150 3-Pin
G= 4-pin Molex (no housing)
I= DIN 43650A
K= Deutsch DT04-3 Pin
Z= Deutsch DT04-4 Pin
Wetted Material
0= 17-4PH 1= 316L
Options
(contact factory for additional options)
000= No Options
TE.com/sensorsolutions
NORTH AMERICA
ASIA
AST4200 Pressure Sensor
Ordering Information
American Sensor Technologies, Inc. (AST),
