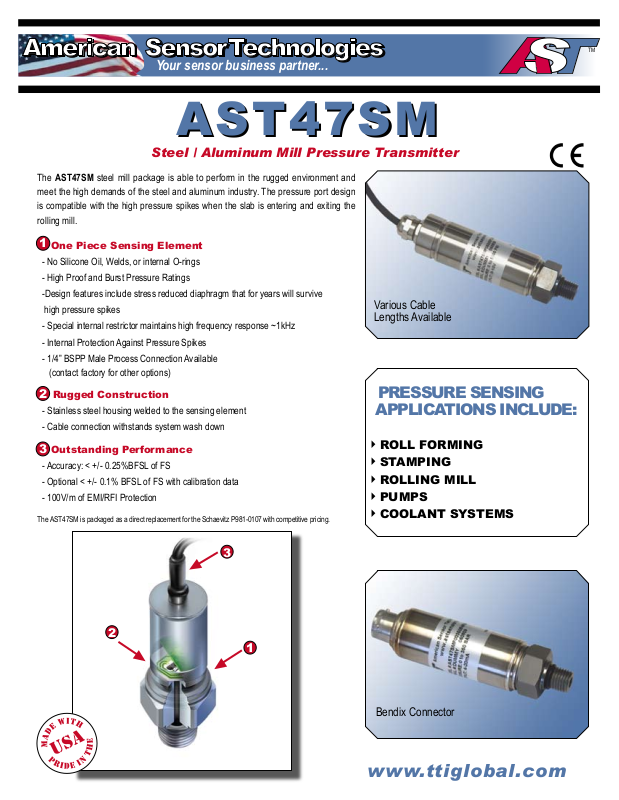

AST47SM
AST47SM
Steel / Aluminum Mill Pressure Transmitter
The AST47SM steel mill package is able to perform in the rugged environment and
meet the high demands of the steel and aluminum industry. The pressure port design
is compatible with the high pressure spikes when the slab is entering and exiting the
rolling mill.
1
One Piece Sensing Element
- No Silicone Oil, Welds, or internal O-rings
- High Proof and Burst Pressure Ratings
-Design features include stress reduced diaphragm that for years will survive
high pressure spikes
- Special internal restrictor maintains high frequency response ~1kHz
- Internal Protection Against Pressure Spikes
- 1/4” BSPP Male Process Connection Available
(contact factory for other options)
Various Cable
Lengths Available
A
TM
T
2
Rugged Construction
- Stainless steel housing welded to the sensing element
- Cable connection withstands system wash down
Outstanding Performance
3
- Accuracy: < +/- 0.25%BFSL of FS
- Optional < +/- 0.1% BFSL of FS with calibration data
- 100V/m of EMI/RFI Protection
The AST47SM is packaged as a direct replacement for the Schaevitz P981-0107 with competitive pricing.
3
2
1
PRESSURE SENSING
APPLICATIONS INCLUDE:
4
ROLL FORMING
4
STAMPING
4
ROLLING MILL
4
PUMPS
4
COOLANT SYSTEMS
Bendix Connector
www.ttiglobal.com
Page 2
Performance @ 25°C (77°F)
Accuracy1 < ± 0.25% BFSL (± 0.1% Optional)
Stability (1 year) ±0.25%FS, typ
Over Range Protection* 5X Rated Pressure
Burst Pressure* 10X or 20,000PSI whichever is less.
Pressure Cycles >100 Million
1
Accuracy includes:Non-linearity, Hysteresis and Non-repeatability
* All orders over 10K PSI must consult factory
Environmental Data
Temperature
Operating -40 to 85°C (-40 to 185°F)
Media -55 to 125°C (-65 to 250°F)
Storage -40 to 125°C (-40 to 250°F)
Thermal Limts
Compensated Range 0 to 55°C (30 to 130°F)
TC Zero <±1.5% of FS
TC Span <±1.5% of FS
Other
Shock 100G, 11msec, 1/2 sine
Vibration 20G peak, 20 to 2400 Hz.
EMI/RFI Protection: Yes-100 V/m
Rating: IP-69
Physical Description
Wetted Material 17-4PH stainless steel NACE compatible
(for other materials, consult factory)
Electrical Connection Cable, DIN, or Bendix 6 pin (PT02-10-6P)
Case (housing) 304 stainless steel
(for other materials, consult factory)
AST47SM C 00350 B 4 R 0 000
Series Type
Process Connection
A=1/4” NPT Male
C=1/4” BSP Male
Pressure Range
Insert 5-digit pressure range code
Pressure Unit
B=BAR
K=kg/cm2
P=PSI
Outputs
2=0-5V (3-Wire)
4=4-20mA (Loop Powered)
5=0-10V (3-Wire)
Electrical
D=10Ft. Cable
R=Bendix 6 Pin
Wetted Material
0=17-4PH
Options
000= No Special Options
1/4” MBSPP
Bendix
Connector
Dowty
O-Ring
0.875” HEX
MACRO SENSORS offers position
sensor s fo r st eel mill applic ati ons
with the following key featur es:
4High Output
4High Reliability
4Innite Resolution
4Protection Against Overload
4No Wear for Innite Mechanical Life
4Operates under High Shock and Vibration
The hermetically sealed HLR -750 series is terminated with a
½” NPT conduit fitting for easy installation and protection in
steel mill environments. Visit macrosensors.com for complete
product information, hook-up instructions, applications, tutorials
and manuals for our electronics!
1/4” MNPT
Bendix
Connector
0.875” HEX
HLR750 - Hermetically Sealed;
Hazardous location approved
SQ1250 - electrically and magnetically
double shielded to maximize noise immunity
and minimize their susceptibility to external
AC magnetic elds
8 Leroy Road, PO Box 1073 Williston, VT 05495
Phone: (802) 863-0085 Fax: (802) 863-1193
Email: [email protected]
All specifications are subject to change without notice. Form Steel Mill_Final, Rev 4/16/07
