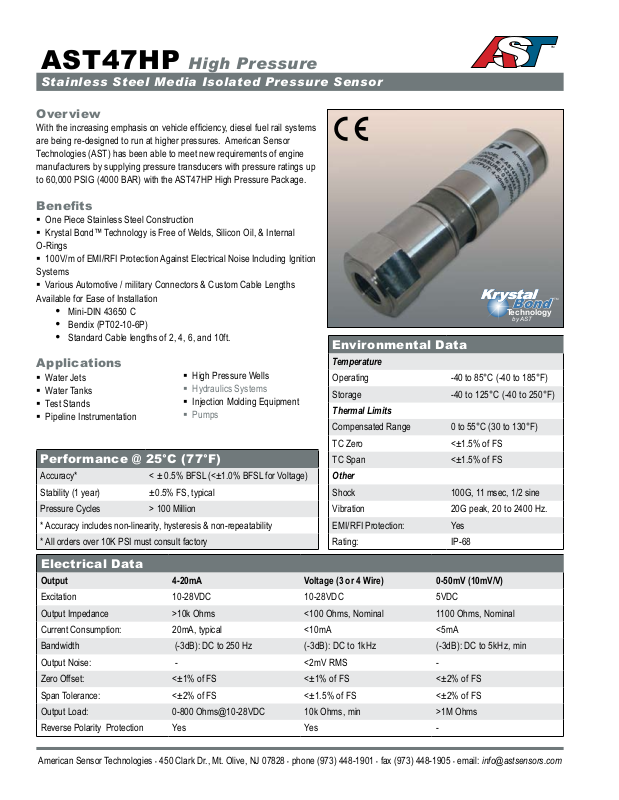

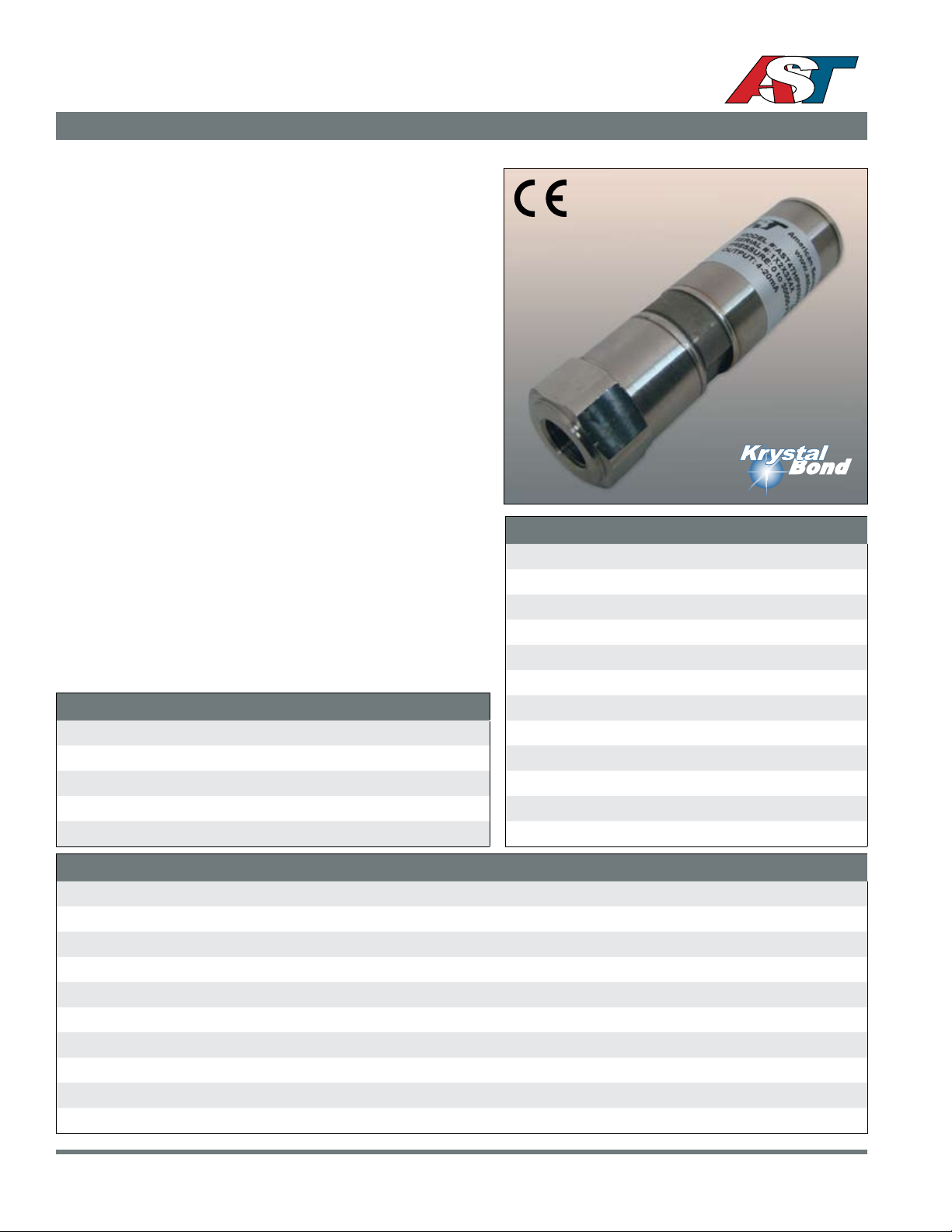

Page 1
TM
AST47HP High Pressure
Technology
by AST
TM
Bond
K
rystal
Stainless Steel Media Isolated Pressure Sensor
Overview
With the increasing emphasis on vehicle efciency, diesel fuel rail systems
are being re-designed to run at higher pressures. American Sensor
Technologies (AST) has been able to meet new requirements of engine
manufacturers by supplying pressure transducers with pressure ratings up
to 60,000 PSIG (4000 BAR) with the AST47HP High Pressure Package.
Benets
One Piece Stainless Steel Construction
Krystal Bond™ Technology is Free of Welds, Silicon Oil, & Internal
O-Rings
100V/m of EMI/RFI Protection Against Electrical Noise Including Ignition
Systems
Various Automotive / military Connectors & Custom Cable Lengths
Available for Ease of Installation
Mini-DIN 43650 C y
Bendix (PT02-10-6P) y
Standard Cable lengths of 2, 4, 6, and 10ft. y
Applications
Water Jets
Water Tanks
Test Stands
Pipeline Instrumentation
High Pressure Wells
Hydraulics Systems
Injection Molding Equipment
Pumps
Performance @ 25°C (77°F)
Accuracy* < ± 0.5% BFSL (<±1.0% BFSL for Voltage)
Stability (1 year) ±0.5% FS, typical
Pressure Cycles > 100 Million
* Accuracy includes non-linearity, hysteresis & non-repeatability
* All orders over 10K PSI must consult factory
Environmental Data
Temperature
Operating -40 to 85°C (-40 to 185°F)
Storage -40 to 125°C (-40 to 250°F)
Thermal Limits
Compensated Range 0 to 55°C (30 to 130°F)
TC Zero <±1.5% of FS
TC Span <±1.5% of FS
Other
Shock 100G, 11 msec, 1/2 sine
Vibration 20G peak, 20 to 2400 Hz.
EMI/RFI Protection: Yes
Rating: IP-68
Electrical Data
Output 4-20mA Voltage (3 or 4 Wire) 0-50mV (10mV/V)
Excitation 10-28VDC 10-28VDC 5VDC
Output Impedance >10k Ohms <100 Ohms, Nominal 1100 Ohms, Nominal
Current Consumption: 20mA, typical <10mA <5mA
Bandwidth (-3dB): DC to 250 Hz (-3dB): DC to 1kHz (-3dB): DC to 5kHz, min
Output Noise: - <2mV RMS -
Zero Offset: <±1% of FS <±1% of FS <±2% of FS
Span Tolerance: <±2% of FS <±1.5% of FS <±2% of FS
Output Load: 0-800 Ohms@10-28VDC 10k Ohms, min >1M Ohms
Reverse Polarity Protection Yes Yes -
American Sensor Technologies • 450 Clark Dr., Mt. Olive, NJ 07828 • phone (973) 448-1901 • fax (973) 448-1905 • email: [email protected]
Page 2
Ordering Information
TM
F250C Female
Autoclave
Rated to
45,000 PSIG
Max
Rated to 20,000 PSIG
Max
AST47HP W 30000 P 4 R 0 000
Series Type
Conguration Interface
W= F250C Female Autoclave
X= 9/16-18 UNF Male
with 37° are
X= M16* 1.5 Female
with sealing cone
Pressure Range
Insert 5 digit pressure range
Pressure Unit
B= Bar • K= kg/cm2 • P= PSI
Outputs
2= 0-5V (3 wire) 3= 1-5VDC
4= 4-20mA 5= 0-10V (3 wire)
Electrical
A= 2 ft. (0.6m) E= Mini DIN 43650
B= 4 ft. (1.2m) I= DIN 43650A
C= 6 ft. (1.8m) R= Bendix 6 pin (PT02-10-6P)
D= 10 ft. (3m)
Wetted Material
0= 17-4PH
Options
000= No special options
123= M16*1.5 Female with sealing cone
153= 9/16-18 UNF Male with 37° are
+
High Pressure Fittings Include:
9/16-18 UNF Male
with 37° Flare
F250C Female
Autoclave
M16*1.5 Female
with Sealing Cone
10,000-20,000 PSI (700-1400 BAR)
10,000-45,000 PSI
(700-3,000 BAR)
10,000-60,000 PSI (700-4000 BAR)
+
Wiring information available at: http://www.astsensors.com/mediacenter.php

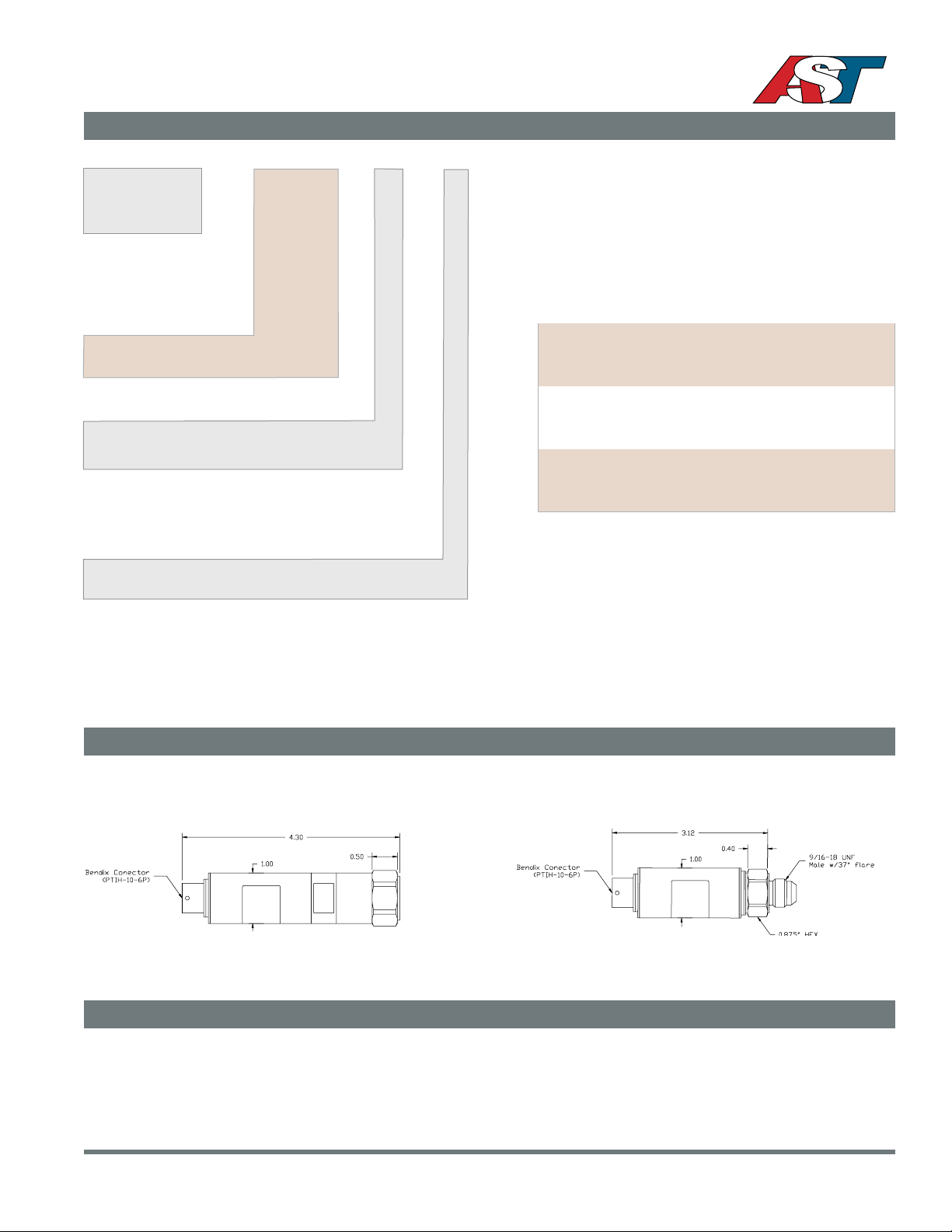

Dimensional Data
Warranty
Workmanship - AST, Inc. pressure transmitters have a limited one-year warranty to the original purchaser. AST, Inc. will replace or repair,
free of charge, any defective transmitter. This warranty does not apply to any units that have been modied; misused, neglected or installed
where the application exceeds published ratings. AST’s sensors are made with pride in New Jersey, USA. If in the area please feel free to
stop by for a visit!
Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the transmitter.
www.astsensors.com
© 2010 American Sensor Technologies Inc. AST47HP 10/14/2010.
All specications subject to change without notice.
