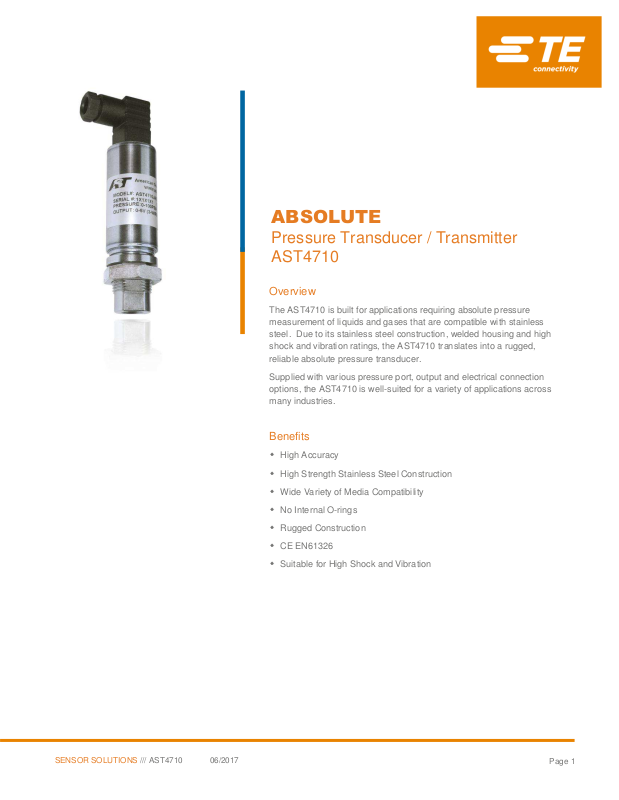

ABSOLUTE
Pressure Transducer / Transmitter
AST4710
Overview
The AST4710 is built for applications requiring absolute pressure
measurement of liquids and gases that are compatible with stainless
steel. Due to its stainless steel construction, welded housing and high
shock and vibration ratings, the AST4710 translates into a rugged,
reliable absolute pressure transducer.
Supplied with various pressure port, output and electrical connection
options, the AST4710 is well-suited for a variety of applications across
many industries.
Benefits
High Accuracy
High Strength Stainless Steel Construction
Wide Variety of Media Compatibility
No Internal O-rings
Rugged Construction
CE EN61326
Suitable for High Shock and Vibration
SENSOR SOLUTIONS /// AST4710 06/2017
Page 2
ABSOLUTE
Page 2
Accuracy
< ±0.25% BFSL
(Accuracy includes non-linearity, hysteresis & non-repeatability)
Stability (1 year)
±0.25% FS, typical
Over Range
Protection
2X Rated Pressure
Burst Pressure
5X Rated Pressure
Pressure Cycles
> 10 Million
Operating
-40 to 85°C (-40 to 185°F)
Storage
-40 to 125°C (-40 to 257°F)
0-100% relative humidity, non-condensing
Compensated Range
0 to 70°C (32 to 158°F)
TC Zero
< ±1.5% of FS
TC Span
< ±1.5% of FS
Shock
EN 60068-2-27
Vibration
EN 60068-2-6, 60068-2-64, and IEC 68-2-32
EMI/RFI Protection:
Yes
Rating:
IP-66
AST4710 Absolute Pressure Transducer / Transmitter
Applications
Test Stands
Energy and Water Management
Autoclave
Pressure Instrumentation
Data Loggers
Barometric Correctors
Performance @ 25°C (77°F)
Environmental Data
Temperature
Thermal Limits
Other
SENSOR SOLUTIONS /// AST4710 06/2017
Page 3
ABSOLUTE
Page 3
Output
0-50mV (10mV/V)
4-20m
Voltage (3 Wire)
Excitation
5VDC, typical
10-28VDC
10-28VDC
Output
Impedance
5K Ohms, Nominal
> 10k Ohms
< 100 Ohms, Nominal
Current
Consumption:
< 5mA
20mA, typical
< 10mA
Bandwidth
(-3dB): DC to 1kHz
(-3dB): DC to 250Hz
(-3dB): DC to 1kHz
Output Noise
N/A
-
< 2mV RMS
Zero Offset:
< ±2% of FS
< ±1% of FS
< ±1% of FS
Span Tolerance:
< ±2% of FS
< ±2% of FS
< ±1.5% of FS
Output Load:
> 1M Ohm
0-800 Ohms@10-28VDC
10k Ohms, Min.
Reverse Polarity
Protection
N/A
Yes
Yes
AST4710 Absolute Pressure Transducer / Transmitter
Electrical Data

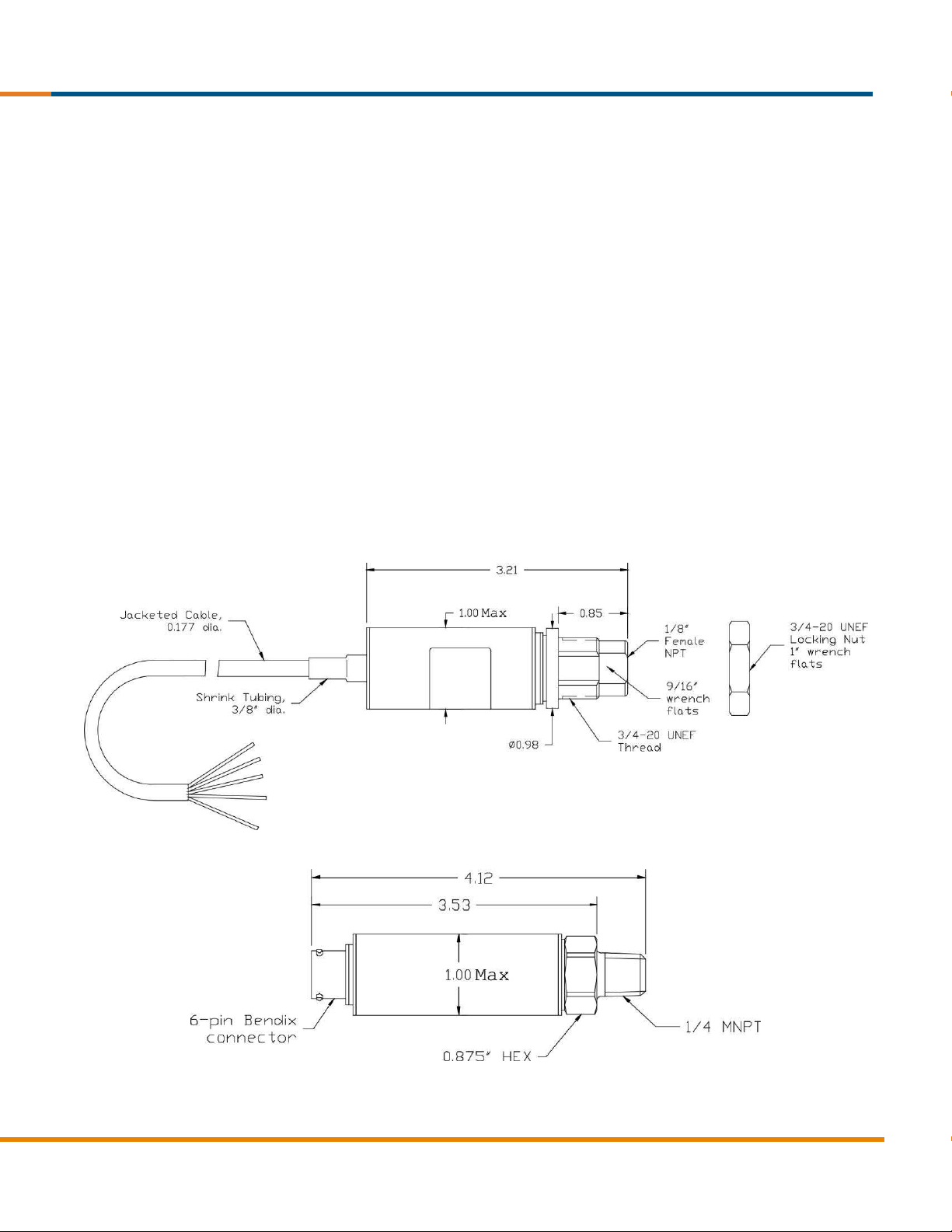

Dimensions
SENSOR SOLUTIONS /// AST4710 06/2017
Page 4
ABSOLUTE
Page 4
AST4710
A
A0100
P 4 A 1 000
Series Type
Process Connection
A= 1/4” NPT Male
C= 1/4” BSPP Male
F= 7/16” - 20 UNF Male (not available under 50PSI)
J= 1/8” NPT Female (panel mount, option code “066”)
P= 1/2” NPT Male
Pressure Range
Insert 5-digit pressure range code
PSI Absolute
0-15
Proof PSIA
30
Burst PSIA
75
Pressure Code
A0015
0-30
60
150
A0030
0-50
100
250
A0050
0-100
200
500
A0100
0-200
400
1000
A0200
0-300
600
1500
A0300
Pressure Unit
P= PSI
Outputs
A= 10mV/V
2= 0-5V (3-wire)
3= 1-5V (3-wire
4= 4-20mA (loop powered)
5= 0-10V (3-Wire)
Electrical
A= 2 ft. (0.6m)
B= 4 ft. (1.2m)
C= 6 ft. (1.8m)
D= 10 ft. (3.0m)
E= Mini DIN 43650
I= DIN 43650A
R= 6- Pin Bendix
Y= M12x1 Eurofast
Wetted Material
1= 316L
Options
(contact factory for additional options)
000= No Options
066= Panel Mount (1/8”-27 NPT Female Only)
TE.com/sensorsolutions
NORTH AMERICA
ASIA
AST4710 Absolute Pressure Transducer / Transmitter
Ordering Information
American Sensor Technologies, Inc. (AST),
a TE Connectivity Company
Tel: 800-522-6752
Email: [email protected]
Measurement Specialties, Inc., a TE Connectivity company.
Measurement Specialties, TE Connectivity, TE Connectivity (logo) and EVERY CONNECTION COUNTS are trademarks. All other logos, products and/or company names referred to
herein might be trademarks of their respective owners.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes
no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s ob ligations shall only be as set forth in TE Connectivity‘s Standard
Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or
misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application.
© 2015 TE Connectivity Ltd. family of companies All Rights Reserved.
SENSOR SOLUTIONS /// AST4710 06/2017
Hong Kong Sensor Technologies (HKST),
a TE Connectivity Company
Tel: 0400-820-6015
Email: [email protected]
