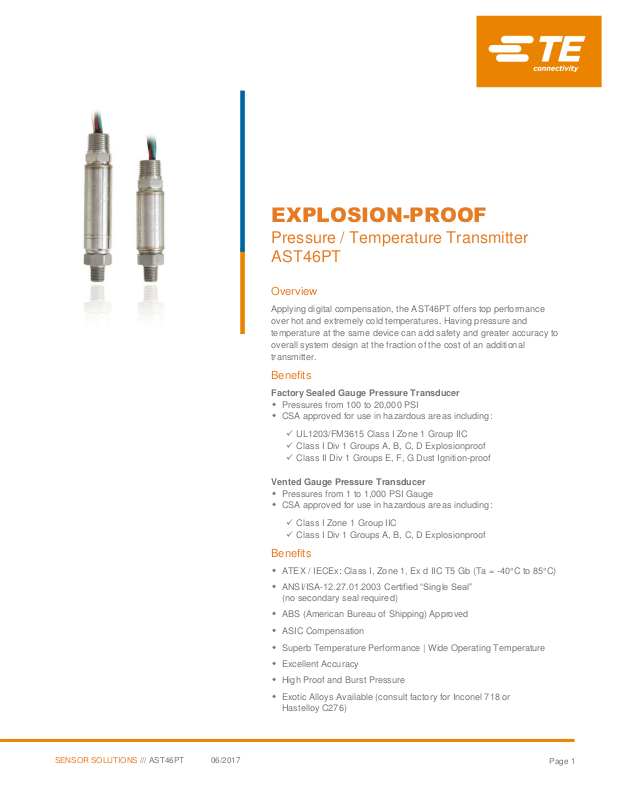

EXPLOSION-PROOF
Pressure / Temperature Transmitter
AST46PT
Overview
Applying digital compensation, the AST46PT offers top performance
over hot and extremely cold temperatures. Having pressure and
temperature at the same device can add safety and greater accuracy to
overall system design at the fraction of the cost of an additional
transmitter.
Benefits
Factory Sealed Gauge Pressure Transducer
Pressures from 100 to 20,000 PSI
CSA approved for use in hazardous areas including:
UL1203/FM3615 Class I Zone 1 Group IIC
Class I Div 1 Groups A, B, C, D Explosionproof
Class II Div 1 Groups E, F, G Dust Ignition-proof
Vented Gauge Pressure Transducer
Pressures from 1 to 1,000 PSI Gauge
CSA approved for use in hazardous areas including:
Class I Zone 1 Group IIC
Class I Div 1 Groups A, B, C, D Explosionproof
Benefits
ATEX / IECEx: Class I, Zone 1, Ex d IIC T5 Gb (Ta = -40°C to 85°C)
ANSI/ISA-12.27.01.2003 Certified “Single Seal”
(no secondary seal required)
ABS (American Bureau of Shipping) Approved
ASIC Compensation
Superb Temperature Performance | Wide Operating Temperature
Excellent Accuracy
High Proof and Burst Pressure
Exotic Alloys Available (consult factory for Inconel 718 or
Hastelloy C276)
SENSOR SOLUTIONS /// AST46PT 06/2017
Page 2
EXPLOSION-PROOF
Page 2
Accuracy
<±0.1% BFSL (includes non-linearity, hysteresis & non-repeatability,
for higher proof pressures contact factory)
Accuracy (Temp.)
±2%TEB
Stability (1 year)
±0.1% FS, typical
Over Range
Protection
2X Rated Pressure, Minimum
Burst Pressure
5X or 50,000 PSI (whichever is less)
Pressure Cycles
>100 Million
Operating Ambient
-40 to 85°C (-40 to 185°F)
Operating Media
-55 to 125°C (-65 to 250°F)
Storage
-55 to 105°C (-67 to 221°F)
0-100% relative humidity, non-condensing
Compensated Range
-20 to 70°C (-4 to 158°F)
TC Zero
<±0.5% of FS
TC Span
<±0.5% of FS
Shock
EN 60068-2-27
Vibration
EN 60068-2-6, 60068-2-64, and IEC 68-2-32
EMI/RFI Protection:
Yes
Rating:
IP-65 (vented), IP-66(factory sealed)
AST46PT Pressure / Temperature Transmitter
Applications
Well Optimization
Oil and Gas Pipelines
Drilling Platforms
Marine & Offshore
CNG / Hydrogen Fill Stations
Paint Booths
Remote Telemetry Unit
Cold Climate Drilling & Mining
Panel Instrumentation
Performance @ 25°C (77°F)
Environmental Data
Temperature
Thermal Limits
Other
SENSOR SOLUTIONS /// AST46PT 06/2017
Page 3
EXPLOSION-PROOF
Page 3
Output
4-20mA
0-5V, 1-5V, 1-6V
0-10V, 1-10V
0.5-4.5V Ratiometric
Excitation
10-28VDC
10-28VDC
15-30VDC
5VDC, Regulated
Current
Consumption:
-
<10mA
<10mA
<10mA
Sampling Rate
400Hz
400Hz
400Hz
400Hz
Output Noise
<1mV, RMS
<1mV, RMS
<1mV, RMS
<1mV, RMS
Zero Offset:
<±0.5% FS
<±0.5% FS
<±0.5% FS
<±0.5% FS
Span Tolerance:
<±0.5% FS
<±0.5% FS
<±0.5% FS
<±0.5% FS
Output Load:
0-800 Ohms@10-28VDC
5k Ohms, min.
5k Ohms, min.
5k Ohms, min.
Reverse Polarity
Protection
Yes
Yes
Yes
Yes
Model
Series
Body
Diameter
“A”
Overall
Length
“B”
AST4600
0.875”
3.64”
AST46HA
1”
4.3”
AST46PT (4-20mA)
1”
4.8”
AST46PT (Voltage)
1”
4.3”
AST46SW
1”
4.8”
Output
Wiring
Power
Connections
Output
Connections
Green
Red
Black
White
Blue
Voltage
+V
Supply
-V
Supply
Pressure
Temp.
Case
Ground
4-20mA
+Pressure
-
Pressure
-Temp.
+Temp.
Case
Ground
For U.S. installations, sensor case ground (green wire) must be bonded
to ground according to Article 501 & 505 of the NEC.
AST46PT Pressure / Temperature Transmitter
Electrical Data

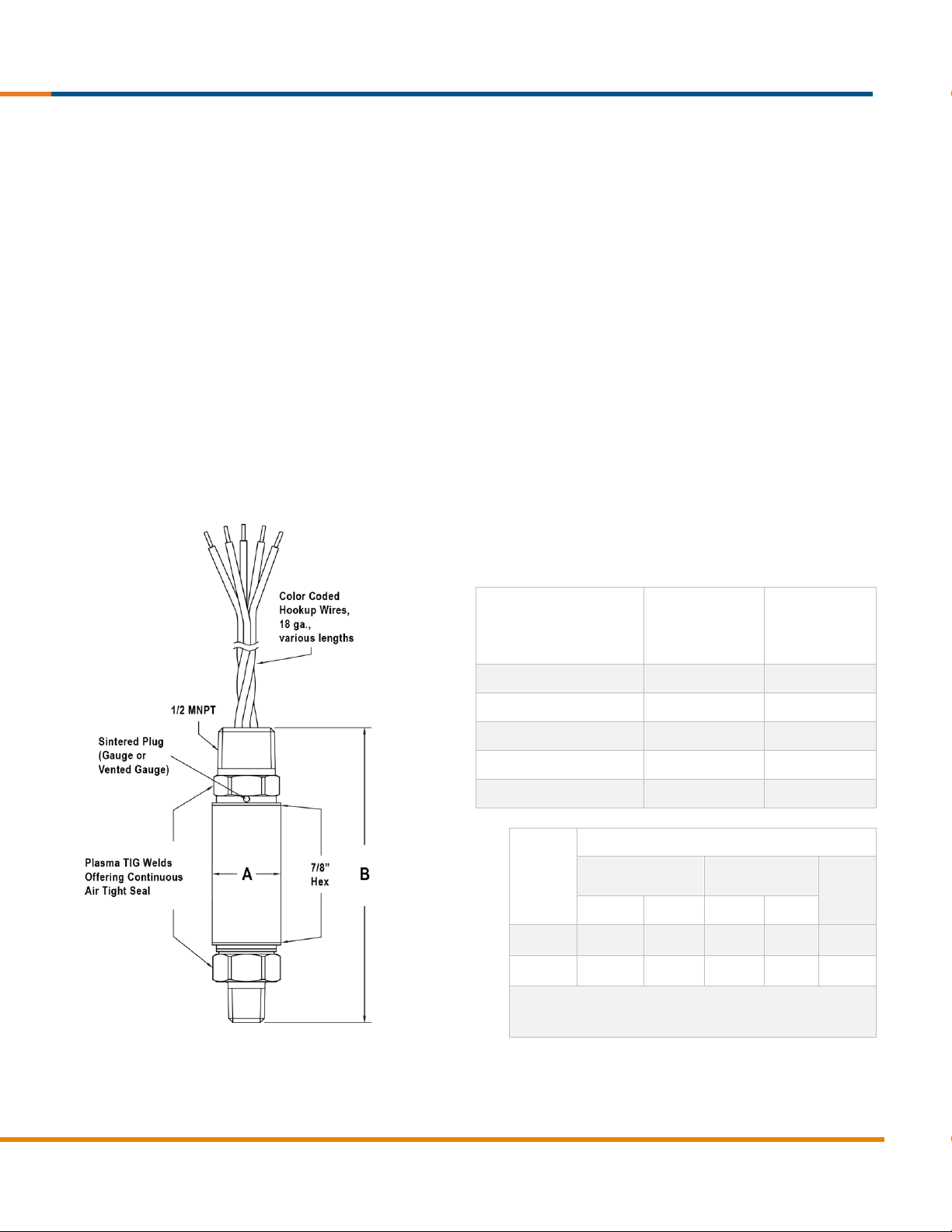

Dimensions
SENSOR SOLUTIONS /// AST46PT 06/2017
Page 4
EXPLOSION-PROOF
Page 4
AST46PT
1 A G
0500
P 3 T 1 H
000
-Z
Series Type
Temperature Output
1= -40 to 85°C (-40 to 185°F) 4= -55 to 125°C (-67 to 250°F)
2= -40 to 125°C (-40 to 257°F) 5= -18 to 93°C (0-200°F)
3= 0 to 70°C (32 to 158°F)
Process Connection*
A= 1/4" NPT Male (up to 10,000 PSI) P= 1/2" NPT Male (up to 15,000 PSI)
I= 1/4" NPT Female (up to 15,000 PSI) W= F250C Female Autoclave (10,000 to 20,000 PSI)
* for other ports contact factory, "W" not ava ilable in 316L
Pressure Range
G= Gauge Pressure**
1= Sealed Gauge up 10,000 to 19,999 PSI
V= Gauge Pressure (Vacuum Calibrated)**
2= Sealed Gauge 20,000 PSI
0= Sealed Gauge up to 9,999 PSI
** Not suitable for Class II
Insert Pressure Code
Pressure PSI
0-1
Pressure Code Vented
G 0001
Pressure PSI
0-100
Pressure Code Vented
0
0100
0-2.5
++
G 0069 0-200
0
0200
0-5 G 0005 0-500
0
0500
0-7.5
++
G 0208 0-1,000
0
1000
0-10
G
0010 0-1,500
0
1500
0-15
G
0015 0-2,500
0
2500
0-25
G
0025 0-3,000
0
3000
0-50
G
0050 0-5,000
0
5000
0-100
G
0100 0-7,500
0
7500
0-200
G
0200 0-10,000
1
0000
0-500
G 0500 0-15,000
1
5000
0-1,000
G 1000 0-20,000
2
0000
Pressure Unit
B= Bar K= kg/cm2 P= PSI
Outputs
1= 0.5-4.5V ratiometric
4= 4-20mA (loop powered + case connection)
6= 1-6V (3 wire + case connection)
2= 0-5V (3 wire)
5= 0-10V (3 wire)
G= 1-10V
3= 1-5V (3 wire + case connection)
Electrical
T= 2ft. 18 AWG wires U= 4ft. 18 AWG wires W= 2 Meter 18 AWG wires
Wetted Material (consult factory on availability of Inconel 7 18 and Hastelloy C276)
0= 17-4PH 1= 316L 2= Inconel 718 4= Hastelloy C276
Failure State
H= High L= Low N= None
Options
000= No Options 588= 0.5-2.5V non-ratiometric (3-5VDC)
Approval
Z= Add “-Z” for CRN Registered to ANSI/ASME B31.3. Contact factory for material, pressure, and process connection options.
Note: CSA approved products require cas e/earth ground electrical connection. See wiring installation sheet for furthe r details
