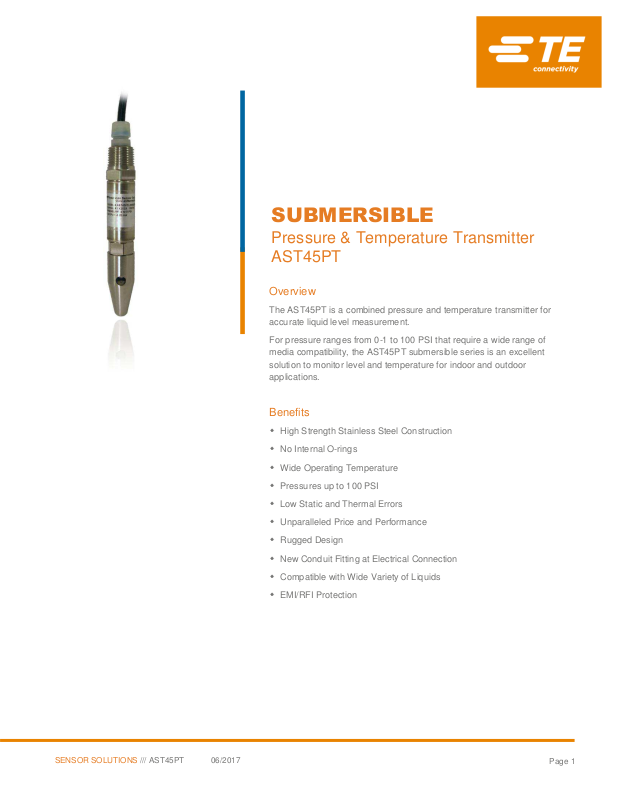

SUBMERSIBLE

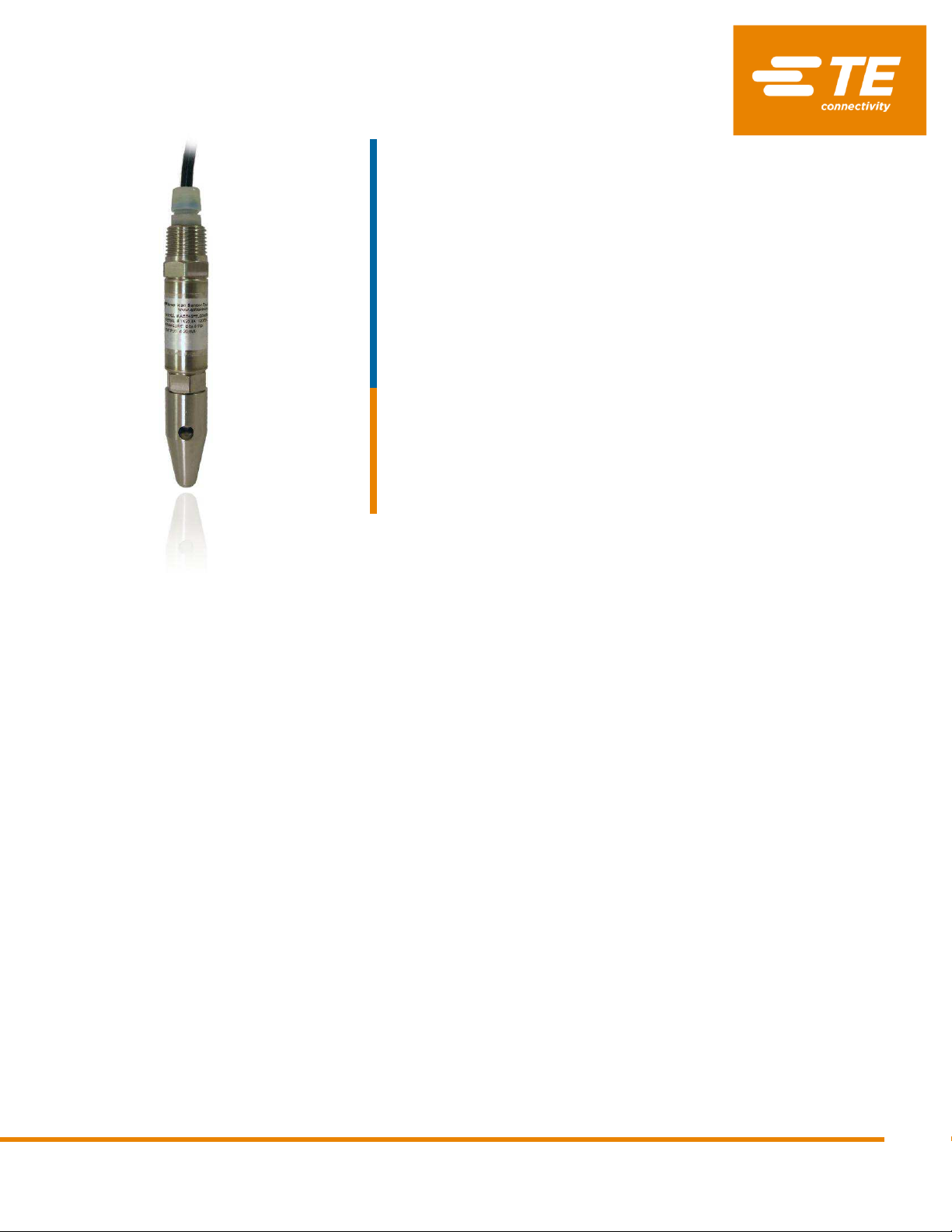

Pressure & Temperature Transmitter AST45PT

Overview

The AST45PT is a combined pressure and temperature transmitter for accurate liquid level measurement.

For pressure ranges from 0-1 to 100 PSI that require a wide range of media compatibility, the AST45PT submersible series is an excellent solution to monitor level and temperature for indoor and outdoor applications.

Benefits

 High Strength Stainless Steel Construction

 No Internal O-rings

 Wide Operating Temperature

 Pressures up to 100 PSI

 Low Static and Thermal Errors

 Unparalleled Price and Performance

 Rugged Design

 New Conduit Fitting at Electrical Connection

 Compatible with Wide Variety of Liquids

 EMI/RFI Protection

SENSOR SOLUTIONS /// AST45PT 06/2017

INDUSTRIAL

Page 2

Accuracy (Pressure)

< ±0.25% of FS BFSL (Accuracy includes non-linearity, hysteresis & non-repeatability)

Accuracy (Temp.)

< ±1.0% of FS BFSL (Accuracy includes non-linearity, hysteresis & non-repeatability)

Over Range Protection

2X Rated Pressure

Burst Pressure

5X or 1,250 PSI (whichever is less)

Pressure Cycles

> 50 Million

Operating Ambient

-40 to 85°C (-40 to 185°F)

Storage

-40 to 100°C (-40 to 212°F)

0-100% relative humidity, non-condensing

Compensated Range

0-55°C (32 to 131°F)

TC Zero

< ±1.5% FS

TC Span

< ±1.5% FS

Shock

100G, 11 msec, 1/2 sine

Vibration

10G peak, 20 to 2000 Hz.

EMI/RFI Protection:

Yes

Rating:

IP-68

AST45PT Pressure & Temperature Submersible Transmitter

Applications

 Ground Water Level Measurement

 Earthen & Concrete Dams

 Liquid Tanks

 Irrigation

 Environmental Sites

 Building Automation Controls

 Waste Water Canals

Performance @ 25°C (77°F)

Environmental Data

Temperature

Thermal Limits

Other

SENSOR SOLUTIONS /// AST45PT 06/2017

INDUSTRIAL

Page 3

Output

4-20mA+

1-5V

Excitation

10-28VDC

Current Consumption:

-

< 10mA

Sampling Rate

400 Hz

Output Noise

< 1mV, RMS

Zero Offset:

< ±0.5% of FS

Span Tolerance:

< ±0.5% of FS

Output Load:

0-800 Ohms@10-28VDC

5k Ohms, Min.

Reverse Polarity Protection

Yes

AST45PT Pressure & Temperature Submersible Transmitter

Electrical Data

+For units with loop-powered 4-20mA output, the pressure loop must be powered or the temperature output will not operate.

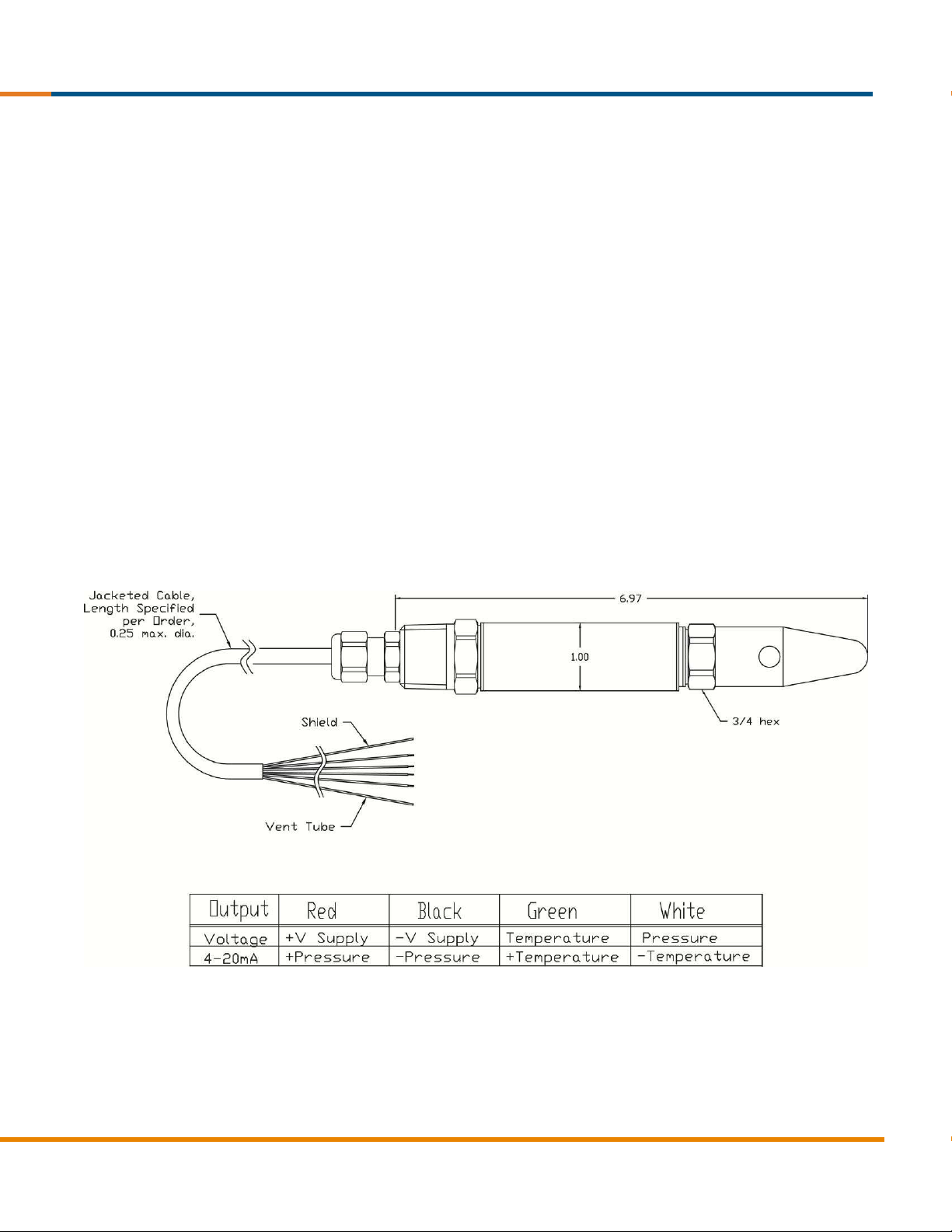

Dimensions

SENSOR SOLUTIONS /// AST45PT 06/2017

INDUSTRIAL

Page 4

AST45PT

1 L 00005

P 4 X 1 N

065

Series Type

Temperature Output Range

1= -40 to 85°C (-40 to 185°F) 2= -40 to 125°C (-40 to 250°F) 3= 0 to 70°C (30 to 158°F) 4= -55 to 125°C (-65 to 250°F) 5= -18 to 93°C (0-200°F)

Process Connection

L= Cone (removable)

Pressure Range

Insert 5-digit pressure range code from chart

Gauge PSIG

Pressure Code

Feet of Water Column @ 4ºC (approx.)

0-100

00100

230.67

0-50

00050

115.33

0-30

00030

69.20

0-20

00020

46.13

0-15

00015

34.60

0-10

00010

23.07

0-7.5*

00208*

17.30

0-5

00005

11.53

0-2.5*

00069*

5.77

0-1

00001

2.31

Pressure Unit

H= Inches H2O P= PSI

Outputs

3= 1-5V 4= 4-20mA

Electrical

N= Conduit fitting, Cable 6 ft. P= Conduit fitting, Cable 10 ft. X= Optional Length (see options)

Wetted Material

1= 316L / 304 / Hytrel (cable) / Kynar (cord grip)

Fail Condition

N= Not Specified H= Fail High L= Fail Low

Options

140= 15 ft. (4.6 m)

074= 25 ft. (7.6 m)

130= 40 ft. (12.2 m)

003= 100 ft. (30.5 m)

075= 20 ft. (6.1 m)

004= 35 ft. (10.7 m)

065= 50 ft. (15.2 m)

050= 150 ft. (45.7 m)
