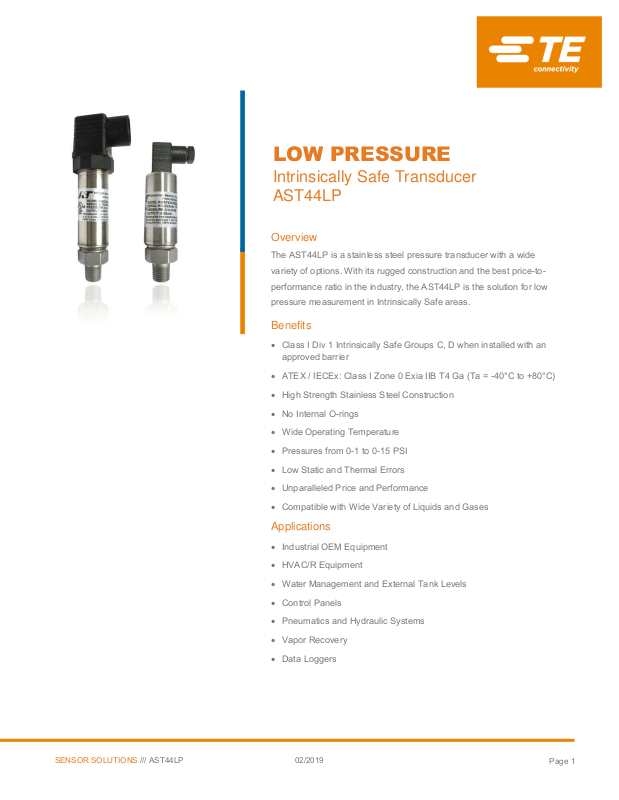

LOW PRESSURE
Intrinsically Safe Transducer
AST44LP
Overview

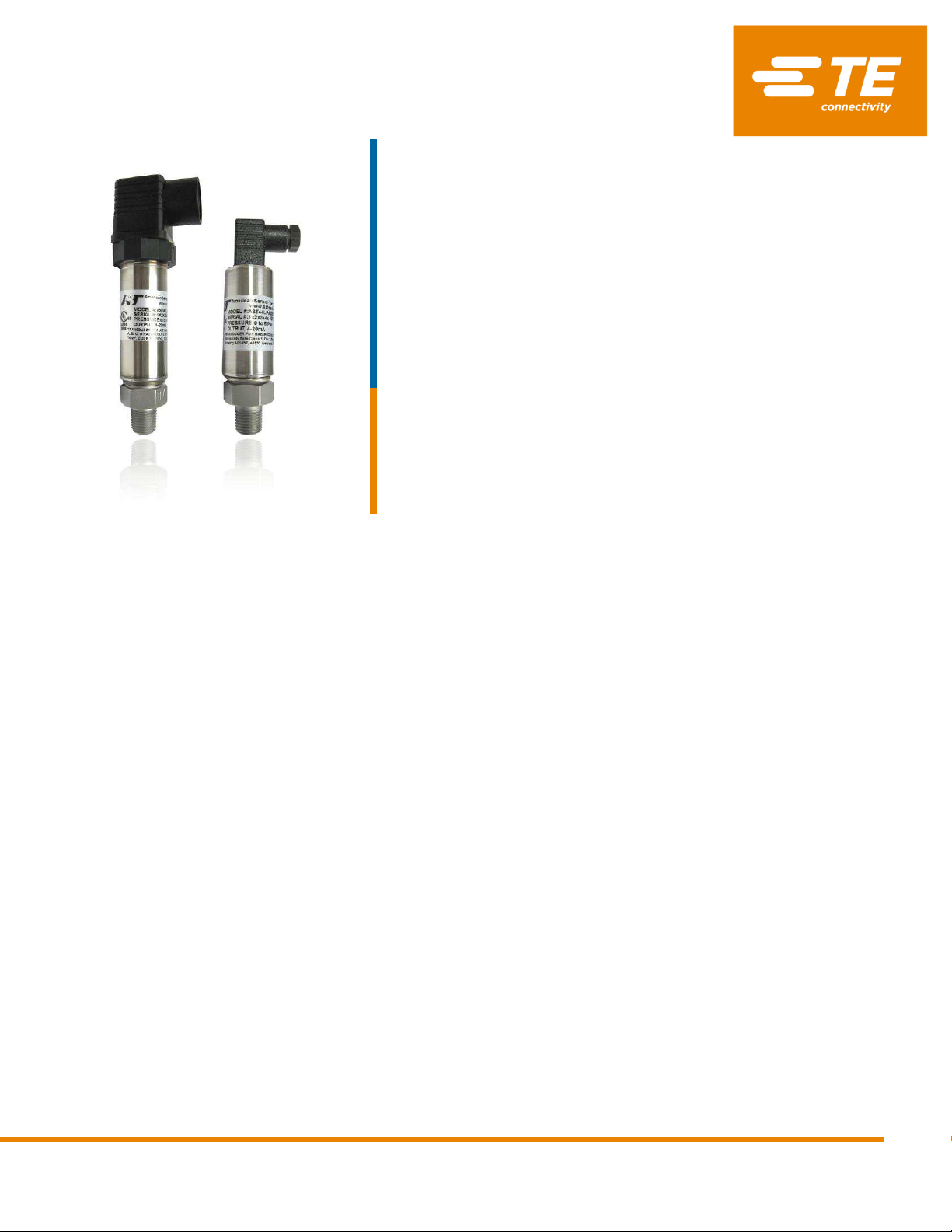

The AST44LP is a stainless steel pressure transducer with a wide
variety of options. With its rugged construction and the best price-to-
performance ratio in the industry, the AST44LP is the solution for low
pressure measurement in Intrinsically Safe areas.
Benefits
Class I Div 1 Intrinsically Safe Groups C, D when installed with an
approved barrier
ATEX / IECEx: Class I Zone 0 Exia IIB T4 Ga (Ta = -40°C to +80°C)
High Strength Stainless Steel Construction
No Internal O-rings
Wide Operating Temperature
Pressures from 0-1 to 0-15 PSI
Low Static and Thermal Errors
Unparalleled Price and Performance
Compatible with Wide Variety of Liquids and Gases
Applications
Industrial OEM Equipment
HVAC/R Equipment
Water Management and External Tank Levels
Control Panels
Pneumatics and Hydraulic Systems
Vapor Recovery
Data Loggers
SENSOR SOLUTIONS /// AST44LP 02/2019
Page 2
LOW PRESSURE
Page 2
Accuracy
< ±0.25% BFSL (<±0.5% for 0-1 PSI)
Stability (1 year)
±0.25% FS, typical
Over Range
Protection
2X Rated Pressure, Minimum
Burst Pressure
5X or 75 PSI (whichever is less)
Pressure Cycles
>100 Million
Operating
-40 to 80°C (-40 to 176°F)
Storage
-40 to 100°C (-40 to 212°F)
0-100% relative humidity, non-condensing
Compensated Range
0 to 55°C (32 to 132°F)
TC Zero
<±1.5% of FS
TC Span
<±1.5% of FS
Shock
EN 60068-2-27
Vibration
EN 60068-2-6, 60068-2-64, and IEC 68-2-32
EMI/RFI Protection:
Yes
Rating:
IP-66, min
Output
4-20mA
1-5VDC, 1-6VDC
Excitation
10-28VDC
10-28VDC
Output Impedance
>10k Ohms
<100 Ohms, Nominal
Current
Consumption:
20mA, typical
5mA, typical
Bandwidth
(-3dB): DC to 250 Hz
(-3dB): DC to 1kHz
Output Noise
-
<2mV RMS
Zero Offset:
<±1% of FS
<±1% of FS
Span Tolerance:
<±2% of FS
<±1.5% of FS
Output Load:
0-800 Ohms@10-28VDC
10k Ohms, Min.
Reverse Polarity
Protection
Yes
Yes
AST44LP Intrinsically Safe Pressure Transducer / Transmitter
Performance @ 25°C (77°F)
Environmental Data
Temperature
Thermal Limits
Other
Electrical Data
SENSOR SOLUTIONS /// AST44LP 02/2019
Page 3
LOW PRESSURE
Page 3
AST44LP Intrinsically Safe Pressure Transducer / Transmitter

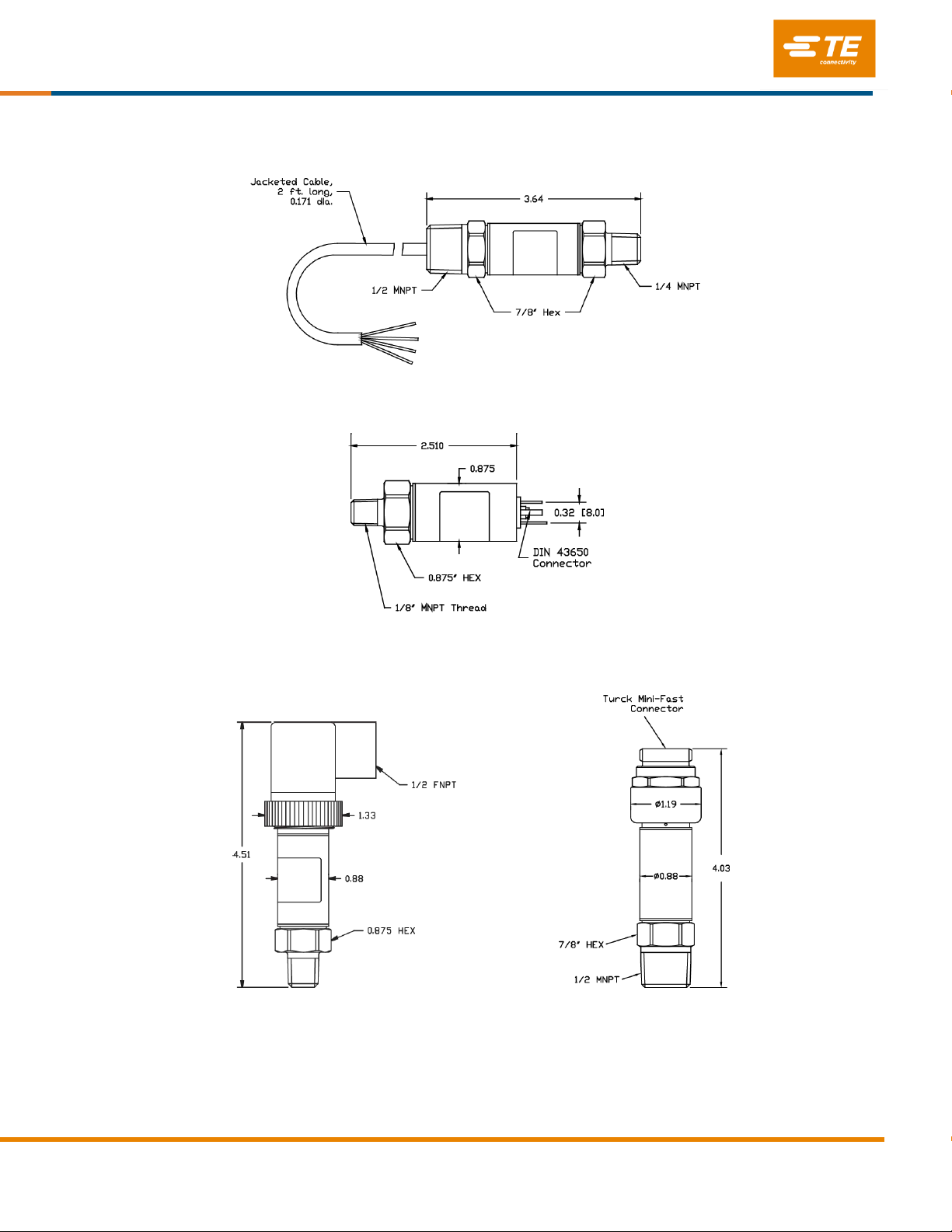

Dimensions
SENSOR SOLUTIONS /// AST44LP 02/2019
Page 4
LOW PRESSURE
Page 4
AST44LP Intrinsically Safe Pressure Transducer / Transmitter

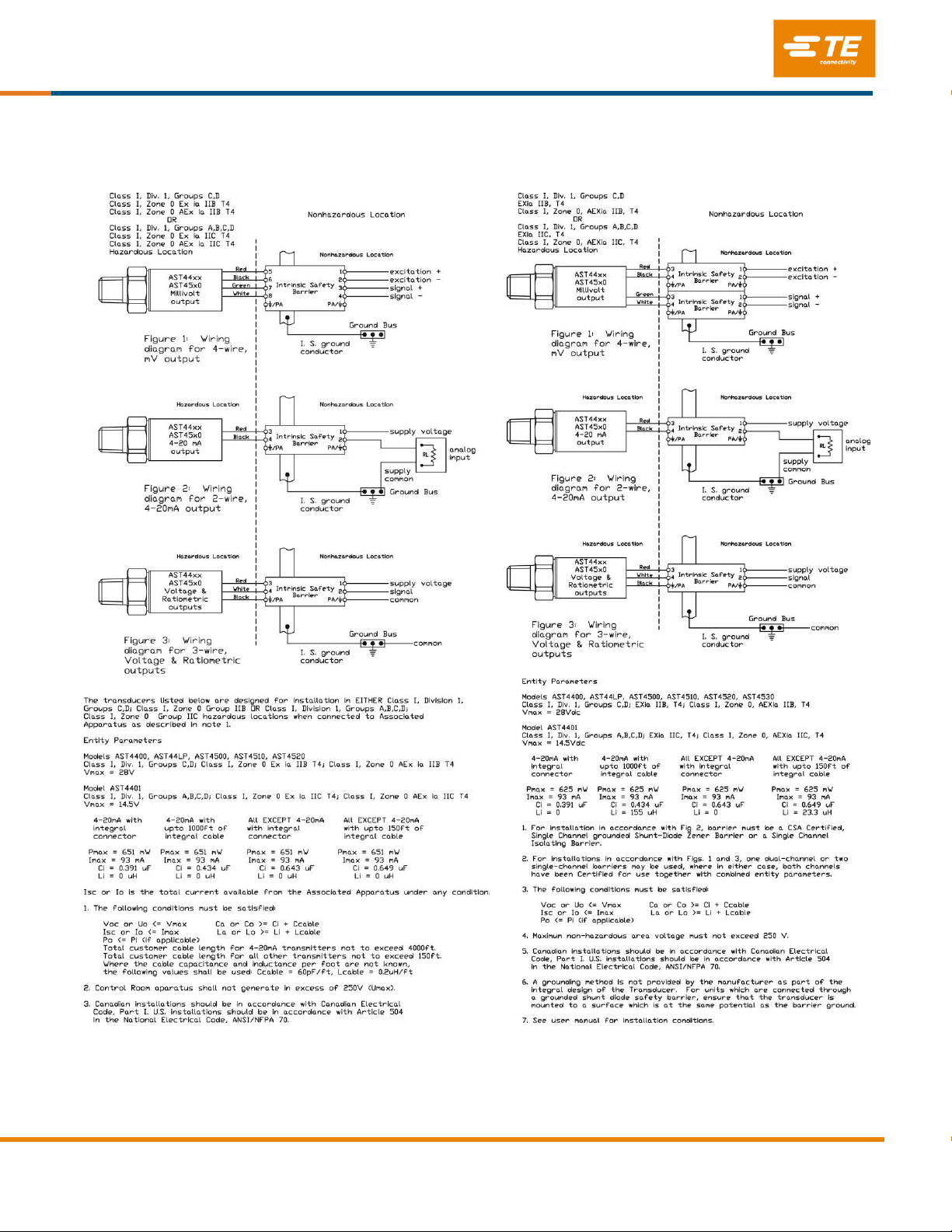

UL Approved Barrier Installation / A01657 CSA Approved Barrier Installation / A08949
SENSOR SOLUTIONS /// AST44LP 02/2019
Page 5
LOW PRESSURE
Page 5
AST44LP
A
00005 P 4 E 1
000
-ss
Series Type
Process Connection
A= 1/4” NPT Male
I= 1/4” NPT Female**
C= 1/4” BSPP Male
P= 1/2” NPT Male
Pressure Range
Insert 5-digit pressure range code (example: 0-1 PSI = 00001)
Ranges between 0-1 PSI and 0-15 PSI available.
Pressure Unit
B= Bar K= kg/cm2 P= PSI
Outputs
3= 1-5V
4= 4-20mA (2 wire loop powered)
6= 1-6V
Electrical
A= 2 ft. (0.6m)
L= Conduit, Cable 2 ft. (0.6 m)
B= 4 ft. (1.2m)
M= Conduit, Cable 4 ft. (1.2 m)
C= 6 ft. (1.8m)
N= Conduit, Cable 6 ft. (1.8 m)
D= 10 ft. (3.0m)
P= Conduit, Cable 10 ft. (3 m)
E= Mini DIN 43650C
R= 6- Pin Bendix
F= Packard Metripack 150 3-Pin
Y= M12x1
I= DIN 43650A
4 = Mini-Fast (CSA Only)
Wetted Material
1= 316L
4= Hastelloy C276
Options
000= No Options
588= 0.5-2.5V non-ratiometric (3-5VDC)
Approval
Insert code from approvals chart below [Leave blank for UL ANSI/ISA
12.12.01 Class I Div 1 Intrinsically Safe Groups C, D (formerly UL913)]
-SS
CSA157 Class I Div 1 Grps C, D Intrinsically Safe, ANSI/ISA 12.27.01
Single Seal and ATEX/IECEx Exia IIB Class I, Zone 0, T4
Note: CSA approved products require case/earth ground electrical connection. See wiring installation sheet for further details
