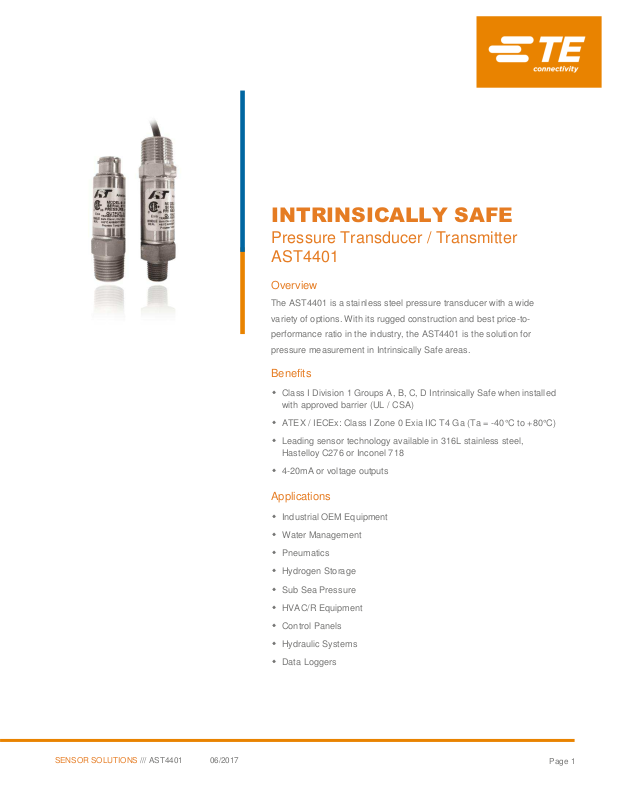

American Sensor Tech AST4401 Specifications

Page 1

INTRINSICALLY SAFE

Pressure Transducer / Transmitter AST4401

Overview

The AST4401 is a stainless steel pressure transducer with a wide

variety of options. With its rugged construction and best price-to-

performance ratio in the industry, the AST4401 is the solution for

pressure measurement in Intrinsically Safe areas.

Benefits

 Class I Division 1 Groups A, B, C, D Intrinsically Safe when installed

with approved barrier (UL / CSA)

 ATEX / IECEx: Class I Zone 0 Exia IIC T4 Ga (Ta = -40°C to +80°C)

 Leading sensor technology available in 316L stainless steel,

Hastelloy C276 or Inconel 718

 4-20mA or voltage outputs

Applications

 Industrial OEM Equipment

 Water Management

 Pneumatics

 Hydrogen Storage

 Sub Sea Pressure

 HVAC/R Equipment

 Control Panels

 Hydraulic Systems

 Data Loggers

SENSOR SOLUTIONS /// AST4401 06/2017

INTRINSICALLY SAFE

Page 2

Accuracy

< ±0.25% BFSL (<±0.5% from 7,500 up to 20,000 PSI)

Stability (1 year)

±0.25% FS, typical

Over Range Protection

2X Rated Pressure, Minimum

Burst Pressure

5X or 40,000 PSI (whichever is less)

Pressure Cycles

>100 Million

Operating

-40 to 80°C (-40 to 176°F)

Storage

-40 to 100°C (-40 to 212°F)

0-100% relative humidity, non-condensing

Compensated Range

0 to 55°C (32 to 132°F)

TC Zero

<±1.5% of FS

TC Span

<±1.5% of FS

Shock

EN 60068-2-27

Vibration

EN 60068-2-6, 60068-2-64, and IEC 68-2-32

EMI/RFI Protection:

Yes

Rating:

IP-66, min

Output

4-20mA

1-5VDC, 1-6VDC

0.5-4.5V Ratiometric

Excitation

10-14.5VDC

5VDC, regulated

Output Impedance

>10k Ohms

<100 Ohms, Nominal

Current Consumption:

20mA, typical

5mA, typical

<10mA

Bandwidth

(-3dB): DC to 250 Hz

(-3dB): DC to 1kHz

Output Noise

-

<2mV RMS

Zero Offset:

<±1% of FS

Span Tolerance:

<±2% of FS

<±1.5% of FS

Output Load:

0-800 Ohms@10-28VDC

10k Ohms, Min.

10K Ohms, Min.

Reverse Polarity Protection

Yes

AST4401 Pressure Transducer / Transmitter

Performance @ 25°C (77°F)

Environmental Data

Temperature

Thermal Limits

Other

Electrical Data

SENSOR SOLUTIONS /// AST4401 06/2017

INTRINSICALLY SAFE

Page 3

AST4401 Pressure Transducer / Transmitter

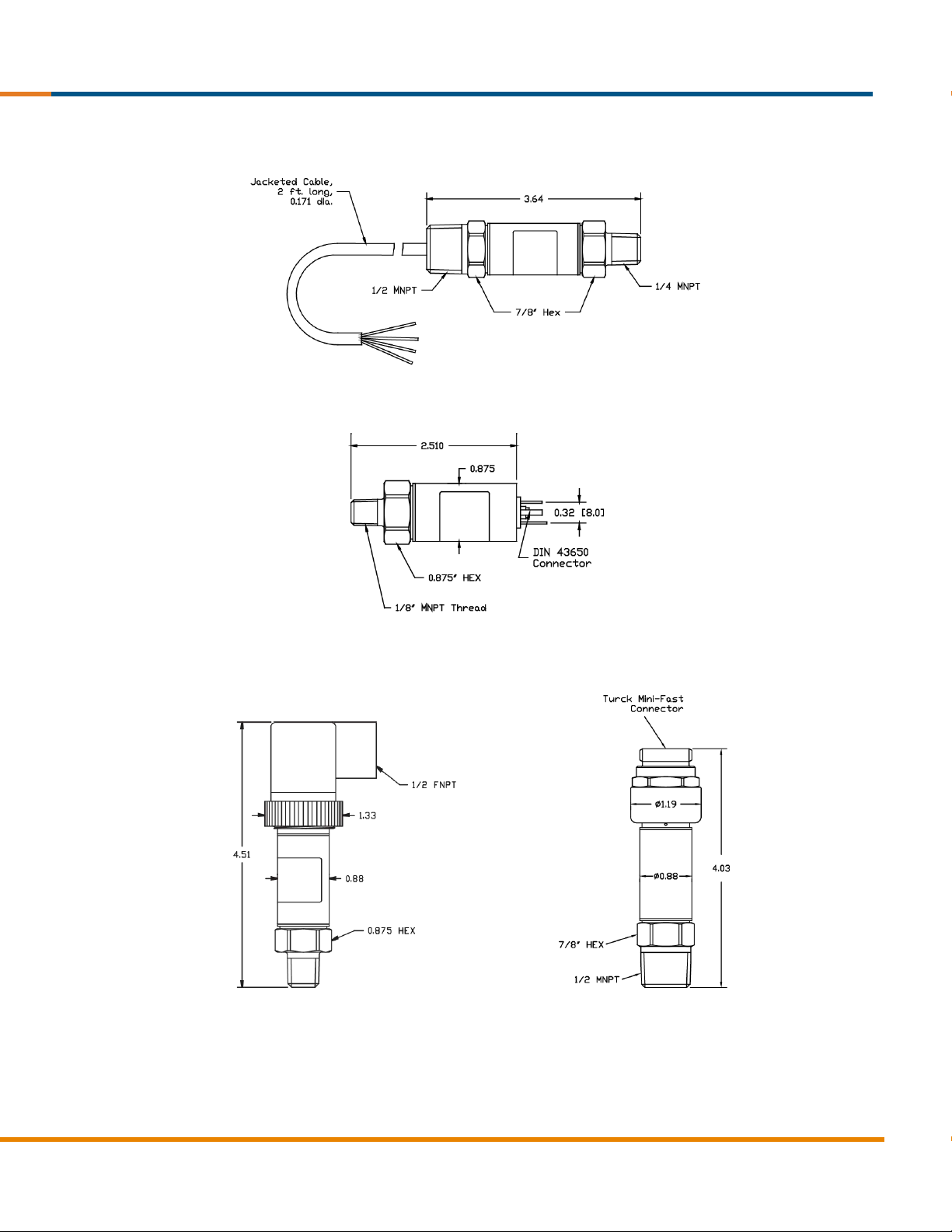

Dimensions

SENSOR SOLUTIONS /// AST4401 06/2017

INTRINSICALLY SAFE

Page 4

AST4401 Pressure Transducer / Transmitter

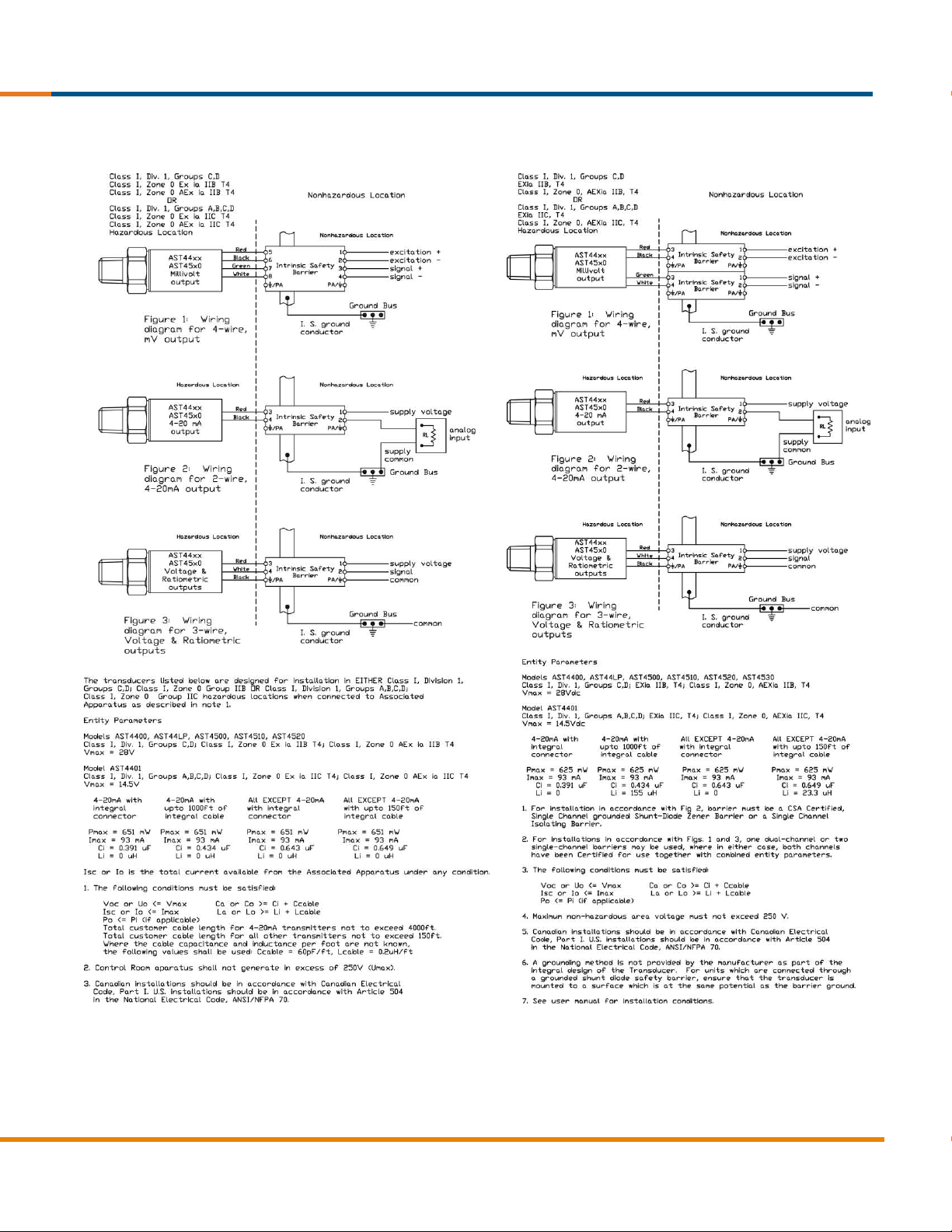

UL Approved Barrier Installation / A01657 CSA Approved Barrier Installation / A08949

SENSOR SOLUTIONS /// AST4401 06/2017

INTRINSICALLY SAFE

Page 5

AST4401

A

00500 P 4 L 1

000

-SS

Series Type

Process Connection

A= 1/4” NPT Male

I= 1/4” NPT Female**

B= 1/8” NPT Male*

P= 1/2” NPT Male

C= 1/4” BSPP Male

W= F250C Female Autoclave***

F= 7/16”-20 UNF Male*

*Not available under 50PSI (not available in 316L) **Pressures up to 15,000 PSI ***Pressures from 10,000 to 20,000 PSI, not available in 316L

Pressure Range

Insert 5-digit pressure range code (example: 0-100 PSI = 00100) Ranges between 0-25 PSI and 0-20,000 PSI available. Compound pressure up to -14.7 to 500 PSI.

Pressure Unit

B= Bar K= kg/cm2 P= PSI

Outputs

1= 0.5-4.5V ratiometric 4= 4-20mA (2 wire loop powered) 3= 1-5V 6= 1-6V

Electrical

A= 2 ft. (0.6m)

L= Conduit, Cable 2 ft. (0.6 m)

B= 4 ft. (1.2m)

M= Conduit, Cable 4 ft. (1.2 m)

C= 6 ft. (1.8m)

N= Conduit, Cable 6 ft. (1.8 m)

D= 10 ft. (3.0m)

P= Conduit, Cable 10 ft. (3 m)

E= Mini DIN 43650C

Y= M12x1

F= Packard Metripack 150 3-Pin

4 = Mini-Fast (CSA Only)

I= DIN 43650A

Wetted Material

0= 17-4PH 1= 316L 2= Inconel 718 4= Hastelloy C276

Options

000= No Options

Approval

Insert code from approvals chart below [Leave blank for UL ANSI/ISA

12.12.01 Class I Div 1 Intrinsically Safe Groups A, B, C, D (formerly UL913)]

-SL

IEC 61508 - SIL2 (4-20mA only)

-SS

CSA157 Class I Div 1 Grps A, B, C, D Intrinsically Safe when installed with approved barrier, ANSI/ISA 12.27.01 Single Seal and ATEX/IECEx Exia IIC Class I, Zone 0, T4

-Y

IEC 61508 - SIL2 (4-20mA only) + CRN

-Z

CRN Registered to ANSI/ASME B31.3. Contact factory for material, pressure, and process connection options (includes -SS approvals)

Note: CSA approved products require case/earth ground electrical connection. See wiring installation sheet for further details
