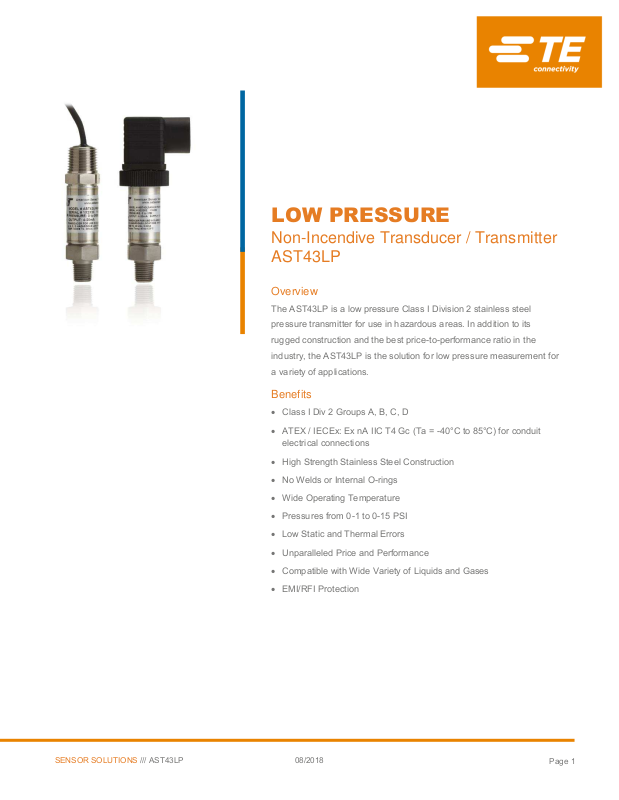

LOW PRESSURE
Non-Incendive Transducer / Transmitter
AST43LP
Overview
The AST43LP is a low pressure Class I Division 2 stainless steel
pressure transmitter for use in hazardous areas. In addition to its
rugged construction and the best price-to-performance ratio in the
industry, the AST43LP is the solution for low pressure measurement for
a variety of applications.
Benefits
Class I Div 2 Groups A, B, C, D
ATEX / IECEx: Ex nA IIC T4 Gc (Ta = -40°C to 85°C) for conduit
electrical connections
High Strength Stainless Steel Construction
No Welds or Internal O-rings
Wide Operating Temperature
Pressures from 0-1 to 0-15 PSI
Low Static and Thermal Errors
Unparalleled Price and Performance
Compatible with Wide Variety of Liquids and Gases
EMI/RFI Protection
SENSOR SOLUTIONS /// AST43LP 08/2018
Page 2
LOW PRESSURE
Page 2
Accuracy
< ±0.25% BFSL (<±0.5% for 0-1 PSI)
Stability (1 year)
±0.25% FS, typical
Over Range
Protection
2X Rated Pressure, Minimum
Burst Pressure
5X or 75 PSI (whichever is less)
Pressure Cycles
>100 Million
Operating
-40 to 80°C (-40 to 176°F)
Storage
-40 to 100°C (-40 to 212°F)
0-100% relative humidity, non-condensing
Compensated Range
0 to 55°C (32 to 132°F)
TC Zero
<±1.5% of FS
TC Span
<±1.5% of FS
Shock
EN 60068-2-27
Vibration
EN 60068-2-6, 60068-2-64, and IEC 68-2-32
EMI/RFI Protection:
Yes
Rating:
IP-66, min
AST43LP Pressure Transducer / Transmitter
Applications
Flare Gas
Water Management
Industrial OEM Equipment
Oil & Gas Platforms
Pressure Instrumentation
Process Control
Gas Compression & Storage
Test Stands
Oxygen Delivery Systems
External Tank Level
Performance @ 25°C (77°F)
Environmental Data
Temperature
Thermal Limits
Other
SENSOR SOLUTIONS /// AST43LP 08/2018
Page 3
LOW PRESSURE
Page 3
Output
4-20mA
1-5VDC, 1-6VDC
0.5-4.5V Ratiometric
Excitation
10-28VDC
10-28VDC
5VDC, regulated
Output
Impedance
>10k Ohms
<100 Ohms, Nominal
<100 Ohms, Nominal
Current
Consumption:
20mA, typical
5mA, typical
5mA, typical
Bandwidth
(-3dB): DC to 250 Hz
(-3dB): DC to 1kHz
(-3dB): DC to 1kHz
Output Noise
-
<2mV RMS
<2mV RMS
Zero Offset:
<±1% of FS
<±1% of FS
<±1% of FS
Span Tolerance:
<±2% of FS
<±1.5% of FS
<±1.5% of FS
Output Load:
0-800 Ohms@10-28VDC
10k Ohms, Min.
10K Ohms, Min.
Reverse Polarity
Protection
Yes
Yes
Yes
AST43LP Pressure Transducer / Transmitter
Electrical Data

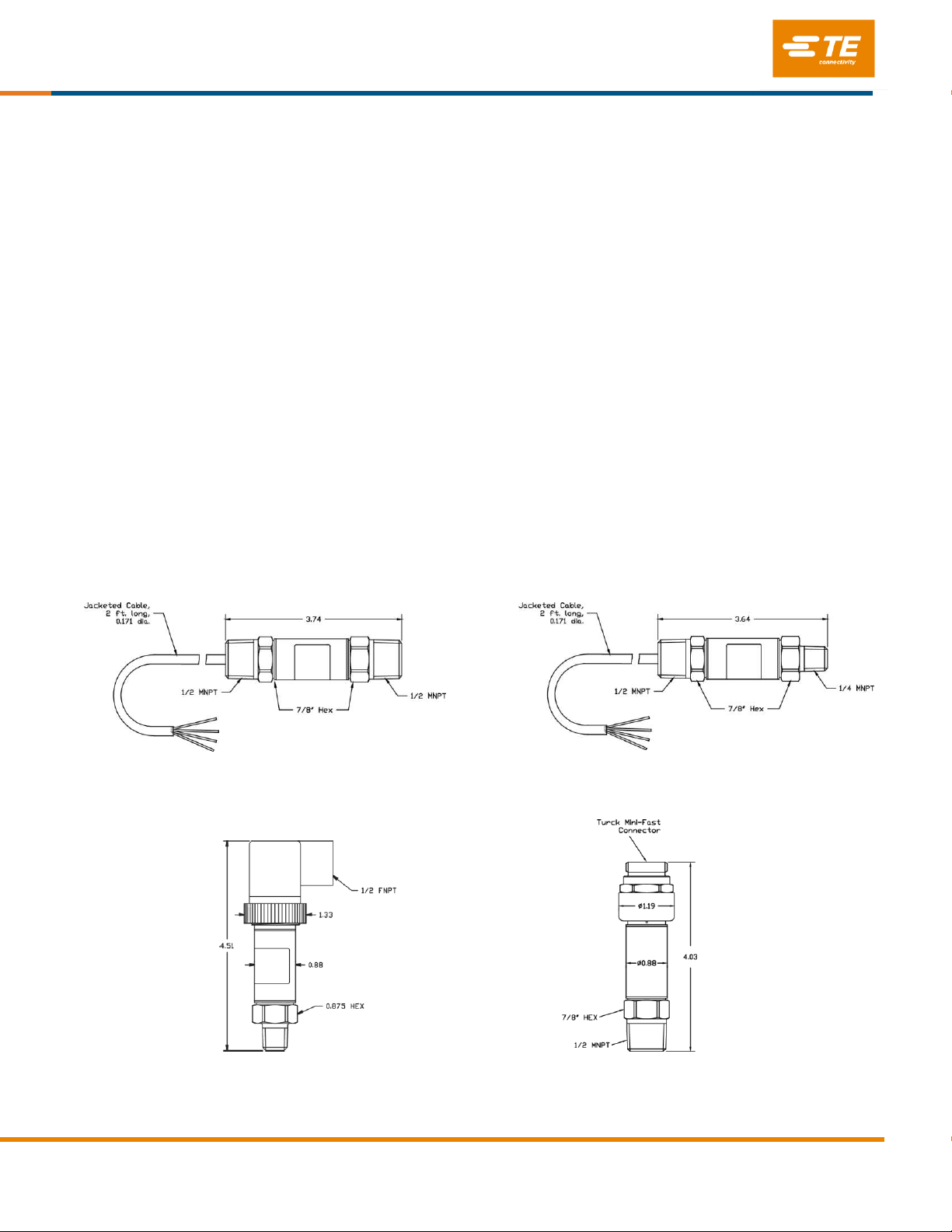

Dimensions
SENSOR SOLUTIONS /// AST43LP 08/2018
Page 4
LOW PRESSURE
Page 4
AST43LP
A
00005 P 4 L 1
000
-SS
Series Type
Process Connection
A= 1/4” NPT Male
C= 1/4” BSPP Male
I= 1/4” NPT Female**
P= 1/2” NPT Male
T= G1/2 Male with Flush Diaphragm (see options)
Pressure Range
Insert 5-digit pressure range code (example: 0-5 PSI = 00005)
Ranges between 0-1 PSI and 0-15 PSI available.
Pressure Unit
H= Inches H2O
P= PSI
Outputs
1= 0.5-4.5V ratiometric 4= 4-20mA (2 wire loop powered)
3= 1-5V 6= 1-6V
Electrical
I= DIN 43650A
L= Conduit fitting, Cable 2 ft. (0.6 m)
M= Conduit fitting, Cable 4 ft. (1.2 m)
N= Conduit fitting, Cable 6 ft. (1.8 m)
P= Conduit fitting, Cable 10 ft. (3.0 m)
4 = Mini-Fast (CSA Only)
Wetted Material
1= 316L
4= Hastelloy C276
Options
000= No Options
Approval
(Left Blank)= UL ANSI/ISA 12.12.01 Class I Div 2 Non-Incendive
Groups A, B, C, D (formerly UL1604)
-SS
CSA213 Class I Div 2 Non-Incendive Groups A, B, C, D and
ANSI/ISA 12.27.01 Single Seal Approval
Note: CSA approved products require case/earth ground electrical connection. See wiring installation sheet for further details
