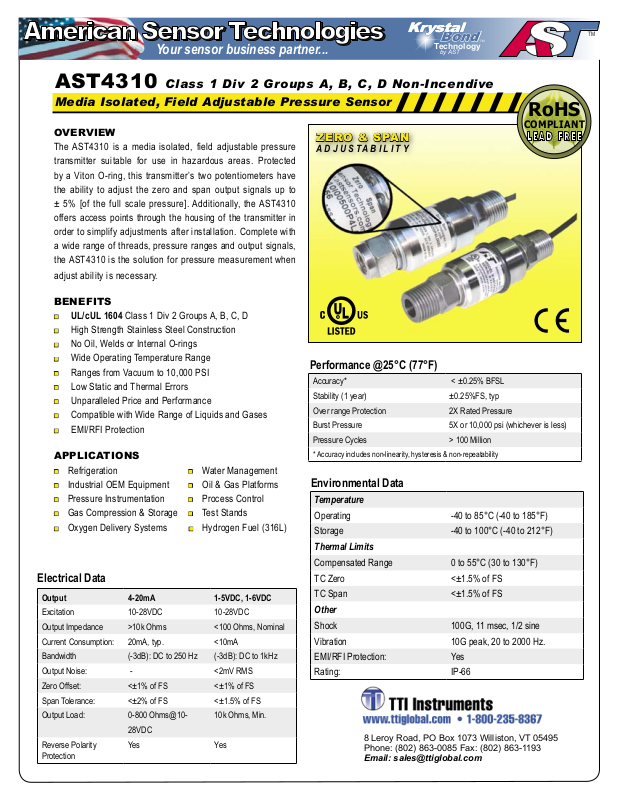

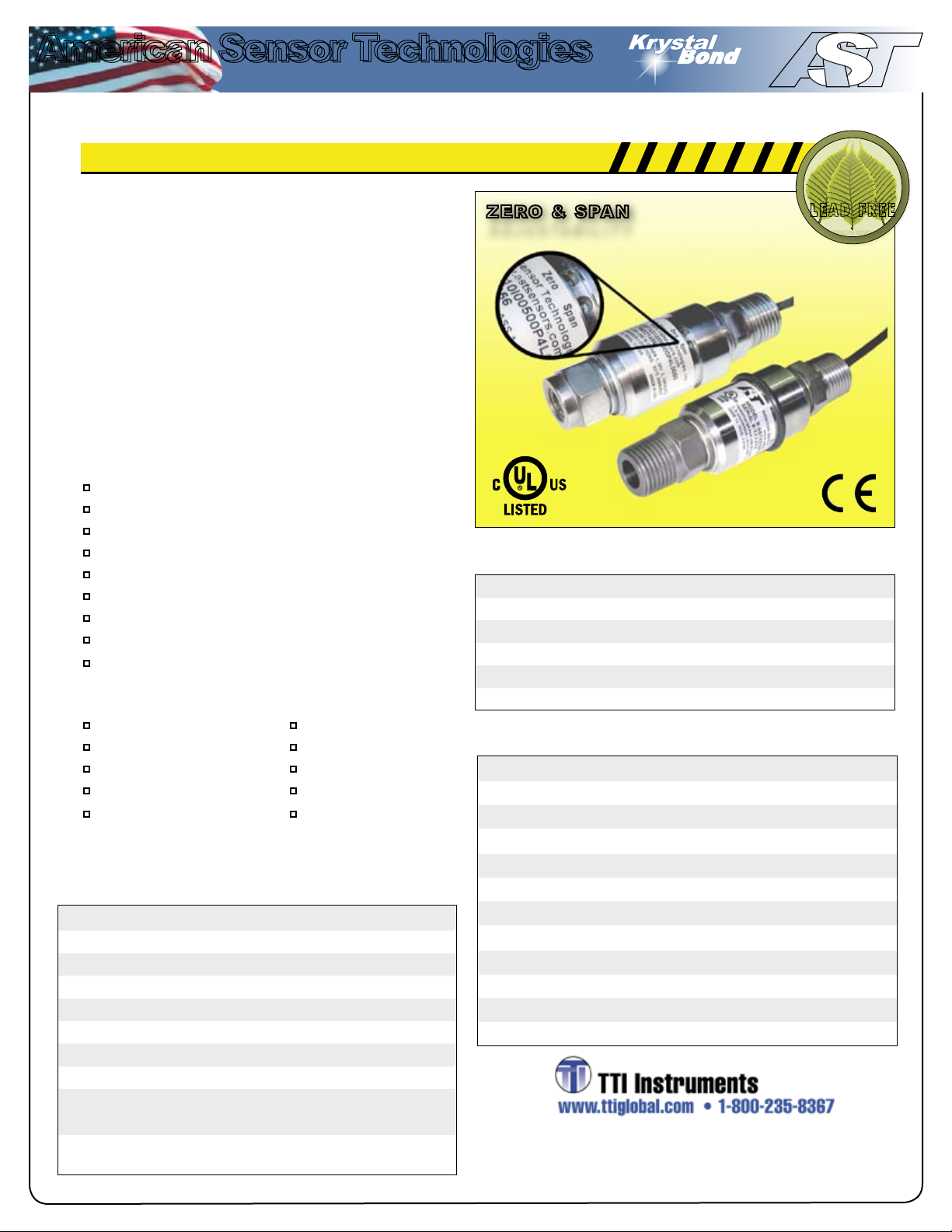

AST4310 Class 1 Div 2 Groups A, B, C, D Non-Incendive
American Sensor Technologies
American Sensor Technologies
T
A
Your sensor business partner...
TM
Technology
by AST
TM
Bond
K
rystal
RoHS
COMPLIANT
L E A D F R E E
Media Isolated, Field Adjustable Pressure Sensor
OVERVIEW
The AST4310 is a media isolated, field adjustable pressure
transmitter suitable for use in hazardous areas. Protected
by a Viton O-ring, this transmitter’s two potentiometers have
the ability to adjust the zero and span output signals up to
± 5% [of the full scale pressure]. Additionally, the AST4310
offers access points through the housing of the transmitter in
order to simplify adjustments after installation. Complete with
a wide range of threads, pressure ranges and output signals,
the AST4310 is the solution for pressure measurement when
adjust ability is necessary.
BENEFITS
n UL/cUL 1604 Class 1 Div 2 Groups A, B, C, D
n High Strength Stainless Steel Construction
n No Oil, Welds or Internal O-rings
n Wide Operating Temperature Range
n Ranges from Vacuum to 10,000 PSI
n Low Static and Thermal Errors
n Unparalleled Price and Performance
n Compatible with Wide Range of Liquids and Gases
n EMI/RFI Protection
APPLICATIONS
n Refrigeration n Water Management
n Industrial OEM Equipment n Oil & Gas Platforms
n Pressure Instrumentation n Process Control
n Gas Compression & Storage n Test Stands
n Oxygen Delivery Systems n Hydrogen Fuel (316L)
Electrical Data
Output 4-20mA 1-5VDC, 1-6VDC
Excitation 10-28VDC 10-28VDC
Output Impedance >10k Ohms <100 Ohms, Nominal
Current Consumption: 20mA, typ. <10mA
Bandwidth (-3dB): DC to 250 Hz (-3dB): DC to 1kHz
Output Noise: - <2mV RMS
Zero Offset: <±1% of FS <±1% of FS
Span Tolerance: <±2% of FS <±1.5% of FS
Output Load: 0-800 Ohms@10-
28VDC
Reverse Polarity
Protection
Yes Yes
10k Ohms, Min.
ZERO & SPAN
A D J U S T A B I L I T Y
Performance @25°C (77°F)
Accuracy* < ±0.25% BFSL
Stability (1 year) ±0.25%FS, typ
Over range Protection 2X Rated Pressure
Burst Pressure 5X or 10,000 psi (whichever is less)
Pressure Cycles > 100 Million
* Accuracy includes non-linearity, hysteresis & non-repeatability
Environmental Data
Temperature
Operating -40 to 85°C (-40 to 185°F)
Storage
Thermal Limits
Compensated Range 0 to 55°C (30 to 130°F)
TC Zero <±1.5% of FS
TC Span <±1.5% of FS
Other
Shock 100G, 11 msec, 1/2 sine
Vibration 10G peak, 20 to 2000 Hz.
EMI/RFI Protection: Yes
Rating:
-40 to 100°C (-40 to 212°F)
IP-66
8 Leroy Road, PO Box 1073 Williston, VT 05495
Phone: (802) 863-0085 Fax: (802) 863-1193
Email: [email protected]
Page 2
Ordering information
AS T 4 3 1 0 A 0 0 50 0 P 3 L 0 0 0 0
Series Type
Process Connection
A=1/4” NPT Male
B=1/8” NPT Male
C=1/4” BSPP Male
I= 1/4” NPT Female
P=1/2” NPT Male
Pressure Ranges*
PSIG
Measurement
Range
-14.7 to 30** V0030**
0-25 00025
0-50 00050
Pressure
Range
Code
BARG
Measurement
Range
-1 to 2** V0002**
0-2 00002
0-5 00005
Pressure
Range
Code
Pressure Range
Insert pressure range code from chart
Pressure Unit
B= Bar
K= kg/cm2
P= PSI
Outputs
3= 1-5V
4= 4-20mA (2 wire loop powered)
Electrical (Standard Conduit is 1/2-14 Male NPT)
L= Conduit tting, Cable 2ft (0.6m)
M= Conduit tting, Cable 4ft (1.2m)
N= Conduit tting, Cable 6ft (1.8m)
P= Conduit tting, Cable 10ft (3.0m)
Wetted Material
0=17-4PH
1=316 L
Options
000= No special options
0-100 00100
0-200 00200
0-250 00250
0-300 00300
0-500 00500
0-1,000 01000
0-1,500 01500
0-2,500 02500
0-3000 03000
0-5,000 05000
0-7,500 07500
0-10,000 10000

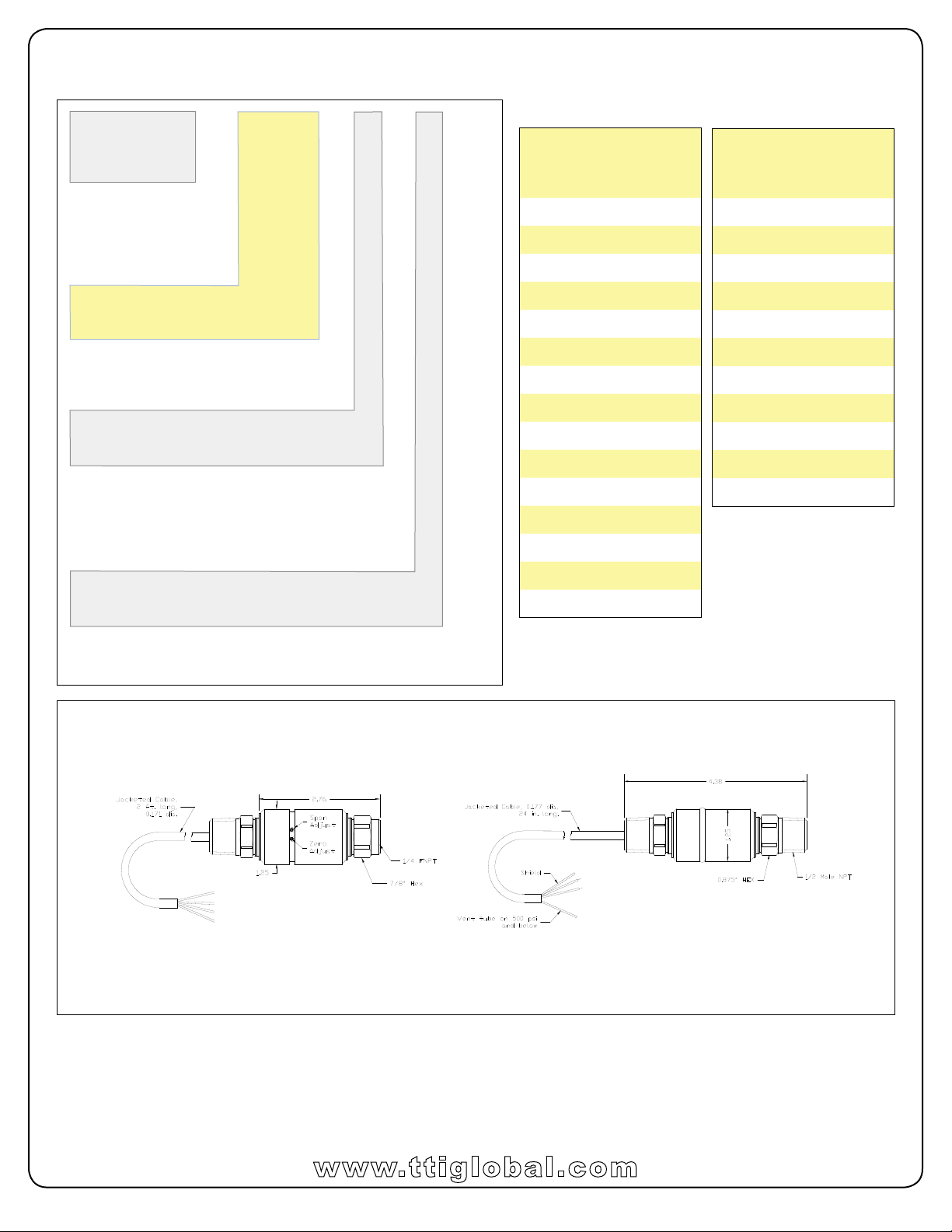

Dimensional Data
0-10 00010
0-20 00020
0-50 00050
0-100 00100
0-250 00250
0-350 00350
0-500 00500
0-700 00700
*Typic a l range s . A l l range s
between 0-25 psi and 0-10,000
psi available. **Compound
ranges up to -14.7 to 2500 psi
available. Please consult factory.
Warranty
Workmanship - AST, Inc. pressure transmitters have a limited one-year warranty to the original purchaser. AST, Inc. will replace or repair, free
of charge, any defective transmitter. This warranty does not apply to any units that have been modied; misused, neglected or installed where
the application exceeds published ratings. AST’s sensors are made with pride in New Jersey, USA. If in the area please feel free to stop by for
a visit!
Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the transmitter.
www.ttiglobal.com
© 2007 American Sensor Technologies Inc. All specications are subject to change without notice. Form data4310, Rev 1/16/07
